Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045
(830)629-2900 / 1-800-729-3839 / Fax (830)620-6711
E-MAIL: [email protected] INTERNET: www.detex.com

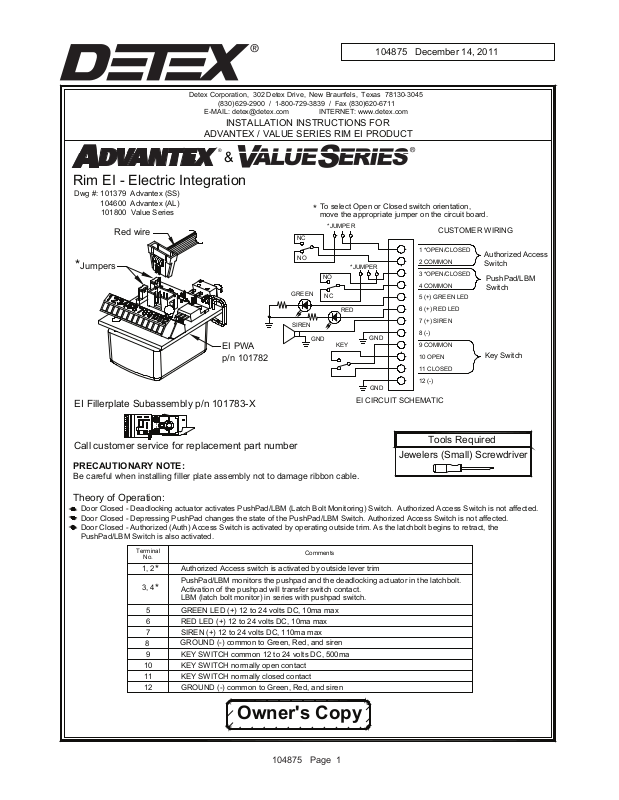

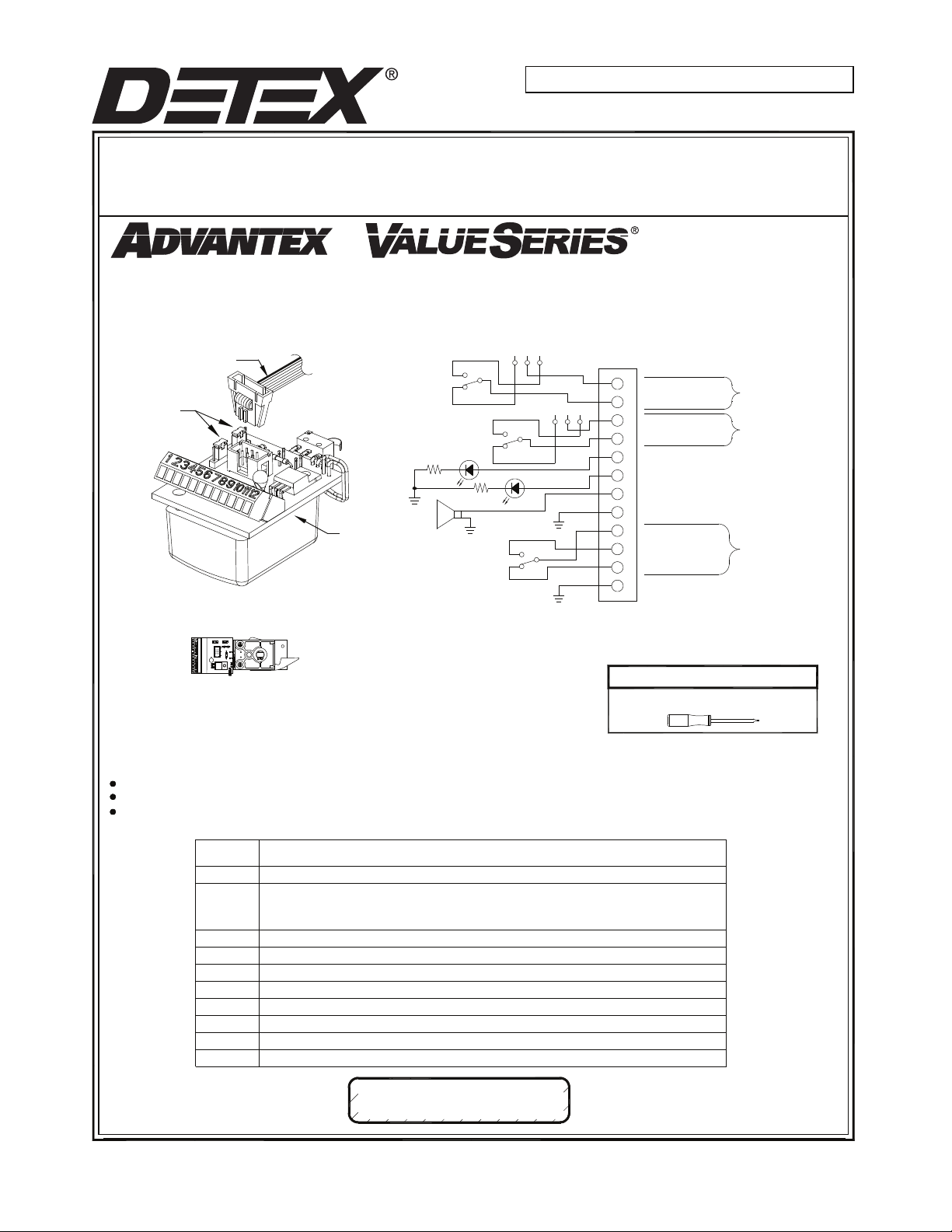

INSTALLATION INSTRUCTIONS FOR
ADVANTEX / VALUE SERIES RIM EI PRODUCT
®
&
Rim EI - Electric Integration
Dwg #: 101379 Advantex (SS)
104600 Advantex (AL)
101800 Value Series
Red wire
*
Jumpers
EI PWA
p/n 101782
EI Fillerplate Subassembly p/n 101783-X
104875 December 14, 2011
To select Open or Closed switch orientation,
*
move the appropriate jumper on the circuit board.
*JUMPER
NC
NO
GREEN
SIREN
GND
NO
NC
*JUMPER
RED
KEY
GND
GND
EI CIRCUIT SCHEMATIC
1 *OPEN/CLOSED
2 COMMON
3 *OPEN/CLOSED
4 COMMON
5 (+) GREEN LED
6 (+) RED LED
7 (+) SIREN
8 (-)
9 COMMON
10 OPEN
11 CLOSED
12 (-)
CUSTOMER WIRING
Authorized Access
Switch
PushPad/LBM
Switch
Key Switch
Call customer service for replacement part number
Tools Required
Jewelers (Small) Screwdriver
PRECAUTIONARY NOTE:
Be careful when installing filler plate assembly not to damage ribbon cable.
Theory of Operation:
Door Closed - Deadlocking actuator activates PushPad/LBM (Latch Bolt Monitoring) Switch. Authorized Access Switch is not affected.
Door Closed - Depressing PushPad changes the state of the PushPad/LBM Switch. Authorized Access Switch is not affected.
Door Closed - Authorized (Auth) Access Switch is activated by operating outside trim. As the latchbolt begins to retract, the
PushPad/LBM Switch is also activated.
Terminal
No.
1, 2
3, 4
5
6
7
8
9
10
11
12
Authorized Access switch is activated by outside lever trim
*
PushPad/LBM monitors the pushpad and the deadlocking actuator in the latchbolt.
*
Activation of the pushpad will transfer switch contact.
LBM (latch bolt monitor) in series with pushpad switch.
GREEN LED (+) 12 to 24 volts DC, 10ma max
RED LED (+) 12 to 24 volts DC, 10ma max
SIREN (+) 12 to 24 volts DC, 110ma max
GROUND (-) common to Green, Red, and siren
KEY SWITCH common 12 to 24 volts DC, 500ma
KEY SWITCH normally open contact
KEY SWITCH normally closed contact
GROUND (-) common to Green, Red, and siren
Comments
Owner's Copy
