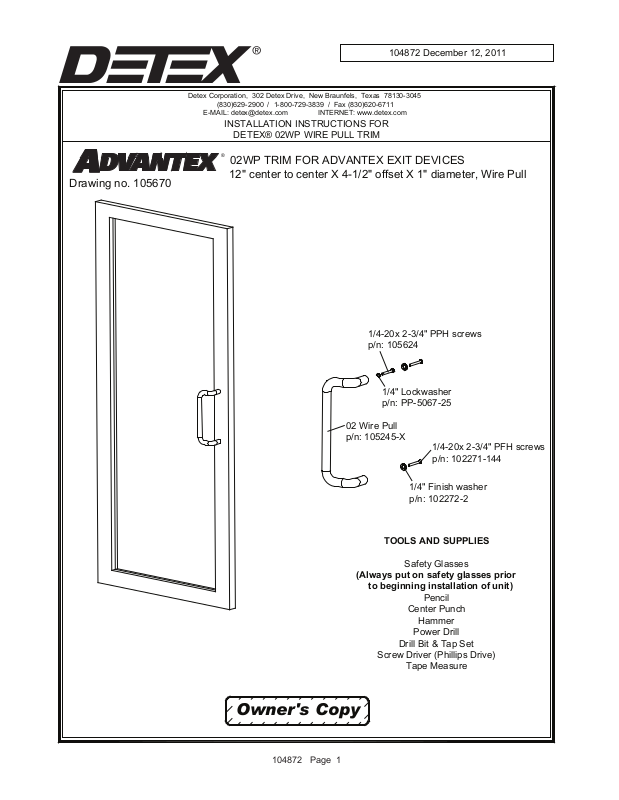

Page 1
Drawing no. 105670
104872 December 12, 2011
Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045
(830)629-2900 / 1-800-729-3839 / Fax (830)620-6711
E-MAIL: [email protected] INTERNET: www.detex.com

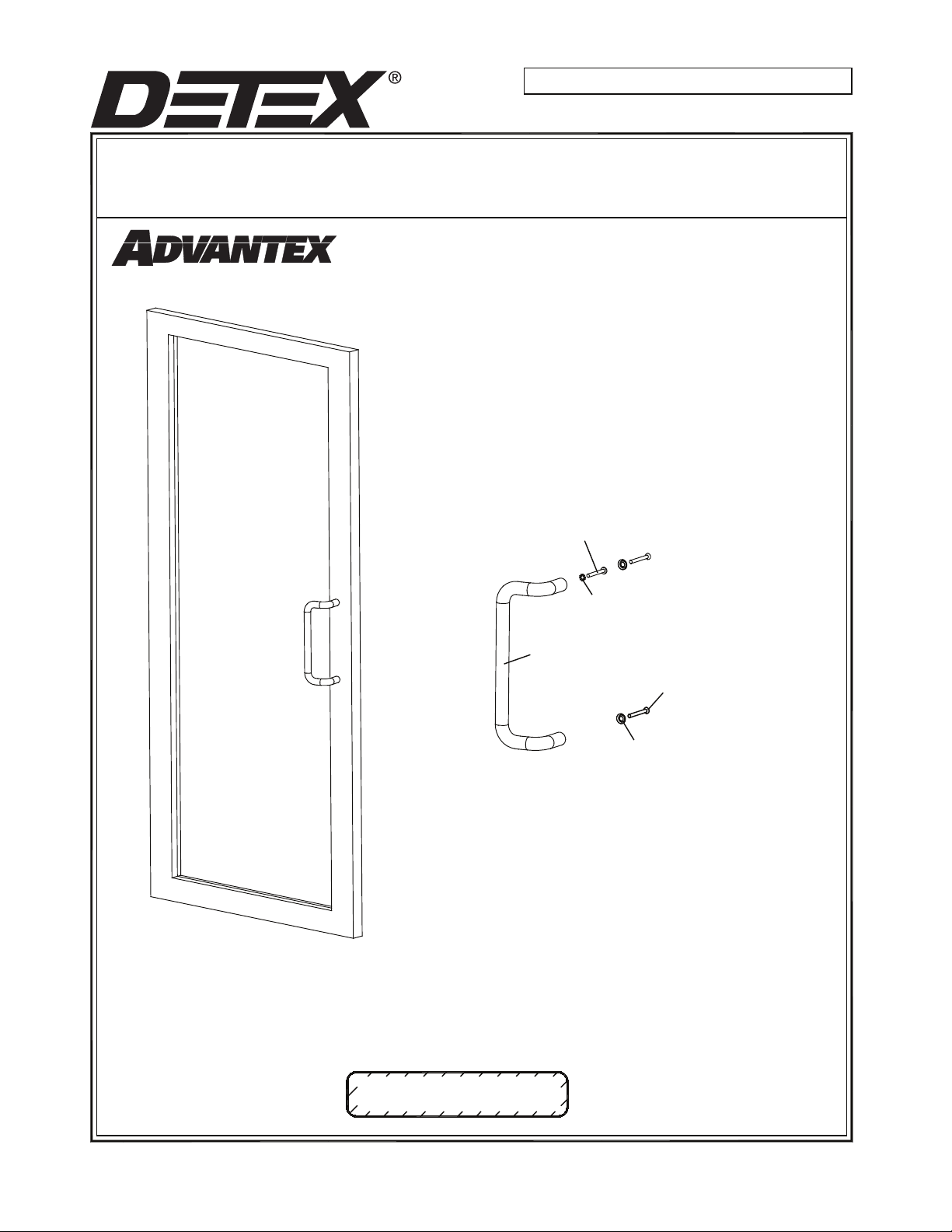

INSTALLATION INSTRUCTIONS FOR
DETEX® 02WP WIRE PULL TRIM
®
02WP TRIM FOR ADVANTEX EXIT DEVICES
12" center to center X 4-1/2" offset X 1" diameter, Wire Pull
1/4-20x 2-3/4" PPH screws
p/n: 105624
1/4" Lockwasher
p/n: PP-5067-25
02 Wire Pull
p/n: 105245-X
TOOLS AND SUPPLIES
(Always put on safety glasses prior
to beginning installation of unit)
Drill Bit & Tap Set
Screw Driver (Phillips Drive)
1/4-20x 2-3/4" PFH screws
p/n: 102271-144
1/4" Finish washer
p/n: 102272-2
Safety Glasses
Pencil
Center Punch
Hammer
Power Drill
Tape Measure
Owner's Copy
104872 Page 1
Page 2

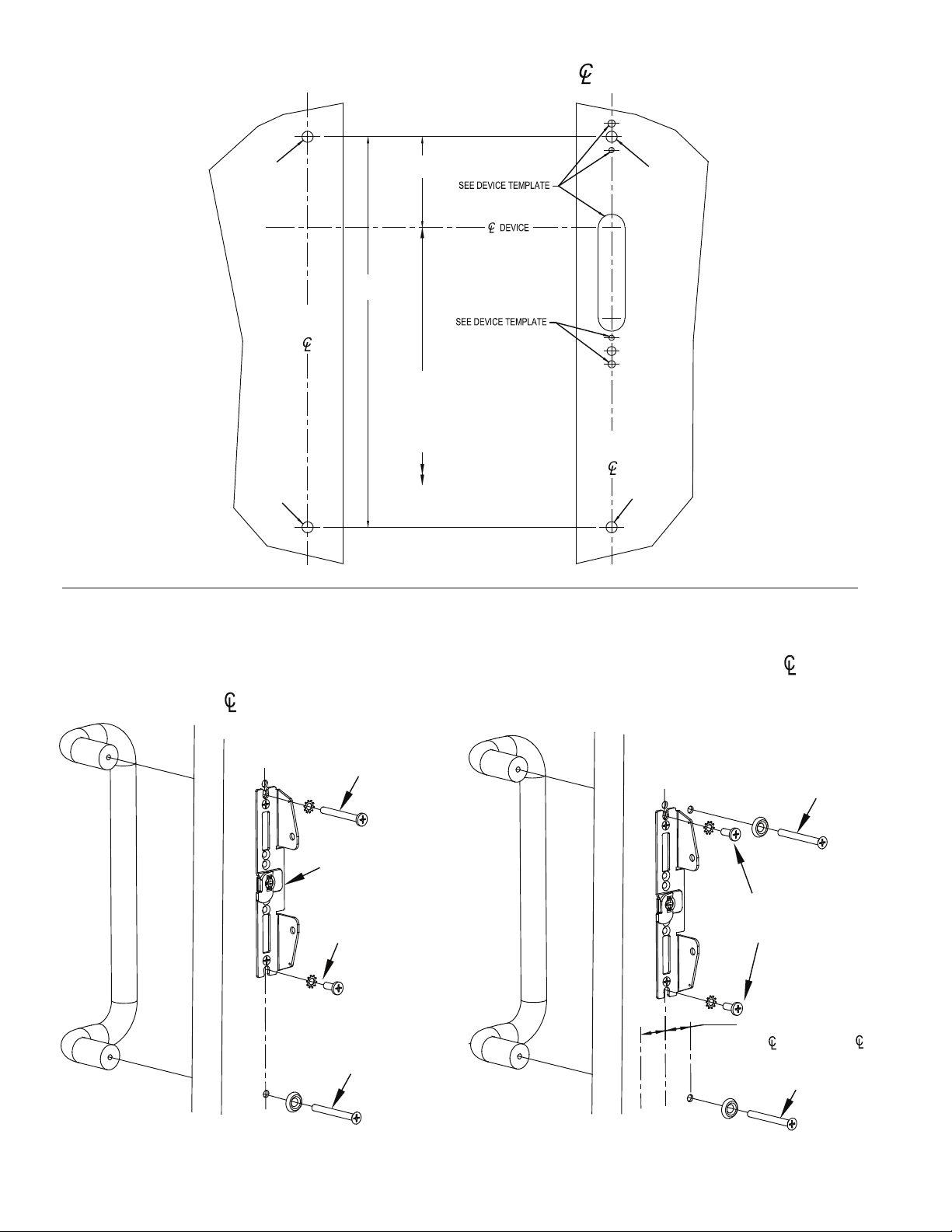

Door Prep for trim on device vertical mounting
(not to scale)
3-1/2"
(89)
12"
40" (1016)
HEIGHT
(RECOMMENDED)
TO FINISHED
FLOOR
OUTSIDE
FACE
OF LOCK
STILE
LHR DOOR
Ø 5/16"
(8mm)
(305)
DEVICE
VERTICAL
Ø 5/16"
(8mm)
Trim installation
(Concealed Vertical Rod device installation shown)
Ø 5/16"
(8mm)
INSIDE
FACE OF
LOCK STILE
LHR DOOR
DEVICE
VERTICAL
Ø 5/16"
(8mm)
Wire Pull mounted
on device vertical .
Use 2-3/4" PPH screw
with lockwasher
BP12 backplate
shown
this hardware
supplied with
device
Use PFH screw
without lockwasher
Wire Pull mounted beside* device vertical .
Note: may not be possible on narrow stile
aluminum applications.
Use PFH screw
without lockwasher
this hardware
supplied with
device
3/4"
3/4"
*minimum between
pull and device
Use PFH screw
without lockwasher
104872 Page 2
