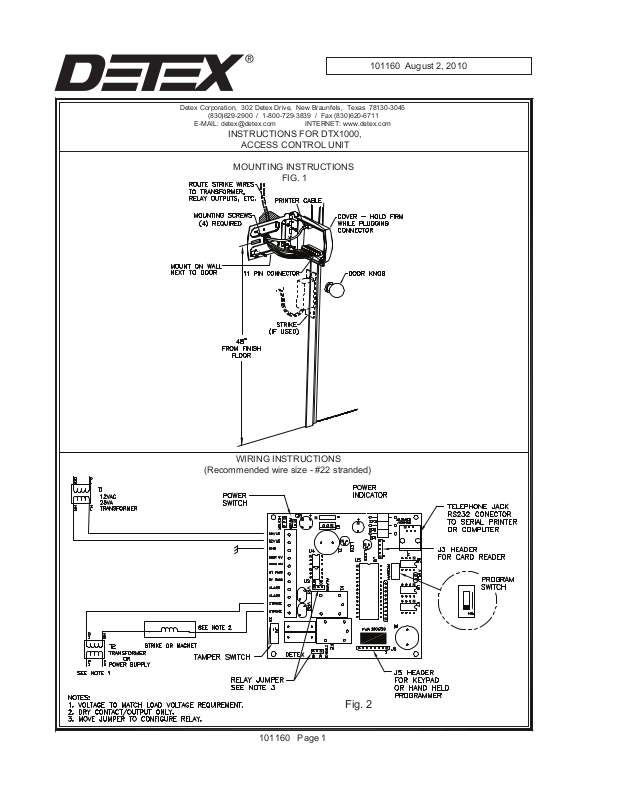

INSTRUCTIONS FOR DTX1000,
ACCESS CONTROL UNIT

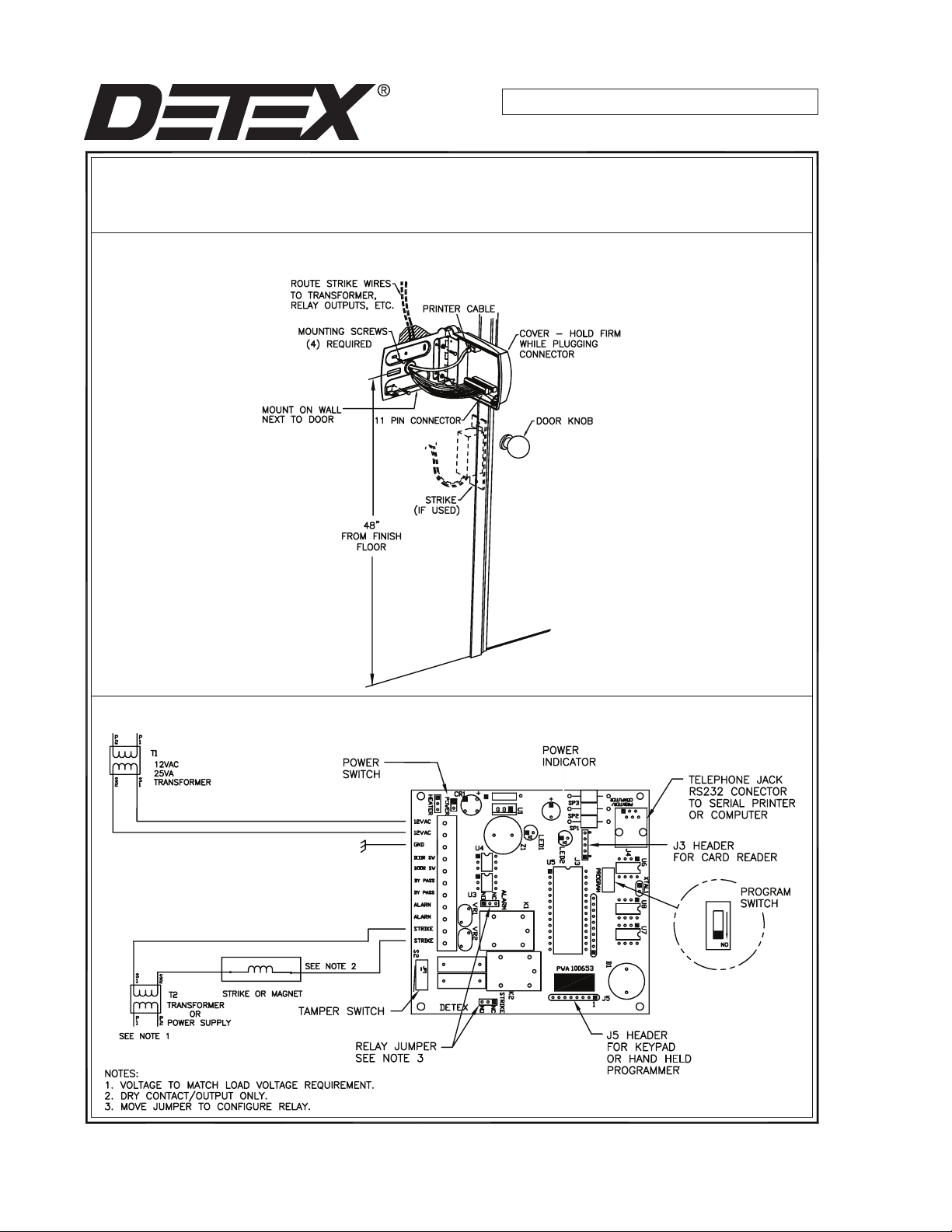

MOUNTING INSTRUCTIONS
FIG. 1
WIRING INSTRUCTIONS
(Recommended wire size - #22 stranded)
Fig. 2
101160 Page 1
Page 2

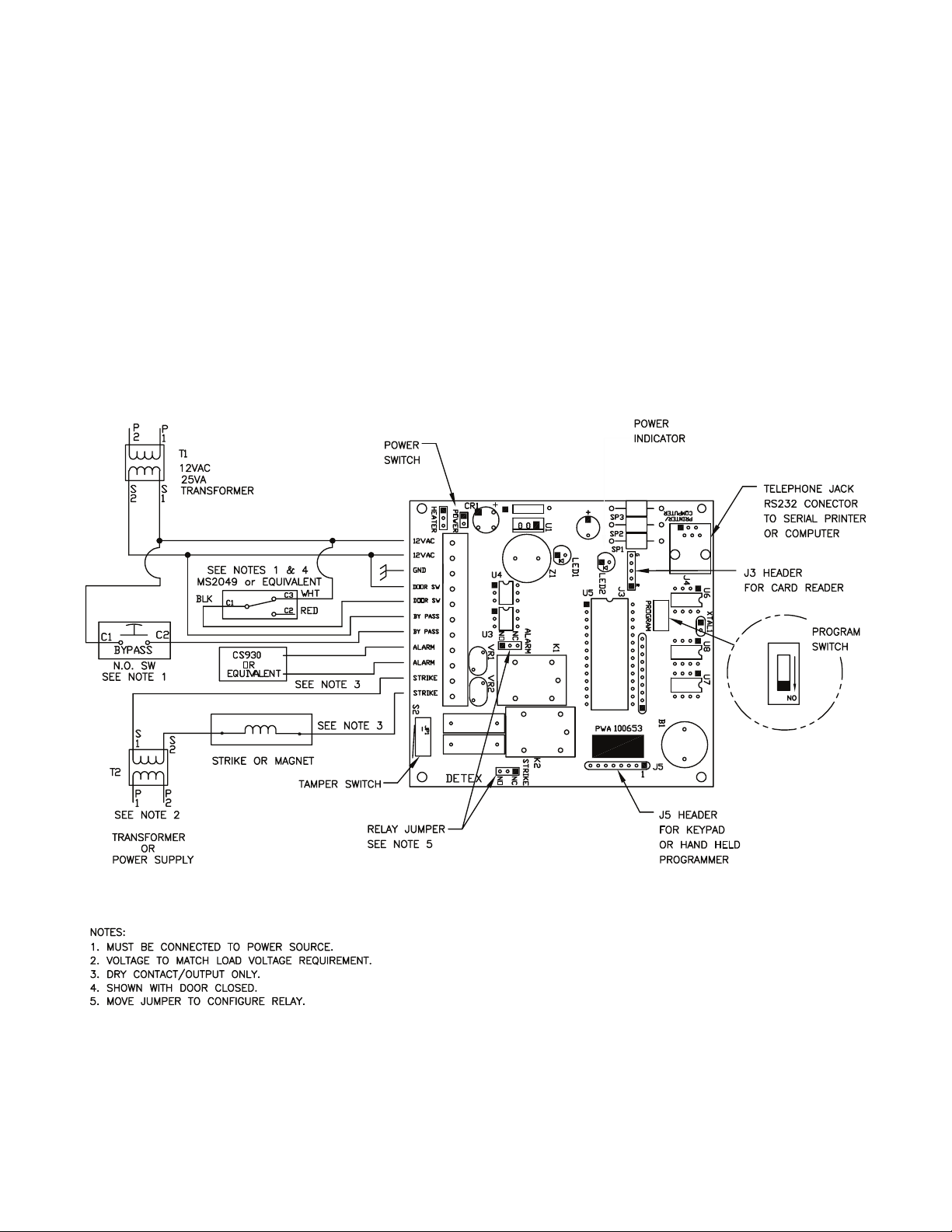

WIRING INSTRUCTIONS - "COMPLETE OPTIONS"
FIG. 3
(Recommended wire size - #22 stranded)
101160 Page 2
Page 3
MANUAL PROGRAMMING INSTRUCTIONS FOR DTX1000
Follow steps 1-5 for all versions
1. Verify customer's specs and wiring according to Figure 2 or Figure 3 and power is on.
Note: If the anti-tamper switch (ATS) is wired to an alarm system, disable the alarm system
before proceeding to Step 2. (Re-arm alarm system when programming is completed.)
2 Open cover.
3. Turn "POWER" switch "OFF".
4. Turn "PROGRAM" switch to "OFF".
5. Turn "POWER" s
witch "ON" - solid green LED turns on.
6. Programming the "DTX1100" series with Keypad only:
COMMAND
set common access code (CAC)
set strike time
set door open time
set keypad time out
set supervisors code
disable supervisors code
KEYPAD SEQUENCE
05 * 2 to 4 digits, 00-9999 #
08 * 3 digit No. 001-255 sec #
09 * 3 digit No. 001-255 sec #
10 * 3 digit No. 001-255 sec #
13 * 2 to 4 digits, 00-9999
#
13 * 0 #
(NOTE: Command 13 enabled, disables software functions)
set time
set date
17 * hr(00-23) * min(00-59) * sec(00-59) #
18 * mo(01-12) * day(01-31) * yr(00-99) #
7. Turn "POWER" switch "OFF".
8. Turn "PROGRAM" switch to "ON".
9.
Turn "POWER" switch "ON" and observe LED flashes on/off.
10. Close cover and lock.
6. Connect programmer to circuit board while holding cover firmly.
7. Programming the "DTX1200" series with Cardreader only using hand held PROGRAMMER:
COMMAND
validate range of cards
add one card to range of cards
cancel si
ngle card
reinstate all cancelled cards
set strike time
set door open time
print valid range of cards
print invalid card list
set time
set date
KEYPAD SEQUENCE
01 * start 4 digit(0001-9999) * end 4 digit(0001-9999) #
01 * start 4 digit *
end 4 digit(include added card number) #
02 * 4 digit No.(0001-9999) #
02 * 0 #
08 * 3 digit No. 001-255 sec #
09 * 3 digit No. 001-255 sec #
* #
11
12 * #
17 * hr(00-23) * min(00-59) * sec(00-59) #
18 * mo(01-12) * day(01-31) * yr(00-99) #
8. Turn "POWER" switch "OFF".
9. Remove hand held PROGRAMMER.
10. Turn "PROGRAM” switch “ON”.
11. Turn "POWER" switch "ON" and observe LED flashes on/off.
12. Close cover and lock.
101160 Page 3
Page 4
6. Programming the "DTX1300" series with Keypad and Cardreader:
COMMAND
validate range of cards
add one card to range of cards
cancel single card
reinstate all cancelled cards
enable keypad
disable keypad
enable card reader
disable card reader
enable CAC No., disable P.I.N.
disable CAC No., enable P.I.N.
set strike time
set door open time
set keypad time out
print valid range of cards
print invalid card l
ist
set time
set date
KEYPAD SEQUENCE
01 * start 4 digit No.(0001-9999) * end 4 digit No.(0001-9999) #
01 * start 4 digit * end 4 digit(include added card number) #
02 * 4 digit No.(0001-9999) #
0
2 * 0 #
03 * 1 #
03 * 0 #
04 * 1 #
04 * 0 #
05 * 2 to 4 digits(00-9999)
05 * 0 #
08 * 3 digit No. 001-255 sec #
09 * 3 digit No. 001-255 sec #
10 * 3 digit No. 001-255 sec #
11 * #
12 *
17 * hr(00-23) * min(00-59) * sec(00-59) #
18 * mo(01-12) * day(01-31) * yr(00-99) #
8. Turn "POWER" switch "OFF".
9. Turn “PROGRAM” switch “ON”.
10. Turn "POWER" switch "ON" and observe LED flashes on/off.
11. Close cover and lock.
#
#
GLOSSARY OF TERMS:
STRIKE TIME - Controls time which strike relay remains energized.
DOOR OPEN TIME - Controls time which door may remain open before alarm relay will
operate.
KEYPAD TIME OUT - Controls time allowed to complete keypad operation for access.
P.I.N. - Personal Identification Number included in card information.
101160 Page 4
Page 5
101160 Page 5
KEYPAD ONLY
SERIAL PRINTER ONLY
Configure serial card as follows:
4800 (baud rate), n (stop bits) 1 ("even" parity bit)
1 2 3 #
0 0 0 0
11:15:14 03/31/98
Access Granted
1 4 5 # Invalid CAC
CARD READER ONLY
:000423344102001
1020
16:40:17 03/31/98
:00042334410120
Invalid serial number
CARD READER AND KEY
:000423344102001 Valid Serial Number
123#
11:20:17 04/01/98
Access Granted
|
Valid CAC entered at Keypad
|
Access is granted
|
|
|
1 4 5 # Invalid CAC
|
|
Valid Card S/N 1020 read by card reader
|
Access is granted
|
|
Invalid serial number has been read by card reader
|
|
|
PAD
|
Valid serial number has been read by card reader
|
CAC 123 entered by keypad
|
Access is granted
|
11:56:44 04/01/98
Access Granted
REMOT
E BYPASS
|
Remote bypass switch has been activated
|
|
Page 6

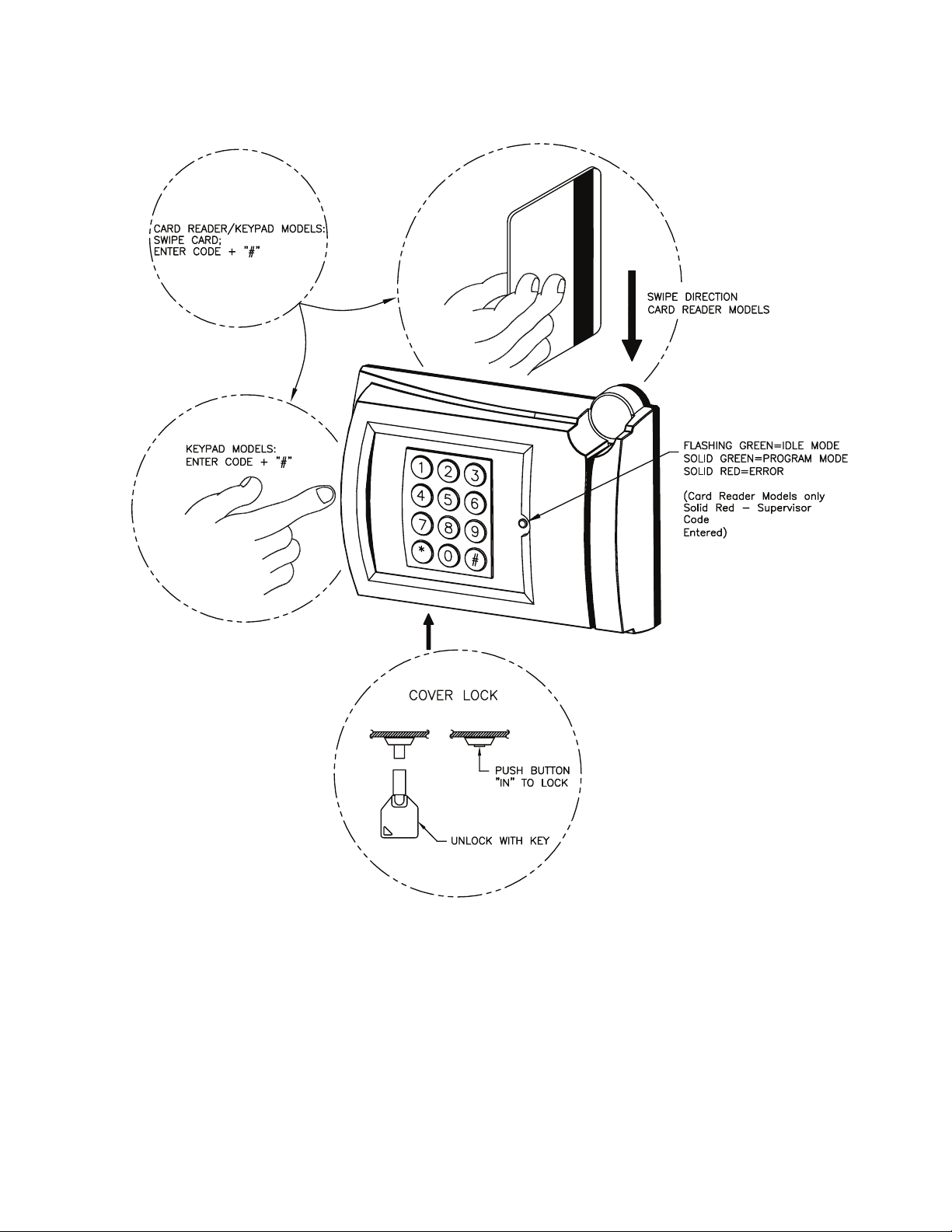

OPERATING INSTRUCTIONS
QUESTIONS?
Contact Customer Service at
1-800-729-3839
101160 Page 6
