103161 June 12, 2007
Detex Corporation, 302 Detex Drive, New Braunfels, Texas 78130-3045
(830)629-2900 / 1-800-729-3839 / Fax (830)620-6711
E-MAIL: [email protected] INTERNET: www.detex.com

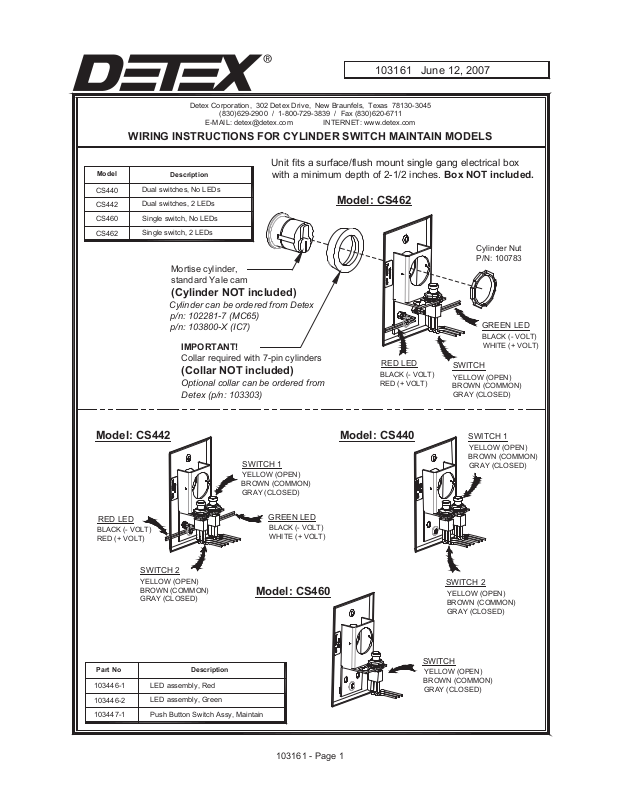

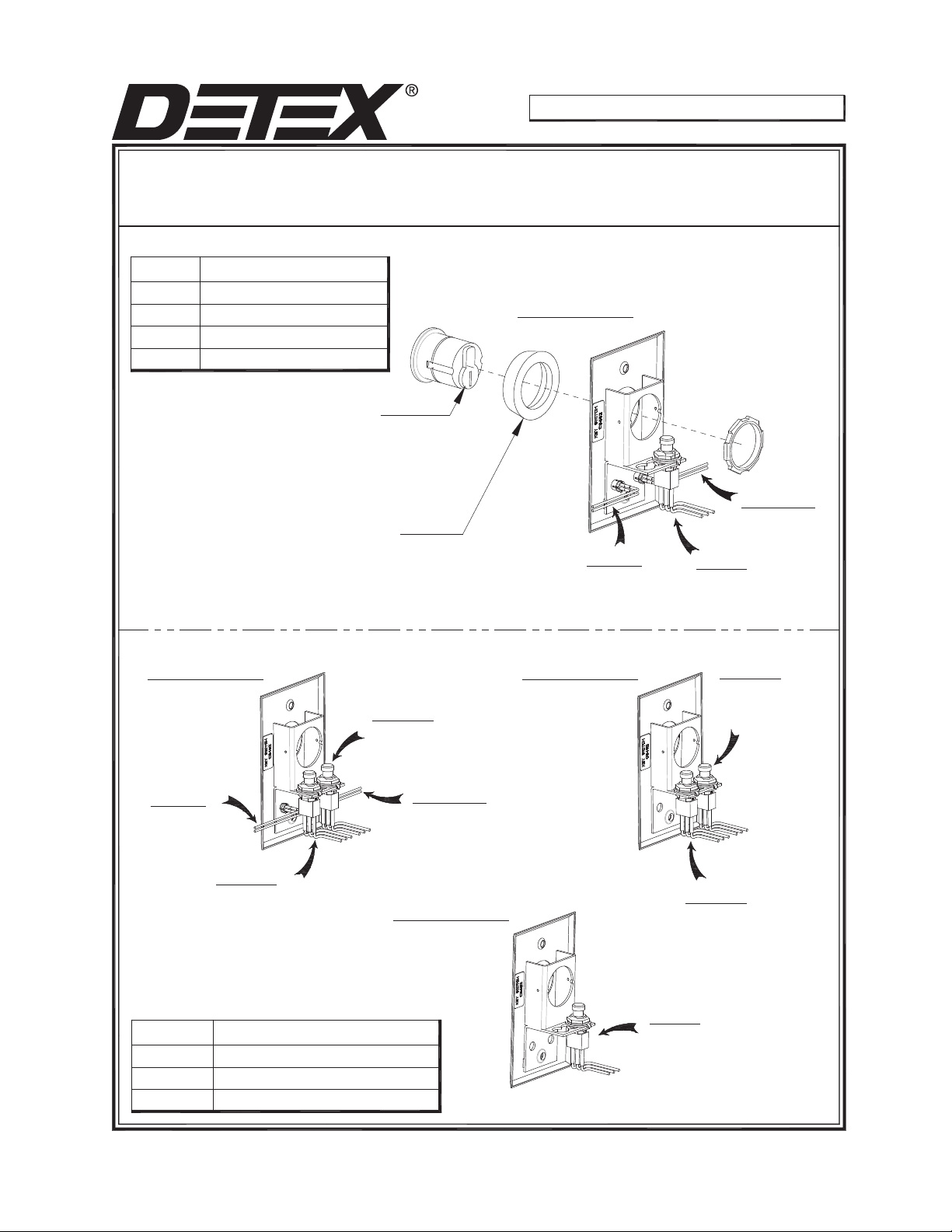

WIRING INSTRUCTIONS FOR CYLINDER SWITCH MAINTAIN MODELS
Model
CS440
CS442
CS460
CS462
Dual switches, No LEDs
Dual switches, 2 LEDs
Single switch, No LEDs
Single switch, 2 LEDs
Model: CS442
Unit fits a surface/flush mount single gang electrical box
Description
Mortise cylinder,
standard Yale cam
with a minimum depth of 2-1/2 inches. Box NOT included.
(Cylinder NOT included)
Cylinder can be ordered from Detex
p/n: 102281-7 (MC65)
p/n: 103800-X (IC7)
IMPORTANT!
Collar required with 7-pin cylinders
(Collar NOT included)
Optional collar can be ordered from
Detex (p/n: 103303)
SWITCH 1
YELLOW (OPEN)
BROWN (COMMON)
GRAY (CLOSED)
Model: CS462
RED LED
BLACK (- VOLT)
RED (+ VOLT)
Model: CS440
Cylinder Nut
P/N: 100783
GREEN LED
BLACK (- VOLT)
WHITE (+ VOLT)
SWITCH
YELLOW (OPEN)
BROWN (COMMON)
GRAY (CLOSED)
SWITCH 1
YELLOW (OPEN)
BROWN (COMMON)
GRAY (CLOSED)
RED LED
BLACK (- VOLT)
RED (+ VOLT)
Part No
103446-1
103446-2
103447-1
SWITCH 2
YELLOW (OPEN)
BROWN (COMMON)
GRAY (CLOSED)
Description
LED assembly, Red
LED assembly, Green
Push Button Switch Assy, Maintain
GREEN LED
BLACK (- VOLT)
WHITE (+ VOLT)
Model: CS460
103161 - Page 1
SWITCH 2
YELLOW (OPEN)
BROWN (COMMON)
GRAY (CLOSED)
SWITCH
YELLOW (OPEN)
BROWN (COMMON)
GRAY (CLOSED)
Page 2
Function Table
Model
CS460
CS462
CS440
CS442
Turn key CCW to activate switch. Switch maintains state
when key is released. Turn key CCW again to release switch.
To activate switch one, turn key CCW. Switch two is activated by
turning key CW. Switches maintain state when key is released.
Repeat key operation to return switch to normal state.
Function

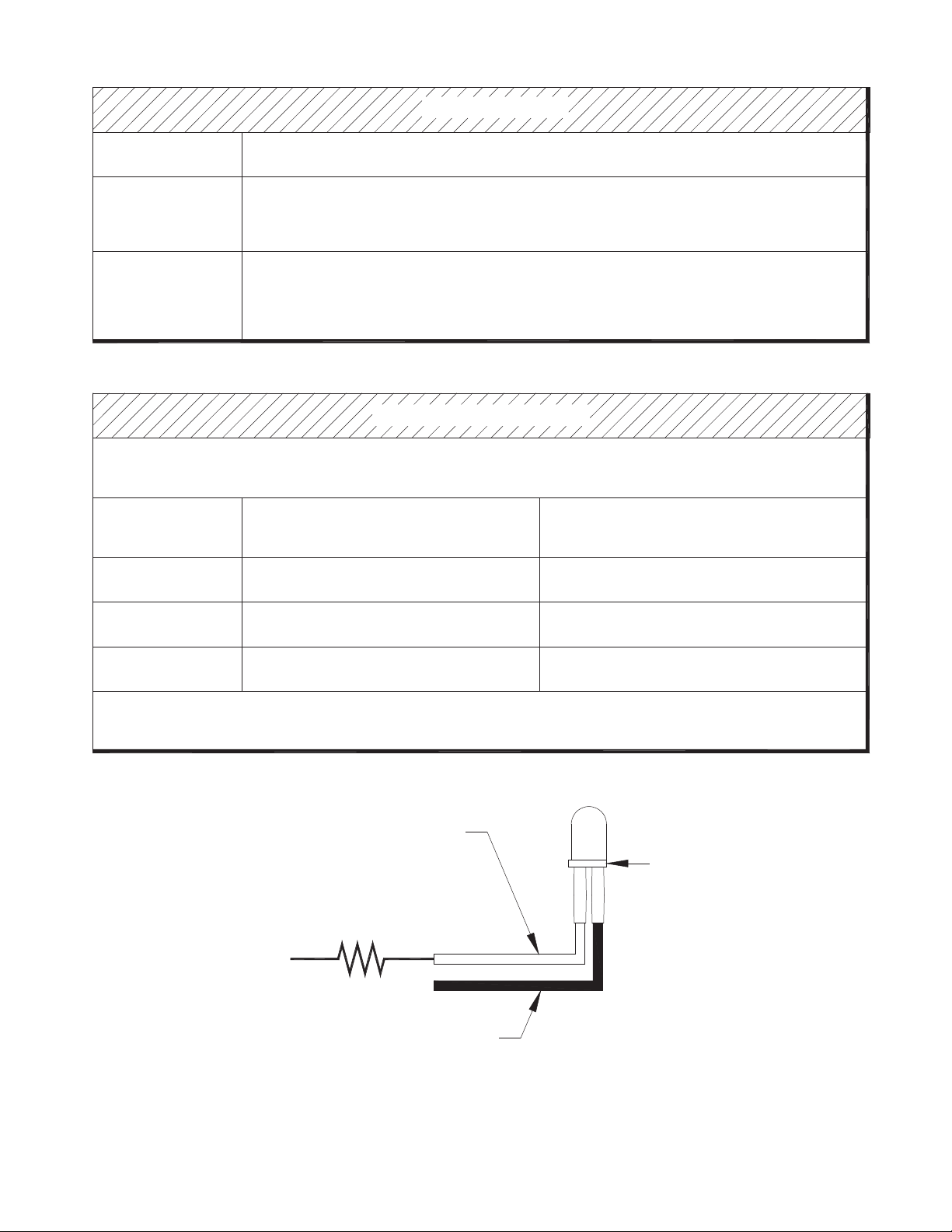

LED Information Table
IMPORTANT!
LED(s) should be powered by DC voltage. Use of AC power may damage the LED(s).
LED Supply
Voltage
5VDC
Use 270 Ohm 1/4 Watt
Resistor Type
Color Band
Red, Violet, Brown, Gold
12VDC
24VDC
Use 1000 Ohm 1/4 Watt
Use 2.0K 1/4 Watt
Brown, Black, Orange, Gold
Red, Black, Orange, Gold
NOTE: Use heat shrink to protect resistor connections from shorting
RED or WHITE wire
Flat side
Current Limit Resistor
(See LED Table for value)
BLACK wire
103161 - Page 2
