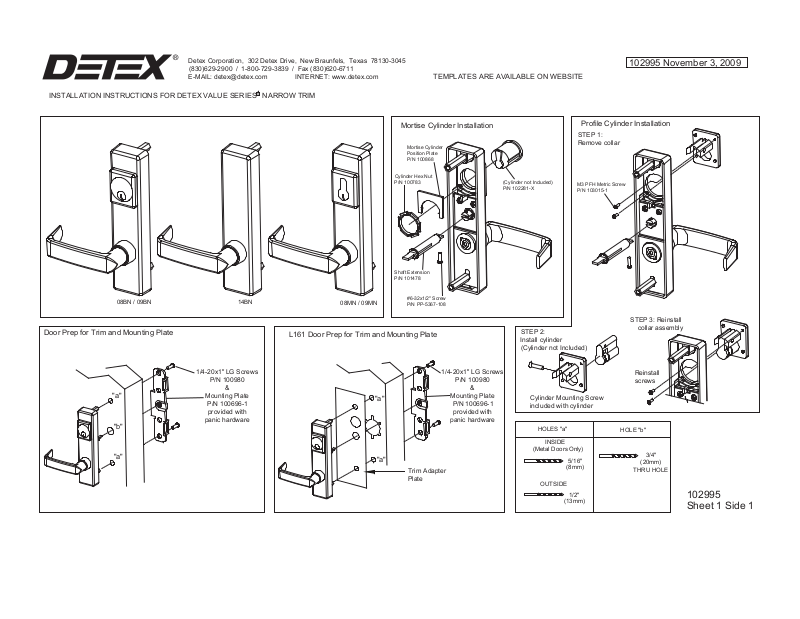

INSTALLATION INSTRUCTIONS FOR DETEX VALUE SERIES NARROW TRIM
R
102995 November 3, 2009
TEMPLATES ARE AVAILABLE ON WEBSITE
08BN / 09BN

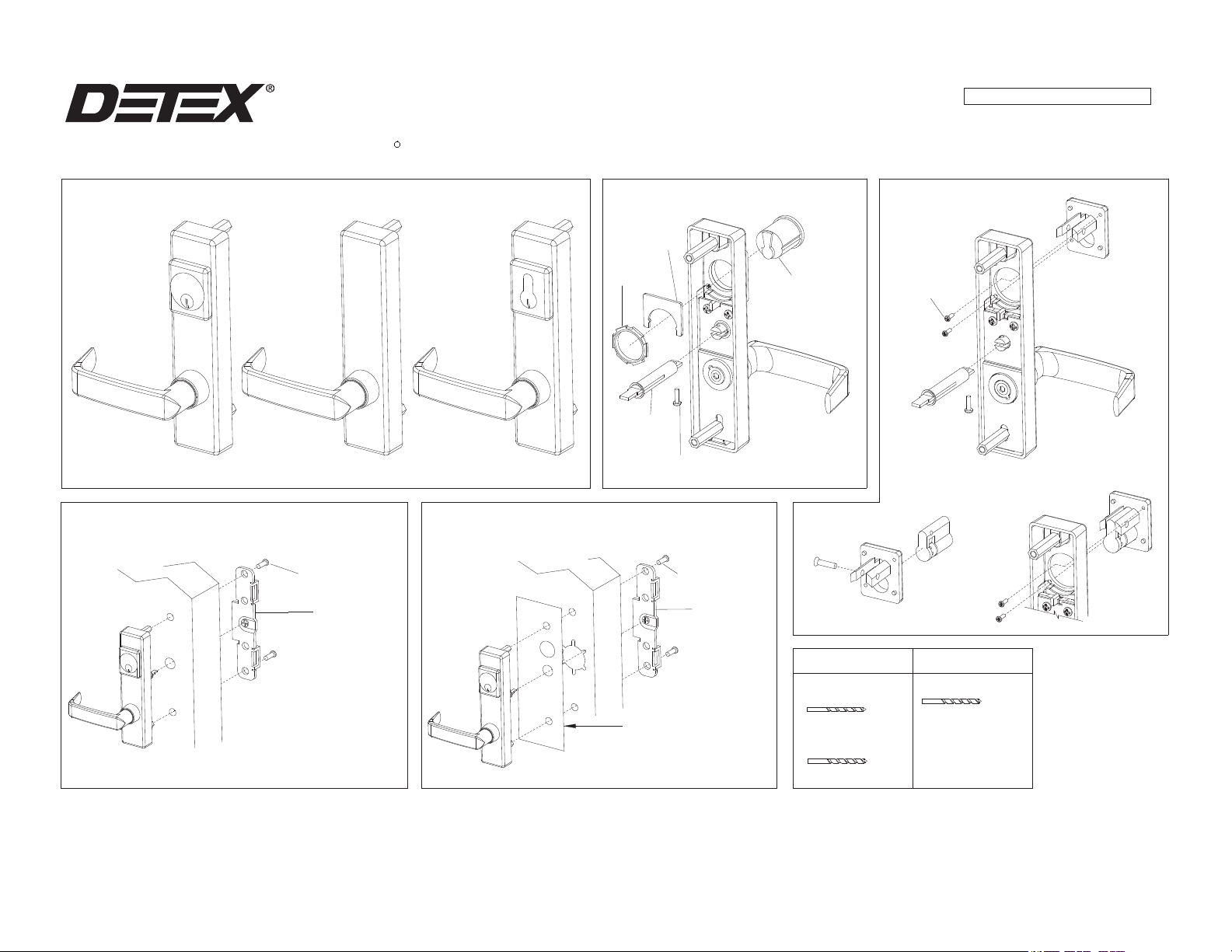

Door Prep for Trim and Mounting Plate
"a"
"b"
"a"
14BN
1/4-20x1" LG Screws
P/N 100980
&
Mounting Plate
P/N 100696-1
provided with
panic hardware
Mortise Cylinder Installation
Mortise Cylinder
Position Plate
P/N 100868
Cylinder Hex Nut
P/N 100783
Shaft Extension
P/N 101478
08MN / 09MN
#6-32x1/2" Screw
P/N PP-5367-108
L161 Door Prep for Trim and Mounting Plate
"a"
"a"
Trim Adapter
Plate
1/4-20x1" LG Screws
P/N 100980
&
Mounting Plate
P/N 100696-1
provided with
panic hardware
(Cylinder not Included)
P/N 102281-X
STEP 2:
Install cylinder
(Cylinder not Included)
Cylinder Mounting Screw
included with cylinder
HOLES "a"
(Metal Doors Only)
OUTSIDE
INSIDE
Profile Cylinder Installation
STEP 1:
Remove collar
M3 PFH Metric Screw
P/N 103015-1
HOLE "b"
5/16"
(8mm)
1/2"
(13mm)
STEP 3: Reinstall
collar assembly
Reinstall
screws
3/4"
(20mm)
THRU HOLE
102995
Sheet 1 Side 1
Page 2

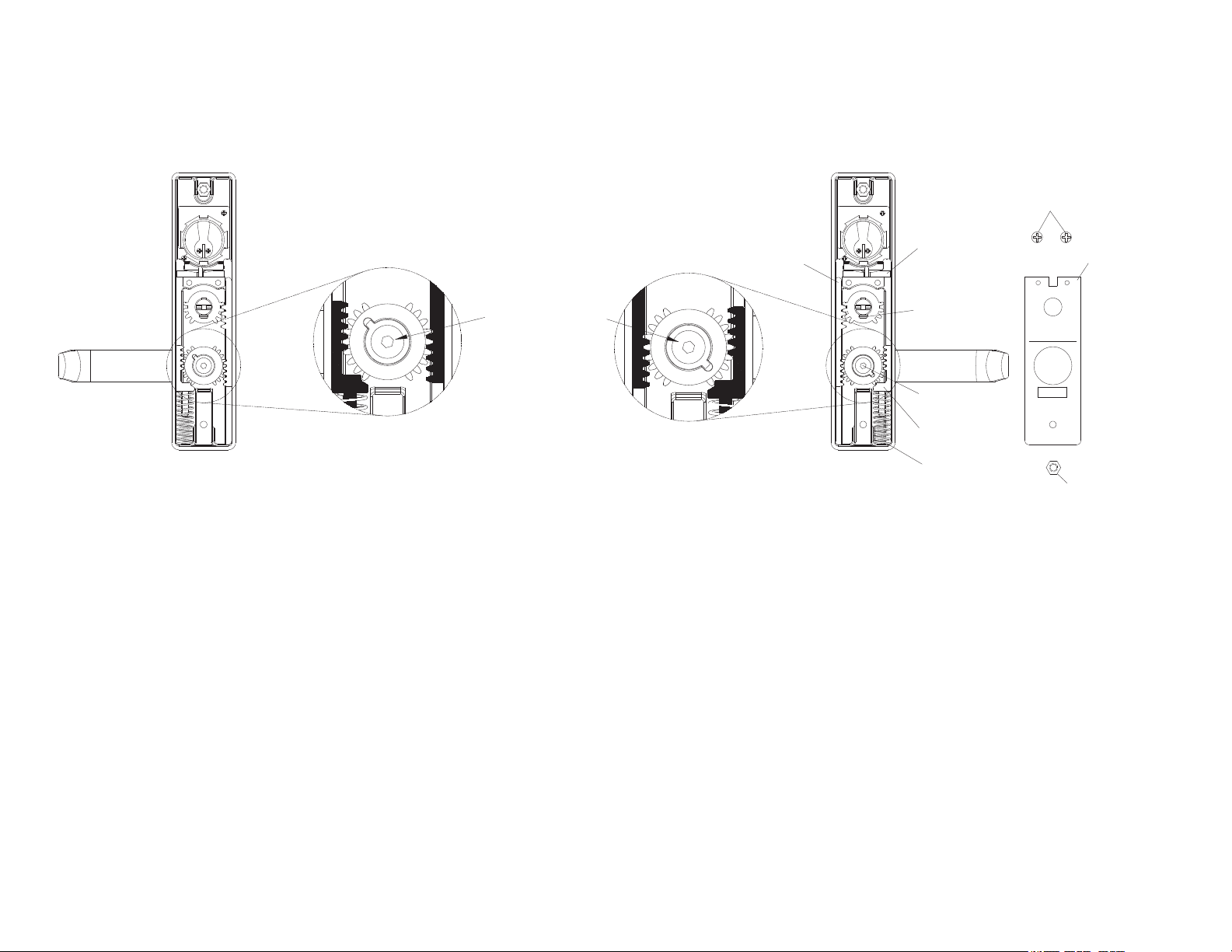

CHANGE LEVER HANDING
Before removing Top and Bottom Racks, note tooth positions.
If excessive play exists on handle, confirm tooth alignment.
Retaining Plate
Screws
p/n PP-5303-2
RHR
Top Rack
p/n 100865
DO NOT
REMOVE SCREW
A. Remove tailpiece assembly screw. (remove assembly if necessary)
B. Remove hex standoff and two (2) screws holding spring retaining plate.
WARNING: Springs under pressure!
C. Remove Spring Retaining Plate.
D. (09 Function only) Move Lock Bar to opposite side.
E. Carefully remove springs and bottom rack.
F. Remove top rack.
G. Rotate lever to opposite side.
H. Engage bottom rack on the opposite side as s
hown.
I. Engage top rack on the opposite side as shown.
J. Install springs on bottom rack. WARNING: Springs under pressure!
K. Replace Spring Retaining Plate, hex standoff and screws.
L. Replace tailpiece assembly screw.
LHR
Locking Bar
p/n 101994
Tailpiece Assembly
screw
p/n PP-5367-108
Lever
Center screw
p/n 100822-1
Bottom Rack
p/n 101457
Springs
p/n 100877
& 101510
Spring Retaining
Plate
p/n 100866
Hex Standoff
p/n 100777
Handing Complete
102995 Sheet 2 Side 2
