L2851
Fixed
L2851TH
35W Fixed
L2851LED6
LED Fixed
L2852
Up/Down
L2852TH
35W Up/Down
L2852LED6
LED Up/Down
L2853
Adjustable
L2853TH
35W Adjustable
L2853LED6
LED Adjustable
L2855
Fixed with PIR
L2855TH
Fixed with PIR
L2855LED6
Fixed with PIR
L2856
Up/Down with PIR
L2856TH
Up/Down with PIR
L2856LED6
Up/Down with PIR
O03
NPD 0480 07/14 V2
Safety Instruction
Ensure the power supply is switched off before fitting, servicing
This Wall Light is for outdoor use only and must be mounted on a non-flammable surface
Ensure adequate ventilation is allowed between the Wall Light and any object above, in
front or to either side. Minimum distance: 0.5m above, 0.3m to either side and 1.0m in
front.
The Wall Light can become hot during use. Allow adequate cooling time before handling.
This Wall Light is of Class I construction and must be earthed.
This Wall Light must be installed in accordance with the current edition of the IEE Wiring
Regulations.
If in doubt, contact a qualified electrician
PIR Control
To gain access to the PIR controls, flip the downwards. The controls from left to right are:
Time – turn the dial fully anti-clockwise, the light will stay on for 10secs. Turn the dial fully
clock wise, the light will stay on for approx. 4 mins.
Daylight / Lux – for testing / operation in daylight, turn the fully anti clock wise. After
testing, turn clockwise so that the light operates from during darkness.
Sensitivity – this determines the maximum detection range that the sensor covers. At the
maximum setting the range will be a maximum of 8m.
Manual override – to override the PIR so that the light stays on, turn the power to the light
off and immediately back on twice (off-on-off-on) within 2 seconds. To return control to
the PIR, turn the power to the Lantern of for at least 10 second and then back on again.
Installation Instructions
Remove the back plate from the fitting and puncture a small hole in the rubber seal. The
hole should be just large enough for the supply cable to fit tightly through it.
PIR versions should be mounted between 1.8 to 2.5m above ground level.
Feed the supply cable through the hole.
Securely mount the back plate to a suitable surface ensuring any drainage holes are at the
bottom.
Terminate the supply conductors into the terminal block ensuring the correct polarity is
observed.
Return the fitting to the back plate and secure in position.
Lamp Installation Instruction
Remove the end cap from the fitting taking care not to lose the rubber seal
Fit an appropriate lamp (max 35W GU10 or GU10 LED)
Return the end cap with rubber seal and tighten
Guarantee
Stainless steel can become stained over time due to environmental factors such as
proximity to coastal areas and exposure to high winds, pollution and high temperatures.
Staining is especially common within 5 miles of coastal areas.
Deta does not assume responsibility for corrosion or other damage due to environmental
factors, such as installation in areas where salt is present in either the air or soil, or
exposure to chemicals or high air pollution levels
Power Supply
220 - 240V 50Hz
PIR Detection Range &
Angle
8 meters @ 90°
IP Rating
IP44
PIR Time range
10 sec – 4 minutes
Construction
Class I (must be
earthed)
LED Lamp
3W 6400K
Lampholder
GU10
Halogen Lamp
35W aluminised GU10
8M4M6M
appro.120¡ã
1.8 - 2.5M
Fig. 1(A) DETECTION AREA of AL008-1

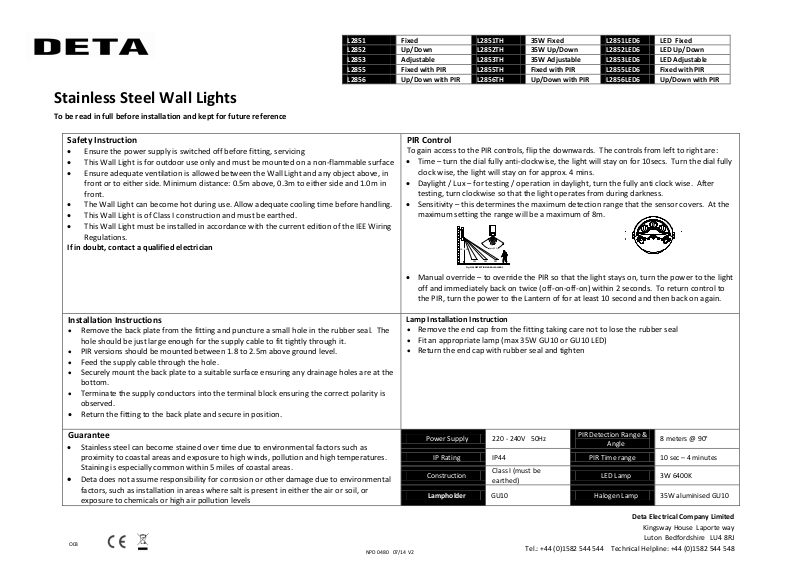

Stainless Steel Wall Lights
To be read in full before installation and kept for future reference
Deta Electrical Company Limited
Kingsway House Laporte way
Luton Bedfordshire LU4 8RJ
Tel.: +44 (0)1582 544 544 Technical Helpline: +44 (0)1582 544 548
