S16
NPD 0472 0414 V1
L2835
Half Lantern with PIR
Power Supply
220 - 240V 50Hz
Construction
Class II
Lamp Type
E27
PIR Detection Range & Angle
8 meters @ 120°
Lamp wattage
42W max
PIR Adjustments
None
IP Rating
IP44
PIR maual overide
No

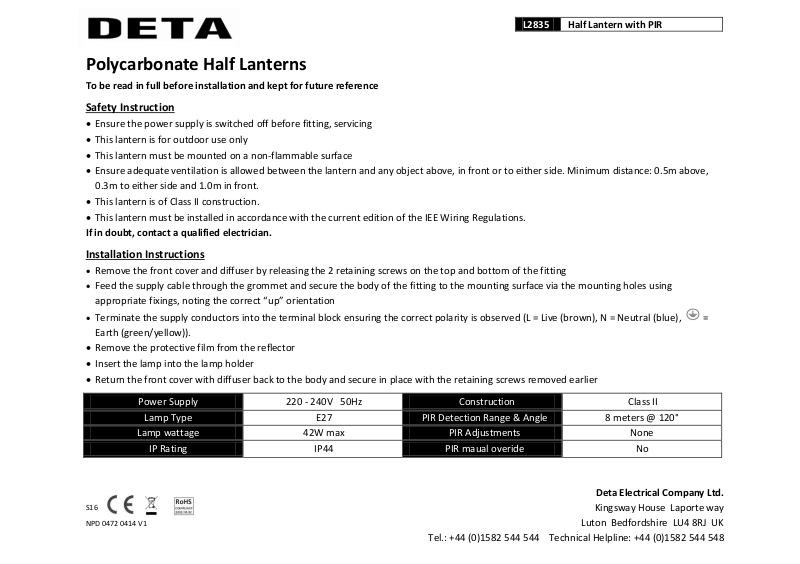

Polycarbonate Half Lanterns
To be read in full before installation and kept for future reference
Safety Instruction
Ensure the power supply is switched off before fitting, servicing
This lantern is for outdoor use only
This lantern must be mounted on a non-flammable surface
Ensure adequate ventilation is allowed between the lantern and any object above, in front or to either side. Minimum distance: 0.5m above,
0.3m to either side and 1.0m in front.
This lantern is of Class II construction.
This lantern must be installed in accordance with the current edition of the IEE Wiring Regulations.
If in doubt, contact a qualified electrician.
Installation Instructions
Remove the front cover and diffuser by releasing the 2 retaining screws on the top and bottom of the fitting
Feed the supply cable through the grommet and secure the body of the fitting to the mounting surface via the mounting holes using
appropriate fixings, noting the correct “up” orientation
Terminate the supply conductors into the terminal block ensuring the correct polarity is observed (L = Live (brown), N = Neutral (blue), =
Earth (green/yellow)).
Remove the protective film from the reflector
Insert the lamp into the lamp holder
Return the front cover with diffuser back to the body and secure in place with the retaining screws removed earlier
Deta Electrical Company Ltd.
Kingsway House Laporte way
Luton Bedfordshire LU4 8RJ UK
Tel.: +44 (0)1582 544 544 Technical Helpline: +44 (0)1582 544 548
