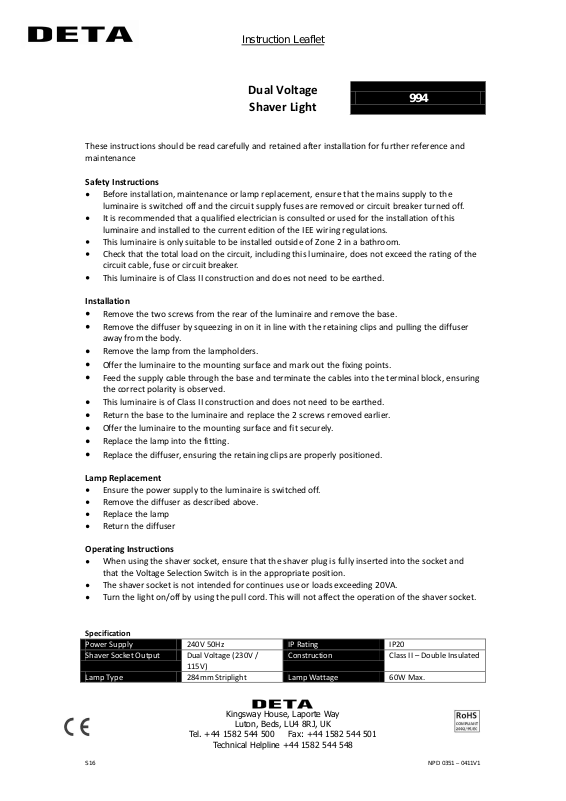

Deta 994 Installation Instructions

Instruction Leaflet

Dual Voltage

Shaver Light

994

Power Supply

240V 50Hz

IP Rating

IP20

Shaver Socket Output

Dual Voltage (230V /
115V)

Construction

Class II – Double Insulated

Lamp Type

284mm Striplight

Lamp Wattage

60W Max.

These instructions should be read carefully and retained after installation for further reference and
maintenance

Safety Instructions

Before installation, maintenance or lamp replacement, ensure that the mains supply to the

luminaire is switched off and the circuit supply fuses are removed or circuit breaker turned off.

It is recommended that a qualified electrician is consulted or used for the installation of this

luminaire and installed to the current edition of the IEE wiring regulations.

This luminaire is only suitable to be installed outside of Zone 2 in a bathroom.
Check that the total load on the circuit, including this luminaire, does not exceed the rating of the

circuit cable, fuse or circuit breaker.

This luminaire is of Class II construction and does not need to be earthed.

Installation

Remove the two screws from the rear of the luminaire and remove the base.
Remove the diffuser by squeezing in on it in line with the retaining clips and pulling the diffuser

away from the body.

Remove the lamp from the lampholders.
Offer the luminaire to the mounting surface and mark out the fixing points.
Feed the supply cable through the base and terminate the cables into the terminal block, ensuring

the correct polarity is observed.

This luminaire is of Class II construction and does not need to be earthed.
Return the base to the luminaire and replace the 2 screws removed earlier.
Offer the luminaire to the mounting surface and fit securely.
Replace the lamp into the fitting.
Replace the diffuser, ensuring the retaining clips are properly positioned.

Lamp Replacement

Ensure the power supply to the luminaire is switched off.
Remove the diffuser as described above.
Replace the lamp
Return the diffuser

Operating Instructions

When using the shaver socket, ensure that the shaver plug is fully inserted into the socket and

that the Voltage Selection Switch is in the appropriate position.

The shaver socket is not intended for continues use or loads exceeding 20VA.
Turn the light on/off by using the pull cord. This will not affect the operation of the shaver socket.

Specification

S16 NPD 0351 – 0411V1

Kingsway House, Laporte Way

Luton, Beds, LU4 8RJ, UK

Tel. [phone] Fax: [phone]

Technical Helpline [phone]
