UNVENTED (VENT-FREE) GAS FIREPLACE

OWNER’S OPERATION AND INSTALLATION MANUAL

Shown with optional cabinet mantel, hearth base and trim accessories.

EFS33NR, EFS33NRA, EFS33PR, EFS33PRA

VSGF33NR, VSGF33NRA, VSGF33PR, VSGF33PRA

REMOTE-READY FIREPLACE SYSTEM

WARNING: If the information in this manual is not followed exactly, a ﬁre or explosion may result causing property damage, personal injury or loss of life.

— Do not store or use gasoline or other ﬂammable

vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the ﬁre department.

— Installation and service must be performed by a quali-

ﬁed installer, service agency or the gas supplier.

Save this manual for future reference.

For more information, visit www.desatech.com

WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a qualiﬁed installer, service agency or the gas supplier.

WARNING: This is an unvented gas-ﬁred heater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to Air for Combustion and Ventilation section on page 6 of this manual.

This appliance may be installed in an aftermarket,* permanently located, manufactured (mobile) home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

State of Massachusetts: The installation must be made by a licensed plumber or gas ﬁtter in the Commonwealth of Massachusetts.

Sellers of unvented propane or natural gas-ﬁred supplemental room heaters shall provide to each purchaser a copy of 527 CMR 30 upon sale of the unit.

Vent-free gas products are prohibited for bedroom and bathroom installation in the Common wealth of Massachusetts.

TABLE OF CONTENTS

Safety Information ............................................... 3

Product Identiﬁcation ........................................... 4

Local Codes ........................................................ 5

Unpacking ........................................................... 5

Product Features ................................................. 5

Air For Combustion and Ventilation .....................

Installation ........................................................... 8

Operating Fireplace ........................................... 19

Inspecting Burners ............................................ 22

Cleaning and Maintenance ................................ 23

www.desatech.com

Wiring Diagram .................................................. 24

Speciﬁcations .................................................... 24

Troubleshooting ................................................. 25

Replacement Parts ............................................ 29

Service Hints ..................................................... 29

Technical Service .............................................. 29

Illustrated Parts Breakdown and Parts List ....... 30

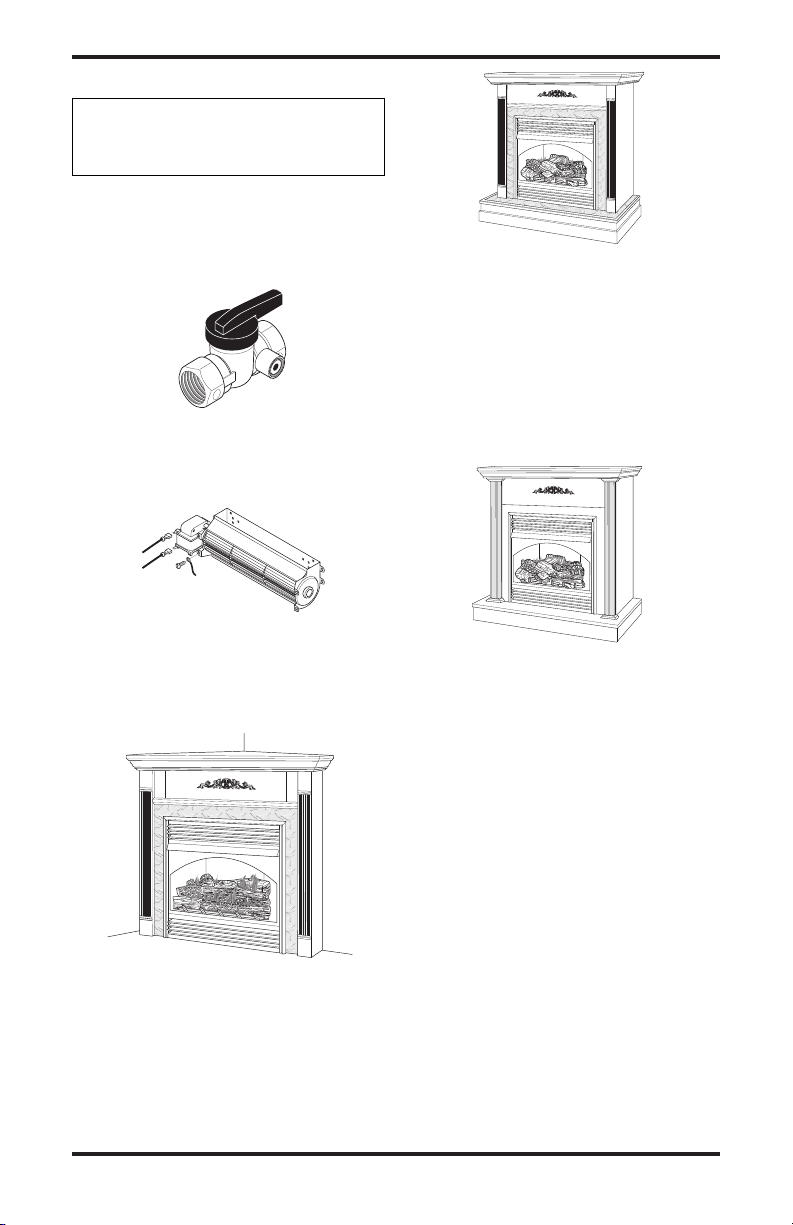

Accessories ....................................................... 34

Warranty Information ......................................... 36

107172-01K2

SAFETY INFORMATION

WARNING: This product contains and/or generates chemicals known to the State of California to cause cancer or birth defects or other reproductive harm.

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate or service this ﬁreplace. Improper use of this ﬁreplace can cause serious injury or death from burns, ﬁre, explosion, electrical shock and carbon monoxide poisoning.

DANGER: Carbon monoxide poisoning may lead to death!

Carbon Monoxide Poisoning: Early signs of carbon

monoxide poisoning resemble the ﬂu, with head aches, dizziness or nausea. If you have these signs, the heater may not be working properly. Get fresh air at once! Have heater serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the inﬂuence of alcohol and those at high altitudes.

Natural and Propane/LP Gas: Natural and pro-

pane/LP gases are odorless. An odor-making agent is added to these gases. The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists.

Make certain you read and understand all warn ings. Keep this manual for reference. It is your guide to safe and proper operation of this heater.

WARNING: Any change to this heater or its controls can be dangerous.

WARNING: Do not use a blower insert, heat exchanger insert or other accessory not approved for use with this heater.

WARNING: Do not allow fans to blow directly into the ﬁreplace. Avoid any drafts that alter burner ﬂame patterns. Ceiling fans can create drafts that alter burner ﬂame patterns. Altered burner patterns can cause sooting.

Due to high temperatures, the appliance should be located out of trafﬁc and away from furniture and draperies.

Do not place clothing or other ﬂammable material on or near the appliance. Never place any objects on the heater.

Fireplace front and screen become very hot when running ﬁreplace. Keep children and adults

away from hot surfaces to avoid burns or clothing ignition. Fireplace will remain hot for a time after shutdown. Allow surfaces to cool before touching.

Carefully supervise young children when they are in the room with ﬁreplace. When using the hand-held remote accessory, keep selector switch in the OFF position to prevent children from turning on burners with

remote.

You must operate this ﬁreplace with a ﬁreplace screen and hood in place. Make sure ﬁreplace screen and hood are in place before running heater.

Keep the appliance area clear and free from combustible materials, gasoline and other ﬂammable vapors and liquids.

107172-01K 3

www.desatech.com

SAFETY INFORMATION

Continued

1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

2. Do not place propane/LP supply tank(s) in side any structure. Locate propane/LP supply tank(s) outdoors (propane/LP units only).

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do not

use any phone in your building

• immediately call your gas supplier from

a neighb orʼs phon e. Foll ow the gas supplierʼs instructions

• if you cannot reach your gas supplier, call

the ﬁre department

4. This ﬁreplace shall not be installed in a bedroom or bathroom.

5. Do not use this ﬁreplace as a wood-burning ﬁreplace. Use only the logs provided with the ﬁreplace.

6. Do not add extra logs or ornaments such as pine cones, vermiculite or rock wool. Using these added items can cause sooting. Do not add lava rock around base. Rock and debris could fall into the control area of ﬁreplace.

7. To prevent the creation of soot, follow the instructions in Cleaning and Maintenance page 23.

8. Before using furniture polish, wax, carpet cleaner or similar products, turn heater off. If heated, the vapors from these products may create a white powder residue within burner box or on adjacent walls or furniture.

9. This ﬁreplace needs fresh air ventilation to run properly. This ﬁreplace has an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the ﬁreplace if enough fresh air is not available. See Air for Combustion and Ventilation, page 6. If ﬁreplace keeps shutting off, see Troubleshooting, page 25.

10. Do not run ﬁreplace

• where ﬂammable liquids or vapors are

used or stored

• under dusty conditions

11. Do not use this ﬁreplace to cook food or burn paper or other objects.

12. Do not use ﬁreplace if any part has been exposed to or under water. Immediately call a qualiﬁed service technician to inspect the ﬁreplace and to replace any part of the control system and any gas control which has been under water.

www.desatech.com

13. Do not operate ﬁreplace if any log is broken. Do not operate ﬁreplace if a log is chipped (dime-sized or larger).

14. Turn ﬁreplace off and let cool before servicing. Only a qualiﬁed service person should service and repair ﬁreplace.

15. Operating ﬁreplace above elevations of 4,500 feet could cause pilot outage.

16. To prevent performance problems in propane/LP units, do not use propane/LP fuel tanks of less than 100 lbs. capacity (propane/LP units only).

17. Provide adequate clearances around air openings.

PRODUCT IDENTIFICATION

Rear Log

Middle Log

Front Log

Piezo Ignitor

Optional Remote

Control

Figure 1 - Log Base Assembly

(VSGF33NRA Shown)

Top Louver Assembly

Fireplace Hood

Firebox Support

Screen Assembly

Figure 2 - Fireplace (VSGF33NRA Shown)

Front Burner

Top Outer Casing

Bottom Louver Assembly

Rear Burner

Base Assembly

Optional Blower Assembly (Not Included)

107172-01K4

LOCAL CODES

Install and use heater with care. Follow all local codes. In the absence of local codes, use the lat est edition of The National Fuel Gas Code ANSI

Z223.1/NFPA 54

*Available from:

American National Standards Institute, Inc.

National Fire Protection Association, Inc.

Note: Where listed vented decorative logs are required, thermostat operation is not permitted.

1430 Broadway

New York, NY 10018

Batterymarch Park

Quincy, MA 02269

UNPACKING

CAUTION: Do not remove the data plates attached to the heater base assembly. The data plates contain important warranty and safety information.

1. With utility knife, cut the carton all the way around above the staples on the bottom tray. Lift the carton off the heater. Remove packing. Note: The hood is located in the packing on the right hand side of the heater front. Lift the heater off the bottom tray.

2. Locate two screws above top corners of the ﬁreplace screen. Remove and discard these screws. Lift ﬁreplace screen up and pull out to remove.

3. Remove protective packaging applied to logs, log base assembly and ﬁreplace.

4. Remove ﬁreplace hood from carton insert.

5. Check all items for any shipping damage. If damaged, promptly inform dealer where you bought ﬁreplace.

PRODUCT FEATURES

OPERATION

This vent-free ﬁreplace is clean burning. It requires

no outside venting. There is no heat loss out a vent or up a chimney. Heat is generated by both realistic ﬂames and glowing embers. When used without the optional blower, the ﬁreplace requires no electricity making it ideal for emergency backup heat.

SAFETY DEVICE

This ﬁreplace has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS/ pilot is a required feature for vent-free room heat ers. The ODS/pilot system shuts off the ﬁreplace if there is not enough fresh air.

PIEZO IGNITION SYSTEM

This ﬁreplace has a piezo ignitor. This system requires no matches, batteries or other sources to light ﬁreplace.

OPTIONAL REMOTE CONTROL ACCESSORY

There are four optional remote controls (not included) that can be purchased separately for this log heater:

• wall switch

• wall thermostat

• hand-held ON/OFF remote

• hand-held thermostat remote

See Accessories, page 34.

OPTIONAL BLOWER ASSEMBLY ACCESSORY

This ﬁreplace accepts an optional blower assembly (not included). The GA3700TA Series blower operates thermostatically and features a variable speed control. The GA3700 Series operates manually and also features a variable speed control. The blower circulates heated air from the ﬁreplace into the room. Use of blower is optional. See Acces- sories, page 34.

107172-01K 5

www.desatech.com

AIR FOR COMBUSTION

AND VENTILATION

WARNING: This heater shall not be installed in a conﬁned space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home.

Todayʼs homes are built more energy efﬁcient than ever. New materials, increased insulation and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in. During heating months, home owners want their homes as airtight as possible.

While it is good to make your home energy efﬁcient, your home needs to breathe. Fresh air must enter your home. All fuel-burning appliances need fresh air for proper combustion and ventilation.

Exhaust fans, ﬁreplaces, clothes dryers and fuel burning appliances draw air from the house to operate. You must provide adequate fresh air for these appliances. This will insure proper venting of vented fuel-burning appliances.

PROVIDING ADEQUATE VENTILATION

The following are excerpts from National Fuel Gas Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation.

All spaces in homes fall into one of the three fol lowing ventilation classiﬁcations:

1. Unusually Tight Construction

2. Unconﬁned Space

3. Conﬁned Space

The information on pages 6 through 8 will help you classify your space and provide adequate ventilation.

Unusually Tight Construction

The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in buildings of unusually tight construction, you must provide additional fresh air.

Unusually tight construction is deﬁned as construction where:

a. walls and ceilings exposed to the out

side atmosphere have a continuous water vapor retarder with a rating of one perm (6 x 10 less with openings gasketed or sealed and

b. weather stripping has been added on

openable windows and doors and

c. caulking or sealants are applied to

areas such as joints around window and door frames, between sole plates and ﬂoors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical and gas lines and at other openings.

If your home meets all of the three criteria above, you must provide additional fresh air. See Ventilation Air From Outdoors, page 7.

If your home does not meet all of the three criteria above, proceed to Determining Fresh-Air Flow For Heater Location.

Conﬁned and Unconﬁned Space

The National Fuel Gas Code, ANSI Z223.1/NFPA 54 deﬁnes a conﬁned space as a space whose

volume is less than 50 cubic feet per 1,000 Btu per hour (4.8 m rating of all appliances installed in that space and an unconﬁned space as a space whose volume is not less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed*, through openings not furnished with doors, are considered a part of the unconﬁned space.

* Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.

-11

kg per pa-sec-m2) or

per kw) of the aggregate input

DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION

Determining if You Have a Conﬁned or Unconﬁned Space

Use this work sheet to determine if you have a conﬁned or unconﬁned space.

Space: Includes the room in which you will install

heater plus any adjoining rooms with doorless passageways or ventilation grills between the rooms.

1. Determine the volume of the space (length x width x height).

Length x Width x Height =__________cu. ft.

(volume of space)

www.desatech.com

107172-01K6

Remove Door into Adjoining

Room, Option

Ventilation Grills

Into Adjoining Room,

Option

ntilation Grills

Into

Adjoining

Room,

Option 1

12"

AIR FOR COMBUSTION

AND VENTILATION

Continued

If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support,

the space is an uncon-

ﬁned space. You will need no additional fresh air ventilation.

Example: Space size 20 ft. (length) x 16 ft.

(width) x 8 ft. (ceiling height) = 2,560 cu. ft. (volume of space)

If additional ventilation to adjoining room is

supplied with grills or openings, add the volume of these rooms to the total volume of the space.

2. Multiply the space volume by 20 to determine the maximum Btu/Hr the space can support.

__________ (volume of space) x 20 = (Maxi-

mum Btu/Hr the space can support)

Example: 2,560 cu. ft. (volume of space) x 20 =

63,360 (maximum Btu/Hr the space can support)

3. Add the Btu/Hr of all fuel burning appliances in the space.

Vent-free ﬁreplace

Gas water heater*

Gas furnace

Vented gas heater

Gas ﬁreplace logs

Other gas appliances* +

Total =

__________ Btu/Hr

* Do not include direct-vent gas appliances. Di

rect-vent draws combustion air from the outdoors and vents to the outdoors.

Example:

Gas water heater

Vent-free ﬁreplace +

Total =

40,000

__________ Btu/Hr

33,000

__________ Btu/Hr

73,000

__________ Btu/Hr

WARNING: If the area in which the heater may be operated is smaller than that deﬁned as an unconﬁned space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described in the National Fuel Gas Code, ANSI Z223.1/NFPA 54 Section 5.3 or applicable local codes.

VENTILATION AIR

Ventilation Air From Inside Building

This fresh air would come from an adjoining un conﬁned space. When ventilating to an adjoining unconﬁned space, you must provide two permanent openings: one within 12" of the ceiling and one within 12" of the ﬂoor on the wall connecting the two spaces (see options 1 and 2, Figure 3). You can also remove door into adjoining room (see option 3, Figure 3). Follow the National Fuel Gas

Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation for required size of

ventilation grills or ducts.

4. Compare the maximum Btu/Hr the space can support with the actual amount of Btu/Hr used.

_________

Btu/Hr (maximum the space can support)

Btu/Hr (actual amount of Btu/Hr used)

Example: 63,360 Btu/Hr (maximum the space

can support)

73,000 Btu/Hr (actual amount of

Btu/Hr used)

The space in the example is a conﬁned space because the actual Btu/Hr used is more than the maximum Btu/Hr the space can support. You must provide ad

ditional fresh air. Your options are as follows:

A. Rework worksheet, adding the space of an adjoin

ing room. If the extra space provides an unconﬁned space, remove door to adjoining room or add ventilation grills between rooms. See Ventilation

Figure 3 - Ventilation Air from Inside

Building

Air From Inside Building.

B. Vent room directly to the outdoors. See Ventila

C. Install a lower Btu/Hr ﬁreplace, if lower Btu/Hr

107172-01K 7

tion Air From Outdoors.

size makes room unconﬁned.

www.desatech.com

Outlet Air

ntilated

Attic

Outlet

Inlet Air

Ventilated

Crawl Space

Crawl

Space

To Attic

AIR FOR COMBUSTION

AND VENTILATION

Continued

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within 12" of the ﬂoor. Connect these items directly to the outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces. Follow the

National Fuel Gas Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation for

required size of ventilation grills or ducts. IMPORTANT: Do not provide openings for inlet

or outlet air into attic if attic has a thermostatcontrolled power vent. Heated air entering the attic will activate the power vent.

Figure 4 - Ventilation Air from Outdoors

INSTALLATION

NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your pri mary heat source. If you have a central heating system, you may run system’s circulating blower while using heater. This will help circulate the heat throughout the house. In the event of a power outage, you can use this heater as your primary heat source.

WARNING: A qualiﬁed service person must install heater. Follow all local codes.

www.desatech.com

WARNING: Never install the

ﬁreplace

• in a bedroom or bathroom

• in a recreational vehicle

• where curtains, furniture, cloth

ing or other ﬂammable objects are less than 42 inches from the front, top or sides of the heater

• in high trafﬁc areas

• in windy or drafty areas

CAUTION: This heater creates warm air currents. These currents move heat to wall surfaces next to heater. Installing heater next to vinyl or cloth wall coverings or operating heater where impurities (such as, but not limited to, tobacco smoke, aromatic candles, cleaning ﬂuids, oil or kerosene lamps, etc.) in the air exist, may discolor walls or cause odors.

Note: Your ﬁreplace is designed to be used in zero clearance installations. Wall or framing material can be placed directly against any exterior surface on the rear, sides or top of your ﬁreplace, except where standoff spacers are integrally attached. If standoff spacers are attached to your ﬁreplace, these spacers can be placed directly against wall or framing materials.

Use the dimensions shown for rough openings to create the easiest installation. See Built-In Fire place Installation, page 11.

IMPORTANT: Vent-free heaters add moisture to the air. Although this is beneﬁcial, installing ﬁre place in rooms without enough ventilation air may cause mildew to form from too much moisture. See Air for Combustion and Ventilation, pages 6.

IMPORTANT: Make sure the ﬁreplace is level. If ﬁreplace is not level, log set will not work properly.

CHECK GAS TYPE

Use the correct gas type (natural or propane/LP) for your ﬁreplace. If your gas supply is not cor rect, do not install ﬁreplace. Call dealer where you bought ﬁreplace for proper type ﬁreplace.

107172-01K8

INSTALLATION

Continued

WARNING: This appliance is equipped for (natural or propane/LP) gas. Field conversion is not permitted.

ELECTRICAL HOOKUP

(Models GA3700 Series and GA3700T Series Blower Accessories and GA3555 Internal Duplex Kit)

This ﬁreplace accepts a blower assembly with an electrical cord. The electrical cord is ﬁve feet in length. You must locate ﬁreplace within reach of a 120 volt grounded electrical outlet. If not, you must install an electrical outlet within reach of ﬁreplace power cord. The GA3555 outlet acces sory may be used for built-in applications with blower accessory installed.

INSTALLING HOOD

Install hood to rail already installed in ﬁreplace as shown in Figure 5. Use 3 Phillips screws provided.

Rail

Hood

Remove packaging from three pieces of brass trim.

Locate four brass screws, two adjusting plates with

2. set screws and two shims in the hardware packet.

3. Align shim under adjusting plate as shown in Figure 6.

4. Slide one end of adjusting plate/shim in slot on mitered edge of top brass trim (see Figure 6).

5. Slide other end of adjusting plate/shim in slot on mitered edge of side brass trim (see Figure 6).

6. While ﬁrmly holding edges of brass trim to gether, tighten both set screws on the adjusting plate with slotted screwdriver.

7. Repeat steps 1 through 6 for other side.

8. Tighten trim hanging screws (#10 x 6.25 shoulder) into holes in cabinets. Place the assembled trim onto ﬁreplace cabinet. Align hanging notches on trim with hanging screws on side of ﬁreplace (see Figure 7). Push trim

ﬁrmly into place, sliding hanging notches over hanging screws.

Side Brass Trim

Figure 6 - Assembling Brass Trim

Adjusting Plate

Slot

Mitered Edge

Set Screws

Shim

Slot

Top Brass Trim

Trim

Screw

Figure 5 - Installing Hood

ASSEMBLING AND ATTACHING

Assembled Brass Trim

Hanging Screws

Hanging Notches on Trim

OPTIONAL BRASS TRIM

(Included with Mantel Accessory)

IMPORTANT: If you are recessing the ﬁrebox in a wall, do not attach brass trim at this time. See Built-In Fireplace Installation, page 11.

Note: The instructions below show assembling and attaching brass trim to ﬁreplace.

107172-01K 9

www.desatech.com

Figure 7 - Attaching Brass Trim to

Fireplace (VSGF33NRA Shown)

INSTALLATION

Continued

INSTALLATION CLEARANCES

WARNING: Maintain the minimum clearances. If you can, provide greater clearances from ﬂoor, ceiling and adjoining wall.

Carefully follow the instructions below. This will ensure safe installation.

Minimum Clearances For Side Combustible Material, Side Wall and Ceiling

A. Clearances from the side of the fireplace

cabinet to any combustible material and wall should follow diagram in Figure 8.

Example: The face of a mantel, bookshelf,

etc. is made of combustible material and protrudes 3 1/2" from the wall. This combustible material must be 4" from the side of the ﬁreplace opening (see Figure 8).

B. Clearances from the top of the ﬁreplace open

ing to the ceiling should not be less than 42 inches.

MINIMUM CLEARANCE TO

COMBUSTIBLE MATERIALS Top Left and Bottom Right Sides and Rear

0" 16" 0"

Example

*Minimum 16 inches from Side Wall

CONVENTIONAL FIREPLACE INSTALLATION

Conventional installation of this ﬁreplace involves installing ﬁreplace along with the corner, face or cabinet mantel with hearth base accessories against a wall in your home. Follow the instructions in this section to install the ﬁreplace in this manner.

Note: The instructions in this section show instal lation using the cabinet mantel and the GC3333F/ GC3334U/G3004W/GC3335F/G3007U series hearth base accessories. The hearth base accessory shown is optional for this installation. You can install ﬁreplace and cabinet/corner mantel directly on the ﬂoor. The corner mantel accessory cannot be installed with the GC3333F/GC3334U/G3004W/ GC3335F/G3007U hearth base. The corner mantel can be paired with the G3008F/G3009U/G3010F corner hearth base. If mounting ﬁreplace and cabinet or corner mantel to the ﬂoor, an optional G3005J/ 3005S/3005B Slim Base kit may be installed.

1. Assemble cabinet mantel, hearth base and trim accessories. Assembly instructions are included with each accessory.

2. When installing blower, install a properly grounded, 120 volt three-prong electrical out

let at ﬁreplace location if an outlet is not there.

If possible, locate outlet so cabinet mantel will cover it when installed (see Figure 9).

Install gas piping to ﬁreplace location. This installation includes an approved ﬂexible gas line (if allowed by local codes) after the equipment shutoff valve. The ﬂexible gas line must be the last item installed on the gas piping. See Install ing Gas Piping to Fireplace Location, page 13.

4. Place hearth base accessory against wall at installation location. Cut an access hole in hearth top to run ﬂexible gas line to ﬁreplace (see Figure

9). Make sure to locate access hole so cabinet mantel will cover it when installed. Note: You can secure base to ﬂoor using wood screws. Countersink screw heads and putty over.

Electrical Outlet

Rigid Pipe and Gas Shutoff Valve

Figure 8 - Minimum Clearance for

Combustible to Wall

www.desatech.com

Hearth Base

Figure 9 - Placing Hearth Base

Accessory Against Wall

Gas Line Access Hole

107172-01K10

INSTALLATION

Continued

5. Route ﬂexible gas line through access hole in hearth base.

6. Center cabinet mantel on hearth base (see Figure 10). Make sure mantel is ﬂush against wall.

7. Break off nailing ﬂanges (see Figure 11) with hammer or pliers.

8. Place cardboard or other protective material on top of hearth base. Carefully set ﬁreplace on protective material, with back of ﬁreplace inside mantel opening.

9. Attach ﬂexible gas line from ﬁreplace gas regulato r to gas supply. See Conne cting

Fireplace to Gas Supply

10. If blower is installed, route blower electrical cord through access holes in either side of ﬁreplace. Note: Bushing may be moved if necessary. Plug electrical cord into electrical outlet.

11. Carefully insert ﬁreplace into cabinet mantel. Be careful not to scratch or damage hearth base, cabinet mantel or any laminate trim on hearth base. Remove protective material from top of hearth base and from front of ﬁreplace (if any). Note: You can secure ﬁreplace to hearth or ﬂoor. Open lower louver. Locate screw holes in bottom of base. Tighten wood screws through these holes and into hearth or ﬂoor.

12. Check all gas connections for leaks. See Checking Gas Connections, page 15.

, page 14.

Cabinet Mantel

Nailing Flanges

Figure 11 - Location of Nailing Flanges

Figure 12 - Inserting Fireplace Into

Cabinet Mantel

BUILT-IN FIREPLACE INSTALLATION

Built-in installation of this fireplace involves installing ﬁreplace into a framed-in enclosure. This makes the front of ﬁreplace ﬂush with wall. If installing a mantel above the ﬁreplace, you must follow the clearances shown in Figure 16, page

13. Follow the instructions below to install the ﬁreplace in this manner.

Actual Framing

" 33"

Height 32 Front Width 34 Depth 16

" 35

" 17

Figure 10 - Installing Cabinet Mantel

107172-01K 11

www.desatech.com

INSTALLATION

35 1/2"

17 3/4"

33"

Continued

1. Frame in rough opening. Use dimensions shown in Figure 13 for the rough opening. If installing in a corner, use dimensions shown in Figure 14 for the rough opening. The height is 33" which is the same as the wall opening above.

2. If using blower, install and properly ground GA3555, three-prong 120 volt electrical out let, in ﬁreplace. Follow instructions included in kit.

3. Install gas piping into ﬁreplace location. This installation includes an approved ﬂexible gas line (if allowed by local codes) after the equip ment shutoff valve. The ﬂexible gas line must be the last item installed on the gas piping. See

Installing Gas Piping to Fireplace Location

page 13.

4. Carefully set ﬁreplace in front of rough opening with back of ﬁreplace inside wall opening.

5. Carefully insert ﬁreplace into rough opening.

6. Attach ﬂexible gas line to gas supply. See Con necting Fireplace to Gas Supply, page 14.

7. Attach ﬁreplace to wall studs using nails or wood screws through holes in nailing ﬂange (see Figure 15).

8. Check all gas connections for leaks. See Checking Gas Connections, page 15.

9. Plug electrical cord into electrical outlet installed in step 2.

10. Install brass trim after ﬁnal ﬁnishing and/or painting of wall (see Figure 7, page 9).

Nails or Wood Screws

Nailing Flanges

Figure 15 - Attaching Fireplace to Wall

Studs

Mantel Clearances for Built-In Installation

If placing mantel above built-in ﬁreplace, you must

meet minimum clearance between mantel shelf and top of ﬁreplace opening.

NOTICE: If your installation does not meet the minimum clearances shown, you must do one of the following:

• raise the mantel to an acceptable height

• remove the mantel

Figure 13 - Rough Opening for Installing

in Wall

Figure 14 - Rough Opening for Installing

in Corner

NOTICE: Surface temperatures of adjacent walls and mantels become hot during operation. Walls and mantels above the firebox may become hot to the touch. If installed properly, these temperatures meet the requirement of the national product standard. Follow all minimum clearances shown in this manual.

www.desatech.com

107172-01K12

13"

16"

19"

21"

2 1/2"

10"

Minimum NonCombustible Material

INSTALLATION

Continued

Note: All vertical measurements are from top of ﬁreplace opening to bottom of mantel shelf.

Figure 16 - Minimum Mantel Clearances

for Built-In Installation

INSTALLING GAS PIPING TO FIREPLACE LOCATION

WARNING: This appliance

requires a 1/2" NPT (National

Mantel Shelf

Installation Items Needed

Before installing ﬁreplace, make sure you have the items listed below.

• external regulator for propane/LP unit only (supplied by installer)

• piping (check local codes)

• sealant (resistant to propane/LP gas)

• equipment shutoff valve *

• test gauge connection *

• sediment trap (optional)

• tee joint

• pipe wrench

• approved ﬂexible gas line with gas connector (if allowed by local codes) (not provided)

* A CSA design-certiﬁed equipment shutoff valve with 1/8" NPT tap is an acceptable alternative to test gauge connection. Purchase the optional CSA design-certiﬁed equipment shutoff valve from your dealer. See

For propane/LP units, the installer must supply an external regulator. The external regulator will reduce incoming gas pressure. You must reduce incoming gas pressure to between 11 and 14 inches of water. If you do not reduce incoming gas pres sure, heater regulator damage could occur. Install external regulator with the vent pointing down as shown in Figure 17. Pointing the vent down protects it from freezing rain or sleet.

Accessories, page 34.

Pipe Thread) inlet connection to the pressure regulator.

CAUTION: Use only new,

black iron or steel pipe. Inter-

WARNIN G : A qual i f ie d service person must connect ﬁreplace to gas supply. Follow all local codes.

nally-tinned copper tubing may be used in certain areas. Check your local codes. Use pipe of 1/2" diameter or greater to allow proper gas volume to ﬁreplace.

CAUTION: Never connect propane/LP ﬁreplace directly to the propane/LP supply. This ﬁreplace requires an external regulator (not supplied). Install the external regulator between the ﬁreplace and propane/LP supply.

WARNING: Never connect

If pipe is too small, undue loss of volume will occur.

External Regulator

Vent Pointing Down

Propane/LP Supply Tank

natural gas ﬁreplace to private (non-utility) gas wells. This gas is commonly known as wellhead gas.

107172-01K 13

www.desatech.com

Figure 17 - External Regulator with Vent

Pointing Down

INSTALLATION

Continued

Installation must include an equipment shutoff valve, union and plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream from ﬁreplace (see Figure 18).

IMPORTANT: Install equipment shutoff valve in an accessible location. The equipment shutoff valve is for turning on or shutting off the gas to the appliance.

Check your building codes for any special re quirements for locating equipment shutoff valve to ﬁreplaces.

Apply pipe joint sealant lightly to male NPT threads. This will prevent excess sealant from going into pipe. Excess sealant in pipe could result in clogged ﬁre place valves. Never use sealant on ﬂare threads.

WARNING: Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.

We recommend that you install a sediment trap in supply line as shown in Figure 18. Locate sediment trap where it is within reach for cleaning. Install in piping system between fuel supply and ﬁreplace. Locate sediment trap where trapped matter is not likely to freeze. A sediment trap traps moisture and contaminants. This keeps them from going into ﬁre place gas controls. If sediment trap is not installed or is installed wrong, ﬁreplace may not run properly.

CSA Design-Certiﬁed Equipment Shutoff Valve With 1/8" NPT Tap*

3" Minimum

Natural Gas

From Gas Meter (5" W.C.** to

10.5" W.C. Pressure) Propane/LP From External Regulator (11" W.C.** to 14" W.C. Pressure)

CONNECTING FIREPLACE TO GAS SUPPLY

Installation Items Needed

• 5/16" hex socket wrench or nut-driver

• Phillips screwdriver

• sealant (resistant to propane/LP gas, not pro vided)

1. Remove ﬁreplace screen. Remove two screws

that hold ﬁreplace screen in place for shipping. These screws are located near top of screen.

Discard screws. Lift ﬁreplace screen up and pull out to remove.

2. Remove screws that attach log base assembly

to ﬁreplace (see Figure 19). Carefully lift up log base assembly and remove from ﬁreplace

(see Figure 19).

Note: If adding the G8000A series brick liner accessory, install it now. Follow instructions in G8000A accessory kit.

CAUTION: Do not pick up log base assembly by burner. This could damage burner. Only handle base by grates.

3. Route gas line (provided by installer) from equipment shutoff valve to ﬁreplace. Route ﬂexible gas supply line through one of the

access holes.

Cap Pipe Tee Nipple Joint

Sediment Trap

Figure 18 - Gas Connection

* Purchase the optional CSA design-certified equipment shutoff valve from your dealer. See Accessories, page 34.

** Minimum inlet pressure for purpose of input adjustment.

www.desatech.com

Figure 19 - Removing Log Base

Assembly From Fireplace

107172-01K14

INSTALLATION

Continued

NOTICE: Most building codes do not permit concealed gas connections. A ﬂexible gas line is provided to allow accessibility from the ﬁreplace (see Figure 20). The ﬂexible gas supply line connection to the equipment shutoff valve should be accessible.

4. Attach the ﬂexible gas line to gas supply (see Figure 20). Check tightness of ﬂexible gas line attached to gas regulator of ﬁreplace (see Figure 20).

5. Check all gas connections for leaks. See Checking Gas Connections.

6. Replace log base assembly back into ﬁreplace. Feed ﬂexible gas line into ﬁreplace base area while replacing log base assembly. Make sure the entire ﬂexible gas line is in ﬁreplace base area. Reattach log base assembly to ﬁreplace with screws removed in step 2, page 14.

To Fireplace Gas Regulator

Flexible Gas Line from Fireplace Gas Regulator

Figure 20 - Attaching Flexible Gas Lines

Equipment Shutoff Valve Provided by Installer

Propane/LP

To External Regulator

Natural Gas

To Gas Meter

Together

CHECKING GAS CONNECTIONS

WARNING: Test all gas piping and connections, internal and external to unit, for leaks after installing or servicing. Correct all leaks at once.

WARNING: Never use an open ﬂame to check for a leak. Apply a noncorrosive leak detec

tion ﬂuid to all joints. Bubbles forming show a leak. Correct all leaks at once.

CAUTION: Make sure external regulator has been installed between propane/LP supply and ﬁreplace. See guidelines under

Connecting Fireplace to Gas Supply, page 14.

PRESSURE TESTING GAS SUPPLY PIPING SYSTEM

Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)

1. Disconnect ﬁreplace with its main gas valve (control valve) and equipment shutoff valve from gas supply piping system. Pressures in excess of 1/2 psig will damage ﬁreplace regulator.

2. Cap off open end of gas pipe where equipment shutoff valve was connected.

3. Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP gas or opening main gas valve located on or near gas meter for natural gas or using compressed air.

4. Check all joints of gas supply piping system. Apply noncorrosive leak detection ﬂuid to all joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Reconnect ﬁreplace and equipment shutoff valve to gas supply. Check reconnected ﬁttings for leaks.

107172-01K 15

www.desatech.com

INSTALLATION

Continued

Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)

1. Close equipment shutoff valve (see Figure 21).

2. Pressurize supply piping system by either opening propane/LP supply tank valve for propane/LP gas or opening main gas valve located on or near gas meter for natural gas or using compressed air.

3. Check all joints from gas meter to equipment shutoff valve for natural gas or propane/LP sup ply to equipment shutoff valve for propane/LP (see Figures 22 and 23). Apply noncorrosive leak detection ﬂuid to all joints. Bubbles forming show a leak.

4. Correct all leaks at once.

PRESSURE TESTING HEATER GAS CONNECTIONS

1. Open equipment shutoff valve (see Figure 21).

2. Open main gas valve located on or near gas meter for natural gas or open propane/LP supply tank valve.

3. Make sure control knob of ﬁreplace is in the OFF position.

4. Check all joints from equipment shutoff valve to gas control valve (see Figures 22 or 23). Apply noncorrosive leak detection ﬂuid to all joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Light ﬁreplace (see Operating Fireplace, page

19. Check all other internal joints for leaks.

7. Turn off ﬁreplace (see To Turn Off Gas to Appliance, page 20).

Equipment Shutoff Valve

Figure 21 - Equipment Shutoff Valve

Open

Closed

Equipment Shutoff Valve

Gas Meter

Gas Control Valve

Figure 22 - Checking Gas Joints for

Gas Control Valve

Figure 23 - Checking Gas Joints for

Natural Gas

Equipment Shutoff Valve

Propane/LP Supply Tank

Propane/LP Gas

INSTALLING LOGS (MODELS EFS33NR, EFS33PR, VSGF33NR AND VSGF33PR)

WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts speciﬁcally approved with this heater may result in property damage or personal injury.

CAUTION: Do not remove the metal data plates attached to the heater base assembly. The data plates contain important safety and warranty information.

It is very important to install these logs exactly as instructed. Do not modify logs. Only use logs supplied with heater.

www.desatech.com

107172-01K16

INSTALLATION

Continued

1. Place front log on top of the grate. Make sure the notches in the bottom of the log ﬁt over the grate prongs (see Figure 24). Push back of log ﬂush with metal grate bar.

2. Rest middle log behind metal posts on front burner. Make sure the grooves in the bottom of the log ﬁt over the grate. Bring the log forward next to the metal posts (see Figure 25).

3. Slide the grooves in the back of the rear log against the rear grate prongs. Make sure the peg on the log is on top (see Figure 26).

4. Place the crossover log on the rear log and the middle log. Make sure the peg on the rear log is in the hole in the bottom of the crossover log. The crossover log should ﬁt in the cutout of the middle log (see Figure 27).

5. Install ﬁreplace screen by slipping notches of ﬁreplace screen over screws on front of ﬁreplace (see Figure 28).

WARNING: You must operate this ﬁreplace with the ﬁreplace screen in place. Make sure ﬁreplace screen is in place before running ﬁreplace.

Peg

Groove in Back of Log

Grate Prong

Rear Burner

Figure 26 - Installing Rear Log

Crossover Log

Cutout

Rear Log

Groove in Back of Log

Grate Prong

Hole

Peg

Front Log

Notch

Figure 27 - Installing Crossover Log

Grate Prongs

Metal Grate Bar

Figure 24 - Installing Front Log

Middle Log

Groove

Metal Post

Figure 25 - Installing Middle Log

107172-01K 17

Groove

Notches

Grate

Figure 28 - Installing Fireplace Screen

www.desatech.com

Screws for Mounting Screen

INSTALLATION

Continued

INSTALLING LOGS (MODELS EFS33NRA, EFS33PRA, VSGF33NRA AND VSGF33PRA)

Front Log

Notch

WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts speciﬁcally approved with this heater may result in property damage or personal injury.

CAUTION: Do not remove the data plates attached to the heater base assembly. The data plates contain important safety and warranty information.

It is very important to install these logs exactly as instructed. Do not modify logs. Only use logs supplied with heater.

1. Place front log on top of the grate. Make sure the notches in the bottom of the log ﬁt over the grate prongs (see Figure 29). Push back of logs ﬂush with metal grate bars.

2. Rest middle log behind metal posts on grate as sembly. Make sure the grooves in the bottom of the log ﬁt over the grate. Bring the log forward next to the metal posts (see Figure 30).

3. Slide the grooves in the back of the rear log against the rear grate prongs. Make sure the log ﬁts securely over the prongs (see Figure

31). Make sure log is completely vertical and not leaning in toward burner where the ﬂame will touch the log.

4. Install ﬁreplace screen by slipping notches of ﬁreplace screen over screws on front of ﬁreplace (see Figure 28, page 17).

Grate Prongs

Groove

Metal Post

Groove in

Back of Log

Grate Prong

Metal Grate Bars

Figure 29 - Installing Front Log

Middle Log

Groove

Figure 30 - Installing Middle Log

Rear Log

Groove in Back of Log

Grate

Grate Prong

WARNING: You must operate this ﬁreplace with the ﬁreplace screen in place. Make sure ﬁreplace screen is in place before running ﬁreplace.

www.desatech.com

Figure 31 - Installing Rear Log

107172-01K18

OPERATING FIREPLACE

AUTO OFF ON

FOR YOUR SAFETY

READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a ﬁre or explosion may result causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must be

lighted by hand. When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around the

appliance area for gas. Be sure to smell next to the ﬂoor because some gas is heavier than air and will settle on the ﬂoor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediat ely call your gas supplier from a neighborʼs phone. Follow the gas supplierʼs instructions.

• If you cannot reach your gas supplier, call the ﬁre department.

C. Use only your hand to push in or turn the

gas control knob. Never use tools. If the knob will not push in or turn by hand, donʼt try to repair it, call a qualiﬁed service tech nician or gas supplier. Force or attempted repair may result in a ﬁre or explosion.

D. Do not use this appliance if any part has

been under water. Immediately call a qualiﬁed service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

LIGHTING

INSTRUCTIONS

WARNING: You must operate this ﬁreplace with the ﬁreplace screen in place. Make sure ﬁreplace screen is installed before running ﬁreplace.

NOTICE: During initial operation of new heater, burning logs will give off a paper-burning smell. Orange ﬂame will also be pres ent. Open damper or window to vent smell. This will only last a few hours.

STO P! Read the safety informa ti on, column 1.

2. Make sure equipment shutoff valve is fully open.

3. Set selector switch in OFF position.

WARNING: Burners will come on automatically within one minute when the selector switch is in the ON position after the pilot is lit.

4. Press in and turn control knob clockwise

5. Wait ﬁve (5) minutes to clear out any gas.

6. Press in and turn control knob counter

Note: You may be running this heater for

to the OFF position.

Then smell for gas, including near the ﬂoor. If you smell gas, STOP! Follow “B” in the safety information, column 1. If you donʼt smell gas, go to the next step.

clockwise

to the PILOT position. Press in control knob for ﬁve (5) seconds (see Figure 32).

the ﬁrst time after hooking up to gas sup ply. If so, the control knob may need to be pressed in for 30 seconds or more. This will allow air to bleed from the gas system.

CAUTION: Do not try to adjust heating levels by using the equipment shutoff valve.

Ignitor Button

Flame Adjustment Knob

Selector Switch

Control Knob

Figure 32 - Control Knob and Ignitor

Button Location (Shown as Supplied, No

Control Options)

107172-01K 19

www.desatech.com

OPERATING FIREPLACE

Continued

7. With control knob pressed in, press and release ignitor button. This will light pilot. The pilot is attached to the front burner. If needed, keep pressing ignitor button until pilot lights.

Note: If pilot does not stay lit, contact a

qualiﬁed service person or gas supplier for repairs. Until repairs are made, light pilot with match. To light pilot with match, see Manual Lighting Procedure.

8. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob.

• If control knob does not pop out when

released, contact a qualified service person or gas supplier for repairs.

Note: If pilot goes out, repeat steps 4

through 8.

9. Slightly push in and turn control knob coun terclockwise

10. Wait one minute and switch selector switch to the ON position to light burners.

11. Set ﬂame adjustment knob to any level between HI and LO.

WARNING: Make sure the selector switch is in the OFF position when you are away from home for long periods of time. Heater will come on automati cally with selector switch in the ON position.

Pilot Burner

Figure 33 - Pilot (Natural)

Pilot Burner

to the ON position.

Ignitor Electrode

TO TURN GAS OFF

TO APPLIANCE

Shutting Off Heater

1. Turn control knob clockwise OFF position.

2a. Set selector switch in the OFF position. 2b. If Using Optional Hand-Held Remote: Set

selector switch in the OFF position to keep from draining battery.

Shutting Off Burners Only (pilot stays lit)

You may shut off the burners and keep the pilot lit by doing one of the following:

• Turn control knob clockwise

PILOT position.

• Use remote control manual OFF button.

• Set selector switch in the OFF position.

MANUAL LIGHTING

PROCEDURE

1. Follow steps 1 through 6 under Lighting

Instructions, page 19.

2. Depress control knob and light pilot with match.

3. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob. Now follow steps 9 through 11 under

Lighting Instructions.

OPTIONAL HAND-HELD

REMOTE OPERATION

Note: All remote control accessories must be purchased separately (see Accessories, page

34). Follow instructions included with the

remote control.

NOTICE: You must light the pilot before using the hand-held remote control unit. See Lighting Instructions on page 19.

After lighting, let pilot ﬂame burn for about one minute. Turn control knob to ON posi tion. Adjust ﬂame adjustment knob anywhere between HI and LO. Slide the selector switch to the REMOTE position (see Figure 35, page

21). Note: The burner may light if hand-held

remote was on when selector switch was last turned off. You can now turn the burner on and off with the hand-held remote control unit.

IMPORTANT: Do not leave the selector switch in the REMOTE or ON position when the pilot is not lit. This will drain the battery.

to the

Figure 34 - Pilot (Propane/LP)

www.desatech.com

107172-01K20

ON OFF REMOTE

OPERATING FIREPLACE

Continued

Flame Adjustment Knob

Selector Switch in Remote Position (Optional HandHeld Remote Control)

Figure 35 - Setting the Selector Switch,

Control Knob and Flame Adjustment

Knob for Hand-Held Remote Operation

ON/OFF SERIES (MODELS GHRCB AND CGHRCB)

Hold the control button on the hand-held remote until burner turns on. Hold the control button again until burner turns off (see Figure 36).

TO LOCK press both buttons on hand-held

remote control until light stops ﬂashing. Handheld remote control is now locked. If the ﬁre is on it will be turned off automatically. In the locked state, the light will not light up when any button is pressed.

TO UNLO CK pre ss bot h buttons tog ether

on hand-held remote control until the light stops ﬂashing. The hand-held remote is now unlocked.

Figure 36 - On/Off Hand-Held Remote

Control Unit (C)GHRCB

THERMOSTAT SERIES (MODELS GHRCTB AND CGHRCTB)

The hand-held remote can be operated using either the manual mode (MANU) or thermo static mode (AUTO) (see Figure 37). To select Fahrenheit/Centigrade mode display, carefully press the ˚C/˚F mode button with the end of a paper clip or similar blunt object.

Manual Mode

1. Press the POWER and LOCK buttons together to turn on the hand-held remote control.

Control Knob in On Position

Control Button Turns Burners On and Off

2. Press the MANU button to turn on the ﬁreplace.

3. Press the POWER and LOCK buttons together to turn off the ﬁreplace.

Auto (Thermostatic) Mode

1. Press the POWER and LOCK buttons together to turn on the hand-held remote control.

2. Press AUTO button to select this mode.

3. Set the desired room temperature by press ing the TEMP + or - buttons.

4. Press the POWER and LOCK buttons together to turn off the ﬁreplace.

Note: Do not leave the hand-held remote in the AUTO mode close to the ﬁreplace. The radiant heat from the ﬁreplace will turn off the ﬁreplace. Ideally, place the hand-held remote in the center of the room facing towards the ﬁreplace.

Note: Do not hold the hand-held remote for a long time. Body temperature will affect its operation in the AUTO mode.

Safety Features

When away from home for an extended period of time or as a child safety feature to prevent accidental ignition of the ﬁreplace, the receiver ON/OFF/REMOTE switch should be in the OFF position.

Auto Shutoff Feature

1. If the average room temperature exceeds 82 degrees Fahrenheit (28 degrees Centigrade), the hand-held remote control will perform a safety override and shut the ﬁreplace off. This feature is not available in the MANU mode.

Digital Display Shows Temperature and Settings

Turns Burners On or Off

Decreases

Room Temperature in AUTO Mode

Locks System to Prevent Accidental

Turns HandHeld Remote On or Off and Allows You to Choose the Manual Setting

Selects Auto Setting

Increases Room Temperature in AUTO Mode

Ignition

Figure 37 - Thermostat Hand-Held

Remote Control Unit (C)GHRCTB

107172-01K 21

www.desatech.com

OPERATING FIREPLACE

Continued

2. The receiver continuously receives signals from the hand-held remote to control the room temperature. If the hand-held remote is misplaced, obstructed or for any reason cannot transmit to the receiver, the receiver will shut off the ﬁreplace after 8 minutes.

Key Pad Lock Feature

This feature allows the user to lock/unlock the keypad on the hand-held remote in the MANU or AUTO mode to prevent inadvertent operation (i.e. children operating the hand-held remote control, etc.). The keypad is locked in either on or off. Press the POWER and LOCK buttons together to turn the unit on or off.

OPTIONAL BLOWER

OPERATION

WARNING: This ﬁreplace has a three-prong, grounded electrical plug. This plug helps protect you against electrical shock. Only connect plug to a properly grounded, three-prong receptacle. Do not cut or remove the grounding prong from this plug.

Locate the blower switch by opening lower louver on ﬁreplace. Blower switch is located at lower left inside louver door.

The GA3700TA thermostat-controlled blower has a variable speed control with an ON/OFF switch. The blower will start when the ther mostat senses a sufﬁcient increase in ﬁrebox tem perature. The GA37 00 variable speed blower also has an ON/OFF switch built into the variable speed control.

Note for GA3700TA Only: If you are using GA3700TA blower, your ﬁreplace and blower will not turn on and off at the same time. The ﬁreplace may run for several minutes before the blower turns on. After the heater modulates to the pilot position, the blower will continue to run. The blower will shut off after the ﬁrebox temperature decreases.

Note: It is safe to operate ﬁreplace with blower turned off. However, the blower helps distribute heated air from the ﬁreplace.

Follow installation instructions included with the blower accessory.

INSPECTING BURNERS

Check pilot ﬂame pattern and burner ﬂame patterns often.

PILOT FLAME PATTERN

Figure 38 shows a correct pilot ﬂame pattern. Figure 39 shows an incorrect pilot ﬂame pattern. The incorrect pilot ﬂame is not properly heating the thermocouple. When the thermocouple cools, the heater will shut down.

If pilot ﬂame pattern is incorrect, as shown in Figure 39

• turn heater off (see To Turn Off Gas to Appli ance, page 20)

• see Troubleshooting

Note: The pilot ﬂame on natural gas units will have a slight curve, but ﬂame should be blue and have no yellow or orange color.

Pilot Burner

Figure 38 - Correct Pilot Flame Pattern

Pilot Burner

Thermocouple

Figure 39 - Incorrect Pilot Flame Pattern

MAIN BURNER

Periodically inspect all burner ﬂame holes with the heater running. All slotted burner ﬂame holes should be open with yellow ﬂame present. All round burner ﬂame holes should be open with a small blue ﬂame present. Some burner ﬂame holes may become blocked by debris or rust, with no ﬂame present. If so, turn off heater and let cool. Remove blockage. Blocked burner ﬂame holes may create soot.

, page 25

Thermocouple

www.desatech.com

107172-01K22

INSPECTING BURNERS

Continued

FRONT BURNER FLAME PATTERN

WARNING: If front burner ﬂame pattern shows yellow tipping, your ﬁreplace could produce increased levels of carbon monoxide. Follow instructions below. Yellow flame on rear burner is normal.

NOTICE: Do not mistake orange ﬂames with yellow tipping. Dirt or other ﬁne particles are burned by firepla c e, causi n g brief patches of orange ﬂame.

Figure 40 shows correct front burner ﬂame pattern. Figure 41 shows incorrect front burner ﬂame pattern. The incorrect burner ﬂame pattern shows yellow tipping at top of blue ﬂame.

If front burner ﬂame pattern is incorrect, as shown in Figure 41

• turn heater off (see To Turn Off Gas to Appli ance, page 20)

• see Troubleshooting

Figure 40 - Correct Burner Flame Pattern

Yellow Tipping At Top of Blue Flame

Figure 41 - Incorrect Burner Flame

, page 25

Pattern

CLEANING AND

MAINTENANCE

WARNING: Turn off ﬁreplace

and let cool before cleaning.

CAUTION: You must keep control areas, burner and circulating air passageways of ﬁreplace clean. Inspect these areas of ﬁreplace before each use. Have ﬁreplace inspected yearly by a qualiﬁed service person. Fireplace may need more frequent cleaning due to excessive lint from carpeting, bedding material, pet hair, etc.

WARNING: Failure to keep the primary air opening(s) of the burner(s) clean may result in sooting and property damage.

BURNER INJECTOR HOLDER AND PILOT AIR INLET HOLE

The primary air inlet holes allow the proper amount of air to mix with the gas. This provides a clean burning ﬂame. Keep these holes clear of dust, dirt, lint and pet hair. Clean these air inlet holes prior to each heating season. Blocked air holes will create soot. We recommend that you clean the unit every three months during operation and have heater inspected yearly by a qualiﬁed service person.

We also recommend that you keep the burner tube and pilot assembly clean and free of dust and dirt. To clean these parts we recommend using compressed air no greater than 30 PSI. Your local computer store, hardware store or home center may carry compressed air in a can. You can use a vacuum cleaner in the blow position. If using com pressed air in a can, please follow the directions on the can. If you donʼt follow directions on the can, you could damage the pilot assembly.

1. Shut off the unit, including the pilot. Allow the unit to cool for at least thirty minutes.

107172-01K 23

www.desatech.com

CLEANING AND

Thermopile

MAINTENANCE

Continued

2. Inspect burner, pilot and primary air inlet holes on injector holder for dust and dirt (see Figure

42).

3. Blow air through the ports/slots and holes in the burner.

4. Check the injector holder located at the end of the burner tube again. Remove any large particles of dust, dirt, lint or pet hair with a soft cloth or vacuum cleaner nozzle.

5. Blow air into the primary air holes on the injector holder.

6. In case any large clumps of dust have now been pushed into the burner repeat steps 3 and 4.

Clean the pilot assembly also. A yellow tip on the pilot ﬂame indicates dust and dirt in the pilot as sembly. There is a small pilot air inlet hole about two inches from where the pilot ﬂame comes out of the pilot assembly (see Figure 43). With the unit off, lightly blow air through the air inlet hole. You may blow through a drinking straw if compressed air is not available.

Ports/ Slots

Burner Tube

Primary Air Inlet Holes

Figure 42 - Injector Holder On Outlet

Burner Tube

Pilot Assembly

Pilot Air Inlet Hole

Injector Holder

Ports/Slots

LOGS

• If you remove logs for cleaning, refer to Installing Logs, page 16, to properly replace logs.

• Replace log(s) if broken or chipped (dime-sized or larger).

WIRING DIAGRAM

Note: For proper operation of optional accessories, the wires from the switch to the control must be connected exactly as shown.

SPECIFICATIONS

MODELS EFS33NR, EFS33NRA, VSGF33NR AND VSGF33NRA

Btu (Variable) 20,000/33,000

Type Gas Natural Gas Only

Ignition Piezo

Pressure Manifold 3.5" W.C.

Inlet Gas Pressure (in. of water)

Maximum 10.5"

Minimum* 5"

Shipping Weight 122 lbs.

* For input adjustment

MODELS EFS33PR, EFS33PRA, VSGF33PR AND VSGF33PRA

Btu (Variable) 20,000/33,000

Type Gas Propane/LP Only

Ignition Piezo

Pressure Manifold 7.9" W.C.

Inlet Gas Pressure (in. of water)

Maximum 13"

Minimum* 11"

Shipping Weight 122 lbs.

* For input adjustment

Figure 43 - Pilot Inlet Air Hole

www.desatech.com

107172-01K24

TROUBLESHOOTING

WARNING: Turn off and unplug heater and let cool before servicing.

Only a qualiﬁed service person should service and repair heater.

CAUTION: Never use a wire, needle or similar object to clean

ODS/pilot. This can damage ODS/pilot unit.

Note: All troubleshooting items are listed in order of operation.

OBSERVED PROBLEM

When ignitor button is pressed, there is no spark at ODS/pilot

When ignitor button is pressed, there is spark at ODS/pilot but no ignition

POSSIBLE CAUSE

1. Ignitor electrode not connected to ignitor cable

2. Ignitor cable pinched or wet

3. Piezo ignitor nut is loose

4. Broken ignitor cable

5. Bad piezo ignitor

6. Ignitor electrode positioned wrong

7. Ignitor electrode broken

1. Gas supply turned off or equip ment shutoff valve closed

2. Control knob not in PILOT position

3. Control knob not pressed in while in PILOT position

4. Air in gas lines when installed

5. Depleted gas supply (pro pane/LP only)

6. ODS/pilot is clogged

7. Gas regulator setting is not correct

REMEDY

1. Reconnect ignitor cable

2. Free ignitor cable if pinched by any metal or tubing. Keep ignitor cable dry

Tighten nut holding piezo ignitor to base panel of log set. Nut is located behind base panel

4. Replace ignitor cable

5. Replace piezo ignitor

6. Replace pilot assembly

7. Replace pilot assembly

1. Turn on gas supply or open

equipment shutoff valve

2. Turn control knob to PILOT position

3. Press in control knob while in PILOT position

4. Continue holding down control knob. Repeat igniting op eration until air is removed

5. Contact local propane/LP gas

company

6. Clean ODS/pilot (see Cleaning and Maintenance, page 23) or replace ODS/pilot assembly

7. Replace gas regulator

107172-01K 25

www.desatech.com

OBSERVED PROBLEM

ODS/ pilot ligh ts bu t fla me goes out when control knob is released

TROUBLESHOOTING

Continued

POSSIBLE CAUSE

Control knob not fully pressed in

2. Control knob not pressed in long enough

3. Equipment shutoff valve not fully open

4. Pil o t fla m e not to uchi ng thermocouple, which allows thermocouple to cool, caus ing pilot ﬂame to go out. This problem could be caused by one or both of the following:

A) Low gas pressure B) Dirty or partially clogged

ODS/pilot

5. Th er mocouple connection loose at control valve

6. Thermocouple damaged

7. Control valve damaged

REMEDY

1. Press in control knob fully

2. After ODS/pilot lights, keep control knob pressed in 30 seconds

3. Fully open equipment shutoff valve

4. A) Contact local natural or propane/LP gas company

B) Cl ean ODS/ p i lot (see

Cleaning and Maintenance

page 23) or replace ODS/pilot assembly

5. Hand tighten until snug, then tighten 1/4 turn more

6. Replace pilot assembly

7. Replace control valve

Burners does not light after ODS/pilot is lit

Delayed ignition of one or both burners

Burner backﬁring during combustion

Slight smoke or odor during initial operation

1. Inlet gas pressure is too low

2. Burner oriﬁce(s) clogged

3. Thermopile leads disconnect ed or improperly connected

4. Burner will not come on in remote position

1. Manifold pressure is too low

2. Burner oriﬁce(s) clogged

1. Burner oriﬁce is clogged or damaged

2. Damaged burner

3. Gas regulator defective

1. Not enough air

2. Gas regulator defective

3. Residues from manufacturing processes and logs curing

1. Contact local natural or pro pane/LP gas company

2. Clean burner(s) (see Cleaning and Maintenance, page 23) or replace burner oriﬁce(s)

3. Reconnect leads (see Wiring

Diagram, page 24)

4. Replace battery in transmitter and receiver

1. Contact local natural or pro pane/LP gas company

2. Clean burner(s) (see Cleaning and Maintenance, page 23) or replace burner oriﬁce(s)

1. Clean burner (see Cleaning and Maintenance, page 23) or replace burner oriﬁce(s)

2. Replace damaged burner

3. Replace gas regulator

1. Check burner for dirt and debris. If found, clean burner (see Cleaning and Mainte nance, page 23)

2. Replace gas control

3. Problem will stop after a few hours of operation

www.desatech.com

107172-01K26

OBSERVED PROBLEM

Moisture/condensation noticed on windows

Heater produces a whistling noise when burners are lit

TROUBLESHOOTING

Continued

POSSIBLE CAUSE

1. Not enough combustion/ventilation air

Turning control knob to HI position when burners are cold

2. Air in gas line

3. Air passageways on heater blocked

4. Dirty or partially clogged burner oriﬁce(s)

REMEDY

1. Refer to Air for Combustion and Ventilation requirements

(page 6)

Turn control knob to LO position and let warm up for a minute

2. Operate burners until air is removed from line. Have gas line checked by local natural or propane/LP gas company

3. Observe minimum installation clearances (see page 10)

4. Clean burners (see Cleaning and Maintenance, page 23) or replace burner oriﬁce(s)

White powder residue forming within burner box or on adjacent walls or furniture

Re m o t e d o es n o t f u nctio n (GHRCB and GHRCTB only)

Yellow ﬂame in front burner dur ing burner combustion

Fireplace produces a clicking/ ticking noise just after burner is lit or shut off

1. When heated, vapors from furniture polish, wax, carpet cleaners, etc. may turn into white powder residue

1. Battery is not installed. Bat tery power is low

1. Not enough air

2. Gas regulator defective

1. Metal expanding while heat ing or con tra cti ng whil e cooling

1. Turn heater off when using furniture polish, wax, carpet cleaners or similar products

1. Replace 9-volt batteries in receiver and remote control

1. C heck bu r n e r(s) fo r d irt and debris. If found, clean burner(s) (see Cleaning and Maintenance, page 23)

2. Replace gas regulator

1. This is common with most

heaters. If noise is excessive, contact qualiﬁed service per son

107172-01K 27

www.desatech.com

TROUBLESHOOTING

Continued

WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the ﬁre department.

IMPORTANT: Operating heater where impurities in air exist may create odors. Cleaning supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix with combustion air and create odors. These odors will disappear over time.

OBSERVED PROBLEM

Fireplace produces unwanted odors

Fireplace shuts off in use (ODS operates)

POSSIBLE CAUSE

1. Heater burning vapors from paint, hair spray, glues, cleaners, chemicals, new carpet, etc. (See IMPORTANT state- ment above)

2. Low fuel supply (propane/LP only)

3. Gas leak. See Warni ng

statement at top of page

1. Not enough fresh air is avail able

2. Low line pressure

3. O D S/ pi l ot i s pa r ti a ll y clogged

REMEDY

1. Open win do w to vent il ate room. Stop using odor causing products while heater is running

2. Reﬁll supply tank (propane/LP only)

3. Locate and correct all leaks (see Checking Gas Connec- tions, page 15)

1. Open window and/or door for

ventilation

2. Contact local natural or pro pane/LP gas company

3. Clean ODS/pilot (see Cleaning and Maintenance, page 23)

Gas odor even when control knob is in OFF position

Gas odor during combustion

Dark residue on logs inside of their ﬁreplace. removing all causes of residue deposits, completely clean ﬁreplace and appliance off residue before reusing appliance

Note: After

1. Gas leak. See Warni ng

statement at top of page

2. Control valve or gas control defective

1. Foreign matter between con trol valve and burner

2. Gas leak. See Warni ng

statement at top of page

1. Improper log placement

2. Drafts or other air currents affecting ﬂame pattern

3. Air holes at bur ner inlet blocked

4. Burner ﬂame holes blocked

www.desatech.com

1. Locate and correct all leaks (see Checking Gas Connec tions, page 15)

2. Replace control valve or gas control

1. Take apart gas tub in g and

remove foreign matter

2. Locate and correct all leaks (see Checking Gas Connec tions, page 15)

1. Properly locate logs (see In stalling Logs, page 14

2. El im in at e sou rc e of drafts around heater

Clean out air holes at burner inlet. Periodically repeat as needed

4. Remove blockage

107172-01K28

REPLACEMENT PARTS

Note: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized dealers of this product. If they canʼt supply original replacement part(s), call DESA Heating Productsʼ Technical Service Department at 1-866-672-6040.

When calling DESA Heating Products, have ready

• your name

• your address

• model and serial numbers of your heater

• how heater was malfunctioning

• type of gas used (propane/LP or natural gas)

• purchase date

Usually, we will ask you to return the part to the factory.

PARTS NOT UNDER WARRANTY

Contact authorized dealers of this product. If they canʼt supply original replacement part(s), call DESA Heating Products at 1-866-672-6040 for referral information.

When calling DESA Heating Products, have ready

• model number of your heater

• the replacement part number

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burners will have delayed ignition

• heater will not produce speciﬁed heat

• propane/LP gas supply may be low

You may feel your gas pressure is too low. If so, con tact your local propane/LP or natural gas supplier.

TECHNICAL SERVICE

You may have further questions about installation, operation or troubleshooting. If so, contact DESA Heating Productsʼ Technical Service Department at 1-866-672-6040. When calling please have your model and serial numbers of your heater ready.

You can also visit DESA Heating Productsʼ techni cal services web site at www.desatech.com.

107172-01K 29

www.desatech.com

ILLUSTRATED PARTS BREAKDOWN

LOGS FOR "A" MODELS

LOGS FO

"NON-A" MODELS

LOG BASE ASSEMBLY MODELS

EFS33NR, EFS33NRA, VSGF33NR, VSGF33NRA, EFS33PR, EFS33PRA, VSGF33PR AND VSGF33PRA

www.desatech.com

107172-01K30

PARTS LIST

This list contains replaceable parts used in your ﬁreplace. When ordering parts, follow the instructions listed under Replacement Parts on page 29 of this manual.

PART NUMBER KEY EFS33NR EFS33NRA EFS33PR EFS33PRA

NO. VSGF33NR VSGF33NRA VSGF33PR VSGF33PRA DESCRIPTION QTY.

____

1a 1b 1c 2a 104388-02 2b 104390-02 2c 104392-02 2d 104394-02

____ ____

110881-04 110881-05 110881-06

____ ____ ____ ____

3 099387-12 099387-12 099387-09 099387-09 Pilot Tube 1 4 M11084-26 M11084-26 M11084-26 M11084-26 Hex Screw, #10 2 5 098304-01 098304-01 098304-01 098304-01 Screw, #10 Phillips, Black 8 6 103779-01 103779-01 103778-01 103778-01 ODS Pilot (Propane/LP) 1 7 098249-01 098249-01 098249-01 098249-01 Nut 4 8 101006-02 101006-02 101006-02 101006-02 Pilot Bracket 1 9 101330-05 101330-05 101330-05 101330-05 Front Burner Assembly 1 10 109824-02 109824-02 109824-02 109824-02 Rear Burner Assembly 1 11 ** ** ** ** Base Assembly 1 12 098271-10 098271-10 098271-10 098271-10 Ignitor Cable 1 13 ** ** ** ** Firebox Bottom 1 14 102445-01 102445-01 102445-01 102445-01 Piezo Ignitor 1 15 101004-08 101004-08 101004-01 101004-01 Front Burner Injector 1 16 104241-02 104241-02 104241-02 104241-02 Switch Bracket 1 17 103782-01 103782-01 103782-01 103782-01 Valve Bracket 1 18 103284-03 103284-03 103284-03 103284-03 Wiring Harness 1 19 102846-02 102846-02 102846-02 102846-02 Burner Tube 1 20 097809-02 097809-02 097809-02 097809-02 Adapter 1 21 M12461-26 M12461-26 M12461-26 M12461-26 10/32, Screw 4 22 098265-02 098265-02 098265-02 098265-02 Elbow, Male 1 23 103781-01 103781-01 103781-02 103781-02 Gas Valve Assembly 1 24 099998-01 099998-01 099998-01 099998-01 Switch 1 25 101004-14 101004-14 101004-15 101004-15 Rear Burner Injector 1 26 101628-03 101628-03 101628-03 101628-03 Flex Hose 1 27 M11084-38 M11084-38 M11084-38 M11084-38 Screw 2 28 901056-01 901056-01 901056-01 901056-01 3/8" Flare x 1/2" NPT 1

100563-01 100563-01 100563-01 100563-01 Warning Plate 1 103877-01 103877-01 103877-01 103877-01 Lighting Instructions Plate 1

**Not a ﬁeld replaceable part.

____

110881-04 Front Log 1

____

110881-05 Middle Log 1

____

110881-06 Rear Log 1 104388-02 104390-02 104392-02 104394-02

PARTS AVAILABLE — NOT SHOWN

____

Front Log 1

____

Middle Log 1

____

Rear Log 1

____

Crossover Log 1

107172-01K 31

www.desatech.com

ILLUSTRATED PARTS BREAKDOWN

FIREPLACE MODELS

EFS33NR, EFS33NRA, VSGF33NR, VSGF33NRA, EFS33PR, EFS33PRA, VSGF33PR AND VSGF33PRA

www.desatech.com

107172-01K32

PARTS LIST

FIREPLACE MODELS

EFS33NR, EFS33NRA, VSGF33NR, VSGF33NRA, EFS33PR, EFS33PRA, VSGF33PR AND VSGF33PRA

This list contains replaceable parts used in your ﬁreplace. When ordering parts, follow the instructions listed under Replacement Parts on page 29 of this manual.

KEY NO. PART NUMBER DESCRIPTION QTY.

1 101357-01 Top Outer Casing 1 2 103207-01 Outer Casing 1 3 102758-02CK Right Front Side 1 4 102759-02CK Left Front Side 1 5 098304-01 Phillips Pan Head Screw, #10 17 6 101351-01CK Top Front 1 7 102455-02 Top Louver Assembly 2 8 101353-01CK Middle Front Rail 1 9 101712-02 Firebox Hood 1 10 101348-01 Firebox Support 2 11 099230-01 Shoulder Screw 4 12 101872-03 Firebox Top 1 13 ** Outer Base 1 14 ** Firebox Wrapper 1 15 101514-01 Cover 1 16 M11084-26 Hex Screw, #10 57 17 098304-03 Phillips Pan Head Screw, #8 4 18 101727-03 Screen Assembly 1

PARTS AVAILABLE — NOT SHOWN

100639-01 Caution Decal 1 103590-01 Decal Strip 1 104313-01 Hinge, Pin 1 104313-02 Hinge, Pin 1 M10908-2 Screw, Slotted Hex Head Tapping 4

**Not a ﬁeld replaceable part.

107172-01K 33

www.desatech.com

ACCESSORIES

NOTICE: All accessories may not be available for all ﬁreplace models.

Purchase these heater accessories from your local dealer. If they can not supply these accessories, call DESA Heating Products at 1-866-672-6040 for referral information. You can also write to the address listed on the back page of this manual.

EQUIPMENT SHUTOFF VALVE GA5010

For all models. Equipment shutoff valve with 1/8" NPT tap. Fits 1/2" NPT pipe.

BLOWER ACCESSORY - GA3750 & GA3650T SERIES

For all models. Manual variable control and automatic thermostat variable control. A blower will increase air ﬂow to maximize heat distribution.

CORNER MANTEL

GM36F Series - Walnut Finished GM37U Series - Unﬁnished GM202F Series - Oak Finished

For all models. Shown with optional base and laminate hearth and mantel trim accessories. Space saving corner mantels feature moldings, ﬂuting and medallion.

Dimensions (H xW xD): 48

/4" x 60 7/8" x 34 3/4"

www.desatech.com

CABINET MANTEL

GMC11F Series - Walnut Finished GMC12U Series - Unﬁnished GMC13F Series - Oak Finished with Medium Stain GM102W Series - Off White Paint

For all models. Shown with optional base and laminate hearth and mantel trim accessories. Mantel features moldings, ﬂuting and medallion. Dimensions (WxHxD): 48" x 56 3/4" x 22 3/4"

CABINET MANTEL AND FULL HEARTH BASE

GMC90F Series - Oak Finished GMC91U Series - Unﬁnished Birch GMC92F Series - Cherry Finished Birch

For all models. Mantel features columns, mold ings, ﬂuting and medallion. Dimensions (WxHxD): 56" x 50" x 24"

DUPLEX OUTLET KIT - GA3555

(Not Shown)

For all models. For built-in installation when accessory blowers are used.

FIREBOX BRICK LINER - G8001A SERIES (Not Shown)

For all models. Ceramic ﬁber ﬁrebox liner adds the look of real brick.

INFORMATION VIDEO - 108917-01

(Not Shown)

For all models. A care and maintenance video is available by calling 1-866-672-6040. You may also email your request to productsupport@desaint.com.

107172-01K34

ACCESSORIES

Continued

Hearth Base Trim

CORNER HEARTH BASE

G3008F Series - Walnut Finished G3009U Series - Unﬁnished G3010F Series - Oak Finished

For all models. The corner hearth base is designed for use with the corner mantels to create a hand some riser for the ﬁreplace. Dimensions (WxHxD): 6" x 52 1/2" x 23 3/4"

HARDWOOD HEARTH BASE

GC3333F Series- Walnut Finished GC3334U Series - Unﬁnished GC3335F Series - Oak Finished with Medium Stain G3004W Series - Off White Paint

For all models. The hearth base can be used with the cabinet mantels to create a handsome riser for the ﬁreplace (cannot be used with corner mantel). Dimensions (WxHxD): 6 1/2" x 58" x 28 9/16"

SLIM HEARTH BASE

(Not Shown) G3005J Series - Jade Marble Laminate G3005S Series - Sandstone Marble Laminate G3005B Series - Black Onyx Marble Laminate

For all models. The slim hearth base allows you to further customize your ﬁreplace.

Dimensions (WxHxD): 5/8" x 41 7/8" x 10"

PERIMETER TRIM ACCESSORY

(Not Shown) PT32 - Black PT32B - Brushed Brass PT32PB - Polished Brass PT32P - Platinum

For all models. Optional with built-in installation. Provides a ﬁnished appearance covering rough and/or unﬁnished mantel or wall opening, edges, etc.

(Polished Brass Trim PT32PB included with mantel accessory.)

FIRE CRACKLE - CF6-A (Not Shown)

Creates the sound of a real burning ﬁre.

107172-01K 35

www.desatech.com

Mantel Trim

LAMINATE TRIM FOR HEARTH OR MANTEL

G3002J Series - Jade Marble Laminate Mantel Trim

G3003J Series - Jade Marble Laminate Hearth Base Trim G3002S Series - Sandstone Marble Laminate Mantel Trim G3003S Series - Sandstone Marble Laminate Hearth Base Trim G3002B Series - Black Onyx Marble Laminate Trim G3003B Series - Black Onyx Marble Laminate Hearth Base Trim

For all models. Mantel trim for cabinet or corner mantel. Hearth base trim for hardwood hearth bases.

RECEIVER AND HAND-HELD THERMOSTAT REMOTE CONTROL KIT - GHRCTB AND CGHRCTB

For all Remote-Ready Models. Allows the ﬁreplace to be operated in a manually or thermostatically controlled mode. You can turn the ﬁreplace on and off without ever leaving the comfort of your easy chair.

RECEIVER AND REMOTE CONTROL KIT - GHRCB AND CGHRCB

For all Remote-Ready Models. Allows the ﬁreplace to be turned on and off by using a hand-held remote control.

WALL-MOUNT THERMOSTAT SWITCH - GWMT1 (Not Shown)

For all Remote-Ready Models. The desired com fort setting can be selected on the wall thermostat and the log heater will automatically cycle from pilot to the heat setting selected.

WALL-MOUNT ON/OFF SWITCH GWMS2 (Not Shown)

For all Remote-Ready Models. Allows the gas log heater to be turned on and off with a wall switch.

WARRANTY INFORMATION

107172 01

KEEP THIS WARRANTY

Model

Serial No.

Date Purchased

Always specify model and serial numbers when communicating with the factory.

We reserve the right to amend these speciﬁcations at any time without notice. The only warranty applicable is our standard written warranty. We make no other warranty, expressed or implied.

LIMITED WARRANTY

VENT-FREE GAS FIREPLACE

DESA Heating Products warrants this product to be free from defects in materials and components for four (4) years from the date of ﬁrst purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must be presented.

This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore this heater to proper operating condition and an allowance for labor when provided by a DESA Heating Products Authorized Service Center. Warranty part(s) MUST be obtained through authorized dealers of this product and/or DESA Heating Products who will provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty. The heater MUST be installed by a qualiﬁed installer in accordance with all local codes and instructions furnished with the unit.

This warranty does not apply to parts that are not in original condition because of normal wear and tear or parts that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation. Travel, diagnostic cost, labor, transportation and any and all such other costs related to repairing a defective heater will be the responsibility of the owner.

TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUD ING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO FOUR (4) YEARS ON ALL COMPONENTS FROM THE DATE OF FIRST PURCHASE; AND DESA HEATING PRODUCTSʼ LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND DESA HEATING PRODUCTS SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential damages, so the above limitation on implied warranties or exclusion or limitation on damages may not apply to you.

This warranty gives you speciﬁc legal rights and you may also have other rights that vary from state to state.

For information about this warranty write:

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004 www.desatech.com

NOT A UPC

107172-01 Rev. K 09/04

Desa VSGF33NRA User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SAFETY INFORMATION

PRODUCT IDENTIFICATION

LOCAL CODES

UNPACKING

PRODUCT FEATURES

INSTALLATION

OPERATING FIREPLACE

INSPECTING BURNERS

WIRING DIAGRAM

SPECIFICATIONS

TROUBLESHOOTING

REPLACEMENT PARTS

SERVICE HINTS

TECHNICAL SERVICE

ACCESSORIES

WARRANTY INFORMATION
