RESIDENTIAL AND OUTDOOR WOODBURNING FIREPLACE
OWNER’S OPERATION AND INSTALLATION MANUAL
MODELS S36, S36H, S36R, S36RH, VS36(1) AND VS36H(1)
SAVE THIS BOOK
This book is valuable. In addition to instructing you
on how to install and maintain your appliance, it also
contains information that will enable you to obtain replacement parts or accessory items when needed. Keep
it with your other important papers.
This replace is approved for use as a wood burning
replace or for use with a vented gas log approved to
ANS Z21.60, Z21.84 or RGA 2-72 standards or for use
with a vent-free gas log heater approved to ANS Z21.11.2
standard. A DESA hood must be installed when using a
vent-free log heater (see Accessories, page 16).
This wood burning replace complies with UL127CAN/ULS-S610-M87 standard as a FACTORY BUILT
APPLIANCE.
FOR CANADA: The authority having jurisdiction (such
as the municipal building department, re department,
etc.) should be contacted before installation to determine the need to obtain a permit.
Save this manual for future reference.
For more information, visit www.desatech.com
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury, property
damage or loss of life. Refer to this manual for assis-
tance or additional information. Consult a qualied
installer or local distributor.
TABLE OF CONTENTS
Safety Information ............................................... 2
Specications ...................................................... 3
Fireplace Installation............................................ 4
Venting Installation .............................................. 6
Optional Gas Line Installation.............................11
Operation and Maintenance Guidelines ............ 12
Technical Service............................................... 13
Illustrated Parts Breakdown and Parts List........ 14
Replacement Parts ............................................ 16
Accessories ....................................................... 16
SAFETY INFORMATION
IMPORTANT: Check local codes
before installing this replace.
Before beginning the installation of the replace,
read these instructions through completely.
• This DESA replace and its components are
safe when installed according to this installation
manual. Unless you use DESA components,
which have been designed and tested for the
replace system, you may cause a re hazard.
• The DESA warranty will be voided by and
DESA disclaims any responsibility for the
following actions.
a. Modication of the replace, components,
doors, air inlet system and damper control.
b. Use of any component part not manufac-
tured or approved by DESA in combination
with a DESA replace system.
Proper installation is the most important step in
ensuring safe and continuous operation of the
replace. Consult the local building codes as to
the particular requirements concerned with the
installation of all factory built replaces.
WARNING: Do not install a
replace insert in this box unless
the manufacturer's instructions
with the insert specically state
this replace has been tested for
use with this insert.
FOR YOUR SAFETY
• Do not store or use gasoline
or any other ammable vapors
or liquids in the vicinity of this
or any other appliance.
• Due to high temperatures, the
appliance should be located
out of trafc and away from
furniture and draperies.
• Do not place clothing or other
ammable materials on or near
the appliance.
• Never leave children unat-
tended when a re is burning
in the replace.
WARNING: Use solid wood
or processed solid fuel relogs
only. When processed wood fuel
re logs are used, do not poke or
stir the logs while they are burn-
ing. Use only re logs that have
been evaluated for the application
in replace and refer to re log
warnings and caution markings
on packaging prior to use.
This replace is not intended to be
used as a substitute for a furnace
to heat an entire home. Use for
supplemental heat only.
www.desatech.com
111026-01C2
SPECIFICATIONS
0" TO
BOTTOM
(LEFT SIDE ONLY)
OUTSIDE AIR
TOP SPACERS
BACK AND SIDES
3/4" AIR SPACE
HEARTH EXTENSION
66" X 20"
TO PERPENDICULAR
12"
EACH SIDE
NOT LESS
THAN 12"
1" AIRSPACE
TO COMBUSTIBLE
COMBUSTIBLE
WALL BOARD
0" TO
MATERIAL
NO COMBUSTIBLE
MATERIAL ON FACE
SIDEWALL
TERMINATION
SQUARE CHASE-TOP
GAS LINE
KNOCK OUT
AIR KIT
KNOCK OUTS
ROUND TOP TERMINATION
GAS LINE
KNOCK OUTS
ELECTRICAL
OUTLET
LEFT SIDE
RIGHT SIDE
8.125"
10.435"
14.437"
41.25"
37"
41"
35"
21"
8"
32.5"
14.25"
22"
2.5"
8.717"
1"
11.217"
2.5"
8.125"
7.092"
8.717"
12.5"
41"
1"
0.625"
29"
21
111026-01C 3
www.desatech.com
21.875”
41.375”
41.250”
52.183"
17.253"
24.399"
73.798"
MAINTAIN 3/4"
CLEARANCE AT
SIDES AND BACK
OF FIREPLACE
3
/4" CLEARANCE
NOT REQUIRED AT
NAILING FLANGES
FIREPLACE INSTALLATION
SELECTING LOCATION
To determine the safest and most efcient location
for the replace, you must take into consideration
the following guidelines:
1. The location must allow for proper clearances
(see Figures 1 and 2).
2. Consider a location where the replace will
not be affected by drafts, air conditioning
ducts, windows or doors.
3. A location that avoids the cutting of joists or
roof rafters will make installation easier.
4. An outside air kit is available with this replace
(see Optional Outside Air Kit on page 8).
MINIMUM CLEARANCE TO
COMBUSTIBLES
Back and sides of replace 3/4" minimum*
Floor** 0" minimum
Perpendicular wall to opening 12" minimum
Top spacers 0" minimum
Mantel clearances
Chimney outer pipe surface 1" minimum
* Not required at nailing anges
** See step 2 of Framing
WARNING: Do not pack required air spaces with insulation
or other materials.
Minimum/Maximum Chimney Height for
Residential Installation
The minimum height of the chimney, measured
from the base of the replace to the ue gas outlet
of the termination, is 14.5 feet for straight ue or
a ue with one elbow set. The maximum distance
between elbows is 6 feet. For systems with two
elbow sets, the minimum height is 22 feet. The
maximum height of any system is 50 feet. This
measurement includes the replace, chimney sections and the height of the termination assembly
at the level of the ue gas outlet (see Figure 18,
page 11).
Minimum/Maximum Chimney Height for
Outdoor Installation
The minimum height of the chimney, measured
from the base of the replace to the ue gas outlet
of the termination, is 7 1/2 feet (minimum of 4 feet
of chimney pipe sections required for outdoor
installation).
see Mantels, page 5
www.desatech.com
FRAMING
1. Frame the opening for the replace using the
dimensions shown in Figures 1 and 2.
2. If the replace is to be installed directly on
carpeting, tile (other than ceramic) or any
combustible material other than wood ooring, the replace must be installed upon a
metal or wood panel extending the full width
and depth of the replace.
3. Set the replace directly in front of this opening and slide the unit back until the nailing
anges touch the side framing.
4. Check the level of the replace and shim with
sheet metal if necessary.
5. Before securing replace to prepared framing, the ember protector (provided) must
be placed between the hearth extension (not
supplied) and under the bottom front edge
of the replace to protect against glowing
embers falling through. If the replace is to be
installed on a raised platform, a Z-type ember
protector (not supplied) must be fabricated to
t your required platform height. The ember
protector should extend under the replace a
minimum of 1 1/2". The ember protector should
be made of galvanized sheet metal (28 gauge
minimum) to prevent corrosion.
6. Using screws or nails, secure the replace to
the framing through anges located on the
sides of the replace.
Figure 1 - Framing Dimensions
Figure 2 - Corner Installation
111026-01C4
FIREPLACE INSTALLATION
FIREBOX
SAFE ZONE
Continued
DRAIN PAN (DP36)
For outdoor installations, the replace enclosure
must allow for adequate drainage and fresh air
ventilation. It is recommended that a sealed, corrosion resistant catch pan with provision for drainage
be installed under the replace within the replace
enclosure (see Accessories on page 16).
HEARTH ExTENSION
A hearth extension projecting a minimum of 16"
in front of and a minimum of 8" beyond each
side of the replace opening is required to protect
combustible oor construction in front of the replace. Fabricate a hearth extension using a material
which meets the following specications: a layer
of noncombustible, inorganic material having a
thermal conductivity of K=0.84 BTU IN/FT, HR.
F (or less) at 1" thick. For example, if the material
selected has a K factor of 0.25, such as glass ber,
the following formula would apply:
0.25 x 1.0" = 0.30" thickness required
0.84
Thermal conductivity "K" of materials can be
obtained from the manufacturer or supplier of the
noncombustible material. If the hearth extension
is to be covered, use noncombustible material such
as tile, slate, brick, concrete, metal, glass, marble,
stone, etc. Provide a means to prevent the hearth
extension from shifting and seal gap between the
replace frame and hearth extension with a noncombustible material (see Figure 3).
WARNING: Hearth extension
is to be installed only as shown
in Figure 3.
Seal Gap
Hearth
Extension
Seal Gap
Fireplace Front
Ember Protector
Fireplace Front
Raised Hearth
Ember Protector
Fireplace Front
Elevated
MANTELS
A mantel may be installed if desired (see Figure
4). Woodwork such as wood trims, mantels or
any other combustible material projecting from
the front face must not be placed within 12" of
the fireplace opening. Combustible materials
above 12" and projecting more than 11/2" from the
replace must not be placed less than 15" from
the top opening of the replace (NFPA STD 211,
Sec. 7-3.3.3).
Mantels or any other combustible material also
may come up to the side edge of the black metal
face of the replace just as long as the projection
from the front face fall within the limit shown in
Figure 4.
Combustible
12 1/4" Ref.
6"
Ref.
12" Min.
Top View of Fireplace
33°
33°
3" Nom.
11/2" Max.
9" Min.
Fireplace
Opening
8.0"
Min. to
Perpendicular
Side Wall
12"
Figure 4 - Mantel Clearances to
Combustible Material
Material
Safe
Zone for
Projection of
Combustible
Materials
Upper
Section of
Fireplace
2" Max.
3.0"
Combustible
Material Must
Not Overlap
Front Face
Ember Protector
Figure 3 - Hearth Extension
111026-01C 5
www.desatech.com
VENTING INSTALLATION
OPTIONAL OUTSIDE AIR KIT
(MODEL AK4/AK4F)
The installation of an outside air kit should be performed during the rough framing of the replace
due to the nature of it's location. Outside combustion air is accessed through a vented crawl space
(AK4F) or through a sidewall (AK4).
CAUTION: Combustion air
inlet ducts shall not terminate
in attic space.
Secure to Collars with Metal Tape,
Screws or Straps (Min. of 1/4" x 20"
in size)
Air Inlet
Location
Must Allow
For Bushes
or Snow
Air Inlet
Eyebrow
Vented Crawl Space
(Check Local Codes
Before Installing in a
Vented Crawl Space)
Figure 5 - Outside Air Kit
CHIMNEY PIPE
The DESA chimney system consists of 12", 18",
24", 36" and 48" snap-lock, double-wall pipe
segments, planned for maximum adaptability
to individual site requirements. Actual lengths
gained after tting overlaps must be taken into
consideration (lineal gain) and are given in the
lineal gain chart (see Figure 6). Lineal gain is the
actual measurable length of a part after two or more
parts are connected. For Canada, use chimney parts
designated "HT".
WARNING: The opening in the
collar around the chimney at the
top of the replace must not be
obstructed. Never use blown insula-
tion to ll the chimney enclosure.
Vent Hood
Required for
Wall Installation
PART NO. DESCRIPTION GAIN
36" Fireplace 40
12-8DM
12-8HT
18-8DM
18-8HT
24-8DM
24-8HT
36-8DM
36-8HT
48-8DM
48-8HT
RT-8DM Round Termination 6 7/8"
RTL-8DM Round Termination 7 3/4"
RTT-8DM
RTTL-8DM
ET-8DM Square Chase-Top 12
ETO-8DM
ETL-8DM
ETLO-8DM
* The lineal gain for the terminations is measured to the ue gas outlet height.
12" Galvanized
Outer Pipe
12 3/8"
Stainless
Inner Pipe
LINEAL GAIN
Pipe Section 10 5/8"
Pipe Section 16 5/8"
Pipe Section 23 5/8"
Pipe Section 34 5/8"
Pipe Section 46 5/8"
Round Termination
with Slip Section
Round Termination
with Slip Section
Square Chase-Top
with Mesh
Square Chase-Top
with Slip Section
Square Chase-Top
with Mesh & Slip
Section
Figure 6 - Lineal Gain
"
*
*
6 7/8" to
23 1/8"*
8 1/2" to
21 1/2"*
*
"
*
12
"
7" to 15"*
12" to
25 1/2"
*
Hemmed
End
ASSEMBLY AND INSTALLATION OF
DOUBLE WALL CHIMNEY SYSTEM
Each double wall chimney section consists of a
galvanized outer pipe, a stainless steel inner ue
pipe and a wire spacer. The pipe sections must be assembled independently as the chimney is installed.
When connecting chimney directly to the replace,
the inner ue pipe section must be installed rst
with the lanced side up. The outer pipe section can
then be installed over the ue pipe section with the
hemmed end up. Press down on each pipe section
until the lances securely engage the hem on the replace starter. The wire will assure the proper spacing
between the inner and outer pipe sections.
www.desatech.com
111026-01C6
VENTING INSTALLATION
Continued
Continue to assemble chimney sections as outlined,
making sure that both the inner and outer pipe sections are locked together. When installing double
wall snap-lock chimney together, it is important
to assure the joint between the chimney sections
is locked. Check by pulling chimney upward after
locking. The chimney will not come apart if properly locked. It is not necessary to add screws to
keep the chimney together (exception - see Figure
9, page 8).
USING ELBOW OFFSETS (30E-8DM)
1. To achieve desired offset, you may install
combinations of 12", 18", 24", 36" and 48"
length of double wall pipe (see offset chart
and Figure 7).
2.
Chimney weight above offset rests on return
elbow. Straps must be securely nailed to rafters
or joists (see Figure 8, details a & b on page 8).
3. Maximum length of pipe between supports
(return elbow or 12S-8DM) is 6' of angle run.
Maximum of two 6' angle run sections per
chimney system (see Figure 7).
4. All pipe connections between the offset and
return must be secured with two screws on the
outer pipe only (see Figure 9, page 8). Do not
penetrate the inner stainless.
OFFSET
OFFSET CHART (22-50 FT. SYSTEM HEIGHT)
RISE CHIMNEY LENGTH
A B 48" 36" 24" 18" 12"
4 3/8" 16 3/8"
9 3/4" 25 1/2"
12 3/4" 30 3/4"
15" 34 3/4"
18" 40"
21 1/4" 46 1/4"
23 3/4" 49 1/4"
27 3/4" 56 3/4"
30" 60 3/4"
33" 66"
36" 71"
38 1/4" 75"
41 1/4" 80 1/4"
45" 86 3/4"
46 3/4" 89 1/2"
51" 97"
53 1/4" 101"
56 1/4" 106 1/4"
59 1/4" 111 1/2"
61 3/4" 115 1/2"
64 3/4" 120 3/4"
68 1/4" 127"
70" 130"
74 1/4" 137 1/2"
76 3/4" 141 1/2"
79 3/4" 146 3/4"
ELBOW SET ONLY
1
1
1 1
1
1 1
1
1 1
1 1
1 1
2
1 1 1
2
1 1 1
1 1
2 1
2
1 1 1
2 1
2 1
1 2
2 1 1
1 2 1
1 2 1
4
1
Return
Elbow
Offset
Elbow
6' Max.
Return
Elbow
6' Max.
Offset
Elbow
A B C
Figure 7 - Typical Offset Terminations
111026-01C 7
Offset
Elbow
Return
Elbow
Offset
Elbow
www.desatech.com
6' Max.
6' Max.
Offset
Elbow
Return
Elbow
Ceiling
Support Pipe
12S-8DM
Return
Elbow
6' Max.
6' Max.
VENTING INSTALLATION
Continued
See Detail A
2" Min.
Straps
Angle Firestop
Straps
Detail A
Return Elbow
Figure 8 - Ceiling Support Pipe
Screws
FIRESTOP SPACERS (V3600FS-8DM)
Firestop spacers are required at each point where
the chimney penetrates a oor space. Their purpose
is to establish and maintain the required clearance
between the chimney and the combustible materials.
When the pipe passes through a framed opening into
a living space above, the restop must be placed onto
the ceiling from below as shown in Figure 10.
They also provide complete separation from one oor
space to another or attic space as required by most
codes. When the double wall pipe passes through a
framed opening into an attic space, the restop must
be placed into an attic oor as shown in Figure 11.
Straps
Detail B
Straps
12S-8DM
A
Figure 9 - Elbow Offset
See Detail B
B
Existing
Ceiling
Frame
Firestop
Spacer
Screws or
Staples
(Min. of 8)
Figure 10 - Firestop Spacer with Living
Firestop
Spacer
Figure 11 - Firestop Spacer with Attic
Space Above Ceiling
Screws or Staples
(Min. of 8)
Existing
Ceiling
Frame
Space Above Ceiling
PENETRATING THE ROOF
To maintain a 1" clearance to the pipe on a roof
with a pitch, a rectangular opening must be cut.
1. Determine the center point through which the
pipe will penetrate the roof.
2. Determine the center point of the roof. Pitch
is the distance the roof drops over a given
span, usually 12". A 6/12 pitch means that
the roof drops 6" for each 12" one measure
horizontally down from the roof rafters.
3. Use the roof opening chart (Figure 12, page
9) to determine the correct opening length and
ashing required.
4. Remove the shingles around the opening
measured. Cut out this section.
5. Add the next sections of the pipe until the
end penetrates the roof line. Check to see that
the proper clearances are maintained. Extend
chimney by adding sections of double wall
pipe until pipe is minimum of 30" above the
highest point of the roof cutout. Termination
and chimney must extend a minimum of
36" above the highest point where it passes
through the roof.
www.desatech.com
111026-01C8
VENTING INSTALLATION
14 3/8" Min.
(365 mm)
30" Min.
(762 mm)
1" Min.
(25 mm)
1" Min.
(25 mm)
1" Min.
(25 mm)
Opening "A"
Continued
Storm Collar Installation (SC1 or SC2)
Place storm collar over pipe and slide down until
it is snug against the open edge of the ashing (see
Figure 14). Use SC1 for all round terminations and
SC2 for all terminations with slip sections. Apply
waterproof caulk around the perimeter of the collar
to provide a proper seal.
Chimney
Pipe
Waterproof
Caulk
Storm
Collar
Flashing
Pitch Slope Opening "A"
Flat 0° 15" V6F-8DM
0-6/12 26.6° 16 1/8" V6F-8DM
6/12-
45.0° 20 3/8" V12F-8DM
12/12
Max.
Figure 12 - Roof Opening Measurements
FLASHING INSTALLATION (V6F-8DM
OR V12F-8DM)
Determine the ashing to be used with the roof
opening chart. Slide ashing over pipe until base
is at against roof. Replace as many shingles as
needed to cover exposed area and ashing base.
Used Flashing
Model No.
Figure 14 - Storm Collar
Terminations/Spark Arrestor
The replace system must be terminated with the
listed round top or chase terminations. In any case,
refer to the installation instructions supplied with
the termination. The termination approved for this
replace are the RT-8DM and RTL-8DM that can
be used for ashing or chase and ET-8DM, ETO8DM, ETL-8DM and ETLO-8DM for chase style
termination only. Figure 15 shows an RTL-8DM
round top termination.
Secure in position by nailing through shingles
(see Figure 13). DO NOT NAIL THROUGH
FLASHING CONE.
Installing Flashing on a Metal Roof
When installing the ashing on a metal roof, it is
required that putty tape be used between the ashing
and the roof. The ashing must be secured to the roof
using #8 x 3/4" screws and then sealed with roof coating to prevent leakage through the screw holes. A roof
coating must also be applied around the perimeter of
the ashing to provide a proper seal.
Storm Collar
Flashing
Cone
Overlap
Shingles Top
and Sides Only
Nail Only
CAUTION: Do not seal open-
ings on the rooftop ashing. Fol-
low the installation instructions
provided with the termination
being used.
Attach Bracket
Tabs to
Outer Pipe
(3 Places)
Secure with
Screws
Overlap
Shingles Top
and Sides
Outer
Perimeter
of Flashing
Underlap Shingles
at Bottom
Figure 13 - Flashing Installation
111026-01C 9
Figure 15 - Termination
www.desatech.com
RTL-8D
Level of
Flue Gas
Outlet
Caulk
Collar
Flashing
Underlap
Shingles
Bottom Only
VENTING INSTALLATION
Continued
Terminations with 16" slip pipe sections are available. The RTT-8DM and RTTL-8DM are approved
for ashing installations. When needed, these
adjustable terminations may be used in combination with the pipe assembly to achieve the correct
chimney height.
Note: In the rare instance there is a problem with
the side driven rain or wind or the chimney is
not drafting properly, an ADS-8DM (Anti-Draft
Shield) can be used with round terminations.
CHASE INSTALLATIONS
Instructions for chase installations are included
with the chase style termination chosen. In a
multiple chase installation, be sure to provide
adequate distance between terminations to prevent
smoke spillage from one termination to another.
We suggest that terminations be separated at least
24", center to center and stacked at a vertical height
difference of 18" (see Figure 16).
Note: If a decorative shroud is to be installed,
contact the manufacturer for specications.
18"
Min.
Typ.
10 FOOT RULE
All ue gas outlet chimney terminations must
extend a minimum of 3 feet in height above the
highest point where it passes through the roof and
must be at least 2 feet above the highest point of
the roof that is within a horizontal distance of 10
feet (see Figure 17).
3' Min.
Level of
Flue Gas
Outlet
10'
2' Min.
3' Min.
10'
2' Min.
Figure 17 - 10 Foot Rule
FINISHING THE FIREPLACE
Combustible materials, such as wallboard, gypsum
board, sheet rock, drywall, plywood, etc. may make
direct contact with sides and top around the replace
face. It is important that combustible materials do
not overlap the face itself. Brick, glass, tile or other
noncombustible materials may overlap the front
face provided they do not obstruct essential openings like louvered slots or any other opening. When
overlapping with a noncombustible facing material,
use only noncombustible mortar or adhesive.
24" Min.
24" Min.
Figure 16 - Multiple Chase Installation
www.desatech.com
111026-01C10
VENTING INSTALLATION
EFFECTIVE HEIGHT OF
TERMINATION CAP
30E-8DM
EFFECTIVE HEIGHT OF
TERMINATION CAP
EFFECTIVE HEIGHT OF
TERMINATION CAP
MINIMUM
HEIGHT
14.5 FT.
MINIMUM
UP TO 6FT.
HEIGHT
MAXIMUM
14.5 FT.
(WITH TWO ELBOW SETS)
MINIMUM HEIGHT OF 22 FT.
EFFECTIVE HEIGHT OF
MAXIMUM HEIGHT OF 50 FT.
MAXIMUM
UP TO 6 FT.
(ANY SYSTEM)
50 FT.
HEIGHT
MAXIMUM
30E-8DM
TERMINATION CAP
Continued
Figure 18 - Typical Residential Installations
OPTIONAL GAS LINE
INSTALLATION
Gas line hook up should be done by your supplier
or a qualied service person.
4. Repack insulation around gas line and into
sleeve opening. Seal any gaps between gas line
and refractory knockout hole with refractory cement or commercial furnace cement, Install the
gas appliance or cap-off gas line if desired.
Note: Before you proceed, make sure your gas
supply is turned off.
Use only a 1/2" black iron pipe and appropriate
ttings.
1. Remove knockout indentation on refractory or
rebrick wall located above the refractory hearth
oor. The knockout indentation must be rmly
tapped with any solid object such as a 1/2" dowel
until it is released. Remove fragmented portions
of refractory (see Figure 19).
2. Remove gas line cover plate located on either
side of replace and pull out insulation from
gas line conduit sleeve. Save insulation for
reuse. Replace screws.
3. Run a 1/2" black iron gas line into the replace
through the rear at gas line conduit sleeve (if
Outside of
Fireplace
Gas Line
Conduit
Insulation
Gas
Conduit
Cover
Figure 19 - Gas Line Knockout
using a raised platform, add height). Provide
sufcient gas line into replace chamber for
tting connection (see Figure 20, page 12).
Note : Secure incoming gas line to wood
framing to provide rigidity for threaded end.
111026-01C 11
www.desatech.com
Side
Firebrick
Finished
Side
1/2" Dowel
Refractory
Knockout
Plug
OPTIONAL GAS LINE
INSTALLATION
Continued
CAUTION: All gas piping
and connections must be tested
for leaks after the installation
is completed. After ensuring
that the gas valve is on, apply
soap and water solution to all
connections and joints. Bubbles
forming show a leak. Correct
all leaks at once. DO NOT USE
AN OPEN FLAME FOR LEAK
TESTING AND DO NOT OPER-
ATE ANY APPLIANCE IF A LEAK
IS DETECTED. LEAK TESTING
SHOULD BE DONE BY A QUALIFIED SERVICE PERSON.
Note : A DESA hood must be installed when
using an unvented gas log set (see Accessories
on page 16).
WARNING: Do not oper-
ate an unvented gas log set in
this replace with the chimney
removed.
If you install a decorative gas appliance (vented
gas log), the decorative gas appliance must comply
with the Standard for Decorative Gas Appliance
for Installation in Solid Fuel Burning Fireplaces,
ANS Z21.60, Z21.84 or RG 2-72 and shall also be
installed in accordance with the National Fuel Gas
Code, ANSI 7223NFPA 54 latest edition.
Outside of
Fireplace
Gas
Line
Conduit
Incoming
1/2" Black
Iron Pipe
Side
Firebrick
Finished
Side
WARNING: To avoid the risk of
damaging the replace materials
and increasing the risk of spread-
ing a re, do not use the replace
to cook or warm food.
WARNING: If the replace
has been used for wood burning,
the rebox and chimney must be
cleaned of soot, creosote and
ashes be a qualied chimney
cleaner. Creosote will ignite if
heavily heated.
WARNING: When using a
decorative vented gas log, the
damper must be removed or permanently locked in the fully open
position and the glass doors must
be in the fully open position.
OPERATION AND
MAINTENANCE
GUIDELINES
GLASS DOORS
Glass doors are optional with the replace. When
the replace is in operation, doors must be fully
opened or fully closed position only or a re hazard
may be created (see Figure 21).
Doors Fully Closed
Fireplace Front
Seal
Repack
Insulation
Figure 20 - Gas Line Installation
Opening
with
Refractory
Cement
Provide Enough Threaded
End for Fitting Connection
www.desatech.com
Doors
Fully Opened
Fireplace Front
Figure 21 - Glass Doors
111026-01C12
OPERATION AND
OPE
N
CLOS
E
MAINTENANCE
GUIDELINES
Continued
A replace equipped with glass doors operates
mush differently than a replace with an open
front. A replace with glass doors has a limited
amount of air for combustion. Excessive heat
within the replace can result if too large a re
is built or if the combustion air gate is not completely open.
The following tips should be followed to assure
that both the replace and the glass door retain
their beauty and function properly. Both the ue
damper and the glass doors must be fully opened
before starting the re. This will provide sufcient
combustion air and maintain safe temperatures in
the rebox.
IMPO RTANT: The glass must be allowed to
warm slowly and evenly. The tempered glass will
withstand a gradual temperature rise to 550° F,
which is more than a normal re will generate.
Such materials as pitch/wax laden logs, very dry
mill end lumber and large amounts of paper or
cardboard boxes can create an excessively hot re
and should not be burned in this replace. Always
keep the re well back from the doors and never
allow ames to contact the glass.
WA R N ING: Firep l a c e s
equi pped wi th g lass do ors
should be operated only with
doors fully opened or doors fully
closed. Doors, if left partly open,
may draw gas and ame out of
the replace opening creating
risks of both re and smoke.
If you wish to install an unvented (vent-free) gas
log set, only unvented gas log sets which have been
found to comply with the standard for unvented
room heaters, ANSI Z21.11.2 are to be installed
in this replace.
OUTSIDE AIR AND DAMPER
HANDLE OPERATION
The damper handle, which opens and closes the
damper blade, is located in the upper front face of
the replace. Pushing the handle into the left of the
keyway slot will free the damper blade to automatically open. Pushing the handle in to the right will
lock the damper blade closed (see Figure 22).
The outside air kit handle is located at the left hand
side of the replace (see Figure 22). Pulling the
handle out will free the outside air door to open.
Pushing the handle in will lock the door closed.
WARNING: Risk of re! Replace
grate with DESA model 111100-01
only. This grate has been designed
to keep the operation of your replace safe and efcient.
For further operating guidelines, instructions and
warranty information, please refer to your homeowner's guide or contact your authorized dealer.
Damper
Handle
Keyway
Slot
Cleaning the Glass
Clean the glass with any commercial glass cleaner
or soap and water. Do not use any abrasive material to clean the glass. Do not clean the glass with
any cool water is the glass is still hot from the
re and smoke.
A gas line or gas log lighter may be installed for the
purpose of installing a vented or vent-free decorative
gas appliance incorporating an automatic shutoff device and complying with the Standard for Decorative
Gas Appliances for Installation in Vented Fireplaces,
ANSI Z21.60 or American Gas Association draft re-
quirements for Gas Fired Log Lighters for Wood Burning Fireplaces, Draft NO. 4 dated August, 1993.
111026-01C 13
www.desatech.com
Outside Air
Kit Handle
Figure 22 - Damper and Air Kit Handle
Handle
Retainer
TECHNICAL SERVICE
You may have further questions about installation,
operation, or troubleshooting. If so, contact DESA’s
Technical Service Department at 1-866-672-6040.
When calling please have your model and serial
numbers of your heater ready.
You can also visit DESA’s technical services web
site at www.desatech.com.
ILLUSTRATED PARTS BREAKDOWN
9
26
16
33
27
16
27
4
32
34
19
12
25
20
30
17
8
1
5
21
2
35
18
11
14
3
13
22
10
6
31
7
37/38
36
28
29
24
23
15
WOODBURNING FIREPLACE MODELS
S36, S36H, S36R, S36RH, VS36(1) AND VS36H(1)
www.desatech.com
111026-01C14
PARTS LIST
WOODBURNING FIREPLACE MODELS S36, S36H, S36R, S36RH, VS32(1)
AND VS32H(1)
This list contains replaceable parts used in your replace. When ordering parts, see Replacement Parts
on page 16 of this manual.
KEY
NO. PART NO. DESCRIPTION QTY.
1 106638-01 Insulation Pan 1
2 ** Fireplace Top 1
3 106641-01 Fireplace Surround 1
4 106642-01 Air Rod Retainer 1
5 106643-01 Damper Rod Retainer 1
6 ** Firebox Bottom 1
7 ** Firebox Surround 1
8 ** Air Separator 1
9 See Below Left Refractory 1
10 See Below Right Refractory 1
11 See Below Rear Refractory 1
12 See Below Bottom Rear Refractory 1
13 See Below Bottom Front Refractory 1
14 106683-01 Firebox Support Leg 4
15 106687-01 Damper Can Collar 1
16 106691-01 Screen Rod 2
17 ** Firebox Top Assembly 1
18 106703-01 Air Kit Door Assembly 1
19 ** Face Weldment 1
20 110892-01 Air Deector 1
21 107768-01 Fireplace Top Insulation 1
KEY
NO. PART NO. DESCRIPTION QTY.
22 107775-01 Access Panel 1
23 107854-01 Right Refractory Bracket 1
24 107854-02 Left Refractory Bracket 1
25 111028-01 Grate 1
26 11418 Push-On Nut 2
27 110890-01 Stainless Screen 2
28 16405 Collar Insulation 1
29 20023 Chimney Starter Collar 1
30 20027 Refractory Retainer 2
31 106539-02 Grate Retainer 2
32 111073-01 Door Stop 1
33 111204-01 Pivot Clip 2
34 20090 Spring Clip 2
35 20280 Top Spacer 4
36 21171 Conduit Plate Cover 4
37 21379 Gas Conduit 2
38 21380 Gas Conduit 2
PARTS AVAILABLE NOT SHOWN
106625-01 Home Owner’s Guide 1
** Not a eld replaceable part
REFRACTORY BRICK
KEY
NO. PART NO. DESCRIPTION QTY.
9 106658-03 Left Refractory, Textured White Brick • 1
108164-03 Left Refractory, Textured White Herringbone Brick • 1
106658-02 Left Refractory, Textured Red Brick • 1
108164-02 Left Refractory, Textured Red Herringbone Brick • 1
106658-01 Left Refractory, Smooth White Brick • 1
108164-01 Left Refractory, Smooth White Herringbone Brick • 1
10 106659-03 Right Refractory, Textured White Brick • 1
108165-03 Right Refractory, Textured White Herringbone Brick • 1
106659-02 Right Refractory, Textured Red Brick • 1
108165-02 Right Refractory, Textured Red Herringbone Brick • 1
106659-01 Right Refractory, Smooth White Brick • 1
108165-01 Right Refractory, Smooth White Herringbone Brick • 1
11 106660-03 Rear Refractory, Textured White Brick • 1
108166-03 Rear Refractory, Textured White Herringbone Brick • 1
106660-02 Rear Refractory, Textured Red Brick • 1
108166-02 Rear Refractory, Textured Red Herringbone Brick • 1
106660-01 Rear Refractory, Smooth White Brick • 1
108166-01 Rear Refractory, Smooth White Herringbone Brick • 1
12 110899-01 Bottom Rear Refractory, White Brick • • • • 1
110899-02 Bottom Rear Refractory, Red Brick • • 1
13 110900-01 Bottom Front Refractory, White Brick • • • • 1
110900-02 Bottom Front Refractory, Red Brick • • 1
111026-01C 15
www.desatech.com
S36
S36H
S36R
S36RH
VS36(1)
VS36H(1)

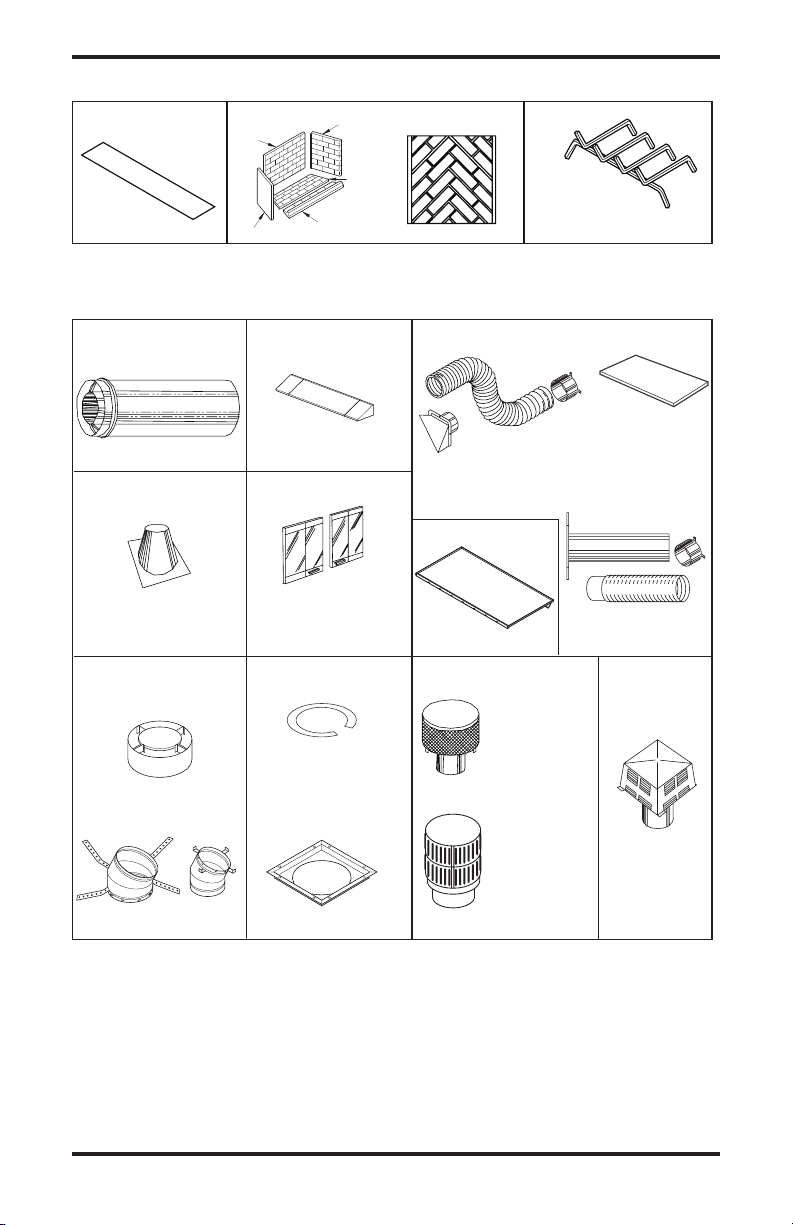

REPLACEMENT PARTS
24-8DM
48-8DM
36-8DM
18-8DM
12-8DM
EP-36
DOUBLE WALL PIPE
EMBER PROTECTOR
STANDARD BRICK LINER HERRINGBONE
BRICK LINER
GRATE
PN 111028-01
36-8HT
48-8HT
12-8HT
24-8HT
18-8HT
ROUND TOP
TERMINATIONS
WITH LOUVERS
RTL-8DM
ROUND TOP
TERMINATIONS
WITH SLIP SECTION
RTTL-8DM
RTT-8DM
ROUND TOP
TERMINATIONS
RTL-8DM
RT-8DM
Rear
Left Side
Front Bottom
Bottom
Right Side
AK-4
OPTIONAL OUTSIDE AIR KIT
FOR SIDE WALL INSTALLATION
PN 01576
HEARTH
EXTENSION HE-36
30° OFFSET AND RETURN
ANTI-DRAFT SHIELD
(ROUND TOP TERMINATION
ONLY)
30E-8DM
STORM COLLAR
ROOF FLASHING
BI-FOLD GLASS DOOR
DRAIN PAN
DP36
0 TO 6/12 PITCH - V6F-8DM
6/12 TO 12/12 PITCH - V12F-8DM
ANTIQUE BRASS FINISH GA6053
POLISHED BRASS FINISH GA6052
BLACK PAINTED FINISH GA6050
BDO36 - BLACK FINISH
BDO36B - BRUSHED BRASS FINISH
BDO36P - PLATINUM FINISH
ADJUSTABLE HOOD
REQUIRED WHEN INSTALLING
A VENT-FREE GAS LOG
IN THIS FIREPLACE
V3600FS-8DM
SC1-1
FOR RT-8DM AND RTL-8DM
SC2-1 FOR RTT-8DM
AND RTTL-8DM
FIRESTOP SPACER
SQUARE
CHASE-TOP
TERMINATION
ET-8DM
ETO-8DM
ECONO-TOP
TERMINATION
WITH SLIP
SECTION
ETL-8DM
ETLO-8DM
OPTIONAL OUTSIDE
AIR KIT FOR
FLOOR INSTALLATION
AK4F
See Parts List on page 17 for part numbers.
ACCESSORIES
www.desatech.com
111026-01C16
NOTES
_____________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
_____________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
_____________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
111026-01C 17
www.desatech.com
NOTES
_____________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
_____________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
_____________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
www.desatech.com
111026-01C18
NOTES
_____________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
_____________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
_____________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
111026-01C 19
www.desatech.com
111026 01
2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
www.desatech.com
NOT A UPC
111026-01
Rev. C
01/06
Loading...
