UNVENTED (VENT-FREE) PROPANE/LP GAS LOG HEATER

OWNER’S OPERATION AND INSTALLATION MANUAL

For more information, visit www.desatech.com

18", 24", and 30" Variable

Manually-Controlled Models

CGD3018P CCL3924P CGD3924P CRL2718P CGD3930P CRL3124P CCL3018P

(Smoky Mountain Oak Model Shown)

BILTMORE SPLIT OAK, SEASONAL OAK

AND SMOKY MOUNTAIN OAK LOGS

Patent Pending

Variable Manually-Controlled Models Also Design-Certified

As Vented Decorative Appliances

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.

— Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

— Installation and service must be performed by

a qualified installer, service agency, or the gas

18", 24", and 30"

Thermostatically-Controlled

Models

CGD3924PT CGD3930PT CGD3018PT CCL3018PT CCL3924PT CCL3930PTA

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a qualified installer, service agency, or the gas supplier.

WARNING: This appliance is for installation only in a solid-fuel burning masonry or UL127 factory-built fireplace, or in an approved ventless firebox. It is designcertified for these installations in accordance with ANSI Z21.11.2. Exception: Do not install this appliance in a factorybuilt fireplace that includes instructions stating it has not been tested or should not be used with unvented gas logs.

WARNING: This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to

Air for Combustion and Ventilation

section on page 4 of this manual.

This appliance may be installed in an aftermarket,* permanently located, manufactured (mobile) home, where not prohibited by local codes.

This appliance is only for use with type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

Save this manual for future reference.

TABLE OF CONTENTS SAFETY INFORMATION

TABLE OF CONTENTS

SAFETY INFORMATION ............................................................ 2

PRODUCT IDENTIFICATION ..................................................... 3

LOCAL CODES........................................................................... 4

UNPACKING............................................................................... 4

PRODUCT FEATURES .............................................................. 4

AIR FOR COMBUSTION AND VENTILATION ........................... 4

INSTALLATION ........................................................................... 7

OPERATING HEATER.............................................................. 19

INSPECTING BURNERS.......................................................... 22

CLEANING AND MAINTENANCE ............................................ 23

TROUBLESHOOTING .............................................................. 24

SAFETY INFORMATION

WARNINGS

WARNING ICON G 001

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this heater. Improper use of this heater can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning.

DANGER: Carbon monoxide poisoning may lead

to death!

Carbon Monoxide Poisoning: Early signs of carbon monoxide

poisoning resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the heater may not be working properly. Get fresh air at once! Have heater serviced. Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anemia, those under the influence of alcohol, and those at high altitudes.

Propane/LP Gas: Propane/LP gas is odorless. An odor-making

agent is added to the gas. The odor helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists.

Make certain you read and understand all warnings. Keep this manual for reference. It is your guide to safe and proper operation of this heater.

OPTIONAL POSITIONING OF THERMOSTAT

SENSING BULB................................................................... 27

REPLACEMENT PARTS .......................................................... 28

SERVICE HINTS....................................................................... 28

TECHNICAL SERVICE ............................................................. 28

ACCESSORIES ........................................................................ 28

SPECIFICATIONS .................................................................... 29

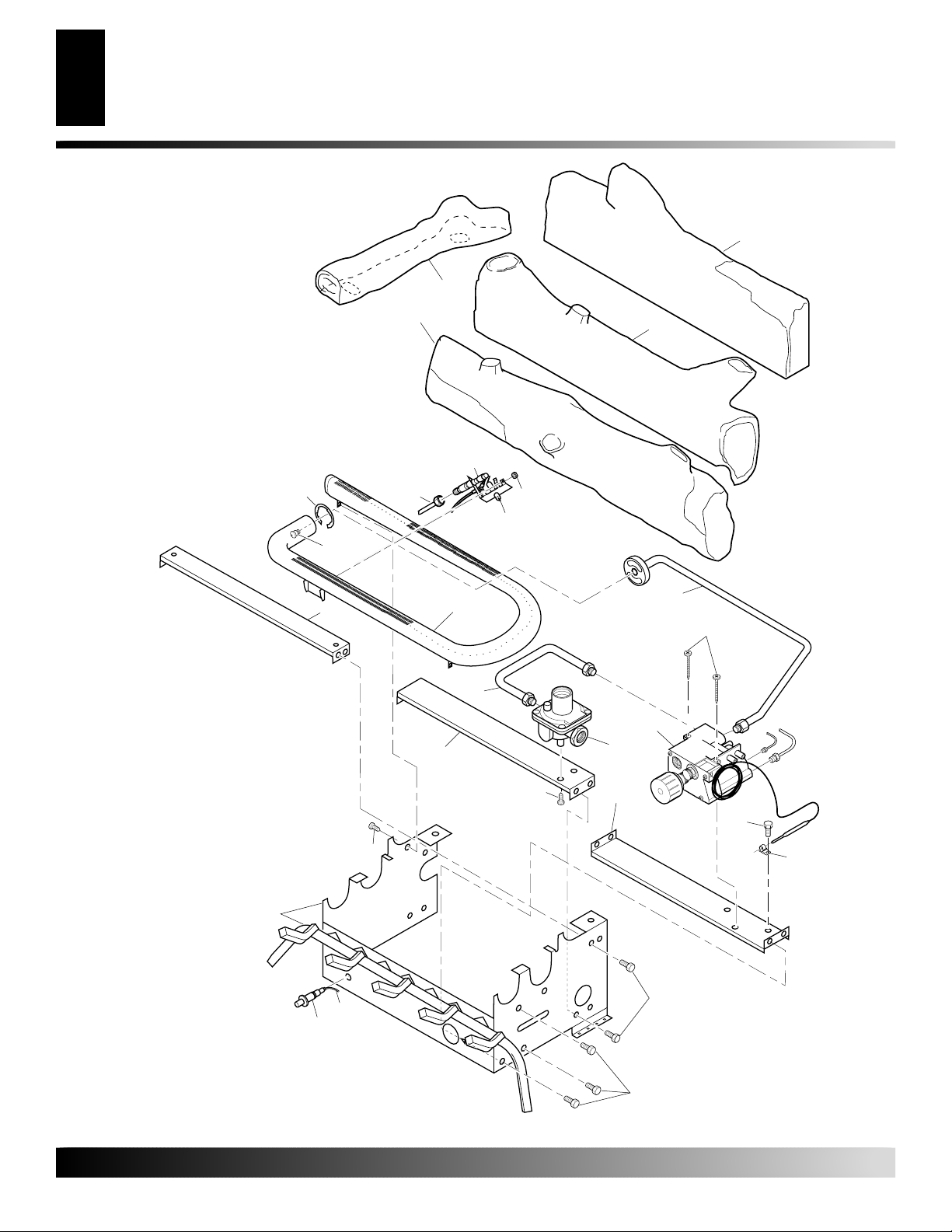

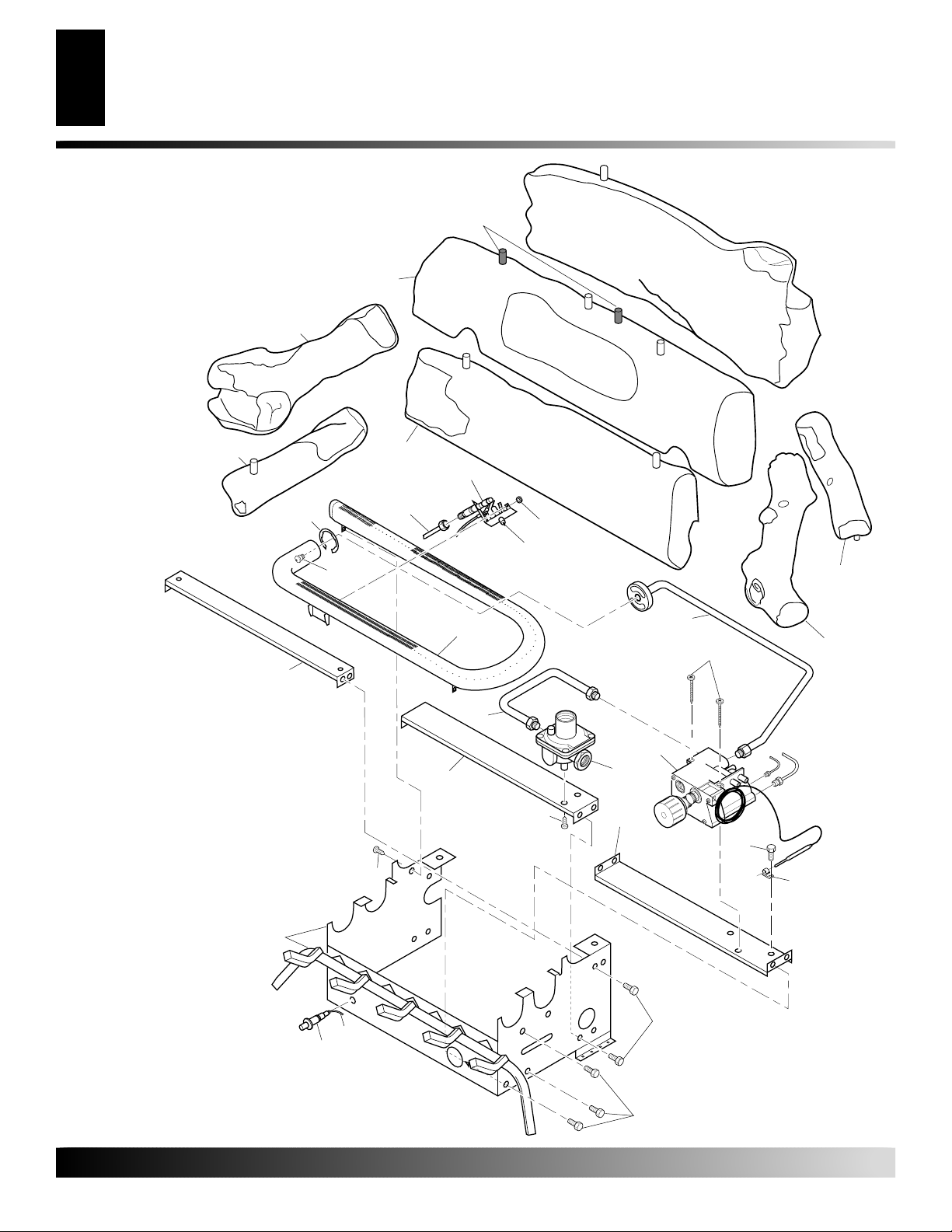

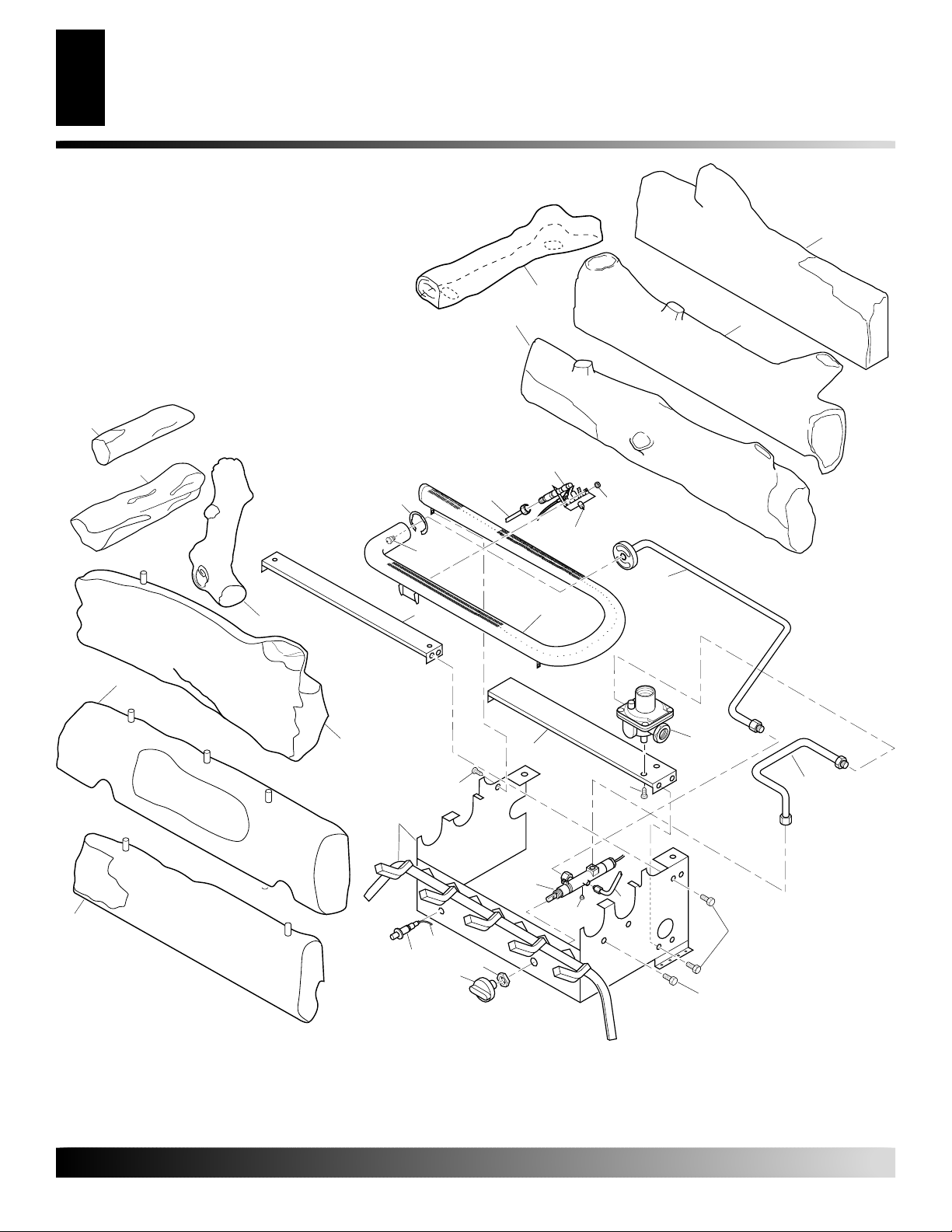

ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST ....... 30

PAR TS CENTRAL..................................................................... 40

OWNER'S REGISTRATION FORM .......................................... 41

WARRANTY INFORMATION...................................... Back Cover

WARNING: Do not allow fans to blow directly into the fireplace. Avoid any drafts that alter burner flame patterns. Ceiling fans can create drafts that alter burner flame patterns. Altered burner patterns can cause sooting.

WARNING: Do not use a blower insert, heat exchanger insert, or other accessory not approved for use with this heater.

Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.

Do not place clothing or other flammable material on or near the appliance. Never place any objects on the heater.

Heater base assembly becomes very hot when running heater. Keep children and adults away from hot surface to avoid burns or clothing ignition. Heater will remain hot for a time after shutdown. Allow surface to cool before touching.

Carefully supervise young children when they are in the room with heater.

WARNING: Any change to this heater or its con-

trols can be dangerous.

For more information, visit www.desatech.com

You must operate this heater with a fireplace screen in place. Make sure fireplace screen is closed before running heater.

Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.

107124-01E

SAFETY INFORMATION

Continued

SAFETY INFORMATION

PRODUCT IDENTIFICATION

1. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

2. Do not place propane/LP supply tank(s) inside any structure. Locate propane/LP supply tank(s) outdoors.

3. T o prevent performance problems, do not use propane/LP fuel tank of less than 100 lbs. capacity.

4. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do not use any phone in

your building

• immediately call your gas supplier from a neighbor’s phone.

Follow the gas supplier’s instructions

• if you cannot reach your gas supplier, call the fire department

5. This heater shall not be installed in a bedroom or bathroom unless installed as a vented appliance (Variable Manually-Controlled Models Only) (see Installing Damper Clamp Accessory for Vented Operation, page 10).

6. Before installing in a solid fuel burning fireplace, the chimney flue and firebox must be cleaned of soot, creosote, ashes and loose paint by a qualified chimney cleaner. Creosote will ignite if highly heated. Inspect chimney flue for damage. If damaged, operate heater with flue damper closed.

7. If fireplace has glass doors, never operate this heater with glass doors closed. If you operate heater with doors closed, heat buildup inside fireplace will cause glass to burst. Also if fireplace opening has vents at the bottom, you must open the vents before operating heater.

8. This log heater is designed to be smokeless. If logs ever appear to smoke, turn off heater and call a qualified service person.

Note:

During initial operation, slight smoking could occur due

to log curing and heater burning manufacturing residues.

9. To prevent the creation of soot, follow the instructions in Clean- ing and Maintenance, page 23.

10. Before using furniture polish, wax, carpet cleaner, or similar products, turn heater off. If heated, the vapors from these products may create a white powder residue within burner box or on adjacent walls or furniture.

11. This heater needs fresh, outside air ventilation to run properly. This heater has an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the heater if not enough fresh air is available. See Air for Combustion and Ventilation, pages 4 through 6. If heater keeps shutting off, see Trouble- shooting, pages 24 through 26.

12. Do not run heater

• where flammable liquids or vapors are used or stored

• under dusty conditions

13. Do not use this heater to cook food or burn paper or other objects.

14. Do not use heater if any part has been exposed to or under water. Immediately call a qualified service technician to inspect the room heater and to replace any part of the control system and any gas control which has been under water.

15. Do not operate heater if any log is broken. Do not operate heater if a log is chipped (dime-sized or larger).

16. Turn heater off and let cool before servicing. Only a qualified

service person should service and repair heater.

17. Operating heater above elevations of 4,500 feet could cause

pilot outage.

Provide adequate clearances around air openings.

18.

PRODUCT IDENTIFICATION

Crossover Log

Front Log

Piezo Ignitor

Control Knob

Figure 1 - Vent-Free Gas Log Heater - Dual Burner (Logs May Vary by Model - Smoky Mountain Oak Model Shown)

Crossover Log

Front Log

Piezo Ignitor

Control Knob

Figure 2 - Vent-Free Gas Log Heater - Single Burner (Logs May Vary by Model - Seasonal Oak Model Shown)

Back Log

Middle Log

Burner Base

Grate

Back Log

Burner

107124-01E

For more information, visit www.desatech.com

LOCAL CODES

UNPACKING PRODUCT FEATURES AIR FOR COMBUSTION AND VENTILATION

Providing Adequate Ventilation

LOCAL CODES

Install and use heater with care. Follow all local codes. In the absence of local codes, use the latest edition of The National Fuel Gas Code, ANSI Z223.1/NFPA 54*.

*Available from:

American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

Note:

Where listed vented decorative logs are required, thermo-

stat operation is not permitted.

UNPACKING

CAUTION: Do not remove the data plates from the grate assembly. The data plates contain important product information.

1. Remove logs and heater base assembly from carton. not pick up heater base assembly by burners. This could damage heater. Always handle base assembly by grate.

2. Remove all protective packaging applied to logs and heater for shipment.

3. Check all items for any shipping damage. If damaged, promptly inform dealer where you bought heater.

Note:

PRODUCT FEATURES

OPERATION

This heater is clean burning. It requires no outside venting. There is no heat loss out a vent or up a chimney. Heat is generated by realistic dancing, yellow flames. This heater is designed for vent-free operation with flue damper closed. It has been tested and approved to ANSI Z21.11.2 standard for unvented heaters. State and local codes in some areas prohibit the use of vent-free heaters. This heater may also be operated as a vented decorative (ANSI Z21.60) product by opening the flue damper (non-thermostat operation only).

SAFETY PILOT

This heater has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS/pilot is a required feature for ventfree room heaters. The ODS/pilot shuts off the heater if there is not enough fresh air.

PIEZO IGNITION SYSTEM

This heater has a piezo ignitor. This system requires no matches, batteries, or other sources to light heater.

AIR FOR COMBUSTION AND VENTILATION

WARNING: This heater shall not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home.

Today’s homes are built more energy efficient than ever. New materials, increased insulation, and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in. During heating months, home owners want their homes as airtight as possible.

While it is good to make your home energy efficient, your home needs to breathe. Fresh air must enter your home. All fuel-burning appliances need fresh air for proper combustion and ventilation.

Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from the house to operate. You must provide adequate fresh air for these appliances. This will insure proper venting of vented fuel-burning appliances.

PROVIDING ADEQUATE VENTILATION

The following are excerpts from National Fuel Gas Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation.

All spaces in homes fall into one of the three following ventilation classifications:

1. Unusually Tight Construction

2. Unconfined Space

3. Confined Space The information on pages 4 through 6 will help you classify your

space and provide adequate ventilation.

Unusually Tight Construction

The air that leaks around doors and windows may provide enough fresh air for combustion and ventilation. However, in buildings of unusually tight construction, you must provide additional fresh air.

Unusually tight construction is defined as construction where:

a. walls and ceilings e xposed to the outside atmosphere

have a continuous water vapor retarder with a rating of one perm (6x10 openings gasketed or sealed

b. weather stripping has been added on openable win-

dows and doors

-11

kg per pa-sec-m2) or less with

and

For more information, visit www.desatech.com

107124-01E

AIR FOR COMBUSTION AND VENTILATION

Continued

AIR FOR COMBUSTION AND VENTILATION

Providing Adequate Ventilation (Cont.)

Determining Fresh-Air Flow for Heater Location

c. caulking or sealants are applied to areas such as

joints around window and door frames, between sole plates and floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical, and gas lines, and at other openings.

If your home meets all of the three criteria above, you must provide additional fresh air. See

From Outdoors

, page 6

Ventilation Air

If your home does not meet all of the three criteria above, proceed to

tion

, below.

Determining Fresh-Air Flow for Heater Loca-

Confined and Unconfined Space

National Fuel Gas Code, ANSI Z223.1/NFPA 54 defines a confined space as a space whose volume is less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space and an unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the aggregate input rating of all appliances installed in that space. Rooms communicating directly with the space in which the appliances are installed*, through openings not furnished with doors, are considered a part of the unconfined space.

* Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.

DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION

Determining if You Have a Confined or Unconfined Space

Use this work sheet to determine if you have a confined or unconfined space. Space: Includes the room in which you will install heater plus any adjoining

rooms with doorless passageways or ventilation grills between the rooms.

1. Determine the volume of the space (length x width x height). Length x Width x Height =___________ cu. ft. (volume of space)

Example:

height) = 2560 cu. ft. (volume of space) If additional ventilation to adjoining room is supplied with grills or open-

ings, add the volume of these rooms to the total volume of the space.

2. Multiply the space volume by 20 to determine the maximum Btu/Hr the space can support.

__________ (volume of space) x 20 = (Maximum Btu/Hr the space

Example:

Btu/Hr the space can support)

Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling

can support)

2560 cu. ft. (volume of space) x 20 = 51,200 (maximum

3. Add the Btu/Hr of all fuel burning appliances in the space. Vent-free heater _____________ Btu/Hr Gas water heater* _____________ Btu/Hr Gas furnace _____________ Btu/Hr Vented gas heater _____________ Btu/Hr Gas fireplace logs _____________ Btu/Hr Other gas appliances* + _____________ Btu/Hr Total = _____________ Btu/Hr

* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the outdoors and vents to the outdoors.

Example:

Gas water heater _____________ Btu/Hr Vent-free heater + _____________ Btu/Hr Total = _____________ Btu/Hr

4. Compare the maximum Btu/Hr the space can support with the actual

amount of Btu/Hr used.

__________________ Btu/Hr (maximum the space can support) __________________ Btu/Hr (actual amount of Btu/Hr used)

Example:

The space in the above example is a confined space because the actual Btu/ Hr used is more than the maximum Btu/Hr the space can support. You must provide additional fresh air. Your options are as follows:

A. Rework worksheet, adding the space of an adjoining room. If the

extra space provides an unconfined space, remove door to adjoining room or add ventilation grills between rooms. See V entilation Air Fr om Inside Building, page 6.

B. Vent room directly to the outdoors. See Ventilation Air From Out-

doors, page 6.

C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room unconfined. If the actual Btu/Hr used is less than the maximum Btu/Hr the space can support,

the space is an unconfined space. You will need no additional fresh air ventilation.

51,200 Btu/Hr (maximum the space can support) 79,000 Btu/Hr (actual amount of Btu/Hr used)

40,000 39,000 79,000

WARNING: If the area in which the heater may be operated is smaller than that defined as an unconfined space or if the building is of unusually tight construction, provide adequate combustion and ventilation air by one of the methods described in the

National Fuel Gas Code, ANSI Z223.1/NFPA 54 Section 5.3

or applicable local codes

107124-01E

For more information, visit www.desatech.com

AIR FOR COMBUSTION AND VENTILATION

Ventilation Air

AIR FOR COMBUSTION AND VENTILATION

Continued

VENTILATION AIR

Ventilation Air From Inside Building

This fresh air would come from an adjoining unconfined space. When ventilating to an adjoining unconfined space, you must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor on the wall connecting the two spaces (see options 1 and 2, Figure 3). You can also remove door into adjoining room (see option 3, Figure 3). Follow the National Fuel

Gas Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation for required size of ventilation grills or ducts.

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within 12" of the floor. Connect these items directly to the outdoors or spaces open to the outdoors. These spaces include attics and crawl spaces. Follow the National Fuel Gas Code, ANSI

Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation

for required size of ventilation grills or ducts.

IMPORTANT:

attic if attic has a thermostat-controlled power vent. Heated air entering the attic will activate the power vent.

Do not provide openings for inlet or outlet air into

12"

Ventilation

Grills

Into Adjoining

Room,

Option 1

Figure 3 - Ventilation Air from Inside Building

Remove Door into Adjoining

Room, Option

12"

Outlet Air

Ventilation Grills

Into Adjoining Room,

Option 2

Ventilated Attic

Outlet Air

Inlet Air

Figure 4 - Ventilation Air from Outdoors

For more information, visit www.desatech.com

Crawl Space

To Attic

Crawl

Space

Ventilated

107124-01E

INSTALLATION

Check Gas Type

Installation and Clearances for Vent-Free Operation

NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using log heater. This will help circulate the heat from your log heater throughout the house. In the event of a power outage, you can use this heater as your primary heat source.

WARNING: A qualified service person must in-

stall heater. Follow all local codes.

NOTICE: State or local codes may only allow operation of this appliance in a vented configuration. Check your state or local codes.

WARNING: Before installing in a solid fuel burning fireplace, the chimney flue and firebox must be cleaned of soot, creosote, ashes, and loose paint by a qualified chimney cleaner. Creosote will ignite if highly heated. A dirty chimney flue may create and distribute soot within house. Inspect chimney flue and firebox for damage. If damaged, operate heater with flue damper closed.

WARNING: Seal any fresh air vents or ash cleanout doors located on floor or wall of fireplace. If not, drafting may cause pilot outage or sooting. Use a heatresistant sealant. Do not seal chimney flue damper.

WARNING: Never install the heater

• in a bedroom or bathroom unless installed as a

vented appliance (Variable Manually-Controlled Models Only) (see page 10)

• in a recreational vehicle

• where curtains, furniture, clothing, or other flam-

mable objects are less than 42 inches from the front, top, or sides of the heater

• in high traffic areas

• in windy or drafty areas

CAUTION: This heater creates warm air currents. These currents move heat to wall surfaces next to heater. Installing heater next to vinyl or cloth wall coverings or operating heater where impurities (such as, but not limited to, tobacco smoke, aromatic candles, cleaning fluids, oil or kerosene lamps, etc.) in the air exist, may discolor walls or cause odors.

IMPORTANT:

this is beneficial, installing heater in rooms without enough ventilation air may cause mildew to form from too much moisture. See Air for Combustion and Ventilation, pages 4 through 6.

Vent-free heaters add moisture to the air. Although

CHECK GAS TYPE

Use only propane/LP gas. If your gas supply is not propane/LP, do not install heater. Call dealer where you bought heater for proper type heater.

INSTALLATION AND CLEARANCES (Vent-Free Operation Only)

WARNING: Maintain the minimum clearances. If you can, provide greater clearances from floor, ceiling, and adjoining wall.

MINIMUM FIREPLACE CLEARANCE

TO COMBUSTIBLE MATERIALS

Log Size Side Wall Ceiling

18", 24", 30" 16" 42"

LOG SIZING REQUIREMENTS

Minimum Firebox Size

Log Front Rear* Size Height Depth Width Width

18" 17" 14" 24" 20" 24" 17" 14" 28" 21" 30" 17" 14" 34" 24"

*Measured at 14" depth

Carefully follow the instructions below. This will ensure safe installation into a masonry, UL127-listed manufactured fireplace, or certified vent-free firebox.

107124-01E

For more information, visit www.desatech.com

INSTALLATION

Installation and Clearances for Vent-Free Operation (Cont.)

INSTALLATION

Continued

Minimum Clearances For Side Combustible Material, Side Wall, and Ceiling

A. Clearances from the side of the fireplace cabinet to any com-

bustible material and wall should follow diagram in Figure 5.

Example:

combustible material and protrudes 3 1/2" from the wall. This combustible material must be 4" from the side of the fireplace opening (see Figure 5).

Note:

box, follow firebox manufacturer’s instructions for minimum clearances to combustible materials.

B. Clearances from the top of the fireplace opening to the ceiling

should not be less than 42 inches.

Figure 5 - Minimum Clearance for Combustible to Wall

NOTICE: Manual control heaters may be used as a vented product. If so, you must always run heater with chimney flue damper open. If running heater with damper open, noncombustible material above fireplace opening is not needed. Go to

Clamp Accessory for Vented Operation,

The face of a mantel, bookshelf, etc. is made of

When installing your gas logs into a manufactured fire-

Example

*Minimum 16 inches from Side Wall

Installing Damper

page 10.

If Using Mantel

You must have noncombustible material(s) above the fireplace opening. Noncombustible materials (such as slate, marble, tile, etc.) must be at least 1/2 inch thick. With sheet metal, you must have noncombustible material behind it. Noncombustible material must extend at least 8" up (for all models). If noncombustible material is less than 12", you must install the fireplace hood accessory (24" and 30" models only). Even if noncombustible material is more than 12", you may need the hood accessory to deflect heat away from your mantel shelf. See Figure 6 and Figures 7 and 8 on page 9 for minimum clearances.

IMPORTANT:

must operate heater with chimney flue damper open. Go to Installing Damper Clamp Accessory for Vented Operation, page 10.

Noncombustible Requirements for Material Distance (A) Safe Installation

12" or more Noncombustible material okay. Between 8" and 12" 24" or 30" Models: Install

Less than 8" Noncombustible material

If you cannot meet these minimum clearances, you

fireplace hood accessory (GA6050, GA6052, or GA6053 see page 28). 18" Model: Noncombustible material okay.

must be extended to at least 8". See above. If you cannot extend material, you must operate heater with flue damper open.

Accessories,

Between 8" and 12",

Minimum Noncombustible Material Clearances

If Not Using Mantel

Note:

If using a mantel, proceed to If Using Mantel. If not using a

mantel, follow the information below. You must have noncombustible material(s) above the fireplace

opening. Noncombustible materials (such as slate, marble, tile, etc.) must be at least 1/2 inch thick. With sheet metal, you must have noncombustible material behind it. Noncombustible material must extend at least 8" up (for all models). If noncombustible material is less than 12", you must install the fireplace hood accessory (24" and 30" models only). See Figure 6 for minimum clearances.

IMPORTANT:

must operate heater with chimney flue damper open. Go to Installing Damper Clamp Accessory for Vented Operation, page 10.

If you cannot meet these minimum clearances, you

For more information, visit www.desatech.com

Heat Resistant Material

(A)

Figure 6 - Heat Resistant Material (Slate, Marble, Tile, etc.) Above Fireplace

107124-01E

INSTALLATION

Hearth

5" Min.

Combustible Material

Continued

INSTALLATION

Mantel Clearances

Floor Clearances

MANTEL CLEARANCES

In addition to meeting noncombustible material clearances, you must also meet required clearances between fireplace opening and mantel shelf. If you do not meet the clearances in Figure 7, you will need a hood.

Determining Minimum Mantel Clearance

If you meet minimum clearance between mantel shelf and top of fireplace opening, a hood is not required (see Figure 7).

Determining Minimum Mantel Clearance When Using a Hood

If minimum clearances in Figure 7 are not met, you must have a hood. When using a hood there are still certain minimum mantel clearances required. Follow minimum clearances shown in Figure 8 when using hood.

NOTICE: Surface temperatures of adjacent walls and mantels become hot during operation. Walls and mantels above the firebox may become hot to the touch. If installed properly, these temperatures meet the requirement of the national product standard. Follow all minimum clearances shown in this manual.

NOTICE: If your installation does not meet the minimum clearances shown, you must do one of the following:

• operate the logs only with the flue damper open

• raise the mantel to an acceptable height

• remove the mantel

10" 8" 6" 2

Mantel Shelf

Underside of Mantel Shelf

8" Min.

Mantel Shelf

12" 15" 18"

Distances to Underside of Mantel

Underside of Mantel Shelf

All minimum distances are in inches

Log Set

All Models

18", 24", 30"

20"

Models

Top of Fireplace Opening

Minimum NonCombustible Material

12" 10" 8" 6"

Hood

(GA6050, GA6052,

(GA6050, GA6052)

and GA6053)

Figure 8 - Minimum Mantel Clearances When Using Hood

FLOOR CLEARANCES

A. If installing appliance on the floor level, you must maintain

the minimum distance of 14" to combustibles (see Figure 9).

B. If combustible materials are less than 14" to the fireplace, you

must install appliance at least 5" above the combustible flooring (see Figure 10).

Combustible

14" Min.

Figure 9 - Minimum Fireplace Clearances if Installed at Floor Level

Material

Noncombustible Material

All minimum distances are

24" 20"

Top of Fireplace Opening

in inches

Log Set

24"/30" Models 18" Model

Minimum NonCombustible Material

(A)

12" 8"

Minimum NonCombustible Material Height

18"8"20"

14"

Distances to Underside of Mantel

22" 17"

Figure 7 - Minimum Mantel Clearances Without Using Hood

For more information, visit www.desatech.com

107124-01E

Figure 10 - Minimum Fireplace Clearances Above Combustible Flooring

INSTALLATION

Installing Damper Clamp Accessory for Vented Operation Installing Heater Base Assembly

INSTALLATION

Continued

INSTALLING DAMPER CLAMP ACCESSORY FOR VENTED OPERATION

Note:

When used as a vented heater, appliance must be installed only in a solid-fuel burning fireplace with a working flue and constructed of noncombustible material.

If your heater is a manually controlled model, you may use this heater as a vented product. There are three reasons for operating your heater in the vented mode.

1. The fireplace does not meet the clearance to combustibles re-

quirements for vent-free operation.

2. State or local codes do not permit vent-free operation.

3. You prefer vented operation. If reasons number 1 or 2 above apply to you, you must permanently

open chimney flue damper. You must install the damper clamp accessory (to order, see Accessories, page 28). This will insure vented operation (see Figure 11). The damper clamp will keep damper open. Installation instructions are included with clamp accessory.

See chart below for minimum permanent flue opening you must provide. Attach damper clamp so the minimum permanent flue opening will be maintained at all times.

Chimney Minimum Permanent

Height (ft.) Flue Opening (sq. ins.)

6' to 15' 39 sq. inches

15' to 30' 29 sq. inches

Area of Various Standard

Round Flues

Diameter (ins.) Area (sq. ins.)

5" 20 sq. inches 6" 29 sq. inches 7" 39 sq. inches 8" 51 sq. inches

Damper Clamp

Damper

Manufactured FireplaceMasonry Fireplace

Figure 11 - Attaching Damper Clamp

Damper

Damper Clamp

Damper

INSTALLING HEATER BASE ASSEMBLY

CAUTION: Do not remove the data plates attached to the heater base assembly. The data plates contain important warranty and safety information.

WARNING: You must secure this heater to fireplace floor. If not, heater will move when you adjust controls. Moving heater may cause a gas leak.

WARNING: If installing in a sunken fireplace, special care is needed. You must raise the fireplace floor to allow access to heater control panel. This will insure adequate air flow and guard against sooting and controls being damaged. Raise fireplace floor with noncombustible material. Make sure material is secure.

CAUTION: Do not pick up heater base assembly by the burner. This could damage heater. Only handle base assembly by grates.

IMPORTANT:

not level, heater will not work properly. For thermostat models, avoid damage to thermostat bulb. Avoid nicks or sharp bends in thermostat bulb wire. Keep thermostat bulb in mounting bracket until ready to mount base to floor. See Optional Positioning Of Thermostat Sensing Bulb, page 27.

Installation Items Needed

• hardware package (provided with heater)

• approved flexible gas hose (not provided) (if allowed by local codes)

• sealant resistant to propane (propane/LP) gas, not provided

• electric drill with 3/16" drill bit

• flathead screwdriver

1. Apply pipe joint sealant lightly to male threads of the fitting to be threaded into gas regulator. Connect approved flexible gas hose to gas regulator of heater (see Figure 12).

IMPORTANT:

connecting flexible gas hose.

2. Locate masonry screws in hardware package.

3. Position heater base assembly in fireplace.

4. Place logs in their proper position on heater base, see Installing Logs on pages 13 through 18.

5. Center heater base and logs front-to-back and side-to-side in fireplace.

6. Carefully remove logs without moving heater base.

Make sure the heater burners are level. If heater is

Hold gas regulator with wrench when

For more information, visit www.desatech.com

107124-01E

INSTALLATION

Continued

Installing Heater Base Assembly (Cont.)

INSTALLATION

Connecting to Gas Supply

7. Mark screw locations through holes in mounting brackets (see Figure 13 and 14). If installing in a brick-bottom fireplace, mark screw locations in mortar joint of bricks.

8. Remove heater base from fireplace.

9. Drill holes at marked locations using 3/16" drill bit.

10. Attach base assembly to fireplace floor using two masonry screws (in hardware package) (see Figure 13 or 14).

Flexible Gas Hose (if allowed by local codes)

Fitting

Figure 12 - Attaching Flexible Gas Hose to Heater Gas Regulator

Figure 13 - Attaching Base Assembly to Fireplace Floor - Dual Burner Model

Heater Gas Regulator

Masonry Screw

Mounting Bracket

Masonry Screw

CONNECTING TO GAS SUPPLY

WARNING: This appliance requires a 1/2" NPT (National Pipe Thread) inlet connection to the pressure regulator.

WARNING: A qualified service person must connect heater to gas supply. Follow all local codes.

CAUTION: Never connect heater directly to the propane/LP supply. This heater requires an external regulator (not supplied). Install the external regulator between the heater and propane/LP supply.

Installation Items Needed

Before installing heater, make sure you have the items listed below.

• external regulator (supplied by installer)

• piping (check local codes)

• sealant (resistant to propane/LP gas)

• equipment shutoff valve *

• test gauge connection *

• sediment trap

• tee joint

• pipe wrench * A CSA design-certified equipment shutoff valve with 1/8" NPT

tap is an acceptable alternative to test gauge connection. Purchase the optional CSA design-certified equipment shutoff valve from your dealer. See Accessories, page 28.

The installer must supply an external regulator. The external regulator will reduce incoming gas pressure. You must reduce incoming gas pressure to between 11 and 14 inches of water. If you do not reduce incoming gas pressure, heater regulator damage could occur. Install external regulator with the vent pointing down as shown in Figure 15. Pointing the vent down protects it from freezing rain or sleet.

Mounting Bracket

Figure 14 - Attaching Base Assembly to Fireplace Floor - Single Burner Model

For more information, visit www.desatech.com

107124-01E

Propane/LP Supply Tank

Figure 15 - External Regulator With Vent Pointing Down

External Regulator

Vent Pointing Down

INSTALLATION

Connecting to Gas Supply (Cont.) Checking Gas Connections

INSTALLATION

Continued

CAUTION: Use only new, black iron or steel pipe. Internally-tinned copper tubing may be used in certain areas. Check your local codes. Use pipe of 1/2" diameter or greater to allow proper gas volume to heater. If pipe is too small, undue loss of volume will occur.

Installation must include an equipment shutoff valve, union, and plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream from heater (see Figure 16).

IMPORTANT:

Install equipment valve in an accessible location. The equipment shutoff valve is for turning on or shutting off the gas to the appliance.

Check your building codes for any special requirements for locating equipment shutoff valve to fireplaces.

Apply pipe joint sealant lightly to male NPT threads. This will prevent excess sealant from going into pipe. Excess sealant in pipe could result in clogged heater valves.

CSA Design-Certified

From External Regulator (11" W.C.** to 14" W.C. Pressure)

Equipment Shutoff Valve With 1/8" NPT Tap*

Approved Flexible Gas Hose (if allowed by local codes)

WARNING: Use pipe joint sealant that is resistant

to liquid petroleum (LP) gas.

We recommend that you install a sediment trap in supply line as shown in Figure 16. Locate sediment trap where it is within reach for cleaning. Install in piping system between fuel supply and heater. Locate sediment trap where trapped matter is not likely to freeze. A sediment trap traps moisture and contaminants. This keeps them from going into heater controls. If sediment trap is not installed or is installed wrong, heater may not run properly.

CAUTION: Avoid damage to regulator. Hold gas regulator with wrench when connecting it to gas piping and/or fittings.

CHECKING GAS CONNECTIONS

WARNING: Test all gas piping and connections for leaks after installing or servicing. Correct all leaks at once.

WARNING: Never use an open flame to check for a leak. Apply a noncorrosive leak detection fluid to all joints. Bubbles forming show a leak. Correct all leaks at once.

Tee Joint

Pipe Nipple

Cap

Sediment Trap

Figure 16 - Gas Connection

3" Minimum

Gas Regulator

* Purchase the optional CSA design-certified equipment shutoff valve from your dealer. See Accessories, page 28.

** Minimum inlet pressure for purpose of input adjustment.

For more information, visit www.desatech.com

CAUTION: Make sure external regulator has been installed between propane/LP supply and heater. See guidelines under

Connecting to Gas Supply

, page 11.

Pressure Testing Gas Supply Piping system

Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)

1. Disconnect appliance with its appliance main gas valve (control valve) and equipment shutoff valve from gas supply piping system. Pressures in excess of 1/2 psig will damage heater regulator.

2. Cap off open end of gas pipe where equipment shutoff valve was connected.

3. Pressurize supply piping system by either using compressed air or opening propane/LP supply tank valve.

4. Check all joints of gas supply piping system. Apply a noncor rosive leak detection fluid to all joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Reconnect heater and equipment shutoff valve to gas supply. Check reconnected fittings for leaks.

107124-01E

INSTALLATION

Continued

Checking Gas Connections (Cont.)

INSTALLATION

Installing Logs

Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)

1. Close equipment shutoff valve (see Figure 17).

2. Pressurize supply piping system by either using compressed air or opening propane/LP supply tank valve.

3. Check all joints from propane/LP supply tank to equipment shutoff valve (see Figure 18). Apply a noncorrosive leak detection fluid to all joints. Bubbles forming show a leak.

4. Correct all leaks at once.

Pressure Testing Heater Gas Connections

1. Open equipment shutoff valve (see Figure 17).

2. Open propane/LP supply tank valve.

3. Make sure control knob of heater is in the OFF position.

4. Check all joints from equipment shutoff valve to control valve (see Figure 18). Apply a noncorrosive leak detection fluid to all joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Light heater (see Operating Heater, pages 19 and 20 [manually-controlled models] or pages 20 and 21 [thermostaticallycontrolled models]). Check all other internal joints for leaks.

7. Turn off heater (see To Turn Off Gas to Appliance, page 20 [manually-controlled models] or page 21 [thermostatically-controlled models]).

Open

POSITION

Equipment Shutoff Valve

INSTALLING LOGS

CAUTION: After installation and periodically thereafter, check to ensure that no flame comes in contact with any log. With the heater set to high, check to see if flames contact any log. If so, reposition logs according to the log installation instructions in this manual. Flames contacting logs will create soot.

Dual Burner Smoky Mountain Oak Models

WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury.

Each log is marked with a number. These numbers will help you identify the log when installing. It is very important to install these logs exactly as instructed. Do not modify logs. Only use logs supplied with heater.

1. Locate pins on the bottom of back log (#1). Slide these pins into the holes in the grate base behind the burner (see Figure 19).

Back Log (#1)

Hole in Grate Base

Figure 17 - Equipment Shutoff Valve

Propane/LP Supply Tank

Figure 18 - Checking Gas Joints

For more information, visit www.desatech.com

107124-01E

Equipment Shutoff Valve

Thermostat Gas Valve or Control Valve Location

OFF

POSITION

Closed

Burner

Figure 19 - Installing Back Log (#1)

INSTALLATION

Installing Logs (Cont.)

INSTALLATION

Continued

2. Place the base of the middle log (#2) in the U-shaped slots of the grate base in front of the back log. The cutout on the right of the middle log should fit over the burner (see Figure 20). Make sure the front of the middle log is resting on the tabs of the grate base and the cutout area is centered over the burner “U” bend.

3. Locate the recesses on the back of the front log (#3). Fit these recesses between the posts of the grate base (see Figure 21).

4. Locate the notches in the bottom of the crossover log (#4). Place the crossover log on top of the middle log and front log. Make sure the notches of the crossover log lines up with rectangular knobs on top of the middle and front logs (see Figure 22).

5. Place lava rock around base of heater if desired. Do not put lava rock on logs on burner.

Middle Log (#2)

Tab

Burner

Cutout

“U” Bend

U-Shaped Slot

Figure 20 - Installing Middle Log (#2)

Notches

Rectangular Knobs

Figure 22 - Installing Crossover Log (#4)

Crossover Log (#4)

Dual Burner Premium Aged Split Oak Models

WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury.

1. Place the base of the middle log (#1) in the U-shaped slots of the grate base. The cutout on the right of the middle log should fit over the burner (see Figure 23). Make sure the front of the middle log is resting on the tabs of the grate base and the cutout area is centered over the burner “U” bend.

Front Log (#3)

Post

Figure 21 - Installing Front Log (#3)

For more information, visit www.desatech.com

Recess

Post

Middle Log (#1)

Tab

Burner

“U” Bend

U-Shaped Slot

Figure 23 - Installing Middle Log (#1)

107124-01E

INSTALLATION

Continued

INSTALLATION

Installing Logs (Cont.)

2. Locate pins on the bottom of back log (#2). Slide these pins into the holes in the grate base behind the burner (see Figure 24).

3. Place crossover log (#3) onto the pin (right) on middle log (#1) and into the recess of the back log (#2). See Figure 25.

4. Locate the notches in the bottom of the front log (#4). Place the front log on the grate fingers. Make sure the notches of the front log line up with the grate fingers. See Figure 26.

Hole in Grate Base

Burner

Back Log (#2)

5. With knot to right side, place smaller log piece (#5) over the pin on the left side of the middle log. The smaller log will rest on front log against the "knot" on the left. See Figure 27.

6. Place lava rock around base of heater if desired. Do not put lava rock on logs on burner.

Front Log (#4)

Notches

Grate Fingers

Figure 26 - Installing Front Log (#4)

Figure 24 - Installing Back Log (#2)

Crossover Log (#3)

Recess

Figure 25 - Installing Crossover Log (#3)

For more information, visit www.desatech.com

107124-01E

Log Piece (#5)

Figure 27 - Installing Log Piece (#5)

INSTALLATION

Installing Logs (Cont.)

INSTALLATION

Continued

Dual Burner Biltmore Split Oak Models

WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury.

CAUTION: After installation and periodically thereafter, check to ensure that no flame comes in contact with any log. With the heater set to HI, check to see if flames contact any log. If so, reposition logs according to the log installation instructions in this manual. Flames contacting logs will create soot.

1. Place the front log (#1) on the grate fingers. Make sure the front log rests firmly between the grate fingers and the grate base (see Figure 28).

2. Place the base of the middle log (#2) in the U-shaped slots of the grate base. The cutout on the right of the middle log should fit over the burner (see Figure 29). Make sure the front of the middle log is resting on the tabs of the grate base.

3. Locate pins on the bottom of back log (#3). Slide these pins into the holes in the grate base behind the burner (see Figure 30).

4. Locate holes on the bottom of crossover log (#4). Slide front hole onto the left pin (CCL3924PT or CCL3930PT A) or middle pin (CCL3018P or CCL3018PT) on the middle log (#2) and the pin on the back log (#3). See Figure 31 for placement.

Middle Log (#2)

Burner

Tab

Figure 29 - Installing Middle Log (#2) (CCL3930PTA Shown)

U-Shaped Slot

Pins

Hole in Grate Base

Burner

Front Log (#1)

Grate Fingers

Grate Base

Figure 28 - Installing Front Log (#1) (CCL3930PTA Shown)

For more information, visit www.desatech.com

Figure 30 - Installing Rear Log (#3) (CCL3930PTA Shown)

Pins

Log #2

Figure 31 - Installing Crossover Log (#4) (CCL3930PTA Shown)

Log #4

Log #3

107124-01E

INSTALLATION

Continued

5. For CCL3924PT and CCL3930PT A Only: Locate pin and hole on the bottom of crossover log (#5). Slide the pin into the hole located in crossover log (#4). Slide the hole onto the pin on front log (#1). See Figure 32.

For CCL3018P and CCL3018PT Only : Locate holes on the bot-

tom of crossover log (#5). Slide the holes over the left pins on middle log (#2) and front log (#1). See Figure 33.

6. Locate holes on the bottom of crossover log (#6). Slide these holes onto the right pins located in middle log (#2) and front log (#1). See Figure 34.

7. For CCL3930PTA only: Locate holes on the bottom of cross- over log (#7). Slide onto the pins located in crossover log (#6) and middle log (#2). See Figure 35.

8. Add lava rock around base of heater if desired. Do not place any lava rock on logs or burner.

INSTALLATION

Installing Logs (Cont.)

Figure 34 - Installing Crossover Log (#6) (CCL3930PTA Shown)

Pins

Log #2

Front Log (#1)

Figure 32 - Installing Crossover Log (#5) (CCL3930PTA Shown)

Holes

Crossover Log (#4)

Crossover Log (#6)

Middle Log (#2)

Pins

Figure 35 - Installing Crossover Log (#7) (Model CCL3930PTA Only)

Crossover Log (#4)

Front Log (#1)

Figure 33 - Installing Crossover Log (#5) (CCL3018P and CCL3018PT Only)

For more information, visit www.desatech.com

107124-01E

INSTALLATION

Installing Logs (Cont.)

INSTALLATION

Continued

Single Burner Seasonal Oak Models

WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this heater may result in property damage or personal injury.

The Seasonal Oak Log Set is a reversible log set. This means that the two bottom logs may be turned to face either direction. The top log, however, must remain in the same position. Do not modify logs. Only use logs supplied with heater.

1. Place the back log onto the back of the base assembly. Make sure log sits forward against the two posts in front of log (see Figure 36). This log may be turned to face either direction.

2. Place front log onto grate on front of base assembly. The log will fit down between grate fingers and posts on front of base assembly (see Figure 37). This log may be turned to face either direction.

3. Place the crossover log on top of the back log and front log making sure pins are inserted into holes on top of logs 1 and 2 (see Figure 38). This log must be placed as shown in Figure 38 or the pins will not seat into holes.

4. Add lava rock around base of heater if desired. Do not put lava rock on logs or burner.

Back Log

Post

Grate Fingers

Figure 37 - Installing Front Log

Crossover Log

Hole in Front Log

Front Log

Base Assembly

Post

Hole in Back Log

Post

Base Assembly

Figure 36 - Installing Back Log

For more information, visit www.desatech.com

Post

Figure 38 - Installing Crossover Log

107124-01E

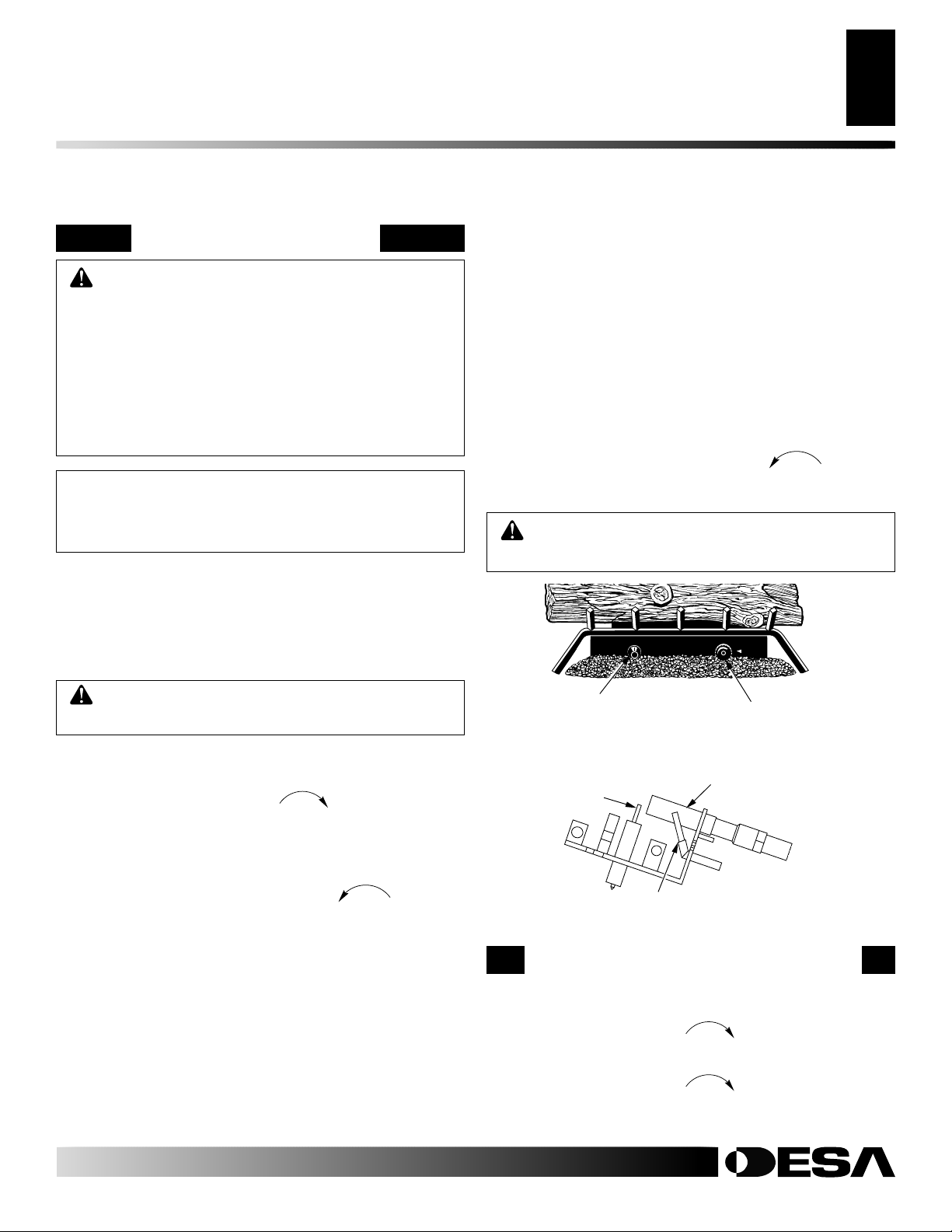

OPERATING HEATER

Manually-Controlled Models

FOR YOUR SAFETY

READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

OPERATING HEATER (Manually Controlled Models)

Note:

For Your Safety Read Before Lighting

Lighting Instructions

Home owners generally prefer to operate their heater with the chimney damper closed. This will put all the heat into the room. However, there may be times you will desire the full flames of the HI heat setting but will find the heat output excessive. You can open the chimney damper (if you have one) fully or partially to release some of the heat.

A. This appliance has a pilot which must be lighted by hand.

When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around the appliance ar ea

for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

C. Use only your hand to push in or turn the gas control knob.

Never use tools. If the knob will not push in or turn by hand, don’t try to repair it, call a qualified service technician or gas supplier. Force or attempted repair may result in a fire or explosion.

D. Do not use this appliance if any part has been under water.

Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

LIGHTING INSTRUCTIONS

WARNING

• If fireplace has glass doors, never operate this heater with glass doors closed. If you operate heater with doors closed, heat buildup inside fireplace will cause glass to burst. Also if fireplace opening has vents at the bottom, you must open the vents before operating heater.

• You must operate this heater with a fireplace screen in place. Make sure fireplace screen is closed before running heater.

WARNING: Damper handle will be hot if heater

has been running.

1. STOP! Read the safety information in column one.

2. Make sure equipment shutoff valve is fully open.

3. Press in and turn control knob clockwise

Clockwise

to the

OFF position.

4. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information, column 1. If you don’t smell gas, go to the next step.

5. Slightly depress and turn control knob counterclockwise

C-clockwise

to the PILOT position. Press in contr ol knob for fiv e

(5) seconds (see Figure 39).

Note:

You may be running this heater for the first time after hooking up to gas supply . If so, the control knob may need to be pressed in for 30 seconds or more. This will allow air to bleed from the gas system.

PILOT

OFF

Ignitor Button

Figure 39 - Control Knob and Ignitor Button Location

Ignitor Electrode

Thermocouple

Pilot Burner

Control Knob

NOTICE: During initial operation of new heater, burning logs will give off a paper-burning smell. Orange flame will also be present. Open damper or window to vent smell. This will only last a few hours.

For more information, visit www.desatech.com

107124-01E

Figure 40 - Pilot

OPERATING HEATER (Manually Controlled Models

Lighting Instructions (Cont.) Variable Control Operation To Turn Off Gas To Appliance Manual Lighting Procedure

OPERATING HEATER (Thermostatically-Controlled Models)

For Your Safety Read Before Lighting

OPERATING HEATER

Continued

6. With control knob pressed in, press and r elease ignitor button. This will light pilot. The pilot is attached to the burner. If needed, keep pressing ignitor button until pilot lights.

Note:

If pilot does not stay lit, contact a qualified service person or gas supplier for repairs. Until repairs ar e made, light pilot with match. T o light pilot with matc h, see Manual Lighting Procedure.

7. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob.

Note:

If pilot goes out, repeat steps 3 through 7. If control knob does not pop out when released, contact a qualified service person or gas supplier for repairs.

8. Slightly depress and turn control knob counterclockwise to desired heating level. The burner(s) should light.

C-clockwise

Set control knob to any heat level between HI and LO.

WARNING: Do not operate heater between PILOT

and HIGH positions.

VARIABLE CONTROL OPERATION

The variable control valve can be set to any heat setting and flame height desired, by simply turning the control knob until that setting is attained. Even the lowest setting provides realistic, dancing yellow flames. Selecting higher settings produces greater heat output. This results in increased heating comfort.

CAUTION: Do not try to adjust heating levels by

using the equipment shutoff valve.

TO TURN OFF GAS TO APPLIANCE

Shutting Off Heater

1. Press in and turn control knob clockwise

HI position.

2. Turn control knob clockwise

to the pilot position.

Clockwise

3. Press in control knob and turn clockwise

OFF position.

Clockwise

to the

MANUAL LIGHTING PROCEDURE

1. Follow steps 1 through 5 under Lighting Instructions, page 19.

2. Depress control knob and light pilot with match.

3. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob. Now follow step 8, under Lighting Instructions, column 1.

Thermostatically-Controlled Models

FOR YOUR SAFETY

READ BEFORE LIGHTING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must be lighted by hand.

When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around the appliance ar ea

for gas. Be sure to smell next to the floor because some gas is heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

C. Use only your hand to push in or turn the gas control knob.

D. Do not use this appliance if any part has been under water.

Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

Shutting Off Burner(s) Only (pilot stays lit)

1. Turn control knob clockwise

2. Press in and turn control knob clockwise pilot position.

For more information, visit www.desatech.com

to the HI position.

Clockwise

to the

107124-01E

OPERATING HEATER

Continued

OPERATING HEATER (Thermostatically-Controlled Models)

Lighting Instructions

To Turn Off Gas to Appliance

LIGHTING INSTRUCTIONS

WARNING

• You must operate this heater with a fireplace screen in place. Make sure fireplace screen is closed before running heater.

Note:

6. With control knob pressed in, press and release ignitor button. This will light pilot. The pilot is attached to the front burner . If needed, keep pr essing ignitor button until pilot lights.

Note:

7. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob.

Note:

If pilot goes out, repeat steps 3 through 7. This heater has a safety interlock system. Wait one (1) minute for system to reset before lighting pilot again.

8. Turn control knob counterclockwise

C-clockwise

to desired heating level. The b urners should light. Set control knob to any heat level between HI and LO.

CAUTION: Do not try to adjust heating levels by

using the equipment shutoff valve.

OFF

Pilot

WARNING: Damper handle will be hot if heater

has been running.

1. STOP! Read the safety information, page 20, column 2.

2. Make sure equipment shutoff valve is fully open.

3. Turn control knob clockwise

to the OFF position.

Clockwise

4. Wait five (5) minutes to clear out any gas. Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” in the safety information, page 20, column 2. If you don’t smell gas, go to the next step.

5. Turn control knob counterclockwise

C-clockwise

to the PILOT position. Press in control knob for five (5) seconds (see Figure 41).

Note:

You may be running this heater for the first time after hooking up to gas supply . If so, the contr ol knob may need to be pressed in for 30 seconds or more. This will allow air to bleed from the gas system.

• If control knob does not pop out when released, contact

a qualified service person or gas supplier for repairs.

Ignitor Button

Figure 41 - Control Knob and Ignitor Button Location

Ignitor Electrode

Thermocouple

Figure 42 - Pilot

Control Knob

Pilot Burner

TO TURN OFF GAS TO APPLIANCE

Shutting Off Heater

Turn control knob clockwise

Shutting Off Burners Only (pilot stays lit)

Turn control knob clockwise

to the OFF position.

Clockwise

to the PILOT position.

Clockwise

107124-01E

For more information, visit www.desatech.com

OPERATING HEATER (Thermostatically-Controlled Models

Thermostat Control Operation

Manual Lighting Procedurew

INSPECTING BURNERS

Pilot Flame Pattern

Burner Primary Air Holes

Main Burner

OPERATING HEATER

Continued

THERMOSTAT

CONTROL OPERATION

(Thermostat-Controlled Models Only)

The thermostat control knob can be set to any comfort level between HI and LO. The thermostat will gradually modulate the heat output and flame height from higher to lower settings, or pilot, in order to maintain the comfort level you select. The ideal comfort setting will vary by household depending upon the amount of space to be heated, the output of the central heating system, etc.

Note:

Selecting the HI setting with the control knob will cause the

burners to remain fully on, without modulating down in most cases.

MANUAL LIGHTING PROCEDURE

1. Follow steps 1 through 5 under Lighting Instructions, page 21.

2. Depress control knob and light pilot with match.

3. Keep control knob pressed in for 30 seconds after lighting pilot. After 30 seconds, release control knob. Now follow step 8, under Lighting Instructions, page 21.

INSPECTING BURNERS

Check pilot flame pattern and burner flame patterns often.

PILOT FLAME PATTERN

Figure 43 shows a correct pilot flame pattern. Figure 44 shows an incorrect pilot flame pattern. The incorrect pilot flame is not touching the thermocouple. This will cause the thermocouple to cool. When the thermocouple cools, the heater will shut down.

If pilot flame pattern is incorrect, as shown in Figure 44

• turn heater off (see T o Turn Off Gas to Appliance, page 20 [manu- ally-controlled models] or page 21 [thermostat-controlled models])

• see Troubleshooting, pages 24 through 26

Pilot Burner

Thermocouple

Figure 43 - Correct Pilot Flame Pattern

Thermocouple

Figure 44 - Incorrect Pilot Flame Pattern

BURNER PRIMARY AIR HOLES

Air is drawn into the burner through the holes in the fitting at the entrance to the burner. These holes may become blocked with dust, lint, or pet hair. Periodically inspect these holes for any blockage and clean as necessary. Blocked air holes will create soot.

Pilot Burner

MAIN BURNER

Periodically inspect all burner flame holes with the heater running. All slotted burner flame holes should be open with yellow flame present. All round burner flame holes should be open with a small blue flame present. Some burner flame holes may become blocked by debris or rust, with no flame present. If so, turn off heater and let cool, Remove blockage. Blocked burner flame holes will create soot.

For more information, visit www.desatech.com

107124-01E

CLEANING AND MAINTENANCE

Cleaning Burner Injector Holder and Pilot Air Inlet Hole

CLEANING AND MAINTENANCE

Logs

Main Burner

WARNING: Turn off heater and let cool before

cleaning.

CAUTION: You must keep control areas, burner, and circulating air passageways of heater clean. Inspect these areas of heater before each use. Have heater inspected yearly by a qualified service person. Heater may need more frequent cleaning due to excessive lint from carpeting, bedding material, pet hair, etc.

CLEANING BURNER INJECTOR HOLDER AND PILOT AIR INLET HOLE

The primary air inlet holes allow the proper amount of air to mix with the gas. This provides a clean burning flame. Keep these holes clear of dust, dirt, lint, and pet hair. Clean these air inlet holes prior to each heating season. Blocked air holes will create soot. We recommend that you clean the unit every three months during operation and have heater inspected yearly by a qualified service person.

We also recommend that you keep the burner tube and pilot assembly clean and free of dust and dirt. To clean these parts we recommend using compressed air no greater than 30 PSI. Your local computer store, hardware store, or home center may carry compressed air in a can. You can use a vacuum cleaner in the blow position. If using compressed air in a can, please follow the directions on the can. If you don't follow directions on the can, you could damage the pilot assembly.

1. Shut off the unit, including the pilot. Allow the unit to cool for at least thirty minutes.

2. Inspect burner, pilot, and primary air inlet holes on injector holder for dust and dirt (see Figure 45).

3. Blow air through the ports/slots and holes in the burner.

4. Check the injector holder located at the end of the burner tube again. Remove any large particles of dust, dirt, lint, or pet hair with a soft cloth or vacuum cleaner nozzle.

5. Blow air into the primary air holes on the injector holder.

6. In case any large clumps of dust have now been pushed into the burner repeat steps 3 and 4.

Clean the pilot assembly also. A yellow tip on the pilot flame indicates dust and dirt in the pilot assembly. There is a small pilot air inlet hole about two inches from where the pilot flame comes out of the pilot assembly (see Figure 46). With the unit off, lightly blow air through the air inlet hole. You may blow through a drinking straw if compressed air is not available.

Burner Tube

Primary Air Inlet Holes

Figure 45 - Injector Holder On Outlet Burner Tube

Burner Tube

Pilot Assembly

Pilot Air Inlet Hole

Figure 46 - Pilot Inlet Air Hole

Injector Holder

Ports/Slots

LOGS

• If you remove logs for cleaning, refer to Installing Logs, pages 13 through 18, to properly replace logs.

• Replace log(s) if broken or chipped (dime-sized or larger).

MAIN BURNER

107124-01E

For more information, visit www.desatech.com

TROUBLESHOOTING

Note:

For additional help, visit DESA

International’s technical service web site at www.desatech.com.

Note:

All troubleshooting items are listed in

order of operation.

WARNING: Turn off and unplug heater and let cool before servicing. Only a qualified service person should service and repair heater.

CAUTION: Never use a wire, needle, or similar object to clean ODS/pilot. This can damage ODS/ pilot unit.

OBSERVED PROBLEM

When ignitor button is pressed, there is no spark at ODS/pilot

When ignitor button is pressed, there is spark at ODS/pilot but no ignition

POSSIBLE CAUSE

1. Ignitor electrode not connected to ignitor cable

2. Ignitor cable pinched or wet

3. Piezo ignitor nut is loose

4. Broken ignitor cable

5. Bad piezo ignitor

6. Ignitor electrode broken

7. Ignitor electrode positioned wrong

1. Gas supply turned off or equipment shutoff valve closed

2. Control knob not in PILOT position

3. Control knob not pressed in while in PILOT position

4. Air in gas lines when installed

5. Depleted gas supply

6. ODS/pilot is clogged

7. Gas regulator setting is not correct

REMEDY

1. Reconnect ignitor cable

2. Free ignitor cable if pinched by any metal or tubing. Keep ignitor cable dry

3. Tighten nut holding piezo ignitor to base panel of log set. Nut is located behind base panel

4. Replace ignitor cable

5. Replace piezo ignitor

6. Replace pilot assembly

7. Replace pilot assembly

1. Turn on gas supply or open equipment shutoff valve

2. Turn control knob to PILOT position

3. Press in control knob while in PILOT position

4. Continue holding down control knob. Repeat igniting operation until air is removed

5. Contact local propane/LP gas company

6. Clean ODS/pilot (see Cleaning and Maintenance, page 23) or replace ODS/ pilot assembly

7. Replace gas regulator

ODS/pilot lights but flame goes out when control knob is released

For more information, visit www.desatech.com

1. Control knob not fully pressed in

2. Control knob not pressed in long enough

3. Equipment shutoff valve not fully open

4. Pilot flame not touching thermocouple, which allows thermocouple to cool, causing pilot flame to go out. This problem could be caused by one or both of the following: A) Low gas pressure B) Dirty or partially clogged ODS/pilot

5. Thermocouple connection loose at control valve

6. Thermocouple damaged

7. Control valve damaged

1. Press in control knob fully

2. After ODS/pilot lights, keep control knob pressed in 30 seconds

3. Fully open equipment shutoff valve

4. A) Contact local propane/LP gas company

B) Clean ODS/pilot (see Cleaning and Maintenance, page 23) or replace ODS/ pilot assembly

5. Hand tighten until snug, then tighten 1/4 turn more

6. Replace pilot assembly

7. Replace control valve

107124-01E

TROUBLESHOOTING

Continued

TROUBLESHOOTING

OBSERVED PROBLEM

Burner does light after ODS/pilot is lit

Delayed ignition of burner

Burner backfiring during combustion

Slight smoke or odor during initial operation

Moisture/condensation noticed on windows

POSSIBLE CAUSE

1. Burner orifice clogged

2. Inlet gas pressure is too low

1. Manifold pressure is too low

2. Burner orifice clogged

1. Burner orifice is clogged or damaged

2. Damaged burner

3. Gas regulator defective

1. Not enough air

2. Gas regulator defective

3. Residues from manufacturing processes and logs curing

1. Not enough combustion/ventilation air

REMEDY

1. Clean burner (see Cleaning and Maintenance, page 23) or replace burner

orifice

2. Contact local propane/LP gas company

1. Contact local propane/LP gas company

2. Clean burner (see Cleaning and Main- tenance, page 23) or replace burner orifice

1. Clean burner (see Cleaning and Main- tenance, page 23) or replace burner orifice

2. Replace damaged burner

3. Replace gas regulator

1. Check burner for dirt and debris. If found, clean burner (see Cleaning and Maintenance, page 23)

2. Replace gas regulator

3. Problem will stop after a few hours of operation

1. Refer to Air for Combustion and Venti- lation requirements (page 4)

Heater produces a whistling noise when burner is lit

White powder residue forming within burner box or on adjacent walls or furniture

For more information, visit www.desatech.com

107124-01E

1. Turning control knob to HI position when burner is cold

2. Air in gas line

3. Air passageways on heater blocked

4. Dirty or partially clogged burner orifice

1. When heated, vapors from furniture polish, wax, carpet cleaners, etc. may turn into white powder residue

1. Turn control knob to LO position and let warm up for a minute

2. Operate burner until air is removed from line. Have gas line checked by local propane/LP gas company

3. Observe minimum installation clearances (see pages 7 through 9)

4. Clean burner (see Cleaning and Main- tenance, page 23) or replace burner orifice

1. Turn heater off when using furniture polish, wax, carpet cleaners, or similar products

Continued

TROUBLESHOOTING

Continued

WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your

building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

IMPORTANT:

Cleaning supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix with combustion air and create odors. These odors will disappear over time.

Operating heater where impurities in air exist may create odors.

OBSERVED PROBLEM

Heater produces a clicking/ticking noise just after burner is lit or shut off

Heater produces unwanted odors

Heater shuts off in use (ODS operates)

Gas odor even when control knob is in OFF position

POSSIBLE CAUSE

1. Metal expanding while heating or contracting while cooling

1. Heater burning vapors from paint, hair spray, glues, cleaners, chemicals, new carpet, etc. (See ment above)

2. Gas leak. See Warning statement

at top of page

1. Not enough fresh air is available

2. Low line pressure

3. ODS/pilot is partially clogged

1. Gas leak. See Warning statement

at top of page

2. Control valve defective

IMPORTANT

state-

REMEDY

1. This is common with most heaters. If noise is excessive, contact qualified service person

1. Open window and ventilate room. Stop using odor causing products while heater is running

2. Locate and correct all leaks (see Check- ing Gas Connections, pages 12 and 13)

1. Open window and/or door for ventilation

2. Contact local propane/LP gas company

3. Clean ODS/pilot (see Cleaning and Maintenance, page 23)

1. Locate and correct all leaks (see Check- ing Gas Connections, pages 12 and 13)

2. Replace control valve

Gas odor during combustion

Logs set cycles to pilot, but room temperature drops to a lower than ideal level before log set comes back on

For more information, visit www.desatech.com

1. Foreign matter between control valve and burner

2. Gas leak. See Warning statement

at top of page

1. Thermostat sensing bulb needs to be repositioned

1. Take apart gas tubing and remove foreign matter

2. Locate and correct all leaks (see Check- ing Gas Connections, pages 12 and 13)

1. Reposition thermostat sensing bulb (see

Optional Positioning of Thermostat Sensing Bulb, page 27

107124-01E

OPTIONAL POSITIONING OF THERMOSTAT SENSING BULB

For Masonry and Factory-built Metal Fireplace

If your log set cycles to pilot, but the room temperature drops to a lower than ideal comfort level before the log set comes back on, you may want to reposition the thermostat sensing bulb.

The thermostat sensing bulb is located near the gas valve assembly on the mounting bracket. This location allows the thermostat to keep the room temperature at an ideal comfort level for most fireplace applications. For positioning the thermostat sensing bulb elsewhere, an adhesive-backed mounting clip is available.

Tools needed: 1/4" hex driver or socket

1. Remove logs. Locate the gas valve assembly and thermostat sensing bulb (see Figure 47).

2. With 1/4" hex driver or socket, loosen the thermostat screw. Carefully slide the thermostat sensing bulb out of the retaining clamp (see Figure 49).

Note:

Do not remove the screw. Make sure you tighten the

screw after removing the thermostat sensing bulb.

IMPORTANT:

bulb or capillary.

3. The thermostat sensing bulb may be located to the lower right front side of fireplace. Determine location of sensing bulb, but do not mount sensing bulb until step 5. If you have a masonry fireplace, see Figure 50 for location. If you have a factory-built metal fireplace, see Figure 51 for location. If your fireplace has glass doors, position sensing bulb directly behind door gap on right bottom side (see Figure 52).

4. The mounting clip must be a minimum of 3" from bottom of fireplace to prevent crimping of capillary. Once you have decided on a location, clean the area thoroughly. Remove the paper backing from the adhesive on back of mounting clip. Press the clip into the new location so that the thermostat sensing bulb will be positioned vertically with the capillary at the bottom (see Figure 53). Slide the thermostat sensing bulb into the clip.

IMPORTANT:

Gas Valve Assembly

Do not force or bend the thermostat sensing

Do not crimp capillary.

Figure 48 - Adhesive-backed Mounting Clip

Capillary

Retaining Clamp

Thermostat Sensing Bulb

Figure 49 - Removing Thermostat Sensing Bulb

Thermostat Sensing Bulb

Adhesivebacked Mounting Clip

Figure 50 - Locating Thermostat Sensing Bulb on Masonry Fireplace

Thermostat Sensing Bulb

Adhesivebacked Mounting Clip

Glass Doors

Figure 51 - Locating Thermostat Sensing Bulb on Factorybuilt Metal Fireplace

Thermostat Sensing Bulb

Adhesive-backed Mounting Clip

Do Not Crimp Capillary

Capillary

Thermostat Screw

Thermostat Sensing Bulb

Adhesivebacked Mounting Clip

Mounting Bracket

Figure 47 - Location of Gas Valve Assembly and Thermostat Sensing Bulb

For more information, visit www.desatech.com

107124-01E

Thermostat Sensing Bulb

Figure 52 - Installing Thermostat Sensing Bulb behind Glass Doors

Figure 53 - Positioning the Thermostat Sensing Bulb in the Vertical Position with the Capillary at the Bottom

REPLACEMENT PARTS SERVICE HINTS TECHNICAL SERVICE ACCESSORIES

REPLACEMENT PARTS

Note:

Use only original replacement parts. This will protect your

warranty coverage for parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s), contact your nearest Parts Central (see page 40) or call DESA International’s Technical Service Department at 1-866-672-6040 for referral information.

When calling DESA International, have ready

• your name

• your address

• model and serial numbers of your heater

• how heater was malfunctioning

• type of gas used (propane/LP or natural gas)

• purchase date

Usually, we will ask you to return the part to the factory.

PARTS NOT UNDER WARRANTY

Contact authorized dealers of this product. If they can’t supply original replacement part(s), contact your nearest Parts Central (see page 40) or call DESA International at 1-866-672-6040 for referral information.

When calling DESA International, have ready

• model number of your heater

• the replacement part number

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burners will have delayed ignition

• heater will not produce specified heat

• propane/LP gas supply may be low

You may feel your gas pressure is too low. If so, contact your local propane/LP gas supplier.

TECHNICAL SERVICE

You may have further questions about installation, operation, or troubleshooting. If so, contact DESA International’s Technical Service Department at 1-866-672-6040. When calling please have your model and serial numbers of your heater ready.

You can also visit DESA International’s technical service web site at www.desatech.com.

ACCESSORIES

Purchase these fireplace accessories from your local dealer. If they can not supply these accessories, call DESA International’s Sales Department at 1-866-672-6040 for referral information. You can also write to the address listed on the back page of this manual.

EQUIPMENT SHUTOFF VALVE - GA5010

For all models. Equipment shutoff valve with 1/8" NPT tap. Fits 1/2" NPT pipe.

FIREPLACE HOOD GA6050 (Black) GA6052 (Brass) GA6053 (Antique Brass)

For all models. Helps deflect heat away from mantel or wall above fireplace.

DAMPER CLAMP - GA6080 (Not Shown)

Permanently opens chimney flue damper for vented operation. Can be used only with non-thermostat accessories.

LAVA ROCK - GA6060 (Not Shown)

For all models. Order when additional rock is desired. (2 lb. bag)

INFORMATION VIDEO - 108917-01

For all models. A care and maintenance video is available by calling 1-866-672-6040.

For more information, visit www.desatech.com

107124-01E

SPECIFICATIONS

DUAL BURNER SMOKY MOUNTAIN OAK AND PREMIUM AGED SPLIT OAK MODELS

18" Model 24" Models 30" Models

Btu (Variable) 16,000/30,000 20,000/39,000 20,000/39,000 Type Gas Propane/LP Only Propane/LP Only Propane/LP Only

Ignition Piezo Piezo Piezo Manifold Pressure 8.0" W.C. 8.0" W.C. 8.0" W.C. Inlet Gas

Pressure (in. of water)

Maximum 14" 14" 14" Minimum* 11" 11" 11"

Shipping Weight 36 lbs. 38 lbs. 40 lbs. * For the purpose of input adjustment

SPECIFICATIONS

DUAL BURNER BILTMORE SPLIT OAK MODELS

18" Model 24" Models 30" Models

Btu (Variable) 16,000/30,000 20,000/39,000 20,000/39,000 Type Gas Propane/LP Only Propane/LP Only Propane/LP Only Ignition Piezo Piezo Piezo Manifold Pressure 8.0" W.C. 8.0" W.C. 8.0" W.C. Inlet Gas Pressure (in. of water)

Maximum 14" 14" 14" Minimum* 11" 11" 11"

Shipping Weight 61 lbs. 66 lbs. 70 lbs. * For the purpose of input adjustment

SINGLE BURNER SEASONAL OAK MODELS

18" Model 24" Model

Btu (Variable) 16,000/27,500 16,000/31,500 Type Gas Propane/LP Only Propane/LP Only Ignition Piezo Piezo Manifold Pressure 8.0" W.C. 8.0" W.C. Inlet Gas Pressure (in. of water)

Maximum 14" 14" Minimum* 11" 11"

Shipping Weight TBD lbs. TBD lbs. * For the purpose of input adjustment

107124-01E

For more information, visit www.desatech.com

ILLUSTRATED PARTS BREAKDOWN

Variable Manually-Controlled Models CGD3018P, CGD3924P, CGD3930P, CCL3018P and CCL3924P

ILLUSTRATED PARTS BREAKDOWN

Variable Manually-Controlled

CGD3018P, CGD3924P CGD3930P, CCL3018P, AND CCL3924P

Smoky Mountain

Oak Logs

Biltmore Split

Oak Logs

For more information, visit www.desatech.com

107124-01E

PARTS LIST

Variable Manually-Controlled Models CGD3018P, CGD3924P,

PARTS LIST

CGD3930P, CCL3018P and CCL3924P

Variable Manually-Controlled

CGD3018P, CGD3924P CGD3930P, CCL3018P CCL3924P

KEY CCL3018P CCL3924P NO. CGD3018P CGD3924P CGD3930P DESCRIPTION QTY.

1 103008-02 103008-01 103008-03 Back Log (#1) 1 1a 105925-04 105925-03 2 103009-02 103009-01 103009-03 Middle Log (#2) 1 2a 105924-04 105924-03 3 103010-02 103010-01 103010-03 Front Log (#3) 1 3a 105923-04 105923-03 4 103011-02 103011-01 103011-01 Crossover Log (#4) 1 4a 105926-04 105926-03 5 105927-04 105927-03 6 105928-04 105928-04 7 102966-02 102966-01 102966-01 Upper Bracket 1 8 098867-10 098867-10 098867-10 Gas Regulator 1 9 102798-01 102798-01 102798-01 Inlet Tube 1 10 102779-04 102779-02 102779-02 Outlet Burner Tube 1 11 099056-19 099056-17 099056-17 Burner Orifice Injector 1 12 102843-01 102843-01 102843-01 Burner Clip 1 13 102980-01 102772-01 102772-01 Burner 1 14 102568-08 102568-06 102568-06 Control Valve 1 15 098508-01 098508-01 098508-01 Valve Retainer Nut 1 16 098354-01 098354-01 098354-01 Control Knob 1 17 102445-01 102445-01 102445-01 Piezo Ignitor 1 18 099387-08 099387-08 099387-08 Pilot Tube 1 19 098271-10 098271-10 098271-10 Ignitor Cable 1 20 104286-01 104286-01 104286-01 ODS Pilot 1 21 M11084-38 M11084-38 M11084-38 Hex Screw, #8-18 x .38 11 22 098276-01 098276-01 098276-01 Hex Head Plug, 1/8 NPT 1 23 098249-01 098249-01 098249-01 Nut, M5 2 24 102775-04CK 102775-01CK 102775-03CK Painted Base Assembly 1 25 102844-02 102844-01 102844-01 Lower Bracket 1

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 28 of this manual.

PART NUMBER

____

____ ____ ____

Back Log (#1) 1

Middle Log (#2) 1

Front Log (#3) 1

Left Back Crossover Log (#4) 1 Left Top Crossover Log (#5) 1 Right Bottom Crossover Log (#6) 1

107124-01E

PARTS AVAILABLE — NOT SHOWN

100563-01 100563-01 100563-01 Warning Plate 1 101055-02 101055-02 101055-02 Lighting Instructions Plate 1 100565-01 100565-01 100565-01 Warning Plate Fastener 1 100639-01 100639-01 100639-01 Caution Decal 1 101449-04 101449-04 101449-04 Control Position Decal 1 101137-02 101137-02 101137-02 Hardware Kit 1 GA6060 GA6060 GA6060 Lava Rock 1

For more information, visit www.desatech.com

ILLUSTRATED PARTS BREAKDOWN

Thermostatically-Controlled Smoky Mountain Oak Models CGD3018PT, CGD3924PT and CGD3930PT

ILLUSTRATED PARTS BREAKDOWN

Thermostatically-Controlled Smoky Mountain Oak Models

CGD3018PT CGD3924PT CGD3930PT

For more information, visit www.desatech.com

107124-01E

PARTS LIST

Thermostatically-Controlled Smoky Mountain Oak Models CGD3018PT,

PARTS LIST

CGD3924PT and CGD3930PT

Thermostatically-Controlled Smoky Mountain Oak Models

CGD3018PT CGD3924PT CGD3930PT

KEY PART NUMBER NO. CGD3018PT CGD3924PT CGD3930PT DESCRIPTION QTY.

1 103008-02 110090-03 103008-03 Back Log (#1) 1 2 103009-02 110090-02 103009-03 Middle Log (#2) 1 3 103010-02 110090-01 103010-03 Front Log (#3) 1 4 103011-02 110090-04 103011-01 Crossover Log (#4) 1 5 102775-09CK 102775-05CK 102775-07CK Painted Base Assembly 1 6 102844-02 102844-01 102844-01 Lower Bracket 1 7 102966-02 102966-01 102966-01 Upper Bracket 1 8 098867-10 098867-10 098867-10 Gas Regulator 1 9 102810-03 102810-03 102810-03 Inlet Tube 1 10 102983-03 102983-02 102983-02 Outlet Burner Tube 1 11 099056-19 099056-17 099056-17 Burner Orifice Injector 1 12 102843-01 102843-01 102843-01 Burner Clip 1 13 102980-01 102772-01 102772-01 Burner 1 14 101329-22 101329-19 101329-19 Thermostat Gas Valve Assembly 1 15 102979-02 102979-01 102979-01 Thermostat Bracket 1 16 098544-01 098544-01 098544-01 Thermobulb Clip 1 17 102445-01 102445-01 102445-01 Piezo Ignitor 1 18 099387-09 099387-09 099387-09 Pilot Tube 1 19 098271-10 098271-10 098271-10 Ignitor Cable 1 20 104286-01 104286-01 104286-01 ODS Pilot 1 21 M11084-38 M11084-38 M11084-38 Hex Screw, #8-18 x .38 15 22 098249-01 098249-01 098249-01 Nut, M5 2 23 099211-01 099211-01 099211-01 Hex Screw, 10-16 x 2.50 2

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 28 of this manual.

107124-01E

PARTS AVAILABLE — NOT SHOWN

100563-01 100563-01 100563-01 Warning Plate 1 101054-01 101054-01 101054-01 Lighting Instructions Plate 1 100565-01 100565-01 100565-01 Warning Plate Fastener 1 100639-01 100639-01 100639-01 Caution Decal 1 101137-02 101137-02 101137-02 Hardware Kit 1 GA6060 GA6060 GA6060 Lava Rock 1 102030-01 102030-01 102030-01 Clip, Thermostat 1

For more information, visit www.desatech.com

ILLUSTRATED PARTS BREAKDOWN

Thermostatically-Controlled Biltmore Split Oak Model CCL3018PT

ILLUSTRATED PARTS BREAKDOWN

Thermostatically-Controlled Biltmore Split Oak Model

CCL3018PT

For more information, visit www.desatech.com

107124-01E

PARTS LIST

Thermostatically-Controlled Biltmore Split Oak Model CCL3018PT

PARTS LIST

Thermostatically-Controlled Biltmore Split Oak Model

CCL3018PT

KEY PART NUMBER NO. CCL3018PT DESCRIPTION QTY.

1 105923-04 Front Log (#1) 1 2 105924-04 Middle Log (#2) 1 3 105925-04 Back Log (#3) 1 4 105926-04 Left Back Crossover Log (#4) 1 5 105927-04 Left Top Crossover Log (#5) 1 6 105928-04 Right Bottom Crossover Log (#6) 1 7 102775-09CK Painted Base Assembly 1 8 102844-02 Lower Bracket 1 9 102966-02 Upper Bracket 1 10 098867-10 Gas Regulator 1 11 102810-03 Inlet Tube 1 12 102983-03 Outlet Burner Tube 1 13 099056-19 Burner Orifice Injector 1 14 102843-01 Burner Clip 1 15 102980-01 Burner 1 16 101329-22 Thermostat Gas Valve Assembly 1 17 102979-02 Thermostat Bracket 1 18 098544-01 Thermostat Clip 1 19 102445-01 Piezo Ignitor 1 20 099387-09 Pilot Tube 1 21 098271-10 Ignitor Cable 1 22 104286-01 ODS Pilot 1 23 M11084-38 Hex Screw, #8-18 x .38 15 24 098249-01 Nut, M5 2 25 099211-01 Hex Screw, 10-16 x 2.50 2

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 28 of this manual.

PARTS AVAILABLE — NOT SHOWN

100563-01 Warning Plate 1 101054-01 Lighting Instructions Plate 1 100565-01 Warning Plate Fastener 1 100639-01 Caution Decal 1 101137-02 Hardware Kit 1 GA6060 Lava Rock 1

107124-01E

For more information, visit www.desatech.com

ILLUSTRATED PARTS BREAKDOWN

Thermostatically-Controlled Biltmore Split Oak Models CCL3924PT and CCL3930PTA

ILLUSTRATED PARTS BREAKDOWN

Thermostatically-Controlled Biltmore Split Oak Model

CCL3924PT CCL3930PTA

Peg positions vary according to model.

For more information, visit www.desatech.com

107124-01E

PARTS LIST

Thermostatically-Controlled Biltmore Split Oak Models CCL3924PT and CCL3930PTA

PARTS LIST

Thermostatically-Controlled Biltmore Split Oak Model

CCL3924PT CCL3930PTA

KEY PART NUMBER NO. CCL3924PT CCL3930PTA DESCRIPTION QTY.

1 105923-03 105923-02 Front Log (#1) 1 2 105924-03 105924-02 Middle Log (#2) 1 3 105925-03 105925-02 Back Log (#3) 1 4 105926-03 105926-02 Left Back Crossover Log (#4) 1 5 105927-03 105927-03 Left Top Crossover Log (#5) 1 6 105928-04 105928-02 Right Bottom Crossover Log (#6) 1 7 8 102844-01 102844-01 Lower Bracket 1 9 102966-01 102966-01 Upper Bracket 1 10 098867-10 098867-10 Gas Regulator 1 11 102810-03 102810-03 Inlet Tube 1 12 102983-02 102983-02 Outlet Burner Tube 1 13 099056-17 099056-17 Burner Orifice Injector 1 14 102843-01 102843-01 Burner Clip 1 15 102772-01 102772-01 Burner 1 16 101329-19 101329-19 Thermostat Gas Valve Assembly 1 17 102979-01 102979-01 Thermostat Bracket 1 18 098544-01 098544-01 Thermostat Clip 1 19 102445-01 102445-01 Piezo Ignitor 1 20 099387-09 099387-09 Pilot Tube 1 21 098271-10 098271-10 Ignitor Cable 1 22 104286-01 104286-01 ODS Pilot 1 23 M11084-38 M11084-38 Hex Screw, #8-18 x .38 15 24 098249-01 098249-01 Nut, M5 2 25 099211-01 099211-01 Hex Screw, 10-16 x 2.50 2 26 102775-05CK 102775-07CK Painted Base Assembly 1

____

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 28 of this manual.

105929-02 Right Top Crossover Log (#7) 1

107124-01E

PARTS AVAILABLE — NOT SHOWN

100563-01 100563-01 Warning Plate 1 101054-01 101054-01 Lighting Instructions Plate 1 100565-01 100565-01 Warning Plate Fastener 1 100639-01 100639-01 Caution Decal 1 101137-02 101137-02 Hardware Kit 1 GA6060 GA6060 Lava Rock 1

____

For more information, visit www.desatech.com

102030-01 Auxiliary Thermostat Mounting Clip 1

ILLUSTRATED PARTS BREAKDOWN

Variable Manually-Controlled Seasonal Oak Models CRL2718P and CRL3124P

ILLUSTRATED PARTS BREAKDOWN

Variable Manually-Controlled Seasonal Oak Models

CRL2718P CRL3124P

For more information, visit www.desatech.com

107124-01E

PARTS LIST

Variable Manually-Controlled Seasonal Oak Models CRL2718P and CRL3124P

Variable Manually-Controlled Seasonal Oak Models

CRL2718P CRL3124P

KEY PART NUMBER NO. CRL2718P CRL3124P DESCRIPTION QTY.

1 110243-01 110242-01 Back Log (#1) 1 2 110243-02 110242-02 Front Log (#2) 1 3 110242-03 110242-03 Crossover Log (#3) 1 4 102775-02CK 102775-01CK Painted Base Assembly 1 5 102844-01 102844-01 Lower Bracket 1 6 102966-01 102966-01 Upper Bracket 1 7 098867-10 098867-10 Gas Regulator 1 8 102780-03 102780-03 Outlet Burner Tube 1 9 102798-01 102798-01 Inlet Tube 1 10 099056-21 099056-19 Burner Orifice Injector 1 11 102843-01 102843-01 Burner Clip 1 12 102963-01 102773-01 Burner 1 13 102568-08 102568-08 Control Valve 1 14 098508-01 098508-01 Valve Retainer Nut 1 15 098354-01 098354-01 Control Knob 1 16 102445-01 102445-01 Piezo Ignitor 1 17 098249-01 098249-01 Nut, M5 2 18 099387-08 099387-08 Pilot Tube 1 19 098271-10 098271-10 Ignitor Cable 1 20 104286-01 104286-01 ODS Pilot 1 21 M11084-38 M11084-38 Screw, Hex Head (#8-18 x .38) 11 22 098276-01 098276-01 Hex Head Plug, 1/8" NPT 1

This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 28 of this manual.

107124-01E

PARTS AVAILABLE — NOT SHOWN

100563-01 100563-01 Warning Plate 1 101055-02 101055-02 Lighting Instructions Plate 1 100565-01 100565-01 Warning Plate Fastener 1 100639-01 100639-01 Caution Decal 1 101449-04 101449-04 Control Position Decal 1 101137-02 101137-02 Hardware Kit 1 GA6060 GA6060 Lava Rock 1

For more information, visit www.desatech.com

PARTS CENTRAL

These Parts Centrals are privately owned businesses. They have agreed to support our customer’s needs by providing original replacement parts and accessories.

Baltimore Electric

1348 Dixwell Avenue Hamden, CT 06514-0322 1-800-397-7553 203-248-7553 Parts Department

Portable Heater Parts

342 N. County Rd. 400 East Valparaiso, IN 46383-9704 All States 219-462-7441 1-888-619-7060 sales@portableheaterparts.com techservice@portableheaterparts.com

FBD

1349 Adams Street Bowling Green, KY 42103-3414 270-846-1199 1-800-654-8534 Fax: 1-800-846-0090 franktalk@aol.com

Master Parts Dist.

1251 Mound Ave NW Grand Rapids, MI 49504-2672 616-791-0505 1-800-446-1446 Fax: 616-791-8270 www.nbmc.com

Washer Equipment Co.

1715 Main Street Kansas City, MO 64108-2195 KS, MO, AR 816-842-3911 www.washerparts.com

East Coast Energy Products

707 Broadway W. Long Branch, NJ 07764-1542 732-870-8809 1-800-755-8809 www.njplaza.com/ecep

Dayton Hardware

P.O. Box 275 North Dayton Station Dayton, OH 45404-0275 All States 937-258-3721 OH 1-800-762-3426

Halco Enterprises

208 Carter Drive, Unit 21 West Chester, PA 19382-4500 610-430-7717 1-800-368-0803 www.halcoenterprises.com

Laportes Parts & Service

2444 N. 5th Street Hartsville, SC 29550-7704 843-332-0191 Parts Department

Cans Unlimited, Inc.

P.O. Box 645 Taylor, SC 29687-0013 All States 803-879-3009 1-800-845-5301 cuisales@aol.com

For more information, visit www.desatech.com

107124-01E

OWNER'S REGISTRATION FORM

In order to provide better customer service for this and future purchases, we recommend that you register your product with us. You can register online at www.desatech.com. If access to our website is not available to you, please complete this Owner’s Registration Form and mail to the address on the back of this owner’s manual. Please provide the following product information:

Brand: Model: Date Purchased: Serial Number: First Name: Last Name: Address: City: State: Zip: Country: Home Phone: ( ) - E-Mail:

Please answer the following questions to register your product with DESA International:

1. Where will the product be used? ❍ Living/Family Room ❍ Office/Warehouse ❍ Utility Shed/Outbuilding ❍ Garage ❍ Bedroom ❍ Bathroom ❍ Other

2. If you bought this product yourself, did you plan to purchase this type of product before going into the store? ❍ Yes ❍ No

3. Who selected the product? ❍ Male ❍ Female ❍ Both

4. What is the population of your area? ❍ Under 10,000 ❍ 10,000 to 25,000 ❍ 25,000 to 50,000 ❍ 50,000 to 100,000 ❍ 100,000 to 250,000 ❍ Over 250,000

5. What is your primary source of heat? ❍ Propane (LP Gas) ❍ Fuel Oil ❍ Wood ❍ Natural Gas ❍ Electric ❍ Other

6. How was the product installed? ❍ Professional Installer ❍ Self ❍ Other

7. Cost of product excluding sales tax? $___________________

8. Cost to install product? $____________________

9. Type of store where product was purchased? ❍ Hardware ❍ Propane Dealer ❍ Natural Gas/Utility Co. ❍ Home Center/Builder’s Suppl ❍ Fireplace or Hearth Shop ❍ Farm Store ❍ Other

10. What motivated you to buy this product? ❍ Sudden Cold Weather ❍ Replace Older Model ❍ D.I.Y. Home Project ❍ Emergency Back-Up Heat ❍ Heater was on Sale ❍ Energy Savings/High Efficiency ❍ Construction Project ❍ Other

11. How did you learn about this product brand? ❍ Advertising ❍ Relative or Friend ❍ Store Display ❍ Other ________________________

12. Level of Education of Purchaser: ❍ Some High School ❍ Completed High School ❍ Completed College ❍ Completed Graduate School

13. Age of Purchaser: ❍ Under 20 ❍ 20 - 29 ❍ 30 - 39 ❍ 40 - 49 ❍ 50 - 59 ❍ 60 or Over

14. Buyer’s total annual household income: ❍ Under $15,000 ❍ $15,000 to $19,999 ❍ $20,000 to $34,999 ❍ $35,000 to $49,999 ❍ $50,000 to $74,999 ❍ $75,000 to $99,999 ❍ $100,000 and Over

15. Store where product was purchased: Name: ______________________________________ City: _______________________ State: __________

16. In choosing this product, how important were the following:

Availability Price Brand Name Overall Quality Heat Output Made in USA Warranty Local Service Value for Price Prior Brand Experience Controls Location Thermostat, Remote, or Manual Operation Ease of Operation Special Features Salesperson’s Recommendation Friend/Relative’s Recommendation

For more information, visit www.desatech.com

Portability

107124-01E

Quiet Operation

Not Important Somewhat Important Very Important

(Comfort Glow, Vanguard, etc.) (EFP33PR, VTGH33NR, etc.)

Note:

Keep receipt for warranty verification.

7 or 9 digit number located on product or identification tag.

❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍ ❍

TAPE

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

Postage

Required

For more information, visit www.desatech.com

TAPE

107124-01E

NOTES

_______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________

For more information, visit www.desatech.com

107124-01E

WARRANTY INFORMATION

KEEP THIS WARRANTY

Model Serial No. Date Purchased

Always specify model and serial numbers when communicating with the factory. We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written warranty. We make

no other warranty, expressed or implied.

LIMITED WARRANTY

COMFORT GLOW VENT-FREE PROPANE/LP GAS LOG HEATERS

DESA International warrants this product to be free from defects in materials and components for two (2) years from the date of first purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions. To make a claim under this warranty the Bill of Sale or cancelled check must be presented.

This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore this heater to proper operating condition and an allowance for labor when provided by a DESA Authorized Service Center. Warranty part(s) MUST be obtained through authorized dealers of this product and/or DESA International who will provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty. The heater MUST be installed by a qualified installer in accordance with all local codes and instructions furnished with the unit.

This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation. Travel, diagnostic cost, labor, transportation and any and all such other costs related to repairing a defective heater will be the responsibility of the owner.

TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO TWO (2) YEARS ON ALL COMPONENTS FROM THE DATE OF FIRST PURCHASE; AND DESA INTERNATIONAL’S LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND DESA INTERNATIONAL SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential damages, so the above limitation on implied warranties, or exclusion or limitation on damages may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. For information about this warranty write:

2701 Industrial Drive P.O. Box 90004 Bowling Green, KY 42102-9004

www.desatech.com

107124 01

NOT A UPC

For more information, visit www.desatech.com

107124-01 Rev. E 06/02

107124-01E

Desa CRL3124P, CGD3924P, CGD3930P, CCL3018PT, CCL3924P User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SAFETY INFORMATION

PRODUCT IDENTIFICATION

LOCAL CODES

UNPACKING

PRODUCT FEATURES

AIR FOR COMBUSTION AND VENTILATION

INSTALLATION

OPERATING HEATER

INSPECTING BURNERS

TROUBLESHOOTING

REPLACEMENT PARTS

SERVICE HINTS

TECHNICAL SERVICE

WARRANTY INFORMATION
