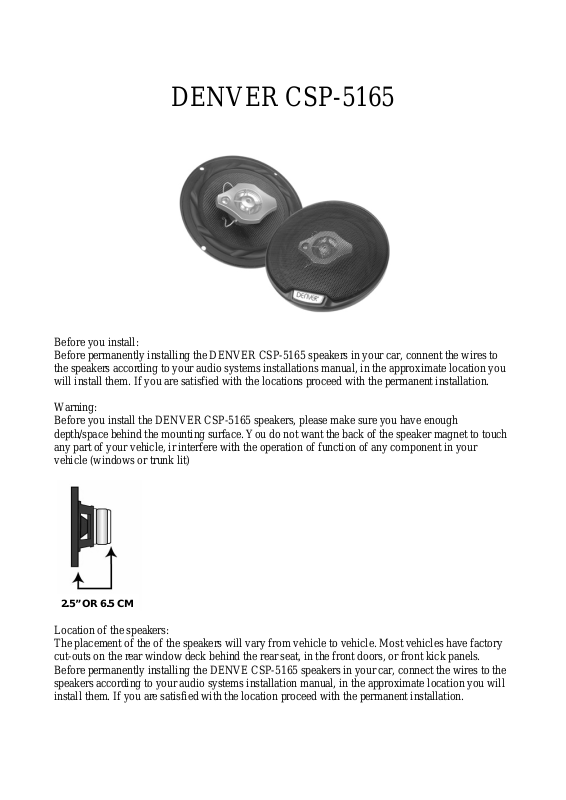

DENVER CSP-5165

Before you install:
Before permanently installing the DENVER CSP-5165 speakers in your car, connent the wires to
the speakers according to your audio systems installations manual, in the approximate location you
will install them. If you are satisfied with the locations proceed with the permanent installation.

Warning:
Before you install the DENVER CSP-5165 speakers, please make sure you have enough
depth/space behind the mounting surface. You do not want the back of the speaker magnet to touch
any part of your vehicle, ir interfere with the operation of function of any component in your
vehicle (windows or trunk lit)

2.5” OR 6.5 CM

Location of the speakers:
The placement of the of the speakers will vary from vehicle to vehicle. Most vehicles have factory
cut-outs on the rear window deck behind the rear seat, in the front doors, or front kick panels.
Before permanently installing the DENVE CSP-5165 speakers in your car, connect the wires to the
speakers according to your audio systems installation manual, in the approximate location you will
install them. If you are satisfied with the location proceed with the permanent installation.

Mounting the speakers:
Warning:
You should only mount your speakers in factory pre-cut holes. We do not recommend that you cut
holes for mounting the speakers. If there are no factory pre-cut holes, consider having the speakers
professionally installed.

In a pre-cut hole.

1. Connect speaker wires.

2. Slip the spring nut(s) (provided) into place and align the holes.

3. Place the speaker in the pre-cut hole and align the speaker’s screw holes with screw holes in

the spring nits.

4. Insert screws (provided) and tighten screws with equal tightness. Plase the speaker grill on

speaker and snap into place.

In a Enclosure.
The DENVER CSP-5165 may be installed in a speaker enclosure. Use the supplied template to
check if the holes in the enclosure match the speaker. If the holes do not match uo, mark the
enclosure using the template as a guide, then drill pilot holes.
