Denon PMA-360 Service Manual

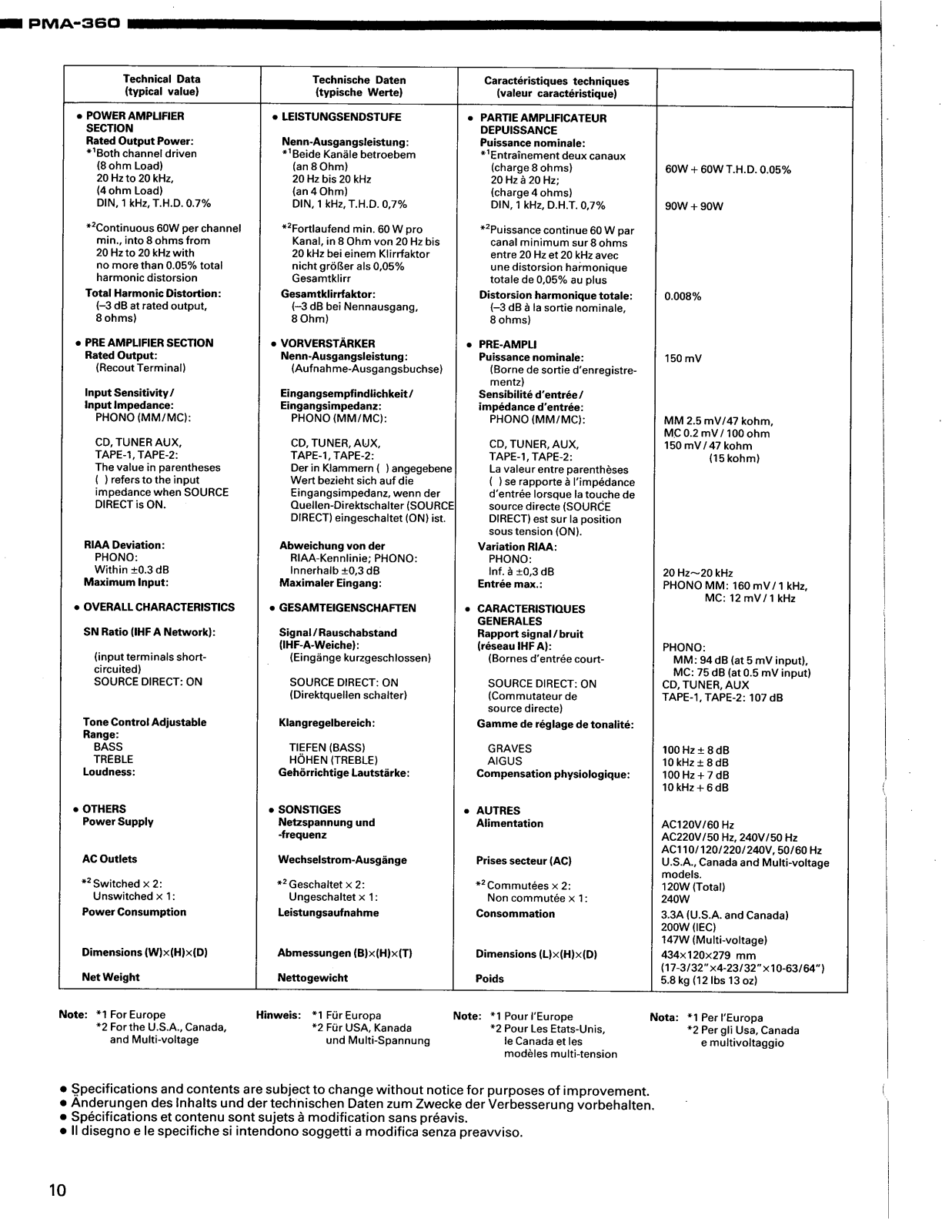

Specifications and Main Features
- Model: PMA-360
- Power Supply: 110/120/220/240V ~ 50/60Hz
- Rated Output Power: 60W / channel (at 20Hz to 20kHz frequency with 0.05% THD) into 8 ohm load reactive to the rated conditions
- Total Harmonic Distortion: 0.05% (rated output at load of 8 ohms)
- SN Ratio (IHF A Network): : 94 dB (PHONO, MM)
- Input sensitivity of PHONO (MM/MC) is: 2.5 mV/ 47 kOhm (MM), 0.2 mV/ 100 Ohm (MC)
- Input Impedance:
- PHONO : 47 kOhm
- CD, TUNER, AUX, TAPE-1, TAPE-2: 15 KOhm
- TAPE-OUTPUT : 4 KOhm
- Tone Control Adjustable Range:
- Bass: +8 dB at 100 Hz
- Treble: +8 dB at 10 kHz
- Dimensions (W x H x D): 434 x 120 x 279 mm
- Net Weight: 5.8 kg
- Rated Power Input: 147W
- AC Outlets:
- Switched x 2: 120W total capacity
- Unswitched x 1: 240W total capacity
- Optional features: Speakers Selection Switch, Loudness control, Input Selector and Monitor Tuner Function.
Frequently Asked Questions
Q1: What is the power output of the PMA-360 amplifier?
A1: PMA-360 amplifier has a rated output power of 60W per each channel at 8 ohm load.
Q2: Please elaborate on which cartridges work with the PMA-360.
A2: The PMA-360 is compatible with Moving Magnet as well as Moving Coil cartridges.
Q3: Is it possible to connect 2 or more speaker systems to the PMA-360?
A3: It is possible to connect the PMA- 360 to two sets of speakers, labeled A and B, and then effortlessly switch between the two.
Q4: What would the value of signal-to-noise ratio be for PHONO input?
A4: The value of signal to noise ratio for PHONO input (MM) is 94dB.
Q5: Am I able to change the bass and treble settings on the PMA-360?
A5: PMA-360 provides the tools and options to change the bass and treble settings, which in turn helps alter the sound quality for both frequency ranges within given parameters.
Q6: What are the dimensions of the PMA-360 and what does it weigh?
A6: The parameters of PMA-360 are 434 x 120 x 279 mm and its weight is 5.8kg.
Q7: What are the power supply requirements for PMA-360?
A7: The PMA-360 requires a power supply of 110/120/220/240V for 50/60Hz.
