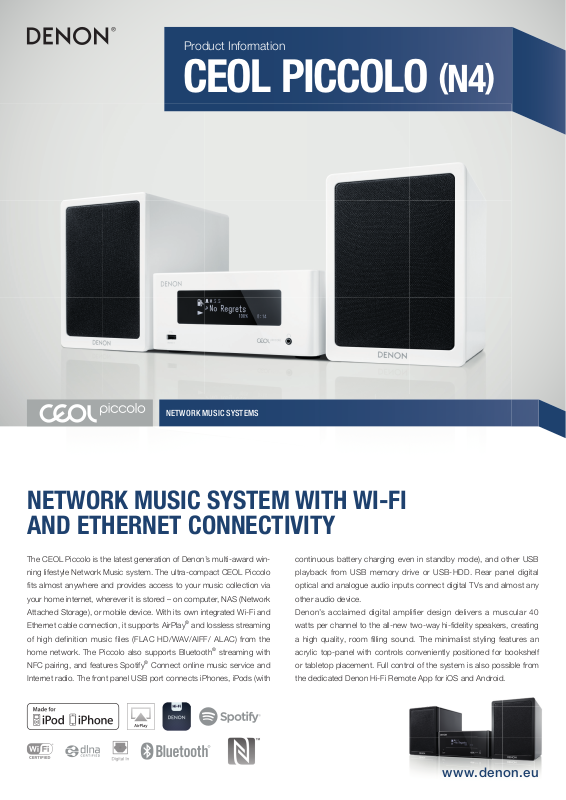

Page 1
Product Information
CEOL PICCOLO
(
N4
)
NETWORK MUSIC SYSTEMS
NETWORK MUSIC SYSTEM WITH WI-FI
AND ETHERNET CONNECTIVITY
The CEOL Piccolo is the latest generation of Denon’s multi-award win-
ning lifestyle Network Music system. The ultra-compact CEOL Piccolo
fi ts almost anywhere and provides access to your music collection via
your home internet, wherever it is stored – on computer, NAS (Network
Attached Storage), or mobile device. With its own integrated Wi-Fi and
Ethernet cable connection, it supports AirPlay
of high definition music files (FLAC HD/WAV/AIFF/ ALAC) from the
home network. The Piccolo also supports Bluetooth
NFC pairing, and features Spotify
Internet radio. The front panel USB port connects iPhones, iPods (with
®
Connect online music service and
®
and lossless streaming
®
streaming with
continuous battery charging even in standby mode), and other USB
playback from USB memory drive or USB-HDD. Rear panel digital
optical and analogue audio inputs connect digital TVs and almost any
other audio device.
Denon’s acclaimed digital amplifier design delivers a muscular 40
watts per channel to the all-new two-way hi-fi delity speakers, creating
a high quality, room filling sound. The minimalist styling features an
acrylic top-panel with controls conveniently positioned for bookshelf
or tabletop placement. Full control of the system is also possible from
the dedicated Denon Hi-Fi Remote App for iOS and Android.
www.denon.eu
Page 2
Supports Wi-Fi Sharing (iOS devices),
WPS (Wi-Fi Protected Setup)
Support for Wi-Fi Sharing (iOS devices) and WPS (Wi-Fi Protected
Setup) makes wireless network connection of the CEOL Piccolo
simple. Activating Wi-Fi Sharing on the CEOL Piccolo , it appears
on-screen on an iOS device; at the press of a button the iOS
device transmits the network name and password to the CEOL
Piccolo and connection is complete. For network connection with
Wi-Fi routers that support WPS, pressing the WPS button on the
router automatically connects the CEOL Piccolo.
Supports WMM (Wi-Fi Multimedia)
As a WMM (Wi-Fi Multimedia) certified device, the CEOL Piccolo
properly integrates within a home network with other network
connected devices, such as computers, NAS drives and mobile
devices. WMM ensures the best possible quality and reliability for
digital audio streaming over a network, ensuring it has priority
over and is not disrupted by less critical network data.
Supports AirPlay
With AirPlay
®
for iDevice and iTunes music streaming
®
for iDevice and iTunes, it is a simple operation to
instantly stream audio from any iDevice or iTunes running on a
Mac or Windows PC, by clicking on the AirPlay icon and selecting
the CEOL Piccolo.
Full digital processing amplifier
The powerful Full Digital Processing Amplifier incorporates onboard digital EQ processing, specifically tuned to optimize sound
quality from the Denon SC-N4 two-way hi-fidelity speaker system. The speaker optimization can be disabled in the menu if the
system is to be used with dierent speakers.
Bluetooth wireless streaming with NFC pairing for instant
playback from mobile devices
®
Bluetooth
with NFC pairing enables audio to be streamed,
almost instantly, from any Bluetooth enabled device, such as a
smartphone, tablet or laptop. NFC pairing allows the user to tap
any NFC enabled Bluetooth audio device for automatic pairing
with no button pressing.
Denon SC-N4 speaker
These speakers in a very compact cabinet have been designed
with Denon Hi-Fi craftsmanship. For best performance a high
quality 10cm woofer / midrange chassis has been combined with
a high definition tweeter and a crossover network with selected
components to reproduces the smoothness of natural sound. The
speaker has a high gloss finish and comes with a grill.
NEW FEATURES
•
Supports Bluetooth and NFC
•
Supports Spotify connect
•
Gapless playback for AIFF/ALAC
•
Supports 192kHz/24bit AIFF file
•
Windows 8/RT Compatibility
•
Wi-Fi 11n support
•
Support for Wi-Fi Sharing with iOS device
STATE-OF-THE-ART DENON SOLUTIONS
FOR MAXIMISING CONTENT QUALITY
•
High power output, 40W+40W (1kHz,4ohm)
•
Integrates Denon hi-fi component sound engineering into
compact size
•
“Simple & straight” circuit design and minimum signal path, to
optimize performance in sound quality
•
Fully digital concept from input signal to output power stage
•
Optimising Filter, to align the DRA-N4 with SC-N4 speaker
system characteristic
•
Local sound-tuned 2 way speaker system
•
iPhone / iPod playback via digital connection
for high-quality sound
EASE-OF-USE
•
Supports AirPlay® for iDevice and iTunes music streaming
•
Bluetooth wireless streaming with NFC pairing for instant
playback from mobile devices
•
Supports Wi-Fi Sharing (iOS devices)
•
Supports WPS (Wi-Fi Protected Setup)
•
Supports WMM (Wi-Fi Multimedia)
•
Front panel USB port for connecting iPhone, iPod,
smartphones and USB memory drives
•
Continuous iPod battery charge on USB port even in
standby mode
•
3 line large OLED for clear and wide view
•
Top-panel controls for convenient operation in
bookshelf / table top placement
•
Multi language Quick Setup guide on OLED
•
Interactive CD-Rom manual
Technical information
DRA-N4 SC-N4
Rated output power 40 W + 40 W Type 2 way 2 speakers Reflex box
Dynamic output power 50 W + 50 W (4 ohms) 2.5 cm dome tweeter x 1
Network type (wireless LAN standards) Conforming to IEEE 802.11b Frequency response 50 Hz - 20 kHz
General Dimensions (W x H x D) 134 x 185 x 200 mm
Power supply AC 230 V, 50 Hz Weight 1.9 kg
Power consumption 45W (Standby: 0.3 W)
Colours high gloss black / high gloss white
Dimensions (W x H x D) 200 x 90 x 240 mm
Weight 2.3 kg
|V03|
Denon Europe
Beemdstraat 11
5653 MA Eindhoven
The Netherlands
www.denon.eu
(1 kHz, 4 ohms, 0.7% THD) Drivers 10 cm cone bass-mid range x 1
Conforming to IEEE 802.11g Impedance 6 ohms
Conforming to IEEE 802.11n Colours high gloss black / high gloss white
Ports
IN USB x 1
OUT Subwoofer pre out x 1
The Bluetooth
by Bluetooth SIG, Inc. and any use of such marks by D&M Holdings Inc.
is under license.
Other trademarks and trade names are those of their respective owners.
Denon is a trademark or registered trademark of D&M Holdings, Inc.
* All specs can be subject to change
* Available in Black and White
Ethernet x 1
AUX in x 1
Digital Optical x 1
Speaker output terminals x 2
Headphones x 1
®
word mark and logos are registered trademarks owned
