2 We greatly appreciate your purchase of the AVR-2805/985. 2 To be sure you take maximum advantage of all the features the AVR-2805/985 has to offer, read these
instructions carefully and use the set properly. Be sure to keep this manual for future reference, should any questions or problems arise.
“SERIAL NO. PLEASE RECORD UNIT SERIAL NUMBER ATTACHED TO THE REAR OF THE CABINET FOR FUTURE REFERENCE”
2
2
SAFETY PRECAUTIONS
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER­SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION
POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTERODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’ AU FOND.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
2
NOTE ON USE / OBSERVATIONS RELATIVES A L’UTILISATION
• Avoid high temperatures. Allow for sufficient heat dispersion when installed on a rack.
• Eviter des températures élevées Tenir compte d’une dispersion de chaleur suffisante lors de l’installation sur une étagère.
• Handle the power cord carefully. Hold the plug when unplugging the cord.
• Manipuler le cordon d’alimentation avec précaution. Tenir la prise lors du débranchement du cordon.
• Keep the set free from moisture, water, and dust.
• Protéger l’appareil contre l’humidité, l’eau et lapoussière.
• Unplug the power cord when not using the set for long periods of time.
• Débrancher le cordon d’alimentation lorsque l’appareil n’est pas utilisé pendant de longues périodes.
* (For sets with ventilation holes)
• Do not obstruct the ventilation holes.
• Ne pas obstruer les trous d’aération.
• Do not let foreign objects in the set.
• Ne pas laisser des objets étrangers dans l’appareil.
• Do not let insecticides, benzene, and thinner come in contact with the set.
• Ne pas mettre en contact des insecticides, du benzène et un diluant avec l’appareil.
• Never disassemble or modify the set in any way.
• Ne jamais démonter ou modifier l’appareil d’une manière ou d’une autre.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
3
SAFETY INSTRUCTIONS
1. Read Instructions – All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions – The safety and operating instructions should be retained for future reference.
3. Heed Warnings – All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions – All operating and use instructions should be followed.
5. Cleaning – Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
6. Attachments – Do not use attachments not recommended by the product manufacturer as they may cause hazards.
7. Water and Moisture – Do not use this product near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
8. Accessories – Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.
9. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
10. Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
11. Power Sources – This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
12. Grounding or Polarization – This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
13. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
15. Outdoor Antenna Grounding – If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A.
16. Lightning – For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
17. Power Lines – An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
18. Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
19. Object and Liquid Entry – Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
20.
Servicing – Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
21.
Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service
personnel under the following conditions: a) When the power-supply cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the
product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper
adjustment of other controls may result in damage and will
often require extensive work by a qualified technician to
restore the product to its normal operation, e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance
– this indicates a need for service.
22. Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
23. Safety Check – Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
24. Wall or Ceiling Mounting – The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
25. Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
FIGURE A
EXAMPLE OF ANTENNA GROUNDING
AS PER NATIONAL ELECTRICAL CODE
ANTENNA LEAD IN WIRE
GROUND CLAMP
ELECTRIC SERVICE EQUIPMENT
ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)
GROUNDING CONDUCTORS (NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)
NEC - NATIONAL ELECTRICAL CODE
4
2
INTRODUCTION
2
ACCESSORIES
Thank you for choosing the DENON AVR-2805/985 Digital A / V Surround Receiver. This remarkable component has been engineered to provide superb surround sound listening with home theater sources such as DVD, as well as providing outstanding high fidelity reproduction of your favorite music sources. As this product is provided with an immense array of features, we recommend that before you begin hookup and operation that you review the contents of this manual before proceeding.
TABLE OF CONTENTS
z Before Using ...............................................................................................4
x Cautions on Installation ...............................................................................4
c Cautions on Handling ..................................................................................5
v Features ......................................................................................................5
b Connections ..........................................................................................6~14
n Part Names and Functions .................................................................15~17
m Setting up the system ........................................................................18~47
, Remote Control Unit...........................................................................48~57
. Operation ............................................................................................58~64
⁄0 Multi Zone...........................................................................................65~67
⁄1 Surround .............................................................................................68~75
⁄2 DSP Surround Simulation ...................................................................76~82
⁄3 Listening to the Radio.........................................................................83~84
⁄4 Last Function Memory ..............................................................................85
⁄5 Initialization of the Microprocessor ...........................................................85
⁄6 Troubleshooting.........................................................................................86
⁄7 Additional Information.........................................................................87~97
⁄8 Specifications ............................................................................................98
Check that the following parts are included in addition to the main unit:
q Operating instructions…....1 w Warranty ( for North America model only )………...........1 e Service station list……...............1 r Remote control unit
t R6P/AA batteries .............3 y AM loop antenna…...............1 u FM indoor antenna…1 i Omnidirectional microphone.......1 (RC-974)............…......1
rtyui
1
2
BEFORE USING
CAUTIONS ON INSTALLATION
Pay attention to the following before using this unit:
Moving the set To prevent short circuits or damaged wires in the connection cords, always unplug the power cord and disconnect the connection cords between all other audio components when moving the set.
Before turning the power switch on Check once again that all connections are proper and that there are not problems with the connection cords. Always set the power switch to the standby position before connecting and disconnecting connection cords.
Noise or disturbance of the picture may be generated if this unit or any other electronic equipment using microprocessors is used near a tuner or TV. If this happens, take the following steps:
• Install this unit as far as possible from the tuner or TV.
• Set the antenna wires from the tuner or TV away from this unit’s power cord and input/output connection cords.
• Noise or disturbance tends to occur particularly when using indoor antennas or 300 /ohms feeder wires. We recommend using
outdoor antennas and 75 /ohms coaxial cables.
For heat dispersal, leave at least 4 inch/10 cm of space between the top, back and sides of this unit and the wall or other components.
Store this instructions in a safe place. After reading, store this instructions along with the warranty in a safe place.
Note that the illustrations in this instructions may differ from
the actual set for explanation purposes.
4 inch/10 cm or more
4 inch/10 cm or more
Wall
5
3
CAUTIONS ON HANDLING
4
FEATURES
Switching the input function when input jacks are not connected A clicking noise may be produced if the input function is switched when nothing is connected to the input jacks. If this happens, either turn down the MASTER VOLUME control or connect components to the input jacks.
Muting of PRE OUT jacks, HEADPHONE jack and SPEAKER
terminals
The PRE OUT jacks, HEADPHONE jack and SPEAKER terminals include a muting circuit. Because of this, the output signals are greatly reduced for several seconds after the power switch is turned on or input function, surround mode or any other-set-up is changed. If the volume is turned up during this time, the output will be very high after the muting circuit stops functioning. Always wait until the muting circuit turns off before adjusting the volume.
Whenever the unit is in the STANDBY state, the apparatus is
still connected on AC line voltage. Please be sure to turn the power off (
£off) when you leave
home for, say, a vacation.
1. Dolby Digital
Using advanced digital processing algorithms, Dolby Digital provides up to 5.1 channels of wide-range, high fidelity surround sound. Dolby Digital is the default digital audio delivery system for DVD and North American DTV.
2. Dolby Pro Logic IIx compatibility
Dolby Pro Logic IIx furthers the matrix decoding technology of Dolby Pro Logic II to decode audio signals recorded on two channels into up to 7.1 playback channels, including the surround back channel. Dolby Pro Logic IIx also allows 5.1-channel sources to be played in up to 7.1 channels. The mode can be selected according to the source. The Music mode is best suited for playing music,the Cinema mode for playing movies, and the Game mode for playing games. The Game mode can only be used with 2-channel audio sources.
3. Dolby Pro Logic II Game mode compatibility
In addition to the previously offered Music and Cinema modes, the AVR-2805/985 also offers a Game mode optimum for games.
4. DTS (Digital Theater Systems)
DTS provides up to 5.1 channels of wide-range, high fidelity surround sound, from sources such as laser disc, DVD and specially-encoded music discs.
5. DTS-ES Extended Surround and DTS Neo:6
The AVR-2805/985 can be decoded with DTS-ES Extended Surround, a multi-channel format developed by Digital Theater Systems Inc. The AVR-2805/985 can be also decoded with DTS Neo:6, a surround mode allowing 6.1 channels playback of regular stereo sources.
6. DTS 96/24 compatibility
The AVR-2805/985 can be decoded with sources recorded in DTS 96/24, a multi-channel digital signal format developed by Digital Theater Systems Inc. DTS 96/24 sources can be played in the multi-channel mode on the AVR-2805/985 with high sound quality of 96 kHz/24 bits or 88.2 kHz/24 bits.
7. Pure Direct Mode/AL24 Processing
The AVR-2805/985 is equipped with a pure direct mode allowing the effects of the video and digital circuitry to be shut down when playing CDs or records to achieve the ideal environment for analog playback, resulting in extremely high quality music playback. It is also equipped with AL24 processing which compensates the input digital data to produce the near analog waveforms which would be in a nature with 24 bits quality. AL24 processing operates when PCM data such as CD is inputted.
8. Auto Setup/Room EQ
Use of the microphone for setup applications measures the presence of speakers, the distance to the speakers, and other information, and permits automatic setup. The characteristics of each speaker can also be corrected.
9. Multi Zone Music Entertainment System
Multi Source Function: This unit’s Multi Source function lets you select different audio sources for listening Different sources can thus be enjoyed in the main room (MAIN) and the subroom (ZONE2) simultaneously.
10.Future Sound Format Upgrade Capability via Eight Channel Inputs & Outputs
For future multi-channel audio format(s), the AVR-2805/985 is provided with 7.1 channel (seven main channels, plus one low frequency effects channel) inputs, along with a full set of 7.1 channel pre-amp outputs, controlled by the 8 channel master volume control. This assures future upgrade possibilities for any future multi-channel sound format.
11.Front input Terminal
The unit is equipped with a Front Input connector for the convenient connection of a video camera or other equipment.
12.Video Conversion Function
The AVR-2805/985 is equipped with a function for up-converting video signals. Because of this, the AVR-2805/985’s MONITOR OUT jack can be connected to the monitor (TV) with a set of cables offering a higher quality connection, regardless of how the player and the AVR­2805/985’s video input jacks are connected.
13.Component Video Switching
In addition to composite video and “S” video switching, the AVR­2805/985 provides 3 sets of component video (Y, P
B
/CB, P
R/CR)
inputs, and one set of component video outputs to the television, for superior picture quality.
14.TRIGGER OUT
AVR-2805/985 is equipped with 2 systems of 12V TRIGGER OUT connections. Each output can be activated upon the selection of assigned. Main Zone inputs or zone2 inputs.
15.RS-232C Terminal
Includes a RS--232C port to support an AMX, Crestron integrated control system.
16.AC INLET
Detachable AC CORD is used.
17.Auto Surround Mode
This function stores the surround mode last used for an input signal in the memory and automatically sets that surround mode the next time that signal is input.
18.Large-sized fluorescent display
A large-sized fluorescent display is used which also permits a check of the input/output channels.
19.Audio delay
This is a function for delaying the audio signal with respect to the video signal. (0 to 200 msec)
20.Preset Memory Tuning
56-Station AM/FM Random Preset Memory tuning.
6
R
R R
R R
R
RLR
L
R
INPUT OUTPUT
LRL
R
OUTPUT
L
R
L
L
R
L
R
L
R
L
R
DIGITAL AUDIODIGITAL AUDIO
OUTPUT
OPTICAL COAXIAL
DIGITAL AUDIODIGITAL AUDIO
B
INPUT
OPTICAL
OUTPUT
B
5
CONNECTIONS
• Do not plug in the AC cord until all connections have been completed.
• Be sure to connect the left and right channels properly (left with left, right with right).
• Insert the plugs securely. Incomplete connections will result in the generation of noise.
Use the AC OUTLETS for audio equipment only. Do not use
them for hair driers, etc.
• Note that binding pin plug cords together with AC cords or placing them near a power transformer will result in generating hum or other noise.
• Noise or humming may be generated if a connected audio equipment is used independently without turning the power of this unit on. If this happens, turn on the power of the this unit.
Connecting the audio components
• When making connections, also refer to the operating instructions of the other components.
CD player
Connecting a CD player
Connect the CD player’s analog output jacks (ANALOG OUTPUT) to this unit’s CD jacks using pin plug cords.
Connecting a turntable
Connect the turntable’s output cord to the AVR­2805/985’s PHONO jacks, the L (left) plug to the L jack, the R (right) plug to the right jack.
NOTE:
This unit cannot be used with MC cartridges directly. Use a separate head amplifier or step-up transformer.
If humming or other noise is generated when the ground wire is connected, disconnect the ground wire.
Turntable (MM cartridge)
Ground wire
Connecting the pre-out jacks
Use these jacks if you wish to connect external power amplifier(s) to increase the power of the front, center and surround sound channels, or for connection to powered loudspeakers.
To use Surround back with one speaker, connect the speaker to SURR. BACK L CH.
AC OUTLETS
• SWITCHED (total capacity – 120 W (1 A.))
The power to these outlets is turned on and off in conjunction with the POWER operation switch on the main unit, and when the power is switched between on and standby from the remote control unit. No power is supplied from these outlets when this unit’s power is at standby. Never connect equipment whose total capacity is above 120 W (1 A.).
NOTE:
Only use the AC OUTLETS for audio equipment. Never use them for hair driers, TVs or other electrical appliances.
Connecting the AC OUTLETS
AC CORD
AC 120 V, 60 Hz
Connecting a tape deck
Connections for recording:
Connect the tape deck’s recording input jacks (LINE IN or REC) to this unit’s tape recording (CDR/TAPE OUT) jacks using pin plug cords.
Connections for playback:
Connect the tape deck’s playback output jacks (LINE OUT or PB) to this unit’s tape playback (CDR/TAPE IN) jacks using pin plug cords.
CD recorder or Tape deck
Route the connection cords, etc., in such a way that they do not obstruct the ventilation holes.
MD recorder, CD recorder or other component equipped with digital input/output jacks
CD player or other component equipped with digital output jacks
Connecting the DIGITAL jacks
Use these for connections to audio equipment with digital output. Refer to “Setting the Digital in Assignment”. (See page 37)
NOTES:
• Use 75 /ohms cable pin cords for coaxial connections.
• Use optical cables for optical connections, removing the cap before connecting.
NOTE:
If humming noise is generated by a tape deck, etc., move the tape deck away.
TRIGGER OUT
Turn the DC 12V voltage on and off for the individual functions. For details, see “Setting the Trigger Setup”. (See page 44)
7
R
IN
VIDEO
R
L
R OUT IN
AUDIO
VIDEO
OUT IN
LRL
RLR
L
R OUT IN
AUDIO
VIDEO
OUT IN
LRL
R
L
R
L
R OUT
VIDEO
OUT
L
AUDIO
L
R
R OUT
VIDEO
OUT
L
AUDIO
L
R
R
L
R
L
R
L
R L
B
B
RL
Connecting the video components
• To connect the video signal, connect using a 75 /ohms video signal cable cord. Using an improper cable can result in a drop in video quality.
• When making connections, also refer to the operating instructions of the other components.
• The AVR-2805/985 is equipped with a function for up-converting video signals.
• The signal connected to the video signal terminal is output to the S-Video and component video monitor out terminals.
• The REC OUT terminals have no conversion function, so when recording only connect the video terminals.
TV or DBS tuner
Connecting a TV or DBS tuner
TV or DBS
• Connect the TV’s or DBS tuner’s video output jack (VIDEO OUTPUT) to the
(yellow) TV or DBS IN jack using a 75 /ohms video coaxial pin
plug cord.
• Connect the TV’s or DBS tuner’s audio output jacks (AUDIO OUTPUT) to the TV or DBS IN jacks using pin plug cords.
AUDIO
VIDEO
DVD player or video disc player (VDP), etc.
Connecting a DVD player or a video disc player (VDP)
DVD
• Connect the video disc player’s video output jack (VIDEO OUTPUT) to the (yellow) DVD IN
jack using a 75 /ohms video coaxial pin plug cord.
• Connect the video disc player’s analog audio output jacks (ANALOG AUDIO OUTPUT) to the DVD IN jacks using pin plug cords.
• VDP can be connected to the VDP jacks in the same way.
AUDIO
VIDEO
Monitor TV
MONITOR OUT
• Connect the TV’s video input jack (VIDEO INPUT) to the
MONITOR OUT jack using a 75 /ohms video coaxial pin plug cord.
VIDEO
Note on connecting the digital input jacks
• Only audio signals are inputs to the digital input jacks. For details. (See page 6)
Video deck 2
Video deck 1
Connecting a video decks
• There are two sets of video deck (VCR) jacks, so two video decks can be connected for simultaneous recording or video copying.
Video input/output connections:
• Connect the video deck’s video output jack (VIDEO OUT) to the (yellow) VCR-1 IN jack, and the video deck’s video input jack (VIDEO IN) to the
(yellow) VCR-1 OUT jack using 75 Ω/ohms video coaxial pin plug cords.
Connecting the audio output jacks
• Connect the video deck’s audio output jacks (AUDIO OUT) to the VCR-1 IN jacks, and the video deck’s audio input jacks (AUDIO IN) to the VCR-1 OUT jacks using pin plug cords.
Connect the second video deck to the VCR-2 jacks in the same way.
AUDIOAUDIO
VIDEOVIDEO
8
IN
S-VIDEO
OUT
S-VIDEO
OUT
S-VIDEO
OUT IN
S-VIDEO
OUT IN
S-VIDEO
B
B
Connecting the video components equipped with S-Video jacks
• When making connections, also refer to the operating instructions of the other components.
A note on the S input jacks
The input selectors for the S inputs and Video inputs work in conjunction with each other.
• The AVR-2805/985 is equipped with a function for converting video signals.
• The signal connected to the S-Video signal terminal is output to the composite video and component video monitor out terminals.
• The REC OUT terminals have no conversion function, so when recording only connect the S-Video terminals.
DVD player or video disc player (VDP)
Connecting a DVD player or a video disc player (VDP)
DVD
• Connect the DVD player’s S-Video output jack to the S-VIDEO DVD IN jack using a S-Video connection cord.
• VDP can be connected to the VDP jacks in the same way.
• It is also possible to connect a video disc player, DVD player, video camcorder, game machine, etc., to the V.AUX jacks.
Connecting a monitor TV
MONITOR OUT
• Connect the TV’s S video input (S-VIDEO INPUT) to the MONITOR OUT jack using a S jack connection cord.
S-VIDEO
Monitor TV
Connecting a TV or DBS tuner
• Connect the TV’s or DBS tuner’s S video output jack (S­VIDEO OUTPUT) to the TV or DBS IN jack using an S-Video connection cord.
S-VIDEO
TV or satellite broadcast tuner
Video deck 1
Connecting the video decks
• Connect the video deck’s S output jack (S-OUT) to the VCR-1 IN jack and the video deck’s S input jack
(S-IN) to the VCR-1 OUT jack using S-Video connection cords.
• Connect the video deck’s S output jack (S-OUT) to the VCR-2 IN jack and the video deck’s S input jack
(S-IN) to the VCR-2 OUT jack using S-Video connection cords.
S-VIDEO
S-VIDEO
S-VIDEO
S-VIDEO
Video deck 2
Connect the components’ audio inputs and outputs as described. (See page 7)
9
VIDEO OUT
Y
CRCB
COMPONENT
B
VIDEO IN
Y
CRCB
COMPONENT
Connecting the video component equipped with Color Difference (Component - Y, PR/CR, P
B/CB
) Video jacks
• When making connections, also refer to the operating instructions of the other components.
• The signals input to the color difference (component) video jacks are not outputs to the VIDEO output jack (yellow) or the S-Video output jack.
• Some video sources with component video outputs are labeled Y, CB, CR, or Y, Pb, Pr, or Y, R-Y, B-Y. These terms all refer to component video color difference output.
• The function assigned to the component video input can be changed at the system setup. For details, see “Setting the Video Input Mode”. (See page 41)
DVD player
Connecting a DVD player
DVD IN jacks
• Connect the DVD player’s color difference (component) video output jacks (COMPONENT VIDEO OUTPUT) to the COMPONENT VIDEO-1 IN jack using 75 /ohms coaxial video pin-plug cords.
• In the same way, another video source with component video outputs such as a TV/DBS tuner, etc., can be connected to the VIDEO-2 color difference (component) video jacks.
Monitor TV
Connecting a monitor TV
MONITOR OUT jack
• Connect the TV’s color difference (component) video input jacks (COMPONENT VIDEO INPUT) to the COMPONENT MONITOR OUT jack using 75 Ω/ohms coaxial video pin-plug cords.
• The color difference input jacks may be indicated differently on some TVs, monitors or video components (“CR, CB and Y”, “R­Y, B-Y and Y”, “Pr, Pb and Y”, etc.). For details, carefully read the operating instructions included with the TV or other component.
NOTE:
Down-converting from the component video signal to the S-Video and composite video signal is not possible, so when not using the component video monitor output terminal connect the player using the S-Video or composite video input terminal.
Cautions on the video conversion function:
When the component video terminals are used to connect the AVR­2805/985 with a TV (or monitor, projector, etc.) and the video (yellow) or S video terminals are used to connect the AVR-2805/985 with a VTR, depending on the combination of the TV and VTR the picture may flicker in the horizontal direction, be distorted, be out of sync or not display at all when playing video tapes. If this happens, connect a commercially available video stabilizer, etc., with a TBC (time base corrector) function between the AVR-2805/985 and the VTR, or if your VTR has a TBC function, turn it on.
MONITOR OUT jacks
The AVR-2805/985 is equipped with a function for up-converting video signals. Because of this, the AVR-2805/985’s MONITOR OUT jack can be connected to the monitor (TV) with a set of cables offering a higher quality connection, regardless of how the player and the AVR­2805/985’s video input jacks are connected. Generally speaking, connections using the component video jacks offer the highest quality playback, followed by connections using the S-Video jacks, then connections using the regular video jacks (yellow).
(S-Video jack)
(Color Diffrence Video jack)
(Video jack) (Video jack)
(Color Diffrence Video jack)
(S-Video jack)
The Video Conversion Function
With the AVR-2805/985, the Video signal and the S-video signal which were inputted are converted mutually. And also the Video signal and the S-Video signal which were inputted are converted into a higher quality.
This unit’s input jacks This unit’s output jacks
The flow of the this unit’s internal signals.
10
Connecting the antenna terminals
1
4
2
3
DIRECTION OF BROADCASTING STATION
75 /ohms COAXIAL CABLE
FM ANTENNA
FM INDOOR ANTENNA (Supplied)
AM LOOP ANTENNA (Supplied)
AM OUTDOOR ANTENNA
GROUND
AM loop antenna assembly
Connect to the AM antenna terminals.
Remove the vinyl tie and take out the connection line.
Bend in the reverse direction.
a. With the antenna
on top any stable surface.
b. With the antenna
attached to a wall.
Mount
Installation hole Mount on wall, etc.
An F-type FM antenna cable plug can be connected directly.
Connection of AM antennas
1. Push the lever. 2. Insert the conductor. 3. Return the lever.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
Notes:
Do not connect two FM antennas simultaneously.
Even if an external AM antenna is used, do not disconnect
the AM loop antenna.
Make sure AM loop antenna lead terminals do not touch metal parts of the panel.
L
R
L
R
R L
L
R
L
R
RL
Connecting the external input (EXT. IN) jacks
These jacks are for inputting multi-channel audio signals from an outboard decoder, or a component with a different type of multi-channel decoder, such as a DVD Audio player, a multi-channel SACD player, or other future multi-channel sound format decoder.
When making connections, also refer to the operating instructions of the other components.
Decoder with 8- or 6-channel analog output
Front
Surround
Surround back
Subwoofer
Center
For instructions on playback using the external input (EXT. IN) jacks. (See page 61)
L
R
++
OUTPUT
INPUT
AUX OUT
B
CONTROL terminal
Perform the following operation before using an external controller connected to the RS--232C terminal:
1. Press the ON/STANDBY button on the main unit and set the unit to the operating mode.
2. Perform the operation to turn off the power from the external control.
3. Check that the product has been set to the standby mode.
After checking the above, check the connections of the external controller. Operation is possible.
11
Connecting the MULTI ZONE jacks
For instructions on operations using the MULTI ZONE FUNCTIONS. (See page 65 ~ 67)
[1] ZONE 2 preout CONNECTIONS
If another power amplifier or pre-main (integrated) amplifier or is connected, the ZONE2 preout (variable/fixed level) jacks can be used to play a different program source in ZONE2 the same time. (See page 67)
The ZONE2 video out is only for the ZONE2.
ZONE2
RC-616 INFRARED RETRANSMITTER
Integrated pre-main amplifier or power amplifier
RC-617INFRARED SENSOR
Extension jacks for future use.
L
R
++
OUTPUT
INPUT
AUX OUT
B
(L) (
R
)
[2] ZONE2 SPEAKER OUT and PREOUT CONNECTIONS
If another power amplifier or pre-main (integrated) amplifier is connected, the ZONE2 output terminals can be used to play a different program source in ZONE2 the same time.
ZONE2 SPEAKER OUT can be used when ZONE2 is selected at System Setup Menu Power Amp Assign. In this case , Surround Back Speaker OUT cannot be used for MAIN ZONE. (See page 43)
ZONE2
RC-616 INFRARED RETRANSMITTER
RC-617 INFRARED SENSOR
Extension jacks for future use.
NOTE:
The settings must be changed to use this speaker for ZONE2. (See page 43.)
Integrated pre-main amplifier or power amplifier
SURROUND BACK/ZONE2 SPEAKER SYSTEMS
12
Connecting the video component equipped with V. AUX jacks
To connect the video signal, connect using a 75 /ohms video signal cable cord.
MASTER VOLUME
R VIDEO OUT S-VIDEO OUTOPTICALL
R VIDEO OUTL
OUTPUT
OUTPUT
LINE OUT
DIGITAL OUT
VIDEO OUT
S-VIDEO OUT
VIDEO OUT
LINE OUT
S-VIDEO OUT
S-VIDEO OUT
L
R
L
R
L
R
Connecting a Video game component
Connect the Video game components output jacks to this units V. AUX INPUT jacks.
Video game
Video camera
Connecting a video camera component
Connect the video camera components output jacks to this units V. AUX INPUT jacks.
13
(L) (R)
(L) (
R
)
(L) (R)
(L) (R)
Speaker system connections
Connect the speaker terminals with the speakers making sure that like polarities are matched (
with , with ). Mismatching of polarities will result in weak central sound, unclear orientation of the various instruments, and the sense of direction of the stereo being impaired.
When making connections, take care that none of the individual conductors of the speaker cord come in contact with adjacent terminals, with other speaker cord conductors, or with the rear panel.
NOTE: NEVER touch the speaker terminals when the power is on. Doing so could result in electric shocks.
Speaker Impedance
Speakers with an impedance of from 6 to 16 Ω/ohms can be connected for
use as front and center speakers.
Speakers with an impedance of 6 to 16 Ω/ohms can be connected for use as
surround speakers.
Be careful when using two pairs of front speakers (A + B) at the same time,
since use of speakers with an impedance of less than 8 /ohms will lead to damage.
The protector circuit may be activated if the set is played for long periods of time at high volumes when speakers with an impedance lower than the specified impedance are connected.
Connection the speaker terminals
1. Loosen by turning counterclockwise
2. Insert the cord. 3. Tighten by turning clockwise.
Connecting banana plugs
banana plug
Turn clockwise to tighten, then insert the banana plug.
Connections
When making connections, also refer to the operating instructions of the other components.
Connection jack for subwoofer with built-in amplifier (super woofer), etc.
CENTER SPEAKER SYSTEM
FRONT SPEAKER SYSTEMS (A)
Precautions when
connecting speakers
If a speaker is placed near a TV or video monitor, the colors on the screen may be disturbed by the speakers magnetism. If this should happen, move the speaker away to a position where it does not have this effect.
SURROUND BACK/MULTI ZONE SPEAKER SYSTEMS
FRONT SPEAKER SYSTEMS (B)
NOTES:
To use Surround back with one speaker, connect the speaker to SURR. BACK L CH.
The settings must be changed to use this speaker for ZONE2 See page 43.
Either tightly twist or terminate the core wires.
SURROUND SPEAKER SYSTEMS
14
This unit is equipped with a high-speed protection circuit. The purpose of this circuit is to protect the speakers under circumstances such as when the output of the power amplifier is inadvertently short-circuited and a large current flows, when the temperature surrounding the unit becomes unusually high, or when the unit is used at high output over a long period which results in an extreme temperature rise. When the protection circuit is activated, the speaker output is cut off and the power supply indicator LED flashes. Should this occur, please follow these steps: be sure to switch off the power of this unit, check whether there are any faults with the wiring of the speaker cables or input cables, and wait for the unit to cool down if it is very hot. Improve the ventilation condition around the unit and switch the power back on. If the protection circuit is activated again even though there are no problems with the wiring or the ventilation around the unit, switch off the power and contact a DENON service center.
Protector circuit
The protector circuit may be activated if the set is played for long periods of time at high volumes when speakers with an impedance lower than the specified impedance (for example speakers with an impedance of lower than 4 /ohms) are connected. If the protector circuit is activated, the speaker output is cut off. Turn off the sets power, wait for the set to cool down, improve the ventilation around the set, then turn the power back on.
Note on speaker impedance
15
6
PART NAMES AND FUNCTIONS
Front Panel
For details on the functions of these parts, refer to the pages given in parentheses ( ).
er
yi
tuo
!0
q
w
!1
!2
!5
!3
!4
!7!6
@2 @1@3
!8
!9
@0
@4
@5
@7
@8
@6
q
Power ON/STANDBY switch....................................................(58)
w
POWER indicator......................................................................(58)
e
Power switch .....................................................................(58, 85)
r
Headphone jack (PHONES) ......................................................(63)
t
INPUT MODE button ...............................................................(59)
y
ANALOG button .......................................................................(59)
u
EXT. IN button ....................................................................(59, 61)
i
PURE DIRECT button...............................................................(62)
o
FRONT SPEAKER button .........................................................(58)
!0
SURROUND BACK button .......................................................(73)
!1
DIMMER button.......................................................................(64)
!2
STATUS button .........................................................................(64)
!3
V.AUX input jacks .....................................................................(12)
!4
SETUP MIC jack .......................................................................(21)
!5
SURROUND MODE button......................................................(78)
!6
SURROUND PARAMETER button...................................(70 ~ 80)
!7
SELECT knob...........................................(60, 63, 69 ~ 74, 78, 80)
!8
TONE DEFEAT button..............................................................(63)
!9
TONE CONTROL button ....................................................(63, 80)
@0
MASTER VOLUME control ......................................................(60)
@1
MASTER VOLUME indicator....................................................(60)
@2
Display
@3
Remote control sensor (REMOTE SENSOR) ...........................(48)
@4
FUNCTION knob ........................................(59, 67, 72, 74, 83, 85)
@5
VIDEO SELECT button .............................................................(63)
@6
ZONE2/REC SELECT button ..............................................(64, 67)
@7
TUNING PRESET button ..........................................................(85)
@8
SOURCE button .......................................................................(59)
16
Display
ert
yuio!0!1!2!3!4
qw
q
INPUT SIGNAL indicator The respective indicator will light corresponding to the input signal.
w
INPUT SIGNAL CHANNEL indicator The channels included in the input source will light. This displays bitstream signal channel. This does not light when signals are being input to the ANALOG, EXT.IN or PCM connectors.
e
Information display This displays the surround mode, function name or setting value, etc.
r
OUTPUT SIGNAL CHANNEL indicator The audio channels output from this unit will light.
t
SPEAKER indicator This lights corresponding to the settings of the front speakers.
y
Decoder indicator This lights when each decoder is operating.
u
MASTER VOLUME indicator
This displays the volume level. The Setup item number is displayed in System Setup.
i
MULTI(ZONE) indicator ZONE2 mode is selected in ZONE2/REC SELECT.
o
REC OUT SOURCE indicator. REC OUT mode is selected in ZONE2/REC SELECT.
!0
AL24 indicator The AL24 indicator lights when the PURE DIRECT, DIRECT and STEREO mode is selected in the PCM input signal.
!1
INPUT MODE indicator This lights corresponding to the setting of the INPUT mode.
!2
AUTO indicator This lights when the broadcast station is selected in the AUTO tuning mode.
!3
TUNED indicator This lights when an FM/AM broadcast has been received.
!4
STEREO indicator This lights when an FM stereo broadcast has been received.
17
Remote control unit
For details on the functions of these parts, refer to the pages given in parentheses ( ).
Power buttons ...............................(50 ~ 58)
Master volume control
buttons .............................................(60, 67)
SYSTEM CALL buttons ..........................(54)
SYSTEM buttons ...........................(49 ~ 52)
Input source selector buttons
....(50 ~ 52, 59)
Mode selector
buttons......................(18, 49 ~ 51, 53 ~ 58)
Remote control signal
transmitter..............................................(48)
ZONE 2 buttons .....................................(67)
MUTING button......................................(63)
MODE SELECT button...........................(49)
RETURN button................................(51, 52)
FRONT SPEAKER button .......................(58)
LED (indicator) ...............................(50 ~ 57)
Cursor buttons........................................(18)
SYSTEM SETUP/SETUP
button...............................................(18, 47)
ON SCREEN/DISPLAY button..........(64, 73)
TEST TONE button.................................(68)
USE/LEARN button ..........................(53, 56)
INPUT MODE selector
buttons .............................................(59, 61)
SURROUND BACK button .....................(73)
CH SELECT/ENTER button
...................................................(18, 68, 69)
SURROUND PARAMETER
button ............................................(70 ~ 80)
Surround buttons
............................................(62, 69, ,71, 77)
Tuner system/System
buttons.....................................(67, 83 ~ 85)
ZONE1 (MAIN) buttons ..........................(67)
18
7
SETTING UP THE SYSTEM
Once all connections with other AV components have been completed as described in CONNECTIONS (see pages 6 to 14), make the various settings described below on the monitor screen using the AVR-2805/985’s on-screen display function. These settings are required to set up the listening rooms AV system centered around the AVR-2805/985.
SYSTEM SETUP button
Press this to display the system setup menu.
ENTER button
Press this to switch the display. Also use this button to complete the setting.
CURSOR buttons
Use these to move the cursors the left, right, up and down on the screen
System setup items and default values (set upon shipment from the factory)
1
Check that the remote control unit set to AMP mode.(TAPE, CDR/MD, CD)
2

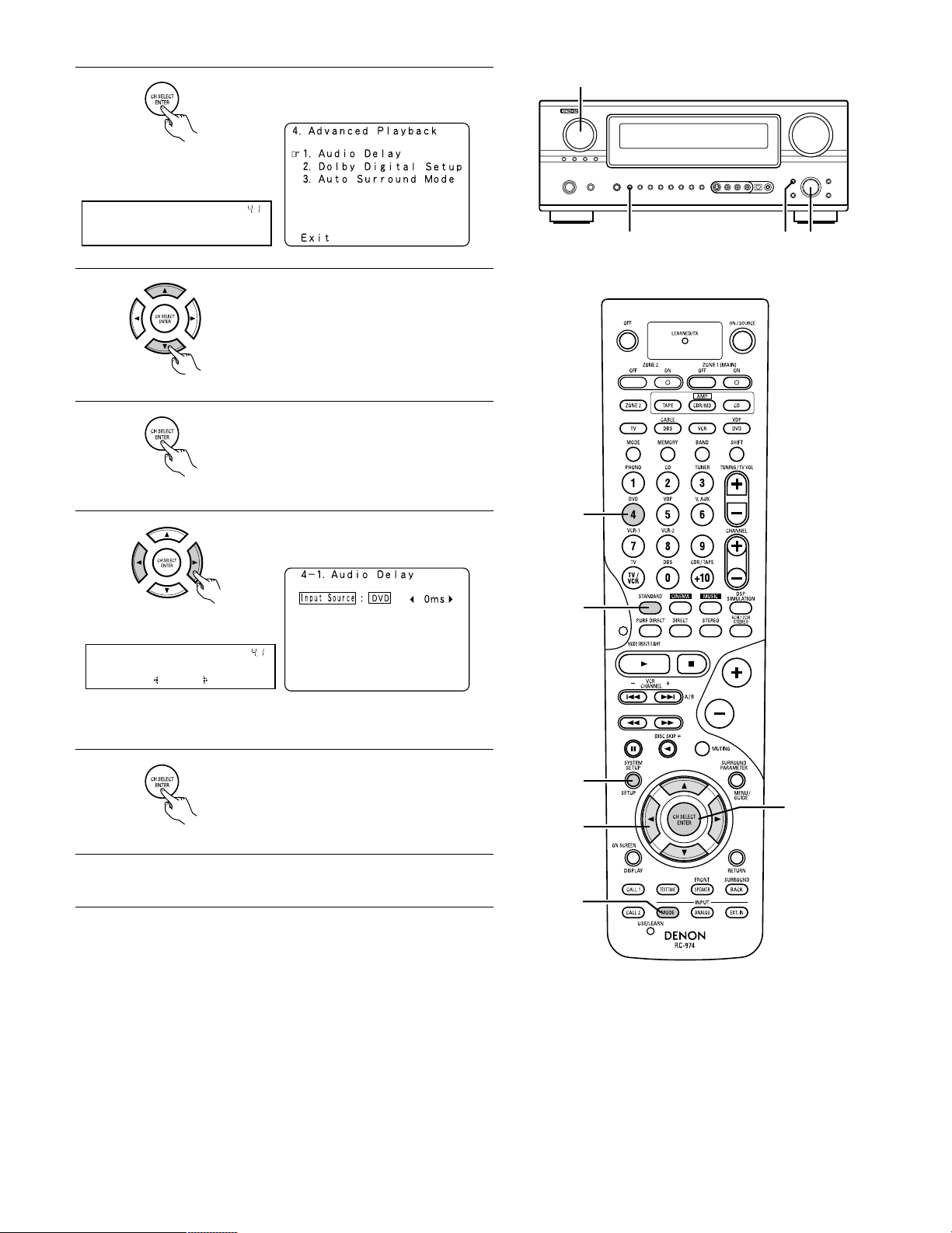

Use the following buttons to set up the system
Use the following buttons to set up the system.
2. Speaker Setup
Speaker Setup Default settings
1
2
Speaker Configuration
Channel Level
Input the combination of speakers in your system and their corresponding sizes (SMALL for regular speakers, LARGE for full­size, full-range) to automatically set the composition of the signals output from the speakers and the frequency response.
This adjusts the volume of the signals output from the speakers and subwoofer for the different channels in order to obtain optimum effects.
Front Sp.
Large
Center Sp. Surround Sp. Subwoofer
Small SmallYe s
Front L & R Center Surround L & RSubwoofer
12 ft (3.6 m) 12 ft (3.6 m) 10 ft (3.0 m)12 ft (3.6 m)
Front L
Front R Center
Surround
R
Surround
Back R
Subwoofer
0 dB 0 dB 0 dB 0 dB 0 dB 0 dB
Surround Back Sp.
Small / 2spkrs
3
Delay Time
This parameter is for optimizing the timing with which the audio signals are produced from the speakers and subwoofer according to the listening position.
SBL & SBR
10 ft (3.0 m)
Surround
Back L
0 dB
Surround
L
0 dB
Crossover Frequency
5
Set the frequency (Hz) below which the bass so of the various speaker is to be output from the subwoofer.
4
80Hz
Subwoofer Mode
This selects the subwoofer speaker for playing deep bass signals. LFE
1. Auto Setup/Room EQ
Auto Setup/Room EQ Default settings
1
2
Auto Setup
Room EQ Setup
Power Amp
Assignment
This parameter is for optimizing the Room EQ with which the audio signals are produced from the speakers.
3
Manual EQ Setup
Direct Mode Setup
5
Set the ON/OFF setting of Room EQ, in the case of the surround mode is in Direct or Pure Direct.
4
Mic Input Select
Set this to switch the Mic Input jack for use for Mic or V.Aux L­channel input jack.
Set this to switch the surround back channel’s power amplifier for use for zone2.
Set the Room EQ setting with All or Assign for each surround mode.
SURROUND BACK
All Channel and Frequency=0dB
All
OFF
Mic
(Remote control unit)
19
3
Digital In Assignment
This assigns the digital input jacks for the different input sources.
Input
source
Digital Inputs
CD DVD VDP
TV
DBS V. AUX VCR-1 VCR-2
COAX1 COAX2 OPT1 OFF OPT2 OPT5 OPT3 OFF
1
CDR/TAPE
OPT4
Auto Surround Mode
Set the Auto surround mode function.
Auto Surround Mode = ON
1
Audio Delay
Set the audio delay to delay time the sound and synchronize it with the picture.
0 ms
3.Input Setup
2
Ext. In Subwoofer Level
Set the Ext. In Subwoofer terminal playback level. Subwoofer = +15 dB
This assigns the color difference (component) video input jacks for the different input sources.
Video Input Mode
Set the input signal to be output from the monitor output terminal.
Component In Assign
3
4
DVD VDP TV
DBS
VCR-1 VCR-2 V. AUX
VIDEO1 NONE VIDEO2 VIDEO3 NONE NONE NONE
AUTO
4.Advanced Playback
Input Setup Default settings
Advanced Playback Default settings
2
Dolby Digital Setup
Turn the audio compression on or off when down-mixing Dolby Digital signals.
OFF
Set this to switch the surround back channels power amplifier for use for zone2.
Surround Back
Power AMP Assignment
1
6
5
Muting Level
This sets the amount of attenuation at audio output muting. ---dB(minimum)
5.Option Setup
Option Setup Default settings
2
Zone2 vol. Level
This sets the output level the zone2 output jacks. This menu is not displayed, when ZONE2 is selected at Option Setup Power Amp Assign”.
Variable
On Screen Display
This sets whether or not to display the on-screen display that appears on the monitor screen when the controls on the remote control unit or main unit are operated. A setting to prevent flickering.
On Screen Display = ON / Mode 1
5
Auto Tuner Presets
FM stations are received automatically and stored in the memory.
A1 ~ A8
B1 ~B8
C1 ~C8
D1 ~D8
E1 ~E8
87.5/89.1/98.1/107.9/90.1/90.1/90.1/90.1 MHz
520/600/1000/1400/1500/1710 kHz/90.1/90.1 MHz
90.1 MHz
90.1 MHz
90.1 MHz
F1 ~F8 90.1 MHz
G1 ~G8 90.1 MHz
4
7
Setup Lock
Set whether or not to lock the system setup settings so that they cannot be changed.
Setup Lock = OFF
Trigger Out1 Setup
Set the Trigger Out1 output for the each input sources.
PHONO CD TUNER
CDR/TAPE
DVD VDP TV VCR-1
OFF OFF OFF OFF ON ON ON ON
3
VCR-2
ON
DBS
ON
V. A UX
ON
Trigger Out2 Setup
Set the Trigger Out2 output for the each input sources.
PHONO CD TUNER
CDR/TAPE
DVD VDP TV VCR-1
ON ON ON ON ON ON ON ON
VCR-2
ON
DBS
ON
V. A UX
ON
ZONE=MAIN
ZONE=2
NOTES:
The on-screen display signals are output with priority to the S-VIDEO MONITOR OUT jack during playback of a video component. For example, if the TV monitor is connected to both the AVR-2805/985’s S-Video and video monitor output jacks and signals are input to the AVR-2805/985 from a video source (VDP, etc.) connected to both the S-Video and video input jacks, the on-screen display signals are output with priority to the S-Video monitor output. If you wish to output the signals to the video monitor output jack, do not connect a cord to the S-VIDEO MONITOR OUT jack. (For details, see page 49.)
The AVR-2805/985s on-screen display function is designed for use with high resolution monitor TVs, so it may be difficult to read small characters on TVs with small screens or low resolutions.
The setup menu is not displayed when headphone are being used.
20
Speaker system layout
Basic system layout
The following is an example of the basic layout for a system consisting of eight speaker systems and a television monitor:
Subwoofer Center speaker system
Surround speaker systems
Surround back speaker systems
Front speaker systems Set these at the sides of the TV or screen with their front surfaces as flush with the front of the screen as possible.
Before setting up the system
1
2
Check that all the connections are correct, then turn on the main units power. Setup will not be possible when the unit is set to Pure Direct ON, or when the headphones are plugged in. Therefore, please cancel the mode or reverse the condition.
Display the System Setup Menu.
(Remote control unit)
Auto Set/RoomEQ
*System Setup
NOTES:
The System Setup menu composition is of a layered design that includes the related items below the large table title as contained in the tables of Pages 18 and
19.
Wherever your position in System Setup, one more press of the System Setup button permits a move to one level higher.
Place the microphone for Auto Setup at the actual listening position which will be at the same height as your ears. Use a tripod or level surface at positioning.
21
Auto setup/Room EQ
1
2
Connect the microphone for Auto Setup to the Setup Mic connector on the front panel of the unit.
The Auto Setup function of this unit performs an analysis of the speaker system and measures the acoustic characteristics of your room to permit an appropriate automatic setting.
When performing Auto Setup, an optional microphone is required for the setup.
2 Measurement and setting details
q : This sets the speaker connection mode, polarity, and bass reproduction ability. w : This sets the optimum delay time from each speaker corresponding to the listening position. e : This sets the volume that is output from each speaker. r : This sets the frequency response of each speaker.
NOTE:
A loud test tone is output during the measurement. Please consider this should you be planning night time measurements, and consider not allowing small children into the listening room at this time.
Listening position
Setting the Auto Setup / Room EQ
2
Display the Auto Setup / Room EQ menu.
1
Select Auto Setup / Room EQ at the System Setup Menu.
(Remote control unit)
Auto Set/RoomEQ
*System Setup
(Remote control unit)
Connecting the microphone for Auto Setup
1
NOTES:
When using other microphone see page 28.
MODE ANALOG EXT. IN
22
1-1 Setting the Auto Setup
3
Check the "Power Amp Assign" setting.
When Surround Back" is selected, the test tone during Auto Setup will be output from the Surround Back speaker.
When ZONE2 is selected, change the setting to "ZONE2 The test tone during Auto Setup is set so that it will not be output to
ZONE2 (Another room).
1
Select Auto Setup at the Auto Setup / Room EQ Menu.
(Remote control unit)
Auto Setup
*AutoSet/RoomEQ
(Remote control unit)
q Select the Power Amp Assign setting.
w Select Surround Back or ZONE2”.
(Remote control unit)
(Remote control unit)
P.Amp: SB
*Auto Setup
4
q Select the “Start.
(Remote control unit)
Start
*Auto Setup
(Remote control unit)
2
Display the Auto Setup screen.
w Press the Cursor left button.
NOTE:
When ZONE2 is selected at System Setup MenuPower Amp Assign, surround back speaker is not
displayed as the target of setup in 2-1.Speaker Config.. The results is reflected in 5-1.Power Amp Assign.
23
5
Start the measurements. Measurement of each channel is performed as follows. Display
1
Only the front speakers (A) is measured. Even if the front speakers (B) is set, the setting automatically switches to the front speakers (A) once measurements are completed.
2
Subwoofer speaker is measured twice.
3
When ZONE2 is selected, this is not displayed.
After each channel is measured, Calculating appears. The display switches to Auto Setup check screen automatically.
FL
FR CSW
2
3
SBL
SBR
1
SL
SR
About automatic retry
Remeasurement starts automatically to receive proper result of measurement. Remeasurement is performed to 2 times, and “Retry1” or “Retry2” is displayed on screen during remeasurement.
About the error message
These error screens will be displayed when performing the measurements of Auto Setup / Room EQ and the automatic measurements can not be completed because of the speaker arrangement, measurement environment, or other factors. Please check the following matters, reset the pertinent items, and measure again. When there is too much noise in the room, the speakers may not be detected properly. Should this happen, perform the measurements when the noise level is low, or switch off the power of the equipment that is producing the noise for the duration of the measurements.
NOTES:
Measurement is canceled when MASTER VOLUME is operated while the Auto Setup is performed.
Set the volume to halfway and set the crossover frequency to the maximum or Low pass filter off if your subwoofer speaker can adjust the output volume and the crossover frequency.
q This screen will be displayed when the speakers required for
producing suitable reproduction have not been detected.
The front L and front R speakers were not properly detected.
Only one channel of the surround speakers was detected.
Sound was output from the R channel when only one surround
back speaker was connected.
The surround back was detected, but the surround speaker was not detected.
Check that the pertinent speakers are properly connected. (see page 13)
w This screen will be displayed when the speaker polarity is
connected in reverse.
e This screen will be displayed when accurate measurements
cannot be made due to the input level to the microphone being too high.
Set up the speakers so that their position is farther away from the listening position. Lower the volume of the subwoofer speaker.
r This screen will be displayed when the measurement microphone
is not connected, or when all of the speakers have not been detected.
Connect the measurement microphone to the microphone connector. Check the speaker connections.
Check the polarity of the pertinent speakers. For some speakers, the screen below may be displayed even though the speakers are properly connected. If so, select Skip0”.
24
Check of the measurement results
1
Select the items. The measurement results of each item can be checked here.
(Remote control unit)
Sp Config.Check
*Auto Setup
2
Press the ENTER button and display the verification screen.
(Remote control unit)
[Speaker Config. Check] [Delay Time Check] [Channel Level Check]
3
If the check ends, press the ENTER button again.
(Remote control unit)
Select from the following three items based on the measurement results.
Set with the checked measurement value.
Perform the measurement again.
Cancel the checked measurement value.
Store
*Auto Setup
4
(Remote control unit)
When the “Store” is selected, all parameters are stored up . When the “Retry” is selected, it measures again.
5
(Remote control unit)
NOTE:
When measurements have been made using the measurement microphone, speakers with a built­in filter such as subwoofers might be set with a value that differs from the physical distance because of the internal electrical delay.
25
1-2 Setting the Manual EQ Setup
1
Select Manual EQ Setup at the Auto Setup / Room EQ Menu.
(Remote control unit)
Channel : FL
*ManualEQ Setup
Adjust the tone of the various speakers except subwoofer speaker while listening to the sound (music).
2
Display the Manual EQ Setup screen.
(Remote control unit)
3
Select the speaker to be set. The display changes as follows.
(Remote control unit)
4
Select the frequency
(Remote control unit)
5
Use the cursor left and right buttons to adjust the Gain level.
Each frequency can be adjusted the range from –6dB to +6dB in 0.5dB step.
(Remote control unit)
6
Enter the setting. The Auto Setup / Room EQ Menu reappears.
(Remote control unit)
Manual EQ Setup
*AutoSet/RoomEQ
63Hz : 0.0dB
*ManualEQ Setup
SB
FL
FR C
SL
SR
SBL
SBR
1spkr
When the surround back speaker setting is set to 1spkr at Speaker Configuration, this is set to SB.
Flashing
Channel : FL
*ManualEQ Setup
26
1-3 Setting the Room EQ Setup
1
Select Room EQ Setup at the Auto Setup / Room EQ Menu.
(Remote control unit)
Room EQ Setup
*AutoSet/RoomEQ
Select the setting of an Equalizer that has been set with Auto Setup or Manual EQ.
2
When the All is selected and press the ENTER button, display the Select the EQ Curve screen. Select the Equalizer setting.
OFF .........The Equalizer is not used.
Normal ....Adjust the frequency response of all speaker
suitable for general surround system.
Flat ..........Adjust the frequency response of all speakers
flat. This is suitable for music reproduction like ITU-R speaker setting.
Front........Adjusts the characteristics of each speaker to
the characteristics of the front speakers.
Manual ....Selects the setting value that was set in the
Manual EQ setup
Display the Room EQ Setup screen.
(Remote control unit)
SurMode:ALL
*Room EQ Setup
3
Select All or Assign.
All ............The Equalizer to all Surround mode is set as once.
Assign .....The Equalizer to each surround mode is to set
individually.
(Remote control unit)
4
(Remote control unit)
RoomEQ Normal
*Room EQ Setup
NOTES:
The Equalizer setting of Normal, Flat and Front can be selected after performing the Auto
Setup.
When the speaker set as None with the Auto Setup is change to on manually, the
equalizer of “Normal”, Front and Flat cannot be used.
The Equalizer setting can be selected by SURROUND PARAMETER button in Main unit or
Remote control unit.
When headphone is connected, the Room EQ cannot be used.
Enter the setting. The Auto Setup / Room EQ Menu reappears.
5
(Remote control unit)
27
1-4 Setting the Direct Mode
1
Select Direct Mode Setup at the Auto Setup / Room EQ Menu.
(Remote control unit)
Direct Mode
*AutoSet/RoomEQ
Perform the ON/OFF setting of Room EQ when the surround mode is Direct or Pure Direct.
2
Display the Direct Mode Setup screen.
(Remote control unit)
3
Select ON or OFF.
(Remote control unit)
4
Enter the setting . The Auto Setup / Room EQ Menu reappears.
(Remote control unit)
Room EQ : OFF
*Direct Mode
28
1-5 Setting the MIC Input Select
1
Select Mic Input Select at the Auto Setup / Room EQ Menu.
(Remote control unit)
Mic In Select
*AutoSet/RoomEQ
Use this setting when using a microphone other than the included one for measurements when performing the auto setup procedure.
The microphone included with the AVR-2805 is a measurement microphone designed specifically for use during the auto setup procedure.
Select Mic and connect the included microphone to the SETUP MIC mini-jack. When conducting the auto setup procedure using a separate high performance condenser microphone for measurements, select V.AUX L and connect the microphone to the V.AUX Lch pin jack.
Please ask the DENON Authorized Service Center about the usable microphone other than the option setup.
2
Display the Mic Input Select screen.
(Remote control unit)
3
Select the Mic input jack or V.AUX L jack.
(Remote control unit)
4
Enter the setting. The Auto Setup / Room EQ Menu reappears.
(Remote control unit)
1-6 Check the EQ parameter
1
Select EQ Parameter Check at the Auto Setup / Room EQ Menu.
(Remote control unit)
The frequency characteristic of each speaker is rectified and the tone of the speaker is unified. The EQ parameters that were set in Auto Setup can be checked. This item is automatically displayed, after the measurement result of the Auto Setup / Room EQ is decided.
2
Display the EQ Parameter Check screen.
(Remote control unit)
Mic
*Mic In Select
Parameter Check
*AutoSet/RoomEQ
1:Normal
*ParameterCheck
29
Setting the Speaker Setup
1
2
Select Speaker Setup at the System Setup Menu .
Display the Speaker Setup Menu screen.
Speaker Setup
*System Setup
(Remote control unit)
(Remote control unit)
7
If the check ends, select Exit and press the ENTER button. The Auto Setup / Room EQ Menu reappears.
8
Select Exit and press the ENTER button at the Auto Setup / Room EQ Menu screen. The System Setup Menu reappears.
(Remote control unit)
3
Select the Equalizer curve.
(Remote control unit)
2
4
Display the parameter screen.
5
(Remote control unit)
Select the speaker channel.
Cross over Frequency and Subwoofer Mode Setup is not displayed when not using a subwoofer.
6
Enter the Setting.
(Remote control unit)
(Remote control unit)
(Remote control unit)
(Remote control unit)
(Remote control unit)
30
2-1
Setting the type of speakers
The composition of the signals output to each channels and the frequency response are adjusted automatically according to the combination of speakers actually being used.
1
Select Speaker Config. at the Speaker Setup Menu.
2
3
Display the speaker config. screen as below.
Set whether speakers are connected or not and, if so, their size parameters.
q Select the speaker
w Select the parameter
4
ENTER the setting. The Speaker Setup Menu reappears.
NOTE:
Select Large or Small not according to the actual size of the speaker but according to the speakers capacity for playing low frequency (bass sound below the frequency set for the Crossover Frequency) signals. If you do not know, try comparing the sound at both settings (setting the volume to a level low enough so as not to damage the speakers) to determine the proper setting.
Center Sp.
Front Sp.
Subwoofer
Surround Sp.
Surround back Sp.
(Remote control unit)
Speaker Config.
*Speaker Setup
(Remote control unit)
(Remote control unit)
(Remote control unit)
FrontSp: Large
*Speaker Config
(Remote control unit)
Parameters
Large...................Select this when using speakers that have sufficient performance for reproducing bass sound below the frequency set for the
Crossover Frequency mode.
Small...................Select this when using speakers that do not have sufficient performance for reproducing bass sound below the frequency set
for the Crossover Frequency mode. When this is set, bass sound with a frequency below the frequency set for the Crossover
Frequency mode is sent to the subwoofer.
None……............Select this when no speakers are installed.
Yes/No.............Select Yes when a subwoofer is installed, No when a subwoofer is not installed.
2spkrs/1spkr .......Set the number of speakers to be used for the surround back channel.
If the subwoofer has sufficient low frequency playback capacity, good sound can be achieved even when Small is set for the front, center and surround speakers.
31
2-2
Setting the Delay Time
1
Select Delay Time at the Speaker Setup Menu.
Input the distance between the listening position and each speakers to set the delay time for the surround playback.
Preparations:
Measure the distances between the listening position and the speakers (L1 to L5 on the diagram at the right).
L1: Distance between center speaker and listening position L2: Distance between front speakers and listening position L3: Distance between surround speakers and listening position L4: Distance between surround back speakers and listening position L5: Distance between subwoofer and listening position
L1
L2
L5
L3
L4
Center FRFL
Subwoofer
SL
Listening position
SR
SBRSBL
2
3
4
5
Display the Delay Time screen.
Select the desired unit, meters or feet.
Once Meters or Feet is selected in step 3, the Delay Time screen appears automatically.
Select the speaker to be set. The picture of the speaker selected blinks.
Example: When Feet is selected
(Remote control unit)
(Remote control unit)
(Remote control unit)
(Remote control unit)
Delay Time
*Speaker Setup Meters : Feet
*Delay Time FL : 12.0ft
*Delay Time
32
6
Set the distance between the center speaker and listening position. The distance changes in units of 0.1 foot (0.03 meters) each time the button is pressed. Select the value closest to the measured distance.
If Ye s is selected for Default, the settings are automatically reset to the default values.
Please note that the difference of distance for every speaker should be 20 ft (6.0 m) or less. If you set an invalid distance, a CAUTION notice, such as screen right will appear. In this case, please relocate the blinking speaker(s) so that its distance is no larger than the value shown in highlighted line.
When Step is selected, you can select the unit of 1ft (0.1m) or 0.1ft (0.01m)”.
Example: When the distance is set to 12 feet
for the center speaker
7
Enter the setting. The Speaker Setup Menu reappears. The AVR-2805/985 automatically sets the optimum surround delay time for the listening room.
NOTE:
If the distance unit is changed after the delay time is set, the settings are reset to the factory default values (see page 18).
2-3
Setting the Channel Level
Use this setting to adjust so that the playback level between the different channels is equal.
From the listening position, listen to the test tones produced from the speakers to adjust the level.
The level can also be adjusted directly from the remote control unit. (For details, see page 68.)
1
2
Select Channel Level at the Speaker Setup Menu.
Display the Channel Level screen.
(Remote control unit)
(Remote control unit)
(Remote control unit)
Channel Level
*Speaker Setup T.Tone: Auto
*Channel Level
(Remote control unit)
33
3
Select the mode. Select Auto or Manual”.
Example: When the “Auto” mode is selected
4
5
6
Select Test Tone Start”.
Select Ye s ”.
a. When the “Auto” mode is selected:
Test tones are automatically emitted from each speaker. The test tones are emitted from each speaker in the following order, at 4-second intervals the first time and second time around, 2­second intervals the third time around and on:
Use the CURSOR left and right buttons to adjust all the speakers to the same volume. The volume can be adjusted between –12 dB and +12 dB in units of 0.5 dB.
b. When the Manual mode is selected :
Example: When the volume is set to –11.5 dB
while the test tone is being produced from the Front Lch speaker
Flashing
FL C FR SR SBR SBL SL SW
SB
1spkr
2spkrs
When the surround back speaker setting is set to 1spkr for Speaker Configuration, this is set to SB.
(Remote control unit)
(Remote control unit)
Tone Start:Yes
*Channel Level
(Remote control unit)
(Remote control unit)
(Remote control unit)
(Remote control unit)
FL : -11.5dB
TestTone Auto T.Tone: Auto
*Channel Level
Auto: Adjust the level while listening to the test tones produced automatically from each speaker.
Manual: Select the speaker from which you want to produce the test tone to adjust the level.
q Select the speaker.
w Adjust all the speakers to the same volume.
34
7
Enter the setting. The Channel Level screen reappears.
To cancel the settings, press the CURSOR down to select Level Clear and “Ye s” on the Channel Level” screen, then make the settings again.
When you adjust the channel levels while in the SYSTEM SETUP CHANNEL LEVEL mode, the channel level adjustments made will affect all surround modes. Consider this mode a Master Channel Level adjustment mode. After you have completed the SYSTEM SETUP CHANNEL LEVEL adjustments, you can then activate the individual surround modes and adjust channel levels that will be remembered for each of those modes. Then, whenever you activate a particular surround sound mode, your preferred channel level adjustments for just that mode will be recalled. Check the instructions for adjusting channel levels within each surround mode. (See page 68) You can adjust the channel levels for each of the following surround modes: PURE DIRECT/DIRECT, STEREO, DOLBY/DTS SURROUND, 5/7 CH STEREO, WIDE SCREEN, SUPER STADIUM, ROCK ARENA, JAZZ CLUB, CLASSIC CONCERT, MONO MOVIE, VIDEO GAME, MATRIX and VIRTUAL.
(Remote control unit)
2-4 Setting the crossover frequency
1
Select the Crossover Frequency at the Speaker Setup Menu.
Set the crossover frequency mode according to the speaker system being used.
Select the frequency.
(Remote control unit)
(Remote control unit)
Crossover Freq.
*Speaker Setup
4
Enter the setting. The Speaker Setup Menu reappears.
(Remote control unit)
3
2
Display the Crossover Frequency screen.
(Remote control unit)
80Hz
*Crossover Freq
40 / 60 / 80 / 100 / 120 / 150 / 200 / 250 Hz can be selected.
NOTE:
When adjusting the level of an active subwoofer system, you may also need to adjust the subwoofers own volume control.
35
2-5 Setting the low frequency distribution
This screen is not displayed when not using a subwoofer and all speakers are set to small size .
Set the subwoofer mode according to the speaker system being used.
4
Enter the setting. The Speaker Setup Menu reappears.
1
Select the Subwoofer Mode Setup at the Speaker Setup Menu.
Select the setting.
NOTES:
Assignment of low frequency signal range (2-1)
The only signals produced from the subwoofer channel are LFE signals (during playback of Dolby Digital or DTS signals) and the low frequency signal range of channels set to SMALL in the setup menu. The low frequency signal range of channels set to LARGE are produced from those channels.
Crossover Frequency (2-4)
When Subwoofer is set to Ye s at the Speaker Configuration Setting, set the frequency (Hz) below which the bass sound of the various speakers is to be output from the subwoofer (the crossover frequency).
For speakers set to Small, sound with a frequency below the crossover frequency is cut, and the cut bass sound is output from the subwoofer instead.
(When the subwoofer set to NO, the bass sound is output from the speaker set as Large.)
NOTE:For ordinary speaker systems, we recommend setting the crossover frequency to 80 Hz. When using small speakers, however,
setting the crossover frequency to a high frequency may improve frequency response for frequencies near the crossover frequency.
Subwoofer mode (2-5)
The subwoofer mode setting is only valid when LARGE is set for the front speakers and YES is set for the subwoofer in the Setting the type of speakers. (see page 30).
When the LFE+MAIN playback mode is selected, the low frequency signal range of channels set to LARGE are produced simultaneously from those channels and the subwoofer channel. In this playback mode, the low frequency range expand more uniformly through the room, but depending on the size and shape of the room, interference may result in a decrease of the actual volume of the low frequency range.
Selection of the LFE play mode will play the low frequency signal range of the channel selected with LARGE from that channel only. Therefore, the low frequency signal range that are played from the subwoofer channel are only the low frequency signal range of LFE (only during Dolby Digital or DTS signal playback) and the channel specified as SMALL in the setup menu.
Select the play mode that provides bass reproduction with quantity.
When the subwoofer is set to Ye s , bass sound is output from the subwoofer regardless of the subwoofer mode setting in surround modes
other than Dolby/DTS.
In surround modes other than Dolby Digital and DTS, if the subwoofer is set to YES, the low frequency portion is always output to the subwoofer channel. For details, refer to Surround Modes and Parameters. (See page 68)
(Remote control unit)
(Remote control unit)
Subwoofer Mode
*Speaker Setup
(Remote control unit)
3
LFE
*Subwoofer Mode
2
Display the Subwoofer mode screen.
(Remote control unit)
36
Setting the Input Setup
1
At the System Setup Menu select Input Setup”.
(Remote control unit)
Input Setup
*System Setup
2
Display the Input Setup Menu screen.
(Remote control unit)
3
37
3-1
Setting the Digital In Assignment
This setting assigns the digital input jacks of the AVR-2805/985 for the different input sources.
1
2
3
4
At the Input Setup Menu select Digital In Assign”.
Display the Digital Inputs screen.
Select the digital input jack to be assigned to the input source. q Select the input source
Enter the setting. The Input Setup Menu reappears.
(Remote control unit)
(Remote control unit)
Digital In
*Input Setup CD : COAX1
*Digital In
(Remote control unit)
(Remote control unit)
(Remote control unit)
NOTES:
The OPTICAL 3, 4 jacks on the AVR-2805/985s rear panel are equipped with an optical digital output jack for recording digital signals on a CD recorder, MD recorder or other digital recorder. Use this for digital recording between a digital audio source (stereo - 2 channel) and a digital audio recorder.
Do not connect the output of the component connected to the OPTICAL 3, 4 OUT jack on the AVR-2805/985s rear panel to any jack other than the OPTICAL 3, 4 IN jack.
•“PHONO and TUNER cannot be selected on the Digital In Assignment.
w Select the digital input jack
Select OFF” for input sources for which no digital input jacks are used.
If Ye s is selected for Default, the settings are automatically reset to the default values.
38
3-2 Setting the Ext. In Subwoofer Level
Set the method of playback of the analog input signal connected to the Ext.In Subwoofer.
1
Select Ext.In Subwoofer Level at the Input Setup Menu.
2
Display to the Ext.In Subwoofer Level screen.
3
4
Enter the setting. The Input Setup Menu reappears.
Select the desired setting.
Select according to the specifications of the player being used. Also refer to the players operating instructions. +15dB (default) recommended. (0, +5, +10 or +15 can be selected.)
(Remote control unit)
Ext.In SW Lev.
*Input Setup SW Lev.: +15dB
*Ext.In SW Lev.
(Remote control unit)
(Remote control unit)
(Remote control unit)
3-3
Setting the Component In Assign
This setting assigns the color difference (component) video input jacks of the AVR-2805/985 for the different input sources.
1
Select Component In Assign at the Input Setup Menu.
2
Display the Component In Assign screen.
(Remote control unit)
(Remote control unit)
DVD : V1
*Component In Component In
*Input Setup
39
1
Select Video Input Mode” at the Input Setup Menu .
2
Display the Video Input Mode screen.
3-4 Setting the Video Input Mode
3
Select the component (Y, PB/CB and PR/CR) video input terminal to be assigned to the input source.
Select NONE for sources for which the component (Y, P
B/CB and PR/CR) video input is not to be used.
When the default, “Ye s”, is selected, the settings are reset to the factory defaults.
4
Enter the setting. The Input Setup Menu reappears.
q Select the source
selection.
w Select the component
video input terminal.
(Remote control unit) (Remote control unit)
(Remote control unit)
(Remote control unit)
(Remote control unit)
Video In Mode
*Input Setup DVD : Auto
*Video In Mode
3
q Select the input source for which you want to set the
Video Input Mode.
w Select the mode as below.
(Remote control unit) (Remote control unit)
AUTO: When there are multiple input signals, the input signals are detected and the input signal to be output from the video
monitor output terminal is selected automatically in the following order: component video, S-Video, composite video.
Component: The signal connected to the component video terminal is always played.
Video conversion is not conducted, so no image is output from the monitor output terminal when there is no input signal to the component terminal.
S-Video: The signal connected to the S-Video terminal is always played.
The S-Video input signal is converted and output from the composite and component monitor output terminal.
Video: The signal connected to the composite video terminal is always played.
The composite video input signal is up-converted and output from the S-Video and component monitor output terminals.
AUTO
COMPONENT
Svideo Video
The details in each mode are as follows.
40
4
Enter the setting. The Input Setup Menu reappears.
NOTE:
Down-converting from the component video signal to the S-Video and composite video signal is not possible, so when not using the component video monitor output terminal connect the player using the S-Video or composite video input terminal.
Cautions on the video conversion function:
When the component video terminals are used to connect the AVR-2805/985 with a TV (or monitor, projector, etc.) and the video (yellow) or S video terminals are used to connect the AVR-2805/985 with a VTR, depending on the combination of the TV and VTR the picture may flicker in the horizontal direction, be distorted, be out of sync or not display at all when playing video tapes. If this happens, connect a commercially available video stabilizer, etc., with a TBC (time base corrector) function between the AVR­2805/985 and the VTR, or if your VTR has a TBC function, turn it on.
(Remote control unit)
3-5
Auto Tuner Presets
Use this to automatically search for FM broadcasts and store up to 56 stations at preset channels A1 to 8, B1 to 8, C1 to 8, D1 to 8, E1 to 8, F1 to 8 and G1 to 8.
NOTE:
If an FM station cannot be preset automatically due to poor reception, use the Manual tuning operation to tune in the station, then preset it using the manual “Preset memory” operation.
1
Select Auto Tuner Presetsat the Input Setup Menu.
2
Display the Auto Preset Memory screen.
3
Press the CURSOR left button to select Ye s. “Search flashes on the screen and searching begins.Completed appears once searching is completed.
The display automatically switches to screen.
(Remote control unit)
Auto Tuner
*Input Setup
(Remote control unit)
Start :Yes
*Auto Tuner
(Remote control unit)
41
Setting the Advanced Playback
1
Select Advanced Play back at the System Setup Menu.
2
Display the Advanced Playback Menu screen.
(Remote control unit)
Advanced Play
*System Setup
(Remote control unit)
4-1 Setting the Audio Delay
This function allows you to adjust the time delay of the video and audio signals and store these settings for the different input sources. The setting is made while watching a DVD or other software, so it is not made here. By default, this is not displayed when no digital signals are being input. For instructions on making the setting, refer to page 75.
NOTE:
The audio delay setting does not apply when it plays in the EXT. IN mode or in the analog input direct mode or stereo mode (TONE DEFEAT ON).
4
4-2 Setting the Dolby Digital Setup
Sets the down-mixing method when not using a center speaker or surround speakers.
OFF: The dynamic range is not compressed. ON: The dynamic range is compressed automatically according to the combination of speakers being used.
1
Select Dolby Digital Setup at the Advanced Playback Menu.
3
Select ON if you want to use the Compression,OFF if you do not want to use it.
4
Enter the setting. The Advanced Playback Menu reappears.
NOTE:
When a center speaker or surround speakers, are not used the sound is played from the front speakers. Set Compression to ON if it seems that sound is distorted because the input level exceeds the allowable input for the front speakers.
(Remote control unit)
(Remote control unit)
Dolby D Setup
*Advanced Play
(Remote control unit)
Comp. : OFF
*Dolby D Setup
(Remote control unit)
2
Press the ENTER button. Display the Dolby Digital Setup screen.
42
4-3 Setting the Auto Surround Mode
The surround mode used at last for the three types of input signals shown below is stored in the memory, and the signal is automatically played with that surround mode the next time it is input. Note that the surround mode setting is also stored separately for the different input sources.
q Analog and PCM 2-channel signals (STEREO) w 2-channel signals of Dolby Digital, DTS or other multi-channel format (DOLBY PLIIx cinema) e Multi-channel signals of Dolby Digital, DTS or other multi-channel format (DOLBY/DTS SURROUND)
Default settings are indicated in ( ). During playback in the PURE DIRECT mode, the surround mode does not change even if the input signal is changed.
1
Select Auto Surround Mode at the Advanced Playback Menu.
(Remote control unit)
Auto Surround
*Advanced Play
(Remote control unit)
2
Press the ENTER button. Display the Auto Surround Mode screen.
3
Select ON if you want to use the auto surround mode, OFF if you do not want to use it.
4
Enter the setting. The Advanced Playback Menu reappears.
(Remote control unit)
ON/OFF: ON
*Auto Surround
(Remote control unit)
Setting the Option Setup
1
Select Option Setup at the System Setup Menu.
2
Display the Option Setup Menu Screen.
(Remote control unit)
Option Setup
*System Setup
(Remote control unit)
5
Contents stored in the auto surround mode can be checked with the on-screen display.
(Remote control unit)
43
Make this setting to switch the power amplifier for the surround back channel to ZONE2. If ZONE2 is selected, the signal that selected at ZONE2 is output at SURR. BACK ZONE2 PREOUT terminals.
1
Select Power Amp Assign at the Option Setup Menu.
3
Select Surround Back to use as the surround back channel,Zone2 to use as Zone2 out.
When Surround Back is selected
5-1 Setting the Power Amplifier Assignment
(Remote control unit)
P.Amp Assign
*Option Setup S.Back
*P.Amp Assign
(Remote control unit)
4
Enter the setting. The Option Setup Menu reappear.
(Remote control unit)
(Remote control unit)
2
Press the ENTER button. Display the Power Amp Assign screen.
2
Display the Zone2 Vol. Level screen.
(Remote control unit)
Set the Zone2 pre-out output level adjustment.
1
At the Option Setup Menu select Zone2 Vol. Level”.
5-2 Setting the Zone2 Vol. Level
(Remote control unit)
Zone2 Vol. Lev.
*Option Setup
When Zone2 is selected
44
4
Enter the setting. The Option Setup Menu reappears.
3
Select the desired setting.
Variable:
The level can be adjusted freely using the buttons on the remote control unit.
0 dB, -40 dB:
The output level is fixed at the set level and the volume can no longer be adjusted.
NOTE:
When ZONE2 is selected at System Setup Menu 5-
1.Power Amp Assign, the Zone2 vol. Level is all set to Variable including preout level and this menu is not displayed.
Variable
*Zone2 Vol.Lev.
(Remote control unit)
(Remote control unit)
5-3, 5-4
Setting the Trigger Out Setup
Set the Trigger Out output 1 for the different input sources.
1
2
3
Select Trigger Out 1 Setup at the Option Setup Menu.
Display to the Trigger Out 1 Setup screen.
Select the Zone (MAIN or Zone2).
Trigger Out 1
*Option Setup
(Remote control unit)
ZONE : MAIN
*Trigger Out 1
(Remote control unit)
(Remote control unit)
4
(Remote control unit)(Remote control unit)
5
(Remote control unit)
Enter the setting The Option Setup Menu reappears.
Set the Trigger out 2 Setup in the same way.
w Select “ON or OFF.q Select the input source.
45
5-6 Setting the On Screen Display (OSD)
Use this to turn the on-screen display (messages other than the menu screens) on or off.
Sets the on-screen displays display mode.
Mode 1: Prevents flickering of the on-screen display when there is no video signal. Mode 2: Flickering is not prevented.
Use this mode if the on-screen display does not appear in the mode 1, as may happen according to the TV being used.
1
Select “On Screen Display” at the Option Setup Menu.
(Remote control unit)
On Screen
*Option Setup
2
Display the On screen display setup screen.
(Remote control unit)
3
Select ON or OFF”.
(Remote control unit)
ON/OFF: ON
*On Screen Muting Level
*Option Setup
5-5 Setting the Muting Level
1
Select Muting Level at the Option Setup Menu .
3
Select the desired setting.
(Remote control unit)
(Remote control unit)
---dB
*Muting Level
(Remote control unit)
4
Enter the setting. The Option Setup Menu reappears.
2
Display the Muting Level screen.
(Remote control unit)
•–20 dB: It is turned down the volume to –20 dB from the present level.
•–40 dB: It is turned down the volume to –40 dB from the present level.
--- dB: It is turned off the volume.
This sets the amount of attenuation at audio output muting.
46
4
w Select Mode1 or Mode2”.
5
Enter the setting. The Option Setup Menu reappears.
(Remote control unit) (Remote control unit)
Mode : Mode1
*On Screen
(Remote control unit)
q Select the On Screen Display mode.
System setup is complete. Once these settings are made, there is no need to change them unless different AV components are connected or the speakers are repositioned.
5-7 Protecting the setting
The system setup settings can be locked so that they cannot be changed easily.
1
Select Setup Lock at the Option Setup Menu.
2
Display the Setup Lock screen.
3
Select ON, to lock the system setup settings.
4
Press the ENTERbutton to finalize the setting and exit the Option setup mode. When the setup lock function is activated, the settings listed below cannot be changed, and SETUP LOCKED is
displayed when related buttons are operated.
System setup settings
Surround parameter settings
Tone control settings
Channel level settings (including test tones)
To unlock, press the System Setup button again and display the Setup Lock screen, then select OFF and pressENTER”.
(Remote control unit)
Setup Lock
*Option Setup
(Remote control unit)
(Remote control unit)
ON/OFF: OFF
*Setup Lock
(Remote control unit)
47
After completing system setup
This button can be pressed at any time during the system setup process to complete the process.
1
Press the SYSTEM SETUP button at the System Setup Menu.
The changed settings are entered and the on-screen display turns off.
On-screen display signals
Signals input to the AVR-2805/985
VIDEO signal input jack
(yellow)
E
C
E
C
1
2
3
4
S-video signal input jack
E
E
C
C
Video signal output to VIDEO
MONITOR OUT jack (yellow)
C
C
C
E
Video signal output to Color Difference
(Component) Video MONITOR OUT jack
C
C
C
C
On-screen display signal output
(C: Signal E: No signal) (C: On-screen signals output E: On-screen signals not output)
NOTE:
When a component video signal is input and when the Video Input Mode is set to the component fixed mode at Input setup, the on-screen display is only displayed when the System Setup, Surround Parameters and On Screen buttons are operated.
Video signal output to S-
Video MONITOR OUT jack
C
C
C
C
(Remote control unit)
48
8
REMOTE CONTROL UNIT
• The included remote control unit (RC-974) can be used to operate not only the AVR-2805/985 but other remote control compatible DENON components as well. In addition, the memory contains the control signals for other remote control units, so it can be used to operate non-Denon remote control compatible products.
Inserting the batteries
q Remove the remote control unit’s rear cover.
w Set three R6P/AA batteries in the battery compartment in the
indicated direction.
e Put the rear cover back on.
Notes on Batteries
• Use R6P/AA batteries in the remote control unit.
• The batteries should be replaced with new ones approximately once a year, though this depends on the frequency of usage.
• Even if less than a year has passed, replace the batteries with new ones if the set does not operate even when the remote control unit is operated nearby the set. (The included battery is only for verifying operation. Replace it with a new battery as soon as possible.)
• When inserting the batteries, be sure to do so in the proper direction, following the “” and “” marks in the battery compartment.
• To prevent damage or leakage of battery fluid:
• Do not use a new battery together with an old one.
• Do not use two different types of batteries.
• Do not short-circuit, disassemble, heat or dispose of batteries in
flames.
• Remove the batteries from the remote control unit when you do not plan to use it for an extended period of time.
• If the battery fluid should leak, carefully wipe the fluid off the inside of the battery compartment and insert new batteries.
• When replacing the batteries, have the new batteries ready and insert them as quickly as possible.
Using the remote control unit
23 feet/Approx. 7 m
• Point the remote control unit at the remote sensor on the main unit as shown on the diagram.
• The remote control unit can be used from a straight distance of approximately 23 feet / 7 meters from the main unit, but this distance will be shorter if there are obstacles in the way or if the remote control unit is not pointed directly at the remote sensor.
• The remote control unit can be operated at a horizontal angle of up to 30 degrees with respect to the remote sensor.
NOTES:
• It may be difficult to operate the remote control unit if the remote sensor is exposed to direct sunlight or strong artificial light.
• Do not press buttons on the main unit and remote control unit simultaneously. Doing so may result in malfunction.
• Neon signs or other devices emitting pulse-type noise nearby may result in malfunction, so keep the set as far away from such devices as possible.
30°
30°
49
Operating DENON audio components
1
2
Use the mode selector buttons to select the component you want to operate.
The function will change one step in the sequence described below each time the MODE SELECT button is pressed.
Operate the audio component.
• For details, refer to the component’s operating instructions. It may not be possible to operate some models.
1. CD player (CD) system buttons 2. Tape deck (TAPE) system buttons
1
1
6, 7 : Manual search (forward and reverse)
2 : Stop 1 :Play
8, 9 : Auto search (to beginning of track)
3 : Pause
DISC SKIP +: (for CD changers only)
6 : Rewind 7 : Fast forward
2 : Stop 1 : Forward play 3 : Pause
0 : Reverse play
A/B : Switch between sides A and B
3. MD recorder (MD), CD recorder (CDR) system buttons
6, 7 : Manual search (forward and reverse)
2 : Stop 1 :Play
8, 9 : Auto search (to beginning of track)
3 : Pause
Default setting = CDR
4. Tuner system buttons
TUNING +, – : Tuning up/down
BAND : Switch between AM and FM bands
MODE : Switch between AUTO and MANUAL
MEMORY : Preset memory
SHIFT : Switch preset channel range
CHANNEL +, – : Preset channel up/down
The tuner can be operated in the amplifier (CD, CDR/MD, or TAPE) mode.
CD CDR/MD TAPE
DVD/VDP
ZONE2 TV DBS/CABLE VCR
50
Preset memory
2
3
11
1
2
Press the power ON/SOURCE button and the OFF button at the same time.
The LEARNED/TX indicator flashes.
Press the mode button of the equipment that is to be entered to a preset memory.
The mode button flashes.
3
4
5
When stored correctly, the mode button and the LEARNED/TX indicator will light.
Referring to the included List of Preset Codes, use the number buttons to input the preset code (a 4-digit number) for the manufacturer of the component whose signals you want to store in the memory.
To store the codes of another component in the memory, repeat steps 1 to 4.
The preset codes are as follows upon shipment from the factory and after resetting:
TV, VCR ........................................................................HITACHI
CD, TAPE .....................................................................DENON
CDR/MD.......................................................................DENON (CDR)
DVD/VDP......................................................................DENON (DVD)
DBS/CABLE .................................................................ABC (CABLE)
NOTES:
Depending on the model and year of manufacture, this function cannot be used for some models, even if the your device is listed on the included list of preset codes.
Some manufacturers use more than one type of remote control code. Refer to the included list of preset codes to change the number and check it out.
The preset memory can be set for one component only among the following: CDR/MD, DVD/VDP and DBS/CABLE.
The included remote control unit can be used to operate devices of different brands by registering the preset number corresponding to the brand of your device. For some models the remote control unit or the device may not operate properly. In this case, use the learning function (page 53) to store your devices remote control signals in the included remote control unit.
1
2
3 456 789
0
DVD preset codes
B Model No.
DVD-900 DVD-3800 DVD-910 DVD-5900 DVD-1000 DVD-9000 DVD-1200 DVM-1800 DVD-1500 DVM-1805 DVD-2200 DVM-1815 DVD-2800 DVM-2815 DVD-2800
II DVM-4800
DVD-2900
DVD-800 DVD-1600 DVD-2000 DVD-2500 DVD-3000 DVD-3300
0000 0001
51
Operating a component stored in the preset memory
1
Press the mode selector button for the component you want to operate.
1
NOTE:
For the DVD player remote control buttons, function names may differ according to manufacturer. Compare with the remote control operation of the various components.
1. Digital video disc player (DVD, DVD SETUP) system buttons
POWER : Power on/standby
(ON/SOURCE)
6,7 : Manual search
(forward and reverse)
2 : Stop 1 :Play
8,9 : Auto search
(to beginning of track)
3 : Pause
0 ~ 9, +10 : 10 key
DISC SKIP +: Disc skip
(for DVD changer only)
DISPLAY : Display
MENU : Menu
RETURN : Return
SETUP : Setup
ENTER : Enter
•, ª, 0, 1 : Cursor up, down, left
and right
2. Video disc player (VDP) system buttons
POWER : Power on/standby
(ON/SOURCE)
6,7 : Manual search
(forward and reverse)
2 : Stop 1 :Play
8,9 : Auto search (cue)
3 : Pause
0~9, +10 : 10 key
2
Operate the component.
For details, refer to the components operating instructions. Some models cannot be operated with this remote control unit.
52
3. Video deck (VCR) system buttons
4. Monitor TV (TV), digital broadcast satellite (DBS) tuner and cable (CABLE) system buttons
POWER : Power on/standby
(ON/SOURCE)
6,7 : Manual search
(forward and reverse)
2 : Stop 1 :Play 3 : Pause
Channel +, – : Channels
POWER : Power on/standby
(ON/SOURCE)
MENU : Menu
•, ª, 0, 1 : Cursor up, down, left
and right
ENTER : Enter
CHANNEL : Switch channels
+, –
0~9, +10 : Channels
TV/VCR : Switch between TV
and video player
TV VOL +, – : Volume up/down
DISPLAY : Switch display RETURN : Return
NOTES:
For this CD, CDR, MD and TAPE components, buttons can be operated in the same way as for Denon audio components.
The television can be operated in the DVD/VDP, VCR and TV modes.
53
Learning function
If your AV component is not a Denon product or if it cannot be operated using the preset memory, it can be controlled with the accessorious remote control unit by storing its remote control signals in the remote control unit. For some remote control signals it is not possible to “learn” the signals or the device will not operate properly. In such cases use the remote control unit included with the device to operate it.
2
1, 3, 7
1
Press the USE/LEARN button with the tip of a pen etc., to set the learn mode.
Both the mode selector buttons and LEARNED/TX indicator flash.
2
Press the mode button of the equipment for which learning is desired.
Mode button and LEARNED/TX indicator flash.
3
Press the button that is to be learned. The LEARNED/TX indicator stops flashing and the mode button lights.
Mode button and LEARNED/TX indicator flashed if a button that cannot be “learned” is pressed.
To cancel, press the USE/LEARN button.
4
Point the remote control units directly at each other and press and hold in the button on the other remote control unit which you want to learn”.
5
The mode button and the LEARNED/TX indicator lights, release the button on the other remote control unit.
The mode button and the LEARNED/TX indicator start flashing again.
6
To learn other buttons, repeat steps 2 to 5.
Other remote control unit
7
Once the learning operation is completed, press the USE/LEARN button again. The mode button and the LEARNED/TX indicator stop flashing and the learning mode is cancelled.
Flashes
Check that the stored codes work properly.
NOTES:
If the codes could not be stored, the LEARNED/TX indicator start flashing rapidly. For limited number of models, codes cannot be stored in RC-974.
If the mode button and LEARNED/TX indicator start flashing rapidly, this means that the memory is already full, and the code you have just attempted to store was not stored. To learn that code, first perform the resetting operation. (See page 56.)
54
System call
(1) System call buttons
Up to 10 signals each can be stored at the “CALL1” and “CALL2” buttons.
1
(2) Storing system call signals
1
2
Press the power ON/SOURCE button and the OFF button at the same time.
The LEARNED/TX indicator flashes.
Press the CALL 1 button.
The mode selector buttons and
LEARNED/TX indicator flash.
3
2, 6
6
11
The accessorious remote control unit is equipped with system call function allowing a series of remote control signals to be transmitted by pressing a single button. This function can be used for example to turn on the amplifiers power, select the input source, turn on the monitor TV’s power, turn on the source components power and set the source to the play mode, all at a signal button.
3
Press the mode buttons of the equipment that is to be registered to System Call.
4
Press the buttons whose remote control signals you want to store one by one.
5
Repeat steps 3 and 4 to register the desired buttons.
6
Press the CALL1 or CALL2 button and register System Call.
NOTES:
The remote control signals for the buttons pressed while storing the system call signals are transmitted when the buttons are pressed, so cover the remote sensor or take other measures so that the components do not operate while the signals are being stored.
The mode button and LEARNED/TX indicator flashing rapidly if you have already stored the maximum number of signals.
55
(3) Using the system call function
1
Press the button at which the system call signals have been stored.
The stored signals are transmitted successively.
Punch Through
(1) Punch through button
Buttons used in the CD, CDR/MD, TAPE, DVD/VDP, and VCR modes can be assigned to the buttons shown on the diagram at the right which are not normally used in the TV and DBS/CABLE modes. For example, when the CD mode is set to the punch through mode in the TV mode, the CD modes PLAY, STOP, MANUAL SEARCH, AUTO SEARCH, PAUSE and DISC SKIP buttons signals are sent in the TV mode.
(2) Making the punch through setting
1
2
Press the power ON/SOURCE button and the OFF button at the same time.
The LEARNED/TX indicator flashes.
Press the 1 (play) button.
TV and DBS/CABLE mode buttons and
LEARNED/TX indicator flash.
1
3
2
(1)
1
4
3
Press the mode button of the equipment for which Punch Through is to be set.
The CD, CDR/MD, TAPE, DVD/VDP,
and VCR mode buttons and LEARNED/TX indicator will flash.
4
Press the mode button of the equipment that is to be punched through.
The mode button that was set will light.
56
Resetting
(1) Resetting “learned” buttons
1, 4
3
2, 3
1
Press the USE/LEARN button with the tip of a pen, etc., to set the learn mode.
The mode selector buttons and LEARNED/TX indicator flash.
Flashes
2
Press the mode button of the equipment that is to be reset.
Mode button and LEARNED/TX indicator flash.
3
Hold for 4 seconds or longer the mode button of the equipment that is to be reset and the ON/SOURCE button.
The mode button and the LEARNED/TX indicator will again flash, and the learned remote control signal of the selected equipment will be deleted.
4
Press the USE/LEARN button.
57
(2) Resetting the punch through setting
3, 4
1
2
1
1
Press the power ON/SOURCE button and the OFF button at the same time.
The LEARNED/TX indicator flashes.
2
Press the 1 (play) button.
TV and DBS/CABLE mode buttons and
LEARNED/TX indicator flash.
3
Press the mode button of the equipment (TV or DBS/CABLE) that is to be reset.
The CD, CDR/MD, TAPE, DVD/VDP,
and VCR mode buttons and LEARNED/TX indicator will flash.
4
Press the mode button of the equipment that is to be reset again.
During the resetting operation, the
selected mode button and the LEARNED/TX indicator will light; they will return to steady state upon completion.
58
9
OPERATION
Before operating
1
Refer to CONNECTIONS (pages 6 to 13) and check that all connections are correct.
2
Select AMP using the AMP button. (only when operating with the remote control unit)
3
Press the POWER switch (button).
(Main unit)
3 54
2
4
5
(Remote control unit)
¢ ON
The power turns on and indicator is light. Set the power switch to this position to turn the power on and off from the included remote control unit.
£ OFF
The power turns off and indicator is off. In this position, the power cannot be turned on and off from the remote control unit.
4
Turn on the power Press the POWER ON/STANDBY switch (button).
ON / STANDBY
(Main unit)
When pressed, the power turns on and the display lights. The sound is muted for several seconds, after which the unit operates normally. When pressed again, the power turns off, the standby mode is set and the display turns off.
(Remote control unit)
5
The front speakers switch as shown below each time the FRONT SPEAKER button is pressed.
(Main unit)
(Remote control unit)
FRONT A FRONT B
FRONT A+B
59
4
11
5
233
Playing the input source
1
Select the input source to be played.
FUNCTION
Example: CD
(Main unit)(Remote control unit)
To select the input source when ZONE2/REC OUT,VIDEO SELECT or TUNING PRESET is selected, press the SOURCE button then operate the input function selector.
2
Select the input mode.
Selecting the analog mode Press the ANALOG button to switch to the analog input.
ANALOG
(Main unit)
(Remote control unit)
Selecting the external input (EXT. IN) mode Press the EXT. IN (on the EXT. IN button on the remote control unit) to switch the external input.
EXT. IN
(Main unit)(Remote control unit)
Selecting the AUTO, PCM and DTS modes The mode switches as shown below each time the INPUT MODE button is pressed.
Input mode selection function
Different input modes can be selected for the different input sources. The selected input modes for the separate input sources are stored in the memory. q AUTO (auto mode)
In this mode, the types of signals being input to the digital and analog input jacks for the selected input source are detected and the program in the AVR-2805/985’s surround decoder is selected automatically upon playback. This mode can be selected for all input sources other than PHONO and TUNER. The presence or absence of digital signals is detected, the signals input to the digital input jacks are identified and decoding and playback are performed automatically in DTS, Dolby Digital or PCM (2 channel stereo) format. If no digital signal is being input, the analog input jacks are selected. Use this mode to play Dolby Digital signals.
w PCM (exclusive PCM signal playback mode)
Decoding and playback are only performed when PCM signals are being input. Note that noise may be generated when using this mode to play signals other than PCM signals.
e DTS (exclusive DTS signal playback mode)
Decoding and playback are only performed when DTS signals are being input.
r ANALOG (exclusive analog audio signal playback mode)
The signals input to the analog input jacks are played.
t EXT. IN (external decoder input jack selection mode)
The signals being input to the external decoder input jacks are played without passing through the surround circuitry.
NOTE:
Note that noise will be output when CDs or LDs recorded in DTS format are played in the PCM” (exclusive PCM signal playback) or ANALOG (exclusive PCM signal playback) mode. Select the AUTO or DTS mode when playing signals recorded in DTS from a laser disc player or CD player.
2
5
1
3
AUTO PCM DTS
(Remote control unit)
SOURCE
(Main unit)
Note on playing a source encoded with DTS
Noise may be generated at the beginning of playback and while searching during DTS playback in the AUTO mode. If so, play in the DTS mode.
MODE
(Main unit)
60
3
Example: Stereo
Select the play mode.
4
Start playback on the selected component.
For operating instructions, refer to the components manual.
5
Adjust the volume.
MASTER VOLUME
The volume level is displayed on the master volume level display.
(Main unit)(Remote control unit)
The volume can be adjusted within the range of –80 to 0 to 18 dB, in steps of 0.5 dB. However, when the channel level is set as described on page 32~34 or pages 68 and 69 if the volume for any channel is set at +0.5 dB or greater, the volume cannot be adjusted up to 18 dB. (In this case the maximum volume adjustment range is 18 dB (Maximum value of channel level).)
Input mode when playing DTS sources
Noise will be output if DTS-compatible CDs or LDs are played in theANALOG or PCM mode.
When playing DTS-compatible sources, be sure to connect the source component to the digital input jacks (OPTICAL/COAXIAL) and set the input mode to DTS”.
Input mode display
In the AUTO mode
In the DIGITAL PCM mode
In the DIGITAL DTS mode
In the ANALOG mode
Depending on the input signal.
Input signal display
DOLBY DIGITAL
DTS
PCM
The indicator lights when digital signals are being input
properly. If the indicator does not light, check whether the
digital input component setup (page 37) and connections are
correct and whether the components power is turned on. AL24 processing is activated when PCM signals are played while the surround mode is set to PURE DIRECT, DIRECT, STEREO.
DIG.
DIG.
NOTE:
The indicator will light when playing CD-ROMs containing data other than audio signals, but no sound will be heard.
DIG.
In the EXT.IN mode
(Remote control unit) (Main unit)
SELECT
To select the surround mode while adjusting the surround parameters, channel volume or tone control, press the surround mode button then operate the selector.
(Main unit)
61
Playback using the external input (EXT. IN) jacks
1
Set the external input (EXT. IN) mode. Press the EXT. IN to switch the external input.
EXT. IN
(Main unit) (Remote control unit)
Once this is selected, the input signals connected to the FL (front left), FR (front right), C (center), SL (surround left), SR (surround right), SBL (surround back left) and SBR (surround back right) channels of the EXT. IN jacks are output directly to the front (left and right), center, surround (left and right) and surround back (left and right) speaker systems as well as the pre-out jacks without passing through the surround circuitry. In addition, the signal input to the SW (subwoofer) jack is output to the PRE OUT SUBWOOFER jack.
2
Cancelling the external input mode To cancel the external input (EXT. IN) setting, press the input mode (AUTO, PCM, DTS) or ANALOG button to switch to the desired input mode. (See page 59)
MODE
(Main unit)(Remote control unit)
When the input mode is set to the external input (EXT. IN), the surround mode (DIRECT, STEREO, STANDARD, 5/7CH STEREO, WIDE SCREEN or DSP SIMULATION) cannot be set.
NOTES:
In play modes other than the external input mode, the signals connected to these jacks cannot be played. In addition, signals cannot be output from channels not connected to the input jacks.
The external input mode can be set for any input source. To watch video while listening to sound, select the input source to which the video signal is connected, then set this mode.
If the subwoofer output level seems to high, set the SW ATT surround parameter to ON”.
2 1
1
2
ANALOG
62
Playing audio sources (CDs and DVDs)
The AVR-2805/985 is equipped with three 2-channel playback modes exclusively for music. Select the mode to suit your tastes.
1
PURE DIRECT mode
In this mode, the music is played with an extremely high level of sound quality. When this mode is set, all the video-related circuits are turned off so that music signals can be reproduced with high quality. When an analog mode is selected, the digital processing circuitry is also turned off to achieve analog sound with even higher purity. (See NOTES)
(Main unit)
2
DIRECT mode
Use this mode to achieve good quality 2-channel sound while watching images. In this mode, the audio signals bypass such circuits as the tone circuit and are transmitted directly, resulting in good quality sound.
3
STEREO mode
Use this mode to adjust the tone and achieve the desired sound while watching images.
NOTES:
The system setup function cannot be used when the PURE DIRECT mode is set. To use the system setup function, cancel the PURE DIRECT mode.
The ZONE2 video output is not output in the PURE DIRECT mode.
The channel level and surround parameters in the PURE DIRECT
mode are the same as in the DIRECT mode.
When the PURE DIRECT button is pressed while in the PURE DIRECT mode, the PURE DIRECT mode is cancelled.
The subwoofers channel level must be set to OFF in order to turn off the digital circuit in the PURE DIRECT mode.
1
3
1 2
(Remote control unit)
(Remote control unit)
(Remote control unit)
63
After starting playback
[1] Adjusting the sound quality (TONE)
The tone control function will not work in the PURE DIRECT and the DIRECT mode.
1
The tone switches as follows each time the TONE CONTROL button is pressed.
2
With the name of the volume to be adjusted selected, turn the SELECT knob to adjust the level.
SELECT
NOTE:
To prevent hearing loss, do not raise the volume level excessively when using headphone.
[3] Turning the sound off temporarily (MUTING)
1
Use this to mute the audio output temporarily. Press the MUTING button.
Cancelling MUTING mode. Press the MUTING button again.
1
1
To increase the bass or treble: Turn the control clockwise. (The bass or treble sound can be increased to up to +6 dB in steps of 1 dB.)
To decrease the bass or treble: Turn the control clockwise. (The bass or treble sound can be decreased to up to –6 dB in steps of 1 dB.)
[2] Listening over headphone
1
Plug the headphone plug into the jack.
Connect the headphone to the PHONES jack.
The pre-out output (including the speaker output) is automatically turned off when headphone are connected.
1
PHONES
2 13
(Main unit)
(Remote control unit)
BASS TREBLE
3
If you do not want the bass and treble to be adjusted, turn on the tone defeat mode.
The signals do not pass through the bass and treble adjustment circuits, providing higher quality sound.
[4]
Combining the currently playing sound with the desired image
1
Simulcast playback Use this switch to monitor a video source other than the audio source. Press the VIDEO SELECT button, turn the FUNCTION knob until the desired source appears on the display.
VIDEO
SELECT
Cancelling simulcast playback.
Select SOURCE using the VIDEO SELECT button and the FUNCTION button.
Switch the program source to the component connected to the video input.
Press the SOURCE button.
1111
(Main unit)
FUNCTION
VIDEO SOURCE
FUNCTION
(Main unit)
(Main unit)
(Main unit)
64
[5] Checking the currently playing program source, etc.
1
On screen display
Each time an operation is performed, a description of that operation appears on the display connected to the unit’s VIDEO MONITOR OUT jack. Also, the units operating status can be checked during playback by pressing the remote control units ON SCREEN button. Such information as the position of the input selector and the surround parameter settings is output in sequence.
Front panel display
Descriptions of the units operations are also displayed on the front panel display. In addition, the display can be switched to check the units operating status while playing a source by pressing the STATUS button.
(Main unit)
1
Using the dimmer function
Use this to change the brightness of the display. The display brightness changes in four steps (bright, medium, dim and off) by pressing the main units DIMMER button repeatedly.
11
(Main unit)
(Remote control unit)
Multi-source recording/playback
Playing one source while recording another (REC OUT mode)
1
Press the ZONE2/REC button.
ZONE 2 /
REC SELECT
2
With RECOUT SOURCE displayed, turn the FUNCTION knob to select the source you wish to record.
When the FUNCTION goes around, it turn to the REC indicator and the indicator of the selected source light.
FUNCTION
3
Set the recording mode.
For operating instructions, refer to the manual of the component on which you want to record.
4
To cancel, turn the function knob and select SOURCE”.
FUNCTION
1
2, 4
2
RECOUT SOURCE
FUNCTION
NOTES:
Recording sources other than digital inputs selected in the REC OUT mode are also outputted from the Zone2 preout jacks.
Digital signals are not outputted from the analog REC OUT jacks.
(Main unit)
(Main unit)
(Main unit)
65
10
MULTI ZONE
Multi-zone playback with multi-source
MULTI ZONE MUSIC ENTERTAINMENT SYSTEM
When the outputs of the ZONE2 OUT terminals are wired and connected to integrated amplifiers installed in other rooms, different sources can be played in rooms other than the main zone in which this unit and the playback devices are installed. (Refer to ZONE2 on the diagram below.)
ZONE2 SPEAKER OUT can be used when ZONE2 is selected at System Setup Menu Power Amp Assign.In this case, Surround Back Speaker OUT cannot be used for MAIN ZONE. (See page 43.)
When a sold separately room-to-room remote control unit (DENON RC-616, 617 or 618) is wired and connected between the MAIN ZONE and ZONE2, the remote-controllable devices in the main zone can be controlled from ZONE2 using the remote control unit.
To control playback devices other than the ones above, either use that devices remote control unit or preset a separately sold programmable remote control unit.
NOTES:
For the AUDIO output, use high quality pin-plug cords and wire in such a way that there is no humming or noise.
For instructions on installation and operation of separately sold devices, refer to the devices operating instructions.
When the PURE DIRECT mode is set for the main zone, no signals are output to the ZONE2 video terminals.
Signals are output from the ZONE2 video terminals even when ZONE2 is set to OFF”.
MULTI ROOM MUSIC ENTERTAINMENT SYSTEM
2 When using the SURR.BACK/ZONE2 amplifier as the SURROUND BACK.
The AVR-2805/985 is equipped with pre-out terminals for which the volume is adjustable (ZONE2) and composite video output terminals as the ZONE2 output terminals. (1) System configuration and connections example.
Using external amplifier
RC-617
This unit
Premain Amplifier or Power Amplifier
DVD player
Input
FL FR
Center
SL SR
SW
SBRSBL
RC-616
B
PROGRAMMABLE REMOTE CONTROL UNIT
SYSTEM REMOTE CONTROL UNIT RC-974
MAIN ZONE 7.1-channel systems
ZONE 2
Monitor
Monitor
B
ZONE2 AUDIO OUT
(VARIABLE OUT)
MULTI SOURCE AUDIO signal cable
*
Refer to CONNECTIONS on pages 6 to 13.
ZONE2 VIDEO signal cable
ROOM-TO-ROOM REMOTE CONTROL SYSTEM (separately sold) control line
ZONE2 VIDEO OUT
66
2 When using the SURR.BACK/ZONE2 amplifier as the ZONE2.
ZONE2 speaker out can be used when ZONE2 is selected at System Setup Menu Power Amp Assign. In this case, Surround Back PREOUT and speaker out cannot be used for MAIN ZONE.
The AVR-2805/985 is equipped with preout terminals for which the volume is adjustable (ZONE2) and speaker out terminals for which the volume is adjustable (ZONE2) and composite video output terminals as the ZONE2 output terminals.
This unit
DVD player
Input
RC-616
Monitor
Monitor
MAIN ZONE 5.1-channel systems
ZONE2 SPEAKER OUT
ZONE 2 VIDEO OUT
SYSTEM REMOTE CONTROL UNIT RC-974
C
FL FR
SL
SW
SR
B
RC-617
PROGRAMMABLE REMOTE CONTROL UNIT
ZONE 2
ROOM-TO-ROOM REMOTE CONTROL SYSTEM (separately sold) control line
MULTI SOURCE AUDIO signal cable
SPEAKER cable
*
Refer to CONNECTIONS on pages 6 to 13.
ZONE2 VIDEO signal cable
(1) System configuration and connections example.
Using this units internal amplifier as the ZONE2.
67
[1] Outputting a program source to an amplifier, etc., in a different room (ZONE2 mode)
1
Press the Power switch button.
3
With ZONE2 SOURCE” displayed, turn the FUNCTION knob and select the source you wish to output.
The display switches the selected source.
FUNCTION
4
Start playing the source to be output.
For operating instructions, refer to the manuals of the respective components.
2 1
3, 5
ZONE2 SOURCE
FUNCTION
NOTES:
The signals of the source selected in the ZONE2 mode are also output from the VCR-1, VCR-2 and CDR/TAPE recording output jacks.
Digital signals are not output from the ZONE2 audio output jacks.
Refer to page 65, 66 about the MULTI ZONE connections.
(Main unit)
(Main unit)
2
Press the ZONE2/REC button. The display switches as follows each time the button is pressed.
ZONE 2 /
REC SELECT
(Main unit)
4
5
3
1
2
2
Press the ZONE2 ON button.
To turn off the ZONE2 mode, press the ZONE2 “OFF” button.
(Remote control unit)
3
Press the input source button
The ZONE2 source switches directly.
4
The output level of the ZONE2 OUT terminals can be controlled using the VOLUME + and - buttons on the remote control unit. The output level of ZONE2 OUT can be controlled only if ZONE2 vol. level is set Variable at Zone2 Control in System Setup Menu. (see page 43,44)
(Remote control unit)
DEFAULT SETTING (ZONE2 VOLUME LEVEL) :
- - - dB (MINIMUM)
5
When the ZONE2 SOURCE function is set to TUNER, the preset channel can be selected using the CHANNEL + and ­buttons on the remote control unit.
(Remote control unit)
[2] Remote control unit operations during multi-source playback (selecting the input source)
1
Select ZONE2 using the ZONE2 button.
(Remote control unit)
This operation is not possible in the REC OUT mode. This operation is possible when ZONE2 mode is selected.
RECOUT
ZONE2
To cancel, turn the function knob and select SOURCE”.
5
FUNCTION
(Main unit)
The main zone output can be turned on and off with the MAIN ON/OFF button.
68
11
SURROUND
Before playing with the surround function
Before playing with the surround function, be sure to use the test tones to adjust the playback level from the different speakers. This adjustment can be performed with the system setup (see page 32~34) or from the remote control unit, as described below.
Adjusting with the remote control unit using the test tones is only possible in the Auto mode and only effective in the STANDARD (DOLBY/DTS SURROUND) modes. The adjusted levels for the different modes are automatically stored in the memory.
1
Press the TEST TONE button.
2
Test tones are output from the different speakers. Use the channel volume adjust buttons to adjust so that the volume of the test tones is the same for all the speakers.
After adjusting using the test tones, adjust the channel levels either according to the playback sources or to suit your tastes, as described below.
1, 3
2
3
After completing the adjustment, press the TEST TONE button again.
1
Select the speaker level you want to adjust.
(Remote control unit)
2
Adjust the level of the selected speaker.
The channel switches as shown below each time the button is pressed.
When the surround back speaker setting is set to 1spkr forSpeaker Configuration, this is set to SB”.
1
2
(Remote control unit)
(Remote control unit)
(Remote control unit)
FL C FR SR SBR SBL
SLSW
FADER
NOTES:
The adjustment range for the different channels is +12 dB to12 dB.
The sound from the subwoofer can be cut by lowering the SW
(subwoofer) setting one step from –12 dB (setting it to OFF).
(Remote control unit)
69
Fader function
This function makes it possible to lower the volume of the front channels (FL, C and FR) or the rear channels (SL, SR, SBL and SBR) together. Use it for example to adjust the balance of the sound from each position when multi-channel music sources are played.
1
Select FADER”.
2
Press the 0 button to reduce the volume of the front channels, the 1 button to reduce the volume of the rear channels.
The channel switches in the order shown below each time this button is pressed.
The fader function does not affect the SW channel.
The channel whose channel level is adjusted lowest can be faded to –12 dB using the fader function. If the channel levels are adjusted separately after adjusting the fader, the fader adjustment values are cleared, so adjust the fader again.
Dolby Pro Logic IIx (Pro Logic II) mode
1
Select the Dolby Pro Logic IIx mode.
2
Play a program source with the mark.
For operating instructions, refer to the manuals of the respective components.
This is only displayed when setting the fader control.
(Main unit)
1
3, 5
1, 4, 6
1
3, 7
4, 5, 6
7
1
2
FL C FR SR SBR SBL
SLSW
FADER
(Remote control unit)
(Remote control unit)
The Dolby Surround Pro Logic IIx Cinema or Music mode can be chosen directly by pressing the CINEMA or MUSIC button on the remote control unit during playback in the Dolby Pro Logic IIx mode.
To play in the PL IIx mode, set Sp.Back at the Speaker Configuration setting to 1Spkr or 2Spkrs”. To play in the PL IIx mode, set “Surround Back” at the Power Amp Assign setting.
SELECT
(Remote control unit)
*Fader Vol. Front : Rear
70
NOTE:
There are four Dolby Surround Pro Logic modes (NORMAL, PHANTOM, WIDE and 3 STEREO). The AVR-2805/985 sets the mode automatically according to the types of speakers set during the system setup process (page 30).
4
Select the play mode.
SELECT
(Main unit)(Remote control unit)
(Pro LogicII Cinema mode)
(Pro LogicII Music mode)
(Pro LogicII Game mode)
(Dolby Pro Logic mode)
MODE: PLII G
*Surr Parameter
MODE: PLII C
*Surr Parameter
MODE: PLII M
*Surr Parameter
*Surr Parameter MODE: DOLBY PL
5
Select the parameter to change. (See Surround parameters q for a description of each parameter.)
(Main unit)(Remote control unit)
When set with the on-screen display using the remote control unit while in the MUSIC mode, set the “” mark to OPTION
0
using the D and H cursor buttons, then
press the F cursor button. Press the ENTER button to return to the previous screen.
6
Set the various surround parameters.
SELECT
7
When the surround parameters are set using the buttons on the main unit, stop operating buttons after completing the settings. The settings are automatically finalized and the normal display reappears after several seconds.
When the settings are made using the buttons on the remote control unit, press the “ENTER” or SURROUND PARAMETER button to finish.
Display
When the SB CH OUT parameter is set to ON.(Set SP.Back at the system set up to 1spkr or 2spkrs).
MODE: PLIIx C
*Surr Parameter
MODE: PLIIx M
*Surr Parameter
(Pro LogicIIx Cinema mode) (Pro LogicIIx Music mode)
MODE: PLIIx G
*Surr Parameter
(Pro LogicIIx Game mode)
Display
When the SB CH OUT parameter is set to OFF.(Set SP.Back at the system set up to None).
Ex : DOLBY PLIIx music mode screen.
(Main unit)(Remote control unit)
3
Set the surround parameter mode.
(Main unit)(Remote control unit)
MODE: PLIIx C
*Surr Parameter
NOTE:
The PLIIx mode is set when the SB CH OUT surround parameter is set to ON, and the PLII mode is set when this parameter is set to OFF”.
The on-screen display differs according to whether the operation is performed from the main unit or the remote control unit.
71
Surround parameters q Pro Logic IIx and Pro Logic II Mode:
Select one of the modes (“Cinema”, “Music”, “Pro Logic”or “Game”).
Cinema
The Cinema mode is for use with stereo television shows and all programs encoded in Dolby Surround.
Music
The Music mode is recommended as the standard mode for auto sound music systems (no video), and is optional for A/V systems.
Panorama Control:
This mode extends the front stereo image to include the surround speakers for an exciting “wraparound” effect with side wall imaging. Select OFF or ON”.
Dimension Control:
This control gradually adjust the soundfield either towards the front or towards the rear. The control can be set in 7 steps from 0 to 6.
Center Width Control:
This control adjust the center image so it may be heard only from the center speaker; only from the left/right speakers as a phantom image; or from all three front speakers to varying degrees. The control can be set in 8 steps from 0 to 7.
ProLogic
The Pro Logic mode offers the same robust surround processing as original Pro Logic in case the source contents is not of optimum quality.
Game
The Game mode for playing games.The game mode can only be used with 2-channel audio sources.
DTS NEO:6 mode
1
Select the DTS NEO:6 mode.
2
Play a program source.
1
3, 5
1, 4, 6
1
3, 7
7
4, 5, 6
The DTS NEO:6 Cinema or Music mode can be chosen directly by pressing the CINEMA or MUSIC button on the remote control unit during playback in the DTS NEO:6 mode.
Surround playback can be performed for the analog input and PCM digital input 2-channel signals.
3
Set the surround parameter mode.
(Main unit)(Remote control unit)
4
Select the play mode.
SELECT
(Main unit)(Remote control unit)
MODE: Music
*Surr Parameter
MODE: Cinema
*Surr Parameter
Display
The mode switches as shown below each time the button is pressed.
DOLBY PLIIx DTS NEO:6
(Main unit)
SELECT
(Remote control unit)
5
Select the various parameters.
(Main unit)(Remote control unit)
6
Adjust the parameter settings.
SELECT
(Main unit)(Remote control unit)
72
NOTE:
When Default is selected and the cursor left button is pressed, MODE and TONE are automatically reset to the default values andCINEMA EQ is set to OFF”.
Surround parameters w
DTS NEO:6 Mode:
Cinema
This mode is optimum for playing movies. Decoding is performed with emphasis on separation performance to achieve the same atmosphere with 2-channel sources as with 6.1-channel sources. This mode is effective for playing sources recorded in conventional surround formats as well, because the in-phase component is assigned mainly to the center channel (C) and the reversed phase component to the surround (SL, SR and SB channels).
Music
This mode is suited mainly for playing music. The front channel (FL and FR) signals bypass the decoder and are played directly so there is no loss of sound quality, and the effect of the surround signals output from the center (C) and surround (SL, SR and SB) channels add a natural sense of expansion to the sound field.
CENTER IMAGE (0.0 to 1.0: default 0.3): The center image parameter for adjusting the expansion of the center channel in the DTS NEO:6 MUSIC mode has been added.
Dolby Digital mode (only with digital input) and DTS Surround mode (only with digital input)
1
Select the input source.
Playback with a digital input
q Select an input source set to digital (COAXIAL/OPTICAL)
(see page 37).
FUNCTION
(Remote control unit) (Main unit)
w Set the input mode to “AUTO or DTS.
MODE
(Remote control unit) (Main unit)
2
Select the STANDARD (Dolby/DTS Surround) mode.
1-w 32
1-
q
4, 5 2, 6
2
4, 7
3
7
5, 6
1-q
1-w
3
1
(Remote control unit)
7
When the surround parameters are set using the buttons on the main unit, stop operating buttons after completing the settings. The settings are automatically finalized and the normal display reappears after several seconds.
When the settings are made using the buttons on the remote control unit, press the ENTER or SURROUND PARAMETER button to finish.
When performing this operation from the main units panel, press the SURROUND MODE button, then turn the SELECT knob and select Dolby Pro logic IIx or DTS NEO:6.
SELECT
(Main unit) (Main unit)
73
4
Display the surround parameter menu.
(Main unit)(Remote control unit)
5
Select the various parameters.
6
(Main unit)(Remote control unit)
SELECT
(Main unit)
(Remote control unit)
Adjust the parameter settings.
NOTE:
When Default is selected and the cursor left button is pressed, CINEMA EQ. and D.COMP. are automatically turned off, LFE is reset, and the tone is set to the default value.
NOTE: The display on the screen differs depending on
whether you are performing the operation from the main unit or the remote control unit.
2 Dialogue Normalization
The dialogue normalization function is activated automatically when playing Dolby Digital program sources. Dialogue normalization is a basic function of Dolby Digital which automatically normalizes the dialog level (standard level) of the signals which are recorded at different levels for different program sources, such as DVD, DTV and other future formats that will use Dolby Digital. These contents can be verified with the STATUS and ON SCREEN button.
The number indicates the normalization level when the currently playing program is normalized to the standard level.
Display
Checking the input signal
The input signal can be checked by pressing the remote control units ON SCREEN button.
SIGNAL: Displays the type of signal (DTS, DOLBY DIGITAL, PCM, etc.). fs: Displays the input signal’s sampling frequency. FORMAT: Displays the input signals number of channels.
Number of front channels/Number of surround channels/LFE on/off” “SURROUND is displayed for 2-channel signal sources recorded in Dolby Surround.
OFFSET: Displays the dialog normalization offset value. FLAG: Displays the special identification signal recorded in the input signal.
MATRIX is displayed when matrix processing is conducted on the surround back channel, DISCRETE is displayed when discrete processing is conducted. Not displayed when no identification signal is recorded.
In addition, screen information is displayed in the following order when the ON SCREEN button is pressed repeatedly:
OSD-1 Input signal OSD-2 Input/output OSD-3 Auto surround mode OSD-3 ~ 9 Tuner preset stations
NOTE: OSD-3: This is displayed when the auto surround mode is set to “ON” and the input mode is set to “Auto”.
It is not displayed when the input mode is set to Analog or EXT. IN”.
(Remote control unit)
Offset -4dB
Dial.Norm
3
Play a program source with the , mark.
The DTS indicator lights when playing DTS sources.
Light
Light
The Dolby Digital indicator lights when playing Dolby Digital sources.
Press the SURROUND BACK button. Lights when the Surround Back CH is on.
Light
(Remote control unit) (Main unit)
Light
74
Surround parameters e CINEMA EQ. (Cinema Equalizer):
The Cinema EQ function gently decreases the level of the extreme high frequencies, compensating for overly-bright sounding motion picture soundtracks. Select this function if the sound from the front speakers is too bright. This function only works in the Dolby Pro Logic IIx, Dolby Digital, DTS Surround, DTS NEO:6 and WIDE SCREEN modes. (The same contents are set for all operating modes.)
D.COMP. (Dynamic Range Compression):
Motion picture soundtracks have tremendous dynamic range (the contrast between very soft and very loud sounds). For listening late at night, or whenever the maximum sound level is lower than usual, the Dynamic Range Compression allows you to hear all of the sounds in the soundtrack (but with reduced dynamic range). (This only works when playing program sources recorded in Dolby Digital or DTS.) Select one of the four parameters (OFF, LOW, MID (middle) or HI (high)). Set to OFF for normal listening.
LFE (Low Frequency Effect):
This sets the level of the LFE (Low Frequency Effect) sounds included in the source when playing program sources recorded in Dolby Digital or DTS. If the sound produced from the subwoofer sounds distorted due to the LFE signals when playing Dolby Digital or DTS sources when the peak limiter is turned off with the subwoofer peak limit level setting (system setup menu), adjust the level as necessary. Program source and adjustment range:
1. Dolby Digital: –10 dB to 0 dB
2. DTS Surround: –10 dB to 0 dB
When DTS encoded movie software is played, it is recommended that the LFE LEVEL be set to 0 dB for correct DTS playback. When DTS encoded music software is played, it is recommended that the LFE LEVEL be set to –10 dB for correct DTS playback.
TONE:
This adjusts the tone control. This can be set individually for the separate shroud mode other than Pure direct and direct mode.
AFDM (Auto Flag Detect Mode):
ON......This function only works with software on which a special identification signal is recorded. This software is scheduled to go on sale
in the future. This is a function for automatically playing in the 6.1-channel mode using the surround back speakers if the software is recorded in DTS-ES or in the normal 5.1-channel mode without using the surround back speakers when the software is not recorded in DTS-ES.
OFF ....Set the OFF mode to perform 6.1-channel playback with conventional 5.1-channel sources or sources on which the identification
signal described below is not recorded.
SB CH OUT:
(1) (Multi channel source)
OFF........................Playback is conducted without using the surround back speaker.
NON MTRX............The same signals those of the surround channels are output from the surround back channels.
MTRX ON..............Surround back channel is reproduced using digital matrix processing.
ES MTRX.............When playing DTS signals, the surround back signals undergo digital matrix processing for playback.
ES DSCRT
............When a signal identifying the source as a discrete 6.1-channel source is included in the DTS signals, the surround back
signals included in the source are played.
PL IIx Cinema......Processing is performed with the Cinema mode of the PL IIx decoder and the Surround Back channel is reproduced.
PL IIx Music.........Processing is performed with the Music mode of the PL IIx decoder and the Surround Back channel is reproduced.
(2) (2ch source)
OFF....................Playback is conducted without using the surround back speaker.
ON.....................Playback is conducted using the surround back speaker.
NOTE: This operation can be performed directly using the SURROUND BACK button on the main units panel.
Adjusting the Audio Delay
1
FUNCTION
(Remote control unit) (Main unit)
q Select the input source.
w Set the input mode to AUTO”.
e Select the Dolby/DTS Surround.
When watching a DVD or other video source, the picture on the monitor may seem delayed with respect to the sound. In this case, adjust the audio delay to delay the sound and synchronize it with the picture. The audio delay setting is stored separately for each input source.
r Play a program source (DVD, etc.).
(Remote control unit)
SELECT
(Main unit)
3
Select Advanced Playback at the System Setup Menu.
(Remote control unit)
2
Press the SYSTEM SETUP button and display the System Setup Menu.
(Remote control unit)
Auto Set/RoomEQ
*System Setup
MODE
(Remote control unit) (Main unit)
75
4
Press the ENTER button and display the Advanced Playback Menu.
With a movie source, for example, adjust so that the movement of the actors lips is synchronized with the sound.
8
Enter the setting. The Advanced Playback Menu reappears.
9
Press the SYSTEM SETUP button to complete the setting.
NOTE:
The audio delay setting does not apply when playing in the EXT. IN mode or in the analog input direct mode or stereo mode (TONE DEFEAT ON).
1-q
1-w 1-e1-e
(Remote control unit)
Audio Delay
*Advanced Play
5
Select Audio Delay at the Advanced Playback Menu.
(Remote control unit)
6
Switch to the Audio Delay adjustment screen.
(Remote control unit)
7
Set the delay time. (0 ms ~ 200 ms)
(Remote control unit)
(Remote control unit)
1-q
1-e
2, 9
3, 5, 7
1-
w
4, 6, 8
0ms
*Audio Delay
76
12
DSP SURROUND SIMULATION
The AVR-2805/985 is equipped with a high performance DSP (Digital Signal Processor) which uses digital signal processing to synthetically recreate the sound field. One of ten preset surround modes can be selected according to the program source and the parameters can be adjusted according to the conditions in the listening room to achieve a more realistic, powerful sound. These surround modes can also be used for program sources not recorded in Dolby Surround Pro Logic, Dolby Digital or DTS.
Surround modes and their features
1
2
3
4
5
6
7
10
SUPER STADIUM
ROCK ARENA
JAZZ CLUB
CLASSIC CONCERT
MONO MOVIE (NOTE 1)
VIDEO GAME
WIDE SCREEN
5CH/7CH STEREO
Select this when watching baseball or soccer programs to achieve a sound as if you were actually at the stadium. This mode provides the longest reverberation signals.
Use this mode to achieve the feeling of a live concert in an arena with reflected sounds coming from all directions.
This mode creates the sound field of a live house with a low ceiling and hard walls. This mode gives jazz a very vivid realism.
Select this for the sound of a concert hall rich in reverberations.
Select this when watching monaural movies for a greater sense of expansion.
Use this to enjoy video game sources.
Select this to achieve an atmosphere like that of a movie theater with a large screen. In this mode, all signal sources are played in the 7.1-channel mode, including Dolby Pro Logic and Dolby Digital 5.1-channel sources. Effects simulating the multi surround speakers of movie theaters are added to the surround channels.
The front left channel signals are output to the surround and surround back signal left channels, the front right channel signals are output to the surround and surround back signal right channels, and the in-phase component of the left and right channels is output to the center channel. Use this mode to enjoy stereo sound.
89MATRIX
VIRTUAL
Select this to emphasize the sense of expansion for music sources recorded in stereo. Signals consisting of the difference component of the input signals (the component that provides the sense of expansion) processed for delay are output from the surround channel.
Select this mode to enjoy a virtual sound field, produced from the front 2-channel speakers.
Depending on the program source being played, the effect may not be very noticeable. In this case, try other surround modes, without worrying about their names, to create a sound field suited to your tastes.
NOTE 1: When playing sources recorded in monaural, the sound will be one-sided if signals are only input to one channel (left or right), so input
signals to both channels. If you have a source component with only one audio output (monophonic camcorder, etc.) obtain a “Y” adaptor cable to split the mono output to two outputs, and connect to the L and R inputs.
Personal Memory Plus
This set is equipped with a personal memorize function that automatically memorizes the surround modes and input modes selected for the input different sources. When the input source is switched, the modes set for that source last time it was used are automatically recalled.
The surround parameters, tone control settings and playback level balance for the different output channels are memorized for each surround mode.
77
DSP surround simulation
1
Select the surround mode for each input channel.
The surround mode switches in the following order each time the DSP SIMULATION button is pressed:
1
2, 4
3 4
2
Press the surround patameter button. Display the surround parameter screen.
The screen for the selected surround mode appears.
3
Set the parameters.
4
When the surround parameters are set using the buttons on the main unit, stop operating buttons after completing the settings. The settings are automatically finalized and the normal display reappears after several seconds.
When the settings are made using the buttons on the remote control unit, press the “ENTER” or SURROUND PARAMETER button to finish.
NOTES:
The surround speaker setting can also be changed with the SPEAKER button on the remote control unit.
• When “Default” is selected and the cursor left button is pressed, “CINEMA EQ.” and “D.COMP.” are automatically turned off, “ROOM SIZE” is set to “medium”, “EFFECT LEVEL” to “10”, “DELAY TIME” to “30ms” and “LFE” to “0dB”.
The ROOM SIZE expresses the expansion effect for the different surround modes in terms of the size of the sound field, not the actual
size of the listening room.
When playing PCM digital signals or analog signals in the DOLBY PRO LOGIC II, DOLBY PRO LOGIC IIx, DTS NEO:6 modes and the input signal switches to a digital signal encoded in Dolby Digital, the Dolby surround mode switches automatically. When the input signal switches to a DTS signal, the mode automatically switches to DTS surround.
WIDE SCREEN JAZZ CLUBSUPER STADIUM ROCK ARENA
CLASSIC CONCERTMONO MOVIEVIDEO GAME
VIRTUAL MATRIX
(Remote control unit)
(Remote control unit)
ROOM: Medium
*Surr Parameter
(Remote control unit)
To operate the surround mode and surround parameters from the remote control unit.
78
Operating the surround mode and surround parameters from the main units panel.
1
Turn the SELECT knob to select the surround mode.
SELECT
When turned clockwise
When turned counterclockwise
2
Press the SURROUND PARAMETER button. Press and hold in the surround parameter button to select the parameter you want to set.
The parameters which can be set differ for the different surround modes. (Refer to Surround Modes and Parameters on page 81.)
3
Display the parameter you want to adjust, then turn the SELECT knob to set it.
1, 321
(Main unit)
(Main unit)
To select the surround mode while adjusting the surround parameters or tone control, press the surround mode button then operate the selector.
NOTE:
When playing PCM digital signals or analog signals in the DOLBY PRO LOGIC IIx, DTS NEO:6 modes and the input signal switches to a
digital signal encoded in Dolby Digital, the Dolby surround mode switches automatically. When the input signal switches to a DTS signal, the mode automatically switches to DTS surround.
(Main unit)
DIRECT
VIRTUAL
STEREO
DOLBY PRO LOGIC
IIx
DTS NEO:6 5/7CH STEREO WIDE SCREEN
SUPER STADIUM
ROCK ARENAJAZZ CLUB
CLASSIC
CONCERT
MONO MOVIE
MATRIX VIDEO GAME
VIDEO GAME
DIRECT
VIRTUAL
STEREO
DOLBY PRO LOGIC
IIx
DTS NEO:6 5/7CH STEREO WIDE SCREEN
SUPER STADIUM
ROCK ARENAJAZZ CLUB
CLASSIC
CONCERT
MONO MOVIE
MATRIX
79
Room EQ /
Tone control setting
Use the Room EQ setting and the tone control setting to adjust the bass and treble as desired.
Operate the Room EQ and the tone control from the remote control unit.
1
Press the surround parameter button. Display the surround parameter screen.
The screen selected surround mode appears. TONE cannot be selected in the Direct mode.
7
1, 8
2~6
2
Select EQ / TONE”.
3
Display the Room RQ / Tone Control screen.
(Remote control unit)
(Remote control unit)
(Remote control unit)
ROOM: Medium
*Surr Parameter
EQ/TONE
*Surr Parameter
4
Select the Equalizer setting.
(Remote control unit)
Room EQ OFF
*Room EQ/Tone
Room EQ Normal
*Room EQ/Tone
OFF Normal Front
Manual Flat
NOTES:
The equalizer setting of Normal, Flat, and Front can be selected after performing the Auto Setup.
When headphone is connected, the Room EQ cannot be used.
5
Select Tone Defeat OFF.
(Remote control unit)
Tone Def.: OFF
*Room EQ/Tone
(Remote control unit)
80
6
7
Enter the setting. The surround parameter menu screen reappears.
Select Bass or Treble. Set the level.
(Remote control unit)
(Remote control unit) (Remote control unit)
8
If the setting ends, press the “ENTER” or SURROUND PARAMETER button again.
(Remote control unit)
Operate the Room EQ from the main unit.
1
Press the surround parameter button. Display the surround parameter screen.
2
Select EQ
(Main unit)
(Main unit)
31, 2
Room EQ OFF
*Surr Parameter
3
Select the Equalizer setting.
SELECT
(Main unit)
Operate the tone control from the main unit.
1
The tone switches as follows each time the TONE CONTROL button is pressed.
(Main unit)
1
TREBLE
0
BASS
2 1
Bass : 0dB
*Tone Control
2
Select with the name of the volume to be adjusted and adjust the level.
To increase the bass or treble: Turn the control clockwise. (The bass or treble sound can be increased to up to +6 dB in steps of 1 dB.)
To decrease the bass or treble: Turn the control clockwise. (The bass or treble sound can be decreased up to –6 dB in steps of 1 dB.)
SELECT
(Main unit)
81
Surround parameters r
ROOM SIZE:
This sets the size of the sound field. There are five settings: small, med.s (medium-small), medium, med.l (medium-large) and large. small recreates a small sound field, large a large sound field.
EFFECT LEVEL:
This sets the strength of the surround effect. The level can be set in 15 steps from 1 to 15. Lower the level if the sound seems distorted.
DELAY TIME:
The delay time can be set within the range of 0 to 300 ms only in matrix mode.
TONE CONTROL:
This can be set individually for each surround mode except Pure Direct and Direct.
ROOM EQ:
This sets the frequency response of each speaker.
OFF.................The Equalizer is not used.
Normal............Adjust the frequency response of all speaker suitable for general surround system.
Flat..................Adjust the frequency response of all speakers flat.
This is suitable for music reproduction like ITU-R speaker setting.
Front...............Adjusts the characteristics of each speaker to the characteristics of the front speakers.
Manual............Selects the setting value that was set in the Manual EQ setup
2 Surround modes and parameters
C
C
E
C *
C *
C *
C
E
C
C
C
C
C
C
C
C
C
C
C
C
E
C *
C *
C *
E
C
C
C
C
C
C
C
C
C
C
C
C : Signal / Adjustable E : No signal B : Turned on or off by speaker configuration setting
C : Able E : Unable
* : Only for 2 ch contents
Channel output
FRONT L/R CENTER
SURROUND
L/R
SUB-
WOOFER
SURROUND
BACK L/R
DIRECT / PURE DIRECT
STEREO
EXTERNAL INPUT
DOLBY PRO LOGIC
II
DOLBY PRO LOGIC II x
DTS NEO:6
DOLBY DIGITAL SURROUND
DTS SURROUND
5/7CH STEREO
WIDE SCREEN
SUPER STADIUM
ROCK ARENA
JAZZ CLUB
CLASSIC CONCERT
MONO MOVIE
VIDEO GAME
MATRIX
VIRTUAL
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
E
E
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
E
E
E
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
E
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
E
E
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
E
Mode
When
playing
Dolby Digital
signals
When
playing
DTS
signals
When
playing
PCM
signals
When
playing
ANALOG
signals
C
C
E
C
C
C
E
E
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
E
E
C
C
C
C
C
C
C
C
C
C
Signals and adjustability in the different modes
82
E
E
E
C
C
C
C
C
C
C
C
C
C
C
C
C
C
E
E
C (0dB)
E
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (Note1)
C (Note2)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C : Adjustable E : Not adjustablea
Note1 : BASS +6 dB, TREBLE 0 dB Note2 : BASS +6 dB, TREBLE +4 dB
Parameter (default values are shown in parentheses)
AFDM
TONE
CONTROL
SB CH OUT
(MODE)
DIRECT / PURE DIRECT
STEREO
EXTERNAL INPUT
DOLBY PRO LOGIC
II
DOLBY PRO LOGIC II x
DTS NEO:6
DOLBY DIGITAL SURROUND
DTS SURROUND
5/7CH STEREO
WIDE SCREEN
SUPER STADIUM
ROCK ARENA
JAZZ CLUB
CLASSIC CONCERT
MONO MOVIE
VIDEO GAME
MATRIX
VIRTUAL
E
E
E
E
E
E
C
C
E
E
E
E
E
E
E
E
E
E
Mode
CINEMA EQ.
E
E
E
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
E
C (OFF)
E
E
E
E
E
E
E
E
E
E
E
C
C
C
E
E
E
E
E
E
E
E
E
E
E
E
Signals and adjustability in the different modes
D. COMP LFE
C (OFF)
C (OFF)
E
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (0dB)
C (0dB)
E
E
E
E
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
When playing Dolby Digital and DTS signals
MODE
C : Able E : Unable
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
C (30ms)
E
E
E
E
C (OFF)
C (OFF)
E
E
E
E
E
E
E
E
E
E
E
E
E
C : Adjustable E : Not adjustable
SURROUND PARAMETER
EFFECT
LEVEL
PANORAMA
DELAY
TIME
DIRECT / PURE DIRECT
STEREO
EXTERNAL INPUT
DOLBY PRO LOGIC
II
DOLBY PRO LOGIC II x
DTS NEO:6
DOLBY DIGITAL SURROUND
DTS SURROUND
5/7CH STEREO
WIDE SCREEN
SUPER STADIUM
ROCK ARENA
JAZZ CLUB
CLASSIC CONCERT
MONO MOVIE
VIDEO GAME
MATRIX
VIRTUAL
E
E
E
E
E
E
E
E
E
C (10)
C (10)
C (10)
C (10)
C (10)
C (10)
C (10)
E
E
Mode
DIMENSION
E
E
E
E
E
C (0.3)
E
E
E
E
E
E
E
E
E
E
E
E
E
E
C
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
Signals and adjustability in the different modes
ROOM
SIZE
EFFECT ON/OFF
E
E
E
E
E
E
E
E
E
E
C (Medium)
C (Medium)
C (Medium)
C (Medium)
C (Medium)
C (Medium)
E
E
E
E
E
E
E
E
E
E
E
C (ON)
E
E
E
E
E
E
E
E
PRO LOGIC
II / II x ONLY
CENTER
WIDTH
CENTER
SW ATT
NEO:6 MUSIC EXT.IN
E
E
E
C (3)
C (3)
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
C (3)
C (3)
E
E
E
E
E
E
E
E
E
E
E
E
E
C (OFF)
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
SUBWOOFER
ON/OFF
C (OFF)
C (OFF)
E
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
ROOM EQ
83
13
LISTENING TO THE RADIO
If tuning does not stop at the desired station, use to the Manual tuning operation.
1
Set the input function to TUNER”.
FUNCTION
2
Watching the display, press the BAND button to select the desired band (AM or FM).
3
Press the MODE button to set the auto tuning mode.
4
Press the TUNING + or – button.
Auto tuning
Auto appears on the display.
Automatic searching begins, then stops when a station is tuned in.
(Main unit)(Remote control unit)
Manual tuning
1
Set the input function to TUNER”.
1
1
2
4
3
(Remote control unit)
(Remote control unit)
(Remote control unit)
Check that the remote control unit is set to AMP or TUNER.
FUNCTION
2
Watching the display, press the BAND button to select the desired band (AM or FM).
3
Press the MODE button to set the manual tuning mode. Check that the displays AUTO indicator turns off.
(Main unit)(Remote control unit)
(Remote control unit)
(Remote control unit)
4
Press the TUNING + or – button to tune in the desired station. The frequency changes continuously when the button is held in.
(Remote control unit)
NOTES:
When in the auto tuning mode on the FM band, the STEREO indicator lights on the display when a stereo broadcast is tuned in. At open frequencies, the noise is muted and the TUNED and
STEREO indicators turn off.
When the manual tuning mode is set, FM stereo broadcasts are received in monaural and the STEREO indicator turns off.
84
Checking the preset stations
1
Use the Auto tuning or Manual tuning operation to tune in the station to be preset in the memory.
2
Press the MEMORY button.
3
Press the SHIFT button and select the desired memory block (A to G).
4
Press the CHANNEL + (UP) or – (DOWN) button to select the desired preset channel (1 to 8).
5
Press the MEMORY button again to store the station in the preset memory.
(Remote control unit)
(Remote control unit)
To preset other channels, repeat steps 2 to 5. A total of 56 broadcast stations can be preset 8 stations (channels 1 to 8) in each of blocks A to G.
The preset (broadcast) stations can be checked on the on screen display.
1
Press the ON SCREEN button repeatedly until the “Tuner Preset Stations screen appears on the OSD.
Preset memory
1
2, 5
3
4
(Remote control unit)
(Remote control unit)
(Remote control unit)
85
Recalling preset stations
Recalling preset stations from the remote control unit.
1
Watching the display, press the SHIFT button to select the preset memory block.
(Remote control unit)
2
Watching the display, press the CHANNEL + (UP) or – (DOWN) button to select the desired preset channel.
(Remote control unit)
14
LAST FUNCTION MEMORY
This unit is equipped with a last function memory which stores the input and output setting conditions as they were immediately before the power is switched off. This function eliminates the need to perform complicated resetting when the power is switched on.
The unit is also equipped with a back-up memory. This function provides approximately one week of memory storage from when the main units power switch is off and with the power cord disconnected.
15
INITIALIZATION OF THE MICROPROCESSOR
When the indication of the display is not normal or when the operation of the unit does not shows the reasonable result, the initialization of the microprocessor is required by the following procedure.
1
Switch off the unit using the main units power operation switch.
2
Hold the following INPUT MODE button and ANALOG button, and turn the main units power operation switch on.
3
Check that the entire display is flashing with an interval of about 1 second, and release your fingers from the 2 buttons and the microprocessor will be initialized.
NOTES:
If step 3 does not work, start over from step 1.
If the microprocessor has been reset, all the settings are reset
to the default values (the values set upon shipment from the factory).
1, 2 2
Recalling preset stations from the main units panel.
1
Press the TUNING PRESET button.
TUNING PRESET
FUNCTION
2
Turn the FUNCTION knob and select the desired preset channel.
1
2
(Main unit)
1
2
(Main unit)
86
16
TROUBLESHOOTING
If a problem should arise,first check the following table.
1. Are the connections correct ?
2. Have you operated the receiver according to the Operating Instructions ?
3. Are the speakers, turntable and other components operating property ?
If this unit is not operating properly, check the items listed in the table below. Should the problem persist, there may be a malfunction. Disconnect the power immediately and contact your store of purchase.
Symptom Cause Measures Page
When playing Records
DISPLAY not lit and sound not produced when power switch set to on.
Power cord not plugged in securely. Check the insertion of the power cord plug.
Turn the power on with the remote control
unit after turning the POWER switch on.
6
58
DISPLAY lit but sound not produced.
Speaker cords not securely connected.
Improper position of the audio function
button.
Volume control set to minimum.
MUTING is on.
Digital signals not input Digital input
selected.
Connect securely.
Set to a suitable position.
Turn volume up to suitable level.
Switch off MUTING.
Input digital signals or select input jacks to
which digital signals are being input.
13 59
60 63 59
DISPLAY not lit and power indicator is flashing rapidly.
Speaker terminals are short-circuited.
Block the ventilation holes of the set.
The unit is operating at continuous high
power conditions and/or inadequate ventilation.
Switch power off, connect speakers properly, then switch power back on.
Turn off the sets power, then ventilate it well to cool it down. Once the set is cooled down, turn the power back on.
Turn off the sets power, then ventilate it well to cool it down. Once the set is cooled down, turn the power back on.
13
4, 14
4, 14
Sound produced only from one channel.
Incomplete connection of speaker cords.
Incomplete connection of input/output
cords.
Connect securely.
Connect securely.
13
6 ~ 14
Positions of instruments reversed during stereo playback.
Reverse connections of left and right speakers or left and right input/output cords.
Check left and right connections. 13
The on screen display is not displayed.
•“On screen display is set to off on the system setup menu screen.
Set on screen display on the system setup menu screen to on.
45, 46
Humming noise produced when Record is playing.
Ground wire of turntable not connected properly.
Incomplete PHONO jack connection.
TV or radio transmission antenna nearby.
Connect securely.
Connect securely.
Contact your store of purchase.
6
6
Howling noise produced when volume is high.
Turntable and speaker systems too close together.
Floor is unstable and vibrates easily.
Separate as much as possible.
Use cushions to absorb speaker vibrations
transmitted by floor. If turntable is not equipped with insulators, use audio insulators (commonly available).
Sound is distorted.
Stylus pressure too weak.
Dust or dirt on stylus.
Cartridge defective.
Apply proper stylus pressure.
Check stylus.
Replace cartridge.
— — —
Volume is weak.
MC cartridge being used. Replace with MM cartridge or use a head
amplifier or step-up transformer.
6
This unit does not operate properly when remote control unit is used.
Batteries dead.
Remote control unit too far from this unit.
Obstacle between this unit and remote
control unit.
Different button is being pressed.
< and > ends of battery inserted in reverse.
Replace with new batteries.
Move closer.
Remove obstacle.
Press the proper button.
Insert batteries properly.
48 48 48
48
Remote control
unit
Common problems when listening to the CDs, Records, Tapes and FM broadcasts, etc.
87
17
ADDITIONAL INFORMATION
Optimum surround sound for different sources
There are currently various types of multi-channel signals (signals or formats with more than two channels).
2 Types of multi-channel signals
Dolby Digital, Dolby Pro Logic, DTS, high definition 3-1 signals (Japan MUSE Hi-Vision audio), DVD-Audio, SACD (Super Audio CD), MPEG multi­channel audio, etc.
Source here does not refer to the type of signal (format) but the recorded content. Sources can be divided into two major categories.
2 Types of sources
Movie audio Signals created to be played in movie theaters. In general sound is recorded to be played in movie theaters equipped with multiple surround speakers, regardless of the format (Dolby Digital, DTS, etc.).
FL C
SW
FR
FL C
SW
FR
SL SR
SB
SL SR
SB
Multiple surround speakers
Movie theater sound field
Listening room sound field
In this case it is important to achieve the same sense of expansion as in a movie theater with the surround channels. To do so, in some cases the number of surround speakers is increased (to four or eight) or speakers with bipolar or dipolar properties are used.
Other types of audio These signals are designed to recreate a 360° sound field using three to five speakers.
In this case the speakers should surround the listener from all sides to create a uniform sound field from 360°. Ideally the surround speakers should function as point sound sources in the same way as the front speakers.
FL C
SW
FR
SL SR
These two types of sources thus have different properties, and different speaker settings, particularly for the surround speakers, are required in order to achieve the ideal sound.
The AVR-2805/985 is equipped the function of surround speakers selection that makes it possible to change the settings according to the combination of surround speakers being used and the surrounding environment in order to achieve the ideal surround sound for all sources. This means that you can connect a pair of bipolar or dipolar surround speakers (mounted on either side of the prime listening position), as well as a separate pair of direct radiating (monopolar) speakers placed at the rear corners of the listening room.
SL: Surround L channel SR: Surround R channel SB: Surround back channel
(For 6.1-channel system)
88
Surround back speakers
A 6.1-channel system is a conventional 5.1-channel system to which the surround back (SB) channel has been added. This makes it easy to achieve sound positioned directly behind the listener, something that was previously difficult with sources designed for conventional multi surround speakers. In addition, the acoustic image extending between the sides and the rear is narrowed, thus greatly improving the expression of the surround signals for sounds moving from the sides to the back and from the front to the point directly behind the listening position.
FL C
SW
FR FL C
SW
FR
SR chSL ch
SL ch SR ch
SB ch
Change of positioning and acoustic image
with 5.1-channel systems
With this set, speaker(s) for 1 or 2 channels are required to achieve a 6.1-channel system (DTS-ES, etc.). Adding these speakers, however, increases the surround effect not only with sources recorded in 6.1 channels but also with conventional 2- to 5.1-channel sources. The WIDE SCREEN mode is a mode for achieving surround sound with up to 7.1 channels using surround back speakers, for sources recorded in conventional Dolby Surround as well as Dolby Digital 5.1-channel and DTS Surround 5.1-channel sources. Furthermore, all the Denon original surround modes (see page 76) are compatible with 7.1-channel playback, so you can enjoy 7.1-channel sound with any signal source.
Movement of acoustic image from SR to SL
Change of positioning and acoustic image
with 6.1-channel systems
Movement of acoustic image from SR to SB to SL
2
Number of surround back speakers
Though the surround back channel only consists of 1 channel of playback signals for 6.1-channel sources (DTS-ES, etc.), we recommend using two speakers. When using speakers with dipolar characteristics in particular, it is essential to use two speakers. Using two speakers results in a smoother blend with the sound of the surround channels and better sound positioning of the surround back channel when listening from a position other than the center.
2 Placement of the surround left and right channels when using surround back speakers
Using surround back speakers greatly improves the positioning of the sound at the rear. Because of this, the surround left and right channels play an important role in achieving a smooth transition of the acoustic image from the front to the back. As shown on the diagram above, in a movie theater the surround signals are also produced from diagonally in front of the listeners, creating an acoustic image as if the sound were floating in space. To achieve these effects, we recommend placing the speakers for the surround left and right channels slightly more towards the front than with conventional surround systems. Doing so sometimes increases the surround effect when playing conventional 5.1-channel sources in the
6.1 surround or DTS-ES Matrix 6.1 mode. Check the surround effects of the various modes before selecting the surround mode.
89
Set the front speakers, center speaker and subwoofer in the same positions as in example (1).
It is best to place the surround speakers directly at the side or slightly to the front of the viewing position, and 60 to 90 cm above the ears.
Same as surround back speaker installation method (1). Using dipolar speakers for the surround back speakers as well is more effective.
The signals from the surround channels reflect off the walls as shown on the diagram at the left, creating an enveloping and realistic surround sound presentation.
Set the front speakers with their front surfaces as flush with the TV or monitor screen as possible. Set the center speaker between the front left and right speakers and no further from the listening position than the front speakers.
Consult the owners manual for your subwoofer for advice on placing the subwoofer within the listening room.
If the surround speakers are direct-radiating (monopolar) then place them slightly behind and at an angle to the listening position and parallel to the walls at a position 60 to 90 centimeters (2 to 3 feet) above ear level at the prime listening position.
When using two surround back speakers, place them at the back facing the front at a narrower distance than the front left and right speakers. When using one surround back speaker, place it at the rear center facing the front at a slightly higher position (0 to 20 cm) than the surround speakers.
We recommend installing the surround back speaker(s) at a slightly downward facing angle. This effectively prevents the surround back channel signals from reflecting off the monitor or screen at the front center, resulting in interference and making the sense of movement from the front to the back less sharp.
Speaker setting examples
Here we describe a number of speaker settings for different purposes. Use these examples as guides to set up your system according to the type of speakers used and the main usage purpose.
1. DTS-ES compatible system (using surround back speakers)
(1) Basic setting for primarily watching movies
This is recommended when mainly playing movies and using regular single way or 2-way speakers for the surround speakers.
(2) Setting for primarily watching movies using diffusion type speakers for the surround speakers
For the greatest sense of surround sound envelopment, diffuse radiation speakers such as bipolar types, or dipolar types, provide a wider dispersion than is possible to obtain from a direct radiating speaker (monopolar). Place these speakers at either side of the prime listening position, mounted above ear level.
Subwoofer
Surround speaker
Front speaker
60 to 90 cm
Surround speaker
Front speaker
60 to 90 cm
Surround back speakers
60°
Front speakers
60°
Monitor
Center speaker
As seen from above
As seen from above
As seen from the side
As seen from the side
Path of the surround sound from the speakers to the listening position
Surround
speakers
Surround back speakers
60°
Surround speakers
Surround back speaker
Surround back speaker
Point slightly downwards
Point slightly downwards
2. When not using surround back speakers
Set the front speakers with their front surfaces as flush with the TV or monitor screen as possible. Set the center speaker between the front left and right speakers and no further from the listening position than the front speakers.
Consult the owners manual for your subwoofer for advice on placing the subwoofer within the listening room.
If the surround speakers are direct-radiating (monopolar) then place them slightly behind and at an angle to the listening position and parallel to the walls at a position 60 to 90 centimeters (2 to 3 feet) above ear level at the prime listening position.
Subwoofer
Surround speaker
Front speaker
Surround speakers
120°
Front speakers
60°
Monitor
Center speaker
As seen from the side
60 to 90 cm
As seen from above
90
Surround
The AVR-2805/985 is equipped with a digital signal processing circuit that lets you play program sources in the surround mode to achieve the same sense of presence as in a movie theater.
Dolby Surround
(1) Dolby Digital
Dolby Digital is the multi-channel digital signal format developed by Dolby Laboratories. Dolby Digital consists of up to “5.1” channels - front left, front right, center, surround left, surround right, and an additional channel exclusively reserved for additional deep bass sound effects (the Low Frequency Effects – LFE – channel, also called the “.1” channel, containing bass frequencies of up to 120 Hz). Unlike the analog Dolby Pro Logic format, Dolby Digital’s main channels can all contain full range sound information, from the lowest bass, up to the highest frequencies – 22 kHz. The signals within each channel are distinct from the others, allowing pinpoint sound imaging, and Dolby Digital offers tremendous dynamic range from the most powerful sound effects to the quietest, softest sounds, free from noise and distortion.
2 Dolby Digital and Dolby Pro Logic
Comparison of home surround systems Dolby Digital Dolby Pro Logic
No. recorded channels (elements) 5.1 ch 2 ch
No. playback channels 5.1 ch 4 ch
Playback channels (max.) L, R, C, SL, SR, SW L, R, C, S (SW - recommended)
Audio processing
Digital discrete processing Dolby Digital encoding/decoding
Analog matrix processing Dolby Surround
High frequency playback limit of surround channel
20 kHz 7 kHz
2 Dolby Digital compatible media and playback methods
Marks indicating Dolby Digital compatibility: .
The following are general examples. Also refer to the player’s operating instructions.
LD (VDP)
Coaxial Dolby Digital RF output jack 1
Set the input mode to AUTO”.
(Page 59)
DVD
Optical or coaxial digital output
(same as for PCM) 2
Set the input mode to AUTO”.
(Page 59)
Others
(satellite broadcasts, CATV, etc.)
Optical or coaxial digital output
(same as for PCM)
Set the input mode to AUTO”.
(Page 59)
Media Dolby Digital output jacks Playback method (reference page)
1 Please use a commercially available adapter when connecting the Dolby Digital RF output jack of the LD player to the digital input jack.
Please refer to the instruction manual of the adapter when making connection.
2 Some DVD digital outputs have the function of switching the Dolby Digital signal output method between bit stream and “(convert to)
PCM. When playing in Dolby Digital surround on the AVR-2805/985, switch the DVD player’s output mode to “bit stream”. In some cases players are equipped with both bit stream + PCM and PCM only digital outputs. In this case connect the bit stream + PCM jacks to the AVR-2805/985.
(2) Dolby Pro Logic IIx
Dolby Pro Logic IIx furthers the matrix decoding technology of Dolby Pro Logic II to decode audio signals recorded on two
channels into up to 7.1 playback channels, including the surround back channel. Dolby Pro Logic IIx also allows 5.1-channel sources to be played in up to 7.1 channels.
The mode can be selected according to the source. The Music mode is best suited for playing music, the Cinema mode for playing movies, and the Game mode for playing games. The Game mode can only be used with 2-channel audio sources.
(3) Dolby Pro Logic II
Dolby Pro Logic II is a new multi-channel playback format developed by Dolby Laboratories using feedback logic steering technology and
offering improvements over conventional Dolby Pro Logic circuits.
Dolby Pro Logic II can be used to decode not only sources recorded in Dolby Surround ( ) but also regular stereo sources into five channels
(front left, front right, center, surround left and surround right) to achieve surround sound.
Whereas with conventional Dolby Pro Logic the surround channel playback frequency band was limited, Dolby Pro Logic II offers a wider
band range (20 Hz to 20 kHz or greater). In addition, the surround channels were monaural (the surround left and right channels were the same) with previous Dolby Pro Logic, but Dolby Pro Logic II they are played as stereo signals.
Various parameters can be set according to the type of source and the contents, so it is possible to achieve optimum decoding (see page
71).
91
DTS Digital Surround
Digital Theater Surround (also called simply DTS) is a multi-channel digital signal format developed by Digital Theater Systems. DTS offers the same 5.1 playback channels as Dolby Digital (front left, front right and center, surround left and surround right) as well as the stereo 2-channel mode. The signals for the different channels are fully independent, eliminating the risk of deterioration of sound quality due to interference between signals, crosstalk, etc. DTS features a relatively higher bit rate as compared to Dolby Digital (1234 kbps for CDs and LDs, 1536 kbps for DVDs) so it operates with a relatively low compression rate. Because of this the amount of data is great, and when DTS playback is used in movie theaters, a separate CD­ROM synchronized with the film is played. With LDs and DVDs, there is of course no need for an extra disc; the pictures and sound can be recorded simultaneously on the same disc, so the discs can be handled in the same way as discs with other formats. There are also music CDs recorded in DTS. These CDs include 5.1-channel surround signals (compared to two channels on current CDs). They do not include picture data, but they offer surround playback on CD players that are equipped with digital outputs (PCM type digital output required). DTS surround track playback offers the same intricate, grand sound as in a movie theater, right in your own listening room.
2 DTS compatible media and playback methods
Marks indicating DTS compatibility: and .
The following are general examples. Also refer to the player’s operating instructions.
CD
Optical or coaxial digital output
(same as for PCM) 2
Set the input mode to AUTO or DTS (page 59). Never set the mode to ANALOG or PCM. 1
LD (VDP)
Optical or coaxial digital output
(same as for PCM) 2
Set the input mode to AUTO or DTS (page 59). Never set the mode to ANALOG or PCM. 1
DVD
Optical or coaxial digital output
(same as for PCM) 3
Set the input mode to AUTO or DTS (page 59).
Media Dolby Digital output jacks Playback method (reference page)
1 DTS signals are recorded in the same way on CDs and LDs as PCM signals. Because of this, the un-decoded DTS signals are output as
random hissy noise from the CD or LD players analog outputs. If this noise is played with the amplifier set at a very high volume, it may possibly cause damage to the speakers. To avoid this, be sure to switch the input mode to AUTO or DTS before playing CDs or LDs recorded in DTS. Also, never switch the input mode to ANALOG or PCM during playback. The same holds true when playing CDs or LDs on a DVD player or LD/DVD compatible player. For DVDs, the DTS signals are recorded in a special way so this problem does not occur.
2 The signals provided at the digital outputs of a CD or LD player may undergo some sort of internal signal processing (output level
adjustment, sampling frequency conversion, etc.). In this case the DTS-encoded signals may be processed erroneously, in which case they cannot be decoded by the AVR-2805/985, or may only produce noise. Before playing DTS signals for the first time, turn down the master volume to a low level, start playing the DTS disc, then check whether the DTS indicator on the AVR-2805/985 (see page 60) lights before turning up the master volume.
3 A DVD player with DTS-compatible digital output is required to play DTS DVDs. A DTS Digital Output logo is featured on the front panel of
compatible DVD players. Recent DENON DVD player models feature DTS-compatible digital output – consult the players owner’s manual for information on configuring the digital output for DTS playback of DTS-encoded DVDs.
MANUFACTURED UNDER LICENSE FROM DIGITAL THEATER SYSTEMS, INC. U.S. PAT. NO’S. 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 AND OTHER U.S. AND WORLD–WIDE PATENTS ISSUED AND PENDING. “DTS”, “DTS–ES”, “Neo:6”, AND “DTS 96/24” ARE TRADEMARKS OF DIGITAL THEATER SYSTEMS, INC. © 1996, 2003 DIGITAL THEATER SYSTEMS, INC. ALL RIGHTS RESERVED.
Manufactured under license from Dolby Laboratories. Dolby, Pro Logic and the double-D symbol are trademarks of Dolby Laboratories.
Sources recorded in Dolby Surround These are sources in which three or more channels of surround have been recorded as two channels of signals using Dolby Surround encoding technology. Dolby Surround is used for the sound tracks of movies recorded on DVDs, LDs and Video cassettes to be played on stereo VCRs, as well as for the stereo broadcast signals of FM radio, TV, satellite broadcasts and cable TV. Decoding these signals with Dolby Pro Logic II makes it possible to achieve multi-channel surround playback. The signals can also be played on ordinary stereo equipment, in which case they provide normal stereo sound.
There are two types of DVD Dolby surround recording signals.
q 2-channel PCM stereo signals w 2-channel Dolby Digital signals
When either of these signals is input to the AVR-2805/985, the surround mode is automatically set to Dolby Pro Logic II when the DOLBY/DTS SURROUND mode is selected.
2 Sources recorded in Dolby Surround are indicated with the logo mark shown below.
Dolby Surround support mark:
92
DTS-ES Extended Surround
TM
DTS-ES Extended Surround is a new multi-channel digital signal format developed by Digital Theater Systems Inc. While offering high compatibility with the conventional DTS Digital Surround format, DTS-ES Extended Surround greatly improves the 360-degree surround impression and space expression thanks to further expanded surround signals. This format has been used professionally in movie theaters since 1999. In addition to the 5.1 surround channels (FL, FR, C, SL, SR and LFE), DTS-ES Extended Surround also offers the SB (Surround Back, sometimes also referred to as “surround center”) channel for surround playback with a total of 6.1 channels. DTS-ES Extended Surround includes two signal formats with different surround signal recording methods, as described below.
2 DTS-ES
TM
Discrete 6.1
DTS-ES Discrete 6.1 is the newest recording format. With it, all 6.1 channels (including the SB channel) are recorded independently using a digital discrete system. The main feature of this format is that because the SL, SR and SB channels are fully independent, the sound can be designed with total freedom and it is possible to achieve a sense that the acoustic images are moving about freely among the background sounds surrounding the listener from 360 degrees. Though maximum performance is achieved when sound tracks recorded with this system are played using a DTS-ES decoder, when played with a conventional DTS decoder the SB channel signals are automatically down-mixed to the SL and SR channels, so none of the signal components are lost.
2 DTS-ES
TM
Matrix 6.1
With this format, the additional SB channel signals undergo matrix encoding and are input to the SL and SR channels beforehand. Upon playback they are decoded to the SL, SR and SB channels. The performance of the encoder used at the time of recording can be fully matched using a high precision digital matrix decoder developed by DTS, thereby achieving surround sound more faithful to the producers sound design aims than with conventional 5.1- or 6.1-channel systems. In addition, the bit stream format is 100% compatible with conventional DTS signals, so the effect of the Matrix 6.1 format can be achieved even with 5.1-channel signal sources. Of course it is also possible to play DTS-ES Matrix 6.1 encoded sources with a DTS 5.1-channel decoder.
When DTS-ES Discrete 6.1 or Matrix 6.1 encoded sources are decoded with a DTS-ES decoder, the format is automatically detected upon decoding and the optimum playing mode is selected. However, some Matrix 6.1 sources may be detected as having a 5.1-channel format, so the DTS-ES Matrix 6.1 mode must be set manually to play these sources. (For instructions on selecting the surround mode, see page 74.)
The DTS-ES decoder includes another function, the DTS Neo:6 surround mode for 6.1-channel playback of digital PCM and analog signal sources.
2 DTS Neo:6
TM
surround
This mode applies conventional 2-channel signals to the high precision digital matrix decoder used for DTS-ES Matrix 6.1 to achieve 6.1­channel surround playback. High precision input signal detection and matrix processing enable full band reproduction (frequency response of 20 Hz to 20 kHz or greater) for all 6.1 channels, and separation between the different channels is improved to the same level as that of a digital discrete system. DTS Neo:6 surround includes two modes for selecting the optimum decoding for the signal source.
DTS Neo:6 Cinema
This mode is optimum for playing movies. Decoding is performed with emphasis on separation performance to achieve the same atmosphere with 2-channel sources as with 6.1-channel sources. This mode is effective for playing sources recorded in conventional surround formats as well, because the in-phase component is assigned mainly to the center channel (C) and the reversed phase component to the surround (SL, SR and SB channels).
DTS Neo:6 Music
This mode is suited mainly for playing music. Changes in the sound quality are reduced by decoding with emphasis on the front channel signals (FL and FR), and a natural sense of expansion is given to the sound field by the effect of the surround signals output from the center (C) and surround (SL, SR and SB) channels.
93
The sampling frequency, number of bits and number of channels used for recording of music, etc., in studios has been increasing in recent years, and there are a growing number of high quality signal sources, including 96 kHz/24 bit 5.1-channel sources.
For example, there are high picture/sound quality DVD video sources with 96 kHz/24 bit stereo PCM audio tracks. However, because the data rate for these audio tracks is extremely high, there are limits to recording them on two channels only, and since the quality of the pictures must be restricted it is common to only include still pictures. In addition, 96 kHz/24 bit 5.1-channel surround is possible with DVD audio sources, but DVD audio players are required to play them with this high quality.
DTS 96/24 is a multi-channel digital signal format developed by Digital Theater Systems Inc. in order to deal with this situation.
Conventional surround formats used sampling frequencies of 48 or 44.1 kHz, so 20 kHz was about the maximum playback signal frequency. With DTS 96/24, the sampling frequency is increased to 96 or 88.2 kHz to achieve a wide frequency range of over 40 kHz. In addition, DTS 96/24 has a resolution of 24 bits, resulting in the same frequency band and dynamic range as 96 kHz/24 bit PCM.
As with conventional DTS Surround, DTS 96/24 is compatible with a maximum of 5.1 channels, so sources recorded using DTS 96/24 can be played in high sampling frequency, multiple channel audio with such normal media as DVD videos and CDs. Thus, with DTS 96/24, the same 96 kHz/24 bit multi-channel surround sound as with DVD-Audio can be achieved while viewing DVD-Video images on a conventional DVD-Video player ( 1). Furthermore, with DTS 96/24 compatible CDs, 88.2 kHz/24 bit multi-channel surround can be achieved using normal CD/LD players ( 1).
Even with the high quality multi-channel signals, the recording time is the same as with conventional DTS surround sources. Whats more, DTS 96/24 is fully compatible with the conventional DTS surround format, so DTS 96/24 signal sources can be played with a sampling frequency of 48 kHz or 44.1 kHz on conventional DTS or DTS-ES surround decoders ( 2).
1: A DVD player with DTS digital output capabilities (for CD/LD players, a player with digital outputs for conventional DTS CDs/LDs) and a
disc recorded in DTS 96/24 are required.
2: The resolution is 24 or 20 bits, depending on the decoder.
DTS 96/24
AL24 Processing
2 Pure Direct Mode/AL24 processing
The AVR-2805/985 is equipped with a pure direct mode allowing the effects of the video and digital circuitry to be shut down when playing CDs or records to achieve the ideal environment for analog playback, resulting in extremely high quality music playback. It is also equipped with AL24 processing which compensates the input digital data to produce the near analog waveforms which would be in a nature with 24 bits quality. AL24 processing operates when PCM data such as CD is inputted.
94
System setup items and default values (set upon shipment from the factory)
2. Speaker Setup
3.Input Setup
Digital In Assignment
This assigns the digital input jacks for the different input sources.
Input
source
Digital Inputs
CD DVD VDP
TV
DBS V. AUX VCR-1 VCR-2
COAX1 COAX2 OPT1 OFF OPT2 OPT5 OPT3 OFF
1
CDR/TAPE
OPT4
2
Ext. In Subwoofer Level
Set the Ext. In Subwoofer terminal playback level. Subwoofer = +15 dB
This assigns the color difference (component) video input jacks for the different input sources.
Video Input Mode
Set the input signal to be output from the monitor output terminal.
Component In Assign
3
4
DVD VDP TV
DBS
VCR-1 VCR-2 V. AUX
VIDEO1 NONE VIDEO2 VIDEO3 NONE NONE NONE
AUTO
Input Setup Default settings
5
Auto Tuner Presets
FM stations are received automatically and stored in the memory.
A1 ~ A8
B1 ~B8
C1 ~C8
D1 ~D8
E1 ~E8
87.5/89.1/98.1/107.9/90.1/90.1/90.1/90.1 MHz
520/600/1000/1400/1500/1710 kHz/90.1/90.1 MHz
90.1 MHz
90.1 MHz
90.1 MHz
F1 ~F8 90.1 MHz
G1 ~G8 90.1 MHz
1. Auto Setup/Room EQ
Auto Setup/Room EQ Default settings
1
2
Auto Setup
Room EQ Setup
Power Amp
Assignment
This parameter is for optimizing the Room EQ with which the audio signals are produced from the speakers.
3
Manual EQ Setup
Direct Mode Setup
5
Set the ON/OFF setting of Room EQ, in the case of the surround mode is in Direct or Pure Direct.
4
Mic Input Select
Set this to switch the Mic Input jack for use for Mic or V.Aux L­channel input jack.
Set this to switch the surround back channel’s power amplifier for use for zone2.
Set the Room EQ setting with All or Assign for each surround mode.
SURROUND BACK
All Channel and Frequency=0dB
All
OFF
Mic
Speaker Setup Default settings
1
2
Speaker Configuration
Channel Level
Input the combination of speakers in your system and their corresponding sizes (SMALL for regular speakers, LARGE for full­size, full-range) to automatically set the composition of the signals output from the speakers and the frequency response.
This adjusts the volume of the signals output from the speakers and subwoofer for the different channels in order to obtain optimum effects.
Front Sp.
Large
Center Sp. Surround Sp. Subwoofer
Small SmallYe s
Front L & R Center Surround L & RSubwoofer
12 ft (3.6 m) 12 ft (3.6 m) 10 ft (3.0 m)12 ft (3.6 m)
Front L
Front R Center
Surround
R
Surround
Back R
Subwoofer
0 dB 0 dB 0 dB 0 dB 0 dB 0 dB
Surround Back Sp.
Small / 2spkrs
3
Delay Time
This parameter is for optimizing the timing with which the audio signals are produced from the speakers and subwoofer according to the listening position.
SBL & SBR
10 ft (3.0 m)
Surround
Back L
0 dB
Surround
L
0 dB
Crossover Frequency
5
Set the frequency (Hz) below which the bass so of the various speaker is to be output from the subwoofer.
4
80Hz
Subwoofer Mode
This selects the subwoofer speaker for playing deep bass signals. LFE
95
5.Option Setup
Surround modes and parameters
Set this to switch the surround back channels power amplifier for use for zone2.
Surround Back
Power AMP Assignment
1
6
5
Muting Level
This sets the output level for the speaker terminals. ---dB(minimum)
Option Setup Default settings
2
Zone2 vol. Level
This sets the output level the zone2 output jacks. Variable
On Screen Display
This sets whether or not to display the on-screen display that appears on the monitor screen when the controls on the remote control unit or main unit are operated. A setting to prevent flickering.
On Screen Display = ON / Mode 1
4
7
Setup Lock
Set whether or not to lock the system setup settings so that they cannot be changed.
Setup Lock = OFF
Trigger Out1 Setup
Set the Trigger Out1 output for the different input sources.
PHONO CD TUNER
CDR/TAPE
DVD VDP TV VCR-1
OFF OFF OFF OFF ON ON ON ON
3
VCR-2
ON
DBS
ON
V. A UX
ON
Trigger Out2 Setup
Set the Trigger Out2 output for the different input sources.
PHONO CD TUNER
CDR/TAPE
DVD VDP TV VCR-1
ON ON ON ON ON ON ON ON
VCR-2
ON
DBS
ON
V. A UX
ON
ZONE=MAIN
ZONE=2
4.Advanced Playback
3
Auto Surround Mode
Set the Auto surround mode function. Auto Surround Mode = ON
1
Audio Delay
Set the audio delay to delay time the sound and synchronize it with the picture.
0 ms
Advanced Playback Default settings
2
Dolby Digital Setup
Turn the audio compression on or off when down-mixing Dolby Digital signals.
OFF
C : Signal / Adjustable E : No signal B : Turned on or off by speaker configuration setting
C : Able E : Unable
* : Only for 2 ch contents
C
C
E
C *
C *
C *
C
E
C
C
C
C
C
C
C
C
C
C
C
C
E
C *
C *
C *
E
C
C
C
C
C
C
C
C
C
C
C
Channel output
FRONT L/R CENTER
SURROUND
L/R
SUB-
WOOFER
SURROUND
BACK L/R
DIRECT / PURE DIRECT
STEREO
EXTERNAL INPUT
DOLBY PRO LOGIC
II
DOLBY PRO LOGIC II x
DTS NEO:6
DOLBY DIGITAL SURROUND
DTS SURROUND
5/7CH STEREO
WIDE SCREEN
SUPER STADIUM
ROCK ARENA
JAZZ CLUB
CLASSIC CONCERT
MONO MOVIE
VIDEO GAME
MATRIX
VIRTUAL
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
E
E
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
E
E
E
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
E
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
E
E
B
B
B
B
B
B
B
B
B
B
B
B
B
B
B
E
Mode
When
playing
Dolby Digital
signals
When
playing
DTS
signals
When
playing
PCM
signals
When
playing
ANALOG
signals
C
C
E
C
C
C
E
E
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
E
E
C
C
C
C
C
C
C
C
C
C
Signals and adjustability in the different modes
96
C : Adjustable E : Not adjustable
Note1 : BASS +6 dB, TREBLE 0 dB Note2 : BASS +6 dB, TREBLE +4 dB
C : Able E : Unable
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
C (30ms)
E
E
E
E
C (OFF)
C (OFF)
E
E
E
E
E
E
E
E
E
E
E
E
E
C : Adjustable E : Not adjustable
SURROUND PARAMETER
EFFECT
LEVEL
PANORAMA
DELAY
TIME
DIRECT / PURE DIRECT
STEREO
EXTERNAL INPUT
DOLBY PRO LOGIC
II
DOLBY PRO LOGIC II x
DTS NEO:6
DOLBY DIGITAL SURROUND
DTS SURROUND
5/7CH STEREO
WIDE SCREEN
SUPER STADIUM
ROCK ARENA
JAZZ CLUB
CLASSIC CONCERT
MONO MOVIE
VIDEO GAME
MATRIX
VIRTUAL
E
E
E
E
E
E
E
E
E
C (10)
C (10)
C (10)
C (10)
C (10)
C (10)
C (10)
E
E
Mode
DIMENSION
E
E
E
E
E
C (0.3)
E
E
E
E
E
E
E
E
E
E
E
E
E
E
C
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
Signals and adjustability in the different modes
ROOM
SIZE
EFFECT ON/OFF
E
E
E
E
E
E
E
E
E
E
C (Medium)
C (Medium)
C (Medium)
C (Medium)
C (Medium)
C (Medium)
E
E
E
E
E
E
E
E
E
E
E
C (ON)
E
E
E
E
E
E
E
E
PRO LOGIC
II / II x ONLY
CENTER
WIDTH
CENTER
SW ATT
NEO:6 MUSIC EXT.IN
E
E
E
C (3)
C (3)
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
C (3)
C (3)
E
E
E
E
E
E
E
E
E
E
E
E
E
C (OFF)
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
E
SUBWOOFER
ON/OFF
E
E
E
C
C
C
C
C
C
C
C
C
C
C
C
C
C
E
E
C (0dB)
E
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (Note1)
C (Note2)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
Parameter (default values are shown in parentheses)
AFDM
TONE
CONTROL
SB CH OUT
(MODE)
DIRECT / PURE DIRECT
STEREO
EXTERNAL INPUT
DOLBY PRO LOGIC
II
DOLBY PRO LOGIC II x
DTS NEO:6
DOLBY DIGITAL SURROUND
DTS SURROUND
5/7CH STEREO
WIDE SCREEN
SUPER STADIUM
ROCK ARENA
JAZZ CLUB
CLASSIC CONCERT
MONO MOVIE
VIDEO GAME
MATRIX
VIRTUAL
E
E
E
E
E
E
C
C
E
E
E
E
E
E
E
E
E
E
Mode
CINEMA EQ.
E
E
E
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
E
C (OFF)
E
E
E
E
E
E
E
E
E
E
E
C
C
C
E
E
E
E
E
E
E
E
E
E
E
E
Signals and adjustability in the different modes
D. COMP LFE
C (OFF)
C (OFF)
E
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (0dB)
C (0dB)
E
E
E
E
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
C (0dB)
When playing Dolby Digital and DTS signals
MODE
C (OFF)
C (OFF)
E
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
C (OFF)
ROOM EQ
97
C : Selectable
: The surround mode name differs depending on the SB CH OUT surround parameter setting.
B : The surround mode name differs depending on the input signal. E : Not selectable
ANALOG DTS (5.1 ch) DTS 96/24 (5.1 ch) DTS (6.1 ch) D. D. (2 ch)
PURE DIRECT, DIRECT
STEREO
DTS SURROUND
DOLBY DIGITAL
DSP SIMULATION
C
C
DTS NEO:6
DOLBY PRO LOGIC
II
DOLBY PRO LOGIC IIx
(Cinema,Music,Game)
C
C
C
DTS ES MTRX
DTS SURROUND
DTS+PL
II
x
(Cinema,Music)
E
C
C
C
DTS ES MTRX
DTS 96/24
DTS+PL
II
x
(Cinema,Music)
E
C
C
C
B ES DSCRT6.1
ES MTRX6.1
DTS SURROUND
DTS+PLIIx(Cinema,Music)
E
C
C
C
DTS NEO:6
DOLBY PRO LOGIC
II
DOLBY PRO LOGIC IIx
(Cinema,Music,Game)
C
Surround Mode
LINEAR PCM
C
C
DTS NEO:6
DOLBY PRO LOGIC
II
DOLBY PRO LOGIC IIx
(Cinema,Music,Game)
C
D. D. (5.1 ch)
DOLBY DIGITALDTS
C
C
E
DOLBY DIGITAL EX
DOLBY DIGITAL
DOLBY DIGITAL +PL IIx
(Cinema,Music)
C
Input signals
2 Differences in surround mode names depending on the input signals
COMPONENT VIDEO COMPONENT S-VIDEO VIDEO
AUTO
E
E
E
C
C
C
C
C
E
C
E
C
E
C
VIDEO
S-VIDEO
S-VIDEO
COMPONENT
COMPONENT ✳1 COMPONENT ✳2 COMPONENT ✳2
VIDEO
S-VIDEO
S-VIDEO
E
VIDEO
S-VIDEO
S-VIDEO
VIDEO
S-VIDEO
VIDEO ✳3
E
VIDEO
S-VIDEO
VIDEO ✳3
VIDEO INPUT
Mode
S-VIDEO
E
C
C
E
E
C
C
MONITOR OUT
Input signals
COMPONENT VIDEO COMPONENT S-VIDEO VIDEO
COMPONENT
E
E
E
C
C
C
C
C
E
C
E
C
E
C
E
E
E
COMPONENT
COMPONENT
COMPONENT
COMPONENT
E
E
E
E
E
E
E
E
E
E
E
E
E
E
VIDEO INPUT
Mode
S-VIDEO
E
C
C
E
E
C
C
MONITOR OUT
Input signals
COMPONENT VIDEO COMPONENT S-VIDEO VIDEO
S-VIDEO
E
E
E
C
C
C
C
C
E
C
E
C
E
C
E
S-VIDEO
S-VIDEO
E
E
S-VIDEO
S-VIDEO
E
S-VIDEO
S-VIDEO
E
E
S-VIDEO
S-VIDEO
E
S-VIDEO
S-VIDEO
E
E
S-VIDEO
S-VIDEO
VIDEO INPUT
Mode
S-VIDEO
E
C
C
E
E
C
C
MONITOR OUT
Input signals
COMPONENT VIDEO COMPONENT S-VIDEO VIDEO
VIDEO
E
E
E
C
C
C
C
C
E
C
E
C
E
C
VIDEO
E
VIDEO
E
VIDEO
E
VIDEO
VIDEO
E
VIDEO
E
VIDEO
E
VIDEO
VIDEO
E
VIDEO
E
VIDEO
E
VIDEO
VIDEO INPUT
Mode
S-VIDEO
E
C
C
E
E
C
C
MONITOR OUT
Input signals
E : Not output COMPONENT : On-screen display only displayed for SYSTEM SETUP, SURR.PARA and ON SCREEN buttons
1 : On-screen display superimposed on video signal and output2 : On-screen display superimposed on S-video signal and output3 : The on-screen display is not displayed when a cable is connected to the S-VIDEO monitor
output terminal.
C : Signal input E : No signal
Relationship between the video input signal and monitor output according to the VIDEO INPUT MODE settings
98
18
SPECIFICATIONS
2 Audio section
Power amplifier
Rated output: Front: 100 W + 100 W (8 /ohms, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
135 W + 135 W (6 /ohms, 1 kHz with 0.7% T.H.D.)
Center: 100 W (8 /ohms, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
135 W (6 /ohms, 1 kHz with 0.7% T.H.D.)
Surround: 100 W + 100 W (8 /ohms, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
135 W + 135 W (6 /ohms, 1 kHz with 0.7% T.H.D.)
Surround Back: 100 W + 100 W (8 /ohms, 20 Hz ~ 20 kHz with 0.05% T.H.D.)
135 W + 135 W (6 /ohms, 1 kHz with 0.7% T.H.D.)
Dynamic power: 120 W x 2 ch (8 Ω/ohms)
170 W x 2 ch (4 Ω/ohms) 200 W x 2 ch (2 Ω/ohms)
Output terminals: Front: A or B 6 ~ 16 /ohms
A + B 8 ~ 16 /ohms
Center, Surround, Surr. Back/ Zone2 6 ~ 16 /ohms
Analog
Input sensitivity / input impedance: 200 mV / 47 k/kohms Frequency response: 10 Hz ~ 100 kHz: +0, –3 dB (DIRECT mode) S/N: 102 dB (DIRECT mode) Distortion: 0.005% (20 Hz ~ 20 kHz) (DIRECT mode) Rated output: 1.2 V
Digital D/A output: Rated output 2 V (at 0 dB playback)
Total harmonic distortion 0.008% (1 kHz, at 0 dB) S/N ratio 102 dB Dynamic range 96 dB
Digital input: Format — Digital audio interface
Phono equalizer (PHONO input REC OUT)
Input sensitivity: 2.5 mV RIAA deviation: ±1 dB (20 Hz to 20 kHz) Signal-to-noise ratio: 74 dB (A weighting, with 5 mV input) Rated output / Maximum output: 150 mV / 8 V Distortion factor: 0.03% (1 kHz, 3 V)
2 Video section
Standard video jacks Input / output level and impedance: 1 Vp-p, 75 /ohms Frequency response: 5 Hz ~ 10 MHz +0, –3 dB
S-video jacks Input / output level and impedance: Y (brightness) signal 1 Vp-p, 75 /ohms
C (color) signal 0.286 Vp-p, 75 /ohms
Frequency response: 5 Hz ~ 10 MHz — +0, 3 dB
Color component video jacks
Input / output level and impedance: Y (brightness) signal 1 Vp-p, 75 /ohms
PB/CB signal 0.7 Vp-p, 75 /ohms PR/CR signal 0.7Vp-p, 75 /ohms
Frequency response: DC ~ 100 MHz +0, 3 dB
2 Tuner section
[FM] (note: µV at 75 /ohms, 0 dBf=1 x 10
–15
W) [AM]
Receiving Range: 87.50 MHz ~ 107.90 MHz 520 kHz ~ 1710 kHz Usable Sensitivity: 1.0 µV (11.2 dBf) 18 µV 50 dB Quieting Sensitivity: MONO 1.6 µV (15.3 dBf)
STEREO 23 µV (38.5 dBf)
S/N (IHF-A): MONO 77 dB
STEREO 72 dB
Total Harmonic Distortion (at 1 kHz): MONO 0.15%
STEREO 0.3%
2 General
Power supply: AC 120 V, 60 Hz Power consumption: 5.6 A
1 W Max (Standby)
Maximum external dimensions: 434 (W) x 171 (H) x 429 (D) mm (17-3/32 x 6-47/64 x 16-57/64”) Mass: 13.5 kg (29 lbs 12 oz)
2 Remote control unit (RC-974)
Batteries: R6P/AA Type (three batteries) External dimensions: 58 (W) x 230 (H) x 37 (D) mm (2-9/32 x 9-1/16 x 1-29/64) Mass: 230 g (Approx. 8 oz) (including batteries)
*
For purposes of improvement, specifications and design are subject to change without notice.
Printed in Japan 511 4172 007
16-11, YUSHIMA 3-CHOME, BUNKYO-KU, TOKYO 113-0034, JAPAN
Telephone: (03) 3837-5321
Loading...
