Denon ADV-1000 Service Manual

SERVICE MANUAL

For Europe model

Hi-Fi Component

MODEL

DVD SURROUND RECEIVER

ADV-1000

 Some illustrations using in this service manual are slightly different from the actual set.

16-11, YUSHIMA 3-CHOME, BUNKYOU-KU, TOKYO 113-0034 JAPAN

Telephone: 03 (3837) 5321

X0146 NC 0207

SAFETY PRECAUTIONS

The following check should be performed for the continued protection of the customer and service technician.

LEAKAGE CURRENT CHECK

Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the unit is defective.

SPECIFICATIONS



 Audio section



• Power amplifier Output power: Front: 55 W + 55 W (6 Ω/ohms, 1 kHz with 10% T.H.D.)

Output terminals:

• Analog Input sensitivity / input impedance: 200 mV / 47 kΩ/kohms Frequency response: 10 Hz ~ 60 kHz: +1.5, −3 dB (DIRECT mode) S / N : 94 dB (DIRECT mode) Rated output: 1.2 V (Subwoofer preout, 20 Hz)

• Digital Digital input / output: Format  Digital audio interface



 Video section



• Standard video jacks Input / output level and inpedance: 1 Vp-p, 75 Ω/ohms

• S-video jacks Input / output level and inpedance: Y (brightness) signal  1 Vp-p, 75 Ω/ohms

• AV1 connector Video output: 1Vp-p, 75Ω/ohms S-video output: Y (brightness) signal  1 Vp-p, 75 Ω/ohms

RGB output (DVD only): R/G/B signal  0.7 Vp-p, 75 Ω/ohms Audio output: L/R (Fixed output)



 Tuner section



Receiving Range: 87.50 MHz~108.00 MHz 522 kHz~1611 kHz Usable Sensitivity: 1.5 µV (14.8 dBf) 20 µV



 DVD section



Signal Format: NTSC/PAL Applicable discs: (1) DVD-Video discs

Audio output: Fixed output level: 2 Vrms, (CDR/TYPE, VCR OUT)



 Clock, Timer section



Clock system: Power source synchronous system Timer functions: Everyday timer (DVD or Tuner): 1 setting



 General



Power Supply: AC 230 V, 50 Hz Power Consumption: 70 W (Stand-by 1 W) Maximuim external Dimensions: 434(W) × 80 (H) × 368 (D) mm Mass: 6.0 kg



 Remote Control Unit RC-901



Type: Infrared pulse Power Supply: DC 3V, 2 R6P batteries

Center: 55 W (6 Ω/ohms, 1 kHz with 10% T.H.D.) Surround: 55 W + 55 W (6 Ω/ohms, 1 kHz with 10% T.H.D.) Subwoofer: 55 W (6 Ω/ohms, 60 Hz with 10% T.H.D.) Front, Center, Subwoofer, Surround:

C (color) signal  0.3 Vp-p, 75 Ω/ohms

[FM]

(note: µV at 75 Ω/ohms, 0 dBf=1×10

1-layer 12 cm single-sided discs, 2-layer 12 cm single-sided discs, 2-layer 12cm double-sided discs (1 layer per side) 1-layer 8 cm single-sided discs, 2-layer 8 cm single-sided discs, 2-layer 8 cm double-sided discs (1 layer per side)

(2) Compact discs (CD-DA, Video CD)

12 cm discs, 8 cm discs

Sleep timer: maximum 120 min.

6 ~16 Ω/ohms

-15

W)

[AM]

ADV-1000

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

∗ Design and specifications are subject to change without notice in the course of porduct improvement.

2

ADV-1000

DIAGNOSTICS OF OPTICAL PICKUP AND REPLACING TRAVERSE UNIT

Make failure diagnostics of the Optical Pickup as follows. If the laser drive current becomes more than 1.5 times of the initial value, the Optical Pickup should be replaced. The laser drive current is registered on the seal attached to the rear of the Mecha. Unit. In case of replacing the Pickup, change the whole part of the Traverse Unit. No mechanical adjustment is necessary after the replacement.

Disc no read, unsteady playback, etc.

Laser drive current check HF wave form check (Refer to page 76, 77)

Example:

DVD 30mA

CD 30mA

Label Indication of DVD Mechanism

Present value exceeds the initial value by 1.5 times

Traverse Unit replacing (See page 10 for details)

Laser current registering after replacement

Step: Disc playback Write the measured value on the seal attached to the Mecha. Unit * As to the measuring method, refer to page 4

Laser current consumption value ex) DVD ***mA, CD ***mA

3

ADV-1000

Note for Handling the Laser Pick-up

The protection for the damage of laser diode. If you want to change the optical device unit from any other units, you must keep the following. (1) It should be done at the desk already took measures the static electricity in care of removing the OPU's

(Optical device unit) connector cable. (2) Workers should be put on the "Earth Band". (3) It shold be done to add the solder to the short land to prevent the broken Laser diode before removing the

24P FFC cable. (4) Don't touch OPU's connector parts carelessly.

Replacement of the Laser Pick-up (Traverse Unit)

Check the Iop (Laser drive current). If the present Iop (current) value exceeds +50% of the initial value, replace the Traverse unit (Laser Pick-up) with a new one.

Iop Measurement Method

When measureing Laser drive current (Iop), playback the discs (CD, DVD) described below, measure Iop for CD Laser and DVD Laser by the test point (LD1 ~ LD4) on the DVD Main P.W.B.

Test Disc : DVD/DVDT-S01 or commercially available discs.

: CD/TCD-784 (manufactured by ALMEDIO INC) or commercially available discs.

1. DVD Laser current measurement

LD1

(SIGNAL)

(GND)

LD2

LD1

(1) Connect the oscilloscope to LD1 of test point

for GND side and LD2 of test point for signal side.

(2) Playback the title 1 / chapter 1 of the DVD

Test Disc.

(3) Measure the voltage between LD1 and LD2,

calculate Iop by the formula as shown below.

Measurement Voltage Value

Iop=

39 (Resistance Value)

2. CD Laser current measurement

(1) Connect the oscilloscope to LD3 of test point

for GND side and LD4 of test point for signal

side. (2) Playback the track 1 of the CD Test Disc. (3) Measure the voltage between LD3 and LD4,

calculate Iop by the formula as shown below.

1

LD2

LD4

(SIGNAL)

LD3

(GND)

114

15 28

114

15 28

Measurement Voltage Value

Iop=

39 (Resistance Value)

B

C

E

C

E

B

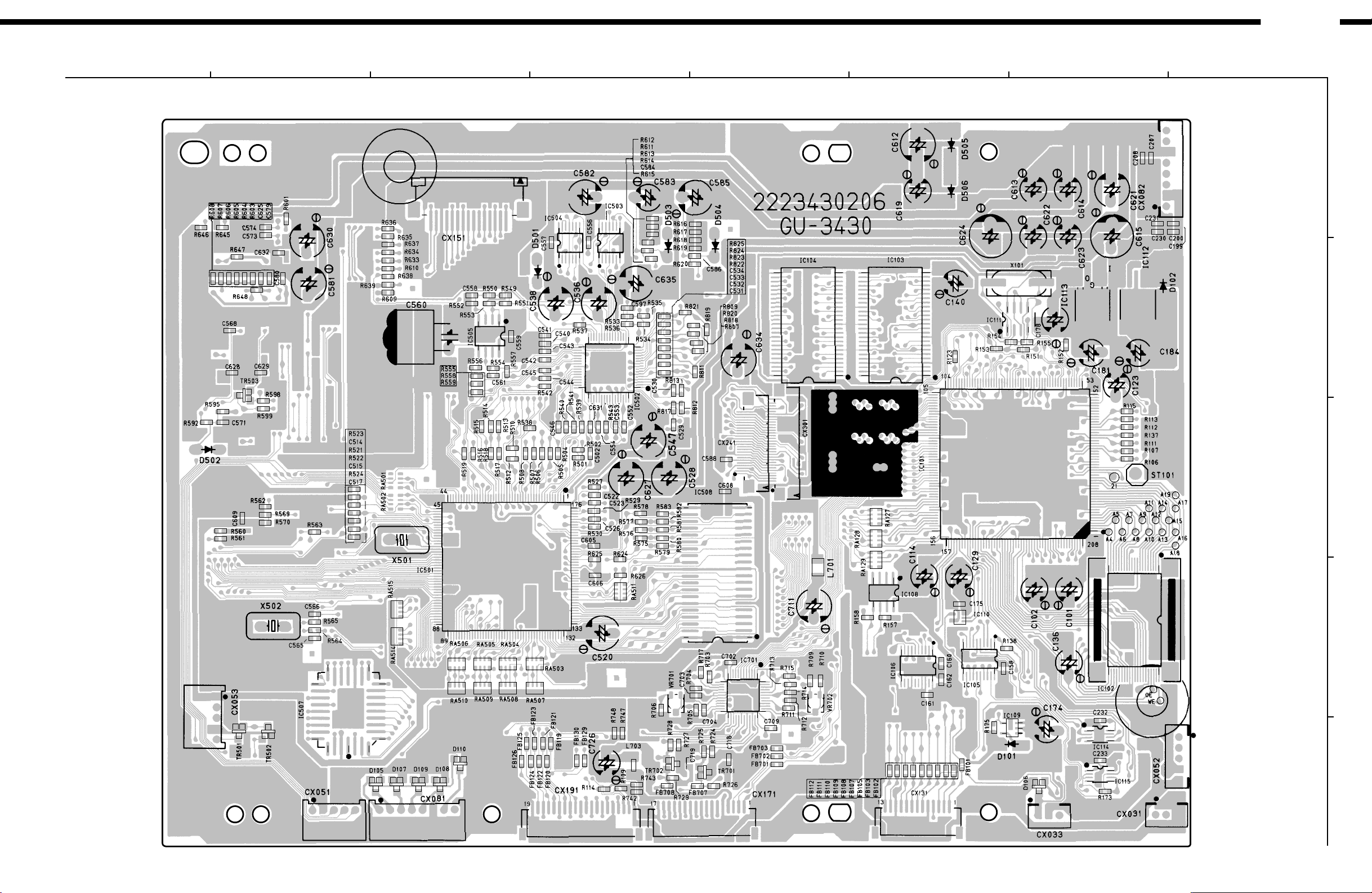

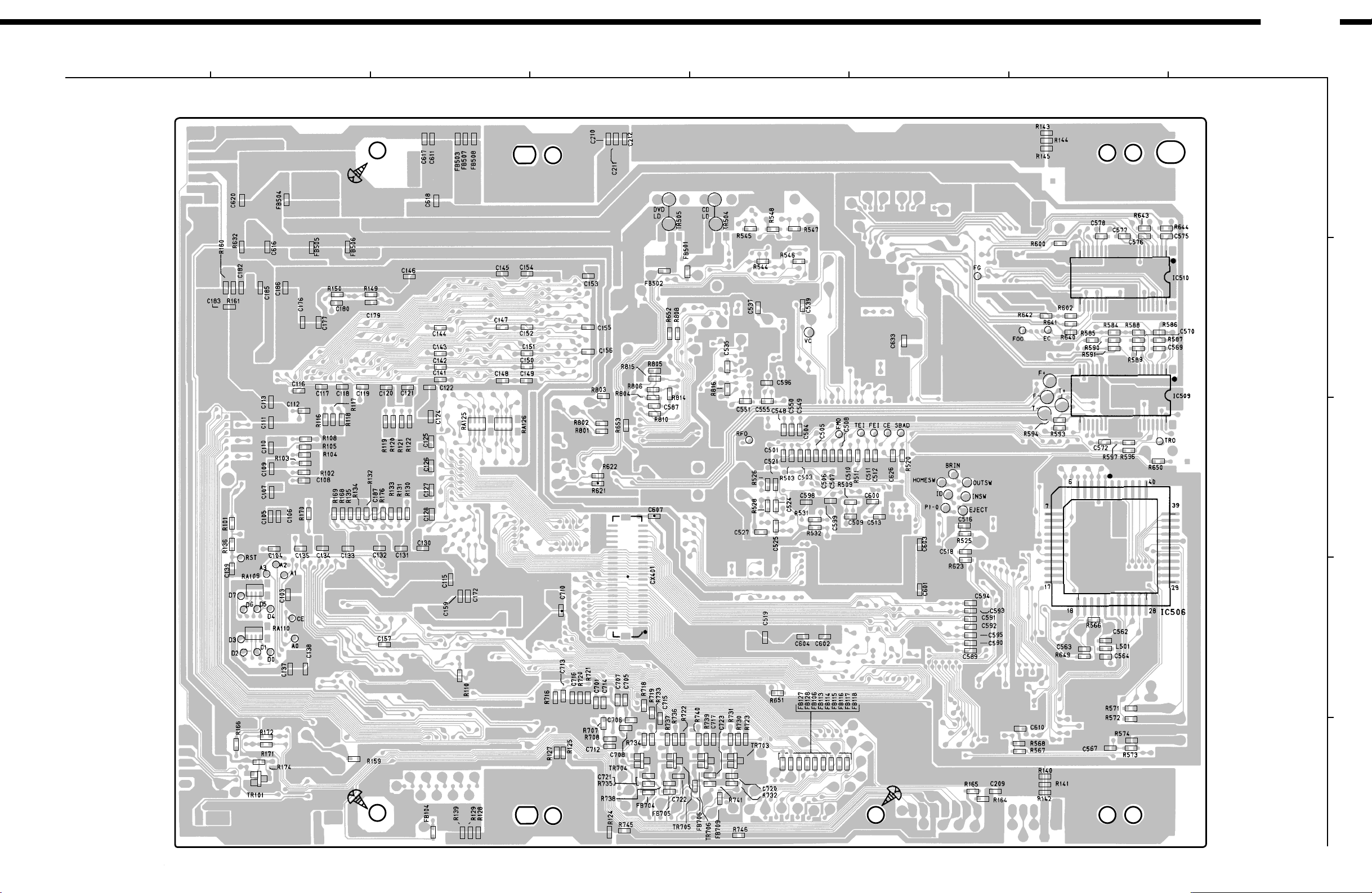

GU-3430 DVD Main Unit foil side

4

Optical Pick-up Diagnostics and Replacement

When repairing, carry out failure diagnostics by following the procedure described below. If the present value of the laser drive current is 50% up to initial value, it is the point of the pickup replacement. In case of the pickup replacement, replace the Traverse Unit with no adjustment. The initial value is indicated on the label on back side of Mecha.

NO DISC indicated, Playback not smooth, etc.

 Laser drive current check

 HF signal check

Present value: 50% up to initial value

Traverse Unit replacement (refer to page 10)

ADV-1000

Laser drive current check after replacement.

If the present value is less than 80mA, write on

the new label by hand, put on the new label over

the old label.

If the present value exceeds 80mA,

replace the Traverse Unit with a new one.

Cause: Damaged electrostatically when replaced.

5

DISASSEMBLY

( Follow the procedure below in reverse order when reassembling )

1. Top Cover

(1) Remove 4 screws 1 on both sides.

(2) Remove 6 screws

(3) Remove the top screw

(4) Detach the Top Cover to the arrow direction.

on the rear panel.

2

.

3

1

3

ADV-1000

2

2. Front Panel

(1) Remove 4 bottom screws 4 from the Front Panel.

(2) Disconnect FFC on the DSP Audio P.W.B. and 2

pcs of 3P connectors (white and blue) on the Power Supply P.W.B.

(3) With releasing the hooks on both sides, detach the

Front Panel to the arrow direction together with the Inner Panel.

3P connector (blue)

3P connector (white)

1

DSP Audio P.W.B.

FFC

Power Supply P.W.B.

4

Hook

Inner Panel

6

3. DVD Mecha. Unit

(1) Remove 4 top screws 5 on the DVD Mecha.

(2) Disconnect 2 FFCs and 2 pcs of 8P connectors

from the DVD Mecha.

5

ADV-1000

8P connector

FFC

4. Power Supply P.W.B.

(1) Disconnect FFC, 2P connector, 3P connector, and

7P connector from the Power Supply P.W.B.

(2) Disconnect 6P connector from the Amp P.W.B.

(3) Remove 4 screws

Power Supply P.W.B.

(4) Release 3 P.W.B. supports.

and the screw 8 fixing the

7

8P connector

7P connector

3P connector

7

FFC

7

6P connector

8

Power Supply P.W.B.

P.W.B. support

2P connector

Amp P.W.B.

7

5. Back Panel

(1) Take off the cord bush.

(2) Remove 5 screws 9 and 23 screws .

6. Video P.W.B.

Disconnect 3 FFCs and 3P connector.

ADV-1000

Cord bush



9



7. DSP Audio P.W.B.

(1) Remove the screw  and 3 screws  .

(2) Disconnect 3 FFCs, 3P connector, and 6P connector.

FFC

Video P.W.B.

FFC

3P connector

9



9

3P connector

DSP Audio P.W.B.



FFC

6P connector





8

8. Amp P.W.B.

(1) Remove the screw ! and 4 screws ".

(2) Disconnect FFC and 6P connector.

ADV-1000

"

6P connector

Amp P.W.B.

FFC

!

9

ADV-1000

TRAVERSE UNIT DISASSEMBLY

(Follow the procedure below in reverse order when reassembling) Caution: The optical pickup can be damaged easily by static electricity charged on human body. Take necessary anti-static

measures when repairing around the optical pickup.

1. Guide Clamp Bracket disassembly

(1) Remove 2 screws 1.

(2) Remove Guide Clamp Bracket to arrow direction.

2. Tray disassembly

(1) Remove to arrow direction.

(2) Solder the short-circuit (see in the frame).

1

Guide Clamp Bracket

Solder to Short-Circuit (DVD)

Tr a y

Solder to Short-Circuit (CD)

10

3. Traverse Unit disassembly

(1) Remove 24P FFC (CX241), 15P FFC (CX151), 5P

PH WIRE (CX051) and 3P PH WIRE (CX031)

connecting with from the DVD Main P.W.B.

(2) Remove 4 screws of

(3) Remove Traverse Unit to arrow direction.

and 3 fixing Damper.

2

15P FFC (CX151)

ADV-1000

3

24P FFC (CX241)

2

3P PH WIRE (CX031)

Damper

DVD Main P.W.B.

Note for disassembly Traverse Unit

(1) When assembling, reverse the order of the above.

(2) When inserting Tray, confirm boss on Slide Cam set to

ditch of the Tray (Compare with right drawing).

Slide gear

Tr a y

CAUTION IN SERVICING



 Initialization



Initialization should be performed when the µcom, peripheral parts of µcom, and DVD Main P.W.B. are replaced.

Boss

How to initialize

 At the player is in the state of AC OFF, turn the AC ON with pressing the PLAY ( ) and STOP ( ) buttons simultaneously.

Check that the Standby LED lights orange and the initialization has been activated. (until "INITIALIZE" disappears from

the FL display).

Note: All user settings will be lost and its factory setting will be recovered when this initialization is made. So make sure to

memorize your setting for restoring after the initialization.

11

TROUBLESHOOTING

1. No power (LED doesn't light.)

Check connector insertion.  P. SUPPLY (1U-3434-2):

[CX171/CX033]

 DSP/AUDIO (1U-3435-3):

[CY171/CY191]

No

Re-insert the connector.

ADV-1000

When replacing µcom, µcom peripheral parts, or Main P.W.B. in servicing, perform initializing of the DVD player. (AC power on while pressing "STOP" and "PLAY" buttons of the unit.)

Check voltage of IC907 input [+10V] on P. SUPPLY P.W.B.

Check voltage of IC907 output [+5V] on P. SUPPLY P.W.B.

Check voltage of IC303 (6)pin RESET signal [+5V] on DSP/AUDIO P.W.B.

2. No power (LED lights.)

Check connector insertion.

 P. SUPPLY (1U-3434-2): [CX033]  DSP/AUDIO (1U-3435-3): [CY191]

Check soldering of T901 secondary

No

circuit.

Check short-circuit of power line further

No

CX171 connection.

Check soldering of IC302, IC303 on

No

DSP/AUDIO P.W.B.

No

Re-insert the connector.

Check after replacing IC303 on DSP/

No

AUDIO P.W.B. (1U-3435-3), then change IC302 if still NG.

Check voltage of FFC wire.  [CY191] 19P FFC for DSP/AUDIO P.W.B.: 3+5V/

Check voltage of power wire.  [CX033] 3P PH for DISPLAY P.W.B.: 1+5V/

Perform check from the step where is marked in the item 3.

1 2

GND

2

3

GND

No

Refer to "6. Switching power no output".

No

Refer to "6. Switching power no output".

12

3. DVD no operation (MECHA ERR display)

Check connector insertion.  P. SUPPLY (1U-3434-2):

[CX171/CW035]

 DVD MAIN (GU-3430):

[CX081/CX082]

 Mecha. Unit: [CX241/CX151/CX051]

No

Re-insert the connector.

ADV-1000

Check voltage of power wire.  [CX071] 7P PH for P. SUPPLY P.W.B.:

+5V/ +12V/ GND]

Perform operation check after

changing DVD MAIN P.W.B. (GU-3430) with a perfect one.

No

Refer to "6. Switching power no output".

There is something wrong in DVD MAIN

No

P.W.B. (GU-3430).

Check IC101(49)XIN, (105)CLK, (116)PCLK2X 27MHz output on DVD MAIN P.W.B.

There is something wrong in DVD MAIN P.W.B. (GU-3430).

Check IC101(39)MCLK 94.5kHz output on DVD MAIN P.W.B.

There is something wrong in DVD MAIN P.W.B. (GU-3430).

Check IC101(160)AUX0, (161)AUX1 on DVD MAIN P.W.B. whether SCK and SDA signal of IIC BUS outputted when power on.

After checking soldering of IC106 and

No

IC101 on DVD MAIN P.W.B. (GU-3430), replace IC101 if NG. Then change IC106 if still NG.

No

Change IC101 on DVD MAIN P.W.B. (GU-3430).

After checking soldering of IC108,

No

IC701, and IC101 on DVD MAIN P.W.B. (GU-3430), replace IC101 if NG. Change IC108 then IC701 if still NG.

Check soldering of IC101 (208P IC) on DVD MAIN P.W.B. (GU-3430).

Perform re-soldering.

Check IC501(50)IDERST +5V output on DVD MAIN P.W.B. (GU-3430).

Check laser drive current and HF waveform. Criterion: Iop exceeds 1.5 times of the initial value.

Replace the traverse unit.

Write laser current after the replacement.

No

Check soldering of R522, RA127, and IC101(145) on DVD MAIN P.W.B. (GU-3430).

Perform re-soldering.

13

4. No video output (Interlace)

ADV-1000

Check YUV signal.  Check if signals are output from

IC101(106, 107, 108, 109, 110, 113, 114, 115 pins) on P.W.B. (GU-3430).

Check analog video signal1.  Check if signals are output from

IC701(24, 25, 29, 33, 35 pins) on P.W.B. (GU-3430).

Check analog video signal2.  Check if signals are inputted to

IC206(3)C, (5)Y, (8)PY, (12)Pb, and (14)Pr on P.W.B. (1U-3443-1).

Check analog video signal3.  Check if signals are output from

IC206(17)Pr, (19)Pb, (21), (22)PY, (24), (25)Y, (29), (30)Composite, and (32)C on P.W.B. (1U-3443-1).

Check soldering of RA125, RA126,

No

IC701, and IC101 on DVD MAIN P.W.B. (GU-3430).

No

Check soldering of IC701 on DVD MAIN P.W.B. (GU-3430).

Check soldering of components (Tr, C,

No

R) in the Y-sig. Amp circuit, C-sig. Amp circuit, and Component Amp circuit.

No

Check soldering of IC206 on P.W.B. (1U-3443-1).

No

Check by replacing IC101 on DVD MAIN P.W.B. (GU-3430).

No

Check by replacing IC701 on DVD MAIN P.W.B. (GU-3430).

No

Check by replacing IC206 on P.W.B. (1U-3443-1).

Check analog video signal4.  Check if signals are output from 1-pin

of IC201 (Composite), IC202(C), and IC203(Y) on P.W.B. (1U-3443-1).

No

Check soldering of IC201, IC202, or IC203 causing NG on P.W.B. (1U-3443-1)

No

Check by replacing NG IC (201 ~ 203) on P.W.B. (1U-3443-1).

14

5. No analog signal output (Audio)

ADV-1000

Check audio digital signal.  Check if signals are output from

IC101(32)TWS, (33)TSD0, (39)MCLK, and (40)TBCK.

Check analog audio signal1.  Check if signals are output from IC401

(12)R-sig., (13)R-sig., (16)L-sig., and (17)L-sig.

Check analog audio signal2.  Check if signals are output from

IC404 (7)R-sig. and (1)L-sig.

Check soldering of chip emi-fil put in

No

series to IC101 on DVD MAIN P.W.B. (GU-3430).

No

Check soldering of IC401 on DSP/ AUDIO P.W.B. (1U-3435-3).

No

Check if 12V power is supplied to IC402 on DSP/AUDIO P.W.B. (1U-3435-3).

Check soldering of IC402 on DSP/ AUDIO P.W.B. (1U-3435-3).

Check by replacing IC101 on DVD MAIN

No

P.W.B. (GU-3430).

No

Check by replacing IC401 on DSP/ AUDIO P.W.B. (1U-3435-3).

No

Refer to "6. Switching power no output".

Check by replacing IC402 on DSP/

No

AUDIO P.W.B. (1U-3435-3).

6. Switching power no output

Check fuse  Check if F901 (6.3A/125V) is blown out.

Check actuating voltage.  [IC201]: 4+17~18VDC/5GND

Check soldering of IC201 and primary

No

rectifier diode on P. SUPPLY P.W.B. (1U-3434-2).

No

Check if the secondary regulator circuit in P. SUPPLY P.W.B. (1U-3434-2) is shorted or solder-touched.

Check by replacing shorted or soldertouched element in the secondary regulator circuit in P. SUPPLY P.W.B. (1U-3434-2).

Check by replacing IC901 on P. SUPPLY

No

P.W.B. (1U-3434-2).

Check if the power lines of CX071,

No

CW035, CW061, CX171, and CX033 on P. SUPPLY P.W.B. (1U-3434-2) are short-circuited further their connections.

15

BLOCK DIAGRAM

AVD-1000

1

2

3

4

DVD ENGINE UDVD-10

DVD MECHA FRONT-END CIRCUIT

1U-3435-1 DISPLAY UNIT

ROTARY ENCODER

REMOCON

RPM6938-V4

FL TUBE

15-ST-36GN

FL DRIVER

M66005FP

KEY

DVD DECODER DVD DSP VIDEO

CPU

ROM RAM

DOWNMIX OUT

BITSTREAM OUT

ES4408

YUV DATA

D/A

AD7172

5

EEPROM 16k

S29590A

1U-3443-1

VIDEO UNIT

R

B

G

Y

C

A

C

Y

C

BH7862

VIDEO DRIVER

with Filter

BU4053

R

B

G

Y

C

BA7625

BA7626

76

BA7660

MUTE

Y

C

SCART UNIT

Y

C

Y

C

Y

C

Y

C Y

C

1U-3434-3

SCART TERMINAL

VCR IN

TV/DBS IN

V.AUX IN

MONITOR OUT

VCR OUT

VCR IN

TV/DBS IN

8

A

AV1 VIDEO OUTPUT

B

S-VIDEO

OPT OUT

DIGITAL IN/OUT

AUDIO IN/OUT

SUB WOOFER OUT

OPT IN1

OPT IN2

V.AUX IN

TV/DBS IN

CDR/TAPE IN

VVCR OUT

CDR/TAPE OUT

PRE OUT

TV/DBS

V.AUX

VCR IN

TUNER PACK

L/R

MUTE

RDS

LC72720NM

LRCK

BCK MCK

D/A CONVERTER

AD1854KSRL

MUTE

V

V.AUX IN

MONITOR OUT

VCR OUT

1U-3435-2

H/P UNIT

FL

FR

C

SW

SL

SR

H/P

SPEAKER OUT

COMPOSITE VIDEO

C

D

E

CPU

M30624FGFP

V

1U-3435-3 AUDIO/DSP UNIT

SPDIFSDATRA

DIR AUDIO DSP

LC89055W CS493292

BA15218

A

A/D CONVERTER

CODEC

AK4527

6ch D/A CONVERTER

ROM

2Mbit

BA15218 BA15218

FL

MUTE

FR

MUTE

C

MUTE

SL

MUTE

SR

MUTE

LFE

MUTE

[+6dB]

SUB SUM

BA15218

DATA CLK

[0dB]

0/+6dB

VR

FUNCTION/VR/TONE/SDB

BD3811K1

PASS

SWITCHING

DSP/EXT/DIRECTBASS/TREBLE SDB

INPUT GAIN AMP

H/P AMP

OUTPUT GAIN

0~+18dB

2dBstep

[0dB]

Max output

4.2Vrms

VR MUTE

PRE AMP

MUTE

ALC MUTE

LPF

MUTE

SW MUTE

MUTE

BA7625

1U-3434-1 AMP UNIT

CLASS-D POWER AMP

TC2000

TP2050

PWM

FET

Modulator

Driver

TC2000

TP2050

PWM

FET

Modulator

Driver

TC2000

TP2050

PWM

FET

Modulator

Driver

MUTE

H/P MUTE

SP RELAY

RELAY FR RELAY C RELAY SW RELAY SR

16

LEVEL DIAGRAMS

D/A

VR

PRE AMP POWER AMP

+

SP OUT

+

D/AOUT

LPF

D/A OUT

0dBFS

-10dBFS

-20dBFS

6dB

Vol:0: -18dB (-15dB)

15.63dB

22.17dB

SP OUT 40W/6ohm (15.5Vrms)

CENTER REAR

Only when Dolby Prologic

ANALOG

IN

200mV

ANALOG

IN

200mVrms

+

BUFF.

AMP

D/AOUT

LPF

DIRECT

DSP

REV. AMP

A/D DSP D/A

VR

PRE AMP POWER AMP

config1: OFF config2: ON

FROM S.W

+

H/P AMP

+

SP OUT

H/P JACK

FRONT

-12dB

A/D IN D/A OUT

0dBFS

-10dBFS

-20dBFS

6dB

Only when Dolby Prologic

H/P

30dB

15.63dB

22.17dB

SP OUT 40W/6ohm (15.5Vrms)

ADV-1000

1 5678

32

4

A

B

C

D

E

17

ADV-1000

VR

+

+ +

SP OUT

SW PRE OUT

+

D/AOUT

FROM

DSP

LPF

LINE AMP

0dBFS

-10dBFS

-20dBFS

-30dBFS

-35dBFS

6dB

Config-1

Config-2

2.85dB (8.85)

Vol: 0

-18dB

3.31dB (12.16)

7.5dB

To FRONT CH

17.84dB (30)

22.3dB (37.2)

-15.1dB (14.9)

22.17dB

SP OUT

SW PRE OUT

40W/6ohm (15.5Vrms)

VOLMAX: 0.55Vrms VOL"00": 0.07Vrms

SUB WOOFER

D/A

PRE AMP

POWER

AMP

MUTE

1 5678

32

4

A

B

C

D

E

18

CLOCK FLOW

ADV-1000

1 5678

32

4

A

B

C

D

E

19

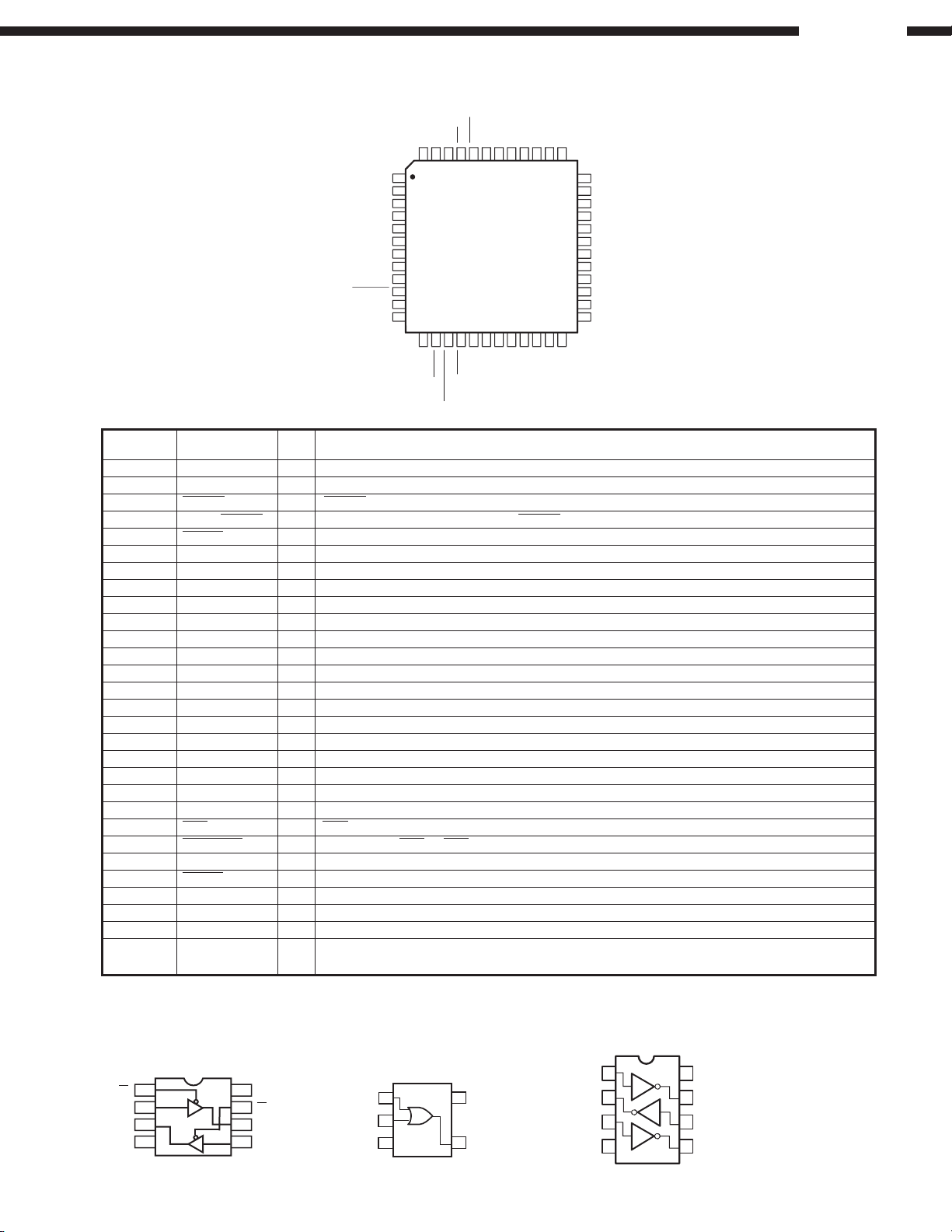

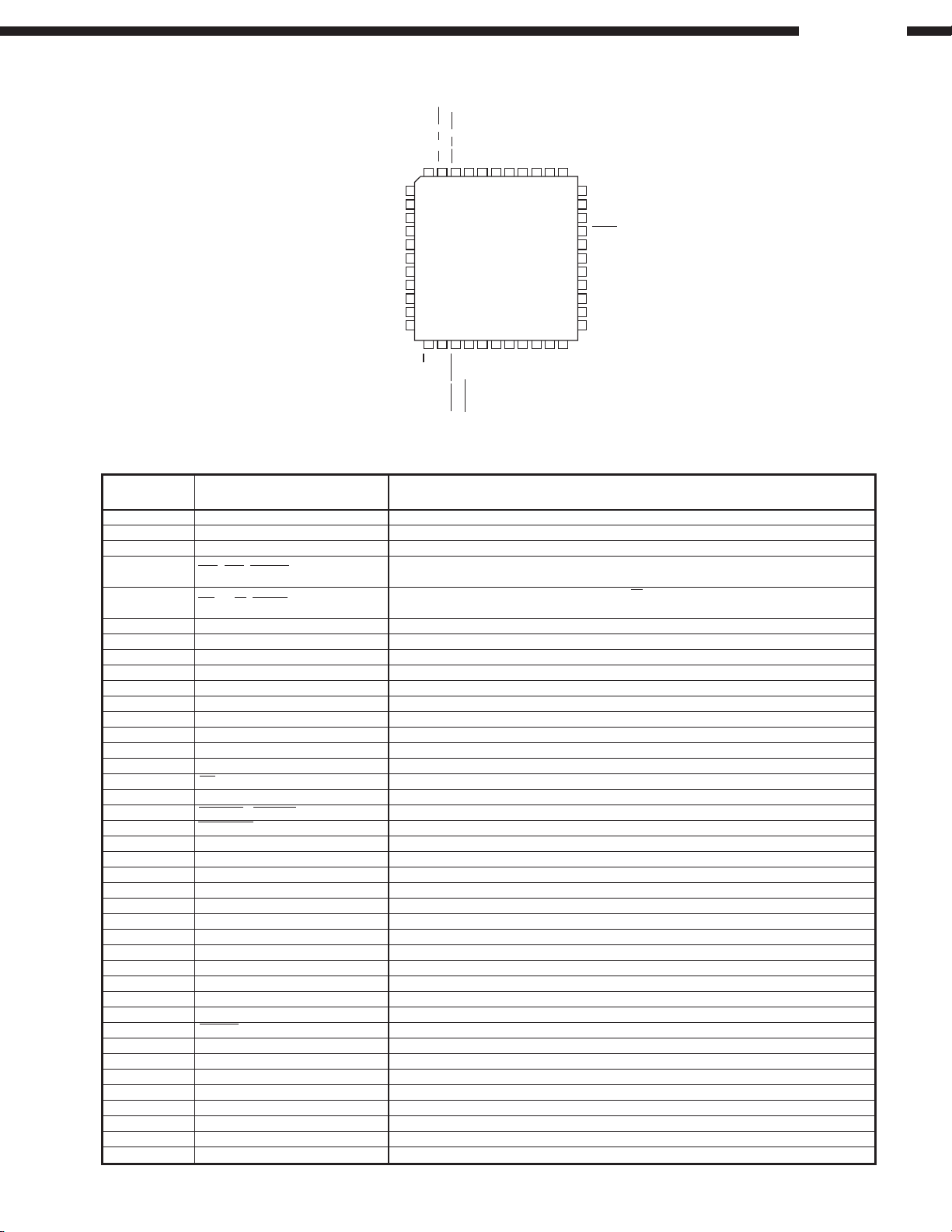

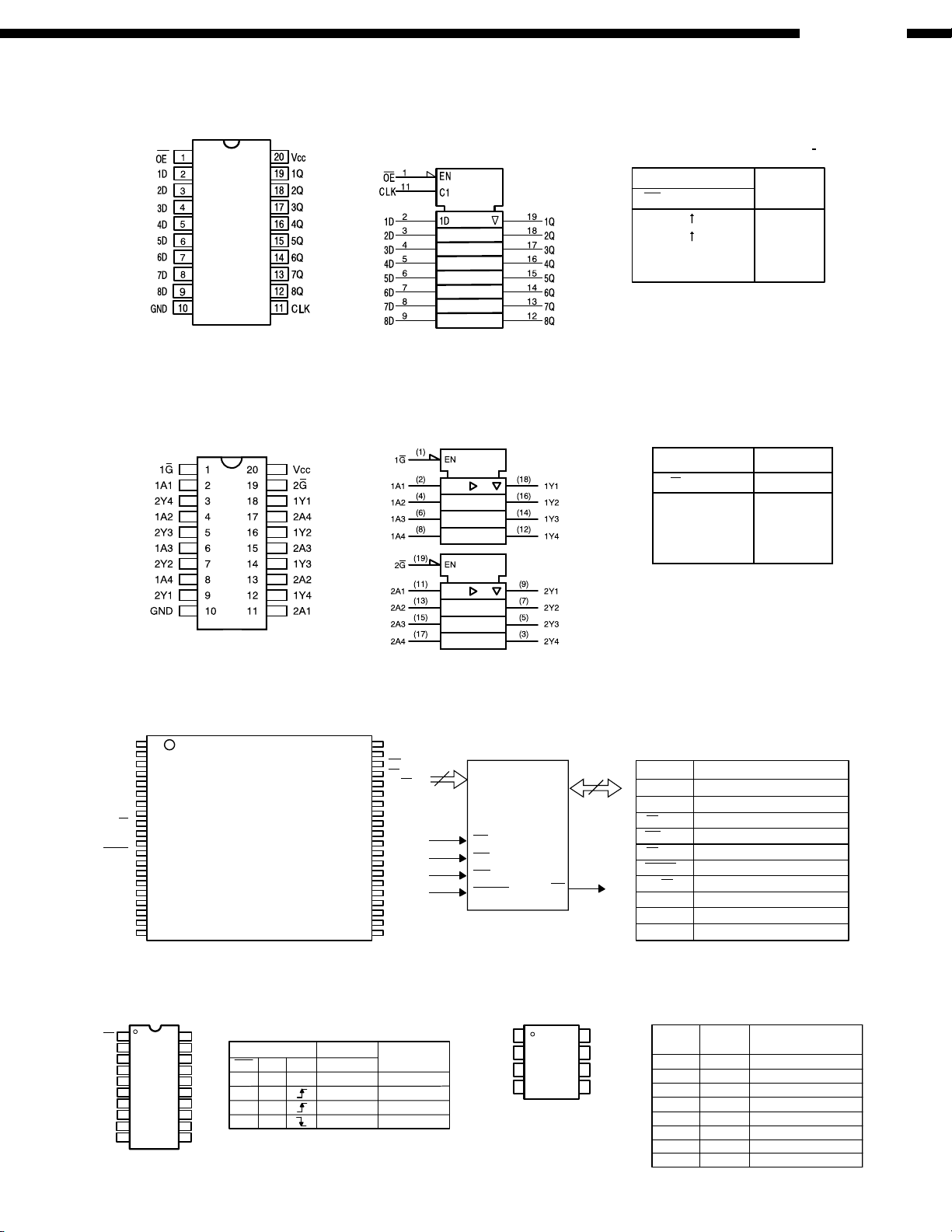

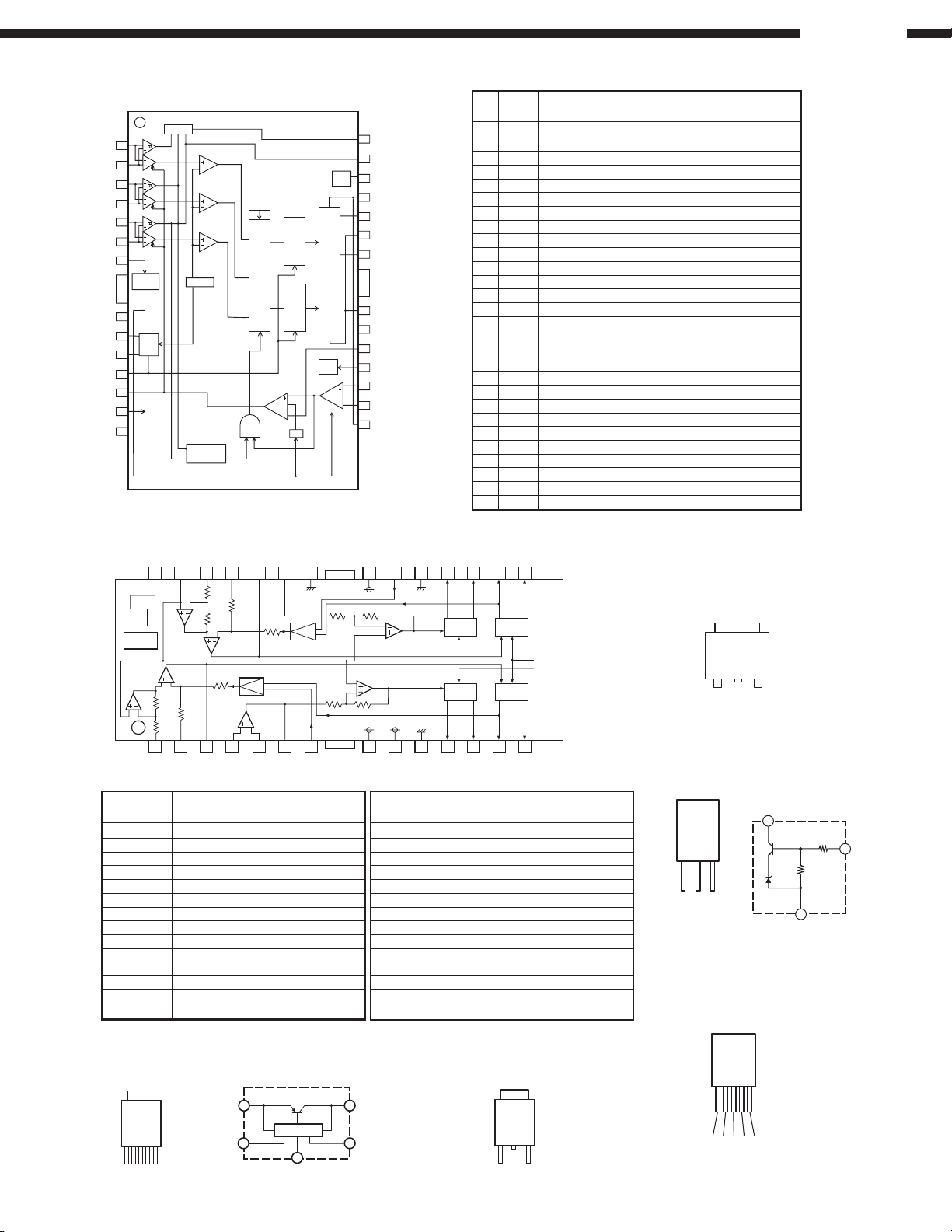

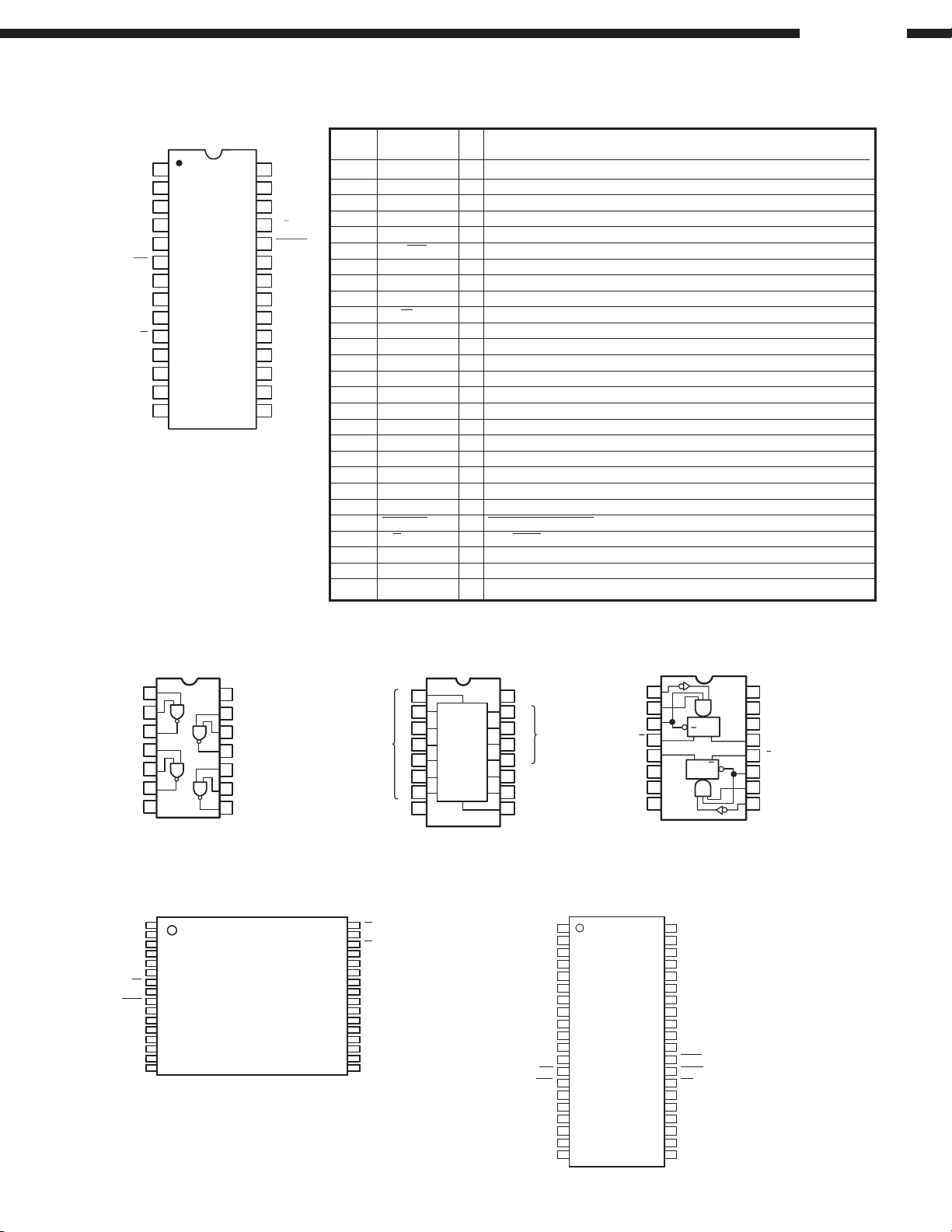

SEMICONDUCTORS



 IC's



Note: Abbreviation ahead of IC No. indicates the name of P.W.B. AP: AMP / Power P.W.B. MA: Main P.W.B. VO: Video / Out P.W.B. DM: DVD Main P.W.B.

M30624FG (MA: IC302)

P10

7

P9

6

/ANEX1/S

5

/ANEX0/SLK4

P9

3

/INT

11

12

13

/D

3

4

5

P1

75

74

P12/D

10

P1

P0

7

/AN7/KI

6

/AN6/KI

5

/AN5/KI

4

/AN4/KI

P10

3

P10

2

1

P10

AV

0

/AN

P10

AV

/AD

TRG/SIN

76

2/D9

77

0/D8

78

7/D7

79

6/D6

80

5/D5

81

4/D4

82

3/D3

83

2/D2

84

1/D1

85

0/D0

86

3

87

2

88

1

89

0

90

/AN

3

91

/AN

2

92

/AN

1

93

SS

94

0

95

V

REF

96

CC

97

4

98

OUT

4

99

73

100

1

2

3

)

0

4

/INT

14

/D

6

P1

72

4

1

5

/-)

/D

0

1

2

/INT

(/D

15

0

1

2

/D

/A

7

0

1

2

P2

P1

71

70

69

68

5

6

7

8

ADV-1000

)

2

/D

3

(/D

3

/A

3

P2

67

9

)

3

4

5

6

)

/D

4

5

(/D

4

5

/A

4

5

P2

66

65

10

11

7

/D

6

7

(/D

(/-/D

6

7

8

9

10

11

12

13

14

15

16

/A

6

7

0

1

SS

CC

P2

V

P3

P2

64

12

V

P3

63

62

61

60

59

13

14

15

16

17

/A

2

3

4

5

P3

58

57

56

55

18

19

20

21

17

/A

6

7

0

1

P3

P4

54

53

52

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

22

23

24

25

2/A18

P4

3/A19

P4

4

/CS0

P4

5

/CS1

P4

6

/CS2

7

/CS3

P4

0

/WRL/WR

P5

1

/WRH/BHE

2

/RD

P5

3

/BCLK

4

/HLDA

P5

5

/HOLD

P5

6

/ALE

7

/RDY/CLK

OUT

P5

0

/CTS0/RTS

0

P6

1

/CLK

0

P6

2

/RXD

0

3

/TXD

0

P6

4

/CTS1/RTS1/CTS0/CLKS

P6

5

/CLK

1

P6

6

/RXD

1

P6

7

/TXD

1

0

/RXD2/SDA/TA0

P7

1

/RXD2/SCL/TA0IN/TB5

2

/CLK2/TA1

OUT

P7

1

OUT

IN

/V

2

1

IN

/TB4

1

/DA

4

P9

IN

/TB3

0

/DA

3

P9

3

OUT

/S

IN

/TB2

4

P9

3

IN

/S

IN

/TB1

1

P9

/CLK3

IN

/TB0

0

P9

IN

SS

CIN

/X

7

BYTE

CNV

P8

SS

CC

X

OUT

V

COUT

/X

6

RESET

P8

V

X

/NMI

5

P8

0

IN

/U

IN

/INT

4

P8

out

/INT

3

2

/TA3

7

/TA4

P8

/TA4

1

P7

0

P8

/V

/W

OUT

IN

out

/TA3

/TA1

6

/TA2

2

/TA2

5

4

P7

/RTS

2

/CTS

3

P7

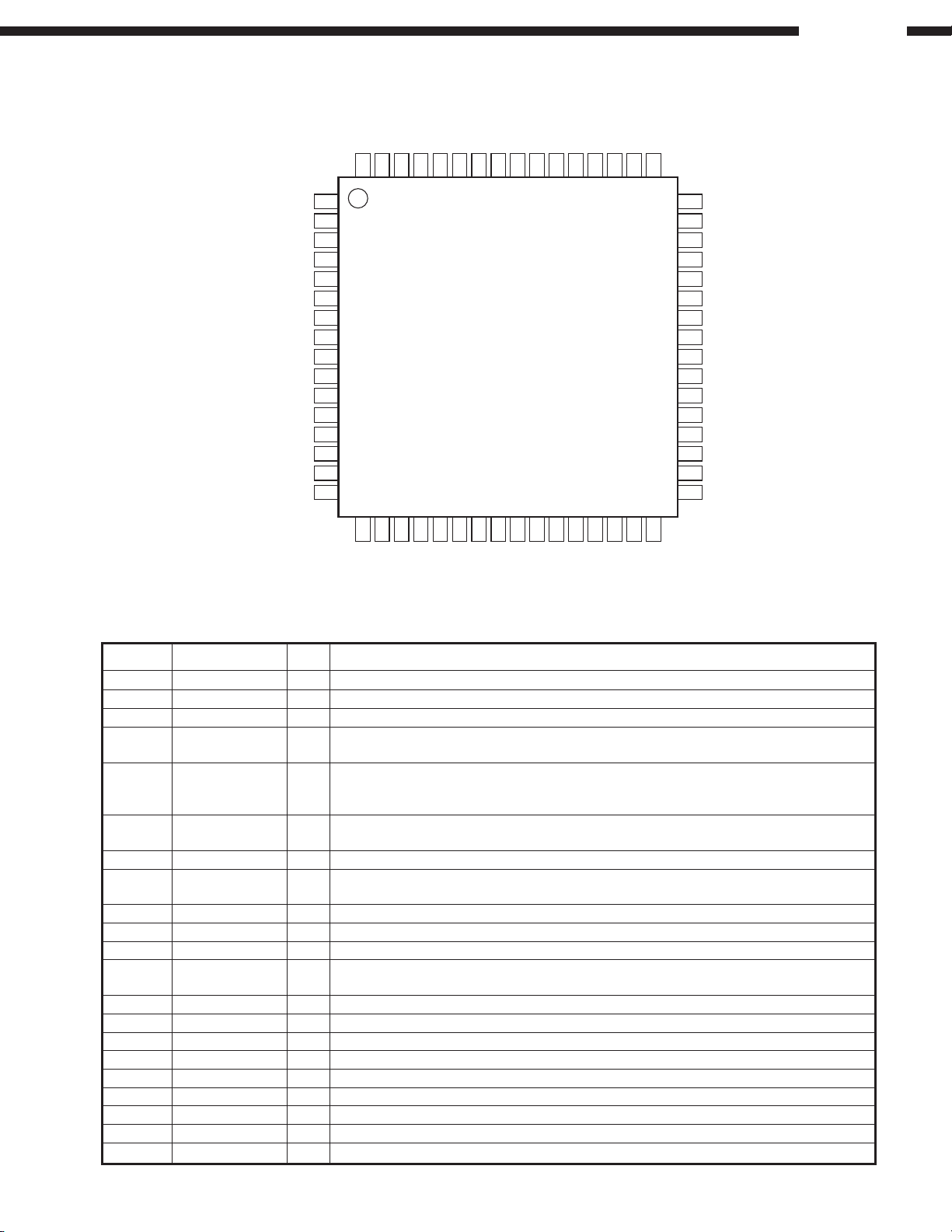

M30624FG Terminal Function

Pin No.

Port Name Function

Symbol

1 P94 E2P CS Chip select signal to EEPROM

2 P93 62446 LATCH Serial data latch to E. VR IC

3 P92 62446 DATA, E2P DI, FUNC DA Serial data to EEPROM/E. VR IC/Input Switch IC

4 P91 E2P DO Serial data from EEPROM

5 P90 62446 CLK, E2P SK, FUNC CLK Serial clock to EEPROM/E. VR IC/Input Switching IC

6 BYTE (VSS) GND

7 CNVSS (PullDown), FLASH CNVss Flash write mode select input

8 P87 BUS ON/OFF Serial data/clock separate command output to E. VR IC

9 P86 FUNC CE(STB) Data latch to Input Switch IC

10 RESET RESET Reset input

11 XOUT XTAL(12.5MHz) Oscillator output (12.5 MHz)

12 VSS (VSS) GND

13 XIN XTAL(12.5MHz) Oscillator input (12.5 MHz)

14 VCC (VCC) Power supply

15 P85 (PullUp) NMI, not used

16 P84 PROTECT Speaker and Drive IC abnormal detect

17 P83 /CS Comm. chip select input with DVD

20

ADV-1000

Pin No.

Port Name Function

18 P82 RESERVED(DENON BUS) Arbitration input on DENON BUS (same as serial data)

19 P81 50/60 Detect input of power pulse (50/60 Hz)

20 P80 FAN ON/OFF Fan motor drive output

21 P77 IN JOGB JOG pulse input B for function switching

22 P76 IN JOGA JOG pulse input A for function switching

23 P75 VOL JOGB JOG pulse input B for VOL

24 P74 VOL JOGA JOG pulse input A for VOL

25 P73 FLCS Chip select output to FL Driver IC

26 P72 RESERVED(DENON BUS) Serial sync clock output on DENON BUS

27 P71 RESERVED(DENON BUS) Serial data input on DENON BUS

28 P70 RESERVED(DENON BUS) Serial data output on DENON BUS

29 P67 FLDA, FLASH TxD Serial data output to FL Driver IC

30 P66 PULL DOWN, FLASH RxD Open pin, serial data input at flash write

31 P65 FLCK, FALSH MODE, FLASH CLK Serial clock output to FL Driver IC

32 P64 FL RESET, FLASH BUSY Reset output to FL Driver IC

33 P63 sDATAout(DVD) Serial comm. output with DVD

34 P62 sDATAin(DVD) Serial comm. input with DVD

35 P61 SCLK(DVD) Serial comm. clock input with DVD

36 P60 PWRON(DVD) Power control output for DVD unit

37 RDY/P57 /RESET Reset output to DVD unit

38 ALE/P56 H/P SW Headphone on/off detect input

39 HOLD/P55 LED G, FLASH EPM Control output to power indicator LED green

40 HLDA/P54 /DFRES Reset detect signal for DVD unit

41 BCLK/P53 DVD ON/OFF Power control output for DVD unit

42 RD/P52 RGB H Composite/S/RGB switching, aspect ratio switching

43 WRH/BHE/P51 VCNT1/YC H Aspect ratio switching input (16:9, 4:3LB, 4:3)

44 WRL/WR/P50 LED R, FLASH CE Control output to power indicator LED red

45 CS3/P47 VCNT2/WIDE Aspect ratio switching input (16:9, 4:3LB, 4:3), WIDE

46 CS2/P46 DSEL1 Digital in/out select output

47 CS1/P45 S-SEL Select output of monitor source internal/external

48 CS0/P44 A Select output A of external input source

49 A19/P43 B Select output B of external input source

50 A18/P42 C Select output C of external input source

51 A17/P41 SCART MUTE Mute output of SCART pin

52 A16/P40 TEMP Temp. sensor input

53 A15/P37 DSEL2 Open

54 A14/P36 SDB ON/OFF SDB ON/OFF output

55 A13/P35 FRT MUTE(VR MUTE) Mute output of all channel (mute output of front channel)

56 A12/P34 SW MUTE Mute output of sub-woofer channel

57 A11/P33 RL FRONT Speaker relay ON/OFF output of front channel

58 A10/P32 RL SURR Speaker relay ON/OFF output of surround channel

59 A9/P31 RL CENT Speaker relay ON/OFF output of center channel

60 VCC (VCC) Power supply

61 A8/P30 RL HP Headphone relay ON/OFF output

62 VSS (VSS) GND

63 A7/P27 OPEN Open

64 A6/P26 STEREO Tuner’s stereo indicator input

65 A5/P25 TUNED Tuner’s station detect input

66 A4/P24 T.MUTE Tuner’s mute output

67 A3/P23 SANYO CE Comm. chip enable output to PLL/RDS IC of tuner

68 A2/P22 SANYO DI Serial data output to PLL/RDS IC of tuner

69 A1/P21 SANYO CLK Serial clock output to PLL/RDS IC of tuner

70 A0/P20 SANYO DO Serial data input from PLL/RDS IC of tuner

71 D15/P17 INTREQ OUT Comm. request input from surround DSP

Symbol

21

ADV-1000

Pin No.

Port Name Function

Symbol

72 D14/P16 89055 CSFLAG Signal change detect input from DIR

73 D13/P15 REMOTE IR remote control input

74 D12/P14 /SYR Reset output to RDS IC of tuner

75 D11/P13 INTREQ IN Open drain operation (L: output, H: switch to input)

76 D10/P12 4932 CE Serial comm. chip enable output to surround DSP

77 D9/P11 4932 RST Reset output to surround DSP

78 D8/P10 4527 CE Serial comm. chip enable output to CODEC(AD/DA)

79 D7/P07 ROM/RAM ROM/RAM used surround DSP select output

80 D6/P06 ROM2 ROM address used surround DSP select output

81 D5/P05 ROM3 ROM address used surround DSP select output

82 D4/P04 ROM30 ROM address used surround DSP select output

83 D3/P03 ERR MUTE Digital mute output when error

84 D2/P02 SEL CLK Data clock select output

85 D1/P01 4527 RST Reset output to CODEC

86 D0/P00 89055 CE Serial comm. enable output to DIR

87 P107 96 DET 96kHz sampling signal detect input from DIR

88 P106 89055 ERR Error input from DIR

89 P105 89055 RST Reset output to DIR

90 P104 P.ON/OFF Whole unit’s power ON/OFF (standby) output

91 P103 AAC AAC function on/off select input

92 P102 MODE1 Unit’s operation spec select input

93 P101 KEY 0 Button operation detect input

94 AVSS (VSS) GND

95 P100 KEY 1 Button operation detect input

96 VREF (VCC) Ref. V input for A/D conversion

97 AVCC (VCC) Power supply

98 P96 89055 DO, 4932 DO Serial data input from DIR/CODEC/DSP

99 P97 89055 DIN, 4527 DIN, 4932 DIN Serial data output to DIR/CODEC/DSP

100 P95 89055 CLK, 4527 CLK, 4932 CLK Serial clock output to DIR/CODEC/DSP

LC72720NM (MA: IC511)

VREF

MPXIN

Vdda

Vssa

FLOUT

COIN

XOUT

1

2

3

4

5

6

7

T1

8

T2

9

T3

10

T4

11

T5

12

24

23

22

21

20

19

18

17

16

15

14

13

SYR

CE

D1

CL

D0

RDS-1D

SYNC

T7

T6

Vddd

Vssd

XIN

1

2

8

7

18

16

17

3

4

REFERENCE VOLTAGE

ANTIALIASING FILTER

26 BIT SHIFT REGISTER x 2

SYNDROME REGISTER AND ERROR CORRECTION

SOFT DECISION

SC-BANDPASS FILTER (57kHz)

GROUP AND BLOCK SYNC DET

SMOOTHING FILTER

BUFFER RAM (24 BLOCK)

DATA RAM 16 BIT

1965

RDS DETECTOR

COMPARATOR

FRAG RAM 16 BIT

ARI DETECTOR

PARALLEL TO SERIAL

S

W

D (

Ð

90°)

D-PLL (D-YCO)

Ð 0

°)

D (

TIMING GENERATOR AND SYSTEM CONTROLLER

BIPHASE DECODER

PC

POWER ON RESET

1415

DIFFRENTIAL DECODER

CLOCK RECOVERY (D-YCO)

XTAL OSC AND DIVIDER

CCB INTERFACE

11

10

9

13

12

20

21

22

23

24

22

BD3811K1 (MA: IC504)

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65

47k

IN31

1

IN32

2

IN41

3

IN42

4

IN51

5

IN52

6

IN61

7

IN62

8

IN71

9

IN72

10

IN81

11

IN82

12

INDVDSR

13

INDVDSL

14

INDVDC

15

INDVDSW

16

OUT2(+)

17

OUT2(-)

18

OUT1(+)

19

OUT1(-)

20

IN1DSP

21

IN1MIX

IN2DSP

IN2MIX

47k

22

47k

23

24

25 26

BD3811K1 Pin Description

IN22

47k

INDSPSR

IN21

IN12

IN11

ROUT32

ROUT31

ROUT22

ROUT21

ROUT12

ROUT11

AGND10

GOUT2

VIN2

47k

GOUTSW

RECSW

23

VINSW

AGND2

REC SW1

REC

INSW

LINE R/L MIX LINE R/L MIX

5.1ch Mode SW1

GOUTC

VINC

OUTSW

OUTC

OUTSL

RECSW

1 2

3

1 2

3

Input mute SW

5.1ch Mode SW2 DVD

47k

5.1ch Mode SW2 DSP

47k

27 28 29 30 31 32 33 34 35 36 37 38 39 40

INDSPSL

INDSPC

INDSPSW

AGND1

TREBLE

LOGIC

AGND9

BASS

BOOST

OUTSR

GOUT1

VCC

VEE

VINSL

VIN1

GOUTSL

64

63

62

61

60

59

58

57

56

55

54

53

52

51

50

49

48

47

46

45

44

43

42

41

ADV-1000

TNF2

TNF1

BNF11

BNF21

BNF12

BNF22

BBNF2

OUT2

BBNF1

OUT1

AGND8

AGND7

VCC

AGND6

VEE

AGND5

MUTE

CL

DA

DGND

AGND4

GOUTSR

VINSR

AGND3

Pin No. DescriptionPin Name

1 IN31 1ch input terminal 3 2 IN32 2ch input terminal 3 3 IN41 1ch input terminal 4 4 IN42 2ch input terminal 4 5 IN51 1ch input terminal 5 6 IN52 2ch input terminal 5 7 IN61 1ch input terminal 6 8 IN62 2ch input terminal 6

9 IN71 1ch input terminal 7 10 IN72 2ch input terminal 7 11 IN81 1ch input terminal 8 12 IN82 2ch input terminal 8 13 INDVDSR DVD surround Rch input terminal 14 INDVDSL DVD surround Lch input terminal 15 INDVDC DVD center speaker input terminal 16 INDVDSW DVD sub woofer input terminal 17 OUT2(+) 2ch (+) A/D output terminal 18 OUT2(-) 2ch (-) A/D output terminal 19 OUT1(+) 1ch (+) A/D output terminal 20 OUT1(-) 1ch (-) A/D output terminal

23

Pin No. DescriptionPin Name

21 IN1DSP 1ch DSP input terminal 22 IN1MIX 1ch DSP MIX input terminal 23 IN2DSP 2ch DSP input terminal 24 IN2MIX 2ch DSP MIX input terminal 25 INDSPSR DSP surround Rch input terminal 26 INDSPSL DSP surround Lch input terminal 27 INDSPC DVD center speaker input terminal 28 INDSPSW DSP sub woofer input terminal 29 AGND1 Analog ground terminal 30 GOUTSW Sub woofer input gain output terminal 31 VINSW Sub woofer volume input terminal 32 AGND2 Analog ground terminal 33 GOUTC Center speaker input gain output terminal 34 VINC Center speaker volume input terminal 35 OUTSW Sub woofer output terminal 36 OUTC Center speaker output terminal 37 OUTSL Surround Lch output terminal 38 OUTSR Surround Rch output terminal 39 VINSL Surround Lch volume inut terminal 40 GOUTSL Surround Lch input gain output terminal 41 AGND3 Analog ground terminal 42 VINSR Surround Rch volume input terminal 43 GOUTSR Surround Rch input gain output terminal 44 AGND4 Analog ground terminal 45 DGND Ground terminal for comparator. 46 DA Serial data and latch input terminal 47 CL Serial clock input terminal 48 MUTE Mute terminal 49 AGND5 Analog ground terminal 50 VEE (-) Power supply terminal 51 AGND6 Analog ground terminal 52 VCC (+) Powr supply terminal 53 AGND7 Analog ground terminal 54 AGND8 Analog ground terminal 55 OUT1 1ch output terminal 56 BBNF1 1ch bass boost filter terminal 57 OUT2 2ch output terminal 58 BBNF2 2ch bass boost filter terminal 59 BNF22 2ch bass filter terminal 2 60 BNF12 2ch bass filter terminal 1 61 BNF21 1ch bass filter terminal 2 62 BNF11 1ch bass filter terminal 1 63 TNF1 1ch treble filter terminal 64 TNF2 2ch treble filter terminal 65 VIN1 1ch (Lch) volume input terminal 66 GOUT1 1ch (Lch) input gain output terminal 67 AGND9 Analog ground terminal 68 VIN2 2ch (Rch) volume input terminal 69 GOUT2 2ch (Rch) input gain output terminal 70 AGND10 Analog ground terminal 71 ROUT11 1ch REC input and output terminal 1 72 ROUT12 2ch REC input and output terminal 1 73 ROUT21 1ch REC output terminal 2 74 ROUT22 2ch REC output terminal 2 75 ROUT31 1ch REC output terminal 3 76 ROUT32 2ch REC output terminal 3 77 IN11 1ch input terminal 1 78 IN12 2ch input terminal 1 79 IN21 1ch input terminal 2 80 IN22 2ch input terminal 2

ADV-1000

24

ES4408F (DM: IC101)

LA10

LA11

LA12

LA13

LA14

LA15

LA16

LA17

LA18

LA19

LA20

LA21

RESET#

TDMDX/RSEL

TDMDR

TDMCLK

TDMFS

TDMTSC#

TWS/SEL_PLL1

TSD/SEL_PLL0

TSD1

TSD2

TSD3

MCLK

TBCK

SPDIF_DOBM

RSD

RWS

RBCK

APLLCAP

XOUT

ES4408F Terminal Function

Vss

LA3

LA2

LA1

LA0NCNC

Vcc

Vss

LWRHL#

LWRLL#

LD15

LD14

LD13

LD12

Vcc

Vss

LD11

LD10

LD9

LD8

LD7

LD6

LD5

Vss

Vcc

LD4

LD3

LD2

LD1

LD0

Vss

LCS3#

LCS2#

LCS1#

LCS0#

Vcc

208

207

206

205

204

203

202

201

200

199

198

197

196

195

194

193

192

191

190

189

188

187

186

185

184

183

182

181

180

179

178

177

176

175

174

173

1

Vcc

2

LA4

3

LA5

4

LA6

5

LA7

6

LA8

7

LA9

8

Vss

9

Vcc

10

11

12

13

14

15

16

17

Vss

18

Vcc

19

20

21

22

23

24

25

Vss

26

Vcc

27

28

29

30

31

32

33

Vss

34

Vcc

35

36

37

38

39

40

41

NC

42

Vss

43

Vcc

44

45

46

47

48

XIN

49

50

Vcc

51

Vss

52

5354555657585960616263646566676869707172737475767778798081828384858687888990919293949596979899

Vcc

DMA0

Vss

DMA1

DMA2

DMA3

DMA4

DMA5

Vss

Vcc

DMA6

DMA7

DMA8

DMA9

DMA10

DMA11

DCAS#

Vcc

Vss

DB0

DB1

DB2

DB3

DWE#

DRAS0#

DRAS1#

DOE#/DSCK_EN

DB4

DRAS2#

172

Vcc

Vss

DB5

DB6

DB7

DB8

DB9

DB10

ADV-1000

Vss

LOE#

AUX7

AUX6

AUX5

AUX4

AUX3

Vcc

Vss

AUX2

AUX1

AUX0

VPP

HA2

Vcc

171

170

169

168

167

166

165

164

163

162

161

160

159

158

157

156

Vss

155

HA1

154

HA0

153

HCS3FX#

152

HCS1FX#

151

HIOCS16#

150

HRD#/DCI_ACK#

149

HWR#/DCI_CLK

148

Vcc

147

Vss

146

HIORDY

145

HRST#

144

HIRQ/DCI_ERR#

143

HRDQ#

142

HWRQ#/DCI_REQ#

141

HD15

140

HD14

139

Vcc

138

Vss

137

HD13

136

HD12

135

HD11

134

HD10

133

HD9

132

HD8/DCI_FDS#

131

HD7/DCI7

130

Vcc

129

Vss

128

HD6/DCI6

127

HD5/DCI5

126

HD4/DCI4

125

HD3/DCI3

124

HD2/DCI2

123

HD1/DCI1

122

HD0/DCI0

121

Vcc

120

Vss

119

HSYNCH#

118

VSYNCH#

117

PCLKQSCN

116

PCLK2XSCN

115

YUV7

114

YUV6

113

YUV5

112

Vss

111

Vcc

110

YUV4

109

YUV3

108

YUV2

107

YUV1

106

YUV0

105

100

Vss

Vcc

Vss

DB11

Vcc

DB12

DB13

DB14

DB15

DCS1#

DCS0#

DCLK

101

102

103

104

Vss

Vcc

DQM

DSCK

Pin No.

Pin Name

I/O

Function

1 Vcc I 3.6V power supply

2 LA 4 O Device address output

3 LA 5 O Device address output

4 LA 6 O Device address output

5 LA 7 O Device address output

6 LA 8 O Device address output

7 LA 9 O Device address output

8 Vss I GND

9 Vcc I 3.6V power supply

10 LA 10 O Device address output

11 LA 11 O Device address output

12 LA 12 O Device address output

13 LA 13 O Device address output

14 LA 14 O Device address output

15 LA 15 O Device address output

16 LA 16 O Device address output

17 Vss I GND

18 Vcc I 3.6V power supply

19 LA 17 O Device address output

20 LA 18 O Device address output

21 LA 19 O Device address output

22 LA 20 O Device address output

23 LA 21 O Device address output

24 RESET# I Reset input, active low

TDMDX O TDM transmit data

25

RSEL I ROM select

26 Vss I GND

27 Vcc I 3.6V power supply

28 TDMDR I TDM receive data

Pin Name

I/O

FunctionPin No.

29 TDMCLK I TDM clock input

30 TDMFS I TDM frame sync

31 TDMTSC# O TDM output enable, active low

TWS O Audio transmit frame sync

32

SEL_PLL1 I Select PLL1

TSD0 O Audio transmit serial data port0

33

SEL_PLL0 I Select PLL0

34 Vss I GND

35 Vcc I 3.6V power supply

36 TSD1 O Audio transmit serial data port1

37 TSD2 O Audio transmit serial data port2

38 TSD3 O Audio transmit serial data port3

39 MCLK I/O Audio master clock for audio DAC

40 TBCK I/O Audio transmit bit clock

41

SPDIF_DOBM

O S/PDIF (IEC958) format output

42 NC No connect pin

43 Vss I GND

44 Vcc I 3.6V power supply

45 RSD I Audio receive serial data

46 RWS I Audio receive frame sync

47 RBCK I Audio receive bit clock

48 APLLCAP I Analog PLL capacitor

49 XIN I Crystal input

50 XOUT O Crystal output

51 Vcc I 3.6V power supply

52 Vss I GND

53 DMA 0 O DRAM address bus

54 DMA 1 O DRAM address bus

55 DMA 2 O DRAM address bus

25

ADV-1000

Pin Name

56 DMA 3 O DRAM address bus

57 DMA 4 O DRAM address bus

58 DMA 5 O DRAM address bus

59 Vcc I 3.6V power supply

60 Vss I GND

61 DMA 6 O DRAM address bus

62 DMA 7 O DRAM address bus

63 DMA 8 O DRAM address bus

64 DMA 9 O DRAM address bus

65 DMA 10 O DRAM address bus

66 DMA 11 O DRAM address bus

67 Vss I GND

68 Vcc I 3.6V power supply

69 DCAS# O Column address strobe, active low

DOE# O Output enable, active low

70

DSCK_EN I Clock enable, active low

71 DWE# O DRAM write enable, active low

72 DRAS 0# O Row address strobe, active low

73 DRAS 1# O Row address strobe, active low

74 DRAS 2# O Row address strobe, active low

75 Vcc I 3.6V power supply

76 Vss I GND

77 DB 0 I/O DRAM data bus

78 DB 1 I/O DRAM data bus

79 DB 2 I/O DRAM data bus

80 DB 3 I/O DRAM data bus

81 DB 4 I/O DRAM data bus

82 DB 5 I/O DRAM data bus

83 Vcc I 3.6V power supply

84 Vss I GND

85 DB 6 I/O DRAM data bus

86 DB 7 I/O DRAM data bus

87 DB 8 I/O DRAM data bus

88 DB 9 I/O DRAM data bus

89 DB 10 I/O DRAM data bus

90 DB 11 I/O DRAM data bus

91 Vss I GND

92 Vcc I 3.6V power supply

93 DB 12 I/O DRAM data bus

94 DB 13 I/O DRAM data bus

95 DB 14 I/O DRAM data bus

96 DB 15 I/O DRAM data bus

97 DCS 1# O SDRAM chip select [1], active low

98 Vss I GND

99 Vcc I 3.6V power supply

100 DCS 0# O SDRAM chip select [0], active low

101 DQM O Data input/output mask

102 DSCK O Clock to SDRAM

103 Vss I GND

104 Vcc I 3.6V power supply

105 DCLK I Clock input (27MHz)

106 YUV 0 O 8-bit YUV output

107 YUV 1 O 8-bit YUV output

I/O

FunctionPin No.

Pin Name

108 YUV 2 O 8-bit YUV output

109 YUV 3 O 8-bit YUV output

110 YUV 4 O 8-bit YUV output

111 Vcc I 3.6V power supply

112 Vss I GND

113 YUV 5 O 8-bit YUV output

114 YUV 6 O 8-bit YUV output

115 YUV 7 O 8-bit YUV output

116

PCLK2XSCN

117

PCLKQSCN

118 VSYNCH# I/O

119 HSYNCH# I/O

120 Vss I GND

121 Vcc I 3.6V power supply

122 HD 0 I/O Host data bus

123 HD 1 I/O Host data bus

124 HD 2 I/O Host data bus

125 HD 3 I/O Host data bus

126 HD 4 I/O Host data bus

127 HD 5 I/O Host data bus

128 HD 6 I/O Host data bus

129 Vss I GND

130 Vcc I 3.6V power supply

131 HD 7 I/O Host data bus

132 HD 8 I/O Host data bus

133 HD 9 I/O Host data bus

134 HD 10 I/O Host data bus

135 HD 11 I/O Host data bus

136 HD 12 I/O Host data bus

137 HD 13 I/O Host data bus

138 Vss I GND

139 Vcc I 3.6V power supply

140 HD 14 I/O Host data bus

141 HD 15 I/O Host data bus

142 HWRQ# O Host write request

143 HRDQ# O Host read request

144 HIRQ I/O Host interrupt

145 HRST# O Host reset

146 HIORDY I Host I/O ready

147 Vss I GND

148 Vcc I 3.6V power supply

HWR# O Host write request

149

HWR#/DCI_ACK#

150

HRD#/DCI_CLK

151 HIOCS16# I Device 16-bit data transfer

152 HCS1FX# O Host select 1

153 HCS3FX# O Host select 3

154 HA 0 I/O Host address bus

155 HA 1 I/O Host address bus

I/O

I/O 2X pixel clock

I/O Pixel clock

Vertical sync for screen video interface, programmable for rising or falling edge, active low

Horizontal sync for screen video interface, programmable for rising or falling edge, active low

Host write / DCI interface acknowledge

I, I

signal, active low

I, I Host read / DCI interface clock

FunctionPin No.

26

TP2050 (AP: IC102, 202, 302)

ADV-1000

Pin Name

156 Vss I GND

157 Vcc I 3.6V power supply

158 HA 2 I/O Host address bus

159 VPP I Peripheral protection voltage

160 AUX 0 I/O Auxiliary port, (SDATA) I/O

161 AUX 1 I/O Auxiliary port, (SCLK) O

162 AUX 2 I/O Auxiliary port, (VFD DATA) I/O

163 Vss I GND

164 Vcc I 3.6V power supply

165 AUX 3 I/O Auxiliary port, (AMUTE) O

166 AUX 4 I/O Auxiliary port, (IR) I

167 AUX 5 I/O Auxiliary port, (POWER) I

168 AUX 6 I/O Auxiliary port, (VFDCS) O

169 AUX 7 I/O Auxiliary port, (VFDCLK) O

170 LOE# O Device output enable, active low

171 Vss I GND

172 Vcc I 3.6V power supply

173 LCS 0# O Chip select [0], active low

174 LCS 1# O Chip select [1], active low

175 LCS 2# O Chip select [2], active low

176 LCS 3# O Chip select [3], active low

177 Vss I GND

178 LD 0 I/O Device data bus

179 LD 1 I/O Device data bus

180 LD 2 I/O Device data bus

181 LD 3 I/O Device data bus

182 LD 4 I/O Device data bus

183 Vcc I 3.6V power supply

184 Vss I GND

185 LD 5 I/O Device data bus

186 LD 6 I/O Device data bus

187 LD 7 I/O Device data bus

188 LD 8 I/O Device data bus

189 LD 9 I/O Device data bus

190 LD 10 I/O Device data bus

191 LD 11 I/O Device data bus

192 Vss I GND

193 Vcc I 3.6V power supply

194 LD 12 I/O Device data bus

195 LD 13 I/O Device data bus

196 LD 14 I/O Device data bus

197 LD 15 I/O Device data bus

198 LWRLL# O Device write enable, active low

199 LWRHL# O Device write enable, active low

200 Vss I GND

201 Vcc I 3.6V power supply

202 NC No connect pin

203 NC No connect pin

204 LA 0 O Device address output

205 LA 1 O Device address output

206 LA 2 O Device address output

207 LA 3 O Device address output

208 Vss I GND

I/O

FunctionPin No.

136 GNDSUBVCCSIGN 235 OUT2BVCCSIGN 334 OUT2BVSS 433 VCC2BVSS 532 GND2BIN2B 631 GND2AIN2A 730 VCC2AIN1B 829 OUT2AIN1A

928 OUT2ATH_WAR 1027 OUT1BFAULT 1126 OUT1BTRISTATE 1225 VCC1BPWRDN 1324 GND1BCONFIG 1423 GND1AIBIAS 1522 VCC1AVDD 1621 OUT1AVDD 1720 OUT1AGNDREG 1819 NCGNDCLEAN

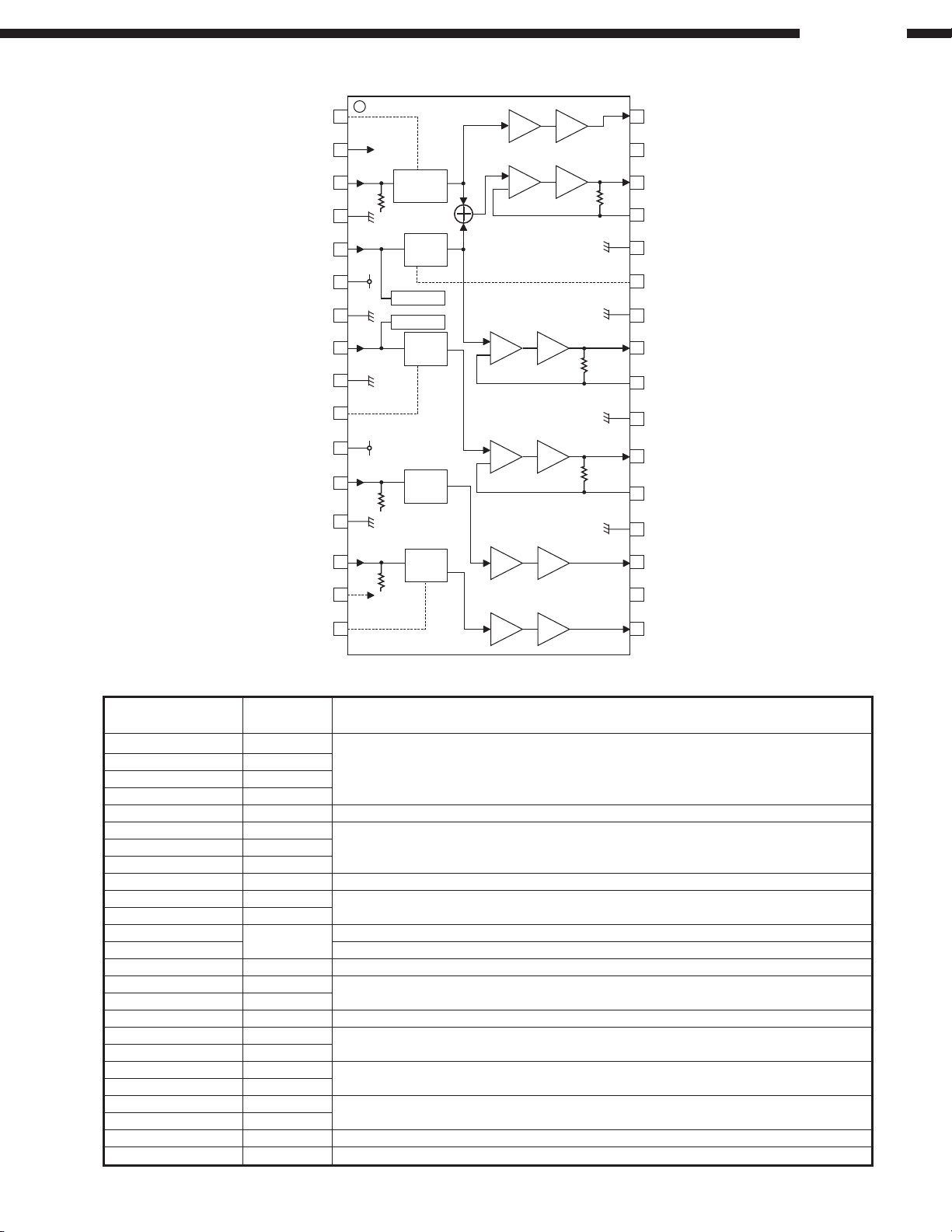

TP2050 Terminal Function

Pin Function Description

1 GNDSUB Substrate ground 2,3 OUT2B Output half bridge 2B 4 VCC2B Positive supply 5 GND2B Negative supply 6 GND2A Negative supply 7 VCC2A Positive supply 8,9 OUT2A Output half bridge 2A 10,11 OUT1B Output half bridge 1B 12 VCC1B Positive supply 13 GND1B Negative supply 14 GND1A Negative supply 15 VCC1A Positive supply 16,17 OUT1A Output half bridge 1A 18 NC Not connected 19 GNDCLEAN Logic ground 20 GNDREG Ground for Vdd regulator 21,22 VDD 23 IBIAS Logic high voltage 24 CONFIG Config input 25 PWRDN Stand-by pin 26 TRISTATE Hi-Z pin 27 FAULT Fault output 28 TH_WAR Thermal warning output 29 IN1A Input half bridge 1A 30 IN1B Input half bridge 1B 31 IN2A Input half bridge 2A 32 IN2B Input half bridge 2B 33,34 VSS 5V regulator referenced to Vcc 35,36 VCCSIGN Signal positive supply

5V regulator referenced to ground

27

16M SDRAM (TSOP)-8 (DM: IC103, 104)



 K4S161622D-TC80

 

 W981616AH-8



15

SS

V

50

SSQ

V

DQ14DQ

DQ13DQ

46

47

48

49

ADV-1000

11

12

DDQ

V

DQ10DQ

4241403938373635343332313029282726

43

44

45

SSQ

V

8

DQ9DQ

DDQ

V

N.C/RFU

A8A7A6A5A

A

9

N.C

CKE

CLK

UDQM

SS

4

V

123456789

1

2

SSQ

V

DQ

3

DQ

DDQ

V

4

DQ

0

DD

DQ

V

DQ

1011121314151617181920

6

5

DQ

SSQ

V

WE

DDQ

DQ7DQ

V

LDQM

CAS

RAS

CS

BA

/AP

10

A

21

A0A

23

25

24

22

1

2

3

A

DD

V

Terminal Function

Pin Name FunctionPin No. Symbol

1VDD Power Supply/Ground Power and ground for the input buffer and the core logic 2DQ0 Data Input/Output Data input/output are mutiplexed on the same pin 3DQ1 Data Input/Output Data input/output are mutiplexed on the same pin 4VSSQ Data Output Power/Ground Isolated power supply and ground for the output buffer 5DQ2 Data Input/Output Data input/output are mutiplexed on the same pin 6DQ3 Data Input/Output Data input/output are mutiplexed on the same pin 7VDDQ Data Output Power/Ground Isolated power supply and ground for the output buffer 8DQ4 Data Input/Output Data input/output are mutiplexed on the same pin

9DQ5 Data Input/Output Data input/output are mutiplexed on the same pin 10 VSSQ Data Output Power/Ground Isolated power supply and ground for the output buffer 11 DQ6 Data Input/Output Data input/output are multiplexed on the same pin 12 DQ7 Data Input/Output Data input/output are multiplexed on the same pin 13 VDDQ Data Output Power/Ground Isolated power supply and ground for the output buffer 14 L DQM Data Input/Output Mask Blocks data input when active 15 WE Write Enable Enables write operation and row precharge 16 CAS Column Address Strobe Latches column address on the positive going edge of the CLK at low 17 RAS Row Address Strobe Latches row address on the positive going edge of the CLK at low

18 CS Chip Select

19 BA Bank Select Address Selects bank to be activated during row address latch time 20 A10/AP Address Row/column addresses are multiplexed on the same pin 21 A0 Address Row/column addresses are multiplexed on the same pin 22 A1 Address Row/column addresses are multiplexed on the same pin 23 A2 Address Row/column addresses are multiplexed on the same pin 24 A3 Address Row/column addresses are multiplexed on the same pin 25 VDD Power Supply/Ground Power and ground for the input buffer and the core logic 26 VSS Power Supply/Ground Power and ground for the input buffer and the core logic 27 A4 Address Row/column addresses are multiplexed on the same pin 28 A5 Address Row/column addresses are multiplexed on the same pin 29 A6 Address Row/column addresses are multiplexed on the same pin 30 A7 Address Row/column addresses are multiplexed on the same pin 31 A8 Address Row/column addresses are multiplexed on the same pin 32 A9 Address Row/column addresses are multiplexed on the same pin 33 N. C No Connection No connect pin 34 CKE Clock Enable Masks system clock to freeze operation from the next clock cycle 35 CLK System Clock Active on the positive going edge to sample all inputs 36 U DQM Data Input/Output Mask Blocks data input when active 37 N. C/RFU NC/Reserved No connect pin 38 VDDQ Data Output Power/Ground Isolated power supply and ground for the output buffer 39 DQ8 Data Input/Output Data input/output are multiplexed on the same pin 40 DQ9 Data Input/Output Data input/output are multiplexed on the same pin 41 VSSQ Data Output Power/Ground Isolated power supply and ground for the output buffer 42 DQ10 Data Input/Output Data input/output are multiplexed on the same pin 43 DQ11 Data Input/Output Data input/output are multiplexed on the same pin 44 VDDQ Data Output Power/Ground Isolated power supply and ground for the output buffer 45 DQ12 Data Input/Output Data input/output are multiplexed on the same pin 46 DQ13 Data Input/Output Data input/output are multiplexed on the same pin 47 VSSQ Data Output Power/Ground Isolated power supply and ground for the output buffer 48 DQ14 Data Input/Output Data input/output are multiplexed on the same pin 49 DQ15 Data Input/Output Data input/output are multiplexed on the same pin 50 VSS Power Supply/Ground Power and ground for the input buffer and the core logic

Disables or enables device operation by masking or enabling all inputs except CLK, CKE, and LDQM

28

M5705 (DM: IC501)

AVSS-DS

XSRFIN

XSIPIN

AVDD5-DS

XSDSSLV

XSRSLINT

XSAWRC

XSRFGC

XSEFGC XSFOCUS XSTRACK

XSSLEG AVDD5-DA XSMOTOR

AVSS-DA

XSRFRPLP

XSTELP

XSVREF2

XSRFRP

XSTEXI

AVSS-AD

XSTEI XSFEI XSAEI

AVDD5-AD

XSSBAD

XSDFCT

XSCSJ XSCLK

XSDATA

XSLDC

XSFGIN

XSSPDON

XSFLAG(3) XSFLAG(2) XSFLAG(1) XSFLAG(0)

XMP1_7

XMP1_6

XMP1_4

XSAWRCVCO

XSVREFO

XSPDOFTR2

XSVR_PLL

XSFTROPI

XSFDO

AVSS_PL

XSPLLFTR2

AVDD5_PL

XSFDIREF

XSPDIREF

GND

XTSLRF

XTPLCK

VDD

XRA(3)

XRA(2)

XRA(1)

XRA(0)

XRA(4)

XRA(5)

XRA(6)

GND

XRA(7)

XRA(10)

XRA(11)

VDD

XRA(8)

XRA(9)

XROEJ

VDD

176

175

174

173

172

171

170

169

168

167

166

165

164

163

162

161

160

159

158

157

156

155

154

153

152

151

150

149

148

147

1 2 3 4 5 6

VDD

7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27

GND

28 29 30 31 32 33 34 35 36 37 38 39 40 41

GND

42

NC

43 44

45464748495051525354555657585960616263646566676869707172737475767778798081828384858687

VDD

GND

XOSC1

XOSC2

XMALE

XMD(0)

XMD(1)

XMD(2)

XMD(3)

XMD(4)

XMD(5)

XMD(6)

XMP1_3

XMFSCSJ

XMP1_2

XGPIO(2)

XMP1_1

XMRSTJ

XGPO(1)

XGPO(0)

XCRSTJ

XMPSENJ

XMP1_0

XMD(7)

146

XMCSJ

XMRDJ

XMWRJ

XMA(11)

XMA(10)

XMINT1J

4M DRAM

M5705

XRCASJ

XRRASJ

145

144

VDD

XMA(9)

XRSDCLK

XRWEJ

143

142

XMA(8)

XMA(7)

XRD(7)

141

XMA(6)

XRD(8)

140

XMA(5)

XRD(6)

139

XMA(4)

GND

138

XMA(3)

XRD(9)

137

XMA(2)

XRD(5)

136

XMA(1)

XRD(10)

XRD(4)

135

134

XMA(0)

XMA(12)

XRD(11)

133

88

GND

132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100

99 98 97 96 95 94 93 92 91 90 89

XRD(3) XRD(12) GND XRD(2) XRD(13) XRD(1) XRD(14) XRD(0) XRD(15) XHD(7) XHD(8) XHD(6) XHD(9) XHD(5) XHD(10) XHD(4) XHD(11) VDD XHD(3) XHD(12) XHD(2) XHD(13) GND XHD(1) XHD(14) XHD(0) XHD(15) XHDRQ XHIOWJ XHIORJ XHIORDY XHDACKJ XHINT XHCS16J XHA(1) XHPDIAGJ XHA(0) XHA(2) XHCS1J XHCS3J XHDASPJ XMA(15) XMA(14) XMA(13)

ADV-1000

ATAPI

M

Motor Driver

Data

Separator

Digital Servo

DVD-DSP

CD-DSP

RAM

Arbiter

Target

Search

&

MPEG

I/F

C3 ECC

EDC

MCU

ROM

M5705 Terminal Function

Pin Name

Type

2 XSRFIN I/A Analog RF signal input after passing through the equalizer 3 XSIPIN I/A Inverting input pin of data slicer 5 XSDSSLV O/A Slice level output pin 6 XSRSLINT I/A Reference current setting pin for analog data slicer 8 XSAWRC O/A Output for enlarge VCO range. Analog output from DAC buffer 9 XSRFGC O/A RF gain control output 10 XSEFGC O/A E,F gain control output 11 XSFOCUS O/A Output voltage level for focusing buffer IC 12 XSTRACK O/A Output voltage level for tracking buffer IC 13 XSSLEG O/A Output voltage level for sledge buffer IC 15 XSMOTOR O/A Output voltage level for spindle motor buffer IC 17 XSRFRPLP I/A High bandwidth low pass filter input for RFRP 18 XSTELP I/A High bandwidth low pass filter input for TE 19 XSVREF2 I/A 2.1V reference voltage input 20 XSRFRP I/A RF ripple/envelope signal input 21 XSTEXI I/A Tracking zero crossing input signal 23 XSTEI I/A Tracking error input signal 24 XSFEI I/A Focus error input signal

25 XSCEI I/A

1. Center error input signal

2. Photo Interrupt input

DescriptionPin No.

PC

MPEG

DEC.

29

ADV-1000

Pin Name

27 XSSBAD I/A Sub-beam addition signal input

166 XSPDIREF I/A

167 XSFDIREF I/A

169 XSPLLFTR2 I/A Data PLL loop filter pin#2 171 XSFDO O/A Output node of frequency detector charge pump circuit 172 XSFTROPI I/A Input node of loop filter OP circuit 173 XSVR_PLL I/A PLL reference voltage input 174 XSPDOFTR2 I/A Phase detector filter pin#1 175 XSVREFO O/A Reference voltage output 176 XSAWRCVCO I/A Auto Wide Range Control of VCO input pin. For enlarge VCO range in CAV mode 29 XSDFCT I Detect detection signal input 30 XSCSJ O Chip select signal for accessing control registers 31 XSCLK O Clock output for accessing control registers 32 XSDATA I/O Registers data input/output pin 33 XSLDC O Laser diode on/off control output for both CD/DVD 34 XSFGIN I Motor Hall sensor input 35 XSSPDON O Spindle motor on output 36, 37, 38, 39 XSFLAG[3:0] O These pins are used to monitor some status of servo control block

48, 51, 52 XGPIO[2:0] I/O

40 XMP1_7 I/O Internal microcontroller programmable I/O port 1.7. 41 XMP1_6 I/O Internal microcontroller programmable I/O port 1.6. 43 XMP1_5 I/O This pin is now changed to be NC. 44 XMP1_4 I/O Internal microcontroller programmable I/O port 1.4. 45 XMP1_3 I/O Internal microcontroller programmable I/O port 1.3. 47 XMP1_2 I/O Internal microcontroller programmable I/O port 1.2. 49 XMP1_1 I/O Internal microcontroller programmable I/O port 1.1.

57 XMP1_0 I/O

46 XMFSCSJ I/O Output chip select connected to external flash ROM chip enable pin 54 XMPSENJ I/O Output program store enable connected to external ROM PSENJ pin. 56 XMALE I/O This signal is used as address latch signal in address/data mux mode

70 XMCSJ I/O

71 XMRDJ I/O

72 XMWRJ I/O This signal is used as the Wire Strobe signal

73 XMINT1J I/O

74, 75, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 89, 90, 91 62, 63, 64, 65, 66, 67, 68, 69 bus for the 8-bit processor mode. 163 XTPLCK I/O PLCK test pin 164 XTSLRF I/O SLRF test pin 59 XOSC1 I Crystal input/System clock. The input frequency from outside crystal or oscillator is 33.8688MHz 60 XOSC2 O Crystal output

53 XCRSTJ I

94 XHCS1J I This pin is used to select the command block task file registers 93 XHCS3J I This pin is used to select the control block task file registers 103 XHIORJ I Asserted by the host during a host I/O read operation 104 XHIOWJ I Asserted by the host during a host I/O write operation

105 XHDRQ O

101 XHDACKJ I

99 XHCS16J O

50 XHRSTJ I Host Reset. The reset of ATA bus

100 XHINT O

XMA[15:0] I/O These pins are used as address bus

XMD[7:0] I/O

Type

Phase detector reference current generator. Connect a resistor between this pin and ground to set reference current Frequency detector reference current generator. Connect a resistor between this pin and ground to set reference current

1. These pins are used as general purpose I/O bus

2. When use internal microcontroller, XGPIO[2] can be used as programmable I/O port 3.6.

Internal microcontroller programmable I/O port 1.0. This pin is default used as the A16 (microcontroller address line 16)

1. This signal must be asserted for all microcontroller accesses to the register of this chip

2. When use internal microcontroller, this signal can be used as programmable I/O port 3.1

1. This signal is used as the Read Strobe signal

2. When use internal microcontroller, this signal can be used as programmable I/O port 3.0

1. This signal is an interrupt line to the microcontroller

2. When use internal microcontroller, this signal can be used as programmable I/O port 3.7

These pins are used as data bus for the 16-bit processor mode, or the address/data mux

Chip Reset. As asserted low input generates a component reset that stops all operations within the chip and deasserts all output signals. All input/output signals are set to input.

1.

DMA request. This pin is configured as the DMA request signal, and is used during DMA transfer between the host and the controller. This pin is tri-stated when DMA transfers are not enabled.

2.

MPEG acknowledge. This pin is used as the ACKJ signal when MPEG interface mode is selected.

1. DMA acknowledge. This pin is configured as DACKJ, and is used as the DMA acknowledge signal during DMA data transfers.

2. MPEG request. This pin is used as the REQ signal when MPEG interface mode is selected

1. 16-bit data select. This signal indicates that a 16-bit data transfer is active on the host data bus. This pin is open-drain tri-state output.

2. MPEG clock. This pin is used as the CLOCK signal when MPEG interface mode is selected.

1. Host interface request. This tri-state pin is the host interrupt request, and is asserted to indicate to the host that the controller needs attention.

2. MPEG begin. This pin is used as the BEGIN signal when MPEG interface mode is selected

DescriptionPin No.

30

ADV-1000

Pin Name

97 XHPDIAGJ I/O This pin is used as the Passed Diagnostics signal, and may be an input or an open-drain output

92 XHDASPJ I/O

102 XHIORDY I/O

95, 96, 98 XHA[2:0] I

106, 107, 108, 2. 109, 111, 112, 3. VCD I/F. Bit3-0 are used as VCD I/F signal when VCD function is enabled. The relationship of 113, 114, 116, bit3-0 and VCD I/F is as follow 117, 118, 119, HD0—CD-DATA 120, 121, 122, HD1—CD-LRCK 123 HD2—CD-BCK

143 XRSDCLK O This signal is the clock output for SDRAM

147 XROEJ O

142 XRWEJ O This signal is asserted low when a buffer memory write operation is active

144 XRRASJ O

145 XRCASJ O

148, 149, 151, 152, 153, 155, 156, 157, 158, 159, 160, 161

124, 125, 126, 127, 128, 129, 131, 132, 134, 135, 136, 137, 138, 139, 140, 141 4 AVDD5_DS Analog Power +5V for Data Slicer part 14 AVDD5_DA Analog Power +5V for DAC part 26 AVDD5_AD Analog Power +5V for ADC part 168 AVDD5_PL Analog Power +5V for Data PLL part 7, 55, 58, 76, 115, 146, 150, 162 1 AVSS_DS Analog Ground for Data Slicer part 16 AVSS_DA Analog Ground for DAC part 22 AVSS_AD Analog Ground for ADC part 170 AVSS_PL Analog Ground for Data PLL part 28, 42, 61, 88, 110, 130, 138, 154, 165

XHD[15.0] I/O

XRA[11:0] O 1: Normal operation

XRD[15:0] I/O These signals are the 8-bit parallel data lines to/from the buffer memory.

VDD Power +3.3V for digital core logic and pad

GND Digital Ground core logic and pad.

Type

This pin is used as the Drive Active/Slave Present signal, and is an input or an open-drain output. This pin is used for Master/Slave drive communication and/or for driving an LED

1. I/O channel ready. This signal is driven low to extend host transfer cycles when the controller is not ready to respond. This pin will be tri-stated when a read or write is not in progress.

2. MPEG error. This pin is used as the ERROR signal when MPEG interface mode is selected

Host address lines. The host address lines A[2:0] are used to access the various host control, status, and data registers

1. Host data bus. This bus is used to transfer data and status between the host and the controller. MPEG data bus 7-8. The HD[7:0] are used as the DATA [7:0] when MPEG interface mode is selected.

HD3—CD-C2PO

This signal is used as the memory output enable for external DRAM buffers. After RSTJ is asserted, this signal will be low

This signal is used as Row address output to external DRAM buffer. After RSTJ is asserted, this signal will be high This signal is used as column address output to external DRAM. After RSTJ is asserted, this signal will be high

1. RAM address lines. These are bits11-0 for addressing the buffer memory.

2. Hardware setting. The bits6-0 are used as hardware setting for some functions. RA[9] : FLASH size is 64K/128K

1: FLASH size is 64K 0: FLASH size is 128K

RA[8] : External CPU is 8032/H8

1: 8032 0: H8

RA[7] : Microcontroller programmable I/O port 1 pin control

1: By internal microcontroller 0: By registers to decide input/output

RA[6] : System test pin output

0: System test pin output RA[5] : For testing purpose, don’t need to set RA[4] : IDE master/slave

1: Slave

0: Master RA[3] : For testing purpose, don’t need to set RA[2] : For testing purpose, don’t need to set RA[1-0] : MCU Mode selection

11: Normal Mode (internal uP, internal address latch)

10: Outside uP Mode (ICE Mode)

01: Test mode for internal uP testing

00: Internal uP mode with external address latch

DescriptionPin No.

31

SP3721A (DM: IC502)

ATOP

CDRF

CDRDDC

ATON

AIN

AIP

ADV-1000

HOLD1

VNA

FNN

FNP

DIP

DIN

RX

BYP

SIGO

VPA

49505152535455565758596061626364

DVDRFP

DVDRFN

PD1

PD2

CP

CN

SP3721A Terminal Function

A2

B2

C2

D2

1

2

3

4

5

6

7

8

9

10

11

D

12

C

13

B

14

A

15

F

16

E

NC

VCI2

CDTE

TOP VIEW

VNB

DVDLD

DVDPD

CDLD

CDPD

VC

LDON#

VCI

VPB

VIP

VIIRR

32313029282726252423222120191817

VIB

FDCHG#

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

SDEN

SDATA

SCLK

LCP

LCN

CE

FE

TE

MEI

MEV

TPH

DFT

PI

MIN

MEVO

MLPF

Pin Name

Type

DescriptionPin No.

1, 2 DVDREP, DVDREN I RF Signal Inputs. Differential RF signal attenuator input pins

63 CDRF I RF Signal Inputs. Single-ended RF signal attenuator input pin

59, 60 AIP, AIN I AGC Amplifier Inputs. Differential AGC amplifier input pins

53, 54 DIP, DIN I

Analog inputs for RF Single Buffer. Differential analog inputs to the RF single-ended output buffer and full wave rectifier

Low Impedance Enable. A TTL compatible input pin that activates the FDCHG switches. A low

32 FDCHG# I

level activates the switches and the falling edge of the internal FDCHG triggers the fast decay for the MIRR bottom hold circuit. (open high)

49 HOLD1 I

Hold Control. A TLL compatible control pin which, when pulled high, disables the RF AGC charge pump and holds the RF AGC amplifier gain at its present value. (open high)

11~14 D, C, B, A I Photo Detector Interface Inputs. Inputs from the main beam Photo detector matrix outputs

5~8 A2, B2, C2, D2 I

Photo Detector Interface Inputs. AC coupled inputs for the DPD from the main beam Photo detector matrix outputs

15~16 F, E I CD tracking Error Inputs. Inputs from the CD photo detector error outputs.

3~4 PD1, PD2 I CD Photo detector Interface Inputs. Inputs from the CD photo detector error outputs

40 MEI I Mirror Envelope Inputs. The SIGO envelope input pin

35 MIN I

RF signal Input for Mirror. AC coupled inputs for the mirror detection circuit from the pull-in signal output. (PI)

21 DVDPD I APC Input. DVD APC input pin from the monitor photo diode

23 CDPD I APC Input. CD APC input pin from the monitor photo diode

25 LDON# I APC Output On/Off. APC output control pin. A low level activates the LD output. (open high)

61, 62 ATON/ATOP O Differential Attenuator Output. Attenuator outputs

51, 52 FNN, FNP O Differential Normal Output. Filter normal outputs

57 SIGO O Single Ended Normal Output. Single-ended RF output

64 CDRFDC O CD RF Signal Output. Single ended CD RF summing output

42 FE O Focusing Error Signal Output. Focus error output reference to VCI

41 TE O Tracking Error Signal Output. Tracking error output reference to VCI

32

ADV-1000

Pin Name

Type

DescriptionPin No.

43 CE O Center Error Signal Output. Center error output reference to VCI

34 NEVO O SIGO Bottom Envelope Output. Bottom envelope for mirror detection

37 DFT O

Defect Output. Pseudo CMOS output. When a defect is detected, the DFT output goes high. Also the servo AGC output can be monitored at this pin, when CAR bits 7-4 are ‘0011’

29 MIRR O Mirror Detect Output. Mirror Detect comparator output. Pseudo CMOS output

36 PI O

Pull-in Signal Output. The summing signal output of A, B, C, D or PD1, PD2 for mirror detection. Reference to VCI

22 DVDLD O APC output. DVD APC output pin to control the laser power

24 CDLD O APC output. CD APC output pin to control the laser power

56 BYP I/O The RF AGC integration capacitor CBYP, is connected between BYP and VPA

9 CP I/O

10 CN I/O

Differential Phase tracking LPF pin. An external capacitance is connected between this pin and the CN pin

Differential Phase tracking LPF pin. An external capacitance is connected between this pin and the CP pin

45 LCP — Center Error LPF pin. An external capacitance is connected between this pin and the LCN pin

44 LCN — Center Error LPF pin. An external capacitance is connected between this pin and the LCP pin

30 MP — MIRR signal Peak hold pin. An external capacitance is connected to between this pin and VPB

31 MB — MIRR signal Bottom hold pin. An external capacitance is connected to between this pin and VPB

39 MEV — Sigo Bottom Envelope pin. An external capacitance is connected to between this pin and VPB

17 CDTE — CD Tracking. E-F Opamp output for feedback

38 TPH — PI Top Hold pin. An external capacitance is connected to between this pin and VPB

26 VC —

Reference Voltage output. This pin provides the internal DC bias reference voltage (+2.5V lix). Output Impedance is less than 50ohms

27 VCI — Reference Voltage input. DC bias voltage input for the servo input reference

18 VCI2 — Reference Voltage input. DC bias voltage input for the servo input reference

55 RX —

Reference Resistor Input. An external 8.2kohm, 1% resistor is connected from this pin to ground to establish a precise PTAT (proportional to absolute temperature) reference current for the filter

33 MLPF — MIRR signal LPF pin. An external capacitance is connected between this pin and VPB

19 NC — No Connect

48 SDEN I

47 SDATA I/O

46 SCLK I

Serial Data Enable. Serial Enable CMOS input. A high level input enable the serial port (Not to be left open)

Serial Data. Serial data bi-directional CMOS pin. NRZ programming data for the internal registers is applied to this input ( Not to be left open)

Serial Clock. Serial Clock CMOS input. The clock applied to this pin is synchronized with the data applied to SDATA (Not to be left open)

58 VPA Power. Power supply pin for the RF block and serial port

28 VPB Power. Power supply pin for the servo block

50 VNA Ground. Ground pin for the RF block and serial port

20 VNB Ground. Ground pin for the servo bolck

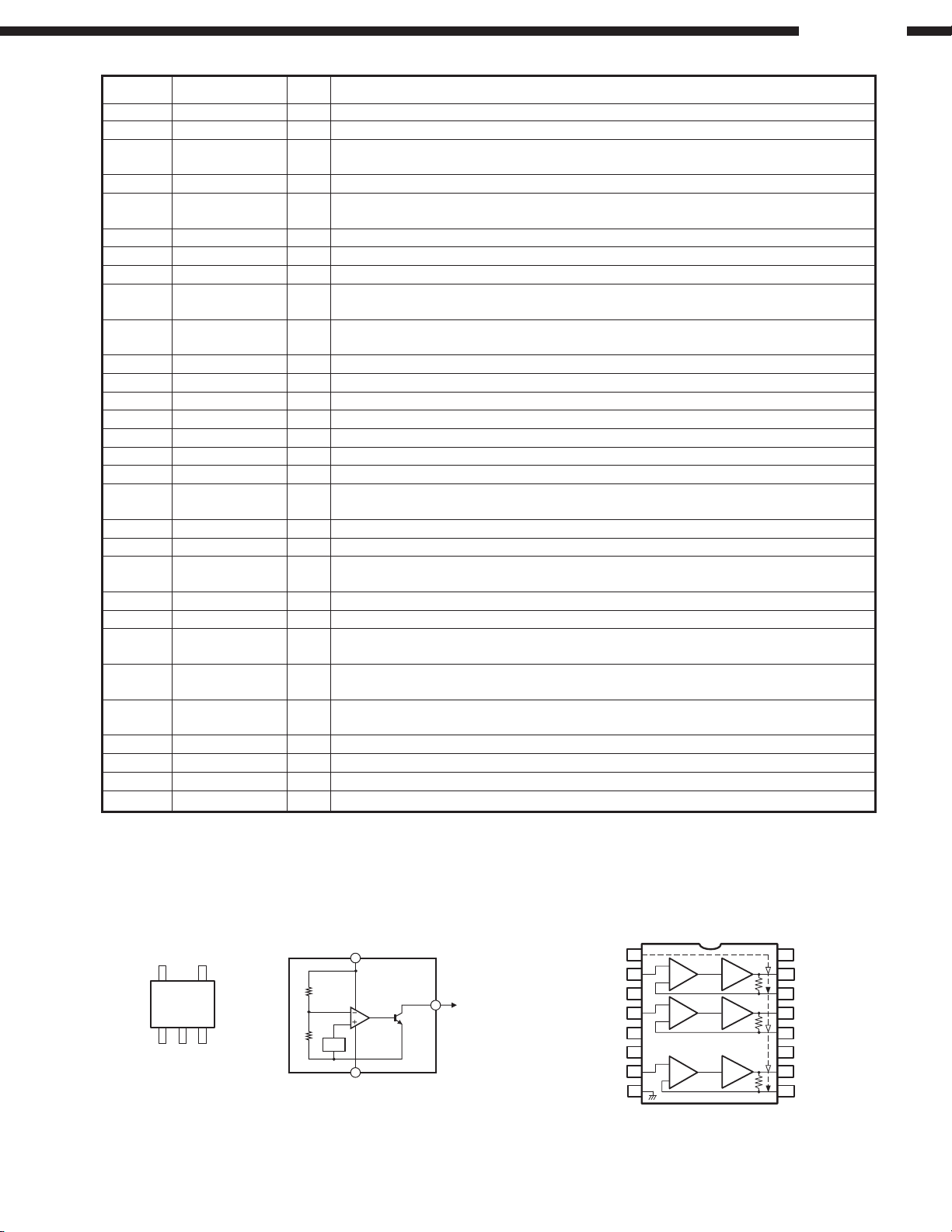

BD4745G (DM: IC109)

54

TOP

VIEW

123

Vref

VCC

GND

VOUT

µCOM RESET

BA7660FS (AP:IC801, 802)

1

MUTE

INA

GND

INB

GND

N.C.

INC

GND

6dB

2

3

4

6dB

5

6

7

6dB

8

75ohm

16

15

14

13

12

11

10

9

CC

V

OUTA1

OUTA2

OUTB1

OUTB2

N.C.

OUTC1

OUTC2

33

ADV7172KST (DM: IC701)

C

ADV-1000

TTX

SCLOCK

SCRESET/RT

TTXREQ

SET2

R

SD ATA

SET1

REF

V

R

37

36

COMP1

35

DAC A

34

AA

V

33

DAC B

32

AA

V

31

GND

AA

30

V DAC C

29

DAC D

28

AA

V

27

26

GND DAC E

25

24

DAC F

COMP2

V

CSO_HSO

V

GND

AA

V

CLOCK

GND

4847464544434241403938

AA

1 2

P0

3

P1

4

P2

5

P3

6

P4

7

P5 P6

8

P7

9

10

AA

11

12

1314151617181920212223

GND

HSYNC

PAL_NTSC

RESET

VSO

CLAMP

TOP VIEW

AA

V

GND

ALSB

BLANK

FIELD/VSYNC

ADV7172KST Terminal Function

Pin Name FunctionPin No. I/O

2~9 P7-P0 I 8-Bit 4:2:2 Multiplexed YCrCb Pixel Port (P7-P0).

48 CLOCK I TTL Clock Input .(27 MHz reference clock) 14 HSYNC I/O HSYNC (Modes 1 and 2) Control Signal. 15 FIELD/VSYNC I/O Dual Function FIELD (Mode 1) and VSYNC (Mode 2) Control Signal. 16 BLANK I/O Video Blanking Control Singal. 39 SCRESET/RTC I Subcarrier reset pin, Real-Time Control (RTC) Input. 37 VREF I/O Voltage Reference Input for DACs or Voltage Reference Output (1.235V). 38 RSET1 I Control full-scale amplitudes of the Video Signals from DACs A, B and C. 22 RSET2 I Control full-scale amplitudes of the Video Signals from DACs D, E and F. 36 COMP1 O Compensation Pin for DACs A, B and C. 23 COMP2 O Compensation Pin for DACs D, E and F. 35 DAC A O GREEN/Composite/Y Analog Output. 33 DAC B O BLUE/S-Video Y/U Analog Output. 29 DAC C O RED/S-Video C/V Analog Output. 28 DAC D O GREEN/Composite/Y Analog Output. 25 DAC E O BLUE/S-Video Y/U Analog Output. 24 DAC F O RED/S-Video C/V Analog Output. 20 SCLOCK I MPU Port Serial Interface Clock Input. 21 SDATA I/O MPU Port Serial Data Input/Output. 42 CLAMP O TTL Output Signal to external circuitry. 43 PAL_NTSC I Input signal to select PAL or NTSC mode of operation. 45 VSO O VSO TTL Output Sync Signal. 10 CSO_HSO O Dual function CSO or HSO TTL Output Sync Signal. 17 ALSB I TTL Address Input. 44 RESET I On-chip timing generator reset pin. 41 TTX I Teletest Data Input Pin. 40 TTXREQ O Teletest Data Request output signal. 46 VAA P Power Supply (+3 V to +5 V).

12, 13, 18,

26, 31, 47

GND G Ground Pin.

TC7WT125FU (DM: IC114, 115)

1

G1

A1

2

Y2

3

GND

4

KIC7S32FU (DM: IC110)

TOP VIEW

V

CC

8

G2

7

Y1

6

A2

5

IN B

IN A

GND

1

5

Vcc

2

3

OUT Y

4

TC7WU04F (DM: IC111)

1A

1

3Y

2

3

2A

4

GND

Vcc

8

1Y

7

6

3A

5

2Y

34

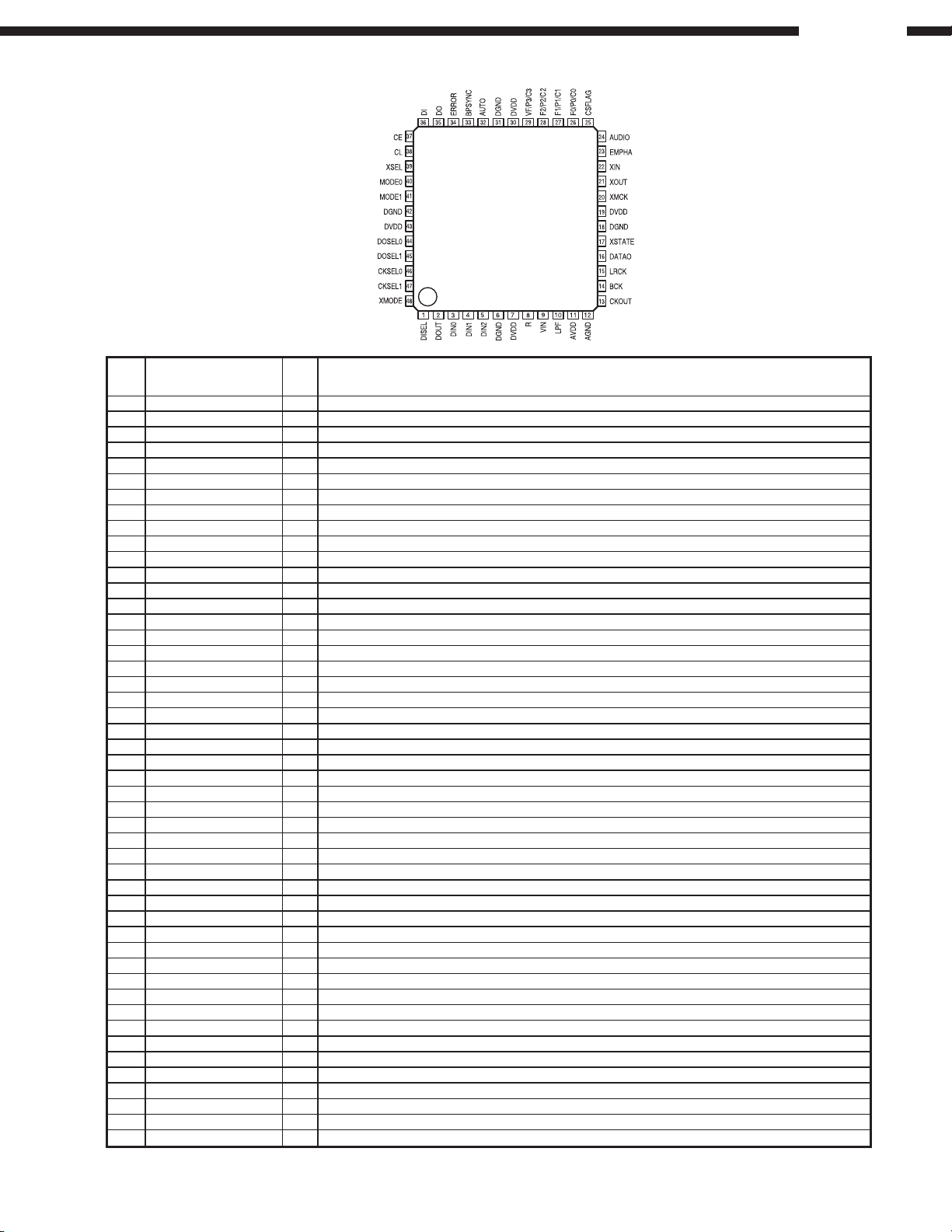

LC89055W (MA: IC713)

LC89055W Terminal Function

Pin No.

1 DISEL I Data input terminal (select input pin of DIN0, DIN1) 2 DOUT O Input bi-phase data through output terminal 3 DIN0 I Amp built-in coaxial/optical input correspond data input terminal 4 DIN1 I Amp built-in coaxial/optical input correspond data input terminal 5 DIN2 I Optical input correspond data input terminal 6 DGND Digital GND 7 DVDD Digital power supply 8 R I VCO gain control input terminal

9 VIN I VCO free-run frequency setting input terminal 10 LPF O PLL loop filter setting terminal 11 AVDD Analog power supply 12 AGND Analog GND 13 CKOUT O Clock output terminal (256fs, 384fs, 512fs, X’tal osc., VCO free-run osc.) 14 BCK O 64fs clock output terminal 15 LRCK O fs clock output terminal (L: Rch, H: Lch, I2S: Reverse) 16 DATAO O Data output terminal 17 XSTATE O Input data detecting result output terminal 18 DGND Digital GND 19 DVDD Digital power supply 20 XMCK O X’tal osc. clock output terminal (24.576MHz or 12.288MHz) 21 XOUT O X’tal osc. connection output terminal 22 XIN I X’tal osc. connection input terminal, external signal input possible (24.576MHz or 12.288MHz) 23 EMPHA O Emphasis information output terminal of channel status 24 AUDIO O Bit1 output terminal of channel status 25 CSFLAG O Top 40bit revise flag output terminal of channel status 26 F0/P0/C0 O Input fs cal. sig. out/data type out/input word inf. output terminal 27 F1/P1/C1 O Input fs cal. sig. out/data type out/input word inf. output terminal 28 F2/P2/C2 O Input fs cal. sig. out/data type out/input word inf. output terminal 29 VF/P3/C3 O Validity flag out/data type out/input word inf. output terminal 30 DVDD Digital power supply 31 DGND Digital GND 32 AUTO O Non PCM burst data transfer detect sig. output terminal 33 BPSYNC O Non PCM burst data preamble Pa, Pb, Pc, Pd sync sig. output terminal 34 ERROR O PLL lock error, data error flag output terminal 35 DO O CPU/IFD read data output terminal 36 DI I CPU I/F write data input terminal 37 CE I CPU I/F chip enable input terminal 38 CL I CPU I/F chip enable input terminal 39 XSEL I Frequency select input pin of XIN X’tal osc. (24.576MHz or 12.288MHz) 40 MODE0 I Mode setting input terminal 41 MODE1 I Mode setting input terminal 42 DGND Digital GND 43 DVDD Digital power supply 44 DOSEL0 I Data output format select input terminal 45 DOSEL1 I Data output format select input terminal 46 CKSEL0 I Output clock select input terminal 47 CKSEL1 I Output clock select input terminal 48 XMODE I Reset input terminal

 For latch-up countermeasure, set digital (DVDD) and analog (AVDD) power on/off in the same timing.

Pin Name FunctionI/O

ADV-1000

35

CS493292-CL (MA: IC720)

A0, SCCLK 7

DATA7, EMAD7, GPIO7 8

DATA6, EMAD6, GPIO6 9

DATA5, EMAD5, GPIO5 10

DATA4, EMAD4, GPIO4 11

VD2 12

DGND2 13

DATA3, EMAD3, GPIO3 14

DATA2, EMAD2, GPIO2 15

DATA1, EMAD1, GPIO1 16

DATA0, EMAD0, GPIO0

A1, SCDIN

RD, R/W, EMOE, GPIO11

WR/DS/EMWR, GPIO10

6

5

4

Top View

AUDATA3, XMT958

DGND1

VD1

3

2

1

MCLK

44

SCLK

43

LRCLK

42

ADV-1000

AU DATA 0

AU DATA 1

41

40

39

AU DATA 2

38

DC

37

DD

36

RESET

35

AGND

34

VA

33

FILT1

32

FILT2

31

CLKSEL

30

CLKIN

29

CMPREQ, LRCLKN217

CS493292-CL Terminal Funtion

CS 18

SCDIO, SCDOUT,PSEL, GPIO9 19

VD3 23

DGND3 24

SDATAN1 22

ABOOT, INTREQ 20

EXTMEM, GPIO8 21

LRCLKN1 26

CMPCLK, SCLKN2 28

SCLKN1, STCCLK2 25

CMPDAT,SDATAN2, RCV958 27

Port Name FunctionPin No.

1,12,23 VD1,2,3 Digital power supply (+)

2,13,24 DGND1,2,3 Digital GND

3 AUDATA3, XMT958 SPDIF transmitter output, Digital audio output 3

4 WR, DS, EMWR, GPIO10

5 RD, R/W, EMOE,GPIO11

Host write strobe, Host data strobe, External memory write enable, General purpose in/output 10 Host parallel output enable, Host parallel R/W, External memory output enable,

General purpose in/output 11 6 A1,SCDIN Host address bit 1, SPI serial control data input 7 A0,SCCLK Host parallel address bit 0, Serial control port clock 8 DATA7, EMAD7, GPIO7 Bidirectional data bus 7, External memory address 7, General purpose in/output 7 9 DATA6, EMAD6, GPIO6 Bidirectional data bus 6, External memory address 6, General purpose in/output 6

10 DATA5, EMAD5, GPIO5 Bidirectional data bus 5, External memory address 5, General purpose in/output 5 11 DATA4, EMAD4, GPIO4 Bidirectional data bus 4, External memory address 4, General purpose in/output 4 14 DATA3, EMAD3, GPIO3 Bidirectional data bus 3, External memory address 3, General purpose in/output 3 15 DATA2, EMAD2, GPIO2 Bidirectional data bus 2, External memory address 2, General purpose in/output 2 16 DATA1, EMAD1, GPIO1 Bidirectional data bus 1, External memory address 1, General purpose in/output 1 17 DATA0, EMAD0, GPIO0 Bidirectional data bus 0, External memory address 0, General purpose in/output 0 18 CS Host parallel chip select, Host serial SPI chip select 19 SCDIO, SCDOUT, PSEL,GPIO9 Serial control port data in/output, Parallel port type select, General purpose in/output 9 20 INTREQ, ABOOT Control port interrupt request, Automatic boot enable 21 EXTMEM, GPIO8 External memory chip select, General purpose in/output 8 22 SDATAN1 PCM audio data input 1 25 SCLKN1, STCCLK2 PCM audio input bit clock 26 LRCLKN1 PCM audio input sample rate clock 27 CMPDAT, SDATAN2 PCM audio data input 2 28 CMPCLK, SCLKN2 PCM audio input bit clock 29 CMPREQ, LRCLKN2 PCM audio input sample rate clock 30 CLKIN Master clock input 31 CLKSEL DSP clock select 32 FILT2 PLL filter 33 FILT1 PLL filter 34 VA Analog power supply (+) 35 AGND Analog GND 36 RESET Master reset input 37 DD Reserved 38 DC Reserved 39 AUDATA2 Digital audio output 2 40 AUDATA1 Digital audio output 1 41 AUDATA0 Digital audio output 0 42 LRCLK Audio output sample rate clock 43 SCLK Audio output bit clock 44 MCLK Audio master clock

36

AK4527BVQ (MA: IC721)

SDOS 1

I2C 2

SMUTE 3

BICK 4

LRCK 5

SDTI1 6

SDTI2 7

SDTI3 8

SDTO 9

DAUX 10

DFS

LOOP1

LOOP0/SDA/CDTI

DIF1/SCL/CCLK

44

43

42

AK4527BVQ

DIF0/CSN

P/S

MCLK

41

40

39

Top View

DZF1

38

ADV-1000

AVSS

AVDD

VREFH

VCOM

37

36

35

34

33

DZF2/OVF

32

RIN+

31

RIN-

30

LIN+

29

LIN-

28

ROUT1

27

LOUT1

26

ROUT2

25

LOUT2

24

ROUT3

23

LOUT311

NC 12

DZFE 13

TVDD 14

DVSS 16

DVDD 15

NC 19

TST 18

PDN 17

ADIF 20

CAD1 21

CAD0 22

AK4527BVQ Terminal Function

Port Name Function

No.

1 SDOS I SDTO source select pin, L: Internal ADC output, H: DAUX input 2 I2C I Serial control mode select pin, L: 3-core serial, H: I2C bus 3 SMUTE I Soft mute pin, H: Soft mute start, L: Release 4 BICK I Audio serial data clock pin 5 LRCK I Input channel clock pin 6 SDTI1 I DAC1 audio serial data input pin 7 SDTI2 I DAC2 audio serial data input pin 8 SDTI3 I DAC3 audio serial data input pin

9 SDTO O Audio serial data output pin 10 DAUX I Auxiliary audio serial data input pin 11 DFS I Double speed sampling mode pin, L: Normal, H: Double 12 NC  No connection 13 DZFE I Zero input detect function activate pin, L: Mode 7 at parallel, H: Mode 0 14 TVDD  Power pin for output buffer, 2.7V~5.5V 15 DVDD  Digital power pin, 4.5V~5.5V 16 DVss  Digital GND pin, 0V 17 PDN I Power down & reset pin, L: Powered-down and register initialized, Reset with PDN when switching CAD0-1 18 TST I Test pin, connect to DVSS 19 NC  No connection 20 ADIF I Analog input type select pin, H: Differential, L: Single-end 21 CAD1 I Chip address-1 pin 22 CAD0 I Chip address-0 pin 23 LOUT3 O DAC3L channel analog out pin 24 ROUT3 O DAC3R channel analog out pin 25 LOUT2 O DAC2L channel analog out pin 26 ROUT2 O DAC2R channel analog out pin 27 LOUT1 O DAC1L channel analog out pin 28 ROUT1 O DAC1R channel analog out pin 29 LIN- I L-ch analog inverted input pin 30 LIN+ I L-ch analog non-inverted input pin 31 RIN- I R-ch analog inverted input pin 32 RIN+ I R-ch analog non-inverted input pin 33 DZF2/OVF O 34 VCOM O Common V-out pin, AVDD/2, connect large capacitor to avoid noise 35 VREFH I Ref. V input pin, AVDD 36 AVDD  Analog GND pin, 4.5V~5.5V 37 AVss  Analog GND pin, 0V 38 DZF1 O 0 input detect pin, H: Input data of G1 is 8192 times “0” in a raw or RSTN bit “0”, L: When P/S= “0” 39 MCLK I Master clock input pin 40 P/S I Parallel/Serial select pin, L: Serial control

DIF0 I Audio data I/F format 0 pin (parallel control)

41

CSN I Chip select pin (3-wire serial control), connect to DVDD when I2C bus control DIF1 I Audio data I/F format 1 pin (parallel control)

42

SCL/CCLK I Control data clock pin (serial control), I2C=”L”: CCLK (3-wire serial), I2C=”H”: SCL (I2C bus) LOOP0 I Loop back mode 0 pin (parallel control), effects digital loop back ADC to all DAC

43

SDA/CDTI I/O Control data input pin (serial control), I2C=”L”: CCTI (3-wire serial), I2C=”H” SDA (I2C bus)

44 LOOP1 I Loop back mode 1 pin, from SDT1 to all DAC

I/O

0 input detect 2 pin, H: Input data of G2 is 8192 times “0” in a raw or RSTN bit “0”, L: When P/S= “0” /Analog input overflow detect pin

37

TC2000 (AP: IC101, 201, 301)

ADV-1000

BIASCAP

FDBKP2

DCMP

FDBKN2

VPWR

FDBKP1

FDBKN1

HMUTE

Y1

Y1B

Y2B

Y2

NC

OCD1

10

11

12

13

14

1

2

3

4

5

6

7

8

9

28

27

26

25

24

23

22

21

20

19

18

17

16

15

IN2

VP2

BBM1

BBM2

MUTE

IN1

VP1

V5

GND

VHI

OVRLDB

VLO

OCD0

REF

TC2000 Pin Description

DescriptionPin No. Function

1 BIASCAP

2,6 FDBKP2, FDBKP1 Positive switching feedback.

3 DCMP

4, 7 FDBKN2, FDBKN1 Negative switching feedback.

5 VPWR Test pin. Must be left floating.

8 HMUTE

9, 12 Y1, Y2 Non-inverted switching modulator outputs.

10, 11 Y1B, Y2B Inverted switching modulator outputs.

13 NC No connect.

14 OCD1 Over Current Detect.

15 REF Internal reference voltage; approximately 1.0VDC.

16 OCD0 Over Current Detect.

17 VLO Negative power stage over/under supply voltage sense resistor tie point.

18 OVRLDB A logic low output indicates the input signal has overloaded the amplifier.

19 VHI Positive power stage over/under supply voltage sense resistor tie point.

20 GND Ground.

21 V5 5 Volt power supply input.

22, 27 VP1, VP2 Input stage output pins.

23, 28 IN1, IN2

24 MUTE

25, 26 BBM2, BBM1 Break-before-make timing control to prevent shoot-through in the output FETs.

Bandgap reference times two (typically 2.5VDC). Used to set the common mode voltage for the input op amps. This pin is not capable of driving external circuitry.

Delay compensation. Improves stability in systems with long loop delay. Enabled when the DCMP pin is either floating or grounded; disabled when DCMP is tied to 5V.

Logic output. A logic high indicates both amplifiers are muted, due to the mute pin state, or a "fault".

Single-ended inputs. Inputs are a "virtual" ground of an inverting opamp with approximately

2.4VDC bias.

When set to logic high, both amplifiers are muted and in idle mode. When low (grounded), both amplifiers are fully operational. If left floating, the device stays in the mute mode. Ground if not used.

38

BH7862FS (VO: IC206)

ADV-1000

01CTRAP

02MUTE1 MUTE1

03

CIN

04GND

05YIN

06VCC

07GND

08PYIN

09GND

10PYTRAP

11VCC

12PbIN

13GND

14PrIN

15MUTE2

1.5-6M

20k

CLAMP

20k

MUTE2

BPF

LPF

12M LPF

LPF

6M

6dB

75ohm

TEST

32

31

30

29

28

27

22

21

20

19

18

COUT

TEST

MIXOUT

MIXFB

GND

YTRAP

GND26

YOUT25

YFB24

GND23

PYOUT

PYFB

GND

PbOUT

N.C.

16PrTRAP

6dB

75ohm

BH7862FS Terminal Function

Pin No.

Port

1 CTRAP 10 PYTRAP 16 PrTRAP

Pin for LC resonation

27 YTRAP 2 MUTE1 Mute control pin, L: C, MIX, Y simultaneous mute 3 CIN 12 PbIN Signal input pin, chroma signal & color-difference signal 14 PrIN 4, 7, 9, 13, 20, 23, 26, 28

GND GND pin 5 YIN Signal input pin, luminance signal 8 PYIN 6 11 Power supply for PY, Pb, Pr

VCC

Power supply for C, MIX, Y

15 MUTE2 Mute control pin, L: PY, Pb, Pr simultaneous mute 17 PrOUT 19 PbOUT

Signal output pin, color-difference signal

18 N.C.  21 PYFB 22 PYOUT 24 YFB 25 YOUT 29 MIXFB 30 MIXOUT

Signal output pin, luminance signal (progressive)

Signal output pin, luminance signal (interlace)

Signal output pin, Y/C MIX signal

31 TEST TEST pin 32 COUT Signal output pin, chroma signal

Description

17

PrOUT

39

AD1854 (MA: IC401)

ADV-1000

Terminal Function

DGND

MCLK

CLATCH

CCLK

CD ATA

384/256

X2MCLK

ZEROR

DEEMP

96/48

AGND

OUTR+

OUTR

FILTR

Pin No.

1

2

3

4

5

6

7

8

9

10

11

12

−

13

14

28

27

26

25

24

23

22

21

20

19

18

17

16

15

DVDD

SDATA

BCLK

L/RCLK

PD/RST

MUTE

ZEROL

IDPM0

IDPM1

FILTB

AVDD

OUTL+

OUTL

AGND

11,15 AGND I Analog Ground.

−

Pin Name

1 DGND I Digital Ground. 2 MCLK I Master Clock Input. 3 CLATCH I Latch input for control data. 4 CCLK I Control clock input for control data. 5 CDATA I Serial control input. 6 384/256 I Selects the master clock mode. 7 X2MCLK I Selects internal clock doubler (LO) or internal clock=MCLK (HI). 8 ZEROR O Right Channel Zero Flag Output. 9 DEEMP I De-Emphasis.

10 96/48 I Selects 48 kHz (LO) or 96 kHz Sample Frequency Control.

12 OUTR+ O Right Channel Positive line level analog output. 13 OUTR- O Right Channel Negative line level analog output. 14 FILTR O Voltage Reference Filter Capacitor Connection. 16 OUTL- O Left Channel Negative line level analog output. 17 OUTL+ O Left Channel Positive line level analog output.

I/O

Function

18 AVDD I Analog Power supply. 19 FILTB O Filter Capacitor connection. 20 IDPM1 I Input serial data port mode control one. 21 IDPM0 I Input serial data port mode control zero. 22 ZEROL O Left Channel Zero Flag output. 23 MUTE I Mute. Assert HI to mute both stereo analog outputs. 24 PD/RST I Power-Down/Reset. 25 L/RCLK I Left/Right clock input for input data. 26 BCLK I Bit clock input for input data. 27 SDATA I Serial input. 28 DVDD I Digital Power Supply.

SN74LV00APW (MA: IC719, 726)

1

GND

1A

1B

2

1Y

3

2A

4

2B

5

2Y

6

7

14

13

12

11

10

9

8

AT49LV002-70TC (MA: IC708)

A11 32 OE1

A9 31 A102

A8 30 CE3 A13 29 I/O74 A14 28 I/O65 A17 27 I/O56 WE 26 I/O47

VCC 25 I/O38

*RESET 24 GND9

A16 23 I/O210 A15 22 I/O111 A12 21 I/O012

A7 20 A013

A6 19 A114

A5 18 A215

A4 17 A316

Vcc

4B

4A

4Y

3B

3A

3Y

SN74LV4040APW (MA: IC723)

QL

QF

QE

QG

Outputs

QD

QC

QB

GND

1

2

QF

3

QE

4

QG

5

QD

6

QC

7

QB

8

QA

16

QL

15

QK

14

QJ

13

QH

12

QI

11

CLR

10

CLK

TC74VHC123AFT (MA: IC718)

1

ext / Cext

2R

1 CLR

2Cext

GND

1A

1B

2

CLR

3

QQ

4

1Q

2Q

5

QQ

6

7

8

CLR

9

Vcc

QK

QJ

QH

QI

CLR

CLK Output

QA

Outputs

M11B416256A-35J (DM: IC508)

V

CC

140 I/O0 2 I/O1539 I/O1 3 I/O1438 I/O2 4 I/O1337 I/O3 5 I/O1236

V

CC

635 I/O4 7 I/O1134 I/O5 8 I/O1033 I/O6 9 I/O932 I/O7 10 I/O831

TOP VIEW

NC 11 NC30 NC 12 CASL29

WE 13 CASH28

RAS 14 OE27

NC 15 A826

A0 16 A725 A1 17 A624 A2 18 A523 A3 19 A422

VCC20 V

V

SS

V

SS

21

16

Vcc

1Rext/Cext

15

14

1Cext

1Q

13

12

2Q

11

2CLR

10

2B

9

2A

40

74LVX574MTC (MA: IC714)

Truth Table

Input

Function

Output

D

CK QCLR

L H H H

X L H X

L L H

Qn

X

Clear

¾

No change

X: Don't Care

Terminal Function

Name

Function

A0 A1

A2 GND SDA

TEST/WP

Address input

GND Serial data input/output

Test, connect to GND

Pin No.

1 2 3 4 5 6 7 8

SCL

Vcc

Address input Address input

Serial clock input

Power supply

1

2

3

4

8

7

6

5

A0

A1

NC

GND

Vcc

TEST/WP

SCL

SDA

1

2

3

4

5

6

7

8

10

9

20

19

18

17

16

15

14

13

12

11

CLR

Q1

D1

D2

Q2

Q3

D3

D4

Q4

GND

Vcc

Q8

D8

D7

Q7

Q6

D6

D5

Q5

CK

SN74LVC574APW (MA: IC717)

ADV-1000

logic symbol Function Table (each flip-flop)

SN74HCT244APW (MA: IC706, 724) SN74LV244APW (MA: IC715) SN74LVC244APW (MA: IC727)

INPUTS

OE CLK D Q

LHH LLL L H or L X Q0 HXX Z

logic symbol Function Table

INPUTS OUTPUT

GA Y

LH H

LL L

HX Z

OUTPUT

MX29F080TC-90 (DM: IC102)

A19 1 NC40 A18 2 NC39 A17 3 WE38 A16 4 OE37 A15 5 RY/BY36 A14 6 Q735 A13 7 Q634 A12 8 Q533

CE 9 Q432

VCC 10 VCC31

NC 11 VSS30

RESET 12 VSS29

A11 13 Q328 A10 14 Q227

A9 15 Q126 A8 16 Q025 A7 17 A024 A6 18 A123 A8 19 A222 A4 20 A321

20

A0-A19

Q0-Q7

CE

OE

WE

RESET

RY/BY

PIN DESCRIPTION

8

Symbol

A0-A19

Q0-Q7

CE

WE

OE

RESET

RY/BY

VCC

VSS

Pin Name

Address input

8 Data Inputs/Outputs

Chip Enable Input

Write Enable Input

Output Enable Input

Hardware Reset Pin, Active Low

Read/Busy Output

+5.0V single power supply

Device Ground

Pin Not Connected InternallyNC

SN74AHCT273PW (DM: IC105, 106) S-24C01B (DM: IC108)

41

ADV-1000

BD6670FM (DM: IC510)

EXOR

Hall comp

H1+

GSW

GND

1

H1-

2

Hall Amo

H2+

3

H2-

4

H3+

5

H3-

6

7

Gain control

8

CP1

9

Charge

CP2

Pump

10

G

V

11

C

NF

12

SB

Matrix

13

Vcc

14

PWM

Comp

TSD

OSC

D

CK

Matrix

Q

REVERSE

QB

DETECT

Current Sense AMP

U-Pre Driver

L-Pre Driver

BD6670FM Terminal Function

No.

FG3

28

FG

27

V

H

Hall

26

bias

V

M

25

A1

24

R

NF1

23

A2

22

Driver

R

NF1

21

A3

20

R

NF2

19

PS

18

EC

Torque

17

AMP

ECR

16

V

M

CL

15

Name

1 H1+ Hall input Amp 1 positive input 2 H1- Hall input Amp 1 negative input 3 H2+ Hall input Amp 2 positive input 4 H2- Hall input Amp 2 negative input 5 H3+ Hall input Amp 3 positive input 6 H3- Hall input Amp 3 negative input 7 GSW Gain switch pin 8 GND GND

9 CP1 Capacitor pin 1 for charge pump 10 CP2 Capacitor pin 2 for charge pump 11 VG Capacitor connection pin for charge pump 12 CNF Capacitor connection pin for phase compensation 13 SB Short Brake Pin 14 VCC Power supply for signal division 15 VM Power supply for driver 16 ECR Torque control standard voltage input terminal 17 EC Torque control voltage input terminal 18 PS Power Save in 19 RNF2 Resistor connection pin for current sense 20 A3 Output3 for motor 21 RNF1 Resistor connection pin for current sense 22 A2 Output2 for motor 23 RNF1 Resistor connection pin for current sense 24 A1 Output1 for motor 25 VM Power supply for driver 26 VH Hall bias pin 27 FG FG output pin 28 FG3 FG3 output pin

Function

BA5954FP (DM: IC509)

28

10k

STAND

BY

THERMAL

SHUT DOWN

20k

7.5k

10k

1272263254245236227

7.5k

20k

DET.AMP.

x2

7.5k

x2

DET.AMP.

BA5954FP Terminal Function

No.

Name

1 VINFC Focus driver input 2 CFCerr1 Cap. connection pin for error amp filter 3 CFCerr2 Cap. connection pin for error amp filter 4 VINSL+ Op. amp input (+) for sled driver 5 VINSL- Op. amp input (-) for sled driver 6 VOSL Op. amp output for sled driver 7 VNFFC Focus driver feedback pin 8 Vcc Pre Vcc, power Vcc for sled driver

9 PVcc1 Power Vcc for loading driver 10 PGND Power GND 11 VOSL- Output (-) of sled driver 12 VOSL+ Output (+) of sled driver 13 VOFC- Output (-) of focus driver 14 VOFC+ Output (+) of focus driver

Function

10k 15k

10k

25k

15

16

17

18

19

20

21

8

Pin No.

9

Name

PGNDPreGND

PGND

10

LOADING

DRIVER

SLED

DRIVER

11

ACTUATOR

DRIVER

PVcc1 PVcc2 Vcc

ACTUATOR

DRIVER

14

13

12

Function

PVcc2

Vcc PVcc1

15 VOTK+ Output (+) of tracking driver 16 VOTK- Output (-) of tracking driver 17 VOLD+ Output (+) of loading driver 18 VOLD- Output (-) of loading driver 19 PGND Power GND 20 VNFTK Tracking driver feedback pin 21 PVcc2 Power Vcc for actuator driver 22 PreGND Pre GND 23 VINLD Loading driver input 24 CTKerr2 Cap. connection pin for error amp filter 25 CTKerr1 Cap. connection pin for error amp filter 26 VINTK Tracking driver input 27 BIAS Bias input 28 STBY Standby pin

NJM2391DL1-25 (MA: IC722) NJM2391DL1-33 (MA: IC725) MJM7805DL1A (MA: IC734)

GND

TOP

VIEW

IN OUT

SE-B2 (AP: IC902)

C

FRONT

VIEW

REF

2

1 REF

3

GND

GROUND

COLLECTOR

SI-8050JF (AP: IC909~911, 913)

PQ070XZ01Z (DM: IC112)

3

DC input

1 3

IN

)

TOP

VIEW

1

23

45

(V

On/Off control

O

(V

)

2

Specific IC

5

GND

DC output

(V

4

Output voltage adjustment (V

BA033FP (DM: IC113)

FRONT

VIEW

GND

O

)

ADJ

)

TOP

VIEW

IN OUT

IN

OS

V

OUT

V

GND

SW

ON/OFF

42

ADV-1000

TC74HCU04AF (MA: IC704) SN74HC153NS (MA: IC712)

M66005FP (MA: IC101)

BA7625 (VO: IC201, 203) BA7626 (VO: IC202)

BA4510F (MA: IC710, 711) BA15218F (MA: IC402, 501~503,

505~507, 512~514, 728~730) LM358PT (AP: IC103, 203, 303) TL3472 (DM: IC505)

BU4053BCF (VO: IC204)

MM74HC08MTC (AP: IC401, 402)

1

2

3

4

5

6

7

14

13

12

11

10

9

8

1A

1B

1Y

2A

2B

2Y

GND

V

CC

4B

4A

4Y

3B

3A

3Y

Note1: *mark means that feasible for either H or L. Note2: Each input terminal is provided with sink chip clamp (BA7625)/ Each input terminal takes 20kohm at the end (BA7626).

43

ADV-1000

SK

CS

DI

DO

NC

V

CC

TEST

GND

1

2

3

4

5

7

8

6

BA05T (AP: IC907) NJM7812FA(S) (AP: IC904)

BA12ST (AP: IC908)

FRONT

VIEW

Input

GND

Output

FRONT

VIEW

CTL

V

CC

GND

OUT

N.C.

NJM7912FA (AP: IC905)

RPM6938-V4 (MA: IC102)

FRONT

VIEW

Common

Input

Output

1

2

3

4

8

7

6

5

NC

Input

NC

GND

NC

Vcc

Output

Delay-Cap

Input

GND Delay-Cap

Output

Output: Open Collector

Vcc

25

µ

A5

5 4

2

6

7

µ

A

1.25 V

M51957BFP (MA: IC303)

S29590A (MA: IC301)

PC123 (AP: IC914)

COLLECTOR

EMITTER

ANODE

CATHODE

TOP VIEW

STR-F6667B (AP: IC901)

O.C.P./F.B.

S

D

V

IN

GND

FRONT

VIEW

W29EE011P (DM: IC507)

A0 - A16

DQ0 - DQ7

CE OE

WE

VDD

GND

NC

Terminal Function

Name Function

Address Inputs Data Inputs/Outputs Chip Enable Output Enable Write Enable Power Supply Ground No Connection

1234

5 6 7 8

9 10 11 12 13

14 15 16 17 18 19 20

21

22

23

24

25

26

27

28

29

303132

A7 A6 A5 A4 A3 A2 A1 A0

DQ0

DQ1

DQ2

GND

DQ3

DQ4

DQ5

DQ6

A14 A13 A8 A9

OE

DQ7

A12

A15

A16NCVDDWENC

A10 CE

A11

TOP

VIEW

CE OE

WE

DQ0

:

DQ7

A0

. . . . . . .

A16

V

DD

V

SS

CONTROL

OUTPUT BUFFER

DECODER

CORE

ARRAY

REMOTE CONTROL SENSOR

GND

V

CC

R

OUT

FRONT VIEW

OPTICAL

INPUT OUTPUT

V

CC

GND

V

OUT

V

CC

V

OUT

GND

GP1FA551RZ (MA: IC702, 703) GP1FA551TZ (MA: IC701)

FRONT VIEW

V

IN

V

CC

GND

FRONT VIEW

V

CC

V

IN

GND

DRIVE

IC

LED

V

IN

4

D

S

Vth(2)

Coap.1

Coap.2

START

REG.

T.S.D

O.V.P

Iconst

O.C.P/F.B

5

GND

R3

Vth(1)

R2

R1

DRIVE

LATCH

O. S. C

1

3

2

44

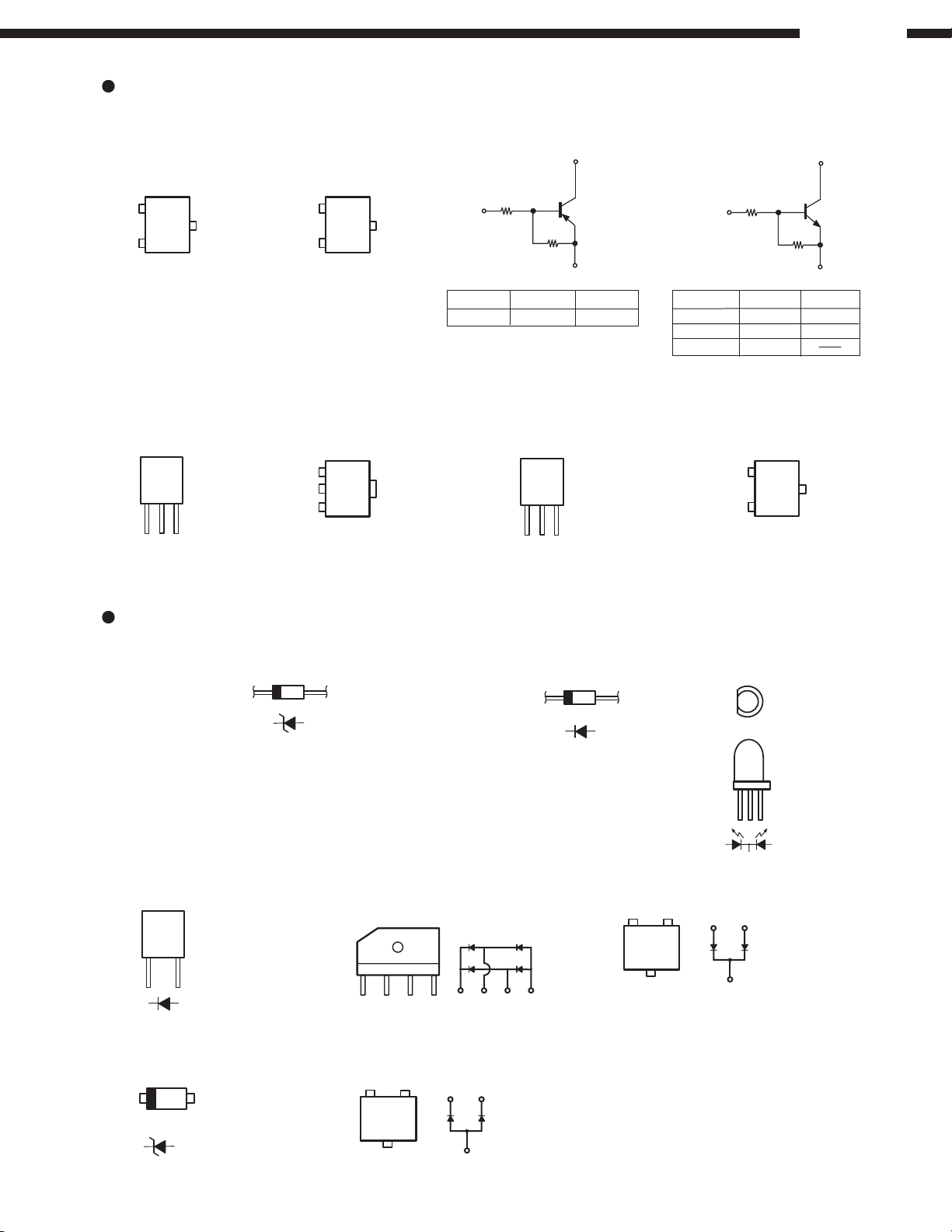

TRANSISTORS

2SC2412K KTA1504 KTC2875B

DTA114EK DTC114EK DTC114YK DTC323TK

DTA Series DTC Series

C

ADV-1000

C

B

TOP

C

VIEW

E

B

E

2SA988 2SA1015 2SC1740S 2SC1815 2SC2458

FRONT

VIEW

C

B

E

2SB1132 2SC4672

B

E

DIODES (LED included)

MTZJ5.6A MTZJ7.5A MTZJ10B MTZJ20B

TOP

VIEW

TOP

VIEW

C

CC

1SR139-400 1SR35-400A 1SS133 1SS270A AG01Z AK03 EK03 EK16 RK46F SARS03

B

DTA114EK

R1

R2

R1

10kohm

E

R2

10kohm

DTC114EK DTC114YK

DTC323TK

R1

B

10kohm 10kohm 10kohm 47kohm

2.2kohm

2SC3852A 2SK771

FRONT

VIEW

C

B

E

S

D

SPR-54MVW

TOP VIEW

SIDE VIEW

R1

TOP

VIEW

R2

E

R2

G

FML-G12S

FRONT

VIEW

UDZS3.6B

TOP VIEW

RBV-406

FRONT VIEW

DAP202K

TOP

VIEW

3

Red Green

DAN202K

21

12

TOP

VIEW

1: Anode

3

12341234

21

12

1: Cathode 2: Cathode 3: Anode

3

2: Anode

3

3: Cathode

45

ADV-1000

FL TUBE

15ST36GN (MA: FL101)

45

46 90

Pin Assignment

Pin No,

Connection

Pin No,

Connection

Grid Partition

Note: 1. Fn: Filament

2. nG: Grid

3. Pn: Anode

4. NP: No Pin

5. NX: No Connection

46

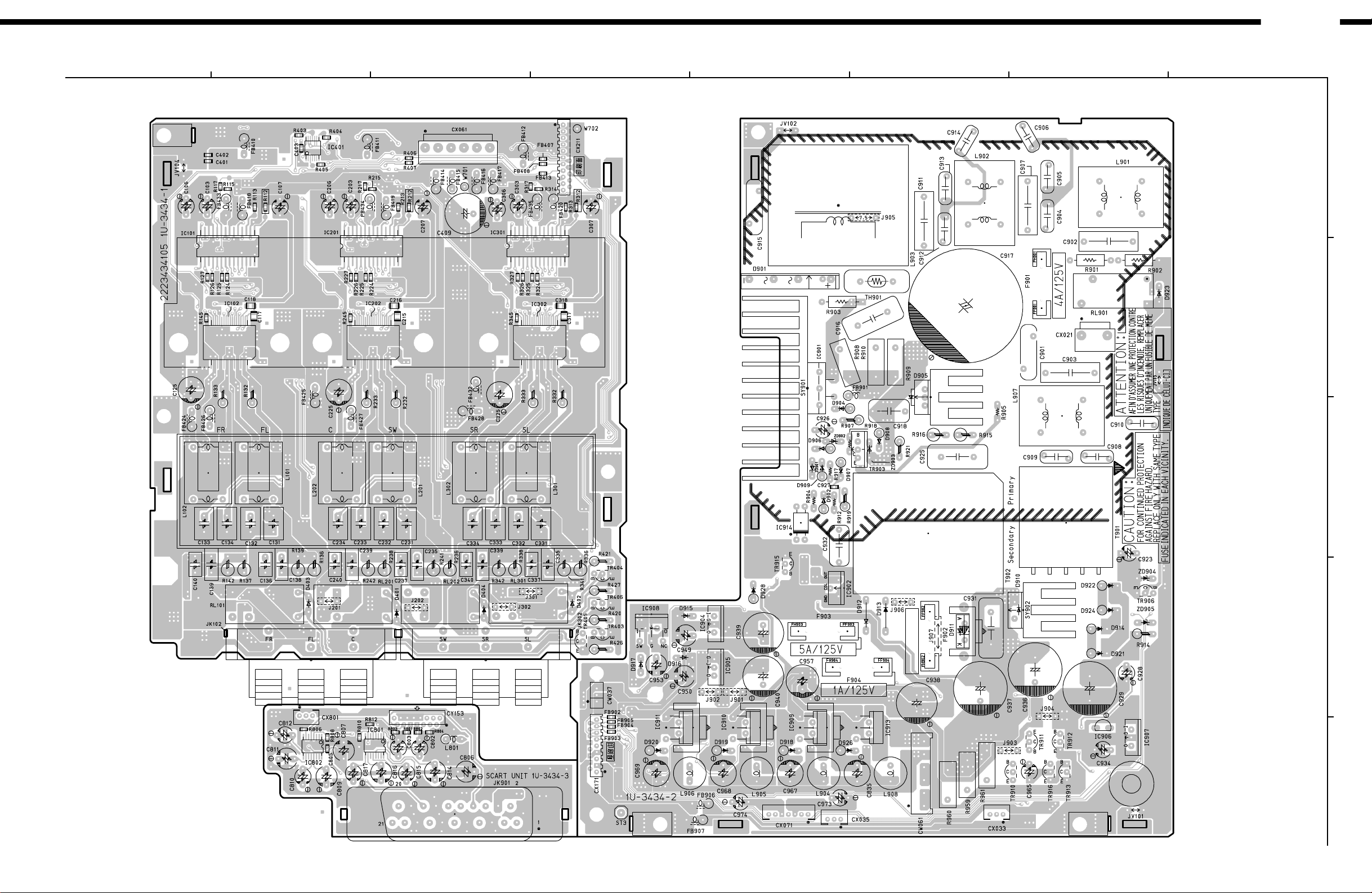

PRINTED WIRING BOARDS

ADV-1000

1

2

1U-3434A AMP/POWER P.W.B. UNIT Ass'y

9

8

1 7

1528

1

19 38

14

118

1

19 38

3

1

4

2

5

76

8

A

20

21

1528

14

118

1

19 38

1528

14

B

1 2

118

1 3

8

9 16

C

D

15

1

8

9 16

1

214

17

2 16

1 1 3

7

1

13

1 6

13

E

COMPONENT SIDE

47

ADV-1000

1

2

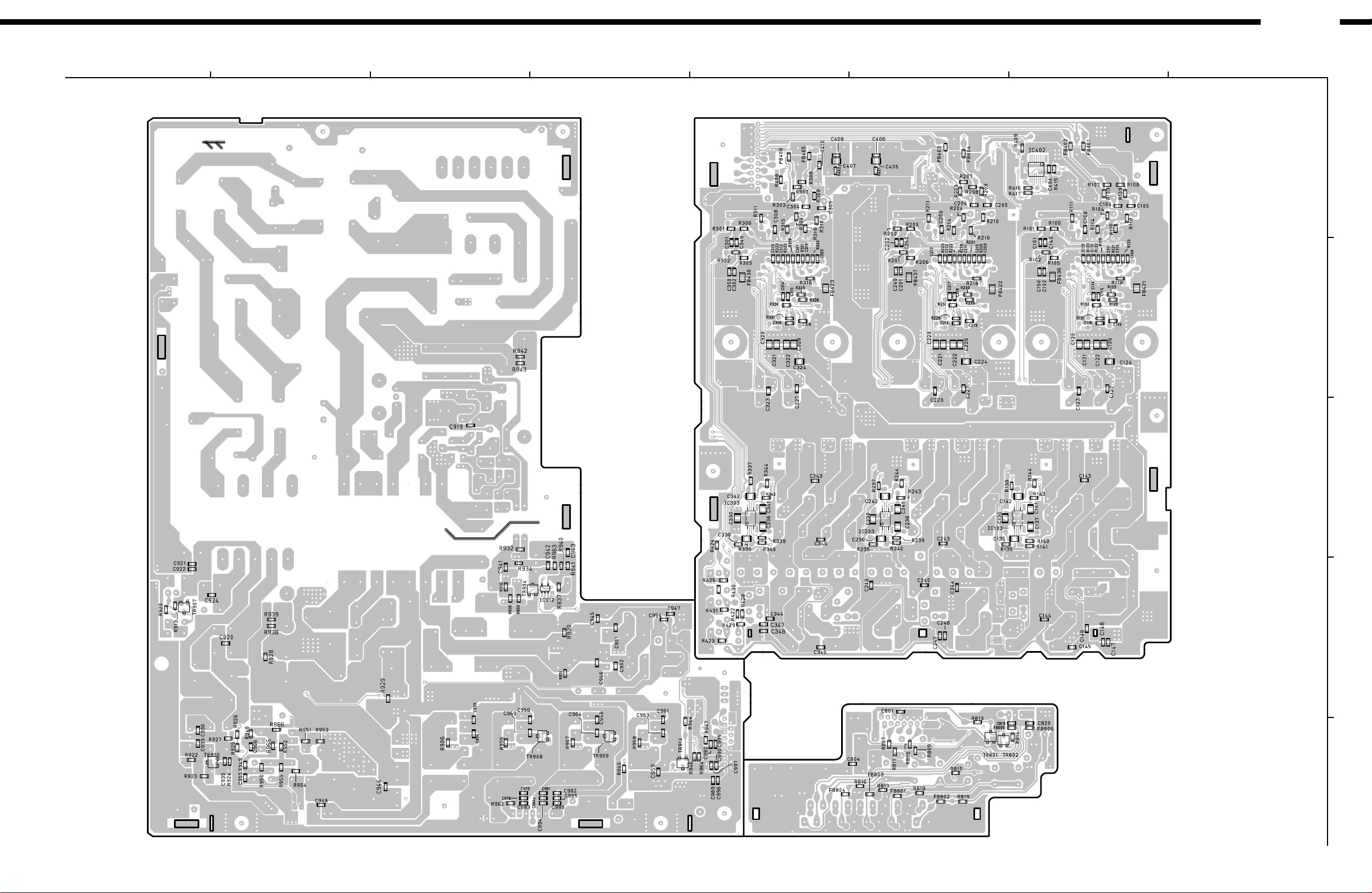

1U-3434A AMP/POWER P.W.B. UNIT Ass'y

3

4

5

76

8

A

B

1 4

C

58

1 4

58

1 4

D

E

FOIL SIDE

48

ADV-1000

1

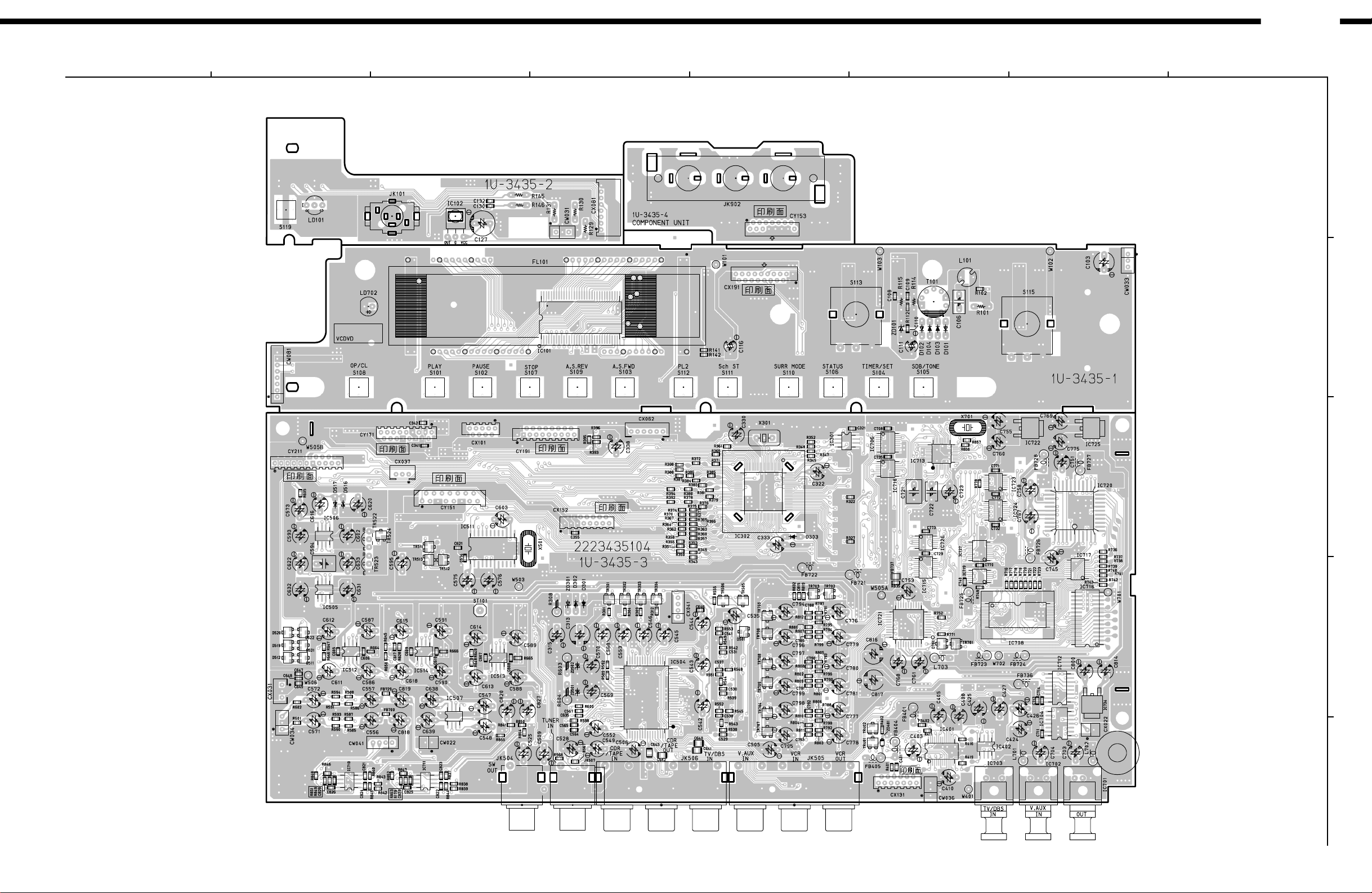

1U-3435A MAIN P.W.B. UNIT Ass'y

1 8

2

3

4

5

76

8

A

8

1

3

1

3364

2

1

18

14

15

13

119

2

B

1

32

2

19

17 16

2

1

3

1

5 8

1 4

19

21

14

58

1 4

1 124

45

1

8

1

2

13

1

1 4

8

2

58

45

1

58

1 4

14

15

24

1 12

1

210

13

58

1

4

18

19

2

1

6 1

14 15

41

64

65 80

1

5

4

25

26

50

51 75

1 4

2540

24

1

100

76

10

1

8 9

23

33

34

2

1

11

16

1

7

1

10

37

1222

44

28

14

15

48

1

14

8

20

11

1

1 14

1 3

2536

24

13

12

9

16

11

20

11

20

8

14

15

5 8

8

1

10

1

10

1

7

1

1 32

16

14

11

20

15

28

1

1 6

8

7

1

1828

7

44

10

1

14

1

2

29

39

40

17

9

16

8

14

C

D

E

20

1

8

COMPONENT SIDE

49

ADV-1000

1

1U-3435A MAIN P.W.B. UNIT Ass'y

2

3

4

5

76

8

A

B

14

5 8

C

1120

5 8

14

5 8

14

5 8

14

5 8

10

1

D

FOIL SIDE

E

50

ADV-1000

1

2

GU-3430 DVD MAIN P.W.B. UNIT Ass'y

E

C

B

3

4

5

76

8

A

115

8

14

1

7

14

32

85

33

48

8

14

1

7

17

16

50

1

64

49

2526

50

1

2526

58

1 4

1

1 8

B

C

21

40

20

21

BE

C

E

1 5

B

29

14

13

1

5

4

B

C

E

13

24

B

C

E

12

25 36

20

1

4

1

5

4

2

3

1

10

11 20

1

21 40

3

4

2 1

5

4

1 4

5

1

8

5 8

1

48

37

10

11 20

1

D

1 3

E

1 5 1 8

1 3 1 3

COMPONENT SIDE

51

ADV-1000

1

2

GU-3430 DVD MAIN P.W.B. UNIT Ass'y

3

4

5

76

8

A

114

15 28

B

114

15 28

C

1

D

B

C

E

C

E

C

E

B

E

FOIL SIDE

52

ADV-1000

1

2

1U-3443A VIDEO/OUT P.W.B. UNIT Ass'y

1

2

17

14

15

32

1

16

8 9

3

4

5

76

8

A

16

1

1 3

7

6

12

1

9

16

8

1

1 7

20

1

11

19

18

2

1

10

40

41

60

61

80

21

20

1

B

15

1

16

14

C

2

8

1

8

9

1

16

1

9

1

14

7

17

16

D

16

1

8

9

2

1

7

1

2

16

1

9

8

14

15

1 3

1

E

FOIL SIDECOMPONENT SIDE

53

NOTE FOR PARTS LIST

l Part indicated with the mark "" are not always in stock and possibly to take a long period of time for supplying, or in

some case supplying of part may be refused.

l When ordering of part, clearly indicate "1" and "I" (i) to avoid mis-supplying. l Ordering part without stating its part number can not be supplied. l Part indicated with the mark " " is not illustrated in the exploded view. l Not including Carbon Film ±5%, 1/4W Type in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.)

WARNING:

Parts marked with this symbol Use ONLY replacement parts recommended by the manufacturer.

have critical characteristics.

ADV-1000

ll

l Resistors

ll

Ex.: RN 14K 2E 182 G FR

Type Shape Power Resist- Allowable Others

and per- ance error formance

t

RD : Carbon 2B : 1/8W F : ±1% P : Pulse-resistant type RC : Composition 2E : 1/4W G : ±2% NL : Low noise type RS : Metal oxide film 2H : 1/2W J : ±5% NB :Non-burning type RW : Winding 3A : 1W K : ±10% FR :Fuse-resistor RN : Metal film 3D : 2W M : ±20% F : Lead wire forming RK : Metal mixture 3F : 3W

t

3H : 5W

Resistance

1 8 2 ⇒ 1800 ohm = 1.8 kohm

s

• Units: ohm

1 R 2 ⇒ 1.2 ohm

s

• Units: ohm

Indicates number of zeros after effective number. 2-digit effective number.

1-digit effective number. 2-digit effective number, decimal point indicated by R.

t

ll

l Capacitors

ll

Ex.: CE 04W 1H 2R2 M BP

Type Shape Dielectric Capacity Allowable Others

and per- strength error formance

t

CE : Aluminum foil 0J : 6.3V F : ±1% HS : High stability type

electrolytic

CA : Aluminum solid 1A : 10V G : ±2% BP : Non-polar type

electrolytic CS : Tantalum electrolytic 1C : 16V J : ±5% HR : Ripple-resistant type CQ : Film 1E : 25V K : ±10% DL : For change and discharge CK : Ceramic 1V : 35V M : ±20% HF : For assuring high

CC : Ceramic 1H : 50V Z : +80% U : UL part CP : Oil 2A : 100V –20% C : CSA part CM : Mica 2B : 125V P : +100% W : UL-CSA type CF :Metallized 2C : 160V –0% F : Lead wire forming CH : Metallized 2D : 200V C : ±0.25pF

t

2E : 250V D : ±0.5pF 2H : 500V = : Others 2J : 630V

t

Capacity (electrolyte only)

2 2 2 ⇒ 2200µF

s

• Units: µF.

2 R 2 ⇒ 2.2µF

s

• Units: µF.

Indicates number of zeros after effective number. 2-digit effective number.

1-digit effective number. 2-digit effective number, decimal point indicated by R.

Capacity (except electrolyte)

2 2 2 ⇒ 2200pF=0.0022µF

s

(More than 2) Indicates number of zeros after effective number.

• Units: pF.

2 2 1 ⇒ 220pF

s

(0 or 1) Indicates number of zeros after effective number.

• Units: pF.

• When the dielectric strength is indicated in AC, "AC" is included after the dieelectric

strength value.

2-digit effective number.

t

requency

54

ADV-1000

PARTS LIST OF P.W.B. UNIT ASS'Y

1U-3434A AMP/POWER P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks

SEMICONDUCTORS GROUP

IC101 262 3111 905 TA2025/TC2000

IC102 262 3112 904 TP2050

IC103 263 1175 904 LM358PT (STMICRO)

IC201 262 3111 905 TA2025/TC2000

IC202 262 3112 904 TP2050

IC203 263 1175 904 LM358PT (STMICRO)

IC301 262 3111 905 TA2025/TC2000

IC302 262 3112 904 TP2050

IC303 263 1175 904 LM358PT (STMICRO)

IC401,402 262 3131 901 MM74HC08MTC

IC801,802 262 2534 907 BA7660FS-E2

IC901 265 0114 001 STR-F6667B

IC902 263 1155 005 SE-B2

IC904 263 0801 004 NJM7812FA(S)

IC905 263 0641 002 NJM7912FA

IC907 263 1092 003 BA05T

IC908 263 1127 004 BA12ST-V5

IC909-911 263 1154 006 SI8050JF

IC913 263 1154 006 SI8050JF

IC914 262 3047 008 PC123 Y-22

TR403-406 273 0303 910 2SC1740S(S)-T

TR801 269 0082 902 DTC114EKT96

TR802 269 0083 901 DTA114EKT96

TR903 273 0369 006 2SC3852A

TR905 273 0384 900 2SC2412KT96(S)

TR906 273 0303 910 2SC1740S(S)-T

TR908,909 269 0082 902 DTC114EKT96

TR910-912 271 0131 924 2SA988-T(E/F)

TR913 273 0198 905 2SC1815(Y)TPE2

TR914 269 0082 902 DTC114EKT96

TR916 273 0198 905 2SC1815(Y)TPE2

D915-917 276 0432 903 1SS270A TE (TAPE)

D918-920 276 0755 907 EK03T (W)

D921,922 276 0704 903 1SR35-400A(T93X)

D923 276 0432 903 1SS270A TE (TAPE)

D924 276 0704 903 1SR35-400A(T93X)

D926 276 0755 907 EK03T (W)

ZD902 276 0761 917 MTZJ10B T77

ZD903 276 0761 988 MTZJ20B T77

TH901 279 0045 001 NTPAJ6R0LDKB0

RESISTORS GROUP

R101,102 247 2013 908 RM73B--224JT

R103 247 2019 902 RM73B--102FT

R104 247 2010 956 RM73B--203JT

R105,106 247 2013 908 RM73B--224JT

R107,108 247 2014 965 RM73B--105JT

R109 247 2019 902 RM73B--102FT

R110 247 2010 956 RM73B--203JT

R111 247 2010 972 RM73B--243JT

R112 247 2019 931 RM73B--822FT

R113 247 2009 996 RM73B--113JT

R114 247 2010 956 RM73B--203JT

R115 247 2009 983 RM73B--103JT

R116 247 2010 956 RM73B--203JT

R117 247 2018 903 RM73B--0R0KT

R120-123 247 2019 902 RM73B--102FT

R124-127 247 2020 946 RM73B--133FT

R129 247 2019 902 RM73B--102FT

R130,131 247 2009 983 RM73B--103JT

R132,133 244 2050 904 RS14B3A220JNBST(S)

R135 247 2018 903 RM73B--0R0KT

R136,137 244 2671 930 RS14B3D200JNBST(S)

R138 247 2018 903 RM73B--0R0KT

R139 244 2671 930 RS14B3D200JNBST(S)

R140,141 247 2020 959 RM73B--474FT

R142 244 2671 930 RS14B3D200JNBST(S)

R143,144 247 2020 959 RM73B--474FT

R145 247 2018 903 RM73B--0R0KT

D401-404 276 0432 903 1SS270A TE (TAPE)

D901 276 0767 005 RBV-406

D902 276 0730 919 AG01ZT (WK)

D904 276 0754 908 AK03T (WS)

D905 276 0758 001 SARS03

D906-909 276 0730 919 AG01ZT (WK)

D910 276 0757 002 FML-G12S

D911 276 0771 004 RK46F (LF015-302)

D912,913 276 0756 906 EK16T (V0)

D914 276 0704 903 1SR35-400A(T93X)

R201,202 247 2013 908 RM73B--224JT

R203 247 2019 902 RM73B--102FT

R204 247 2010 956 RM73B--203JT

R205,206 247 2013 908 RM73B--224JT

R207,208 247 2014 965 RM73B--105JT

R209 247 2019 902 RM73B--102FT

R210 247 2010 956 RM73B--203JT

R211 247 2010 972 RM73B--243JT

R212 247 2019 931 RM73B--822FT

R213 247 2009 996 RM73B--113JT

R214 247 2010 956 RM73B--203JT

55

ADV-1000

Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks

R216 247 2010 956 RM73B--203JT

R217 247 2018 903 RM73B--0R0KT

R220-223 247 2019 902 RM73B--102FT

R224-227 247 2020 946 RM73B--133FT

R228 247 2009 983 RM73B--103JT

R230 247 2019 902 RM73B--102FT

R231 247 2009 983 RM73B--103JT

R232,233 244 2050 904 RS14B3A220JNBST(S)

R235 247 2018 903 RM73B--0R0KT

R236 244 2671 930 RS14B3D200JNBST(S)

R237 247 2018 903 RM73B--0R0KT

R238 244 2671 930 RS14B3D200JNBST(S)

R239,240 247 2020 959 RM73B--474FT

R241,242 244 2671 930 RS14B3D200JNBST(S)

R243,244 247 2020 959 RM73B--474FT

R245 247 2018 903 RM73B--0R0KT

R301,302 247 2013 908 RM73B--224JT

R303 247 2019 902 RM73B--102FT

R304 247 2010 956 RM73B--203JT

R305,306 247 2013 908 RM73B--224JT

R307,308 247 2014 965 RM73B--105JT

R309 247 2019 902 RM73B--102FT

R310 247 2010 956 RM73B--203JT

R311 247 2010 972 RM73B--243JT

R312 247 2019 931 RM73B--822FT

R313 247 2009 996 RM73B--113JT

R315,316 247 2010 956 RM73B--203JT

R317 247 2018 903 RM73B--0R0KT

R320-323 247 2019 902 RM73B--102FT

R324-327 247 2020 946 RM73B--133FT

R329 247 2019 902 RM73B--102FT

R330,331 247 2009 983 RM73B--103JT

R332,333 244 2050 904 RS14B3A220JNBST(S)

R335 247 2018 903 RM73B--0R0KT

R336 244 2671 930 RS14B3D200JNBST(S)

R337 247 2018 903 RM73B--0R0KT

R338 244 2671 930 RS14B3D200JNBST(S)

R339,340 247 2020 959 RM73B--474FT

R341,342 244 2671 930 RS14B3D200JNBST(S)

R343,344 247 2020 959 RM73B--474FT

R345 247 2018 903 RM73B--0R0KT

R401 247 2009 983 RM73B--103JT

R403-405 247 2005 903 RM73B--101JT

R406-408 247 2018 903 RM73B--0R0KT

R409,410 247 2009 983 RM73B--103JT

R415-417 247 2018 903 RM73B--0R0KT

R420,421 244 2064 961 RS14B3A201JNBST(S)

R422 247 2009 909 RM73B--472JT (1608)

R423 247 2009 983 RM73B--103JT

R424 247 2009 909 RM73B--472JT (1608)

R425 247 2009 983 RM73B--103JT

R426,427 244 2064 961 RS14B3A201JNBST(S)

R428 247 2009 909 RM73B--472JT (1608)

R429 247 2009 983 RM73B--103JT

R430 247 2009 909 RM73B--472JT (1608)

R431 247 2009 983 RM73B--103JT

R801-804 247 2005 945 RM73B--151JT

R805 247 2013 940 RM73B--334JT

R806 247 2011 968 RM73B--563JT

R807 247 2013 940 RM73B--334JT

R808 247 2011 968 RM73B--563JT

R809 247 2013 940 RM73B--334JT

R810 247 2011 968 RM73B--563JT

R811 247 2013 940 RM73B--334JT

R812 247 2011 968 RM73B--563JT

R813 247 2009 983 RM73B--103JT

R814 247 2012 925 RM73B--104JT

R815-819 247 2004 975 RM73B--750JT

R901 242 2009 001 RC05GF2H225K(UL)

R903 244 2679 000 RS14B3A104JNBF

R906 247 2018 903 RM73B--0R0KT

R907 244 2043 908 RS14B3A681JNBST(S)

R909,910 243 2094 019 RW99=3DR22JF

R913 247 2011 942 RM73B--473JT

R914 244 2043 937 RS14B3A100JNBST(S)

R915 244 2680 918 RS14B3D154JNBST(SPR)

R920 247 2008 900 RM73B--182JT

R921 241 2315 912 RD14B2E100GFRST

R922 247 2009 983 RM73B--103JT

R923 247 2009 909 RM73B--472JT (1608)

R924,925 247 2009 983 RM73B--103JT

R926 247 2009 954 RM73B--752JT

R927 247 2008 913 RM73B--202JT

R928-931 247 2009 983 RM73B--103JT

R932 247 2008 942 RM73B--272JT

R933 247 2008 926 RM73B--222JT

R935 247 2010 998 RM73B--303JT

R936 247 2008 926 RM73B--222JT

R938,939 247 2018 903 RM73B--0R0KT

R942,943 247 2018 903 RM73B--0R0KT

R944 247 2009 983 RM73B--103JT

R945 247 2009 909 RM73B--472JT (1608)

R946,947 247 2009 996 RM73B--113JT

R949 247 2009 996 RM73B--113JT

R950 247 2014 907 RM73B--564JT

R951 247 2008 900 RM73B--182JT

R952 247 2010 969 RM73B--223JT

R953 247 2004 975 RM73B--750JT

R954 247 2014 907 RM73B--564JT

R955 247 2009 954 RM73B--752JT

56

ADV-1000

Ref. No. Part No. Part Name Remarks

R956-958 247 2018 903 RM73B--0R0KT

R960,961 243 2039 032 RW99=3H0R1K

R962 247 2018 903 RM73B--0R0KT

R964 247 2011 900 RM73B--333JT

R965 247 2018 903 RM73B--0R0KT

R966 247 2010 972 RM73B--243JT

CAPACITORS GROUP

C101,102 257 0512 903 CK73F1E104ZT

C103 254 4524 956 CE04W1H2R2MT SMG/RE3

C104,105 257 0504 940 CC73CH1H330JT

C106 254 4524 956 CE04W1H2R2MT SMG/RE3

C107 254 4538 942 CE04W1C101MT SMG/RE3

C108,109 257 0512 903 CK73F1E104ZT

C110,111 257 0507 950 CC73CH1H271JT

C112,113 257 0507 976 CC73CH1H331JT

C114-116 257 0512 903 CK73F1E104ZT

C117,118 257 0032 904 CK73F1H104ZT

C119 257 0512 903 CK73F1E104ZT

C121,122 253 1181 917 CK45F1H223ZT(DD-3)

C123 257 0507 976 CC73CH1H331JT

C124 253 1026 001 CK45F1H473Z

C124 257 0032 904 CK73F1H104ZT

C125 254 4618 901 CE04W1H101MT H12(LXZ)

C127 257 0507 976 CC73CH1H331JT

C130 253 1026 001 CK45F1H473Z

C131-134 256 1059 954 CF93A1H474JT (JL)

C135 257 0032 917 CK73F1H224ZT

C136 256 1061 900 CF93A1J104JT(ECQV)

C137 257 0032 917 CK73F1H224ZT

C138,139 256 1061 913 CF93A1J474JT(ECQV)

C140 256 1061 900 CF93A1J104JT(ECQV)

C141,142 257 0032 917 CK73F1H224ZT

C143-146 257 0511 904 CK73F1H103ZT

C147 257 0506 951 CC73CH1H101JT

C148 257 0510 934 CK73B1H472KT

C149,150 257 0512 903 CK73F1E104ZT

C201,202 257 0512 903 CK73F1E104ZT

C203 254 4524 956 CE04W1H2R2MT SMG/RE3

C204,205 257 0504 940 CC73CH1H330JT

C206 254 4524 956 CE04W1H2R2MT SMG/RE3

C207 254 4538 942 CE04W1C101MT SMG/RE3

C208,209 257 0512 903 CK73F1E104ZT

C210,211 257 0506 977 CC73CH1H121JT

C212,213 257 0506 993 CC73CH1H151JT

C214 257 0512 903 CK73F1E104ZT

C215,216 257 0032 904 CK73F1H104ZT

C217-219 257 0512 903 CK73F1E104ZT

C221,222 253 1181 917 CK45F1H223ZT(DD-3)

C223 257 0507 976 CC73CH1H331JT

C224 253 1026 001 CK45F1H473Z

Ref. No. Part No. Part Name Remarks

C224 257 0032 904 CK73F1H104ZT

C225 254 4618 901 CE04W1H101MT H12(LXZ)

C227 257 0507 976 CC73CH1H331JT

C230 253 1026 001 CK45F1H473Z

C231-234 256 1059 954 CF93A1H474JT (JL)

C235 256 1061 913 CF93A1J474JT(ECQV)

C236 257 0032 917 CK73F1H224ZT

C237 256 1061 900 CF93A1J104JT(ECQV)

C238 257 0032 917 CK73F1H224ZT

C239 256 1061 913 CF93A1J474JT(ECQV)

C240 256 1061 900 CF93A1J104JT(ECQV)

C241,242 257 0032 917 CK73F1H224ZT

C243-246 257 0511 904 CK73F1H103ZT

C247 257 0506 951 CC73CH1H101JT

C248 257 0510 934 CK73B1H472KT

C249,250 257 0512 903 CK73F1E104ZT

C301,302 257 0512 903 CK73F1E104ZT

C303 254 4524 956 CE04W1H2R2MT SMG/RE3

C304,305 257 0504 940 CC73CH1H330JT

C306 254 4524 956 CE04W1H2R2MT SMG/RE3

C307 254 4538 942 CE04W1C101MT SMG/RE3

C308,309 257 0512 903 CK73F1E104ZT

C310,311 257 0506 919 CC73CH1H680JT

C312,313 257 0506 922 CC73CH1H750JT

C314-316 257 0512 903 CK73F1E104ZT

C317,318 257 0032 904 CK73F1H104ZT

C319 257 0512 903 CK73F1E104ZT

C321,322 253 1181 917 CK45F1H223ZT(DD-3)

C323 257 0507 976 CC73CH1H331JT

C324 253 1026 001 CK45F1H473Z

C324 257 0032 904 CK73F1H104ZT

C325 254 4618 901 CE04W1H101MT H12(LXZ)

C327 257 0507 976 CC73CH1H331JT

C330 253 1026 001 CK45F1H473Z

C331-334 256 1059 954 CF93A1H474JT (JL)

C335 256 1061 913 CF93A1J474JT(ECQV)

C336 257 0032 917 CK73F1H224ZT

C337 256 1061 900 CF93A1J104JT(ECQV)

C338 257 0032 917 CK73F1H224ZT

C339 256 1061 913 CF93A1J474JT(ECQV)

C340 256 1061 900 CF93A1J104JT(ECQV)

C341,342 257 0032 917 CK73F1H224ZT

C343-346 257 0511 904 CK73F1H103ZT

C347 257 0506 951 CC73CH1H101JT

C348 257 0510 934 CK73B1H472KT

C349,350 257 0512 903 CK73F1E104ZT

C403,404 257 0511 904 CK73F1H103ZT

C409 254 4619 706 CE04W1H561MC K25(LXZ)

C801 257 0512 903 CK73F1E104ZT

57

ADV-1000

Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks

C802,803 254 4213 924 CE04W0J470MT (SRA)

C804,805 257 0512 903 CK73F1E104ZT

C806,807 254 4193 947 CE04W1C101MT (SRA)

C809 254 4193 947 CE04W1C101MT (SRA)

C810 254 4193 918 CE04W1C220MT (SRA)

C811 254 4193 947 CE04W1C101MT (SRA)

C812 254 4193 918 CE04W1C220MT (SRA)

C814 254 4193 947 CE04W1C101MT (SRA)

C815 254 4193 918 CE04W1C220MT (SRA)

C816 254 4193 947 CE04W1C101MT (SRA)

C817 254 4193 918 CE04W1C220MT (SRA)

C819,820 257 0506 951 CC73CH1H101JT

C834 257 0511 904 CK73F1H103ZT

C835 254 4607 909 CE04W1C471MT H20(LXV)

C901 253 8026 703 CK45E2EAC472MC

C902,903 256 8038 004 CF99--2EAC104M

C904-906 253 8022 710 CK45F2EAC222MC

C907 256 8038 004 CF99--2EAC104M

C908-910 253 8022 710 CK45F2EAC222MC

C911 256 8038 004 CF99--2EAC104M

C912-914 253 8022 710 CK45F2EAC222MC

C916 255 4249 739 CQ93P2J103KC(ECQF)

C917 254 6229 000 CE68W2G331M 35B(KMM)

C918 253 8030 003 CK45E3D681KC(ECKA)

C919 257 0508 917 CC73CH1H471JT

C920 257 0511 904 CK73F1H103ZT

C921 257 0512 903 CK73F1E104ZT

C922 257 0511 904 CK73F1H103ZT

C924 257 0511 904 CK73F1H103ZT

C925 255 4249 726 CQ93P2J472KC(ECQF)

C926 254 4618 914 CE04W1H220MT E11(LXZ)

C927 257 0507 934 CC73CH1H221JT

C929 254 4472 707 CE04W1C472MC (SMG)

C931 255 4249 726 CQ93P2J472KC(ECQF)

C933 257 0512 903 CK73F1E104ZT

C934 254 4538 900 CE04W1C100MT SMG/RE3

C935 257 0511 920 CK73F1H473ZT

C936,937 254 4611 717 CE04W1V222MC L35(LXV)

C938 254 4610 705 CE04W1E222MC K40(LXV)

C939,940 254 4611 704 CE04W1V102MC K30(LXV)

C941 257 0507 934 CC73CH1H221JT

C945-947 257 0511 904 CK73F1H103ZT

C948 257 0512 903 CK73F1E104ZT

C949,950 254 4541 942 CE04W1E101MT SMG/RE3

C951,952 257 0511 904 CK73F1H103ZT

C953 254 4541 942 CE04W1E101MT SMG/RE3

C954,955 257 0511 904 CK73F1H103ZT

C957 254 4608 908 CE04W1E221MT H15(LXV)

C960 257 0511 904 CK73F1H103ZT

C963,964 257 0511 904 CK73F1H103ZT

C965 254 4524 956 CE04W1H2R2MT SMG/RE3

C966 257 0511 904 CK73F1H103ZT

C967-969 254 4607 909 CE04W1C471MT H20(LXV)

C975 257 0512 903 CK73F1E104ZT

C976 257 0501 901 CK73B1H103KT (1608)

C981,982 257 0512 903 CK73F1E104ZT

C984,985 257 0501 901 CK73B1H103KT (1608)

C989,990 257 0511 904 CK73F1H103ZT

C992 257 0511 904 CK73F1H103ZT

C993-995 257 0509 929 CK73B1H102KT

C996,997 257 0512 903 CK73F1E104ZT

C999 257 0512 903 CK73F1E104ZT

OTHER PARTS GROUP Q'ty

CW034 203 5287 016 3P PH-SAN CON.CORD 1

CW037 203 5288 002 3P PH-SAN CON.CORD 1

CW061 204 0564 009 6P VH-SDN CON.CORD 1

CX021 205 0581 001 2P VH CONNECTOR BASE 1

CX033 205 0343 032 3P CONN.BASE(KR-PH) 1

CX061 205 0653 065 6P VH CONNECTOR BASE 1

CX071 205 0321 070 7P CONNE BASE(RED) 1

CX171 205 1100 038 17P FFC BASE(P=1) 1

CX211 205 0892 062 21P FFC BASE (P=1) 1

CY153 205 1006 051 15P FFC BASE(P=1) 1

F901 206 1075 030 FUSE(2.0A) 1

F903 206 1075 072 FUSE (5A) 1

F904 206 1075 001 FUSE (1A) 1

FB401-408 235 0130 903 CHIP EMIFIL(11A121) 8

FB413 235 0130 903 CHIP EMIFIL(11A121) 1

FB414-420 235 0049 900 BEADS INDUCTOR TAPE 7

FB424-428 235 0049 900 BEADS INDUCTOR TAPE 5

FB432-435 235 0049 900 BEADS INDUCTOR TAPE 4

FB801-804 247 2018 903 RM73B--0R0KT 4

FB805,806 235 0130 903 CHIP EMIFIL(11A121) 2

FB901 235 0049 900 BEADS INDUCTOR TAPE 1

FB902-905 235 0130 903 CHIP EMIFIL(11A121) 4

FB906,907 235 0049 900 BEADS INDUCTOR TAPE 2

FF901 202 0040 909 FUSE CLIP (TAPE) 1

FF903,904 202 0040 909 FUSE CLIP (TAPE) 2

FH901 202 0040 909 FUSE CLIP (TAPE) 1

FH903,904 202 0040 909 FUSE CLIP (TAPE) 2

JK102 205 1200 006 6P SP TERMINAL(SGND) 1

JK302 205 1200 006 6P SP TERMINAL(SGND) 1

JK901 204 6686 004 RGB CONNECTOR(S-GND) 1

L101,102 235 0148 005 INDUCTOR 10UH (DAW) 2

58

ADV-1000

1U-3435A MAIN P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks Q'ty Ref. No. Part No. Part Name Remarks

L201,202 235 0148 005 INDUCTOR 10UH (DAW) 2

L301,302 235 0148 005 INDUCTOR 10UH (DAW) 2

L801 235 0070 911 INDUCTOR(220)ST 1

L901,902 239 0034 001 LINE FILTER(HR-E122) 2

L904-906 235 0153 003 INDUCTOR 82UH(7210) 3

L907 239 0034 001 LINE FILTER(HR-E122) 1

L908 235 0153 003 INDUCTOR 82UH(7210) 1

SEMICONDUCTORS GROUP

IC101 262 2951 904 M66005FP

IC102 499 0301 006 RPM6938-V4 REMOTE SENSOR

IC301 262 2960 908 S29590ADFJA-TB

IC302 GEN 6110 ROM SUB(ADV1000) M30624FGAGP

IC303 263 0454 901 M51957BFP(TP1)

RL101 214 0206 005 RELAY(PCI212DM) 1

RL201,202 214 0206 005 RELAY(PCI212DM) 2

RL301 214 0206 005 RELAY(PCI212DM) 1

RL901 214 0214 000 RELAY(SDT-S-109LMR) 1

ST3 205 0452 004 STYLE PIN 1

SY901 417 0622 026 HEAT SINK 1

SY902 417 0476 049 RADIATOR 1

T901 233 6424 002 POWER TRANS(SUB/E2) 1

T902 233 6425 001 SW TRANS(E2) 1

W701 001 0226 007 1P 3T LUG WIRE 1

W702 001 0227 006 1P 3T LUG WIRE 1

412 4822 005 EARTH PLATE(SP-L) 2

412 4823 004 EARTH PLATE(SP-R) 2

412 4974 005 LUG PLATE 3

414 0965 001 SHIELD BRACKET 1

415 0886 002 SHIELD SHEET 1

417 0476 065 RADIATOR 1

461 0415 007 RUBBER SHEET 12

471 3305 014 3X10 CBS-Z 3

513 3844 015 FUSE LABEL for F901 1

513 3844 028 FUSE LABEL for F903 1

513 3844 002 FUSE LABEL for F904 1

IC401 262 2768 906 AD1854KRSRL

IC402 263 0615 902 BA15218F-DXE2

IC501-503 263 0615 902 BA15218F-DXE2

IC504 263 1156 004 BD3811K1

IC505-507 263 0615 902 BA15218F-DXE2

IC511 262 2547 907 LC72720NM

IC512-514 263 0615 902 BA15218F-DXE2

IC701 269 0187 001 GP1FA551TZ

IC702,703 269 0194 007 GP1FA551RZ

IC704 262 1205 907 TC74HCU04AF(TP1)

IC706 262 2953 902 SN74HCT244APW

IC708 GEN 5928 ROM SUB(VER0.4) AT49LV002-70TC

IC710,711 263 0934 900 BA4510F-E2

IC712 262 2806 907 SN74HC153NS(TAPE)

IC713 262 2675 015 LC89055W-RA8

IC714 262 3138 904 74LVX574MTC

IC715 262 2959 906 SN74LV244APW

IC717 262 2954 901 SN74LVC574APW

IC718 262 2608 901 TC74VHC123AFT

IC719 262 2519 906 SN74LV00APW-EL2

IC720 262 2949 903 CS493292-CL

IC721 262 2950 002 AK4527BVQ

IC722 263 1129 905 NJM2391DL1-25-TE1

IC723 262 2781 909 SN74LV4040APW-EL2

IC724 262 2953 902 SN74HCT244APW

IC725 263 1130 907 NJM2391DL1-33-TE1

IC726 262 2519 906 SN74LV00APW-EL2

IC727 262 2446 901 SN74LVC244APW-EL1

IC728-730 263 0615 902 BA15218F-DXE2

IC734 263 1126 908 NJM7805DL1A-TE1

OPTICAL CONNECTOR

TR101,102 273 0463 902 2SC4672T100PQ

TR103,104 273 0460 905 KTC2875B-RTK

TR106,107 273 0460 905 KTC2875B-RTK

TR301-306 269 0083 901 DTA114EKT96

TR401 269 0083 901 DTA114EKT96

TR402 269 0082 902 DTC114EKT96

TR403,404 273 0460 905 KTC2875B-RTK

TR501,502 273 0460 905 KTC2875B-RTK

59

TR503,504 275 0100 902 2SK771-5-TB

TR505 269 0144 905 DTC114YK-T146

TR506 269 0083 901 DTA114EKT96

TR507-510 273 0460 905 KTC2875B-RTK

TR511 269 0083 901 DTA114EKT96

TR512,513 269 0066 902 DTC323TKT96

TR514 269 0082 902 DTC114EKT96

TR515 273 0384 900 2SC2412KT96(S)

TR516-521 273 0460 905 KTC2875B-RTK

TR522,523 273 0360 908 2SC2458(Y) TPE4

TR524 269 0082 902 DTC114EKT96

TR701 269 0083 901 DTA114EKT96

TR702 269 0082 902 DTC114EKT96

TR703 269 0083 901 DTA114EKT96

TR704-709 273 0460 905 KTC2875B-RTK

D101-104 276 0432 903 1SS270A TE (TAPE)

D301-303 276 0432 903 1SS270A TE (TAPE)

D501 276 0560 901 DAN202KT146

D511 276 0560 901 DAN202KT146

D512 276 0559 909 DAP202KT146

D515 276 0560 901 DAN202KT146

D516,517 276 0432 903 1SS270A TE (TAPE)

D519,520 276 0559 909 DAP202KT146

D521,522 276 0560 901 DAN202KT146

D701 276 0560 901 DAN202KT146

ZD101 276 0643 996 MTZJ5.6A T77

ZD301 276 0643 996 MTZJ5.6A T77

ZD401 276 0683 943 UDZS3.6B-TE17

ZD501,502 276 0644 911 MTZJ7.5A T77

LD101 393 9587 002 SPR-54MVW RED/GREEN

RESISTORS GROUP

R103 247 2005 945 RM73B--151JT

R104 247 2005 961 RM73B--181JT

R105 247 2006 915 RM73B--271JT

R106 247 2006 944 RM73B--391JT

R107 247 2006 973 RM73B--511JT

R108 247 2018 903 RM73B--0R0KT

R109 247 2007 930 RM73B--911JT

R110,111 247 2018 903 RM73B--0R0KT

R112 247 2009 983 RM73B--103JT

R113 247 2010 985 RM73B--273JT

ADV-1000

Ref. No. Part No. Part Name RemarksRef. No. Part No. Part Name Remarks

R116 247 2005 945 RM73B--151JT

R117 247 2005 961 RM73B--181JT

R118 247 2006 915 RM73B--271JT

R119 247 2006 944 RM73B--391JT

R120 247 2006 973 RM73B--511JT

R121,122 247 2009 983 RM73B--103JT

R123,124 247 2005 903 RM73B--101JT

R125,126 247 2009 983 RM73B--103JT

R127,128 247 2005 903 RM73B--101JT

R132,133 247 2007 943 RM73B--102JT

R134,135 247 2011 942 RM73B--473JT

R137-142 247 2018 903 RM73B--0R0KT

R179 247 2009 909 RM73B--472JT (1608)

R301 247 2007 943 RM73B--102JT

R302 247 2013 982 RM73B--474JT

R303 247 2009 983 RM73B--103JT

R304 247 2007 943 RM73B--102JT

R305 247 2013 982 RM73B--474JT

R306 247 2009 983 RM73B--103JT

R307 247 2018 903 RM73B--0R0KT

R308 244 2051 932 RS14B3A332JNBST(S)

R309 247 2007 943 RM73B--102JT

R310 247 2013 982 RM73B--474JT

R311 247 2009 983 RM73B--103JT

R312 247 2007 943 RM73B--102JT

R313 247 2013 982 RM73B--474JT

R314 247 2009 983 RM73B--103JT

R315 247 2018 903 RM73B--0R0KT

R318 247 2007 943 RM73B--102JT

R319 247 2010 985 RM73B--273JT

R320 247 2011 942 RM73B--473JT

R321 247 2007 943 RM73B--102JT

R322 247 2012 925 RM73B--104JT

R323 247 2011 926 RM73B--393JT

R324 247 2011 942 RM73B--473JT

R326 247 2011 942 RM73B--473JT

R327 247 2012 925 RM73B--104JT

R328-342 247 2018 903 RM73B--0R0KT

R343 247 2005 903 RM73B--101JT

R344,345 247 2018 903 RM73B--0R0KT

R347-358 247 2018 903 RM73B--0R0KT

R359 247 2011 942 RM73B--473JT

R360-384 247 2018 903 RM73B--0R0KT

R385 247 2007 943 RM73B--102JT

R386 247 2018 903 RM73B--0R0KT

R387,388 247 2005 903 RM73B--101JT

R389 247 2009 909 RM73B--472JT (1608)

R390 247 2012 925 RM73B--104JT

R391 247 2011 942 RM73B--473JT

R392 247 2006 902 RM73B--331JT (1608)

R393 247 2007 943 RM73B--102JT

60

ADV-1000

Ref. No. Part No. Part Name Remarks

R394 247 2005 987 RM73B--221JT

R395 247 2010 998 RM73B--303JT

R396 247 2010 901 RM73B--123JT

R398 247 2018 903 RM73B--0R0KT

R401 247 2018 903 RM73B--0R0KT

R402 247 2007 943 RM73B--102JT

R403 247 2009 954 RM73B--752JT

R404 247 2008 968 RM73B--332JT

R405 247 2018 903 RM73B--0R0KT

R406 247 2009 983 RM73B--103JT

R407 247 2008 913 RM73B--202JT

R408 247 2009 983 RM73B--103JT

R409 247 2007 943 RM73B--102JT

R410 247 2009 983 RM73B--103JT

R411 247 2018 903 RM73B--0R0KT

R412 247 2009 983 RM73B--103JT

R413 247 2018 903 RM73B--0R0KT

R414,415 247 2009 967 RM73B--822JT

R416-419 247 2009 909 RM73B--472JT (1608)

R420 247 2008 900 RM73B--182JT

R421,422 247 2009 912 RM73B--512JT

R423-425 247 2008 900 RM73B--182JT

R426,427 247 2009 912 RM73B--512JT

R428,429 247 2012 925 RM73B--104JT

R430,431 247 2006 960 RM73B--471JT

R434,435 247 2008 926 RM73B--222JT

R501-512 247 2006 960 RM73B--471JT

R513 247 2005 987 RM73B--221JT

R516 247 2012 925 RM73B--104JT

R517-528 247 2015 964 RM73B--275KT

R531 247 2012 925 RM73B--104JT

R533 247 2008 984 RM73B--392JT

R535 247 2008 984 RM73B--392JT

R537 247 2008 984 RM73B--392JT

R538,539 247 2009 909 RM73B--472JT (1608)

R540 247 2006 960 RM73B--471JT

R541 247 2010 969 RM73B--223JT

R542 247 2009 941 RM73B--682JT

R543,544 247 2010 927 RM73B--153JT

R545 247 2009 938 RM73B--622JT

R546 247 2006 960 RM73B--471JT

R547 247 2010 969 RM73B--223JT

R548 247 2009 938 RM73B--622JT

R549 247 2009 925 RM73B--562JT

R550 247 2009 983 RM73B--103JT

R551,552 247 2010 927 RM73B--153JT

R553 247 2009 967 RM73B--822JT

R555 247 2008 926 RM73B--222JT

R556-558 247 2005 903 RM73B--101JT

R559,560 247 2012 925 RM73B--104JT

Ref. No. Part No. Part Name Remarks

R564 247 2012 925 RM73B--104JT

R565 247 2018 903 RM73B--0R0KT

R567,568 247 2018 903 RM73B--0R0KT

R573-576 247 2018 903 RM73B--0R0KT

R581,582 247 2018 903 RM73B--0R0KT

R583,584 247 2012 925 RM73B--104JT

R585,586 247 2006 960 RM73B--471JT

R587,588 247 2009 983 RM73B--103JT

R589 247 2018 903 RM73B--0R0KT

R590,591 247 2006 960 RM73B--471JT

R593,594 247 2009 983 RM73B--103JT

R595-597 247 2009 909 RM73B--472JT (1608)

R598 247 2018 903 RM73B--0R0KT

R599 247 2009 909 RM73B--472JT (1608)

R600 247 2018 903 RM73B--0R0KT

R601,602 247 2005 987 RM73B--221JT

R603,604 244 2051 961 RS14B3A101JNBST(S)

R605 247 2007 943 RM73B--102JT

R606,607 247 2012 925 RM73B--104JT

R608-611 247 2011 942 RM73B--473JT

R612-616 247 2007 998 RM73B--162JT

R617 247 2007 943 RM73B--102JT

R618 247 2011 942 RM73B--473JT

R619 247 2009 909 RM73B--472JT (1608)

R620-624 247 2009 967 RM73B--822JT

R625 247 2009 941 RM73B--682JT

R626 247 2010 914 RM73B--133JT

R627 247 2009 983 RM73B--103JT

R628 247 2012 925 RM73B--104JT

R629 247 2010 927 RM73B--153JT

R630 247 2009 983 RM73B--103JT

R631-635 247 2007 943 RM73B--102JT

R636 247 2018 903 RM73B--0R0KT

R637 247 2007 943 RM73B--102JT

R638 247 2009 983 RM73B--103JT

R639 247 2009 909 RM73B--472JT (1608)

R640 247 2009 983 RM73B--103JT

R641 247 2008 968 RM73B--332JT

R642 247 2014 923 RM73B--684JT

R643 247 2009 909 RM73B--472JT (1608)

R644 247 2007 943 RM73B--102JT

R645-650 247 2010 969 RM73B--223JT

R651 247 2008 913 RM73B--202JT

R652 247 2011 968 RM73B--563JT

R653 247 2009 983 RM73B--103JT

R654 247 2010 901 RM73B--123JT

R656,657 247 2011 942 RM73B--473JT

R658 247 2009 983 RM73B--103JT

R659 247 2012 983 RM73B--184JT

R660 247 2007 943 RM73B--102JT

R661 247 2009 909 RM73B--472JT (1608)

61

ADV-1000

Ref. No. Part No. Part Name Remarks

R662 247 2009 983 RM73B--103JT

R663 247 2010 969 RM73B--223JT

R664-666 247 2018 903 RM73B--0R0KT

R667-672 247 2010 969 RM73B--223JT

R673 247 2018 903 RM73B--0R0KT

R674,675 247 2012 925 RM73B--104JT

R676,677 247 2007 943 RM73B--102JT

R678,679 247 2010 998 RM73B--303JT

R680 247 2018 903 RM73B--0R0KT

R701-703 247 2018 903 RM73B--0R0KT

R704 247 2009 909 RM73B--472JT (1608)

R708 247 2006 960 RM73B--471JT

R709 247 2011 942 RM73B--473JT

R710 247 2009 983 RM73B--103JT

R712 247 2009 983 RM73B--103JT

R713 247 2018 903 RM73B--0R0KT

R715 247 2009 967 RM73B--822JT

R716-723 247 2005 903 RM73B--101JT

R724 247 2008 955 RM73B--302JT

R725 247 2009 912 RM73B--512JT

R726 247 2004 975 RM73B--750JT

R727-731 247 2004 920 RM73B--470JT

R732,733 247 2014 965 RM73B--105JT

R734 247 2007 901 RM73B--681JT

R735 247 2018 903 RM73B--0R0KT

R736-743 247 2005 903 RM73B--101JT

R744 247 2011 900 RM73B--333JT

R745 247 2009 983 RM73B--103JT

R748-751 247 2009 983 RM73B--103JT

R752 247 2004 920 RM73B--470JT

R753 247 2009 983 RM73B--103JT

R754 247 2009 909 RM73B--472JT (1608)

R755-760 247 2009 983 RM73B--103JT

R761 247 2018 903 RM73B--0R0KT

R762-764 247 2004 920 RM73B--470JT

R765,766 247 2009 909 RM73B--472JT (1608)

R767 247 2009 983 RM73B--103JT

R768 247 2011 900 RM73B--333JT

R770-772 247 2004 920 RM73B--470JT

R773 247 2018 903 RM73B--0R0KT

R774-782 247 2004 920 RM73B--470JT

R783-787 247 2012 925 RM73B--104JT

R788 247 2009 909 RM73B--472JT (1608)

R789 247 2012 925 RM73B--104JT

R790-812 247 2009 909 RM73B--472JT (1608)

R813-819 247 2007 943 RM73B--102JT

R820-825 247 2012 925 RM73B--104JT

R826-831 247 2008 926 RM73B--222JT

R832 247 2013 982 RM73B--474JT

R833,834 247 2018 903 RM73B--0R0KT

Ref. No. Part No. Part Name Remarks

R836 247 2018 903 RM73B--0R0KT

R837 247 2011 942 RM73B--473JT

R839 247 2010 943 RM73B--183JT

R840 247 2011 942 RM73B--473JT

R841 247 2009 909 RM73B--472JT (1608)

R842 247 2010 943 RM73B--183JT

R844-847 247 2009 909 RM73B--472JT (1608)

R848 247 2006 960 RM73B--471JT

R849,850 247 2009 909 RM73B--472JT (1608)

R851-853 247 2006 960 RM73B--471JT

R854,855 247 2009 938 RM73B--622JT

R857 247 2018 903 RM73B--0R0KT

R908,909 247 2007 943 RM73B--102JT

CAPACITORS GROUP

C103 254 4196 986 CE04W1H100MT (SRA)

C104 257 0509 929 CK73B1H102KT

C105 257 0501 901 CK73B1H103KT (1608)

C106 256 1058 955 CF93A1H683JT (JL)

C107 257 0501 901 CK73B1H103KT (1608)

C108,109 257 0511 920 CK73F1H473ZT

C110 257 0512 903 CK73F1E104ZT

C111 254 4196 957 CE04W1H2R2MT (SRA)

C112 257 0512 903 CK73F1E104ZT

C113 257 0509 929 CK73B1H102KT

C114 257 0506 951 CC73CH1H101JT

C115 257 0512 903 CK73F1E104ZT

C116 254 4196 944 CE04W1H010MT (SRA)

C117-126 257 0501 901 CK73B1H103KT (1608)

C127 254 4213 940 CE04W0J221MT(SRA)

C128 257 0509 929 CK73B1H102KT

C129,130 257 0511 904 CK73F1H103ZT

C132-134 257 0511 904 CK73F1H103ZT

C301 257 0512 903 CK73F1E104ZT

C306 257 0512 903 CK73F1E104ZT

C313 254 4522 958 CE04W1V101MT SMG/RE3

C315 254 4522 916 CE04W1V100MT SMG/RE3

C319-321 257 0512 903 CK73F1E104ZT

C322 254 4536 928 CE04W1A101MT SMG/RE3

C323 257 0512 903 CK73F1E104ZT

C330 254 4536 928 CE04W1A101MT SMG/RE3

C331,332 257 0512 903 CK73F1E104ZT

C333 254 4536 928 CE04W1A101MT SMG/RE3

C335,336 257 0506 951 CC73CH1H101JT

C337 257 0512 903 CK73F1E104ZT

C338 254 4524 956 CE04W1H2R2MT SMG/RE3

C339 257 0511 904 CK73F1H103ZT

C340,341 257 0509 929 CK73B1H102KT

C342-345 257 0511 904 CK73F1H103ZT

C346 257 0509 929 CK73B1H102KT

62

ADV-1000

Ref. No. Part No. Part Name Remarks

C358 257 0511 904 CK73F1H103ZT

C359 257 0509 929 CK73B1H102KT

C402 257 0512 903 CK73F1E104ZT

C403 254 4536 928 CE04W1A101MT SMG/RE3

C404 257 0511 904 CK73F1H103ZT

C405 254 4538 900 CE04W1C100MT SMG/RE3

C407 257 0512 903 CK73F1E104ZT

C408 254 4536 928 CE04W1A101MT SMG/RE3

C409 257 0512 903 CK73F1E104ZT

C410 254 4538 900 CE04W1C100MT SMG/RE3

C414-417 257 0508 933 CC73CH1H561JT

C418-421 257 0507 918 CC73CH1H181JT

C422,423 257 0511 904 CK73F1H103ZT

C424,425 254 4538 942 CE04W1C101MT SMG/RE3

C426,427 254 4522 916 CE04W1V100MT SMG/RE3

C501-504 247 2018 903 RM73B--0R0KT

C507 257 0509 929 CK73B1H102KT

C508 257 0512 903 CK73F1E104ZT

C510-521 257 0507 934 CC73CH1H221JT

C524 257 0506 951 CC73CH1H101JT

C525 254 4538 913 CE04W1C220MT SMG/RE3

C529-531 257 0506 951 CC73CH1H101JT

C532-534 257 0511 920 CK73F1H473ZT

C535 254 4524 943 CE04W1H010MT SMG/RE3

C536 257 0511 920 CK73F1H473ZT

C537,538 257 0504 940 CC73CH1H330JT

C539,540 257 0511 920 CK73F1H473ZT

C541 257 0504 982 CC73CH1H470JT

C542-544 254 4522 916 CE04W1V100MT SMG/RE3

C545,546 254 4524 985 CE04W1H100MT SMG/RE3

C547,548 254 4522 916 CE04W1V100MT SMG/RE3

C549 254 4524 985 CE04W1H100MT SMG/RE3

C550,551 257 0506 951 CC73CH1H101JT

C552,553 254 4524 985 CE04W1H100MT SMG/RE3

C554,555 257 0511 917 CK73F1H223ZT

C556,557 254 4522 916 CE04W1V100MT SMG/RE3

C558,559 257 0510 934 CK73B1H472KT

C560-567 257 0516 954 CK73B1E104KT

C568 254 4524 985 CE04W1H100MT SMG/RE3

C569,570 254 4536 928 CE04W1A101MT SMG/RE3

C571-573 254 4522 916 CE04W1V100MT SMG/RE3

C574 257 0511 904 CK73F1H103ZT

C575 254 4538 900 CE04W1C100MT SMG/RE3

C576 254 4522 903 CE04W1V4R7MT SMG/RE3

C577,578 257 0504 908 CC73CH1H220JT

C579 257 0508 933 CC73CH1H561JT

C586-591 254 4522 916 CE04W1V100MT SMG/RE3

C593 254 4541 939 CE04W1E470MT SMG/RE3

C594 255 1265 936 CQ93M1H103JT(B)

C595 254 4538 900 CE04W1C100MT SMG/RE3

Ref. No. Part No. Part Name Remarks

C596-601 257 0506 935 CC73CH1H820JT

C602 254 4541 939 CE04W1E470MT SMG/RE3

C603 254 4536 915 CE04W1A470MT SMG/RE3

C604 257 0511 904 CK73F1H103ZT

C605-610 257 0511 917 CK73F1H223ZT

C611-615 254 4522 916 CE04W1V100MT SMG/RE3

C616 254 4524 985 CE04W1H100MT SMG/RE3

C617 257 0506 951 CC73CH1H101JT

C618 254 4522 916 CE04W1V100MT SMG/RE3

C619 257 0507 976 CC73CH1H331JT

C620 254 4522 903 CE04W1V4R7MT SMG/RE3

C621 257 0501 901 CK73B1H103KT (1608)

C622 254 4522 903 CE04W1V4R7MT SMG/RE3

C623 257 0501 901 CK73B1H103KT (1608)

C624 257 0509 990 CK73B1H222KT

C625,626 247 2018 903 RM73B--0R0KT

C628,629 257 0501 901 CK73B1H103KT (1608)

C631,632 254 4541 939 CE04W1E470MT SMG/RE3

C633 254 4522 916 CE04W1V100MT SMG/RE3

C634-637 257 0516 954 CK73B1E104KT

C638,639 254 4541 939 CE04W1E470MT SMG/RE3

C640-643 257 0034 902 CK73B1C105KT

C701,702 257 0512 903 CK73F1E104ZT

C703,704 254 4538 939 CE04W1C470MT SMG/RE3

C705 257 0512 903 CK73F1E104ZT

C707,708 257 0511 904 CK73F1H103ZT

C709,710 257 0512 903 CK73F1E104ZT

C711 257 0511 904 CK73F1H103ZT

C712 257 0512 903 CK73F1E104ZT

C713-715 257 0511 904 CK73F1H103ZT

C716,717 257 0512 903 CK73F1E104ZT

C718 257 0511 904 CK73F1H103ZT

C721 256 1058 971 CF93A1H104JT (JL)

C722 255 1265 936 CQ93M1H103JT(B)

C723 254 4524 943 CE04W1H010MT SMG/RE3

C724,725 257 0512 903 CK73F1E104ZT

C726 257 0504 908 CC73CH1H220JT

C727 257 0509 929 CK73B1H102KT

C728 257 0501 901 CK73B1H103KT (1608)

C729 257 0511 904 CK73F1H103ZT

C731 257 0504 908 CC73CH1H220JT

C732 257 0512 903 CK73F1E104ZT

C735 257 0511 904 CK73F1H103ZT

C737 257 0512 903 CK73F1E104ZT

C740 257 0511 904 CK73F1H103ZT

C741 257 0507 976 CC73CH1H331JT

C745 254 4533 934 CE04W0J221MT SMG/RE3

C746 257 0512 903 CK73F1E104ZT

C750 257 0512 903 CK73F1E104ZT

C751 254 4524 943 CE04W1H010MT SMG/RE3

63

ADV-1000

Ref. No. Part No. Part Name Remarks

C752 257 0512 903 CK73F1E104ZT

C753 254 4536 928 CE04W1A101MT SMG/RE3

C755 254 4538 900 CE04W1C100MT SMG/RE3

C758 254 4524 956 CE04W1H2R2MT SMG/RE3

C759 257 0512 903 CK73F1E104ZT

C760 254 4538 900 CE04W1C100MT SMG/RE3

C761 254 4536 928 CE04W1A101MT SMG/RE3

C762 257 0501 901 CK73B1H103KT (1608)

C763 257 0512 903 CK73F1E104ZT

C764 257 0508 917 CC73CH1H471JT

C765 257 0501 901 CK73B1H103KT (1608)

C766 257 0512 903 CK73F1E104ZT

C767 254 4538 939 CE04W1C470MT SMG/RE3

C768 254 4524 956 CE04W1H2R2MT SMG/RE3

C769 254 4538 900 CE04W1C100MT SMG/RE3

C770-774 257 0511 904 CK73F1H103ZT

C775 254 4538 900 CE04W1C100MT SMG/RE3

C776-781 254 4522 916 CE04W1V100MT SMG/RE3

C782-793 257 0508 959 CC73CH1E681JT

C794-799 254 4522 916 CE04W1V100MT SMG/RE3

C800 254 4536 928 CE04W1A101MT SMG/RE3

C801-806 257 0512 903 CK73F1E104ZT

C807 257 0511 904 CK73F1H103ZT

C808-813 257 0510 918 CK73B1H332KT

C814 254 4524 985 CE04W1H100MT SMG/RE3

C815 257 0512 903 CK73F1E104ZT

C816,817 254 4541 942 CE04W1E101MT SMG/RE3

C818-820 254 4522 916 CE04W1V100MT SMG/RE3

C821 257 0511 904 CK73F1H103ZT

C822 257 0506 951 CC73CH1H101JT

C823 257 0511 904 CK73F1H103ZT

C824 257 0506 951 CC73CH1H101JT

C825,826 257 0511 904 CK73F1H103ZT

C827 254 4522 916 CE04W1V100MT SMG/RE3

C828,829 257 0506 951 CC73CH1H101JT

C830-833 257 0509 929 CK73B1H102KT

OTHER PARTS GROUP Q'ty

CW022 203 2419 007 2P SAN-SAN CORD 1

CW031 203 5284 006 3P SHIELD WIRE 1

CW033 203 5285 005 3P PH-SAN CON.CORD 1

CW036 203 5287 003 3P PH-SAN CON.CORD 1

CW041 203 6586 004 4P SAN-SAN CORD 1

CW081 204 2933 007 8P PH-SAN CON.CORD 1

Ref. No. Part No. Part Name Remarks Q'ty

CX152 205 1100 054 15P FFC BASE (P=1) 1

CX191 205 1006 006 19P FFC BASE (P=1) 1

CY151 205 0736 076 15P FFC CON.BASE 1

CY171 205 1100 038 17P FFC BASE(P=1) 1

CY191 205 0892 020 19P FFC BASE (P=1) 1

CY211 205 0892 062 21P FFC BASE (P=1) 1

FB401 235 0049 900 BEADS INDUCTOR TAPE 1

FB700-720 235 0130 903 CHIP EMIFIL(11A121) 21

FB721-723 235 0049 900 BEADS INDUCTOR TAPE 3

FB725-728 235 0049 900 BEADS INDUCTOR TAPE 4

FB729 235 0130 903 CHIP EMIFIL(11A121) 1

FB730-735 247 2018 903 RM73B--0R0KT 6

FB736 235 0049 900 BEADS INDUCTOR TAPE 1

FL101 393 8052 004 FL TUBE(15ST36GN) 1

JK101 204 8636 007 MINI JACK (ST.SW) 1

JK504 204 8642 004 1P P1N JACK BK 1

JK505,506 204 8543 006 6P PIN JACK 2

L101 235 0152 004 INDUCTOR 47UH(7206M) 1

L701,702 235 0060 918 INDUCTOR(4R7)ST 2

L703 235 0074 933 INDUCTOR(101)ST 1

S101-112 212 0467 000 TACT SW(H=5) 12

S113 212 0462 005 ROTARY ENCODER(F) 1

S115 212 0461 006 ROTARY ENCODER(V) 1

S119 212 0467 000 TACT SW(H=5) 1

ST101 205 0452 004 STYLE PIN 1

T101 231 0085 001 DC-DC TRANS(10RFG) 1

W505 001 0225 008 1P BOARD IN WIRE 1

X301 399 0532 902 CST12.5MTW-TF01 1

X501 399 0178 007 X-TAL(4.332MHZ) 1

X701 399 0219 021 X'TAL (12.288) 1

412 4974 005 LUG PLATE 3

449 0193 109 SENSOR HOLDER 1

461 1110 000 FL SPACER(D-SIDE) 2

CX031 205 0321 038 3P CONNE.BASE(RED) 1

CX034 205 0343 032 3P CONN.BASE(KR-PH) 1

CX037 205 0323 036 3P CONNE.BASE(BLK) 1

CX062 205 0343 061 6P CONN.BASE(KR-PH) 1

CX081 205 0355 088 8P KR CON BASE(L) 1

CX131 205 0892 088 13P FFC CON. BASE 1

64

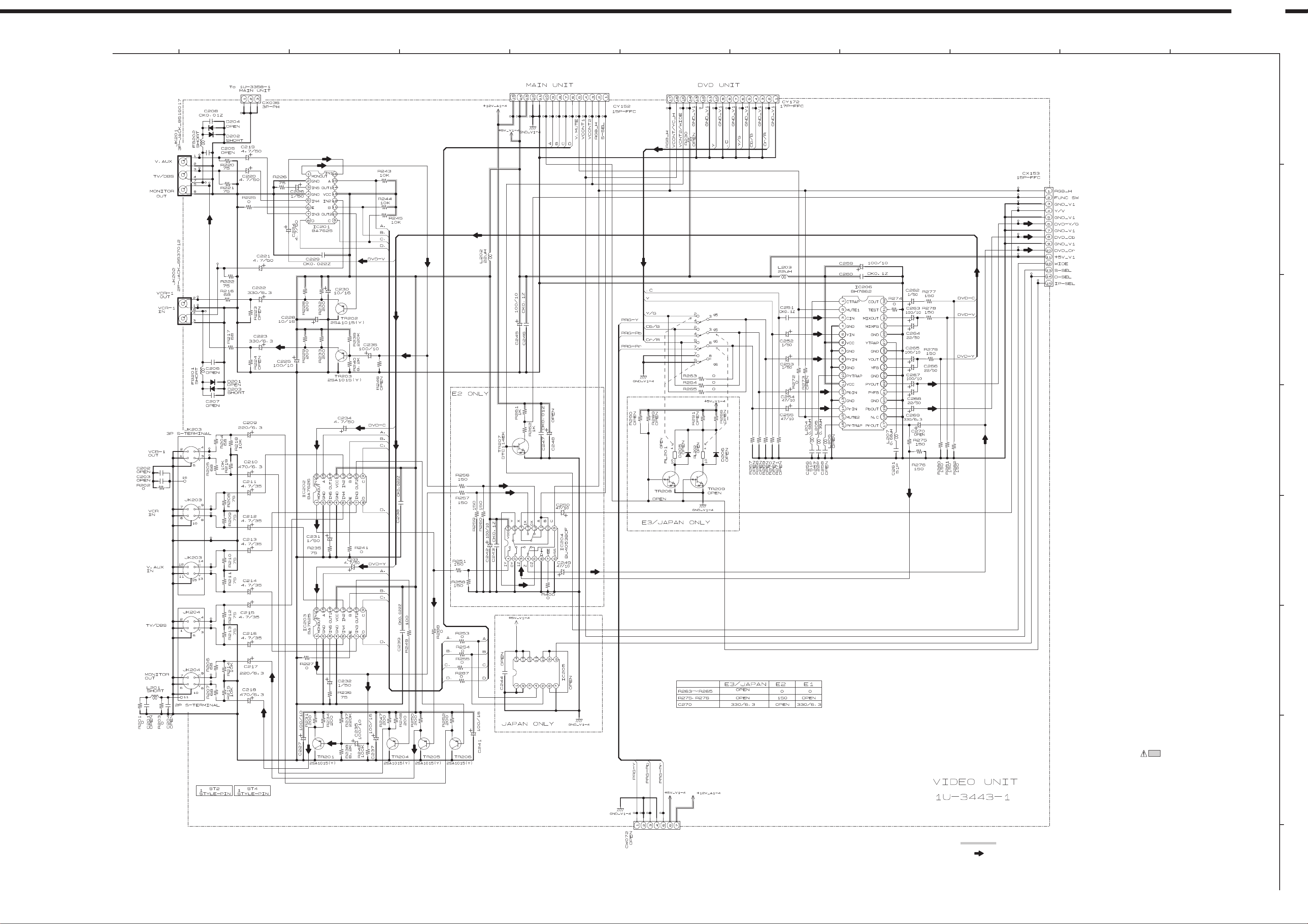

1U-3443A VIDEO/OUT P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks

SEMICONDUCTORS GROUP

IC201 263 0856 004 BA7625

IC202 263 0857 003 BA7626

IC203 263 0856 004 BA7625

IC204 263 1159 904 BU4053BCFV

IC206 263 1158 905 BH7862F

TR201-206 271 0102 908 2SA1015(Y)TPE2

TR207 269 0082 902 DTC114EKT96

RESISTORS GROUP

R201-203 247 2018 903 RM73B--0R0KT

R204-207 247 2004 962 RM73B--680JT

R208-213 247 2004 975 RM73B--750JT

R214,215 247 2009 983 RM73B--103JT

R216,217 247 2004 962 RM73B--680JT

R218,219 247 2009 983 RM73B--103JT

R220-222 247 2004 975 RM73B--750JT

R225 247 2018 903 RM73B--0R0KT

R226 247 2004 975 RM73B--750JT

R227 247 2018 903 RM73B--0R0KT

R228,229 247 2005 974 RM73B--201JT

R231-234 247 2005 974 RM73B--201JT

R235,236 247 2004 975 RM73B--750JT

R237 247 2013 908 RM73B--224JT

R238 247 2009 967 RM73B--822JT

R239 247 2013 908 RM73B--224JT

R240 247 2009 967 RM73B--822JT

R241 247 2018 903 RM73B--0R0KT

R242 247 2012 925 RM73B--104JT

R243-245 247 2009 983 RM73B--103JT

R247,248 247 2005 974 RM73B--201JT

R249 247 2005 903 RM73B--101JT

R250 247 2005 974 RM73B--201JT

R251 247 2005 945 RM73B--151JT

R252 247 2005 974 RM73B--201JT

R253-255 247 2018 903 RM73B--0R0KT

R256-260 247 2005 945 RM73B--151JT

R261,262 247 2007 943 RM73B--102JT

R263-265 247 2018 903 RM73B--0R0KT

R272 247 2018 903 RM73B--0R0KT

R274 247 2018 903 RM73B--0R0KT

R275-282 247 2005 945 RM73B--151JT

R287,288 247 2018 903 RM73B--0R0KT

ADV-1000

Ref. No. Part No. Part Name Remarks

C211-216 254 4522 903 CE04W1V4R7MT SMG/RE3

C217 254 4533 934 CE04W0J221MT SMG/RE3

C218 254 4533 950 CE04W0J471MT SMG/RE3

C219-221 254 4524 972 CE04W1H4R7MT SMG/RE3

C222,223 254 4533 947 CE04W0J331MT SMG/RE3

C224 254 4524 972 CE04W1H4R7MT SMG/RE3

C225 254 4536 928 CE04W1A101MT SMG/RE3

C226 254 4524 943 CE04W1H010MT SMG/RE3

C227 254 4536 928 CE04W1A101MT SMG/RE3

C228 254 4538 900 CE04W1C100MT SMG/RE3

C229 257 0511 917 CK73F1H223ZT

C230 254 4538 900 CE04W1C100MT SMG/RE3

C231,232 254 4524 943 CE04W1H010MT SMG/RE3

C233,234 254 4524 972 CE04W1H4R7MT SMG/RE3

C235,236 254 4536 928 CE04W1A101MT SMG/RE3

C237 254 4538 942 CE04W1C101MT SMG/RE3

C238,239 257 0511 917 CK73F1H223ZT

C241 254 4538 942 CE04W1C101MT SMG/RE3

C242 254 4536 928 CE04W1A101MT SMG/RE3

C243 257 0512 903 CK73F1E104ZT

C245 254 4536 928 CE04W1A101MT SMG/RE3

C246 257 0512 903 CK73F1E104ZT

C247 257 0511 904 CK73F1H103ZT

C249,250 254 4536 915 CE04W1A470MT SMG/RE3

C251 257 0512 903 CK73F1E104ZT

C252,253 254 4524 943 CE04W1H010MT SMG/RE3

C254,255 254 4536 915 CE04W1A470MT SMG/RE3

C256 257 0504 995 CC73CH1H510JT

C257 257 0504 908 CC73CH1H220JT

C259 254 4536 928 CE04W1A101MT SMG/RE3

C260 257 0512 903 CK73F1E104ZT

C261 257 0504 995 CC73CH1H510JT

C262 254 4524 943 CE04W1H010MT SMG/RE3

C263 254 4536 928 CE04W1A101MT SMG/RE3

C264 254 4524 998 CE04W1H220MT SMG/RE3

C265 254 4536 928 CE04W1A101MT SMG/RE3

C266 254 4524 998 CE04W1H220MT SMG/RE3

C267 254 4536 928 CE04W1A101MT SMG/RE3

C268 254 4524 998 CE04W1H220MT SMG/RE3

C269 254 4533 947 CE04W0J331MT SMG/RE3

OTHER PARTS GROUP Q'ty

CX036 205 0343 032 3P CONN.BASE(KR-PH) 1

CX153 205 1100 054 15P FFC BASE (P=1) 1

R400 247 2018 903 RM73B--0R0KT

CAPACITORS GROUP

C208 257 0511 904 CK73F1H103ZT

C209 254 4533 934 CE04W0J221MT SMG/RE3

C210 254 4533 950 CE04W0J471MT SMG/RE3

CY152 205 1100 054 15P FFC BASE (P=1) 1

CY172 205 1100 038 17P FFC BASE(P=1) 1

JK201 204 8516 017 3P PIN JACK 1

JK202 204 8537 012 2P PIN JACK(GND) 1

JK203 204 8415 011 3P S-TERMINAL 1

JK204 204 8414 012 2P S-TERMINAL 1

65

Ref. No. Part No. Part Name Remarks Q'ty

L202,203 235 0070 911 INDUCTOR(220)ST 2

L204 235 0074 991 INDUCTOR(R68)ST 1

L205 235 0074 988 INDUCTOR(R39)ST 1

L207 235 0074 991 INDUCTOR(R68)ST 1

ST2 205 0452 004 STYLE PIN 1

ST4 205 0452 004 STYLE PIN 1

ADV-1000

GU-3430 DVD MAIN P.W.B. UNIT ASS'Y

Ref. No. Part No. Part Name Remarks

SEMICONDUCTORS GROUP

IC101 262 2811 002 ES4408F

IC102 GEN 6084 B/E ROM SUB ASS'Y MX29F080TC-90

IC103,104 262 2875 006 16M SDRAM(TSOP)-8

IC105,106 262 2801 902 SN74AHCT273PW-EL2

IC108 262 3114 902 S-24C01BFJ-TB

IC109 262 3082 911 BD4745G

IC110 262 3118 908 KIC7S32FU-RTK

IC111 262 1953 903 TC7WU04F

IC112 263 1110 901 PQ070XZ01ZP

IC113 263 1079 903 BA033FP

IC114,115 262 2941 901 TC7WT125FU

IC501 262 3083 004 M5705

IC502 262 3084 003 SP-3721A

IC505 262 3085 905 TL3472

IC507 GEN 6073 F/E ROM SUB ASS'Y W29EE011P-90

IC508 262 3087 903 M11B416256A-35J

IC509 262 3088 902 BA5954FP

IC510 262 3089 901 BD6670FM

IC701 262 2799 904 ADV7172KST

TR101 269 0082 902 DTC114EKT96

TR504,505 272 0160 901 2SB1132T100Q

TR701-703 271 0305 909 KTA1504SY-RTK

TR705,706 271 0305 909 KTA1504SY-RTK

D101,102 276 0401 905 1SS133T77 (TAPE)

D501-504 276 0401 905 1SS133T77 (TAPE)

D505,506 276 0765 900 1SR139-400

RESISTORS GROUP

R101 247 2007 943 RM73B--102JT

R102-104 247 2009 909 RM73B--472JT (1608)

R106,107 247 2004 920 RM73B--470JT

R108 247 2009 909 RM73B--472JT (1608)

R110 247 2018 903 RM73B--0R0KT

R111-113 247 2004 920 RM73B--470JT

R115 247 2004 920 RM73B--470JT

R116-122 247 2009 941 RM73B--682JT

R123 247 2003 989 RM73B--330JT

R124,125 247 2018 903 RM73B--0R0KT

R127-129 247 2018 903 RM73B--0R0KT

R130 247 2011 942 RM73B--473JT

R132 247 2011 942 RM73B--473JT

R134,135 247 2011 942 RM73B--473JT

R136 247 2018 903 RM73B--0R0KT

R137 247 2004 920 RM73B--470JT

66

ADV-1000

Ref. No. Part No. Part Name Remarks

R138 247 2007 943 RM73B--102JT

R139-145 247 2018 903 RM73B--0R0KT

R149 247 2014 965 RM73B--105JT

R150 247 2006 902 RM73B--331JT (1608)

R151-154 247 2004 975 RM73B--750JT

R155 247 2002 964 RM73B--100JT

R157,158 247 2007 943 RM73B--102JT

R159 247 2005 987 RM73B--221JT

R160 247 2008 913 RM73B--202JT

R161 247 2007 943 RM73B--102JT

R166 247 2018 903 RM73B--0R0KT

R168-170 247 2009 941 RM73B--682JT

R174 247 2009 983 RM73B--103JT

R175,176 247 2007 943 RM73B--102JT

R502 247 2010 956 RM73B--203JT

R503 247 2011 955 RM73B--513JT

R504-507 247 2008 968 RM73B--332JT

R508 247 2009 983 RM73B--103JT

R509 247 2011 942 RM73B--473JT

R510 247 2003 989 RM73B--330JT

R511 247 2018 903 RM73B--0R0KT

R513 247 2007 998 RM73B--162JT

R514 247 2009 909 RM73B--472JT (1608)

R515 247 2009 912 RM73B--512JT

R516 247 2009 909 RM73B--472JT (1608)

R517,518 247 2018 903 RM73B--0R0KT

R520 247 2018 903 RM73B--0R0KT

R521,522 247 2002 964 RM73B--100JT

R523 247 2009 983 RM73B--103JT

R524 247 2002 964 RM73B--100JT

R525 247 2014 965 RM73B--105JT

R527 247 2009 909 RM73B--472JT (1608)

R528 247 2009 983 RM73B--103JT

R529 247 2009 912 RM73B--512JT

R530 247 2007 969 RM73B--122JT

R531 247 2012 925 RM73B--104JT

R532 247 2011 968 RM73B--563JT

R533 247 2009 996 RM73B--113JT

R534,535 247 2007 969 RM73B--122JT

R536 247 2009 996 RM73B--113JT

R538 247 2009 983 RM73B--103JT

R539-541 247 2003 989 RM73B--330JT

R542 247 2018 903 RM73B--0R0KT

R543 247 2019 931 RM73B--822FT

R544-549 247 2018 903 RM73B--0R0KT

R550 247 2007 985 RM73B--152JT

R552 247 2019 931 RM73B--822FT

R553 247 2018 903 RM73B--0R0KT

R554 247 2011 968 RM73B--563JT

R555 247 2009 983 RM73B--103JT

R556 247 2013 982 RM73B--474JT

Ref. No. Part No. Part Name Remarks

R558 247 2018 903 RM73B--0R0KT

R567 247 2018 903 RM73B--0R0KT

R573 247 2018 903 RM73B--0R0KT

R584 247 2003 989 RM73B--330JT

R585 247 2009 983 RM73B--103JT

R586 247 2011 900 RM73B--333JT

R587 247 2018 903 RM73B--0R0KT

R588 247 2010 901 RM73B--123JT

R589 247 2008 968 RM73B--332JT

R590,591 247 2018 916 RM73B--010KT

R592 247 2009 983 RM73B--103JT

R593,594 247 2018 916 RM73B--010KT

R595 247 2009 983 RM73B--103JT

R596 247 2011 900 RM73B--333JT

R597 247 2018 903 RM73B--0R0KT

R599 247 2018 903 RM73B--0R0KT

R601 247 2018 903 RM73B--0R0KT

R602 247 2003 989 RM73B--330JT

R603-606 247 2018 987 RM73B--2R0KT

R609,610 247 2005 929 RM73B--121JT

R611-614 247 2004 904 RM73B--390JT

R615 247 2009 912 RM73B--512JT

R616-619 247 2004 904 RM73B--390JT

R620 247 2007 943 RM73B--102JT

R621 247 2007 969 RM73B--122JT

R622 247 2006 960 RM73B--471JT

R625,626 247 2008 926 RM73B--222JT

R632 247 2001 949 RM73B--3R3KT

R633-636 247 2018 903 RM73B--0R0KT

R643,644 247 2018 903 RM73B--0R0KT

R647 247 2018 903 RM73B--0R0KT

R648 247 2009 983 RM73B--103JT

R652,653 247 2018 903 RM73B--0R0KT

R703 247 2004 920 RM73B--470JT

R704 247 2007 927 RM73B--821JT

R705 247 2007 956 RM73B--112JT

R707,708 247 2007 943 RM73B--102JT

R710 247 2007 956 RM73B--112JT

R711 247 2018 903 RM73B--0R0KT

R713 247 2011 942 RM73B--473JT

R715 247 2008 900 RM73B--182JT

R716 247 2008 968 RM73B--332JT

R717 247 2004 920 RM73B--470JT

R718 247 2018 903 RM73B--0R0KT

R720 247 2018 903 RM73B--0R0KT

R724 247 2005 987 RM73B--221JT

R725 247 2003 989 RM73B--330JT

R726 247 2007 943 RM73B--102JT

R727 247 2005 987 RM73B--221JT

R728 247 2003 989 RM73B--330JT

67

ADV-1000

Ref. No. Part No. Part Name Remarks

R729 247 2007 943 RM73B--102JT

R730 247 2005 987 RM73B--221JT

R731 247 2003 989 RM73B--330JT

R732 247 2007 943 RM73B--102JT

R733 247 2005 987 RM73B--221JT

R736 247 2005 987 RM73B--221JT

R737 247 2003 989 RM73B--330JT

R738 247 2007 943 RM73B--102JT

R739 247 2005 987 RM73B--221JT

R740 247 2003 989 RM73B--330JT

R741 247 2007 943 RM73B--102JT

R742,743 247 2018 903 RM73B--0R0KT

R745-748 247 2018 903 RM73B--0R0KT

R808,809 247 2018 903 RM73B--0R0KT

R814 247 2018 903 RM73B--0R0KT

R816-819 247 2018 903 RM73B--0R0KT

R822-825 247 2018 903 RM73B--0R0KT

RA109,110 247 9002 912 MNR14=682JEOAB CHIP NETWORK

RA125-129 247 9002 909 MNR14=330JE0AB CHIP NETWORK

RA501,502 247 9002 909 MNR14=330JE0AB CHIP NETWORK

RA503-506 247 9007 904 MNR14=101JE0 CHIP NETWORK

RA507-510 247 9007 917 MNR14=103JE0 CHIP NETWORK

RA511 247 9002 909 MNR14=330JE0AB CHIP NETWORK

RA514,515 247 9007 917 MNR14=103JE0 CHIP NETWORK

CAPACITORS GROUP

C101,102 254 4533 921 CE04W0J101MT SMG/RE3

C103,104 257 0512 903 CK73F1E104ZT

C105 257 0511 904 CK73F1H103ZT

C106 257 0509 929 CK73B1H102KT

C107 257 0512 903 CK73F1E104ZT

C108 257 0511 904 CK73F1H103ZT

C109-111 257 0512 903 CK73F1E104ZT

C112 257 0504 982 CC73CH1H470JT

C113 257 0512 903 CK73F1E104ZT

C114 254 4533 921 CE04W0J101MT SMG/RE3

C115-122 257 0512 903 CK73F1E104ZT

C123 254 4533 921 CE04W0J101MT SMG/RE3

C124-128 257 0512 903 CK73F1E104ZT

C129 254 4533 921 CE04W0J101MT SMG/RE3

C130-135 257 0512 903 CK73F1E104ZT

C136 254 4533 921 CE04W0J101MT SMG/RE3

C137 257 0509 929 CK73B1H102KT

C138 257 0512 903 CK73F1E104ZT

C139 257 0511 904 CK73F1H103ZT

C140 254 4533 921 CE04W0J101MT SMG/RE3

C141 257 0512 903 CK73F1E104ZT

C142 257 0509 929 CK73B1H102KT

C143-145 257 0512 903 CK73F1E104ZT

Ref. No. Part No. Part Name Remarks

C146 257 0509 929 CK73B1H102KT

C147-149 257 0512 903 CK73F1E104ZT

C150 257 0509 929 CK73B1H102KT

C151-153 257 0512 903 CK73F1E104ZT

C154 257 0509 929 CK73B1H102KT

C155,156 257 0512 903 CK73F1E104ZT

C157 257 0511 904 CK73F1H103ZT

C158 257 0512 903 CK73F1E104ZT

C159 257 0509 929 CK73B1H102KT

C161 257 0512 903 CK73F1E104ZT

C162 257 0509 929 CK73B1H102KT

C172 257 0512 903 CK73F1E104ZT

C174 254 4300 947 CE04W0J470MT(SRE)

C175,176 257 0512 903 CK73F1E104ZT

C177 257 0509 929 CK73B1H102KT

C178 254 4538 939 CE04W1C470MT SMG/RE3

C179,180 257 0502 984 CC73CH1H6R0DT

C181 254 4533 921 CE04W0J101MT SMG/RE3

C182,183 257 0512 903 CK73F1E104ZT

C184 254 4533 921 CE04W0J101MT SMG/RE3

C185,186 257 0512 903 CK73F1E104ZT

C199 257 0512 903 CK73F1E104ZT

C200 257 0509 929 CK73B1H102KT

C207 257 0512 903 CK73F1E104ZT

C208 257 0509 929 CK73B1H102KT

C209,210 257 0512 903 CK73F1E104ZT

C211 257 0511 904 CK73F1H103ZT

C212 257 0509 929 CK73B1H102KT

C230 257 0512 903 CK73F1E104ZT

C231 257 0509 929 CK73B1H102KT

C232,233 257 0512 903 CK73F1E104ZT

C502 257 0509 929 CK73B1H102KT

C503 257 0510 950 CK73B1H682KT

C504 257 0509 929 CK73B1H102KT

C505,506 257 0508 917 CC73CH1H471JT

C507,508 257 0516 941 CK73B1E473KT

C509,510 257 0516 954 CK73B1E104KT

C511,512 257 0509 929 CK73B1H102KT

C513 257 0516 954 CK73B1E104KT

C514,515 257 0504 982 CC73CH1H470JT

C516 257 0504 908 CC73CH1H220JT

C517 257 0504 982 CC73CH1H470JT

C518 257 0504 908 CC73CH1H220JT

C519 257 0512 903 CK73F1E104ZT

C520 254 4193 934 CE04W1C470MT (SRA)

C521-523 257 0516 954 CK73B1E104KT

C524 257 0504 982 CC73CH1H470JT

C525 257 0508 933 CC73CH1H561JT

C526 257 0516 941 CK73B1E473KT

C527 257 0512 903 CK73F1E104ZT

68

ADV-1000

Ref. No. Part No. Part Name Remarks

C528 254 4213 937 CE04W0J101MT (SRA)

C529 257 0508 959 CC73CH1E681JT

C530 257 0516 954 CK73B1E104KT

C531-534 257 0508 959 CC73CH1E681JT

C535 257 0506 951 CC73CH1H101JT

C536 254 4193 934 CE04W1C470MT (SRA)

C537 257 0512 903 CK73F1E104ZT

C538 254 4193 934 CE04W1C470MT (SRA)

C539 257 0512 903 CK73F1E104ZT

C540 257 0510 934 CK73B1H472KT

C541 257 0509 929 CK73B1H102KT

C543 257 0507 918 CC73CH1H181JT

C544 257 0509 929 CK73B1H102KT

C545 257 0516 954 CK73B1E104KT

C546 257 0516 941 CK73B1E473KT

C547 254 4193 947 CE04W1C101MT (SRA)

C548-550 257 0504 940 CC73CH1H330JT

C551-555 257 0516 954 CK73B1E104KT

C558,559 257 0512 903 CK73F1E104ZT

C560 256 1059 954 CF93A1H474JT (JL)

C561 257 0504 940 CC73CH1H330JT

C567,568 257 0512 903 CK73F1E104ZT

C569 257 0506 951 CC73CH1H101JT

C570 257 0510 934 CK73B1H472KT

C571,572 257 0506 951 CC73CH1H101JT

C573,574 257 0516 954 CK73B1E104KT

C575-577 257 0509 929 CK73B1H102KT

C578-580 257 0512 903 CK73F1E104ZT

C581,582 254 4193 947 CE04W1C101MT (SRA)

C583 254 4193 918 CE04W1C220MT (SRA)

C584 257 0509 929 CK73B1H102KT

C585 254 4193 947 CE04W1C101MT (SRA)

C586 257 0509 929 CK73B1H102KT

C587,588 257 0512 903 CK73F1E104ZT

C589,590 257 0503 925 CC73CH1H100DT

C592-595 257 0503 925 CC73CH1H100DT

C596 257 0512 903 CK73F1E104ZT

C598-608 257 0512 903 CK73F1E104ZT

Ref. No. Part No. Part Name Remarks

C627 254 4213 937 CE04W0J101MT (SRA)

C628,629 257 0512 903 CK73F1E104ZT

C630 254 4538 942 CE04W1C101MT SMG/RE3

C631 257 0508 959 CC73CH1E681JT

C632 257 0512 903 CK73F1E104ZT

C634,635 254 4193 947 CE04W1C101MT (SRA)

C701-710 257 0512 903 CK73F1E104ZT

C711 254 4213 937 CE04W0J101MT (SRA)

C712 257 0512 903 CK73F1E104ZT

C713 257 0511 904 CK73F1H103ZT

C714 257 0512 903 CK73F1E104ZT

C718-720 257 0512 903 CK73F1E104ZT

C722,723 257 0512 903 CK73F1E104ZT

C726 254 4533 934 CE04W0J221MT SMG/RE3

OTHER PARTS GROUP Q'ty

CX051 205 0355 059 5P KR CON BASE(L) 1

CX081 205 0355 088 8P KR CON BASE(L) 1

CX082 205 0321 083 8P CONNE.BASE (RED) 1

CX131 205 1174 954 13P FFC BASE(FMNSMT) 1

CX151 205 1232 906 15P FFC BASE(P=1.0)L 1

CX171 205 1174 909 17P FFC BASE(FMNSMT) 1

CX191 205 1174 912 19P FFC BASE(FMNSMT) 1

CX241 205 1225 900 24P FFC BASE(P=0.5)L 1

FB101-128 235 0130 903 CHIP EMIFIL(11A121) 28

FB501-508 235 0130 903 CHIP EMIFIL(11A121) 8

FB701-703 235 0130 903 CHIP EMIFIL(11A121) 3

FB705-709 235 0130 903 CHIP EMIFIL(11A121) 5

L701 235 0125 905 INDUCTOR(FLC32C220K) 1

L703 235 0125 905 INDUCTOR(FLC32C220K) 1

ST101 205 0452 017 STYLE PIN 1

X101 399 0619 906 X'TAL(27MHZ) 1

X501 399 0790 906 CSALS33M8X51-A0 1

C610,611 257 0512 903 CK73F1E104ZT

C612 254 4538 955 CE04W1C221MT SMG/RE3

C613 254 4541 900 CE04W1E100MT SMG/RE3

C615 254 4538 971 CE04W1C471MT SMG/RE3

C616 257 0508 917 CC73CH1H471JT

C617,618 257 0512 903 CK73F1E104ZT

C619 254 4538 942 CE04W1C101MT SMG/RE3

C620 257 0512 903 CK73F1E104ZT

C621 254 4538 955 CE04W1C221MT SMG/RE3

C623 254 4541 900 CE04W1E100MT SMG/RE3

C624 254 4538 971 CE04W1C471MT SMG/RE3

C625 257 0501 901 CK73B1H103KT (1608)

C626 257 0510 934 CK73B1H472KT

69

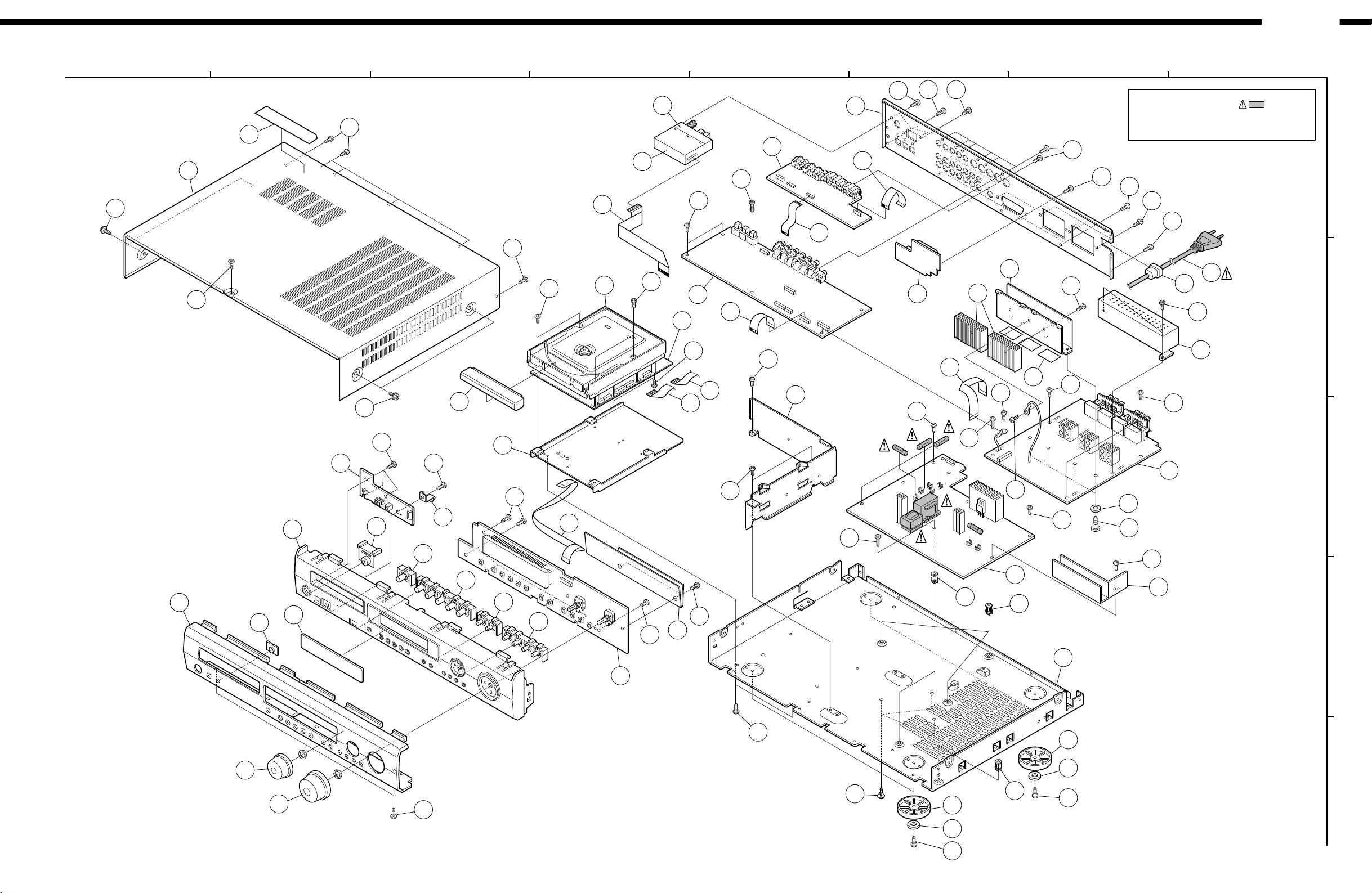

EXPLODED VIEW OF CABINET

ADV-1000

111

27D

17

4

27C

27A

103

102

2-3

16

4

109

19

20

1

52

45

112

2

105

111

3

105

102

47

108

5

3-1

103

28

25

24

25

105

105 107

1-3

103

15

10

103

11

12

107

101

103

76

WARNING:

Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacturer.

8

A

107

105

107

105

26

27

103

14

103

B

43

36

30

31

106

37

34

18

1102-2

103

108

106

105

42

32

33

106

35

39

2-1

106

40

108

8

106

1-2

1-1

13

103

8

113

103

14A

C

D

5

6

49

48

105

7

9

6

7

104

8

104

E

70

PARTS LIST OF EXPLODED VIEW

Ref. No. Part No. Part Name Remarks

1 1U- 3434 A AMP/POWER UNIT 1

1-1 AMP UNIT

1-2 P.SUPPLY UNIT

1-3 SCART UNIT

2 1U- 3435 A MAIN UNIT 1

2-1 DISPLAY UNIT

2-2 H/P UNIT

2-3 DSP/AUDIO UNIT

3 1U- 3443 A VIDEO/OUT UNIT 1

3-1 VIDEO UNIT

4 GU- 3430 DVD MAIN UNIT 1

Q'ty

ADV-1000

Ref. No. Part No. Part Name Remarks

43A 513 3463 001 LABEL(LASER) 1

44 445 8004 007 WIRE CLAMPER 5

45 102 0660 005 TOP COVER 1

46 461 9012 016 CUSHION 2

47 146 2285 006 LOADER PANEL 1

48 112 0856 007 VOLUME KNOB ASS'Y 1

49 112 0883 009 VOLUME KNOB(S) ASS'Y 1

50 513 3771 007 RATING SHEET (E2) 1

51 513 1642 002 NO. SHEET 1

52 513 3629 007 NOTICE LABEL(E2) 1

53 513 3632 007 CAUTION LABEL 1

Q'ty

5 411 2008 006 MAIN CHASSIS 1

6 146 2242 007 FOOT 4

7 461 1066 002 FELT 4

8 443 9015 015 P.W.B SPACER 5

9 412 2741 078 P.W.B.HOLDER (H=10) 3

10 417 0622 039 HEAT SINK 2

11 412 4964 002 HEAT SINK BRAKET 1

12 415 0889 009 MICA SHEET 3

13 461 1124 009 RUBBER WASHER 4

14 412 4938 106 SHIELD PLATE 1

14A 415 0893 008 SAFETY SHEET 1

14B 001 9022 008 V.WIRE (BK) 1

15 009 0233 007 21P FFC CABLE 1

16 009 0229 008 17P FFC CABLE 1

17 337 0110 009

18 412 4937 107 MECHA HOLDER 1

19 009 0227 000 13P FFC CABLE 1

20 009 0230 000 17P FFC CABLE 1

22 204 0565 008 6P PH-8P PH CON.CORD CX081 1

23 204 2934 006 7P PH-PH CON.CORD CX082 1

24 105 1405 116 BACK PANEL 1

25 009 0228 009 15P FFC CABLE 2

26 206 2089 106 AC CORD W/CON.E2 1

27 445 0056 008 CORD BUSH 1

27A 216 0114 009 AM FM TUNER(E2) 1

27B 009 9033 004 1P WIRE ASS'Y 1

27C 412 4986 006 TU EARTH PLATE 1

27D 009 0236 004 15P FFC CABLE 1

28 412 4939 105

30 146 2284 007 INNER PANEL 1

31 143 1147 010 WINDOW 1

32 113 1928 005 KNOB(5P) 1

33 113 1929 004 KNOB(2P) 1

34 113 1930 006 KNOB(1P) 1

35 113 1931 005 KNOB(4P) 1

36 143 1086 003 REMOCON FILTER 1

37 113 1888 006 POWER KNOB ASS'Y 1

39 009 0232 008 19P FFC CABLE 1

40 415 0885 003 GUARD SHEET 1

41 445 8028 009 CORD HOLDER 1

42 412 4839 001 EARTH PLATE(H/P) 1

43 144 2802 014 FRONT PANEL 1

DVD DRIVE MECHA UNIT

MECHA SHIELD BRACKET

1

SCREWS

101 471 3305 014 3X10 CBS-Z 2

102 473 7001 048 2.6X8 CBTS (S)-Z 4

103 473 7002 005 3X6 CBTS(S)-Z 15

104 473 7002 034 3X6 CBTS (S)-B 4

105 473 7015 005 3X6 CBTS(S)-B 22

106 473 7500 015 3X8 CBTS (P)-Z 12

107 473 7500 044 3X8 CBTS (P)-B 20

108 473 7501 014 3X14 CBTS (P)-Z 3

109 473 7506 019 2X6 CBTS (P)-Z 3

110 473 7511 004 3X10 CFTS (P)-Z 1

111 477 0263 018 3P.SWELLING SCREW 4

112 477 0318 002 SPECIAL SCREW(TOP) 1

113 477 0319 001 SPECIAL SCREW H-SINK 4

71

EXPLODED VIEW OF DVD MECHANISM

ADV-1000

1

70

2

8

21

71

7

3

26

12

21

6

5

4

2

15

1

24

5

14

3

26

30

63

44

38

43

37

39

42

28

43

35

29

51

23

34

40

27

51

49

76

46

47

32

33

47

31

8

A

B

50

52

23

36

52

53

C

49

11

23

24

49

48

49

D

9

10

16

18

17

59

25

20

19

24

4

68

64

22

41

E

72

PARTS LIST OF DVD MECHANISM UNIT

Ref. No. Part No. Part Name Remarks

1 9KC 1A01 7A MAIN CHASSIS ASS'Y 1

2 9KA 7P08 5A CLAMPER BRACKET 1

3 9KC 4P00 7F GUIDE CLAMP BRACKET 1

4 9KC 2A00 3B LOADING MOTOR ASS'Y 1

5 9KC 2G02 9A LOADING GEAR 1

6 9KB 9G03 0A LOADING GEAR 2ND 1

7 9KB 9G03 1A LOADING GEAR 3RD 1

8 9KA 2G66 9A SUB CHASSIS-L 1

9 9KA 2G41 8A SUB CHASSIS-R 1

10 9KA 2G39 9C TRAY 1

11 9KC 1G00 3B SLIDE-CAM 1

12 9KC 1G00 4B TRAVERSE ARM 1

14 9KA 7G20 2D CLAMPER H 1

15 9KA 7G20 3B CLAMPER L 1

16 9KB 9G01 5A LOADING BELT 1

17 9KC 1P01 4A SWITCH P.W.B. 1

18 9KC 2G04 3A 5P PH WIRE 1

19 9KS 01W2 04 SWITCH ESE22MH1 1

20 9KS 01W2 05 SWITCH ESE22MH3 1

21 9KP 26C6 25

22 445 8004 007 WIRE CLAMPER 1

23 9KS 17N0 22

24 9KB 26BK 06 SCREW 2.6X6 CBTS(B)-Z 6

25 9KS 20TK 33

26 9KB 20PK 06 SCREW 2X6 CBTS(P)-Z 2

27 9KC 2A00 7A PU CHASSIS ASS'Y 1

28 9KC 2G00 8B SHAFT HOLDER L 1

29 9KC 2G00 7B SHAFT HOLDER R 1

30 9KC 2G01 0A SHAFT TILT BASE 1

31 9KC 2P00 5A SHAFT TILT PLATE 1

32 9KB 7S00 3A TILT SPRING 2

33 9KC 2H00 1A MAIN SHAFT 1

34 9KC 2H00 2A SUB SHAFT 1

35 9KC 2G00 9C PU RACK GEAR 1

36 9KB 8A00 5D FEED GEAR 2ND ASS'Y 1

37 9KC 2G10 4A PICK UP HOP-1200 1

38 9KC 2G01 5A PU SPRING 1

39 9KC 2P01 6A SHAFT SPRING 1

40 9KC 2S00 5A RACK GEAR SPRING 1

41 9KC 2A02 3A FEED MOTOR ASS'Y 1

42 9KC 2A04 0A T/T MOTOR ASS'Y 1

43 9KB 26TK 06

44 9KB 26TK 04

46 9KH 26TK 15

47 9KB 7H00 8 SCREW 3X4 BSS 2

48 9KC 2H00 4A SCREW 3X8 BSS (A) 1

49 9KA 2G65 4A DAMPER 4

50 9KP 21C4 25

51

52

53 9KC 4G00 5A FEED GEAR 3RD 1

59 9KB 7P02 4A TRAY-SPRING-VXF 1

63 9KS 17N0 35

64 9KC 1G04 2A RUBBER CUSHION 2

POLY.SLIT WASHER 2.6X6X0.25C

PRECISION SCREW 1.7X2.2 TYPE3

PRECISION SCREW 2X3(S) TYPE3

SCREW 2.6X6 CBTS(S)-Z

SCREW 2.6X4 CBTS(S)-Z

SCREW 2.6X15 CFTS(S)-Z

POLY.SLIT WASHER 2.1X4X0.25C



SPECIAL SCREW (FRONT)



SPECIAL SCREW (REAR) 2

PRECISION SCREW 1.7X3.5 TYPE3

Q'ty

3

7

1

2

1

2

1

ADV-1000

Ref. No. Part No. Part Name Remarks

68

70 9KC 2G08 5A CUSHION L 5X3.5Xt4 1

71 9KC 2G08 4A CUSHION R 5X3.5Xt2 1



TAPE W10X30 (NITTO NO.156)

Q'ty

1

73

POINTS OF GREASING

ADV-1000

1

2

3

4

5

With Cemedine 575, glue 3 joint parts of Clamper-L and H hooks. (0.05mg each x 3)

76

8

A

*As for greasing to the R rail groove and groove's side edge, apply grease to the outer face "intentionally". (Not only running a brush into the groove, use it with pressing to the outer face consciously.)

B

After attaching cushions, apply Cemedine 575 to the joint parts of the cushions and tabs (both sides, left and right) from the tab's back side. (0.1mg each x 4)

Apply 12.5mm half-ball approx.

After applying , check especially for the front 3 ribs outer side in order not to be insufficient greasing.

When greasing each rib, apply to the rib's left, right, and top faces properly with running a brush on both sides of the rib.

Main Chassis

Froil KG 423 After attaching plate spring, apply to the TRAY side of the plate spring.

C

D

E

74

PACKING VIEW

ADV-1000

211 219~

204

201

207

203

PARTS LIST OF PACKING & ACCESSORIES

Ref. No. Part No. Part Name Remarks Q'tyRef. No. Part No. Part Name Remarks Q'ty

201 505 8092 010 LAMINATE ENVELOPE 1

202 504 0205 006 POLYETHYLENE SHEET 1

203 501 2202 008 CARTON CASE 1

204 502 1058 007 CUSHION(L) 1

207 502 1059 006 CUSHION(R) 1

209

210

211 505 0038 030 POLY COVER 1



E2 POS LABEL

CONT.CARD(L)

212 511 3919 009 INST. MANUAL(E2) 1

213 515 0921 005 S.S.LIST(EX) 1

214 511 3842 008 INST.SHEET 1

215 399 0746 002 RC-901

216

217 203 0380 002 1P PIN CORD (VIDEO) 1

218 231 0922 009 LOOP ANTENNA 1

219 395 0026 005 FM ANT. WIRE 1



BATTERY (R6P) ASS'Y

REMOTE CONTROLLER

1

75

ADV-1000

MEASURING METHOD AND WAVEFORMS

To check the waveforms on the DVD Main P.W.B., the GND ( ) probe of the oscilloscope to Vref point.

NOTES

Measuring Disc: DVD/DVDT-S01

CD/TCD-784

(It is better to use wires for extending between the probe and test points.)

 When watching the HF waveform, use the extending wire as short as possible.  When HF waveform is noisy or cannot discriminate the eye-pattern, replace the Traverse Unit after measuring the Iop. 

~ ! points have the certain test points shown below.

1

HF(RFO)

1

TRAYSW

12

6

FMO

TEI

Vref

SLEG-SLEG+

11

FG

HI+

114

AI

3

15 28

114

15 28

FOO

10

EC F+

4

F-

5

T+

8

T-

9

TRO

7

HOMESW

13

2

FEI

1

B

C

E

C

E

LOAD+LOAD-

GU-3430 DVD Main P.W.B. Unit foil side

76

WAVEFORMS



 DVD MAIN P.W.B.



DVD PLAY Disk : TDV-520A DVD PLAY (INNER)

ADV-1000

⑩EC

⑪FG

①HF(RFO)

②FEI

③FOO

④F+

⑤F-

　H1+

Verf

VerfVerf

　A1

CD PLAY Disk : TCD-784 CD PLAY (INNER)

⑩EC

⑪FG

　H1+

Verf

VerfVerf

　A1

（ＤＶＤ／ＣＤ)　 LOADING →　PLAY SEARCH (INNER →　OUTER)

⑥TEI

⑫FMO

SLED+

SLED-

⑥TEI

⑦TRO

⑧T+

⑨T-

⑥TEI

⑦TRO

⑧T+

⑨T-

DVD　PLAY POWER ON (INSW ON)

⑬HOMESW

⑫FMO

SLED+

SLED-

CD PLAY LOADER OPEN →　CLOSE

TRAYSW

LOAD+

LOAD-

77

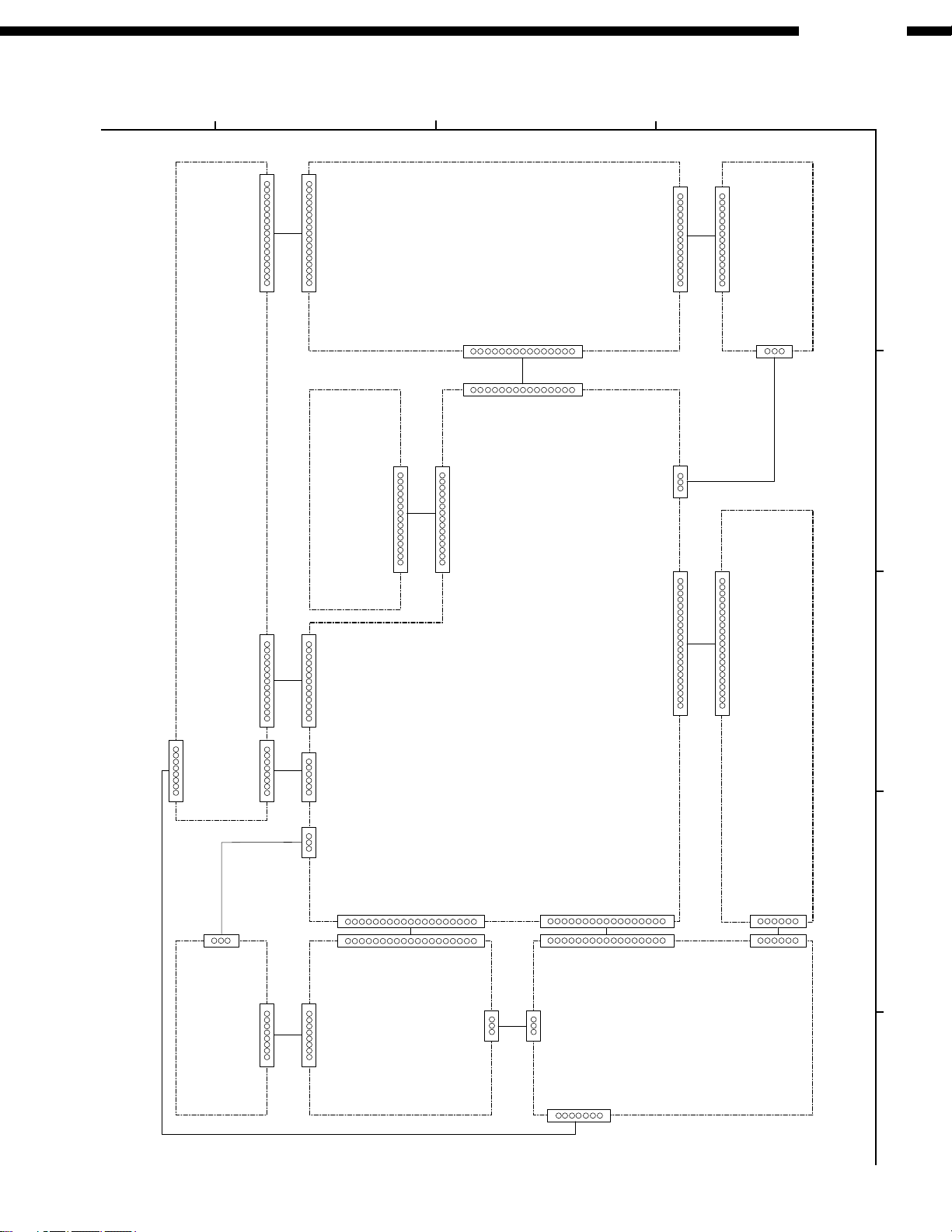

WIRING DIAGRAM

ADV-1000

1U-3443-1

VCONT1

V.MUTEDCBA

45678

9

45678

9

B

A

D

C

V.MUTE

VCONT1

32

IP-SEL

GND V1

1011121314

IP-SEL

GND V1

+5V V1

+12V A1

15

+5V V1

+12V A1

CX153(FFC P=1.00)

RGB H

FUNC SW

GND V1

Y/V

GND V1

DVD-Y/G

GND V1 DVD-Cb GND V1

DVD-Cr

+5V V1

WIDE S-SEL D-SEL

IP-SEL

1

2 3 4

5

6

7 8

9

10 11

12

13

14

15

1

CX171(FFC P=1.00)

RGB_H VCNT1/YC_H VCNT2/WIDE

+5V_V1 GND V1

N.C.

GND V1

Y/G

GND V1

Cb/B

GND V1

Cr/R

GND V1

1

2

3

4

5

6

7

8

Y

9

10

C

11

12

13

14

15

16

17

CY172(FFC P=1.00)

RGB_H

17 16

VCNT1/YC_H VCNT2/WIDE

15

+5V_V1

14

GND V1

13

N.C.

12 11

GND V1 Y

10

9

GND V1

8

C GND V1

7 6

Y/G

5

GND V1

4

Cb/B

3

GND V1 Cr/R

2 1

GND V1

VIDEO UNIT

CY152(FFC P=1.00)

S-SEL

RGB H

VCONT2

3

1

2

3

1

2

S-SEL

RGB H

VCONT2

CY153(FFC P=1.00)

RGB H

15

FUNC SW

14

GND V1

13

Y/V

12

GND V1

11

DVD-Y/G

10

GND V1

9

DVD-Cb

8

GND V1

7

DVD-Cr

6

+5V V1

5

WIDE

4

S-SEL

3

D-SEL

2

IP-SEL

1

4

SCART UNIT

1U-3434-3

CW034(SAN)

AUDIO R

GND A

AUDIO L

3

1

2

A

CX152(FFC P=1.00)

CX082(PH/RED)

1

2

3

4

5

6

7

8

+5V D3 +5V D1 GND D1 ON/ST +5V D2 GND D2 +12V_A2 S.STANDBY

GU-3430

CX131(FFC P=1.00)

DVD MAIN UNIT

1

AMUTE

96K DEEM PRES

GND D1

SPDIF

BCK

MCLK

TSD0 LRCK

GND D1

TSD1 TSD2

CX081(PH)

+5V D3

PWRON

SCLK

/CS

SDATA

GND D1

DFPES

IR

2

3

4

5

6

7

8

9

10

11

12

13

1

2

1

3

2

4

3

5

4

6

5

7

6

8

FM_S.MATER

TUNER PACK

CX131(FFC P=1.00)

AMUTE 96K DEEM PRES GND D1 SPDIF BCK MCLK TSD0 LRCK GND D1 TSD1 TSD2

CX062(PH)

SCLK /CS sDATA

DFPES

STEREO

/TUNED T.MUTE

R_OUT

GND_A1

L_OUT

FM_DET

+12V_A1

+5V_D4

GND_A1

1

2 3 4

5

6

7 8

9

10 11

12

DO

13

CL

14

DI

15

CE

CY151(FFC P=1.25)

1

STEREO

2

/TUNED

3

T.MUTE

4

TU_R

5

GND_A1

6

TU_L

7

FM_DET

8

+12V_A1

9

+5V_D4

10

FM_S.MATER

11

GND_A1

12

SANYO_DO

13

SANYO_CL

14

SANYO_DI

15

SANYO_CE

DSP/AUDIO UNIT

1U-3435-3

CX034(PH)

AUDIO R

GND A

AUDIO L

CY211(FFC P=1.00)

FL

GND

FR

F.GND

GND

SW

GND

SL

GND

SR

505P DOWN

2025MUTE

2025HMUTE

/PROTECT

RL FRONT

RL SURR

RL C

RL SW

+17V

GND RL

1

2 3

1

2 3 4

5

6

7

8

9

10 11

12

13

14

15

16

17 18

19

20

21

CX211(FFC P=1.00)

1

FL

2

GND

3

FR

4

F.GND

5

C C

6

GND

7

SW

8

GND

9

SL

10

GND

11

SR

12

505P DOWN

13

2025MUTE

14

2025HMUTE

15

/PROTECT

16

RL FRONT

17

RL SURR

18

RL C

19

RL SW

20

+17V

21

GND RL

AMP UNIT 1U-3434-1

B

C

CW031(SAN)

1U-3435-2

H/P UNIT

FL

231

FR

GND

REMOTE

H/P MUTE

CX081(PH)

KEY0 LED R LED G

H/P SW

+5V D2 GND D2

CY031(PH/RED)

1

FL

2

GND

3

FR

CY191(FFC P=1.00)

GND D2

+5V D2

RESET

FLDA

FLCK

FLCS

FJOGA

FJOGB

VJOGA

VJOGB

KEY1

KEY0

REMOTE

LED R

LED G

H/P SW

H/P MUTE

KEY0

LED R

REMOTE

CW033(SAN)

LED G

GND D GND D

H/P SW

+5V

N.C

19

N.C

H/P MUTE

1

2 3

45678

9

3

1

2

3

1

2

+5V D2

GND D2

CX191(FFC P=1.00)

1

2 3

4

5

6

7

8

CW081(SAN)

1

2 3

4

5

6

7

8

KEY0 LED R LED G H/P SW REMOTE H/P MUTE +5V D2 GND D2

45678

FLDA

FLCK

RESET

FLCS

101112131415161718

9

101112131415161718

KEY1

FJOGA

FJOGB

VJOGA

VJOGB

1U-3435-1

DISPLAY UNIT

+5V D4

GND D4

1

2

1

2

+5V D4

GND D4

CX171(FFC P=1.00) CY171(FFC P=1.00)

CX033(PH)

1

+5V

2

GND D

3

GND D

CX071(PH/RED)

+5V D3

1

;5V D3

GND D3

456

3

45678

3

;5V D3

GND D3

+5V D1

GND D1

3

2

;12V A

ON/ST

456

GND A

+5V D2

GND A

+12V_A

789

GND A

+12V_A

GND D2

+12V A2

7

+17V RL

GND RL

11101213141516

9

11101213141516

GND RL

+17V RL

LIMIT +

LIMIT -

DVD ON/OFF

P.ON/OFF

50/60

/OVER VOLT

17

50/60

LIMIT -

LIMIT +

P.ON/OFF

DVD ON/OFF

/OVER VOLT

P.SUPPLY UNIT

N.C.

1U-3434-2

CX061(VH)

+B POWER

1

+B POWER

CW061(SCN)

+B POWER

P.GND

456

3

2

456

3

2

P.GND

+B POWER

+5V D4

GND D4

D

GND D4

E

78

SCHEMATIC DIAGRAMS (1/10)

1 2 3 4 5 6 7 8 9 10 11

ADV-1000

A

B

C

D

E

± B LINE

SIGNAL LINE

NOTICE

ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

WARNING:

Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture.

CAUTION:

Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective.

WARNING:

DO NOT return the unit to the customer until the problem is located and corrected.

SCHEMATIC DIAGRAMS (1/10)

1U-3435-3 DSP/AUDIO (1/4) AUDIO Section

F

G

H

79

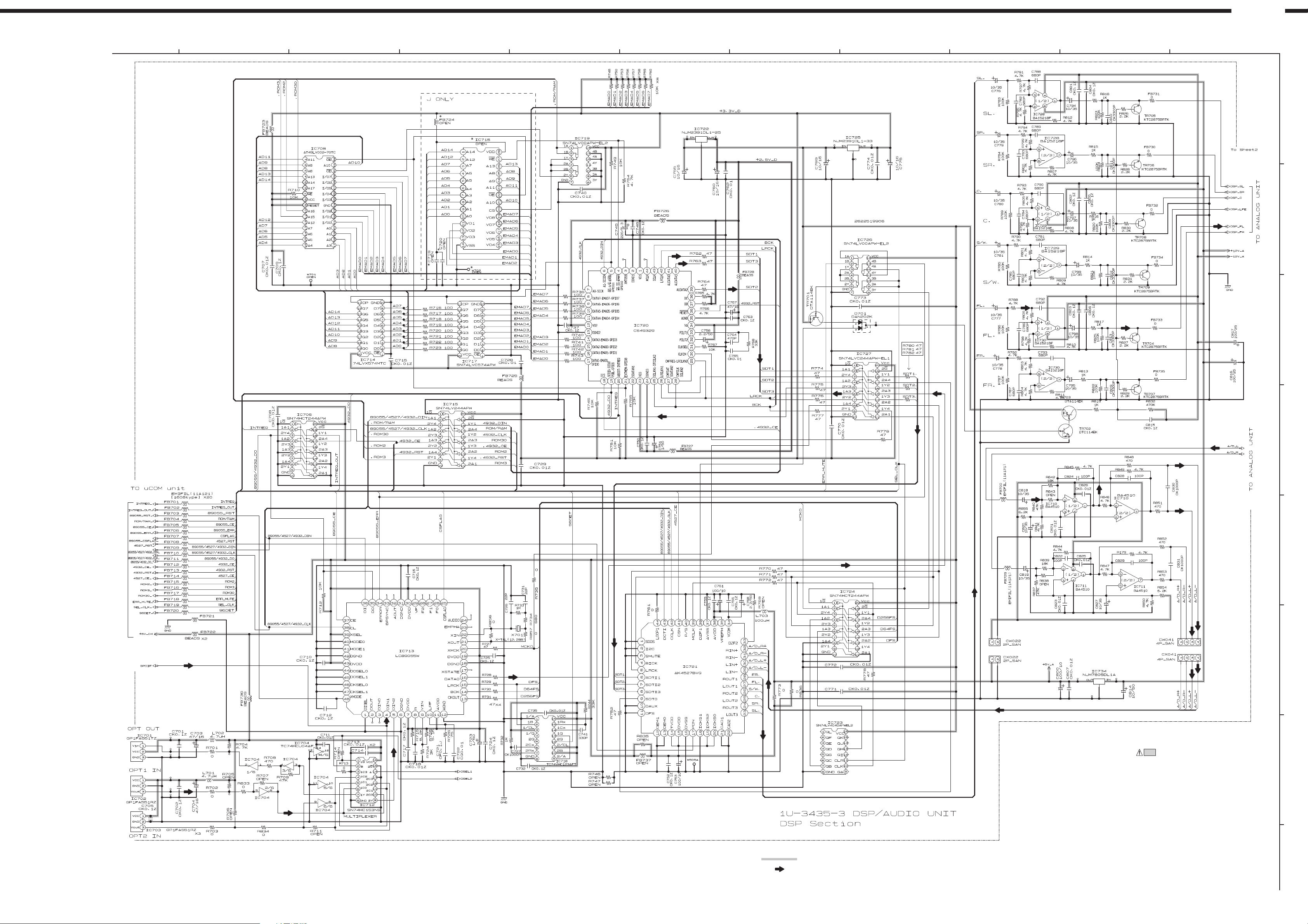

SCHEMATIC DIAGRAMS (2/10)

1 2 3 4 5 6 7 8 9 10 11

ADV-1000

A

B

C

D

E

± B LINE SIGNAL LINE

WARNING:

Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture.

CAUTION:

Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective.

WARNING:

DO NOT return the unit to the customer until the problem is located and corrected.

NOTICE

ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

F

G

H

SCHEMATIC DIAGRAMS (2/10)

1U-3435-3 DSP/AUDIO (2/4) DSP Section

80

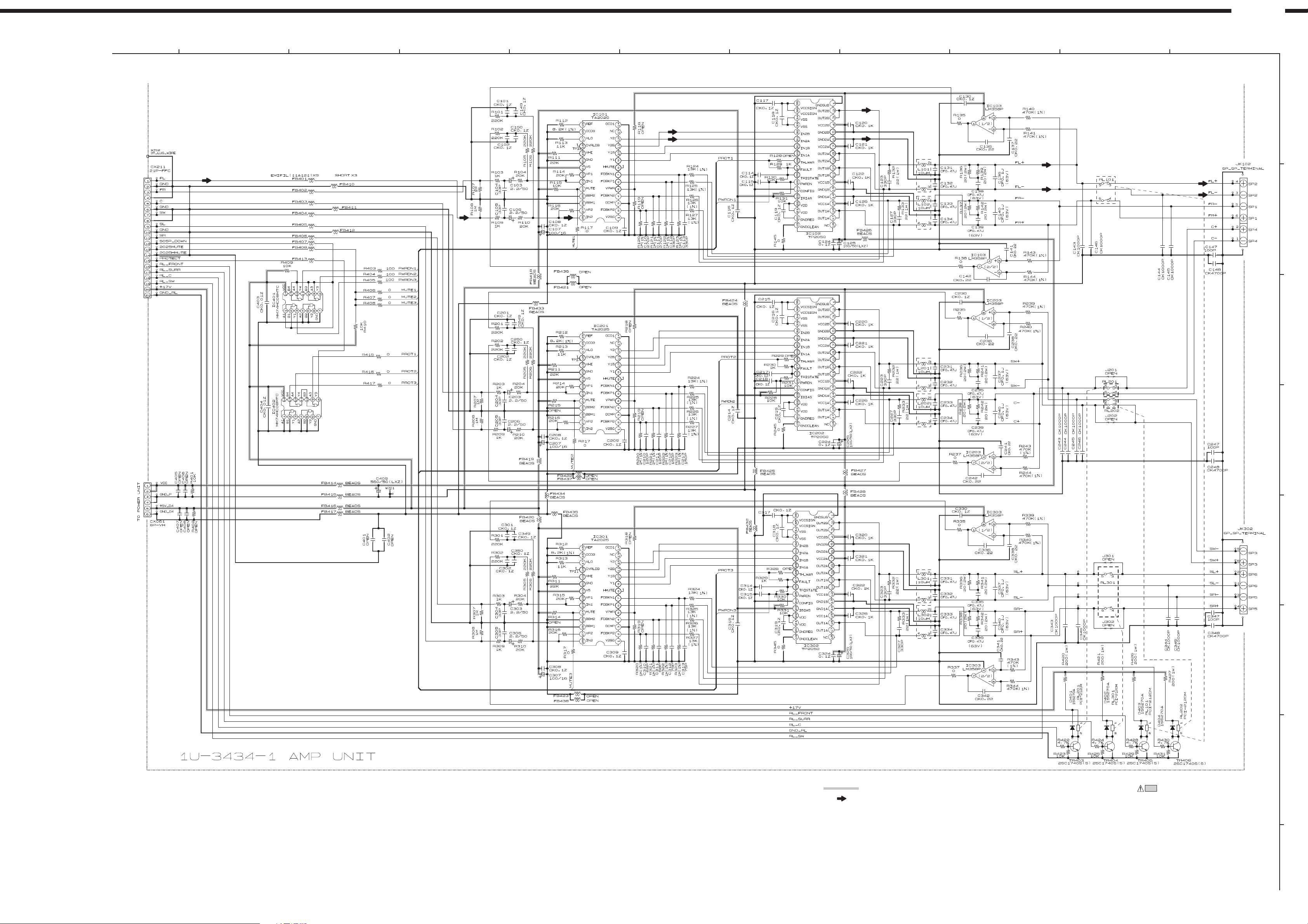

SCHEMATIC DIAGRAMS (3/10)

1 2 3 4 5 6 7 8 9 10 11

ADV-1000

A

B

C

D

E

± B LINE SIGNAL LINE

NOTICE

ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

WARNING:

Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture.

CAUTION:

Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective.

WARNING:

DO NOT return the unit to the customer until the problem is located and corrected.

SCHEMATIC DIAGRAMS (3/10)

1U-3434-1 AMP UNIT

F

G

H

81

SCHEMATIC DIAGRAMS (4/10)

1 2 3 4 5 6 7 8 9 10 11

ADV-1000

A

B

C

D

E

NOTICE

ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

WARNING:

Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture.

CAUTION:

Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective.

WARNING:

DO NOT return the unit to the customer until the problem is located and corrected.

F

G

± B LINE SIGNAL LINE

H

SCHEMATIC DIAGRAMS (4/10)

1U-3435-3 DSP/AUDIO (3/4) µCOM Section

82

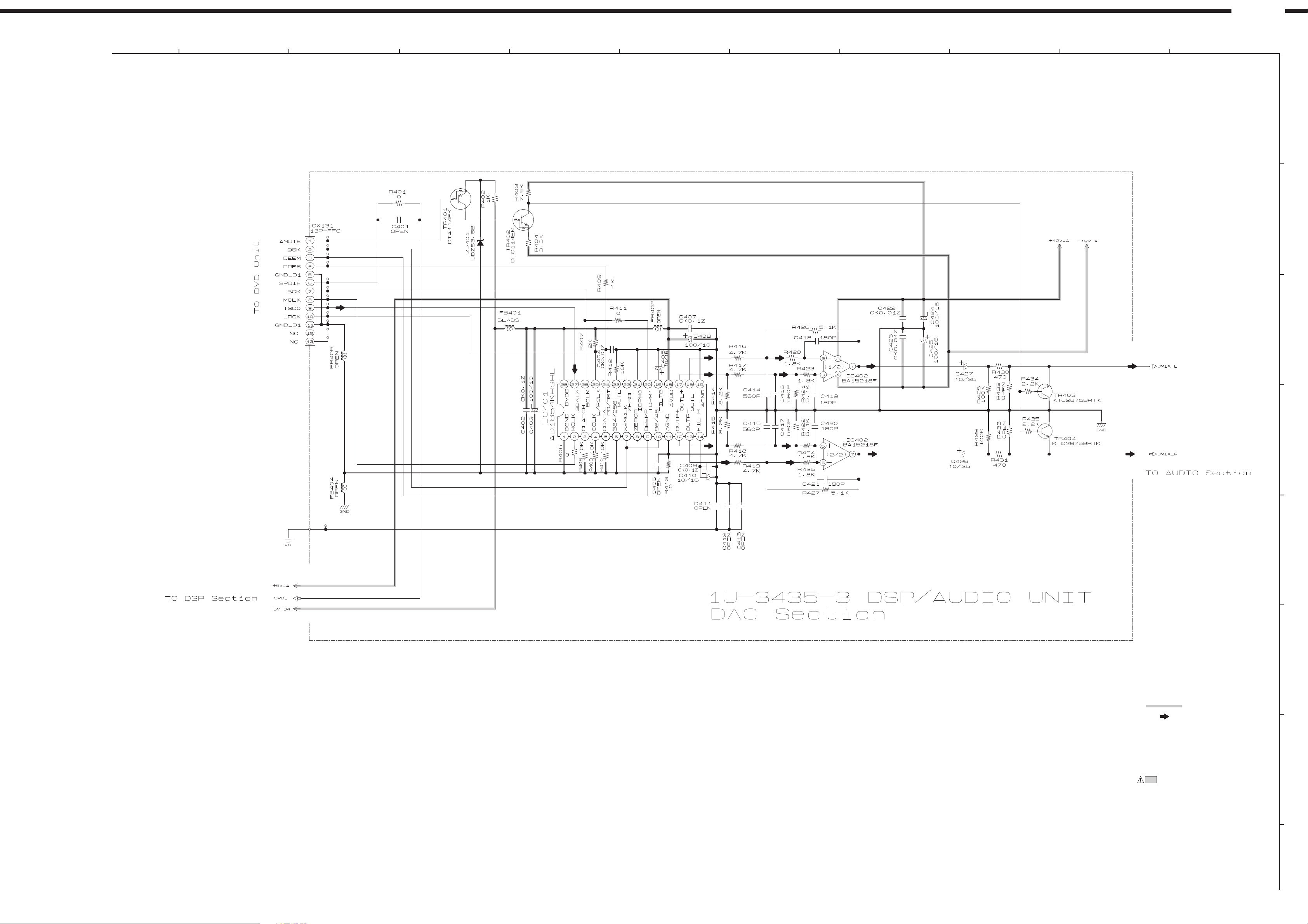

SCHEMATIC DIAGRAMS (5/10)

1 2 3 4 5 6 7 8 9 10 11

ADV-1000

A

B

C

D

E

NOTICE

ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

± B LINE SIGNAL LINE

WARNING:

Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture.

CAUTION:

Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective.

WARNING:

DO NOT return the unit to the customer until the problem is located and corrected.

SCHEMATIC DIAGRAMS (5/10)

1U-3435-3 DSP/AUDIO UNIT (4/4) DAC Section

F

G

H

83

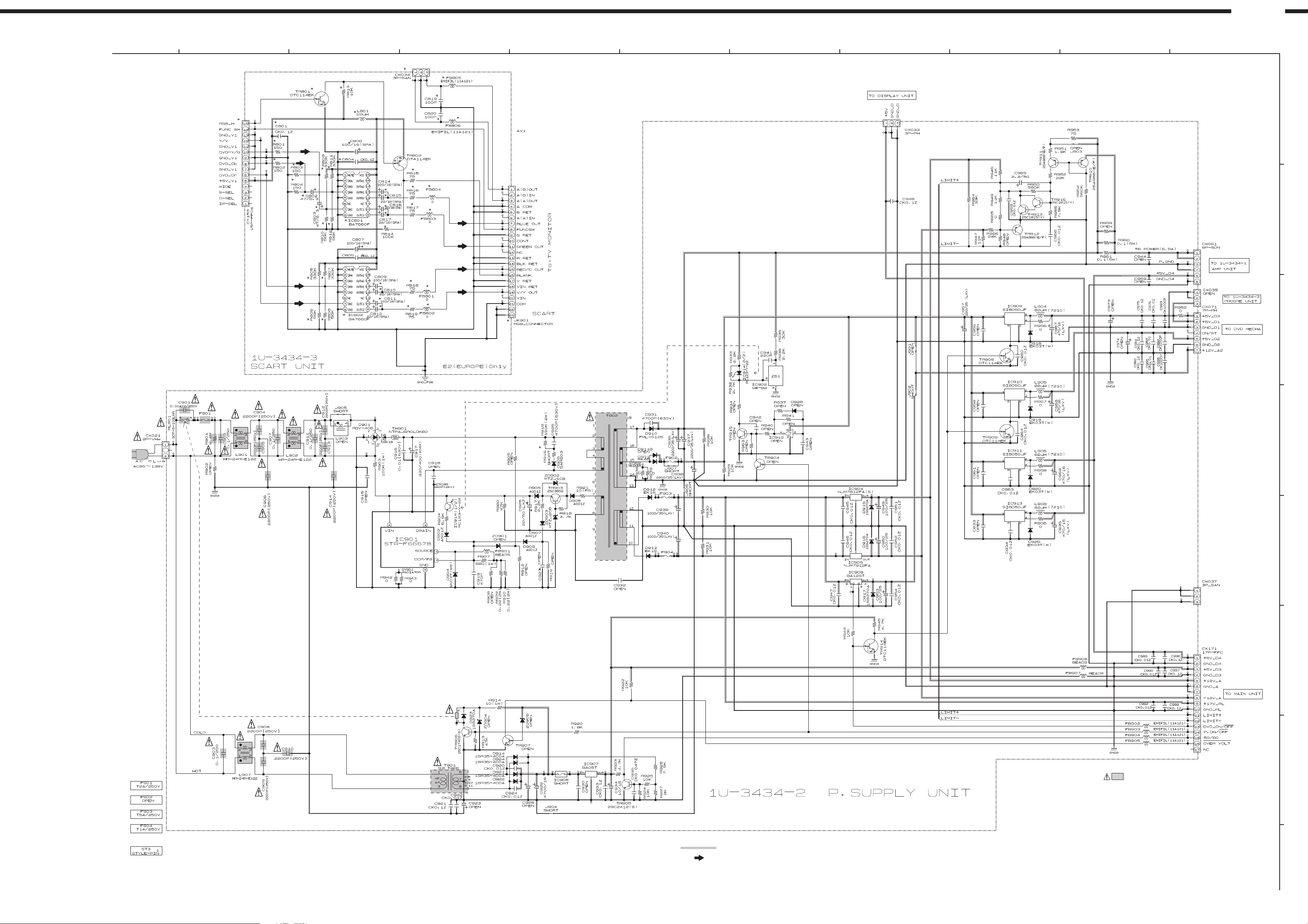

SCHEMATIC DIAGRAMS (6/10)

1 2 3 4 5 6 7 8 9 10 11

ADV-1000

A

B

C

D

E

± B LINE SIGNAL LINE

NOTICE

ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

WARNING:

Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture.

CAUTION:

Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective.

WARNING:

DO NOT return the unit to the customer until the problem is located and corrected.

SCHEMATIC DIAGRAMS (6/10)

1U-3434-2 P. SUPPLY UNIT 1U-3434-3 SCART UNIT

F

G

H

84

SCHEMATIC DIAGRAMS (7/10)

1 2 3 4 5 6 7 8 9 10 11

ADV-1000

A

B

C

D

E

± B LINE

SIGNAL LINE

NOTICE

ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

WARNING:

Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture.

CAUTION:

Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective.

WARNING:

DO NOT return the unit to the customer until the problem is located and corrected.

SCHEMATIC DIAGRAMS (7/10)

1U-3435-1 DISPLAY UNIT 1U-3435-2 H/P UNIT

F

G

H

85

SCHEMATIC DIAGRAMS (8/10)

1 2 3 4 5 6 7 8 9 10 11

ADV-1000

A

B

C

D

E

± B LINE SIGNAL LINE

NOTICE

ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

WARNING:

Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture.

CAUTION:

Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective.

WARNING:

DO NOT return the unit to the customer until the problem is located and corrected.

SCHEMATIC DIAGRAMS (8/10)

1U-3443-1 VIDEO UNIT

F

G

H

86

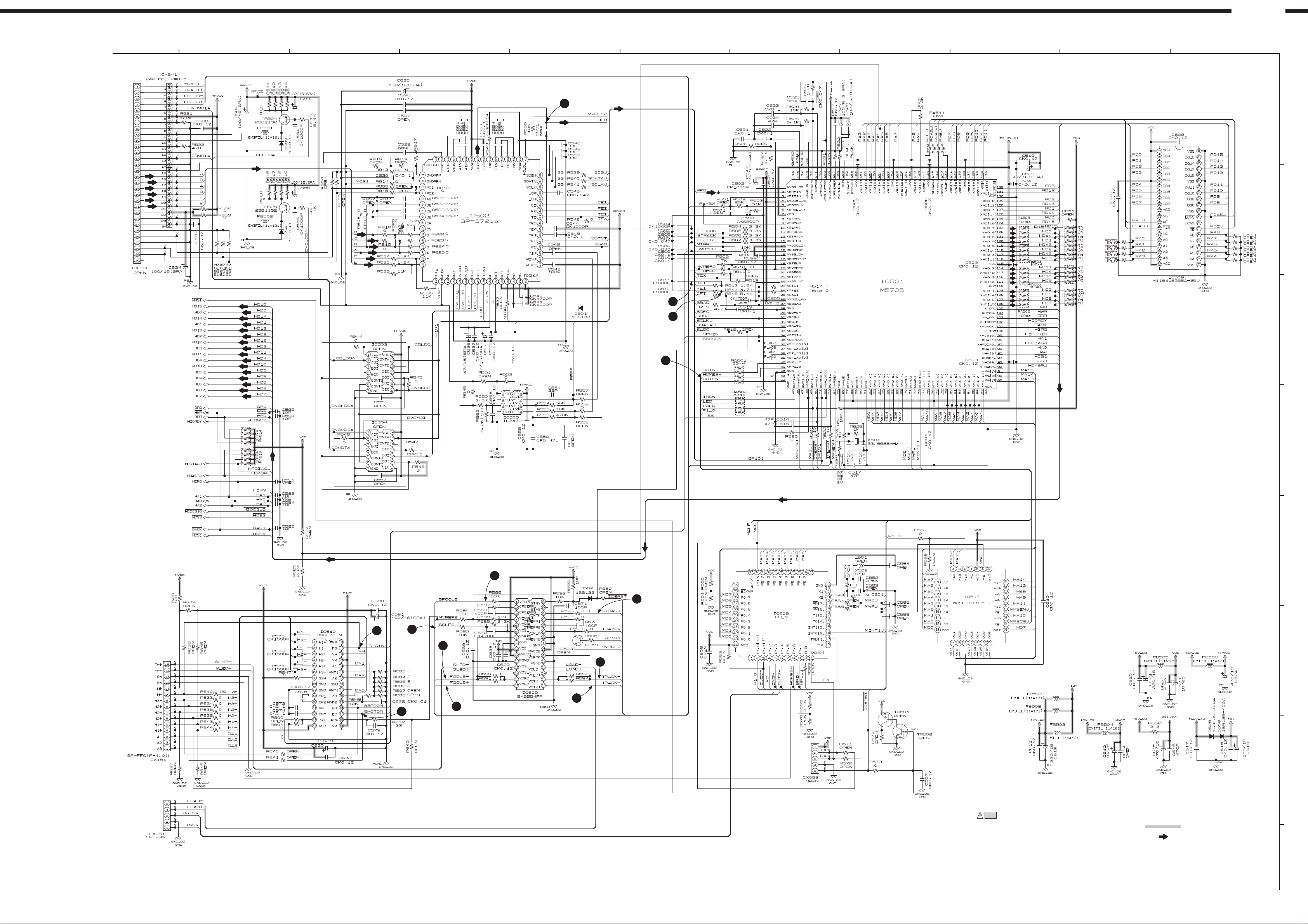

SCHEMATIC DIAGRAMS (9/10)

1 2 3 4 5 6 7 8 9 10 11

1

HF(RFO)

ADV-1000

A

B

FEI

TEI

13

HOME SW

2

6

C

D

11

FG

10

12

FMO

EC

E

FOO

3

TRO

7

F-

5

T-

9

8

F+

4

T+

F

G

NOTICE

ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

WARNING:

Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture.

CAUTION:

Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective.

WARNING:

DO NOT return the unit to the customer until the problem is located and corrected.

± B LINE

SIGNAL LINE

H

SCHEMATIC DIAGRAMS (9/10)

GU-3430 DVD MAIN UNIT (1/2)

87

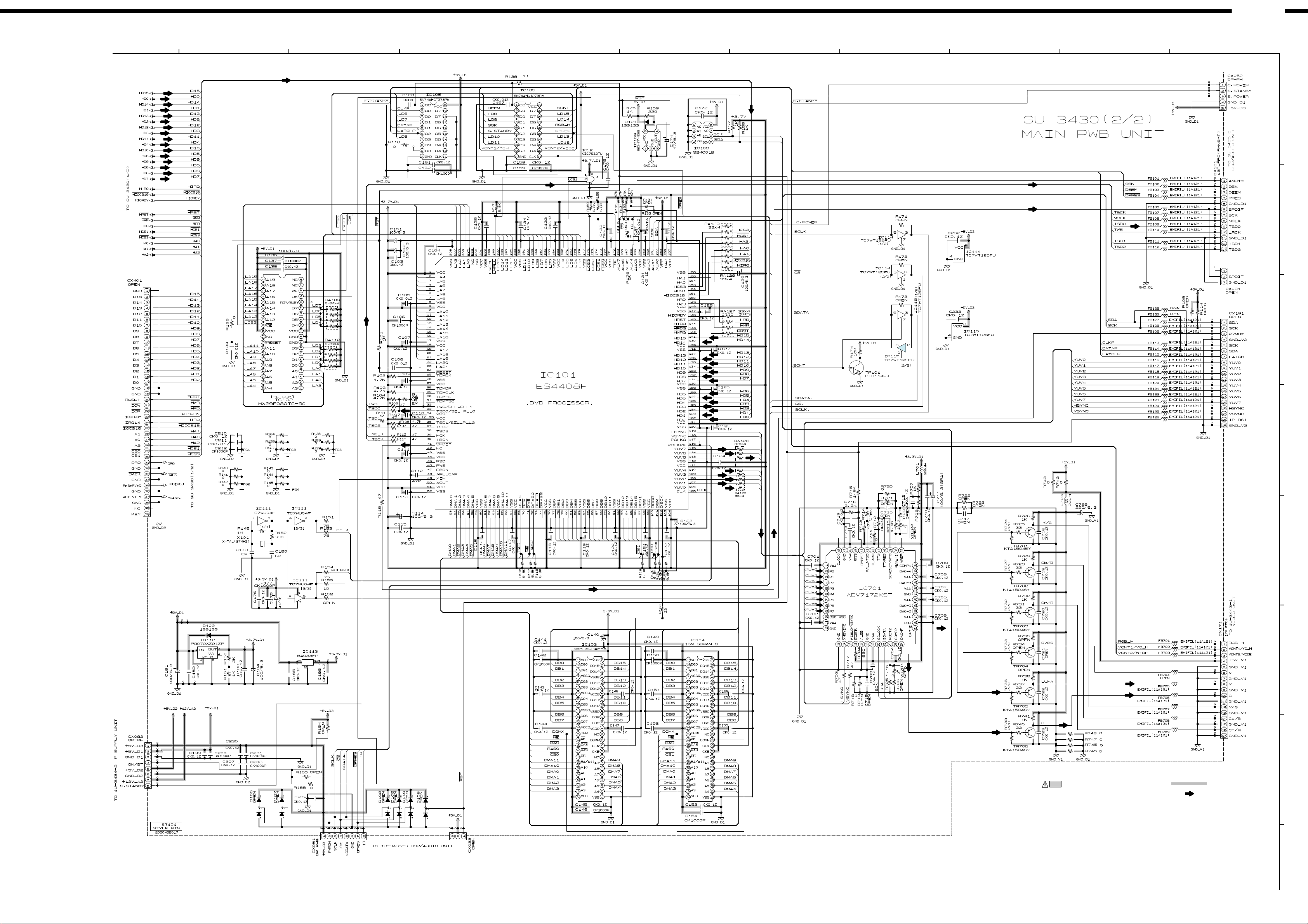

SCHEMATIC DIAGRAMS (10/10)

1 2 3 4 5 6 7 8 9 10 11

ADV-1000

A

B

C

D

E

NOTICE

ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

WARNING:

Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture.

CAUTION:

Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective.

WARNING:

DO NOT return the unit to the customer until the problem is located and corrected.

SCHEMATIC DIAGRAMS (10/10)

GU-3430 DVD MAIN UNIT (2/2)

F

G

± B LINE

SIGNAL LINE

H

88

Denon ADV-1000 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

SPECIFICATIONS

DIAGNOSTICS OF OPTICAL PICKUP AND REPLACING TRAVERSE UNIT

DISASSEMBLY

TRAVERSE UNIT DISASSEMBLY

TROUBLESHOOTING

BLOCK DIAGRAM

LEVEL DIAGRAMS

CLOCK FLOW

SEMICONDUCTORS

 IC's

PRINTED WIRING BOARDS

1U-3434A AMP/POWER P.W.B. UNIT Ass'y

FOIL SIDE

1U-3435A MAIN P.W.B. UNIT Ass'y

FOIL SIDE

GU-3430 DVD MAIN P.W.B. UNIT Ass'y

FOIL SIDE

1U-3443A VIDEO/OUT P.W.B. UNIT Ass'y

NOTE FOR PARTS LIST

PARTS LIST OF P.W.B. UNIT ASS'Y

1U-3434A AMP/POWER P.W.B. UNIT ASS'Y

1U-3435A MAIN P.W.B. UNIT ASS'Y

1U-3443A VIDEO/OUT P.W.B. UNIT ASS'Y

GU-3430 DVD MAIN P.W.B. UNIT ASS'Y

EXPLODED VIEW OF CABINET

PARTS LIST OF EXPLODED VIEW

EXPLODED VIEW OF DVD MECHANISM

PARTS LIST OF DVD MECHANISM UNIT

POINTS OF GREASING

MEASURING METHOD AND WAVEFORMS

WAVEFORMS

WIRING DIAGRAM
