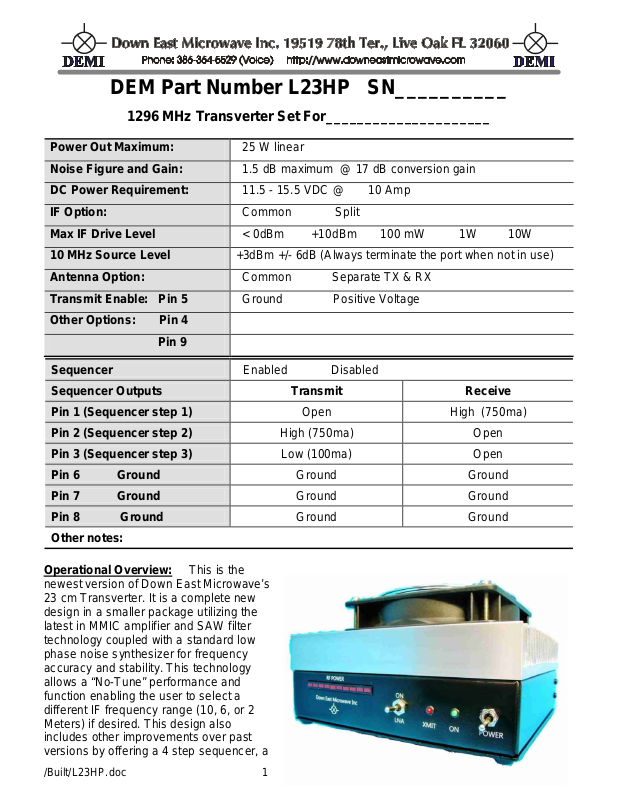

DEMI L23HP User guide

DEM Part Number L23HP SN__________

Power Out Maximum:

25 W linear

Noise Figure and Gain:

1.5 dB maximum @ 17 dB conversion gain

DC Power Requirement:

11.5 - 15.5 VDC @ 10 Amp

IF Option:

Common Split

Max IF Drive Level

< 0dBm +10dBm 100 mW 1W 10W

10 MHz Source Level

+3dBm +/- 6dB (Always terminate the port when not in use)

Antenna Option:

Common Separate TX & RX

Transmit Enable: Pin 5

Ground Positive Voltage

Other Options: Pin 4

Pin 9

1296 MHz Transverter Set For_____________________

Sequencer Enabled Disabled
Sequencer Outputs Transmit Receive
Pin 1 (Sequencer step 1) Open High (750ma)
Pin 2 (Sequencer step 2) High (750ma) Open
Pin 3 (Sequencer step 3) Low (100ma) Open
Pin 6 Ground Ground Ground
Pin 7 Ground Ground Ground
Pin 8 Ground Ground Ground
Other notes:

Operational Overview: This is the
newest version of Down East Microwave’s
23 cm Transverter. It is a complete new
design in a smaller package utilizing the
latest in MMIC amplifier and SAW filter
technology coupled with a standard low
phase noise synthesiz er for freq ue ncy
accuracy and stability. This technology
allows a “No-Tune” performance and
function enabling the user to select a
different IF frequency range (10, 6, or 2
Meters) if desired. This design also
includes other improvements over past
versions by offering a 4 step sequencer, a

/Built/L23HP.doc 1 12/27/2017

25 watt output power level with additional options such as a mast mount preamplifier control and a
remote DC power control.

What is the same as the past is the RF and IF configurations and drive level options. The
transverter may be configured with common or split IF at any drive level between -20dBm to 10
Watts. This can be changed easily at any time by the user. All IF connections are made throug h
standard BNC connectors. The RF configurations are separate TX and RX ports or a common RF.
An onboard relay is standard and may be reconfigured at any time. The RF ports are type N
connectors only. Keying the transverter is done by either a voltage (PTT-H) or a ground on
transmit (PTT-L) through the AUX connector which also contains the Sequencer outputs and
additional any requested additional options. The DC cabling and AUX connections are supplied.

Configuration Overview: The DEM L23HP transverter is designed to interface to all moder n

amateur radio transceivers but has been specifically configured to your transceiver’s specifications.
As indicated on the front pag e, some user options and configurations need to be selected before
delivery but may be user changeable. Let’s review your configuration and verify that your interface
will be easy and trouble free. Please refer to the front page chart for the following.

DEMI Part Number Verification:

All DEMI transverters contain the operating band within the part
number, i.e., L23HP equates to the 23 centimeter band. (1260-1300 MHz) Since this is the first
transverter design that has a user selectable IF frequency, we simply indicate what the transverter
is “Set For” under the Serial Number on the front page. The configured IF frequency is what we
have on record as your request. If this is incorrect or your desires have changed, it is not a problem
and will be discussed in a section of this manual entitled “If Frequency Selection”.
IMPORTANT: The transverters operating bandwidth is restricted by first your IF frequency
bandwidth and secondly, by the Band Pass filters utilized in the design. The usable RF bandwidth
is approximately 1280-1300 MHz

RF Output :

Next is the maximum linear output power level of the transverter that should not be
exceeded if linear operation is expected. The “Other Notes” section will indicate if a custom
output level was selected. In most cases, the transverter is capable of higher output power but is
not recommended because of excessive “on the air” distortion products.

Noise Figure and Gain: The noise figure and gain listed are the minimum requirements. All

transverters meet or exceed these specifications. Utilizing the latest PHEMPT and SAW filter
technology, we have designed a receiver chain for gain management, IMD performance, and noise
figure to eliminate over load and out of band interference maintaining a stable, quiet, sensitive
receiver. Please note. The noise figure of the transverter is always better through a separate RX
connector and not through the Common Antenna connection.

DC Power Requirement:

The DC power requirement is listed and should be used as a guideline.
Please include some “Buffer” in your power supply to eliminate voltage drop delivered to the
Transverter. If a custom lower power is requested, a lower current power supply may be utilized.
Always choose the correct level of fusing for protection.

IF Option: The IF option has two choices. A “Common” IF connector in which both TX and RX
IF frequencies are conducted through a single connector, or “Split” IF connections with a separate
connector for the receive and transmit connections to your transceiver.

/Built/L23HP.doc 2 12/27/2017

Maximum IF Drive: The maximum IF drive level is specified. This may be applied to the Common
port or the separate TXIF port. You may have specified a specific IF drive level and it will fall into
one of the 5 ranges listed. The transverter will produce full power at your desired drive level but
adjustment of the TXIF control will be necessary. This will be covered in the “Set-Up”

section.

Antenna Option: The RF output option is either a single port (Common RF) for both TX and RX

or there will be two separate ports, one RX and one TX. For the common port, a PC board RF
relay is utilized that allows the output configuration to be changed at anytime if the user changes
their system requirements at a later date. This will be covered in detail later in this document. The
common port relay (the TR relay) is controlled by the Push-to-talk (PTT) circuit

Transmit Enable: The TX Enable for the transverter is the RCA cable and connector supplied

through the 9 pin AUX connector. The TX Enable is on Pin 5 regardless of your choice of PTT to
ground or a Positive Voltage for TX enable. This connection is made directly to your transceiver.
The TX Enable function energizes the internal sequencer unless specified. It will be indicated in
the Sequencer section.

Other Options: If other options or special function are ordered that require access to the

transverter, they will be indicated as such on the designated pins. Options include but are not
limited to DC power enable, LNA bypassing, remote power sensing.

Other Notes: If any specific instructions or configurations are required, it will be noted here.

In example, “LNA switching installed with Bias on the coax”

Sequencer Outputs: All Sequencer outputs are contained in the 6 conductor cable extending

from the AUX connector and are indicated by color on the chart.

Theory of Operation: The basic principle of a transverter is to convert a chosen band of

operation to your transceiver of choice. Following the recommendations of the transceiver’s
operation manual for tr ansverter use is the most important aspect of correct transverter operation.
If configured correctly, the transverter will convert both transmit and receive signals to a new band
of operation and be “invisible” to your transceivers operation. In simple terms, the transverter will
not improve the performance of your transceiver but if configured correctly, will not cause any
degradation of performance in any way and will appear as if it was meant to be on that “New” band
all the time.

Interfacing and Operation: Interfacing the transverter to the transceiver is easy. After

reviewing the front page configuration and verifying that the transverter is configured correctly,
proceed with the directions of interfacing. If you find that something is not correct in the
Transverters co nfiguration, either mak e the c or r ecti on by following the directions in the
“Configuration Options” section later in this manual or consult DEMI with your issue.

If you have configured a DEMI transverter before, use the following steps as a guideline to
complete your transverter install. If not, the following steps may be lengthy but are basically
simple. Each step has a brief explanation of how and why the procedure is to be completed. Let’s
review what is required to make this interface complete.

/Built/L23HP.doc 3 12/27/2017

DC POWER

ANT/TX

RX

10MHZ

AUX

RX IF TX IF

COM

The interfacing starts with a complete understanding of your transceiver and manual. Your
Transceiver’s manual should cover the setup for transverter operation if it has transverter ports and
depict the connections to be made. Some transceivers do not have ports but may still be interfaced
with some instruction. Some transceivers are simple and some are complex. Some transceivers
may have more than one correct way of interfacing. Hopefully, you have decided on how this
transverter is to be interfaced at the time of order so we were able to configure the transverter to fit
your requirements. But remember, all configurations are user changeable and detailed instructions
are included later in this document

.
Start the interfacing with good quality 50 ohm cables for the IF (28 through 144 MHz) and
the 10 MHz connections. These connections are low level (10 watts or less) and are BNC
connectors on the transverter. Your transceiver may have various other types of connections. We
find that simple RG-58 type BNC cables work fine with or without adapters to your transceiver.

All transverters require enabling the Transmit function with a PTT control ( Push to Talk to
ground or positive voltage on TX) that follow s the transmit mode of the transceiver. The PTT input
to the transverter is PIN 5 of the AUX connector. Most transceivers have RCA connectors for PTT
outputs but some have various different connections. Ready a cable that matches your transceiver
PTT output and attach it to the AUX connector adapter. The adapter connector is supplied and the
numbering matches the Transverters AUX connector Pin out. The PTT input for the transverter is o
Pin 5 and any ground connection (pin 6-8). Then attach the AUX connectors together.

The DC power cable is supplied with the transverter and needs to be prepped on the power
supply end. It is important to fuse this line if using a battery or a high current power supply or
adjust the current limit on your power supply for set up. Review the pictorial below of the rear panel
and the rear panel of the transverter.

Rear Panel view

Connect your transceiver to the transverter:

is easy. After reviewing the front-page configuration and verifying that it is configured correctly for
your purpose, begin cabling. An Important note: It is recommended that during the initial setup of
the transverter, do not connect it to your complete system (Final HPA or mast mount LNA). All
aspects of the transverters performance should be tested before a complete installation is made to
an existing system. Drive levels need to be established and proper switching needs to be verified
before complete integration for protection of your existing system.

Remove the bottom cover plate of the transverter leaving the exposed circuit board facing “Up”
After connecting the DC power cable to the power supply of choice, connect the DC POWER to
the transverter. It is a twist lock. 13.8 volts is optimum but the transverter will operate normally from

/Built/L23HP.doc 4 12/27/2017

Interfacing the transverter to the transceiver

11 to 15 volts. R emem ber the fus e! Now cycle the power switch on the transverter and verify that
the “ON” light shows Red. Leave the transverter powered on.

1. The transverter has a synthesized local oscillator with its own reference source but if you
are after extreme accuracy and best phase noise, you can connect an external 10 MHz source of
any type (GPS, TCXO, or Rubidium) at a level of +3 dBm +/- 6dB. When connecting an external
source to the 10 MHz connector, if the level is correct, it will automatically switch in and the Power
“ON” light will turn “Green” to indicate the use of the external source. Remove the external 10 MHz
source connection and t he LED will revert back to red. When done playing with the RED/GREEN
lights, power the transverter down. When not using an external source, always terminate the port
with a short or load.

2. Be sure your Transceiver is “Off” and connect the “Push-to-Talk” line from the transverters
AUX connector to your transceiver using the cable made in a previous step. Most transceivers
make a connection to ground during transmit. (PTT-L or to Ground). This connection on your
transceiver may be called something else such as “TX ENABLE”. Some transceivers may source a
positive voltage on Transmit. Review your transceivers manual for keying external devices such as
a Power Amplifier for the correct connection. Consider the transverters keying the same as a
power amplifier. The transverter requires either a connection to ground that sources less than 5
ma or will sink a positive voltage of 2-17VDC at 2 ma.

3. Connect the IF cable/cables. The transverter may have a single common IF port or two
separate ports, TXIF and RXIF. The common port has both TX and RX signals and should connect
to a similar port on your transceiver. Refer to your transceiver’s manual to determine how the IF
connections are to be made if your transceiver is “Transverter Ready”. If the transceiver does not
have transverter ports, you will connect directly to the antenna port of your transceiver. Make
whatever connections you need to do to establish the connection (adapter/adapter cable).
CAUTION: Do not power the transceiver on after making this connection!

4. Antenna Connections. If you have requested a common RF connection, the “ANT/TX” port
has both RF TX and RX functions. If separate TX and RX ports were ordered, the internal transfer
relay of the transverter was bypassed. The separate ports are labeled ANT/TX and RX. No matter
what, connect your antenna system or dummy load with a power meter to the ANT/TX connector
on the transverter. If you have a separate RF RX connection, it would be best to place a 50 Ohm
dummy load on it for initial testing.
.

5. If you have a transceiver without a transverter port and the IF cable is connected to the
antenna port, disconnect it from the Transverter. Now power up your transceiver and depending
on your transceivers function, it may energize the transverter. Set the transceiver to the IF band of
choice that matches the transverter, either 10, 6, or 2 Meters. Then, adjust the output power of the
transceiver to minimum. Even if you have the “Maximum 10 Watt IF Option “installed, the
transverter will operate normally at much less power. This is recommended to eliminate the
possibility of radiated energy within the transverter from the transceivers output power to couple in
to other circuits and produce spurious emissions. The basic transverter only requires a couple of
milli-watts to operate. The 10 watt IF option is a 50 ohm dummy load with a coupling point that
samples a small amount of drive energy in to the TX circuit. The rest is absorbed in the dummy
load but will radiate within the enclosure.

After the transceiver power is adjusted, power off the transceiver and reconnect the IF cable to
the antenna port.

/Built/L23HP.doc 5 12/27/2017

6. Power the Transverter on. If you have an external 10 MHz source, the “On” light should be
green. Now, power on your transceiver and understand that all transceivers are not alike. You
may hear a relay click and the TX light of the transverter may cycle but if the TX light remains on,
power off your transceiver! If the TX light remained on, there is a incorrect connection to the
transceiver regarding the PTT line or your transceiver was locked into transmit. Re-verify the
configuration of the transverter and your transceiver’s manual for keying external devices.
If the set up is working correctly, keying the transverter is as simple as squeezing the MIC button,
or pressing the TX button on the rig. If you test it in the CW mode, do not use Full Break-In !!!!
The transverter is sequenced and has a built in delay and worst of all, has mechanical relays that
will fail if RF is applied at the wrong time. You can use Semi Break-In,
but increase the delay so not to hear any relay chatter.

7. Now, if you have a in line power meter or have been looking at the relative power meter of
the transverter, you have noticed very little output power. This is because the TXIF gain needs
adjustment. Our recommendation is, if using a low level transverter port of your transceiver, and
your transceiver has any method of adjusting the output power of this port set it to maximum output
power.

If you are using the Antenna port for your IF line, adjust your transceivers output power to the
minimum output power it will operate at. The transverter has plenty of adjustment to compensate
its drive level.

Then with a small slotted tuning tool or small screw driver, the TXIF gain control may be
adjusted. The transverters TXIF control is adjusted to maximum attenuation when it left the
factory. Fit the adjusting tool into the slot of the TXIF gain control, place the transceiver in the CW
mode and go key down. Adjust the control to obtain the maximum specified output power or until 9
bars are lit on the relative power meter on the transverter. When complete, verify the SSB mode
and FM if you use it at all. If you transceiver is balanced, all modes should have equal power. On
SSB, it should peak at 9 bars. If you cannot obtain full output power, verify your transverter port
output power. If you are using a High Power IF drive through the antenna connector, do not
assume the output power level is set to low. Verify all possibilities before increasing the output
power of the transceiver. If all fails, consult DEMI with your issues before increasing the drive
power beyond 10 watts.

8. The Receiver gain adjustment is similar. Be sure you have a good antenna, signal generator or
a good dummy load at the desired frequency of use connected to either the antenna port or the
RF RX port. Observe the noise level in the transceiver on the “S” meter and by ear. If it is too
high, adjust the RXIF gain control in the transverter until a slight noise increase is heard in the
transceiver or just a slight movement in the “S” meter is detected. Power the transverter on and off
to verify the change. You should be able to “hear” the difference of on and off. The RX IF gain
may be increased beyond this point, but it will start to degrade the dynamic range of your
transceiver. It is all user preference. If you plan to use an external or mast mount LNA, this level
will need to be re-adju st ed. Find a signal on the band or use a signal generator to det ermine the
minimum signal level.

9. You may re-adjust both RXIF and TXIF again at any time if desired but normally once set,
you forget about it unless you change transceivers or add power amplifiers or receive
preamplifiers. Install the bottom cover. The sequencer AUX connections may be now wired for your
installation. If you require something other than what is indicated on the front page, please see the

/Built/L23HP.doc 6 12/27/2017

Option Setup section for further details. Also read further about interface and testing a mast

mounted LNA in that section.

10. Basically, the transverter is ready to use in its stand alone form but a nd may be now
integrated into your more elaborate system. Connect as you wish to use it in your system. If your
system requires the use of the sequencer or you desire to implement it please refer to the Option

Setup section of this manual.
General Operation:

should be transparent to the transceiver and the user. Except for the frequency read out, (if your
transceiver doesn’t allow its display to be adjusted for transverter operation) it will be like operating
with your transceiver on any other band. All of the functions of the transceiver (filtering, DSP, split
band operation, dual VFO) will be transposed to the frequency band of the transverter.

Some cautions should be taken when operating CW or VOX. Operating the transverter in a
“Full Break-in” mode is not recommended. Because of the mechanical relays and the sequencer in
the transverter, there will be too much delay to operate “Full Break-in” effectively. AND—the relays
would be abused if “Full break-in “is enabled. It is best to operate in “semi break-in” and adjust the
delay of the PTT on your transceiver to match your comfortable CW operating speed in a way that
the delay will hold the PTT until your transmission is complete. Since all transverters will be
delivered with the sequencer enabled, this delay will need to be longer to allow all components
within the system (Power amplifier, LNA, relays, if installed in the system) to complete their
transition if utilized. If the stock transceiver is to be used alone, the transceiver PTT signal may be
connected directly to the transverters PTT input if the sequencer is bypassed. This will shorten up
the delay but will not allow “full break-in” without relay chatter. See the Sequencer Operati on in
the

Option Setup section of this document.

General operation of the transverter, if everything is adjusted correctly,

Option Setup:

Common or Split IF Option:

type of transceiver you are utilizing. Refer to the Component placement or schematic for
clarification. The com p onent designators are also screened on the circuit board.

The IF configuration may be change at any time according to the

K2 is the common IF relay. To split the IF lines into separate RXIF and TXIF, you only need
to connect the RXIF connector with a short piece of coax to the point on the board between C4 and
C5. Attach the shield of the coax to the cleared metal at that point on ground. Then remove C4.
Leave the common connection at the TXIF input. With this set up, the RF sense protection circuit
and any TX gain or attenuation is still in place. Reverse the procedure if you want to change to or
back to Common IF by installing C4 or use a short piece of wire to bridge the gap.

TXIF Drive Level Range change: The TXIF drive level range can be changed at anytime to
conform to your transceiver type. Basically, there are 5 configurations for maximum usable drive
levels. For high IF drive levels between 1 and 10 watts, the 50 Ohm load (Load 1) will be installed
with a low value capacitor of either 1 pF for 2M IF frequency and a 5 pF for 10 M operation in the
C13 position. A level up to 1 watt requires a 10 pF for C13 for all IF frequencies. For a level up to
100 mW requires the removal of LOAD 1 and then replace C13 with a 100 ohm chip resistor. Up to
10 mW is the standard level for the transverter and C13 should be a short or a 1000 pF chip
capacitor. Anything below 1 mw will require a gain stage installed in IC2 position At the -10dBM
level, install a MAR3 or any MMIC that will produce around 13dB gain operating at +5VDC at the IF
frequency. If more gain is required, A high gain MMIC will work with inputs as low as -20dBm. To

/Built/L23HP.doc 7 12/27/2017

install IC2, if a chip resistor in its position, it will need to be removed. R13 (the TXIF gain control)
will then need to be re-adjusted for the correct drive level..

IMPORTANT NOTE: W hen re-testing, do not assume that since your output power of the
transverter is low that it is because you do not have enough IF drive. Please consult DEMI if you
have problems obtaining full output power with your new specified drive level.

Common or Split RF connections: The RF connections may be reconfigured at any time. If you

desire a separate TX and RXRF connection, install a type “N” connector in the RX hole on the end
panel and connect a coax from it to the point on the board between C9 and the LNA board. The
shield is connected to the exposed metal on ground. Then remove C9. This connection does not
have a DC path to ground to bleed static but it is assumed that if you desire a separate RFRX
connection, you have external protection devices installed. The TXRF (ANT/TX) line remain as it
is. If you have separate ports and wish to make them common, reverse the procedure adding C9
and re-installing L2 if it was removed.

Sequencer:

The sequencer in the transverter is ready for operation as specified on the front cover
sheet. Its configuration may be changed at anytime. The transverter is keyed on the 4th and last
step. It is wired to the #4 point on the circuit board in the sequencer section. This is a “LOW” on
transmit. The other connections are indicated on the front page and wired to the AUX connector
with color code.

Step 1 +12VDC on RX for a preamp @ 750 mA maximum
Step 2 +12VDC on TX for a TR relay (around the preamp) @ 750 mA maximum
Step 3 Ground on TX to key a HP power amplifier. Sinks 100 mA maximum

Optional Sequencer Connections:

Step 1 and 2: They can be connected to switch higher DC voltages. The DC voltage is applied to
the DC1 and DC2 connections on the board (30VDC maximum).

Step 2: TL2 is a secondary connection to the second step. It is a “LOW” on transmit. It can be
used to drive a relay or key an amplifier but an external isolation device should be utilized.
Caution! It will sink 50 mA maximum

Step 3 and Step 4: They have secondary outputs that are both “High” on transmit. They are
labeled PH3 and PH4. These should be isolated from devices that require high currents and are
intended to drive low current devices or Pass transistors or FETs. They will source 50mA.

Sequencer Bypassing: The transverters sequencer may be by-passed to eliminate switching
time delays but is only recommended if it is to be used without any other system components such
as LNAs or power amplifiers. In this case the external PTT input of the transverter, Pin 5 of the
AUX connector may be connected directly to the Amplifier’s PTT input (see component placement
document) between CR9 and C33 labeled PTT-L if using a signal to Ground to key the transverter
or to the PTT-H near R22 if positive voltage keying is utilized. If you bypass the sequencer,
remove the wire coming from the “4” position of the sequencer.

Mast Mount Preamplifier (LNA) Switching: Provisions have been made to provide DC bias
and switching of a mast mount LNA either directly on the ANT or RF RX coax or through the AUX
connector. Step 1 of the sequencer is utilized for any LNA. A fused line is also be implemented.
The socket for the fuse is located under the DIGILO synthesizer board. Remove the two screws
holding the board in place and install a fuse of up to 2 Amps. A 1 Amp fuse is provided (not

/Built/L23HP.doc 8 12/27/2017

1296 = 29

1,3,4,6,7

1296 = 50

0,3,4,6,7

1296 =52

3,4,6,7

1296 = 144

0,1,2

installed) when the Mast Mount LNA switching option is order e d. The fused line is directly
connected to the step 1 output. Re-install the two screws. From the output of the Fuse, the DC
power can be routed to a switch mounted on the front panel of the transverter and then to the Pin 1
of the AUX connector or to the LNAB connection on the circuit board near C2 if the mast mount
LNA requires bias on the coax. A choke is installed between the LNAB connection and the RFRX
transmission line acting as a Bias “T”. Then the bias to the LNA is then sequenced or switch out of
line (with the front panel switch) if it is desired to bypass it. See the Components List for the
optional Choke value. CAUTION: Remove L2 from the circuit or the fuse will blow instantly. The
LNAB choke may be repositioned if a separate RFRX port is used. An Auxiliary instruction sheet
for installing DC power on the coax is attached at the end of this document.

Relative Power Meter: The bar graph display is a relative power meter and is driven by the
directional coupler and RF detector circuit found in the Low pass filter section of the board (CR2,
R1,R2,C1) RF is detected and converted to DC voltage and conducted to the Bar graph display on
the front panel. If you find that you operate the transverter at any other level than what we have
calibrated it to 25 watts = 9 bars, you may change it by adjusting VR1 on the display board. It is
located under the Digilo. You may also send the detected voltage out through the AUX connector.
Select an unused pin and make the connection.

Synthesizer Frequency Change: This is the newest option available. You may select at any

time, any desired IF operati ng freq uency from the list of available fre q uenci es. Just short the two
pads marked with the indicated number specified below with a simple solder connection. The
DIGILO is marked “0-7 Frequency Select”. The selections are listed below.

Frequency of Operati on Short pins
1296 = 28 3

/Built/L23HP.doc 9 12/27/2017

DEM L23HP Component List

R1 100

R15 220

R29 51

R43 10K

R57 10K

R2 51

R16 8.2K

R30 8.2K

R44 10K

R58 10K

R3 10K

R17 470

R31

R45 10K

R59 220

R4 220

R18 36

R32 36

R46 10K

R60 10K

R5 1K POT

R19 10K

R33 220

R47 10K

R61 10K

R6 10K

R20 10K

R34 10K

R48 10K

R62 10K

R7 220

R21 Not used

R35 51

R49 10K

R63 1K

R8 Not used

R22 10K

R36 10K POT

R50 470

R64 1K

R9 1K

R23 220K

R37 10K

R51 1K

R65 1K

R10 220

R24 10K

R38 1MEG

R52 22K

R66 10K

R11 220

R25 1MEG

R39 10K

R53 1MEG

R67 470

R12 220

R26 10K

R40 2.7K

R54 10K

R68 10K

R13 1K POT

R27 5.6K

R41 10K

R55 1MEG

R69 1K

R14 220

R28 470

R42 1MEG

R56 10K

R70 10K

C1 100 (1206)

C17 0.1µF (1206)

C33 1000

C49 100

C2 100 (1206)

C18 100 (1206)

C34 27

C50 100

C3 1000 (1206)

C19 33 (0603)

C35 27

C51 33

C4 1000

C20 0.1µF (1206)

C36 0.1µF (1206)

C52 0.1µF (1206)

C5 1000

C21 4.7 or 10µF T

C37 0.1µF (1206)

C53 100

C6 1000

C22 1000

C38 100

C54 0.1µF (1206)

C7 3

C23 1000

C39 0.1µF

C55 100

C8 33 110mil

C24 1000

C40 1000

C56 0.1µF

C25 0.1µF

C41 0.1µF

C57 22µF

C10 1000

C26 1000

C42 100

C58 4.7 or 10µF T

C11 1000

C27 1000

C43 33 (0603)

C59 4.7 or 10µF T

C12 0.1µF

C28 33

C44 0.1µF

C60 10µF

C61 100µF

C14 100

C30 100

C46 100

C62 100µF

C15 1000

C31 100

C47 100

C63 0.1µF (option)

C16 1000

C32 4.7 or 10µF T

C48 100

C64 4.7 or 10µF T (option)

L1 1000nH (1008) (option)

L10 1000nH (1008)

L2 1000nH (1008)

L11 33 nH (0603 chip inductor)

L3 33 nH (0603 chip inductor)

L12 33 nH (0603 chip inductor)

L4 33 nH (0603 chip inductor)

L13 1000nH (1008)

L5 1000nH (1008)

L14 1000nH (1008)

L6 39nH (1008)

L15 1000nH (1008) (option)

L7 82nH (1008)

L16 1000nH (1008) (option)

L8 39nH (1008)

L17 0.33µH molded choke (option)

L9 1000nH (1008)

Resistors (R) values are in Ohms and are (1206) chips unless otherwise specified.

Capacitors (C) values are in ρF and are (0805) chips unless otherwise specified.
“T” = chip Tantalum, Band is positive. T

C9 100

C13 configuration C29 1000 C45 100

All inductors are specified.

/Built/L23HP.doc 10 12/27/2017

Solid State, Relays and Filter Components

Q1 MJD31

CR1 MMBD914

IC3 LM393

Q2 PMBT3904

CR2 HSMS-2800

IC4 PGA103

Q3 PMBT3904

CR3 MMBD914

IC5 PGA103

Q4 PMBT3904

CR4 HSMS-2800

IC6 MAR3

Q5 PMBT3904

CR5 HSMS-2800

IC7 PHA-1

Q6 PMBT3904

CR6 MMBD914

IC8 LM324

Q7 MJD32

CR7 HSMP3814

IC9 LM3914

Q8 PMBT3904

CR8 MMBD914

IC10 PMA2-33LN

Q9 PMBT3904

CR9 MMBD914

IC11 PMA2-33LN

Q10 PMBT3904

CR10 MMBD914

METER1 BARGRAPH

Q11 MJD31

CR11 MMBD914

M1 SYM-18H

Q12 MJD32

CR12 MMBD914

VR1 L7805CD2

Q13 PMBT3904

F1 1296MHz(N95x)

VR2 78M09 (optional)

Q14 PMBT3904

F3 1296MHz(N95x)

K1 RG-1

Q15 PMBT3904

F4 1296MHz(n95x)

K2 G6Y

Q16 PMBT3904

IC1 MAR3 (option)

K3 G5V

Q17 PMBT3904

IC2 MAR6 (option)

FUSE 1Amp

IC12 RA18H1213G
LOAD MP930
TH Thermistor

/Built/L23HP.doc 11 12/27/2017

L17

LOAD

IC1 2

LNA MODULES

(M IGHT B E INS TALL ED)

LNA MODULE

/Built/L23HP.doc 12 12/27/2017

Vr1

+13.8 V

ON

+13.8sw

+5

+13.8 SW

R25

R17

C32

+13.8sw

R26

R24

R70

C36

R23

+13.8sw

ic3

R25

+13.8sw

C20

q4

tif

C21

R27

PTT -H

+TX

rx on

+RX

+5

tx on

K3

Cr8

PTT -L

Cr9

C27

C33

R19

R22

Q3

loc in

R64

“ON”

R65

R68

Q17

R66

R63

Q15

Q16

R69

+TX

R67

xmit

“XMIT”

“loc”

loc

+

C60

Q12

R41

R47

+13.8 V

Pwr on

Cr10

Manual siwtch

R1

Cr2

R51

Q8

Ic5

C45

C1

Ic1

DET

R2

TX

-F

Q1

R10

Q2

R9

T

C8

ANT

K1

+TX

Cr6

L2

“l17”

oPTION

rx on

R29

rfs

C17

JUMPER

C24

F3

F5

C41

+13.8V

C62

C38

R28

C37

C9

C18

L10

C2

C12

rfs

RX

h

C61

R6

GAIN

ADJUST

L15

in

LNAB

Cr4

rx if

C5

C11

Ic1

C15

R14

C49

L3

C14

l11

L14

c42

C3

R5

R3

C4

K2

R4

R7

C23

Ic6

C44

TX ON

C19

C3

L1

c43

R16

Ic4

TRANS

C6

+tx

C29

C40

if

m1

C47

F4

C48

rX ON

R18

r30

BYPASS

Cr6

r32

L5

L6

L7

L8

Cr7

rf

C10

tif

lo

F6

L4

C34

C35

C28

l12

C31

Cr3

c51

c53

GAIN

ADJUST

C50

tx if

C13

C22

Ic2

C26

C39

R13

Ic7

C55

L9

out

R12

rf and dc control

R11

L16

R15

C16

+5

C52

L13

R35

LO in

C45

Ic4

C30

F1

F2

C25

L23HP Transverter

10/2017

tx on

tx

open

high

low

rx

r59

dc 1

high

1

q11

c58

1

LNAB

q14

FUSE 1

r60

2

tl2

tx=l

open

2

q7

r33

q6

r34

dc 2

3

phA3

tx = h

ic8

q5

r39

open

3

ph4

tx = h

open low

4

10/2017

4

q13

meter 1

r57

L23HP TRANSVERTER

sequencer and meter

r53

r43

+13.8 sw

r49

r44

+

r50

r52

r54

r45

c57

cr13

q9

q10

cr12

r62

r38

r37

r46

r61

r42

r56

r48

r55

ic9

r57

c56

c59

R40

c54

+13.8 SW

r36

det

+13.8 sw

ptt - l

ptt -h
