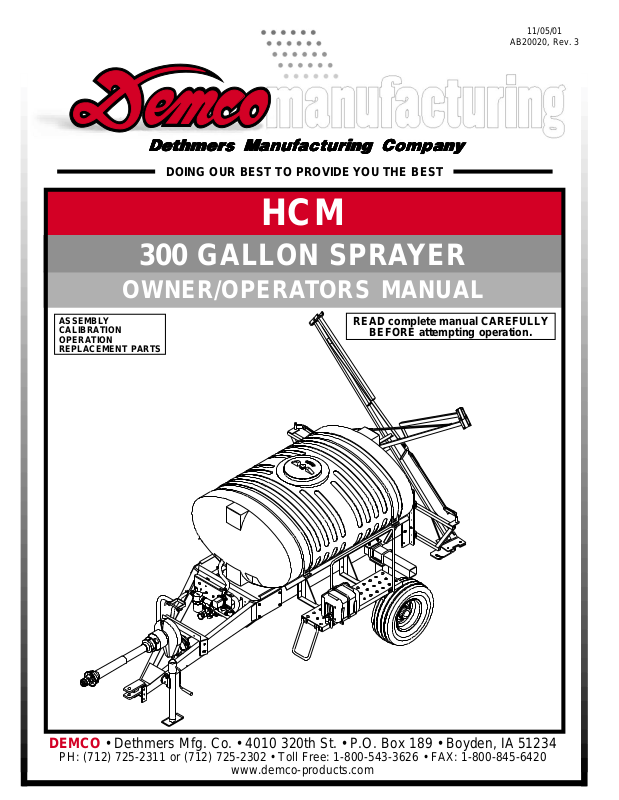

Demco Sprayer User Manual

Dethmers Manufacturing CompanyDethmers Manufacturing Company

Dethmers Manufacturing Company

Dethmers Manufacturing CompanyDethmers Manufacturing Company

DOING OUR BEST TO PROVIDE YOU THE BEST

HCM

300 GALLON SPRAYER

OWNER/OPERATORS MANUAL

11/05/01

AB20020, Rev. 3

ASSEMBLY
CALIBRATION
OPERATION
REPLACEMENT PARTS

READ complete manual CAREFULLY

BEFORE attempting operation.

DEMCO • Dethmers Mfg. Co. • 4010 320th St. • P.O. Box 189 • Boyden, IA 51234

PH: [phone] or [phone] • Toll Free: 1-800-543-3626 • FAX: [phone]

www.demco-products.com

Page 1

Page 2

TABLE OF CONTENTS

Introduction.............................................................................................................4

Gerneral information ...............................................................................................4

Safety, Signal Words ..............................................................................................5

Equipment Safety Guidlines ...................................................................................6

Lighting and Marking ..............................................................................................6

Safety Sign Identification and Location................................................................. 7-8

Safety Sign Care.....................................................................................................9

Tire Safety .............................................................................................................. 9

Remember..............................................................................................................9

Before Operation ................................................................................................... 10

During Operation ................................................................................................ 10-11

Following Operation............................................................................................ 11-12

Highway and Transport Operations .................................................................... 12-13

Performing Maintenance........................................................................................ 13

Bolt Torque.............................................................................................................14

Axle Installation...................................................................................................... 15

Wheel Carrier Installation ......................................................................................16

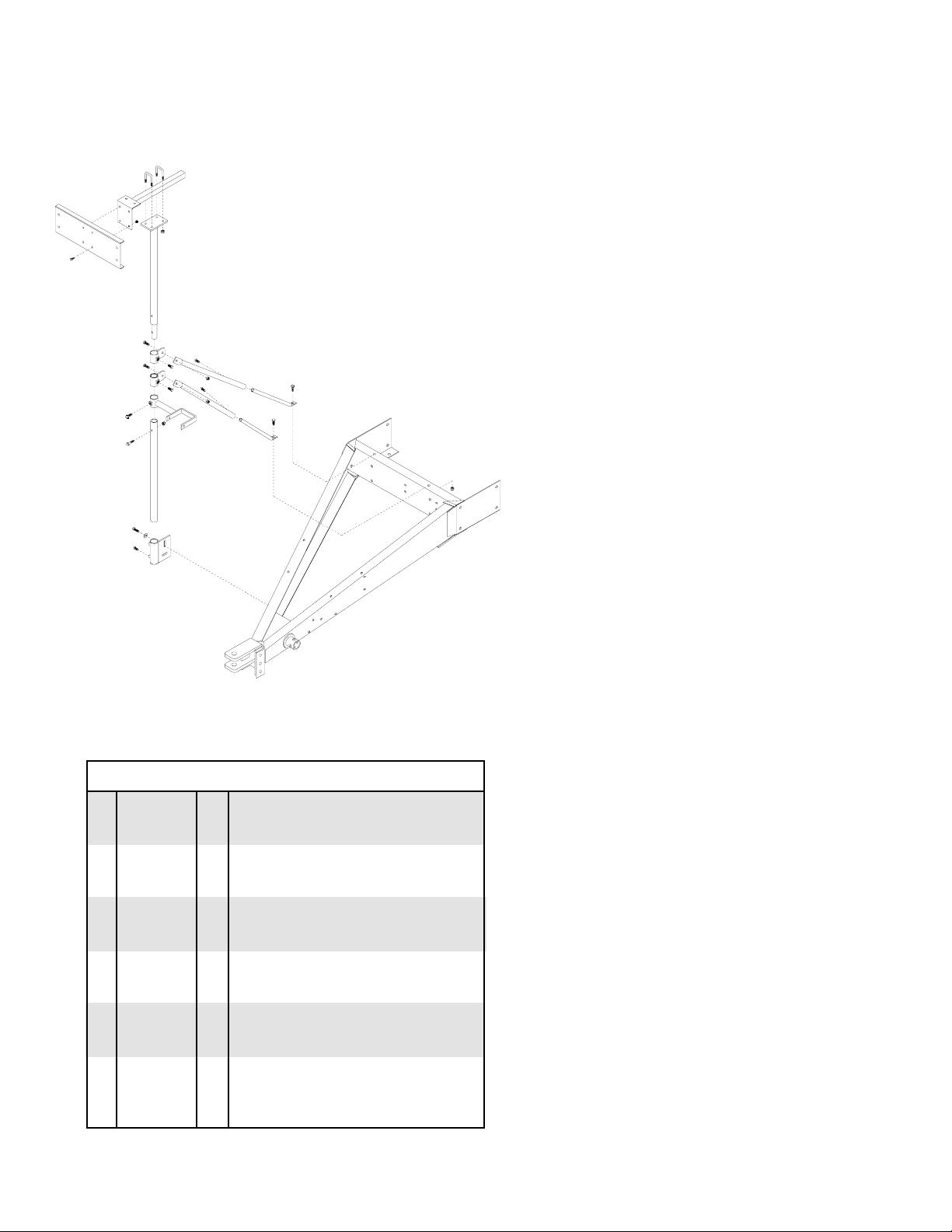

Tongue and Hitch Installation.................................................................................17

Tank Installation .....................................................................................................17

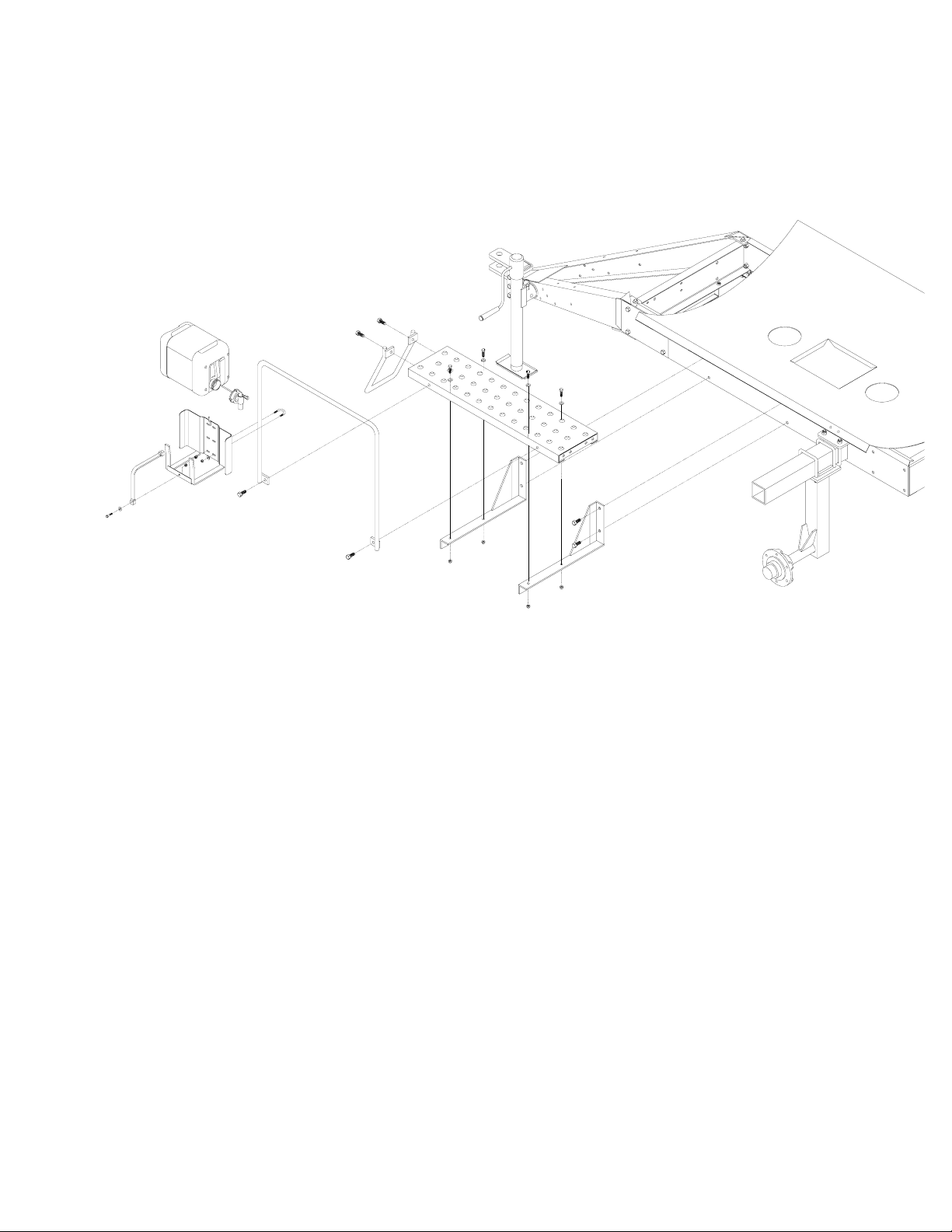

Platform, Step, and Hand Rail Installation .............................................................18

Truss-T Boom Installation (21’, 28’, 30’, & 40’) ......................................................19

Truss Boom Installation (28’, 30’, 40’, & 45’) .........................................................20

Boom Carrier Installation .......................................................................................20

Safety Stand Installation ........................................................................................20

Manual Control and Panel Mount Installation ........................................................21

Hypro Belt Drive Centrifugal Pump Installation and Parts Breakdown ..................22

Ace Centrifugal Hydraulic Pump Mounting ............................................................23

Start-up Instructions for Centrifugal Pump.............................................................23

Roller Pump Parts Breakdown............................................................................... 24

(CPTK-1) Quick Refill Plumbing and Parts Breakdown .........................................25

Optional Equipment Mounting Locations ...............................................................26

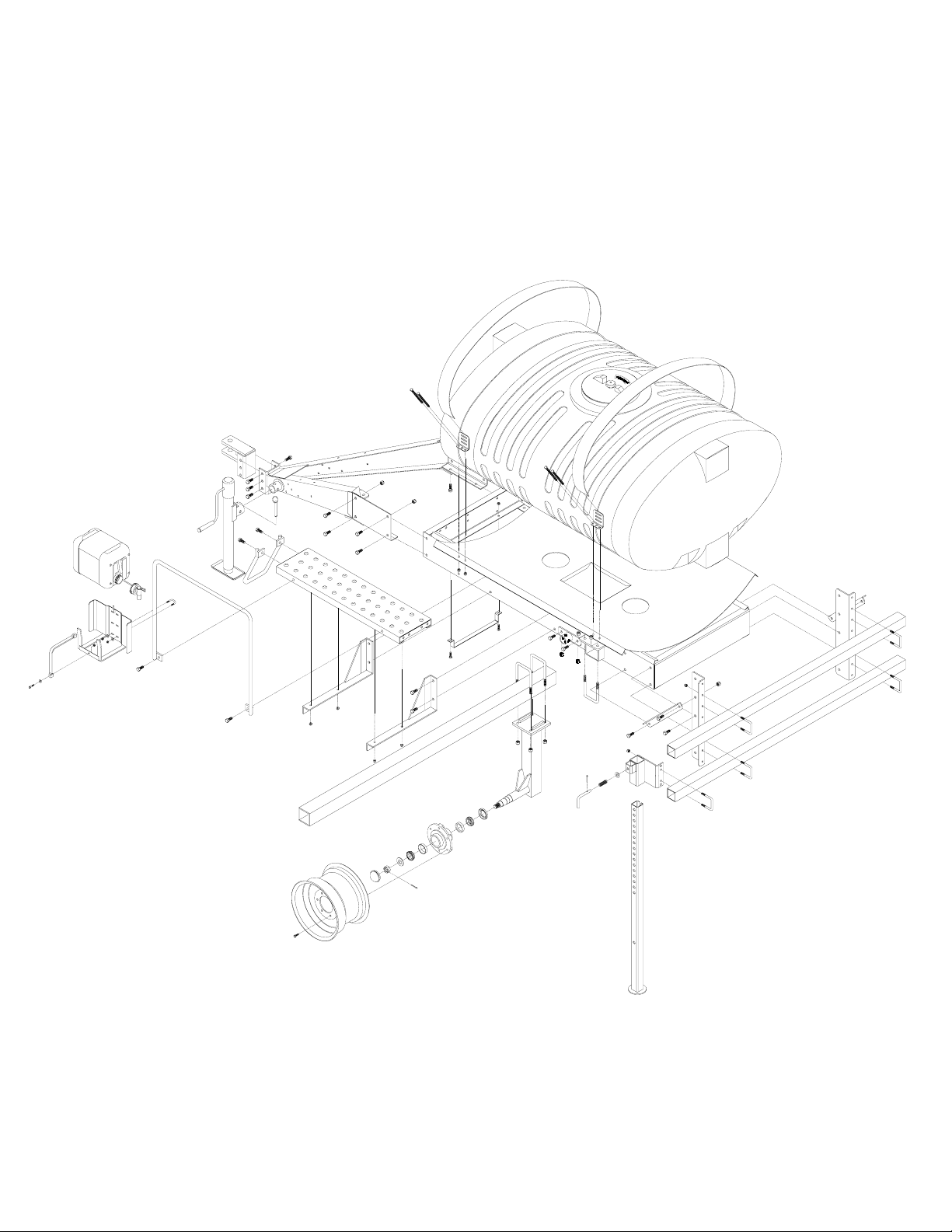

HCM Main Parts Breakdown and Parts List ....................................................... 27-28

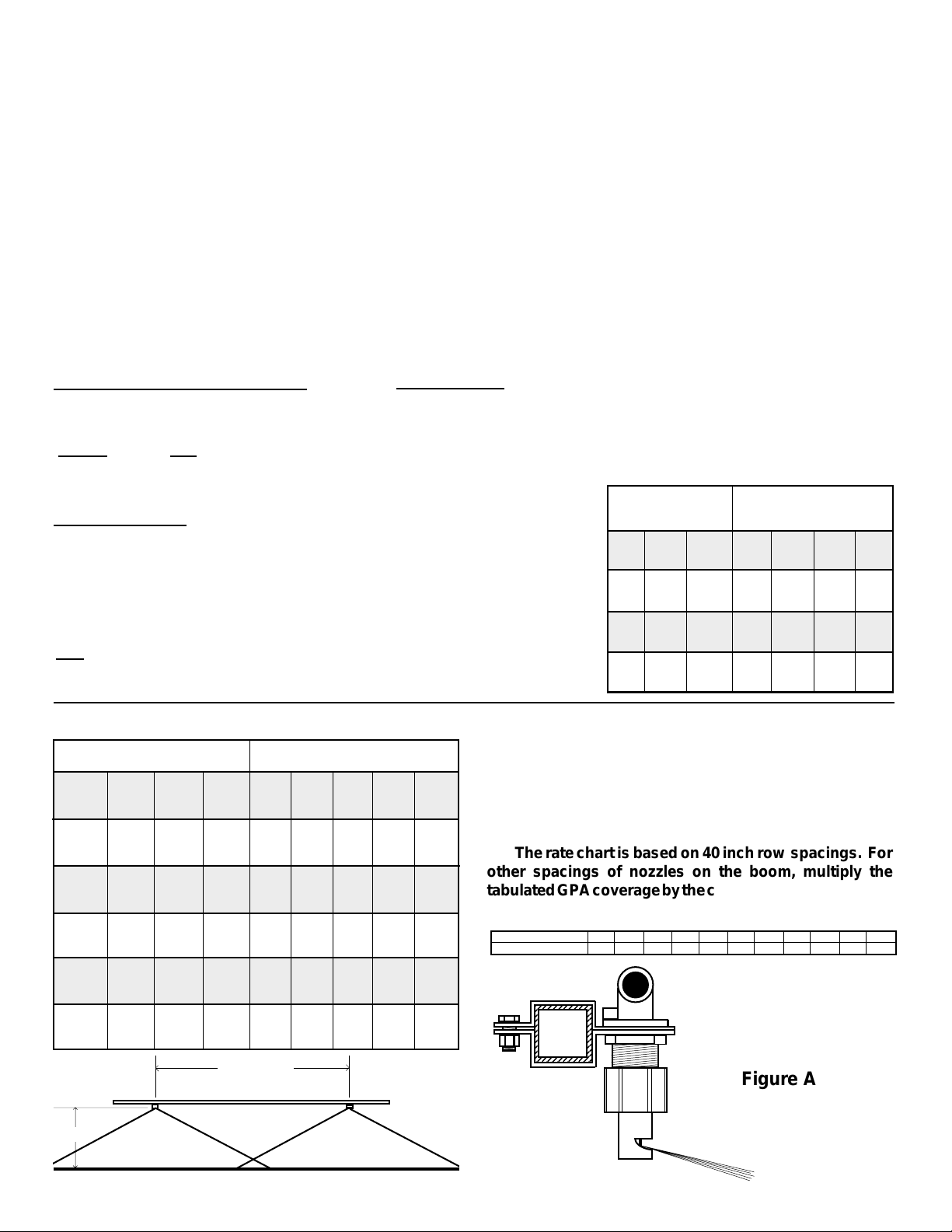

Calibration Chart and Instructions .........................................................................29

Sprayer Checklist and Care...................................................................................30

Notes .....................................................................................................................31

Page 3

INTRODUCTION

Thank you for purchasing a Demco sprayer. We feel you have made a wise choice and hope you are

completely satisfied with your new piece of equipment.

If you have any questions regarding the applications of certain solutions or chemicals, contact your
chemical supplier and follow chemical manufacturer recommendations as well as all licensing and use
restrictions or regulations.

Please read and understand this manual before operation.

WARNING:

!

THE FOLLOWING INSTRUCTIONS:

Chemicals are dangerous. Know exactly what you're going to do and what
is going to happen before attempting to work with these products. Improper
selection or use can injure people, animals, plants and soil.

Always wear protective clothing such as coveralls, goggles and gloves when
working with chemicals or the sprayer.

Be sure to dispose of all unused chemicals or solutions in a proper and
ecologically sound manner.

TO AVOID PERSONAL INJURY OR PROPERTY DAMAGE, OBSERVE

GENERAL INFORMATION

1. Unless otherwise specified, high-strength (grade5)
(3 radial-line head markings) hex head bolts are

used throughout assembly of this piece of equip­ment.

3. When placing a parts order, refer to this manual for
proper part numbers and place order by PART NO.

and DESCRIPTION.

2. Whenever the terms "LEFT" and "RIGHT" are
used in this manual it means from a position behind
the sprayer and facing forward.

4. All reference numbers used in the assembly instruc­tions of the sprayer main frame correspond with the
reference numbers in the HCM Main Parts List.

Page 4

SAFETY

TAKE NOTE! THIS SAFETY ALERT SYMBOL FOUND THROUGHOUT THIS
MANUAL IS USED TO CALL YOUR ATTENTION TO INSTRUCTIONS INVOLVING
YOUR PERSONAL SAFETY AND SAFETY OF OTHERS. FAILURE TO FOLLOW
THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH.

THIS SYMBOL MEANS

ATTENTION

BECOME ALERT

YOUR SAFETY IS INVOLVED!

SIGNAL WORDS

Note: use of the following signal words DANGER,
WARNING, and CAUTION with safety messages.

Appropriate signal word for each has been selected
using following guidelines:

DANGER:

Indicates an imminently hazardous situation that,
if not avoided, will result in death or serious injury.
This signal word is to be limited to most extreme
situations typically for machine components which,
for functional purposes, cannot be guarded.

WARNING:

Indicates a potentially hazardous situation that, if
not avoided, could result in death or serious injury ,
and includes hazards that are exposed when
guards are removed. It may also be used to alert
against unsafe practices.

CAUTION:

Indicates a potentially hazardous situation that, if
not avoided, may result in minor or moderate injury .
It may also be used to alert against unsafe
practices.

If you have questions not answered in this manual , require additional copies, or if your manual is damaged,
please contact your dealer or Dethmers Mfg. Co., P.O. Box 189, 4010 320th Street, Boyden, IA 51234
ph: [phone] or [phone] Toll Free: 1-800-543-3626 Fax: [phone]

http://www.demco-products.com

Page 5

SAFETY...YOU CAN LIVE WITH IT

EQUIPMENT SAFETY GUIDELINES

Every year many accidents occur which could be avoided by a few seconds of thought and
more careful approach to handling equipment. You, the operator, can avoid accidents by
observing precautions in this section. To avoid personal injury, study precautions and insist
those working with you, or you yourself, follow them.

In order to provide a better view, certain illustrations in this manual may show an assembly
with a safety shield removed. However, sprayer should never be operated in this condition.
Keep all shields in place. If shield removal becomes necessary for repairs, replace shield
prior to use.

Replace any caution, warning, danger or instruction safety decal that is not readable or is
missing. Location of such decals is indicated in this booklet.

Do not attempt to operate this sprayer under the influence of alcohol or drugs.
Review safety instructions with all users.

Operator should be a responsible adult. DO NOT ALLOW PERSONS TO OPERATE OR

ASSEMBLE THIS SPRA YER UNTIL THEY HA VE DEVELOPED A THOROUGH UNDERSTANDING
OF SAFETY PRECAUTIONS AND HOW IT WORKS.

To prevent injury or death, use a tractor equipped with a roll over protective system (ROPS).
Do not paint over, remove, or deface any safety signs or warning decals on your sprayer.
Observe all safety signs and practice instructions on them.

Never exceed limits of sprayer. If its ability to do a job, or to do so safely is in question

DON'T TRY IT.

LIGHTING AND MARKING

It is the responsibility of operator to know lighting and marking requirements of local highway
authorities and to install and maintain equipment to provide compliance with regulations.
Add extra lights when transporting at night or during periods of limited visibility.

Lighting kits are available from your dealer or manufacturer.

Page 6

SAFETY SIGN LOCATIONS

Types of safety sign and locations on a HCM Sprayer are shown in the illustration below.
Good safety requires that you familiarize yourself with various safety signs, type of warning,
and particular function related to that area, that requires your SAFETY AWARENESS.

A

C

D

B

A AB21014 - Warning Observe Following Instructions
B AB21001 - Warning Do Not Stand on Sprayer
C AG21001 - Tire Rating & Pressure chat
D AG21002 - Caution 20 M.P.H.
E ZA21002 - Qty.2 Made in America
F AA21014 - Fresh Water Only
G DD137 - Qty.2 Model HCM
H AA21026 - Qty. 2 Small Demco’s

(See Next Page for decal picture)

E

G

H

F

Page 7

A AB21014

B AB21001

C AG21001

E ZA21002

D AG21002

CAUTION!

Do not exceed 20 MPH

when loaded.

09/99 AG21002

F AA21014

G DD137

H AA21026

Page 8

!

SAFETY SIGN CARE

 Keep safety signs clean and legible at all times.
 Replace safety signs that are missing or have become illegible.
 Replaced parts that displayed a safety sign should also display the current sign.
 Safety signs are available from your distributor, dealer parts department, or the factory.

How to install safety signs:

 Be sure that the installation area is clean and dry.
 Decide on the exact position before you remove the backing paper.
 Remove the smallest portion of the split backing paper.

 Align the decal over the specified area and carefully press the small portion with the

exposed sticky backing in place.

 Slowly peel back the remaining paper and carefully smooth the remaining portion of the

decal into place.

!

!

 Small air pockets can be pierced with a pin and smoothed out using the piece of decal

backing paper.

TIRE SAFETY

 Failure to follow proper procedures when mounting a tire on a rim can produce an

explosion which may result in a serious injury or death.

 Do not attempt to mount a tire unless you have the proper equipment and experience to

do the job.

 Inflating or servicing tires can be dangerous. Whenever possible, trained personnel

should be called to service and/or mount tires.

 Always order and install tires and wheels with appropriate capacity to meet or exceed the

anticipated weight to be placed on the equipment.

REMEMBER

Your best assurance against accidents is a careful and responsible operator. If there is any
portion of this manual or function you do not understand, contact your local authorized dealer
or the manufacturer.

Page 9

!

BEFORE OPERATION:

 Carefully study and understand this manual.
 Do not wear loose-fitting clothing which may catch in moving parts.
 Always wear protective clothing and substantial shoes.
 It is recommended that suitable protective hearing and eye protection be worn.
 The operator may come in contact with certain materials which may require specific safety

equipment relative to the handling of such materials. (Examples: extremely dusty, molds,
fungus, bulk fertilizers, etc.)

 Keep wheel and lug nuts tightened to specified torque.
 Assure that agricultural implement tires are inflated evenly.
 Give the unit a visual inspection for any loose bolts, worn parts, or cracked welds, and make

necessary repairs. Follow the maintenance safety instructions included in this manual.

 Be sure there are no tools lying on or in the equipment
 Do not use the unit until you are sure that the area is clear, especially around children and

animals.

 Don't hurry the learning process or take the unit for granted. Ease into it and become familiar

with your new equipment.

 Practice operation of your equipment and it's attachments. Completely familiarize yourself

and other operators with it's operation before using.

 Make sure that the brakes are evenly adjusted (if equipped with brakes)
 Use a tractor equipped with Roll Over Protection System (ROPS) and fasten your seat belt

prior to starting the engine.

 The manufacturer does not recommend usage of a tractor with the ROPS removed.
 Move the tractor wheels to the widest recommended settings to increase stability.
 Securely attach to towing unit. Use a high strength, appropriately sized hitch pin with a

mechanical retainer and attach a safety chain.

 Do not allow anyone to stand between the tongue or hitch and the towing vehicle when

backing up to the equipment.

!

DURING OPERATION:

 Install the safety chain by crossing the chains under the tongue and secure to the draw bar cage,

hitch, or bumper frame.

 Beware of bystanders, PARTICULARLY CHILDREN! Always look around to make sure that it is

safe to start the engine of the towing vehicle or move the unit. This is particularly important with
higher noise levels and quiet cabs, as you may not hear people shouting.

Page 10
