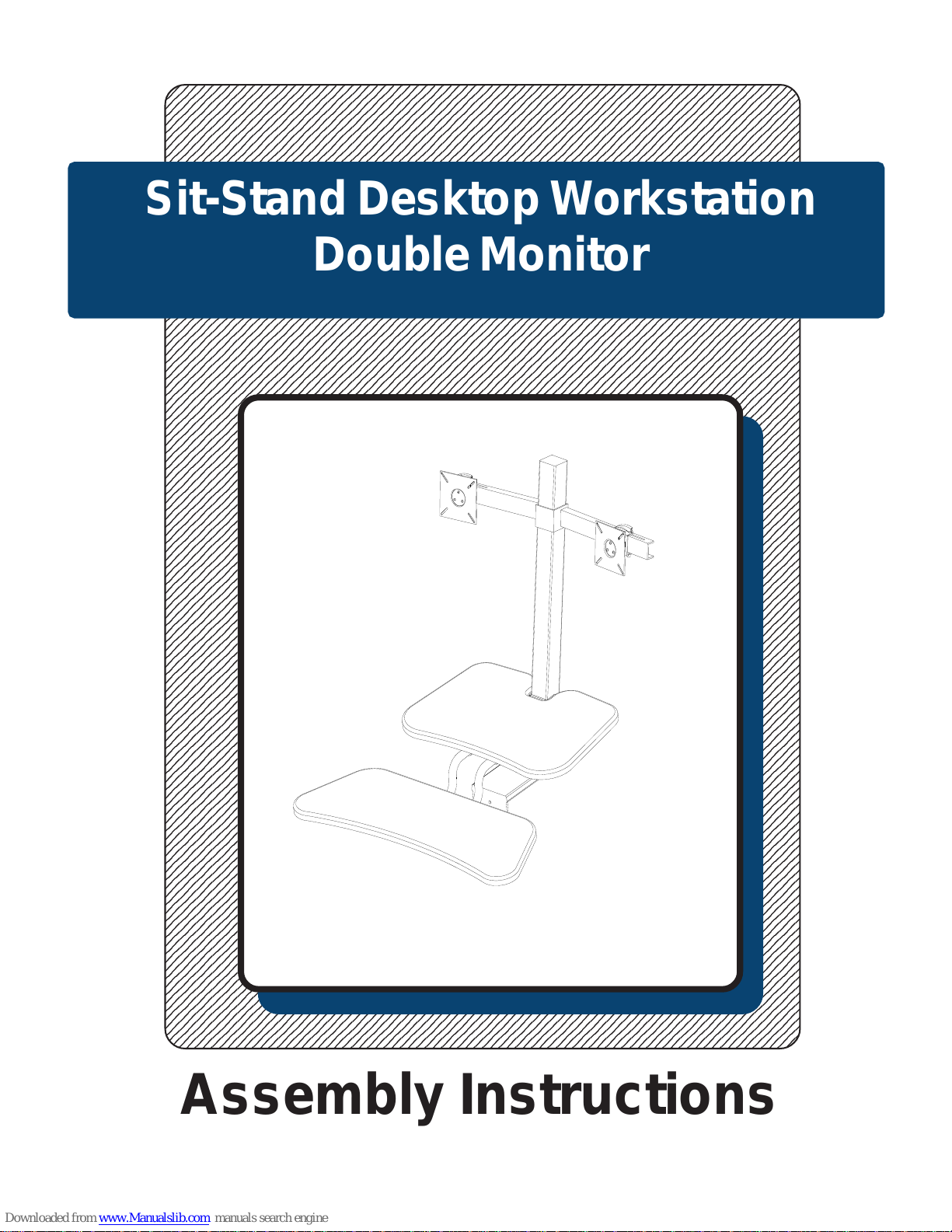

Sit-Stand Desktop Workstation
Assembly Instructions
Double Monitor
Page 2
WOW
Sit-Stand Desktop Workstation
Part Drawing Description Qty
P1 Keyboard Top 1 EA
P2 Main Top 1 EA
P3 Support Post 1 EA
P4 Keyboard Support 1 EA
Part Drawing Description Qty
Hardware List
A
B
C
D Wire Wrap 1 EA
E Tension Plate 2 EA
Screw M6*8mm 2 EA
Screw M6*13mm 10 EA
Allen Wrench 1 EA
P5 Top Bracket-Large 2 EA
P6 Top Bracket - Small 2 EA
P7 Desk Clamp 1 EA
P8 Monitor Mount 1 EA
2
Page 3
Sit-Stand Desktop Workstation
Assembly Instructions
R
EAD THROUGH INSTRUCTIONS FROM BEGINNING
TO END
1.)
2.)
BEFORE
STARTING TO ASSEMBLE UNIT
.
Identify and Separate all the Parts and Hardware.
Attach the Desk Clamp (P7) to the Support Post (P3) with two Screws (B) as shown in illustration #1. There
are several different top thickness settings for the Desk Clamp’s location. Tighten Screws using Allen
Wrench (C). .
B
P7
P3
3.)
Clamp the Support Post assembly to the front of your desk top. Attach the Keyboard Support (P4) to the
Support Post (P3) using two Screws (A) as shown in illustration #2. Tighten Screws with Allen Wrench (C).
.
Illustration # 1
P4
P3
A
Illustration # 2
3
Page 4
Open the Support Post’s clamp so that the top portion of the post extends up. Attach the Main Top (P2) to the
4.)
Keyboard Support (P4) using two Top Brackets-Large (P5) and four Screws (B). The Screws fasten into embedded
threaded inserts in the bottom of the Main Top. See illustration #3.
Illustration # 3
P2
P4
P5
B
5.)
Attach the Keyboard Top (P1) to the Keyboard Support (P4) using two Top Bracket-Small (P6) and four
Screws (B). The Screws fasten into embedded threaded inserts in the bottom of the Keyboard Top as shown
in illustration #4.
P6
P1
Illustration # 4
P4
B
4
Page 5
6.)
Loosen the clamp lever on the Monitor Mount (P8) and insert two Tension Plates (E) on the sides. Slide the
Monitor Mount down the vertical post of the Support Post (P3). Clamp the lever down to secure at your height
setting. See illustration # 5.
E
Clamp
P8
Lever
P3
Clamp
Lever
P8
Illustration # 5
7.)
Use Wire Wrap (D) to manage electrical cables after your equipment is installed.
D
Illustration # 6
5
Page 6
Sit-Stand Desktop Workstation
Double Monitor
17 1/2” - 25”
C to C
VESA 3-4
Slotted Holes
24” - 42”
3”
19 3/4” X 12”
12”
27” X 9 5/8”
26”-30”
90531_5-21-14
6
