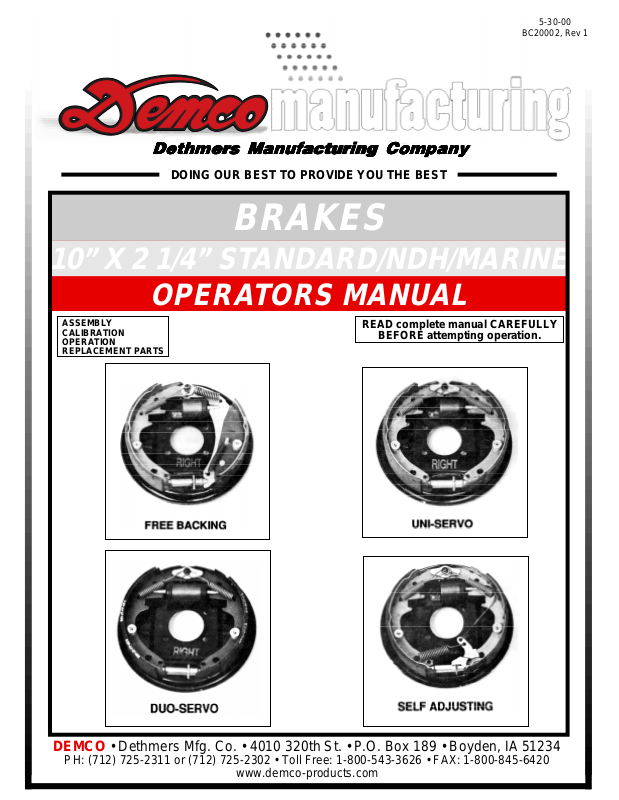

Demco BRAKES User Manual

5-30-00

BC20002, Rev 1

Dethmers Manufacturing CompanyDethmers Manufacturing Company

Dethmers Manufacturing Company

Dethmers Manufacturing CompanyDethmers Manufacturing Company

DOING OUR BEST TO PROVIDE YOU THE BEST

BRAKES

10” X 2 1/4” STANDARD/NDH/MARINE

OPERATORS MANUAL

ASSEMBLY
CALIBRATION
OPERATION
REPLACEMENT PARTS

READ complete manual CAREFULLY

BEFORE attempting operation.

DEMCO • Dethmers Mfg. Co. • 4010 320th St. • P.O. Box 189 • Boyden, IA 51234

PH: [phone] or [phone] • Toll Free: 1-800-543-3626 • FAX: [phone]

www.demco-products.com

Page 1

Page 2

WARNING: To Prevent Serious Injury or Death

FAILURE TO FOLLOW THESE INSTRUCTIONS, OR FAILURE TO PROPERLY MAINTAIN BRAKES AFTER
INSTALLATION, CAN RESULT IN LOSS OF BRAKING ACTION. THIS CAN CAUSE PERSONAL INJURY, DEATH OR
PROPERTY DAMAGE. ONLY PROFESSIONAL MECHANICS SHOULD INSTALL BRAKE CLUSTERS. HAVE YOUR
BRAKES INSPECTED BY A PROFESSIONAL MECHANIC AT LEAST ANNUALLY AFTER INSTALLATION.

WARNING: To Prevent Serious Injury or Death

• Review following instructions before installation and use of hydraulic brakes.

• Dealers or distributors must review these instructions with ultimate user.

• Failure to follow these instructions, or failure to properly maintain braking

system after installation, can result in loss of braking action.

Table of Contents

General information............................................................................................................3

Safety, Signal Words ..........................................................................................................4

Equipment Safety Guidelines .............................................................................................5

Remember .........................................................................................................................5

Before Operation.............................................................................................................. 5-6

During Operation.............................................................................................................. 6-7

Following Operation ...........................................................................................................7

Highway and Transport Operations....................................................................................7

Performing Maintenance ....................................................................................................8

Bolt Torque .........................................................................................................................9

Brake Installation and Maintenance ............................................................................... 10-11

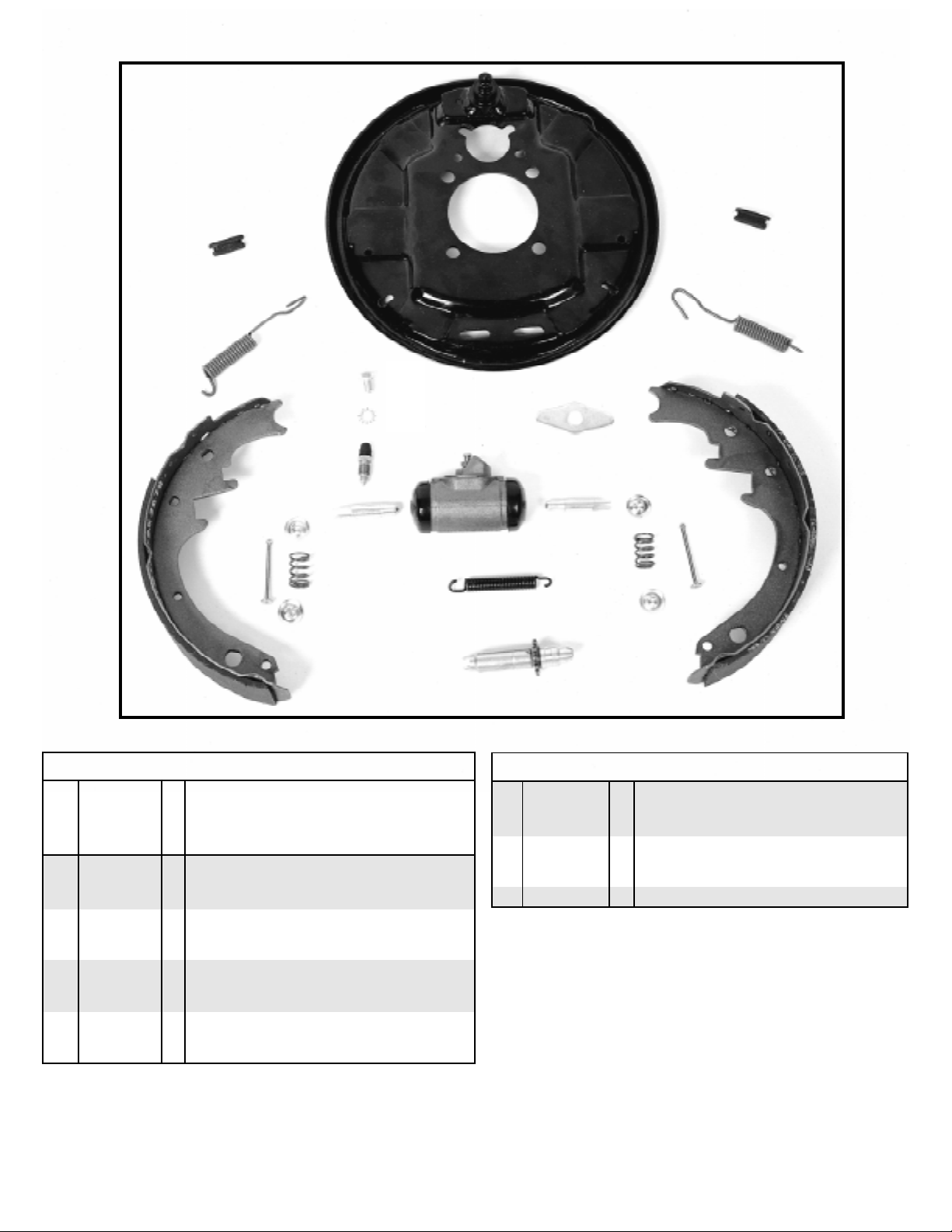

Standard, Marine, & New Departure Hub(NDH) Free Backing Breakdown & Parts List ...12

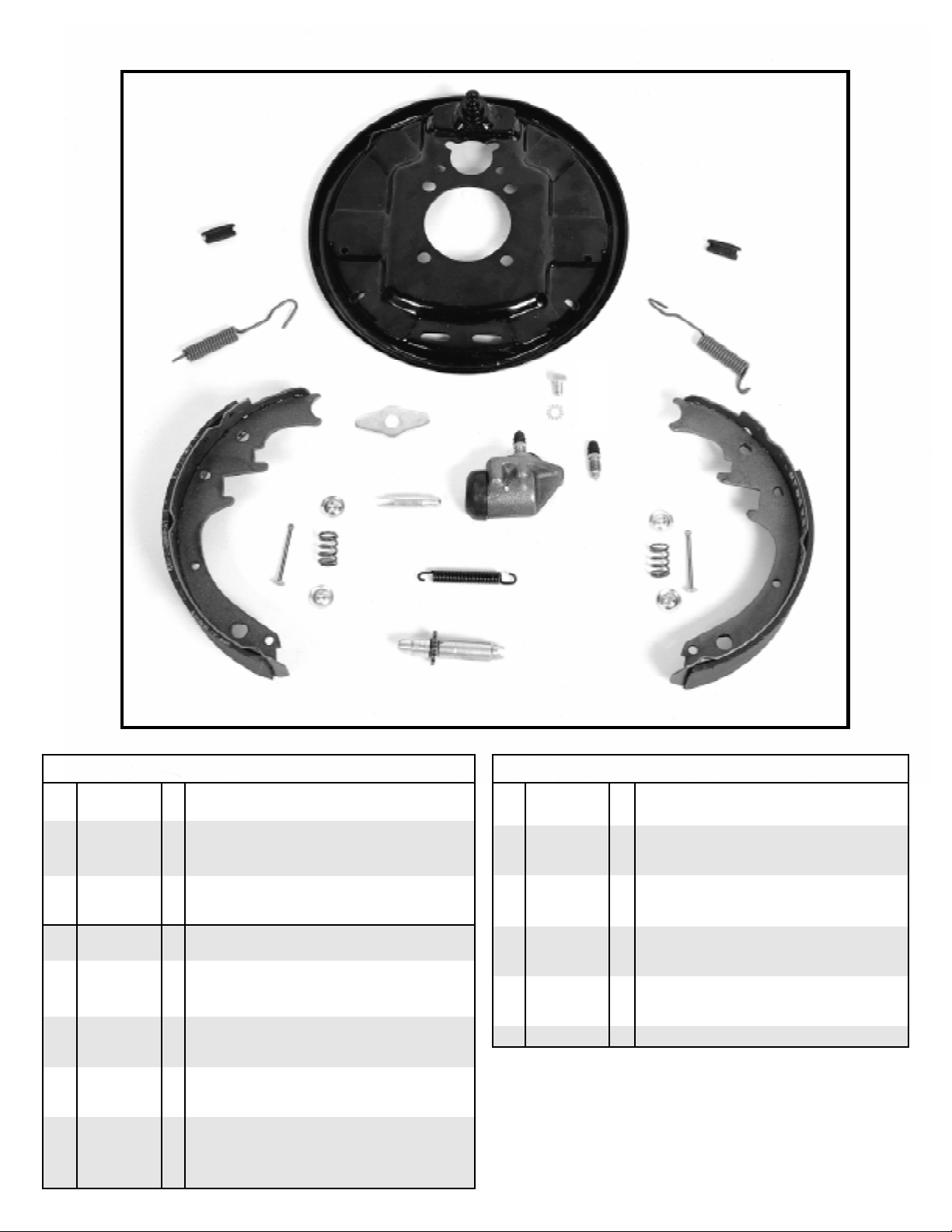

Standard, Marine, & NDH Uni-Servo Breakdown & Parts List ..........................................13

Standard & HDH Duo-Servo Breakdown & Parts List ....................................................... 14

Standard & NDH Self Adjusting Breakdown & Parts List...................................................15

Page 3

SAFETY

TAKE NOTE! THIS SAFETY ALERT SYMBOL FOUND THROUGHOUT THIS
MANUAL IS USED TO CALL YOUR ATTENTION TO INSTRUCTIONS INVOLVING
YOUR PERSONAL SAFETY AND SAFETY OF OTHERS. FAILURE TO FOLLOW
THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH.

THIS SYMBOL MEANS

ATTENTION

BECOME ALERT

YOUR SAFETY IS INVOLVED!

SIGNAL WORDS

Note use following signal words DANGER,
WARNING, and CAUTION with safety messages.

Appropriate signal word for each has been selected
using following guidelines:

DANGER:

Indicates an imminently hazardous situation that,
if not avoided, will result in death or serious injury.
This signal word is to be limited to most extreme
situations typically for machine components which,
for functional purposes, cannot be guarded.

WARNING:

Indicates a potentially hazardous situation that, if
not avoided, could result in death or serious injury ,
and includes hazards that are exposed when
guards are removed. It may also be used to alert
against unsafe practices.

CAUTION:

Indicates a potentially hazardous situation that, if
not avoided, may result in minor or moderate injury .
It may also be used to alert against unsafe
practices.

If you have questions not answered in this manual, require additional copies, or if your manual is damaged,
please contact your dealer or Dethmers Mfg. Co., P.O. Box 189, 4010 320th Street, Boyden, IA 51234
ph: [phone] or [phone] Toll Free: 1-800-543-3626 Fax: [phone]

http://www.demco-products.com

Page 4

SAFETY...YOU CAN LIVE WITH IT

EQUIPMENT SAFETY GUIDELINES

Every year many accidents occur which could have been avoided by a few seconds of
thought and a more careful approach to handling equipment. You the operator, can avoid
many accidents by observing and following precautions in this section. To avoid personal
injury, study the following precautions and insist those working with you, or you yourself,
follow them.

In order to provide a better view , certain illustrations in this manual may show an assembly
with a safety shield removed. However , equipment should never be operated in this condition.
Keep all shields in place. If shield removal becomes necessary for repairs, replace shield
prior to use.

Replace any caution, warning, danger or instruction safety decal that is not readable or is
missing. Location of such decals is indicated in this booklet.

Do not attempt to operate this equipment under the influence of alcohol or drugs.
Review safety instructions with all users.

Operator should be a responsible adult. DO NOT ALLOW PERSONS TO OPERATE OR

ASSEMBLE THIS UNIT UNTIL THEY HAVE DEVELOPED A THOROUGH UNDERSTANDING
OF SAFETY PRECAUTIONS AND HOW IT WORKS.

Never exceed limits of brakes. If its ability to do a job, or to do so safely is in question-DON'T

TRY IT

.

REMEMBER

Your best assurance against accidents is a careful and responsible operator. If there is any
portion of this manual or function you do not understand, contact your local authorized dealer
or manufacturer.

BEFORE OPERATION:

• Carefully study and understand this manual.

• Always wear protective clothing and substantial shoes.

• Give equipment a visual inspection for any loose bolts, worn parts, or cracked welds, and
make necessary repairs. Follow maintenance safety instructions included in this manual.

• Be sure there are no tools lying on or in equipment.

Page 5

• Do not use equipment until you are sure that area is clear, especially around children and
animals.

• Don't hurry learning process or take equipment for granted. Ease into it and become familiar
with your new equipment.

• Practice operation of your equipment and its attachments. Completely familiarize yourself
and other operators with its operation before using.

• Make sure that brakes are evenly adjusted.

• Make sure tow rating on vehicle is high enough for what it is towing.

• Do not allow anyone to stand between tongue or hitch and towing vehicle whenbacking up to
equipment.

• Securely attach to towing vehicle. Use appropriately sized hitch ball and/or hitch pin with a
mechanical retainer and attach safety chains.

• Criss cross chains under tongue and secure to draw bar cage, mounting loops, or bumper frame.

DURING OPERATION

• SAFETY CHAINS If equipment is going to be transported on a public highway, safety

chains should be obtained and installed. Always follow state and local regulations
regarding safety chains and auxiliary lighting when towing equipment on a public highway.
Be sure to check with local law enforcement agencies for your own particular regulations.
Only safety chains (not an elastic or nylon/plastic tow straps) should be used to retain
connection between towing and towed equipment in event of separation of primary
attaching system.

• Install safety chains by criss crossing chains under tongue and secure to draw bar cage,
mounting loops, or bumper frame.

• Beware of bystanders, PARTICULARLY CHILDREN! Always look around to make sure it is
safe to start engine of towing vehicle or move equipment. This is particularly important with
higher noise levels, as you may not hear people shouting.

• NO PASSENGERS ALLOWED- Do not carry passengers anywhere on or in equipment.

• Do not clean, lubricate, or adjust your equipment while it is moving.

• When halting operation, even periodically, set towing vehicles parking brake, shut off engine,
and remove the ignition key.

• Be extra careful when using on inclines.

• MANEUVER TOWING UNIT AT SAFE SPEEDS.

• Avoid loose gravel, rocks, and holes, they can be dangerous for equipment operation or
movement.

• Allow for overall length when making turns.

Page 6

• Keep all bystanders and pets clear of work area.

• Operate towing vehicle from operators seat only.

• Never leave running equipment attachments unattended.

• As a precaution, always recheck hardware on equipment following every 100 hours or 50 miles.
Correct all problems. Follow maintenance safety procedures.

FOLLOWING OPERATION

• Following operation, or when unhitching, stop towing vehicle, set brakes,
shut off the engine and remove ignition key.

• Store unit in an area away from human activity.

• Do not permit children to play on or around stored unit.

• Make sure all parked units are on a hard, level surface and engage all safety devices.

• Wheel chocks may be needed to prevent unit from rolling.

HIGHWAY AND TRANSPORT OPERATIONS

• Adopt safe driving practices:

- Always drive at a safe speed relative to local conditions and ensure that your speed is low
enough for an emergency stop.

- Reduce speed prior to turns to avoid risk of overturning.

- Always keep towing vehicle in gear to provide engine braking when going downhill. Do not

coast.

- Do not drink and drive!

• Comply with state and local laws governing highway safety on public roads.

• Use approved accessory lighting, flags and necessary warning devices to protect operators of
other vehicles on highway during transport. Various safety lights and devices are available

from your dealer.

• Local laws should be checked for all highway lighting and marking requirements.

• Plan your route to avoid heavy traffic.

• Be a safe and courteous driver. Always yield to oncoming traffic in all situations, including narrow
bridges, intersections, etc.

• Be observant of bridge loading ratings. Do not cross bridges rated lower than the gross weight
at which you are operating.

• Watch for obstructions overhead and side to side while transporting.

• Always operate equipment in a position to provide maximum visibility at all times. Make
allowances for increased length and weight of equipment when making turns and/or stop.

Page 7

PERFORMING MAINTENANCE

• Good Maintenance is your responsibility. Poor maintenance is an invitation to trouble.

• Make sure there is plenty of ventilation. Never operate engine of towing vehicle in

a closed building. Exhaust fumes may cause asphyxiation.

• Before working on this unit, stop towing vehicle, set parking brakes, shut off engine

and remove ignition key.

• Be certain all moving parts and attachments have come to a complete stop before

attempting to perform maintenance.

• Always use safety supports and block wheels. Never use a jack to support unit.

• Always use proper tools or equipment for job at hand.

• Use extreme caution when making adjustments.

• Follow torque chart in this manual when tightening bolts and nuts.

• Openings in skin and minor cuts are susceptible to infection from brake fluid.

Without immediate medical treatment, serious infection and reactions can occur.

• Replace all shields and guards after servicing and before moving.

• After servicing, be sure all tools, parts and service equipment are removed.

• Do not allow grease or oil to build up on the brake.

• When replacing bolts, refer to owners manual.

• Refer to bolt torque chart for head identification marking.

• Where replacement parts are necessary for periodic maintenance and servicing,

genuine factory replacement parts must be used to restore your equipment to original
specifications. Manufacturer will not claim responsibility for use of unapproved parts
or accessories and other damages as a result of their use.

• If equipment has been altered in any way from original design, manufacturer does

not accept any liability for injury or warranty.

• A fire extinguisher and first aid kit should be kept readily accessible while performing

maintenance on this equipment

Page 8

BOLT TORQUE

TORQUE DATA FOR STANDARD NUTS, BOLTS, AND CAPSCREWS.

Tighten all bolts to torques specified in chart unless otherwise noted. Check tightness of bolts
periodically, using bolt chart as guide. Replace hardware with same grade bolt.

NOTE: Unless otherwise specified, high-strength Grade 5 hex bolts are used throughout assembly
of equipment.

Bolt Torque for Standard bolts *

Torque Specifications

Torque figures indicated are valid for
non-greased or non-oiled threads and
heads unless otherwise specified.
Therefore, do not grease or oil bolts or
capscrews unless otherwise specified
in this manual. When using locking
elements, increase torque values
by 5%.

* GRADE or CLASS value for bolts
and capscrews are identified by their
head markings.

GRADE 2 GRADE 5 GRADE 8

“A” lb-ft (N.m) lb-ft (N.m) lb-ft (N.m)

1/4” 6 (8) 9 (12) 12 (16)

5/16” 10 (13) 18 (25) 25 (35)

3/8” 20 (27) 30 (40) 45 (60)

7/16” 30 (40) 50 (70) 80 (110)

1/2” 45 (60) 75 (100) 115 (155)

9/16” 70 (95) 115 (155) 165 (220)

5/8” 95 (130) 150 (200) 225 (300)
3/4” 165 (225) 290 (390) 400 (540)
7/8” 170 (230) 420 (570) 650 (880)

1” 225 (300) 630 (850) 970 (1310)

Bolt Torque for Metric bolts *

CLASS 8.8 CLASS 9.8 CLASS 10.9

“A” lb-ft (N.m) lb-ft (N.m) lb-ft (N.m)

6 9 (13) 10 (14) 13 (17)
7 15 (21) 18 (24) 21 (29)

8 23 (31) 25 (34) 31 (42)
10 45 (61) 50 (68) 61 (83)
12 78 (106) 88 (118) 106 (144)
14 125 (169) 140 (189) 170 (230)
16 194 (263) 216 (293) 263 (357)
18 268 (363) -- -- 364 (493)
20 378 (513) -- -- 515 (689)
22 516 (699) -- -- 702 (952)
24 654 (886) -- -- 890 (1206)

GRADE-2 GRADE-5 GRADE-8

CLASS 8.8 CLASS 9.8 CLASS 10.9

8.8

9.8

Page 9

10.9

II

INSTRUCTIONS FOR 10" BRAKES

II

BRAKE INSTALLATION

1. Brake Mounting Flange
To assure correct brake action, the mounting

flange must be square and concentric with the
axle spindle. A flange that is not properly
installed will contribute to rapid lining wear and
improper brake action.

The 10" DEMCO brake is designed to inter­change with existing equipment mounting on
flanges with (4) holes on 4" B.C. and a 3"
register diameter. Several manufacturers of­fer complete axles with flanges attached, or
you may choose to install flanges yourself.

Two types of cluster plates are used. One with
4" B.C. square pattern for conventional hubs
and one with 4" B.C. rectangular pattern for
new departure hubs.

Use a flange welding fixture to properly posi­tion the flange for welding. Bolt the flange to
the welding fixture securely with bolts.

Install the fixture (and flange) onto the spindle
and tighten spindle nut. If flange is being
installed on a round axle, rotate to insure
“wheel cylinder up” location when the axle is
installed.

Do not to make a continuous weld around the
flange. First, tack weld on all four sides be­tween the bolts. Follow this with a full weld up
each side of the axle. It is usually not advisable
or necessary to weld across the top and bottom
of the axle. The bottom of the axle is its most
highly stressed area and a weld at this point will
weaken the axle. Allow the axle, spindle, and
flange to cool before removing welding fixture.

2. Installing Brakes
Place the brake against spindle flange. In

mounting the brake, be sure the hydraulic
wheel cylinder is at the top. Brakes are also
marked as “RIGHTS” and “LEFTS”. The brake
designated as “LEFT” travels on the driver’s
side of the road.

3. Installing Brake Drum

When the brakes have been correctly as­sembled to the axle flanges, the hub and drum
assemblies may be mounted on the axle
spindle.

Two types of hubs may be used. The new
departure hub is greased for life and does not
need packing. The conventional hub however
is packed as follows.

Pack the inside bearing with suitable wheel
bearing grease. Force grease through and
around the rollers. Place the bearing in the hub
and install the grease seal flush with the end of
the hub using an arbor press or soft mallet.
Remove excess grease.

To avoid damage to bearing seal, lubricate
seal seat prior to putting on the hub. Grease,
pack and install the outer bearing on spindle.
Place flat washer and spindle nut on spindle.
Turn drum as you tighten nut. When a pro­nounced drag is felt in the bearings, stop
turning the hub and back off the nut one
complete turn and retighten with your fingers
(not any tighter). Now install the cotter pin and
dust cap.

Caution: Do not pack hub full of grease.
Excessive grease may leak into brake drums
causing brake failure.

Wheels may now be mounted on the trailers.

4. Adjusting Brakes
Self adjusting brakes must be adjusted the

first time only to assure having brakes the first
few times they are applied. Insert a brake
adjusting tool or screw driver into the slotted
hole. With the handle up and the bit down and
against the adjusting nut, pull down on the
handle. While spinning the wheel adjust the
cog wheel up until you start to get a little brake
drag on the wheel. Do not over tighten the
adjusting nut. You can not back the nut off
unless you hold the adjusting shoe away from
the nut while turning it back.

ALWAYS ROTATE DRUM IN DIRECTION
OF FORWARD ROTATION ONLY.

Page 10

WARNING: To Prevent Serious Injury or Death

Saltwater, granular fertilizers and other corrosive materials are destructive to metal. To prolong
the life of a braking system used under corrosive conditions, we recommend that the actuator
be flushed periodically with a high pressure water hose. Be sure to re-grease bearings and oil
all moving parts after the unit has dried. At the end of the season, when unit is to be stored,
remove the brake drums and clean inside the brakes. Pack wheel bearings before drum is
installed.

5. Hydraulic Lines

Use care in forming tubing to avoid sharp
bends or kinks. Use double flare steel
tubing to assure tight leak-proof connec­tions. Anchor all hydraulic lines at two foot
intervals to prevent chafing and vibration.
Use hydraulic rubber hose at points of flex­ing. Anchor hose ends to avoid stress on
tubing.

6. Bleeding the System

The first requirement for safe, sure hydrau­lic braking is the use of quality brake fluid.
Use only DOT-3 or DOT-4 brake fluid from
a sealed container.

If pressure bleeding equipment is available,
follow the manufacturer’s instruction in bleed­ing the system.

If system must be bled manually, pro­ceed as follows: Fill master cylinder with

fluid. Install bleeder hose on first wheel
cylinder to be bled (if tandem axle trailer,
bleed rear axle first).

Have loose end of hose submerged in brake
fluid in glass container to observe bubbling.

By loosening the bleeder screw located in
the wheel cylinder one half turn, the system
is open to the atmosphere through the pas­sage drilled in the screw. Pump actuator one
full stroke and hold. Now close the bleeder
valve, then release the lever. After the lever
is back, open the bleeder valve, pull the lever
forward and hold. This process must be
repeated until bubbles stop coming out of the
hose in the bottle. Be sure to close bleeder

screw securely.

Repeat bleeding operation at each wheel
cylinder. During the bleeding process, re­plenish the brake fluid, so the level does not
fall below the 1/2 full level in the master
cylinder reservoir. After bleeding is com­plete, fill the master cylinder reservoir and
secure the filler cap.

After the bleeding operation has been com­pleted, apply pressure to the system and
check the brake system for leaks.

WRONG

RIGHT (Double Flare)

WARNING: To Prevent

Serious Injury or Death

FAILURE TO FOLLOW THESE INSTRUCTIONS,
OR FAILURE TO PROPERLY MAINTAIN BRAKES
AFTER INSTALLATION, CAN RESULT IN LOSS
OF BRAKING ACTION. THIS CAN CAUSE PER­SONAL INJURY, DEATH OR PROPERTY DAM­AGE. ONLY PROFESSIONAL MECHANICS
SHOULD INSTALL BRAKE CLUSTERS. HAVE
YOUR BRAKES INSPECTED BY A PROFES­SIONAL MECHANIC AT LEAST ANNUALLY
AFTER INSTALLATION.

Page 11

10" STANDARD, MARINE, & NDH FREE BACKING BRAKES

Please order replacement parts by

PART NO. and DESCRIPTION.

1

2

11

3

27

3

4

22

20

6

23

22

8

9

PARTS LIST for 10" FREE BACKING BRAKES

REF. PART

NO. NO. QTY. DESCRIPTION

- SB40715 - Right Hand Cluster-Conv. (shown)

- SB40715M - Right Hand Cluster-Conv. MARINE

- SB19913 - Right Hand Cluster - NDH

- SB19913M - Right Hand Cluster - NDH MARINE

- SB40716 - Left Hand Cluster-Conv.

- SB40716M - Left Hand Cluster-Conv. MARINE

- SB19914 - Left Hand Cluster - NDH

- SB19914M - Left Hand Cluster - NDH MARINE

1. SB24636-30 1 Back Plate Assembly

- SB23871-30 1 Back Plate Assemby NDH Hub

- SB24636-96 1 Back Plate Assembly MARINE

- SB23871-96 1 Back Plate Assembly NDH Hub MARINE

2. SB9254 2 Cover Plate - Adjusting Hole

3. 04305 2 5/16"-18UNC x 1/2" Hex Hd. Bolt

- 05940 2 5/16"-18UNC x 1/2" Hex Hd. Bolt SS MARINE

4. 05424 2 5/16" External Tooth Washer

- 05941 2 5/16" External Tooth Washer SS MARINE

5. SB9776 1 Wheel Cylinder Assembly -Right

- SB9776M 1 Wheel Cylinder Assembly-Right MARINE

- SB9777 1 Wheel Cylinder Assembly - Left

- SB9777M 1 Wheel Cylinder Assembly-Left MARINE

- SB15845 1 Repair Kit - Wheel Cylinder
(includes spring, cup and boot)

6. 05431 1 Bleeder - replacement

7. SB9783 1 Push Rod

- SB9783M 1 Push Rod MARINE Olive Drab

8. SB10957 1 Spring-Adjusting Screw

- SB10957M 1 Spring-Adjusting Screw SS MARINE

9. SB05431 1 Adjusting Screw Assembly

4

5

Page 12

2

12

16

14

15

17

18

19

7

18

22

24

10

21

27

22

13

25

26

REF. PART

NO. NO. QTY. DESCRIPTION

10. SB17916-95 1 Shoe Lever

11. SB10958 1 Spring - Shoe

- SB10958M 1 Spring-Shoe MARINE

12. SB9785 1 Spring Lever

- SB9785M 1 Spring Lever MARINE

13. SB6814 2 Spring-Shoe

- SB6814M 2 Spring-Shoe MARINE

14. 00205 1 Washer-Shoe Guide

15. SB17917-95 1 Travel Link

16. 05962 1 5/16"-18 UNC Locknut

- 05942 1 5/16"-18 UNC Locknut SS MARINE

17. 05961 1 5/16"-18UNC x 5/8" Hex Hd. Bolt

- 05943 1 5/16"-18UNC x 5/8" Hex Hd. Bolt SS MARINE

18. SB7778 1 Retaining Ring

- SB7778M 1 Retaining Ring SS MARINE

19. 05824 1 Pin-Front Shoe

20. SB10959 1 Pin - Shoe Hold Down #8

21. 03562 1 Pin - Shoe Hold Down #1

22. SB9789 4 Cup Shoe Hold Down

23. 05983 2 Spring - Shoe Hold Down Blue

- 07884 1 Spring- Shoe Hold Down SS MARINE

24. SB9790 1 Spring - Shoe Hold Down Maroon

- 07883 1 Spring- Shoe Hold Down SS MARINE

25. 05963 1 1/4"-20UNC Locknut

- 05944 1 1/4"-20UNC Locknut SS MARINE

26. 01076 1 1/4"-20UNC x 3/4" Hex Hd. Bolt

- 05930 1 1/4"-20UNC x 3/4" Hex Hd. Bolt SS MARINE

27. SB10955 1 Brake Shoe Kit (2 front & 2 rear)

- 07812 1 Brake Shoe Kit (2 front & 2 rear) MARINE

10" STANDARD, MARINE, & NDH UNI-SERVO BRAKES

1

15

10

2

2

10

3

11

4

6

15

7

13

13

5

12

13

14

14

8

13

12

PARTS LIST for 10"UNI-SERVO BRAKES

REF. PART

NO. NO. QTY. DESCRIPTION

- SB18787 - Right Hand Cluster-Conv. (shown)

- SB18787M - Right Hand Cluster-Conv. MARINE

- SB19915 - Right Hand Cluster - NDH

- SB19915M - Right Hand Cluster - NDH MARINE

- SB18788 - Left Hand Cluster-Conv.

- SB18788M - Left Hand Cluster-Conv. MARINE

- SB19916 - Left Hand Cluster - NDH

- SB19916M - Left Hand Cluster - NDH MARINE

1. SB24636-30 1 Back Plate Assembly

- SB24636-96 1 Back Plate Assembly MARINE

- SB23871-30 1 Back Plate Assemby NDH HUB

- SB23871-96 1 Back Plate Assembly NDH HUB MARINE

2. SB9254 2 Cover Plate - Adjusting Hole

3. 04305 2 5/16"-18UNC x 1/2" Hex Hd. Bolt

- 05940 2 5/16"-18UNC x 1/2" Hex Hd. Bolt SS MARINE

4. 05424 2 5/16" External Tooth Washer

- 05941 2 5/16" External Tooth Washer SS MARINE

5. SB9776 1 Wheel Cylinder Assembly -Right

- SB9776M 1 Wheel Cylinder Assembly-Right MARINE

- SB9777 1 Wheel Cylinder Assembly - Left

- SB9777M 1 Wheel Cylinder Assembly-Left MARINE

- SB15845 1 Repair Kit - Wheel Cylinder
(includes spring, cup and boot)

9

Page 13

REF. PART

NO. NO. QTY. DESCRIPTION

6. 05431 1 Bleeder - replacement

7. SB9783 1 Push Rod

- SB9783M 1 Push Rod MARINE Olive Drab

8. SB10957 1 Spring-Adjusting Screw

- SB10957M 1 Spring-Adjusting Screw SS MARINE

9. SB05431 1 Adjusting Screw Assembly

10. SB10958 2 Spring - Shoe

- SB10958M 2 Spring-Shoe MARINE

11. SB10961-95 1 Shoe Guide

12. SB10959 2 Pin - Shoe Hold Down

13. SB9789 4 Cup Shoe Hold Down

14. 05983 2 Spring - Shoe Hold Down Blue

- 07884 2 Spring- Shoe Hold Down SS MARINE

15. SB10954 1 Brake Shoe Kit (2 front & 2 rear)

- 07811 1 Brake Shoe Kit (2 front & 2 rear) MARINE

Please order replacement parts by PART NO. and DESCRIPTION.

10" STANDARD & NDH DUO-SERVO BRAKES

15

10

1

2

2

10

3

15

13

4

6

11

13

7

7

5

12

14

14

12

8

13

13

PARTS LIST for 10"DUO-SERVO BRAKES

REF. PART

NO. NO. QTY. DESCRIPTION

- SB18793 - Right Hand Cluster-Conv. (shown)

- SB19911 - Right Hand Cluster - NDH

- SB18794 - Left Hand Cluster-Conv.

- SB19912 - Left Hand Cluster - NDH

1. SB24636-30 1 Back Plate Assembly

- SB23871-30 1 NDH Hub Back Plate Assemby

2. SB9254 2 Cover Plate - Adjusting Hole

3. 04305 2 5/16"-18UNC x 1/2" Hex Hd. Bolt

4. 05424 2 5/16" External Tooth Washer

5. SB17185 1 Wheel Cylinder Assembly -Right

- SB17186 1 Wheel Cylinder Assembly - Left

- SB15845 1 Repair Kit - Wheel Cylinder
(includes spring, cup and boot)

6. 05431 1 Bleeder - replacement

7. SB9783 2 Push Rod

8. SB10957 1 Spring-Adjusting Screw

9

REF. PART

NO. NO. QTY. DESCRIPTION

9. SB05431 1 Adjusting Screw Assembly

10. SB10958 2 Spring - Shoe

11. SB10961-95 1 Shoe Guide

12. SB10959 2 Pin - Shoe Hold Down #8

13. SB9789 4 Cup Shoe Hold Down

14. 05983 2 Spring - Shoe Hold Down Blue

15. SB10954 1 Brake Shoe Kit (2 front & 2 rear)

Please order replacement parts by PART NO. and DESCRIPTION.

Page 14

10" STANDARD & NDH SELF ADJUSTING BRAKES

1

18

2

10

15

16

16

17

2

10

3

4

12

11

18

13

6

17

16

15

7

5

16

19

8

14

9

PARTS LIST for 10" SELF ADJUSTING BRAKES

REF. PART

NO. NO. QTY. DESCRIPTION

- SB23714 - Right Hand Cluster-Conv. (shown)

- SB24428 - Right Hand Cluster - NDH

- SB23715 - Left Hand Cluster-Conv.

- SB24429 - Left Hand Cluster - NDH

1. SB24636-30 1 Back Plate Assembly

- SB23871-30 1 NDH Hub Back Plate Assemby

2. SB9254 2 Cover Plate - Adjusting Hole

3. 04305 2 5/16"-18UNC x 1/2" Hex Hd. Bolt

4. 05424 2 5/16" External Tooth Washer

5. SB9776 1 Wheel Cylinder Assembly -Right

- SB9777 1 Wheel Cylinder Assembly - Left

- SB15845 1 Repair Kit - Wheel Cylinder
(includes spring, cup and boot)

6. 05431 1 Bleeder - replacement

7. SB9783 1 Push Rod

8. SB23724 1 Spring-Adjusting Screw

9. SB24047 1 Adjusting Screw Assembly-Left “R”

- SB24048 1 Adjusting Screw Assembly-Right “L”

10. SB10958 2 Spring - Shoe

11. SB10961-95 1 Shoe Guide

12. SB23937 1 Cable

REF. PART

NO. NO. QTY. DESCRIPTION

13. SB23936 1 Cable Guide

14. 05415-95 1 Lever-Right (shown)*

- 05414-95 1 Lever-Left*

15. SB10959 2 Pin - Shoe Hold Down

16. SB9789 4 Cup Shoe Hold Down

17. 05983 2 Spring - Shoe Hold Down Blue

18. SB10954 1 Brake Shoe Kit (2 front & 2 rear)

19. 03880 1 Spring-Adjusting Screw Retainer

Please order replacement parts by PART NO. and DESCRIPTION.

* Patent Pending.

Page 15

DETHMERS MFG. COMPANY

P.O. BOX 189

4010 320th St., BOYDEN, IA. 51234

PH: [phone] or [phone]

FAX: [phone]

TOLL FREE: 1-800-54DEMCO (1-800-543-3626)
