Demco AC20037 User Manual

04/06 Rev.5

AC20037

Page 1

U.S. Patent No. 6,286,870

Thank you for purchasing Demco’s SIDEQUEST. We feel you have made a wise choice and hope
you are completely satisfied with your SIDEQUEST. If you have any questions regarding the applications
of certain solutions or chemicals, contact your chemical supplier and follow chemical manufacturer
recommendations as well as all licensing and use restrictions or regulations.

WARNING: TO AVOID PERSONAL INJURY OR PROPERTY DAMAGE, OBSERVE

FOLLOWING INSTRUCTIONS:

Chemicals are dangerous. Know exactly what you're going to do and what is
going to happen before attempting to work with these products. Improper
selection or use can injure people, animals, plants and soil.

Always wear protective clothing such as coveralls, goggles and gloves when
working with chemicals or sprayer.

Be sure to dispose of all unused chemicals or solutions in a proper and
ecologically sound manner.

GENERAL INFORMATION

1. Unless otherwise specified, high-strength (grade5)
(3 radial-line head markings) hex head bolts are
used throughout assembly of this sprayer.

2. Whenever terms "LEFT" and "RIGHT" are used in
this manual it means from a position behind sprayer
and facing forward.

Table of Contents

General information ............................................................................................................. 2

Warranty Registration ........................................................................................................ 3-4

Safty Information ............................................................................................................. 5-12

Safety Sign Locations ......................................................................................................... 7

Bolt Torque ......................................................................................................................... 13

Mounting Brackets Part Breakdowns .............................................................................. 14-20

Assembly Instructions ....................................................................................................... 21

Parts Breakdown ............................................................................................................ 21-22

Plumbing Breakdown ...................................................................................................... 23-26

Optional Jackstands Breakdown ........................................................................................27

Optional External Step Parts Breakdown and List .............................................................. 28

Optional Light Kit Parts Breakdown and List ...................................................................... 29

Sprayer Checklist .............................................................................................................. 31

3. When placing a parts order, refer to this manual for

proper part numbers and place order by PART NO.

and DESCRIPTION.

Page 2

Ag ❍

Warranty Registration

RV ❍
Rental ❍

Dethmers Manufacturing Company
4010 320th Street • Box 189 • Boyden, Iowa 51234
Toll Free 800-54DEMCO (800-543-3626) • FAX [phone]
www.demco-products.com

Very

Satisfied

Satisfied

Dissatisfied

How satisfied are you with our product? ❍❍❍❍

How satisfied are you with the dealership/distributor sales staff? ❍❍❍❍
Dealer/Distributor Name

City State

How satisfied are you with the company sales staff? ❍❍❍❍

How satisfied are you with the delivery? ❍❍❍❍

Did you have any contact with a Demco Representative? YES NO
If YES, how satisfied were you? ❍❍❍❍

I would recommend this product to my family and friends. YES NO

Brakes ❍
Marine ❍

Very

Dissatisfied

Would you purchase again from DEMCO? YES NO

Since taking delivery, have you been contacted by the dealer? YES NO

Did you have any problems with this DEMCO product? YES NO
If YES, are you satisfied with the company’s resolution of your problem? ❍❍❍❍

Why did you purchase this product?

Please list the specific source of information prompting this purchase.

After purchasing this product, do you see any needed product improvement? If yes, what improvement?

What other products would you like to see DEMCO offer?

Comments

Owner’s Name: Mailing Address:

City: State: Zip Code:

Model#:
Serial #:
Purchase Date:

Owner’s Signature:

Please return to DETHMERS MFG. CO. By FAX or tri-folding this form to the backside, it is pre-addressed.

Page 3

Dethmers Manufacturing Company
4010 320th Street, Box 189
Boyden, Iowa 51234

Postage

Page 4

SAFETY

TAKE NOTE! THIS SAFETY ALERT SYMBOL FOUND THROUGHOUT THIS
MANUAL IS USED TO CALL YOUR ATTENTION TO INSTRUCTIONS INVOLVING
YOUR PERSONAL SAFETY AND SAFETY OF OTHERS. FAILURE TO FOLLOW
THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH.

THIS SYMBOL MEANS

ATTENTION

BECOME ALERT

YOUR SAFETY IS INVOLVED!

SIGNAL WORDS

Note: use of the following signal words DANGER,
WARNING, and CAUTION with safety messages.

Appropriate signal word for each has been selected
using following guidelines:

DANGER:

Indicates an imminently hazardous situation that,
if not avoided, will result in death or serious injury.
This signal word is to be limited to most extreme
situations typically for machine components which,
for functional purposes, cannot be guarded.

WARNING:

Indicates a potentially hazardous situation that, if
not avoided, could result in death or serious injury,
and includes hazards that are exposed when
guards are removed. It may also be used to alert
against unsafe practices.

CAUTION:

Indicates a potentially hazardous situation that, if
not avoided, may result in minor or moderate injury.
It may also be used to alert against unsafe practices.

If you have questions not answered in this manual , require additional copies, or if your manual is damaged,
please contact your dealer or Dethmers Mfg. Co., P.O. Box 189, 4010 320th Street, Boyden, IA 51234
ph: [phone] or [phone] Toll Free: 1-800-543-3626 Fax: [phone]

http://www.demco-products.com

Page 5

SAFETY...YOU CAN LIVE WITH IT

EQUIPMENT SAFETY GUIDELINES

Every year many accidents occur which could be avoided by a few seconds of thought and
more careful approach to handling equipment. You, the operator, can avoid accidents by
observing precautions in this section. To avoid personal injury, study precautions and insist
those working with you, or you yourself, follow them.

In order to provide a better view, certain illustrations in this manual may show an assembly
with a safety shield removed. However, sprayer should never be operated in this condition.
Keep all shields in place. If shield removal becomes necessary for repairs, replace shield
prior to use.

Replace any caution, warning, danger or instruction safety decal that is not readable or is
missing. Location of such decals is indicated in this booklet.

Do not attempt to operate this sprayer under the influence of alcohol or drugs.

Review safety instructions with all users.

Operator should be a responsible adult.

ASSEMBLE THIS SPRAYER UNTIL THEY HAVE DEVELOPED A THOROUGH
UNDERSTANDING OF SAFETY PRECAUTIONS AND HOW IT WORKS.

To prevent injury or death, use a tractor equipped with a roll over protective system (ROPS).
Do not paint over, remove, or deface any safety signs or warning decals on your sprayer.
Observe all safety signs and practice instructions on them.

Never exceed limits of sprayer. If its ability to do a job, or to do so safely is in question

DON'T TRY IT.

DO NOT ALLOW PERSONS TO OPERATE OR

LIGHTING AND MARKING

It is the responsibility of operator to know lighting and marking requirements of local highway
authorities and to install and maintain equipment to provide compliance with regulations.
Add extra lights when transporting at night or during periods of limited visibility.

Lighting kits are available from your dealer or manufacturer.

Page 6

SAFETY SIGN LOCATIONS

WARNING

REV 1 AB21002

To prevent serious injury or death

• Store sprayer on hard level surface.

• Store empty.

Part# 10328 Red

(on back side of tank)

• Refer to chemical supplier and manufacturer recommendations and all

• Always wear recommended protective clothing when working with chemicals or

• Dispose of all unused chemicals or solutions in proper and ecologically

WARNING

To prevent serious injury or death

licensing restrictions or regulations.

sprayer.

sound manner. Improper use can injure people, animals, plants and soil.

REV 1 AB21014

AB21014

WARNING

To prevent serious injury or
death.

Do not ride or stand on sprayer
while any part of sprayer is
moving.

Keep riders off at all times.

REV 1 AB21001

AB21001

AB21002

Part# 10327 Amber

Page 7

SAFETY SIGN CARE

• Keep safety signs clean and legible at all times.

• Replace safety signs that are missing or have become illegible.

• Replacement parts that displayed a safety sign should also display current sign.

• Safety signs are available from your distributor, dealer parts department, or manufacturer.

How to install safety signs:

• Be sure installation area is clean and dry.

• Decide on exact position before you remove backing paper.

• Remove smallest portion of split backing paper.

• Align decal over specified area and carefully press small portion with
exposed sticky backing in place.

• Slowly peel back remaining paper and carefully smooth remaining portion of
decal into place.

• Small air pockets can be pierced with a pin and smoothed out using piece of decal
backing paper.

TIRE SAFETY

• Failure to follow proper procedures when mounting tire on rim can produce an
explosion resulting in serious injury or death.

• Do not attempt to mount tire unless you have proper equipment and experience.

• Inflating or servicing tires can be dangerous. Whenever possible, trained personnel
should be called to service or mount tires.

• Always order and install tires and wheels with appropriate type and load capacity to
meet or exceed anticipated weight to be placed on sprayer.

REMEMBER

Your best assurance against accidents is a careful and responsible operator. If there is any
portion of this manual or function you do not understand, contact your local authorized dealer
or manufacturer.

BEFORE OPERATION:

• Carefully study and understand this manual.

• Do not wear loose-fitting clothing which may catch in moving parts.

• Always wear protective clothing and substantial shoes.

• It is recommended that suitable hearing and eye protection be worn.

• Operator may come in contact with certain materials which may require specific safety
equipment relative to handling of such materials. (Examples: extremely dusty, molds,
fungus, bulk fertilizers, etc.)

Page 8

• Keep wheel and lug nuts tightened to specified torque.

• Assure that agricultural implement tires are inflated evenly.

• Give sprayer a visual inspection for any loose bolts, worn parts, or cracked welds, and make
necessary repairs. Follow maintenance safety instructions included in this manual.

• Be sure there are no tools lying on or in equipment.

• Do not use the sprayer until you are sure that area is clear, especially around children and
animals.

• Don't hurry learning process or take sprayer for granted. Ease into it and become familiar
with your new equipment.

• Practice operation of your sprayer and its attachments. Completely familiarize yourself

and other operators with its operation before using.

• Use a tractor equipped with Roll Over Protection System (ROPS) and fasten your seat belt
prior to starting engine.

• Manufacturer does not recommend usage of tractor with ROPS removed.

• Move tractor wheels to widest recommended settings to increase stability.

• Do not allow anyone to stand between tongue or hitch and towing unit when backing
up to equipment.

DURING OPERATION

• Beware of bystanders, PARTICULARLY CHILDREN! Always look around to make sure it is

safe to start engine of towing unit or move sprayer. This is particularly important with higher noise
levels and quiet cabs, as you may not hear people shouting.

• NO PASSENGERS ALLOWED- Do not carry passengers anywhere on or in the tractor or

sprayer.

• Keep hands and clothing clear of moving parts.

• Do not clean, lubricate, or adjust your sprayer while it is moving.

• When halting operation, even periodically, set tractor or towing unit brakes, disengage

PTO, shut off engine, and remove ignition key.

• Be especially observant of operating area and terrain- watch for holes, rocks, or other hidden
hazards. Always inspect area prior to operation.

- DO NOT operate near edge of drop-offs or banks.

- DO NOT operate on steep slopes as overturn may result.

- Operate up and down (not across) intermediate slopes. Avoid sudden starts and stops.

Page 9

• Pick the most level possible route when transporting across fields. Avoid edges of ditches,
gullies, and steep hillsides.

• Be extra careful when working on inclines.

• Periodically clear equipment of brush, twigs, or other materials to prevent buildup of dry
combustible materials.

• Maneuver tractor or towing unit at safe speeds.

• Avoid overhead wires or other obstacles. Contact with overhead lines could cause serious injury
or death.

• Avoid loose gravel, rocks, and holes; they can be dangerous for equipment operation or movement.

• Allow for sprayer length when making turns.

• Do not walk or work under raised components or attachments unless securely positioned and

blocked.

• Keep all bystanders, pets, and livestock clear of work area.

• Operate towing unit from operators seat only.

• Never stand alongside of unit with engine running or attempt to start engine and/or operate machine
while standing alongside of unit.

• Never leave running equipment attachments unattended.

• As a precaution, always recheck hardware on equipment following every 100 hours of operation.
Correct all problems. Follow maintenance safety procedures.

FOLLOWING OPERATION

• Following operation, or when unhitching, stop tractor or towing unit, set brakes, disengage
PTO and all power drives, shut off engine and remove ignition key.

• Store sprayer in an area away from human activity.

• Do not park sprayer where it will be exposed to livestock for long periods of time. Damage and
livestock injury could result.

• Do not permit children to play on or around the stored sprayer.

• Make sure all parked machines are on a hard, level surface and engage all safety devices.

• Wheel chocks may be needed to prevent unit from rolling.

Page 10

HIGHWAY AND TRANSPORT OPERATIONS

• SAFETY CHAINS: If equipment is going to be transported on a public highway, always

follow state and local regulations regarding safety chains and auxiliary lighting. Be sure to
check with local law enforcement agencies for your own particular regulations. If required
safety chains should be obtained and installed. Only safety chains (not elastic or nylon/plastic
tow straps) should be used to retain connection between towing and towed machines in event
of separation of primary attaching system. Use a high strength, appropriately sized hitch pin
with a mechanical retainer and attach safety chains. Criss cross chains under tongue and
secure to draw bar cage, mounting loops, or bumper frame.

• Adopt safe driving practices:

- Keep brake pedals latched together at all times. NEVER USE INDEPENDENT BRAKING
WITH SPRAYER IN TOW. LOSS OF CONTROL OR UPSET MAY RESULT.

- Always drive at a safe speed relative to local conditions and ensure that your speed is low
enough for an emergency stop. Keep speed to a minimum.

- Reduce speed prior to turns to avoid risk of overturning.

- Always keep tractor or towing unit in gear to provide engine braking when going
downhill. Do not coast.

- Do not drink and drive!

• Comply with state and local laws governing highway safety and movement of farm machinery on
public roads.

• Use approved accessory lighting flags and necessary warning devices to protect operators of

other vehicles on highway during transport. Various safety lights and devices are available

from your dealer.

• Use of flashing amber lights is acceptable in most localities. However, some localities prohibit
their use. Local laws should be checked for all highway lighting and marking requirements.

• When driving tractor and sprayer under 20 mph (40 kph) day or night, use flashing amber warning
lights and a slow moving vehicle (SMV) identification emblem.

• Plan your route to avoid heavy traffic.

• Be a safe and courteous driver. Always yield to oncoming traffic in all situations, including narrow
bridges, intersections, etc.

• Be observant of bridge load ratings. Do not cross bridges rated lower than gross weight of unit
you are operating.

Page 11

• Watch for obstructions overhead and side to side while transporting.

• Always operate equipment in a position to provide maximum visibility at all times. Make
allowances for increased length and weight of sprayer when making turns, or stopping.

PERFORMING MAINTENANCE

• Good maintenance is your responsibility. Poor maintenance is an invitation to trouble.

• Make sure there is plenty of ventilation. Never operate engine of towing vehicle in
a closed building. Exhaust fumes may cause asphyxiation.

• Before working on this machine, stop towing vehicle, set brakes, disengage PTO
and all power drives, shut off engine and remove ignition key.

• Be certain all moving parts and attachments have come to a complete stop before
attempting to perform maintenance.

• Always use a safety support and block wheels. Never use a jack to support machine.

• Always use proper tools or equipment for job at hand.

• Use extreme caution when making adjustments.

• Follow torque chart in this manual when tightening bolts and nuts.

• Never use your hands to locate a hydraulic leak on attachments. Use a small piece of
cardboard or wood. Hydraulic fluid escaping under pressure can penetrate skin.

• Openings in skin and minor cuts are susceptible to infection from hydraulic fluid.

Without immediate medical treatment, serious infection and reactions can occur.

• When disconnecting hydraulic lines, shut off hydraulic supply and relieve all hydraulic
pressure.

• Replace all shields and guards after servicing and before moving.

• After servicing, be sure all tools, parts and service equipment are removed.

• Do not allow grease or oil to build up on any steps or platform.

• When replacing bolts refer to owners manual.

• Refer to bolt torque chart for head identification marking.

• Where replacement parts are necessary for periodic maintenance and servicing,
genuine factory replacement parts must be used to restore your equipment to original
specifications. Manufacturer will not claim responsibility for use of unapproved parts or
accessories and other damages as a result of their use.

• If equipment has been altered in any way from original design, manufacturer does
not accept any liability for injury or warranty.

• A fire extinguisher and first aid kit should be kept readily accessible while performing
maintenance on this equipment

Page 12

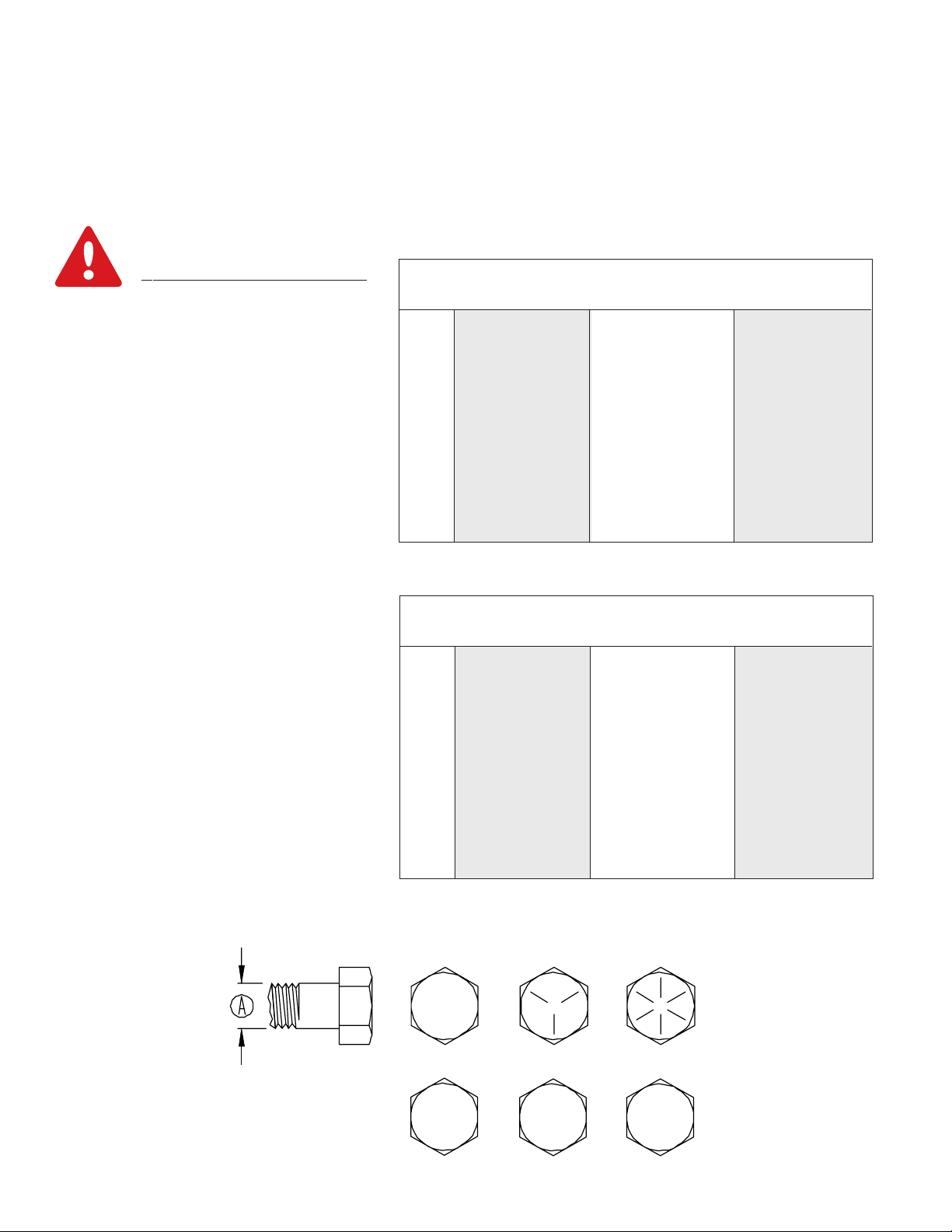

BOLT TORQUE

TORQUE DATA FOR STANDARD NUTS, BOLTS, AND CAPSCREWS.

Tighten all bolts to torques specified in chart unless otherwise noted. Check tightness of
bolts periodically, using bolt chart as guide. Replace hardware with same grade bolt.

NOTE: Unless otherwise specified, high-strength Grade 5 hex bolts are used throughout
assembly of equipment.

Bolt Torque for Standard bolts *

Torque Specifications

Torque figures indicated are valid for
non-greased or non-oiled threads and
heads unless otherwise specified.
Therefore, do not grease or oil bolts or
capscrews unless otherwise specified
in this manual. When using locking
elements, increase torque values
by 5%.

* GRADE or CLASS value for bolts
and capscrews are identified by their
head markings.

GRADE 2 GRADE 5 GRADE 8

“A” lb-ft (N.m) lb-ft (N.m) lb-ft (N.m)

1/4” 6 (8) 9 (12) 12 (16)

5/16” 10 (13) 18 (25) 25 (35)

3/8” 20 (27) 30 (40) 45 (60)

7/16” 30 (40) 50 (70) 80 (110)

1/2” 45 (60) 75 (100) 115 (155)

9/16” 70 (95) 115 (155) 165 (220)

5/8” 95 (130) 150 (200) 225 (300)
3/4” 165 (225) 290 (390) 400 (540)
7/8” 170 (230) 420 (570) 650 (880)

1” 225 (300) 630 (850) 970 (1310)

Bolt Torque for Metric bolts *

CLASS 8.8 CLASS 9.8 CLASS 10.9

“A” lb-ft (N.m) lb-ft (N.m) lb-ft (N.m)

6 9 (13) 10 (14) 13 (17)
7 15 (21) 18 (24) 21 (29)

8 23 (31) 25 (34) 31 (42)
10 45 (61) 50 (68) 61 (83)
12 78 (106) 88 (118) 106 (144)
14 125 (169) 140 (189) 170 (230)
16 194 (263) 216 (293) 263 (357)
18 268 (363) -- -- 364 (493)
20 378 (513) -- -- 515 (689)
22 516 (699) -- -- 702 (952)
24 654 (886) -- -- 890 (1206)

GRADE-2 GRADE-5 GRADE-8

CLASS 8.8 CLASS 9.8 CLASS 10.9

8.8

Page 13

9.8

10.9

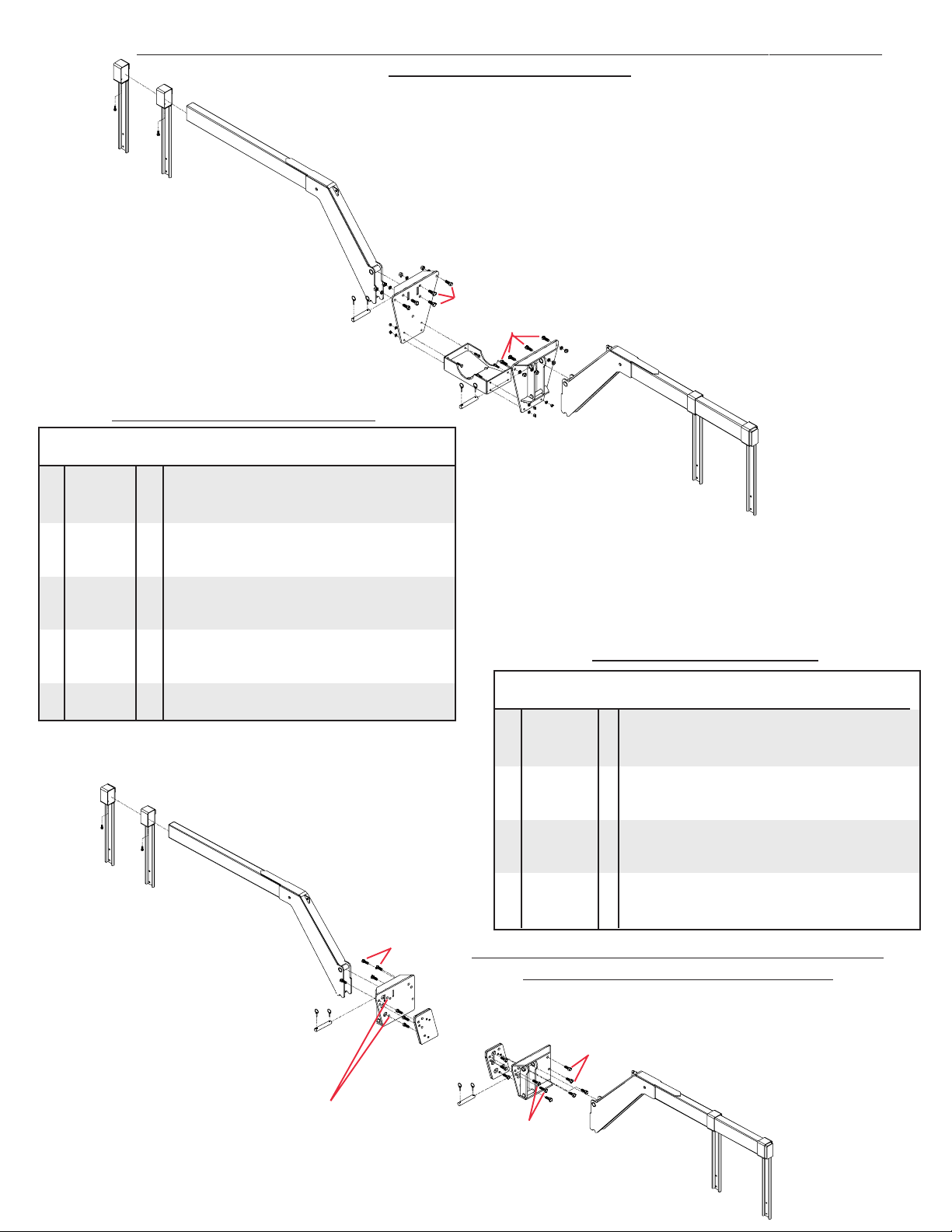

JOHN DEERE 7510, 7520, 7600, 7700, 7800, 7610, 7710, 7810 OVER-HEAD

MOUNTING BRACKETS

14

14

10

10

11

NOTE: Front fenders
need to be removed
before installation of
brackets.

13

12

Front of Tractor

87

3

2

7600-7800 & 7610-7810 Series

PA RT

REF.

QTY.

NO.

NO.

1. 00482 81/2”-13UNC x 1 3/4” Hex Hd Bolt (Gr.5)

2. 00084 81/2” Lockwasher

3. 00083 81/2”-13UNC Hex Nut

4. 11660-35 1 Left Baseplate for Sidequest

5. 11661-35 1 Right Baseplate for Sidequest

6. 10166-35 1 Spacer Assembly

7. 00254 10 3/4”-10UNC Nut

8. 00253 10 3/4” Lockwasher

9. 01235 10 3/4”-10UNC x 2” Hex Head Bolt (Gr.5)

10. 11442-35 4 Drop Channel

11. 11644-35 2 Extension Arm

12. 11651-95 2 Upper Pin

13. 02397 4 Lynch Pin

14. 06102 4 1/2”NC X 1.25” Cup Point Set Screw

12

1

12

1

NOTE: Bracket #8 and #9
must be installed to the
tractor frame first using
three 20mm x 50mm
bolts.

NOTE: Bolt #5 is only
installed in these three
holes on both brackets.

DESCRIPTION

2

11

10

3

7

3

9

Front of Tractor

Rear of Tractor

5

9

13

9

6

1

12

4

8

7

11

3

2

10

10

7720, 7820, & 7920 Series

PA RT

REF.

QTY.

NO.

NO.

1. 11442-35 4 Drop Channels

2. 11644-35 2 Extension Arm

3. 03840 12 20mm x 2.5mm X 50mm Metric Bolt (Gr. 10.9)

4. 11745 4 20mm X 2.5mm x 75mm Metric (Gr. 10.9)

5. 04052 6 3/4”-10UNC x 1-1/2” Hex Bolt (Gr.5)

6. 11739-35 1 Left Baseplate for Sidequest

7. 11740-35 1 Right baseplate for Sidequest

8. 11741-35 1 Left Spacer Plate

9. 11742-35 1 Right Spacer Plate

10. 11651-95 2 Upper Pin

11. 02397 4 Lynch Pin

12. 06102 4 1/2” NC x 1.25” Cup Point Set Screw

DESCRIPTION

JOHN DEERE 7720, 7820, & 7920 OVER-

Rear of Tractor

8

11

10

HEAD MOUNTING BRACKETS

NOTE: Front fenders

6

3

3

7

5

4

2

5

must be removed before
installation of brackets.

1

Page 14

1

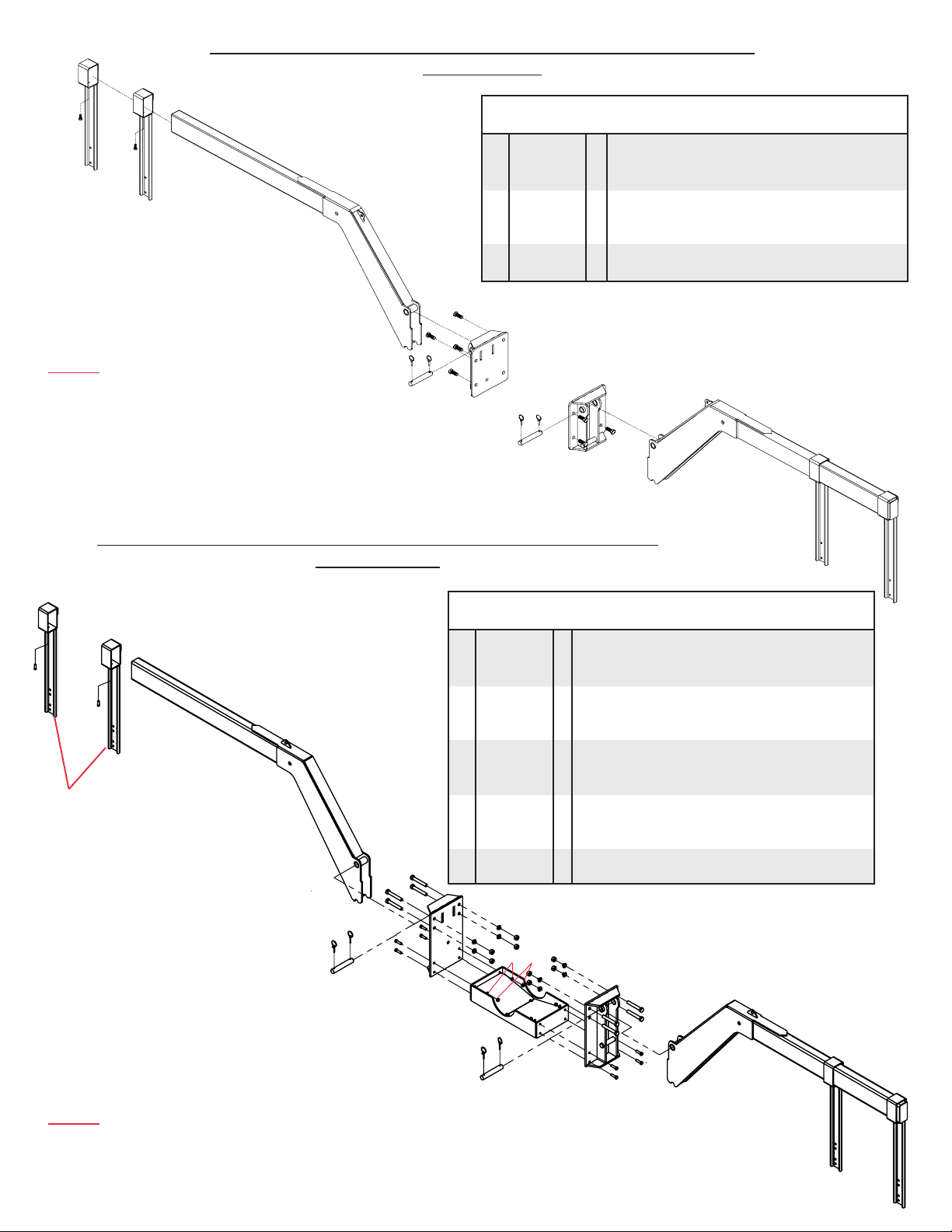

JOHN DEERE 8100, 8110, 8120, 8200, 8210, 8220, 8300, 8310, 8320, 8400,

8410, 8420, & 8520 OVER-HEAD MOUNTING BRACKETS

8

8

3

3

6

NOTE: Front fenders
must be removed before
installation of brackets.

8000 Series

REF. PART
NO. NO. QTY. DESCRIPTION

1. 02397 4 Lynch Pins

2. 11651-95 2 Upper Pins

3. 11442-35 4 Drop Channels

4. 11645-35 1 Lt. Baseplate

5. 11646-35 1 Rt. Baseplate

6. 11644-35 2 Extension Arms

7. 03840 8 20mm X 2.5mm Metric Bolt (Gr. 10.9)

8. 06102 4 1/2”NC x 1-1/4” Cup Point Set Screw

Please order replacement parts by PART NO. and DESCRIPTION

8

8

3

Rear of Tractor

7

7

1

7

2

5

4

1

2

7

6

Front of Tractor

3

3

Adapter Spacer Kit (5839)
is needed for 8420 & 8520
& 30 series with power
shift only.

NOTE: Adapter may also
be required for tractors
with independent link
suspension.

JOHN DEERE 8420, 8520, & 30’s w/ Power Shift

OVER-HEAD MOUNTING BRACKETS

3

6

1

JOHN DEERE 8420, 8520, & 30’s w/ Power Shift

REF. PART
NO. NO. QTY. DESCRIPTION

1. 02397 4 Lynch Pins

2. 11651-95 2 Upper Pins

3. 11442-35 4 Drop Channels

4. 12318-35 1 Lt. Baseplate

5. 12319-35 1 Rt. Baseplate

6. 11644-35 2 Extension Arms

7. 03840 8 20mm X 2.5mm Metric Bolt (Gr. 10.9)

8. 06102 4 1/2”NC x 1-1/4” Cup Point Set Screw

Please order replacement parts by PART NO. and DESCRIPTION

7

7

2

Front of Tractor

Rear of Tractor

7

5

1

2

4

7

7

7

7

NOTE: Front fenders
must be removed before
installation of brackets.

6

8

3

8

3

Page 15

8

8

3

3

6

1

30 Series IVT

REF. PART
NO. NO. QTY. DESCRIPTION

1. 02397 4 Lynch Pins

2. 11651-95 2 Upper Pins

3. 11442-35 4 Drop Channels

4. 12333-35 1 Lt. Baseplate

5. 12332-35 1 Rt. Baseplate

6. 11644-35 2 Extension Arms

7. 03840 8 20mm X 2.5mm Metric Bolt (Gr. 10.9)

8. 06102 4 1/2”NC x 1-1/4” Cup Point Set Screw

Please order replacement parts by PART NO. and DESCRIPTION

JOHN DEERE 30’S IVT OVER-HEAD

7

7

2

Front of Tractor

7

1

2

MOUNTING BRACKETS

Rear of Tractor

5

4

7

7

7

7

6

NOTE: Front fenders
must be removed before
installation of brackets.

8

3

8

3

8

8

4

4

5

NOTE: Front fenders
must be removed before
installation of brackets.

7

MX Magnum Parts Breakdown

PAR T

REF.

QTY.

NO.

NO.

1. 03840 6 20mm x 2.5 x 50mm Hex Bolt (Gr. 10.9)

2. 11440-35 1 Left Mounting Baseplate

3. 11441-35 1 Right Mounting Baseplate

4. 11442-35 4 Drop Channel

5. 11644-35 2 Extension Arm

6. 11651-95 2 Upper Pin

7. 02397 4 Lynch Pin

8. 06102 4 1/2”NC X 1.25” Cup Point Set Screw

DESCRIPTION

MX MAG. 180-270 OVER-HEAD

1

1

1

3

6

Front of Tractor

Page 16

MOUNTING BRACKETS

NOTE:Brackets Fit

180 200 210
230 220 240
255 270 285

Rear of Tractor

7

6

2

1

1

5

4

4

TG SERIES NEW HOLLAND OVER-HEAD MOUNTING

8

1

NOTE: Front fenders, if
applicable, must be
removed before installa­tion of brackets.

NOTE:Brackets Fit

TG210 TG230 TG255
TG285

8

1

2

Front of Tractor

BRACKETS

REF.

NO.

1. 11442-35 4 Drop Channels

2. 11644-35 2 Extension Arm

3. 03840 8 20mm x 2.5mm X 50mm Metric Bolt (Gr. 10.9)

4. 11647-35 1 Left Baseplate for Sidequest

5. 11648-35 1 Right baseplate for Sidequest

6. 11651-95 2 Upper Pin

7. 02397 4 Lynch Pin

8. 06102 4 1/2” NC x 1.25” Cup Point Set Screw

3

3

3

7

3

6

5

TG Series New Holland

PART

QTY.

NO.

Rear of Tractor

7

6

DESCRIPTION

4

3

2

FORD GENESIS & BUHLER OVER-HEAD MOUNTING

5

6

NOTE: If using upper
holes on mounting
brackets. Brackets will
hang below tank frame.
It will NOT void warranty
if brackets are cut flush.

5

6

BRACKETS

4

14

7

1

FORD GENESIS & BUHLER

PART

REF.

10

12

11

QTY.

Rear of Tractor

12

13

NO.

8

8

9

9

3

NO. DESCRIPTION

1. 10052-35 1 Spacer Assembly

2. 12059-35 1 Left Baseplate for Sidequest

3. 12060-35 1 Right Baseplate for Sidequest

4. 11644-35 2 Extension Arm

5. 11442-35 4 Drop Channels

6. 06102 4 1/2” NC x 1.25” Cup Point Set Screw

7. 11651-95 2 Upper Pin

8. 02389 8 .75NC X 5.00 GR5 Hex Bolt

9. 00482 8 .50NC X 1.75 GR5 Hex Bolt

10. 00084 8 .50 Lockwasher

11. 00083 8 .50NC Hex Nut

12. 00 8 .75NC Hex Nut

13. 00 8 .75 Lockwasher

14. 02397 4 Lynch Pin

13

1

Front of Tractor

NOTE:Brackets Fit

FORD GENESIS: 8670, 8770, 8870, 8970
BUHLER: 2145, 2160, 2180, 2210

1

14

Page 17

8

8

7

2

9

9

4

5

5

JOHN DEERE 8000 TRACK MOUNTING BRACKETS AND SKID

PAR T

REF.

QTY.

NO.

NO.

1. 12315-35 1 Right Baseplate for Sidequest

2. 12316-35 1 Left Baseplate for Sidequest

3. 02851 83/4”-10UNC x 8.50 Hex Head Bolt (Gr. 5)

4. 02961 83/4”-10UNC Nylon Insert Lock Nut

5. 12317 12 20mm-2.5 x 250mm Hex Bolt

6. 12186-95 4 Top Pin 1.25 x 10.25

7. 02397 8 Lynch Pin

8. 12185-35 4 Extension Arm

9. 00085 24 1/2” Flat Washer

10. 01254 24 1/2”NC x 1.50 Hex Head Bolt (Gr. 5)

11. 02178 24 1/2”NC Nylon Insert Lock Nut

12. 35631 2 350gal. Skid Assembly (tank not shown)

- 35632 2 500gal. Skid Assembly (tank not shown)

DESCRIPTION

7

Rear of Tractor

1

12

11

11

9

10

10

9

10

8

10

9

5

7

6

4

2

3

5

4

4

4

3

3

3

8

7

Use existing 6 washers
From removed track bolts

9

7

6

12

Front of Tractor

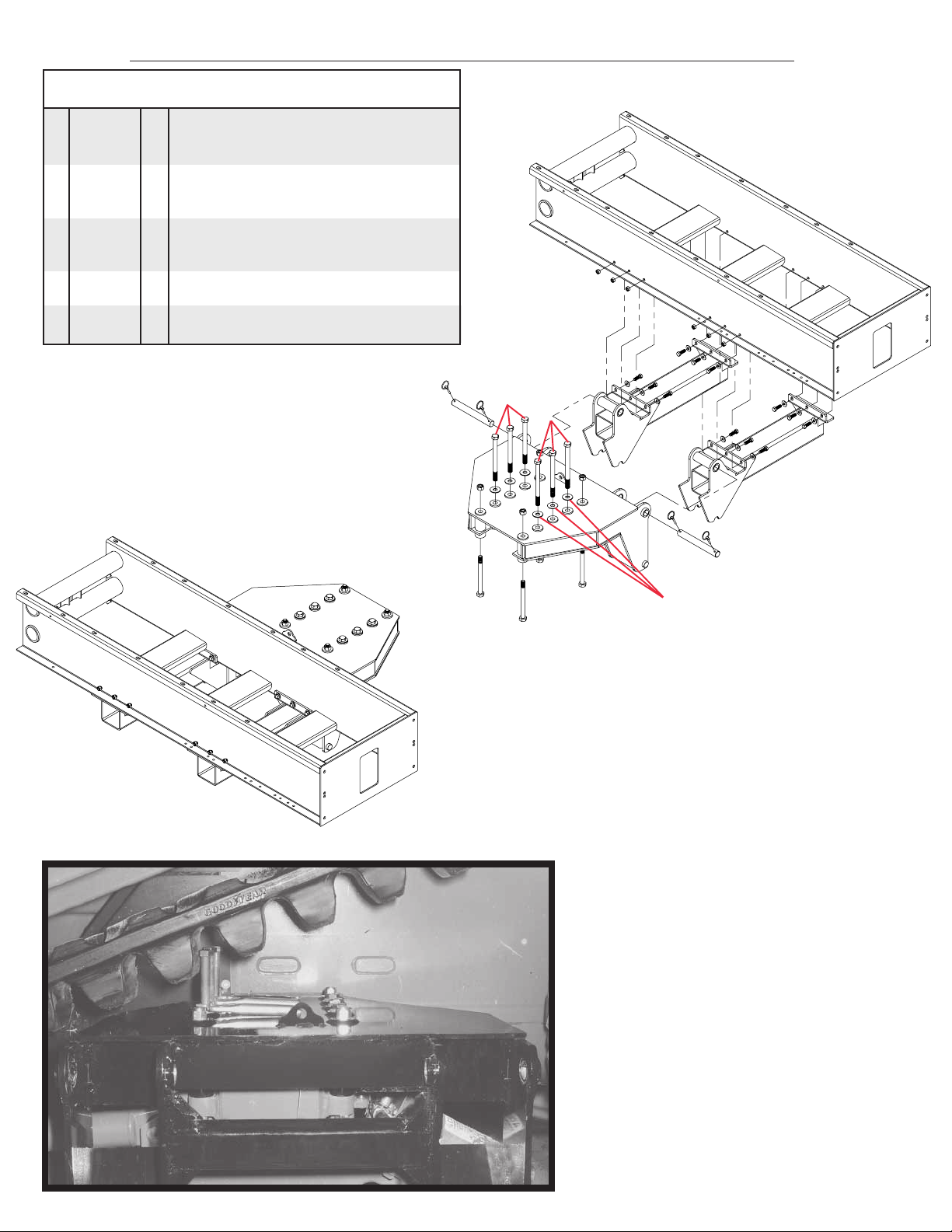

Installation John Deere 8000 Track

Use any three holes in a row of the five
holes depending on the track width. When
position is determined remove every other
bolt of the six bolts in the track mount, that
will match up with the three bolts (#5) in
the bracket. Repeat for other side of track
mounting. On the row of bolts to the front
of the tractor, hold bolts in bracket up to
just short of flush of the bottom of bracket,
secure in that position with vice grips. Also
adjust track so bolts will miss lugs. Then
slide in place and tighten all bolts. See

diagram.

Page 18

JOHN DEERE 9000 TRACK MOUNTING BRACKETS AND SKID

PAR T

REF.

QTY.

NO.

NO.

1. 12183-35 2 Right Baseplate for Sidequest

2. 12184-35 2 Left Baseplate for Sidequest

3. 03840 32 20mm-2.5 x 50mm Hex Bolt

6. 12186-95 4 Top Pin 1.25 x 10.25

7. 02397 8 Lynch Pin

8. 12185-35 4 Extension Arm

9. 00085 24 1/2” Flat Washer

10. 01254 24 1/2”NC x 1.50 Hex Head Bolt (Gr. 5)

11. 02178 24 1/2”NC Nylon Insert Lock Nut

12. 35631 2 350gal. Skid Assembly (tank not shown)

- 35632 2 500gal. Skid Assembly (tank not shown)

DESCRIPTION

7

Rear of Tractor

1

3

12

11

11

9

10

10

9

10

8

10

9

7

6

3

2

3

3

8

7

3

2

9

7

6

3

1

3

3

Front of Tractor

Simulation of track mount
( not a component of bracket)

12

Page 19

CAT MT765 CHALLENGER MOUNTING BRACKETS AND SKID

*Note: For installing Hub
Spacer remove every other
bolt from hub on tractor.

17

7

5

6

Rear of Tractor

10

19

17

6

18

12

18

10

9

8

13

15

16

15

16

15

16

15

16

1

19

20

4

2

3

4

9

8

14

11

Front of Tractor

18

13

15

16

18

15

15

14

1615

16

16

15

16

PAR T

REF.

NO.

NO.

QTY.

DESCRIPTION

1. 5619-35 2 Spindle Assembly (details on p.21 view B

& view C & Breakdown on p.22

2. 12334-30 1 Right Baseplate for Sidequest

3. 12335-30 1 Left Baseplate for Sidequest

4. 12379-30 2 Back Plate

5. 12378-35 2 Hub Spacer Assembly

6. 12331-95 18 Bushings

7. 12385 18 24mm-3 x 50mm Hex Bolt

8. 11651-95 2 Top Pin 1.25 x 10.25

9. 02397 4 Lynch Pin

10. 11644-35 2 Extension Arm

11. 12382-35 1 Spacer Channel, Right

12. 12383-35 1 Spacer Channel, Left

13. 12384-35 2 Spacer Channel, Center

14. 00083 18 1/2”-UNC Hex Hd. Nut

15. 00084 18 1/2” Lockwasher

16. 00482 18 1/2”-UNC x 1 3/4” Gr.5 Hex Hd. Bolt

17. 35631W 2 350gal Skid Assembly w (tank not shown)

- 35632W 2 500gal Skid Assembly w (tank not shown)

18. 11442-35 4 Drop Channels

19. 09114 10 7/8”-UNC x 3.50” GR.5 Hex Hd. Bolt

20. 10678 10 7/8”-UNC Nylon Lock nut

Please order replacement parts by PART NO. and DESCRIPTION

Page 20

Assembly Instructions

Preparation: Remove any loader brackets from the tractor. The

tractors duals must be set to 120” wheel spacing.

1. Remove every other lug bolt on the tractor’s dual, and replace
them with the special spacer Stud Bolts included with the SideQuest
hardware as shown in VIEW A. (Note: Only when replacing stud
bolts on a JD 7000 Series Tractor, the existing washers MUST be
used). After all of the removed lug bolts are replaced, remove the
rest of the tractor’s lug bolts and replace them with the SideQuest
stud bolts. Torque the SideQuest stud bolts to tractor manufacturer’s
specifications.

2. Bolt the Hub Spacer to the SideQuest stud bolts as shown in
VIEW B. Use ten 7/8”-UNF x 2” hex head bolts and ten 7/8” lockwashers.
Then bolt the Hub/Spindle Assembly to the Hub Spacer. Use eight 5/
8”-UNF x 2” hex head bolts and lockwashers to bolt the Hub/Spindle
Assembly to the Hub Spacer. Torque all bolts to the specifications
found earlier in the manual.

3. Mount the Left and Right Base Plates to the tractor’s frame. All Base
Plates will mount between the tractors cab and front wheels to existing
holes in the tractors frame. All tractors’ mounting brackets can be viewed
on pages 14-16.

13

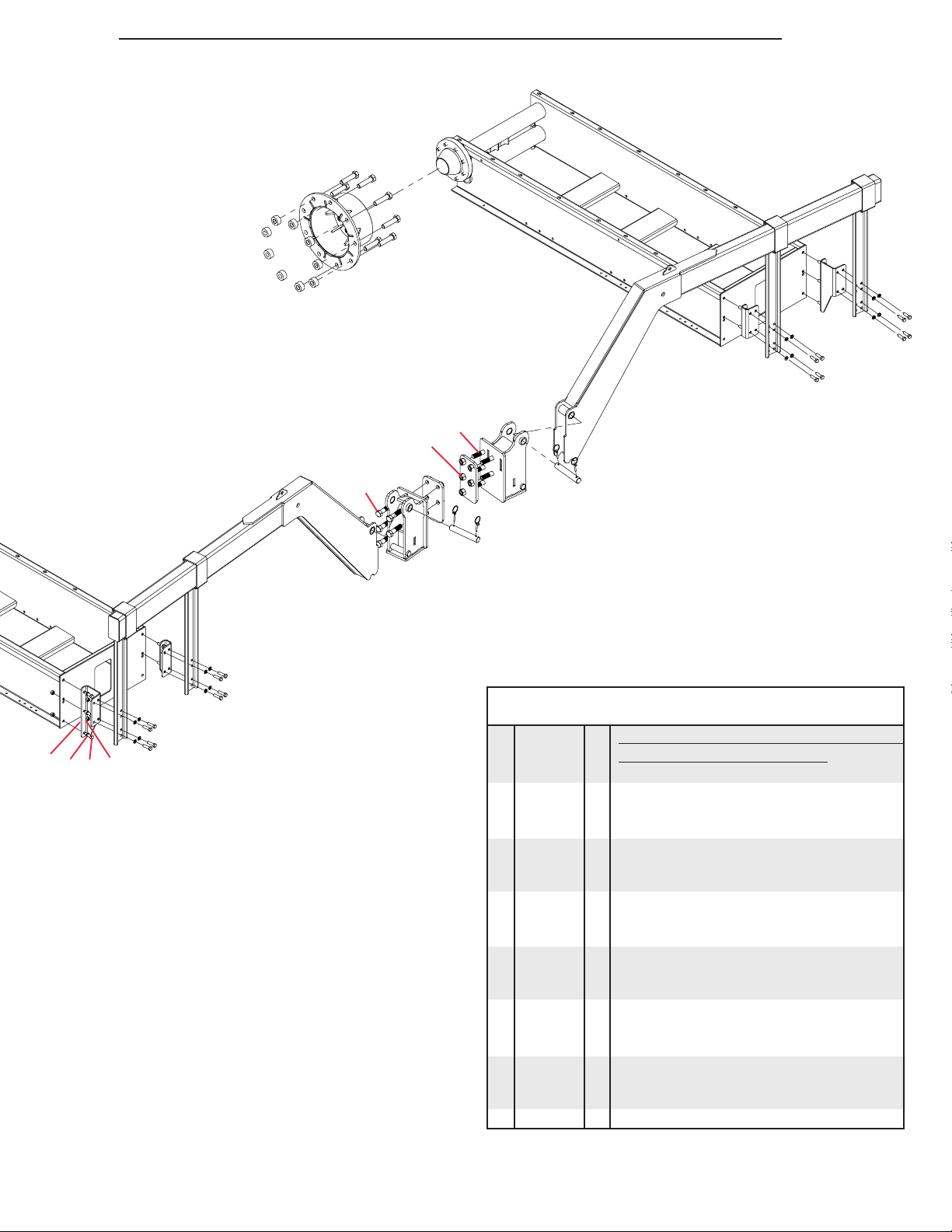

VIEW A

4

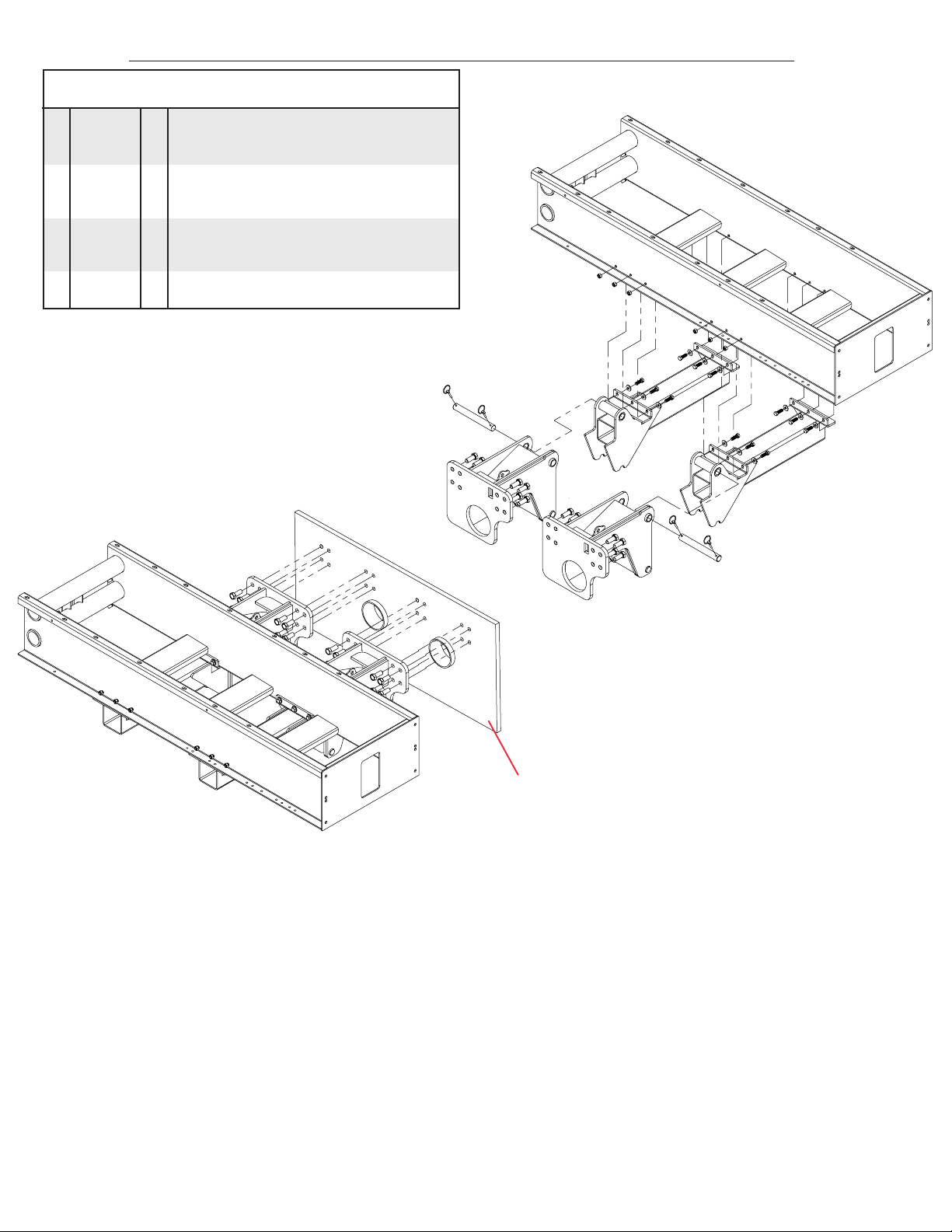

4. Mount the Tank Holder with Tank, and Tank Hold Downs. Before
mounting, decide which height setting is desirable. There are two height
settings. Slide the Tank holder over the spindle as shown in VIEW C.
Make sure the arrow on the end of the spindle is always pointing up as
shown. Use the bottom hole for a higher height setting, and use the
top hole for a lower height setting. Slide the tank holder in until there is
a spacing of approximately 2” between the tire and the Tank Holder.
Use four 1/2”-UNC x 1 1/4” set screws to hold the spindle in place.
Turn the set screws into the threaded inserts on the outside of the tube
the spindle has been placed in.

5. Next bolt the Mounting Extension Arm to the Tank Holder. Use four 1/
2”-UNC x 1 3/4” hex head bolts, four 1/2” lockwashers, and four 1/2”
hex nuts.

6. Repeat same instructions for the opposite side.

NOTE:

View A, B, & C use parts list on next page.

24

22

1

17

19

VIEW B

Page 21

1

23

23

VIEW C

SIDEQUEST PARTS BREAKDOWN

REF. PART

NO. NO. QTY. DESCRIPTION

1. 5619-35 2 Hub & Spindle Assembly

2. 5502-35 2 Hub Assembly (#608 non-braking)

3. 10155-35 2 Spindle

4. 10066-35 2 Hub Spacer

5. 10214-35 16 Tank Hold Down (350 gal. ONLY)

6. 10215-35 2 Tank Hold Down (500 gal. ONLY)

7. 10924-35 12 Tank Support Tube (500 gal. ONLY)

8. 10923-35 3 Support Crossbar (500 gal. ONLY)

9. 10918-35 2 Top Angle Support (500 gal. ONLY)

10. 11644-35 1 Mounting Extension Arm

11. 11442-35 2 Hanger Bracket

12. 10219-35 2 Tank carrier

13. 10064-90 20 Stud Spacer Bolts John Deere

--. 10248-90 20 Stud Spacer Bolts Ford Genesis

--. 10247-90 20 Stud Spacer Bolts Case IH 71, 72, & 89

--. 10261-90 20 Stud Spacer Bolts Case IH MX Magnum

and T G New Holland

14. 10245 8 Cable Assembly

15. 00083 81/2”-UNC Hex Hd. Nut

16. 00084 14 1/2” Lockwasher

17. 00248 16 5/8” Lockwasher

18. 00482 81/2”-UNC x 1 3/4” Gr.5 Hex Hd. Bolt

19. 00965 16 5/8”-UNF x 2” Gr.5 Hex Hd. Bolt

20. 01254 14 1/2”-UNC x 1 1/2” Gr.5 Hex Hd. Bolt

21. 02592 16 3/8”-UNC Nylon Insert Locknut

22. 10284 20 7/8”-UNF x 2” Gr.5 Hex Hd. Bolt

23. 06102 12 Set Screw 1/2

24. 10360 20 7/8” Lockwasher

25. 01253 6 1/2”-UNC x 2” Gr. 5 Hex Head Bolt

26. 00085 20 1/2” Flatwasher

” x 1.25 Cup Point

NOTE:

Refer to this parts list for parts shown on pages 17-20.

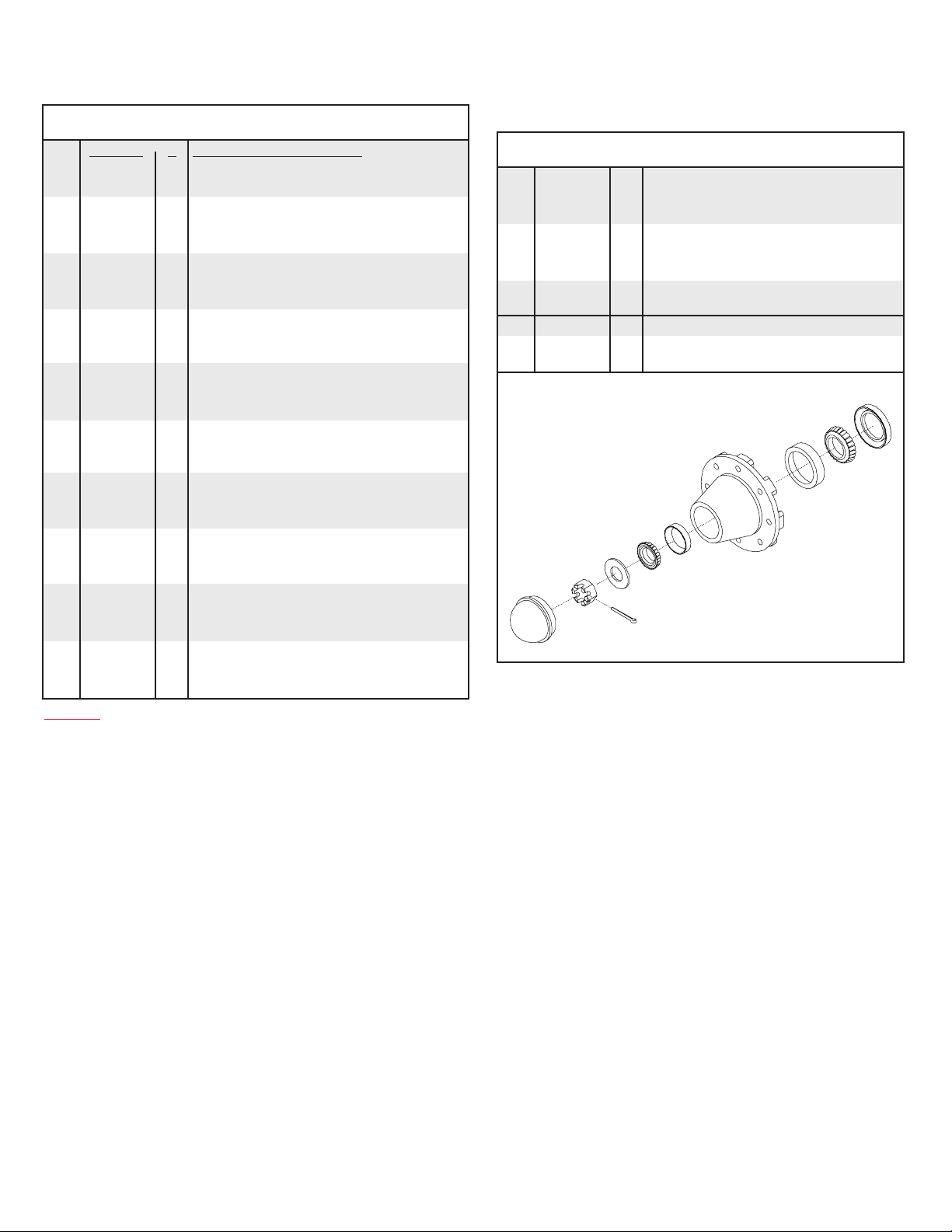

5502 Hub Breakdown

REF. PART

NO. NO. QTY. DESCRIPTION

--. 5502 2 Hub Assembly (#608 non-braking)
A. 01944 1 Oil Seal
B. 01942 1 Inner Cone Bearing
C. 01943 1 Inner Cup
D. 09304 1 Hub
E. 01938 1 Outer Cup
F. 01937 1 Outer Cone Bearing
G. 01933 1 Dust Cap

*H. 01936 1 2 1/4” x 1 1/32” Hardened Washer

*I. 01934 1 Castle Nut

*J. 00191 1 3/16” x 1 1/2” Cotter Pin

*Items H,I, and J are
shown for reference only
and are not included in
hub assembly 5502

E

F

H

G

I

J

D

B

C

A

Page 22

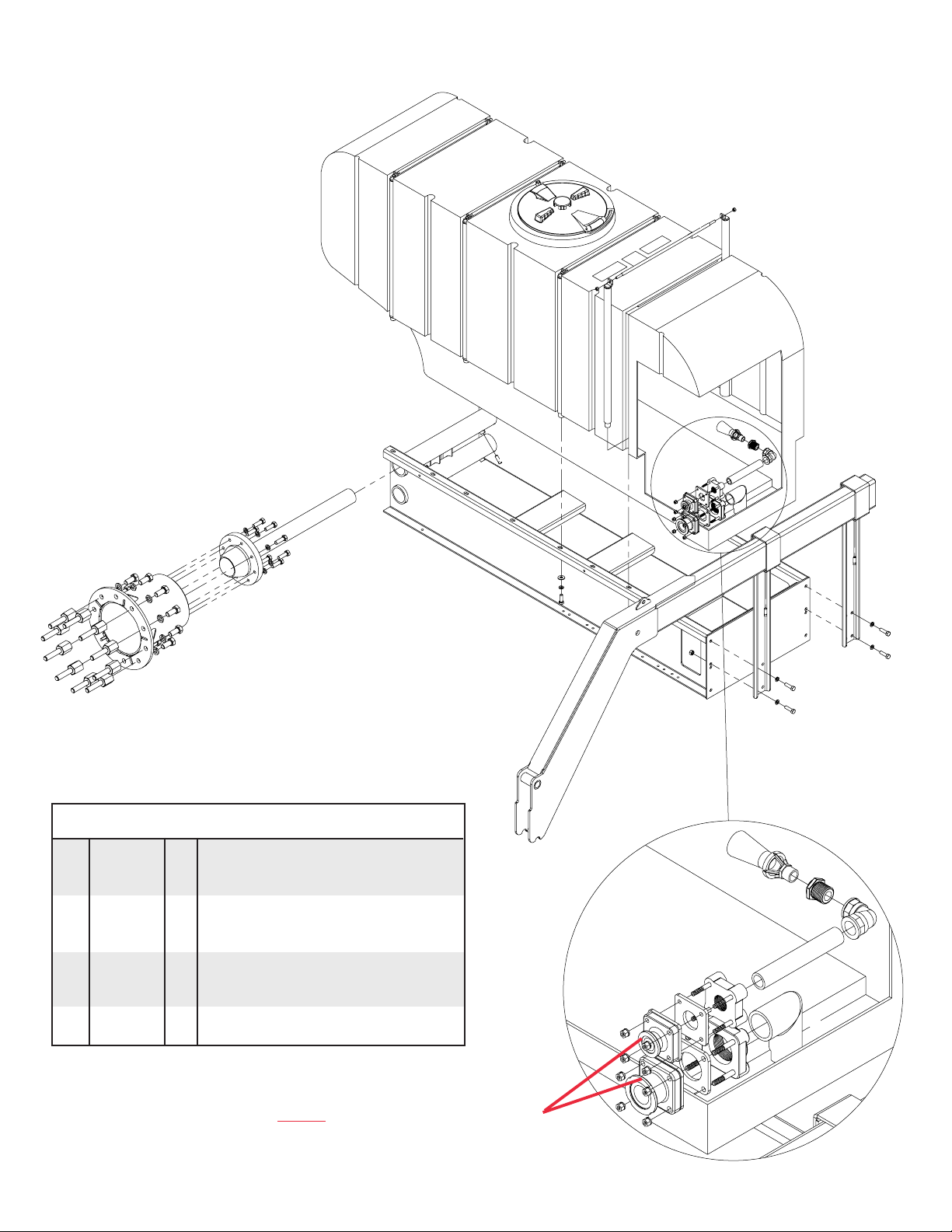

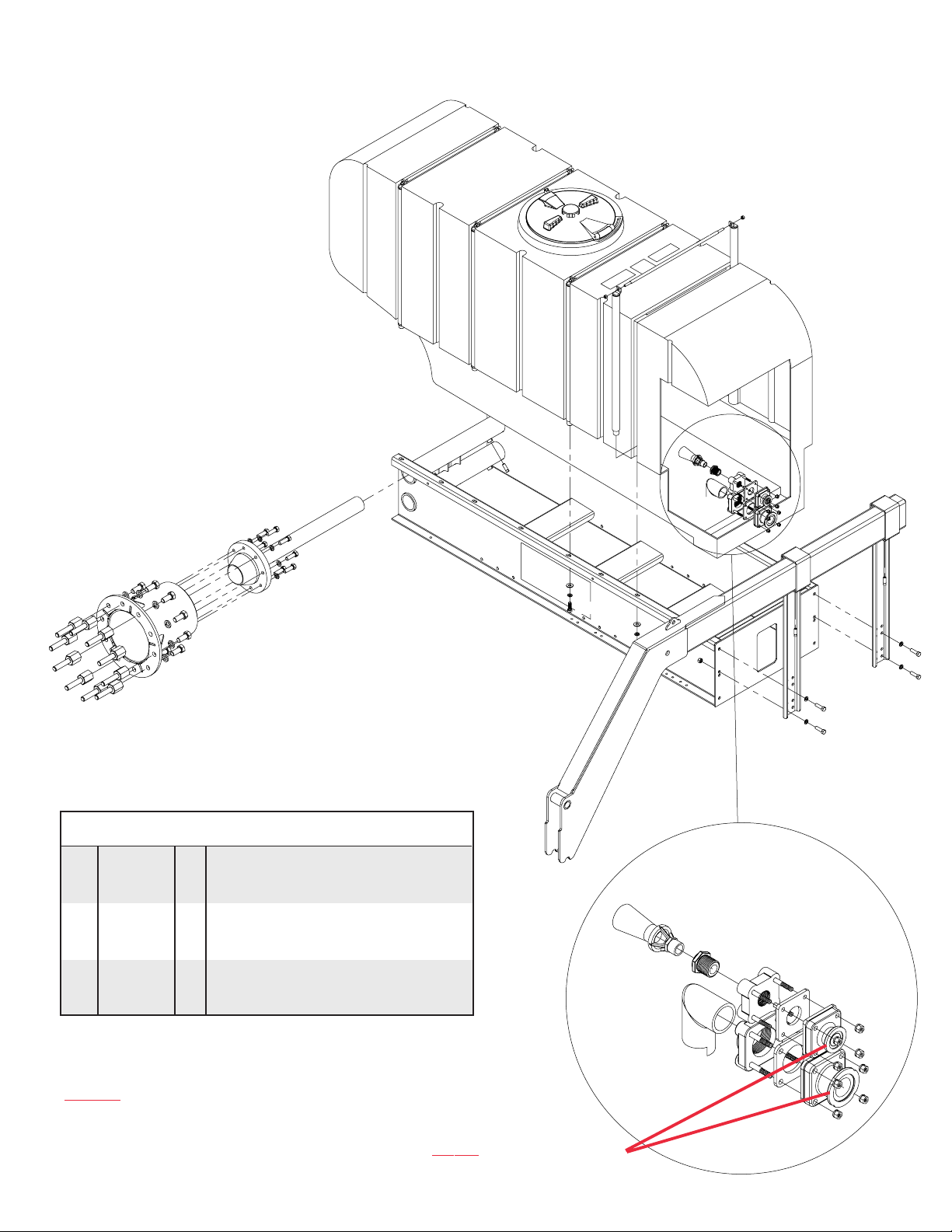

350 GALLON SIDEQUEST PARTS BREAKDOWN

14

1

23

10

2

3

17

4

19

5

21

5

1

1

12

11

12

13

22

8

24

7

3

2

9

4

6

SIDEQUEST PLUMBING BREAKDOWN

REF. PART

NO. NO. QTY. DESCRIPTION

--. P350WA 2 350 gallon SideQuest Tank (white)

--. P350A 2 350 gallon SideQuest Tank (yellow)

--. P500WA 2 500 gallon SideQuest Tank (white)

--. P500A 2 500 gallon SideQuest Tank (yellow)
P1. 09941 1 Agitator Jet
P2. 10267 1 Siphon Tube
P3. BRB1034 11” MPT to 3/4” FPT Reducer Bushing
P4. FTF100 11” Flanged Tank Fitting
P5. FTF200 12” Flanged Tank Fitting
P6. LL100 11” FPT Elbow
P7. PP180 -- 1 ” Polypropylene Pipe

* When ordering replacement tanks, please specify if the
tank you need is either a right or left or center and/or
yellow or white.

NOTE: All units will attach straight

fittings here except for the over­head units. Those brackets will use
elbows here.

1

Page 23

26

1

10

11

1

16

20

1

P4

23

10

15

1

1

P5

P1

16

18

1

P3

1

1

P7

1

1

P2

P6

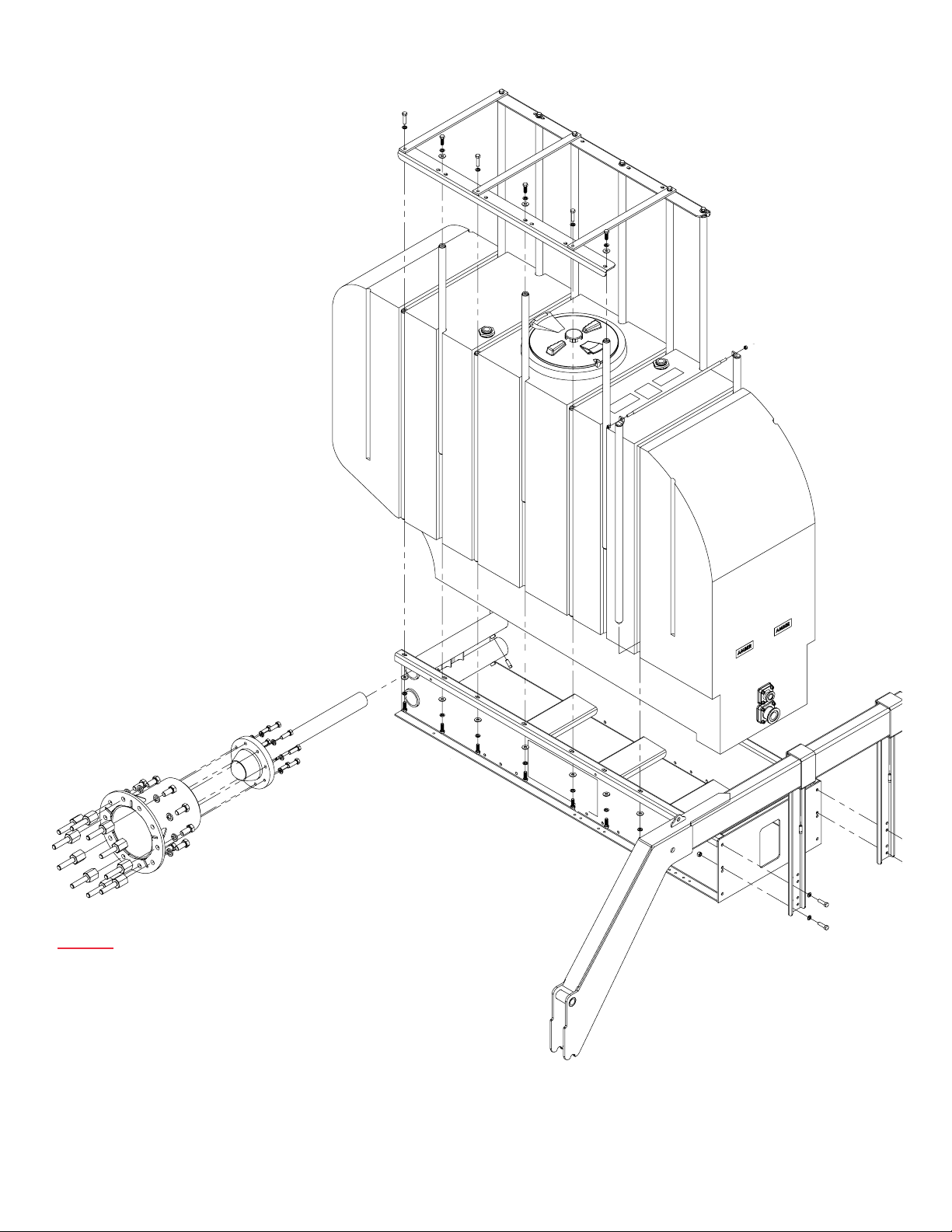

500 GALLON SIDEQUEST PARTS BREAKDOWN

8

9

25

16

16

20

26

7

7

7

12

14

12

12

6

21

3

1

13

4

19

17

3

7

22

6

24

2

8

5

4

2

NOTE:

Refer to p.22 for replacement part numbers.

12

12

23

9

12

26

10

10

16

12

12

20

15

16

18

11

11

23

9

Page 24

350 GALLON SIDEQUEST CENTER EXIT (35631) PARTS BREAKDOWN

21

23

9

14

5

3

13

24

22

19

17

2

4

SIDEQUEST PLUMBING BREAKDOWN

REF. PART

NO. NO. QTY. DESCRIPTION

--. P350WA 2 350 gallon SideQuest Tank (white)

--. P350A 2 350 gallon SideQuest Tank (yellow)

--. P500WA 2 500 gallon SideQuest Tank (white)

--. P500A 2 500 gallon SideQuest Tank (yellow)
P1. 09941 1 Agitator Jet
P2. 10267 1 Siphon Tube
P3. BRB1034 11” MPT to 3/4” FPT Reducer Bushing
P4. FTF100 11” Flanged Tank Fitting
P5. FTF200 12” Flanged Tank Fitting

* When ordering replacement tanks, please specify if the
tank you need is either a right or left or center and/or
yellow or white.

NOTE:

Refer to p.22 for replacement part numbers.

12

26

11

23

16

20

15

16

18

10

P1

P3

P4

P2

P5

NOTE: All units will attach

elbow fittings here.

Page 25

9

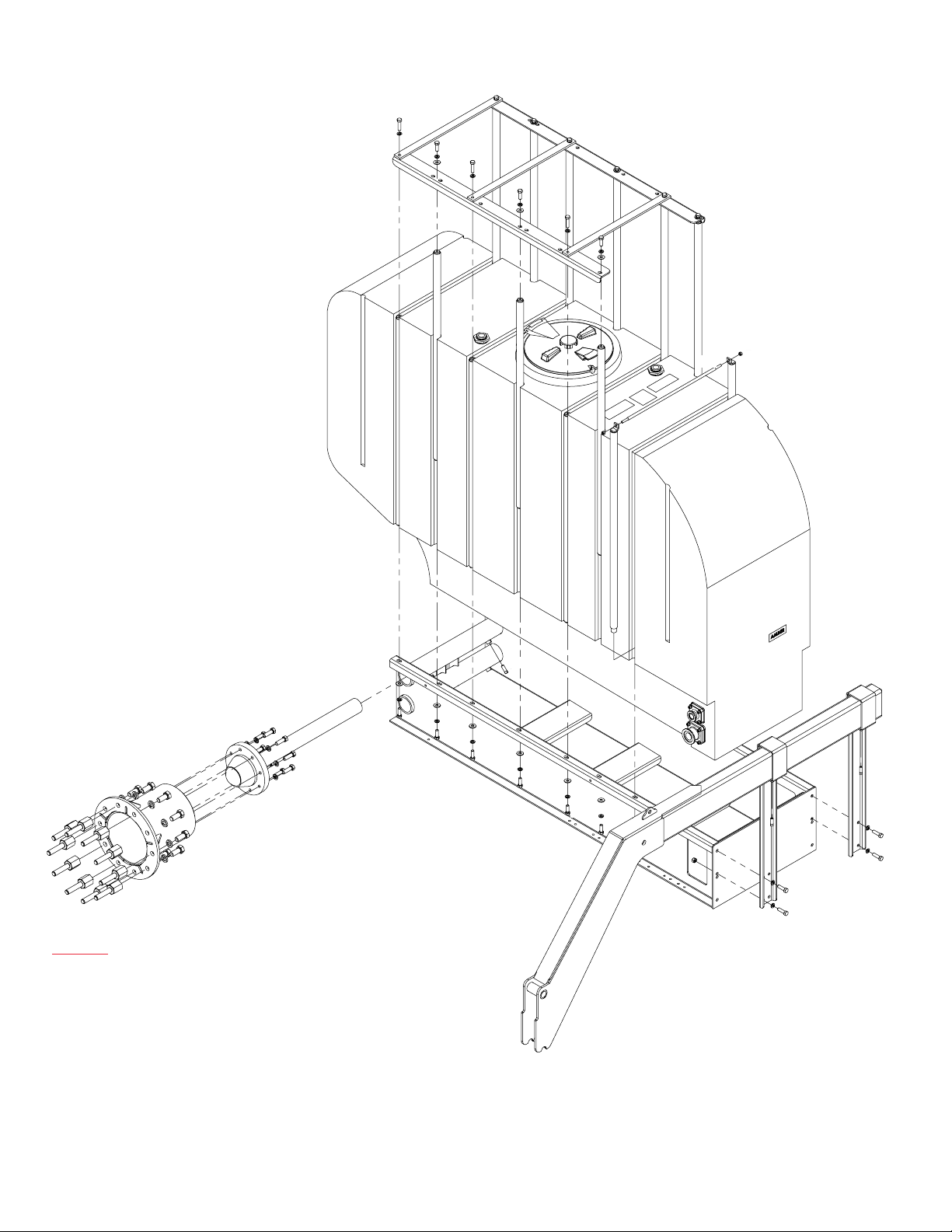

500 GALLON SIDEQUEST CENTER EXIT PARTS BREAKDOWN

8

9

25

16

16

20

26

7

7

7

14

15

15

21

15

6

3

1

13

4

19

17

3

7

22

6

24

2

8

5

4

2

NOTE:

Refer to p.22 for replacement part numbers.

15

12

23

9

15

26

16

15

15

20

10

10

15

16

18

11

11

23

Page 26

OPTIONAL SIDEQUEST JACKSTANDS BREAKDOWN

Notes:

Adjustable jack may be used in two locations.
On the outside of the Stand Mount Bracket
as well as in the rear of the Tank holder.

REF. PART

NO. NO. QTY. DESCRIPTION

1. 07551-35 4 Wheel Stand

2. 10199-35 2 Stand Mounting Bracket

3. 10243 2 Caster Wheel Assembly

4. 10244-35 2 Adjustable Jack Assembly

5. 00182 2 Hair Pin, 7 gauge

6. 00477 85/8” Flatwasher

7. 00489 45/8”-UNC Jam Nut

8. 01718-95 4 Lock pin

9. 02496 45/8”-UNC x 4” Hex Hd Bolt Gr.5

10. 02587 45/8”-UNC Nylon Insert Locknut

11. 04445 46” x 2” Black Wheel with bushing

12. 00060 63/8” Lockwasher

13. 00061 63/8”-UNC Hex Hd. Nut

14. 00907 63/8”-UNC x 1” Hex Hd. Bolt Gr.5

10

12

8

6

6

7

1

11

9

2

5

13

14

4

3

Page 27

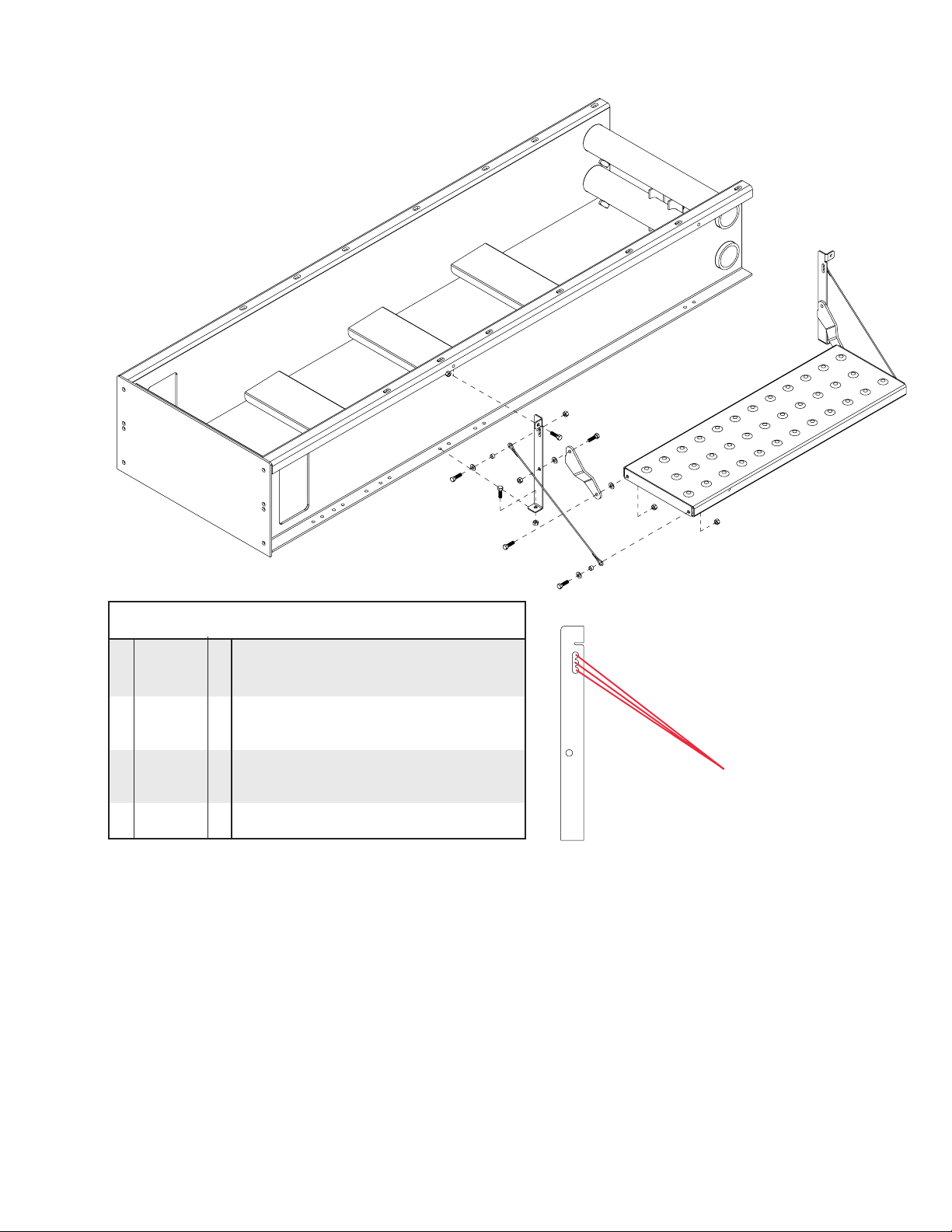

SideQuest Parts Breakdown And Assembly for Optional Fold-away External Step

Rear of Tractor

4

10

5

8

7

7

6

6

2

10

8

8

1

Front of Tractor

11

3

9

8

6

7

7

8

7

Step Parts Breakdown

PA RT

REF.

QTY.

NO.

NO.

1. 11446-35 2 External Step

2. 11447-35 2 Left Step Support

3. 11448-35 2 Left Step Mount

4. 11449-35 2 Right Step Mount

5. 11450-35 2 Right Step Support

6. 00059 20 3/8” Flatwasher

7. 00523 16 3/8” x 1-1/4” Hex Head Bolt (Gr. 5)

8. 02592 16 3/8” Nylon Insert Locknut

9. 07919-95 8 Bushing

10. 11451 4 Support Cable

11. 10219-35 1 Tank Carrier (Not Included w/Kit)

Please order replacement parts by PART NO. and DESCRIPTION.

NOTE: Part quantities are for both sides, but

only one side is shown.

DESCRIPTION

9

6

7

3

NOTE: TO ADJUST ANGLE OF STEP

ADJUST THE CABLES TOP BOLT

TO ONE OF 3 HOLE POSITIONS.

Page 28

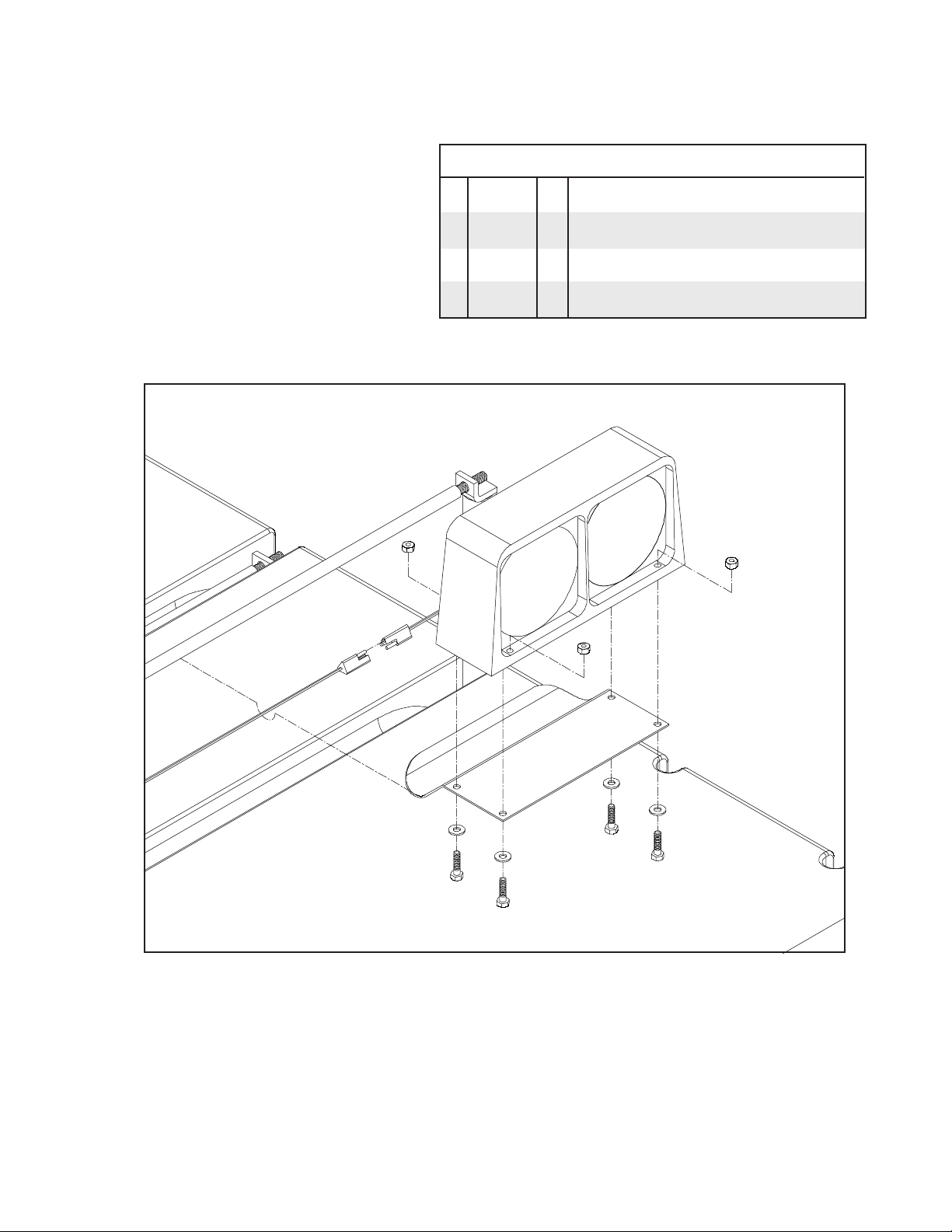

OPTIONAL SIDEQUEST LIGHT KIT PARTS BREAKDOWN

PARTS LIST

REF. PART
NO. NO. QTY. DESCRIPTION

1. 00214 8 .25” Flat Washer

2. 02772 8 .25” UNC Nylon Insert Lock Nut

3. 04055 8 .25” x 1.00” UNC Bolt, Grade 5

4. 07416 1 Male Connector Plug

5. 09058 1 Wire Harness (90’ X-Fold Clearance Lights)

--. 10032 1 Left Dual Ag Light

7. 10033 1 Right Dual Ag Light

8. 10329-35 1 Light Mounting Bracket

Please order replacement parts by PART NO. and DESCRIPTION

7

2

2

4

5

1

1

3

3

2

8

1

1

3

3

Page 29

NOTES:

Page 30

SPRAYER CHECKLIST:

Downtime caused by field breakdowns is costly and time consuming. Many breakdowns can be
eliminated by periodic equipment maintenance. By spending time reviewing this checklist before
seasonal spraying application time and following proper after season care, you can save time and
money later.

WARNING: To Prevent Serious Injury Or Death!

• Keep hands, feet, and loose clothing away from rotating parts.

• Wear protective clothing recommended by your chemical and

fertilizer manufacturer when working with chemicals.

Check Before Going To The Field :

1. NOZZLES

Check tip for excessive wear by checking for grooves in
or near tip opening. Check nozzle spacing by starting at
center and working outwards. Check boom for proper
height.

2. HOSES

Check all hoses for worn or soft spots. Be sure all hose
clamps are tightened and hoses are not kinked or pinched.
Check for leakage in any lines.

3. TANK

Remove and clean agitator orifices. Check orifices for
excessive wear by checking for grooves in or near orifice
opening. Inspect fitting and grommets to insure they are
in good condition.

4. CONTROLS

Check for leakage, plugging, or wear on all valves,
fittings, etc. Clean off any build up of foreign material.

5. PUMP

Check to be sure pump turns freely.

6. FRAME

Be sure all bolts are tightened.

7. REPLACEMENT PARTS

Replace all worn or damaged parts.

After Season Care:

NOTE: It is important to wear proper safety equipment

when cleaning the SIDEQUEST . See your
chemical or fertilizer package for this information.

1. After spraying chemicals, run water mixed with cleaners

through tank, pump and all hose hookups. If wettable
powder dries out in the system, it is very difficult to put
back into suspension and can cause malfunction,
damage or injury.

2. When cleaned, tank should have all openings closed or

covered to keep dirt from entering.

3. Pump should be flushed with soluble oil and pump ports

plugged to keep out moisture and air.

4. Disassemble tips and rinse with water or cleaning

solution. (Appropriate for chemical sprayed).

5. Clean tip opening with a wooden toothpick. Never use

wire or hard object that could distort opening.

6. Dispose of all unused chemicals or solutions in a proper

and ecologically sound manner.

6. Water rinse and dry tips before storing.

NOTE: DETHMERS MANUFACTURING COMPANY

does not and will not make any recommendations
concerning application of various chemicals or
solutions. These recommendations relate to either
amount or procedure of materials applied. If you
have any questions regarding application of certain
chemicals or solutions, contact your chemical
supplier and follow chemical manufacturer
recommendations.

Page 31

DETHMERS MFG. COMPANY

P.O. BOX 189

4010 320th St., BOYDEN, IA. 51234

PH: [phone] FAX: [phone]

TOLL FREE: 1-800-54DEMCO (1-800-543-3626)

www.demco-products.com

Page 32
