Delta Tau TURBO PMAC2A User Manual

^1 HARDWARE REFERENCE MANUAL

PMAC2A-PC/104 CPU

^3 PMAC2A-PC/104 CPU Hardware Reference

^4 4xx-603670-xAxx

^5 July 29, 2008

Single Source Machine Control Power // Flexibility // Ease of Use

21314 Lassen Street Chatsworth, CA 91311 // Tel. [phone] Fax. [phone] // www.deltatau.com

Copyright Information

© 2008 Delta Tau Data Systems, Inc. All rights reserved.

This document is furnished for the customers of Delta Tau Data Systems, Inc. Other uses are
unauthorized without written permission of Delta Tau Data Systems, Inc. Information contained
in this manual may be updated from time-to-time due to product improvements, etc., and may not
conform in every respect to former issues.

To report errors or inconsistencies, call or email:

Delta Tau Data Systems, Inc. Technical Support

Phone: [phone]
Fax: [phone]
Email: [e-mail]
Website: http://www.deltatau.com

Operating Conditions

All Delta Tau Data Systems, Inc. motion controller products, accessories, and amplifiers contain
static sensitive components that can be damaged by incorrect handling. When installing or
handling Delta Tau Data Systems, Inc. products, avoid contact with highly insulated materials.
Only qualified personnel should be allowed to handle this equipment.

In the case of industrial applications, we expect our products to be protected from hazardous or
conductive materials and/or environments that could cause harm to the controller by damaging
components or causing electrical shorts. When our products are used in an industrial
environment, install them into an industrial electrical cabinet or industrial PC to protect them
from excessive or corrosive moisture, abnormal ambient temperatures, and conductive materials.
If Delta Tau Data Systems, Inc. products are exposed to hazardous or conductive materials and/or
environments, we cannot guarantee their operation.

REV. DESCRIPTION DATE CHG APPVD

1 UPDATED JUMPER DESCRIPTIONS PGS. 6 & 30 05/17/06 CP S. MILICI

2 REVS: J4, E20-23, CONNECTOR PINOUTS,

& BOARD DIAGRAMS

3 CORRECTED TYPO IN I-VARIABLE SETTINGS, P. 17 01/22/08 CP S.MILICI

4 CORRECTED USER FLAGS FOR PINS 25 & 26, P.36 07/29/08 CP C.COKER

REVISION HISTORY

10/04/06 CP P. SHANTZ

PMAC2A PC104 Hardware Reference Manual

Table of Contents

INTRODUCTION .......................................................................................................................................................1

Board Configuration..................................................................................................................................................1

Base Version .........................................................................................................................................................1

Board Options ...........................................................................................................................................................1

Option 2A: PC/104 Bus Stack Interface ..............................................................................................................1

Option 5xF: CPU Speed Options.........................................................................................................................1

Option 6: Extended Firmware Algorithm............................................................................................................1

Option 6L: Multi-block Lookahead Firmware.....................................................................................................1

Option 10: Firmware Version Specification.........................................................................................................2

Option 12: Analog-to-Digital Converters.............................................................................................................2

Additional Accessories..............................................................................................................................................2

Acc-1P: Axis Expansion Piggyback Board...........................................................................................................2

Acc-2P: Communications Board .........................................................................................................................2

Acc-8TS Connections Board.................................................................................................................................3

Acc-8ES Four-Channel Dual-DAC Analog Stack Board......................................................................................3

Acc-8FS Four-Channel Direct PWM Stack Breakout Board................................................................................3

HARDWARE SETUP .................................................................................................................................................5

Clock Configuration Jumpers....................................................................................................................................5

Reset Jumpers............................................................................................................................................................5

CPU Configuration Jumpers .....................................................................................................................................6

Communication Jumpers...........................................................................................................................................6

ADC Configuration Jumpers.....................................................................................................................................6

Encoder Configuration Jumpers................................................................................................................................6

Single-Ended Encoders.........................................................................................................................................6

Differential Encoders............................................................................................................................................6

MACHINE CONNECTIONS.....................................................................................................................................9

Mounting ...................................................................................................................................................................9

Power Supplies..........................................................................................................................................................9

Digital Power Supply............................................................................................................................................9

DAC Outputs Power Supply .................................................................................................................................9

Flags Power Supply............................................................................................................................................10

Overtravel Limits and Home Switches....................................................................................................................10

Types of Overtravel Limits..................................................................................................................................10

Home Switches....................................................................................................................................................10

Motor Signals Connections .....................................................................................................................................10

Incremental Encoder Connection .......................................................................................................................10

DAC Output Signals ...........................................................................................................................................11

Pulse and Direction (Stepper) Drivers ...............................................................................................................11

Amplifier Enable Signal (AENAx/DIRn).............................................................................................................11

Amplifier Fault Signal (FAULT-) .......................................................................................................................12

Optional Analog Inputs ...........................................................................................................................................12

Compare Equal Outputs ..........................................................................................................................................12

Serial Port (JRS232 Port) ........................................................................................................................................12

Machine Connections Example: Using Analog ±10V Amplifier............................................................................13

Machine Connections Example: Using Pulse and Direction Drivers......................................................................14

SOFTWARE SETUP ................................................................................................................................................15

PMAC I-Variables...................................................................................................................................................15

Communications......................................................................................................................................................15

Operational Frequency and Baud Rate Setup ....................................................................................................15

Filtered DAC Output Configuration........................................................................................................................16

Parameters to Set up Global Hardware Signals.................................................................................................17

Parameters to Set Up Per-Channel Hardware Signals ......................................................................................18

Table of Contents i

PMAC2A PC104 Hardware Reference Manual

Effects of Changing I900 on the System .............................................................................................................18

How does changing I900 effect other settings in PMAC ....................................................................................20

Effects of Output Resolution and Servo Interrupt Frequency on Servo Gains....................................................21

Using Flag I/O as General-Purpose I/O...................................................................................................................22

Analog Inputs Setup................................................................................................................................................22

CPU Analog Inputs.............................................................................................................................................22

HARDWARE REFERENCE SUMMARY .............................................................................................................23

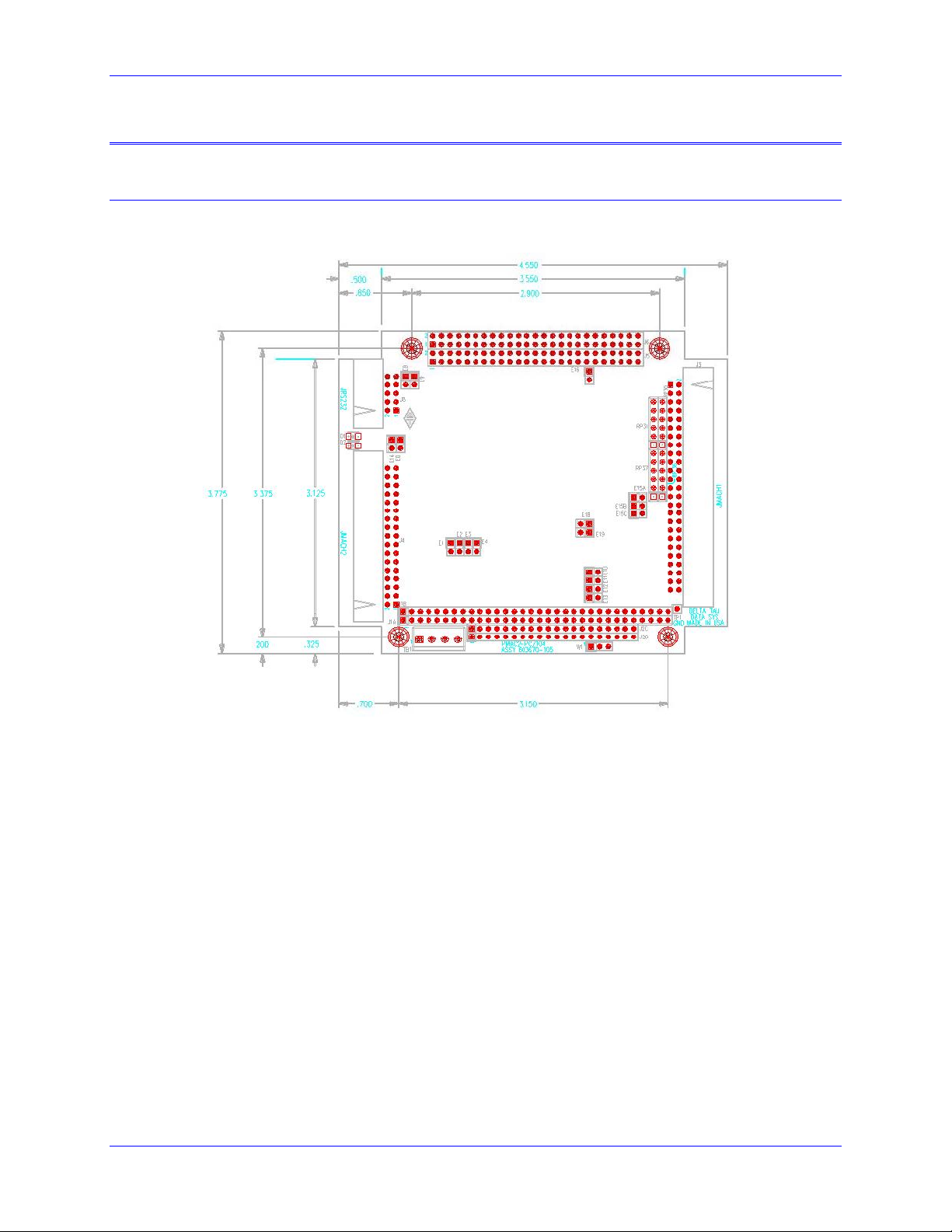

Board Dimensions...................................................................................................................................................23

From v106 to 107................................................................................................................................................23

From v107 to 108................................................................................................................................................24

From v108 to 109................................................................................................................................................25

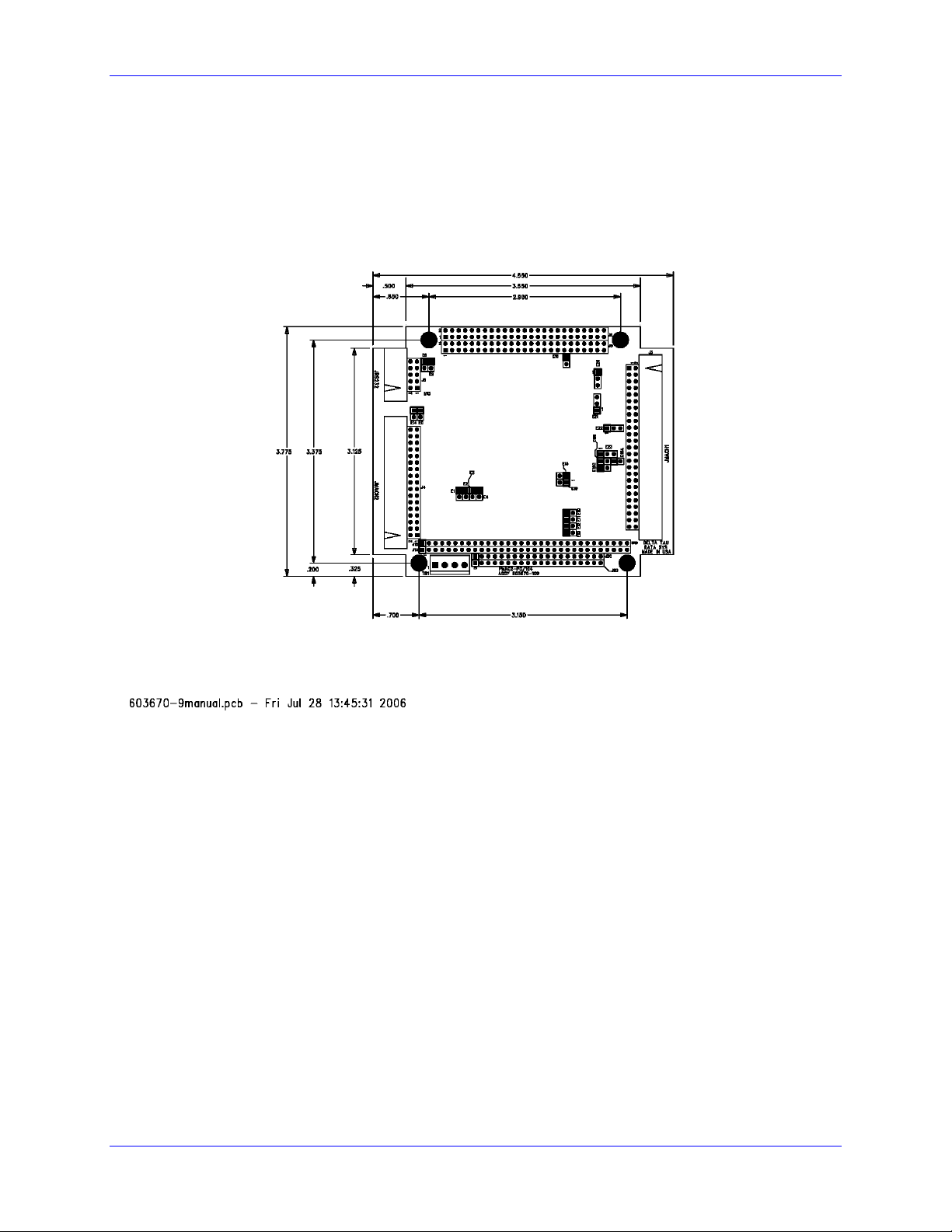

Board Layout...........................................................................................................................................................26

Connectors and Indicators.......................................................................................................................................27

J3 - Machine Connector (JMACH1 Port)...........................................................................................................27

J4 - Machine Connector (JMACH2 Port)...........................................................................................................27

J8 - Serial Port (JRS232 Port)............................................................................................................................27

TB1 – Power Supply Terminal Block (JPWR Connector) ..................................................................................27

LED Indicators ...................................................................................................................................................27

E-POINT JUMPER DESCRIPTIONS ....................................................................................................................29

E0: Forced Reset Control .......................................................................................................................................29

E1: Servo and Phase Clock Direction Control .......................................................................................................29

E2: CPU Frequency Select.....................................................................................................................................29

E3: Normal/Re-Initializing Power-Up/Reset..........................................................................................................29

E4: CPU Frequency Select.....................................................................................................................................30

E8: Phase Clock Lines Output Enable....................................................................................................................30

E9: Servo Clock Lines Output Enable....................................................................................................................30

E10 – E12: Power-Up State Jumpers .....................................................................................................................30

E13: Power-Up/Reset Load Source........................................................................................................................31

E14: Watchdog Disable Jumper.............................................................................................................................31

E15A, B, C: Flash Memory Bank Select................................................................................................................31

E16: ADC Inputs Enable.........................................................................................................................................31

E18 – E19: PC/104 Bus Address............................................................................................................................32

E20-E23: ENCODER SINGLE ENDED/DIFFERENTIAL SELECT (Note: v107 and above only) ..............32

CONNECTOR PINOUTS.........................................................................................................................................33

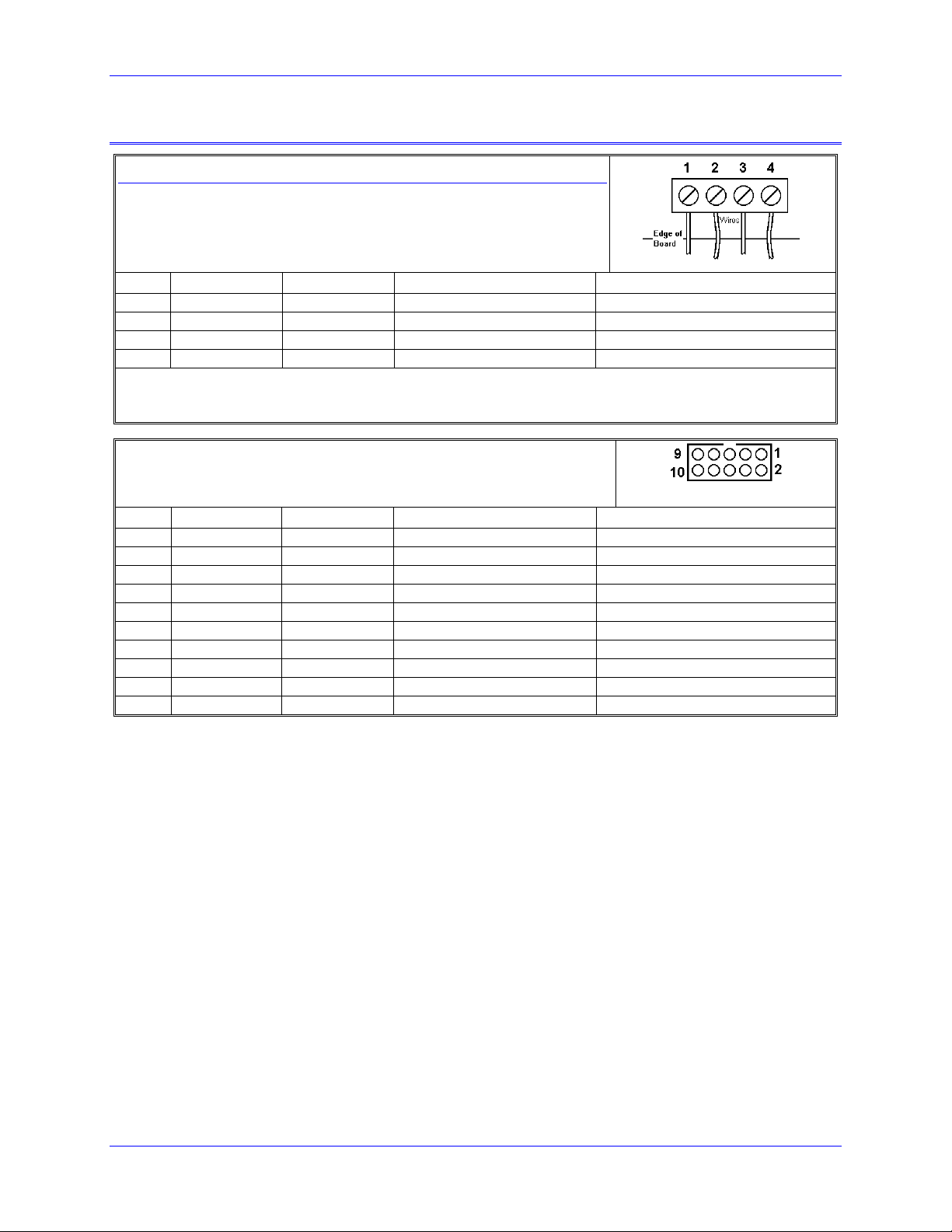

TB1 (JPWR): Power Supply ..................................................................................................................................33

J4 (JRS232) Serial Port Connector..........................................................................................................................33

J3 (JMACH1): Machine Port Connector.................................................................................................................34

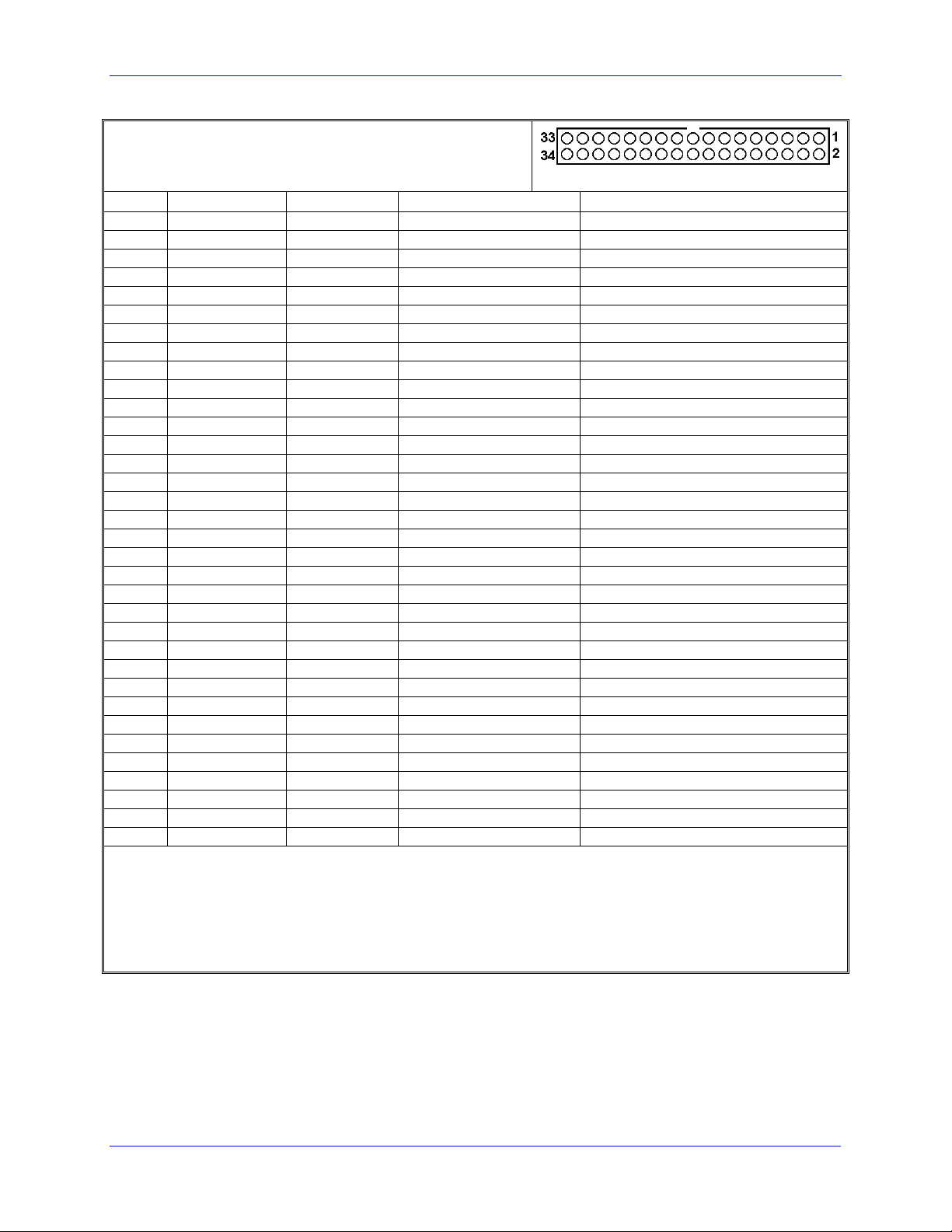

J3 JMACH1 (50-Pin Header)..................................................................................................................................35

J4 (JMACH2): Machine Port CPU Connector ........................................................................................................36

SCHEMATICS ..........................................................................................................................................................38

ii Table of Contents

PMAC2A PC104 Hardware Reference Manual

INTRODUCTION

The PMAC2A PC/104 motion controller is a compact, cost-effective version of Delta Tau’s PMAC2
family of controllers. The PMAC2A PC/104 can be composed of three boards in a stack configuration.

The CPU provides four channels of either DAC ±10V or pulse and direction command outputs. The
optional axis expansion board provides a set of four additional servo channels and I/O ports. The optional
communications board provides extra I/O ports and either the USB or Ethernet interface for faster
communications.

Board Configuration

Base Version

The base version of the PMAC2A PC/104 ordered with no options provides a 90mm x 95mm board with:

• 40 MHz DSP563xx CPU (80 MHz 560xx equivalent)

• 128k x 24 internal zero-wait-state SRAM

• 512k x 8 flash memory for user backup and firmware

• Latest released firmware version

• RS-232 serial interface

• Four channels axis interface circuitry, each including:

• 12-bit ±10V analog output

• Pulse-and-direction digital outputs

• 3-channel differential/single-ended encoder input

• Four input flags, two output flags

• Three PWM top-and-bottom pairs (unbuffered)

• 50-pin IDC header for amplifier/encoder interface

• 34-pin IDC header for flag interface

• PID/notch/feed forward servo algorithms

• 1-year warranty from date of shipment

• One CD-ROM per set of one to four PMACs in shipment (Cables, mounting plates, mating

connectors not included)

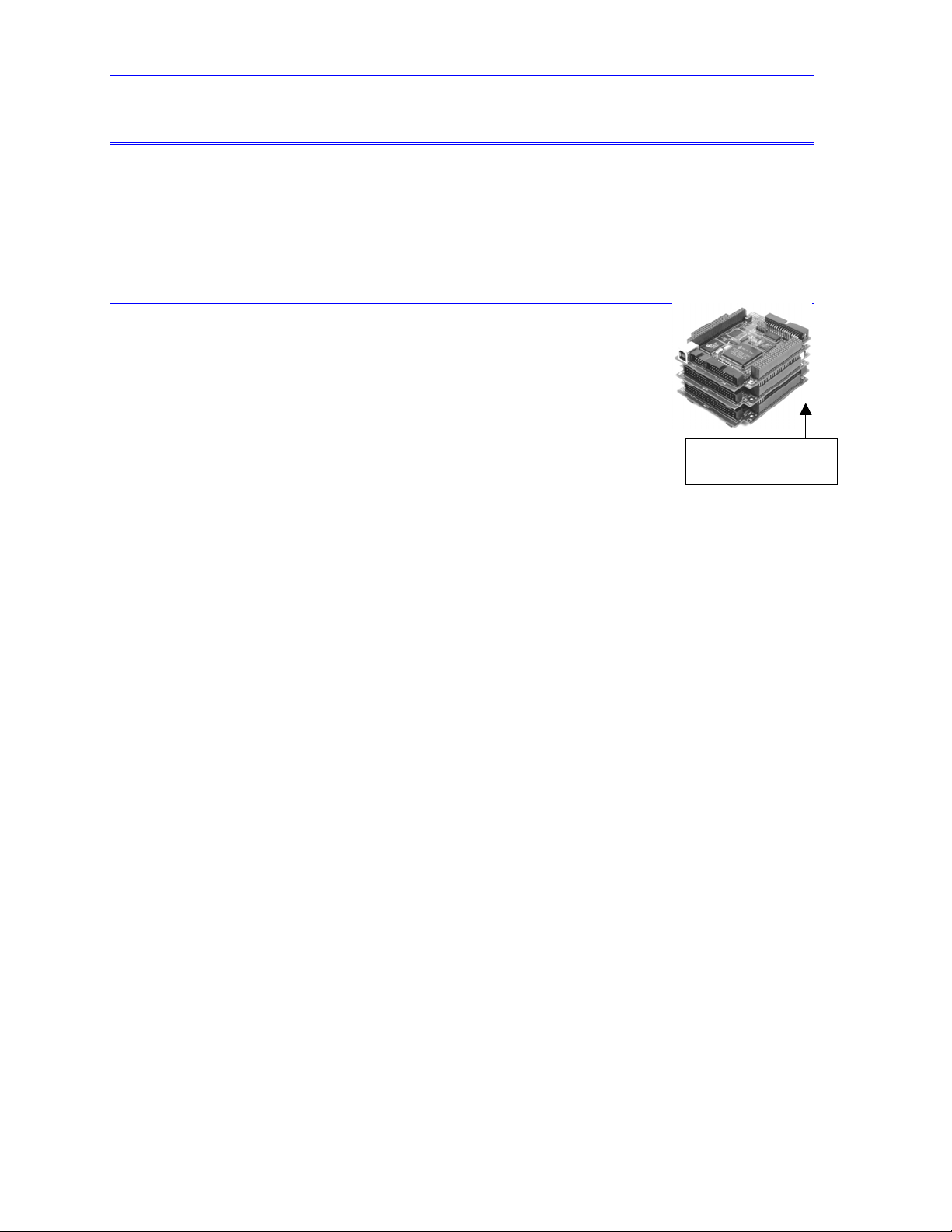

PMAC2A-PC/104 Base Board shown

Board Options

Option 2A: PC/104 Bus Stack Interface

Option 2A provides the PC/104 bus interface allowing bus communications between a PC/104 type
computer and the PMAC2A PC/104 motion controller.

Option 5xF: CPU Speed Options

• Option 5CF: 80 MHz DSP563xx CPU (160 MHz 56002 equivalent)

• Option 5EF: 160 MHz DSP563xx CPU (320 MHz 56002 equivalent)

Option 6: Extended Firmware Algorithm

Option 6 provides an Extended (Pole-Placement) Servo Algorithm firmware instead of the regular servo
algorithm firmware. This is required only in difficult-to-control systems (resonances, backlash, friction,
disturbances, changing dynamics).

Option 6L: Multi-block Lookahead Firmware

Option 6L provides a special lookahead firmware for sophisticated acceleration and cornering profiles
execution. With the lookahead firmware PMAC controls the speed along the path automatically (but
without changing the path) to ensure that axis limits are not violated.

Introduction 1

PMAC2A PC104 Hardware Reference Manual

Option 10: Firmware Version Specification

Normally the PMAC2A PC/104 is provided with the newest released firmware version. A label on the
memory IC shows the firmware version loaded at the factory. Option 10 provides for a user-specified
firmware version.

Option 12: Analog-to-Digital Converters

Option 12 permits the installation of two channels of on-board analog-to-digital converters with ±10V
input range and 12-bits resolution. The key component installed with this option is U20.

Additional Accessories

Acc-1P: Axis Expansion Piggyback Board

Acc-1P provides four additional channels axis interface circuitry for a total of eight servo channels, each
including:

• 12-bit ±10V analog output

• Pulse-and-direction digital outputs

• 3-channel differential/single-ended encoder input

• Four input flags, two output flags

• Three PWM top-and-bottom pairs (unbuffered)

Acc-1P Option 1: I/O Ports

Option 1 provides the following ports on the Acc-1P axes expansion board for digital I/O connections.

• Multiplexer Port: This connector provides eight input lines and eight output lines at TTL levels.

When using the PMAC Acc-34x type boards these lines allow multiplexing large numbers of
inputs and outputs on the port. Up to 32 of the multiplexed I/O boards may be daisy-chained on
the port, in any combination.

• I/O Port: This port provides eight general-purpose digital inputs and eight general-purpose digital

outputs at 5 to 24Vdc levels. This 34-pin connector was designed for easy interface to OPTO-22
or equivalent optically isolated I/O modules when different voltage levels or opto-isolation to the
PMAC2A PC/104 is necessary.

• Handwheel port: this port provides two extra channels, each jumper selectable between encoder

input or pulse output.

Acc-1P Option 2: Analog-to-Digital Converters

Option 2 permits the installation on the Acc-1P of two channels of analog-to-digital converters with ±10V
input range and 12-bits resolution. The key component installed with this option is U20.

Acc-2P: Communications Board

Without any options, the PMAC2A PC/104 communicates through the RS-232 serial interface (using the
optional Acc-3L flat cable) or PC/104 bus. This board provides added communication and I/O features.

Acc-2P Option 1A: USB Interface

Option 1A it provides a 480 Mbit/sec USB 2.0 interface.

Acc-2P Option 1B: Ethernet Interface

Option 1B provides a 100 Mbit/sec Ethernet.

Acc-2P Option 2: DPRAM Circuitry

Option 2 provides an 8K x 16 dual-ported RAM used with USB, Ethernet or PC/104 bus applications. If
using for USB or Ethernet communications, Acc-2P-Opt-1A or Acc-2P-Opt-1B must be ordered. If used

2 Introduction

PMAC2A PC104 Hardware Reference Manual

for PC/104-bus communications, PMAC2A PC/104 Option-2A must be ordered. The key component
installed with this option is U17. USB/Ethernet and PC/104 bus communications cannot be made
simultaneously it is jumper selectable.

Acc-2P Option 3: I/O Ports

Option 3 provides the following ports on the Acc-2P communications board for digital I/O connections.

• Multiplexer Port: this connector provides eight input lines and eight output lines at TTL levels.

When using the PMAC Acc-34x type boards these lines allow multiplexing large numbers of
inputs and outputs on the port. Up to 32 of the multiplexed I/O boards may be daisy-chained on
the port, in any combination.

• I/O Port: this port provides 16 general-purpose digital I/O lines at TTL levels and these can be

configured as all inputs, all outputs or eight inputs and eight outputs.

• Handwheel port: this port provides two extra channels, each jumper selectable between encoder

input or pulse output.

Acc-8TS Connections Board

Acc-8TS is a stack interface board to for the connection of either one or two Acc-28B A/D converter
boards. When a digital amplifier with current feedback is used, the analog inputs provided by the Acc­28B cannot be used.

Acc-8ES Four-Channel Dual-DAC Analog Stack Board

Acc-8ES provides four channels of 18-bit dual-DAC with four DB-9 connectors. This accessory is
stacked to the PMAC2A PC/104 board and it is mostly used with amplifiers that require two ±10 V
command signals for sinusoidal commutation.

Acc-8FS Four-Channel Direct PWM Stack Breakout Board

Acc-8FS it is a 4-channel direct PWM stack breakout board for PMAC2A PC/104. This is used for
controlling digital amplifiers that require direct PWM control signals. When a digital amplifier with
current feedback is used, the analog inputs provided by the Option 12 of the PMAC2A PC/104 (the
Option 2 of the Acc-1P or the Acc-28B) could not be used.

Introduction 3

PMAC2A PC104 Hardware Reference Manual

4 Introduction

PMAC2A PC104 Hardware Reference Manual

HARDWARE SETUP

On the PMAC2 PC/104 CPU, there are a number of jumpers called E-points or W-points. That customize
the hardware features of the CPU for a given application and must be setup appropriately. The following
is an overview grouped in appropriate categories. For an itemized description of the jumper setup
configuration, refer to the E-Point Descriptions section.

Clock Configuration Jumpers

E1: Servo and Phase Clock Direction Control – Jumper E1 should be OFF if the board is to use its
own internally generated phase and servo clock signals. In this case, these signals are output on spare
pins on the J8 RS-232 serial-port connector, where they can be used by other PMAC controllers set up to
take external phase and servo clock signals.

Jumper E1 should be ON if the board is to use externally generated phase and servo clock signals brought
in on the J8 RS-232 serial port connector. In this case, typically the clock signals are generated by
another PMAC controller and output on its serial port connector.

If E1 is ON for external phase and clock signals, and these clock signals are not brought in on the serial
port connector, the watchdog timer will trip almost immediately and shut down the board.

E2 and E4: CPU Frequency Control Jumpers – When the PMAC I46 I- variable is set to zero jumpers
E2 and E4 on the base PMAC2A PC/104 board control the frequency at which the CPU will operate (or
attempt to operate). Generally, this will be the highest frequency at which the CPU is rated to operate.
Note that it is always possible to operate a CPU at a frequency lower than its maximum rating. While it
may be possible to operate an individual processor at a frequency higher than its maximum rating,
particularly at low ambient temperatures, performance cannot be guaranteed at such a setting, and this
operation is done completely at the user’s own risk.

• If jumpers E2 and E4 are both OFF, the CPU will operate at a 40 MHz frequency.

• If E2 is ON and E4 is OFF, the CPU will operate at a 60 MHz frequency.

• If E2 is OFF and E4 is ON, the CPU will operate at an 80 MHz frequency.

If I46 is set to a value greater than 0, the operational frequency is set to 10MHz * (I46 + 1), regardless of
the jumper setting. See the Software Setup section for details on this.

E8: Phase Clock Lines Output Enable – Jump pin 1 to 2 to enable the Phase clock line on the J8
connector. Remove jumper to disconnect the Phase clock line on the J8 connector.

E9: Servo Clock Lines Output Enable – Jump pin 1 to 2 to enable the Servo clock line on the J8
connector. Remove jumper to disconnect the Servo clock line on the J8 connector.

Reset Jumpers

E0: Forced Reset Control – Remove E0 for normal operation. Installing E0 forces PMAC to a reset
state, this configuration is for factory use only; the board will not operate with E0 installed.

E3: Re-Initialization on Reset Control – If E3 is OFF (default), PMAC executes a normal reset,
loading active memory from the last saved configuration in non-volatile flash memory. If E3 is ON,
PMAC re-initializes on reset, loading active memory with the factory default values.

E13: Firmware Load Jumper – If jumper E13 is ON during power-up/reset, the board comes up in
bootstrap mode which permits loading of firmware into the flash-memory IC. When the PMAC
Executive program tries to establish communications with a board in this mode, it will detect
automatically that the board is in bootstrap mode and ask what file to download as the new firmware.

Jumper E13 must be OFF during power-up/reset for the board to come up in normal operational mode.

Hardware Setup 5

PMAC2A PC104 Hardware Reference Manual

6

CPU Configuration Jumpers

E15A-E15C: Flash Memory Bank Select Jumpers – The flash-memory IC in location U10 on the
PMAC2A PC/104 base board has the capacity for eight separate banks of firmware, only one of which
can be used at any given time. The eight combinations of settings for jumpers E15A, E15B, and E15C
select which bank of the flash memory is used. In the factory production process, firmware is loaded only
into Bank 0, which is selected by having all of these jumpers OFF.

E10-E12: Power-Up State Jumpers – Jumper E10 must be OFF, jumper E11 must be ON, and jumper
E12 must be ON, in order for the CPU to copy the firmware from flash memory into active RAM on power­up/reset. This is necessary for normal operation of the card. (Other settings are for factory use only.)

E14: Watchdog Timer Jumper – Jumper E14 must be OFF for the watchdog timer to operate. This is a
very important safety feature, so it is vital that this jumper be OFF for normal operation. E14 should only
be put ON to debug problems with the watchdog timer circuit.

W1: Flash chip select – Jumper W1 in position 1-2 selects a 28F320J3A part for the U10 flash chip.
Jumper W1 in position 2-3 selects a 28F320J5A part for the U10 flash chip. This jumper is installed in
the factory and must not be changed from its default state.

Communication Jumpers

E18-E19: PC/104 Bus Base Address Control – Jumpers E18 and E19 on the PMAC2A PC/104 CPU
determine the base address of the card in the I/O space of the host PC. Together, they specify four
consecutive addresses on the bus where the card can be found. The jumpers form the base address in the
following fashion:

E18 E19 Address (hex) Address (dec.)

OFF OFF $200 512
OFF ON $210 528

ON OFF $220 544
ON ON $230 560

The default base address is 528 ($210) formed with jumper E18 removed and E19 installed. This setting
is necessary when using the USB or Ethernet ports of the Acc-2P communications board.

ADC Configuration Jumpers

E16: ADC Enable Jumper – Install E16 to enable the analog-to-digital converter circuitry ordered
through Option-12. Remove this jumper to disable this option, which might be necessary to control
motor 1 through a digital amplifier with current feedback.

Encoder Configuration Jumpers

E20-E23: Encoder Single Ended/Differential Select – PMAC has differential line receivers for each
encoder channel, but can accept either single-ended (one signal line per channel) or differential (two
signal lines, main and complementary, per channel). A jumper for each encoder permits customized
configurations, as described below.

Single-Ended Encoders

With the jumper for an encoder set for single-ended, the differential input lines for that encoder are tied to

2.5V; the single signal line for each channel is then compared to this reference as it changes between 0
and 5V.

When using single-ended TTL-level digital encoders, the differential line input should be left open, not
grounded or tied high; this is required for The PMAC differential line receivers to work properly.

Differential Encoders

Differential encoder signals can enhance noise immunity by providing common-mode noise rejection.
Modern design standards virtually mandate their use for industrial systems, especially in the presence of
PWM power amplifiers, which generate a great deal of electromagnetic interference.

Hardware Setup

PMAC2A PC104 Hardware Reference Manual

Connect pin 1 to 2 to tie differential line to +2.5V

• Tie to +2.5V when no connection

• Tie to +2.5V for single-ended encoders

Connect pin 2 to 3 to tie differential line to +5V

• Don’t care for differential line driver encoders

• Tie to +5V for complementary open-collector encoders (obsolete)

Hardware Setup 7

PMAC2A PC104 Hardware Reference Manual

Hardware Setup

8

PMAC2A PC104 Hardware Reference Manual

MACHINE CONNECTIONS

Typically, the user connections are made to terminal blocks that attach to the JMACH connectors by a
flat cable. The following are the terminal blocks recommended for connections:

• 34-Pin IDC header to terminal block breakouts (Phoenix part number 2281063) Delta Tau

part number 100-FLKM34-000

• 50-Pin IDC header to terminal block breakouts (Phoenix part number 2281089) Delta Tau

part number 100-FLKM50-000

Mounting

The PMAC2A PC/104 is typically installed using standoffs when stacked
to a PC/104 computer or as a stand-alone controller. At each of the four
corners of the PMAC2A PC/104 board, there are mounting holes that can
be used for this.

The PMAC2A PC/104 CPU is placed always at the bottom of the stack.
The order of the Acc-1P or Acc-2P with respect to the CPU does not
matter.

Power Supplies

Baseboard mounted at
the bottom of the stack

Digital Power Supply

3A @ +5V (±5%) (15 W) with a minimum 5 msec rise time
(Eight-channel configuration, with a typical load of encoders)
The PMAC2A PC/104, the Acc-1P and the Acc-2P each require a 1A @ 5VDC power supply for

operation. Therefore, a 3A @ 5VDC power supply is recommended for a PMAC2A PC/104 board
stack with Acc-1P and Acc-2P boards.

• The host computer provides the 5 Volts power when installed in the PC/104 bus and cannot

be disconnected. In this case, there must be no external +5V supply, or the two supplies will
"fight" each other, possibly causing damage. This voltage could be measured on the TB1
terminal block or the JMACH1 connector.

• In a stand-alone configuration, when PMAC is not plugged in a computer bus, it will need an

external 5V supply to power its digital circuits. The 5V power supply can be brought in
either from the TB1 terminal block or from the JMACH1 connector.

• When an ACC-2P is used, a minimum rise time of 5 msec is a requirement of the power

supply. In addition, the power supply ramp-down time should not exceed 20 msec. While
solutions to this issue can involve complex circuitry that minimizes power loss during normal
operation, the simplest method of quickly bringing down the power rail is to add a bleed­down resistor between VCC and GND. The resistor should be large enough that it does not
cause unnecessary power consumption, while still discharging the bulk capacitance as
quickly as possible. Specific resistor values will depend on the overall design of the system,
but in general the voltage drop-off time should not exceed 20 msec. A value that has been
found to work for some systems is 18k.

DAC Outputs Power Supply

0.3A @ +12 to +15V (4.5W)

0.25A @ -12 to -15V (3.8W)
(Eight-channel configuration)

• The host computer provides the ±12 Volts power supply in the case PMAC is installed in the

PC/104 bus. With the board stack into the bus, it will pull ±12V power from the bus
automatically and it cannot be disconnected. In this case, there must be no external ±12V

Machine Connections 9

PMAC2A PC104 Hardware Reference Manual

0

supply, or the two supplies will fight each other, possibly causing damage. This voltage
could be measured on the TB1 terminal block.

• In a stand-alone configuration, when PMAC is not plugged in a computer bus, it will need an

external ±12V supply only when the digital-to-analog converter (DAC) outputs are used. The
±12V lines from the supply, including the ground reference, can be brought in either from the
TB1 terminal block or from the JMACH1 connector.

Flags Power Supply

Each channel of PMAC has five dedicated digital inputs on the machine connector: PLIMn, MLIMn
(overtravel limits), HOMEn (home flag), FAULTn (amplifier fault), and USERn. A power supply
from 5 to 24V must be used to power the circuits related to these inputs. This power supply can be
the same used to power PMAC and can be connected from the TB1 terminal block or the JMACH1
connector.

Overtravel Limits and Home Switches

When assigned for the dedicated uses, these signals provide important safety and accuracy functions.
PLIMn and MLIMn are direction-sensitive over-travel limits that must conduct current to permit
motion in that direction. If no over-travel switches will be connected to a particular motor, this
feature must be disabled in the software setup through the PMAC Ix25 variable.

Types of Overtravel Limits

PMAC expects a closed-to-ground connection for the limits to not be considered on fault. This
arrangement provides a failsafe condition. Usually, a passive normally close switch is used. If a
proximity switch is needed instead, use a 5 to 24V normally closed to ground NPN sinking type
sensor.

Home Switches

While normally closed-to-ground switches are required for the overtravel limits inputs, the home
switches could be either normally close or normally open types. The polarity is determined by
the home sequence setup, through the I-variables I9n2.

Motor Signals Connections

Incremental Encoder Connection

Each JMACH1 connector provides two +5V outputs and two logic grounds for powering encoders
and other devices. The +5V outputs are on pins 1 and 2; the grounds are on pins 3 and 4. The
encoder signal pins are grouped by number: all those numbered 1 (CHA1+, CHA1-, CHB1+, CHC1+,
etc.) belong to encoder #1. The encoder number does not have to match the motor number, but
usually does. Connect the A and B (quadrature) encoder channels to the appropriate terminal block
pins. For encoder 1, the CHA1+ is pin 5 and CHB1+ is pin 9. If there is a single-ended signal, leave
the complementary signal pins floating – do not ground them. However, if single-ended encoders are
used, check the setting of the resistor packs (see the Hardware Setup section for details). For a
differential encoder, connect the complementary signal lines – CHA1- is pin 7, and CHB1- is pin 11.
The third channel (index pulse) is optional; for encoder 1, CHC1+ is pin 13, and CHC1- is pin 15.

Machine Connections

1

PMAC2A PC104 Hardware Reference Manual

Example: differential quadrature encoder connected to channel #1:

DAC Output Signals

If PMAC is not performing the commutation for the motor, only one analog output channel is
required to command the motor. This output channel can be either single-ended or differential,
depending on what the amplifier is expecting. For a single-ended command using PMAC channel 1,
connect DAC1+ (pin 29) to the command input on the amplifier. Connect the amplifier’s command
signal return line to PMAC’s GND line (pin 48). In this setup, leave the DAC1- pin floating; do not
ground it.

For a differential command using PMAC channel 1, connect DAC1 (pin 29) to the plus-command
input on the amplifier. Connect DAC1- (pin 31) to the minus-command input on the amplifier.
PMAC’s GND should still be connected to the amplifier common.

Any analog output not used for dedicated servo purposes may be utilized as a general-purpose analog
output by defining an M-variable to the command register, then writing values to the M-variable. The
analog outputs are intended to drive high-impedance inputs with no significant current draw. The
220Ω output resistors will keep the current draw lower than 50 mA in all cases and prevent damage to
the output circuitry, but any current draw above 10 mA can result in noticeable signal distortion.

Example:

Pulse and Direction (Stepper) Drivers

The channels provided by the PMAC2A PC/104 board or the Acc-1P board can output pulse and
direction signals for controlling stepper drivers or hybrid amplifiers. These signals are at TTL levels.

Amplifier Enable Signal (AENAx/DIRn)

Most amplifiers have an enable/disable input that permits complete shutdown of the amplifier
regardless of the voltage of the command signal. PMAC’s AENA line is meant for this purpose.
AENA1- is pin 33. This signal is an open-collector output and an external 3.3 kΩ pull-up resistor can
be used if necessary.

Machine Connections 11

PMAC2A PC104 Hardware Reference Manual

Amplifier Fault Signal (FAULT-)

This input can take a signal from the amplifier so PMAC knows when the amplifier is having
problems, and can shut down action. The polarity is programmable with I-variable Ix25 (I125 for
motor 1) and the return signal is ground (GND). FAULT1- is pin 35. With the default setup, this
signal must actively be pulled low for a fault condition. In this setup, if nothing is wired into this
input, PMAC will consider the motor not to be in a fault condition.

Optional Analog Inputs

The optional analog-to-digital converter inputs are ordered either through Option-12 on the CPU or
Option-2 on the axes expansion board. Each option provides two 12-bit analog inputs analog inputs
with a ±10Vdc range.

Compare Equal Outputs

The compare-equals (EQU) outputs have a dedicated use of providing a signal edge when an encoder
position reaches a pre-loaded value. This is very useful for scanning and measurement applications.
Instructions for use of these outputs are covered in detail in the PMAC2 User Manual.

Serial Port (JRS232 Port)

For serial communications, use a serial cable to connect your PC's COM port to the J8 serial port
connector present on the PMAC2A PC/104 CPU. Delta Tau provides the Acc-3L cable for this
purpose that connects the PMAC to a DB-9 connector. Standard DB-9-to-DB-25 or DB-25-to-DB-9
adapters may be needed for your particular setup.

Machine Connections

12

PMAC2A PC104 Hardware Reference Manual

If a cable needs to be made, the easiest approach is to use a flat cable prepared with flat-cable type
connectors as indicated in the following diagram:

PMAC (DB-9S) PC (DB-9)

1 (No connect) 1 (No connect)

DB-9 Female DB-9 Male

1 1

2 (TXD/) 2 (RXD)
3 (RXD/) 3 (TXD)

4 (DSR) 4 (DTR)

5 (Gnd) 5 (Gnd)
6 (DTR) 6 (DSR)
7 (CTS) 7 (RTS)
8 (RTS) 8 (CTS)

9 (No connect) 9 (No connect)

Machine Connections Example: Using Analog ±10V Amplifier

Machine Connections 13

PMAC2A PC104 Hardware Reference Manual

4

Machine Connections Example: Using Pulse and Direction Drivers

Machine Connections

1

PMAC2A PC104 Hardware Reference Manual

SOFTWARE SETUP

Note:

The PMAC2A PC/104 requires the use of V1.17 or newer firmware. There are
few differences between the previous V1.16H firmware and the V1.17 firmware
other than the addition of internal support for the Flex CPU design.

PMAC I-Variables

PMAC has a large set of Initialization parameters (I-variables) that determine the "personality" of the card
for a specific application. Many of these are used to configure a motor properly. Once set up, these
variables may be stored in non-volatile EAROM memory (using the SAVE command) so the card is
always configured properly (PMAC loads the EAROM I-variable values into RAM on power-up).

The programming features and configuration variables for the PMAC2A PC/104 are described fully in the
PMAC2 User and Software manuals.

Communications

Delta Tau provides software tools that allow communicating with of the PMAC2A PC/104 board by
either its standard RS-232 port or the optional USB or Ethernet ports. PEWIN is the most important in
the series of software accessories, and it allows configuring and programming the PMAC for any
particular application.

Operational Frequency and Baud Rate Setup

Note:

Older PMAC boards required a start-up PLC for setting the operational frequency
at 80 MHz. That method is not compatible with the PMAC2A PC/104 board and
will shutdown the board when used.

The operational frequency of the CPU can be set in software by the variable I46. If this variable is set to
0, PMAC firmware looks at the jumpers E2 and E4 to set the operational frequency for 40, 60, and 80
MHz operation. If I46 is set to a value greater than 0, the operational frequency is set to 10MHz * (I46 +

1), regardless of the jumper setting. If the desired operational frequency is higher than the maximum
rated frequency for that CPU, the operational frequency will be reduced to the rated maximum. It is
always possible to operate the Flex CPU board at a frequency below its rated maximum. I46 is used only
at power-up/reset, so to change the operational frequency, set a new value of I46, issue a SAVE command
to store this value in non-volatile flash memory, then issue a $$$ command to reset the controller.

To determine the frequency at which the CPU is actually operating, issue the TYPE command to the
PMAC. The PMAC will respond with five data items, the last of which is CLK Xn, where n is the
multiplication factor from the 20 MHz crystal frequency (not 10 MHz). n should be equivalent to
(I46+1)/2 if I46 is not requesting a frequency greater than the maximum rated for that CPU board. n will
be 2 for 40 MHz operation, 4 for 80 MHz operation, and 8 for 160 MHz operation.

Software Setup 15

PMAC2A PC104 Hardware Reference Manual

If the CPU’s operational frequency has been determined by (a non-zero setting of) I46, the serial
communications baud rate is determined at power-up/reset by variable I54 alone according to the
following table:

I54 Baud Rate I54 Baud Rate

0 600 8 9600
1 900 9 14,400
2 1200 10 19,200
3 1800 11 28,800
4 2400 12 38,400
5 3600 13 57,600
6 4800 14 76,800
7 7200 15 115,200

For a saved value of 0 for I46, the serial baud rate is determined by the combination of I54 and the CPU
frequency as shown in the following table.

I54

0 600 Disabled 1200
1 900* (-0.05%) 900 1800* (-0.1%)
2 1200 1200 2400
3 1800* (-0.1%) 1800 3600* (-0.19%)
4 2400 2400 4800
5 3600* (-0.19%) 3600 7200* (-0.38%)
6 4800 4800 9600
7 7200* (-0.38%) 7200 14,400*(-0.75%)
8 9600 9600 19,200

9 14,400*(-0.75%) 14,400 28,800*(-1.5%)
10 19,200 19,200 38,400
11 28,800*(-1.5%) 28,800 57,600*(-3.0%)
12 38,400 38,400 76,800
13 57,600*(-3.0%) 57,600 115,200*(-6.0%)
14 76,800 76,800 153,600
15 Disabled 115,200 Disabled

* Not an exact baud rate

Baud Rate for

40 MHz CPU

Baud Rate for

60 MHz CPU

Baud Rate for

80 MHz CPU

Filtered DAC Output Configuration

The PMAC2 PC104 is a PMAC2 style board with default +/-10V outputs produced by filtering a PWM
signal. This technique has been used been for some time now by many of our competitors. Although this
technique does not contain the same levels of performance as a true Digital to Analog converter, for most
servo applications it is more than adequate. Many of our customers using this product have migrated over
from the PMAC1 style board with a true 16-bit DAC. This document is meant for explaining the
tradeoffs of PWM frequency vs. resolution in the PMAC2PC104 base configuration as well as a
comparison to the PMAC1 style 16 bit DACs.

Both the resolution and the frequency of the Filtered PWM outputs are configured in software on the
PMAC2PC104 through the variable I900. This I900 variable also effects the phase and servo interrupts.
Therefore as we change I900 we will also have to change I901 (phase clock divider), I902 (servo clock
divider), and I10 (servo interrupt time). These four variables are all related and must be understood
before adjusting parameters.

Software Setup

16

PMAC2A PC104 Hardware Reference Manual

Since the PMAC2PC104 uses standard PMAC2 firmware the following I-variables must be set properly
to use the digital-to-analog (filtered DAC) outputs:

I900 = 1001 ; PWM frequency 29.4kHz, PWM 1-4
I901 = 5 ; Phase Clock 9.8059kHz
I902 = 3 ; Servo frequency 2.451kHz
I903 = 1746 ; ADC frequency
I906 = 1001 ; PWM frequency 29.4kHz, PWM 5-8
I907 = 1746 ; ADC frequency
I9n6 = 0 ; Output mode: PWM
Ix69 = 1001 ; DAC limit 10Vdc
I10 = 3421867 ; Servo interrupt time

n = channel number from 1 to 8
x = motor number from 1 to 8

Parameters to Set up Global Hardware Signals

I900

I900 determines the frequency of the MaxPhase clock signal from which the actual phase clock
signal is derived. It also determines the PWM cycle frequency for Channels 1 to 4. This variable
is set according to the equation:

I900 = INT[117,964.8/(4*PWMFreq(KHz)) - 1]

The PMAC2 PC/104 filtered PWM circuits were optimized for 30KHz. I900 should be set to
1088 (calculated as 27.06856KHz)

I901

I901 determines how the actual phase clock is generated from the MaxPhase clock, using the
equation:

PhaseFreq(kHz) = MaxPhaseFreq(kHz)/(I901+1)

I901 is an integer value with a range of 0 to 15, permitting a division range of 1 to 16. Typically,
the phase clock frequency is in the range of 8 kHz to 12 kHz. 9KHz is standard, set I901 = 5
(calculated as 9.02285 KHz).

I902

I902 determines how the servo clock is generated from the phase clock, using the equation:

ServoFreq(KHz) = PhaseFreq(KHz)/(I902+1)

I902 is an integer value with a range of 0 to 15, permitting a division range of 1 to 16. On the
servo update, which occurs once per servo clock cycle, PMAC2 updates commanded position
(interpolates) and closes the position/velocity servo loop for all active motors, whether or not
commutation and/or a digital current loop is closed by PMAC2. Typical servo clock frequencies
are 1 to 4 kHz. The PMAC standard is 2.26 KHz, set I902 = 3 (calculated as 2.25571 KHz).

I10 tells the PMAC2 interpolation routines how much time there is between servo clock cycles. It
must be changed any time I900, I901, or I902 is changed. I10 can be set according to the
formula:

I10 = (2*I900+3)(I901+1)(I902+1)*640/9

I10 should be set to 3718827.

Software Setup 17

PMAC2A PC104 Hardware Reference Manual

I903

I903 determines the frequency of four hardware clock signals used for machine interface channels 1-4;
This can be left at the default value (I903=*). The four hardware clock signals are SCLK (encoder sample
clock), PFM_CLK (pulse frequency modulator clock), DAC_CLK (digital-to-analog converter clock),
and ADC_CLK (analog-to-digital converter clock).

Parameters to Set Up Per-Channel Hardware Signals

I9n6

I9n6 is the output mode; “n” is the output channel number (i.e. for channel 1 the variable to set would be
i916, i926 for channel 2 etc.). On Pmac1 there is only one output and one output mode, DAC output. On
PMAC2 boards, each channel has 3 outputs, and there are 4 output modes. Since this is board was
designed to output filtered PWM signals we want to configure at least the first output as PWM. Therefore
the default value of 0 is the choice. For information on this variable consult the PMAC1/PMAC2
software reference manual.

Ix69

Ix69 is the motor output command limit. The analog outputs on PMAC1 style boards and some PMAC2
accessories are 16-bit DACs, which map a numerical range of -32,768 to +32,767 into a voltage range of ­10V to +10V relative to analog ground (AGND). For our purposes of a filtered PWM output this value
still represents the maximum voltage output; however the ratio is slightly different. With a true DAC,
Ix69=32767 allows a maximum voltage of 10V output. With the filtered PWM circuit, Ix69 is a function
of I900. A 10V signal in the output register is no longer 32767 as was in PMAC1, a 10V signal is
corresponds to a value equal to I900. Anything over I900 will just rail the Dac at 10V. For Example:

Desired Maximum Output Value = 6V

Ix69=6/10 * i900

Desired Maximum Output Value = 10V

Ix69= I900 + 10 ; add a little headroom to assure a full 10V

Effects of Changing I900 on the System

It should now be understood that a full 10 volts is output when the output register is equal to i900. The
output register is suggested m-variable Mx02 (I.e. M102-> Y:$C002,8,16,S ; OUT1A command value;
DAC or PWM). With default setting of I900, 10Volts is output when m102 is equal to i900, or 1001.
Since the output register is an integer value the smallest increment of change is about 10mV (1/1001 *
10V). Some users may want to calibrate their analog output using Ix29. Ix29 is an integer similar to
Mx02 except the value is added to the output register every servo cycle to apply a digital offset to the
output register. Therefore the resolution of our output signal affects how Ix29 should be set. As
mentioned earlier, with the default parameters, 1 bit change in the output register changes the analog
output by about 10mV. Therefore if there is an analog output offset less than 5mV, Ix29 cannot decrease
your offset. By increasing I900 you increase your resolution, so if you double i900, 1 bit change in the
output register corresponds to about 5mV. So with Ix29 you can only change the offset in increments of
5mV.

You can see above that by increasing I900 you increase the resolution of our command output register.
This sounds like a good thing, right? There are tradeoffs when you change I900 between resolution and
ripple.

Software Setup

18

PMAC2A PC104 Hardware Reference Manual

By increasing I900 we are essentially decreasing our PWM Frequency. The two are related by the
following equation:

I900 = INT[117,964.8/(4*PWMFreq(KHz)) - 1]

Passing the PWM signal through a 10KHz low pass filter creates the +/-10V signal output. The duty
cycle of the PWM signal is what generates the magnitude the voltage output. The frequency of the PWM
signal determines the magnitude and frequency of ripple on that +/-10V signal. As you lower the PWM
frequency and subsequently increase your output resolution, you increase the magnitude of the ripple as
well as slow down the frequency of the ripple as well. Depending on the system, this ripple can affect
performance at different levels.

So what do we mean by ripple? Ripple is the small signal that will you will see on top of the +/-10V
signal if you put an oscilloscope on it. In other words if I command a 4V signal out of the PMAC2PC104
and scope it, I will see a small sinusoidal type wave centered on 4V. At the default PWM frequency and
output resolution this will have a magnitude of about 230mV and a frequency of about 33kHz. This is
typically faster than any of the control loops so the amplifier essentially filters it out of the system.

Say I wanted to double the resolution of my output signal, I would merely double my I900 value from
1001 to 2002. How does this affect the ripple? From a test I calculated the ripple magnitude to increase
from around 230mV to about 700mV. The frequency of the ripple decreased from about @30kHz to
@15kHz. Here are some measurements taken with a PMAC2PC104:

I900 Value Output

Resolution

Signed

1001 @11 bit 9.9mV 29.4177 KHz 230mV 30KHz

2002 @12 bit 4.99mV 14.72 Khz 700mV 15KHz

4004 @13bit 2.49mV 7.36 Khz 2V 7Khz

Voltage

Output Change

Per 1bit increment

In output register

PWM

Frequency

Approximate

Ripple

Magnitude

Approximate

Ripple

Frequency

How does the ripple affect servo performance? It really depends on the system. For most servo systems
the mechanics can’t respond anywhere near these frequencies. Some systems with linear amplifiers it will
effect the performance especially as you lower the PWM frequency and effectively the ripple frequency,
i.e. galvanometers, etc. In the overall majority of the servo world, these ripple frequencies will not show
in the system due to mechanical and electrical time constants of most systems. This will happen
regardless of the amplifier used.

So why is the recommended setup for 30KHz? A few reasons, the first is aesthetics. Nobody wants to
put a scope on an output signal and see 1 or 2V of hash. If you increase that frequency the hash is
minimized. The second reason is response of the output with respect to the servo filter. If you increase
the output resolution and thus lower the PWM frequency far enough you will notice some lag in the
system from the delays between the output register value actually being picked up by the slower PWM
frequency.

For high response systems we suggest using Acc8es and a true 18bit DAC. However the filtered PWM
technique will be more than adequate for most applications.

Software Setup 19

PMAC2A PC104 Hardware Reference Manual

0

How does changing I900 effect other settings in PMAC

I900 is does not only set the PWM frequency for the PWM outputs but it also sets the Max Phase
Frequency.

MaxPhase Frequency = 117,964.8 kHz / [2*I900+3]

PWM Frequency = 117,964.8 kHz / [4*I900+6]

The Max Phase Frequency is then divided by I901 to generate the frequency for the phase interrupt and its
routines. If you change I900 you have to change I901 to keep the same phase interrupt.

PHASE Clock Frequency = MaxPhase Frequency / (I901+1)

The Phase Clock Frequency setting also effects the servo interrupt frequency. If you change the phase

interrupt frequency then you must change I902 to keep the same servo interrupt.

Servo Clock Frequency = PHASE Clock Frequency / (I902+1)

When you change the servo interrupt you must always change the servo interrupt time, i10, to match or all
of your timing will be off in PMAC.

I10=8388608/(Servo Frequency (KHz)) = 8388608 * ServoTime(msec)

If you decide to change I900 be sure to reset Ix69 to the proper safety setting per the following formula:

Ix69=MaxVolts/10 * I900

Examples:

Default Example:

I900=1001

I901=2

I902=3

Ix69=1024

I10=1710933

MaxPhase Frequency = 117,964.8 kHz / [2*1001+3] = 58.835KHz

PWM Frequency = 117,964.8 kHz / [4*1001+6] = 29.418KHz

PHASE Clock Frequency = MaxPhase Frequency / (2+1) = 19.61KHz

Servo Clock Frequency = PHASE Clock Frequency / (3+1) = 4.90KHz

I10=8388608/(4.902943) = 1710933

Ix69=10V/10 * I900 = 1001 add headroom to 1024

Now lets say I wanted to double my resolution:

I900=2002

MaxPhase Frequency = 117,964.8 kHz / [2*2002+3] = 29.44KHz

PWM Frequency = 117,964.8 kHz / [4*2002+6] = 14.72KHz

In order to save headroom on firmware routines that trigger off the phase and servo interrupts it is best to
keep those frequencies about the same as above. Some systems may want higher phase and servo

Software Setup

2

PMAC2A PC104 Hardware Reference Manual

interrupt frequencies for better servo performance, but our default frequencies are typically more than fast
enough for many applications. We will discuss tuning parameter a bit later in this document.

I901= 29.44KHz/19.61KHz -1 = @0.5 set it at 1 or 14.72KHz

This is not exactly the same since I901 is an integer value but pretty close. Since we are doing any
commutation with a +/-10V signal it doesn’t make that much of a difference. The Servo Frequency we
will be able to get close though:

I902=14.72KHz/4.9 – 1 = 2.004 or 2 which is @4.9KHz

For a 10V max signal output:

Ix69=i900 + headroom = 2024

We must set I10 whenever we change the servo clock but since we kept it basically the same, I19 stays
pretty much the same. Without rounding it works out to the following:

I10 = 8388608/4.906613 = 1709653

For precise timing within your motion application it is important not to round off when calculating I10.

Effects of Output Resolution and Servo Interrupt Frequency on Servo Gains

When you change your output resolution and/or servo interrupt timing your tuning parameters will no
longer respond the same. The system will have to be tuned again in order to achieve the desired
performance. There is an approximate relation of output resolution to servo loop gains . If you were
switching an application from a PMAC style 16bit Dac to a PMAC2Pc104 with default resolution of
about 11bits you can expect a change of your gains in order to get similar response.

The max output value of the output command with a 16bit Dac is 32767. With the PMAC2Pc104 at its
default parameters the max output value is 1001. If you had equal servo interrupt frequencies the
proportional gain on the PC104 system would have a proportional gain 1001/32767 or about 1/32 smaller.
This is more a rule of thumb than an exact formula. It is always recommended to go through a full tuning
procedure when changing output resolution.

If you decide to change the Servo Interrupt Frequency, then you are also changing the dynamics of the
servo filter and thus the system. You will need to retune the system in order to get the desired
performance. If you increase the servo frequency you will need to lower the proportional gain in order to
achieve similar performance. The reason you increased the frequency in the first place was more likely to
achieve a higher performance so relations here are not very helpful.

If you desire to change servo interrupt frequency in order to have your foreground PLCs execute more
often you can also adjust Ix60 to keep your gains the same, see the Pmac1/2 Software Reference Manual
for a further description of this parameter.

Software Setup 21

PMAC2A PC104 Hardware Reference Manual

Using Flag I/O as General-Purpose I/O

Either the user flags or other not assigned axes flag on the base board can be used as general-purpose I/O
for up to 20 inputs and 4 outputs at 5-24Vdc levels. The indicated suggested M-variables definitions,
which are defined in the PMAC2 Software reference, allows accessing each particular line according to
the following table:

Flag Type

HOME

PLIM

MLIM

USER

AENA

5-24 VDC Input M120 M220 M320 M420
5-24 VDC Input M121 M221 M321 M421
5-24 VDC Input M122 M222 M322 M422
5-24 VDC Input M115 M215 M315 M415

5-24 VDC Output M114 M214 M314 M414

#1 #2 #3 #4

Channel Number

Note:

When using these lines as regular I/O points the appropriate setting of the Ix25
variable must be used to enable or disable the safety flags feature.

Analog Inputs Setup

The optional analog-to-digital converter inputs are ordered either through Option-12 on the CPU or Option­2 on the axes expansion board. Each option provides two 12-bit analog inputs with a ±10Vdc range. The
M-variables associated with these inputs provided a range of values between +2048 and –2048 for the
respective ±10Vdc input range. The following is the software procedure to setup and read these ports.

CPU Analog Inputs

I903 = 1746 ;Set ADC clock frequency at 4.9152 MHz
WX:$C014, $1FFFFF ;Clock strobe set for bipolar inputs
M105->X:$0710,12,12,S ;ADCIN_1 on JMACH1 connector pin 45
M205->X:$0711,12,12,S ;ADCIN_2 on JMACH1 connector pin 46

Software Setup

22

PMAC2A PC104 Hardware Reference Manual

HARDWARE REFERENCE SUMMARY

The following information is based on the PMAC2A PC/104 board, part number 603670-100.

Board Dimensions

From v106 to 107

(E20-23 added and 15A is in a different location:

Hardware Reference Summary 23

PMAC2A PC104 Hardware Reference Manual

4

From v107 to 108

W1 removed:

Hardware Reference Summary

2

PMAC2A PC104 Hardware Reference Manual

From v108 to 109

E20 in same location but rotated 90 degrees:

Hardware Reference Summary 25

PMAC2A PC104 Hardware Reference Manual

Board Layout

1

2

3

4

5

6

BACD E F

Feature Location Feature Location Feature Location

E0
E1
E2
E3
E4
E8

E9
E10
E11
E12

B3
B4
B4
C4
C4
B1
B1
E5
E5
E5

E13

E14
E15A
E15B
E15C

E16

E18

E19

W1

E5
B3
E4
E4
E4
D1
D4
D4
E6

RP30
RP31
RP36
RP37

D1
D2

TB1

JRS232
JMACH1
JMACH2

E2
E2
E3
E3
A2
A3
B6
A2
F3
A4

Hardware Reference Summary

26

PMAC2A PC104 Hardware Reference Manual

Connectors and Indicators

J3 - Machine Connector (JMACH1 Port)

The primary machine interface connector is JMACH1, labeled J3 on the PMAC. It contains the pins for
four channels of machine I/O: analog outputs, incremental encoder inputs, amplifier fault and enable
signals and power-supply connections.

1. 50-pin female flat cable connector T&B Ansley P/N 609-5041

2. Standard flat cable stranded 50-wire T&B Ansley P/N 171-50

3. Phoenix varioface module type FLKM 50 (male pins) P/N 22 81 08 9

J4 - Machine Connector (JMACH2 Port)

This machine interface connector is labeled JMACH2 or J4 on the PMAC. It contains the pins for four
channels of machine I/O: end-of-travel input flags, home flag and pulse-and-direction output signals. In
addition, the B_WDO output allows monitoring the state of the Watchdog safety feature.

1. 34-pin female flat cable connector T&B Ansley P/N 609-3441

2. Standard flat cable stranded 34-wire T&B Ansley P/N 171-34

3. Phoenix varioface module type FLKM 34 (male pins) P/N 22 81 06 3

J8 - Serial Port (JRS232 Port)

This connector allows communicating with PMAC from a host computer through a RS-232 port. Delta
Tau provides the Accessory 3L cable that connects the PMAC to a DB-9 connector.

1. 10-pin female flat cable connector T&B Ansley P/N 609-1041

2. Standard flat cable stranded 10-wire T&B Ansley P/N 171-10

TB1 – Power Supply Terminal Block (JPWR Connector)

In almost in all cases the PMAC2A PC/104 will be powered from the PC/104 bus, when it is installed in a
host computer’s bus, or from the JMACH1 connector. This terminal block may be used as an alternative
power supply connector or to easily measure the voltages applied to the board.

1. 4-pin terminal block, 0.150 pitch

LED Indicators

D1: when this red LED is lit, it indicates that the watchdog timer has tripped and shut down the PMAC.
D2: when this green LED is lit, it indicates that power is applied to the +5V input.

Hardware Reference Summary 27

PMAC2A PC104 Hardware Reference Manual

Hardware Reference Summary

28

PMAC2A PC104 Hardware Reference Manual

E-POINT JUMPER DESCRIPTIONS

E0: Forced Reset Control

E Point and

Physical Layout

E0

Location Description Default

B3 Factory use only; the board will not operate

with E0 installed.

E1: Servo and Phase Clock Direction Control

E Point and

Physical Layout

E1

If the E1 jumper is ON and the servo and phase clocks are not brought in on the J8
serial port, the watchdog timer will trip immediately.

Location Description Default

B4 Remove jumper for PMAC to use its

internally generated servo and phase clock
signals and to output these signals on the J8
serial port connector.

Jump pins 1 and 2 for PMAC to expect to
receive its servo and phase clock signals on
the J8 serial port connector.

Note:

E2: CPU Frequency Select

No jumper

No jumper installed

E Point and

Physical Layout

E2

Location Description Default

B4 Remove jumper for 40 MHz operation (E4

OFF also) or for 80 MHz operation (E4
ON).

Jump pin 1 to 2 for 60 MHz operation (E4
OFF).

E3: Normal/Re-Initializing Power-Up/Reset

E Point and Physical

Layout

E3

Location Description Default

C4 Jump pin 1 to 2 to re-initialize on power-

up/reset, loading factory default settings.

Remove jumper for normal power-up/reset,
loading user-saved settings.

No jumper installed

No jumper installed

E-Point Jumper Descriptions 29

PMAC2A PC104 Hardware Reference Manual

E4: CPU Frequency Select

E Point and

Physical Layout

E4

Location Description Default

C4 Remove jumper for 40 MHz operation (E2

OFF also) or for 60 MHz operation (E4 ON).

Jump pin 1 to 2 for 80 MHz operation (E2
OFF).

E8: Phase Clock Lines Output Enable

E Point and

Physical Layout

E8

Location Description Default

B1 Jump pin 1 to 2 to enable the PHASE clock

line on the J8 connector, allowing
synchronization with another PMAC.

Remove jumper to disable the PHASE clock
line on the J8 connector.

E9: Servo Clock Lines Output Enable

E Point and

Physical Layout

E9

Location Description Default

Jump pin 1 to 2 to enable the SERVO clock
line on the J8 connector, allowing

B1

synchronization with another PMAC.

Remove jumper to disable the SERVO clock
line on the J8 connector.

No jumper installed
(standard or Option 5EF)

Jumper installed (Option
5CF)

No Jumper

No Jumper

E10 – E12: Power-Up State Jumpers

E Point and

Physical Layout

E10

E12

Location Description Default

E5 Remove jumper E10;

Jump E11;
Jump E12;

To read flash IC on power-up/reset
Other combinations are for factory use only;
the board will not operate in any other
configuration.

No E10 jumper installed;

Jump E11 and E12

E-Point Jumper Descriptions

30

PMAC2A PC104 Hardware Reference Manual

E13: Power-Up/Reset Load Source

E Point and

Physical Layout

E13

Location Description Default

E5 Jump pin 1 to 2 to reload firmware through

serial or bus port.

Remove jumper for normal operation.

E14: Watchdog Disable Jumper

E Point and

Physical Layout

E14

Location Description Default

B3 Jump pin 1 to 2 to disable Watchdog timer

(for test purposes only).

Remove jumper to enable Watchdog timer.

E15A, B, C: Flash Memory Bank Select

E Point and

Physical Layout

E15A

Location Description Default

E4 Remove all 3 jumpers to select flash memory

bank with factory-installed firmware.

Use other configuration to select one of the 7
other flash memory banks.

No jumper

No jumper

No jumpers installed

E15C

E16: ADC Inputs Enable

E Point and

Physical Layout

E16

Location Description Default

D1 Jump pin 1 to 2 to enable the Option-12

No jumper

ADC inputs.

Remove jumper to disable the ADC inputs,
which might be necessary for reading
current feedback signals from digital
amplifiers.

E-Point Jumper Descriptions 31

PMAC2A PC104 Hardware Reference Manual

E18 – E19: PC/104 Bus Address

E Point and Physical

Layout

E18

E19

Location Description

D4

Jumpers E18 and E19 select the PC/104 bus
address for communications according to
the following table:

E18 E19

OFF OFF $200 512

OFF ON $210 528

ON OFF $220 544

ON ON $230 560

Address

(Hex)

Address

(Dec)

No E18 jumper installed;

Jumper E19 installed

Default

Note:

Jumper E18 must be removed and jumper E19 must be installed for using either
the Ethernet or USB optional methods of communication.

E20-E23: ENCODER SINGLE ENDED/DIFFERENTIAL SELECT

(Note: v107 and above only)

E Point and

Physical Layout

E20

E21

E22

E23

Location Description Default

Jump pin 2 to 3 to obtain differential

1-2 Jumper installed

encoder input mode. This will bias
encoder negative inputs to VCC = 5V

Jump pin 1 to 2 to obtain non-differential
encoder input mode. This will bias
encoder negative inputs to 1/2 VCC =

2.5V

E-Point Jumper Descriptions

32

PMAC2A PC104 Hardware Reference Manual

CONNECTOR PINOUTS

TB1 (JPWR): Power Supply

(4-Pin Terminal Block)

Top View

Pin# Symbol Function Description Notes

1 GND Common Digital Common
2 +5V Input Logic Voltage Supplies all PMAC digital circuits
3 +12V Input DAC Supply Voltage Ref to Digital GND

4 -12V Input DAC Supply Voltage Ref to Digital GND
This terminal block can be used to provide the input for the power supply for the circuits on the PMAC board
when it is not in a bus configuration. When the PMAC is in a bus configuration, these supplies automatically
come through the bus connector from the bus power supply; in this case, this terminal block should not be used.

J4 (JRS232) Serial Port Connector

(10-PIN CONNECTOR)

Front View

Pin# Symbol Function Description Notes

1 PHASE Output Phasing Clock

2 DTR Bidirect Data Terminal Ready Tied to "DSR"

3 TXD/ Input Receive Data Host transmit data

4 CTS Input Clear to Send Host ready bit

5 RXD/ Output Send Data Host receive data

6 RTS Output Request to Send PMAC ready bit

7 DSR Bidirect Data Set Ready Tied to "DTR"

8 SERVO Output Servo Clock

9 GND Common Digital Common

10 +5V Output +5Vdc Supply Power supply out

Connector Pinouts 33

PMAC2A PC104 Hardware Reference Manual

J3 (JMACH1): Machine Port Connector

(50-Pin Header)

Top View

Pin# Symbol Function Description Notes

1 +5V Output +5V Power For encoders, 1
2 +5V Output +5V Power For encoders, 1
3 GND Common Digital Common For encoders, 1
4 GND Common Digital Common For encoders, 1
5 CHA1 Input Encoder A Channel Positive 2
6 CHA2 Input Encoder A Channel Positive 2
7 CHA1/ Input Encoder A Channel Negative 2,3
8 CHA2/ Input Encoder A Channel Negative 2,3

9 CHB1 Input Encoder B Channel Positive 2
10 CHB2 Input Encoder B Channel Positive 2
11 CHB1/ Input Encoder B Channel Negative 2,3
12 CHB2/ Input Encoder B Channel Negative 2,3
13 CHC1 Input Encoder C Channel Positive 2
14 CHC2 Input Encoder C Channel Positive 2
15 CHC1/ Input Encoder C Channel Negative 2,3
16 CHC2/ Input Encoder C Channel Negative 2,3
17 CHA3 Input Encoder A Channel Positive 2
18 CHA4 Input Encoder A Channel Positive 2
19 CHA3/ Input Encoder A Channel Negative 2,3
20 CHA4/ Input Encoder A Channel Negative 2,3
21 CHB3 Input Encoder B Channel Positive 2
22 CHB4 Input Encoder B Channel Positive 2
23 CHB3/ Input Encoder B Channel Negative 2,3
24 CHB4/ Input Encoder B Channel Negative 2,3
25 CHC3 Input Encoder C Channel Positive 2
26 CHC4 Input Encoder C Channel Positive 2
27 CHC3/ Input Encoder C Channel Negative 2,3
28 CHC4/ Input Encoder C Channel Negative 2,3
29 DAC1 Output Analog Output Positive 1 4
30 DAC2 Output Analog Output Positive 2 4
31 DAC1/ Output Analog Output Negative 1 4,5
32 DAC2/ Output Analog Output Negative 2 4,5
33 AENA1/ Output Amplifier-Enable 1
34 AENA2/ Output Amplifier -Enable 2
35 FAULT1/ Input Amplifier -Fault 1 6
36 FAULT2/ Input Amplifier -Fault 2 6
37 DAC3 Output Analog Output Positive 3 4
38 DAC4 Output Analog Output Positive 4 4
39 DAC3/ Output Analog Output Negative 3 4,5

34 Connector Pinouts

PMAC2A PC104 Hardware Reference Manual

J3 JMACH1 (50-Pin Header)

(Continued)

Top View

Pin# Symbol Function Description Notes

40 DAC4/ Output Analog Output Negative 4 4,5
41 AENA3/ Output Amplifier -Enable 3
42 AENA4/ Output Amplifier -Enable 4
43 FAULT3/ Input Amplifier -Fault 3 6
44 FAULT4/ Input Amplifier -Fault 4 6
45 ADCIN_1 Input Analog Input 1 Option-12 required
46 ADCIN_2 Input Analog Input 2 Option-12 required
47 FLT_FLG_V Input Amplifier Fault pull-up V+
48 GND Common Digital Common
49 +12V Input DAC Supply Voltage 7

50 -12V Input DAC Supply Voltage 7
The J3 connector is used to connect PMAC to the first 4 channels (Channels 1, 2, 3, and 4) of servo amps
and encoders.
Note 1: In standalone applications, these lines can be used as +5V power supply inputs to power PMAC’s

digital circuitry.

Note 2: Referenced to digital common (GND). Maximum of ±12V permitted between this signal and its

complement.

Note 3: Leave this input floating if not used (i.e. digital single-ended encoders).
Note 4: ±10V, 10 mA max, referenced to common ground (GND).
Note 5: Leave floating if not used. Do not tie to GND.
Note 6: Functional polarity controlled by variable Ix25. Must be conducting to 0V (usually GND) to

produce a 0 in PMAC software. Automatic fault function can be disabled with Ix25.

Note 7: Can be used to provide input power when the PC/104 bus connector is not being used. When the

bus configuratio is used, these supply voltages automatically come through the bus connector
from the PC power supply.

Connector Pinouts 35

PMAC2A PC104 Hardware Reference Manual

J4 (JMACH2): Machine Port CPU
Connector

(34-Pin Header)

Pin# Symbol Function Description Notes

1 FLG_1_2_V Input Flags 1-2 Pull-Up
2 FLG_3_4_V Input Flags 3-4 Pull-Up
3 GND Common Digital Common
4 GND Common Digital Common
5 HOME1 Input Home-Flag 1 10
6 HOME2 Input Home-Flag 2 10
7 PLIM1 Input Positive End Limit 1 8,9
8 PLIM2 Input Positive End Limit 2 8,9

9 MLIM1 Input Negative End Limit 1 8,9
10 MLIM2 Input Negative End Limit 2 8,9
11 USER1 Input User Flag 1
12 USER2 Input User Flag 2
13 PUL_1 Output Pulse Output 1
14 PUL_2 Output Pulse Output 2
15 DIR_1 Output Direction Output 1
16 DIR_2 Output Direction Output 2
17 EQU1 Output Encoder Comp-Equal 1
18 EQU2 Output Encoder Comp-Equal 2
19 HOME3 Input Home-Flag 3 10
20 HOME4 Input Home-Flag 4 10
21 PLIM3 Input Positive End Limit 3 8,9
22 PLIM4 Input Positive End Limit 4 8,9
23 MLIM3 Input Negative End Limit 3 8,9
24 MLIM4 Input Negative End Limit 4 8,9
25 USER1 Input User Flag 3
26 USER2 Input User Flag 4
27 PUL_3 Output Pulse Output 3
28 PUL_4 Output Pulse Output 4
29 DIR_3 Output Direction Output 3
30 DIR_4 Output Direction Output 4
31 EQU3 Output Encoder Comp-Equal 3
32 EQU4 Output Encoder Comp-Equal 4
33 B_WDO Output Watchdog Out Indicator/driver
34 No Connect

Note 8: Pins marked PLIMn should be connected to switches at the positive end of travel. Pins marked MLIMn

should be connected to switches at the negative end of travel.

Note 9: Must be conducting to 0V (usually GND) for PMAC to consider itself not into this limit. Automatic limit

function can be disabled with Ix25.

Note 10: Functional polarity for homing or other trigger use of HOMEn controlled by Encoder/Flag Variable I9n2.

HMFLn selected for trigger by Encoder/Flag Variable I9n3. Must be conducting to 0V (usually GND) to
produce a 0 in PMAC software.

Front View

36 Connector Pinouts

PMAC2A PC104 Hardware Reference Manual

Connector Pinouts 37

PMAC2A PC104 Hardware Reference Manual

SCHEMATICS

38 Connector Pinouts

PMAC2A PC104 Hardware Reference Manual

THIS DOCUMENT IS THE CONFIDENTIAL PROPERTY OF DELTA TAU

THIS DOCUMENT IS THE CONFIDENTIAL PROPERTY OF DELTA TAU
DATA SYSTEMS INC. AND IS LOANED SUBJECT TO RETURN UPON

DATA SYSTEMS INC. AND IS LOANED SUBJECT TO RETURN UPON
DEMAND. TITLE TO THIS DOCUMENT IS NEVER SOLD OR

DEMAND. TITLE TO THIS DOCUMENT IS NEVER SOLD OR
TRANSFERRED FOR ANY REASON. THIS DOCUMENT IS TO BE USED

TRANSFERRED FOR ANY REASON. THIS DOCUMENT IS TO BE USED
ONLY PURSUANT TO WRITTEN LICENSE OR WRITTEN INSTRUCTIONS

ONLY PURSUANT TO WRITTEN LICENSE OR WRITTEN INSTRUCTIONS
OF DELTA TAU DATA SYSTEMS INC. ALL RIGHTS TO DESIGNS AND

OF DELTA TAU DATA SYSTEMS INC. ALL RIGHTS TO DESIGNS AND
INVENTIONS ARE RESERVED BY DELTA TAU DATA SYSTEMS INC.

INVENTIONS ARE RESERVED BY DELTA TAU DATA SYSTEMS INC.
POSSESSION OF THIS DOCUMENT INDICATES ACCEPTANCE OF THE

POSSESSION OF THIS DOCUMENT INDICATES ACCEPTANCE OF THE
ABOVE AGREEMENT.

ABOVE AGREEMENT.

GND

PC/104/HEADER_A32

GND
GND

+5V

(KEY)
+12V

-12V

-5V

+5V

GND

PC/104/HEADER_B32

GND

(KEY)

PC/104/HEADER/D20

GND

+5V

GND
GND

PC/104/HEADER/D20

+3.3V

TDO
TDI

BSCAN-

TMS
GND
TCK

HSIP8NO5

GND

J9

(jisp)

CE1

.1UF

CE2

.1UF

CE3

.1UF

CE4

.1UF

J1A

32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

J1B

32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

J2C

0

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

19

19

20

J2D

0

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

12

12

13

13

14

14

15

15

16

16

17

17

18

18

19

19

20

J9

1
2
3
4

6
7
8

SA00
SA01
SA02
SA03
SA04
SA05
SA06
SA07
SA08
SA09
SA10
SA11

SA12
SA13
SA14
SA15
SA16
SA17
SA18
SA19
AEN
IOCHRDY

SD00
SD01
SD02
SD03
SD04
SD05
SD06
SD07

IOCHCHK-

OSC

BALE
TC
DACK2­IRQ3
IRQ4
IRQ5
IRQ6
IRQ7

SYSCLK

REFRESH­DRQ1
DACK1­DRQ3
DACK3-

SIOR­SIOW-

SMEMR­SMEMW­(KEY)

ENDXFR-

DRQ2

IRQ9

RESTDRV

(KEY)

SBHE­LA23
LA22
LA21
LA20
LA19
LA18
LA17
MEMR­MEMW­SD08
SD09
SD10
SD11
SD12
SD13
SD14
SD15
(KEY)

MEMCS16­IOCS16­IRQ10
IRQ11
IRQ12
IRQ15
IRQ14
DACK0­DRQ0
DACK5­DRQ5
DACK6­DRQ6
DACK7­DRQ7

MASTER-

+3P3V

GND

M1

HOLE

M2

HOLE

M3

HOLE

M4

HOLE

GND
+5V
+12V

-12V

.01UF

C21

GND

GND
GND

+5V

GND
+12V

-12V

-5V

+5V

GND

GND

GND

GND

+5V

GND
GND

RP1

19.6608Mhz

19.6608Mhz

GUARD BAND

KEY

12

3.3KSIP10C

3456789 10

TDI_U1
TDO_U1
TCK_U1
RESET­TRST­TDO_U6
TDI_U6
BSCAN-

TMS_U6

TCK_U6

D5

1SMC5.0AT3

D6

1SMC18AT3

D7

1SMC18AT3

BA06_A
BA07_A

BA08_A
BA09_A

BA10_A
BA11_A

BX/Y_A

+5V

BRXD
BCTS­SER_A
PHA_A
TA­MODD/IRQD-

T/R­RESET

TP1
GND

U33

1

T/R1

2

B0

3

B1

4

GND

5

B2

6

B3

7

VCCB

8

B4

9

B5

10

GND

11

B6

12

B7

13

B8

14

B9

15

GND

16

B10

17

B11

18

VCCB

19

B12

20

B13

21

GND

22

B14

23

B15

24 25

T/R2

IDT74FCT164245TPA

(TSSOP48)

GND

+3P3V

12

3456789 10

+5V

VCC

+12V

-12V

GND

OEL
SD00
SD01

SD02
SD03

SD04
SD05

SD06
SD07

BA06_A
BA07_A

BA08_A
BA09_A

BA10_A
BA11_A

BX/Y_A

R1

C87

10

.1UF

C96

+

22UF

35V

C97

+

22UF

35V

C98

+

22UF

35V

VCCA

VCCA

E8

U35B

3 4

74ACT14
(SO14)

U35E

11 10

74ACT14
(SO14)

BTA

RESET

RESET-

WDO-

PWDO-

WDO

D1
LED
RED

WD

R5

1K

TRST-

BD01_A

BD02_A
BD03_A

BD04_A
BD05_A

BD06_A
BD07_A
CS00­CS0-

CS1­CS4-

DPRCS­VMECS-

BWDO_A­BRST_A-

+5V

J8

(JRS232)

J8

PHASE

1

DTR

2

TXD-

3

CTS

4

RXD-

5

RTS

6

DSR

7

SERVO

8

GND

9

+5V

10

HEADER 10

(BOX)

E9

2 1

2 1

PHASE
SERVO

PHA

PHA

SER

SER

+5V

C20

.1UF

GND

RESET

RESET-

WDO-

WDO

12Monday, July 02, 2001

B

of

OR

(SOT-223)

OR

(SOT-223)

LM1117MPX-1.8
MC33269ST-1.8
3

IN

NOTE2:

LM1117MPX-3.3
MC33269ST-3.3

3

IN

3.3KSIP10C

RXD
CTS­SER
PHA
BTA
IRQB-

VR2

1

VR1

1

VCCQL

2

OUT

GND

C18

10UF

16V

(TANT)

2

OUT

GND

C16

GND

+3P3V

GND

+

+

(TANT)

+3P3V

10UF
16V

GND

NOTE1:

*

NOTE2:

RP3

1 2

10KSIP10C

RP4

1 2

10KSIP10C

INSTALL `F2' ONLY
FOR `DSP56303PW80'

DO NOT INSTALL
`VR2,C17,C18'

FOR `DSP56303PW80'

INSTALL

`VR2,C17,C18'
FOR `DSP56309PW80'
AND `DSP56311GC150'
DO NOT INSTALL `F2'

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9

INIT-

WDTC

A10
A11
A12
A13
A14
A15
A16
A17
X/Y
WR­RD-

D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23

SC02

3

BHACK-

4

BHREQ-

5

DE-

6

SRD0

7

STD0

8

SCK0

910

BB-

BRTS-

3

TMS_U1

4

BG-

5

T/R­BSTD1

6
7

BSRD1

8

BSCK1
BSC12

910

+5V

1

2 3

MHR13FAJ19.6608

GND

.1UF

Y1

N.C.

GND CLK

(4 PIN SMT)

C33

4

VCC

CPUCLK

GUARD BAND

NC7SZ08M5
(SOT23-5)

GUARD BAND

1

2

BD00_A

FLASHCS-

+3P3V

53

U2

GND

PA16
PA17
PA18
PA19
PA20
PA21

C22

.1UF

4

BRCLK

CPUCLK

BSCAN­RESET­TDI_U6
A0
A3
A4
A5
A6
A7
A8

A9
A10
A11
A12
A13
A14
A15
RD­WR­TMS_U6

TDO_U6
BD00_A
PA16
PA17
PA18
PA19
PA20
PA21
WDTC
FLASHCS-

EXTAL

GUARD BAND

+5V

U6

1

VCC10

2

GND

3

S6

4

S7

5

S8

6

S9

7

S10

8

S11

9

BRCLK

10

N.C.

11

CPUCLK

12

VCC

13

GND

14

BSCAN-

15

RESET-

16

TDI

17

A0

18

A3

19

A4

20

A5

21

A6

22

A7

23

A8

24

VCCIO

25

GND

26

N.C.

27

N.C.

28

A9

29

A10

30

A11

31

A12

32

A13

33

A14

34

A15

35

RD-

36

WR-

37

TMS

38

GND

39

TDO

40

DB0

41

PA16

42

PA17

43

PA18

44

PA19

45

PA20

46

PA21

47

WDTC

48

PROMCS-

49

N.C.

50 51

N.C. GND

ISPLSI2064E-100LT100-PC104

C44

C45

.1UF

.1UF

MODA/IRQA­MODB/IRQB­MODC/IRQC­BOOTEN­SC01
BTXD
BSC11

+3P3V

100

N.C.

99

N.C.

S5

S4
SA11
SA10

SA9
SA8
SA7
SA6

SA5
N.C.
GND

GOE1

SA4

SA3

SA2

SA1

SA0
IOW­IOR-

LBEN-

OEL
N.C.
N.C.

VCCIO

GND
I/O38
HRW
HDS-

HA2

HA1

HA0

INRD­GOE0

SYSCLK

VCC
GND

Y2

N.C.

TCK

VMECS­DPRCS-

CS0­CS1­CS4-

CS00­IOCS-

VCCIO

C46

C47

.1UF

.1UF

GND

DSW05

98
97

DSW04
SA11

96

SA10

95

SA09

94

SA08

93

SA07

92

SA06

91

SA05

90
89
88
87

SA04

86

SA03

85

SA02

84

SA01

83
82

SA00
SIOW-

81

SIOR-

80

LBEN-

79

OEL

78
77
76
75
74
73

BHR/W

72

BHDS-

71

BHA2

70

BHA1

69

BHA0

68
67

INRD-

66

SYSCLK

65
64
63
62
61

TCK_U6

60

VM_ECS-

59
58

DP_RCS­CS_0-

57

CS_1-

56

CS_4-

55

CS_00-

54

IOCS-

53
52

IOCS-

2 1

2 1

E19

E18

E10
E11
E12
E13

RP2

3
4
5
6
7
8
9 10

3.3KSIP10C

GND

E10

2 1

E11

2 1

E12

2 1

E13

2 1

+3P3V

12

TO LOAD `isp' PART

GND

JUMP `E0'

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
X/Y
WR­RD-

D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23

R2

1 2

10K

C1

.1UF

GND

C35

.01UF

56

RP5C

1KSIP6I

MMBT3906LT1

(SOT23)

21

21

E0

E0

E14

R3
100K

E14

E1

E2
E3

E4

GND

U4A

74ACT14
(SO14)

1

Q1

21

21
21

21

PHASE

SERVO

GND

1 2

1KSIP6I

23

C34

+

1UF
35V
tant

BTXD

RXD

BRTS-

CTS-

PHASE

SERVO

PHA

SER

CARD0

C23

.1UF

RP5A

RP50

+5V

U4B

3 4

74ACT14

3 4

1KSIP6I

U3

1

N.C.

2

IN

3

N.C.

4

MODE

5

N.C.

6

TOL

7

N.C.

8

GND

DS1231S
(SOL16)

1 3

MMBD301LT1

+5V

12

3.3KSIP10C

3456789 10

C38

.1UF
C39

.1UF
C40

.1UF

U8

1

1OE

2

1A

4

2OE

5

2A

10

3OE

9

3A

13

4OE

12

4A

7

VSS

74HC126C
(SO14)

U35C

5 6

74ACT14

GND

(SO14)

(SO14)

2N7002

(SOT23)

RP5B

D3

1 3

MMBD301LT1

16

N.C.

15

VCC

14

N.C.

13

NMI

12

N.C.

11

RST

10

N.C.

9

RST

.1UF

D4

INRD­XIN_0

CARD0

XIN_1

40/60

XIN_2

E_51

XIN_3

XIN_4

TBD_0

XIN_5

TBD_1

TBD_2

XIN_6

TBD_3

XIN_7
CS_00­CS_0-

CS_1­CS_4-

DP_RCS­VM_ECS- VMECS-

PWDO­RESET-

U7

3

+V

2

C1+

4

C1-

12

TXD

13

RXD

11

RTS

10

CTS

1 18

RXEN TXEN

LTC1384CS

(SOL18)

C19

.1UF

VDD

1Y

2Y

3Y

4Y

12

Q2

3

SOT23

+5V

C2

C36

.1UF

17

VCC

C2+

C2-

TXD

RXD

RTS

CTS

VSS

16

+5V

14
3

6

8

11

12

SHEET2

670-0SH2

|Link
|670-0SH2.sch

7

V-

5

6

15

14

8

9

WAIT-

Q3

3

2N7002

SOT23

(SOT23)

3

SOT23

U36

48

OE1

47

A0

46

A1

45

GND

44

A2

43

A3

42

VCC

41

A4

40

A5

39

GND

38

A6

37

A7

36

A8

35

A9

34

GND

33

A10

32

A11

31

VCC

30

A12

29

A13

28

GND

27

A14

26

A15
OE2

PI74FCT16245ATA

(TSSOP48)

C42

.1UF
C41

.1UF

BSC11

U9

1

8

GND

A

2

7

C

GND

3

6

GND

B

4 5

D GND

SN75240PW

RP8

1 2
3 4
5 6
7 8

220SIP4X2

U35A

1 2

74ACT14
(SO14)

U35F

13 12

74ACT14
(SO14)

WAIT-

5 6

11 10

13 12

12

GND

+5V

GND

U35D

9 8

74ACT14
(SO14)

U4C

(SO14)

74ACT14

U4D

9 8

(SO14)

74ACT14

U4E

(SO14)

74ACT14

U4F

(SO14)

74ACT14

Q4
2N7002

(SOT23)

1

T/R1

2

B0

3

B1

4

GND

5

B2

6

B3

7

VCC

8

B4

9

B5

10

GND

11

B6

12

B7

13

B8

14

B9

15

GND

16

B10

17

B11

18

VCC

19

B12

20

B13

21

GND

22

B14

23

B15

2425

T/R2

Title

Size Document Number Rev

D

Date: Sheet

D2
LED
GRN

PWR

R4
1K

BD01_A

BD02_A
BD03_A

BD04_A
BD05_A

BD06_A
BD07_A
CS00­CS0-

CS1­CS4-

DPRCS-

BWDO_A­BRST_A-

C37

.1UF

Delta Tau Data Systems, Inc.

PMAC-PC104, DSP56311 CPU & PC104 I/O SECTION

603670-320

+5V

C17

+

10UF

16V

+3P3V

LBEN-

48

OE1

A0
A1

GND

A2
A3

A4
A5

GND

A6
A7
A8
A9

GND

A10
A11

A12
A13

GND

A14
A15

OE2

RP6

47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26

3.3KSIP10C

2
3
4
5
6
7
8
9

1

19

BH0
BH1

BH2
BH3

BH4
BH5

BH6
BH7
A6
A7

A8
A9

A10
A11

X/Y
EXTAL

C88

.1UF

U34

A0
A1
A2
A3
A4
A5
A6
A7

T/R
OE

74LCX245

(TSSOP20)

(TANT)

GND

+5V

C15

+

10UF

16V

(TANT)

GND

GUARD BAND

+5V

12

RP7

3456789 10

18

B0

17

B1

16

B2

15

B3

14

B4

13

B5

12

B6

11

B7

20

VCC

10

GND

C43

.1UF

GND

Connector Pinouts 39

PMAC2A PC104 Hardware Reference Manual

(JEXP_A)

RP13A

1 2

47KSIP8I

RP13B

3 4

47KSIP8I

RP13C

5 6

47KSIP8I

RP13D

7 8

47KSIP8I

RP19A

1 2

47KSIP8I

RP19B

3 4

47KSIP8I

RP19C

5 6

47KSIP8I

RP19D

7 8

47KSIP8I

FLAG_A1
FLAG_B1

FLAG_C1
FLAG_D1

FLAG_A2
FLAG_B2

FLAG_C2
FLAG_D2

FLAG_B3

FLAG_C3
FLAG_D3

FLAG_A4
FLAG_B4

FLAG_C4
FLAG_D4

WDO
PWM_A_T1
PWM_A_B1

PWM_A_T2
PWM_A_B2

PWM_A_T3
PWM_A_B3

PWM_A_T4
PWM_A_B4
PWM_C_T1

PWM_C_T1
PWM_C_B1

PWM_C_B1

PWM_C_T2

PWM_C_T2
PWM_C_B2

PWM_C_B2

PWM_C_T3

PWM_C_T3
PWM_C_B3

PWM_C_B3

PWM_C_T4

PWM_C_T4
PWM_C_B4

PWM_C_B4
WDO

WDO

J11

12
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40

HEADER 20X2(FEM)
CLS120LDDV

C100

.1UF

C101

.1UF

C102

.1UF

C103

.1UF

C104

.1UF

C105

.1UF

C106

.1UF

C107

.1UF

GND

BD00_A

BD00_A

BD02_A

BD02_A

BD04_A

BD04_A

BD06_A

BD06_A

BD08_A

BD08_A

BD10_A

BD10_A

BD12_A

BD12_A

BD14_A

BD14_A

BD16_A
BD18_A
BD20_A
BD22_A
BA00_A

BA00_A

BA02_A

BA02_A

BA04_A

BA04_A

BA06_A

BA06_A

BA08_A

BA08_A

BA10_A

BA10_A

BA12_A

BA12_A

BX/Y_A

SSM-120-L-DV-LC

(JEXPB)

HEADER 25X2(FEM)

ADC_A1

3

ADC_A2
ADC_A3

4

ADC_A4

5
6

ADC_B1
ADC_B2

7
8

ADC_B3

910

ADC_B4

R35

WAIT-

3.3K
R36

PRDY

3.3K
R37

SCLK_DIR

3.3K

GUARD BANDING REQ'D

+5V

3

5

J6

12
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50

CLS125LDDV

FLT_FLG_V

GND

HOME1+
PLIM1+
MLIM1+
USER1+
PUL_1+
DIR_1+
EQU_1+
HOME3+
PLIM3+
MLIM3+
USER3+
PUL_3+
DIR_3+
EQU_3+
B_WDO

GND

CHA1+
CHA1­CHB1+
CHB1­CHC1+
CHC1­CHA3+
CHA3­CHB3+
CHB3­CHC3+
CHC3­DAC1+
DAC1­AENA1­FALT1­DAC3+
DAC3­AENA3­FALT3­ADCIN_1

Flag_1_2_V

+5V

+12V

PWM_B_T1
PWM_B_B1
PWM_B_T2
PWM_B_B2
PWM_B_T3
PWM_B_B3
PWM_B_T4
PWM_B_B4
ADC_A1
ADC_A2
ADC_A3
ADC_A4
ADC_B1
ADC_B2
ADC_B3
ADC_B4
ADC_STR
FAULT~1
FAULT~2
FAULT~3
FAULT~4
BA07_A
BA09_A
BA11_A
WAIT-

HEADER 17X2

HEADER 25X2

(JMACH2)

J4

12
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34

(JMACH1)

J3

12
34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50

WAIT-

Flag_3_4_V

PWM_A_T1
PWM_A_B1
PWM_A_T2
PWM_A_B2
PWM_A_T3
PWM_A_B3
PWM_A_T4
PWM_A_B4
PWM_C_T1
PWM_C_B1
PWM_C_T2
PWM_C_B2
PWM_C_T3
PWM_C_B3
PWM_C_T4
PWM_C_B4
ADC_CLK
AENA_1
AENA_2
AENA_3
AENA_4
BA06_A
BA08_A
BA10_A
DPRCS-

DPRCS-

SSM-125-L-DV-LC

+5V

RP10

1 2

3.3KSIP10C

GND

"E15" FLASH BANK SELECT

FLASHCS-

FLASHCS-

PA21

PA21

PA20

PA20

PA19

PA19

PA18

PA18

PA17

PA17

PA16

PA16

A15

A15

A14

A14

A13

A13

A12

A12

RESET-

RESET-

A11

A11

A10

A10

A9

A9

A8

A8

A7

A7

A6

A6

A5
A4
A3
A2 FLAG_A3

W1

SOLDER
JUMPER
1

3

+3P3V

+3P3V

+3P3V

+3P3V

A1

2

W1

C60

.1UF

IOCS-

IOCS-

D0

D0

D1

D1

D2

D2

D3

D3

D4

D4

D5

D5

D6

D6

D7

D7

D8

D8

D9

D9

D10

D10

D11

D11

D12

D12

D13

D13

D14

D14

D15

D15

D16

D16

D17

D17

D18

D18

D19

D19

D20

D20

D21

D21

D22

D22

D23

D23

A0

A0

A1

A1

A2

A2

A3

A3

A4

A4

A5

A5

WR-

WR-

RD-

RD-

+3P3V

+5V

`W1'= 1 TO 2 FOR 28F320J3A
`W1'= 2 TO 3 FOR 28F320J5A

C64

.1UF

C65

.1UF

C68

.1UF

C69

.1UF

40 Connector Pinouts

GND

E15A

E15B

E15C

U10

1

A22

2

CE1-

3

A21

4

A20

5

A19

6

A18

7

A17

8

A16

9

VCC

10

A15

11

A14

12

A13

13

A12

14

CE0

15

VPEN

16

RP-

17

A11

18

A10

19

A09

20

A08

21

GND

22

A07

23

A06

24

A05

25

A04

26

A03

27

A02

28 29

A01 CE2

E28F320J3A

(TSOP56)

C61

GND

.1UF

U12

48

OE1

47

A0

46

A1

45

GND

44

A2

43

A3

42

VCCA

41

A4

40

A5

39

GND

38

A6

37

A7

36

A8

35

A9

34

GND

33

A10

32

A11

31

VCCA

30

A12

29

A13

28

GND

27

A14

26

A15
OE2

IDT74FCT164245TPA

(TSSOP48)
U13

48

OE1

47

A0

46

A1

45

GND

44

A2

43

A3

42

VCCA

41

A4

40

A5

39

GND

38

A6

37

A7

36

A8

35

A9

34

GND

33

A10

32

A11

31

VCCA

30

A12

29

A13

28

GND

27

A14

26

A15
OE2

IDT74FCT164245TPA

(TSSOP48)

21

21

21

A24_WP

VCCQ

BYTE-

T/R1

GND

VCCB

GND

GND

B10
B11

VCCB

B12
B13

GND

B14
B15

T/R2

T/R1

GND

VCCB

GND

GND

B10
B11

VCCB

B12
B13

GND

B14
B15

T/R2

56
55

WE-

54

OE-

53

STS

52

DQ15

51

DQ7

50

DQ14

49

DQ6

48

GND

47

DQ13

46

DQ5

45

DQ12

44

DQ4

43
42

GND

41

DQ11

40

DQ3

39

DQ10

38

DQ2

37

VCC

36

DQ9

35

DQ1

34

DQ8

33

DQ0

32

A00

31
30

A23

C62

.1UF

1

BD00_A

2

B0

BD01_A

3

B1

4

BD02_A

5

B2

BD03_A

6

B3

7

BD04_A

8

B4

9

BD05_A

B5

10

BD06_A

11

B6

BD07_A

12

B7

BD08_A

13

B8

14

BD09_A

B9

15

BD10_A

16

BD11_A

17
18

BD12_A

19

BD13_A

20
21
22

BD14_A
BD15_A

23
2425

1

BD16_A

2

B0

3

BD17_A

B1

4

BD18_A

5

B2

BD19_A

6

B3

7

BD20_A

8

B4

BD21_A

9

B5

10

BD22_A

11

B6

BD23_A

12

B7

BA00_A

13

B8

BA01_A

14

B9

15

BA02_A

16

BA03_A

17
18

BA04_A

19

BA05_A

20
21
22

BWR_A-

23

BRD_A-

2425

R30 3.3K

R31 3.3K

R32 3.3K

WR­RD­PRDY

D7

D6

D5

D4

D3

D2

D1

D0
A0

+5V

+5V

+5V

+5V

+5V

+3p3V

C63

GND

.1UF

U14A

1

(SO8)

2

DS75451M

WDO

WDO

C67

.1UF

C66

.1UF

C71

.1UF

C70

.1UF

GND

6

7

(SOCKET)

U14B

(SO8)

DS75451M
(SOCKET)

BX/Y_A

RP12A

PWM~A~T1

PWM~A~B1

PWM~A~T2

PWM~A~B2

PWM~A~T3

PWM~A~B3

PWM~A~T4

PWM~A~B4

HOME2+
PLIM2+
MLIM2+
USER2+
PUL_2+
DIR_2+
EQU_2+
HOME4+
PLIM4+
MLIM4+
USER4+
PUL_4+
DIR_4+
EQU_4+

+5V

CHA2+
CHA2­CHB2+
CHB2­CHC2+
CHC2­CHA4+
CHA4­CHB4+
CHB4­CHC4+
CHC4­DAC2+
DAC2­AENA2­FALT2­DAC4+
DAC4­AENA4­FALT4­ADCIN_2

-12V

1 2

100KSIP8I

RP12B

3 4

100KSIP8I

RP12C

5 6

100KSIP8I

RP12D

7 8

100KSIP8I

RP18A

1 2

100KSIP8I

RP18B

3 4

100KSIP8I

RP18C

5 6

100KSIP8I

RP18D

7 8

100KSIP8I

GND

GND

GND

411

LF347M

3

+

U15A

2

-

(SO14)

411

LF347M

3

+

U16A

2

-

(SO14)

411

LF347M

3

+

U17A

2

-

(SO14)

411

LF347M

3

+

U18A

2

-

(SO14)

C72

.1UF

GND

C74

.1UF

GND

BD01_A

BD01_A

BD03_A

BD03_A

BD05_A

BD05_A

BD07_A

BD07_A

BD09_A

BD09_A

BD11_A

BD11_A

BD13_A

BD13_A

BD15_A

BD15_A

BD17_A
BD19_A
BD21_A
BD23_A
BA01_A

BA01_A

BA03_A

BA03_A

BA05_A

BA05_A

BA07_A

BA07_A

BA09_A

BA09_A

BA11_A

BA11_A

BA13_A

BA13_A

+12V

RP14A

1

1 2

47KSIP8I

RP14B

47KSIP8I

-12V

+12V

RP15A

1 2

1

47KSIP8I

RP15B

47KSIP8I

-12V

+12V

RP20A

1

1 2

47KSIP8I

RP20B

47KSIP8I

-12V

+12V

RP21A

1 2

1

47KSIP8I

RP21B

47KSIP8I

-12V

+5V

U21

1

OE1

T/R1

2

B0

A0

3

B1

A1

4

GND

GND

5

B2

A2

6

B3

A3

7

VCC

VCC

8

B4

A4

9

B5

A5

10

GND

GND

11

B6

A6

12

B7

A7

13

B8

A8

14

A9

B9

15

GND

GND

16

A10

B10

17

A11

B11

18

VCC

VCC

19

A12

B12

20

A13

B13

21

GND

GND

22

A14

B14

23

A15

B15

24 25

OE2

T/R2

74ACA6245
(dgg)

+5V

U22

48

OE1

T/R1

47

A0

B0

46

B1

A1

45

GND

GND

44

B2

A2

43

B3

A3

42

VCC

VCC

41

B4

A4

40

B5

A5

39

GND

GND

38

B6

A6

37

B7

A7

36

B8

A8

35

A9

B9

34

GND

GND

33

A10

B10

32

A11

B11

31

VCC

VCC

30

A12

B12

29

A13

B13

28

GND

GND

27

A14

B14

26

A15

B15

OE2

T/R2

74ACA6245
(dgg)

THIS DOCUMENT IS THE CONFIDENTIAL PROPERTY OF DELTA TAU

THIS DOCUMENT IS THE CONFIDENTIAL PROPERTY OF DELTA TAU
DATA SYSTEMS INC. AND IS LOANED SUBJECT TO RETURN UPON

DATA SYSTEMS INC. AND IS LOANED SUBJECT TO RETURN UPON
DEMAND. TITLE TO THIS DOCUMENT IS NEVER SOLD OR

DEMAND. TITLE TO THIS DOCUMENT IS NEVER SOLD OR
TRANSFERRED FOR ANY REASON. THIS DOCUMENT IS TO BE USED

TRANSFERRED FOR ANY REASON. THIS DOCUMENT IS TO BE USED
ONLY PURSUANT TO WRITTEN LICENSE OR WRITTEN INSTRUCTIONS

ONLY PURSUANT TO WRITTEN LICENSE OR WRITTEN INSTRUCTIONS
OF DELTA TAU DATA SYSTEMS INC. ALL RIGHTS TO DESIGNS AND

OF DELTA TAU DATA SYSTEMS INC. ALL RIGHTS TO DESIGNS AND
INVENTIONS ARE RESERVED BY DELTA TAU DATA SYSTEMS INC.

INVENTIONS ARE RESERVED BY DELTA TAU DATA SYSTEMS INC.
POSSESSION OF THIS DOCUMENT INDICATES ACCEPTANCE OF THE

POSSESSION OF THIS DOCUMENT INDICATES ACCEPTANCE OF THE
ABOVE AGREEMENT.

ABOVE AGREEMENT.

+5V

GND

BX/Y_A

CS1-

CS00-

GND
+12V

WDO-

+5V

C126

+

C127

10UF/10V

.1UF

GND

670-0SH2.sch

(JEXPA)

J5

12

BD00_A
BD02_A
BD04_A
BD06_A
BD08_A BD09_A
BD10_A
BD12_A
BD14_A
BD16_A
BD18_A
BD20_A
BD22_A
BA00_A
BA02_A
BA04_A
BX/Y_A
CS1­CS00­BWR_A­SERVO

19.6608Mhz

SSM-125-L-DV-LC

AENA_1

AENA_2

WDO-

AENA_3

AENA_4

Title

Size Document Number Rev

D

Date: Sheet

34
56
78
910
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
41 42
43 44
45 46
47 48
49 50

HEADER 25X2(FEM)

CLS125LDDV

+5V

.1UF

U26A

1

(DIP8)

(SOCKET)

2

DS75452N

U26B

6

(DIP8)

7

(SOCKET)

DS75452N

U27A

1

(DIP8)

(SOCKET)

2

DS75452N

U27B

6

(DIP8)

(SOCKET)

7

DS75452N

+5V

+5V

RP45

1 2

3.3KSIP10C

RP46

1 2

3.3KSIP10C

Delta Tau Data Systems, Inc.

PMAC-PC104, MACHINE I/O & "JEXP" SECTION

603670-320

C79

.1UF

BD01_A
BD03_A
BD05_A
BD07_A

BD11_A
BD13_A
BD15_A
BD17_A
BD19_A
BD21_A
BD23_A
BA01_A
BA03_A
BA05_A
VMECS­CS4­BWDO_A­BRD_A­PHASE
BRST_A-

C80

3
4
5
6
7
8
910

3
4
5
6
7
8
910

FLAG_T1
FLAG_U1
FLAG_V1
FLAG_W1
FLAG_T2
FLAG_U2
FLAG_V2
FLAG_W2

FLAG_T3
FLAG_U3
FLAG_V3
FLAG_W3
FLAG_T4
FLAG_U4
FLAG_V4
FLAG_W4

+5V
GND

VMECS­CS4­BWDO_A-

BRST_A-

GND

-12V

GND

3

AENA1-

5

AENA2-

3

AENA3-

AENA4-

5

GND

22Monday, July 02, 2001

of

B

20.0K/1%

20.0K/1%

20.0K/1%

20.0K/1%

R20

LM6132AIM

R22

R24

LM6132AIM

R26

A1
A2
A3
A4
A5
A6
A7
A8

G1
G2

U23

3 2

OUT-A IN-A

4

EN-A,C

5

OUT-C

13

OUT-B

12

EN-B,D

11

OUT-D

ST34C86CF16
(SO16)

U24

3 2

OUT-A IN-A

4

EN-A,C

5

OUT-C

13

OUT-B

12

EN-B,D

11

OUT-D

ST34C86CF16
(SO16)

U25

3 2

OUT-A IN-A

4

EN-A,C

5

OUT-C

13

OUT-B

12

EN-B,D

11

OUT-D

ST34C86CF16
(SO16)

5

+

U19B

6

-

C124

.1UF

3

+

U19A

2

-

FAULT~1

2

FAULT~2

3

FAULT~3

4

FAULT~4

5
6
7
8
9

1
19

SIP SOCKET

GND

C116

220PF

R10

RP21D

RP24

RP14D

RP15D

RP20D

78

78

78

78

Flag_3_4_V

SIP SOCKET

1

2.2KSIP6C

1

2.2KSIP6C

GND

200.0K
1%

-

9

U15C

+

10

RP16A

1 2

47KSIP8I

R11

24K

C117

220PF

R12

200.0K
1%

-

9

U16C

+

10

RP16C

5 6

47KSIP8I

R13

24K

C118

220PF

R14

200.0K
1%

-

9

U17C

+

10

RP22A

1 2

47KSIP8I

R15

24K

C119

220PF

R16

200.0K
1%

-

9

U18C

+

10

RP22C

5 6

47KSIP8I

R17

24K

12

3456789 10

RP30

RP31

LF347M

(SO14)

LF347M

(SO14)

LF347M

(SO14)

LF347M

(SO14)

RP27

6
5
4
3
2

6
5
4
3
2

+5V

8

8

8

8

3.3KSIP10C

12

3456789 10

RP16B

3 4

47KSIP8I

-

13

U15D

+

12

RP16D

7 8

47KSIP8I

-

13

U16D

+

12

RP22B

3 4

47KSIP8I

-

13

U17D

+

12

RP22D

7 8

47KSIP8I

-

13

U18D

+

12

HOME1+
PLIM1+
MLIM1+
USER1+

HOME2+
PLIM2+
MLIM2+
USER2+

HOME3+
PLIM3+
MLIM3+
USER3+

HOME4+
PLIM4+
MLIM4+
USER4+

LF347M

(SO14)

LF347M

(SO14)

LF347M

(SO14)

LF347M

(SO14)

14

14

14

14

RP32

2.2KSIP10C

CHA1­CHB1­CHC1-

CHA2­CHB2­CHC2-

RP17A

1 2

220SIP8I

RP17B

3 4

220SIP8I

RP17C

5 6

220SIP8I

RP17D

7 8

220SIP8I

RP23A

1 2

220SIP8I

RP23B

3 4

220SIP8I

RP23C

5 6

220SIP8I

RP23D

7 8

220SIP8I

DAC1-

DAC1+

DAC2-

DAC2+

DAC3-

DAC3+

DAC4-

DAC4+

FAULT_1
FAULT_2
FAULT_3
FAULT_4
EQU_1+
EQU_2+
EQU_3+
EQU_4+

12

3456789 10

.1UF

RP33

1KSIP10C

C108

34

47PF

C109

470PF

C110

34

47PF

C111

470PF

C112

34

47PF

C113

470PF

C114

34

47PF

C115

470PF

C73

.1UF

48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26

GND

C75

.1UF

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2425

GND

6

5

6

5

6

5

6

5

1 2
3 4
5 6
7 8

1 2
3 4
5 6
7 8

1 2
3 4
5 6
7 8

1 2
3 4
5 6
7 8

PWM~A~T1
PWM~A~B1

PWM~A~T2
PWM~A~B2

PWM~A~T3
PWM~A~B3

PWM~A~T4
PWM~A~B4
DIR_1+
PUL_1+

DIR_2+
PUL_2+

DIR_3+
PUL_3+

DIR_4+
PUL_4+

LF347M

-

U15B

+

(SO14)

LF347M

-

U16B

+

(SO14)

LF347M

-

U17B

+

(SO14)

LF347M

-

U18B

+

(SO14)

3.3KSIP10C

RP25

10KSIP8I

RP26

10KSIP8I

RP28

10KSIP8I

RP29

10KSIP8I

7

7

7

7

Flag_1_2_V

RP14C

5 6

47KSIP8I

47KSIP8I

RP15C

5 6

47KSIP8I

47KSIP8I

RP20C

5 6

47KSIP8I

47KSIP8I

RP21C

5 6

47KSIP8I

47KSIP8I

12

3456789 10

C85

CHA1+
CHB1+
CHC1+

CHA2+
CHB2+
CHC2+

ADCIN_2

ADCIN_1

GND

ENC_A1

ENC_A2

ENC_A3

ENC_A4

ENC_B1

ENC_B2

ENC_B3

ENC_B4

ENC_C1

ENC_C2

ENC_C3

ENC_C4

+5V

U32

18

Y1

17

Y2

16

Y3

15

Y4

14

Y5

13

Y6

12

Y7

11

Y8

20

VCC

10

GND

74AC541
(SOL20)

(SO8)

+5V

84

(SO8)

1

2.2KSIP6C

1

2.2KSIP6C

VCC

IN-A

IN-C

IN-C

IN-B

IN-B

IN-D

IN-D

GND

VCC

IN-A

IN-C

IN-C

IN-B

IN-B

IN-D

IN-D

GND

VCC

IN-A

IN-C

IN-C

IN-B

IN-B

IN-D

IN-D

GND

GND

C120 100PF

R21

4.99K/1%

7

R23

4.99K/1%

C121 100PF

C122 100PF

R25

4.99K/1%

1

R27

4.99K/1%

C123 100PF

1 2
3 4
5 6
7 8

JUMP E16 TO ENABLE ATD

+5V

RP36

6
5
4
3
2

RP37

6
5
4
3
2

16

1

7

6

14

15

9

10

8

C76

.1UF

16

1

7

6

14

15

9

10

8

C77

.1UF

16

1

7

6

14

15

9

10

8

C78

.1UF

4.7KSIP10C

+5V

C125

.1UF

RP42

10KSIP8I

12

3456789 10

FLT_FLG_V

E16

CHA1+

CHA1-

CHA2-

CHA2+

CHA3+

CHA3-

CHA4-

CHA4+

CHB1+

CHB1-

CHB2-

CHB2+

CHB3+

CHB3-

CHB4-

CHB4+

CHC1+

CHC1-

CHC2-

CHC2+

CHC3+

CHC3-

CHC4-

CHC4+

U20

1

DGND

2

CH_B1+

3

CH_B1-

4

CH_B0+

5

CH_B0-

6

CH_A1+

7

CH_A1-

8

CH_A0+

9

CH_A0-

10

REF_IN

11

REF_OUT

12 13

AGND +VA

ADS7861E
(SSOP24)

RP43

RP38

2.2KSIP10C

CHA3­CHB3­CHC3-

CHA4­CHB4­CHC4-

+5V

12

12

3456789 10

21

guard band

+VD
SDO_A
SDO_B

BUSY

CLOCK

CS-

RD

CONVST

A0
M0
M1

RP44

3456789 10

12

3456789 10

24
23
22
21
20
19
18
17
16
15
14

3.3KSIP10C

FALT1­FALT2­FALT3­FALT4­EQU_1
EQU_2
EQU_3
EQU_4
SERVO
PHASE
SCLK

ADC_CS-

RP39

1KSIP10C

CHA3+
CHB3+
CHC3+

CHA4+
CHB4+
CHC4+

ADC_A1
ADC_A2

ADC_CLK
ADC_CS-

ADC_STR
