^1 HARDWARE REFERENCE MANUAL

^2 PMAC2 PCI

^3 PMAC 2 PCI Bus Expansion Card

^4 4XX-603486-xHxx

^5 May 26, 2004

Single Source Machine Control Power // Flexibility // Ease of Use

21314 Lassen Street Chatsworth, CA 91311 // Tel. (818) 998-2095 Fax. (818) 998-7807 // www.deltatau.com

unauthorized without written permission of Delta Tau Data Systems, Inc. Information contained in this manual may be updated from time-to-time due to product improvements, etc., and may not conform in every respect to former issues.

To report errors or inconsistencies, call or email:

Delta Tau Data Systems, Inc. Technical Support

Phone: (818) 717-5656 Fax: (818) 998-7807 Email: support@deltatau.com Website: http://www.deltatau.com

Operating Conditions

All Delta Tau Data Systems, Inc. motion controller products, accessories, and amplifiers contain static sensitive components that can be damaged by incorrect handling. When installing or handling Delta Tau Data Systems, Inc. products, avoid contact with highly insulated materials. Only qualified personnel should be allowed to handle this equipment.

In the case of industrial applications, we expect our products to be protected from hazardous or conductive materials and/or environments that could cause harm to the controller by damaging components or causing electrical shorts. When our products are used in an industrial environment, install them into an industrial electrical cabinet or industrial PC to protect them from excessive or corrosive moisture, abnormal ambient temperatures, and conductive materials. If Delta Tau Data Systems, Inc. products are exposed to hazardous or conductive materials and/or environments, we cannot guarantee their operation.

PMAC2 PCI Hardware Reference Manual

Table of Contents

INTRODUCTION.......................................................................................................................................................1

Board Configuration..................................................................................................................................................1

Base Version.........................................................................................................................................................1

Option 1: Additional Four Channels Axis Interface Circuitry.............................................................................1

Option 2: Dual-Ported RAM................................................................................................................................1

Option 5xF: CPU Speed Options.........................................................................................................................2

Option 6: Extended Servo Algorithm...................................................................................................................2

Option 7: Plate Mounting....................................................................................................................................2

Option 8: High-Accuracy Clock Crystal..............................................................................................................2

Option 10: Firmware Version Specification........................................................................................................2

Option 12: Analog-to-Digital Converters............................................................................................................2

Option 16: Battery-Backed Parameter Memory..................................................................................................2

HARDWARE SETUP.................................................................................................................................................3

Piggyback CPU Board Jumper Configuration...........................................................................................................3

Watchdog Timer Jumper.......................................................................................................................................3

Dual-ported RAM Source Jumper.........................................................................................................................3

Power-Up State Jumpers......................................................................................................................................3

Firmware Load Jumper........................................................................................................................................3

Flash Memory Bank Select Jumpers.....................................................................................................................3

Base Board Jumper Configuration............................................................................................................................3

Servo and Phase Clock Direction Control............................................................................................................3

CPU Frequency Control Jumpers.........................................................................................................................4

Re-Initialization Jumper .......................................................................................................................................4

Encoder Sample Clock Source Jumpers...............................................................................................................4

Serial Port Selection Jumper................................................................................................................................4

Output Disable State Jumpers ..............................................................................................................................4

Resistor Pack Configuration......................................................................................................................................5

Termination Resistors...........................................................................................................................................5

Pull-Up/Pull-Down Resistors ...............................................................................................................................5

Connections...............................................................................................................................................................6

Mounting...............................................................................................................................................................6

Power Supply Connection.....................................................................................................................................6

Machine Port Connections ...................................................................................................................................6

Display Port..........................................................................................................................................................6

Multiplexer Port....................................................................................................................................................7

I/O Port.................................................................................................................................................................7

Serial Ports...........................................................................................................................................................7

A/D-Converter Port ..............................................................................................................................................7

Handwheel Port....................................................................................................................................................7

COMMUNICATIONS SETUP..................................................................................................................................9

FLEX CPU BOARD JUMPER DESCRIPTIONS..................................................................................................11

E1: Watchdog Disable Jumper...............................................................................................................................11

E2: Dual-Ported RAM Port Select .........................................................................................................................11

E4 – E6: Power-Up/Reset Load Source.................................................................................................................11

E7: Firmware Reload Enable..................................................................................................................................11

E10A, B, C: Flash Memory Bank Select................................................................................................................12

PMAC2 PCI BASE BOARD JUMPER DESCRIPTIONS....................................................................................13

E2: CPU Frequency Select......................................................................................................................................13

E3: Normal/Re-Initializing Power-Up/Reset...........................................................................................................13

E4: CPU Frequency Select......................................................................................................................................13

E5 – E6: (Reserved for Future Use)........................................................................................................................14

Table Of Contents i

PMAC2 PCI Hardware Reference Manual

E13 - E14: Encoder Sample Clock Direction Control............................................................................................14

E17 - E18: Serial Port Type Selection....................................................................................................................14

E111-118: Command Output Disable State...........................................................................................................15

MATING CONNECTORS.......................................................................................................................................17

CPU Board Connectors........................................................................................................................................... 17

J2 (JEXP)/Expansion..........................................................................................................................................17

Baseboard Connectors.............................................................................................................................................17

J1 (JANA)/Analog (Option 12) ...........................................................................................................................17

J2 (JTHW)/Multiplexer Port...............................................................................................................................17

J3 (JIO)/Digital I/O............................................................................................................................................17

J5 (JRS232)/RS-232 Serial Communications......................................................................................................17

J5A (JRS422)/RS-422 Serial Communications...................................................................................................17

J6 (JDISP)/Display.............................................................................................................................................17

J7 (JHW)/Auxiliary Channel...............................................................................................................................17

J8 (JEQU)/Position Compare.............................................................................................................................18

J9 (JMACH1)/Machine Port 1............................................................................................................................18

J10 (JMACH2)/Machine Port 2..........................................................................................................................18

J11 (JMACH3)/Machine Port 3..........................................................................................................................18

J12 (JMACH4)/Machine Port 4..........................................................................................................................18

PMAC2 PCI BASE BOARD CONNECTOR PINOUT S.......................................................................................19

J1 (JANA) Analog Input Port Connector................................................................................................................19

J2 (JTHW) Multiplexer Port Connector..................................................................................................................20

J3 (JI/O) General Input/Output Connector..............................................................................................................21

J5 (JRS232) Serial Port Connector..........................................................................................................................22

J5A (RS422) Serial Port Connector ........................................................................................................................22

J6 (JDISP) Display Connector ................................................................................................................................23

J7 (JHW) Handwheel Encoder Connector...............................................................................................................23

J8 (JEQU) Position Compare Output Connector.....................................................................................................24

J9 (JMACH1) Connector Description.....................................................................................................................24

J9 JMACH1 Connector.......................................................................................................................................25

J9 JMACH1 Connector.......................................................................................................................................27

J10 (JMACH2) Connector Description...................................................................................................................27

J11 (JMACH3) Connector Description...................................................................................................................30

J11 JMACH3 Connector.....................................................................................................................................31

J12 (JMACH4) Connector Description...................................................................................................................33

J12 JMACH4 Connector.....................................................................................................................................34

J12 JMACH4 Connector.....................................................................................................................................35

J12 JMACH4 Connector.....................................................................................................................................36

TB1 (2/4-Pin Terminal Block)................................................................................................................................36

TB2 (3-Pin Terminal Block) ...................................................................................................................................37

BASE BOARD JUMPERS LAYOUT......................................................................................................................39

SCHEMATICS..........................................................................................................................................................41

ii Table of Contents

PMAC2 PCI Hardware Reference Manual

INTRODUCTION

The PMAC2 PCI (part number 400-603367-10x) is a member of the PMAC family of boards optimized for interface to sinewave or direct-PWM servo drives and to pulse-and-direction stepper drives. Its software is capable of eight axes of control. It can have up to eight channels of on-board axis interface circuitry. It can also support up to eight channels of off-board axis interface circuitry through its expansion port, connected to Acc-24P or Acc-24P2 ISA-format boards. Acc-24 boards in PCI format are not yet available.

The PMAC2 PCI is a full-sized PCI-bus expansion card, with a small piggyback board containing the CPU board. This piggyback board occupies part of the next slot, but ½-sized boards are permitted in this next slot. While the PMAC2 PCI is capable of PCI bus communications, with or without the optional onboard dual-ported RAM, it does not need to be inserted into a PCI expansion slot. Communications can be done through the standard RS-232/RS-422 serial port. Standalone operation is possible.

Board Configuration

Base Version

The base version of the PMAC2 PCI provides a 1-1/2-slot board with:

• 40MHz DSP563xx CPU (Option 5AF, 80MHz 56002 equivalent)

• 128k x 24 0-wait-state flash-backed SRAM

• 512k x 8 flash memory for user backup & firmware

• Latest released firmware version

• RS-232/RS422 serial interface, PCI bus interface

• Four channels axis interface circuitry, each including:

• Three output command signal sets, configurable as either:

 Two serial data streams to external DACs, 1 pulse-and-direction  Three PWM top-and-bottom pairs

• 3-channel differential/single-ended encoder input

• Nine input flags, two output flags

• Interface to two external serial ADCs, 8 to 18 bits

• Two channels supplemental interface circuitry, each including:

• 2-channel differential/single-ended encoder input

• One output command signal set, configurable as

pulse-&-direction or PWM top-and-bottom pair

• Display, MACRO, muxed I/O, direct I/O interface ports

• PID/notch/feedforward servo algorithms

• 1-year warranty from date of shipment

• One manual per set of one to four PMACs shipped

(Cables, mounting plates, mating connectors not included)

Option 1: Additional Four Channels Axis Interface Circuitry

• Option 1 provides an additional four channels of on-board axis interface circuitry, identical to the

standard first four channels. The key components on the board are the DSPGATE1 IC at U7 and connectors J11 and J12.

Option 2: Dual-Ported RAM

Dual-ported RAM provides a very high-speed communications path for bus communications with the host computer through a bank of shared memory. DPRAM is advised if more than 100 data items per second are to be passed between the controller and the host computer in either direction.

• Option 2 provides an 8k x 16 bank of dual-ported RAM. The key component on the board is U28.

Introduction 1

PMAC2 PCI Hardware Reference Manual

Option 5xF: CPU Speed Options

• Option 5CF: 80MHz DSP563xxx CPU (160MHz 56002 equivalent)

• Option 5EF: 160MHz DSP563xxx CPU (320MHz 56002 equivalent)

• Option 5AF: 40MHz DSP563xx CPU (80MHz 56002 equivalent) Default configuration provided

automatically if no CPU option ordered.

Option 6: Extended Servo Algorithm

The standard PID servo algorithm with feedforward and notch filter is suitable for most applications. Systems with difficult dynamics, especially with significant flexibility, may require a more powerful servo algorithm, such as the Extended Servo Algorithm (ESA).

Option 7: Plate Mounting

• Option 7 provides a mounting plate connected to the PMAC2 PCI with standoffs. It is used to install

the PMAC2 PCI in standalone applications.

Option 8: High-Accuracy Clock Crystal

The PMAC2 PCI has a clock crystal (component Y1) of nominal frequency 19.6608MHz (~20MHz). The standard crystal’s accuracy specification is +/-100 ppm.

• Option 8A provides a nominal 19.6608MHz crystal with a +/-15 ppm accuracy specification.

Option 10: Firmware Version Specification

Normally the Turbo PMAC2 PCI is provided with the newest released firmware version. A label on the U10 flash memory IC on the CPU board shows the firmware version loaded at the factory.

• Option 10 provides for a user-specified firmware version.

Option 12: Analog-to-Digital Converters

• Option 12 permits the installation of 8 or 16 channels of on-board multiplexed analog-to-digital

converters. 1 or 2 of these converters are read every phase interrupt. The analog inputs are not optically isolated, and each can have a 0 – 5V input range, or a +/-2.5V input range, individually selectable.

• Option 12 provides an 8-channel 12-bit A/D converter. The key components on the board are U28

and connector J1.

• Option 12A provides an additional 8-channel 12-bit A/D converter. The key component on the board

is U29.

Option 16: Battery-Backed Parameter Memory

The contents of the standard memory are not retained through a power-down or reset unless they have been saved to flash memory first. Option 16 provides supplemental battery-backed RAM for real-time parameter storage that is ideal for holding machine state parameters in case of an unexpected powerdown. The battery is located at component BT1.

• Option 16 provides a 16k x 24 bank of battery-backed parameter RAM in components U6, U9, and

U15 on the CPU board.

2 Introduction

PMAC2 PCI Hardware Reference Manual

HARDWARE SETUP

Piggyback CPU Board Jumper Configuration

Watchdog Timer Jumper

Jumper E1 on the Turbo CPU board must be OFF for the watchdog timer to operate. This is an important safety feature, so it is vital that this jumper be OFF in normal operation. E1 should be put ON only to debug problems with the watchdog timer circuit.

Dual-ported RAM Source Jumper

Jumper E2 must connect pins 1 and 2 to access dual-ported RAM from the baseboard. To use Option 2 DPRAM on the baseboard, jumper E2 must be in this setting.

Jumper E2 must connect pins 2 and 3 to access dual-ported RAM through the JEXP expansion port. To use DPRAM on an external accessory board, jumper E2 must be in this setting.

Power-Up State Jumpers

Jumper E4 on the Turbo CPU board must be OFF, jumper E5 must be ON, and jumper E6 must be ON, in order for the CPU to copy the firmware from flash memory into active RAM on power-up/reset. This is necessary for normal operation of the card. (Other settings are for factory use only.)

Firmware Load Jumper

If jumper E7 on the CPU board is ON during power-up/reset, the board comes up in bootstrap mode, which permits the loading of new firmware into the flash-memory IC on the board. When the PMAC Executive program tries to establish communications with a board in this mode, it will detect automatically that the board is in bootstrap mode and ask what file to download as the new firmware.

Jumper E7 must be OFF during power-up/reset for the board to come up in normal operational mode.

Flash Memory Bank Select Jumpers

The flash-memory IC in location U10 on the Flex CPU board has the capacity for eight separate banks of firmware, only one of which can be used at any given time. The eight combinations of settings for jumpers E10A, E10B, and E10C select which bank of the flash memory is used. In the factory production process, firmware is loaded only into Bank 0, which is selected by having all of these jumpers OFF.

Base Board Jumper Configuration

Servo and Phase Clock Direction Control

Jumper E1 should be off if the board is using its own internally generated phase and servo clock signals. In this case, these signals are output on spare pins on the J5A RS-422 serial-port connector, where they can be used by other PMAC controllers set up to take external phase and servo clock signals.

Jumper E1 should be on if the board is using externally generated phase and servo clock signals brought in on the J5A RS-422 serial port connector. In this case, another PMAC controller generates the clock signals and output is on its serial port connector. Commonly, serial communications are also shared over a multi-drop RS-422 cable, with software addressing of the cards matching the I0 serial card number for each controller. Alternately, the phase and servo clock signals can come from clock signals involved in the process.

If E1 is on for external phase and clock signals, and these clock signals are not brought in on the serial port connector, the watchdog timer will trip immediately and shut down the board.

Hardware Setup 3

PMAC2 PCI Hardware Reference Manual

In order to change the state of the card between use of internal clock and use of external clock, the card must be re-initialized (either powered up with jumper E3 on, or given the $$$*** command) with jumper E1 in the new state. Before the card is reset again, a SAVE command must be issued to store the new internal settings.

CPU Frequency Control Jumpers

If variable I46 is set to the default value of zero, jumpers E2 and E4 on the base PMAC2 PCI board control the frequency at which the CPU will operate (or attempt to operate). Generally this will be the highest frequency at which the CPU is rated to operate.

• If jumpers E2 and E4 are both OFF, the CPU will operate at a 40MHz frequency.

• If E2 is ON and E4 is OFF, the CPU will operate at a 60MHz frequency.

• If E2 is OFF and E4 is ON, the CPU will operate at an 80MHz frequency.

• If I46 is set to a value greater than zero, E2 and E4 are not used. The CPU frequency is set to 10MHz

(I46+1)

Re-Initialization Jumper

If E3 is off during power-up/reset, the controller will load its last saved set-up parameters from flash memory into active memory. This is the setting for normal operation.

If E3 is on during power-up/reset, the controller will load its factory-default set-up parameters from firmware into active memory. Generally, this is done only if communications cannot be established with the card when it comes up in normal operational mode.

Encoder Sample Clock Source Jumpers

Jumpers E13 and E14 control the source of the SCLK encoder-sampling clock for each servo IC. The default setting no jumper installed means that the SCLK signal comes from the servo IC and is output on the JMACH connectors. This setting is suitable for all but a few very special applications.

Serial Port Selection Jumper

Jumpers E17 and E18 control which serial-port connector is used. If E17 and E18 connect their pins 1 and 2, the 10-pin RS-232 port connector J5 is used. If E17 and E18 connect their pins 2 and 3, the 26-pin RS-422 port connector J5A is used. The RS-422 port must be used if several cards are to be daisychained together on a single multi-drop cable.

Output Disable State Jumpers

Jumpers E111 through E118 control the hardware state of the digital command output signals for each channel when the amplifier enable signal for that channel is in the disable state (false). Jumper E11n (n = 1 to 8) controls the output signals for channel n on the board.

If E11n is off (default), the command output signals for channel n are still active when the amplifier enable signal is in the disable state. The Turbo PMAC software should be commanding a net zero command to be output on these signals and the amplifier enable signal should be used by the amplifier so that no command output will cause action if it is receiving a disable signal. The off setting should be used when DAC output format is selected for the channel.

If E11n is on, the command output signals for channel n are tri-stated when the amplifier-enable signal is in the disable state. This setting is used only with direct-PWM power-block amplifiers that do not use amplifier enable to gate the PWM signals, and in which the zero-command format of 50% top on-time, and 50% bottom on-time cannot be tolerated in the disable state.

4 Hardware Setup

PMAC2 PCI Hardware Reference Manual

Resistor Pack Configuration

Termination Resistors

The PMAC2 PCI provides sockets for termination resistors on differential input pairs coming into the board. As shipped, there are no resistor packs in these sockets. If these signals are brought long distances into the PMAC2 PCI board and ringing at signal transitions is a problem, SIP resistor packs may be mounted in these sockets to reduce or eliminate the ringing.

All termination resistor packs have independent resistors (no common connection) with each resistor using two adjacent pins. The following table shows which packs are used to terminate each input device:

Input Pack Pack Size Input Pack Pack Size

Encoder 1 RP46 6-pin ADC 1 & 2 RP60 8-pin Encoder 2 RP50 6-pin ADC 3 & 4 RP61 8-pin Encoder 3 RP47 6-pin ADC 5 & 6 RP121 8-pin Encoder 4 RP51 6-pin ADC 7 & 8 RP122 8-pin Encoder 5 RP107 6-pin Fault 1 & 2 RP63 6-pin Encoder 6 RP111 6-pin Fault 3 & 4 RP64 6-pin Encoder 7 RP108 6-pin Fault 5 & 6 RP124 6-pin Encoder 8 RP112 6-pin Fault 7 & 8 RP125 6-pin

SCLK12&34 RP52 6-pin SCLK56&78 RP113 6-pin

Pull-Up/Pull-Down Resistors

The differential input signal pairs to the PMAC2 PCI have user-configurable pull-up/pull-down resistor networks to permit the acceptance of either single-ended or differential signals in one setting, or the detection of lost differential signals in another setting.

The ‘+’ inputs of each differential pair each have a hard-wired 1 kohm pull-up resistor to +5V. This cannot be changed.

The ‘-’ inputs of each differential pair each have a hard-wired 2.2 kohm resistor to +5V; each has another

2.2 kohm resistor as part of a socketed resistor pack that can be configured as a pull-up resistor to +5V, or a pull-down resistor to GND.

If this socketed resistor is configured as a pull-down resistor (the default configuration), the combination of pull-up and pull-down resistors on this line acts as a voltage divider, holding the line at +2.5V in the absence of an external signal. This configuration is required for single-ended inputs using the ‘+’ lines alone; it is desirable for unconnected inputs to prevent the pick-up of spurious noise. It is permissible for differential line-driver inputs.

If this socketed resistor is configured as a pull-up resistor (by reversing the SIP pack in the socket), the two parallel 2.2 kohm resistors act as a single 1.1 kohm pull-up resistor, holding the line at +5V in the absence of an external signal. This configuration is required if encoder-loss detection is desired; or if complementary open-collector drivers are used. It is permissible for differential line-driver inputs even without encoder loss detection.

If Pin 1 of the resistor pack (marked by a dot on the pack) matches Pin 1 of the socket (marked by a wide white line on the front side of the board and a square solder pin on the back side of the board), then the pack is configured as a bank of pull-down resistors. If the pack is reversed in the socket, it is configured as a bank of pull-up resistors.

Hardware Setup 5

PMAC2 PCI Hardware Reference Manual

The following table lists the pull-up/pull-down resistor pack for each input device:

Device Resistor Pack Device Resistor Pack

Encoder 1 RP43 ADC/Fault1&2 RP58 Encoder 2 RP48 ADC/Fault3&4 RP59 Encoder 3 RP44 ADC/Fault5&6 RP119 Encoder 4 RP49 ADC/Fault7&8 RP120 Encoder 5 RP104 SCLK12&34 RP62 Encoder 6 RP109 SCLK56&78 RP123 Encoder 7 RP105 Encoder 8 RP110

Connections

Mounting

The PMAC2 PCI can be mounted in one of two ways: in the PCI bus, or using standoffs.

• PCI bus: To mount in the PCI bus, simply insert the P1 card-edge connector into the PCI socket. If

there is a standard PC-style housing, a bracket at the end of the PMAC2 PCI board can be used to screw into the housing to hold the board down firmly.

• Standoffs: At each of the four corners of the PMAC2 PCI board, there are mounting holes that can be

used to mount the board on standoffs.

Power Supply Connection

The standard PMAC2 PCI requires only 5V power: 3A in a 4-channel configuration, 4A in an 8-channel configuration (with Option 1). If the Option 12 A/D converters are installed, a –12V supply is also required. In this case, a +12V supply also can be passed through the card and out to the analog devices feeding the A/D converters.

The power can be provided in several ways:

• Bus connector: If the PMAC2 PCI is mounted in an electrically active PCI bus slot, it automatically

draws its 5V and +/-12V power from the bus.

• Terminal block: The TB1 2/4-point terminal block can be used to bring in 5V power, especially in

standalone applications. Point 1 is GND; Point 2 is +5V. Points 3 and 4 are needed only if the Option-12 A/D converters are ordered.

• JMACH connectors: Up to 2A may be brought in through each 100-pin JMACH connector from an

Acc-8 board or its equivalent, provided the cable is 500mm (20 inches) or less in length.

Machine Port Connections

The PMAC2 PCI has a 100-pin high-density header for each pair of servo interface channels. Through this connector pass all of the digital signals to and from the amplifier, encoder, and flags for the two channels. Typically, this header is connected with a matching Delta Tau Acc-8 family 2-channel breakout board or equivalent through a provided 100-pin flat cable.

The machine port connectors are:

• J9 (JMACH1) Board Channels 1 and 2

• J10 (JMACH2) Board Channels 3 and 4

• J11 (JMACH3) Board Channels 5 and 6 (Option 1 required)

• J12 (JMACH4) Board Channels 7 and 8 (Option 1 required)

Display Port

The J6 (JDISP) display port provides a 14-pin IDC header for connection to the Acc-12 family of displays. Flat cables are provided with each of these displays for direct connection between the display and this port.

6 Hardware Setup

PMAC2 PCI Hardware Reference Manual

Multiplexer Port

The J2 (JTHW) multiplexer port provides eight TTL-compatible 5V CMOS inputs and eight TTLcompatible 5V CMOS outputs on a 26-pin IDC header. These can be used directly as general-purpose digital I/O, or with PMAC2’s special M-variable support (TWB, TWD, TWR, and TWS formats), they can be used to support hundreds, or even thousands of multiplexed I/O points on accessory boards.

Delta Tau provides the following accessory boards that can be connected to the multiplexer port. Each comes with a flat cable for direct connection to the port.

• Acc-8D Option 7 Resolver-to-Digital Converter Board

• Acc-18 Thumbwheel Board

• Acc-34 family of Digital I/O Boards

• Acc-35A and B Extender Boards

I/O Port

The J3 (JIO) I/O port provides 32 TTL-compatible 5V CMOS I/O points on a 40-pin IDC header. Direction is selectable by byte. These are used as general-purpose digital I/O points. Acc-21A provides a convenient connections adapter from this port to OPTO-22 style boards.

Serial Ports

The PMAC2 PCI has two serial-port connectors. Only one of these can be used in an application. J5 is a 10-pin IDC header for RS-232 communications. It can be connected to a standard DB9 RS-232 connector on a host computer or terminal via a flat cable such as the Acc-3L. A commercially available DB9-to-DB25 adapter can be added to this flat cable if the host computer or terminal has a DB25 serial connector. Jumpers E17 and E18 on the PMAC2 PCI must connect pins 1 and 2 to use this port.

J5A is 26-pin IDC header for RS-422 communications. It can be connected to a standard DB25 RS-422 connector on a host computer or terminal via a flat cable such as the Acc-3D. Jumpers E17 and E18 on the PMAC2 PCI must connect pins 2 and 3 to use this port.

A/D-Converter Port

If the Option 12 A/D converters are ordered, the J1 (JANA) analog-input port is provided on the PMAC2 on a 20-pin IDC header. Option 12 provides eight analog inputs at 0 – 5V, or +/-2.5V levels. Option 12A provides eight additional analog inputs at these levels. The +12V and –12V supplies can either be brought in on this connector, or brought out on it for the external analog circuitry, if they have been brought in through TB1 or P1.

Handwheel Port

The J7 (JHW) handwheel port provides two limited supplemental channels, each with a 2-channel encoder input, and a pulse-and-direction or PWM top-and-bottom pair output. All inputs and outputs are digital 5V differential line-driver pairs.

Hardware Setup 7

PMAC2 PCI Hardware Reference Manual

8 Hardware Setup

PMAC2 PCI Hardware Reference Manual

COMMUNICATIONS SETUP

Delta Tau provides communication tools that take advantage of the PCI bus Plug and Play feature of 32bits Windows in PEWIN32 version 2.32 and newer, a PMAC2 PCI board plugged in a PCI bus slot will be recognized by the operating system when the computer is booted up. The available PCI address, dual-ported RAM address and Interrupt lines are set automatically by the operating system and can be checked (but not modified) in the MOTIONEXE.EXE application.

The PMAC2 PCI board may have the optional on-board dual-ported RAM circuitry, which is ordered through Option-2. If the dual-ported RAM circuitry is not on-board, manually disable its automatically assigned use through the setup page of MOTIONEXE:

based computers. Starting with MOTIONEXE.EXE version 10.32.00, which is included

Open MOTIONEXE and press Setup for the PCI device desired

MOTIONEXE version number

Disable Interrupts and Dual-ported RAM if not used

The MOTIONEXE application will look first for PMAC PCI boards on the PCI bus and will assign device numbers sequentially from Device0 to each PMAC PCI until all the PMAC PCI boards found have a device number assigned. Then, manually add other devices for either ISA bus or Serial port communications.

After each PMAC has a device number assigned to it, communications through the PCI bus are identical to the ISA bus. Any application written for the ISA bus using the Delta Tau provided 32-bits communication libraries provided will not require any further change and the process is transparent.

Communications Setup 9

PMAC2 PCI Hardware Reference Manual

Note:

For example, if a Device0 for serial RS-232 communications was defined before a PMAC PCI board was installed in the computer, its setup information will be overwritten by the MOTIONEXE application when the PMAC2 PCI board is found. Therefore, it is very important to take note of the all the devices and their parameters defined in MOTIONEXE before installing a new PMAC board in the computer.

10 Communications Setup

PMAC2 PCI Hardware Reference Manual

FLEX CPU BOARD JUMPER DESCRIPTIONS

E1: Watchdog Disable Jumper

E Point and

Description Default

Physical Layout

Jump pin 1 to 2 to disable Watchdog timer (for test purposes only).

Remove jumper to enable Watchdog timer.

E2: Dual-Ported RAM Port Select

E Point and

Physical Layout

Jump pin 1 to 2 to access DPRAM from baseboard. Jump pin 2 to 3 to access DPRAM through JEXP expansion

port.

Description Default

E4 – E6: Power-Up/Reset Load Source

E Point and

Physical Layout

Remove jumper E4; Jump E5 pin 1 to 2; Jump E6 pin 2 to 3; to read flash IC on power-up/reset

Other combinations are for factory use only; the board will not operate in any other configuration.

Description Default

No jumper installed

Pins 1 and 2 jumpered

No E4 jumper installed;

E5 and E6 jump pin 1 to 2

E7: Firmware Reload Enable

E Point and

Physical Layout

Jump pin 1 to 2 to reload firmware through serial or bus port Remove jumper for normal operation.

Flex CPU Board Jumper Descriptions 11

Description Default

No jumper installed

PMAC2 PCI Hardware Reference Manual

E10A, B, C: Flash Memory Bank Select

E Point and

Physical Layout

E10A

E10C

Description Default

Remove all three jumpers to select flash memory bank with factory-installed firmware.

Use other configuration to select one of the seven other flash memory banks.

No jumpers installed

12 Flex CPU Board Jumper Descriptions

PMAC2 PCI Hardware Reference Manual

PMAC2 PCI BASE BOARD JUMPER DESCRIPTIONS

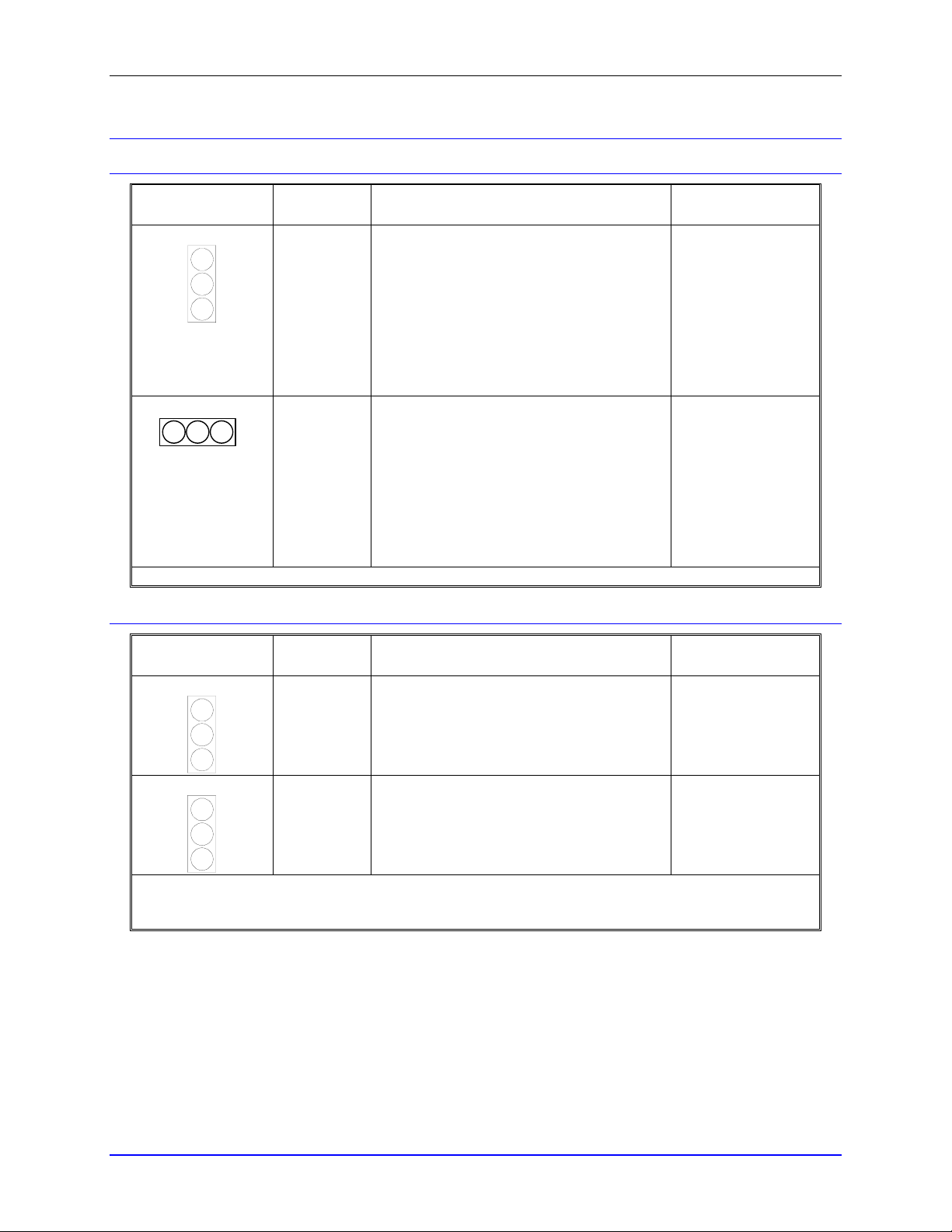

E1: Servo and Phase Clock Direction Control

E Point and

Location Description Default

Physical Layout

Note: If the E1 jumper is ON and the servo and phase clocks are not brought in on the J5A serial port, the

watchdog timer will trip immediately.

C2 Remove jumper for PMAC2 PCI to use its

internally generated servo and phase clock signals and to output these signals on the J5A serial port connector.

Jump pins 1 and 2 for PMAC2 PCI to expect to receive its servo and phase clock signals on the J5A serial port connector.

No jumper installed

E2: CPU Frequency Select

E Point and

Physical layout

Location Description Default

C2 Remove jumper for 40MHz operation (E4

OFF also) or for 80MHz operation (E4 ON) with I46 = 0.

Jump pin 1 to 2 for 60MHz operation (E4 OFF) with I46 = 0.

Not used if I46 > 0.

No jumper installed

Jumper installed

E3: Normal/Re-Initializing Power-Up/Reset

E Point and

Location Description Default

Physical Layout

C2 Jump pin 1 to 2 to re-initialize on power-

E4: CPU Frequency Select

E Point and

Physical layout

Location Description Default

C2 Remove jumper for 40MHz operation (E2

up/reset, loading factory default settings. Remove jumper for normal power-up/reset,

loading user-saved settings.

OFF also) or for 60MHz operation (E4 ON) with I46 = 0.

Jump pin 1 to 2 for 80MHz operation (E2 OFF) with I46 = 0.

Not used if I46 > 0

No jumper installed

No jumper installed (standard or Option 5B)

Jumper installed (Option 5C)

Base Board Jumper Descriptions 13

PMAC2 PCI Hardware Reference Manual

E5 – E6: (Reserved for Future Use) E13 - E14: Encoder Sample Clock Direction Control

E Point and

Location Description Default

Physical layout

E13

2 3

E14

3 2 1

Note: E14 is only installed if Option 1 has been ordered.

D1 Remove jumper to output SCLK generated in

first ASIC on SCLK_12 and SCLK_34, or to control direction by software.

Jump pins 1 to 2 to input SCLK signal for first ASIC on SCLK_34 and output this signal on SCLK_12.

Jump pins 2 to 3 to input SCLK signal for first ASIC on SCLK_12 and output this signal on SCLK_34.

D2 Remove jumper to output SCLK generated in

second ASIC on SCLK_56 and SCLK_78, or to control direction by software.

Jump pins 1 to 2 to input SCLK signal for second ASIC on SCLK_78 and output this signal on SCLK_56.

Jump pins 2 to 3 to input SCLK signal for second ASIC on SCLK_56 and output this signal on SCLK_78.

No jumper installed

E17 - E18: Serial Port Type Selection

E Point and

Physical layout

E17

2 3

E18

2 3

Serial Port Choice: Because both RS-232 and RS-422 ports are always provided, jumpers must be set correctly to use the port of choice. Jumpers E17 and E18 must connect pins 1 and 2 to use the RS-232 port on the J5 connector; to use the RS-422 port on the J5A connector, they must connect pins 2 and 3.

Location Description Default

C1 Connect pins 1 and 2 to use the RS-232 port

on the J5 connector. Connect pins 2 and 3 to use the RS-422 port

on the J5A connector.

C1 Connect pins 1 and 2 to use the RS-232 port

on the J5 connector. Connect pins 2 and 3 to use the RS-422 port

on the J5A connector.

Jumper installed in 1-2 position

14 Base Board Jumper Descriptions

PMAC2 PCI Hardware Reference Manual

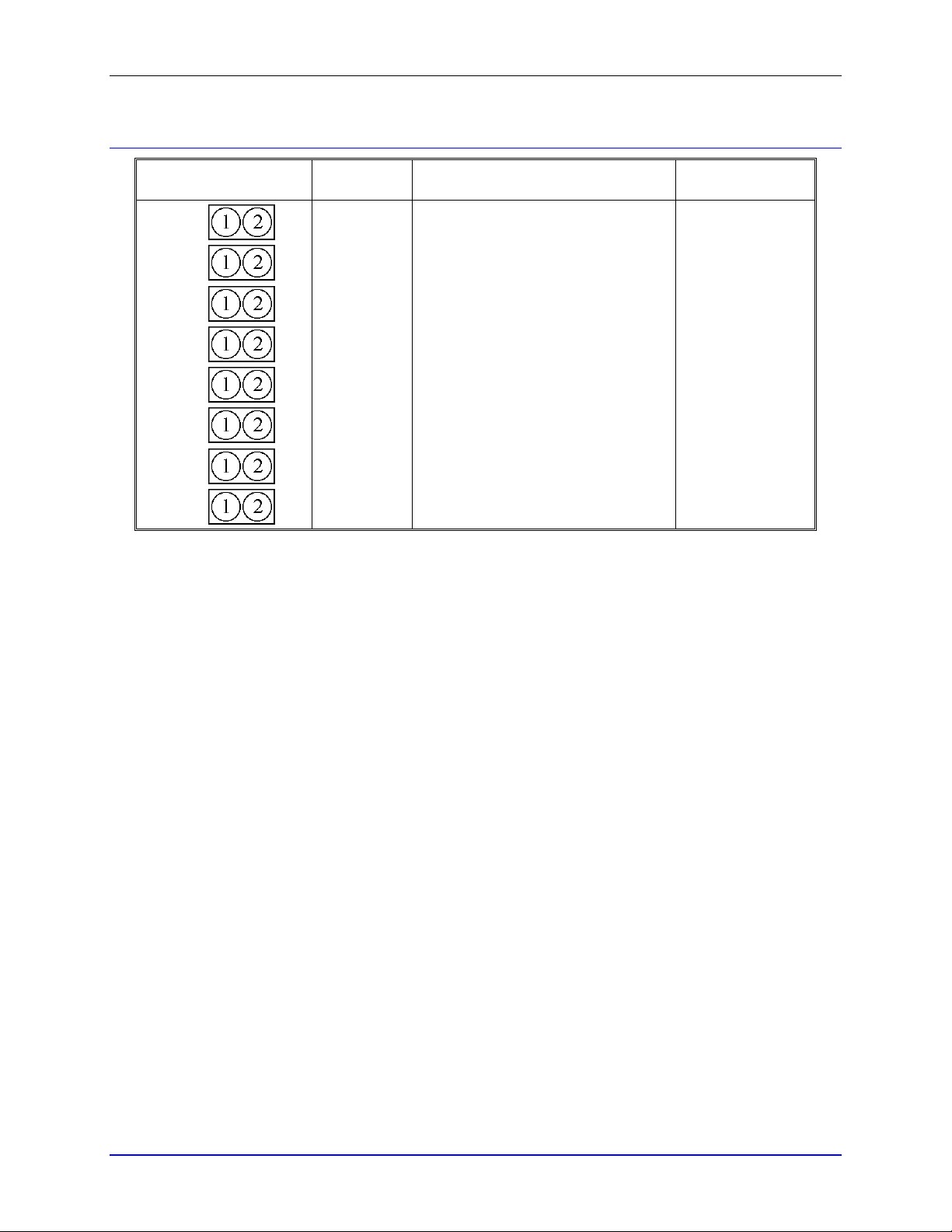

E111-118: Command Output Disable State

E Point and

Location Description Default

Physical Layout

No jumper installed

E111

E112

E113

E114

E115

E116

E117

E118

C1 Jump pin 1 to 2 of E11n for digital

servo command output signals of Channel n to tri-state when amplifierenable signal for Channel n is in disable state.

Remove jumper for digital servo command output signals of Channel n to remain active (but typically with zero command value) when amplifierenable signal for Channel n is in disable state.

Base Board Jumper Descriptions 15

PMAC2 PCI Hardware Reference Manual

16 Base Board Jumper Descriptions

PMAC2 PCI Hardware Reference Manual

MATING CONNECTORS

CPU Board Connectors

J2 (JEXP)/Expansion

• Two 50-pin female flat cable connector Delta Tau P/N 014-R00F50-0K0 - T&B Ansley P/N 609-5041

• 171-50 T&B Ansley standard flat cable stranded 50-wire

• Phoenix varioface module type FLKM 50 (male pins) P/N 22 81 08 9

Baseboard Connectors

J1 (JANA)/Analog (Option 12)

• Two 14-pin female flat cable connector Delta Tau P/N 014-R00F14-0K0 - T&B Ansley P/N 609-1441

• 171-14 T&B Ansley standard flat cable stranded 14-wire

• Phoenix varioface modules type FLKM14 (male pins) P/N 22 81 02 1

J2 (JTHW)/Multiplexer Port

• Two 26-pin female flat cable connector Delta Tau P/N 014-R00F26-0K0 - T&B Ansley P/N 609-2641

• 171-26 T&B Ansley standard flat cable stranded 26-wire

• Phoenix varioface module type FLKM 26 (male pins) P/N 22 81 05 0

J3 (JIO)/Digital I/O

• Two 40-pin female flat cable connector Delta Tau P/N 014-R00F40-0K0 - T&B Ansley P/N 609-4041

• 171-40 T&B Ansley standard flat cable stranded 40-wire

• Phoenix varioface module type FLKM 40 (male pins)

J5 (JRS232)/RS-232 Serial Communications

• Two 10-pin female flat cable connector Delta Tau P/N 014-ROOF10-0K0 - T&B Ansley P/N 609-1041

• 171-10 T&B Ansley standard flat cable stranded 10-wire

• Phoenix varioface module type FLKM 10 (male pins) P/N 22 81 01 8

J5A (JRS422)/RS-422 Serial Communications

• Two 26-pin female flat cable connector Delta Tau P/N 014-R00F26-0K0 - T&B Ansley P/N 609-2641

• 171-26 T&B Ansley standard flat cable stranded 26-wire

• Phoenix varioface module type FLKM 26 (male pins) P/N 22 81 05 0

J6 (JDISP)/Display

• Two 14-pin female flat cable connector Delta Tau P/N 014-R00F14-0K0 - T&B Ansley P/N 609-1441

• 171-14 T&B Ansley standard flat cable stranded 14-wire

• Phoenix varioface modules type FLKM14 (male pins) P/N 22 81 02 1

J7 (JHW)/Auxiliary Channel

• Two 20-pin female flat cable connector Delta Tau P/N 014-R00F20-0K0 - T&B Ansley P/N 609-2041

• 171-20 T&B Ansley standard flat cable stranded 20-wire

• Phoenix varioface modules type FLKM20 (male pins)

Mating Connectors 17

PMAC2 PCI Hardware Reference Manual

J8 (JEQU)/Position Compare

• Two 10-pin female flat cable connector Delta Tau P/N 014-ROOF10-0K0 - T&B Ansley P/N 609-1041

• 171-10 T&B Ansley standard flat cable stranded 10-wire

• Phoenix varioface module type FLKM 10 (male pins) P/N 22 81 01 8

J9 (JMACH1)/Machine Port 1

• Two 100-pin high-density box header with center key, 0.050” pitch - AMP P/N 1-04068-7, Delta Tau

P/N 014-00010-FPB

• High-density flat cable stranded 100-wire

J10 (JMACH2)/Machine Port 2

• Two 100-pin high-density box header with center key, 0.050” pitch - AMP P/N 1-04068-7, Delta Tau

P/N 014-00010-FPB

• High-density flat cable stranded 100-wire

J11 (JMACH3)/Machine Port 3

• Two 100-pin high-density box header with center key, 0.050” pitch - AMP P/N 1-04068-7, Delta Tau

P/N 014-00010-FPB

• High-density flat cable stranded 100-wire

J12 (JMACH4)/Machine Port 4

• Two 100-pin high-density box header with center key, 0.050” pitch - AMP P/N 1-04068-7, Delta Tau

P/N 014-00010-FPB

• High-density flat cable stranded 100-wire

18 Mating Connectors

PMAC2 PCI Hardware Reference Manual

PMAC2 PCI BASE BOARD CONNECTOR PINOUTS

J1 (JANA) Analog Input Port Connector

This connector is present only if Option 12 is ordered.

Pin # Symbol Function Description Notes

1 ANAI00 Input Analog input 0 0-5V or +/-2.5V range 2 ANAI01 Input Analog input 1 0-5V or +/-2.5V range 3 ANAI02 Input Analog input 2 0-5V or +/-2.5V range 4 ANAI03 Input Analog input 3 0-5V or +/-2.5V range 5 ANAI04 Input Analog input 4 0-5V or +/-2.5V range 6 ANAI05 Input Analog input 5 0-5V or +/-2.5V range 7 ANAI06 Input Analog input 6 0-5V or +/-2.5V range 8 ANAI07 Input Analog input 7 0-5V or +/-2.5V range

9 ANAI08 Input Analog input 8 0-5V or +/-2.5V range * 10 ANAI09 Input Analog input 9 0-5V or +/-2.5V range * 11 ANAI10 Input Analog input 10 0-5V or +/-2.5V range * 12 ANAI11 Input Analog input 11 0-5V or +/-2.5V range * 13 ANAI12 Input Analog input 12 0-5V or +/-2.5V range * 14 ANAI13 Input Analog input 13 0-5V or +/-2.5V range * 15 ANAI14 Input Analog input 14 0-5V or +/-2.5V range * 16 ANAI15 Input Analog input 15 0-5V or +/-2.5V range * 17 GND Common PMAC common Not isolated from digital 18 +12V Output Positive supply voltage To power external circuitry 19 GND Common PMAC common Not isolated from digital 20 -12V Output Negative supply voltage To power external circuitry

*This signal is present only if Option-12A is ordered. The JANA connector provides the inputs for the 8 or 16 optional analog inputs on the PMAC2.

Base Board Connector Pinouts 19

PMAC2 PCI Hardware Reference Manual

J2 (JTHW) Multiplexer Port Connector

Pin # Symbol Function Description Notes

1 GND Common PMAC common 2 GND Common PMAC common 3 DAT0 Input Data-0 input Data input from MUX port accessories 4 SEL0 Output Select-0 output Address/data output for MUX port accessories 5 DAT1 Input Data-1 input Data input from MUX port accessories 6 SEL1 Output Select-1 output Address/data output for MUX port accessories 7 DAT2 Input Data-2 input Data input from MUX port accessories 8 SEL2 Output Select-2 output Address/data output for MUX port accessories

9 DAT3 Input Data-3 input Data input from MUX port accessories 10 SEL3 Output Select-3 output Address/data output for MUX port accessories 11 DAT4 Input Data-4 input Data input from MUX port accessories 12 SEL4 Output Select-4 output Address/data output for MUX port accessories 13 DAT5 Input Data-5 input Data input from MUX port accessories 14 SEL5 Output Select-5 output Address/data output for MUX port accessories 15 DAT6 Input Data-6 input Data input from MUX port accessories 16 SEL6 Output Select-6 output Address/data output for MUX port accessories 17 DAT7 Input Data-7 input Data input from MUX port accessories 18 SEL7 Output Select-7 output Address/data output for MUX port accessories 19 N.C. N.C. No connection 20 GND Common PMAC common 21 BRLD/ Out put Buffer request Low is buffer required 22 GND Common PMAC common 23 IPLD/ Output In position Low is in position 24 GND Common PMAC common 25 +5V Output +5Vdc supply Power supply out 26 INIT/ Input PMAC reset Low is reset

20 Base Board Connector Pinouts

PMAC2 PCI Hardware Reference Manual

J3 (JI/O) General Input/Output Connector

Pin # Symbol Function Description Notes

1 I/O00 In/Out Digital I/O 0 Software direction ctrl. 2 I/O01 In/Out Digital I/O 1 Software direction ctrl. 3 I/O02 In/Out Digital I/O 2 Software direction ctrl. 4 I/O03 In/Out Digital I/O 3 Software direction ctrl. 5 I/O04 In/Out Digital I/O 4 Software direction ctrl. 6 I/O05 In/Out Digital I/O 5 Software direction ctrl. 7 I/O06 In/Out Digital I/O 6 Software direction ctrl. 8 I/O07 In/Out Digital I/O 7 Software direction ctrl.

9 I/O08 In/Out Digital I/O 8 Software direction ctrl. 10 I/O09 In/Out Digital I/O 9 Software direction ctrl. 11 I/O10 In/Out Digital I/O 10 Software direction ctrl. 12 I/O11 In/Out Digital I/O 11 Software direction ctrl. 13 I/O12 In/Out Digital I/O 12 Software direction ctrl. 14 I/O13 In/Out Digital I/O 13 Software direction ctrl. 15 I/O14 In/Out Digital I/O 14 Software direction ctrl. 16 I/O15 In/Out Digital I/O 15 Software direction ctrl. 17 I/O16 In/Out Digital I/O 16 Software direction ctrl. 18 I/O17 In/Out Digital I/O 17 Software direction ctrl. 19 I/O18 In/Out Digital I/O 18 Software direction ctrl. 20 I/O19 In/Out Digital I/O 19 Software direction ctrl. 21 I/O20 In/Out Digital I/O 20 Software direction ctrl. 22 I/O21 In/Out Digital I/O 21 Software direction ctrl. 23 I/O22 In/Out Digital I/O 22 Software direction ctrl. 24 I/O23 In/Out Digital I/O 23 Software direction ctrl. 25 I/O24 In/Out Digital I/O 24 Software direction ctrl. 26 I/O25 In/Out Digital I/O 25 Software direction ctrl. 27 I/O26 In/Out Digital I/O 26 Software direction ctrl. 28 I/O27 In/Out Digital I/O 27 Software direction ctrl. 29 I/O28 In/Out Digital I/O 28 Software direction ctrl. 30 I/O29 In/Out Digital I/O 29 Software direction ctrl. 31 I/O30 In/Out Digital I/O 30 Software direction ctrl. 32 I/O31 In/Out Digital I/O 31 Software direction ctrl. 33 GND Common Reference voltage 34 GND Common Reference voltage 35 PHASE/ Output Phase clock For latching data 36 SERVO/ Output Servo clock For latching data 37 GND Common Reference voltage 38 GND Common Reference voltage 39 +5V Output Supply voltage To power external circuitry 40 +5V Output Supply voltage To power external circuitry

The JI/O connector provides 32 input/output pins at TTL levels. Direction can be controlled in byte-wide groups.

Base Board Connector Pinouts 21

PMAC2 PCI Hardware Reference Manual

J5 (JRS232) Serial Port Connector

Pin # Symbol Function Description Notes

1 PHASE Output Phasing clock

2 DTR Bidirect Data terminal ready Tied to DSR

DSR TXD/ Input Receive data Host transmit data

4 CTS Input Clear to send Host ready bit

5 RXD/ Output Send data Host receives data

6 RTS Output Req. to send PMAC ready bit

7 DSR Bidirect Data set ready Tied to DTR

8 SERVO Output Servo clock

9 GND Common PMAC common 10 +5V Output +5Vdc supply Power supply out

The JRS232 connector provides the PMAC2-PC with the ability to communicate serially with an RS232 port. This connector cannot be used for daisy-chain interconnection of multiple PMACs. The J5A RS422 port must be used for daisy chaining.

E17 and E18 must connect pins 1 and 2 to use the RS-232 port for serial communications.

J5A (RS422) Serial Port Connector

JRS422 (26-PIN Connector)

Front View

Pin # Symbol Function Description Notes

1 CHASSI Common PMAC common

2 S+5V Output +5Vdc supply

3 RD- Input Receive data Diff. I/O low true

4 RD+ Input Receive data Diff. I/O high true

5 SD- Output Send data Diff. I/O low true

6 SD+ Output Send data Diff. I/O high true

7 CS+ Input Clear to send Diff I/O high true

8 CS- Input Clear to send Diff. I/O low true

9 RS+ Output Req. to send Diff. I/O high true 10 RS- Output Req. to send Diff I/O low true 11 DTR Bidirect Data term read Tied to DSR 12 INIT/ Input PMAC reset Low is reset 13 GND Common PMAC common 14 DSR Bidirect Data set ready Tied to DTR 15 SDIO- Bidirect Special data Diff. I/O low true 16 SDIO+ Bidirect Special data Diff. I/O high true 17 SCIO- Bidirect Special ctrl. Diff I/O low true 18 SCIO+ Bidirect Special ctrl. Diff. I/O high true 19 SCK- Bidirect Special clock Diff. I/O low true 20 SCK+ Bidirect Special clock Diff. I/O high true 21 SERVO- Bidirect Servo clock Diff. I/O low true 22 SERVO+ Bidirect Servo clock Diff. I/O high true 23 PHASE- Bidirect Phase clock Diff. I/O low true 24 PHASE+ Bidirect Phase clock Diff. I/O high true 25 GND Common PMAC common 26 +5V Output +5Vdc supply Power supply out

E17 and E18 must connect pins 2 and 3 to use the RS-422 port for serial communications. This connector could be also used to daisy chain interconnect multiple PMACs for synchronized operation.

22 Base Board Connector Pinouts

PMAC2 PCI Hardware Reference Manual

J6 (JDISP) Display Connector

Pin # Symbol Function Description Notes

1 VDD Output +5V power Power supply out 2 VSS Common PMAC common 3 RS Output Read strobe TTL signal out 4 VEE Output Contrast adjust VEE 0 to +5Vdc * 5 E Output Display enable High is enable 6 R/W Output Read or write TTL signal out 7 DB1 Output Display data1 8 DB0 Output Display data0

9 DB3 Output Display data3 10 DB2 Output Display data2 11 DB5 Output Display data5 12 DB4 Output Display data4 13 DB7 Output Display data7 14 DB6 Output Display data6

The JDISP connector is used to drive the 2-line x 24-character (Acc-12), 2 x 40 (Acc-12A) LCD, or the 2 x 40 vacuum fluorescent (ACC 12C) display unit. The DISPLAY command may be used to send messages and values to the display.

J7 (JHW) Handwheel Encoder Connector

Pin # Symbol Function Description Notes

1 GND Common Reference voltage 2 +5V Output Supply voltage To power external circuitry 3 HWA1+ Input HW positive A channel Also pulse input 4 HWA1- Input HW negative A channel Also pulse input 5 HWB1+ Input HW positive B channel Also direction input 6 HWB1- Input HW negative B channel Also direction input 7 HWA2+ Input HW positive A channel Also pulse input 8 HWA2- Input HW negative A channel Also pulse input

9 HWB2+ Input HW positive B channel Also direction input 10 HWB2- Input HW negative B channel Also direction input 11 PUL1+ Output PFM positive pulse Also PWM bottom output 12 PUL1- Output PFM negative pulse Also PWM bottom output 13 DIR1+ Output PFM positive dir out Also PWM top output 14 DIR1- Output PFM negative dir out Also PWM top output 15 PUL2+ Output PFM positive pulse Also PWM bottom output 16 PUL2- Output PFM negative pulse Also PWM bottom output 17 DIR2+ Output PFM positive dir. out Also PWM top output 18 DIR2- Output PFM negative dir out Also PWM top output 19 GND Common Reference voltage 20 +5V Output Supply voltage To power external circuitry

The VHW connector provides for two 2-channel encoder inputs and two sets of pulse outputs.

Base Board Connector Pinouts 23

PMAC2 PCI Hardware Reference Manual

J8 (JEQU) Position Compare Output Connector

Pin # Symbol Function Description Notes

1 EQU1/ Output Encoder 1 comp-Eq Programmed polarity 2 EQU2/ Output Encoder 2 comp-Eq Programmed polarity 3 EQU3/ Output Encoder 3 comp-Eq Programmed polarity 4 EQU4/ Output Encoder 4 comp-Eq Programmed polarity 5 EQU5/ Output Encoder 5 comp-Eq Programmed polarity 6 EQU6/ Output Encoder 6 comp-Eq Programmed polarity 7 EQU7/ Output Encoder 7 comp-Eq Programmed polarity 8 EQU8/ Output Encoder 8 comp-Eq Programmed polarity 9 +V Supply Positive supply +5V

10 GND Common Digital ground

This connector provides the position-compare outputs for the eight encoder channe ls.

J9 (JMACH1) Connector Description

J9 JMACH1 Connector

Front View

Pin# Symbol Function Description Notes

1 +5V Output / Input +5V power For external circuit or from external

supply

2 +5V Output / Input +5V power For external circuit or from external

supply 3 GND Common Reference voltage 4 GND Common Reference voltage 5 CHA1+ Input Encoder 1 positive A channel Also pulse input 6 CHA1- Input Encoder 1 negative A channel Also pulse input 7 CHB1+ Input Encoder 1 positive B channel Also direction input 8 CHB1- Input Encoder 1 negative B channe l Also direct ion input 9 CHC1+ Input Encoder 1 positive C channel Index channel

10 CHC1- Input Encoder 1 negative C channel Index channel 11 CHU1 Input Channel 1 U flag Hall effect, fault code, or sub-count 12 CHV1 Input Channel 1 V flag Hall effect, fault code, or sub-count 13 CHW1 Input Channel 1 W flag Hall effect, fault code, or sub-count 14 CHT1 Input Channel 1 T flag Fault code, or sub-count 15 USER1 Input General purpose user flag Hardware capture flag, or sub-count 16 PLIM1 Input Positive overtravel limit Hardware capture flag 17 MLIM1 Input Negative overtravel limit Hardware capture flag 18 HOME1 Input Home switch input Hardware capture flag 19 ACCFLT1 Input Accessory fault flag For loss of acc supply voltage 20 WD0/ Output Watchdog output Low is PMAC watchdog fault 21 SCLK12+ Input / Output Encoder sample clock Direction controlled by PMAC2

jumper

22 SCLK12- Input / Output Encoder sample clock Direction controlled by PMAC2

jumper

23 ADC_CLK1+ Output A/D converter clock Programmable frequency 24 ADC_CLK1- Output A/D converter clock Programmable frequency 25 ADC_STB1+ Output A/D converter strobe Programmable sequence 26 ADC_STB1- Output A/D converter strobe Programmable sequence

24 Base Board Connector Pinouts

PMAC2 PCI Hardware Reference Manual

J9 JMACH1 Connector (Continued)

Front View

Pin# Symbol Function Description Notes

27 ADC_DAA1+ Input Chan A ADC serial data MSB first 28 ADC_DAA1- Input Chan A ADC serial data MSB first 29 ADC_DAB1+ Input Chan B ADC serial data MSB first 30 ADC_DAB1- Input Chan B ADC serial data MSB first 31 AENA1+ Output Amplifier enable High is enable 32 AENA1- Output Amplifier enable Low is enable 33 FAULT1+ Input Amplifier fault Programmable polarity 34 FAULT1- Input Amplifier fault Programmable polarity 35 PWMATOP1+

DAC_CLK1+

36 PWMATOP1-

DAC_CLK1-

37 PWMABOT1+

DAC1A+

38 PWMABOT1-

DAC1A-

39 PWMBTOP1+

DAC_STB1+

40 PWMBTOP1-

DAC_STB1-

41 PWMBBOT1+

DAC1B+

42 PWMBBOT1-

DAC1B-

43 PWMCTOP1+

DIR1+

44 PWMCTOP1-

DIR1-

45 PWMCBOT1+

PULSE1+

46 PWMCBOT1-

PULSE147 GND Common Reference voltage 48 GND Common Reference voltage 49 +5V Output / Input +5V power For external circuit or from external

50 +5V Output / Input +5V power For external circuit or from external

51 +5V Output / Input +5V power For external circuit or from external

52 +5V Output / Input +5V power For external circuit or from external

53 GND Common Reference voltage 54 GND Common Reference voltage 55 CHA2+ Input Encoder 2 positive A channel Also pulse input 56 CHA2- Input Encoder 2 negative A channel Also pulse input 57 CHB2+ Input Encoder 2 positive B channel Also direction input

Output Phase A top Cmd. or DAC

clock

Output Phase A top Cmd. or DAC

clock

Output Phase A bottom Cmd. or

DAC A serial data

Output Phase A bottom Cmd. or

DAC A serial data

Output Phase B top Cmd. or DAC

strobe

Output Phase B top Cmd. or DAC

strobe

Output Phase B bottom Cmd. or DAC

B serial data

Output Phase B bottom Cmd. or DAC

B serial data

Output Phase B top Cmd. or PFM

direction

Output Phase B top Cmd. or PFM

direction

Output Phase B bottom Cmd. or PFM

pulse

Output Phase B tottom Cmd. or PFM

pulse

Programmable function control

supply

Base Board Connector Pinouts 25

PMAC2 PCI Hardware Reference Manual

J9 JMACH1 Connector (Continued)

Front View

Pin# Symbol Function Description Notes

58 CHB2- Input Encoder 2 negative B channel Also direction inp ut 59 CHC2+ Input Encoder 2 positive C channe l Index channel 60 CHC2- Input Encoder 2 negative C channel Index channel 61 CHU2 Input Channel 2 U flag Hall effect, fault code, or sub-count 62 CHV2 Input Channel 2 V flag Hall effect, fault code, or sub-count 63 CHW2 Input Channel 2 W flag Hall effect, fault code, or sub-count 64 CHT2 Input Channel 2 T flag Fault code, or sub-count 65 USER2 Input General purpose user flag Hardware capture flag, or sub-count 66 PLIM2 Input Positive overtravel limit Hardware capture flag 67 MLIM2 Input Negative overtravel limit Hardware capture flag 68 HOME2 Input Home switch input Hardware capture flag 69 ACCFLT2 Input Accessory fault flag For loss of ACC supply voltage 70 WD0/ Output Watchdog output Low is PMAC watchdog fault 71 SCLK12+ Input / Output Encoder sample clock Direction controlled by PMAC2

jumper

72 SCLK12- Input / Output Encoder sample clock Direction controlled by PMAC2

jumper 73 ADC_CLK2+ Output A/D converter clock Programmable frequency 74 ADC_CLK2- Output A/D converter clock Programmable frequency 75 ADC_STB2+ Output A/D converter strobe Programmable sequence 76 ADC_STB2- Output A/D converter strobe Programmable sequence 77 ADC_DAA2+ Input Channel A ADC serial data MSB first 78 ADC_DAA2- Input Channel A ADC serial data MSB first 79 ADC_DAB2+ Input Channel B ADC serial data MSB first 80 ADC_DAB2- Input Channel B ADC serial data MSB first 81 AENA2+ Output Amplifier enable High is enable 82 AENA2- Output Amplifier enable Low is enable 83 FAULT2+ Input Amplifier fault Programmable polarity 84 FAULT2- Input Amplifier fault Programmable polarity 85 PWMATOP2+

DAC_CLK2+

86 PWMATOP2-

DAC_CLK2-

87 PWMABOT2+

DAC2A+

88 PWMABOT2-

DAC2A-

89 PWMBTOP2+

DAC_STB2+

90 PWMBTOP2-

DAC_STB2-

91 PWMBBOT2+

DAC2B+

92 PWMBBOT2-

DAC2B-

93 PWMCTOP2+

DIR2+

Output Phase A top Cmd. or DAC

clock

Output Phase A top Cmd. or DAC

clock

Output Phase A bottom Cmd. or

DAC A serial data

Output Phase A bottom Cmd. or

DAC A serial data

Output Phase B top Cmd. or DAC

strobe

Output Phase B top Cmd. or DAC

strobe

Output Phase B bottom Cmd. or DAC

B serial data

Output Phase B bottom Cmd. or DAC

B serial data

Output Phase B top Cmd. or PFM

direction

Programmable function control

26 Base Board Connector Pinouts

PMAC2 PCI Hardware Reference Manual

J9 JMACH1 Connector (Continued)

Front View

Pin# Symbol Function Description Notes

94 PWMCTOP2-

DIR2-

95 PWMCBOT2+

PULSE2+

96 PWMCBOT2-

PULSE297 GND Common Reference voltage 98 GND Common Reference voltage 99 +5V Output / Input +5V power For external circuit or from external

100 +5V Output / Input +5V power For external circuit or from external

The JMACH1 connector provides the interface pins for channels 1 and 2. Usually, it is connected to a breakout board, such as one of the Acc-8x family of boards, or an application-specific interface board.

Output Phase B top Cmd. or PFM

direction

Output Phase B bottom Cmd. or PFM

pulse

Output Phase B bottom Cmd. or PFM

pulse

Programmable function control

supply

J10 (JMACH2) Connector Description

J10 JMACH2 Connector

Front View

Pin# Symbol Function Description Notes

1 +5V Output / Input +5V power For external circuit or from external

supply

2 +5V Output / Input +5V power For external circuit or from external

supply 3 GND Common Reference voltage 4 GND Common Reference voltage 5 CHA3+ Input Encoder 3 positive A channel Also pulse input 6 CHA3- Input Encoder 3 negative A channel Also pulse input 7 CHB3+ Input Encoder 3 positive B channel Also direction input 8 CHB3- Input Encoder 3 negative B channe l Also direct ion input 9 CHC3+ Input Encoder 3 positive C channel Index channel

10 CHC3- Input Encoder 3 negative C channel Index channel 11 CHU3 Input Channel 3 U flag Hall effect, fault code, or sub-count 12 CHV3 Input Channel 3 V flag Hall effect, fault code, or sub-count 13 CHW3 Input Channel 3 W flag Hall effect, fault code, or sub-count 14 CHT3 Input Channel 3 T flag Fault code, or sub-count 15 USER3 Input General purpose user flag Hardware capture flag, or sub-count 16 PLIM3 Input Positive overtravel limit Hardware capture flag 17 MLIM3 Input Negative overtravel limit Hardware capture flag 18 HOME3 Input Home switch input Hardware capture flag 19 ACCFLT3 Input Accessory fault flag For loss of acc supply voltage 20 WD0/ Output Watchdog output Low is PMAC watchdog fault 21 SCLK34+ Input / Output Encoder sample clock Direction controlled by PMAC2

jumper

22 SCLK34- Input / Output Encoder sample clock Direction controlled by PMAC2

jumper

23 ADC_CLK3+ Output A/D converter clock Programmable frequency

Base Board Connector Pinouts 27

PMAC2 PCI Hardware Reference Manual

J10 JMACH2 Connector (Continued)

Front View

Pin# Symbol Function Description Notes

24 ADC_CLK3- Output A/D converter clock Programmable frequency 25 ADC_STB3+ Output A/D converter strobe Programmable sequence 26 ADC_STB3- Output A/D converter strobe Programmable sequence 27 ADC_DAA3+ Input Channel A ADC serial data MSB first 28 ADC_DAA3- Input Channel A ADC serial data MSB first 29 ADC_DAB3+ Input Channel B ADC serial data MSB first 30 ADC_DAB3- Input Channel B ADC serial data MSB first 31 AENA3+ Output Amplifier enable High is enable 32 AENA3- Output Amplifier enable Low is enable 33 FAULT3+ Input Amplifier fault Programmable polarity 34 FAULT3- Input Amplifier fault Programmable polarity 35 PWMATOP3+

DAC_CLK3+

36 PWMATOP3-

DAC_CLK3-

37 PWMABOT3+

DAC3A+

38 PWMABOT3-

DAC3A-

39 PWMBTOP3+

DAC_STB3+

40 PWMBTOP3-

DAC_STB3-

41 PWMBBOT3+

DAC3B+

42 PWMBBOT3-

DAC3B-

43 PWMCTOP3+

DIR3+

44 PWMCTOP3-

DIR3-

45 PWMCBOT3+

PULSE3+

46 PWMCBOT3-

PULSE347 GND Common Reference voltage 48 GND Common Reference voltage 49 +5V Output / Input +5V power For external circuit or from external

50 +5V Output / Input +5V power For external circuit or from external

51 +5V Output / Input +5V power For external circuit or from external

52 +5V Output / Input +5V power For external circuit or from external

53 GND Common Reference voltage 54 GND Common Reference voltage 55 CHA4+ Input Encoder 4 positive A channel Also pulse input

Output Phase A top Cmd. or DAC

clock

Output Phase A top Cmd. or DAC

clock

Output Phase A bottom Cmd. or

DAC A serial data

Output Phase A bottom Cmd. or

DAC A serial data

Output Phase B top Cmd. or DAC

strobe

Output Phase B top Cmd. or DAC

strobe

Output Phase B bottom Cmd. or DAC

B serial data

Output Phase B bottom Cmd. or DAC

B serial data

Output Phase B top Cmd. or PFM

direction

Output Phase B top Cmd. or PFM

direction

Output Phase B bottom Cmd. or PFM

pulse

Output Phase B bottom Cmd. or PFM

pulse

Programmable function control

supply

28 Base Board Connector Pinouts

PMAC2 PCI Hardware Reference Manual

J10 JMACH2 Connector (Continued)

Front View

Pin# Symbol Function Description Notes

56 CHA4- Input Encoder 4 negative A channel Also pulse input 57 CHB4+ Input Encoder 4 positive B channel Also direction input 58 CHB4- Input Encoder 4 negative B channel Also direction inp ut 59 CHC4+ Input Encoder 4 positive C channe l Index channel 60 CHC4- Input Encoder 4 negative C channel Index channel 61 CHU4 Input Channel 4 U flag Hall effect, fault code, or sub-count 62 CHV4 Input Channel 4 V flag Hall effect, fault code, or sub-count 63 CHW4 Input Channel 4 W flag Hall effect, fault code, or sub-count 64 CHT4 Input Channel 4 T flag Fault code, or sub-count 65 USER4 Input General purpose user flag Hardware capture flag, or sub-count 66 PLIM4 Input Positive overtravel limit Hardware capture flag 67 MLIM4 Input Negative overtravel limit Hardware capture flag 68 HOME4 Input Home switch input Hardware capture flag 69 ACCFLT4 Input Accessory fault flag For loss of ACC supply voltage 70 WD0/ Output Watchdog output Low is PMAC watchdog fault 71 SCLK34+ Input / Output Encoder sample clock Direction controlled by PMAC2

jumper

72 SCLK34- Input / Output Encoder sample clock Direction controlled by PMAC2

jumper 73 ADC_CLK4+ Output A/D converter clock Programmable frequency 74 ADC_CLK4- Output A/D converter clock Programmable frequency 75 ADC_STB4+ Output A/D converter strobe Programmable sequence 76 ADC_STB4- Output A/D converter strobe Programmable sequence 77 ADC_DAA4+ Input Channel A ADC serial data MSB first 78 ADC_DAA4- Input Channel A ADC serial data MSB first 79 ADC_DAB4+ Input Channel B ADC serial data MSB first 80 ADC_DAB4- Input Channel B ADC serial data MSB first 81 AENA4+ Output Amplifier enable High is enable 82 AENA4- Output Amplifier enable Low is enable 83 FAULT4+ Input Amplifier fault Programmable polarity 84 FAULT4- Input Amplifier fault Programmable polarity 85 PWMATOP4+

DAC_CLK4+

86 PWMATOP4-

DAC_CLK4-

87 PWMABOT4+

DAC4A+

88 PWMABOT4-

DAC4A-

89 PWMBTOP4+

DAC_STB4+

90 PWMBTOP4-

DAC_STB4-

91 PWMBBOT4+

DAC4B+

92 PWMBBOT4-

DAC4B-

Output Phase A top Cmd. or DAC

clock

Output Phase A top Cmd. or DAC

clock

Output Phase A bottom Cmd. or

DAC A serial data

Output Phase A bottom Cmd. or

DAC A serial data

Output Phase B top Cmd. or DAC

strobe

Output Phase B top Cmd. or DAC

strobe

Output Phase B bottom Cmd. or DAC

B serial data

Output Phase B bottom Cmd. or DAC

B serial data

Programmable function control

Base Board Connector Pinouts 29

PMAC2 PCI Hardware Reference Manual

J10 JMACH2 Connector (Continued)

Front View

Pin# Symbol Function Description Notes

93 PWMCTOP4+

DIR4+

94 PWMCTOP4-

DIR4-

95 PWMCBOT4+

PULSE4+

96 PWMCBOT4-

PULSE497 GND Common Reference voltage 98 GND Common Reference voltage 99 +5V Output / Input +5V power For external circuit or from external

100 +5V Output / Input +5V power For external circuit or from external

The JMACH2 connector provides the interface pins for channels 3 and 4. Usually, it is connected to a breakout board, such as one of the Acc-8x family of boards, or an application-specific interface board.

Output Phase B top Cmd. or PFM

direction

Output Phase B top Cmd. or PFM

direction

Output Phase B bottom Cmd. or PFM

pulse

Output Phase B bottom Cmd. or PFM

pulse

Programmable function control

supply

J11 (JMACH3) Connector Description

This connector is present only if Option 1 is ordered.

J11 JMACH3 Connector

Front View

Pin# Symbol Function Description Notes

1 +5V Output / Input +5V power For external circuit or from external

supply

2 +5V Output / Input +5V power For external circuit or from external

supply 3 GND Common Reference voltage 4 GND Common Reference voltage 5 CHA5+ Input Encoder 5 positive A channel Also pulse input 6 CHA5- Input Encoder 5 negative A channel Also pulse input 7 CHB5+ Input Encoder 5 positive B channel Also direction input 8 CHB5- Input Encoder 5 negative B channe l Also direct ion input 9 CHC5+ Input Encoder 5 positive C channel Index channel

10 CHC5- Input Encoder 5 negative C channel Index channel 11 CHU5 Input Channel 5 U flag Hall effect, fault code, or sub-count 12 CHV5 Input Channel 5 V flag Hall effect, fault code, or sub-count 13 CHW5 Input Channel 5 W flag Hall effect, fault code, or sub-count 14 CHT5 Input Channel 5 T flag Fault code, or sub-count 15 USER5 Input General purpose user flag Hardware capture flag, or sub-count 16 PLIM5 Input Positive overtravel limit Hardware capture flag 17 MLIM5 Input Negative overtravel limit Hardware capture flag 18 HOME5 Input Home switch input Hardware capture flag 19 ACCFLT5 Input Accessory fault flag For loss of ACC supply voltage 20 WD0/ Output Watchdog output Low is PMAC watchdog fault 21 SCLK56+ Input / Output Encoder sample clock Direction controlled by PMAC2

jumper

30 Base Board Connector Pinouts

PMAC2 PCI Hardware Reference Manual

J11 JMACH3 Connector (Continued)

Front View

Pin# Symbol Function Description Notes

22 SCLK56- Input / Output Encoder sample clock Direction controlled by PMAC2

jumper

23 ADC_CLK5+ Output A/D converter clock Programmable frequency 24 ADC_CLK5- Output A/D converter clock Programmable frequency 25 ADC_STB5+ Output A/D converter strobe Programmable sequence 26 ADC_STB5- Output A/D converter strobe Programmable sequence 27 ADC_DAA5+ Input Channel A ADC serial data MSB first 28 ADC_DAA5- Input Channel A ADC serial data MSB first 29 ADC_DAB5+ Input Channel B ADC serial data MSB first 30 ADC_DAB5- Input Channel B ADC serial data MSB first 31 AENA5+ Output Amplifier enable High is enable 32 AENA5- Output Amplifier enable Low is enable 33 FAULT5+ Input Amplifier fault Programmable polarity 34 FAULT5- Input Amplifier fault Programmable polarity 35 PWMATOP5+

DAC_CLK5+

36 PWMATOP5-

DAC_CLK5-

37 PWMABOT5+

DAC5A+

38 PWMABOT5-

DAC5A-

39 PWMBTOP5+

DAC_STB5+

40 PWMBTOP5-

DAC_STB5-

41 PWMBBOT5+

DAC5B+

42 PWMBBOT5-

DAC5B-

43 PWMCTOP5+

DIR5+

44 PWMCTOP5-

DIR5-

45 PWMCBOT5+

PULSE5+

46 PWMCBOT5-

PULSE547 GND Common Reference voltage 48 GND Common Reference voltage 49 +5V Output / Input +5V power For external circuit or from external

50 +5V Output / Input +5V power For external circuit or from external

51 +5V Output / Input +5V power For external circuit or from external

52 +5V Output / Input +5V power For external circuit or from external

Output Phase A top Cmd. or DAC

clock

Output Phase A top Cmd. or DAC

clock

Output Phase A bottom Cmd. or

DAC A serial data

Output Phase A bottom Cmd. or

DAC A serial data

Output Phase B top Cmd. or DAC

strobe

Output Phase B top Cmd. or DAC

strobe

Output Phase B bottom Cmd. or DAC

B serial data

Output Phase B bottom Cmd. or DAC

B serial data

Output Phase B top Cmd. or PFM

direction

Output Phase B top Cmd. or PFM

direction

Output Phase B bottom Cmd. or PFM

pulse

Output Phase B bottom Cmd. or PFM

pulse

Programmable function control

supply

Base Board Connector Pinouts 31

PMAC2 PCI Hardware Reference Manual

J11 JMACH3 Connector (Continued)

Front View

Pin# Symbol Function Description Notes

53 GND Common Reference voltage 54 GND Common Reference voltage 55 CHA6+ Input Encoder 6 positive A channel Also pulse input 56 CHA6- Input Encoder 6 negative A channel Also pulse input 57 CHB6+ Input Encoder 6 positive B channel Also direction input 58 CHB6- Input Encoder 6 negative B channel Also direction inp ut 59 CHC6+ Input Encoder 6 positive C channe l Index channel 60 CHC6- Input Encoder 6 negative C channel Index channel 61 CHU6 Input Channel 6 U flag Hall effect, fault code, or sub-count 62 CHV6 Input Channel 6 V flag Hall effect, fault code, or sub-count 63 CHW6 Input Channel 6 W flag Hall effect, fault code, or sub-count 64 CHT6 Input Channel 6 T flag Fault code, or sub-count 65 USER6 Input General purpose user flag Hardware capture flag, or sub-count 66 PLIM6 Input Positive overtravel limit Hardware capture flag 67 MLIM6 Input Negative overtravel limit Hardware capture flag 68 HOME6 Input Home switch input Hardware capture flag 69 ACCFLT6 Input Accessory fault flag For loss of ACC supply voltage 70 WD0/ Output Watchdog output Low is PMAC watchdog fault 71 SCLK56+ Input / Output Encoder sample clock Direction controlled by PMAC2

jumper

72 SCLK56- Input / Output Encoder sample clock Direction controlled by PMAC2

jumper 73 ADC_CLK6+ Output A/D converter clock Programmable frequency 74 ADC_CLK6- Output A/D converter clock Programmable frequency 75 ADC_STB6+ Output A/D converter strobe Programmable sequence 76 ADC_STB6- Output A/D converter strobe Programmable sequence 77 ADC_DAA6+ Input Channel A ADC serial data MSB first 78 ADC_DAA6- Input Channel A ADC serial data MSB first 79 ADC_DAB6+ Input Channel B ADC serial data MSB first 80 ADC_DAB6- Input Channel B ADC serial data MSB first 81 AENA6+ Output Amplifier enable High is enable 82 AENA6- Output Amplifier enable Low is enable 83 FAULT6+ Input Amplifier fault Programmable polarity 84 FAULT6- Input Amplifier fault Programmable polarity 85 PWMATOP6+

DAC_CLK6+

86 PWMATOP6-

DAC_CLK6-

87 PWMABOT6+

DAC6A+

88 PWMABOT6-

DAC6A-

89 PWMBTOP6+

DAC_STB6+

90 PWMBTOP6-

DAC_STB6-

91 PWMBBOT6+

DAC6B+

Output Phase A top Cmd. or DAC

Clock

Output Phase A top Cmd. or DAC

Clock

Output Phase A bottom Cmd. or

DAC A serial data

Output Phase A bottom Cmd. or

DAC A serial data

Output Phase B top Cmd. or DAC

strobe

Output Phase B top Cmd. or DAC

strobe

Output Phase B bottom Cmd. or DAC

B serial data

Programmable function control

32 Base Board Connector Pinouts

PMAC2 PCI Hardware Reference Manual

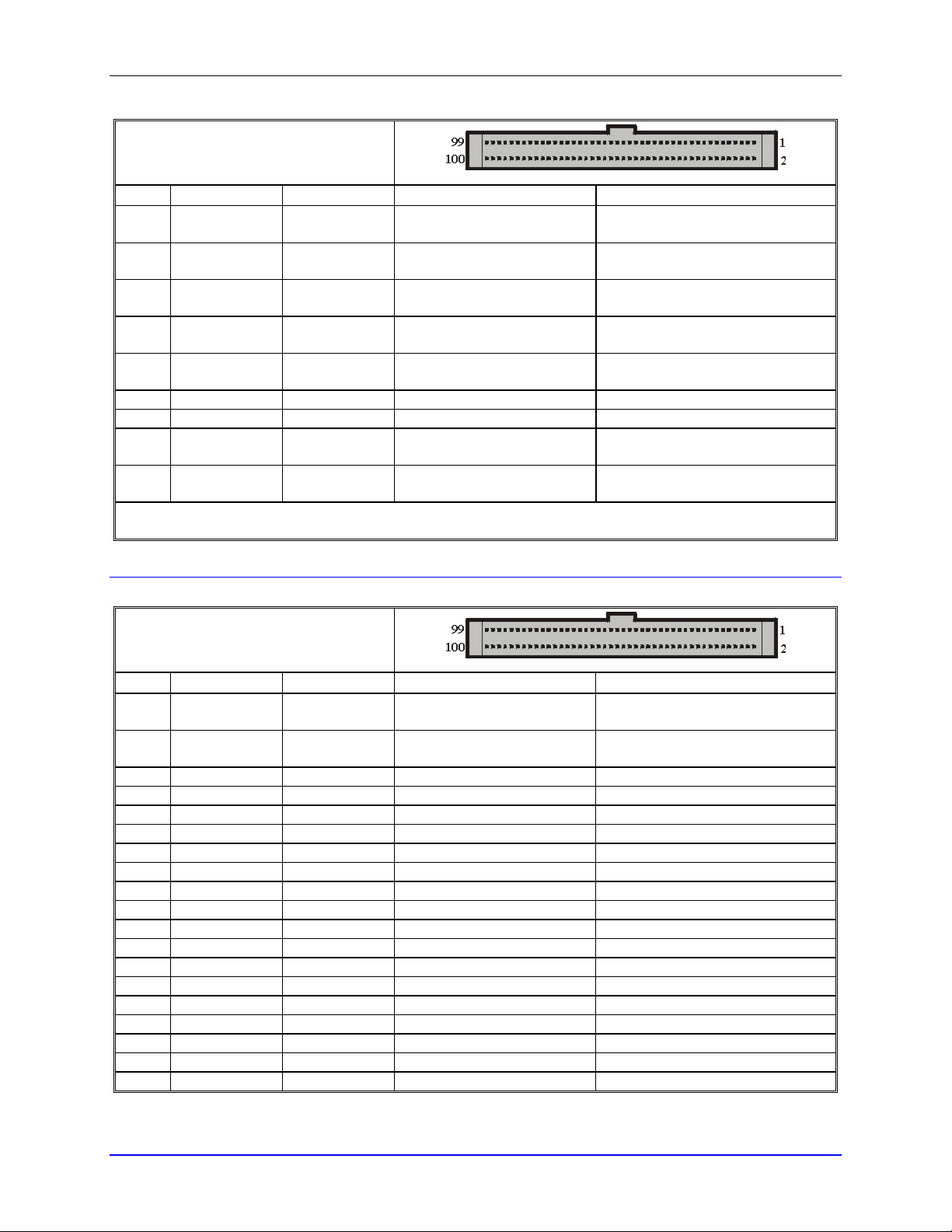

J11 JMACH3 Connector (Continued)

Front View

Pin# Symbol Function Description Notes

92 PWMBBOT6-

DAC6B-

93 PWMCTOP6+

DIR6+

94 PWMCTOP6-

DIR6-

95 PWMCBOT6+

PULSE6+

96 PWMCBOT6-

PULSE697 GND Common Reference voltage 98 GND Common Reference voltage 99 +5V Output / Input +5V power For external circuit or from external

100 +5V Output / Input +5V power For external circuit or from external

The JMACH3 connector provides the interface pins for channels 5 and 6. It is usually connected to a breakout board, such as one of the Acc-8x family of boards, or an application-specific interface board.

Output Phase B bottom Cmd. or DAC

B serial data

Output Phase B top Cmd. or PFM

direction

Output Phase B top Cmd. or PFM

direction

Output Phase B bottom Cmd. or PFM

pulse

Output Phase B bottom Cmd. or PFM

pulse

Programmable function control

supply

J12 (JMACH4) Connector Description

This connector is present only if Option 1 is ordered.

J12 JMACH4 Connector

Front View

Pin# Symbol Function Description Notes

1 +5V Output / Input +5V power For external circuit or from external

supply

2 +5V Output / Input +5V power For external circuit or from external

supply 3 GND Common Reference voltage 4 GND Common Reference voltage 5 CHA7+ Input Encoder 7 positive A channel Also pulse input 6 CHA7- Input Encoder 7 negative A channel Also pulse input 7 CHB7+ Input Encoder 7 positive B channel Also direction input 8 CHB7- Input Encoder 7 negative B channe l Also direct ion input 9 CHC7+ Input Encoder 7 positive C channel Index channel

10 CHC7- Input Encoder 7 negative C channel Index channel 11 CHU7 Input Channel 7 U flag Hall effect, fault code, or sub-count 12 CHV7 Input Channel 7 V flag Hall effect, fault code, or sub-count 13 CHW7 Input Channel 7 W flag Hall effect, fault code, or sub-count 14 CHT7 Input Channel 7 T flag Fault code, or sub-count 15 USER7 Input General purpose user flag Hardware capture flag, or sub-count 16 PLIM7 Input Positive overtravel limit Hardware capture flag 17 MLIM7 Input Negative overtravel limit Hardware capture flag 18 HOME7 Input Home switch input Hardware capture flag 19 ACCFLT7 Input Accessory fault flag For loss of acc supply voltage

Base Board Connector Pinouts 33

PMAC2 PCI Hardware Reference Manual

J12 JMACH4 Connector (Continued)

Front View

Pin# Symbol Function Description Notes

20 WD0/ Output Watchdog output Low is PMAC watchdog fault 21 SCLK78+ Input / Output Encoder sample clock Direction controlled by PMAC2

jumper

22 SCLK78- Input / Output Encoder sample clock Direction controlled by PMAC2

jumper

23 ADC_CLK7+ Output A/D converter clock Programmable frequency 24 ADC_CLK7- Output A/D converter clock Programmable frequency 25 ADC_STB7+ Output A/D converter strobe Programmable sequence 26 ADC_STB7- Output A/D converter strobe Programmable sequence 27 ADC_DAA7+ Input Channel A ADC serial data MSB first 28 ADC_DAA7- Input Channel A ADC serial data MSB first 29 ADC_DAB7+ Input Channel B ADC serial data MSB first 30 ADC_DAB7- Input Channel B ADC serial data MSB first 31 AENA7+ Output Amplifier enable High is enable 32 AENA7- Output Amplifier enable Low is enable 33 FAULT7+ Input Amplifier fault Programmable polarity 34 FAULT7- Input Amplifier fault Programmable polarity 35 PWMATOP7+

DAC_CLK7+

36 PWMATOP7-

DAC_CLK7-

37 PWMABOT7+

DAC7A+

38 PWMABOT7-

DAC7A-

39 PWMBTOP7+

DAC_STB7+

40 PWMBTOP3-

DAC_STB7-

41 PWMBBOT7+

DAC7B+

42 PWMBBOT7-

DAC7B-

43 PWMCTOP7+

DIR7+

44 PWMCTOP7-

DIR7-

45 PWMCBOT7+

PULSE7+

46 PWMCBOT7-

PULSE747 GND Common Reference voltage 48 GND Common Reference voltage 49 +5V Output / Input +5V power For external circuit or from external

50 +5V Output / Input +5V power For external circuit or from external

Output Phase A top Cmd. or DAC

clock

Output Phase A top Cmd. or DAC

clock

Output Phase A bottom Cmd. or

DAC A serial data

Output Phase A bottom Cmd. or

DAC A serial data

Output Phase B top Cmd. or DAC

strobe

Output Phase B top Cmd. or DAC

strobe

Output Phase B bottom Cmd. or DAC

B serial data

Output Phase B bottom Cmd. or DAC

B serial data

Output Phase B top Cmd. or PFM

direction

Output Phase B top Cmd. or PFM

direction

Output Phase B bottom Cmd. or PFM

Pulse

Output Phase B bottom Cmd. or PFM

pulse

Programmable function control

supply

34 Base Board Connector Pinouts

PMAC2 PCI Hardware Reference Manual

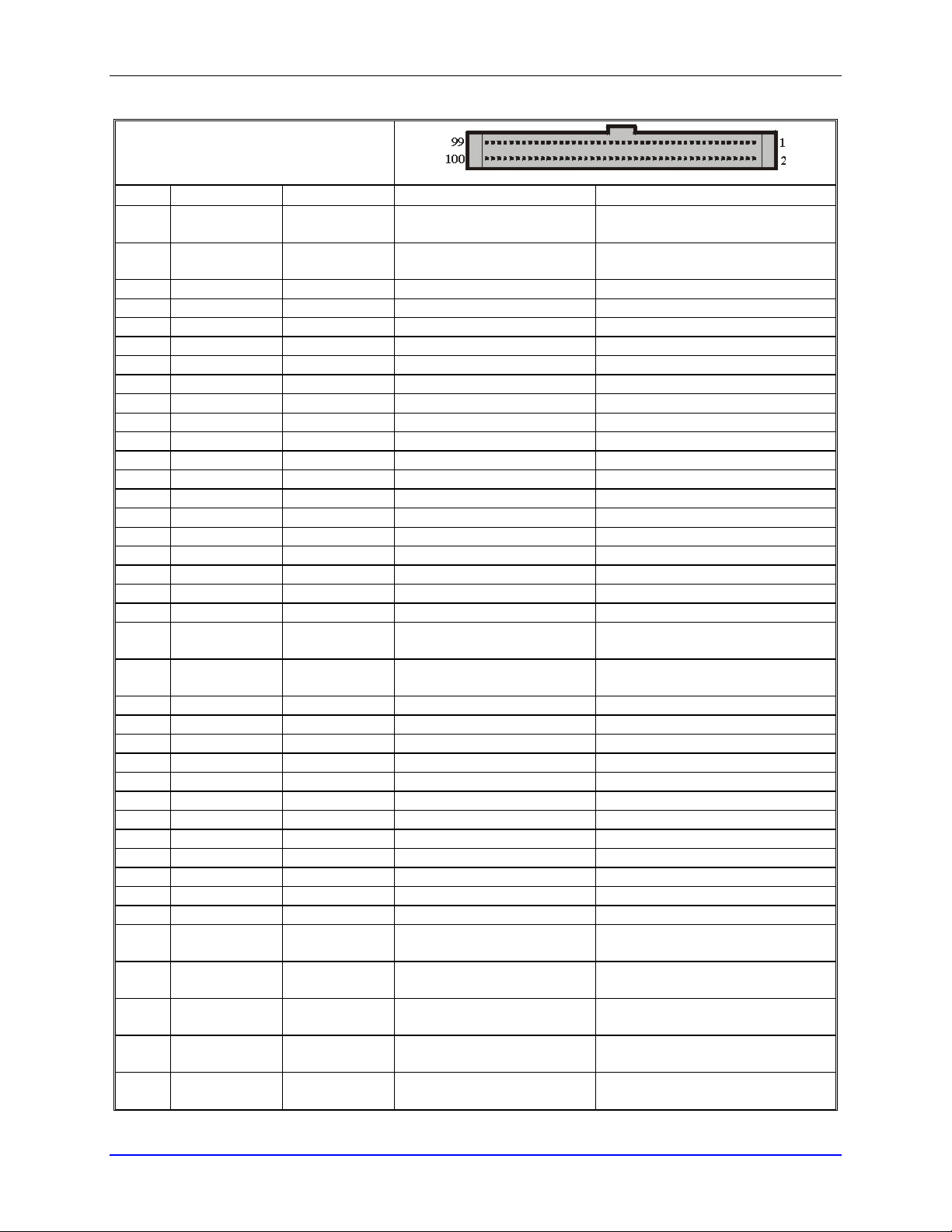

J12 JMACH4 Connector (Continued)

Front View

Pin# Symbol Function Description Notes

51 +5V Output / Input +5V power For external circuit or from external

Supply

52 +5V Output / Input +5V power For external circuit or from external

supply 53 GND Common Reference voltage 54 GND Common Reference voltage 55 CHA8+ Input Encoder 8 positive A channel Also pulse input 56 CHA8- Input Encoder 8 negative A channel Also pulse input 57 CHB8+ Input Encoder 8 positive B channel Also direction input 58 CHB8- Input Encoder 8 negative B channel Also direction inp ut 59 CHC8+ Input Encoder 8 positive C channe l Index channel 60 CHC8- Input Encoder 8 negative C channel Index channel 61 CHU8 Input Channel 8 U flag Hall effect, fault code, or sub-count 62 CHV8 Input Channel 8 V flag Hall effect, fault code, or sub-count 63 CHW8 Input Channel 8 W flag Hall effect, fault code, or sub-count 64 CHT8 Input Channel 8 T flag Fault code, or sub-count 65 USER8 Input General purpose user flag Hardware capture flag, or sub-count 66 PLIM8 Input Positive overtravel limit Hardware capture flag 67 MLIM8 Input Negative overtravel limit Hardware capture flag 68 HOME8 Input Home switch input Hardware capture flag 69 ACCFLT8 Input Accessory fault flag For loss of ACC supply voltage 70 WD0/ Output Watchdog output Low is PMAC watchdog fault 71 SCLK78+ Input / Output Encoder sample clock Direction controlled by PMAC2

jumper 72 SCLK78- Input / Output Encoder sample clock Direction controlled by PMAC2

jumper 73 ADC_CLK8+ Output A/D converter clock Programmable frequency 74 ADC_CLK8- Output A/D converter clock Programmable frequency 75 ADC_STB8+ Output A/D converter strobe Programmable sequence 76 ADC_STB8- Output A/D converter strobe Programmable sequence 77 ADC_DAA8+ Input Channel A ADC serial data MSB first 78 ADC_DAA8- Input Channel A ADC serial data MSB first 79 ADC_DAB8+ Input Channel B ADC serial data MSB first 80 ADC_DAB8- Input Channel B ADC serial data MSB first 81 AENA8+ Output Amplifier enable High is enable 82 AENA8- Output Amplifier enable Low is enable 83 FAULT8+ Input Amplifier fault Programmable polarity 84 FAULT8- Input Amplifier fault Programmable polarity 85 PWMATOP8+

DAC_CLK8+

86 PWMATOP8-

DAC_CLK8-

87 PWMABOT8+

DAC8A+

88 PWMABOT8-

DAC8A-

89 PWMBTOP8+

DAC_STB8+

Output Phase A top Cmd. or DAC

clock

Output Phase A top Cmd. or DAC

clock

Output Phase A bottom Cmd. or

DAC A serial data

Output Phase A bottom Cmd. or

DAC A serial data

Output Phase B top Cmd. or DAC

strobe

Programmable function control

Base Board Connector Pinouts 35

PMAC2 PCI Hardware Reference Manual

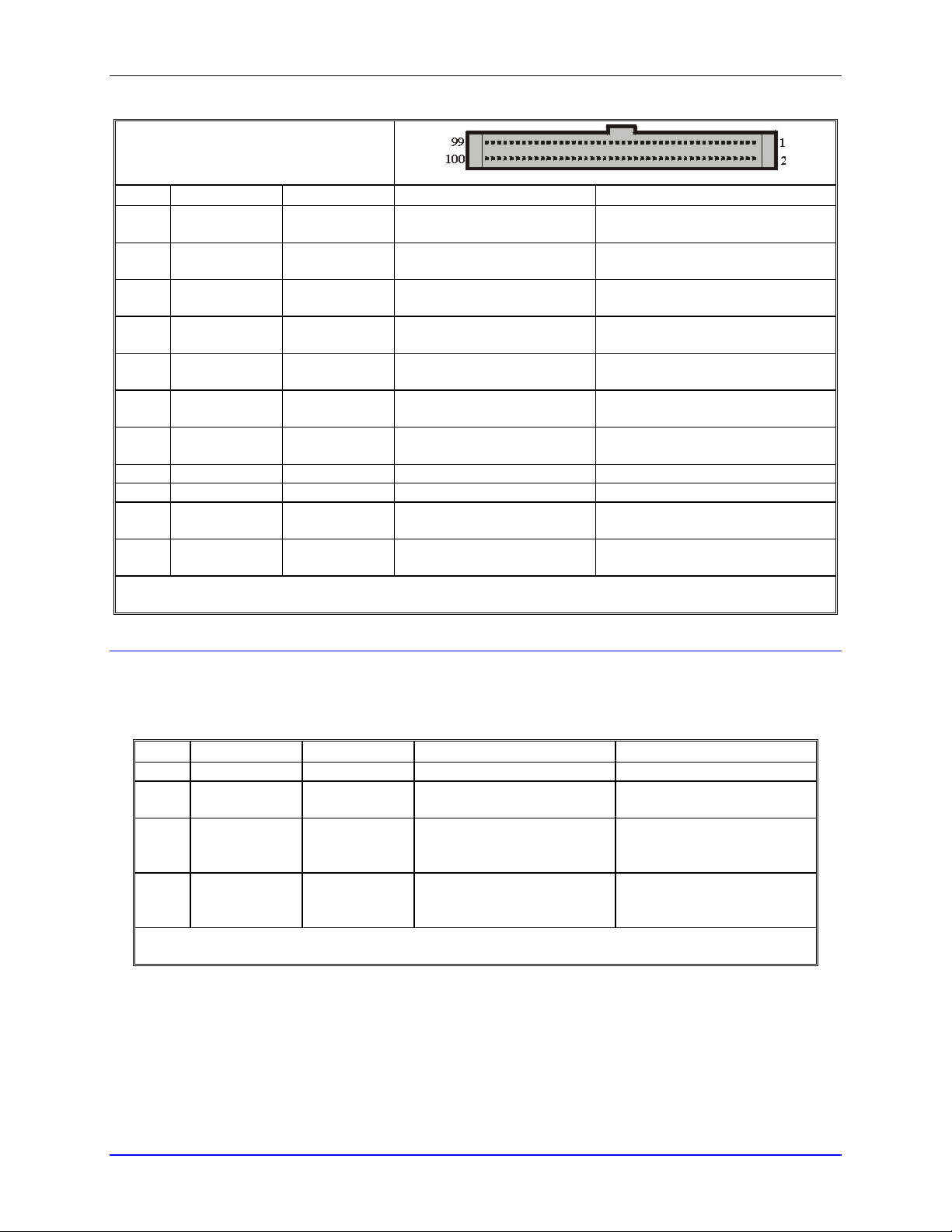

J12 JMACH4 Connector (Continued)

Front View

Pin# Symbol Function Description Notes

90 PWMBTOP8-

DAC_STB8-

91 PWMBBOT8+

DAC8B+

92 PWMBBOT8-

DAC8B-

93 PWMCTOP8+

DIR8+

94 PWMCTOP8-

DIR8-

95 PWMCBOT8+

PULSE8+

96 PWMCBOT8-

PULSE897 GND Common Reference voltage 98 GND Common Reference voltage 99 +5V Output / Input +5V power For external circuit or from external

100 +5V Output / Input +5V power For external circuit or from external

The JMACH4 connector provides the interface pins for channels 7 and 8. Usually, it is connected to a breakout board, such as one of the Acc-8x family of boards, or an application-specific interface board.

Output Phase B top Cmd. or DAC

strobe

Output Phase B bottom Cmd. or DAC

B serial data

Output Phase B bottom Cmd. or DAC

B serial data

Output Phase B top Cmd. or PFM

direction

Output Phase B top Cmd. or PFM

direction

Output Phase B bottom Cmd. or PFM

pulse

Output Phase B bottom Cmd. or PFM

pulse

Programmable function control

supply

TB1 (2/4-Pin Terminal Block)

This terminal block can be used to provide the input for the power supply for the circuits on the PMAC2 board when it is not in a bus configuration. When the PMAC2 is in a bus configuration, these supplies come through the bus connector from the bus power supply automatically; in this case, this terminal block should not be used.

Pin# Symbol Function Description Notes

1 GND Common Reference voltage 2 +5V Input Positive supply voltage Supplies all PMAC digital

circuits

3 +12V Input Positive supply voltage +12v to +15v; not required

on-board; used on J1 to supply analog inputs

4 -12V Input Negative supply voltage -12v to -15v; required for opt-

12 ADCs; used on J1 to supply analog inputs

Note: Unless Option 12 (Analog-to-Digital Converters) is included on the board, only pins 1 and 2 will be provided on this terminal block.

36 Base Board Connector Pinouts

PMAC2 PCI Hardware Reference Manual

TB2 (3-Pin Terminal Block)

This terminal block provides the output for PMAC2's watchdog timer relay, both normally open and normally closed contacts.

Pin# Symbol Function Description Notes

1 WD_NC Output Watchdog relay out Normally closed 2 COM Input Watchdog return +V or 0V 3 WD_NO Output Watchdog relay out Normally open

Note: The normally closed relay contact is open while PMAC2 is operating properly — it has power and the watchdog timer is not tripped. This contact is closed when the PMAC2 is not operating properly (either the PMAC has lost power or the watchdog timer has tripped). The normally open relay contact is closed while PMAC2 is operating properly , a nd op en when PMAC2 is not operating properly.

Base Board Connector Pinouts 37

PMAC2 PCI Hardware Reference Manual

38 Base Board Connector Pinouts

PMAC2 PCI Hardware Reference Manual

BASE BOARD JUMPERS LAYOUT

Base Board Jumpers Layout 39

PMAC2 PCI Hardware Reference Manual

40 Base Board Jumpers Layout

PMAC2 PCI Hardware Reference Manual

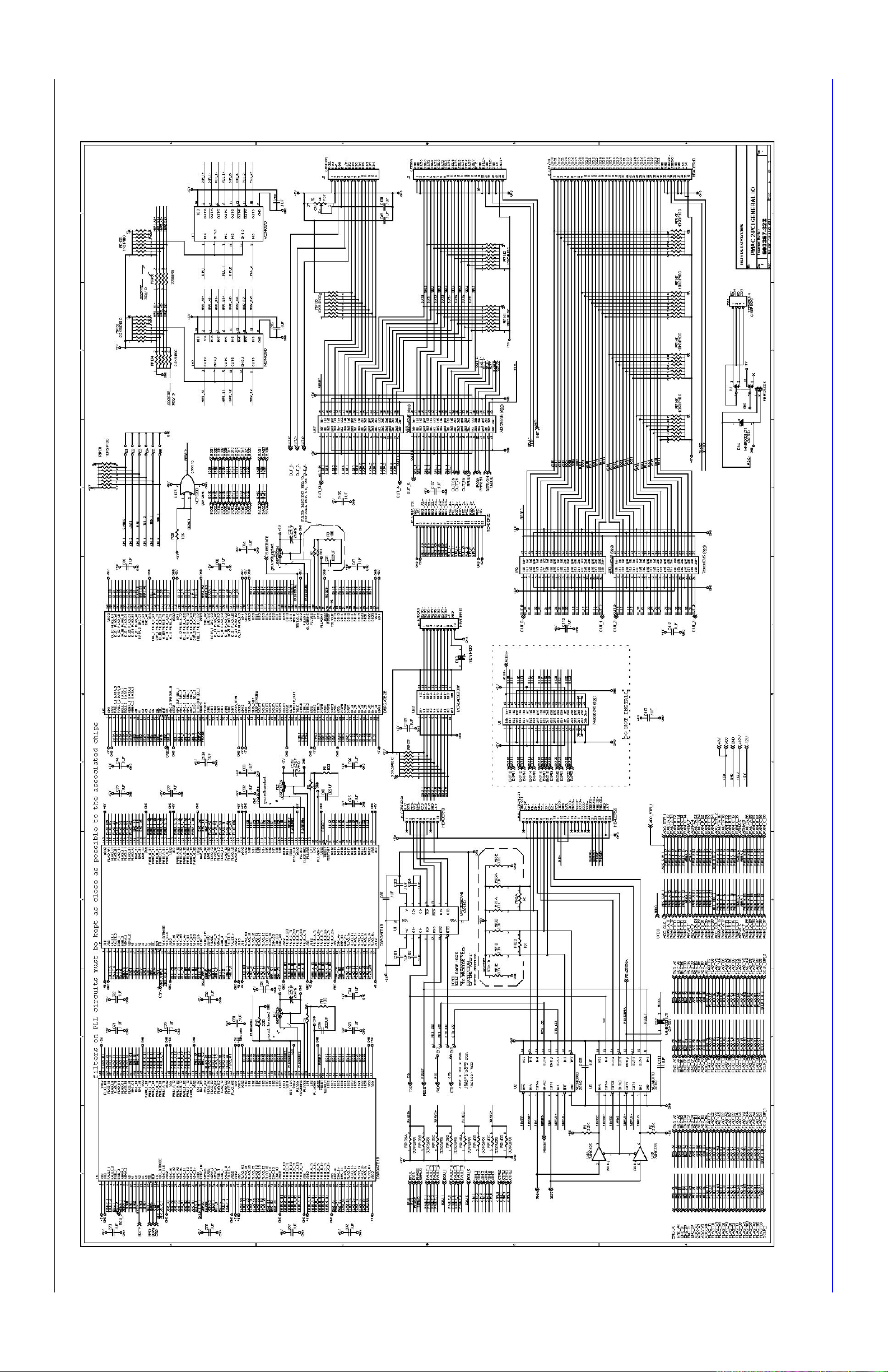

SCHEMATICS

Schematics 41

PMAC2 PCI Hardware Reference Manual

42 Schematics

PMAC2 PCI Hardware Reference Manual

Schematics 43

PMAC2 PCI Hardware Reference Manual

44 Schematics

PMAC2 PCI Hardware Reference Manual

Schematics 45

Delta Tau PMAC2 PCI User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Base Version

Option 1: Additional Four Channels Axis Interface Circuitry

Option 2: Dual-Ported RAM

Option 5xF: CPU Speed Options

Option 6: Extended Servo Algorithm

Option 7: Plate Mounting

Option 8: High-Accuracy Clock Crystal

Option 10: Firmware Version Specification

Option 12: Analog-to-Digital Converters

Option 16: Battery-Backed Parameter Memory

Watchdog Timer Jumper

Dual-ported RAM Source Jumper

Power-Up State Jumpers

Firmware Load Jumper

Flash Memory Bank Select Jumpers

Servo and Phase Clock Direction Control

CPU Frequency Control Jumpers

Re-Initialization Jumper

Encoder Sample Clock Source Jumpers

Serial Port Selection Jumper

Output Disable State Jumpers

Termination Resistors

Pull-Up/Pull-Down Resistors

Mounting

Power Supply Connection

Machine Port Connections

Display Port

Multiplexer Port

I/O Port

Serial Ports

A/D-Converter Port

Handwheel Port

J2 (JEXP)/Expansion

J1 (JANA)/Analog (Option 12)

J2 (JTHW)/Multiplexer Port

J3 (JIO)/Digital I/O

J5 (JRS232)/RS-232 Serial Communications

J5A (JRS422)/RS-422 Serial Communications

J6 (JDISP)/Display

J7 (JHW)/Auxiliary Channel

J8 (JEQU)/Position Compare

J9 (JMACH1)/Machine Port 1

J10 (JMACH2)/Machine Port 2

J11 (JMACH3)/Machine Port 3

J12 (JMACH4)/Machine Port 4
