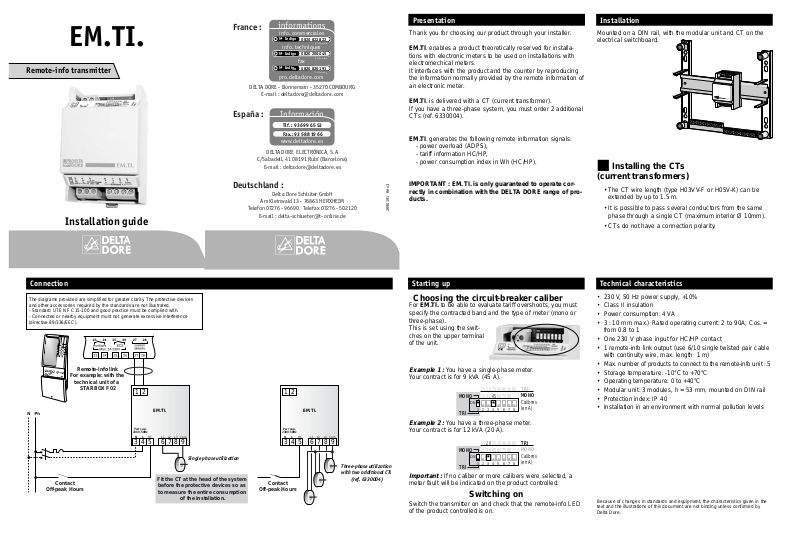

Delta dore EM TI QUICK START GUIDE

2690191 Rév.3

France :

EM.TI.

Remote-info transmitter

Installation guide

Thank you for choosing our product through your installer.
EM.TI. enables a product theoretically reserved for installa-

tions with electronic meters to be used on installations with
electromechical meters.
It interfaces with the product and the counter by reproducing
the information normally provided by the remote information of
an electronic meter.

EM.TI. is delivered with a CT (current transformer).
If you have a three-phase system, you must order 2 additional
CTs (ref. 6330004).

EM.TI. generates the following remote information signals:

- power overload (ADPS),

- tariff information HC/HP,

- power consumption index in Wh (HC/HP).

IMPORTANT : EM. TI. is only guaranteed to operate cor­rectly in combination with the DELTA DORE range of pro­ducts.

Presentation

Mounted on a DIN rail, with the modular unit and CT on the
electrical switchboard.

Installing the CTs

(current transformers)

• The CT wire length (type H03VV-F or H05V-K) can be
extended by up to 1.5 m.

• It is possible to pass several conductors from the same
phase through a single CT (maximum interior Ø 10mm).

• CTs do not have a connection polarity.

Installation

Connection

The diagrams provided are simplified for greater clarity.The protective devices
and other accessories required by the standards are not illustrated.

- Standard UTE NF C15-100 and good practice must be complied with.

- Connected or nearby equipment must not generate excessive interference
(directive 89/336/EEC).

1 2

EM.TI.

Single phase utilization

Three-phase utilization
with two additional CTs

(ref. 6330004)

3 4 5 6 7 8 9

1 2

EM.TI.

3 4 5 6 7 8 9

Remote-info link

For example: with the

technical unit of a

STARBOX F02

Fit the CT at the head of the system

before the protective devices so as

to measure the entire consumption

of the installation.

Contact

Off-peak Hours

Contact

Off-peak Hours

HC L1 L2 L3NL Com

Pwr sup.

230V-50Hz

HC L1 L2 L3NL Com

Pwr sup.

230V-50Hz

Choosing the circuit-breaker caliber

For EM.TI. to be able to evaluate tariff overshoots, you must
specify the contracted band and the type of meter (mono or
three-phase).
This is set using the swit­ches on the upper terminal
of the unit.

Example 1 :

You have a single-phase meter.

Your contract is for 9 kVA (45 A).

Example 2 :

You have a three-phase meter.

Your contract is for 12 kVA (20 A).

Important :

If no caliber or more calibers were selected, a

meter fault will be indicated on the product controlled.

Switching on

Switch the transmitter on and check that the remote-info LED
of the product controlled is on.

Starting up

• 230 V, 50 Hz power supply, +10%

• Class II insulation

• Power consumption:4 VA

• 3 : 10 mm max.) Rated operating current:2 to 90A, Cos. =
from 0.8 to 1

• One 230 V phase input for HC/HP contact

• 1 remote-info link output (use 6/10 single twisted pair cable
with continuity wire, max. length 1 m)

• Max. number of products to connect to the remote-info unit :5

• Storage temperature: -10°C to +70°C

• Operating temperature: 0 to +40°C

• Modular unit: 3 modules, h = 53 mm, mounted on DIN rail

• Protection index: IP 40

• Installation in an environment with normal pollution levels

Because of changes in standards and equipment, the characteristics given in the
text and the illustrations of this document are not binding unless confirmed by
Delta Dore.

Technical characteristics

DELTA DORE - Bonnemain - 35270 COMBOURG

España :

Deutschland :

Telefon 07276 - 96690 Telefax 07276 - 502120

info. commerciales

Nº Indigo

0 820 822 822

0 820 200 045

fax

0 820 820 191

0,15 Euros/min

0,15 Euros/min

0,15 Euros/min

info. techniques

Nº Indigo

Nº Indigo

pro.deltadore.com

E-mail : [e-mail]

Información

Tlf. : 93 699 65 53

Fax.: [phone]

www.deltadore.es

DELTA DORE ELECTRÓNICA, S.A

C/Sabadell, 41 08191 Rubí (Barcelona)

E-mail : [e-mail]

Delta Dore Schlüter GmbH

Am Kleinwald 13 - 76863 HERXHEIM

E-mail : [e-mail]

1

2

3

4

5

6

7

MONO

TRI

ON

15 20 25 30 40 50 60
15 30 45 60 75 90

1 2 3 4 5 6 7 8

TRI

MONO

Calibres
(en A)

MONO

TRI

ON

15 20 25 30 40 50 60
15 30 45 60 75 90

1 2 3 4 5 6 7 8

TRI

MONO

Calibres
(en A)
