Page 1

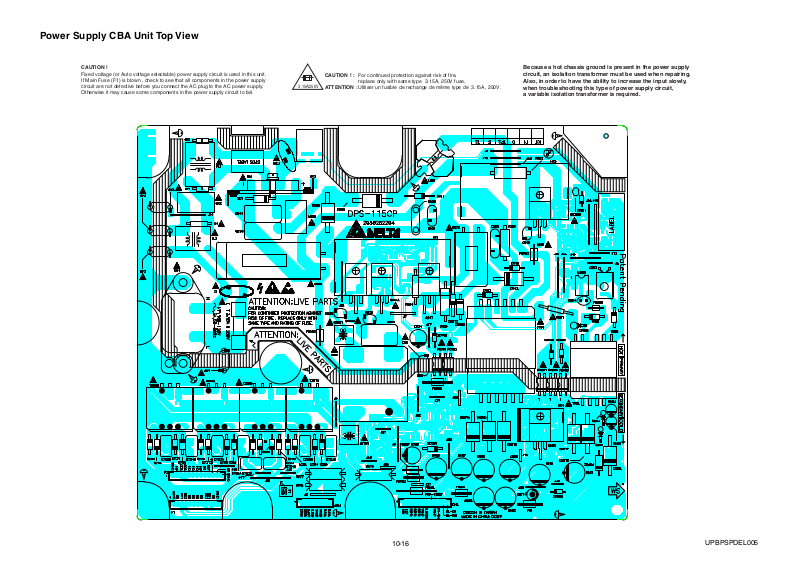

Power Supply CBA Unit Top View
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
3.15A/250V
CAUTION ! :
ATTENTION : Utiliser un fusible de rechange de même type de 3.15A, 250V.
For continued protection against risk of fire,
replace only with same type 3.15A, 250V fuse.
Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.
10-16
UPBPSPDEL005
Page 2
Power Supply CBA Unit Bottom View
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
3.15A/250V
CAUTION ! :
ATTENTION : Utiliser un fusible de rechange de même type de 3.15A, 250V.
For continued protection against risk of fire,
replace only with same type 3.15A, 250V fuse.
Because a hot chassis ground is present in the power supply
circuit, an isolation transformer must be used when repairing.
Also, in order to have the ability to increase the input slowly,
when troubleshooting this type of power supply circuit,
a variable isolation transformer is required.
10-17
UPBPSPDEL005
Page 3
Power Supply 1 Schematic Diagram
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
3.15A/250V
CAUTION ! :
ATTENTION : Utiliser un fusible de rechange de même type de 3.15A, 250V.
For continued protection against risk of fire,
replace only with same type 3.15A, 250V fuse.
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
10-12
PL10.11SCP1
Page 4
Power Supply 2 Schematic Diagram
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
10-13
PL10.11SCP2
