Optional 6"
Escutcheon
RP76702
581LF-PP*
581LF-HGM-PP
581LF-GPM-PP*
581LF-MPU-PP*
Submitted Model No.:
Specific Features:
6 7/16"
(163 mm)
1 1/8"~1 1/2"
(29~38 mm)
Hole Size
7 7/8"
(199 mm)
2 1/2"
(64 mm)
Max. Desk
Thickness
4 1/4"
(107 mm)
5 5/8"
(142 mm)
4 13/16"
(122 mm)
1 13/16"
(46 mm)
Min. 2 1/2" (64 mm)
Clearance to Back Splash
Recommended

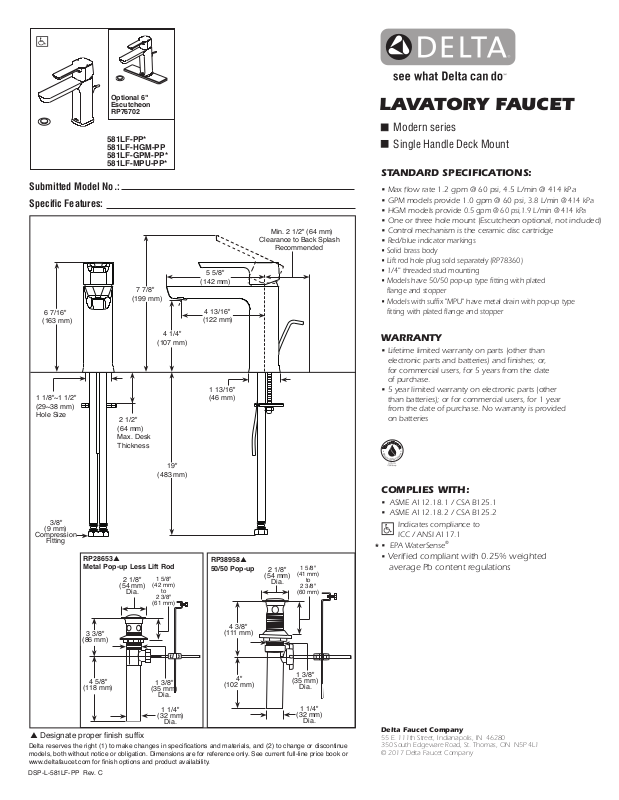

LAVATORY FAUCET
Modern series
Single Handle Deck Mount
STANDARD SPECIFICATIONS:
• Max low rate 1.2 gpm @ 60 psi, 4.5 L/min @ 414 kPa
• GPM models provide 1.0 gpm @ 60 psi,
• HGM models provide
0.5 gpm @ 60 psi,1.9 L/min @ 414 kPa
• One or three hole mount (Escutcheon optional, not included)
• Control mechanism is the ceramic disc cartridge
•
Red/blue indicator markings
• Solid brass body
• Lift rod hole plug sold separately (RP78360)
• 1/4" threaded stud mounting
• Models have 50/50 pop-up type fitting with plated
flange and stopper
• Models with suffix "MPU" have metal drain with pop-up type
fitting with plated flange and stopper
WARRANTY
• Lifetime limited warranty on parts (other than
electronic parts and batteries) and inishes; or,
for commercial users, for 5 years from the date
of purchase.
• 5 year limited warranty on electronic parts (other
than batteries); or for commercial users, for 1 year
from the date of purchase. No warranty is provided
on batteries
3.8 L/min @ 414 kPa
19"
(483 mm)
3/8"
(9 mm)
Compression
Fitting
RP28653p
Metal Pop-up Less Lift Rod
Dia.
1 5/8"
(42 mm)
to
2 3/8"
(61 mm)
1 3/8"
(35 mm)
Dia.
1 1/4"
(32 mm)
Dia.
2 1/8"
(54 mm)
3 3/8"
(86 mm)
4 5/8"
(118 mm)
Designate proper nish sufx
p
Delta reserves the right (1) to make changes in specications and materials, and (2) to change or discontinue
models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or
www.deltafaucet.com for nish options and product availability.
DSP-L-581LF-PP Rev. C
RP38958p
50/50 Pop-up
4 3/8"
(111 mm)
4"
(102 mm)
2 1/8"
(54 mm)
Dia.
1 5/8"
(41 mm)
to
2 3/8"
(60 mm)
1 3/8"
(35 mm)
Dia.
1 1/4"
(32 mm)
Dia.
COMPLIES WITH:
• ASME A112.18.1 / CSA B125.1
• ASME A112.18.2 / CSA B125.2
Indicates compliance to
ICC / ANSI A117.1
• EPA WaterSense
*
•
Veri ied compliant with 0.25% weighted
average Pb content regulations
Delta Faucet Company
55 E. 111th Street, Indianapolis, IN 46280
350 South Edgeware Road, St. Thomas, ON N5P 4L1
© 2017 Delta Faucet Company
®
