Delta 46-756, 46-755X User Manual

INSTRUCTION MANUAL

To learn more about DELTA MACHINERY
visit our website at: www.deltamachinery.com.

For Parts, Service, Warranty or other Assistance,
please call

1-800-223-7278 (In Canada call 1-800-463-3582).

U.S. DESIGN PATENT # D450333111301
U.S. UTILITY PATENT # 6561062B2

PART NO.A02990 - 04-08-04

Copyright © 2004 Delta Machinery

16” Variable Speed

Wood Lathe

(Model 46-756 and 46-755X)

2

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may
result in property damage.

This manual contains information that is important for you to know and understand. This information relates to protect­ing YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the
symbols to the right. Please read the manual and pay attention to these sections.

SAFETY GUIDELINES - DEFINITIONS

SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER

CONSTRUCTION ACTIVITIES contains chemicals known to cause cancer, birth defects or other reproductive harm.

Some examples of these chemicals are:

· lead from lead-based paints,

· crystalline silica from bricks and cement and other masonry products, and

· arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work with approved safety equipment, always wear MSHA/NIOSH
approved, properly fitting face mask or respirator when using such tools.

GENERAL SAFETY RULES

READ AND UNDERSTAND ALL WARNINGS AND OPERATING INSTRUCTIONS BEFORE
USING THIS EQUIPMENT. Failure to follow all instructions listed below, may result in electric shock,
fire, and/or serious personal injury or property damage.

IMPORTANT SAFETY INSTRUCTIONS

Woodworking can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there
are certain hazards involved with the operation of the product. Using the machine with respect and caution will con­siderably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, per­sonal injury to the operator may result. Safety equipment such as guards, push sticks, hold-downs, featherboards,
goggles, dust masks and hearing protection can reduce your potential for injury. But even the best guard won’t make
up for poor judgment, carelessness or inattention. Always use common sense and exercise caution in the workshop.
If a procedure feels dangerous, don’t try it. Figure out an alternative procedure that feels safer. REMEMBER: Your per-
sonal safety is your responsibility. For additional information please visit our website www.deltamachinery.com.

This machine was designed for certain applications only. Delta Machinery strongly recommends that this

machine not be modified and/or used for any application other than that for which it was designed. If you have any
questions relative to a particular application, DO NOT use the machine until you have first contacted Delta to deter­mine if it can or should be performed on the product.

Technical Service Manager
Delta Machinery
4825 Highway 45 North
Jackson, TN 38305

(IN CANADA: 505 SOUTHGATE DRIVE, GUELPH, ONTARIO N1H 6M7)

3

1. FOR YOUR OWN SAFETY, READ THE INSTRUCTION

MANUAL BEFORE OPERATING THE MACHINE.

Learning the machine’s application, limitations, and
specific hazards will greatly minimize the possibility of
accidents and injury.

2. WEAR EYE PROTECTION. ALWAYS USE SAFETY
GLASSES. Also use face or dust mask if cutting oper­ation is dusty. Everyday eyeglasses are NOT safety
glasses. USE CERTIFIED SAFETY EQUIPMENT. Eye
protection equipment should comply with ANSI Z87.1
standards, hearing equipment should comply with
ANSI S3.19 standards, and dust mask protection
should comply with MSHA/NIOSH certified respirator
standards. Splinters, air-borne debris, and dust can
cause irritation, injury, and/or illness.

3. WEAR PROPER APPAREL. Do not wear loose cloth-
ing, gloves, neckties, rings, bracelets, or other jewelry
which may get caught in moving parts. Nonslip
footwear is recommended. Wear protective hair cover­ing to contain long hair.

4. DO NOT USE THE MACHINE IN A DANGEROUS
ENVIRONMENT. The use of power tools in damp or
wet locations or in rain can cause shock or electrocu­tion. Keep your work area well-lit to prevent tripping or
placing arms, hands, and fingers in danger.

5. MAINTAIN ALL TOOLS AND MACHINES IN PEAK CONDI-
TION. Keep tools sharp and clean for best and safest perfor­mance. Follow instructions for lubricating and changing acces­sories. Poorly maintained tools and machines can further dam­age the tool or machine and/or cause injury.

6. CHECK FOR DAMAGED PARTS. Before using the
machine, check for any damaged parts. Check for
alignment of moving parts, binding of moving parts,
breakage of parts, and any other conditions that may
affect its operation. A guard or any other part that is
damaged should be properly repaired or replaced.
Damaged parts can cause further damage to the
machine and/or injury.

7. KEEP THE WORK AREA CLEAN. Cluttered areas and
benches invite accidents.

8. KEEP CHILDREN AND VISITORS AWAY. Your shop is a
potentially dangerous environment. Children and visitors can
be injured.

9. REDUCE THE RISK OF UNINTENTIONAL STARTING.
Make sure that the switch is in the “OFF” position
before plugging in the power cord. In the event of a
power failure, move the switch to the “OFF” position.
An accidental start-up can cause injury.

10. USE THE GUARDS. Check to see that all guards are in
place, secured, and working correctly to prevent injury.

11. REMOVE ADJUSTING KEYS AND WRENCHES
BEFORE STARTING THE MACHINE. Tools, scrap
pieces, and other debris can be thrown at high speed,
causing injury.

12. USE THE RIGHT MACHINE. Don’t force a machine or

an attachment to do a job for which it was not
designed. Damage to the machine and/or injury may
result.

13. USE RECOMMENDED ACCESSORIES. The use of

accessories and attachments not recommended by
Delta may cause damage to the machine or injury to the
user.

14. USE THE PROPER EXTENSION CORD. Make sure

your extension cord is in good condition. When using
an extension cord, be sure to use one heavy enough to
carry the current your product will draw. An undersized
cord will cause a drop in line voltage, resulting in loss of
power and overheating. See the Extension Cord Chart
for the correct size depending on the cord length and
nameplate ampere rating. If in doubt, use the next
heavier gauge. The smaller the gauge number, the
heavier the cord.

15. SECURE THE WORKPIECE. Use clamps or a vise to hold

the workpiece when practical. Loss of control of a
workpiece can cause injury.

16. FEED THE WORKPIECE AGAINST THE DIRECTION OF

THE ROTATION OF THE BLADE, CUTTER, OR ABRASIVE
SURFACE. Feeding it from the other direction will cause

the workpiece to be thrown out at high speed.

17. DON’T FORCE THE WORKPIECE ON THE MACHINE.

Damage to the machine and/or injury may result.

18. DON’T OVERREACH. Loss of balance can make you

fall into a working machine, causing injury.

19. NEVER STAND ON THE MACHINE. Injury could occur if the

tool tips, or if you accidentally contact the cutting tool.

20. NEVER LEAVE THE MACHINE RUNNING UNATTENDED.
TURN THE POWER OFF. Don’t leave the machine until it
comes to a complete stop. A child or visitor could be injured.

21. TURN THE MACHINE “OFF”, AND DISCONNECT THE
MACHINE FROM THE POWER SOURCE before installing
or removing accessories, before adjusting or changing
set-ups, or when making repairs. An accidental start-up
can cause injury.

22. MAKE YOUR WORKSHOP CHILDPROOF WITH

PADLOCKS, MASTER SWITCHES, OR BY REMOV­ING STARTER KEYS. The accidental start-up of a

machine by a child or visitor could cause injury.

23. STAY ALERT, WATCH WHAT YOU ARE DOING, AND

USE COMMON SENSE. DO NOT USE THE
MACHINE WHEN YOU ARE TIRED OR UNDER THE
INFLUENCE OF DRUGS, ALCOHOL, OR MEDICA­TION. A moment of inattention while operating power

tools may result in injury.

24. TAKE PRECAUTIONS AGAINST DUST INHALATION.
The dust generated by certain woods and wood prod­ucts can be injurious to your health. Always operate
machinery in well-ventilated areas, and provide for
proper dust removal. Use wood dust collection sys­tems whenever possible.

FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY.

4

ADDITIONAL SAFETY RULES FOR

WOOD LATHES

1. DO NOT OPERATE THIS MACHINE UNTIL it is
assembled and installed according to the instruc-

tions.

2. OBTAIN ADVICE from your supervisor, instruc-
tor, or another qualified person if you are not
familiar with the operation of this machine.

3. FOLLOW ALL WIRING CODES and recommend-
ed electrical connections.

4. ROUGH CUT THE WORKPIECE as close as pos-
sible to the finished shape before installing it on the
faceplate.

5. EXAMINE THE WORKPIECE FOR FLAWS and
test glue joints before mounting the workpiece on
machine. DO NOT mount a split workpiece or one
containing a knot.

6. SECURELY FASTEN THE WORKPIECE to the
faceplate prior to faceplate turning. Use the appro­priate size faceplate to properly support the work­piece. Do not let the screw fasteners interfere with
the turning tool at the finished dimension of the
workpiece.

7. NEVER DRIVE THE WORKPIECE into the drive
center while the drive center is in the headstock.
Set the drive center into the workpiece with a soft
mallet prior to installing it on the headstock.

8. SNUG THE TAILSTOCK CENTER against the
workpiece and lock it. Lubricate the tailstock cen­ter if it is not a ball bearing center.

9. PROPERLY ADJUST THE TOOL REST HEIGHT.

10. ADJUST THE TOOL REST so it is as close to the
workpiece as possible.

11. TIGHTEN ALL CLAMP LOCKING HANDLES
before operating.

12. ROTATE THE WORKPIECE BY HAND to check
clearance before turning the machine “ON”.

13. CLEAR THE LATHE BED OF ALL OBJECTS
(tools, scraps of wood, etc.) before turning the
machine “ON”.

14. EXAMINE THE SET-UP CAREFULLY before turning

the machine “ON”.

15. STAND CLEAR, AND KEEP ALL OBSERVERS
AND PASSERSBY clear of rotating path of work­piece to avoid injury from flying debris.

16. USE THE LOWEST SPEED when starting a new
workpiece. NEVER EXCEED recommended
speeds.

17. NEVER ADJUST THE TOOL REST while the work-
piece is turning.

18. NEVER LOOSEN THE TAILSTOCK SPINDLE or
the tailstock while workpiece is turning.

19. MOVE THE CUTTING TOOL INTO THE WORK-
PIECE SLOWLY, and cut small amounts when
roughing.

20. REMOVE THE TOOL REST before sanding or pol-
ishing.

21. NEVER PERFORM LAYOUT, assembly, or set-up
work on the table/work area when the machine is
running.

22. TURN THE MACHINE “OFF” AND DISCONNECT
THE MACHINE from the power source before
installing or removing accessories, before adjusting
or changing set-ups, or when making repairs.

23. TURN THE MACHINE “OFF”, disconnect the
machine from the power source, and clean the
table/work area before leaving the machine. LOCK
THE SWITCH IN THE “OFF” POSITION to pre­vent unauthorized use.

24. ADDITIONAL INFORMATION regarding the safe
and proper operation of power tools (i.e. a safety
video) is available from the Power Tool Institute,
1300 Sumner Avenue, Cleveland, OH 44115-2851
(www.powertoolinstitute.com). Information is also
available from the National Safety Council, 1121
Spring Lake Drive, Itasca, IL 60143-3201. Please
refer to the American National Standards Institute
ANSI 01.1 Safety Requirements for Woodworking
Machines and the U.S. Department of Labor
OSHA 1910.213 Regulations.

SAVE THESE INSTRUCTIONS.

Refer to them often

and use them to instruct others

.

FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS INJURY.

5

A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should
be protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3­prong grounding type plugs and matching receptacle which will accept the machine’s plug. Before connecting the
machine to the power line, make sure the switch (s) is in the “OFF” position and be sure that the electric current is of
the same characteristics as indicated on the machine. All line connections should make good contact. Running on low
voltage will damage the machine.

DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN DAMP LOCATIONS.

Fig. A Fig. B

GROUNDED OUTLET BOX

CURRENT

CARRYING

PRONGS

GROUNDING BLADE
IS LONGEST OF THE 3 BLADES

GROUNDED OUTLET BOX

GROUNDING

MEANS

ADAPTER

2. Grounded, cord-connected machines intended for
use on a supply circuit having a nominal rating less than
150 volts:

If the machine is intended for use on a circuit that has an out­let that looks like the one illustrated in Fig. A, the machine will
have a grounding plug that looks like the plug illustrated in
Fig. A. A temporary adapter, which looks like the adapter
illustrated in Fig. B, may be used to connect this plug to a
matching 2-conductor receptacle as shown in Fig. B if a
properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet
can be installed by a qualified electrician. The green-colored
rigid ear, lug, and the like, extending from the adapter must
be connected to a permanent ground such as a properly
grounded outlet box. Whenever the adapter is used, it must
be held in place with a metal screw.

NOTE: In Canada, the use of a temporary adapter is not
permitted by the Canadian Electric Code.

IN ALL CASES, MAKE CERTAIN THE
RECEPTACLE IN QUESTION IS PROP­ERLY GROUNDED. IF YOU ARE NOT
SURE, HAVE A QUALIFIED ELECTRI­CIAN CHECK THE RECEPTACLE.

1. All grounded, cord-connected machines:

In the event of a malfunction or breakdown, grounding pro­vides a path of least resistance for electric current to reduce
the risk of electric shock. This machine is equipped with an
electric cord having an equipment-grounding conductor and
a grounding plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in accordance
with all local codes and ordinances.

Do not modify the plug provided - if it will not fit the outlet,
have the proper outlet installed by a qualified electrician.

Improper connection of the equipment-grounding conduc­tor can result in risk of electric shock. The conductor with
insulation having an outer surface that is green with or with­out yellow stripes is the equipment-grounding conductor. If
repair or replacement of the electric cord or plug is neces­sary, do not connect the equipment-grounding conductor
to a live terminal.

Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if
in doubt as to whether the machine is properly grounded.

Use only 3-wire extension cords that have 3-prong grounding
type plugs and matching 3-conductor receptacles that
accept the machine’s plug, as shown in Fig. A.

Repair or replace damaged or worn cord immediately.

POWER CONNECTIONS

MOTOR SPECIFICATIONS

Delta Model 46-745 (115 volt) and Delta Models 46-746 and 46-765X (230 volt) operate on 50/60 HZ alternating cur­rent and provide a no-load spindle speed of 0-3200 RPM. Before connecting your tool to the power source, place the
switch in the “OFF” position. NOTE: The specifications on the motor will read “230 volt-3 phase”. This is correct and
is accomplished with a high frequency inverter. IMPORTANT: The motor cannot be run without the inverter.

Do not change input voltage. To do so will cause severe damage to the inverter.

GROUNDING INSTRUCTIONS

THIS MACHINE MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM
ELECTRIC SHOCK.

6

Use proper extension cords. Make sure your extension cord is in good condition and is a 3-wire exten-

sion cord which has a 3-prong grounding type plug and matching receptacle which will accept the
machine’s plug. When using an extension cord, be sure to use one heavy enough to carry the current
of the machine. An undersized cord will cause a drop in line voltage, resulting in loss of power and over­heating. Fig. D shows the correct gauge to use depending on the cord length. If in doubt, use the next
heavier gauge. The smaller the gauge number, the heavier the cord.

EXTENSION CORDS

Fig. D

Fig. D

MINIMUM GAUGE EXTENSION CORD

RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES

Ampere Total Length Gauge of

Rating Volts of Cord in Feet Extension Cord

0-6 120

up to

25 18 AWG
0-6 120 25-50 16 AWG
0-6 120 50-100 16 AWG
0-6 120 100-150 14 AWG

6-10 120

up to

25 18 AWG
6-10 120 25-50 16 AWG
6-10 120 50-100 14 AWG
6-10 120 100-150 12 AWG

10-12 120

up to

25 16 AWG
10-12 120 25-50 16 AWG
10-12 120 50-100 14 AWG
10-12 120 100-150 12 AWG

12-16 120

up to

25 14 AWG
12-16 120 25-50 12 AWG
12-16 120

GREATER THAN 50 FEET NOT RECOMMENDED

MINIMUM GAUGE EXTENSION CORD

RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES

Ampere Total Length Gauge of

Rating Volts of Cord in Feet Extension Cord

0-6 240

up to

50 18 AWG
0-6 240 50-100 16 AWG
0-6 240 100-200 16 AWG
0-6 240 200-300 14 AWG

6-10 240

up to

50 18 AWG
6-10 240 50-100 16 AWG
6-10 240 100-200 14 AWG
6-10 240 200-300 12 AWG

10-12 240

up to

50 16 AWG
10-12 240 50-100 16 AWG
10-12 240 100-200 14 AWG
10-12 240 200-300 12 AWG

12-16 240

up to

50 14 AWG
12-16 240 50-100 12 AWG
12-16 240

GREATER THAN 100 FEET NOT RECOMMENDED

3. Grounded, cord-connected machines intended for
use on a supply circuit having a nominal rating between
150 - 250 volts, inclusive:

If the machine is intended for use on a circuit that has an
outlet that looks like the one illustrated in Fig. C, the
machine will have a grounding plug that looks like the
plug illustrated in Fig. C. Make sure the machine is con­nected to an outlet having the same configuration as the
plug. No adapter is available or should be used with this
machine. If the machine must be re-connected for use
on a different type of electric circuit, the re-connection
should be made by qualified service personnel; and
after re-connection, the machine should comply with all
local codes and ordinances.

Fig. C

GROUNDED OUTLET BOX

CURRENT

CARRYING

PRONGS

GROUNDING BLADE
IS LONGEST OF THE 3 BLADES

7

Carefully unpack the tool and all loose items from the shipping container(s). Remove the protective coating from all
unpainted surfaces, especially on the bottom side of the bedways, the clamp plates under the headstock, the tool rest
base, and the tailstock. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone,
gasoline or lacquer thinner for this purpose). After cleaning, cover the top surface of the bed with a good quality paste wax.

FOR YOUR OWN SAFETY, DO NOT CONNECT THE TOOL TO THE POWER SOURCE UNTIL THE
TOOL IS COMPLETELY ASSEMBLED, AND YOU READ AND UNDERSTAND THE ENTIRE
OWNER’S MANUAL.

Fig. 4A

1

FOREWORD

The Delta 46-756 16” adjustable speed wood lathes is a big capacity machine, designed for industry, commercial
shops, and schools, or wherever a demand exists for continued accuracy and long life through safe, heavy-duty oper­ation.

FUNCTIONAL DESCRIPTION

UNPACKING AND CLEANING

CARTON CONTENTS

Fig. 4B

1. Headstock

2. Tailstock

3. Pedestal

4. Pedestal Base

5. Drive Center

6. Lathe Bed

7. Flange Nut (4)

8. Button Head Screw (4)

9. End Cap (2)

10. Leg Insert (4)

11. 3/8x16 Carriage Bolt (4)

12. 3/8 Washer (8)

13. 3/8 Nut (4)

14. Knockout Bar

15. 3/8-16 x 3/4"
Hex Head Bolt (16)

16. 3/8" Lock Washer (12)

17. 3/8" Flat Washer (12)

18. 5/32" Hex Wrench

19. Spindle Wrench

Fig. 4C

2

3

4

5

6

7

8

10

9

11

12

13

14

15
16
17
18

10

8

The hole in the pedestal (C) Fig. 6D can be used to fill the
pedestal with sand or concrete to provide more ballast.

Fold the metal flap (C) Fig.6D down and out of the way to fill
the pedestal.

NOTE: If sand is used, pour a small amount of concrete or
similar material in the pedestal to prevent sand leakage
through the seams.

ATTACHING LATHE BED
TO PEDESTALS

Fig. 5

1. Remove the tailstock, headstock, and tool rest from the
lathe bed.

NOTE: See “ADJUSTING HEADSTOCK AND TAILSTOCK”

and “TOOL REST” for removal/installation instructions.

2. Set the pedestals exactly 58” apart (Fig. 5).

3. Because of the weight, use an assistant to place the lathe
bed on top of the pedestals. Align the holes in the lathe
bed with the holes in the tops of the pedestals (A) Fig. 6C.

4. Use the twelve 3/8-16 x 3/4” Hex Head bolts and lock­washers to attach the lathe bed to the pedestals.

NOTE: Level the machine by loosening the jam nut (A) Fig. 6C
and turning the adjusting nut (B). When leveling is complete,
tighten the jam nut (A).

To increase the height of the machine, place a 4" wide hard­wood board (A) Fig. 6A between the pedestal (A) Fig. 6B and
the pedestal base (B) Fig. 6B.

NOTE: Place the 4" board under the pedestal, mark where the
holes are located, and drill the holes to allow longer carriage
bolts (not supplied) to come through.

In addition to showing the location of the bolts (A and B), Fig.
7 also shows that additional ballast can be added in the lathe
bed (C). Steel bars or other heavy material can be inserted
into the lathe bed to provide more weight.

NOTE: Use a good quality furniture wax on the lathe bed (C)
Fig. 7 to allow for smoother movement of the headstock, tool
rest, and tailstock, and to prevent rust.

ATTACHING END CAPS

Use the supplied hex wrench (B) Fig. 9 to attach the end caps
(A) Fig. 8 to both ends of the lathe with button head screws
(A) Fig. 9. Insert these through the end cap, then the lathe
bed. Secure with a flange nut (B) Fig. 8 .

NOTE: The flange nut can easily be dropped while attaching
the endcap. A metal flap (C) Fig. 6 will catch any fallen flange
nuts. However, if you folded the flap down to insert more
ballast, use a piece of cardboard or other material to cover the
hole during assembly.

ASSEMBLY

58"

Fig. 6A Fig. 6B

Fig. 6D

Fig. 7

Fig. 9

Fig. 8

A

A

B

C

A

A

C

B

A

B

A

A

B

Fig. 6C

A

B

9

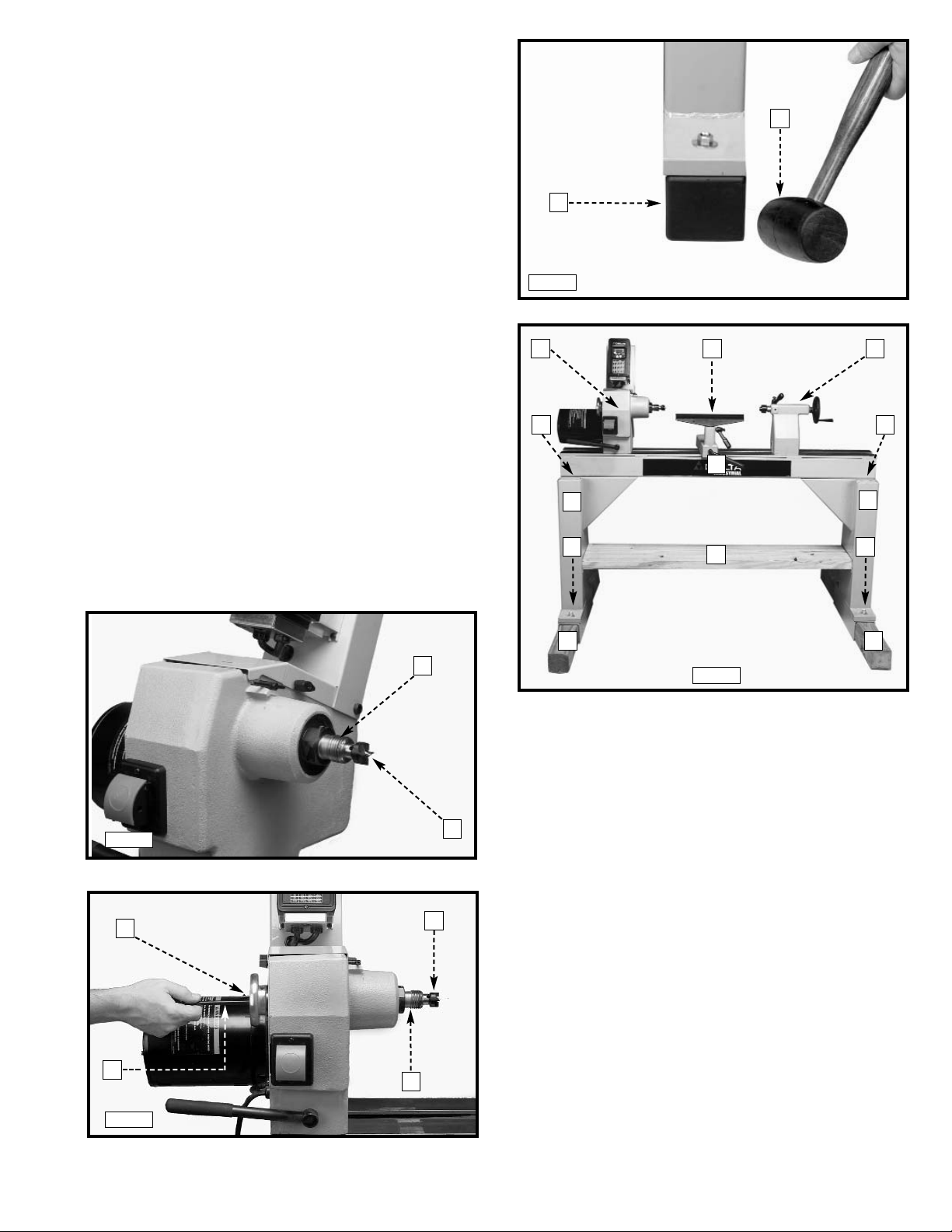

ATTACHING LEG INSERTS

The lathe is supplied with four leg inserts, one of which
is shown (A) Fig. 10.

To attach the leg inserts to the pedestals, place one side
in the hole provided and gently tap the other side, top,
and bottom with a rubber mallet (B) Fig. 10.

If additional stability is desired, insert a 4 x 4 (A) Fig. 11
into the pedestal base (B) Fig. 11.

NOTE: You may have to cut a groove in the 4x4”s to
allow the lumber to pass underneath the head of the
carriage bolt.

Fasten the 4 x 4’s to the floor.

HEADSTOCK SPUR CENTER

The spur center (A) Fig.12 is equipped with a No. 2
Morse Taper shank. Insert this shank into the headstock
spindle (B).

NOTE: Before inserting the spur center (A), clean both
the shank of the spur center and the inside of the head­stock spindle to remove any grease or debris. To remove
the tapered shank spur center (A) Fig. 13 from the head­stock spindle (B) Fig. 13, use the knockout bar (C) Fig.
13 (supplied) through the hole (D) in the opposite end of
the spindle.

IMPORTANT: NEVER DRIVE THE WORKPIECE INTO
THE SPUR CENTER WHEN IT IS MOUNTED IN THE
HEADSTOCK.

See the instructions on setting the spur center into the
workpiece in the “OPERATION“ section of this manual
under “CENTERING THE WORK.”

Attach the Headstock (D) Fig. 11, Tool Rest (E), and
Tailstock (F) to the lathe bed (G). Notice the tool and
centers storage areas located at (H), and brackets on
the pedestals to accept a 2 x 12” shelf (not supplied) (J)
Fig. 11.

A

B

A

C

C

B

B

H

J

H

A

G

F

A E

A

A

D

A

A

B

Fig. 10

Fig. 11

Fig. 12

Fig. 13

10

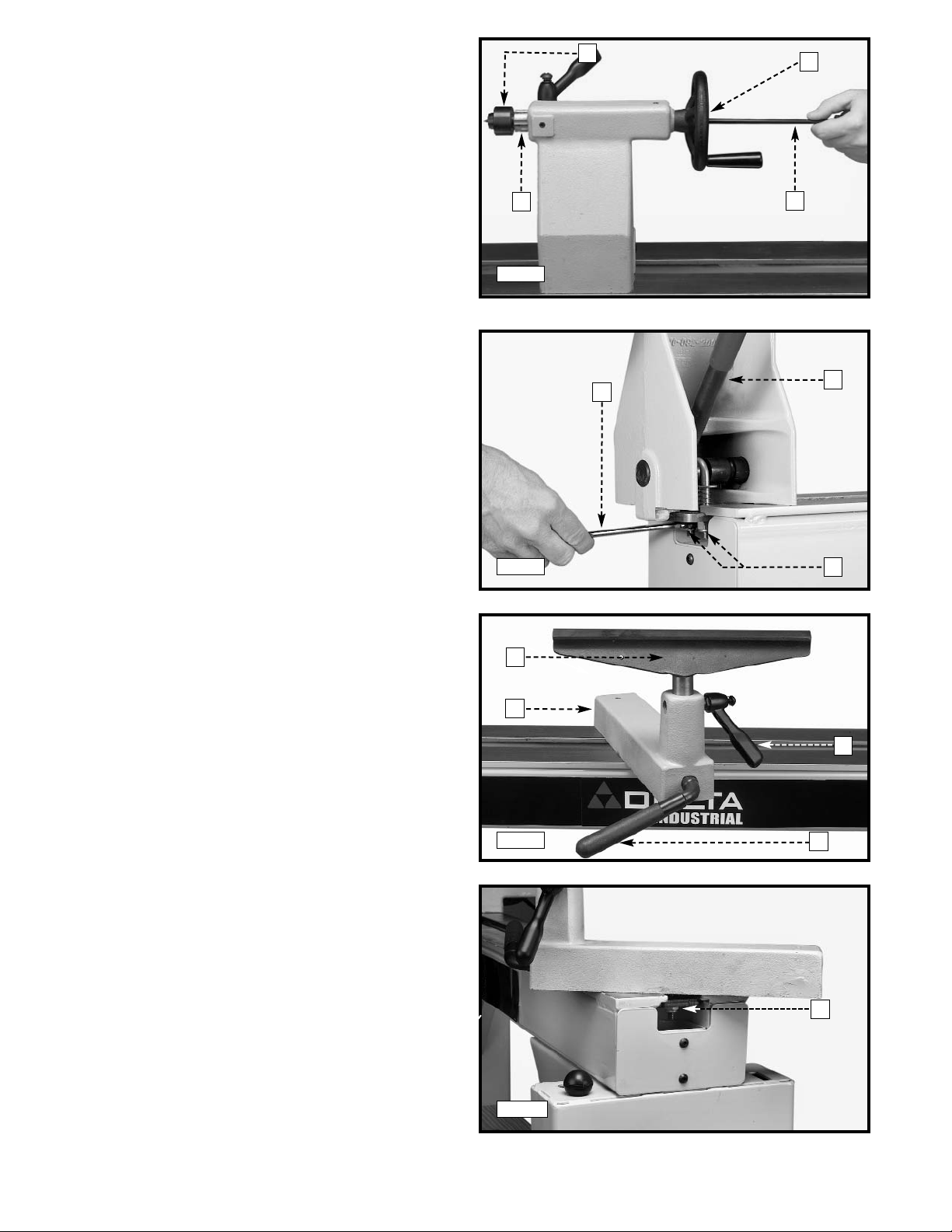

TAILSTOCK LIVE CENTER

The tailstock live center (A) Fig. 14, supplied with your
lathe, is equipped with a No. 2 Morse Taper shank.

NOTE: Before inserting the live center, clean both the
shank and the inside of the tailstock to remove any
grease or debris. To remove the live center (A) from the
tailstock spindle (B), use the knockout bar (C) Fig. 14
(supplied) through the hole (D) in the opposite end of the
spindle.

TOOL REST

The tool rest (A) and tool rest base (B) are shown in Fig.

16. To position the tool rest on the lathe bed, lift the

clamp handle (C), move the tool rest base and lock it in
place by pushing down on the handle (C). To adjust the
tool rest (A) for the correct height, loosen the locking
lever (D), move the tool rest (A) up or down and tighten
the locking lever (D).

NOTE: The locking lever (D) Fig. 16 can be positioned
on the left or right side of the tool rest base (B). To repo­sition the tool rest locking lever (D), unscrew the lever
counterclockwise. A threaded hole is provided in the left
side of tool rest base (B) to accept the locking lever (D)
if desired.

NOTE: Clamp the tool rest firmly while operating the
lathe.

ADJUSTING CLAMPS ON THE
HEADSTOCK AND TAILSTOCK

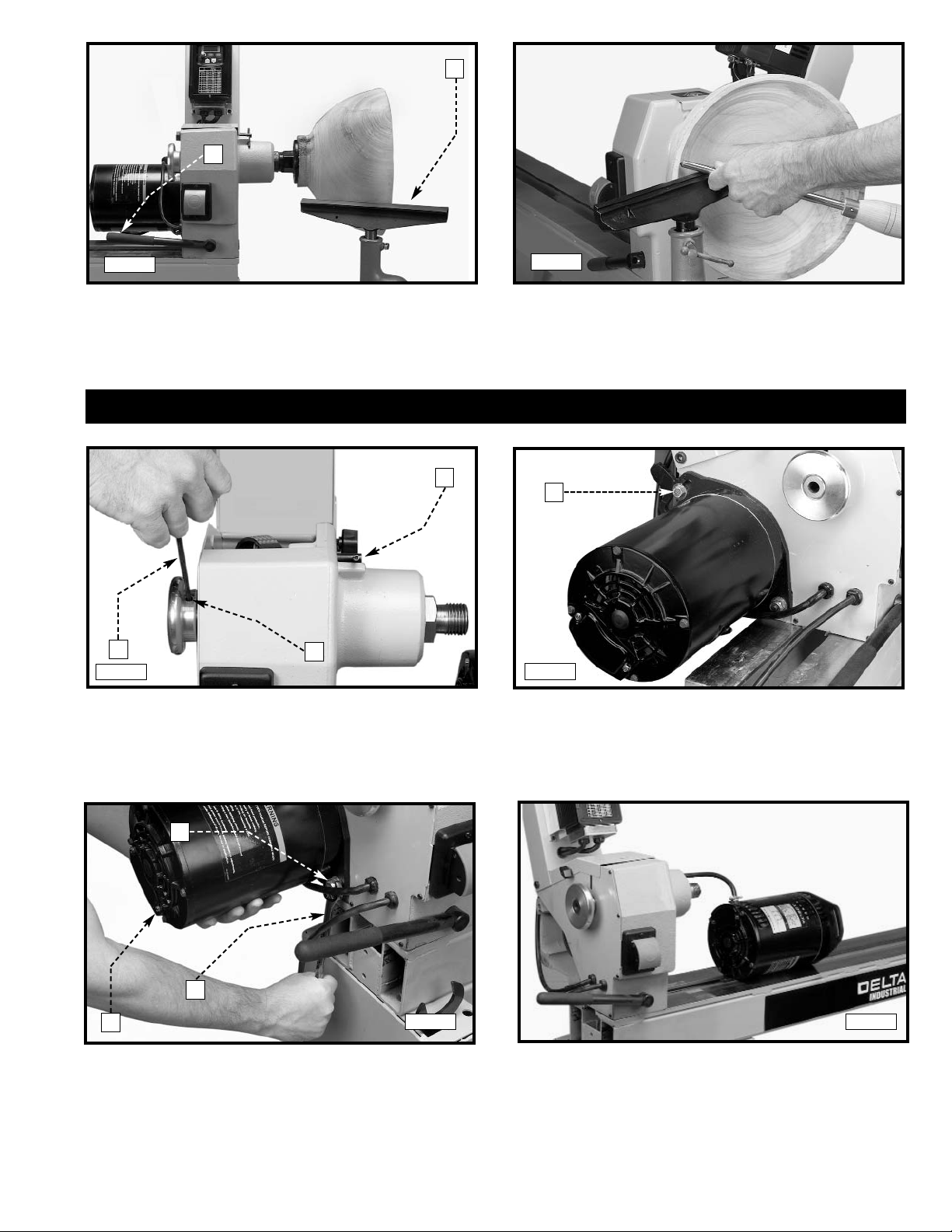

The headstock and tailstock can be moved along the
lathe bed. A downward push on the handle (A) Fig. 15
(tailstock shown) locks the mechanism, while an upward
movement of the handle releases the securing action.
The clamps are pre-set at the factory. However, should
either need adjusting, use an 11/16” wrench (B) Fig. 15 to
slightly loosen or tighten the two nuts (C) Fig. 15 shown
here on the tailstock.

NOTE: Tighten or loosen both nuts equally.
NOTE: Clamp the headstock and tailstock firmly while

operating the lathe.

ADJUSTING CLAMP ON
TOOL REST

To adjust the tool rest clamping action, use a 11/16”
wrench to loosen or tighten the single nut (A) Fig. 17.

Fig. 14

Fig. 15

Fig. 16

Fig. 17

A

B

D

C

A

C

B

A

B

D

C

A

11

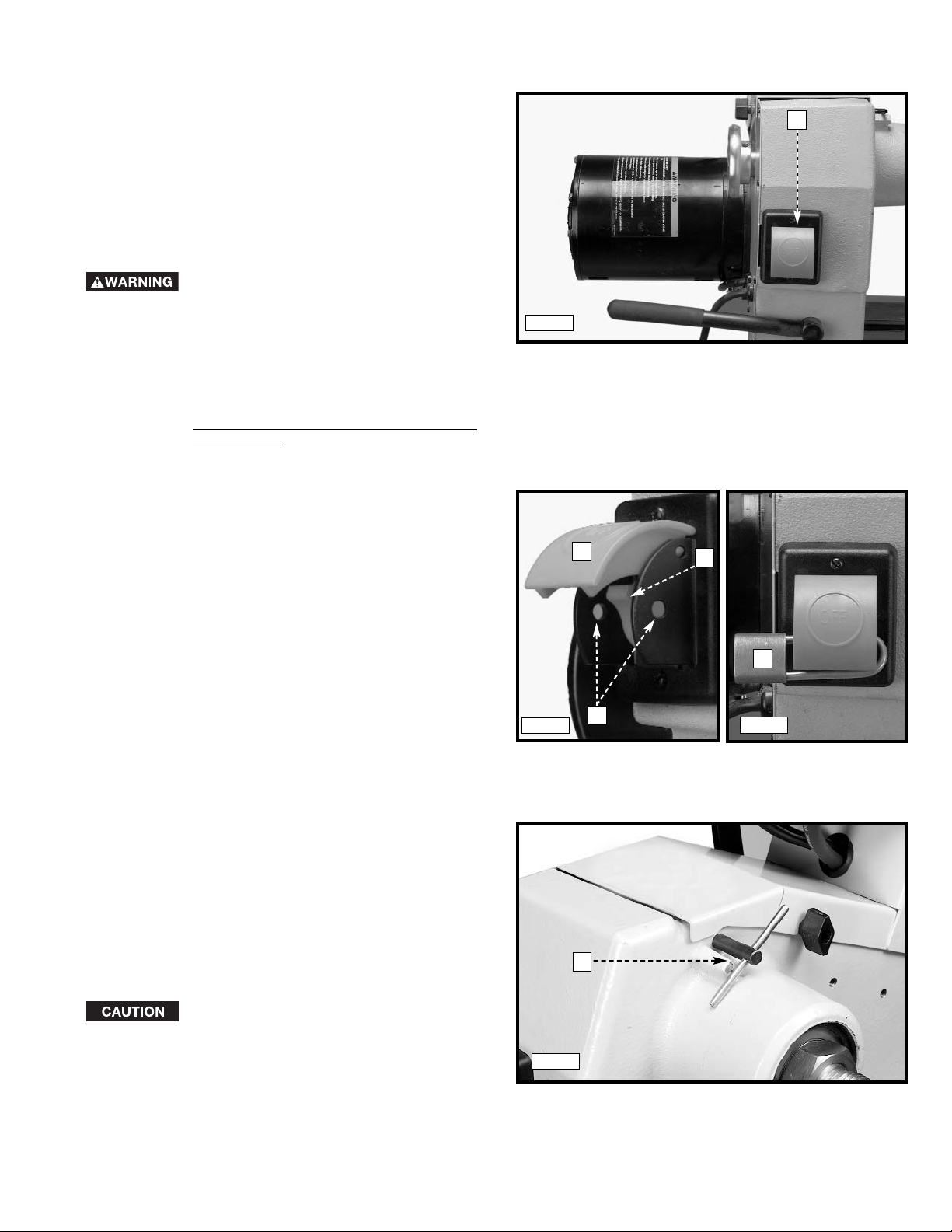

STARTING AND STOPPING THE
TOOL

The power switch, located under the safety cover (B) Fig. 18
provides electrical power to the adjustable speed drive. Lift
the safety cover (B) and move the switch up to the “ON”
position. To turn the power off, push the safety cover (B)
down.
Fig. 18 shows the switch with safety cover down in the
“OFF” position. Fig. 19 shows the lathe in the “ON” position
(switch cover (A) up and switch (B) up).

NOTE: In case of emergency, immediately push the safe-

ty cover (B) down to shut off power.

These machines have a circuit that automat­ically decelerates the spindle once you push
the stop button (C) Fig. 22 on the control
panel. Although an optional dynamic brake
is mentioned in the manual provided with
the Baldor Adjustable Speed Controller,
Delta does not recommend the use of any
optional brake systems on the lathe. Further,
DO NOT CHANGE OR ADJUST the con

­troller settings that have been pre-set at the
factory.

LOCKING SWITCH IN THE
“OFF” POSITION

IMPORTANT: When the tool is not in use, the switch should

be locked in the “OFF” position to prevent unauthorized
use, using a padlock (A) Fig. 20 with a 3/16” diameter shack­le inserted through the holes in the switch plate (C) Fig. 19.

ACTIVATING THE SPINDLE

Even though power may be going to the adjustable speed
drive, the spindle will not turn until you activate it.

1. Before activating the spindle, tighten and clear all
clamps, bolts, etc. Turn the workpiece by hand to see
that it clears the tool rest and to make sure that the spin­dle lock is in the UNLOCKED position (A) Fig. 21.

2. Prior to activating the spindle, set the speed control
knob (A) Fig. 22 to the “zero” position.

Input voltage must be 200 to 240 single
phase. Other voltage will cause severe dam­age to the inverter.

3. After turning the power switch on, push the “run” button

(B) Fig. 22. Then slowly turn the knob (A) clockwise to
the desired speed.

NOTE: The numbers in the display multiplied by 10 will indi­cate the spindle speed.

Fig. 21

Fig. 19

Fig. 20

Fig. 18

B

A

B

C

B

A

12

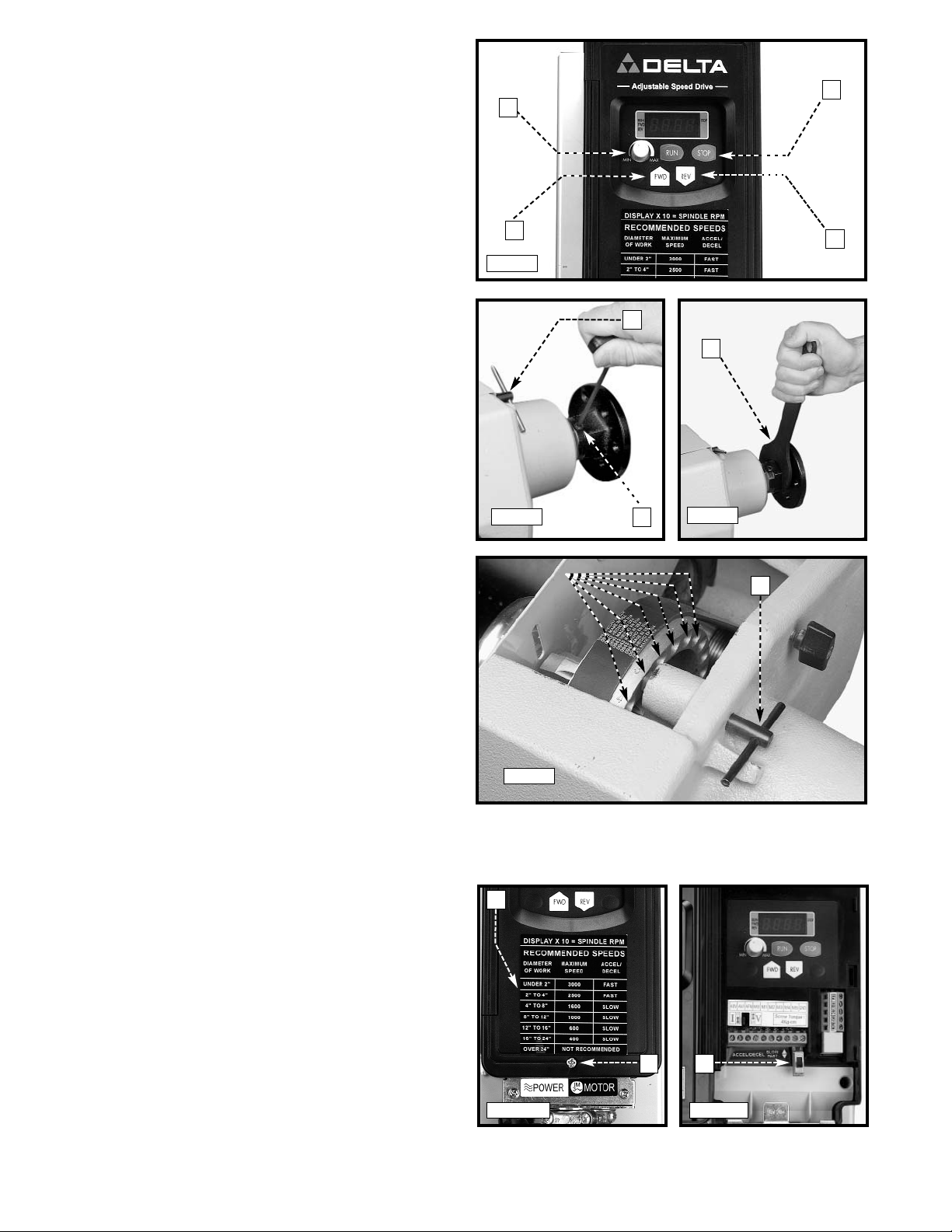

4. To stop the spindle without turning the power off, press
the stop button (C) Fig. 22 on the control panel.

5. To restart, press the FWD button (B). The spindle will
gradually return to the speed at which it was stopped.

6. The REVERSE (REV) button (D) Fig. 22 will reverse
the spindle rotation.

NOTE: When using the faceplate, tighten the faceplate

locking screw (A) Fig. 23.

NOTE: To remove the faceplate, loosen the set screw

(A) Fig. 23 two full turns. Engage the spindle
lock (C) and use the supplied wrench (B) Fig. 24
to loosen the faceplate. Remove the face plate
from the spindle.

NOTE: Use the chart (B) Fig. 25A on the front of the

door for safe operation.

IMPORTANT: For emergencies, use ONLY the safety
cover to stop the machine. Also, when leaving the
machine, lower the safety cover, and cut the power to
the adjustable speed drive. The control is still energized
as long as the power switch is on.

NOTE: To lock the spindle or to utilize the indexing fea­ture, pull the spindle lock pin (A) Fig. 25 out and rotate
the pin clockwise. Re-engage it in the pulley holes (B)
Fig. 25, some of which are shown. The spindle pulley
has 24 holes accurately spaced around the rim of the
pulley. This feature makes it possible to make evenly
spaced divisions on turnings which could be fluted,
grooved, or to mark places to be drilled.

B

A

B

A

Fig. 22

Fig. 23

Fig. 24

Fig. 25

CHANGING ACCELERATION/DECELERATION

To change the acceleration/deceleration rate, loosen the
screw (A) Fig. 25A and open the door.

This machine has two different start-up speeds. For
larger workpieces, move the switch (A) Fig. 25 B to the
“up” position. For smaller workpieces, move the switch
to the “down” position.

Fig. 25A

Fig. 25B

A

A

B

C

C

B

A

D

13

LATHE TOOLS

Standard wood turning tools come in several different
configurations (Fig. 26). The majority of turnings will
require the gouge tool (A) Fig. 26. This round nosed
hollow chisel is used for roughing cuts, cove cuts and
other operations. The skew chisel (B) is a double-ground
flat chisel, with an angled end. This tool is used for
smoothing cylinders, for cutting shoulders, beads, vee­grooves, etc. The parting tool (C) is a double-ground
chisel, used for cutting-off, or for making straight
incisions or sizing cuts to any required diameter. The
round nose scraper (D) is used for mostly hollowing
work, while the square-end scraper is mainly used for
the outside of bowls.

The following directions will give the inexperienced operator a beginning point for common lathe operations.
Practice on scrap material before attempting serious work.

HOW TO TURN SPINDLES

Working with any material that is attached to the lathe
centers is called a spindle turning. This is the principal
type of wood turning (chair and table legs, lamp stems,
etc.) The turning of spindles can be done with either a
scraping or cutting technique. The cutting technique, by
virtue of faster wood removal and a cleaner surface, is the
preferred method.

CENTERING THE WORK

Wood stock for any spindle turning should be
approximately square, and the ends should be square
with the sides. Two common methods of determining
the center are shown in Figs. 27 and 28. In Fig. 27, a
distance a little more or a little less than one-half the
width of the stock is set off from each of the four sides.
The small square set off in the center can then be used
in marking the true center. The diagonal method, Fig. 28,
consists of drawing lines from corner to corner, with the
intersection marking the center of the work.

OPERATION

Fig. 26

Fig. 27

Fig. 28

A B D AC

E

14

TOOL REST POSITION

Mount the tool rest in place about 1/8” away from
the work and 1/8” above the work centerline (Fig. 32.)
This position may be varied to suit the work and the
operator. Place a guide mark on the tool rest shank as
an aid to quick and accurate resetting.

MOUNTING THE WORK

Mount the work by moving the tailstock to a position
about 1” or 1-1/2” from the end of the workpiece, and
locking it in this position. Advance the tailstock center
by turning the feed handle until the center cup makes
contact with the work. Do not support the work on the
center pin alone. Always have the rim of the center cup
imbedded at least 1/8” into the work. Continue to
advance the center while slowly rotating the work by
hand. After it becomes difficult to turn the work, slack
off on the feed about one-quarter turn and lock the tail­stock spindle.

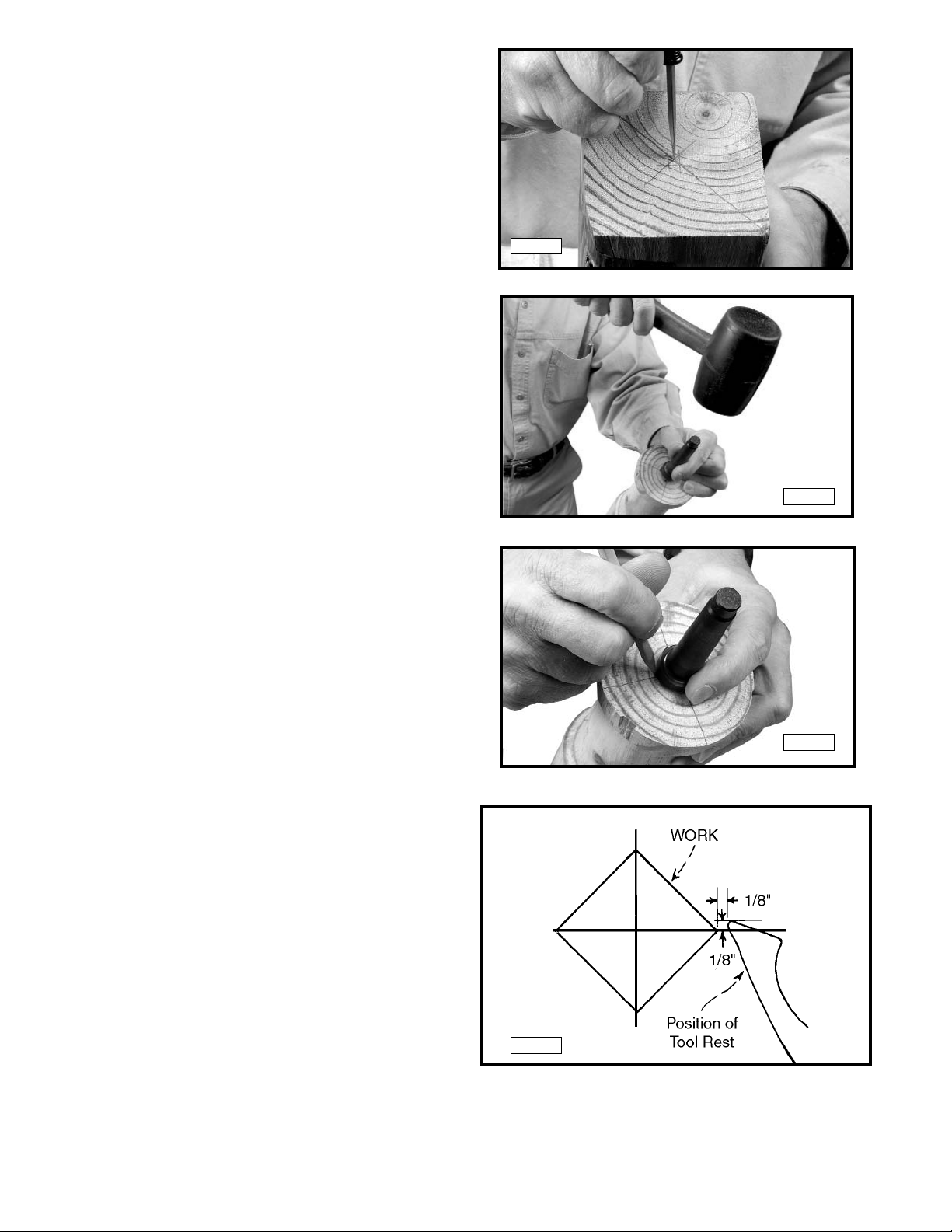

After marking each end, mark the true center with a
punch awl or dividers (Fig. 29). If the stock is hardwood,
the centers should be drilled to a depth of about 1/8”.
The spur or live center is then placed against one end of
the work and seated by striking with a mallet (Fig. 30). In
hardwood, make a starting seat for the spur center by
sawing on the diagonal lines, and drilling a small hole at
the intersection. After driving the center, hold the center
and the work together and fit both immediately to head­stock spindle. If you are not using a ball bearing center,
the end of work at tailstock center should be oiled. Place
the lubricant on the wood either before or after it is put
on the lathe. Many turners use beeswax, tallow, or a
wax-and-oil mixture as a lubricant. A ball bearing center
is ideal because it eliminates lubricating. If the work is to
be removed from the lathe before completion, an index
mark should be made as a guide for re-centering (Fig.

31). A permanent indexer can be made by grinding off
one corner of one of the spurs.

Fig. 29

Fig. 30

Fig. 31

Fig. 32

15

ROUGHING A CYLINDER

The large gouge is used in the first turning operation by
smoothing the sharp corners of the work. Run the lathe at
low speed and hold the gouge in the manner shown in
Fig. 33 The cut starts about 2 inches from the tailstock
end and continues from this point to the end of the tail­stock. Make the second pass beginning about 2” or 3” to
the left of the first cut. Advance again toward the tailstock,
and merge with the previous cut. Toward the end of the
live center, roll the gouge in the opposite direction
(Fig. 34) to carry the final cut off the live center end of the
work. The roughing cut should not be carried out with one
continuous movement, because this would tear long
slivers from the corners of the work. Neither should the
cut be started directly at the end of the stock for the
same reason. The cut can be safely carried from the
center of the stock toward and off either end once the first
roughing cuts have been made.

The position of the gouge involves two or three important
angles. (1) The tool may be advanced along the work
either from right to left or from left to right. Left to right
(from headstock to tailstock) is preferred since this action
throws chips clear of the operator. (2) The gouge is rolled
over slightly in the same direction it is advancing. (3) The
tool is held well up on the work, with the bevel or grind
tangent to the revolving surface (Fig. 35). This position will
give a clean shearing cut. When pushed straight into the
work (Fig. 35), the gouge has a scraping action, (normally
a poor practice in spindle turning). The roughing cut is
continued until the work approaches 1/8” of the required
diameter. Once a cylindrical form has been obtained, the
turning speed can be moved to the second or third speed
setting. NOTE: Continue to move the tool rest inward
toward the work piece to keep the safe distance between
the two.

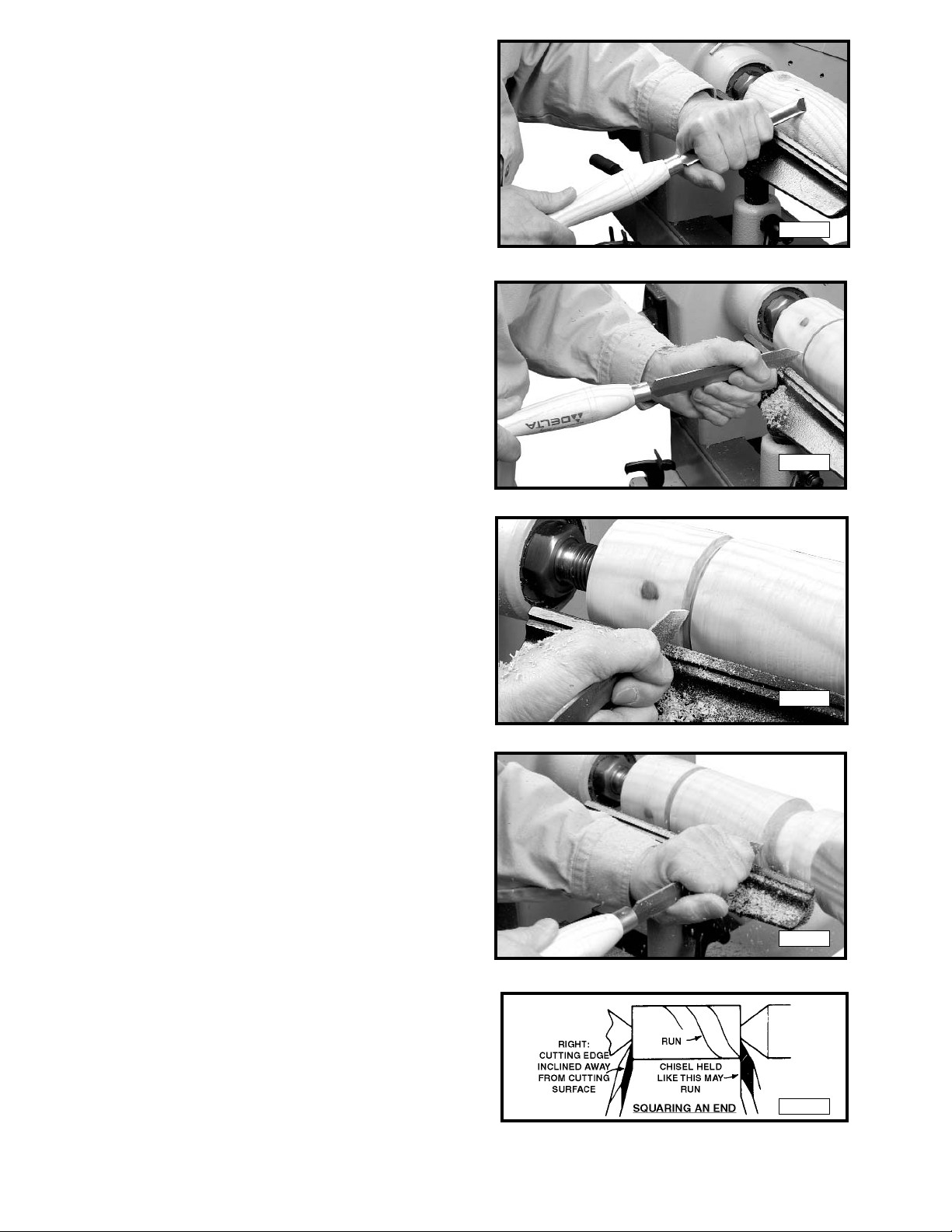

POSITION OF HANDS

While turning, the hand that holds the tool handle
should be in a natural position. This hand provides the
leverage for the tool by either moving in toward the
chisel or moving out. The position of the tool rest hand is
more a matter of individual preference, rather than a “set”
or “proper” position. However, a palm-up grip (Fig. 36) is
generally considered best. In this position, the first finger
acts as a guide, sliding along the tool rest as the cut is
made. The alternate position is a palm-down grip (Fig.

37). In this position, the heel of the hand or the little finger
serves as a guide. The palm-down position is solid and
positive – excellent for roughing or heavy cutting. Most
beginners start with the palm-down grip, switching later
to the palm-up position for better manipulation of the
chisel.

Fig. 33

Fig. 34

Fig. 35

Fig. 36

Fig. 37

16

SMOOTHING A CYLINDER

To smooth a cylinder, use a large skew chisel. This
requires practice, but experience with this tool is very
important. Place the cutting point near the center of
chisel and high on the work (Fig. 38). Sometimes, in striv­ing for a certain position in relation to the work, the
beginner will often overlook this all-important point.
Raising the handle will increase the depth of cut while
lowering the handle, of course, does the opposite. As
with the gouge, the skew can be advanced in either
direction. The center of the skew toward the heel does
the actual cutting. The back portion of the grind or bevel
supports the tool, while the handle-hand controls the
depth of cut by rocking the chisel on this pivot point.
Because of this, keep the skew bevel perfectly flat.

USING THE PARTING TOOL

The parting tool is perhaps the easiest turning chisel to
handle. Simply push this scraping tool into the work Fig.

39. A somewhat better cutting action is obtained if the
handle is held low. This tool is, in many cases, held with
one hand while the other hand holds the calipers in
the cutting groove. When parting tool cuts are deep, a
clearance cut should be made alongside the first cut
(Fig. 40) to prevent burning the tool point.

SQUARING AN END

The parting tool can be used to quickly square an end.
Since the parting tool is a rough cutter, the cut can then
be smoothed by the use the skew. However, the whole
operation can be done with the skew. In using the skew,
make your first cut a nicking cut with the toe of the skew
(Fig. 41). A deep cut here could burn the chisel, so
a clearance cut is made by inclining the skew away from
the first cut and pushing the tool into the work. This
procedure of side cut and clearance cut is continued as
often as needed. NOTE: While the skew can be pushed
into the wood in any direction, the cutting edge itself
must be inclined a little away from this plane .If the full
cutting edge of skew bears against the cut surface, the
tool will have a tendency to run. See Fig. 42 for the
proper way to make the cut. Push the chisel straight into
the work, and incline the cutting edge away from the cut
surface. Use only the extreme end of the toe for this cut.
This important principle in skew handling will be used
repeatedly in making shoulders, beads and vee cuts.

Fig. 38

Fig. 39

Fig. 40

Fig. 41

Fig. 42

17

CUTTING A SHOULDER

Use the parting tool first to reduce the wood to within
1/16” of the required shoulder and diameter (Fig. 43).
Clean the waste stock out with the gouge (Fig. 44), then
use the skew for the actual cutting of the shoulder (Figs.
45A and 45B), which is a duplication of squaring an end.
The skew then makes the horizontal cut, but in a differ­ent manner from plain cylinder work. If the shoulder is
long, use the ordinary skew position for the outer portion
of the cut. At the angle between the horizontal and ver­tical cuts, the heel of the chisel moves into a position
tangent between the skew and the cylinder (Fig. 46). In
this position, raise the handle of the chisel slightly to
allow it to cut while the tool moves along the rest. Use a
very light cut to produce smooth work. The heel of the
skew can be used for making the entire cut, if desired,
but the cut, whether in this position or any other posi­tion, should not be picked up directly at the end of the
stock. Horizontal cuts started directly from the end of
the work will have a tendency to bite into the wood,
often ruining the entire piece. Always run off the end and
not into it. Where a very short shoulder makes this
impossible, use the skew in a flat scraping position. If
the cutting technique is used, engage only with the heel
of skew in a very light cut.

CUTTING SMALL BEADS

Beads can be scraped or cut. Using the spear chisel is
the easiest method of scraping, and works to best
advantage on beads separated by parting tool cuts
(Fig. 46). Scraping is slower than cutting and is not as
clean, but it has the advantage of protecting the work
from long gashes.

Cutting beads quickly and accurately with the small
skew is one of the most difficult lathe operations.
Various working methods can be used . The first cut is a
vertical incision at the point where the two curved sur­faces will eventually come together. Make this cut with
either heel or toe of skew. Fig. 47 shows the use of the
toe. Place the skew at right angles to the work . The chis­el is flat on its side at the start, and is evenly rotated
through the successive stages of the cut (Figs. 48, 49
and 50). At the same time, the chisel is pulled slightly
backward to maintain the cutting point. The entire cut is
made with the heel of chisel. The opposite side of the
bead is cut in the same manner, one cut serving to
produce the full shape in each instance. This action
produces beads that are beautifully smooth and
polished, and the technique is well worth mastering.

Fig. 43

Fig. 44

Fig. 45

Fig. 46

Fig. 46

Fig. 47

Fig. 48

Fig. 49

Fig. 50

18

VEE GROOVES

Cutting the vee groove demands much the same
technique as the bead, except the skew is hinged
straight into the work without rotation (Fig. 51). Only
one-half of the vee is made at a time, and one, two, or
more cuts may be needed on each side to obtain the
desired shape. As in all cutting with the skew, the bevel
next to the cut must be used as a fulcrum. Be careful not
to allow full edge of the chisel to catch and cause a run.
Vee grooves can also be made with the toe of the skew,
in the same manner as squaring an end.

LONG CUTS

Long cuts are usually either convex or straight-tapered
surfaces. With a convex surface, the method used in
making the finishing cut is shown in Figs. 52. The gouge
is turned on the tool rest so that it will be inclined in the
direction that it will move. The grind is tangent to the
work, and the center point of the cutting edge is the
contact point with the wood. As the cut progresses
toward and around the end of the curve, the handle is
gradually raised and swiveled to the right (Fig. 53) in
order to maintain the tangency between the grind and
the surface being cut .

Figs. 54 and 55 show the cutting of a long taper with a
skew. The operation differs from smoothing a cylinder
only at the start of the cut. The starting cut should be
made with the heel (Fig. 54) to prevent the tool from
digging into the work. As the tool moves down the work,
the chisel can be pulled back to allow the center point of
the cutting edge to cut. However, the full taper can be
made with the heel. Be careful not to cut too deeply at
the center of the taper. The direction of cutting is always
downhill.

COVE CUTS

Second to forming a perfect bead, the cove or concave
cut is the most difficult to master. This cut is made with
the gouge, where the size of the tool depends on the
size of the cut. Push the gouge directly into the work to
remove the surplus stock (Fig.56).

Fig. 51

Fig. 52

Fig. 53 Fig. 54

Fig. 55

Fig. 56

19

The gouge is placed on edge on the tool rest so that the
grind of the chisel forms an approximate right angle
with the work (Figs. 57). The chisel contacts the work at
the center of the cutting edge. Hold the tool so that the
centerline of the gouge is pointing directly toward the
center of the revolving stock. This starting position is
important to prevent the gouge from running along the
surface of the work.

From the starting position, push the gouge into the
revolving stock, and roll the tool on the rest. A triple
action takes place here. (1) The chisel will roll to follow
the shape of the cut, (2) the handle will drop slightly
so that the portion already cut will force the lip of
the chisel sideways and, (3) the chisel will be pushed
forward so that at the end of the cut, Fig. 58, it will be
well up on the work and tangent with the cut surface.
Make only one-half of the cut at a time, then reverse the
chisel to cut the other half. The occasional turner should
make cove cuts with a scraping technique, using either
the small gouge or round nose chisel.

SQUARE SECTIONS

When the turning has a square section, joint the stock
before turning. Good centering is essential since any
error will show at the shoulder where the round meets
the square. Turning of the shoulder from square to
round can be done in various ways. If the parting tool
is sharp, the nicking cut with skew (Fig. 59) can be
omitted. The final trimming operation (Fig. 62) can be
done with either the skew, spear chisel, or gouge, and is
a scraping operation. While the shoulder can be cut with
the same technique used for cutting a bead, the simpler
scraping method pictured does clean work and is easier
to do.

Fig. 57

Fig. 58

Fig. 59

Fig. 60

Fig. 61

Fig. 62

20

FACEPLATE TURNING

Mount turnings that cannot be worked between centers on a faceplate. The greater part of this
type of turning is done with the faceplate mounting, although there are a number of jobs which
require special chucks. All cutting in faceplate work is done by scraping. Any attempt to use a
cutting technique on the edge grain of large work will result in a hogging, gouging cut which may
jerk the chisel out of the hands of the operator. Use a band saw on all work to roughly cut the turn­ing area slightly oversized to eliminate heavy roughing cuts in turning.

MOUNTING WORK TO FACEPLATE

Fig. 63 shows direct mounting to the 4” faceplate along with attaching to the backing block. Because of the ease of
setting up, use this mounting whenever the work permits. Hold larger pieces in the same way by using the 8” face­plate. When normal screw-fastenings interfere, mount the work on a backing block (Fig. 63). When screws are not per­missible at all, glue the work to the backing block by fitting a sheet of paper at the joint to allow later separation with­out damaging the wood. Some work can be screwed or nailed from the face side into backing block. Mount work less
than 4” in diameter on the single screw center (Fig. 64).

OUTBOARD TURNING

For workpieces that require additional space for turning,
or for the turning of bowls, etc., outboard turning is the
answer. To make outboard turnings:

1. Remove the tool rest base and the tailstock from the
lathe bed.

2. On the headstock, raise the handle (A) Fig. 65 to
loosen the tension of the headstock on the lathe
bed.

3. Lift the motor slightly and slide the headstock to the
end of the lathe bed. (See also Fig. 69)

4. Lower the handle (A) Fig. 69 to lock the headstock in
place.

5. Loosen the set screw on the faceplate (A) Fig. 67
two full turns. Use the supplied wrench (B) Fig. 68 to
loosen the face plate, then remove the faceplate
from the spindle.

Fig. 63

Fig. 64

Fig. 65

Fig. 66

Fig. 67

A

A

A

21

MAINTENANCE

REPLACING DRIVE BELT

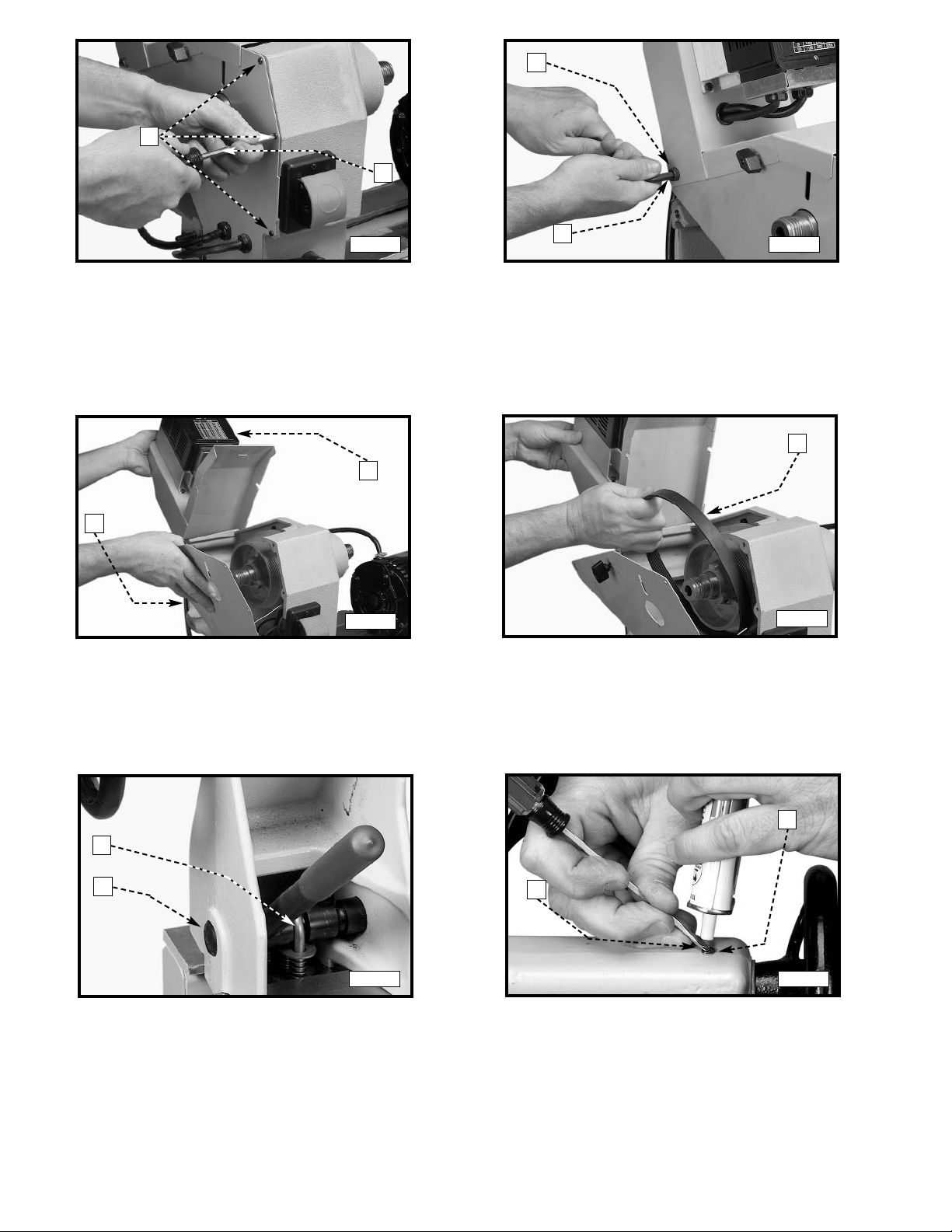

1. Use the supplied hex wrench (A) Fig. 70 to loosen the set screw in the handwheel (B) Fig. 70. Engage the spindle
lock (C) and rotate the handwheel clockwise to remove.

2. Use an 11/16" wrench to remove the bolt (A) Fig. 71 from the motor yoke.

6. Use an outboard tool rest (B) Fig. 68 for all outboard turnings.

7. Fig. 69 illustrates the correct method for outboard turnings.

3. While holding the motor (A) Fig. 72 with one hand, use an 11/16” wrench (B) to remove the bolt (C). Lift the motor

(A) and remove the belt from the motor pulley.

4. Pull the motor (A) Fig. 72 out, take it to the back of the lathe, and place it on the lathe bed (Fig. 73).

A

A

B

A

B

C

A

B

C

Fig. 68

Fig. 69

Fig. 70

Fig. 71

Fig. 72

Fig. 73

Use a light oil to lubricate eccentric (A) Fig. 78, and pivot points (B) on both the headstock and the tailstock. (Tailstock
illustrated).
Use the tip of a screwdriver (A) Fig. 79 to press on the opening, and drop light oil into the handwheel cover (B) of the
tailstock.

LUBRICATION

7. While holding the control panel (A) Fig. 76 with one hand, remove the cover (B) Fig. 76. To prevent the control panel
(A) from falling, loosely re-attach the hex screw (B) Fig. 75 to the control panel.

8. Replace the belt (A) Fig. 77.

9. To assemble, reverse the procedure.

22

5. Use a Phillips screwdriver (A) Fig. 74 to remove the five cover screws (B) (three of which are shown). The other two
screws are located under the power cords.

6. With a 5/16” hex wrench (A) Fig 75, remove the hex screw (B) Fig. 75. NOTE: When re-assembling, pass the screw
completely through the pivoting control bracket and into the headstock, allowing the headstock cover to pivot.

B

A

A

B

A

B

A

B

A

A

B

Fig. 74

Fig. 75

Fig. 76

Fig. 77

Fig. 78 Fig. 79

23

A complete line of accessories is available from your Delta Supplier, Porter-Cable • Delta Factory Service Centers,
and Delta Authorized Service Stations. Please visit our Web Site

www.deltamachinery.com for a catalog or

for the name of your nearest supplier.

Since accessories other than those offered by Delta have not been tested with this product, use Of
such accessories could be hazardous. For

safest

operation, only Delta recommended accessories

should be used with this product.

PARTS, SERVICE OR WARRANTY ASSISTANCE

All Delta Machines and accessories are manufactured to high quality standards and are serviced by a network
of Porter-Cable • Delta Factory Service Centers and Delta Authorized Service Stations. To obtain additional
information regarding your Delta quality product or to obtain parts, service, warranty assistance, or the loca­tion of the nearest service outlet, please call 1-800-223-7278 (In Canada call 1-800-463-3582).

ACCESSORIES

Two Year Limited New Product Warranty

Delta will repair or replace, at its expense and at its option, any new Delta machine, machine part, or machine accessory
which in normal use has proven to be defective in workmanship or material, provided that the customer returns the prod­uct prepaid to a Delta factory service center or authorized service station with proof of purchase of the product within two
years and provides Delta with reasonable opportunity to verify the alleged defect by inspection. For all refurbished Delta
product, the warranty period is 180 days. Delta may require that electric motors be returned prepaid to a motor manufac­turer’s authorized station for inspection and repair or replacement. Delta will not be responsible for any asserted defect
which has resulted from normal wear, misuse, abuse or repair or alteration made or specifically authorized by anyone other
than an authorized Delta service facility or representative. Under no circumstances will Delta be liable for incidental or con­sequential damages resulting from defective products. This warranty is Delta’s sole warranty and sets forth the customer’s
exclusive remedy, with respect to defective products; all other warranties, express or implied, whether of merchantability,
fitness for purpose, or otherwise, are expressly disclaimed by Delta.

KEEP MACHINE CLEAN

Periodically blow out all air passages with dry compressed
air. All plastic parts should be cleaned with a soft damp
cloth. NEVER use solvents to clean plastic parts. They could
possibly dissolve or otherwise damage the material.

Wear ANSI Z87.1 safety glasses while

using compressed air.

FAILURE TO START

Should your machine fail to start, check to make sure the
prongs on the cord plug are making good contact in the out­let. Also, check for blown fuses or open circuit breakers in
the line.

LUBRICATION

Apply household floor paste wax to the machine table and
extension table or other work surface weekly.

PROTECTING CAST IRON FROM RUST

To clean and protect cast iron tables from rust, you will
need the following materials: 1 pushblock from a jointer,
1 sheet of medium Scotch-Brite™ Blending Hand Pad, 1
can of WD-40®, 1 can of degreaser, 1 can of TopCote

®

Aerosol. Apply the WD-40 and polish the table surface
with the Scotch-Brite pad using the pushblock as a hold­down. Degrease the table, then apply the TopCote

®

accordingly.

The following are trademarks of PORTER-CABLE •DELTA (Las siguientes son marcas registradas de PORTER-CABLE • DELTA S.A.) (Les marques
suivantes sont des marques de fabriquant de la PORTER-CABLE

•

DELTA): Auto-Set®, BAMMER®, B.O.S.S.®, Builder’s Saw®, Contractor’s Saw®,

Contractor’s Saw II™, Delta

®

, DELTACRAFT®, DELTAGRAM™, Delta Series 2000™, DURATRONIC™, Emc²™, FLEX®, Flying Chips™, FRAME SAW®,

Grip Vac™, Homecraft

®

, INNOVATION THAT WORKS®, Jet-Lock®, JETSTREAM®, ‘kickstand®, LASERLOC®, MICRO-SET®, Micro-Set®, MIDI LATHE®,

MORTEN™, NETWORK™, OMNIJIG

®

, POCKET CUTTER®, PORTA-BAND®, PORTA-PLANE®, PORTER-CABLE®&(design), PORTER-CABLE®PROFES-

SIONAL POWER TOOLS, PORTER-CABLE REDEFINING PERFORMANCE™, Posi-Matic

®

, Q-3®&(design), QUICKSAND®&(design), QUICKSET™,

QUICKSET II

®

, QUICKSET PLUS™, RIPTIDE™&(design), SAFE GUARD II®, SAFE-LOC®, Sanding Center®, SANDTRAP®&(design), SAW BOSS®,

Sawbuck™, Sidekick

®

, SPEED-BLOC®, SPEEDMATIC®, SPEEDTRONIC®, STAIR EASE®, The American Woodshop®&(design), The Lumber

Company

®

&(design), THE PROFESSIONAL EDGE®, THE PROFESSIONAL SELECT®, THIN-LINE™, TIGER®, TIGER CUB®, TIGER SAW®, TORQ-

BUSTER

®

, TORQ-BUSTER®, TRU-MATCH™, TWIN-LITE®, UNIGUARD®, Unifence®, UNIFEEDER™, Unihead®, Uniplane™, Unirip®, Unisaw®, Univise®,

Versa-Feeder

®

, VERSA-PLANE®, WHISPER SERIES®, WOODWORKER’S CHOICE™.

Trademarks noted with ™ and ® are registered in the United States Patent and Trademark Office and may also be registered in other countries. Las
Marcas Registradas con el signo de ™ y ® son registradas por la Oficina de Registros y Patentes de los Estados Unidos y también pueden estar
registradas en otros países.

PORTER-CABLE • DELTA SERVICE CENTERS

(CENTROS DE SERVICIO DE PORTER-CABLE

• DELTA)

Parts and Repair Service for Porter-Cable •Delta Machinery are Available at These Locations

(Obtenga Refaccion de Partes o Servicio para su Herramienta en los Siguientes Centros de Porter-Cable

•

Delta)

Authorized Service Stations are located in many large cities. Telephone [phone] or 731-541-6042 for assistance locating one.
Parts and accessories for Porter-Cable

·

Delta products should be obtained by contacting any Porter-Cable·Delta Distributor, Authorized
Service Center, or Porter-Cable·Delta Factory Service Center. If you do not have access to any of these, call 800-223-7278 and you will
be directed to the nearest Porter-Cable

·

Delta Factory Service Center. Las Estaciones de Servicio Autorizadas están ubicadas en muchas

grandes ciudades. Llame al 800-438-2486 ó al 731-541-6042 para obtener asistencia a fin de localizar una. Las piezas y los accesorios
para los productos Porter-Cable

·

Delta deben obtenerse poniéndose en contacto con cualquier distribuidor Porter-Cable·Delta, Centro

de Servicio Autorizado o Centro de Servicio de Fábrica Porter-Cable

·

Delta. Si no tiene acceso a ninguna de estas opciones, llame al

800-223-7278 y le dirigirán al Centro de Servicio de Fábrica Porter-Cable

·

Delta más cercano.

ARIZONA

Tempe 85282 (Phoenix)
2400 West Southern Avenue
Suite 105
Phone: [phone]
Fax: [phone]

CALIFORNIA

Ontario 91761 (Los Angeles)
3949A East Guasti Road
Phone: [phone]
Fax: [phone]

San Diego 92111
7638 Clairemnot Blvd.
Phone: [phone]
Fax: [phone]

San Leandro 94577 (Oakland)
3039 Teagarden Street
Phone: [phone]
Fax: [phone]

COLORADO

Arvada 80003 (Denver)
8175 Sheridan Blvd., Unit S
Phone: [phone]
Fax: [phone]

FLORIDA

Davie 33314 (Miami)
4343 South State Rd. 7 (441)
Unit #107
Phone: [phone]
Fax: [phone]

Tampa 33609
4538 W. Kennedy Boulevard
Phone: [phone]
Fax: [phone]

GEORGIA

Forest Park 30297 (Atlanta)
5442 Frontage Road,
Suite 112
Phone: [phone]
Fax: [phone]

ILLINOIS

Addison 60101 (Chicago)
400 South Rohlwing Rd.
Phone: [phone]
Fax: [phone]

Woodridge 60517 (Chicago)
2033 West 75th Street
Phone: [phone]
Fax: [phone]

MARYLAND

Elkridge 21075 (Baltimore)
7397-102 Washington Blvd.
Phone: [phone]
Fax: [phone]

MASSACHUSETTS

Franklin 02038 (Boston)
Franklin Industrial Park
101E Constitution Blvd.
Phone: [phone]
Fax: [phone]

MICHIGAN

Madison Heights 48071 (Detroit)
30475 Stephenson Highway
Phone: [phone]
Fax: [phone]

MINNESOTA

Minneapolis 55429
5522 Lakeland Avenue North
Phone: [phone]
Fax: [phone]

MISSOURI

North Kansas City 64116
1141 Swift Avenue
Phone: [phone]
Fax: [phone]

St. Louis 63119
7574 Watson Road
Phone: [phone]
Fax: [phone]

NEW YORK

Flushing 11365-1595 (N.Y.C.)
175-25 Horace Harding Expwy.
Phone: [phone]
Fax: [phone]

NORTH CAROLINA

Charlotte 28270
9129 Monroe Road, Suite 115
Phone: [phone]
Fax: [phone]

OHIO

Columbus 43214
4560 Indianola Avenue
Phone: [phone]
Fax: [phone]

Cleveland 44125
8001 Sweet Valley Drive
Unit #19
Phone: [phone]
Fax: [phone]

OREGON

Portland 97230
4916 NE 122 nd Ave.
Phone: [phone]
Fax: [phone]

PENNSYLVANIA

Willow Grove 19090
(Philadelphia)
520 North York Road
Phone: [phone]
Fax: [phone]

TEXAS

Carrollton 75006 (Dallas)
1300 Interstate 35 N, Suite 112
Phone: [phone]
Fax: [phone]

Houston 77043
4321 Sam Houston Parkway,
West
Suite 180
Phone: [phone]
Fax: [phone]

WASHINGTON

Auburn 98001(Seattle)
3320 West Valley HWY, North
Building D, Suite 111
Phone: [phone]
Fax: [phone]

Printed in U.S.A. PC-0104-149

CANADIAN PORTER-CABLE • DELTA SERVICE CENTERS

ALBERTA

Bay 6, 2520-23rd St. N.E.
Calgary, Alberta
T2E 8L2
Phone: [phone]
Fax: [phone]

BRITISH COLUMBIA

8520 Baxter Place
Burnaby, B.C.
V5A 4T8
Phone: [phone]
Fax: [phone]

MANITOBA

1699 Dublin Avenue
Winnipeg, Manitoba
R3H 0H2
Phone: [phone]
Fax: [phone]

ONTARIO

505 Southgate Drive
Guelph, Ontario
N1H 6M7
Phone: [phone]
Fax: [phone]

QUÉBEC

1515 ave.
St-Jean Baptiste, Suite 160
Québec, Québec
G2E 5E2
Phone: [phone]
Fax: [phone]

1447, Begin
St-Laurent, (Montréal),
Québec
H4R 1V8
Phone: [phone]
Fax: [phone]
