INSTRUCTION MANUAL
DJ-20
8" Jointer
(Model 37-350)
(Model 37-365X)
PART NO. 909948 - 02-14-03
Copyright © 2003 Delta Machinery
To learn more about DELTA MACHINERY
visit our website at: www.deltamachinery.com.
For Parts, Service, Warranty or other Assistance,
please call
1-800-223-7278 (In Canada call 1-800-463-3582).
SHOWN WITH ACCESSORY MODEL 50-221
DUST COLLECTOR CONNECTOR
2
Woodworking can be dangerous if safe and proper operating procedures are not followed. As with all machinery, there
are certain hazards involved with the operation of the product. Using the machine with respect and caution will
considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored,
personal injury to the operator may result. Safety equipment such as guards, push sticks, hold-downs, featherboards,
goggles, dust masks and hearing protection can reduce your potential for injury. But even the best guard won’t make
up for poor judgment, carelessness or inattention. Always use common sense
and exercise caution
in the workshop.
If a procedure feels dangerous, don’t try it. Figure out an alternative procedure that feels safer. REMEMBER: Your
personal safety is your responsibility.
This machine was designed for certain applications only. Delta Machinery strongly recommends that this machine not
be modified and/or used for any application other than that for which it was designed. If you have any questions relative
to a particular application, DO NOT use the machine until you have first contacted Delta to determine if it can or should
be performed on the product.
Technical Service Manager
Delta Machinery
4825 Highway 45 North
Jackson, TN 38305
(IN CANADA: 505 SOUTHGATE DRIVE, GUELPH, ONTARIO N1H 6M7)
1. FOR YOUR OWN SAFETY, READ INSTRUCTION
MANUAL BEFORE OPERATING THE TOOL. Learn the
tool’s application and limitations as well as the specific
hazards peculiar to it.
2. KEEP GUARDS IN PLACE and in working order.
3. ALWAYS WEAR EYE PROTECTION.
Wear safety
glasses. Everyday eyeglasses only have impact resistant
lenses; they are not safety glasses. Also use face or dust
mask if cutting operation is dusty. These safety glasses
must conform to ANSI Z87.1 requirements. NOTE:
Approved glasses have Z87 printed or stamped on them.
4. REMOVE ADJUSTING KEYS AND WRENCHES. Form
habit of checking to see that keys and adjusting wrenches
are removed from tool before turning it “on”.
5. KEEP WORK AREA CLEAN. Cluttered areas and
benches invite accidents.
6. DON’T USE IN DANGEROUS ENVIRONMENT. Don’t
use power tools in damp or wet locations, or expose them
to rain. Keep work area well-lighted.
7. KEEP CHILDREN AND VISITORS AWAY. All children
and visitors should be kept a safe distance from work area.
8. MAKE WORKSHOP CHILDPROOF – with padlocks,
master switches, or by removing starter keys.
9. DON’T FORCE TOOL. It will do the job better and be
safer at the rate for which it was designed.
10. USE RIGHT TOOL. Don’t force tool or attachment to
do a job for which it was not designed.
11. WEAR PROPER APPAREL. No loose clothing, gloves,
neckties, rings, bracelets, or other jewelry to get caught in
moving parts. Nonslip footwear is recommended. Wear
protective hair covering to contain long hair.
12. SECURE WORK. Use clamps or a vise to hold work
when practical. It’s safer than using your hand and frees
both hands to operate tool.
13. DON’T OVERREACH. Keep proper footing and
balance at all times.
14. MAINTAIN TOOLS IN TOP CONDITION. Keep tools
sharp and clean for best and safest performance. Follow
instructions for lubricating and changing accessories.
15. DISCONNECT TOOLS before servicing and when
changing accessories such as blades, bits, cutters, etc.
16. USE RECOMMENDED ACCESSORIES. The use of
accessories and attachments not recommended by Delta
may cause hazards or risk of injury to persons.
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury
Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may
result in property damage.
This manual contains information that is important for you to know and understand. This information relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the
symbols to the right. Please read the manual and pay attention to these sections.
SAFETY GUIDELINES / DEFINITIONS
Read Operator’s Manual. Do not operate equipment until you have read Operator’s Manual for Safety,
Assembly
, Operation, and Maintenance Instructions
.
SOME DUST CREATED BY POWER SANDING, SAWING, GRINDING, DRILLING, AND OTHER
CONSTRUCTION ACTIVITIES contains chemicals known to cause cancer, birth defects or other reproductive harm.
Some examples of these chemicals are:
· lead from lead-based paints,
· crystalline silica from bricks and cement and other masonry products, and
· arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks
that are specially designed to filter out microscopic particles.
GENERAL SAFETY RULES
3
17. REDUCE THE RISK OF UNINTENTIONAL STARTING.
Make sure switch is in “OFF” position before plugging in
power cord.
In the event of a power failure, move switch
to the “OFF” position.
18. NEVER STAND ON TOOL. Serious injury could occur
if the tool is tipped or if the cutting tool is accidentally
contacted.
19. CHECK DAMAGED PARTS. Before further use of the
tool, a guard or other part that is damaged should be
carefully checked to ensure that it will operate properly and
perform its intended function – check for alignment of
moving parts, binding of moving parts, breakage of parts,
mounting, and any other conditions that may affect its
operation. A guard or other part that is damaged should be
properly repaired or replaced.
20. DIRECTION OF FEED. Feed work into a blade or
cutter against the direction of rotation of the blade or cutter
only.
21. NEVER LEAVE TOOL RUNNING UNATTENDED.
TURN POWER OFF. Don’t leave tool until it comes to a
complete stop.
22.
STAY ALERT, WATCH WHAT YOU ARE DOING, AND
USE COMMON SENSE WHEN OPERATING A POWER
TOOL. DO NOT USE TOOL WHILE TIRED OR UNDER
THE INFLUENCE OF DRUGS, ALCOHOL, OR
MEDICATION. A moment of inattention while operating
power tools may result in serious personal injury.
23. MAKE SURE TOOL IS DISCONNECTED FROM
POWER SUPPLY while motor is being mounted,
connected or reconnected.
24. THE DUST GENERATED by certain woods and wood
products can be injurious to your health. Always operate
machinery in well ventilated areas and provide for proper
dust removal. Use wood dust collection systems whenever
possible.
ADDITIONAL SAFETY RULES FOR JOINTERS
FAILURE TO FOLLOW THESE RULES MAY RESULT IN SERIOUS PERSONAL INJURY.
1. WARNING: Do not operate the jointer until it is
completely assembled and installed according to the
instructions.
2. IF YOU ARE NOT thoroughly familiar with the oper-
ation of jointers, obtain advice from your supervisor,
instructor or other qualified person.
3. KEEP cutterhead sharp and free of all rust and
pitch.
4. BEFORE starting machine, check cutterhead guard
to make sure it is not damaged and operates freely.
5. ALWAYS make sure exposed cutterhead behind the
fence is guarded, especially when jointing near the edge.
6. NEVER perform jointing or planing operations with
the cutterhead guard removed.
7. MAKE CERTAIN the infeed and outfeed tables are
tightened before starting the machine.
8. NEVER start the jointer with the workpiece
contacting the cutterhead.
9. ALWAYS hold the workpiece firmly against the
tables and fence.
10. NEVER perform any operation “Free-hand” which
means using your hands to support or guide the
workpiece. ALWAYS use the fence to position and guide
the work.
11. AVOID awkward operations and hand positions
where a sudden slip could cause your hand to move into
the cutterhead.
12. ALWAYS use hold-down/push blocks for jointing
material less than 3 inches in height or planing material
thinner than 3 inches.
13. DO NOT perform jointing operations on material
shorter than 10 inches, narrower than 3/4 inch or less
than 1/2 inch thick.
14. DO NOT perform planing operations on material
shorter than 10 inches, narrower than 3/4 inch, wider
than 8 inches or less than 1/2 inch thick.
15. NEVER make jointing or planing cuts deeper than
1/8 inch. On cuts more than 1-1/2 inches wide, adjust
depth of cut to 1/16 inch or less to avoid overloading
machine and to minimize chance of kick-back (work
thrown back toward you).
16. MAINTAIN the proper relationship of infeed and
outfeed table surfaces and cutterhead knife path.
17. SUPPORT the workpiece adequately at all times
during operation; maintain control of the work at all
times.
18. DO NOT back the workpiece toward the infeed
table.
19. DO NOT attempt to perform an abnormal or little-
used operation without study and the use of adequate
hold-down/push blocks, jigs, fixtures, stops, push
blocks, etc.
20. SHUT OFF power before servicing or adjusting jointer.
21. DISCONNECT jointer from power source and clean
the machine before leaving it.
22. MAKE SURE the work area is clean before leaving
the machine.
23. SHOULD any part of your jointer be missing,
damaged, or fail in any way, or any electrical component
fail to perform properly, shut off switch and remove plug
from power supply outlet. Replace missing, damaged or
failed parts before resuming operation.
24. THE USE of attachments and accessories not
recommended by Delta may result in the risk of injuries.
25. ADDITIONAL INFORMATION regarding the safe
and proper operation of this product is available from
the National Safety Council, 1121 Spring Lake Drive,
Itasca, IL 60143-3201 in the Accident Prevention Manual
for Industrial Operation and also in the Safety Data
Sheets provided by the NSC. Please also refer to the
American National Standard Institute ANSI 01.1 Safety
Requirements for Woodworking Machinery and the U.S.
Department of Labor OSHA 1910.213 Regulations.
SAVE THESE INSTRUCTIONS.
Refer to them often
and use them to instruct others.
4
A separate electrical circuit should be used for your machines. This circuit should not be less than #12 wire and should
be protected with a 20 Amp time lag fuse. If an extension cord is used, use only 3-wire extension cords which have 3prong grounding type plugs and matching receptacle which will accept the machine’s plug. Before connecting the
machine to the power line, make sure the switch is in the “OFF” position and be sure that the electric current is of the
same characteristics as indicated on the machine. All line connections should make good contact. Running on low
voltage will damage the machine.
DO NOT EXPOSE THE MACHINE TO RAIN OR OPERATE THE MACHINE IN DAMP LOCATIONS.
Your machine is wired for either 120/240 volt single phase, or 200-230/460 volt three phase, 60 HZ alternating current.
Before connecting the machine to the power source, make sure the switch is in the “OFF” position.
THIS MACHINE MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR FROM
ELECTRIC SHOCK.
MOTOR SPECIFICATIONS
GROUNDED OUTLET BOX
CURRENT
CARRYING
PRONGS
GROUNDING BLADE
IS LONGEST OF THE 3 BLADES
GROUNDED OUTLET BOX
CURRENT
CARRYING
PRONGS
GROUNDING BLADE
IS LONGEST OF THE 3 BLADES
POWER CONNECTIONS
GROUNDING INSTRUCTIONS
Fig. A
Fig. B
SINGLE PHASE
INSTALLATION
If the motor on your machine is wired for 115 Volt, Single
Phase, the power cord is equipped with a plug that has
two flat, parallel current-carrying prongs, and one longer
round or “U” shaped, ground prong which requires a
mating 3-conductor grounded type receptacle, as
shown in Fig. A.
If the motor on your machine is wired for 230 Volt, Single
Phase, the power cord is equipped with a plug that has
two flat, current-carrying prongs in tandem, and one
round or “U”-shaped longer ground prong. This is used
only with the proper mating 3-conductor grounding type
receptacle,as shown in Fig. B.
When either the 115 Volt or 230 Volt three prong plug on
your machine is plugged into a grounded 3-conductor
receptacle, the long ground prong on the plug contacts
first so the machine is properly grounded before electricity reaches it.
IN ALL CASES, MAKE CERTAIN THE RECEPTACLE IN QUESTION IS PROPERLY GROUNDED.
IF YOU ARE NOT SURE, HAVE A CERTIFIED ELECTRICIAN CHECK THE RECEPTACLE.
THREE PHASE
INSTALLATION
If the motor on your machine is wired for 200, 230 or 460
Volts, Three Phase, refer to the electrical instruction
manual supplied with your machine for instructions on
how to connect electrical power.
CHANGING VOLTAGE
The single phase 1-1/2 H.P. (push button switch only),
8" Jointer is supplied wired for 230 Volts. If you desire
to change the voltage on this unit it is necessary to
disconnect the machine from the power source,
reconnect the leads in the motor junction box, as
shown on the motor nameplate and change the plug to
a 115 Volt plug.
If you desire to change the voltage on either the single
or three phase, 1-1/2 H.P., 8" Jointer that is equipped
with 24 Volt push button station, magnetic starter,
transformer and 3-leg overload protection, refer to the
the “CHANGING VOLTAGE OF THE LVC MOTOR
STARTER” section in the electrical manual supplied
with your jointer. The following steps must be
completed:
5
Use proper extension cords. Make sure your extension cord is in good condition and is a 3-wire
extension cord which has a 3-prong grounding type plug and matching receptacle which will accept the machine’s
plug. When using an extension cord, be sure to use one heavy enough to carry the current of the machine. An
undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. Fig. D, shows the correct
gauge to use depending on the cord length. If in doubt, use the next heavier gauge. The smaller the gauge number,
the heavier the cord.
EXTENSION CORDS
FOREWORD
Delta Model 37-350 and 37-365X DJ-20 is a 8" Precision Jointer with a cutting capacity of 8" (203mm) width, 5/8" depth
(16mm max.) and 5/8" (16mm) rabbeting. Unit includes; heavy-duty 1-1/2 hp, 120/240 volt motor, fence, three-knife
cutterhead, cutterhead guard, and push blocks.
Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from
all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone,
gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household
floor paste wax.
NOTICE: THE MANUAL COVER PHOTO ILLUSTRATES THE CURRENT
PRODUCTION MODEL. ALL OTHER ILLUSTRATIONS ARE REPRESENTATIVE
ONLY AND MAY NOT DEPICT THE ACTUAL COLOR, LABELING OR
ACCESSORIES AND MAY BE INTENDED TO ILLUSTRATE TECHNIQUE ONLY.
Fig. D
Fig. D
MINIMUM GAUGE EXTENSION CORD
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES
Ampere Total Length Gauge of
Rating Volts of Cord in Feet Extension Cord
0-6 120
up to
25 18 AWG
0-6 120 25-50 16 AWG
0-6 120 50-100 16 AWG
0-6 120 100-150 14 AWG
6-10 120
up to
25 18 AWG
6-10 120 25-50 16 AWG
6-10 120 50-100 14 AWG
6-10 120 100-150 12 AWG
10-12 120
up to
25 16 AWG
10-12 120 25-50 16 AWG
10-12 120 50-100 14 AWG
10-12 120 100-150 12 AWG
12-16 120
up to
25 14 AWG
12-16 120 25-50 12 AWG
12-16 120
GREATER THAN 50 FEET NOT RECOMMENDED
MINIMUM GAUGE EXTENSION CORD
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES
Ampere Total Length Gauge of
Rating Volts of Cord in Feet Extension Cord
0-6 240
up to
50 18 AWG
0-6 240 50-100 16 AWG
0-6 240 100-200 16 AWG
0-6 240 200-300 14 AWG
6-10 240
up to
50 18 AWG
6-10 240 50-100 16 AWG
6-10 240 100-200 14 AWG
6-10 240 200-300 12 AWG
10-12 240
up to
50 16 AWG
10-12 240 50-100 16 AWG
10-12 240 100-200 14 AWG
10-12 240 200-300 12 AWG
12-16 240
up to
50 14 AWG
12-16 240 50-100 12 AWG
12-16 240
GREATER THAN 100 FEET NOT RECOMMENDED
1. Disconnect the machine from the power source.
2. Move the transformer primary pigtail to the proper terminal corresponding to the new input voltage.
3. Change the leads in the motor junction box for the proper line voltage, as shown on the motor nameplate.
4. Change the heater elements in the overload block for the proper voltage/amperage, as shown on the motor
nameplate. The correct heater elements can be identified by referring to the chart inside the motor starter box.
OPERATING INSTRUCTIONS
UNPACKING AND CLEANING
CUTTERHEAD ROTATION
The rotation of the cutterhead must be in a clockwise direction when viewed from the left side of the
machine; that is, the knives must be rotating toward the infeed table from the top. If the cutterhead rotation is incorrect,
disconnect the machine from the power source and proceed as follows:
Single Phase Machines – Interchange leads T5 and T8 in the motor junction box.
Three Phase Machines – Interchange any two of the three incoming power lines.
6
JOINTER PARTS
Fig. 2
1. Jointer
2. Rabbeting Ledge
3. Motor Pulley
4. Fence
5. Cutterhead Guard
6. Fence Carriage Assembly
7. Fence Tilting Handle
8. 10x13mm Open End Wrench
9. 4mm Hex Wrench
10. 2.5mm Hex Wrench
11. M8x1.25x25mm Socket Head Screw (8)
12. M8.1 Lockwasher (8)
1
2
3
4
5
6
7
8
9
10
11
12
7
STAND PARTS
Fig. 3
1. Stand, Motor, and Electricals
2. Belt
3. Cutterhead Pulley/Belt Guard
4. Push Blocks (2)
5. 1/4-20x5/8" Hex Head Screw (2)
6. 1/4" Flat Washer (2)
7. 1/4-20 Hex Nut (2)
1
2
3
4
5
6
7
8
ASSEMBLY
JOINTER TO STAND
If you purchased your jointer complete with stand and
electricals, factory mounted and wired, the stand is
shipped with the motor and switch completely wired and
assembled to the stand, as shown in Fig. 4.
The outfeed end of the jointer Fig. 4A must be pointing
toward the end of the stand with dust chute (A) Fig. 4.
Fig. 4
Fig. 5
2. Line up the eight holes (B) Fig. 5, on the top of the
stand with the eight threaded holes on the bottom of the
jointer base and fasten the jointer to the stand using the
eight M8x1.25x25mm socket head cap screws and
M8.1 lockwashers supplied.
THE JOINTER IS EXTREMELY HEAVY.
HAVE TWO OR MORE PEOPLE LIFT THE MACHINE
ONTO THE STAND.
A
C
D
E
B
B
Fig. 4A
1. Remove three screws (C) Fig. 4, and loosen three
screws (D). Then remove back panel (E) from stand by
lifting upward.
Outfeed Table
Infeed Table
9
ASSEMBLING MOTOR
PULLEY
Assemble motor pulley (K) Fig. 7A, to motor shaft with
the hub of the pulley in the outer position as shown.
Make certain key (L) is inserted in the keyway of the
pulley and motor shaft, then tighten set screw (M) using
the 2.5 mm hex wrench (not shown). NOTE: THE KEY
(P) FIG. 7, FOR THE MOTOR PULLEY, IS TAPED TO
THE MOTOR HOUSING.
Fig. 7
K
M
ASSEMBLING BELT AND
ALIGNING PULLEYS
1. Place belt (A) Fig. 8, in groove of cutterhead pulley
(B) and motor pulley (C).
2. Make certain the motor pulley (C) Fig. 8, is properly
aligned with cutterhead pulley (B) by placing a straight
edge (D) Fig. 8, onto the face of each pulley as shown.
3. If an adjustment is needed, the motor pulley can be
moved in or out on the motor shaft, or the motor can be
shifted by loosening motor mounting screws, two of
which are shown at (E) Fig. 8. After adjustments are
made, tighten motor mounting hardware and motor
pulley set screw.
Fig. 8
ADJUSTING BELT TENSION
1. Correct belt tension is obtained when there is
approximately 1" deflection at the center span of the
belt using light finger pressure.
2. If an adjustment is required, the motor can be raised
or lowered to obtain the correct belt tension.
3. Tighten motor mounting hardware after tension is
applied, making sure alignment of the pulleys is not
disturbed.
4. Re-attach back panel of stand which was removed
in STEP 1 of “JOINTER TO STAND”.
L
ASSEMBLING CUTTERHEAD
PULLEY/BELT GUARD
1. Align the two holes in the cutterhead pulley/belt
guard (A) Fig. 10 with the two holes (B) in the top of the
stand.
2. Place a 1/4" flat washer on an 1/4-20x5/8" hex head
screw, and insert the screw through the hole in the
cutterhead pulley/guard (A) and the hole (B) in the top of
the stand. Thread a 1/4-20 hex nut onto the screw and
tighten securely. Repeat this process for the remaining
hole in the cutterhead pulley/belt guard.
Fig. 10
B
C
A
D
E
A
B
B
Fig. 7A
P
10
ASSEMBLING FENCE
CARRIAGE ASSEMBLY
1. Remove the two M10x1.5x30mm hex socket head
screws (A) Fig. 11, and 10mm flat washers from the back
of the jointer base at location (C).
2. Align the two holes (B) Fig. 11, in the fence carriage
assembly, with the two tapped holes (C) in the back of
the jointer base. Insert the M10x1.5x30mm hex socket
head screw with a 10mm flat washer, through the hole in
the fence carriage assembly and thread the screw into
the tapped hole in the back of the Jointer base. Repeat
this process for the remaining hole in the fence carriage
assembly and the tapped hole in the back of the Jointer
base. NOTE: THE TOP SURFACE (D) FIG. 12, OF THE
FENCE CARRIAGE ASSEMBLY MUST BE LEVEL
WITH THE TOP SURFACE (E) OF THE OUTFEED
TABLE. Once the fence carriage assembly is level with
the outfeed table, tighten the two screws (A) Fig. 11
securely.
Fig. 11
Fig. 12
ASSEMBLING FENCE
1. Remove the two M8x1.25x30mm hex socket head
screws (F) Fig. 12.
2. Align the two holes, one of which is shown at (G) Fig.
13, in the fence with the two holes (H) Fig. 12, in the
fence carriage assembly. Insert the screw through the
hole in the fence and thread the screw into the tapped
hole in the fence carriage assembly and tighten securely.
Repeat this process for the remaining hole in the fence
and fence carriage assembly.
3. Thread the fence tilting handle (A) Fig. 14, into the
tapped hole (B) in the fence.
Fig. 13
Fig. 14
A
A
B
B
C
C
D
E
F
F
H
H
G
A
B
11
ASSEMBLING
CUTTERHEAD GUARD
Loosen set screw (A) Fig. 16. Insert post (B) of the
cutterhead guard into hole in infeed table and tighten set
screw (A) against the flat on post (B).
Make certain that guard operates freely
and does not bind or hang-up. Always check guard
operation before turning on jointer.
Fig. 16
ASSEMBLING
RABBETING LEDGE
1. Remove the two M6x1x20mm socket head screws
(C) Fig. 15 from hole location (B) in the front of the Jointer.
2. Align the two holes (A) Fig. 15, in the rabbeting
ledge, with the two holes (B) in the front of the Jointer.
Insert the screw through the hole (A) in the rabbeting
ledge and thread the screw into the tapped hole (B) in
the front of the Jointer. Make sure the rabbeting ledge is
level with the infeed table. Tighten screw (C) securely.
Repeat this process for the remaining hole in the
rabbeting ledge and the front of the Jointer.
Fig. 15
OPERATING CONTROLS AND ADJUSTMENTS
STARTING AND STOPPING
JOINTER
To turn the machine “ON”, push the green start button
(A) Fig. 17. To turn the machine “OFF”, push the red
stop button (B).
LOCKING SWITCH IN THE
“OFF” POSITION
IMPORTANT: When the tool is not in use, the switch
should be locked in the “OFF” position to prevent
unauthorized use, using a padlock (C) Fig. 18 with a
3/16" diameter shackle.
Fig. 17
Fig. 18
A
B
C
A
B
A
B
C
12
Fig. 19
INFEED TABLE
ADJUSTMENTS
To raise or lower the infeed table (see Fig. 4A), loosen
table lock handle (A) Fig. 19, and move the table raising
and lowering hand lever (B) up or down until the table is
at the desired position and tighten table lock handle (A).
NOTE: The table lock handle (A) can be repositioned by
pulling out the handle and repositioning it on the
serrated nut located underneath the handle.
The depth of cut of the infeed table (position of table in
relationship with the cutting circle) can be read with the
pointer and scale (G) Fig. 19.
INFEED TABLE
POSITIVE STOPS
DISCONNECT MACHINE FROM
POWER SOURCE.
Positive stops are provided to limit the height of the
infeed table. The positive stops can be set by loosening
lock nuts (C) and (D) Fig. 20, and turning the two
adjusting screws (E) and (F). We recommend that the
height of the infeed table be adjusted so that the table,
at its highest point, will be 1/2mm (.020" ) below the
highest point of the knives. This is an important feature
of your jointer which enables you to rapidly position the
infeed table for a finish or final cut.
Fig. 20
OUTFEED TABLE
ADJUSTMENTS
DISCONNECT MACHINE FROM
POWER SOURCE.
The outfeed table must be exactly level with the knives
when the knives are at their highest point of revolution.
To move the outfeed table, loosen table lock handle (A)
Fig. 21, and move the table raising and lowering hand
lever (B) up or down until the table is level with the
knives. It may be necessary to loosen the two locknuts
(C) and (D) Fig. 22, and the two adjusting screws (E) and
(F) when moving the table up or down. When the outfeed
table is exactly level with the knives at their highest point
of revolution, tighten table lock handle (A) Fig. 21, and
turn adjusting screw (E) Fig. 22, until it bottoms. Then
tighten lock nut (C). Screw (F) is also a positive stop for
the lower limit of the outfeed table. We suggest that this
stop also be tightened with locknut (D), when the
outfeed table is set level with the knives. This will
prevent the outfeed table from accidentally being
lowered.
Fig. 21
Fig. 22
B
A
G
F
D
C
E
A
B
F
D
E
C
13
KNIFE ADJUSTMENTS
In order to do accurate work, the knives must be exactly
level with the outfeed table. To check and adjust,
proceed as follows:
DISCONNECT MACHINE FROM
POWER SOURCE.
1. Loosen infeed table lock lever and lower infeed table
as described under section “INFEED TABLE
ADJUSTMENTS”.
2. Remove cutterhead guard (C) Fig. 23.
3. Place a steel straight edge on the outfeed table,
extending over the cutterhead as shown in Fig. 24.
4. Carefully rotate the cutterhead by hand. The knives
should just touch the straight edge.
5. If the knife is high or low at either end, slightly turn
the four screws (D) Fig. 25, in the knife locking bar
clockwise to loosen using the wrench (E) supplied. Then
adjust the height of the knife by turning the knife raising
screws (F) Fig. 26, counterclockwise to lower and
clockwise to raise the knife.
CARE MUST BE TAKEN WHEN
HANDLING THE KNIVES, AS THE CUTTING EDGES
ARE VERY SHARP. WEAR PROTETIVE GLOVES
WHEN HANDELING THE KNIVES.
If the knife is to be lowered it will be necessary to carefully
push down on the knife with a scrap piece of wood, after
screws (F) have been turned counterclockwise to achieve
desired depth. Tighten four screws (D) Fig. 25, by turning
them counterclockwise, after adjustment is made.
6. Repeat these procedures for adjusting the remaining
two knives if necessary, and replace cutterhead guard
removed in STEP 2.
7. If the knives are set too low, the result will be as
shown in Fig. 27, and the finished surface will be curved.
8. If the knives are set too high, the work will be
gouged, curved, or bowed at the end of the cut, as
shown in Fig. 28.
9. As a final check, run a piece of work slowly over the
knives for 6 to 8 inches. The wood should rest firmly on
both tables as shown in Fig. 29, with no open spaces
under the finished cut.
Fig. 23
Fig. 24
Fig. 25
Fig. 26
D
E
F
F
Fig. 27
Fig. 28
Fig. 29
C
14
FENCE OPERATION
The fence can be moved across the table by loosening
lock lever (A) Fig. 30, move the fence to the desired
position, and tighten lock lever (A) securely. As the fence
is moved across the table, the sliding portion of the
fence bracket (F) guards the cutterhead in back of the
fence as shown.
Fig. 30
To tilt the fence to the right or left, loosen handle (B)
Fig. 31, pull out plunger (C) and using the fence tilting
lever (D), move the fence to the desired angle and
tighten handle (B) securely. NOTE: The handle (B) Fig.
31, is spring-loaded and can be repositioned by pulling
out the handle and repositioning it on the serrated nut
located underneath the handle. IMPORTANT: When
cutting a bevel, we suggest that whenever possible the
fence be tilted toward the table, as shown in Fig. 32. The
fence will then form a V-shape with the tables, and the
work is easily pressed into the pocket while passing it
across the knives.
Fig. 31
Fig. 32
ADJUSTING FENCE
POSITIVE STOPS
The fence on your jointer is equipped with positive stops
at the most used fence positions of 90 degrees and 45
degrees right and left. To check and adjust the positive
stops, proceed as follows:
DISCONNECT MACHINE FROM
POWER SOURCE.
1. Position the fence 90 degrees to the table by making
sure end of plunger (A) Fig. 33, is engaged in notch in
index collar (B), as shown, and tighten lockhandle (C).
Fig. 33
A
F
B
C
D
A
C
E
B
15
Fig. 34
2. Using a square (D) Fig. 34, check to see if the fence
is at 90 degrees to the table, as shown.
3. If the fence is not at 90 degrees to the table, loosen
set screw (E) in the index collar (B), Fig. 33, and loosen
the fence locking handle (C). Move the fence until you
are certain it is at 90 degrees to the table and tighten
locking handle (C) and set screw (E).
Fig. 35
4. Tilt the fence inward as far as possible and using a
combination square (F) Fig. 35, check to see if the fence
is tilted inward 45 degrees, as shown. If an adjustment
is necessary, loosen locknut (H) Fig. 36, and turn
adjusting screw (J) in or out until the fence is 45 degrees
to the table, and tighten locknut (H). Then tighten lock
handle (C).
5. Tilt the fence outward as far as possible and using a
combination square (K) Fig. 37, check to see if the fence
is tilted outward 45 degrees, as shown. If an adjustment
is necessary, loosen lock handle (C) Fig. 37. Loosen
locknut (L) and turn adjusting screw (M) until the fence is
at 45 degrees to the table. Then tighten locknut (L) and
lock handle (C).
Fig. 36
Fig. 37
D
F
K
M
L
C
J
H
C
16

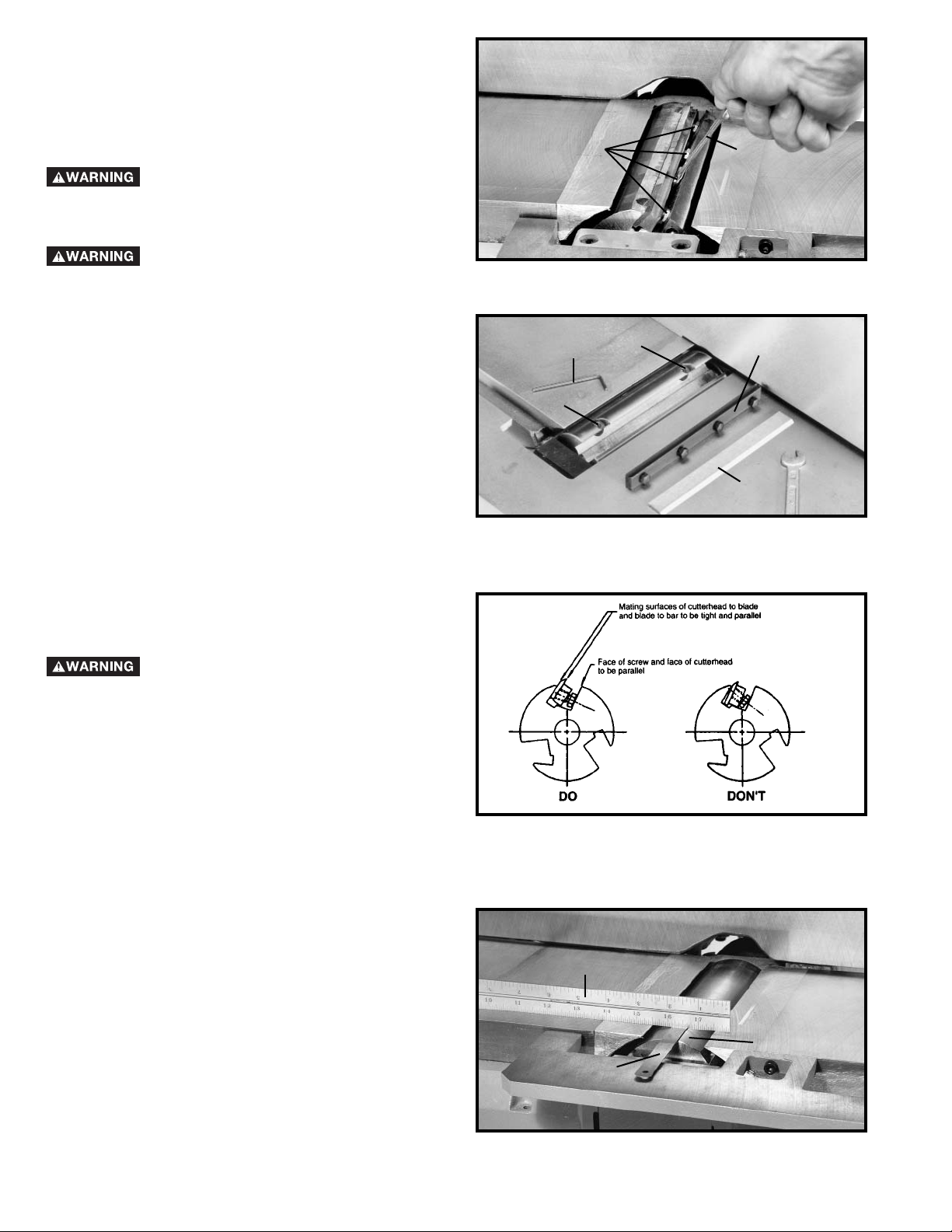

REMOVING, REPLACING,
AND RESETTING KNIVES
If the knives are removed from the cutterhead for replacement or sharpening, care must be used in
removing, replacing, and resetting them.
DISCONNECT MACHINE FROM
POWER SOURCE.
1. Move the fence to the rear and remove the
cutterhead guard.
BE EXTREMELY CAREFUL THAT
YOUR HANDS DO NOT COME IN CONTACT WITH
THE KNIVES. THE KNIVES ARE VERY SHARP. WEAR
PROTECTIVE GLOVES WHEN HANDLING THE
KNIVES.
2. Using wrench (A) Fig. 38, slightly loosen the four
locking screws (B) in each knife slot by turning the
screws (B) clockwise. Loosen screws (B) Fig. 38, further
and remove knife and knife locking bar.
3. Fig. 39, shows the knife (C) and knife locking bar (D)
removed from the cutterhead. Remove the remaining
two knives and locking bars, in the same manner.
4. Using wrench (E) Fig. 39, lower the two knife
adjustment blocks to the bottom of the cutterhead by
turning screws (F) counterclockwise in all three slots of
the cutterhead.
5. Before assembling knives make certain the knives
and locking bars are thoroughly clean and free of gum
and pitch.
6. Place the knife locking bars (D) Fig. 39, and knives (C)
into each slot in the cutterhead.
CARE MUST BE TAKEN WHEN
INSERTING THE KNIVES AS THE CUTTING EDGES
ARE VERY SHARP. WEAR PROTECTIVE GLOVES
WHEN HANDELING THE KNIVES. Push the knife down
as far as possible and turn each screw (B) Fig. 38,
counterclockwise just enough to hold the knife in position.
Replace the remaining two knifes in the same manner.
KNIVES MUST BE INSTALLED CORRECTLY AS
SHOWN IN FIG. 40.
7. The knives are adjusted correctly when the cutting
edge of the knife extends out .060” from the cutterhead
diameter.
8. Carefully rotate the cutterhead (G) Fig. 41, until the
round portion of the cutterhead is on top as shown.
9. Place a .060” feeler gage (H) Fig. 41, on the
cutterhead and using a straight edge (J) on the rear table
adjust the height of the rear table until it is .060” above
the cuttinghead diameter, as shown.
10. Lock the rear table in position and remove the feeler
gage.
Fig. 38
Fig. 39
Fig. 40
Fig. 41
B
A
C
D
E
F
F
J
H
G
17

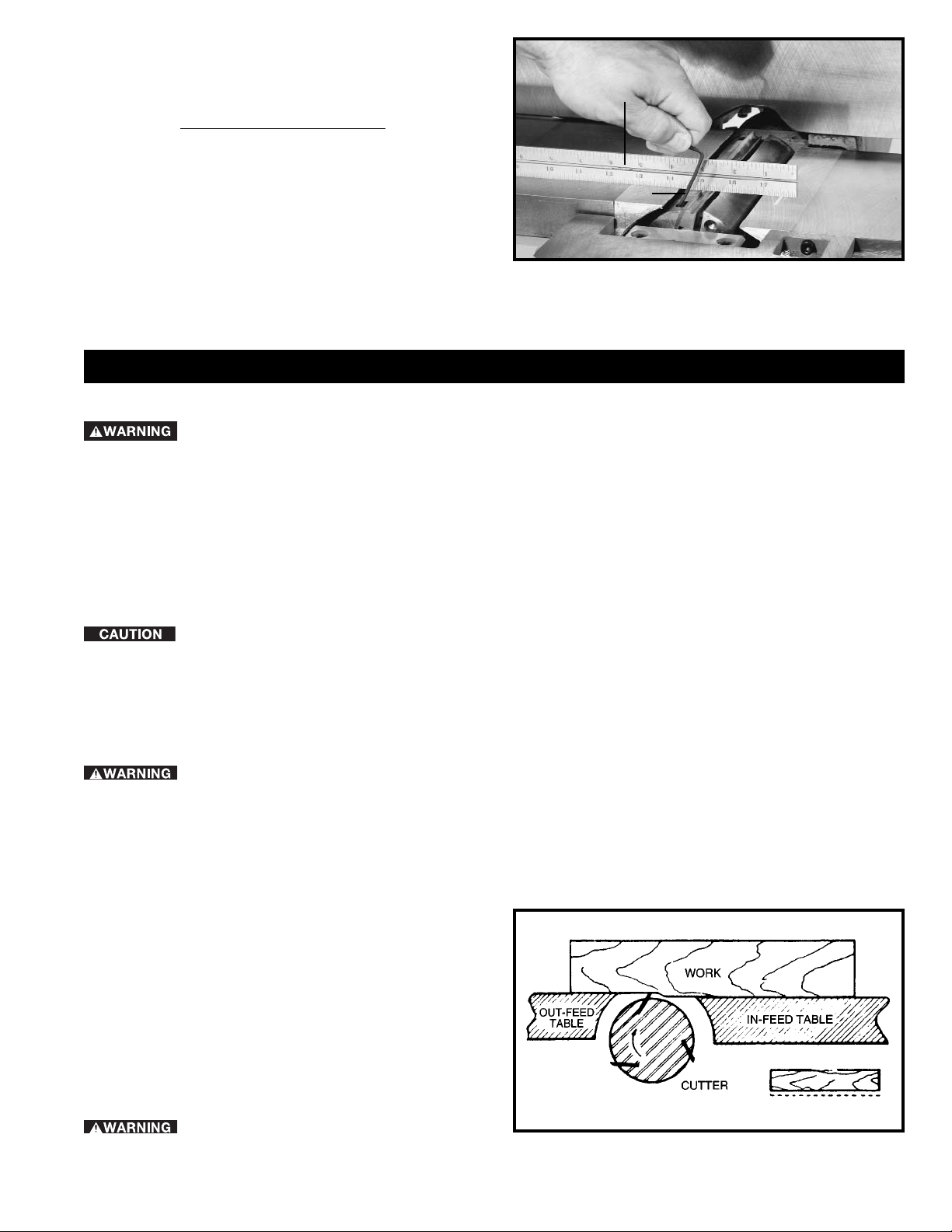

11. Lower the infeed table and place a straight edge (J)
Fig. 42, on the outfeed table extending over the
cutterhead as shown.
12. Rotate the cutterhead by hand until the knife is at its
highest point at each end of the cutterhead
. To raise the
knife, use wrench (E) Fig. 42, and turn raising screw
clockwise until the knife just touches the straight edge
(J) on each end and center of the cutterhead when the
knife is at its highest point. When you are certain the
knife is adjusted properly, tighten the four locking
screws (B) Fig. 38, by turning them counterclockwise.
13. Adjust the remaining two knives in the same manner.
MAKE CERTAIN THAT ALL KNIVES ARE SECURELY
FASTENED IN CUTTERHEAD BEFORE TURNING ON
POWER.
14. Replace cutterhead guard.
Fig. 42
J
E
OPERATION
The following directions will give the beginner a start on
jointer operations. Use scrap pieces of lumber to check
settings and to get the feel of the operations before
attempting regular work.
THE KNIVES ON THE JOINTER WILL
NOT WEAR EVENLY BY FEEDING THE WOOD
THROUGH THE SAME SPOT ON THE TABLE EVERY
TIME. FEED THE WOOD THROUGH THE JOINTER AT
DIFFERENT SPOTS ON THE TABLE WHEN
POSSIBLE, TO HELP ELIMINATE UNEVEN WEAR OF
THE KNIVES.
ALWAYS USE CUTTERHEAD GUARD
AND KEEP HANDS AWAY FROM CUTTERHEAD.
ALWAYS USE PUSH BLOCKS WHENEVER
POSSIBLE. NEVER MAKE JOINTING AND PLANING
CUTS DEEPER THAN 1/8" IN ONE PASS.
PLACEMENT OF HANDS
DURING FEEDING
At the start of the cut, the left hand holds the work firmly
against the infeed table and fence, while the right hand
pushes the work toward the knives. After the cut is underway, the new surface rests firmly on the outfeed table
as shown in Fig. 43. The left hand should then be moved
to the work on the outfeed table, at the same time
maintaining flat contact with the fence. The right hand
presses the work forward, and before the right hand
reaches the cutterhead, it should be moved to the work
on the outfeed table.
NEVER PASS HANDS DIRECTLY OVER
THE CUTTERHEAD.
Fig. 43
CUTTERHEAD ROTATION
The rotation of the cutterhead must be in a clockwise direction when viewed from the left side of the
machine; that is, the knives must be rotating toward the infeed table from the top. If the cutterhead rotation is incorrect,
disconnect the machine from the power source and proceed as follows:
Single Phase Machines – Interchange leads T5 and T8 in the motor junction box.
Three Phase Machines – Interchange any two of the three incoming power lines.
18

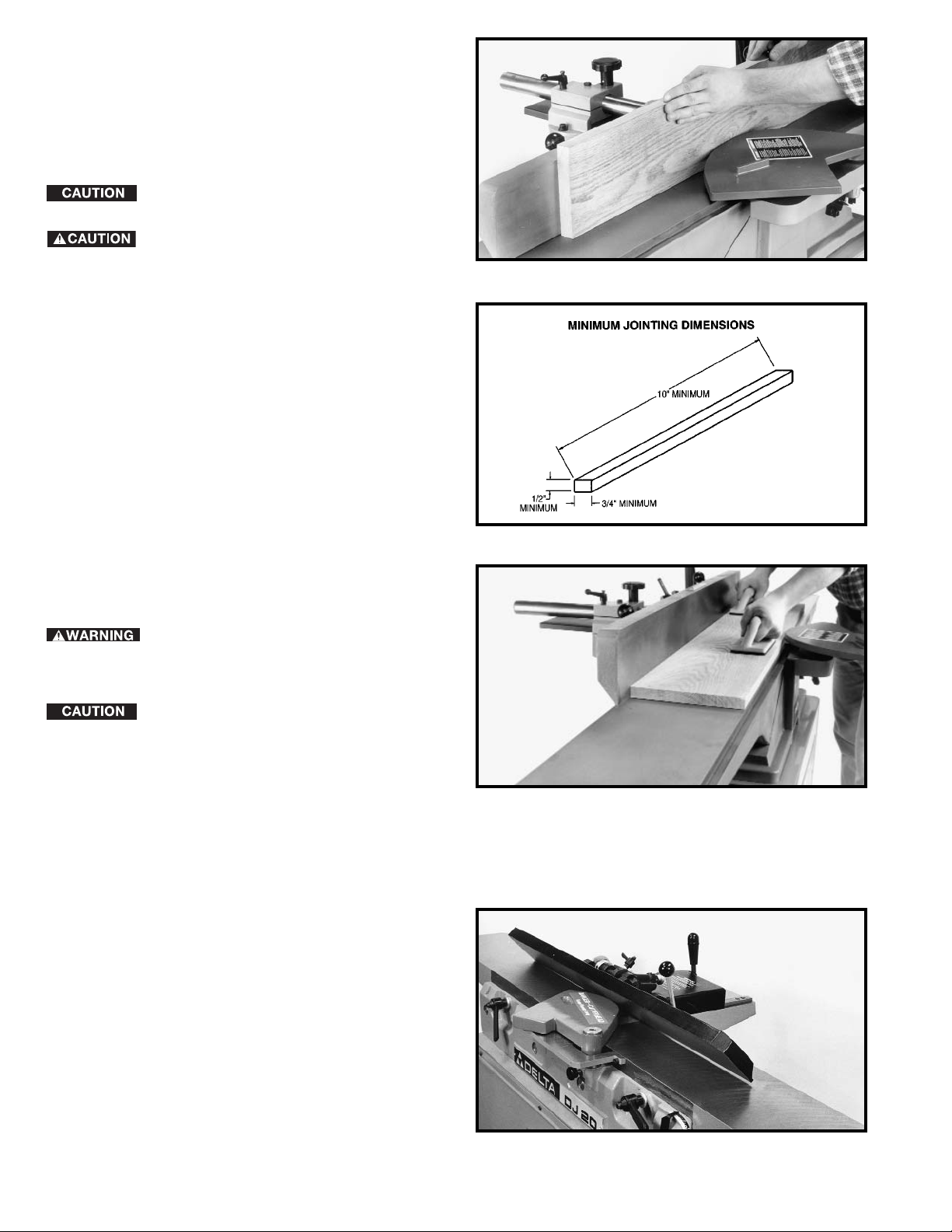

JOINTING AN EDGE
This is the most common operation for the jointer, these
cuts are made to square an edge of a workpiece. Set the
guide fence square with the table. Depth of cut should be
the minimum required to obtain a straight edge. Hold the
best face of the piece firmly against the fence throughout
the feed as shown in Fig. 44.
MAXIMUM DEPTH OF CUT SHOULD
NOT BE MORE THAN 1/8" IN ONE PASS.
DO NOT PERFORM JOINTING
OPERATIONS ON MATERIAL SHORTER THAN 10
INCHES, NARROWER THAN 3/4 INCH, OR LESS
THAN 1/2 INCH THICK (REFER TO FIG. 45).
Fig. 44
Fig. 45
SURFACING
Surfacing is identical to the jointing operation except for
the position of the workpiece. For surfacing, the major flat
surface of the workpiece is placed on the infeed table of
the jointer with the narrow edge of the workpiece against
the fence, a shown in Fig. 46. The workpiece is
moved from the infeed table, across the cutterhead to the
outfeed table establishing a flat surface on the workpiece
ALWAYS USE PUSH BLOCKS WHEN
PERFORMING SURFACING OPERATIONS AND NEVER
PASS YOUR HANDS DIRECTLY OVER THE
CUTTERHEAD.
MAXIMUM DEPTH OF CUT SHOULD
NOT BE MORE THAN 1/8" IN ONE PASS.
Fig. 46
To cut a bevel, lock the fence at the required angle and
run the work across the knives while keeping the work
firmly against the fence and tables. Several passes may
be necessary to arrive at the desired result. When the
angle is small, there is little difference whether the fence
is tilted to the right or left. However, at greater angles
approaching 45 degrees, it is increasingly difficult to
hold the work properly when the fence is tilted to the
right. The advantage of the double-tilting fence is
appreciated under such conditions. When tilted to the
left, the fence forms a V-shape with the tables, as shown
in Fig. 47, and the work is easily pressed into the pocket
while passing it across the knives. If the bevel is laid out
on the piece in such direction that this involves cutting
against the grain, it will be better to tilt the fence to the
right.
BEVELING
Fig. 47
19
TAPER CUTS
One of the most useful jointer operations is cutting an edge to a taper. This method can be used on a wide variety of
work. Tapered legs of furniture are a common example. Instead of laying the piece on the infeed table, lower the
forward end of the work onto the outfeed table. Do this very carefully, as the piece will span the knives, and they will
take a “bite” from the work with a tendency to kick back unless the piece is firmly held. Now push the work forward
as in ordinary jointing. The effect is to surface off all the stock in front of the knives, to increasing depth, leaving a
tapered surface. The ridge left by the knives when starting the taper may be removed by taking a very light cut
according to the regular method for jointing, with the infeed table raised to its usual position. Practice is required in this
operation, and the beginner is advised to make trial cuts on waste material. Taper cuts over part of the length and a
number of other special operations can easily be done by the experienced craftsman.
CUTTING A RABBET
When making a rabbet cut, as shown in Fig. 48, the cutterhead guard must be removed.
AFTER THE RABBET CUT IS COMPLETED,
BE CERTAIN GUARD IS REPLACED.
1. Adjust the fence so that the distance between the
end of the knives and the fence is equal to the width of
the rabbet.
2. Lower the infeed table an amount equal to the depth
of the rabbet. If the rabbet is quite deep, it may be
necessary to cut it in two or more passes. In that event,
the table is lowered an amount equal to about half the
depth of the rabbet for the first pass, then lowered again
to proper depth to complete the cut.
Fig. 48
SURFACING WARPED PIECES
If the wood to be surfaced is dished or warped, take
light cuts until the surface is flat. Avoid forcing such
material down against the table; excessive pressure will
spring it while passing the knives, and it will spring back
and remain curved after the cut is completed.
SURFACING SHORT
OR THIN WORK
WHEN SURFACING SHORT OR THIN
PIECES, ALWAYS USE PUSH BLOCKS TO MINIMIZE
ALL DANGER TO THE HANDS. Fig. 49, illustrates using
the Delta Push Blocks properly.
DO NOT PERFORM SURFACING
OPERATIONS ON MATERIAL SHORTER THAN 10
INCHES, NARROWER THAN 3/4 INCH, WIDER THAN
8 INCHES, OR LESS THAN 1/2 INCH THICK (REFER
TO FIG. 50).
Fig. 49
Fig. 50
MINIMUM AND
MAXIMUM SURFACING
DIMENSIONS
8"
20
DIRECTION OF GRAIN
Avoid feeding work into the jointer against the grain as
shown in Fig. 51. The result will be chipped and
splintered edges. Feed with the grain as shown in Fig.
52, to obtain a smooth surface.
Fig. 51
Fig. 52
After considerable use, the knives will become dull and it will not be possible to do accurate work. Unless
badly damaged by running into metal or other hard material, the knives may be sharpened as follows:
WHETTING KNIVES
DISCONNECT MACHINE FROM POWER
SOURCE.
Use a fine carborundum stone, cover it partly with paper
as indicated in Fig. 53 to avoid marking the table. Lay
the stone on the infeed table, lower the table and turn
the cutterhead forward until the stone lies flat on the
bevel of the knife as shown. Hold the cutterhead from
turning, and whet the beveled edge of the knife, stroking
lengthwise by sliding the stone back and forth across
the table. Do the same amount of whetting on each of
the three knives.
Fig. 53
MAINTENANCE AND REPAIRS
21
PUSH STICK
MAKE FROM 1/2" OR 3/4"
WOOD OR THICKNESS
LESS THAN WIDTH OF
MAT’L. TO BE CUT
CUT OFF HERE TO
PUSH 1/4" WOOD
CUT OFF HERE TO
PUSH 1/2" WOOD
NOTCH TO HELP
PREVENT HAND
FROM SLIPPING
1/2" SQUARES
CONSTRUCTING A PUSH STICK
Narrow pieces of stock that are close to 10 inch minimum length should be handled with a push stick
and push block. The Fig. below is a pattern for a push stick.
22
NOTES
23
Printed in U.S.A.
Two Year Limited Warranty
Delta will repair or replace, at its expense and at its option, any Delta machine, machine part, or machine accessory which
in normal use has proven to be defective in workmanship or material, provided that the customer returns the product
prepaid to a Delta factory service center or authorized service station with proof of purchase of the product within two
years and provides Delta with reasonable opportunity to verify the alleged defect by inspection. Delta may require that
electric motors be returned prepaid to a motor manufacturer’s authorized station for inspection and repair or replacement.
Delta will not be responsible for any asserted defect which has resulted from normal wear, misuse, abuse or repair or
alteration made or specifically authorized by anyone other than an authorized Delta service facility or representative. Under
no circumstances will Delta be liable for incidental or consequential damages resulting from defective products. This
warranty is Delta’s sole warranty and sets forth the customer’s exclusive remedy, with respect to defective products; all
other warranties, express or implied, whether of merchantability, fitness for purpose, or otherwise, are expressly
disclaimed by Delta.
PARTS, SERVICE OR WARRANTY ASSISTANCE
All Delta Machines and accessories are manufactured to high quality standards and are serviced by a network
of Porter-Cable • Delta Factory Service Centers and Delta Authorized Service Stations. To obtain additional
information regarding your Delta quality product or to obtain parts, service, warranty assistance, or the location
of the nearest service outlet, please call 1-800-223-7278 (In Canada call 1-800-463-3582).
A complete line of accessories is available from your Delta Supplier, Porter-Cable • Delta Factory Service Centers,
and Delta Authorized Service Stations. Please visit our Web Site www.deltamachinery.com for a catalog or for the
name of your nearest supplier.
Since accessories other than those offered by Delta have not been tested
with this product, use of such accessories could be hazardous. For safest operation, only
Delta recommended accessories should be used with this product.
ACCESSORIES
The following are trademarks of PORTER-CABLE·DELTA (Las siguientes son marcas registradas de PORTER-CABLE S.A.): Auto-Set®,
BAMMER®, B.O.S.S.®, Builder’s Saw®, Contractor’s Saw®, Contractor’s Saw II™, Delta®, DELTACRAFT®, DELTAGRAM™, Delta Series
2000™, DURATRONIC™, Emc²™, FLEX®, Flying Chips™, FRAME SAW®, Homecraft®, INNOVATION THAT WORKS®, Jet-Lock®,
JETSTREAM®, ‘kickstand®, LASERLOC®, MICRO-SET®, Micro-Set®, MIDI LATHE®, MORTEN™, NETWORK™, OMNIJIG®, POCKET
CUTTER®, PORTA-BAND®, PORTA-PLANE®, PORTER-CABLE®&(design), PORTER-CABLE®PROFESSIONAL POWER TOOLS, Posi-Matic®,
Q-3®&(design), QUICKSAND®&(design), QUICKSET™, QUICKSET II®, QUICKSET PLUS™, RIPTIDE™&(design), SAFE GUARD II®, SAFELOC®, Sanding Center®, SANDTRAP®&(design), SAW BOSS®, Sawbuck™, Sidekick®, SPEED-BLOC®, SPEEDMATIC®, SPEEDTRONIC®,
STAIR EASE®, The American Woodshop®&(design), The Lumber Company®&(design), THE PROFESSIONAL EDGE®, THE PROFESSIONAL
SELECT®, THIN-LINE™, TIGER®, TIGER CUB®, TIGER SAW®, TORQBUSTER®, TORQ-BUSTER®, TRU-MATCH™, TWIN-LITE®,
UNIGUARD®, Unifence®, UNIFEEDER™, Unihead®, Uniplane™, Unirip®, Unisaw®, Univise®, Versa-Feeder®, VERSA-PLANE®, WHISPER
SERIES®, WOODWORKER’S CHOICE™.
Trademarks noted with ™ and ® are registered in the United States Patent and Trademark Office and may also be registered in other
countries. Las Marcas Registradas con el signo de ™ y ® son registradas por la Oficina de Registros y Patentes de los Estados Unidos y
también pueden estar registradas en otros países.
PORTER-CABLE • DELTA SERVICE CENTERS
(CENTROS DE SERVICIO DE PORTER-CABLE
• DELTA)
Parts and Repair Service for Porter-Cable •Delta Machinery are Available at These Locations
(Obtenga Refaccion de Partes o Servicio para su Herramienta en los Siguientes Centros de Porter-Cable
•
Delta)
Authorized Service Stations are located in many large cities. Telephone 800-438-2486 or 731-541-6042 for assistance locating one.
Parts and accessories for Porter-Cable
·
Delta products should be obtained by contacting any Porter-Cable·Delta Distributor, Authorized
Service Center, or Porter-Cable
·
Delta Factory Service Center. If you do not have access to any of these, call 800-223-7278 and you will
be directed to the nearest Porter-Cable·Delta Factory Service Center. Las Estaciones de Servicio Autorizadas están ubicadas en muchas
grandes ciudades. Llame al 800-438-2486 ó al 731-541-6042 para obtener asistencia a fin de localizar una. Las piezas y los accesorios
para los productos Porter-Cable
·
Delta deben obtenerse poniéndose en contacto con cualquier distribuidor Porter-Cable·Delta, Centro
de Servicio Autorizado o Centro de Servicio de Fábrica Porter-Cable·Delta. Si no tiene acceso a ninguna de estas opciones, llame al
800-223-7278 y le dirigirán al Centro de Servicio de Fábrica Porter-Cable
·
Delta más cercano.
ARIZONA
Tempe 85282 (Phoenix)
2400 West Southern Avenue
Suite 105
Phone: (602) 437-1200
Fax: (602) 437-2200
CALIFORNIA
Ontario 91761 (Los Angeles)
3949A East Guasti Road
Phone: (909) 390-5555
Fax: (909) 390-5554
San Leandro 94577 (Oakland)
3039 Teagarden Street
Phone: (510) 357-9762
Fax: (510) 357-7939
COLORADO
Arvada 80003 (Denver)
8175 Sheridan Blvd., Unit S
Phone: (303) 487-1809
Fax: (303) 487-1868
FLORIDA
Davie 33314 (Miami)
4343 South State Rd. 7 (441)
Unit #107
Phone: (954) 321-6635
Fax: (954) 321-6638
Tampa 33609
4538 W. Kennedy Boulevard
Phone: (813) 877-9585
Fax: (813) 289-7948
GEORGIA
Forest Park 30297 (Atlanta)
5442 Frontage Road,
Suite 112
Phone: (404) 608-0006
Fax: (404) 608-1123
ILLINOIS
Addison 60101 (Chicago)
400 South Rohlwing Rd.
Phone: (630) 424-8805
Fax: (630) 424-8895
Woodridge 60517 (Chicago)
2033 West 75th Street
Phone: (630) 910-9200
Fax: (630) 910-0360
MARYLAND
Elkridge 21075 (Baltimore)
7397-102 Washington Blvd.
Phone: (410) 799-9394
Fax: (410) 799-9398
MASSACHUSETTS
Braintree 02185 (Boston)
719 Granite Street
Phone: (781) 848-9810
Fax: (781) 848-6759
Franklin 02038 (Boston)
Franklin Industrial Park
101E Constitution Blvd.
Phone: (508) 520-8802
Fax: (508) 528-8089
MICHIGAN
Madison Heights 48071 (Detroit)
30475 Stephenson Highway
Phone: (248) 597-5000
Fax: (248) 597-5004
MINNESOTA
Minneapolis 55429
5522 Lakeland Avenue North
Phone: (763) 561-9080
Fax: (763) 561-0653
MISSOURI
North Kansas City 64116
1141 Swift Avenue
Phone: (816) 221-2070
Fax: (816) 221-2897
St. Louis 63119
7574 Watson Road
Phone: (314) 968-8950
Fax: (314) 968-2790
NEW YORK
Flushing 11365-1595 (N.Y.C.)
175-25 Horace Harding Expwy.
Phone: (718) 225-2040
Fax: (718) 423-9619
NORTH CAROLINA
Charlotte 28270
9129 Monroe Road, Suite 115
Phone: (704) 841-1176
Fax: (704) 708-4625
OHIO
Columbus 43214
4560 Indianola Avenue
Phone: (614) 263-0929
Fax: (614) 263-1238
Cleveland 44125
8001 Sweet Valley Drive
Unit #19
Phone: (216) 447-9030
Fax: (216) 447-3097
OREGON
Portland 97230
4916 NE 122 nd Ave.
Phone: (503) 252-0107
Fax: (503) 252-2123
PENNSYLVANIA
Willow Grove 19090
520 North York Road
Phone: (215) 658-1430
Fax: (215) 658-1433
TEXAS
Carrollton 75006 (Dallas)
1300 Interstate 35 N, Suite 112
Phone: (972) 446-2996
Fax: (972) 446-8157
Houston 77055
West 10 Business Center
1008 Wirt Road, Suite 120
Phone: (713) 682-0334
Fax: (713) 682-4867
WASHINGTON
Auburn 98001(Seattle)
3320 West Valley HWY, North
Building D, Suite 111
Phone: (253) 333-8353
Fax: (253) 333-9613
Printed in U.S.A.
CANADIAN PORTER-CABLE • DELTA SERVICE CENTERS
ALBERTA
Bay 6, 2520-23rd St. N.E.
Calgary, Alberta
T2E 8L2
Phone: (403) 735-6166
Fax: (403) 735-6144
BRITISH COLUMBIA
8520 Baxter Place
Burnaby, B.C.
V5A 4T8
Phone: (604) 420-0102
Fax: (604) 420-3522
MANITOBA
1699 Dublin Avenue
Winnipeg, Manitoba
R3H 0H2
Phone: (204) 633-9259
Fax: (204) 632-1976
ONTARIO
505 Southgate Drive
Guelph, Ontario
N1H 6M7
Phone: (519) 836-2840
Fax: (519) 767-4131
QUÉBEC
1515 ave.
St-Jean Baptiste,
Québec, Québec
G2E 5E2
Phone: (418) 877-7112
Fax: (418) 877-7123
1447, Begin
St-Laurent, (Montréal),
Québec
H4R 1V8
Phone: (514) 336-8772
Fax: (514) 336-3505
Loading...
