De'Longhi GB-1181006IDL Owner's Manual
L Crumb tray
M Top heating element
N Interior light (if supplied)
O Turnspit mount (if supplied)
P Broil rack (if supplied)
Q Handgrip for spit (if supplied)
12
A
D
P
Q
H
C
B
E
G
NMO
I
L
F
guide 1
guide 2
guide 3
crumb tray
The crumb tray (L) should always
be inserted as shown for perfect
results.

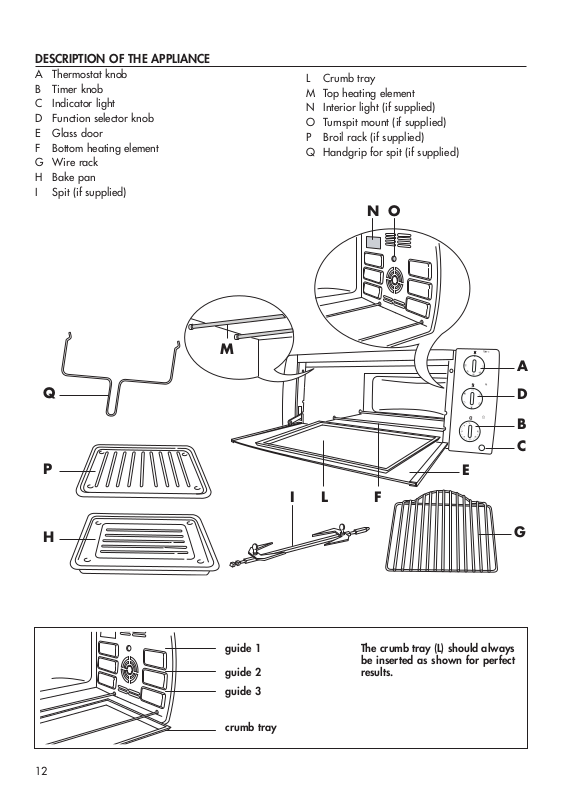

DESCRIPTION OF THE APPLIANCE
A Thermostat knob
B Timer knob
C Indicator light
D Function selector knob
E Glass door
F Bottom heating element
G Wire rack
H Bake pan
I Spit (if supplied)
13
SPECIFICATIONS
Operating voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .see rating label
Maximum power absorbed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .see rating label
POWER CONSUMPTION (CENELEC STANDARD HD 376)
To reach 200°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0,09 KWh
To maintain 200°C for one hour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0,58 KWh
Total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0,67 KWh
This appliance conforms to EC directive 2004/108/EC on Electromagnetic Compatibility and EC regulation
no. 1935/2004 of 27/10/2004 on materials intended for contact with food.
WARNINGS
• Read all the instructions carefully before using the appliance.
• This oven has been designed to cook food. It must never be used for other purposes, modified or tampered with in any way.
• Place the appliance on a horizontal surface at a height of at least 85 cm and out of reach of children.
• Wash all accessories thoroughly before use.
• Before plugging into the mains, make sure that:
- the mains voltage corresponds to the voltage indicated on the rating plate;
- the mains socket has a minimum rating of 16A and an earth wire.
The manufacturer declines all liability in the event that this important accident-prevention rule is not
respected.
• Before using the oven for the first time, remove any paper and other material inside the oven such as protective cardboard, booklets, plastic bags, etc.
• Before using for the first time, operate the oven empty with the thermostat at maximum for at least 15
minutes to eliminate the "new" smell and any smoke caused by the presence of protective substances
applied to the elements before transport.
During this operation, ventilate the room.
• IMPORTANT: when you have unpacked the appliance, make sure the door is undamaged and working
correctly. The door is made from glass and is therefore fragile. If it is visibly chipped, scored or scratched,
it should be replaced. While using, cleaning or moving the appliance, avoid slamming or knocking the
door violently. Do not pour cold liquid onto the glass while the appliance is hot.
• When in operation, the door and accessible external surfaces could become very hot. Always use the
knobs, handles and buttons. Never touch metal parts or the glass. Use oven gloves if necessary.
• This electrical appliance operates at high temperatures which could cause burns.
• Accessible parts may become hot during use. Young children should be kept away.
• The appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
• Do not move the appliance while in use.
• Do not use the appliance if…
- the power cable is faulty,
- the appliance has been dropped, is visibly damaged or malfunctions.
Should this occur, to avoid all risk take the appliance to your nearest authorised service centre.
• Do not let the power cable dangle and avoid touching hot parts of the oven. Never unplug the appliance
by pulling on the power cable.
• If you intend to use an extension, make sure it is in good condition, that the plug is earthed and that the
14
cross section of the wires is at least equal to that of the power cable provided with the appliance.
• To avoid all risk of electric shock, never immerse the power cable, plug or appliance itself in water.
• Never position the appliance near heat sources.
• Do not leave inflammable products near the oven or under the work surface where it is located.
• Bread may burn. Never leave the oven unattended during toasting or grilling. Never operate the appliance under a wall cupboard or shelf or near inflammable materials such as curtains, blinds, etc.
• Do not use the appliance as a heat source.
• Never place paper, cardboard or plastic inside the oven and never rest anything on top of the appliance
(utensils, wire racks, other objects).
• Never insert anything into the ventilation openings. Make sure they are unobstructed.
• If food or other parts of the oven catch fire, never try and put out the flames with water. Close the
door, unplug from the mains and smother the flames with a damp cloth.
• This oven is not designed for built-in installation.
• When the door is open, remember:
- never exert excessive pressure with overly heavy objects or pull the handle downwards;
- never rest heavy containers or boiling saucepans just out of the oven on the open door.
• Given the differences in legislation in force, if the appliance is used in a country other than that where it
was bought, have it checked by an authorised service centre.
• For your personal safety, never take the appliance to pieces on your own. Always contact an authorised
service centre.
• This appliance is designed for domestic use only. Professional or inappropriate use, or failure to observe
the instructions absolves the manufacturer from all responsibility and invalidates the guarantee.
• When not in use and before cleaning, always unplug the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of the glass.
• Appliance is not intended to be operated by means of an external timer or separate remote-control system.
• The appliance must be placed to work with the rear side approached to the wall.
Keep these instructions
A) If your appliance comes fitted with a plug, it will incorporate a 13
Amp fuse. If it does not fit your socket, the plug should be cut off
from the mains lead, and an appropriate plug fitted, as below.
WARNING: Very carefully dispose of the cut off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the
house as this could cause a shock hazard.
With alternative plugs not incorporating a fuse, the circuit must
be protected by a 15 Amp fuse.
If the plug is a moulded-on type, the fuse cover must be re-fitted
when changing the fuse using a 13 Amp Asta approved fuse to
BS 1362. In the event of losing the fuse cover, the plug must NOT
be used until a replacement fuse cover can be obtained from your
nearest electrical dealer. The colour of the correct replacement
fuse cover is that as marked on the base of the plug.
B) If your appliance is not fitted with a plug, please follow the
instructions provided below:
WARNING - THIS APPLIANCE MUST BE EARTHED
IMPORTANT
The wires in the mains lead are coloured in accordance with the following code:
Green and yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead may not correspond with
the coloured markings identifying the terminals in your plug, proceed
as follows:
The green and yellow wire must be connected to the terminal in the
plug marked with the letter E or the earth symbol or coloured
green or green and yellow.
The blue wire must be connected to the terminal marked with the letter N or coloured black.
The brown wire must be connected to the terminal marked with the letter L or coloured red.
ELECTRICAL CONNECTION (UK ONLY)
E
L
N
