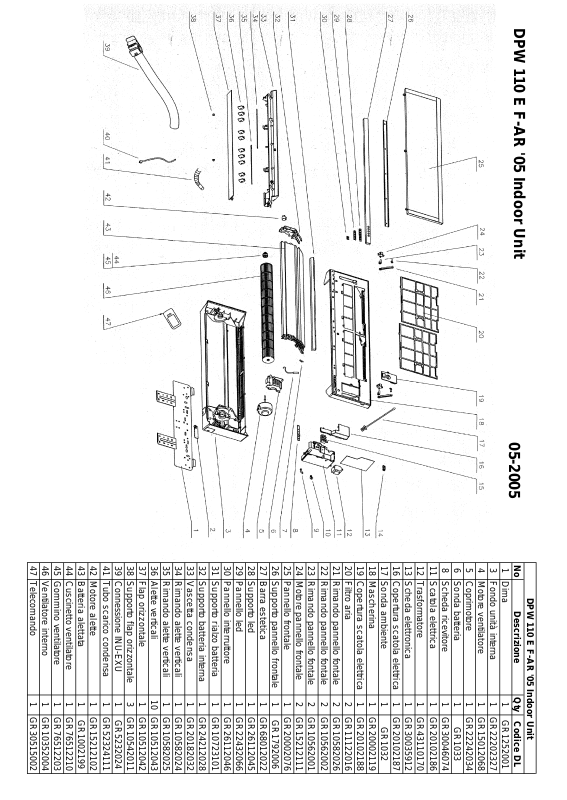

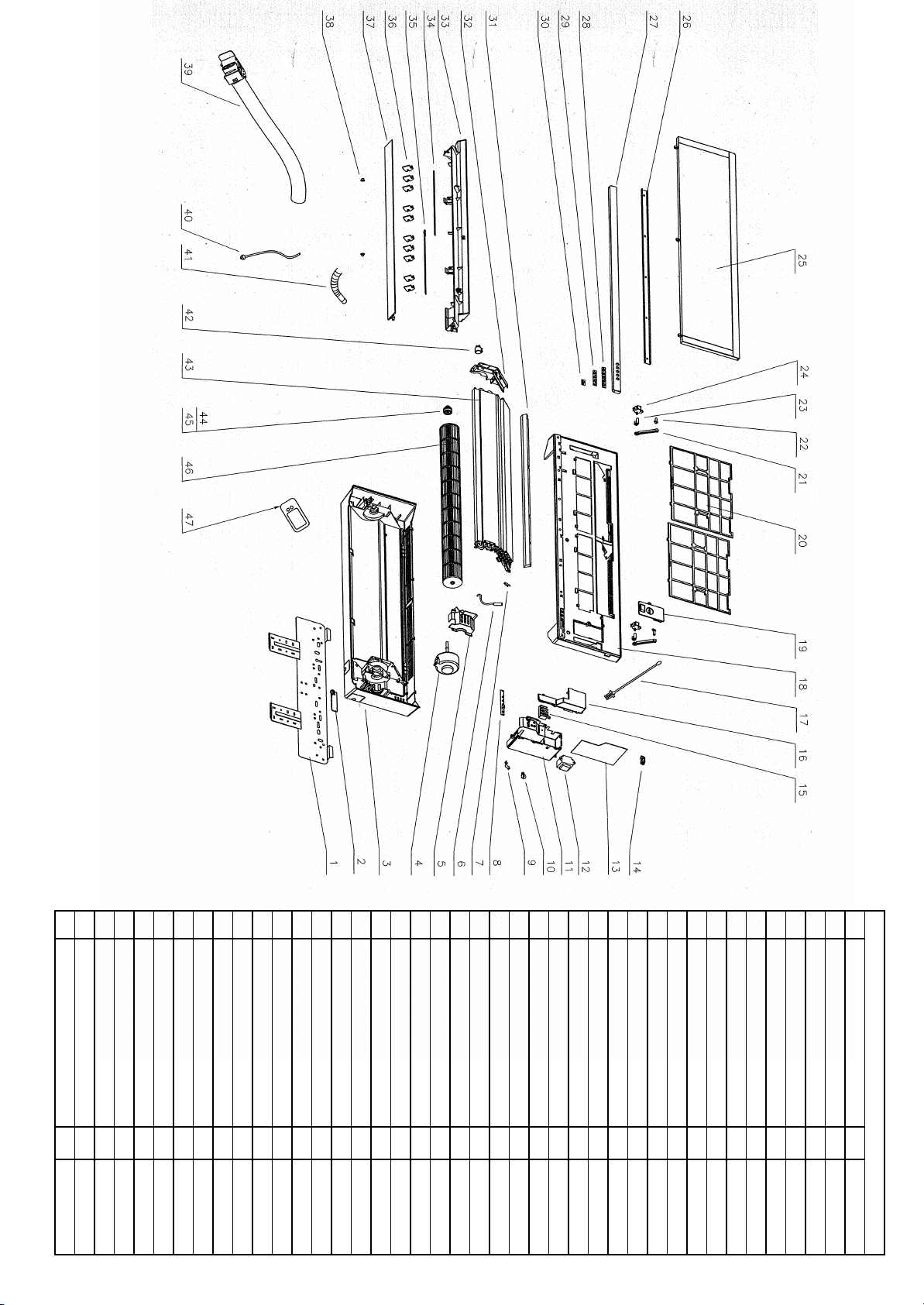

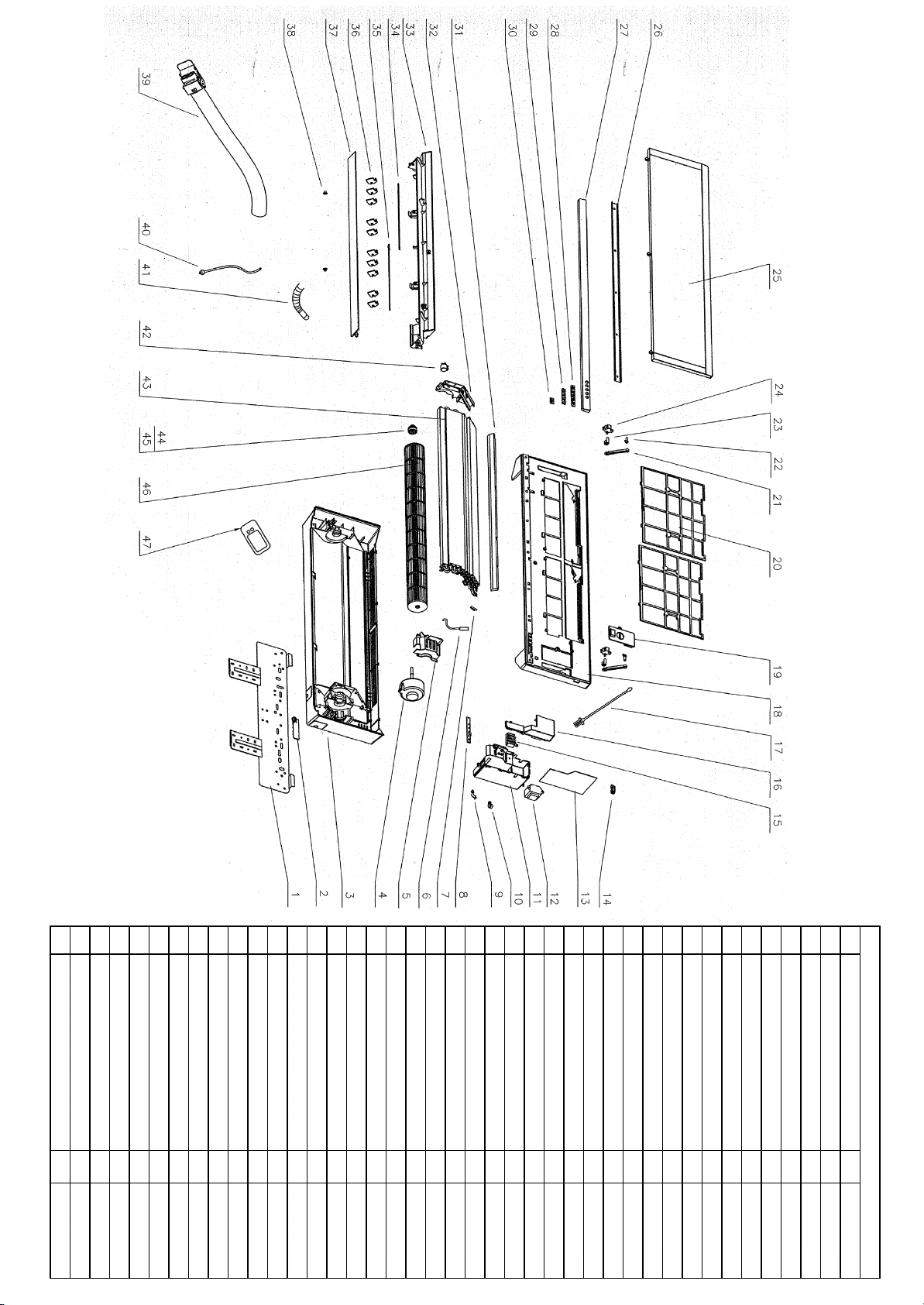

DPW 110 E F-AR '05 Indoor Unit |
|
|
DPW 110 E F-AR '05 Indoor Unit |
||
05-2005 |
No |
Descrizione |
Qty |
Codice DL |
|
|
|
||||
|
|
1 |
Dima |
1 |
GR1252001 |
|
|
3 |
Fondo unità interna |
1 |
GR22202327 |
|
|
4 |
Motore ventilatore |
1 |
GR15012068 |
|
|
5 |
Coprimotore |
1 |
GR22242034 |
|
|
6 |
Sonda batteria |
1 |
GR1033 |
|
|
8 |
Scheda ricevitore |
1 |
GR30046074 |
|
|
11 |
Scatola elettrica |
1 |
GR20102186 |
|
|
12 |
Trasformatore |
1 |
GR43110170 |
|
|
13 |
Scheda elettronica |
1 |
GR30035912 |
|
|
16 |
Copertura scatola elettrica |
1 |
GR20102187 |
|
|
17 |
Sonda ambiente |
1 |
GR1032 |
|
|
18 |
Mascherina |
1 |
GR20002119 |
|
|
19 |
Copertura scatola elettrica |
1 |
GR20102188 |
|
|
20 |
Filtro aria |
2 |
GR11122016 |
|
|
21 |
Rimando pannello fontale |
2 |
GR10582026 |
|
|
22 |
Rimando pannello fontale |
2 |
GR10562002 |
|
|
23 |
Rimando pannello fontale |
2 |
GR10562001 |
|
|
24 |
Motore pannello frontale |
2 |
GR15212111 |
|
|
25 |
Pannello frontale |
1 |
GR20002076 |
|
|
26 |
Supporto pannello frontale |
1 |
GR1792006 |
|
|
27 |
Barra estetica |
1 |
GR68012022 |
|
|
28 |
Supporto led |
1 |
GR26112045 |
|
|
29 |
Pannello led |
1 |
GR22432066 |
|
|
30 |
Pannello interruttore |
1 |
GR26112046 |
|
|
31 |
Supporto rialzo batteria |
1 |
GR10723101 |
|
|
32 |
Supporto batteria interna |
1 |
GR24212028 |
|
|
33 |
Vascetta condensa |
1 |
GR20182032 |
|
|
34 |
Rimando alette verticali |
1 |
GR10582024 |
|
|
35 |
Rimando alette verticali |
1 |
GR10582025 |
|
|
36 |
Alette verticali |
10 |
GR10512043 |
|
|
37 |
Flap orizzontale |
1 |
GR10512042 |
|
|
38 |
Supporto flap orizzontale |
3 |
GR10542011 |
|
|
39 |
Connessione INU-EXU |
1 |
GR5232024 |
|
|
41 |
Tubo scarico condensa |
1 |
GR52324111 |
|
|
42 |
Motore alette |
1 |
GR15212102 |
|
|
43 |
Batteria alettata |
1 |
GR1002199 |
|
|
44 |
Cuscinetto ventilatore |
1 |
GR76512210 |
|
|
45 |
Gommino ventilatore |
1 |
GR76512203 |
|
|
46 |
Ventilatore interno |
1 |
GR10352004 |
|
|
47 |
Telecomando |
1 |
GR30515002 |

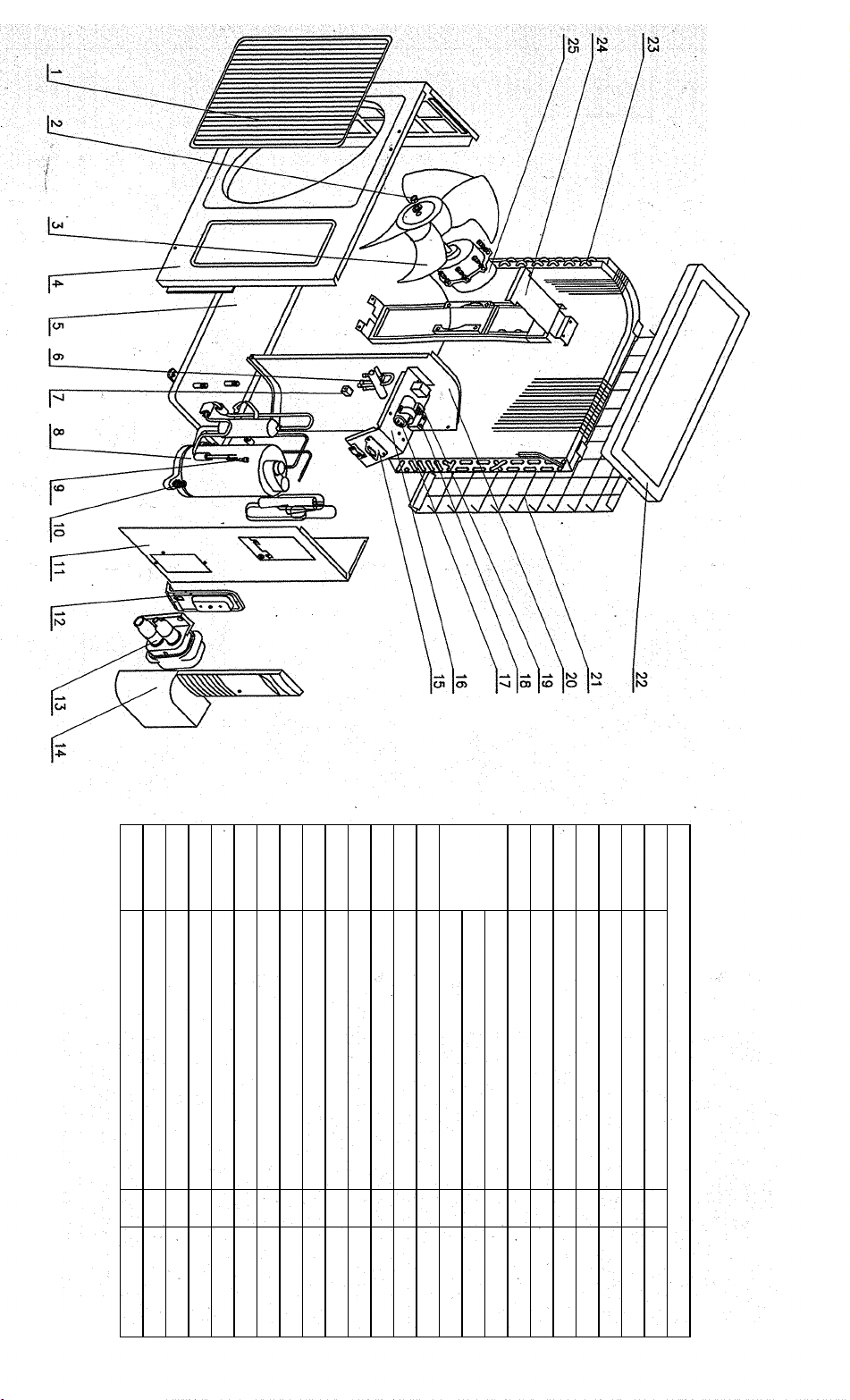

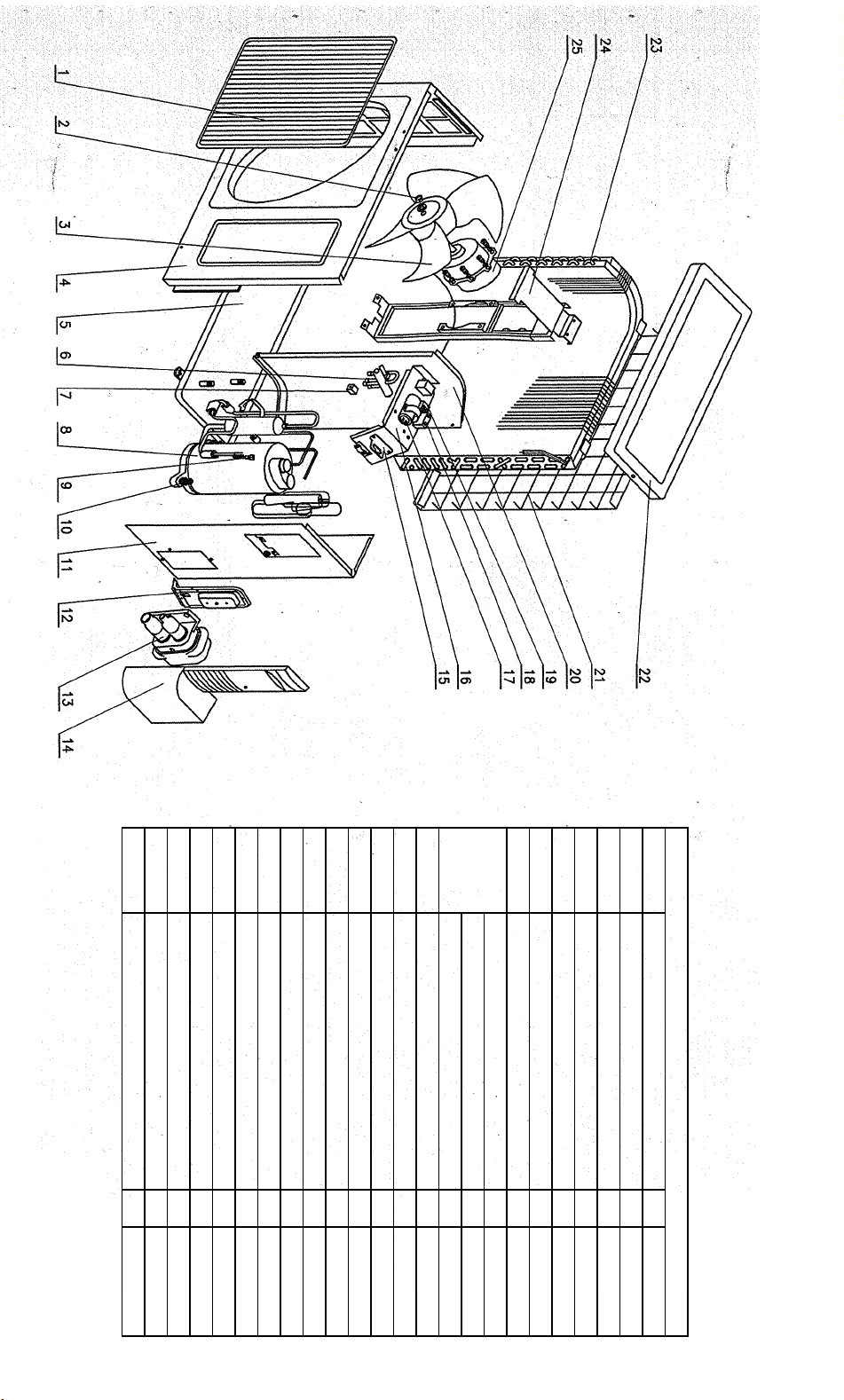

DPW 110 E F-AR '05 Outdoor Unit |
05-2005 |
DPW 110 E F-AR '05 Outdoor Unit
No |
Descrizione |
Qty |
Codice DL |
1 |
Griglia frontale |
1 |
GR22413431 |
3 |
Ventilatore esterno |
1 |
GR10333414 |
4 |
Frontale |
1 |
GR01533433 |
5 |
Basamento |
1 |
GR12032291 |
6 |
Valvola 4-vie |
1 |
GR1028 |
7 |
Bobina valvola 4-vie |
1 |
GR43000400 |
|
Compressore |
1 |
GR1020 |
8 |
Protezione compressore |
1 |
GR00180044 |
|
Isolanti Compressore |
1 |
GR76710253 |
9 |
Attacco carica freon |
1 |
GR6120010 |
11 |
Pannello destro |
1 |
GR1303086 |
12 |
Supporto rubinetti |
1 |
GR01703081 |
13 |
Connettore rapido |
1 |
GR6393002 |
14 |
Maniglia |
1 |
GR26233433 |
15 |
Supporto connettore |
1 |
GR1703080 |
17 |
Condensatore compressore 25 uF |
1 |
GR33000017 |
18 |
Condensatore ventilatore 2.5 uF |
1 |
GR33010026 |
20 |
Setto separazione compressore |
1 |
GR01233417 |
21 |
Grilglia posteriore |
1 |
GR11123203 |
22 |
Copertura superiore |
1 |
GR01253261 |
23 |
Batteria alettata |
1 |
GR1103520 |
24 |
Supporto motore |
1 |
GR17030511 |
25 |
Motore ventilatore |
1 |
GR1034 |
