DeLonghi CR 64086 SS, CR 61395-1, CR 61103-1 Service Manual

SPARE PARTS CATALOGUE

Cat. 18.C536.1

60x60

COOKERS

CR 64086 SS

(C610DX303X)

CR 61395-1

(C610DX039W)

CR 61103-1

(C610DX040W)

2

7/1.C

7/1.A

1.17

1.2

1.3

1.17

1.9

1.5

1.1

1.6

1.8

1.7

1.9

1.4

1.6

1.15

1.21

1.20

1.16

1.12

1.13

1.11

1.16

1.13

1.10

1.15

GLASS LID

Mod.: CR 64086 SS

Ref. Table: 7/1.C

REF. CODE DESCRIPTION

1.1 03261923 Glass lid

1.2 063047 Right spring

1.3 063048 Left spring

1.4 069042 Right hinge bracket

1.5 069041 Left hinge bracket

1.6 040023001 Buffer (Brown)

1.7 069044 Right trim corner

1.8 069043 Left trim corner

1.9 083206 Right/Left trim

1.17 001111 Screw inox

3

ENAMEL LID

Mod.: CR 61103-1

Ref. Table: 7/1.A

REF. CODE DESCRIPTION

1.10 3216121 Lid

1.11 063067 Right spring

1.12 063068 Left spring

1.13 001110 Screw

1.15 040032003 Buffer

1.16 103159 Hinge plate

1.20 103157 Lid hinge guide

1.21 001111 Screw

4

7/2.CA

2.15

2.15

2.16

2.9

2.7

2.7

2.10

2.2

2.6

2.12

2.5

2.8

2.1

2.8

2.4

2.3

2.4

2.3

5

“4 GAS” COOKTOP

Mod.: CR 64086 SS

Ref. Table: 7/2. CA

REF. CODE DESCRIPTION

2.1 3426140C01 Manifold

2.2 33161401X Cooktop

2.3 001007 Screw

2.4 003024 Washer nylon

2.5 51B6501 Burners support

2.6 027015 Inlet pipe plug

2.7 071042003 Plastic peg - (White)

2.8 094135 Fixing plate

2.9 094129 Right hinge bracket

2.10 094130 Left hinge bracket

2.12 053024 Gasket

2.15 217391 Pan-support

6

7/2.E

7/2.N

2.8

2.2

2.4

2.9

2.10

2.2

2.4

2.6

2.6

2.14

2.1

2.13

2.12

2.11

2.10

2.7

2.9

2.3

2.13

2.3

2.13

2.7

2.2

7

VITROCERAMIC HOB

Mod.: CR 61395-1

Ref. Table: 7/2. N

REF. CODE DESCRIPTION

2.1 355VC6105 Glass with frame

2.2 04731230 Quick-light star hotplate Ø 210 - 2100W - 230V

2.3 04716230 Quick-light star hotplate Ø 180 - 1700W - 230V

2.4 04714230 Quick-light star hotplate Ø 145 - 1200W - 230V

2.5 073045 Control lamp

2.6 51B6102 Hotplates support

2.8 035075 Spring

2.9 085043 Spacer

2.10 001111 Screw

2.11 2180003109 Knob (White)

2.12 035036 Knob spring

2.13 218A923110 Switch knob ring (White)

2.14 050021/E Switch

2.19 51B6104 Control lamp bracket

“4 ELECTRIC” COOKTOP

Mod.: CR 61103-1

Ref. Table: 7/2. E

REF.

CODE DESCRIPTION

2.2 331610421 Cooktop

2.3 001007 Screw

2.7 071042003 Plastic peg

2.9 094129/1 Right hinge bracket

2.10 094130 Left hinge bracket

2.13 040031003 Rear spacing

8

7/4.EA

7/3.CG

4.2

4.1

4.7

4.8

4.34

4.5

4.9

4.13

4.12

4.11

4.14

4.15

4.4

4.21

4.22

4.23

4.20

4.24

4.2

4.6

4.48

4.17

4.3

4.16

3.9

3.1

3.11

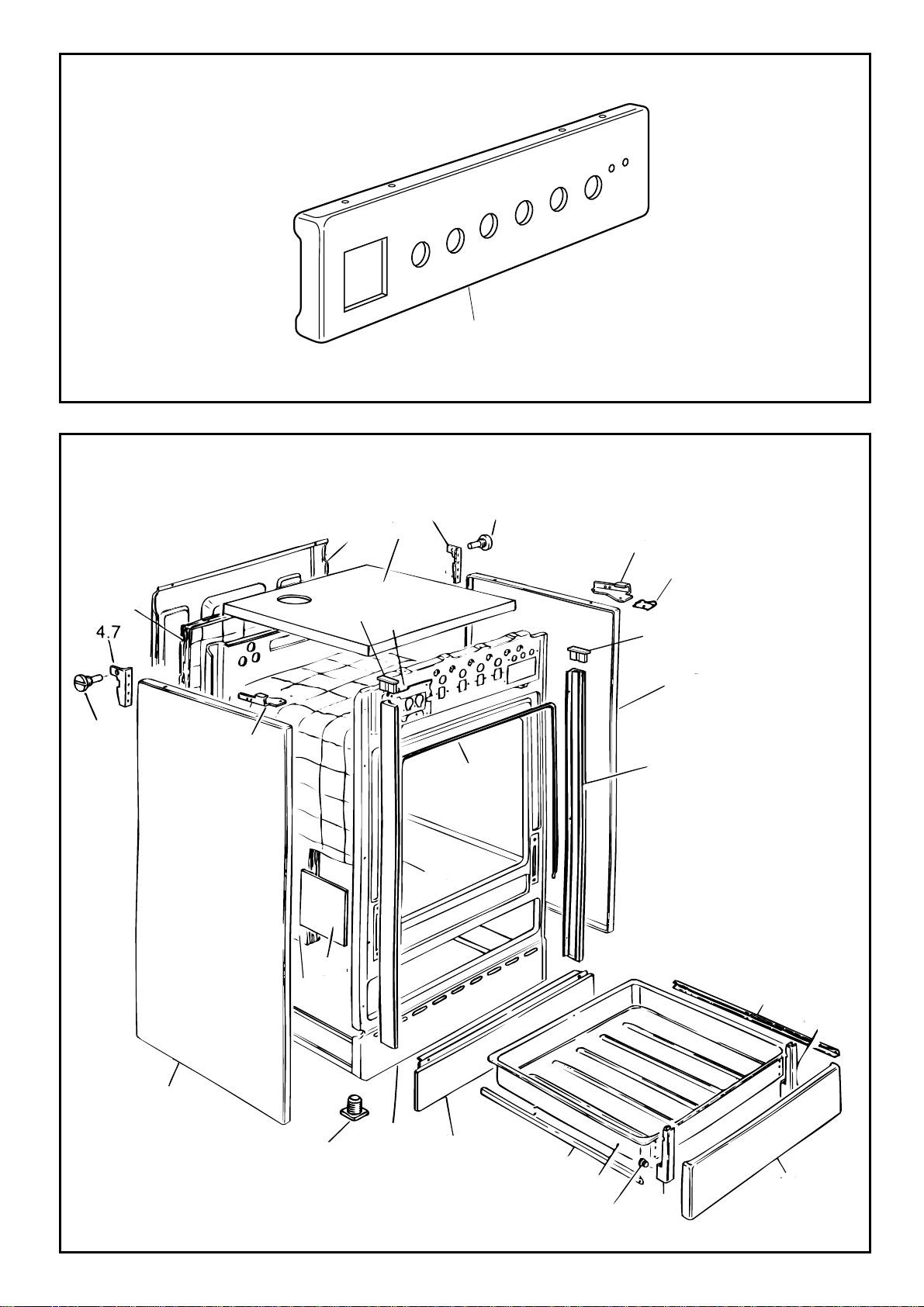

CONTROL PANEL

Mod.: CR 64086 SS
Ref. Table: 7/3.CG

REF. CODE DESCRIPTION

3.1 35C6551XDL Control panel

3.9 095023 Control panel trim

3.11 103163021 Push-button frame

BODY

Mod.: CR 64086 SS

Ref. Table: 7/4.EA

REF. CODE DESCRIPTION

4.1 450611GG12 Oven body

4.2 36C6100X Side panel

4.3 46A6501Z Funnel

4.4 030056 Oven insulation

4.5 030038 Rear insulation

4.6 094174 Rear right coupler

4.7 094175 Rear left coupler

4.8 4119101 Rear panel

4.9 4216101Z Upper shelter

4.11 083201 Right front trim

4.12 083200 Left front trim

4.13 053039 Seal

4.14 094131 Front right coupler

4.15 094132 Front left coupler

4.16 103181 Foot

4.17 103160001 Base panel

4.20 040012 Buffer

4.21 094075 Drawer rail

4.22 094138 Drawer fixing bracket

4.23 39E6601X Drawer front panel

4.24 39K6101Y Drawer

4.34 4219604Z Rear insulation support

4.48 51B6106 Rotisserie motor support

9

10

7/4.BP

7/3.A

3.1

4.16

4.2

4.1

4.7

4.8

4.30

4.5

4.9

4.13

4.12

4.11

4.14

4.15

4.4

4.32

4.21

4.22

4.23

4.20

4.24

4.2

4.6

4.17

4.27

4.34

4.31

4.10

4.21

11

CONTROL PANELS

Mod.: CR 61103-1

Ref. Table: 7/3.A

REF. CODE DESCRIPTION

3.1 35C65751DX Control panel

BODY

Mod.: CR 61103-1

Ref. Table: 7/4.BP

REF. CODE DESCRIPTION

4.1 450611ES11 Oven body

4.2 36C61003 Side panel

4.4 030056 Oven insulation

4.5 030038 Rear insulation

4.6 094174 Rear right coupler

4.7 094175 Rear left coupler

4.8 411N602 Rear panel

4.9 4216101Z Upper shelter

4.10 58BN601 Hinge protection

4.11 083221 Right front trim

4.12 083220 Left front trim

4.13 053039 Seal

4.14 094131 Front right coupler

4.15 094132 Front left coupler

4.16 103181 Foot

4.17 103160038 Base panel

4.20 040012 Buffer

4.21 094075 Drawer rail

4.22 094138 Drawer fixing bracket

4.23 39E66013 Drawer front panel

4.24 39K6101Y Drawer

4.27 094136 Bracket

4.30 094165 Protection

4.31 081060/CR Right front trim plug

4.32 081061/CR Left front trim plug

4.34 094223 Bracket protection wires

12

7/4.BD

7/3.AB

3.2

4.16

4.2

4.1

4.8

4.5

4.9

4.13

4.12

4.11

4.15

4.4

4.32

4.21

4.22

4.23

4.20

4.24

4.2

4.17

4.27

4.31

4.10

4.21

4.29

4.14

4.29

4.6

4.33

13

CONTROL PANELS

Mod.: CR 61395-1

Ref. Table: 7/3.AB

REF. CODE DESCRIPTION

3.2 35C65321DX Control panel

BODY

Mod.: CR 61395-1

Ref. Table: 7/4.BD

REF. CODE DESCRIPTION

4.1 450611EM11 Oven body

4.2 36C61003 Side panel

4.4 030056 Oven insulation

4.5 030040 Rear insulation

4.6 094236 Rear right coupler

4.7 094237 Rear left coupler

4.8 411N603 Rear panel

4.9 4216101Z Upper shelter

4.10 58BN601 Hinge protection

4.11 083197063 Right front trim

4.12 083196063 Left front trim

4.13 053039 Seal

4.14 094234 Front right coupler

4.15 094235 Front left coupler

4.16 103181 Foot

4.17 103160038 Base panel

4.20 040012 Buffer

4.21 094075 Drawer rail

4.22 094138 Drawer fixing bracket

4.23 39E66013 Drawer front panel

4.24 39K6101Y Drawer

4.27 094136 Bracket

4.29 071026 Hinge pin

4.31 081054/CR Right front trim plug

4.32 081055/CR Left front trim plug

4.33 213007 Clips

14

7/6.FM

6.6

6.5

6.10

6.9

6.8

6.13

6.12

6.7

6.11

6.34

6.35

6.12

6.4

6.37

6.29

6.30

6.31

6.10

6.12

6.27

6.26

6.28

6.32

6.20

6.21

6.19

6.23

6.2

6.36

6.14

6.38

6.18

6.1

6.2

6.3

GAS SECTION

Mod.: CR 64086 SS

Ref. Table: 7/6.FM

REF. CODE DESCRIPTION

6.1 218Q004109 Burner knob

6.2 035036 Knob spring

6.3 218Q644110 Burner knob ring

6.4 106080 Tap - Ø 0.29
= 106114 Tap - Ø 0.27

6.5 001053 Tap fixing screw

6.6 51B6502.1 Tap bracket

6.7 215172 A burner
= 215173 SR burner

6.8 068072001 SR burner head
= 068073001 A burner head

6.9 216074116 A burner-ring
= 216075134 SR burner-ring

6.10 216070080 A burner-cap (Black)
= 216071080 SR burner-cap (Black)

6.11 024019 A-SR air regulation tube

6.12 101071 Injector - Ø 0.72
= 101119 Injector - Ø 0.60
= 101122 Injector - Ø 1.25
= 101007 Injector - Ø 1.00
= 101022 Injector - Ø 0.85
= 101111 Injector - Ø 0.67
= 101137 Injector - Ø 0.50
= 101139 Injector - Ø 0.40

6.13 001017 Screw

6.14 053024 Elbow gasket

6.15 067019 Elbow - 1/2” M/F

6.16 342650010 Inlet pipe extension

6.17 067008 Elbow - 1/2” M/M

6.18 027013 Natural gas

6.19 029325 A inlet pipe

6.20 029326 SR inlet pipe left

6.21 029327 SR inlet pipe right

6.23 218Q004108 TR burner knob

6.26 029329 TR inside inlet pipe

6.27 029330 TR outside inlet pipe

6.28 103066 Double cone ring

6.29 068075001 TR (triple ring) burner head

6.30 216100140 TR outside burner -ring

6.31 216074130 TR inside burner -ring

6.32 214009 Nut

6.34 215390 TR burner

6.35 103144 TR burner collector

6.36 218Q574110 TR burner knob ring

6.37 106099 TR - Tap - Ø 0.65

6.38 027014 LPG connection

15

16

7/5.AH

7/7.BA

5.1

5.3

5.4

5.2

5.8

5.9

5.10

5.11

5.12

5.16

5.17

5.15

5.14

5.6

5.21

5.22

5.13

5.7

7.3

7.16

7.13

7.5

7.6

7.18

7.1

7.15

7.14

7.2

7.11

7.10

7.12

17

OVEN DOOR

Mod.: Al models

Ref. Table: 7/5.AH

REF. CODE DESCRIPTION

5.1 0311242 Door glass - Mod. CR 64086 SS
= 0311241 Door glass - Mod. CR 61103-1, CR 61395-1

5.2 083110060 Lower door trim - Mod. CR 64086 SS
= 083110035 Lower door trim - Mod. CR 61103-1, CR 61395-1

5.3 037132035 Door handle (White)
= 037132021 Door handle (Brown)

5.4 040024 Glass spacer

5.6 001105 Screw M5 x 10

5.7 030057 Door insulation

5.8 063053 Door hinge (male)

5.9 063025 Door hinge (female)

5.10 373FF705K Door panel

5.11 053048 Gasket

5.12 0311000 Inner glass

5.13 411F729 Trim

5.14 214021 Nut

5.15 001024 Screw

5.16 003035 Washer

5.17 103205 Washer

5.21 003030 Washer

5.22 003041 Washer

GAS OVEN EQUIPMENT

Mod.: CR 64086 SS

Ref. Table: 7/7.BA

REF.

CODE DESCRIPTION

7.1 217291 Shelf support

7.2 103082 Grill deflector

7.3 48B6101K Oven tray

7.5 47EN601K Oven floor

7.6 103057 Lighting tube

7.10 080016+037012 Rotisserie spear

7.11 079014 Rotisserie motor

7.12 217302 Rotisserie support

7.13 217221 Oven shelf

7.14 473020 Rear catalytic panel

7.15 473000 Lateral catalytic panel

7.16 48E6101 Pastry plate

7.18 003043 Retaining ring

18

7/7.DA

7/7.GE

7.1

7.3

7.16

7.13

7.2

7.11

7.10

7.12

7.13

7.3

7.16

7.1

7.15

7.2

19

CONVECTION OVEN EQUIPMENT

Mod.: CR 61103-1

Ref. Table: 7/7.DA

REF. CODE DESCRIPTION

7.1 217291 Shelf support

7.2 103082 Grill deflector

7.3 48B6101K Oven tray

7.10 080016+037012 Rotisserie spear

7.11 079014 Rotisserie motor

7.12 217219 Rotisserie support

7.13 217221 Oven shelf

7.16 48E6101 Pastry plate

MULTIFUNCTION OVEN EQUIPMENT

Mod.: CR 61395-1

Ref. Table: 7/7.GE

REF. CODE DESCRIPTION

7.1 217291 Shelf support

7.2 103082 Grill deflector

7.3 48B6101K Oven tray

7.13 217221 Oven shelf

7.15 473000 Lateral catalytic panel

7.16 48EF702 Pastry plate

20

7/8.M

8.7

8.20

8.36

8.41

8.31

8.42

8.43

8.37

8.25

8.21

8.8

8.45

8.10

8.28

8.11

8.40

8.9

8.36

8.38

8.25

8.32

8.1

8.2

8.3

8.13

8.22

21

GAS OVEN

Mod.: CR 64086 SS

Ref. Table: 7/8.M

REF. CODE DESCRIPTION

8.1 218Q004108 Oven knob

8.2 035036 Knob spring

8.3 218Q674110 Oven knob ring

8.7 215431 Oven burner

8.8 101112 Grill burner injector - Ø 0.80 - G30
= 101081 Grill burner injector - Ø 1.20 - G20

8.9 101080 Oven burner injector - Ø 0.92 - G30
= 101091 Oven burner injector - Ø 1.40 - G20

8.10 215459 Grill burner

8.11 029476 Oven inlet pipe

8.13 001054 Screw

8.20 4219106Z Bottom element support

8.21 066105 Thermostat

8.22 053045 Gasket

8.25 067025 Elbow

8.28 029447 Grill inlet pipe

8.31 103261 Cable A.T 91/oven L=900

8.32 103290 Cable A.T 91/grill L=1300

8.36 R00550280 Nut

8.37 107015 Oven thermocouple L=1250 mm

8.38 107013 Grill thermocouple L=1000 mm

8.40 213015 Clip

8.41 003040 Retaining ring

8.42 035078 Spring

8.43 084020 Oven burner igniter

8.45 084021 Grill burner igniter

22

7/8.H

7/9.S

7/9.A

8.1

8.1

8.17

8.23

8.26

8.18

8.24

8.25

8.16

8.15

8.27

8.2

8.3

8.2

8.19

8.20

3

6

0

1

2

3

4

5

8

9

10

1

1

6

7

9.1

9.2

9.1

9.4

9.2

9.3

23

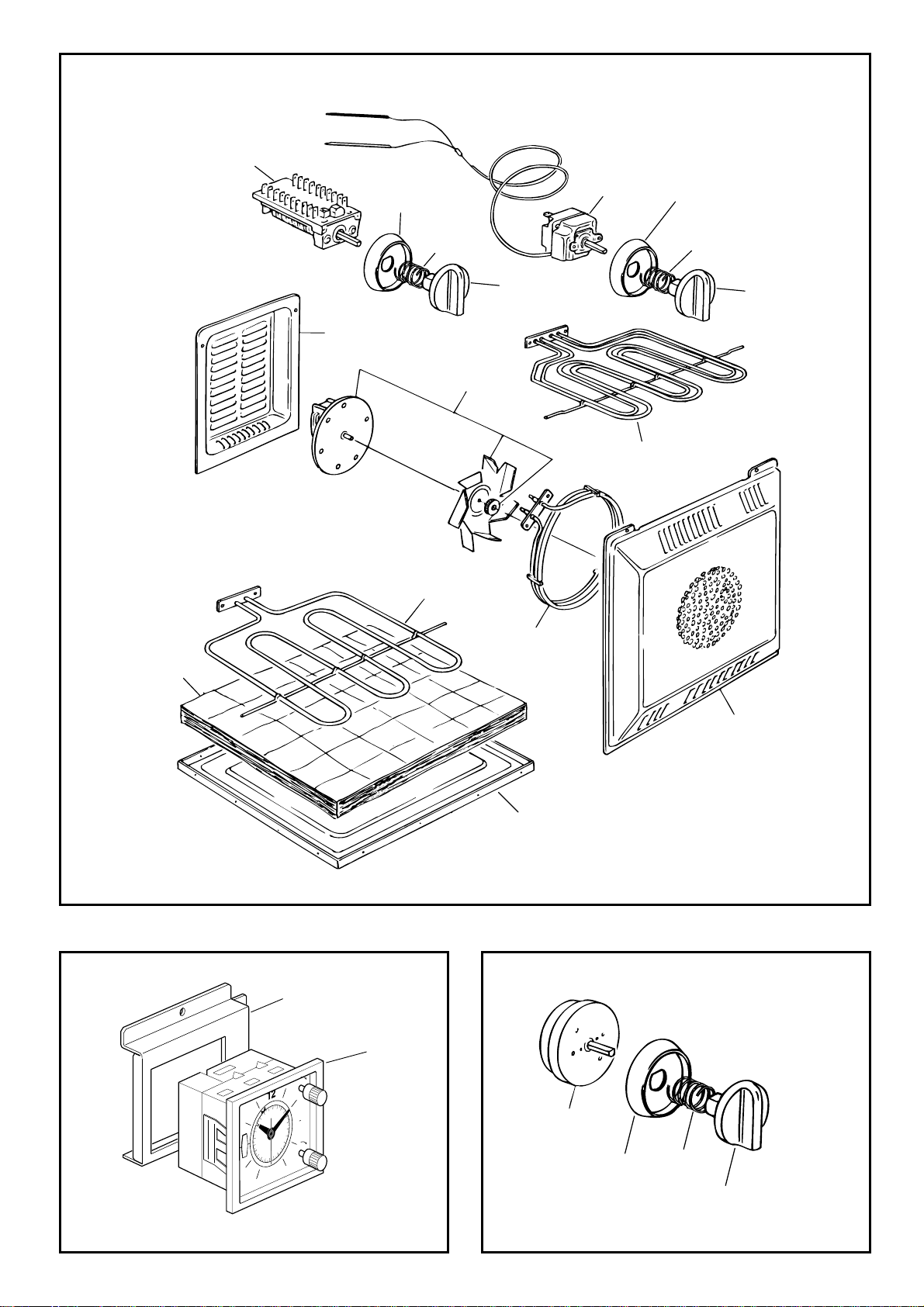

MULTIFUNCTION 7- FUNCTION OVEN ELEMENTS

Mod.: CR 61395-1

Ref. Table: 7/8.H

REF. CODE DESCRIPTION

8.1 218A003109 Oven knob

8.2 035036 Knob spring

8.3 218A413110 Switch knob ring

8.15 050028 Oven switch

8.16 066053 Oven thermostat

8.17 062065004 Top + grill element - 230V

8.18 062066004 Bottom element - 230V

8.19 030042 Bottom element insulation

8.20 4216102Z Bottom element support

8.23 47AN6010 Fan diffuser catalytic

8.24 079008001F Complete oven fan - 220/240

8.25 411N604 Fan shelter

8.26 062057004 Fan element - 230V

8.27 218A403110 Thermostat knob ring

ELECTRIC PROGRAMMER - Mod.: CR 61103-1, CR 61395-1
Ref. Table: 7/9.S

REF. CODE DESCRIPTION

9.1 074037 Electric programmer

9.2 094201 Programmer housing

60’ ALARM - Mod.: CR 64086 SS
Ref. Table: 7/9. A

REF. CODE DESCRIPTION

9.1 218Q004109 Alarm knob

9.2 035036 Alarm knob spring

9.3 218Q734110 Alarm knob ring

9.4 074009 60’ alarm

24

7/8.D

7/10.D

8.1

8.18

8.17

8.16

8.15

8.2

8.19

8.20

8.3

8.5

10.5

10.7

10.8

10.9

10.7

10.8

10.9

10.10

10.6

10.4

10.4

10.6

10.2

10.2

10.1

10.3

10.3

10.1

25

CONVECTION OVEN

Mod.: CR 61103-1
Ref. Table: 7/8.D

REF. CODE DESCRIPTION

8.1 218A003109 Oven knob

8.2 035036 Knob spring

8.3 218A113110 Switch knob ring

8.15 050018 Oven switch

8.16 066049 Oven thermostat

8.17 062065004 Top + grill element - 230V

8.18 062066004 Bottom element - 230V

8.19 030042 Bottom element insulation

8.20 4216102Z Bottom element support

ELECTRIC PLATES

Mod.: CR 61103-1

Ref. Table: 7/10.D

REF. CODE DESCRIPTION

10.1 218A003109 Electric plate knob

10.2 035036 Electric plate knob spring

10.3 218A923110 Electric plate knob ring

10.4 050021/E Normal electric plate switch

10.5 04706230 Normal electric plate - Ø 145 - 1000 W - 230 V

10.6 094042 Electric plate fixing bracket - Ø 145
= 094043 Electric plate fixing bracket - Ø 180

10.7 035012 Spring

10.8 003020 Washer - Ø 6

10.9 214027 Nut - M6

10.10 04705230 Rapid electric plate - Ø 145 - 1500 W - 230 V
= 04701230 Rapid electric plate - Ø 180 - 2000 W - 230 V

26

7/11.DA

11.16

11.11

11.2

11.1

11.13

11.12

11.14

11.15

11.5

11.3

11.24

11.25

11.34

11.33

11.21

11.17

11.23

11.22

11.20

11.19

11.10 11.9

11.7

11.8

27

ELECTRICAL EQUIPMENT - Mod.: Al models
Ref. Table: 7/11.DA

REF. CODE DESCRIPTION

11.1 072003 Lamp holder

11.2 073013001 Lamp

11.5 082030 4 burners ignition coil - Mod. CR 64086 SS

11.7 035011 Igniter spring - Mod. CR 64086 SS

11.8 084015 Igniter - L = 260 mm - Mod. CR 64086 SS

11.9 073016024 Control lamp cover - Mod. CR 61103-1

11.10 073017100 Control lamp - Mod. CR 61103-1

11.11 103230.1 Terminal block protection

11.12 051039 Terminal block

11.13 041210 Earth plate

11.14 052002 Wire fastener

11.15 054053 Cord - 3x0,75 - Mod. CR 64086 SS

11.16 113852 Wiring - Mod. CR 64086 SS
= 113683 Wiring - Mod. CR 61103-1
= 113606 Wiring - Mod. CR 61395-1

11.17 094140 Twin push-button support

11.19 081042005 Yellow button - Mod. CR 64086 SS

11.20 081042035 White button - Mod. CR 64086 SS

11.21 081042038 Grey button - Mod. CR 64086 SS

11.22 077030 Microswitch

11.23 077029 Switch

11.24 113213 4 wires for electric plates

11.25 051025 Terminal block - Mod. CR 61103-1, CR 61395-1

11.31 052008 Wire fastener - Mod. CR 61103-1, CR 61395-1

11.33 073041 Control lamp cover red
= 073042 Control lamp cover orange

11.34 073039 Control lamp L 230
= 073040 Control lamp L 750
