Dell VK8D8 User Manual
Dell OptiPlex 3060 Small Form Factor
Setup and specications guide
Regulatory Model: D11S
Regulatory Type: D11S004
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
© 2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks
may be trademarks of their respective owners.
2018 - 05
Rev. A00
Contents
1 Set up your computer.....................................................................................................................................5
2 Chassis.......................................................................................................................................................... 9
Front view...........................................................................................................................................................................9
Back view.......................................................................................................................................................................... 10
3 System specications................................................................................................................................... 11
Processor............................................................................................................................................................................11
Memory..............................................................................................................................................................................12
Storage...............................................................................................................................................................................12
Chipset...............................................................................................................................................................................13
Storage combinations.......................................................................................................................................................13
Audio...................................................................................................................................................................................13
Video.................................................................................................................................................................................. 14
Communications............................................................................................................................................................... 14
Ports and connectors.......................................................................................................................................................15
System board connectors................................................................................................................................................15
Power supply.....................................................................................................................................................................15
Physical system dimensions............................................................................................................................................ 16
Security..............................................................................................................................................................................16
Environmental................................................................................................................................................................... 16
4 System setup............................................................................................................................................... 18
BIOS overview.................................................................................................................................................................. 18
General options.................................................................................................................................................................19
System information.......................................................................................................................................................... 19
Video screen options........................................................................................................................................................21
Security..............................................................................................................................................................................21
Secure boot options.........................................................................................................................................................22
Intel Software Guard Extensions options......................................................................................................................23
Performance.....................................................................................................................................................................23
Power management.........................................................................................................................................................24
Post behavior....................................................................................................................................................................25
Virtualization support...................................................................................................................................................... 26
Wireless options............................................................................................................................................................... 26
Maintenance.....................................................................................................................................................................26
System logs.......................................................................................................................................................................27
Advanced conguration...................................................................................................................................................27
SupportAssist System Resolution..................................................................................................................................27
5 Software......................................................................................................................................................28
Supported operating systems.........................................................................................................................................28
Downloading drivers........................................................................................................................................................ 28
Contents
3

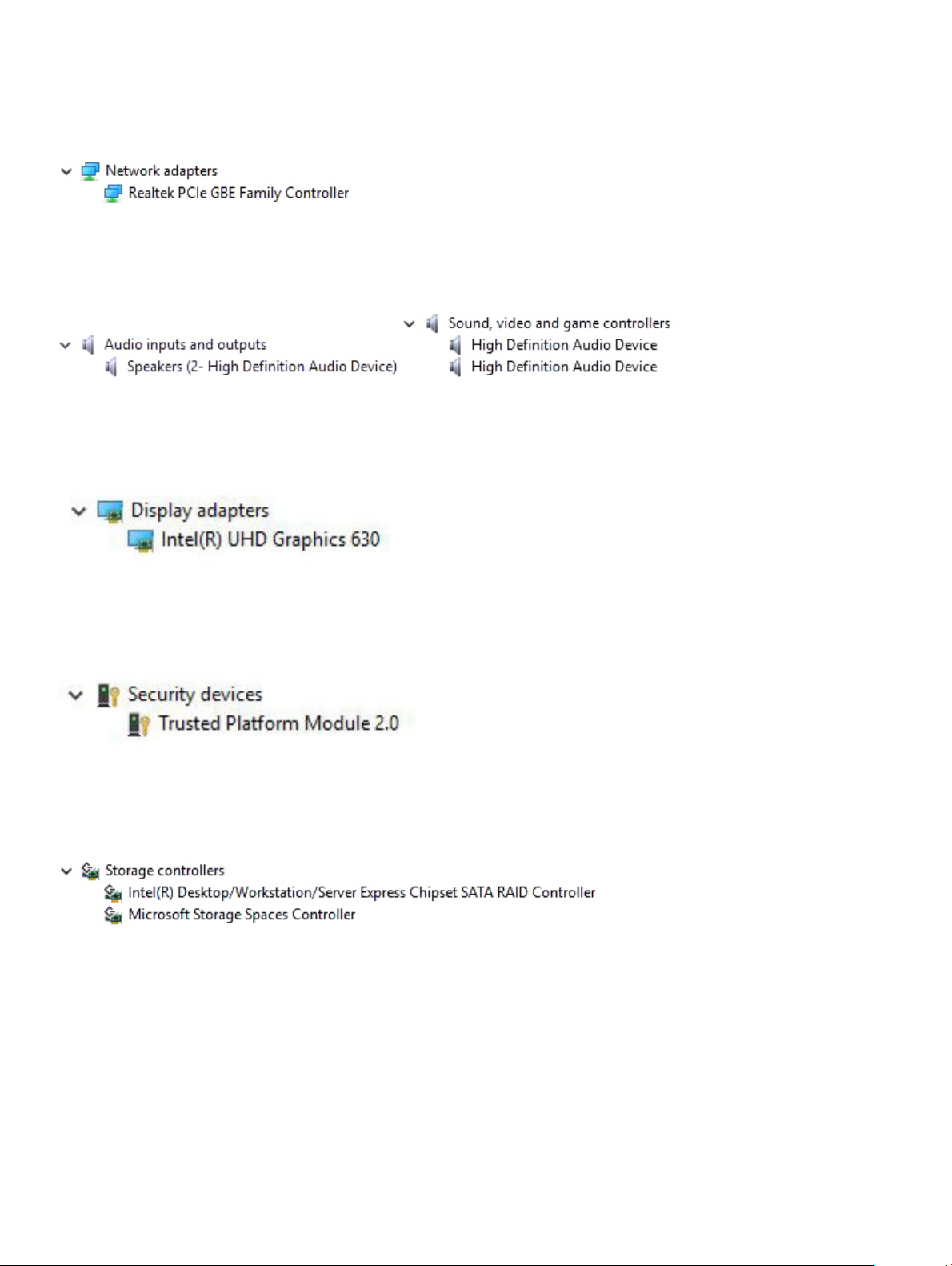

Network adapter drivers................................................................................................................................................. 29
Audio drivers.....................................................................................................................................................................29
Display adapter.................................................................................................................................................................29
Security drivers................................................................................................................................................................ 29
Storage controller............................................................................................................................................................ 29

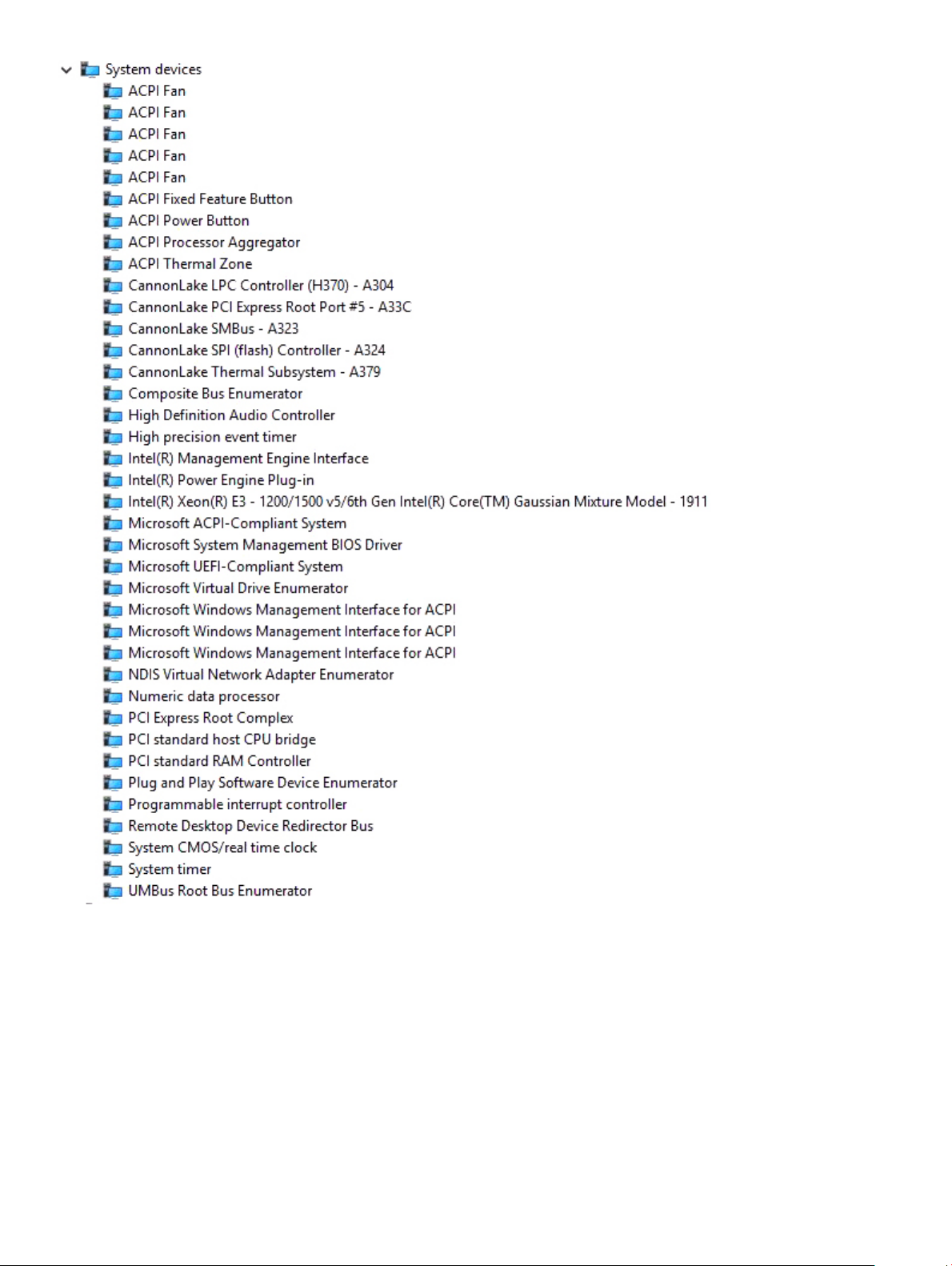

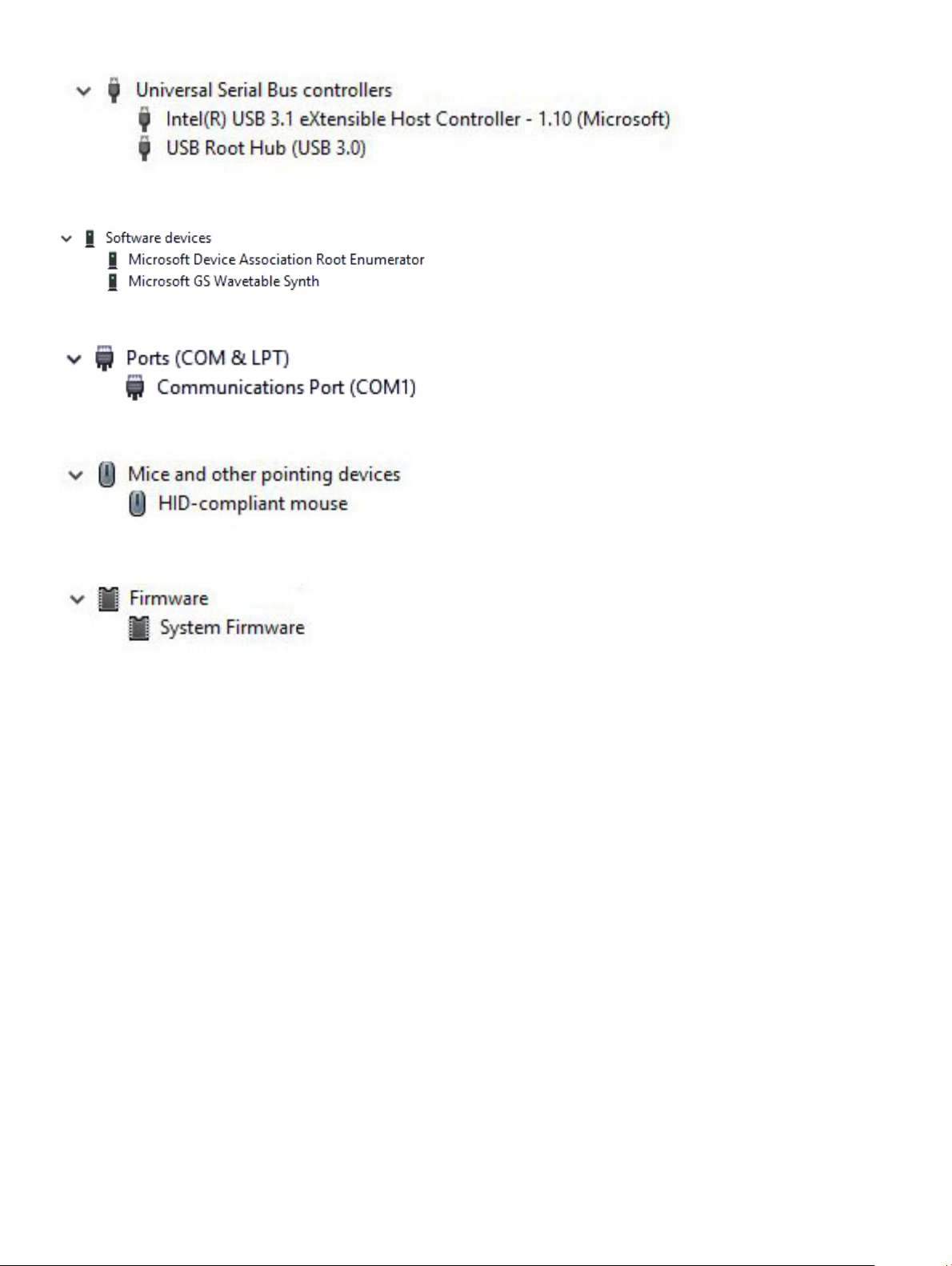

System device drivers..................................................................................................................................................... 29
Other device drivers........................................................................................................................................................30
6 Getting help.................................................................................................................................................32
Contacting Dell.................................................................................................................................................................32
4 Contents
1 Connect the keyboard and mouse.
1
Set up your computer
2 Connect to your network using a cable, or connect to a wireless network.
3 Connect the display.
Set up your computer 5
NOTE: If you ordered your computer with a discrete graphics card, the HDMI and the display ports on the back panel of
your computer are covered. Connect the display to the discrete graphics card.
4 Connect the power cable.
5 Press the power button.
6
Set up your computer
6 Follow the instructions on the screen to nish Windows setup:
a Connect to a network.
b Sign-in to your Microsoft account or create a new account.
7 Locate Dell apps.
Set up your computer
7
Table 1. Locate Dell apps
Register your computer
Dell Help & Support
SupportAssist — Check and update your computer
8
Set up your computer
Chassis
This chapter illustrates the multiple chassis views along with the ports and connectors and also explains the FN hot key combinations.
Topics:
• Front view
• Back view
Front view
2
1 Optical drive (optional) 2 Power button and power light
3 Hard-drive activity light 4 Memory card reader (optional)
5 Headset/Universal audio jack port 6 USB 2.0 ports (2)
7 USB 3.1 Gen 1 ports (2)
Chassis 9
Back view
1 Line-out port 2 Serial Port (optional)
3 DP/HDMI2.0b/VGA port (optional) 4 HDMI port
5 DisplayPort 6 Service tag
7 USB 3.1 Gen 1 ports (2) 8 USB 2.0 ports (2) (supports Smart Power On)
9 Network port 10 Expansion card slots (2)
11 Power connector port 12 Power supply diagnostic light
13 External antenna connectors (2) (optional) 14 Kensington security cable slot
15 Padlock ring
10 Chassis
