Dell S4100–ON Series, S4148F-ON Series, S4128F-ON Series Installation Manual

Installation Guide for the S4100–ON Series:
S4128F-ON and S4148F-ON

July 2017

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Copyright © 2017 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other

trademarks may be trademarks of their respective owners.

2017 - 07

Rev. A00

Contents

1 About this guide............................................................................................................................................. 5

Related documents............................................................................................................................................................5

Information symbols...........................................................................................................................................................5

2 S4100–ON Series switch............................................................................................................................... 7

Introduction.........................................................................................................................................................................7

Features...............................................................................................................................................................................9

Physical dimensions........................................................................................................................................................... 9

System status.....................................................................................................................................................................9

LED display..........................................................................................................................................................................9

LED behavior...............................................................................................................................................................10

Prerequisites...................................................................................................................................................................... 13

S4100–ON Series congurations....................................................................................................................................14

Luggage tag.......................................................................................................................................................................15

3 Site preparations.......................................................................................................................................... 16

Site selection.....................................................................................................................................................................16

Cabinet placement............................................................................................................................................................16

Rack mounting.................................................................................................................................................................. 17

Switch ground...................................................................................................................................................................17

Fans and airow................................................................................................................................................................17

Fan combinations........................................................................................................................................................17

Power................................................................................................................................................................................. 17

Storing components.........................................................................................................................................................18

4 S4100–ON Series installation....................................................................................................................... 19

Unpack the switch............................................................................................................................................................19

Unpack.........................................................................................................................................................................19

Rack or cabinet installation.............................................................................................................................................20

Rack mount safety considerations...........................................................................................................................20

ReadyRails installation..................................................................................................................................................... 20

1U Tool-less mount installation..................................................................................................................................21

Two-post ush-mount installation........................................................................................................................... 22

Two-post center-mount installation.........................................................................................................................23

Four-post threaded installation................................................................................................................................ 24

S4100-ON Series installation..........................................................................................................................................25

1U front-rack installation........................................................................................................................................... 25

Optics installation............................................................................................................................................................. 27

Optics removal............................................................................................................................................................28

Switch power-up..............................................................................................................................................................28

Power up sequence................................................................................................................................................... 28

After switch installation...................................................................................................................................................28

Contents

3

5 Power supplies............................................................................................................................................ 29

Components..................................................................................................................................................................... 29

PSU LEDs................................................................................................................................................................... 30

AC or DC power supply installation............................................................................................................................... 30

AC or DC power supply replacement....................................................................................................................... 31

DC power supply connection.......................................................................................................................................... 31

6 Fans.............................................................................................................................................................33

Components..................................................................................................................................................................... 33

Fan LEDs.....................................................................................................................................................................34

Fan module installation....................................................................................................................................................34

Fan module replacement...........................................................................................................................................34

7 Management ports.......................................................................................................................................35

RS-232 console port access...........................................................................................................................................35

USB storage..................................................................................................................................................................... 36

USB-B console port access............................................................................................................................................36

Before you install an OS.................................................................................................................................................. 37

Grub bootloader example..........................................................................................................................................37

ONIE example............................................................................................................................................................. 37

ONIE service discovery................................................................................................................................................... 38

8 Specications..............................................................................................................................................40

Chassis physical design...................................................................................................................................................40

IEEE standards................................................................................................................................................................. 42

Agency compliance..........................................................................................................................................................42

USA Federal Communications Commission (FCC) statement...................................................................................42

European Union EMC directive conformance statement........................................................................................... 42

Japan: VCCI compliance for class A equipment...........................................................................................................43

Korean certication of compliance................................................................................................................................ 44

Safety standards and compliance agency certications.............................................................................................44

Electromagnetic compatibility (EMC)........................................................................................................................... 44

Emissions.....................................................................................................................................................................44

Immunity..................................................................................................................................................................... 45

Product recycling and disposal.......................................................................................................................................45

Waste Electrical and Electronic Equipment (WEEE) directive for recovery, recycle, and reuse of IT and

telecommunications products.................................................................................................................................. 45

9 Dell EMC support.........................................................................................................................................47

Contents

4

About this guide

This guide provides site preparation recommendations, step-by-step procedures for rack mounting and desk mounting, inserting modules,
and connecting to a power source.

CAUTION: To avoid electrostatic discharge (ESD) damage, wear grounding wrist straps when handling this equipment.

WARNING: Only trained and qualied personnel can install this equipment. Read this guide before you install and power up this

equipment. This equipment contains two power cords. Disconnect both power cords before servicing.

WARNING: This equipment contains optical transceivers, which comply with the limits of Class 1 laser radiation.

1

Figure 1. Class 1 laser product tag

WARNING: When no cable is connected, visible and invisible laser radiation may be emitted from the aperture of the optical

transceiver ports. Avoid exposure to laser radiation. Do not stare into open apertures.

Topics:

• Related documents

• Information symbols

Related documents

For more information about the S4100–ON Series, see the following documents:

• OS10 Enterprise Edition Release Notes

• OS10 Enterprise Edition User Guide

• Dell S4100–ON Series Setup Guide

• Dell Open Networking Hardware Diagnostic Guide

• Dell EMC S4100–ON Series Release Notes

NOTE

: For the most recent documentation, visit Dell EMC support: www.dell.com/support.

Information symbols

This book uses the following information symbols:

NOTE

: The Note icon signals important operational information.

CAUTION: The Caution icon signals information about situations that could result in equipment damage or loss of data.

About this guide 5

WARNING: The Warning icon signals information about hardware handling that could result in injury.

WARNING: The ESD Warning icon requires that you take electrostatic precautions when handling the device.

6 About this guide

S4100–ON Series switch

The following sections describe the Dell EMC S4100–ON Series (S4128F-ON and S4148F-ON) switch:

Topics:

• Introduction

• Features

• Physical dimensions

• System status

• LED display

• Prerequisites

• S4100–ON Series congurations

• Luggage tag

Introduction

The S4100–ON Series (S4128F-ON and S4148F-ON) is a one rack unit (RU), full-featured xed form-factor top-of-rack (ToR)
10/25/40/50/100GbE switch for 10G servers with small form-factor pluggable plus (SFP+), quad small form-factor pluggable plus (QSFP
+), and quad small form-factor pluggable (QSFP28) ports.

: For specic port prole details, see the

NOTE

Guide

.

OS10 Enterprise Edition User

2

The S4100F-ON Series supports the following congurations:

Table 1. S4100-ON Series supported

S4128F-ON S4148F-ON

28 x 10G + 2 x 100G 48 x 10G + 4 x 100G

28 x 10G + 2 x 40G 48 x 10G + 6 x 40G

28 x 10G + 4 x 50G 48 x 10G + 8 x 50G

28 x 10G + 8 x 25G 48 x 10G + 16 x 25G

36 x 10G 72 x 10G

The following table lists the S4100–ON Series I/O-side details:

Table 2. S4100–ON Series I/O-side details

Platform Description

S4128F-ON

• 28 xed 10GbE SFP+ ports

• 2 xed 100GbE QSFP28 ports

• seven-segment stacking indicator

• 1 micro-USB-B console port

congurations

S4100–ON Series switch 7

Platform Description

• 1 USB type-A port

S4148F-ON

Figure 2. S4128F-ON I/O-side view

1

Twenty-eight SFP+ optical ports 2 Two QSFP28 optical ports

3 Micro USB-B console port 4 USB Type-A

• 48 xed 10GbE SFP+ ports

• 2 xed 40GbE QSFP+ ports

• 4 xed 100GbE QSFP28 ports

• seven-segment stacking indicator

• 1 micro-USB-B console port

• 1 USB type-A port

Figure 3. S4148F-ON I/O-side view

1

Forty-eight SFP+ optical ports 2 Four QSFP28

3 Two QSFP+ optical ports 4 Micro USB-B console port

5 USB Type-A

The S4100–ON Series PSU-side of the switch has two hot-swappable power supplies (PSUs) with integrated fans and four hot-swappable
fan trays. The platforms include one RJ-45 10/100/1000 Base-T Ethernet management port and one RJ-45 console port on the PSU side
of the switch.

S4100–ON Series switch

8

Figure 4. S4100–ON Series PSU-side view

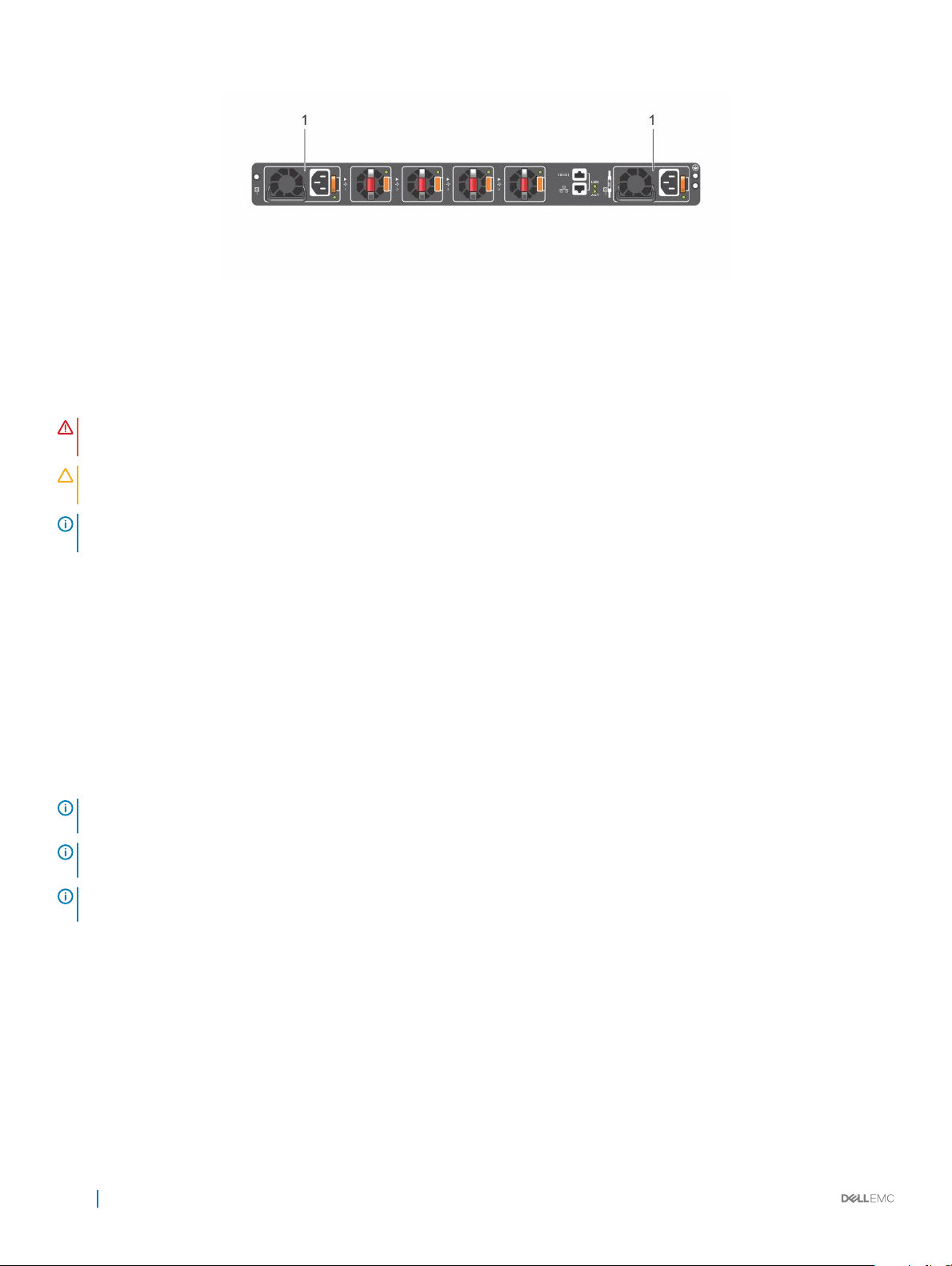

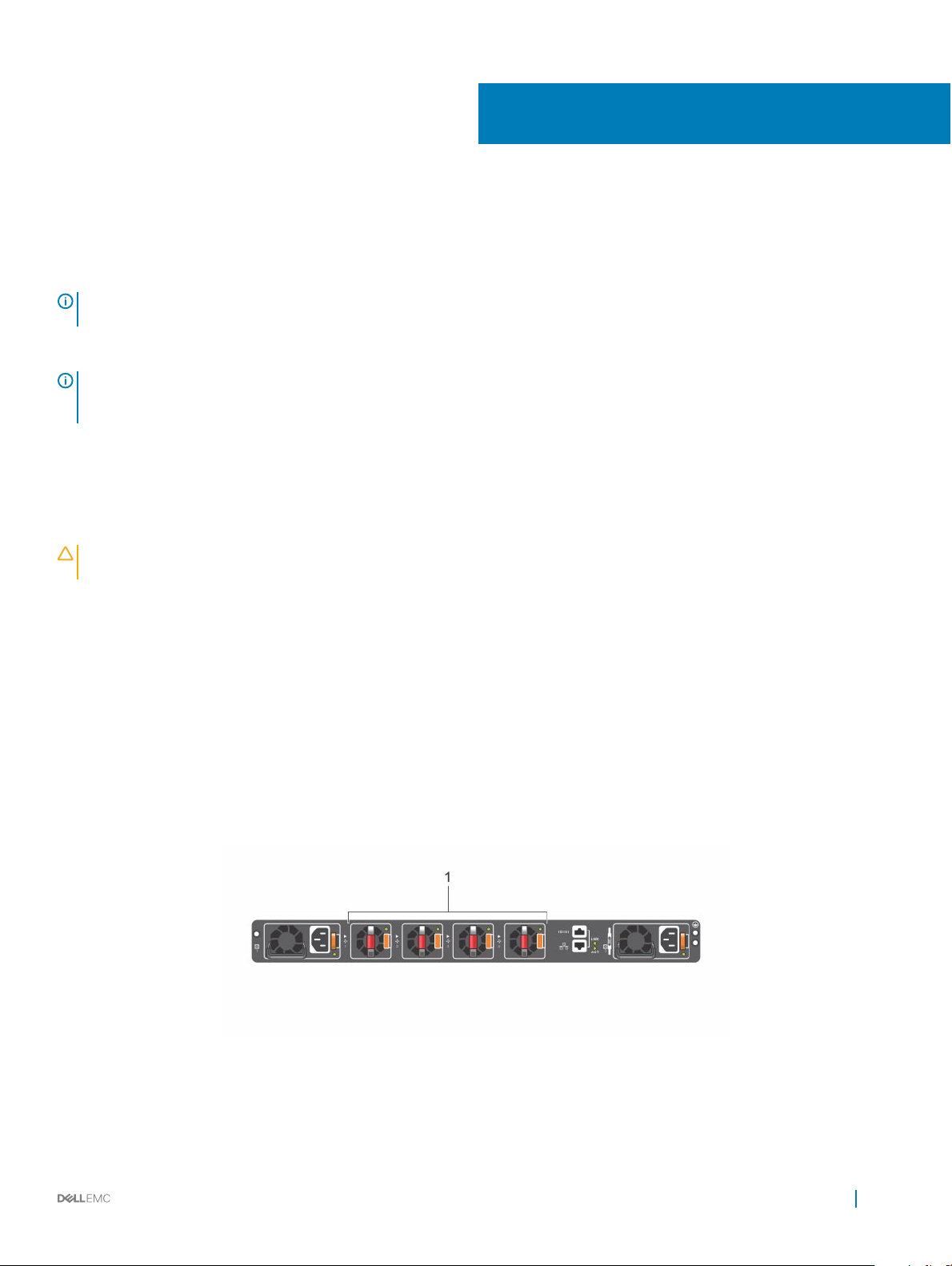

1 Four hot-swappable fan units 2 Two hot-swappable PSUs with integrated fans

Features

The S4100–ON Series (S4128F-ON and S4148F-ON) oers the following features:

• S4128F-ON: 28 xed 10GbE SFP+ ports, 2 xed 100GbE QSFP28 ports

• S4148F-ON: 48 xed 10GbE SFP+ ports, 2 xed QSFP+ ports, 4 xed 100GbE QSFP28 ports

• One MicroUSB-B serial console management port

• One RJ-45 serial console management port

• One universal serial bus (USB) Type-A port for more le storage

• One 2 Core Rangeley C2338 central processing unit (CPU), with 4GB DDR3 SDRAM and one 16 GB mSATA/M.2 SSD module

• Seven-segment stacking indicator

• Temperature monitoring

• Real time clock (RTC) support

• Hot-plug redundant power supplies

• Removable fans

• Standard 1U chassis

Physical dimensions

The S4100–ON Series (S4128F-ON and S4148F-ON), has the following physical dimensions:

• 434 x 460 x 43.5 mm (W x D x H)

• 17.1 x 18.1 x 1.71 inches (W x D x H)

• Fan handle is 21 mm (0.82 inch) deep

• Power supply unit (PSU) and fan module handle: 40 mm—1.57 inches

System status

View the S4100–ON Series (S4128F-ON and S4148F-ON) status information using the light emitting diodes (LEDs).

LED display

The S4100–ON Series (S4128F-ON and S4148F-ON) contains LED displays on the I/O side and PSU side of the switch.

: If you are using third-party software, for more LED information, see their operating software documentation.

NOTE

S4100–ON Series switch 9

LED behavior

The following S4100–ON Series switch LED behavior displays during open networking installation environment (ONIE) operations:

Figure 5. S4128F-ON I/O-side LEDs

1 QSFP28 port activity LEDs 2 Link (left), activity (right) port LEDs

3 Master LED 4 System LED

5 Power LED 6 Fan LED

7 Locator LED/System beacon 8 Stack ID

Figure 6. S4148F-ON I/O-side LEDs

1

QSFP28 port activity LEDs 2 Link/activity port LEDs

3 Master LED 4 System LED

5 Power LED 6 Fan LED

7 Locator LED/System beacon 8 Stack ID

10 S4100–ON Series switch

Figure 7. S4100-ON Series PSU-side LEDs

1 Fan LED 2 Link LED

3 PSU LED 4 Activity LED

Table 3. S4100–ON Series LED behavior

LED Description

System Status/Health LED

Power LED

Master LED

FAN LED

PSU LED

• Solid green—Normal operation

• Blinking green—Booting

• Solid yellow—Critical system error

• Blinking yellow—Noncritical system error, fan failure, or power
supply failure

• O—No power

• Solid green—Normal operation

• Solid yellow—POST is in process

• Blinking yellow—Power Supply failure

• O—Switch is in Stacking Slave mode

• Solid green—Switch is in Stacking Master or Standalone mode

• O—No power

• Solid green—Normal operation; fan powered and running at the
expected RPM

• Solid yellow—Fan failed—including incompatible airow
direction when you insert the PSU or fan trays with diering

airows

• O—No power

• Solid green—Normal operation

• Solid yellow—Power supply critical event causing a shutdown.

• Blinking yellow—PSU warning event; power continues to
operate

• Blinking green, 1.0 Hz—Standby mode

• Blinking green, 0.5 Hz—Ac power cord unplugged

Locator LED/System Beacon

• O—Locator function is disabled

S4100–ON Series switch 11

LED Description

• Blinking blue—Locator function is enabled

7-Segment LED for stacking

Table 4. System management Ethernet port LEDs

LED Description

Link LED

Activity LED

Table 5. SFP+ port LEDs

LED Description

Link LED

• O—No power

• Solid green—Hex digit representing the stack unit ID

• O—No link

• Solid green—Link operating at a maximum speed—
autonegotiated/forced or 1G port

• Solid yellow—Link operating at a lower speed—
autonegotiated/forced or 10/100M port

• O—No link

• Flashing green—Port activity

• O—No link

• Solid green—Link operating at maximum speed—10G port

• Solid yellow—Link operating at a lower speed—1G port

• Flashing yellow, 1 second on/o—Port beacon

Activity LED

NOTE: There are four LEDs for each QSFP+ and QSFP28 port. For each port, 100 GbE or 40 GbE uses only one LED, 2x50 GbE

uses two LEDs, and 4x25 GbE or 4x10 GbE uses all four LEDs.

Table 6. QSFP28 port LEDs

LED Description

Link/Activity LED

• O—No link

• Flashing green—Port activity

• O—No link

• Solid green—Link operating at maximum speed—100G for
QSFP28 port

• Flashing green—Link activity operating at maximum speed—
100G port

• Solid yellow—Link operating at a lower speed—40G or 10G
port

• Flashing yellow—Port activity at a lower speed—40G or 10G
port

• Flashing yellow, 1 second on/o—Port beacon

12 S4100–ON Series switch

Table 7. QSFP28 port LEDs: 4x25G or 4x10G mode

LED Description

Link/Activity LED

Table 8. QSFP28 port LEDs: 2x50G mode

LED Description

Link/Activity LED

Table 9. QSFP+ port LEDs

LED Description

Link/Activity LED

• O—No link

• Solid green—Link operating at maximum speed—4x25G port

• Flashing green—Link activity operating at maximum speed—
4x25G port

• Solid yellow—Link operating at a lower speed—4x10G port

• Flashing yellow—Port activity at a lower speed—4x10G port

• Flashing yellow, 1 second on/o—Port beacon

• O—No link

• Solid yellow—Link operating at a lower speed—2x50G port

• Flashing yellow—Link activity at a lower speed—2x50G port

• Flashing yellow, 1 second on/o—Port beacon

• O—No link

• Solid green—Link operating at maximum speed—40G port

• Flashing green—Link activity operating at maximum speed—
40G port

• Solid yellow—Link operating at a lower speed—40G port

• Flashing yellow—Link activity at a lower speed—40G port

• Flashing yellow, 1 second on/o—Port beacon

Table 10. QSFP+ port LEDs: 4x10G/1G mode

LED Description

Link/Activity LED—4x10G mode

• O—No link

• Solid green—Link operating at maximum speed—10G port

• Flashing green—Link activity operating at maximum speed—
10G port

• Solid yellow—Link operating at a lower speed—1G port

• Flashing yellow—Link activity at a lower speed—1G port

• Flashing yellow, 1 second on/o—Port beacon

Prerequisites

The following is a list of required and optional components for the S4100–ON Series (S4128F-ON and S4148F-ON) switch:

: Detailed installation instructions are provided in the Site preparations and S4100-ON Series installation sections.

NOTE

S4100–ON Series switch 13

• S4100–ON Series (S4128F-ON or S4148F-ON) switch, or multiple switches, if stacking

• AC country- and regional-specic cables to connect the AC power source to each of the switches' AC power supplies

• Mounting brackets for rack installation, included

• Screws for rack installation

• #1 and #2 Phillips screwdrivers, not included

• Torx screwdriver, not included

• Ground cable screws, included

• Copper or ber cables

Other optional components are:

• Ground cable and lug for the frame-end of the ground cable

• Extra power supply unit

• Extra fan module

• Extra mounting brackets if installing in a four-post rack or cabinet

S4100–ON Series congurations

The S4100–ON Series (S4128F-ON and S4148F-ON) switches are available in several dierent congurations.

All S4100–ON Series switches include the following congurations:

• Fan with airow from the I/O side to the PSU side—normal

• Fan with airow from the PSU side to the I/O side—reverse

• AC power supply with airow from the I/O side to the PSU side—normal

• AC power supply with airow from the PSU side to the I/O side—reverse

• DC power supply with airow from the I/O side to the PSU side—normal

• DC power supply with airow from the PSU side to the I/O side—reverse

The following table lists each S4100-ON Series switch conguration:

Table 11. S4100–ON Series

S4100F–ON Series
Switch

S4128F-ON AC or
DC Normal airow

S4128F-ON AC or
DC Reverse airow

S4148F-ON AC or
DC Normal airow

S4148F-ON AC or
DC Reverse airow

congurations

Conguration

28 xed SFP+ ports, 2 xed QSFP28 ports, 7-segment stacking indicator, 1 micro-USB-B
console port, 1 USB type-A port, 1 RJ-45 10/100/1000 Base-T Ethernet management port,
2 AC or DC PSUs, and 4 fan trays.

28 xed SFP+ ports, 2 xed QSFP28 ports, 7-segment stacking indicator, 1 micro-USB-B
console port, 1 USB type-A port, 1 RJ-45 10/100/1000 Base-T Ethernet management port,
2 AC or DC PSUs, and 4 fan trays.

48 xed SFP+ ports, 2 xed QSFP+ ports, 4 xed QSFP28 ports, 7-segment stacking
indicator, 1 micro-USB-B console port, 1 USB type-A port, 1 RJ-45 10/100/1000 Base-T
Ethernet management port, 2 AC or DC PSUs, and 4 fan trays.

48 xed SFP+ ports, 2 xed QSFP+ ports, 4 xed QSFP28 ports, 7-segment stacking
indicator, 1 micro-USB-B console port, 1 USB type-A port, 1 RJ-45 10/100/1000 Base-T
Ethernet management port, 2 AC or DC PSUs, and 4 fan trays.

14 S4100–ON Series switch

Luggage tag

The S4100–ON Series (S4128F-ON and S4148F-ON) switch has a pull-out tag, known as a luggage tag, on the PSU-side of the switch.
The front of the luggage tag includes switch ID information. The back of the luggage tag includes a QRL that takes you to a How-To site
where you watch videos about racking the switch, replacing components, conguring port channels, and so on.

Figure 8. S4100–ON Series luggage tag

Front: MAC address 2 Front: Service tag and Express service code

1

3 Back: Quick resource locator (QRL) 4 Back: QRL

S4100–ON Series switch 15

Site preparations

The S4100–ON Series (S4128F-ON and S4148F-ON) is suitable for installation as part of a common bond network (CBN).

You can install the switch in:

• Network telecommunication facilities

• Data centers

• Other locations where the National Electric Code (NEC) applies

For more information about the S4100–ON Series specications, see Specications.

NOTE: Install the switch into a rack or cabinet before installing any optional components.

Topics:

• Site selection

• Cabinet placement

• Rack mounting

• Switch ground

• Fans and airow

• Power

• Storing components

3

Site selection

Install Dell EMC equipment in restricted access areas.

A restricted access area is one where service personnel can only gain access using a special tool, lock, key, or other means of security. The
authority responsible for the location controls access to the restricted area.

Ensure that the area where you install switch meets the following safety requirements:

• Near an adequate power source. Connect the switch to the appropriate branch circuit protection according to your local electrical
codes.

• Environmental—switch location—continuous temperature range is from 50° to 104°F (from 5° to 40°C).

• Operating humidity is from 5 to 85 percent noncondensing, continuous.

• In a dry, clean, well-ventilated, and temperature-controlled room, away from heat sources such as hot cooling vents or direct sunlight.

• Away from sources of severe electromagnetic noise.

• Positioned in a rack or cabinet, or on a desktop with adequate space in the front, back, and sides for proper ventilation and access.

• Install the switch in Information Technology Rooms in accordance with Article 645 of the National Electrical Code and NFPA 75.

For more information about switch storage and environmental temperatures, see Specications.

Cabinet placement

Install the S4100–ON Series (S4128F-ON and S4148F-ON) only in indoor cabinets designed for use in a controlled environment.

Do not install the switch in outside cabinets. For cabinet placement requirements, see Site selection.

16 Site preparations

The cabinet must meet minimum size requirements. Airow must be in accordance with the Electronic Industries Alliance (EIA) standard.
Ensure that there is a minimum of 5 inches (12.7 cm) between the intake and exhaust vents and the cabinet wall.

Rack mounting

When you prepare your equipment rack, ensure that the rack is grounded. Ground the equipment rack to the same ground point the power
service in your area uses. The ground path must be permanent.

Switch ground

Dell EMC recommends grounding your switch. Use the S4100–ON Series switch in a CBN.

Fans and airow

The fans on the S4100–ON Series (S4128F-ON and S4148F-ON) support two airow options: normal and reverse.

Fan combinations

Fan installation is done as part of the factory install based on SKU type. The S4100–ON Series has stock keeping units (SKUs) that support
the following congurations:

• AC PSU with fan airow from the I/O to the PSU—normal

• AC PSU with fan airow from the PSU to the I/O—reverse

• DC fan unit with airow from the I/O to the PSU—normal

• DC fan unit with airow from the PSU to the I/O—reverse

Be sure to order the fans suitable to support your site’s ventilation. Use a single type of airow fan in your switch. Do not mix reverse and
normal airows in a single switch.

For proper ventilation, position the S4100–ON Series switch in an equipment rack or cabinet with a minimum of 5 inches (12.7 cm) of
clearance around the exhaust vents. The fan speed varies based on internal temperature monitoring. The switch never intentionally turns
o the fans.

For more information, see Fans.

Power

Connect the switch to the applicable power source using the appropriate power cable. An AC power cable is included with the system.

When installing AC or DC switches, follow the requirements of the National Electrical Code ANSI/NFPA 70, where applicable.

The switch is powered-up when the power cable is connected between the switch and the power source.

For more information, see Power supplies.

CAUTION

Before servicing, ensure all power cords are disconnected.

: Always disconnect the power cable before you service the power supply slots. The switch has multiple power cords.

CAUTION: On the AC switch, use the power supply cable as the main disconnect device. Ensure that the socket-outlet is

located/installed near the equipment and is easily accessible.

NOTE: Module power is software controlled. You do not see module LEDs when the switch powers up in ONIE.

Site preparations 17

Storing components

If you do not install your S4100–ON Series (S4128F-ON and S4148F-ON) swtich and components immediately, properly store the switch
and all optional components following these guidelines:

• Storage location temperature must remain constant. The storage range is from -40° to 149°F (-40° to 65°C).

• Store on a dry surface or oor, away from direct sunlight, heat, and air conditioning ducts.

• Store in a dust-free environment.

NOTE: ESD damage can occur when components are mishandled. Always wear an ESD-preventive wrist or heel ground strap

when handling the S4100–ON Series switch and its accessories. After you remove the original packaging, place the switch and
its components on an anti-static surface.

18 Site preparations

4

S4100–ON Series installation

To install the S4100–ON Series (S4128F-ON and S4148F-ON), complete the installation procedures in the order presented in this section.

Always handle the S4100–ON Series switch and its components with care. Avoid dropping the switch or any eld replaceable units (FRUs).

NOTE: ESD damage can occur if components are mishandled. Always wear an ESD-preventive wrist or heel ground strap when

handling the S4100–ON Series switch and its components. As with all electrical devices of this type, take all the necessary safety
precautions to prevent injury when installing this switch.

NOTE: For more information, see the

Topics:

• Unpack the switch

• Rack or cabinet installation

• ReadyRails installation

• S4100-ON Series installation

• Optics installation

• Switch power-up

• After switch installation

Open Networking Hardware Diagnostic Guide

.

Unpack the switch

NOTE

: Before unpacking the switch, inspect the container and immediately report any evidence of damage.

When unpacking the S4100–ON Series switch, make sure that the following items are included:

• One S4100–ON Series (S4128F-ON and S4148F-ON) switch

• One RJ-45 to DB-9 female cable

• Two sets of rail kits, no tools required

• Two PSUs

• Four fan units

• Two country- and region-specic AC power cords

• Dell S4100–ON Series Setup Guide

• Safety and Regulatory Information

• Warranty and Support Information

Unpack

1 Place the container on a clean, at surface and cut all straps securing the container.

2 Open the container or remove the container top.

3 Carefully remove the switch from the container and place it on a secure and clean surface.

4 Remove all packing material.

S4100–ON Series installation 19

5 Inspect the product and accessories for damage.

Rack or cabinet installation

You may either place the switch on a rack shelf or mount the switch directly into a 19" wide, EIA-310- E-compliant rack. Rack mounting
includes four-post, two-post, round threaded holes, or square holes. The ReadyRails system is provided for 1U front-rack and two-post
installations.

The ReadyRails system includes two separately packaged rail assemblies. To begin installation, separate each rail assembly by sliding the
inside rail out of the outside rail.

WARNING: This guide is a condensed reference. Read the safety instructions in your

information booklet before you begin.

NOTE: The illustrations in this section are not intended to represent a specic switch.

NOTE: Do not the use the mounted ReadyRails as a shelf or a workplace.

Safety, Environmental, and Regulatory

Rack mount safety considerations

• Rack loading—Overloading or uneven loading of racks may result in shelf or rack failure, possibly damaging the equipment and causing
personal injury. Stabilize racks in a permanent location before loading begins. Mount the components starting at the bottom of the rack,
then work to the top. Do not exceed your rack’s load rating.

• Power considerations—Connect only to the power source specied on the unit. When you install multiple electrical components in a
rack, ensure that the total component power ratings do not exceed the circuit capabilities. Overloaded power sources and extension
cords present re and shock hazards.

• Elevated ambient temperature—If you install the switch in a closed rack assembly, the operating temperature of the rack environment
may be greater than the room ambient temperature. Use care not to exceed the 45°C maximum ambient temperature of the switch.

• Reduced air ow—Do not compromise the amount of airow required for safe operation of the equipment. Install the equipment in the
rack so that the equipment constantly has the correct amount of airow surrounding it.

• Reliable earthing—Maintain reliable earthing of rack-mounted equipment. Pay particular attention to the supply connections other than
the direct connections to the branch circuit, for example: use of power strips.

• Do not mount the equipment with the fan panel facing in the downward position.

ReadyRails installation

To easily congure your rack for installation of your S4100–ON Series (S4128F-ON and S4148F-ON) switch, use the ReadyRails rack
mounting system provided.

You can install the ReadyRails system using the 1U tool-less square-hole method or one of three possible 1U threaded round-hole methods.
The tooled installation methods include two-post ush mount, two-post center mount, or four-post threaded mount.

To begin installation, separate each rail assembly by sliding the inside rail out of the outside rail.

: For more installation instructions, see the installation labels attached to the rail assembly.

NOTE

20 S4100–ON Series installation

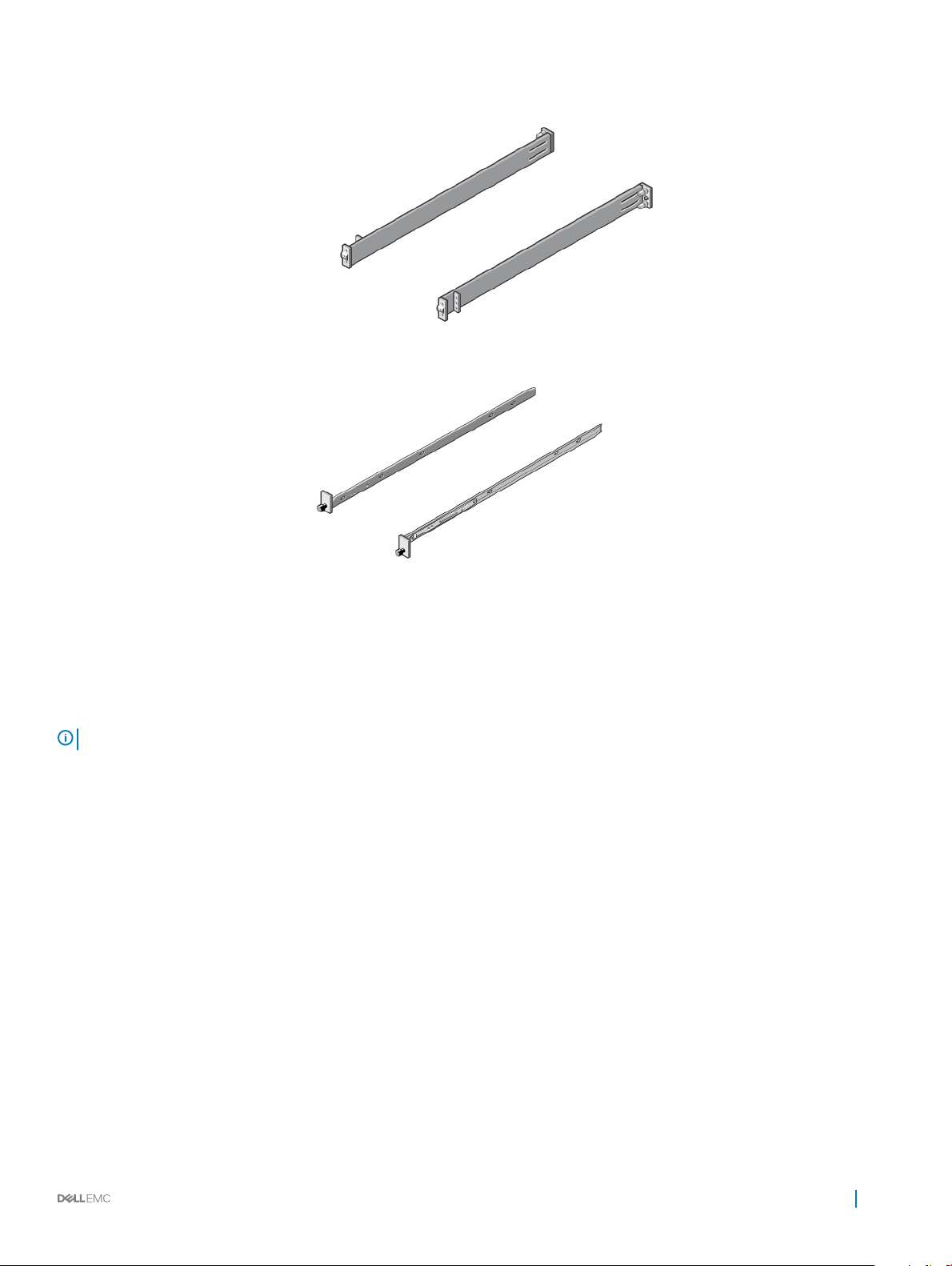

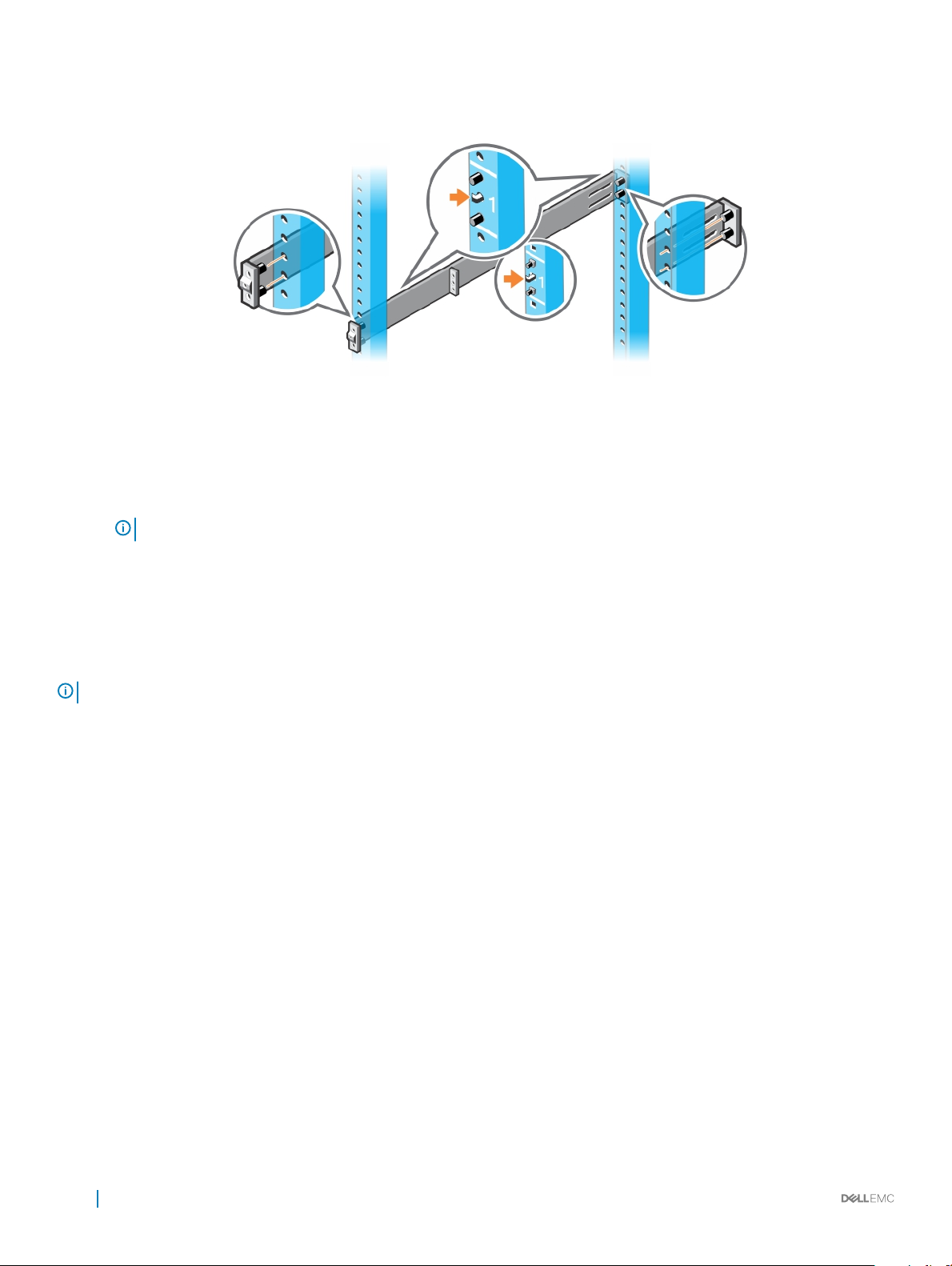

Figure 9. Separate rails

1U Tool-less mount installation

: For more installation instructions, see the installation labels attached to the rail assembly.

NOTE

1 Face the ReadyRails ange ears facing outward. Place one rail between the left and right vertical posts. Align and seat the back ange

rail pegs in the back vertical post ange.

The center extractions show how the pegs appear in both the square and nonthreaded round holes.

S4100–ON Series installation

21

Figure 10. 1U tool-less installation

2 Align and seat the front ange pegs in the holes on the front side of the vertical post.

NOTE: Be sure that the rails click into place and are secure.

3 Repeat this procedure for the second rail.

4 To remove each rail, pull on the latch release button on each ange ear and unseat each rail.

Two-post ush-mount installation

: For more installation instructions, see the installation labels attached to the rail assembly.

NOTE

1 For this conguration, remove the latch castings from the front side of each ReadyRails assembly, item 1.

To remove the two screws from each front ange ear on the switch side of the rail and remove each latch casting, use a Torx
screwdriver. Retain the latch castings for future rack requirements. It is not necessary to remove the back ange castings.

22

S4100–ON Series installation

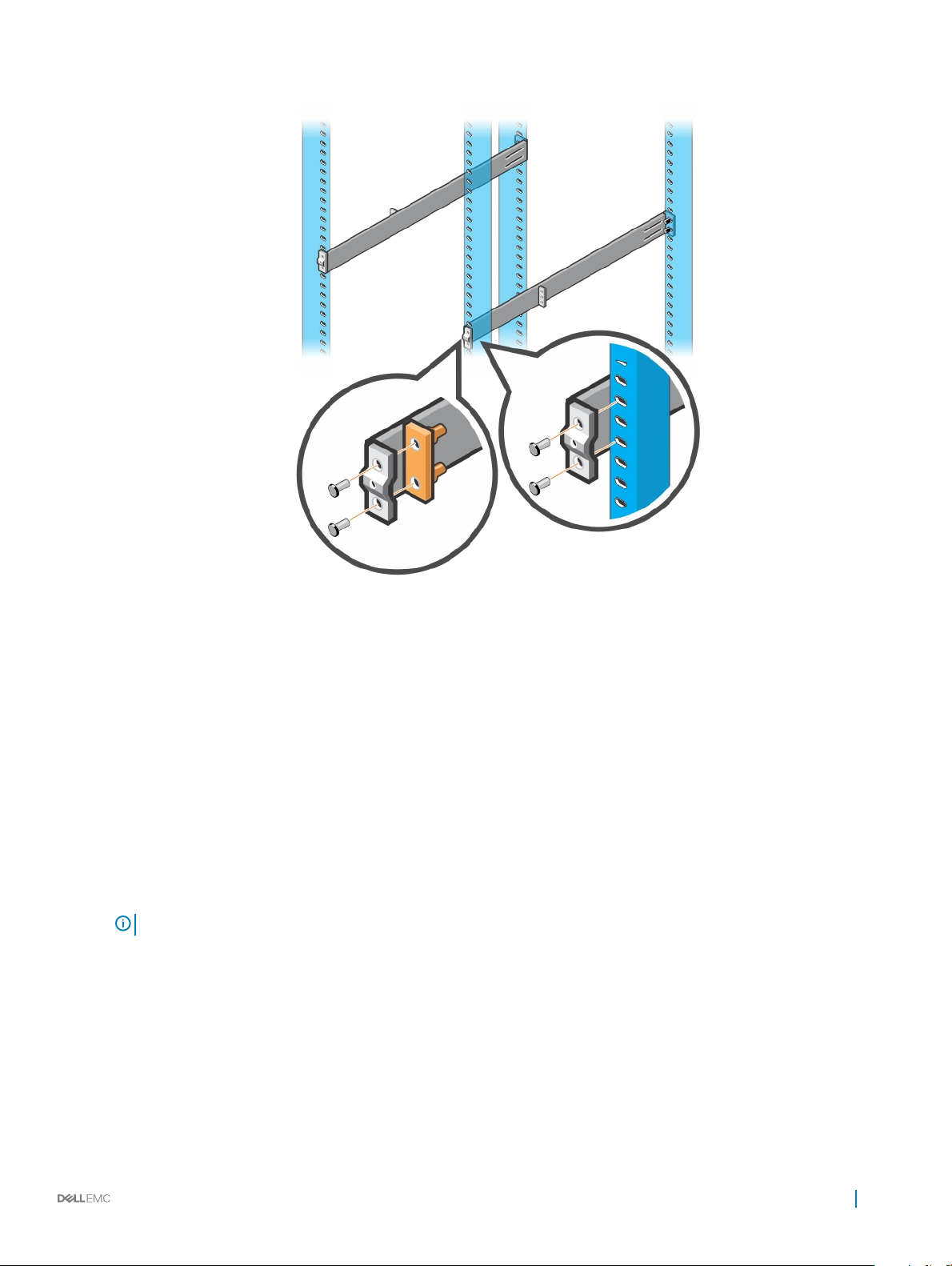

Figure 11. Two-post ush-mount installation

2 Attach one rail to the front post ange with two user-supplied screws, item 2.

3 Slide the plunger bracket forward against the vertical post and secure the plunger bracket to the post ange with two user-supplied

screws, see item 3.

4 Repeat this procedure for the second rail.

Two-post center-mount installation

: For more installation instructions, see the installation labels attached to the rail assembly.

NOTE

1 Slide the plunger bracket rearward until it clicks into place and secure the bracket to the front post ange with two user-supplied

screws, item 1.

S4100–ON Series installation

23

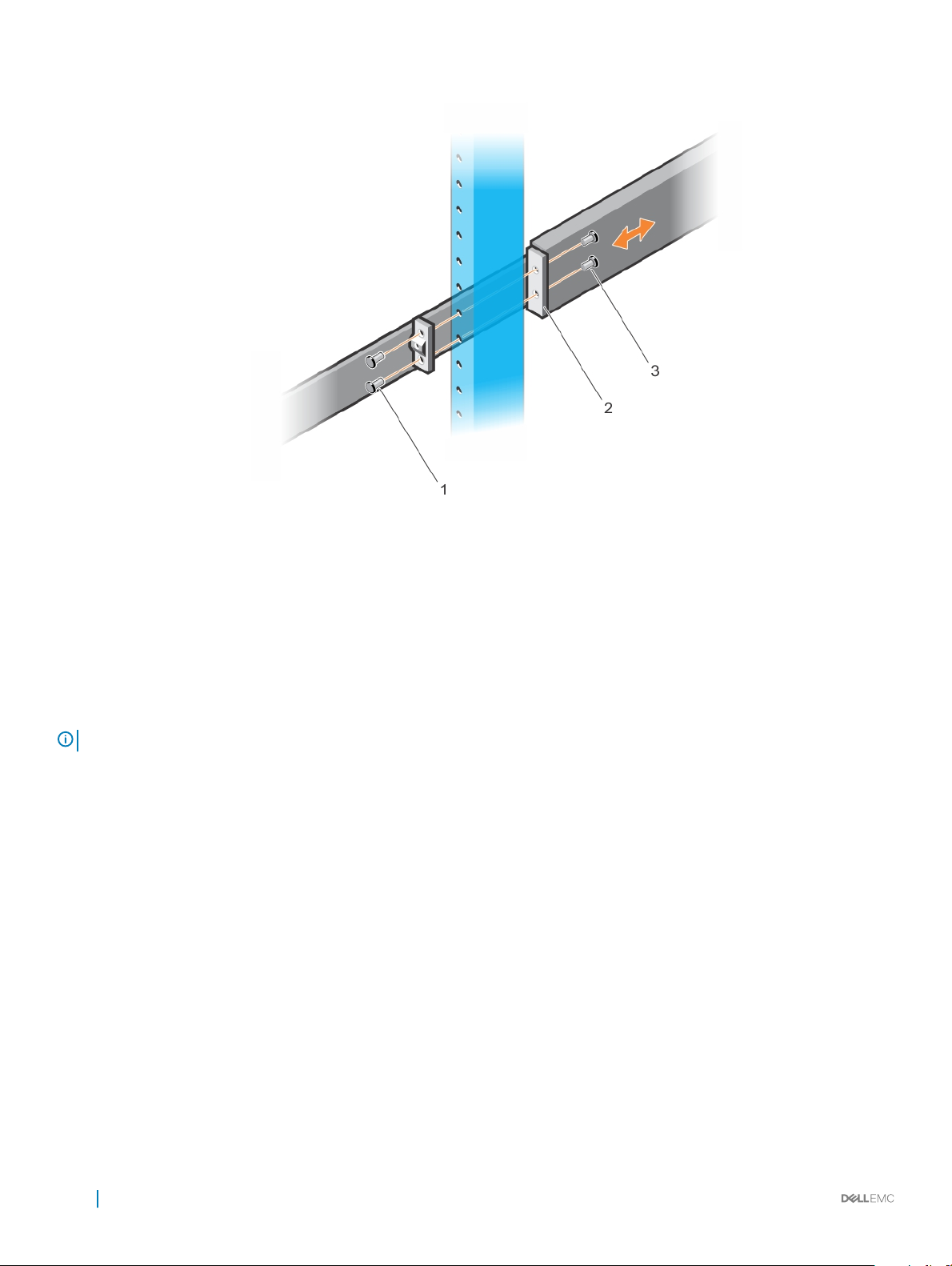

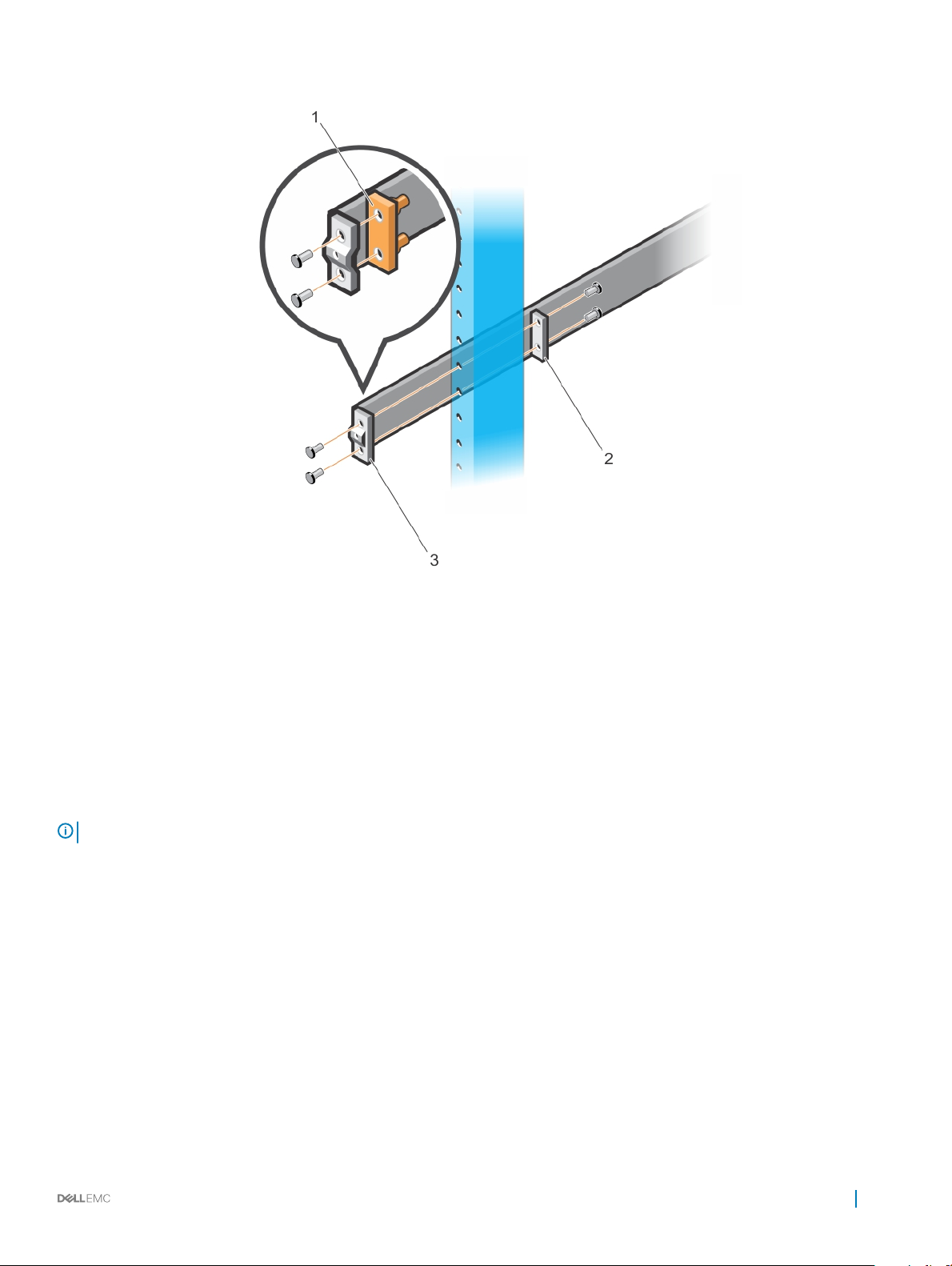

Figure 12. Two-post center-mount installation

2 Slide the back bracket towards the post. Secure it to the post ange with two user-supplied screws, items 2 and 3.

3 Repeat this procedure for the second rail.

Four-post threaded installation

: For more installation instructions, see the installation labels attached to the rail assembly.

NOTE

1 Remove the latch castings from each end of the ReadyRails assemblies. To remove the two screws each latch casting, use a Torx

driver.

Retain the latch castings for future rack requirements.

24

S4100–ON Series installation

Figure 13. Four-post threaded installation

2 For each rail, attach the front and back anges to the post anges with two user-supplied screws at each end.

S4100-ON Series installation

You can mount the switch in the 1U front-rack two-post, ush or center conguration, or a four-post conguration. The following is an
example of a front-rack conguration:

For the 1U two-post congurations, slide the switch into the rails in the same manner as the four-post congurations.

1U front-rack installation

Congure the rails that are attached to the switch.

1

Attach the inner switch rails to the S4100F–ON Series (S4128F-ON and S4148F-ON) switch.

Line up the rail with the mounting heads and attach the rail to the chassis. Slide the rail back until it locks into place. The following
shows the detail of the front stando with the locking tab:

NOTE

: For more information, see the installation instruction labels on the rail.

S4100–ON Series installation

25

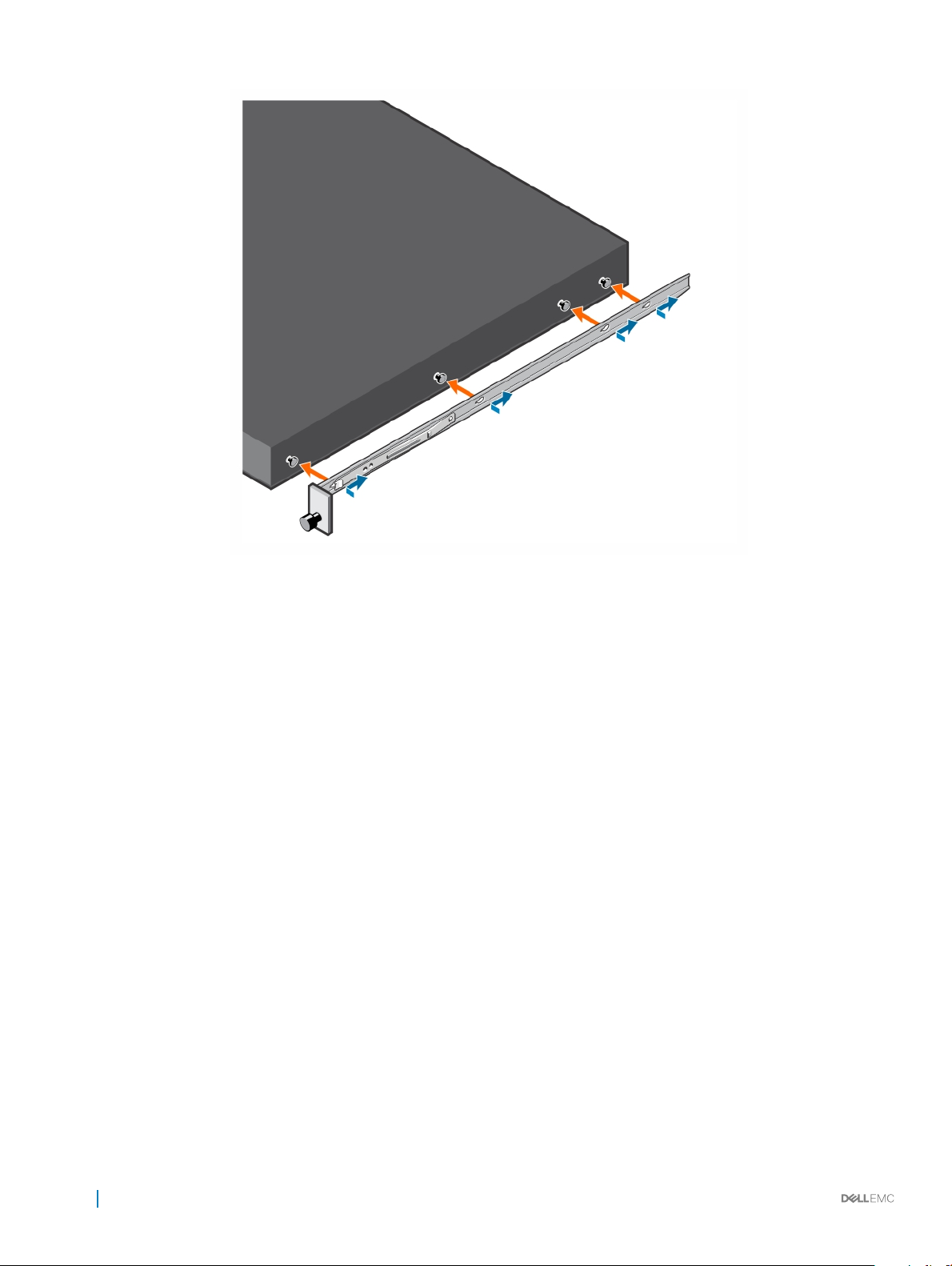

Figure 14. Switch rail attachment

2 After you install both rails, line them up on the ReadyRails. Slide the switch in until it is ush with the front of rack.

About three inches before you fully insert your switch, the rail locking feature engages to keep the switch from inadvertently sliding
out and falling.

26

S4100–ON Series installation

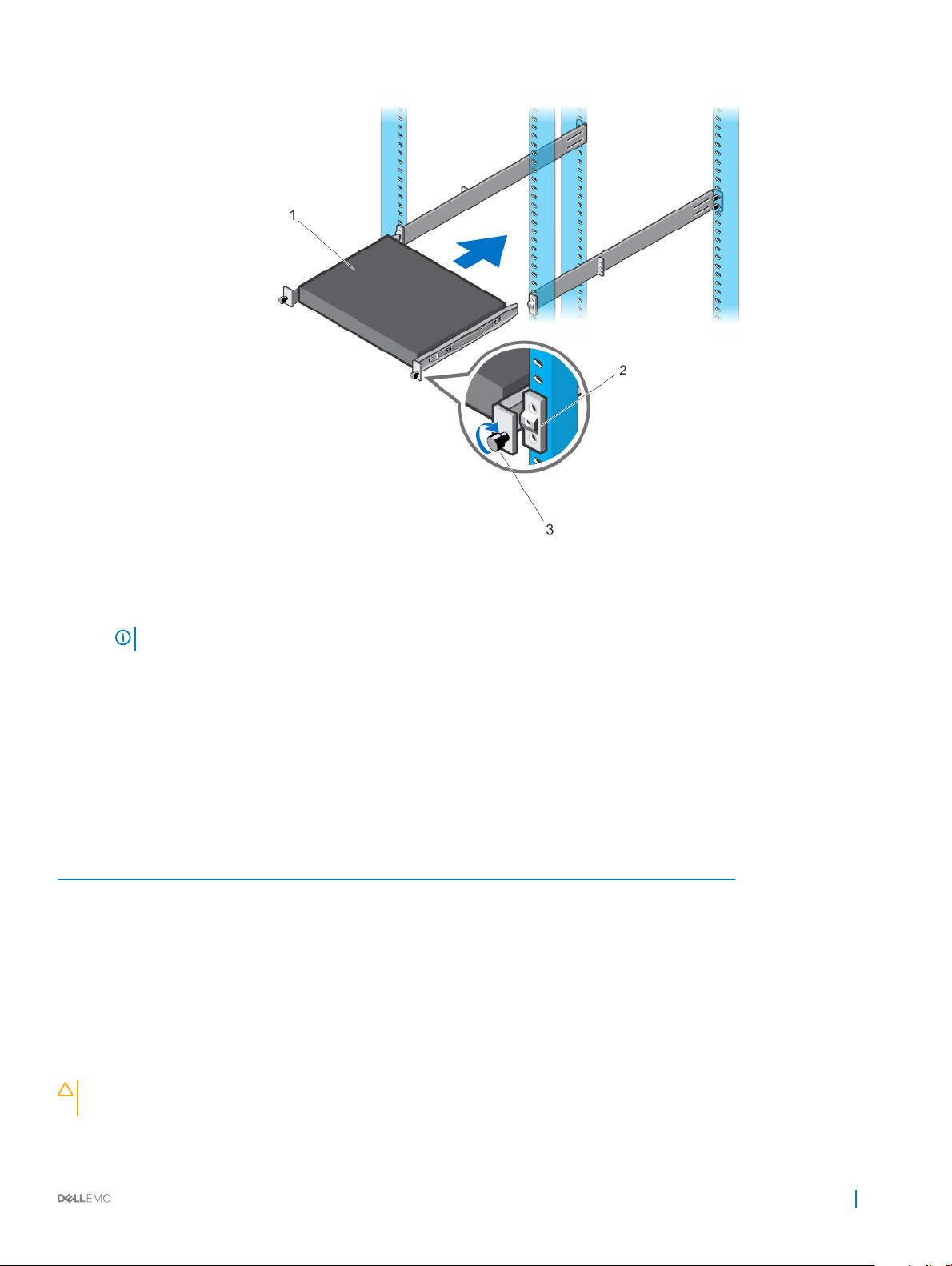

Figure 15. Front rack installation

NOTE

: Do not the use the mounted Ready-Rails as a shelf or a workplace.

3 Tighten the two thumb screws and rack screws.

To remove the chassis from the rack or cabinet, press in the two side-release bars on the chassis at the same time and slide the chassis
forward.

Optics installation

The S4100–ON Series (S4128F-ON and S4148F-ON) switch has the following optic congurations:

Table 12. S4100-ON Series optic

Platform Description

S4128F-ON

S4148F-ON

For a list of supported optics, see the S4100–ON Series data sheet at www.dell.com/support or contact your Dell EMC representative.

CAUTION

when handling the S4100–ON Series and its components.

: ESD damage can occur if components are mishandled. Always wear an ESD-preventive wrist or heel ground strap

congurations

• 28 xed SFP+ optical ports

• 2 xed QSFP28 optical ports

• 48 xed SFP+ optical ports

• 2 xed QSFP+ optical ports

• 4 xed QSFP28 optical ports

S4100–ON Series installation 27

WARNING: When working with optical bers, follow all warning labels and always wear eye protection. Never look directly into

the end of a terminated or unterminated ber or connector as it may cause eye damage.

1 Position the optic so it is in the correct position.

The optic has a key that prevents it from being inserted incorrectly.

2 Insert the optic into the port until it gently snaps into place.

NOTE: When you cable the ports, be sure not to interfere with the airow from the small vent holes above and below

the ports.

Optics removal

Remove an optic by pushing the tab on the optic and sliding the optic from the port.

When removing optics with direct attach cables (DACs) from the port, pull the release tab rmly and steadily. Before pulling the release tab,
you may need to gently push the optic into the port to ensure that it is seated properly. Do not jerk or tug repeatedly on the tab.

Switch power-up

Supply power to the S4100–ON Series (S4128F-ON and S4148F-ON) switch after you mount it in a rack or cabinet.

Dell EMC recommends reinspecting your switch before powering up. Verify the following:

• The equipment is properly secured to the rack. Dell EMC recommends properly grounding the switch.

• The ambient temperature around the unit, which may be higher than the room temperature, is within the limits specied for the S4100–
ON Series, see Specications.

• There is sucient airow around the unit.

• The input circuits are correctly sized for the loads and that you use sucient overcurrent protection devices.

• All protective covers are in place.

• Blank panels are installed if you do not install optional modules.

CAUTION

NOTE: A US AC power cable is included for powering up an AC power supply. You must order all other power cables separately.

NOTE: ESD damage can occur if components are mishandled. Always wear an ESD-preventive wrist or heel ground strap when

handling the S4100–ON Series switch and its components.

: Do not power up the switch if you did not install a fan module.

Power up sequence

When the switch powers up, the fans immediately come on at high speed. The fan speed slows as the switch continues to boot up.

After switch installation

To congure your switch, after you have securely installed and powered on the S4100–ON Series switch, see your open network installation
environment (ONIE)-compatible operating system documentation at www.onie.org.

28

S4100–ON Series installation

5

Power supplies

The S4100–ON Series (S4128F-ON and S4148F-ON) switch ships with two AC or DC power supplies.

The power supplies have two air-ow directions, normal and reverse. Normal is from the I/O-side to the PSU-side. Reverse is from the
PSU-side to the I/O-side.

The PSUs are eld replaceable. When running with full redundancy—two power supplies installed and running, you can remove and replace
one PSU without disrupting trac.

CAUTION: To prevent electrical shock, ensure that the switch is grounded properly. If you do not ground your equipment

correctly, excessive emissions may result. Use a qualied electrician to ensure that the power cables meet your local electrical
requirements.

NOTE: Connect the power supply to the appropriate branch circuit protection as dened by your local electrical codes and verify

that the remote power source complies with the switch input power specications.

NOTE: If you use a single PSU, install a blank plate in the other PSU slot. Use power supply 2 (PSU2) as the blank plate slot. To

install the blank plate, use a #1 Philips screw driver.

NOTE: ESD damage can occur if components are mishandled. Always wear an ESD-preventive wrist or heel ground strap when

handling the S4100F–ON Series switch and its components.

Topics:

• Components

• AC or DC power supply installation

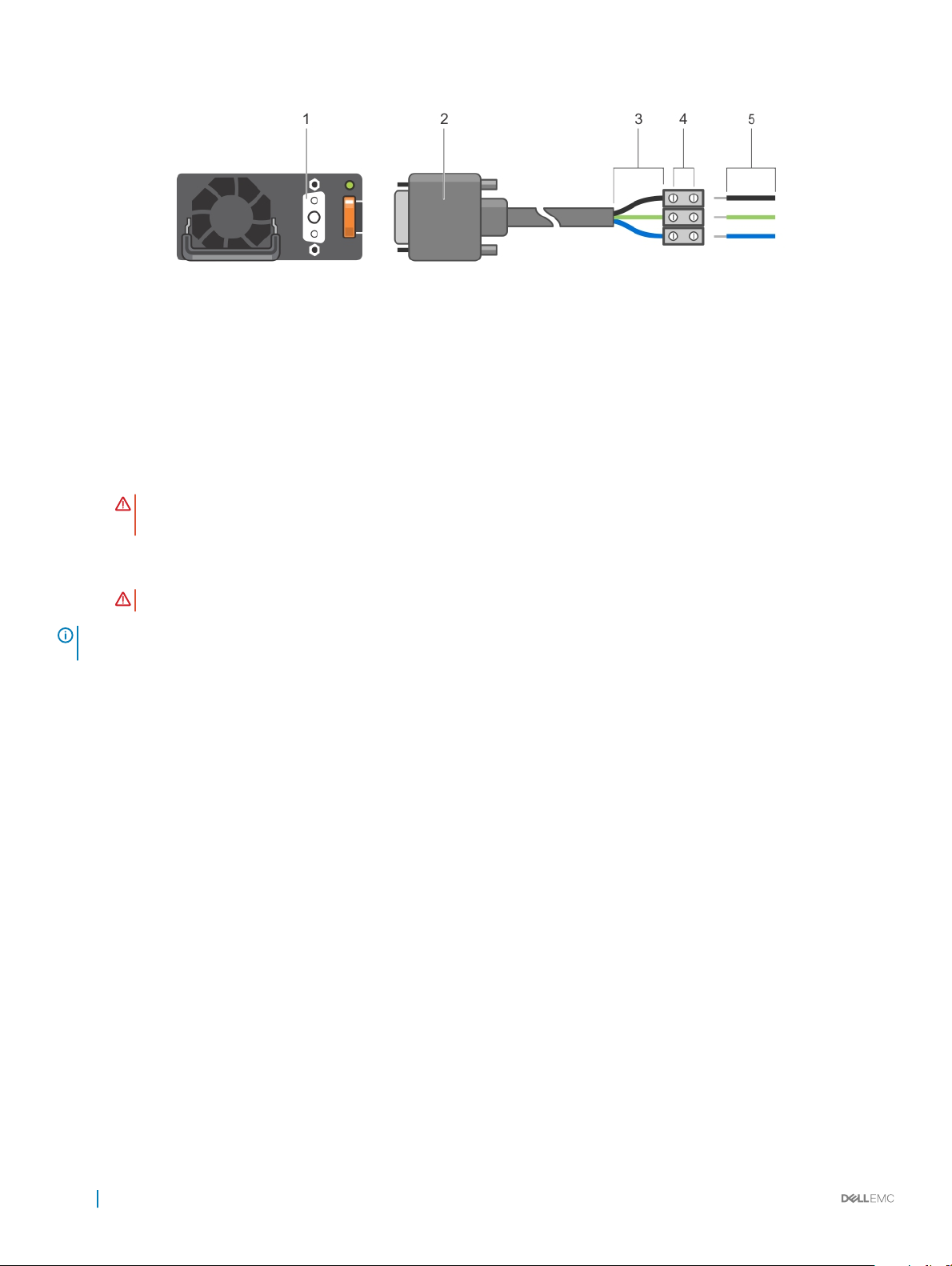

• DC power supply connection

Components

The following power supply options are available for the S4100–ON Series (S4128F-ON and S4148F-ON) switch:

• AC or DC power supply with integrated fan

• AC or DC power supply with integrated reverse ow fan

Power supply 1 (PSU1) is on the left side of the switch; power supply 2 (PSU2) is on the right side of the switch.

Power supplies 29

Figure 16. S4100–ON Series PSUs

1 PSUs

The PSUs have an integrated fan that you cannot replace individually; if the fans integrated in a PSU fail, you must replace the entire PSU.
You can replace the fan trays individually. For fan tray replacement procedures, see Fans.

WARNING: Prevent exposure and contact with hazardous voltages. Do not attempt to operate this switch with the safety cover

removed.

CAUTION: Remove the power cable from the PSU before removing the PSU. Also, do not connect the power cable before you

insert the PSU in the switch.

NOTE: To comply with the GR-1089 Lightning Criteria for Equipment Interfacing with AC Power Ports, use an external surge

protection device (SPD) at the AC input of the router.

PSU LEDs

• Solid green—Input is OK.

• Flashing yellow—There is a fault with the PSU.

• Flashing green blink at 1Hz—Switch is in standby/CR state.

• O—PSU is o.

AC or DC power supply installation

: The PSU slides into the slot smoothly. Do not force a PSU into a slot as this action may damage the PSU or the S4100–

NOTE

ON Series switch.

NOTE: Ensure that you correctly install the PSU. When you install the PSU correctly, the power connector is on the right side of

the PSU.

NOTE: If you use a single PSU, install a blank plate in the other PSU slot. If you are only using one power supply, Dell EMC

recommends installing the power supply in the rst slot, PSU1. Install a blank plate in the second slot, PSU2.

1 Remove the PSU slot cover using a small #1 Phillips screwdriver.

2 Remove the PSU from the electro-static bag.

3 Insert the PSU into the switch PSU slot.

Insert the exposed PCB edge connector rst. The PSU slot is keyed so that the PSU can only be fully inserted in one orientation.
When you install the PSU correctly, it snaps into place and is ushed with the back of the switch.

30

Power supplies

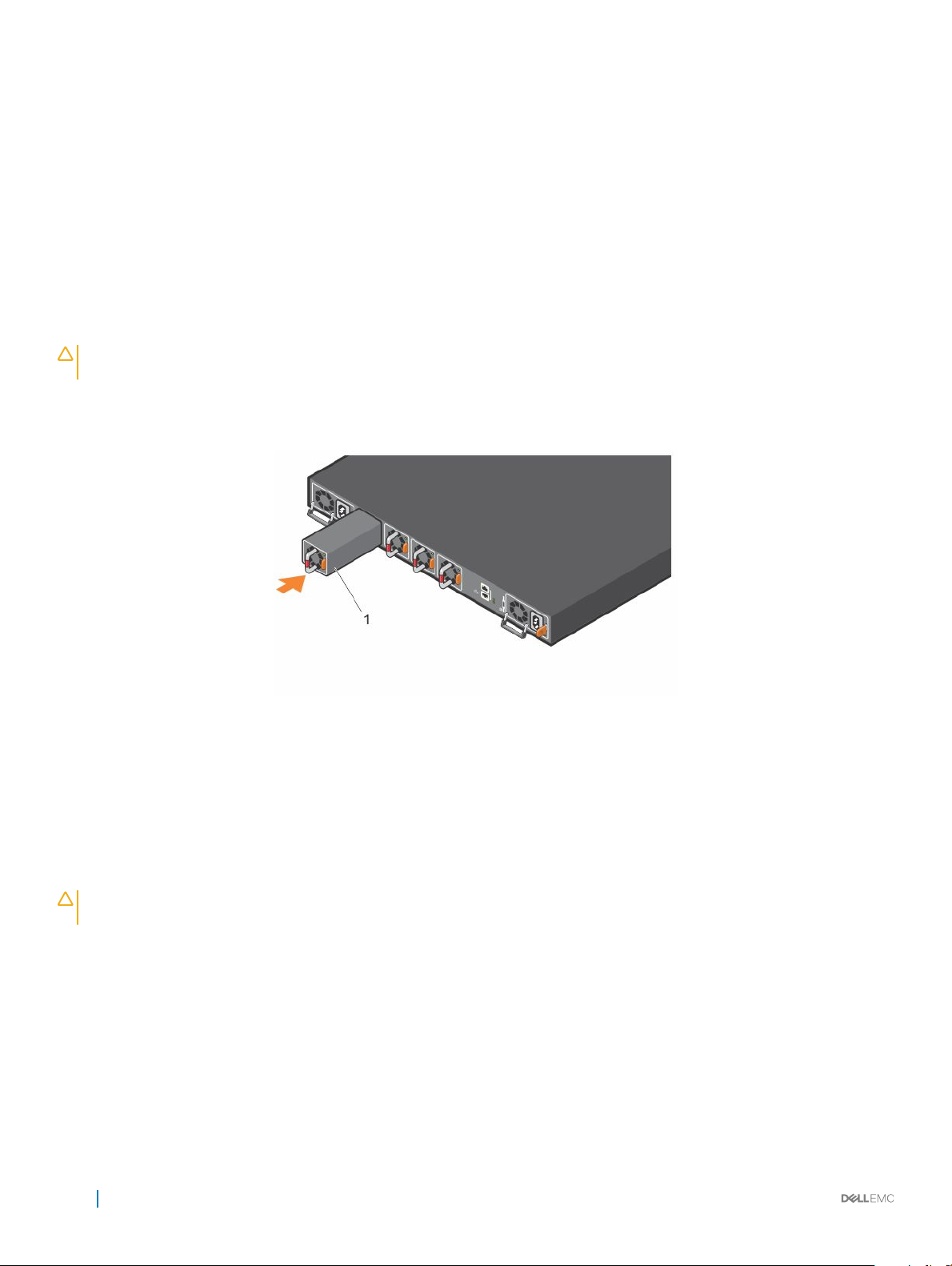

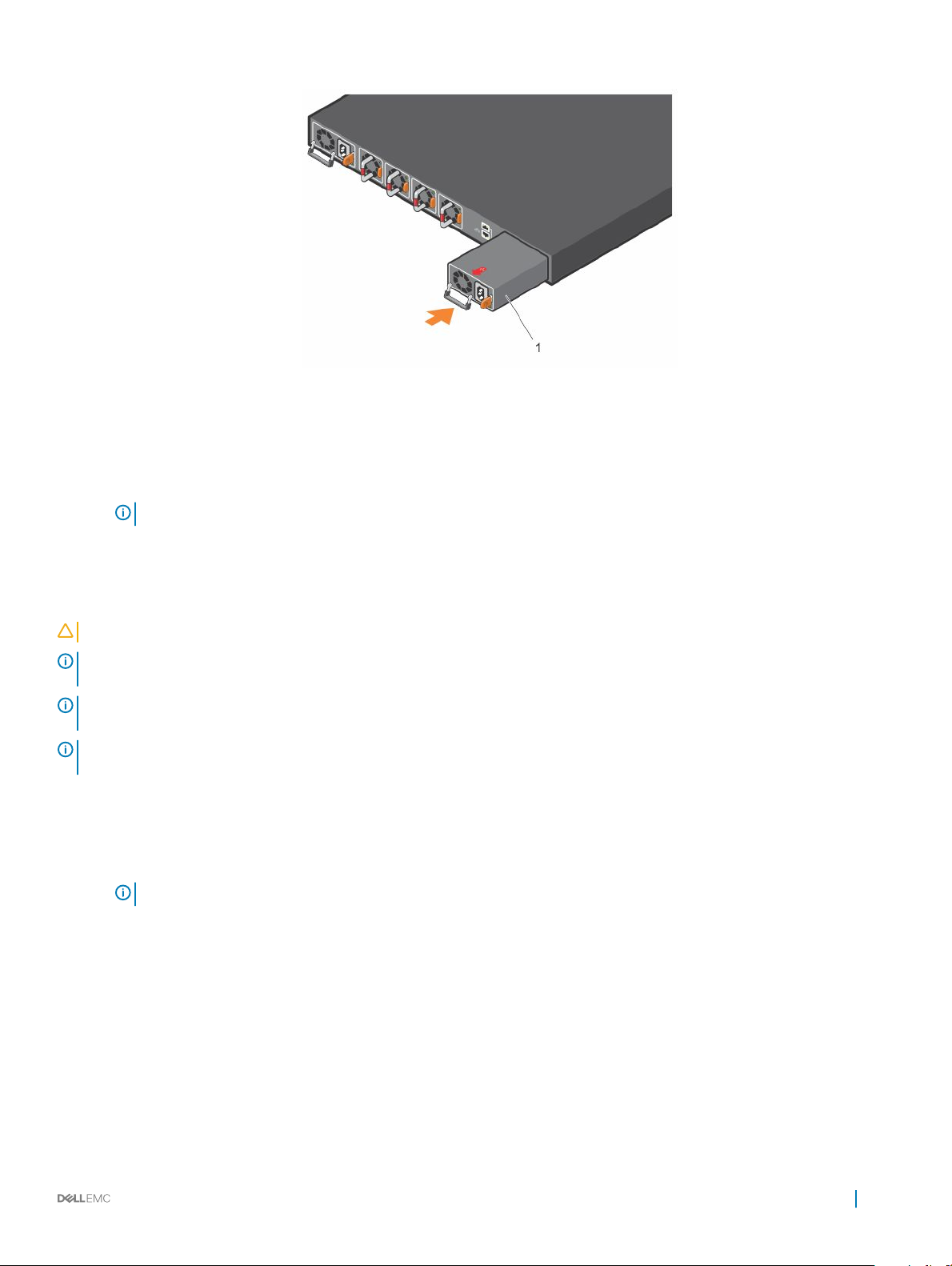

Figure 17. PSU installation

1 Left PSU is PSU1 and right PSU is PSU2.

4 Plug in the appropriate AC 3-prongs cord from the switch PSU to the external power source.

5 Repeat steps 1 through 4 if you have a redundant PSU slot.

NOTE: The switch powers up when you connect the cables between the power supply and the power source.

AC or DC power supply replacement

CAUTION

NOTE: The PSU slides into the slot smoothly. Do not force a PSU into a slot as this action may damage the PSU or the S4100–

ON Series switch.

NOTE: If a PSU fails, you must replace the entire unit. There are no eld serviceable components in the PSU. To request a

hardware replacement, see Dell EMC support.

NOTE: If you use a single PSU, install a blank plate in the other PSU slot. If you are only using one power supply, Dell EMC

recommends installing the power supply in the rst slot, PSU1. Install a blank plate in the second slot, PSU2.

1 Disconnect the power cable from the PSU.

2 Use the grab handle to slide the PSU out of the power supply bay.

3 Use the grab handle on the replacement PSU to slide it into the power supply bay.

4 Attach the power cord to the replacement PSU.

: Disconnect the power cord before removing the power supplies. Also, disconnect all power cords before servicing.

NOTE

: The switch powers up when the cables are connected between the power supply and the power source.

DC power supply connection

Each DC PSU kit, sold separately, comes with a connector cable.

Power supplies

31

Figure 18. DC power supply and connector cable

1 DC PSU power socket 2 Cable connector with thumb screws

3 Cable connector wires—black, green, and blue 4 Wiring block

5 DC power source wires—black, green, blue

1 Strip 1/2 inches of insulation from each of the site’s DC power source wires, item 5.

2 Insert each of the site’s DC power source’s bare wire lengths into the wiring block, matching the wire colors, items 3 and 4.

WARNING: Do not cross the wires—in the wiring block, blue aligns with blue, green aligns with green, and black aligns

with black.

3 Use a at-blade screwdriver to tighten the screws that secure the bare wires into the wiring block.

4 Insert the DC power connector cable end into the power socket of the DC PSU and tighten the thumb screws, items 1 and 2.

WARNING

NOTE: To remove the power connector from a DC PSU, unscrew the thumb screws and pull the power connector from the DC

PSU socket.

: Never force the power connector into or out of the DC PSU power socket.

32 Power supplies

6

Fans

The S4100–ON Series (S4128F-ON and S4148F-ON) switch comes from the factory with two PSUs and four fan modules installed in the
chassis. The fan modules and the power supplies are hot-swappable.

NOTE: To run the switch, all slots must have operating fan units. If you do not install a module in each slot, the switch shuts down

in one minute.

In addition to the power supply modules, you can order and install fan modules separately.

NOTE: The S4100–ON Series switch supports two airow direction options—normal and reverse. All fans and PSUs

the same airow direction. If you mix the airow direction, to avoid heat damage to the switch components,

mixed airow direction

• Airow is from the I/O panel to the PSU—normal.

• Airow is from the PSU to the I/O panel—reverse.

Environmental factors can decrease the amount of time required between fan replacements. Check the environmental factors regularly. An
increase in temperature and particulate matter in the air might aect performance—for example, new equipment installation.

CAUTION

accurately determine replacement intervals.

Topics:

• Components

• Fan module installation

: Check the fans at six-month intervals, and replace them as necessary. Regularly monitor the speeds of the fans to

.

you must correct the

MUST

have

Components

The following are the S4100–ON Series (S4128F-ON and S4148F-ON) fan components.

• S4100–ON Series Fan module

• S4100–ON Series Fan module—reverse

Figure 19. S4100-ON Series fan modules

Fan units

1

Fans 33

Fan LEDs

• Solid green—fan function is normal.

• Flashing yellow—there is a fan fault.

• O—fan is o.

Fan module installation

The fan modules in the S4100–ON Series (S4128F-ON and S4148F-ON) switch are eld replaceable.
When looking at your switch, Slot 1 is on the left side of the switch and Slot 4 is on the right side of the switch.

CAUTION: DO NOT mix airow directions. All fans must use the same airow direction—reverse or normal. If you mix the airow

direction, to avoid overheating the switch, correct the mixed airow.

1 Take the fan module out of the shipping box.

2 Slide the module into the bay.

Figure 20. S4100–ON Series fan modules installation

1

Fan unit

Fan module replacement

To request a hardware replacement, see Dell EMC support.

CAUTION

switch could shut down:

1 Slide the fan module out of the bay.

2 Slide the replacement module into the bay.

: Complete the following steps within one minute or the switch temperature could rise above safe thresholds and the

34

Fans

Management ports

Besides the 10/100/1000Base-T RJ-45 ports, the S4100–ON Series (S4128F-ON and S4148F-ON) switch provides several ports for
management and storage.

Topics:

• RS-232 console port access

• USB storage

• USB-B console port access

• Before you install an OS

• ONIE service discovery

RS-232 console port access

The RS-232 console port is on the PSU-side of the switch, as shown.

7

Figure 21. RS-232 console port

1

RJ-232 console port

CAUTION: Ensure that any equipment attached to the serial port can support the required 115200 baud rate.

NOTE: Before starting this procedure, ensure your PC has a 9-pin serial port. You must have a terminal emulation program

already installed and running on your PC.

NOTE: If your PC’s serial port cannot accept a female DB-9 connector, use a DB-9 male-to-male adaptor.

1 Install the provided RJ-45 connector side of the provided cable into the S4100-ON Series console port.

2 Install the DB-9 female side of the provided copper cable into your PC’s serial port. Or install the DB-9 cable into other data terminal

equipment (DTE) server hardware that you intend to use.

3 Keep the default terminal settings on the console as follows:

• 115200 baud rate

• No parity

• 8 data bits

• 1 stop bit

Management ports 35

• No ow control

USB storage

USB storage does not automatically mount. The supported le system is FAT. To use USB storage, rst mount the device using the
following steps:

1 Create a mount directory for the USB.

ONIE:/ # mkdir /mnt/usb

2 View the xed disks using fdisk.

ONIE:/mnt # fdisk -l

For internal storage:

Disk /dev/sda: 15.8 GB, 15829303296 bytes
255 heads, 63 sectors/track, 1924 cylinders
Units = cylinders of 16065 * 512 = 8225280 bytes

Device Boot Start End Blocks Id System
/dev/sda1 1 1925 15458303+ ee EFI GPT

For USB storage:

Disk /dev/sdb: 30.9 GB, 30942946304 bytes
64 heads, 32 sectors/track, 29509 cylinders
Units = cylinders of 2048 * 512 = 1048576 bytes

Device Boot Start End Blocks Id System

3 Mount the device /dev/sdb to the /mnt/usb directory.

ONIE:/ # mount -t vfat /dev/sdb /mnt/usb

NOTE

: The following message displays if the /mnt/usb directory is missing: mount: mounting /dev/sdb

on /mnt/usb failed: No such file or directory.

NOTE: The following message displays if the USB device is not seen: mount: mounting /dev/sdb on /mnt/usb

failed: No such device or address.

4 Add a device to the le systems table using the fstab command and mount the le systems—recommended.

ONIE:/ # vi /etc/fstab

# FSTAB entry for the ONIE-BOOT partition mounted on /boot
LABEL=ONIE-BOOT /mnt/onie-boot ext4 defaults,rw,errors=remount-ro 0 1
/dev/sdb /mnt/usb vfat defaults 0 1

ONIE:/ # mount -a

USB-B console port access

The USB-B console port is on the I/O side of the S4100-ON Series.

The terminal settings are the same for the serial console port and the RS-232/RJ-45 console port:

• 115200 baud rate

• No parity

• 8 data bits

• 1 stop bit

• No ow control

When you connect the USB-B port, it becomes the primary connection and, while connected, all messages are sent to the USB-B port.

36

Management ports

NOTE: Before starting this procedure, be sure that you have a terminal emulation program already installed on your PC. Install

the appropriate drivers to support the USB-B port. For assistance, contact www.dell.com/support to download the drivers.

To access the USB-B console port, follow these steps.

1 Power on the PC.

2 Connect the USB-A end of cable into an available USB port on the PC.

3 Connect the USB-B end of cable into the USB-B console port on the S4100-ON Series switch.

4 Power on the S4100-ON Series switch.

5 Install the necessary USB device drivers. (To download the drivers, go to www.dell.com/support.)

For assistance, contact Dell EMC Technical Support.

6 Open your terminal software emulation program to access the S4100-ON Series switch.

7 Conrm that the terminal settings on your terminal software emulation program are as follows:

• 115200 baud rate

• No parity

• 8 data bits

• 1 stop bit

• No ow control

Before you install an OS

After powering on the S4100–ON Series (S4128F-ON and S4148F-ON) switch, it goes through a power-on self-test (POST).

POST runs every time the switch is initialized and checks the hardware components to determine if the switch is fully operational before
booting. After POST, the switch uses the Grub bootloader.

To select an entry, use the up and down arrow keys. Press Enter to select an operating software (OS) or enter e to edit the commands
before booting. Enter c for a command line. The selected entry runs automatically in the operating system.

Grub bootloader example

GNU GRUB version 2.02~beta2+e4a1fe391

+--------------------------------------------------+
|*ONIE: Install OS |
| ONIE: Rescue |
| ONIE: Uninstall OS |
| ONIE: Update ONIE |
| ONIE: Embed ONIE |
| Diag ONIE |
| |
| |
| |
| |
| |
| |
+--------------------------------------------------+

Your switch comes with ONIE installed.

: To access ONIE, use the RJ-45 console port.

NOTE

ONIE example

ONIE: Install OS
For downloading and installing an OS from a URL

Management ports

37

Starts ONIE with ONIE Discovery Service
(factory default boot)
ONIE: Rescue
Starts ONIE without ONIE Discovery Service
Useful for running Diagnostics manually
ONIE: Uninstall OS
Restore to factory defaults erases any installed OS
ONIE: Update ONIE
For downloading and updating ONIE from a URL
ONIE: Embed ONIE
For downloading and updating ONIE from a URL and erases any installed OS
Diag ONIE
DiagOS Environment for S4100-ON

During the initial setup, the switch boots to ONIE Install. ONIE Install boots with ONIE Discovery to the console (ONIE:).

NOTE: For more information, see the

After you have securely installed and powered on the switch, to congure your switch, see your third-party ONIE-compatible OS or the Dell
EMC OS documentation.

Open Networking Hardware Diagnostic Guide

.

ONIE service discovery

ONIE attempts to locate the installer through several discovery methods, as shown. To download and run an installer, the ONIE Service
Discovery feature uses the rst successful method found.

1 Pass from the boot loader.

2 Search locally attached storage devices for one of the ONIE default installer lenames—for example, USB.

3 Exact URLs from DHCPv4.

4 Report inexact URLs based on the DHCPv4 responses.

5 Query to the IPv6 link-local neighbors using HTTP for an installer.

6 Start TFTP waterfall—from the DHCPv4 option 66

Examples of ONIE ifconfig eth0 commands

If none of the ONIE Service Discovery methods are successful, you can disable this using the onie-discovery-stop command.

You can install an operating system manually from HTTP, FTP, or TFTP using the onie-nos-install <URL> command.

NOTE

: If you have a recovery USB plugged into your switch, remove it before installing the DIAG-OS using the onie-nos-

install command.

The ONIE Install environment uses DHCP to assign an IP address to the management interface—eth0. If that fails, it uses the default IP
address 192.168.3.10/255.255.255.0.

To display the IP address, use the ifconfig eth0 command, as shown.

ONIE:/ # ifconfig eth0
eth0 Link encap:Ethernet HWaddr 90:B1:1C:F4:9C:76
inet addr:10.11.53.33 Bcast:10.255.255.255 Mask:255.0.0.0
inet6 addr: fe80::92b1:1cff:fef4:9c76/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:18 errors:0 dropped:0 overruns:0 frame:0
TX packets:24 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:1000
RX bytes:1152 (1.1 KiB) TX bytes:6864 (6.7 KiB)
Interrupt:21 Memory:ff300000-ff320000

To assign an IP address to the management interface, eth0, and verify network connectivity, use the ifconfig eth0 <ip

address>

ONIE:/ # ifconfig eth0 10.11.53.33/16

Verify the network connection with ping.

38

command, as shown.

Management ports

ONIE:/ # ping 10.11.8.12
PING 10.11.8.12 (10.11.8.12): 56 data bytes
64 bytes from 10.11.8.12: seq=0 ttl=62 time=1.357 ms
64 bytes from 10.11.8.12: seq=1 ttl=62 time=0.577 ms
^C

Management ports 39

Specications

This section lists the S4100–ON Series (S4128F-ON and S4148F-ON) switch specications.

CAUTION: Operate the product at an ambient temperature not higher than 113°F—45°C.

CAUTION: Lithium Battery Caution: There is a danger of explosion if the battery is incorrectly replaced. Replace only with same

or equivalent type of battery. Dispose of the batteries according to the manufacturer's instructions.

Topics:

• Chassis physical design

• IEEE standards

• Agency compliance

• USA Federal Communications Commission (FCC) statement

• European Union EMC directive conformance statement

• Japan: VCCI compliance for class A equipment

• Korean certication of compliance

• Safety standards and compliance agency certications

• Electromagnetic compatibility (EMC)

• Product recycling and disposal

8

Chassis physical design

Table 13. Chassis physical design

Parameter Specications

Height 1.71 inches (43.5 mm)

Width 17.1 inches (434 mm)

Depth

Chassis weight with factory-installed components

Rack clearance required

18.1 inches (460 mm)

Handle: 0.82 inch (21 mm)

S4128F-ON: 19.66 lbs/8.92 kg (2* PSUs)

S4148F-ON: 20.15 lbs/9.14 kg (2* PSUs)

Front: 5 inches (12.7 cm)

Back: 5 inches (12.7 cm)

40 Specications

Table 14. Environmental parameters

Parameter Specications

Operating temperature 5° to 40°C (50°F to 104°F)

-5°C to 45°C (23°F to 113°F) short term

Short term is </= 1% of operational hours per year.

NOTE: Reduce maximum temperature by 1°C/125 meters

(1°F/228 feet) above 950 meters (3,117 feet).

Operating humidity 5% to 85% (RH), non-condensing, continuously

5% to 90% (RH), non-condensing, short term

Short term is </= 1% of operational hours per year.

Storage temperature –40° to 65°C (–40°F to 149°F)

Storage humidity 5% to 95%, non-condensing

Maximum thermal output 470 W = 1260 BTU/Hr

Maximum operational altitude 10,000 feet (3,048 meters)

Maximum non-operational altitude 39,370 feet (12,000 meters)

Shock SV0115 — ODM

Table 15. AC power requirements

Parameter Specications

Power supply 100–240 VAC 50/60 Hz

Maximum current draw per switch 4.7A/3.9A at 100/120V AC 2.35A/1.95A at 200/240V AC

Maximum power consumption 370 Watts

Typical power consumption 200 Watts

Table 16. DC power requirements

Parameter Specications

Minimum and maximum input voltage range −40.5V, –48V, -60V

Input power at full load −40.5V/970W −48V/930W −60V/ 950W, without fan

−40.5V/980W −48V/940W −60V/ 960W, with fan

Input current at full load −40.5V/23.8A −48V/19.0A −60V/ 15.6A, without fan

−40.5V/24.0A −48V/19.2A −60V/ 16.0A, with fan

Start up VDC—voltage when the switch is powered on 39.0+/−1.5 V

Start o VDC—voltage during the boot-up process 37.5+/−1.5 V

Specications 41

IEEE standards

The S4100–ON Series (S4128F-ON and S4148F-ON) switch complies with the following IEEE standards:

• 802.1ab (LLDP)

• 802.1ax (Layer 2)

• 802.1d, 802.1w, 802.1s, 802.1x (Mgmt/Security), 802.3x (Layer 2)

• 802.3 (1000BASE-KX)

• 802.3ba (40 GbE and 100 GbE ports)

Agency compliance

The S4100–ON Series (S4128F-ON and S4148F-ON) switch complies with the following safety and agency requirements:

USA Federal Communications Commission (FCC) statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.
These limits are designated to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy. If it is not installed and used in accordance to the
instructions, it may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference, in which case users will be required to take whatever measures necessary to correct the interference at their own
expense.

Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Dell EMC is not responsible for
any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or
modications in the equipment. Unauthorized changes or modication could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Figure 22. Canadian department of communication statement

European Union EMC directive conformance statement

This product is in conformity with the protection requirements of EU Council Directive 2004/30/EC on the approximation of the laws of
the Member States relating to electromagnetic compatibility. Dell EMC cannot accept responsibility for any failure to satisfy the protection
requirements resulting from a non-recommended modication of this product, including the tting of non-Dell EMC option cards.

This product has been tested and found to comply with the limits for Class A Information Technology Equipment according to CISPR 32/
CISPR34 and EN55032 / EN55034. The limits for Class A equipment were derived for commercial and industrial environments to provide
reasonable protection against interference with licensed communication equipment.

42

Specications

WARNING: This is a Class A product. In a domestic environment, this device may cause radio interference, in which case, you

may be required to take adequate measures.

European Community Contact

Dell EMC, EMEA - Central

Dahlienweg 19

66265 Heusweiler

Germany

Tel: [phone]

Email: EMEA Central Sales

Japan: VCCI compliance for class A equipment

Figure 23. Japan: VCCI compliance for class A equipment

This is Class A product based on the standard of the Voluntary Control Council For Interference by Information Technology Equipment
(VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the user may be
required to take corrective actions.

WARNING

hardware.

Figure 24. Japan: warning label

: Use the AC power cords with Dell EMC equipment only. Do not use Dell EMC AC power cords with any unauthorized

Specications

43

Korean certication of compliance

Figure 25. Korean certication of compliance

Figure 26. Korean package label

Safety standards and compliance agency

certications

• IEC 62368-1, 2nd Edition

• CUS UL 60950-1, 2nd Edition

• AS/NZS 60950

• CSA 60950-1-03, 2nd Edition

• EN 60950-1, 2nd Edition

• EN 60825-1, 1st Edition

• EN 60825-1 Safety of Laser Products—Part 1: Equipment Classication Requirements and User’s Guide

• EN 60825-2 Safety of Laser Products—Part 2: Safety of Optical Fibre Communication Systems

• FDA Regulation 21CFR 1040.10 and 1040.11

• IEC 60950-1, 2nd Ed, including all National Deviations and Group Dierences

Electromagnetic compatibility (EMC)

Emissions

• International: CISPR 32: Class A

• Australia/New Zealand: AS/NZS CISPR 32, Class A

44

Specications

• Canada: ICES-003, Issue-4, Class A

• Europe: EN55032:2015 (CISPR 32), Class A

• Japan: VCCI Class A

• USA: FCC CFR47 Part 15, Subpart B, Class A

Immunity

• EN 300 386 EMC for Network Equipment

• EN 55024

• EN 61000-3-2 Harmonic Current Emissions

• EN 61000-3-3 Voltage Fluctuations and Flicker

• EN 61000-4-2 ESD

• EN 61000-4-3 Radiated Immunity

• EN 61000-4-4 EFT

• EN 61000-4-5 Surge

• EN 61000-4-6 Low Frequency Conducted Immunity

Product recycling and disposal

You must recycle or discard this system according to applicable local and national regulations. Dell EMC encourages owners of information
technology (IT) equipment to responsibly recycle their equipment when it is no longer needed. Dell EMC oers a variety of product return
programs and services in several countries to assist equipment owners in recycling their IT products.

Waste Electrical and Electronic Equipment (WEEE) directive for recovery, recycle, and reuse of IT and telecommunications products

Dell EMC switches are labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment
(WEEE). The Directive determines the framework for the return and recycling of used appliances as applicable throughout the European
Union. This label is applied to various products to indicate that the product is not to be thrown away, but rather reclaimed upon end of life
per this Directive.

Figure 27. The European WEEE symbol

In accordance with the European WEEE Directive, electrical and electronic equipment (EEE) is to be collected separately and to be reused,
recycled, or recovered at end of life. Users of EEE with the WEEE marking per Annex IV of the WEEE Directive, as shown above, must not
dispose of end of life EEE as unsorted municipal waste, but use the collection framework available to customers for the return, recycling
and recovery of WEEE. Customer participation is important to minimize any potential eects of EEE on the environment and human health
due to the potential presence of hazardous substances in EEE.

Specications

45

Dell EMC products, which fall within the scope of the WEEE, are labeled with the crossed-out wheelie-bin symbol, as shown above, as
required by WEEE.

For information on Dell EMC product recycling oerings, see the WEEE Recycling instructions on the Support page. For more information,
contact the Dell EMC Technical Assistance Center.

46 Specications

9

Dell EMC support

The Dell EMC support site provides documents and tools to help you eectively use Dell EMC equipment and mitigate network outages.
Through the support site you can obtain technical information, access software upgrades and patches, download available management
software, and manage your open cases. The Dell EMC support site provides integrated, secure access to these services.

To access the Dell EMC support site, go to www.dell.com/support/. To display information in your language, scroll down to the bottom of
the web page and select your country from the drop-down menu.

• To obtain product-specic information, enter the 7-character service tag, found on the luggage tag, or the 11-digit express service code
of your switch and click Submit.

To view the switch service tag or express service code, pull out the tag or enter the show chassis command from the CLI. The
luggage tag is on the PSU-side of the switch.

• To receive more technical support, click Contact Us. On the Contact Information web page, click Technical Support.

To access switch documentation, go to www.dell.com/manuals/.

To search for drivers and downloads, go to www.dell.com/drivers/.

To participate in Dell EMC community blogs and forums, go to www.dell.com/community.

Dell EMC support 47
