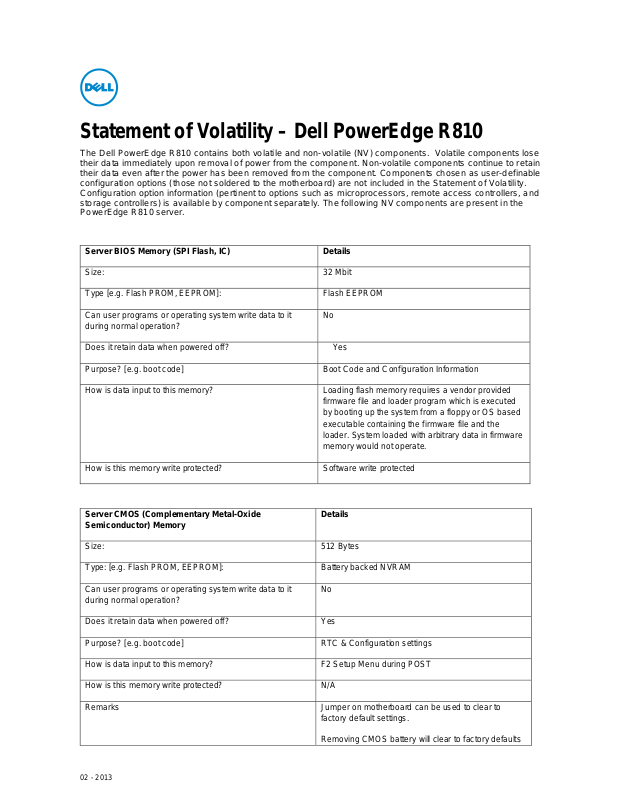

Statement of Volatility – Dell PowerEdge R810
The Dell Power E dge R810 contains bo t h v o lat il e an d n on - volatile (NV) components. Volatile components lose their data immediately upon removal of power from the component. Non-volatile components continue to retain their data even after the power has been removed from the component. Components chosen as user-definable configuration op t i ons (t h o s e no t so l de re d to t he m o t h er b o ar d) ar e n ot incl u d ed in t he St atement of Volatility. Configuration option information (pertinent to options such as microprocessors, remote access controllers, and storage contro llers) is available by component s eparately. The following NV components are present in the PowerEdge R810 server.
Server BIOS Memory (SPI Flash, IC) Details
Size: 32 Mbit
Type [e.g. Flash PROM, EEPROM]: Flash EEPROM
Can user programs or operating system write data to it during normal operation?
Does it retain data when powered off? Yes
Purpose? [e.g. boot code] Boot Code and Configuration Information
How is data input to this memory? Loading flash memory requires a vendor provided
How is this memory write protected? Software write protected
No
firmware file and loader program which is executed by booting up the system from a floppy or OS based executable containing the firmware file and the loader. System loaded with arbitrary data in firmware memory would not operate.
Server CMOS (Complementary Metal-Oxide Semiconductor) Memory
Size: 512 Bytes
Type: [e.g. Flash PROM, EEPR OM ]: Battery backed NVRAM
Can user programs or operating system write data to it during normal operation?
Details
No
Does it retain data when powered off? Yes
Purpose? [e.g. boot code] RTC & Configuration settings
How is data input to this memory? F2 Setup Menu during POST
How is this memory write protected? N/A
Remarks Jumper on motherboard can be used to clear to
factory default settings. Removing CMOS battery will clear to factory defaults
02 - 2013
Page 2
settings as well.
Server BMC (Baseboard Management Controller) also known as “iDRAC Express” boot block flash
Size: 2 MB
Type: [e.g. Flash PROM, EEPROM]: Serial Flash
Can user programs or operating system write data to it during normal operation?
Does it retain data when powered off? Yes
Purpose? [e.g. boot code] iDRAC boot loader and configuration (i.e. MAC
How is data input to this memory? Data pre-programmed or update using Dell utility
How is this memory write protected? Software write protected
Remarks Bad contents yield the iDRAC inoperable and is
Details
No
address), Lifecycle log.
which is a DOS or Windows or Linux based executable containing firmware file and loader
unrecoverable in the customer e nvi ronm en t. Note th e lifecycle log is automatically updated by the iDRAC as various system component FW , HW and SW versions are changed.
Server BMC (Baseboard Management Controller) also known as “iDRAC Express” Internal Flash
Size: 1 GB
Type: [e.g. Flash PROM, EEPROM]: NAND Flash
Can user programs or operating system write data to it during normal operation?
Does it retain data when powered off? Yes
Purpose? [e.g. boot code] iDRAC Operating System plus Managed System
How is data input to this memory? iDRAC OS: Loading flash memory requires a vendor
Details
No
Services Repository (i.e. Unified Server Configurator, OS drivers, diagnostics, rollback versions of various programmables)
provided firmware file and loader program which is executed by booting up the system from a floppy or OS based executable containing the firmware file and the loader. System loaded without a good iDRAC firmware image yields a non-functional iDRAC. Managed Services Repository: Various partitions are loaded via vendor provided firmw are fi le and load e r program just like iDRAC OS.
How is this memory write protected? Software write protected
Page 3
Server System Event Log Memory / FRU Details
Size: 4 KB
Type: [e.g. Flash PROM, EEPROM]: SEEPROM
Can user programs or operating system write data to it during normal operation?
Does it retain data when powered off? Yes
Purpose? [e.g. boot code] Store System Events
How is data input to this memory? BMC controller writes
How is this memory write protected? Software write protected
No
FRU (Field Replacement Unit) memory. (x1 on the IO planar, x1 on the CPU planar)
Size: 4Kb on IO planar, 2Kb on CPU planar
Type: [e.g. Flash PROM, EEPROM]: EEPROM
Can user programs or operating system write data to it during normal operation?
Does it retain data when powered off? Yes
Purpose? [e.g. boot code] FRU information for boards such as board name,
Details
No
PPID, manufacturing date etc.
How is data input to this memory? Data pre-programmed or using Dell utility at
ICT/Functional Tester during board assembly
How is this memory write protected? Software write protected
DIMM modules SPD (Serial Presence Detect) EEPROM (up to 32 depending on the number of DIMM modules present)
Size: 256 Bytes
Type: [e.g. Flash PROM, EEPROM]: EEPROM
Can user programs or operating system write data to it during normal operation?
Does it retain data when powered off? Yes
Purpose? [e.g. boot code] DIMM information and temperature settings.
How is data input to this memory? Data preprogrammed by the DIMM vendors (lower
Details
No
128 bytes). Also during boot sequence, data is written to SPD EEPROM (upper 128 Bytes).
Page 4
How is this memory write protected? Not write protected
Trusted Platform Module (TPM) Details
Size: 128 Bytes
Type: [e.g. Flash PROM, EEPROM]: EEPROM
Can user programs or operating system write data to it during normal operation?
Does it retain data when powered off? Yes
Purpose? [e.g. boot code] Store firmware for TPM functionality
How is data input to this memory? Loading flash memory requires a vendor provided
How is this memory write protected? Software write protected
Remarks F2 BIOS setup option to enable/activate/c lear
No
firmware file and loader program. System loaded w ith arbitrary data in firmware memory would not operate.
TPM Alternative Plug-in module Details
Size: 256 Bytes
Type: [e.g. Flash PROM, EEPROM]: EEPROM
Can user programs or operating system write data to it during normal operation?
Does it retain data when powered off? Yes
No
Purpose? [e.g. boot code] Stores encryption keys for TPM functionality
How is data input to this memory? Data is pre-programmed by vendor. Keys are updated
using TPM enabled operating systems.
How is this memory write protected? Software write protected
Remarks F2 BIOS setup option to enable/activate/c lear
Server CPLD Devices (x1 on IO planar and x1 on CPU planar)
Size: 2280 macro-cells and 1280 macro-cells
Type: [e.g. Flash PROM, EEPROM]: Internal Flash EEPROM
Can user programs or operating system write data to it during normal operation?
Does it retain data when powered off? Yes
Purpose? [e.g. boot code] System power sequence control, error/config
Details
No
Page 5
detection, and BIOS-BMC interaction.
How is data input to this memory? Programming CPLD(s) requires a vendor provided
logic file and loader program which is executed by booting up the system from a floppy or OS based executable containing the logic file and the loader. System loaded with arbitrary data in CPLD(s) would not operate.
How is this memory write protected? Software write protected
Remarks Need AC cycle after updating CPLD
Ethernet Controller Configuration Data (x2 on IO planar)
Size: 8 Mb
Type: [e.g. Flash PROM, EEPROM]: Flash
Can user programs or operating system write data to it during normal operation?
Does it retain data when powered off? Yes
Purpose? [e.g. boot code] Controller Firmware & configuration data
How is data input to this memory? Loading flash memory requires a vendor provided
How is this memory write protected? Software write protected
Remarks There is a quantity of “2” SPI flash on the IO planar.
Details
No
firmware file and loader program which is executed by booting up the system from a floppy or OS based executable containing the firmware file and the loader. System loaded wi th ar bi t ra ry data in firmware memory would not operate.
Both flash parts are for the two 5709C controllers.
Power Supply Firmware and FRU memory Details
Size: LiteOn: 4K Flash, 256 Bytes RAM
32K Flash, 8KB RAM Emerson : 8K Flash, 384 Bytes RAM 16K Flash, 1KB RAM `
Type: [e.g. Flash PROM, EEPROM]: SEEPROM
Can user programs or operating system write data to it during normal operation?
Does it retain data when powered off? Yes
No
Page 6
Purpose? [e.g. boot code] Stores PSU controller firmware. FRU information for
boards such as name, manufactu ring date etc.
How is data input to this memory? FRU data pre-programmed by the PSU vendors. PSU
firmware can be updated by Dell provided update package
How is this memory write protected? Software write protected
Dell PERC H700i storage controller CPLD/Flash/NVSRAM etc. (if applicable)
Size: FRU: 256 Bytes
Type: [e.g. Flash PROM, EEPROM]: FRU, EEPROM, Flash, CPLD, Non-volatile SRAM
Can user programs or operating system write data to it during normal operation?
Does it retain data when powered off? Yes
Purpose? [e.g. boot code] Flash stores the storage controllers firmware CPLD
Details
Boot ROM: 8 KB Flash: 8 MB CPLD: 128 Macrocells NVSRAM: 128 KB iButton key EEPROM: 128 Bytes Battery Backed Cache: 512 MB
and a 1-wire EEPROM
No
controls the power sequencing and battery backup logic. NVSRAM stores the controller configuration. FRU stores the PPID, manufacturing date etc.
Battery Backed Cache: Store the data if the cache is not cleared and battery backup unit is enab led i n th e case of a power loss.
How is data input to this memory? FRU/CPLD data is preprogrammed at board build.
NVSRAM is updated by the storage controller Flash is updated by Dell provided update package Cache stores the data before getting written to the disks, when WriteBack policy is enabled with battery backup
How is this memory write protected? FRU is not write protected but everything else is
software write protect ed
Remarks PERC H700i controller is optional
Page 7
Dell PERC H200i storage controller Flash/NVSRAM/FRU (if applicable)
Size: FRU: 256 Bytes
Type: [e.g. Flash PROM, EEPROM]: Flash (NOR), EEPROM and NVSRAM
Details
Boot ROM: 8 KB Flash: 8 MB NVSRAM: 128 KB
Can user programs or operating system write data to it during normal operation?
Does it retain data when powered off? Yes
Purpose? [e.g. boot code] Flash stores the storage control lers firmware
How is data input to this memory? FRU data is preprogrammed at board build. NVSRAM
How is this memory write protected? FRU is not write protected but everything else is
Remarks PERC H200i controller is optional
No
NVSRAM stores the controller configuration FRU stores the PPID, manufacturing date etc.
is updated by the storage controller Fl a sh is upda te d by Dell provided update package
software write protect ed
PCIe Switch EEPROM (x1 on the IO planar, x1 on the center riser)
Size: 128 KB
Type: [e.g. Flash PROM, EEPROM]: SEEPROM
Details
Can user programs or operating system write data to it during normal operation?
Does it retain data when powered off? Yes
Purpose? [e.g. boot code] Store PCIe Switch configuration information
How is data input to this memory? Loading flash memory requires a vendor provided
How is this memory write protected? Software write protected
No
firmware file and loader program which is executed by booting up the system from a floppy or OS based executable containing the firmware file and the loader. System loaded wi th ar bi t ra ry data in firmware memory would not operate.
Page 8
Backplane Firmware and FRU Details
Size: 32 KB
Type: [e.g. Flash PROM, EEPROM]: Flash
Can user programs or operating system write data to it during normal operation?
Does it retain data when powered off? Yes
Purpose? [e.g. boot code]
How is data input to this memory? Loading flash memory requires a vendor provided
How is this memory write protected? Software write protected
No
Backplane Firmware and FRU data storage
firmware file and loader program which is executed by booting up the system from a floppy or OS based executable containing the firmware file and the loader. System loaded wi th ar bi t ra ry data in firmware memory would not operate.
Server BMC (Baseboard Management Controller) Firmware Flash Memory
Size: 16 Mb Flash
Type: [e.g. Flash PROM, EEPROM]: Flash PROM
Details
Can user programs or operating system write data to it during normal operation?
Purpose? [e.g. boot code] Stores the BMC Firmware
How is data input to this memory? Loading flash memory requires a vendor provided
How is this memory write protected? Software write protected
No
firmware file and loader program which is executed by booting up the system from a floppy or OS based executable containing the firmware file and the loader. System loaded wi th ar bi t ra ry data in firmware memory would not operate.
IDSDM MCU Details
Size: 256 KBytes
Type: [e.g. Flash PROM, EEPROM]: EEPROM
Can user programs or operating system write data to it during normal operation?
Purpose? [e.g. boot code] Store firmware for IDSDM functionality
No
How is data input to this memory? Loading flash memory requires a vendor provided
firmware file and loader program. IDSDM module
Page 9
loaded with arbitrary data in firmware memory would not operate.
How is this memory write protected? Software write protected
Remarks IDSDM is an option
IDSDM Write Journal Flash Details
Size: 8 MB
Type: [e.g. Flash PROM, EEPROM]: EEPROM
Can user programs or operating system write data to it during normal operation?
Purpose? [e.g. boot code] Store write journal for shutdown recovery
How is data input to this memory? IDSDM Microcontroller writes to and reads from this
How is this memory write protected? N/A
No
memory via SPI interface during operation
SD card(s) (if present) for IDSDM (one or two SD cards depending on the redundancy mode ordered with it)
Size: Multiple
Type: [e.g. Flash PROM, EEPROM]: Secure Digital NAND Flash
Can user programs or operating system write data to it during normal operation?
Does it retain data when powered off? Yes
Purpose? [e.g. boot code] Normal usage is embedded Hypervisor OS but not
Details
No
limited
How is data input to this memory? Factory load, OS run time usage and OS updates and
configuration changes.
How is this memory write protected? Media write protection or Software write protected
Remarks IDSDM is an option
VFlash for iDRA C En te rprise Details
Size: Multiple
Type: [e.g. Flash PROM, EEPROM]: Secure Digital NAND Flash
Can user programs or operating system write data to it during normal operation?
Does it retain data when powered off? Yes
No
Page 10
Purpose? [e.g. boot code] Storage of logs, user images like files, drivers, OS’s
etc.
How is data input to this memory? Preloaded media before installation, or remote out of
band upload of user data (i.e. ISO images, files) or local server read/write capability to use it like a hard disk
How is this memory write protected? Media write protection or Software write protected
Remarks iDRAC Enterprise and VFlash is optional
NOTE:
There are six external and one internal USB ports on R810, where a user can install a USB flash memory.
NOTE:
For any information that you may need, direct your questions to your Dell Marketing contact.
______________
© 2013 Dell Inc.
Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of Dell Inc.
Loading...
