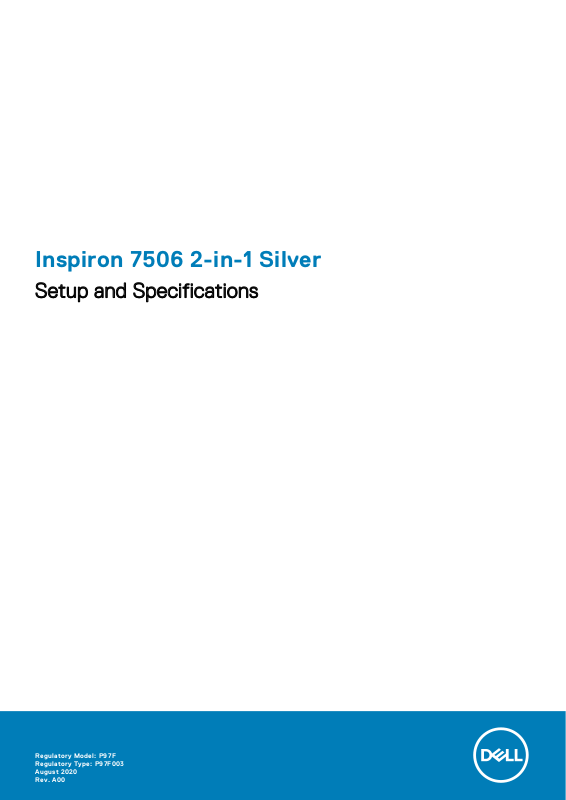

Inspiron 7506 2-in-1 Silver
Setup and Specifications
Reg ula tor y M ode l: P97 F
Reg ula tor y T ype : P 97F 003
Aug ust 20 20
Rev . A 00
Page 2
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid
the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
© 2020 Dell Inc. or its subsidiaries. All rights reserved. Dell, EM C, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Oth er
trademarks may be trademarks of their respective owners.
Page 3
Contents
Chapter 1: Set up your Inspiron 7506 2-in-1 Silver......................................................................... 4
Chapter 2: Views of Inspiron 7506 2-in-1 Silver............................................................................. 6
Right....................................................................................................................................................................................... 6
Left..........................................................................................................................................................................................6
Base.........................................................................................................................................................................................7
Display.................................................................................................................................................................................... 8
Bottom................................................................................................................................................................................... 9
Modes..................................................................................................................................................................................... 9
Chapter 3: Using the privacy shutter............................................................................................ 11
Chapter 4: Specifications of Inspiron 7506 2-in-1 Silver............................................................... 12
Dimensions and weight..................................................................................................................................................... 12
Processor............................................................................................................................................................................. 12
Chipset..................................................................................................................................................................................13
Operating system............................................................................................................................................................... 13
Memory.................................................................................................................................................................................13
External ports......................................................................................................................................................................14
Internal slots........................................................................................................................................................................ 14
Wireless module..................................................................................................................................................................14
Audio..................................................................................................................................................................................... 15
Storage................................................................................................................................................................................. 15
Intel Optane Memory H10 with solid-state storage (optional)............................................................................... 16
Media-card reader............................................................................................................................................................. 16
Keyboard.............................................................................................................................................................................. 17
Camera..................................................................................................................................................................................17
Touchpad............................................................................................................................................................................. 18
Power adapter.................................................................................................................................................................... 18
Battery..................................................................................................................................................................................19
Display...................................................................................................................................................................................19
Fingerprint reader..............................................................................................................................................................20
GPU—Discrete.................................................................................................................................................................. 20
Operating and storage environment..............................................................................................................................21
Chapter 5: Keyboard shortcuts....................................................................................................22
Chapter 6: Getting help and contacting Dell................................................................................ 24
Contents 3
Page 4
Set up your Inspiron 7506 2-in-1 Silver
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
1. Connect the power adapter and press the power button.
1
NOTE: The battery may go into power-saving mode during shipment to conserve charge on the battery. Ensure that the
power adapter is connected to your computer when it is turned on for the first time.
2. Finish Windows setup.
Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
● Connect to a network for Windows updates.
NOTE:
If connecting to a secured wireless network, enter the password for the wireless network access when
prompted.
● If connected to the Internet, sign in with or create a Microsoft account. If not connected to the Internet, create an
offline account.
● On the Support and Protection screen, enter your contact details.
3. Locate and use Dell apps from the Windows Start menu—Recommended.
Table 1. Locate Dell apps
Resources Description
My Dell
Centralized location for key Dell applications, help articles, and other important information about
your computer. It also notifies you about the warranty status, recommended accessories, and
software updates if available.
4 Set up your Inspiron 7506 2-in-1 Silver
Page 5
Table 1. Locate Dell apps (continued)
Resources Description
SupportAssist
Proactively checks the health of your computer’s hardware and software. The SupportAssist OS
Recovery tool troubleshoots issues with the operating system. For more information, see the
SupportAssist documentation at www.dell.com/support.
NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.
Dell Update
Updates your computer with critical fixes and latest device drivers as they become available. For
more information about using Dell Update, see the knowledge base article SLN305843 at
www.dell.com/support.
Dell Digital Delivery
Download software applications, which are purchased but not pre-installed on your computer. For
more information about using Dell Digital Delivery, see the knowledge base article 153764 at
www.dell.com/support.
Set up your Inspiron 7506 2-in-1 Silver 5
Page 6
Views of Inspiron 7506 2-in-1 Silver
Right
1. SD-card slot
Reads from and writes to the SD card. The computer supports the following card types:
● Secure Digital (SD)
● Secure Digital High Capacity (SDHC)
● Secure Digital Extended Capacity (SDXC)
2
2. USB 3.2 Gen 1 port
Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
3. Headset port
Connect headphones or a headset (headphone and microphone combo).
Left
1. Power-adapter port
Connect a power adapter to provide power to your computer.
2. Power and battery-status light
Indicates the power state and battery state of the computer.
Solid white—Power adapter is connected and the battery is charging.
Solid amber—Battery charge is low or critical.
Off—Battery is fully charged.
3. HDMI port
Connect to a TV or another HDMI-in enabled device. Provides video and audio output.
4. USB 3.2 Gen 1 port
Connect peripherals such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps.
6 Views of Inspiron 7506 2-in-1 Silver
Page 7
5. Thunderbolt 4 USB Type-C port with Power Delivery
Thunderbolt 4 enables you to connect to an external display using a display adapter. Provides data transfer rates of up to 40
Gbps. Supports Power Delivery that enables two-way power supply between devices. Provides up to 5 V/3 A power output
that enables faster charging.
NOTE: You can connect a Dell Docking Station to the Thunderbolt 4 ports. For more information, see the knowledge
base article SLN286158 at www.dell.com/support.
NOTE: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
NOTE: Connecting a USB Type-C power adapter to this port provides power to your computer and also charges the
battery.
Base
1. Touchpad
Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two finger tap to right-click.
2. Left-click area
Press to left-click.
3. Right-click area
Press to right-click.
4. Power button with fingerprint reader
Press to turn on the computer if it is turned off, in sleep state, or in hibernate state.
When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power
button for 10 seconds to force shut-down the computer.
Place your finger on the power button to log-in with the fingerprint reader.
You can customize power-button behavior in Windows. For more information, see Me and My Dell at
NOTE:
www.dell.com/support/manuals.
Views of Inspiron 7506 2-in-1 Silver 7
Page 8
Display
1. Left microphone
Provides digital sound input for audio recording and voice calls.
2. Camera
Enables you to video chat, capture photos, and record videos.
3. Privacy shutter
Slide the privacy shutter to cover the camera lens and protect your privacy when the camera is not in use.
4. Camera-status light
Turns on when the camera is in use.
5. Right microphone
Provides digital sound input for audio recording and voice calls.
8
Views of Inspiron 7506 2-in-1 Silver
Page 9
Bottom

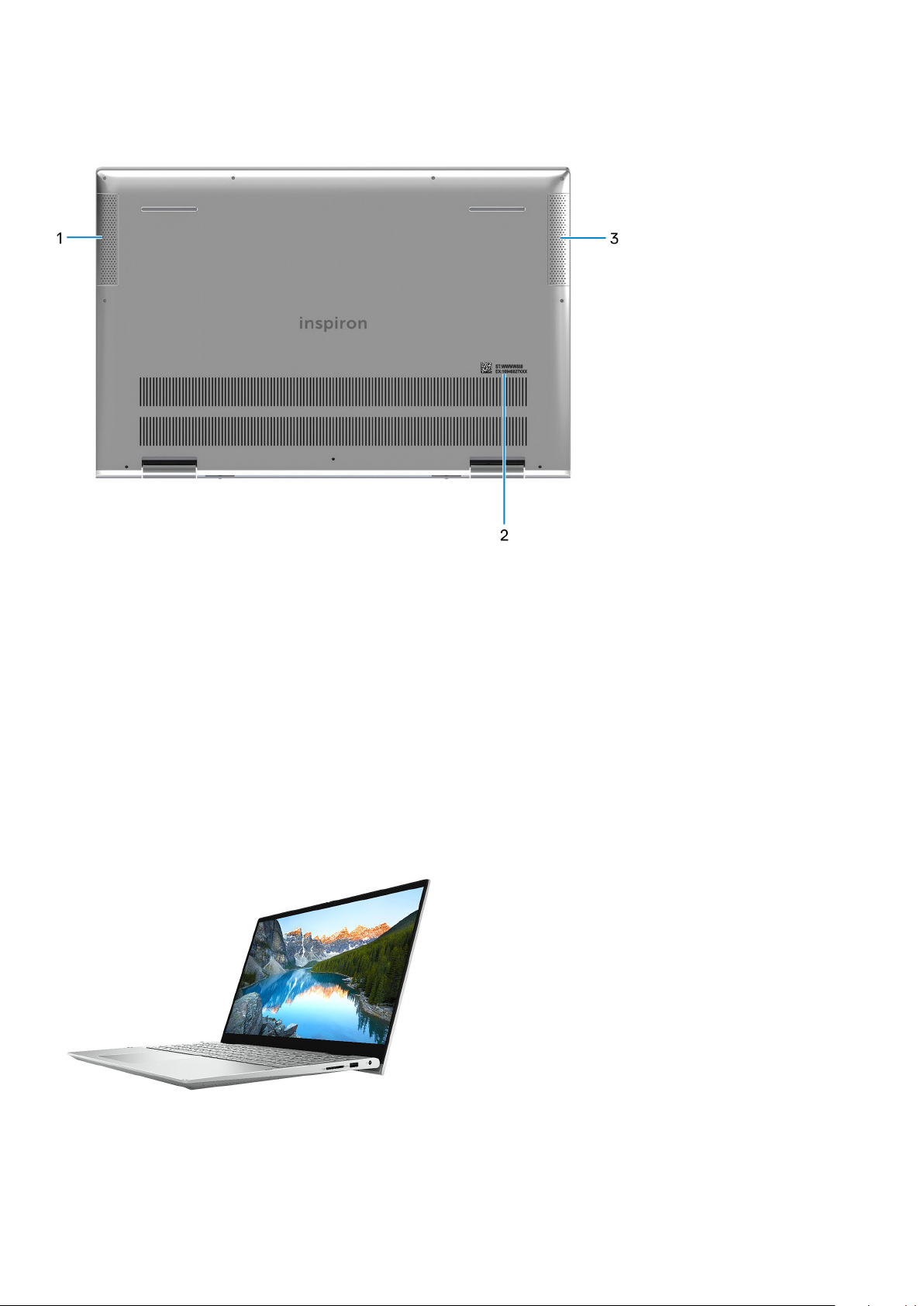

1. Left speaker
Provides audio output.
2. Service Tag label
The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware
components in your computer and access warranty information.
3. Right speaker
Provides audio output.
Modes
Notebook
Views of Inspiron 7506 2-in-1 Silver
9
Page 10

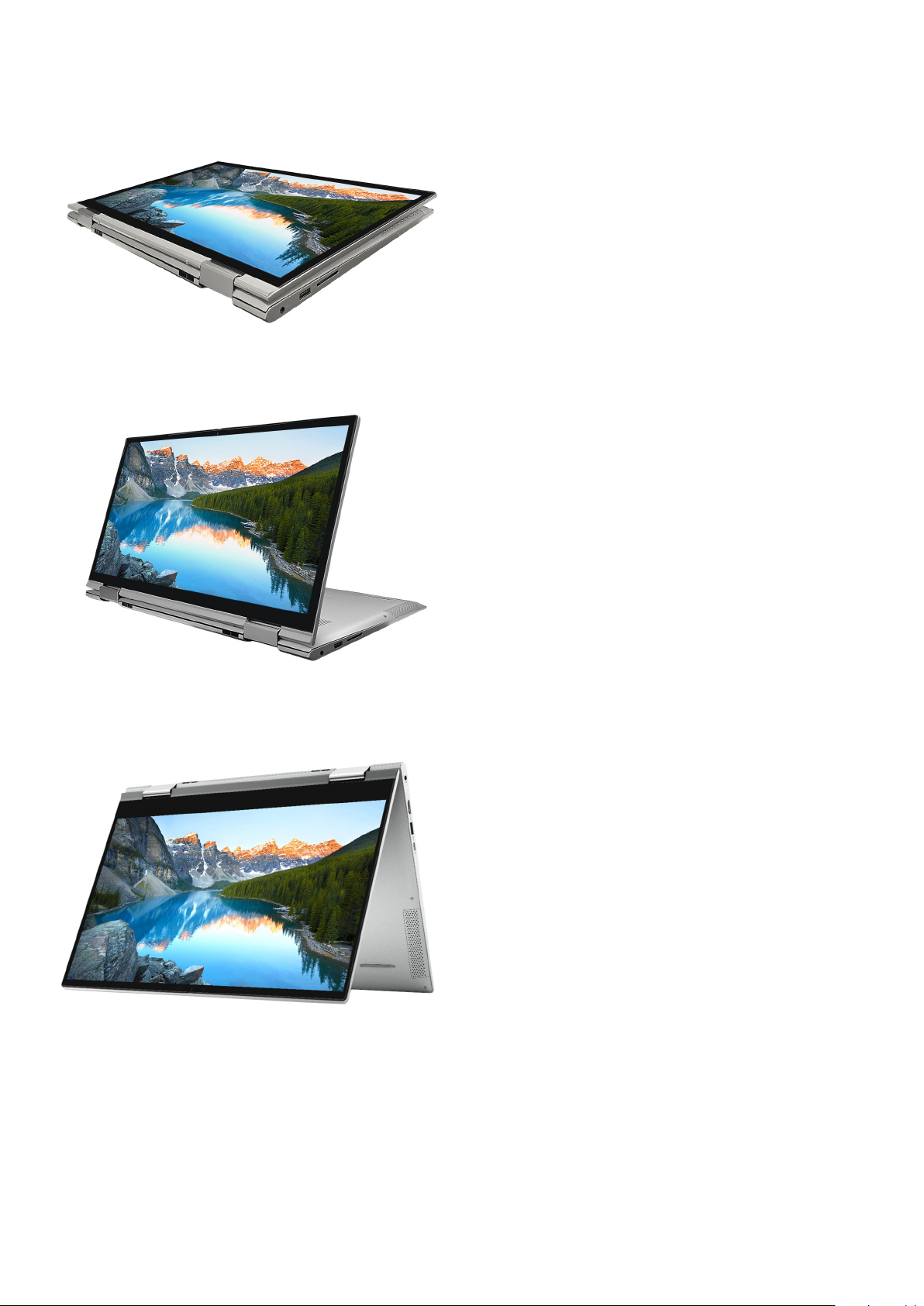

Tablet
Stand
Tent
10
Views of Inspiron 7506 2-in-1 Silver
Page 11
3
Using the privacy shutter

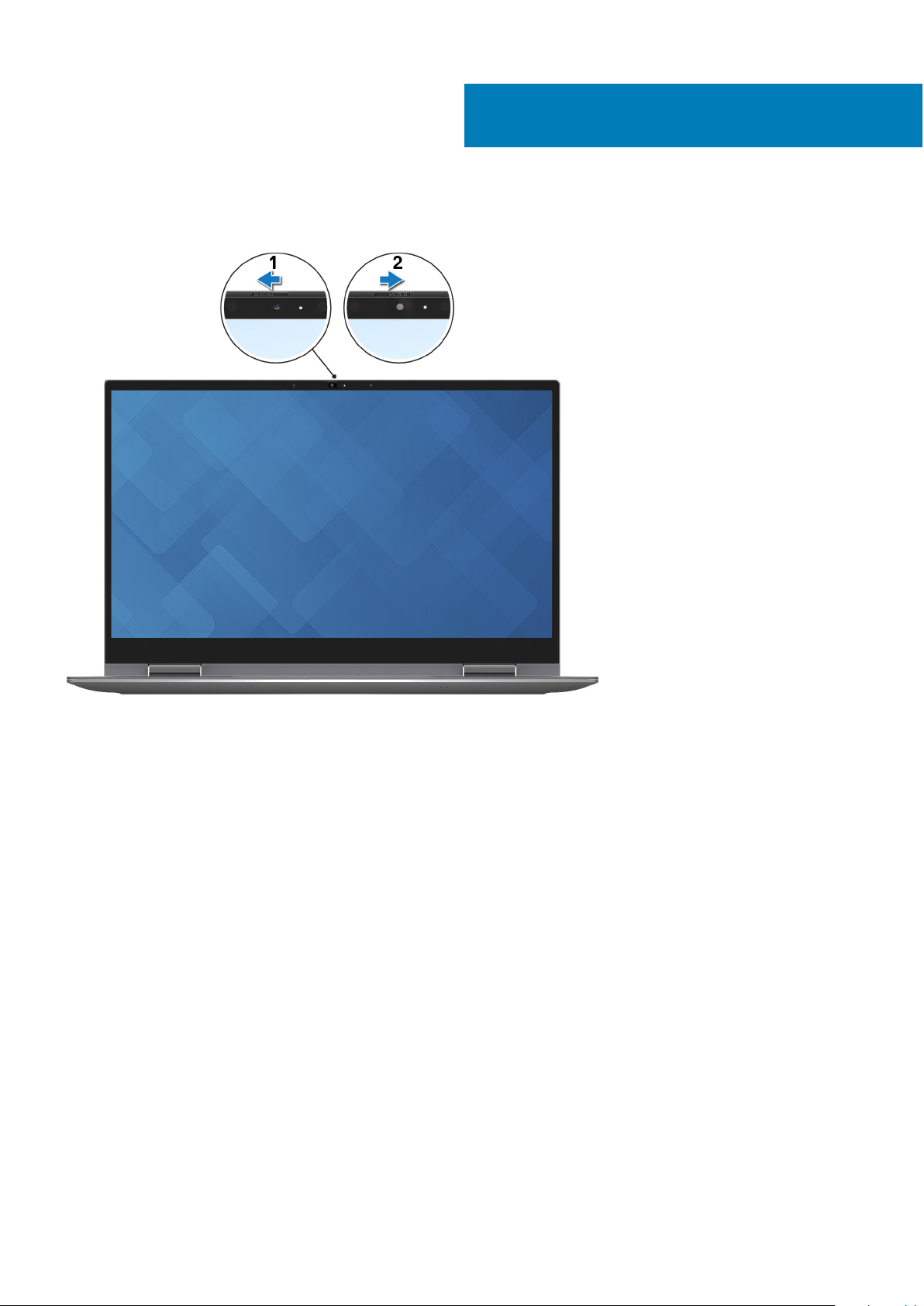

1. Slide the privacy shutter to the left to access the camera lens.
2. Slide the privacy shutter to the right to cover the camera lens.
Using the privacy shutter 11
Page 12
Specifications of Inspiron 7506 2-in-1 Silver
Dimensions and weight
The following table lists the height, width, depth, and weight of your Inspiron 7506 2-in-1 Silver.
Table 2. Dimensions and weight
Description Values
Height:
4
Front height
Rear height
Width
Depth
Weight (maximum)
16.40 mm (0.65 in.)
17.94 mm (0.71 in.)
356.20 mm (14.02 in.)
238.40 mm (9.39 in.)
1.90 kg (4.19 lb)
NOTE: The weight of your computer depends on the
configuration ordered and manufacturing variability.
Processor
The following table lists the details of the processors supported by your Inspiron 7506 2-in-1 Silver.
Table 3. Processor
Description Option one Option two
Processor type
Processor wattage
11th Generation Intel Core i5-1135G7 11th Generation Intel Core i7-1165G7
28 W 28 W
Processor core count
Processor thread count
Processor speed
Processor cache
Integrated graphics
12 Specifications of Inspiron 7506 2-in-1 Silver
4 4
8 8
Up to 4.2 GHz Up to 4.7 GHz
8 MB 12 MB
Intel Iris Xe Graphics Intel Iris Xe Graphics
Page 13
Chipset
The following table lists the details of the chipset supported by your Inspiron 7506 2-in-1 Silver.
Table 4. Chipset
Description Values
Chipset
Processor
DRAM bus width
Flash EPROM
PCIe bus
Integrated in the processor
11th Generation Intel Core i5/i7
64-bit
16+8 MB
Up to Gen3
Operating system
Your Inspiron 7506 2-in-1 Silver supports the following operating systems:
● Windows 10 Pro, 64-bit
● Windows 10 Home, 64-bit
Memory
The following table lists the memory specifications of your Inspiron 7506 2-in-1 Silver.
Table 5. Memory specifications
Description Values
Memory slots
Memory type
Memory speed
Maximum memory configuration
Minimum memory configuration
Memory size per slot
Memory configurations supported
Two-SODIMM slots
Dual-channel DDR4
3200 MHz
16 GB
4 GB
4 GB, 8 GB, and 16 GB
● 4 GB DDR4 at 3200 MHz (1 x 4 GB)
● 8 GB DDR4 at 3200 MHz (1 x 8 GB)
● 8 GB DDR4 at 3200 MHz (2 x 4 GB), dual-channel
● 12 GB DDR4 at 3200 MHz (1 x 4 GB + 1 x 8 GB)
● 16 GB DDR4 at 3200 MHz ( 2 x 8 GB), dual-channel
● 16 GB DDR4 at 3200 MHz (1 x 16 GB)
Specifications of Inspiron 7506 2-in-1 Silver 13
Page 14
External ports
The following table lists the external ports on your Inspiron 7506 2-in-1 Silver.
Table 6. External ports
Description Values
USB ports
Audio port
Video port
Media-card reader
Docking port
Power-adapter port
Security
● Two USB 3.2 Gen 1 ports
● One Thunderbolt 4 Type-C port with Power Delivery
One headset (headphone and microphone combo) port
One HDMI 1.4b port
One SD-card slot
Not supported
One 4.5 mm x 2.9 mm DC-in
Not supported
Internal slots
The following table lists the internal slots of your Inspiron 7506 2-in-1 Silver.
Table 7. Internal slots
Description Values
M.2
● One M.2 2230 slot for WiFi and Bluetooth combo card
● One M.2 2280 slot for solid-state drive/Intel Optane/Intel
Optane Storage
NOTE: To learn more about the features of different
types of M.2 cards, see the knowledge base article
SLN301626 at www.dell.com/support.
Wireless module
The following table lists the Wireless Local Area Network (WLAN) module supported on your Inspiron 7506 2-in-1 Silver.
Table 8. Wireless module specifications
Description Values
Model number
Transfer rate
Frequency bands supported
Wireless standards
14 Specifications of Inspiron 7506 2-in-1 Silver
Intel AX201
Up to 2400 Mbps
2.4 GHz/5 GHz
● WiFi 802.11a/b/g
● Wi-Fi 4 (WiFi 802.11n)
● Wi-Fi 5 (WiFi 802.11ac)
● Wi-Fi 6 (WiFi 802.11ax)
Page 15
Table 8. Wireless module specifications (continued)
Description Values
Encryption
Bluetooth
● 64-bit/128-bit WEP
● AES-CCMP
● TKIP
Bluetooth 5
Audio
The following table lists the audio specifications of your Inspiron 7506 2-in-1 Silver.
Table 9. Audio specifications
Description Values
Audio controller
Stereo conversion
Internal audio interface
External audio interface
Number of speakers
Internal-speaker amplifier
Realtek ALC3254
Supported
High-definition audio
Universal audio jack
Two
Supported
External volume controls
Speaker output:
Average speaker output
Peak speaker output
Subwoofer output
Microphone
Keyboard shortcut controls
2 W
2.5 W
Not supported
Dual-array microphones
Storage
This section lists the storage options on your Inspiron 7506 2-in-1 Silver.
Your Inspiron 7506 2-in-1 Silver supports one of the following storage configurations:
● M.2 2230/2280 PCIe/NVMe solid-state drive
● M.2 2280 PCIe/NVMe solid-state drive + 32 GB Intel Optane Storage
● M.2 2280 PCIe/NVMe Intel Optane Storage
The primary drive of your Inspiron 7506 2-in-1 Silver varies with the storage configuration. For computers:
● with a M.2 drive, the M.2 drive is the primary drive
● without a M.2 drive, the 2.5-inch hard drive is the primary drive
Table 10. Storage specifications
Storage type Interface type Capacity
One M.2 2230/2280 PCIe/NVMe SSD PCIe NVMe Gen3 x4, up to 32 Gbps Up to 512 GB
Specifications of Inspiron 7506 2-in-1 Silver 15
Page 16
Table 10. Storage specifications (continued)
Storage type Interface type Capacity
One M.2 2280 PCIe/NVMe SSD PCIe NVMe Gen3 x4, up to 32 Gbps Up to 2 TB
One M.2 2280 PCIe/NVMe SSD + Intel
Optane
PCIe NVMe Gen3 x2, up to 32 Gbps Up to 1 TB
Intel Optane Memory H10 with solid-state storage (optional)
Intel Optane Memory technology utilizes 3D XPoint memory technology and functions as a non-volatile storage cache/
accelerator and/or storage device depending on the Intel Optane Memory installed in your computer.
Intel Optane Memory H10 with solid-state storage functions as both a non-volatile storage cache/accelerator (enabling
enhanced read/write speeds for hard-drive storage) and a solid-state storage solution. It neither replaces nor adds to the
memory (RAM) installed on your computer.
Table 11. Intel Optane Memory H10 with solid-state storage specifications
Description Values
Interface
Connector
Form factor 2280
Capacity (Intel Optane memory) Up to 32 GB
Capacity (solid-state storage) Up to 1 TB
PCIe Gen3 x4 NVMe
M.2
NOTE: Intel Optane Memory H10 with solid-state storage is supported on computers that meet the following requirements:
● 9th Generation or higher Intel Core i3/i5/i7 processors
● Windows 10 64-bit version or higher (Anniversary Update)
● Intel Rapid Storage Technology driver version 15.9.1.1018 or higher
Media-card reader
The following table lists the media cards supported by your Inspiron 7506 2-in-1 Silver.
Table 12. Media-card reader specifications
Description Values
Media-card type
Media-cards supported
NOTE: The maximum capacity supported by the media-card reader varies depending on the standard of the media card
installed in your computer.
One SD-card slot
● Secure Digital (SD)
● Secure Digital High Capacity (SDHC)
● Secure Digital Extended Capacity (SDXC)
16 Specifications of Inspiron 7506 2-in-1 Silver
Page 17
Keyboard
The following table lists the keyboard specifications of your Inspiron 7506 2-in-1 Silver.
Table 13. Keyboard specifications
Description Values
Keyboard type
Keyboard layout
Number of keys
Keyboard size
Keyboard shortcuts
Backlit keyboard
QWERTY
● United States and Canada: 101 keys
● United Kingdom: 102 keys
X =18.70 mm key pitch
Y =18.05 mm key pitch
Some keys on your keyboard have two symbols on them.
These keys can be used to type alternate characters or to
perform secondary functions. To type the alternate character,
press Shift and the desired key. To perform secondary
functions, press Fn and the desired key.
NOTE: You can define the primary behavior of the
function keys (F1–F12) changing Function Key Behavior
in BIOS setup program.
For more information, see Keyboard shortcuts.
Camera
The following table lists the camera specifications of your Inspiron 7506 2-in-1 Silver.
Table 14. Camera specifications
Description Values
Number of cameras
Camera type
Camera location
Camera sensor type
Camera resolution:
Still image
Video
Diagonal viewing angle:
One
RGB HD camera
Front
CMOS sensor technology
0.92 megapixel
1280 x 720 (HD) at 30 fps
74.9 degrees
Specifications of Inspiron 7506 2-in-1 Silver 17
Page 18
Touchpad
The following table lists the touchpad specifications of your Inspiron 7506 2-in-1 Silver.
Table 15. Touchpad specifications
Description Values
Touchpad resolution:
Horizontal
Vertical
Touchpad dimensions:
Horizontal
Vertical
Touchpad gestures For more information about touchpad gestures available on
1349
929
115 mm (4.53 in.)
80 mm (3.15 in.)
Windows 10, see the Microsoft knowledge base article
4027871 at support.microsoft.com.
Power adapter
The following table lists the power adapter specifications of your Inspiron 7506 2-in-1 Silver.
Table 16. Power adapter specifications
Description Values
Type
Connector dimensions:
65 W
External diameter
Internal diameter
Input voltage
Input frequency
Input current (maximum)
Output current (continuous)
Rated output voltage
Temperature range:
Operating
Storage
4.50 mm
2.90 mm
100 VAC–240 VAC
50 Hz–60 Hz
1.50 A
3.47 A
19.50 VDC
0°C to 40°C (32°F to 104°F)
-40°C to 70°C (-40°F to 158°F)
18 Specifications of Inspiron 7506 2-in-1 Silver
Page 19
Battery
The following table lists the battery specifications of your Inspiron 7506 2-in-1 Silver.
Table 17. Battery specifications
Description Values
Battery type
Battery voltage
Battery weight (maximum)
Battery dimensions:
Height
Width
Depth
Temperature range:
Operating
Storage
Battery operating time Varies depending on operating conditions and can significantly
Battery charging time (approximate)
NOTE: Control the charging time, duration, start and end
time, and so on using the Dell Power Manager application.
For more information on the Dell Power Manager see, Me
and My Dell on www.dell.com.
53 Wh, 3-cell "smart" lithium-ion
15.20 VDC
0.23 kg (0.50 lb)
5.75 mm (0.22 in.)
239.10 mm (9.41 in.)
90.73 mm (3.57 in.)
0°C to 35°C (32°F to 95°F)
-40°C to 65°C (-40°F to 149°F)
reduce under certain power-intensive conditions.
4 hours (when the computer is off)
Coin-cell battery
CR2032
Display
The following table lists the display specifications of your Inspiron 7506 2-in-1 Silver.
Table 18. Display specifications
Description Values
Display type
Display-panel technology
Display-panel dimensions (active area):
Height
Width
Diagonal
Display-panel native resolution
15.5-inch Full High Definition (FHD)
Wide Viewing Angle (WVA)
193.60 mm (7.62 in.)
344.20 mm (13.55 in.)
395 mm (15.55 in.)
1920 x 1080
Specifications of Inspiron 7506 2-in-1 Silver 19
Page 20
Table 18. Display specifications (continued)
Description Values
Luminance (typical)
Megapixels
Color gamut
Pixels Per Inch (PPI)
Contrast ratio (min)
Response time (max)
Refresh rate
Horizontal view angle
Vertical view angle
Pixel pitch
Power consumption (maximum)
Anti-glare vs glossy finish
Touch options
270 nits
2
100% (sRGB)
142
600:1
35 ms
60 Hz
+/- 85 degrees
+/- 85 degrees
0.18 mm
4.20 W
Anti-glare
Yes
Fingerprint reader
The following table lists the fingerprint-reader specifications of your Inspiron 7506 2-in-1 Silver.
NOTE: The fingerprint reader is located on the power button.
Table 19. Fingerprint reader specifications
Description Values
Fingerprint-reader sensor technology
Fingerprint-reader sensor resolution
Fingerprint-reader sensor pixel size
Capacitive
500 dpi
80 x 64
GPU—Discrete
The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your Inspiron 7506 2in-1 Silver.
Table 20. GPU—Discrete
Controller Memory size Memory type
NVIDIA GeForce MX 330 2 GB GDDR5
20 Specifications of Inspiron 7506 2-in-1 Silver
Page 21
Operating and storage environment
This table lists the operating and storage specifications of your Inspiron 7506 2-in-1 Silver.
Airborne contaminant level: G1 as defined by ISA-S71.04-1985
Table 21. Computer environment
Description Operating Storage
Temperature range
Relative humidity (maximum)
Vibration (maximum)
Shock (maximum)
Altitude range
* M eas ure d u sin g a ra ndo m v ibr ati on spectrum that simulates user en vir onm ent .
† M eas ure d u sin g a 2 ms hal f-s ine pulse when the hard drive is i n u se.
*
0°C to 35°C (32°F to 95°F) -40°C to 65°C (-40°F to 149°F)
10% to 90% (non-condensing) 0% to 95% (non-condensing)
0.66 GRMS 1.30 GRMS
110 G† 160 G†
-15.2 m to 3048 m (-49.87 ft to 10,000
ft)
-15.2 m to 10668 m (-49.87 ft to 35,000
ft)
Specifications of Inspiron 7506 2-in-1 Silver 21
Page 22
5
Keyboard shortcuts
NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain
the same across all language configurations.
Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform
secondary functions. The symbol shown on the lower part of the key refers to the character that is typed out when the key is
pressed. If you press shift and the key, the symbol shown on the upper part of the key is typed out. For example, if you press 2,
2 is typed out; if you press Shift + 2, @ is typed out.
The keys F1-F12 at the top row of the keyboard are function keys for multi-media control, as indicated by the icon at the bottom
of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (refer to
the table below).
However, if the function keys F1-F12 are needed for specific software applications, multi-media functionality can be disabled by
pressing Fn + Esc. Subsequently, multi-media control can be invoked by pressing Fn and the respective function key. For
example, mute audio by pressing Fn + F1.
NOTE: You can also define the primary behavior of the function keys (F1–F12) by changing Function Key Behavior in
BIOS setup program.

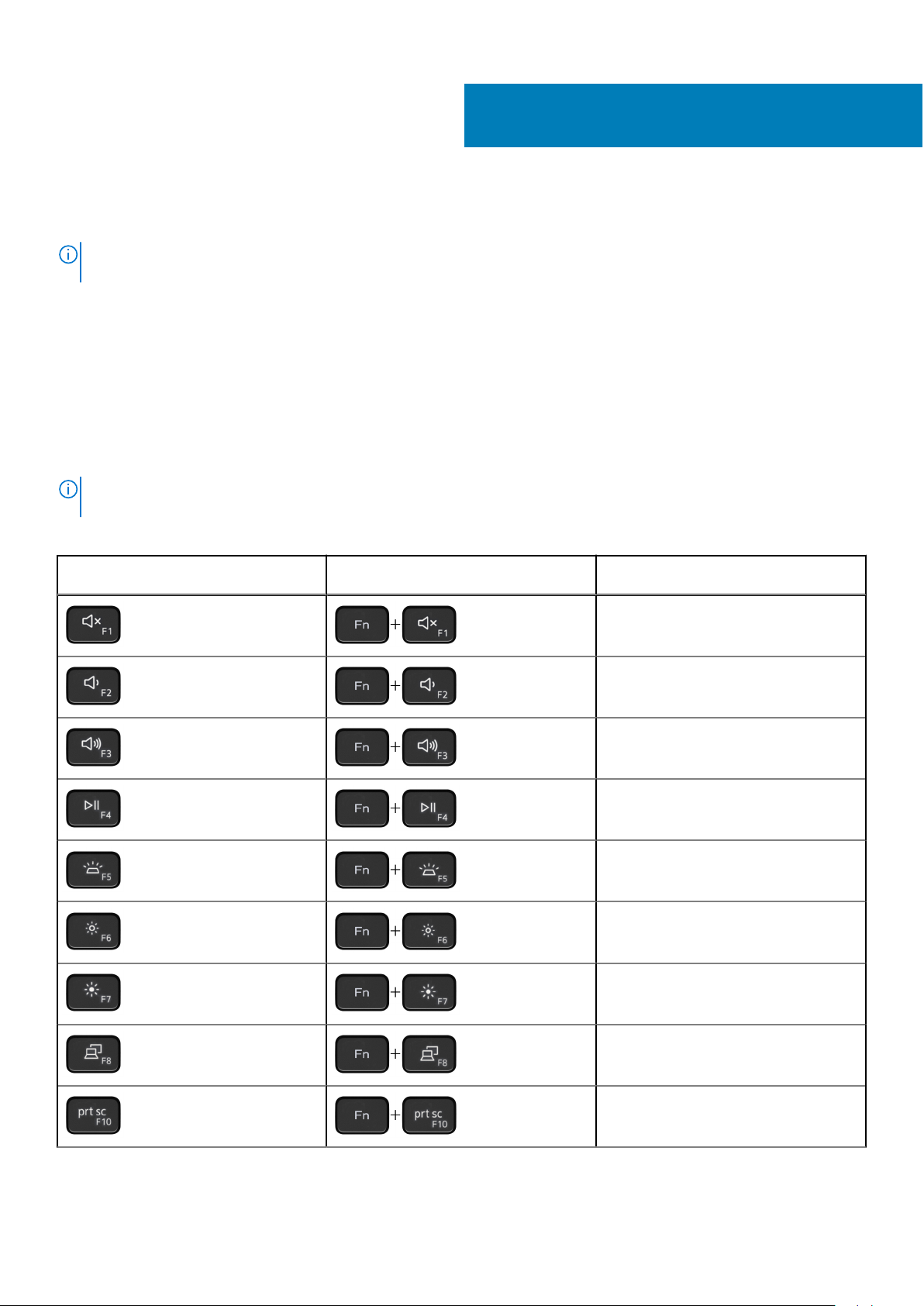

Table 22. List of keyboard shortcuts
Function key Re-defined key (for multi-media
control)
Behavior
Mute audio
Decrease volume
Increase volume
Play/Pause
Toggle keyboard backlight (optional)
Decrease brightness
Increase brightness
22 Keyboard shortcuts
Switch to external display
Print screen
Page 23
Table 22. List of keyboard shortcuts (continued)
Function key Re-defined key (for multi-media
control)
The Fn key is also used with selected keys on the keyboard to invoke other secondary functions.
Behavior
Home
End

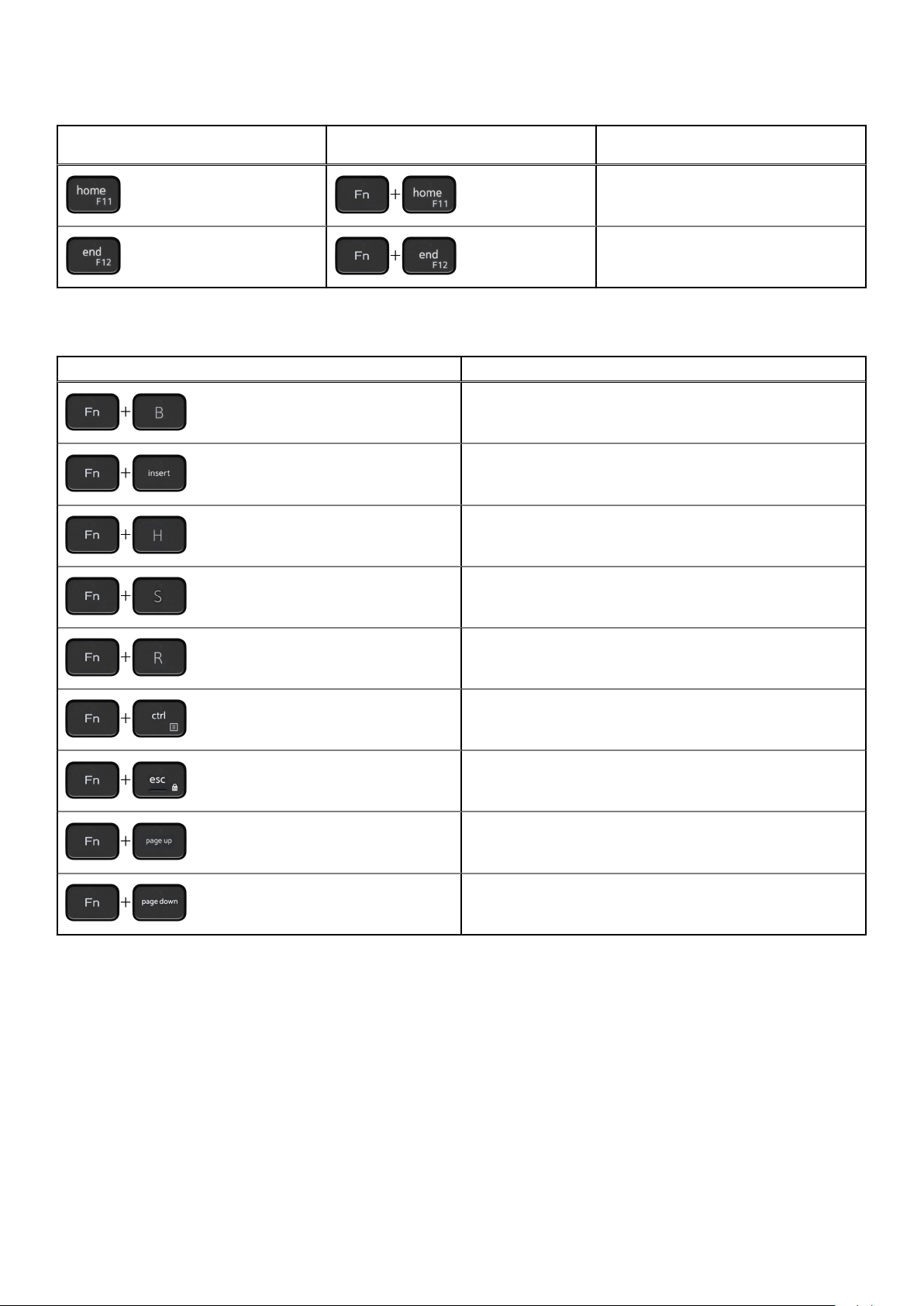

Table 23. List of keyboard shortcuts
Function key Behavior
Pause/Break
Sleep
Toggle between power and battery-status light
Toggle scroll lock
System request
Open application menu
Toggle Fn-key lock
Page up
Page down
Keyboard shortcuts 23
Page 24
Getting help and contacting Dell
Self-help resources
You can get information and help on Dell products and services using these self-help resources:
Table 24. Self-help resources
Self-help resources Resource location
Information about Dell products and services www.dell.com
My Dell app
Tips
Contact Support In Windows search, type Contact Support, and press
Enter.
6
Online help for operating system www.dell.com/support/windows
Troubleshooting information, user manuals, set up
instructions, product specifications, technical help blogs,
drivers, software updates, and so on.
Dell knowledge base articles for a variety of computer
concerns
Learn and know the following information about your product:
● Product specifications
● Operating system
● Setting up and using your product
● Data backup
● Troubleshooting and diagnostics
● Factory and system restore
● BIOS information
www.dell.com/support
1. Go to www.dell.com/support.
2. On the menu bar at the top of the Support page, select
Support > Knowledge Base.
3. In the Search field on the Knowledge Base page, type the
keyword, topic, or model number, and then click or tap the
search icon to view the related articles.
See Me and My Dell at www.dell.com/support/manuals.
To locate the Me and My Dell relevant to your product,
identify your product through one of the following:
● Select Detect Product.
● Locate your product through the drop-down menu under
View Products.
● Enter the Service Tag number or Product ID in the
search bar.
Contacting Dell
To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.
NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.
NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice,
packing slip, bill, or Dell product catalog.
24 Getting help and contacting Dell
Loading...
