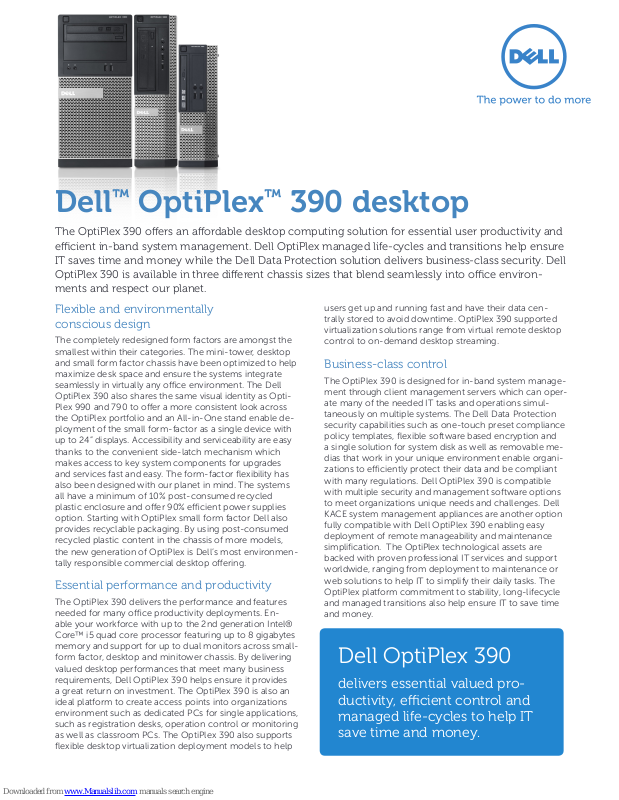

Dell™ OptiPlex™ 390 desktop

The OptiPlex 390 oers an aordable desktop computing solution for essential user productivity and
ecient in-band system management. Dell OptiPlex managed life-cycles and transitions help ensure
IT saves time and money while the Dell Data Protection solution delivers business-class security. Dell
OptiPlex 390 is available in three dierent chassis sizes that blend seamlessly into oce environ­ments and respect our planet.

Flexible and environmentally
conscious design

The completely redesigned form factors are amongst the
smallest within their categories. The mini-tower, desktop
and small form factor chassis have been optimized to help
maximize desk space and ensure the systems integrate

seamlessly in virtually any oce environment. The Dell

OptiPlex 390 also shares the same visual identity as Opti-

Plex 990 and 790 to oer a more consistent look across

the OptiPlex portfolio and an All-in-One stand enable de­ployment of the small form-factor as a single device with
up to 24” displays. Accessibility and serviceability are easy
thanks to the convenient side-latch mechanism which
makes access to key system components for upgrades

and services fast and easy. The form-factor exibility has

also been designed with our planet in mind. The systems
all have a minimum of 10% post-consumed recycled

plastic enclosure and oer 90% ecient power supplies
option. Starting with OptiPlex small form factor Dell also

provides recyclable packaging. By using post-consumed
recycled plastic content in the chassis of more models,

the new generation of OptiPlex is Dell’s most environmen­tally responsible commercial desktop oering.

Essential performance and productivity

The OptiPlex 390 delivers the performance and features
needed for many oce productivity deployments. En­able your workforce with up to the 2nd generation Intel®
Core™ i5 quad core processor featuring up to 8 gigabytes
memory and support for up to dual monitors across small­form factor, desktop and minitower chassis. By delivering
valued desktop performances that meet many business

requirements, Dell OptiPlex 390 helps ensure it provides

a great return on investment. The OptiPlex 390 is also an
ideal platform to create access points into organizations
environment such as dedicated PCs for single applications,
such as registration desks, operation control or monitoring
as well as classroom PCs. The OptiPlex 390 also supports

exible desktop virtualization deployment models to help

users get up and running fast and have their data cen­trally stored to avoid downtime. OptiPlex 390 supported
virtualization solutions range from virtual remote desktop
control to on-demand desktop streaming.

Business-class control

The OptiPlex 390 is designed for in-band system manage­ment through client management servers which can oper­ate many of the needed IT tasks and operations simul-

taneously on multiple systems. The Dell Data Protection

security capabilities such as one-touch preset compliance

policy templates, exible software based encryption and

a single solution for system disk as well as removable me­dias that work in your unique environment enable organi-

zations to eciently protect their data and be compliant
with many regulations. Dell OptiPlex 390 is compatible

with multiple security and management software options

to meet organizations unique needs and challenges. Dell
KACE system management appliances are another option
fully compatible with Dell OptiPlex 390 enabling easy

deployment of remote manageability and maintenance

simplication. The OptiPlex technological assets are

backed with proven professional IT services and support
worldwide, ranging from deployment to maintenance or
web solutions to help IT to simplify their daily tasks. The
OptiPlex platform commitment to stability, long-lifecycle
and managed transitions also help ensure IT to save time
and money.

Dell OptiPlex 390

delivers essential valued pro-

ductivity, ecient control and

managed life-cycles to help IT

save time and money.

OptiPlex 390 Technical Specications

Processors

1

Chipset

Operating System Options

2

Video

Memory

3

Networking

I/O Ports

Removable Media Options

Hard Drives4 Options

Intel® Core™ i5 Quad Core; Intel® Core™ i3 Dual Core; Intel® Pentium® Dual Core; Intel® Celeron® Dual Core.

Intel® H61 Express Chipset

Microsoft® Windows 7® Home Basic SP1 (32/ 64 bit), Microsoft® Windows 7® Home Premium SP1 (32/64 bit), Microsoft®
Windows 7® Professional SP1 (32/64 bit), Microsoft® Windows 7® Ultimate SP1 (32/64 bit)
Windows Vista® Home Basic SP2 (32/64 bit), Windows Vista® Business SP2 (32/64 bit), Windows Vista® Ultimate SP2 (32 bit)
Ubuntu® Linux (select countries); FreeDOS for N-series

Integrated Intel® HD Graphics 2000; optional 1GB AMD RADEON HD 6450; optional 512MB AMD RADEON HD 6350

Up to two DIMM slots; Non-ECC dual-channel 1333MHz DDR3 SDRAM, up to 8GB

Integrated Realtek LOM, optional Broadcom BCM95722 PCIe card, optional Dell 1520 802.11n WLAN

8 External USB 2.0 ports (2 in the front, 6 in the back) and 2 Internal USB 2.0 (1 for SFF chassis); optional PS2 dongle; 1 RJ-45; 1
VGA; 1 HDMI (optional DVI dongle); Front Panel Mic-in, Headphone out, Back Panel Mic-in/Line-in, Line-out, optional Parallel/

Serial PCIe card (MT), optional USB 3.0 PCIe card

DVD+/-RW; DVD-ROM; Dell 19 in 1 Media Card Reader (MT & DT only)

3.5” Hard Drives: up to 1TB 7200 RPM SATA 3.0Gb/s
Supports Dell’s Flexible Computing Solution diskless option

Chassis

Minitower (MT) Desktop (DT) Small Form Factor (SFF)

Peripherals Options

Security

Systems Management
Options

Environmental, Ergonomic,
& Regulatory Standards

Warranty

Dimensions
(H x W x D)

Inches/(cm)

Min. Weight (lbs/
kg)

Number of Bays 2 internal 3.5”

Expansion Slots 1 full height PCIe x16

Power Supply5
Unit (PSU)

Monitors:
Dell Entry Standard and Widescreen Flat Panel Analog:
Dell E170S, E190S, E1709W, E1911, E1912H, E2011H, E2210, E2211H, E2311H

Dell Professional Digital Standard and Widescreen Flat Panel:
Dell P170S, P190S, P1911, P2011H, P2210, P2211H, P2311H, P2411H

Dell UltraSharp Digital Standard and Widescreen Flat Panel, Adjustable Stand:
Dell 2007FP, U2211H, U2311H

Consumer Flat Panels:
Dell D1920

14.2 x 6.9 x 16.4 /
(36.0 x 17.5 x 41.7)

14.2 x 4.0 x 16.1 /
(36.0 x 10.2 x 41.0)

11.4 x 3.7 x 12.3 /
(29.0 x 9.3 x 31.2)

19.55/8.87 16.67/7.56 12.57/5.7

2 external 5.25”

3 full height PCIe x1

Standard 265W PSU or optional

265W up to 90% Ecient PSU;
Energy Star 5.0 compliant, Active

PFC

1 internal 3.5”
1 external 5.25”

1 half height PCIe x16
3 half height PCIe x1

Standard 250W PSU or optional

250W up to 90% Ecient PSU;
Energy Star 5.0 compliant, Active

PFC

1 internal 3.5”
1 external 5.25” (slimline)

1 half height PCIe x16
1 half height PCIe x1

Standard 240W PSU or optional

240W up to 90% Ecient PSU;
Energy Star 5.0 compliant, Active

PFC

Keyboards: Dell USB Entry Keyboard, Dell Multimedia Pro Keyboard

Mouse: Dell USB Optical Mouse, Dell Laser Mouse

Audio Speakers: Internal Dell Business audio speaker, Dell AX210 2.0 Desktop Speakers; Dell AX510 Sound Bar Speakers

Dell Data Protection / Access, Chassis lock slot support, optional Chassis Intrusion Switch, Setup/BIOS Password, I/O Interface

Security, BIOS support for optional Computrace

6

In-Band Systems Management

Environmental Standards (eco-labels): Energy Star 5.0, EPEAT Registered (see epeat.net for registration status by country)10,
CECP, TCO, WEEE, Japan Energy Law, Japan Green PC, South Korea Eco-label, EU RoHS, China RoHS, Blue Angel
Other Environmental Options: Dell Energy Smart settings; Carbon O-set Program; System Recycle (Asset Recovery Service)

Limited Hardware Warranty7; Standard 3-year Next Business Day On Site Service after Remote Diagnosis8 (3-3-3); Optional

3-year Dell ProSupport™ for IT; 4 year and 5 year service and support options

9

Your essential productivity desktops at dell.com/optiplex

1. Oering may vary by region.

2. System Memory and Graphics: Signicant system memory may be used to support graphics, depending on system memory size and other factors.

3. 4GB or Greater System Memory Capability: A 64-bit operating system is required to support 4GB or more of system memory.

4. Hard Drive: GB means 1 billion bytes and TB equals 1 trillion bytes; actual capacity varies with preloaded material and operating environment and will be less.

5. PSU: This form factor utilizes a more ecient Active Power Factor Correction (APFC) power supply. Dell recommends only Universal Power Supplies (UPS) based on Sine Wave output for APFC PSUs, not an approximation of a Sine Wave, Square Wave, or quasi-Square

Wave (see UPS technical specications). If you have questions, please contact the manufacturer to conrm the output type.

6. Computrace: Not a Dell oer. Certain conditions apply. For full details, see terms and conditions at www.lojackforlaptops.com.

7. Limited Hardware Warranty: For copy of Ltd Hardware Warranty, write Dell USA LP, Attn: Warranties, One Dell Way, Round Rock, TX 78682 or see www.dell.com/warranty.

8. Next Business Day Onsite Service after Remote Diagnosis: Remote Diagnosis is determination by online/phone technician of cause of issue; may involve customer access to inside of system and multiple or extended sessions. If issue is covered by Limited Hardware

Warranty (www.dell.com/warranty) and not resolved remotely, technician and/or part will be dispatched, usually within 1 business day following completion of Remote Diagnosis. Availability varies. Other conditions apply. . For copy of Ltd Hardware Warranty, write Dell
USA LP, Attn: Warranties, One Dell Way, Round Rock, TX 78682 or see www.dell.com/warranty.

9. Dell Services: Availability and terms of Dell Services vary by region. For more information, visit www.dell.com/servicedescriptions.

10. Available in certain regions
