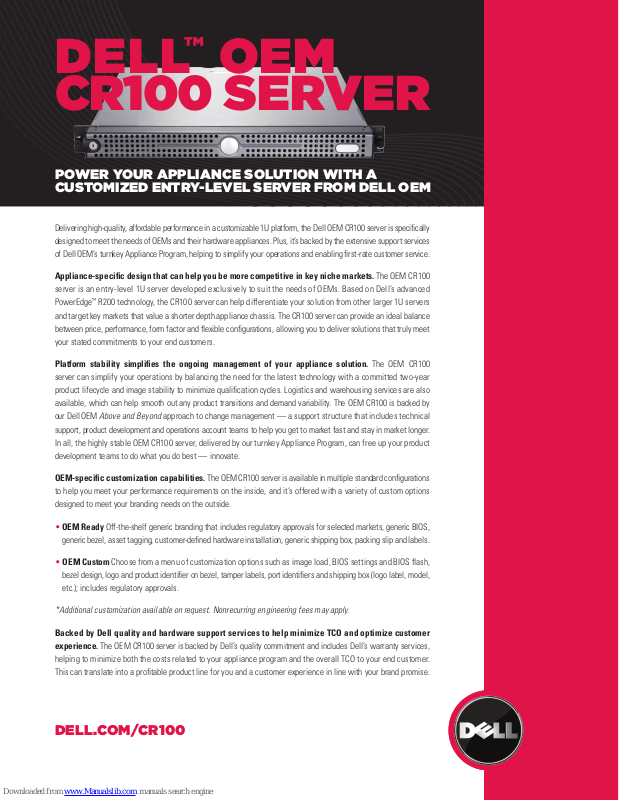

DELL™ OEM
CR100 SERvER

POwER YOuR APPLiAnCE SOLutiOn with A
CuStOMizED EntRY-LEvEL SERvER FROM DELL OEM

Delivering high-quality, affordable performance in a customizable 1U platform, the Dell OEM CR100 server is specifically
designed to meet the needs of OEMs and their hardware appliances. Plus, it’s backed by the extensive support services
of Dell OEM’s turnkey Appliance Program, helping to simplify your operations and enabling first-rate customer service.

Appliance-specific design that can help you be more competitive in key niche markets. The OEM CR100
server is an entry-level 1U server developed exclusively to suit the needs of OEMs. Based on Dell’s advanced
PowerEdge
and target key markets that value a shorter depth appliance chassis. The CR100 server can provide an ideal balance
between price, performance, form factor and flexible configurations, allowing you to deliver solutions that truly meet
your stated commitments to your end customers.

™

R200 technology, the CR100 server can help differentiate your solution from other larger 1U servers

Platform stability simplifies the ongoing management of your appliance solution. The OEM CR100
server can simplify your operations by balancing the need for the latest technology with a committed two-year
product lifecycle and image stability to minimize qualification cycles. Logistics and warehousing services are also
available, which can help smooth out any product transitions and demand variability. The OEM CR100 is backed by
our Dell OEM Above and Beyond approach to change management — a support structure that includes technical
support, product development and operations account teams to help you get to market fast and stay in market longer.
In all, the highly stable OEM CR100 server, delivered by our turnkey Appliance Program, can free up your product
development teams to do what you do best — innovate.

OEM-specific customization capabilities. The OEM CR100 server is available in multiple standard configurations
to help you meet your performance requirements on the inside, and it’s offered with a variety of custom options
designed to meet your branding needs on the outside.

• OEM Ready Off-the-shelf generic branding that includes regulatory approvals for selected markets, generic BIOS,

generic bezel, asset tagging, customer-defined hardware installation, generic shipping box, packing slip and labels.

• OEM Custom Choose from a menu of customization options such as image load, BIOS settings and BIOS flash,

bezel design, logo and product identifier on bezel, tamper labels, port identifiers and shipping box (logo label, model,
etc.); includes regulatory approvals.

*Additional customization available on request. Nonrecurring engineering fees may apply.

Backed by Dell quality and hardware support services to help minimize TCO and optimize customer
experience. The OEM CR100 server is backed by Dell’s quality commitment and includes Dell’s warranty services,

helping to minimize both the costs related to your appliance program and the overall TCO to your end customer.
This can translate into a profitable product line for you and a customer experience in line with your brand promise.

DELL.COM/CR100

OEM-SPECiFiC SuPPORt
SERviCES AnD PRODuCt
FEAtuRES

Flexible delivery

Flexible delivery options means Dell can ship your appliance
solution directly to your end customers within a week or two.
We also offer inventory services to help you manage demand
fluctuations. This can help dramatically reduce your inventory
levels and payment schedule.

Regulatory support for global shipping

Shipping appliances internationally requires dealing with
time-consuming regulatory compliance in each country.
By selecting the OEM CR100 server as the platform for your
solution, you have access to OEM-specific regulatory support
that can help you save time and alleviate additional costs.

Customer support

Choose the Dell support model that best fits your needs. Many
OEMs handle the initial customer call and then initiate a soft
handoff to Dell for additional levels of support. With an optional
customized queue, our involvement will be transparent to your
customers.

Service, support and limited warranty*

Our servers are available with a one-year parts and labor Dell
limited warranty* and Next Business Day On-Site Service*
(optional upgrade to three years), offered in 150 countries around
the world. Dell has thousands of technicians at your disposal
that can perform services and replace parts on short notice.

Dedicated OEM engineering support

Our OEM System Consultants can provide long-range,
component-level roadmaps and vertical specialization. In
addition, you’ll have access to Dell engineering and technical
escalations to help you easily and cost-effectively drive
product development and manage change.

Operations and logistics support

A dedicated logistics team is ready to provide you with
complete support, including program governance, order
management and reporting. We can tailor a custom logistics
support program to meet your specific needs through our
custom fulfillment and custom factory integration services (CFI).

FEATURES DELL OEM CR100 SERVER

Form factor 1U rack: 15.7” depth (16.75” with bezel)

Processors

Single Intel
Intel

Single Intel

Frontside bus or
HyperTransport

Intel
Intel
Intel

Intel

Cache

Intel
Intel

Chipset Intel 3200

Memory 512MB/8GB DDR2

Hard Drives

2.5” SATA (7.2K rpm): 80GB

3.5” SATA (7.2K rpm): 160GB, 250GB

Maximum internal storage Up to 750GB cabled SATA (7.2K rpm)

Drive bays 2 x 2.5” cabled SATA or 1 x 3.5” cabled SATA

I/O slots

Three total: two Gigabit1 embedded NICs
plus one riser with a PCI Express slot (1x8 lane)

External storage None

Internal/External
Tape backup options

Network interface card

None

Dual embedded Broadcom
(additional options may be available through CFI)

Power supply 345W

Availability ECC memory

Video Embedded ATI ES1000 with 32MB memory

Remote management Standard BMC with IPMI 1.5 support

Systems management
Dell OpenManage

™

None

Rack support 4-post; 1U rack; versa-rack static rail chassis access

Microsoft
Web Edition, Enterprise Edition and SBS Edition
Microsoft
Edition and Enterprise Edition

Operating systems

Red Hat
Red Hat
Red Hat
Red Hat
Novell

Note: CR100 has no optical drive. Customers may distribute software via USB key drives.
Dell does not sell, install or support any of the qualified operating systems listed above on
the OEM CR100 server.

®

Core™ 2 Duo E4300 Processor

®

Pentium® Dual-Core E2160 Processor

®

Celeron® Processor

®

Core™ 2 Duo: 800MHz

®

Pentium® Dual-Core: 800MHz

®

Celeron®: 800MHz

®

Core™ 2 Duo: up to 2MB cache

®

Pentium® Dual-Core: up to 1MB cache

®

Celeron®: up to 512K cache

®

Gigabit1 NICs

®

Windows Server® 2003, Standard Edition,

®

Windows Server® 2003, 64-bit Standard

®

Linux Enterprise 4.0

®

Linux Enterprise 4.0 64-bit edition

®

Linux Enterprise 5.0

®

Linux Enterprise 5.0 64-bit edition

®

SUSE® Linux – ES10, EM64T

AD# 79994271 12/2007

phone-based troubleshooting. Availability varies. See dell.com/servicecontracts for details.

* LIMITED WARRANTY: For a copy of the limited warranty, write Dell USA LP, Attn: Warranties, One Dell Way, Round Rock, TX 78682 or visit dell.com/warranty. ON-SITE SERVICE: May be provided by third party. Technician dispatched, if necessary, following

YOuR SOLutiOn
YOuR BRAnD

DELL POwERED

SIMPLIFY YOUR APPLIANCE PROGRAM AT DELL.COM/CR100 OR EMAIL US DIRECTLY AT [e-mail]

Why choose Dell to power your appliance?

By working with Dell OEM for your essential technology, you can:

• Get to market fast

• Quickly generate demand

• Deploy with confidence

• Benefit from end-to-end support
