Precision 5720 All-in-One
Owner’s Manual
Regulatory Model: W13C
Regulatory Type: W13C001
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
© 2017 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks
may be trademarks of their respective owners.
2017 - 04
Rev. A00
Contents
1 Working on your computer............................................................................................................................. 8
Safety instructions.............................................................................................................................................................8
Before working inside your computer..............................................................................................................................8
Turning o your computer................................................................................................................................................ 9
Turning o your computer — Windows 10...............................................................................................................9
Turning o your computer — Windows 7................................................................................................................ 9
Safety precautions............................................................................................................................................................. 9
Standby power............................................................................................................................................................. 9
Bonding .......................................................................................................................................................................10
Electrostatic discharge (ESD) protection......................................................................................................................10
ESD eld service kit ........................................................................................................................................................ 10
Components of an ESD eld service kit.................................................................................................................. 10
ESD protection summary ...........................................................................................................................................11
Transporting sensitive components................................................................................................................................ 11
Lifting equipment ........................................................................................................................................................11
After working inside your computer............................................................................................................................... 12
2 Removing and installing components............................................................................................................13
USB dongle-bay cover..................................................................................................................................................... 13
Removing USB dongle-bay cover.............................................................................................................................13
Installing dongle-bay cover........................................................................................................................................13
Back cover.........................................................................................................................................................................14
Removing back cover ................................................................................................................................................14
Installing back cover...................................................................................................................................................14
Memory module................................................................................................................................................................15
Removing memory module........................................................................................................................................15
Installing memory module.......................................................................................................................................... 16
Hard drive.......................................................................................................................................................................... 16
Removing HDD/SSD..................................................................................................................................................16
Installing HDD/SSD.................................................................................................................................................... 18
System board shield......................................................................................................................................................... 18
Removing system-board shield.................................................................................................................................18
Installing system-board shield................................................................................................................................... 19
M.2 PCIe SSD .................................................................................................................................................................. 19
Removing M.2 PCIe SSD...........................................................................................................................................19
Installing PCIe SSD.................................................................................................................................................... 20
Memory fan...................................................................................................................................................................... 20
Removing memory fan.............................................................................................................................................. 20
Installing memory fan................................................................................................................................................. 21
Heat sink........................................................................................................................................................................... 22
Removing processor heatsink for systems with discrete graphics......................................................................22
Removing heatsink for computers with integrated graphics................................................................................22
Installing processor heatsink.....................................................................................................................................23
Contents
3
Processor.......................................................................................................................................................................... 23
Removing processor..................................................................................................................................................23
Installing processor.................................................................................................................................................... 24
Coin cell battery............................................................................................................................................................... 25
Removing coin-cell battery.......................................................................................................................................25
Installing coin-cell battery......................................................................................................................................... 25
WLAN card....................................................................................................................................................................... 26
Removing wireless card.............................................................................................................................................26
Installing the wireless card........................................................................................................................................ 27
Stand..................................................................................................................................................................................27
Removing stand..........................................................................................................................................................27
Installing stand............................................................................................................................................................28
System fan........................................................................................................................................................................28
Removing system fan................................................................................................................................................ 28
Installing system fan.................................................................................................................................................. 30
Power supply unit............................................................................................................................................................ 30
Removing power supply unit.................................................................................................................................... 30
Installing power supply unit.......................................................................................................................................32
Inner frame........................................................................................................................................................................33
Removing inner frame............................................................................................................................................... 33
Installing inner frame..................................................................................................................................................34
Built-in self test button....................................................................................................................................................34
Removing built-in self test button............................................................................................................................34
Installing the built-in self test button board............................................................................................................35
Microphone.......................................................................................................................................................................36
Removing microphone...............................................................................................................................................36
Installing microphone................................................................................................................................................. 37
I/O panel........................................................................................................................................................................... 38
Removing I/O panel...................................................................................................................................................38
Installing I/O panel..................................................................................................................................................... 39
USB-dongle port..............................................................................................................................................................40
Removing USB-dongle port......................................................................................................................................40
Installing USB-dongle port.........................................................................................................................................41
Diagnostic light and button board..................................................................................................................................42
Removing the diagnostic light and button board ..................................................................................................42
Installing diagnostic light and button board............................................................................................................ 44
Drive cage......................................................................................................................................................................... 44
Removing HDD/SSD cage........................................................................................................................................44
Installing HDD/SSD cage.......................................................................................................................................... 47
Converter board............................................................................................................................................................... 47
Removing converter board....................................................................................................................................... 47
Installing converter board..........................................................................................................................................49
Speaker............................................................................................................................................................................. 50
Removing speakers....................................................................................................................................................50
Installing speaker.........................................................................................................................................................51
Power button board.........................................................................................................................................................52
Removing power-button board................................................................................................................................52
Contents
4
Installing power button board...................................................................................................................................53
Media card reader............................................................................................................................................................53
Removing media-card reader................................................................................................................................... 53
Installing media card reader...................................................................................................................................... 54
Camera..............................................................................................................................................................................54
Removing camera...................................................................................................................................................... 54
Installing camera........................................................................................................................................................ 55
System board................................................................................................................................................................... 56

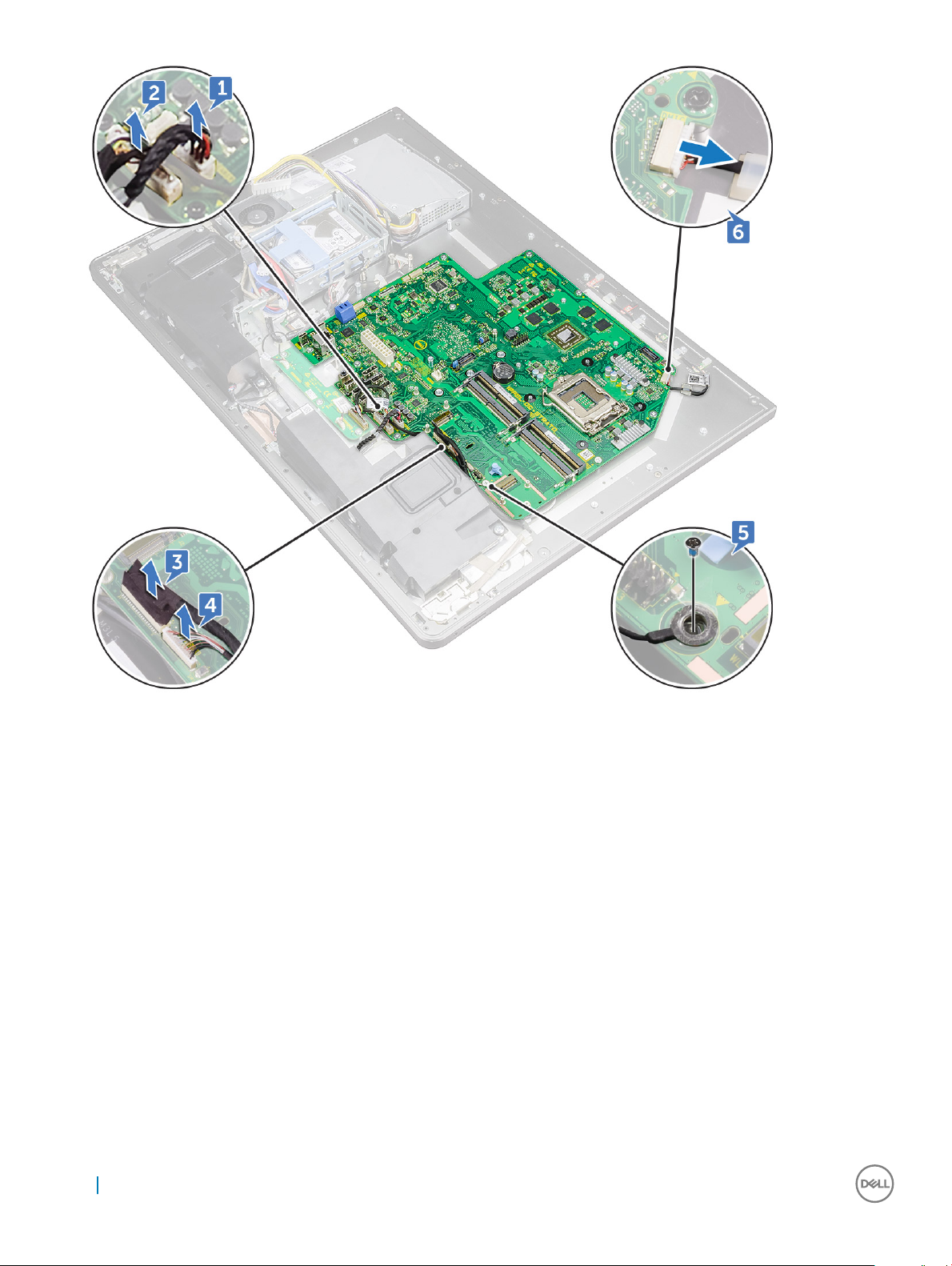

Removing system board............................................................................................................................................56
Installing system board..............................................................................................................................................59
System board callouts .............................................................................................................................................. 60
Display assembly...............................................................................................................................................................61
Removing display assembly.......................................................................................................................................61
Installing display assembly.........................................................................................................................................62
Middle frame.....................................................................................................................................................................63
Removing middle frame............................................................................................................................................ 63
Installing middle frame...............................................................................................................................................65
Speaker bezel...................................................................................................................................................................66
Removing speaker bezel........................................................................................................................................... 66
Installing speaker bezel..............................................................................................................................................67
Display panel..................................................................................................................................................................... 67
Removing display panel............................................................................................................................................. 67
Installing display panel............................................................................................................................................... 68
3 Technology and components........................................................................................................................73
Processors........................................................................................................................................................................ 73
Skylake processors.....................................................................................................................................................73
Kaby Lake ...................................................................................................................................................................74
Identifying processors in Windows 7....................................................................................................................... 75
Identifying processors in Windows 10......................................................................................................................75
Verifying the processor usage in Task Manager (Windows 7 and Windows 10) ...............................................75
Verifying the processor usage in Resource Monitor (Windows 7 and Windows 10) ........................................75
Chipsets............................................................................................................................................................................ 75
Downloading the chipset driver................................................................................................................................75

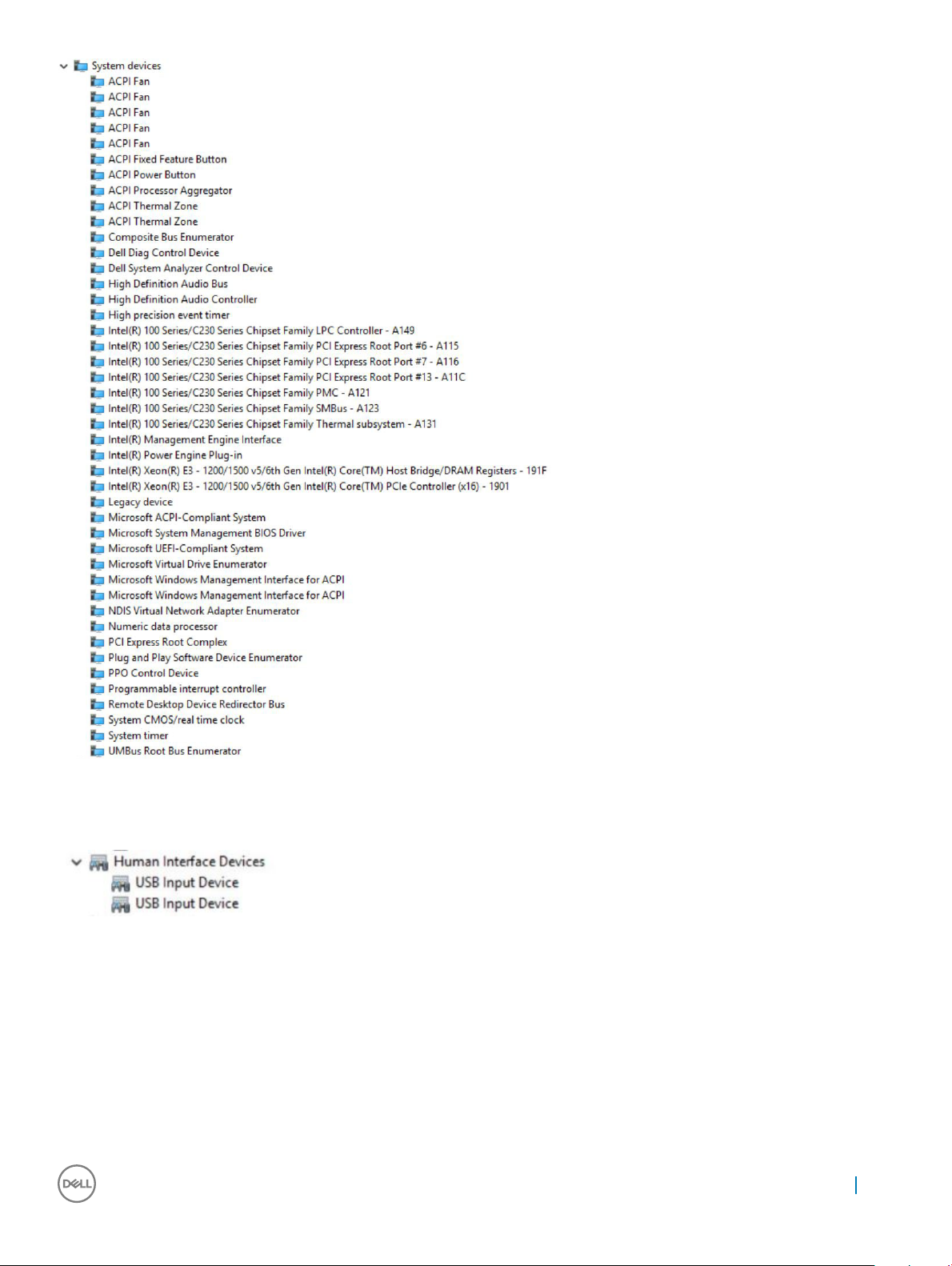

Identifying chipset in Device Manager on Windows 7...........................................................................................76
Identifying the chipset in Device Manager on Windows 10..................................................................................76
Display options..................................................................................................................................................................76
Identifying the display adapters in Windows 7........................................................................................................76
Identifying the display adapters in Windows 10......................................................................................................76
Graphics options.........................................................................................................................................................76
Changing the screen resolution (Windows 7 and Windows 10)...........................................................................76
Adjusting brightness in Windows 7.......................................................................................................................... 77
Adjusting brightness in Windows 10.........................................................................................................................77
Storage options................................................................................................................................................................ 77
Hard drive options............................................................................................................................................................77
Identifying the hard drive in Windows 7.................................................................................................................. 77
Identifying the hard drive in Windows 10.................................................................................................................77
Contents
5
Identifying the hard drive in BIOS setup program..................................................................................................77
USB features.....................................................................................................................................................................78
USB 3.0 (SuperSpeed USB).....................................................................................................................................78
Speed...........................................................................................................................................................................78
Applications.................................................................................................................................................................79
Compatibility............................................................................................................................................................... 79
Downloading the USB 3.0 driver..............................................................................................................................80
HDMI................................................................................................................................................................................. 80
Connecting to external display devices...................................................................................................................80
Wi-Fi.................................................................................................................................................................................. 80
Turning Wi-Fi on or o.............................................................................................................................................. 80
Conguring Wi-Fi........................................................................................................................................................81
Downloading the Wi-Fi driver....................................................................................................................................81
Camera...............................................................................................................................................................................81
Identifying the webcam in device manager.............................................................................................................81
Starting the camera application............................................................................................................................... 82
Memory features..............................................................................................................................................................82
Verifying system memory in Windows 10 and Windows 7 ...................................................................................82
Verifying system memory in setup...........................................................................................................................82
DDR4........................................................................................................................................................................... 83
Testing memory using ePSA.....................................................................................................................................84
Media-card reader........................................................................................................................................................... 84
Downloading the media-card reader driver............................................................................................................ 84
Realtek HD audio drivers.................................................................................................................................................84
Downloading the audio driver...................................................................................................................................85
Operating System............................................................................................................................................................85
Service tag location.........................................................................................................................................................85
4 System setup...............................................................................................................................................87
BIOS Overview................................................................................................................................................................. 87
Boot menu...................................................................................................................................................................87
Navigation Keys..........................................................................................................................................................87
Updating the BIOS in Windows ...............................................................................................................................88
System setup options......................................................................................................................................................88
5 Software......................................................................................................................................................96
Operating system congurations...................................................................................................................................96
Downloading graphic drivers.......................................................................................................................................... 96
Intel Virtual Button driver................................................................................................................................................96
Intel Wi-Fi and Bluetooth drivers....................................................................................................................................98
Intel Trusted Execution Engine Interface......................................................................................................................98
Intel Serial IO Driver.........................................................................................................................................................99
Intel chipset drivers.........................................................................................................................................................101
Graphics drivers...............................................................................................................................................................101
Trusted Platform Module (TPM) .................................................................................................................................102
Overview................................................................................................................................................................... 102
TPM 2.0 - Installing Dell TPM Update utility for Windows/DOS....................................................................... 102
Contents
6
6 Troubleshooting..........................................................................................................................................104
System diagnostic lights................................................................................................................................................104
Dell Enhanced Pre-Boot System Assessment (ePSA) diagnostic 3.0..................................................................... 105
LCD built in self test (BIST)..........................................................................................................................................105
Initiating BIST ...........................................................................................................................................................107
7 Technical specications..............................................................................................................................108
System specications.................................................................................................................................................... 108
Memory specications...................................................................................................................................................108
Video specications....................................................................................................................................................... 109
Audio specications....................................................................................................................................................... 109
Communication specications.......................................................................................................................................110
Connectors.......................................................................................................................................................................110
Display specications......................................................................................................................................................110
Storage specications.................................................................................................................................................... 110
Port and connector specications................................................................................................................................110
Power specications........................................................................................................................................................111
Camera specications..................................................................................................................................................... 111
Stand specications.........................................................................................................................................................111
Physical specications....................................................................................................................................................112
Environmental specications......................................................................................................................................... 112
8 Contacting Dell........................................................................................................................................... 113
Contents
7
Working on your computer
Safety instructions
Use the following safety guidelines to protect your computer from potential damage and to ensure your personal safety. Unless otherwise
noted, each procedure included in this document assumes that the following conditions exist:
• You have read the safety information that shipped with your computer.
• A component can be replaced or, if purchased separately, installed by performing the removal procedure in reverse order.
WARNING: Disconnect all power sources before opening the computer cover or panels. After you nish working inside the
computer, replace all covers, panels, and screws before connecting to the power source.
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional
safety best practices information, see the Regulatory Compliance Homepage at www.Dell.com/regulatory_compliance
CAUTION: Many repairs may only be done by a certied service technician. You should only perform troubleshooting and simple
repairs as authorized in your product documentation, or as directed by the online or telephone service and support team. Damage
due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came
with the product.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an
unpainted metal surface at the same time as touching a connector on the back of the computer.
CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its
edges or by its metal mounting bracket. Hold a component such as a processor by its edges, not by its pins.
CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables have
connectors with locking tabs; if you are disconnecting this type of cable, press in on the locking tabs before you disconnect the
cable. As you pull connectors apart, keep them evenly aligned to avoid bending any connector pins. Also, before you connect a
cable, ensure that both connectors are correctly oriented and aligned.
NOTE: The color of your computer and certain components may appear dierently than shown in this document.
1
Before working inside your computer
To avoid damaging your computer, perform the following steps before you begin working inside the computer.
1 Ensure that you follow the Safety instructions.
2 Ensure that your work surface is at and clean to prevent the computer cover from being scratched.
3 Turn o your computer.
CAUTION
the network device.
4 Disconnect all network cables from the computer.
5 Disconnect your computer and all attached devices from their electrical outlets.
6 Press and hold the power button while the computer is unplugged to ground the system board.
7 Remove the cover.
CAUTION
periodically touching an unpainted metal surface at the same time as touching a connector on the back of the computer.
8 Working on your computer
: To disconnect a network cable, rst unplug the cable from your computer and then unplug the cable from
: Before touching anything inside your computer, ground yourself by using a wrist grounding strap or by
Turning o your computer
Turning o your computer — Windows 10
CAUTION: To avoid losing data, save and close all open les and exit all open programs before you turn o your
computer.
1 Click or tap .
Click or tap and then click or tap Shut down.
2
NOTE: Ensure that the computer and all attached devices are turned o. If your computer and attached devices did not
automatically turn o when you shut down your operating system, press and hold the power button for about 6 seconds
to turn them o.
Turning o your computer — Windows 7
CAUTION: To avoid losing data, save and close all open les and exit all open programs before you turn o your
computer.
1 Click Start.
2 Click Shut Down.
NOTE
: Ensure that the computer and all attached devices are turned o. If your computer and attached devices did not
automatically turn o when you shut down your operating system, press and hold the power button for about 6 seconds
to turn them o.
Safety precautions
The safety precautions chapter details the primary steps to be taken before performing any disassembly instructions.
Observe the following safety precautions before you perform any installation or break/x procedures involving disassembly or reassembly:
• Turn o the system and all attached peripherals.
• Disconnect the system and all attached peripherals from AC power.
• Disconnect all network cables, telephone, and telecommunications lines from the system.
• Use an ESD eld service kit when working inside any desktop to avoid electrostatic discharge (ESD) damage.
• After removing any system component, carefully place the removed component on an anti-static mat.
• Wear shoes with nonconductive rubber soles to reduce the chance of getting electrocuted.
Standby power
Dell products with standby power must be unplugged before you open the case. Systems that incorporate standby power are essentially
powered while turned o. The internal power enables the system to be remotely turned on (wake on LAN) and suspended into a sleep
mode and has other advanced power management features.
After unplugging the system and before removing components, wait approximately 30 to 45 seconds to allow the charge to drain from the
circuits. Remove the battery from portable desktops.
Working on your computer
9
Bonding
Bonding is a method for connecting two or more grounding conductors to the same electrical potential. This is done through the use of a
eld service electrostatic discharge (ESD) kit. When connecting a bonding wire, ensure that it is connected to bare metal and never to a
painted or nonmetal surface. The wrist strap should be secure and in full contact with your skin, and ensure that you remove all jewelry
such as watches, bracelets, or rings prior to bonding yourself and the equipment.
Electrostatic discharge (ESD) protection
ESD is a major concern when you handle electronic components, especially sensitive components such as expansion cards, processors,
memory DIMMs, and system boards. Very slight charges can damage circuits in ways that may not be obvious, such as intermittent
problems or a shortened product life span. As the industry pushes for lower power requirements and increased density, ESD protection is an
increasing concern.
Due to the increased density of semiconductors used in recent Dell products, the sensitivity to static damage is now higher than in previous
Dell products. For this reason, some previously approved methods of handling parts are no longer applicable.
Two recognized types of ESD damage are catastrophic and intermittent failures.
• Catastrophic – Catastrophic failures represent approximately 20 percent of ESD-related failures. The damage causes an immediate and
complete loss of device functionality. An example of catastrophic failure is a memory DIMM that has received a static shock and
immediately generates a "No POST/No Video" symptom with a beep code emitted for missing or nonfunctional memory.
• Intermittent – Intermittent failures represent approximately 80 percent of ESD-related failures. The high rate of intermittent failures
means that most of the time when damage occurs, it is not immediately recognizable. The DIMM receives a static shock, but the
tracing is merely weakened and does not immediately produce outward symptoms related to the damage. The weakened trace may
take weeks or months to melt, and in the meantime may cause degradation of memory integrity, intermittent memory errors, etc.
The more dicult type of damage to recognize and troubleshoot is the intermittent (also called latent or "walking wounded") failure.
Perform the following steps to prevent ESD damage:
• Use a wired ESD wrist strap that is properly grounded. The use of wireless anti-static straps in no longer allowed; they do not provide
adequate protection. Touching the chassis before handling parts does not ensure adequate ESD protection on parts with increased
sensitivity to ESD damage.
• Handle all static-sensitive components in a static-safe area. If possible, use anti-static oor pads and workbench pads.
• When unpacking a static-sensitive component from its shipping carton, do not remove the component from the anti-static packing
material until you are ready to install the component. Before unwrapping the anti-static packaging, be sure ensure that you discharge
static electricity from your body.
• Before transporting a static-sensitive component, place it in an anti-static container or packaging.
ESD eld service kit
The unmonitored Field Service kit is the most commonly used service kit. Each Field Service kit includes three main components: anti-static
mat, wrist strap, and bonding wire.
Components of an ESD eld service kit
The components of an ESD eld service kit are:
• Anti-Static Mat – The anti-static mat is dissipative and parts can be placed on it during service procedures. When using an anti-static
mat, your wrist strap should be snug and the bonding wire should be connected to the mat and to any bare metal on the system being
worked on. Once deployed properly, service parts can be removed from the ESD bag and placed directly on the mat. ESD-sensitive
items are safe in your hand, on the ESD mat, in the system, or inside a bag.
• Wrist Strap and Bonding Wire – The wrist strap and bonding wire can be either directly connected between your wrist and bare metal
on the hardware if the ESD mat is not required, or connected to the anti-static mat to protect hardware that is temporarily placed on
the mat. The physical connection of the wrist strap and bonding wire between your skin, the ESD mat, and the hardware is known as
bonding. Use only Field Service kits with a wrist strap, mat, and bonding wire. Never use wireless wrist straps. Always be aware that the
10
Working on your computer
internal wires of a wrist strap are prone to damage from normal wear and tear, and must be checked regularly with a wrist strap tester
in order to avoid accidental ESD hardware damage. It is recommended to test the wrist strap and bonding wire at least once per week.
• ESD Wrist Strap Tester – The wires inside of an ESD strap are prone to damage over time. When using an unmonitored kit, it is a best
practice to regularly test the strap prior to each service call, and at a minimum, test once per week. A wrist strap tester is the best
method for doing this test. If you do not have your own wrist strap tester, check with your regional oce to nd out if they have one.
To perform the test, plug the wrist-strap's bonding-wire into the tester while it is strapped to your wrist and push the button to test. A
green LED is lit if the test is successful; a red LED is lit and an alarm sounds if the test fails.
• Insulator Elements – It is critical to keep ESD sensitive devices, such as plastic heat sink casings, away from internal parts that are
insulators and often highly charged.
• Working Environment – Before deploying the ESD Field Service kit, assess the situation at the customer location. For example,
deploying the kit for a server environment is dierent than for a desktop or portable environment. Servers are typically installed in a rack
within a data center; desktops or portables are typically placed on oce desks or cubicles. Always look for a large open at work area
that is free of clutter and large enough to deploy the ESD kit with additional space to accommodate the type of system that is being
repaired. The workspace should also be free of insulators that can cause an ESD event. On the work area, insulators such as Styrofoam
and other plastics should always be moved at least 12 inches or 30 centimeters away from sensitive parts before physically handling any
hardware components
• ESD Packaging – All ESD-sensitive devices must be shipped and received in static-safe packaging. Metal, static-shielded bags are
preferred. However, you should always return the damaged part using the same ESD bag and packaging that the new part arrived in.
The ESD bag should be folded over and taped shut and all the same foam packing material should be used in the original box that the
new part arrived in. ESD-sensitive devices should be removed from packaging only at an ESD-protected work surface, and parts should
never be placed on top of the ESD bag because only the inside of the bag is shielded. Always place parts in your hand, on the ESD mat,
in the system, or inside an anti-static bag.
• Transporting Sensitive Components – When transporting ESD sensitive components such as replacement parts or parts to be
returned to Dell, it is critical to place these parts in anti-static bags for safe transport.
ESD protection summary
It is recommended that all eld service technicians use the traditional wired ESD grounding wrist strap and protective anti-static mat at all
times when servicing Dell products. In addition, it is critical that technicians keep sensitive parts separate from all insulator parts while
performing service and that they use anti-static bags for transporting sensitive components.
Transporting sensitive components
When transporting ESD sensitive components such as replacement parts or parts to be returned to Dell, it is critical to place these parts in
anti-static bags for safe transport.
Lifting equipment
Adhere to the following guidelines when lifting heavy weight equipment:
CAUTION
1 Get a rm balanced footing. Keep your feet apart for a stable base, and point your toes out.
2 Tighten stomach muscles. Abdominal muscles support your spine when you lift, osetting the force of the load.
3 Lift with your legs, not your back.
4 Keep the load close. The closer it is to your spine, the less force it exerts on your back.
5 Keep your back upright, whether lifting or setting down the load. Do not add the weight of your body to the load. Avoid twisting your
body and back.
6 Follow the same techniques in reverse to set the load down.
: Do not lift greater than 50 pounds. Always obtain additional resources or use a mechanical lifting device.
Working on your computer
11
After working inside your computer
After you complete any replacement procedure, ensure that you connect any external devices, cards, and cables before turning on your
computer.
1 Replace the cover.
CAUTION: To connect a network cable, rst plug the cable into the network device and then plug it into the
computer.
2 Connect any telephone or network cables to your computer.
3 Connect your computer and all attached devices to their electrical outlets.
4 Turn on your computer.
5 If required, verify that the computer works correctly by running ePSA diagnostics.
12 Working on your computer
Removing and installing components
This section provides detailed information on how to remove or install the components from your computer.
USB dongle-bay cover
Removing USB dongle-bay cover
CAUTION: Place the computer on a at, soft and clean surface to avoid scratches on the
display.
1 Follow the procedure in Before working inside your computer
2 Place the computer face down.
3 Press and pull the USB dongle-bay cover out of your computer.
2
Installing dongle-bay cover
1 Align the tabs on the USB dongle-bay cover into the slots on the back cover and snap the USB dongle-bay cover into place.
2 Follow the procedure in After working inside your computer.
Removing and installing components 13
Back cover
Removing back cover
1 Follow the procedure in Before working inside your computer.
2 Remove USB dongle-bay cover.
3 Loosen two captive screws that secure the back cover to the inner frame [1].
4 Push the stand down [2].
5 Slide the back cover towards the top of the computer and lift the back cover o the inner frame [3].
Installing back cover
1 Align the tabs on the back cover with the slots on the inner frame.
2 Slide the back cover towards the bottom of the computer and snap the back cover in place.
3 Tighten the two captive screws that secure the back cover to the inner frame.
4 Install the USB dongle-bay cover.
5 Follow the procedure in After working inside your computer.
14
Removing and installing components
Memory module
Removing memory module
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
3 Using the tabs pry open the memory-module shield [1].
4 Using your ngertips, spread apart the securing clips at each end of the memory-module slot until the memory module pops out [2].
5 Slide and remove the memory module from the memory-module slot [3].
Removing and installing components
15
Installing memory module
1 Align the notch on the memory module with the tab on the memory-module slot.
2 Slide the memory module rmly into the slot at an angle and press the memory module down until it clicks into place.
NOTE
: If you do not hear the click, remove the memory module and reinstall it.
3 Install the:
a back cover
b USB dongle-bay cover
4 Follow the procedure in After working inside your computer
Hard drive
Removing HDD/SSD
NOTE
: The drive in the top slot of the drive carrier is the primary drive. The procedure for removing both primary and secondary
drive is the same.
1
Follow the procedure in Before working inside your computer.
2 Remove the:
16
Removing and installing components
a USB dongle-bay cover
b back cover
3 Press the strap on the drive assembly [1].
4 Using the straps on the drive assembly, push and lift the drive assembly out of the drive cage [2].
5 Pry the drive bracket to release the tabs on the bracket from the slots on the HDD/SSD [3].
6 Slide the hard HDD/SSD o the drive bracket [4].
NOTE
: Note the orientation of the hard drive so that you can replace it correctly.
Removing and installing components 17
Installing HDD/SSD
: The drive installed on the top slot is the primary drive. In case, there is only one drive, install it on the top slot. The
NOTE
procedure for installing both primary and secondary drives is same.
1 Place the drive into the drive bracket and align the tabs on the bracket with the slots on the drive.
2 Snap the drive bracket into the drive.
3 With the straps facing up, align the drive assembly with the slots on the drive cage.
4 Using the straps pull the drive assembly towards the back of the computer till it snaps into the drive interposer.
5 Install the:
a back cover
b USB dongle-bay cover
6 Follow the procedure in After working inside your computer
System board shield
Removing system-board shield
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
3 Remove the three screws (M3X4) that secure the system-board shield to the middle frame [1].
4 Lift the system-board shield o the middle frame [2].
18
Removing and installing components
Installing system-board shield
1 Align the screw holes on the system-board shield with the screw holes on the middle frame.
CAUTION
2 Replace the three screws (M3X4) that secure the system-board shield to the middle frame.
3 Install the:
a back cover
b USB dongle-bay cover
4 Follow the procedure in After working inside your computer
: Make sure you do not damage the WLAN antenna when you place the system-board shield.
M.2 PCIe SSD
Removing M.2 PCIe SSD
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c system-board shield
3 Open the securing clip that secures the solid-state drive to the system board [1].
4 Slide and remove the solid-state drive from the solid-state drive slot [2].
Removing and installing components
19
Installing PCIe SSD
1 Align the notch on the solid-state drive with the tab on the solid-state drive slot.
2 Slide the solid-state drive into the solid-state drive slot.
3 Secure the solid-state drive to the system board using the securing clip.
4 Install the:
a system-board shield
b back cover
c USB dongle-bay cover
5 Follow the procedure in After working inside your computer
Memory fan
Removing memory fan
1 Follow the procedure in Before working inside your computer.
2 Remove the:
20
Removing and installing components
a USB dongle-bay cover
b back cover
c system-board shield
3 Remove the four screws (M2X3) that secure the memory fan to the middle frame [1].
4 Gently lift the memory fan from the system board [2].
5 Disconnect the memory fan cable from the system board [3].
Installing memory fan
1 Connect the memory fan cable to the system board.
2 Align the screw holes on the memory fan with the screw holes on the system board.
3 Replace the four screws (M2X3) that secure the memory fan to the system board.
4 Install the:
a system-board shield
b back cover
c USB dongle-bay cover
5 Follow the procedure in After working inside your computer.
Removing and installing components
21
Heat sink
Removing processor heatsink for systems with discrete graphics
NOTE: Depending on the conguration you ordered, the appearance of the processor heatsink and the number of screws may
dier.
NOTE: The procedure you see below is for the removal of heatsink with discrete graphics.
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c system-board shield
3 In sequential order (indicated on the heatsink), loosen eight captive screws that secure the processor heatsink to the system board [1].
4 Remove the screw (M3X4) that secures the processor heat-sink fan to the middle frame [2].
5 Lift the processor heatsink o the system board [3].
NOTE: Computers that support AMD Radeon Pro WX7100 and AMD Radeon Pro WX4150 graphics are shipped with
seven captive screws
Removing heatsink for computers with integrated graphics
NOTE
: Depending on the conguration you ordered, the appearance of the processor heat-sink and the number of screws may
dier.
1
Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
22
Removing and installing components
c system-board shield
3 In sequential order (indicated on the heat sink), loosen the captive screws that secure the processor heat-sink to the system board.
4 Remove the screw (M3X4) that secures the processor heat-sink fan to the middle frame.
5 Lift the processor heat-sink o the system board.
Installing processor heatsink
1 Align the captive screws on the processor heat-sink with the screw holes on the system board.
2 In sequential order (indicated on the processor heat-sink), tighten the captive screws that secure the processor heat-sink to the
system board.
3 Replace the screw (M3X4) that secures the processor heat-sink fan to the middle frame.
4 Install the:
a system-board shield
b back cover
c USB dongle-bay cover
5 Follow the procedure in After working inside your computer
Processor
Removing processor
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c system-board shield
d processor heatsink
3 Press the release-lever down and then pull it outwards to release it from the securing tab [1].
4 Extend the release-lever completely to open the processor cover [2].
5 Gently lift the processor and remove it from the processor socket [3].
Removing and installing components
23
Installing processor
1 Ensure that the release lever on the processor socket is fully extended in the open position.
CAUTION
processor socket. When the processor is properly seated, all four corners are aligned at the same height. If one or more
corners of the processor are higher than the others, the processor is not seated properly.
2 Align the notches on the processor with the tabs on the processor socket and place the processor in the processor socket.
CAUTION
3 When the processor is fully seated in the socket, close the processor cover.
4 Pivot the release-lever down and place it under the tab on the processor cover.
5 Install the:
a processor heat-sink.
b system-board shield
c back cover
d USB dongle-bay cover
6 Follow the procedure in After working inside your computer
24
Removing and installing components
: The pin-1 corner of the processor has a triangle that aligns with the triangle on the pin-1 corner on the
: Ensure that the processor-cover notch is positioned underneath the alignment post.
Coin cell battery
Removing coin-cell battery
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
3 Using a plastic scribe, gently push the tab on the coin-cell battery socket until the battery pops up and then lift the coin-cell battery
o its slot on the system board.
Installing coin-cell battery
1 With the positive-side facing up, insert the coin-cell battery into the battery socket and press down the battery into place.
2 Install the:
a system-board shield
b back cover
c USB dongle-bay cover
3 Follow the procedure in After working inside your computer
Removing and installing components
25
WLAN card
Removing wireless card
1 Remove the:
a USB dongle-bay cover
b back cover
c system-board shield
2 Remove the antenna cables from the securing clip [1].
3 Remove the two screws (M2X2.5) that secure the wireless-card shield to the system board [2].
4 Lift the wireless-card shield o the system board [3].
5 Remove the screw (M2X2.5) that secures the wireless-card bracket and the wireless card to the system board [4].
6 Lift the wireless-card bracket o the wireless card [5].
7 Disconnect the antenna cables from the wireless card [6].
8 Slide and remove the wireless card out of the wireless-card slot [7].
26 Removing and installing components
Installing the wireless card
CAUTION: To avoid damaging the wireless card, do not place any cables under it.
1 Align the notch on the wireless card with the tab on the wireless-card slot and slide the wireless card into the wireless-card slot.
2 Route the antenna cable through the routing guide.
3 Connect the antenna cables to the wireless card.
The following table provides the antenna-cable color scheme for the wireless card supported by your computer:
Table 1. : Wirelesscard colour scheme
Connectors on the wireless card Antenna-cable color
Main (white triangle) White
Auxiliary (black triangle) Black
4 Press down the other end of the wireless card and align the screw hole on the wireless-card bracket and wireless card with the screw
hole on the system board.
5 Replace the screw (M2X2.5) that secures the wireless-card bracket and the wireless card to the system board.
6 Align the screw holes on the wireless-card shield with the screw holes on the system board.
7 Replace the two screws (M2X2.5) that secure the wireless-card shield to system board.
8 Route the antenna cables through the securing clip.
9 Install the:
a system-board shield
b back cover
c USB dongle-bay cover
10 Follow the procedure in After working inside your computer
Stand
Removing stand
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
3 Remove the six screws (M4X6) that secure the stand to the middle frame [1].
4 Lift the stand o the computer [2].
Removing and installing components
27
Installing stand
1 Align the screw holes on the stand with the screw holes on the middle frame.
2 Replace the six screws (M4X6) that secure the stand to the middle frame.
3 Install the:
a back cover
b USB dongle-bay cover
4 Follow the procedure in After working inside your computer
System fan
Removing system fan
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c stand
d system-board shield
3 Remove the power-supply unit cable from the routing guides on the system fan [1].
4 Disconnect the power-supply unit cable from its connector on the system board [2]..
28
Removing and installing components
5 Disconnect the system fan cable from the system board [1].
6 Remove the four screws (M3X4) that secure the system fan to the middle frame [2].
7 Lift the system fan along with its cable o the middle frame [3].
Removing and installing components
29
Installing system fan
1 Align the screw holes on the system fan with the screw holes on the middle frame.
2 Replace the four screws (M3X4) that secure the system fan to the middle frame.
3 Connect the system fan cable to the system board.
4 Connect the power-supply unit cable to its connector on the system board.
5 Route the power-supply unit cable through the routing guides on the system fan.
6 Install the:
a system-board shield.
b stand
c back cover
d USB dongle-bay cover
7 Follow the procedure in After working inside your computer
Power supply unit
Removing power supply unit
1 Follow the procedure in Before working inside your computer.
2 Remove the:
30
Removing and installing components
a USB dongle-bay cover
b back cover
c stand
3 Remove the power-supply unit cable from the routing guides on the system fan [1].
4 Disconnect the power-supply unit cable from its connector on the system board [2].
5 Press the securing clip to release the power-supply indicator cable from its connector [3].
6 Press the securing clip to release the power-supply fan cable from its connector [4].
7 Open the securing clips and release the cables [5].
8 Remove the ve screws (M3X4) that secure the power-supply unit to the middle cover [6].
9 Lift the power-supply unit with the cable o the middle cover [7].
Removing and installing components
31
Installing power supply unit
1 Align the screw holes on the power-supply unit with the screw holes on the middle cover.
2 Replace the ve screws (M3X4) that secure the power-supply unit to the middle cover.
3 Route the cables through the guide and close the clip to secure the cables.
4 Connect the power-supply indicator cable and power-supply fan cable to their respective connectors.
5 Route the power-supply unit cable through the routing guides on system fan.
6 Connect the power-supply unit cable to its connector on the system board.
7 Install the:
a back cover
b USB dongle-bay cover
c stand
8 Follow the procedure in After working inside your computer
32
Removing and installing components
Inner frame
Removing inner frame
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c stand
3 Remove 20 screws (M3X4) that secure the inner frame to the middle frame.
4 Gently pry the inner frame from the sides and lift it o the middle frame.(2)
Removing and installing components
33
Installing inner frame
1 Align the screw holes on the inner frame with the screw holes on the middle frame.
2 Replace 20 screws (M3X4) that secure the inner frame to the middle frame.
3 Install the:
a stand
b back cover
c USB dongle-bay cover
4 Follow the procedure in After working inside your computer
Built-in self test button
Removing built-in self test button
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c stand
d inner frame
3 Remove the power-button cable from the routing guide on the power-button board shield [1].
34
Removing and installing components
4 Remove the two screws (M2X3) that secure the power-button board shield to the middle frame [2].
5 Slide forward and lift the power-button board shield o the middle frame [3].
6 Disconnect the Display Built-in Self Test button cable from the power-button board [4].
7 Remove the Display Built-in Self Test button cable from the routing guide on the middle frame [5].
8 Remove the two screws (M2X3) that secure the Display Built-in Self Test button board to the middle frame [6].
9 Lift the Display Built-in Self Test button board o the middle frame [7].
Installing the built-in self test button board
1 Place the Display Built-in Self Test button board on the middle frame.
2 Align the screw holes on the Display Built-in Self Test button board with the screw holes on the middle frame.
3 Replace the two screws (M2X3) that secure the Display Built-in Self Test button board to the middle frame.
4 Route the Display Built-in Self Test button cable through the routing guides.
5 Connect the Display Built-in Self Test button cable to the power-button board.
6 Insert the power-button board shield into the slot on the middle frame until it clicks.
7 Align the screw holes on the power-button board shield with the screw holes on the middle frame.
8 Replace the two screws (M2X3) that secure the power-button board shield to the middle frame.
9 Route the power-button cable through the routing guides on the power-button board shield..
10 Install the:
Removing and installing components
35
a stand
b back cover
c USB dongle-bay cover
11 Follow the procedure in After working inside your computer
Microphone
Removing microphone
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c system-board shield
d stand
e inner frame
3 Disconnect the microphone cable from the system board [1].
4 Remove the four screws (M2X2.2) that secure the microphone module to the middle frame [2].
5 Release microphone cable from the routing guides on the middle frame [3].
6 Using a plastic scribe, carefully pry and lift the microphone modules (4) with the cable o the slots on the middle frame [4].
36
Removing and installing components
Installing microphone
1 Align the microphone modules (4) with their slots on the middle frame.
2 Route the cable through the routing guides on the middle frame.
3 Replace the four screws (M2X2.2) that secure the microphone module to the middle frame.
4 Connect the microphone cable to the system board.
5 Install the:
a inner frame
b stand
c system-board shield
d back cover
e USB dongle-bay cover
6 Follow the procedure in After working inside your computer
Removing and installing components
37
I/O panel
Removing I/O panel
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c system-board shield
d stand
e inner frame
3 Press the securing clip to release the power button cable from its connector [1].
4 Press the securing clip to release the diagnostic button and light cable from its connector [2].
5 Disconnect the USB dongle cable from the system board [3].
6 Remove the four screws (M3X4) that secure the I/O panel to the middle frame and system board [1].
7 Lift the I/O panel o the middle frame [2].
38
Removing and installing components
8 Remove USB-dongle port.
9 Remove the Diagnostic light button board.
Installing I/O panel
1 Replace the Diagnostic light button board.
2 Replace USB-dongle port.
3 Connect the USB-dongle cable to the system board.
4 Align the screw holes on the I/O-board panel with the screw holes on the middle frame.
5 Replace the four screws (M3X4) that secure the I/O panel to the middle frame and system board.
6 Connect the diagnostic button and light cable.
7 Connect the power-button cable.
8 Install the:
a inner frame
b stand
c system-board shield
d back cover
e USB dongle-bay cover
9 Follow the procedure in After working inside your computer
Removing and installing components
39
USB-dongle port
Removing USB-dongle port
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c stand
d inner frame
e system-board shield.
f I/O panel
3 Remove the three screws (M3X4) that secure the USB dongle port to the I/O panel.
4 Remove the USB dongle port cable from the routing guide on I/O panel [2].
5 Remove the USB dongle port from the I/O panel. [3]
40
Removing and installing components
Installing USB-dongle port
1 Route the USB dongle port cable into the slot on I/O panel .
2 Route the USB dongle port cable through the routing guide on I/O panel .
3 Align the screw holes on the USB dongle port with the screw holes on the I/O panel.
4 Replace the three screws (M3X4) that secure the USB dongle port to the I/O panel.
5 Install the:
a I/O panel
b system-board shield.
c inner frame
d stand
e back cover
f USB dongle-bay cover
6 Follow the procedure in After working inside your computer
Removing and installing components
41
Diagnostic light and button board
Removing the diagnostic light and button board
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c stand
d system-board shield.
e inner frame
f I/O panel
3 Spread apart the securing tabs to release the I/O-panel bracket from the I/O panel.
4 Lift the I/O-panel bracket o the I/O panel.
42
Removing and installing components
5 Remove the screw that secures the power diagnostic button and light board to the I/O-panel bracket [1].
6 Lift the power diagnostic button and light board o the I/O-panel bracket [2].
Removing and installing components
43
Installing diagnostic light and button board
1 Align the screw holes on power diagnostic button and light board to the screw holes on the I/O-panel bracket.
2 Replace the screw that secures the power diagnostic button and light board to the I/O-panel bracket.
3 Align the tabs on the I/O-panel bracket with the slots on the I/O panel and snap the I/O-panel bracket in place.
4 Install the:
a I/O panel
b inner frame
c system-board shield.
d stand
e back cover
f USB dongle-bay cover
5 Follow the procedure in After working inside your computer
Drive cage
Removing HDD/SSD cage
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c stand
d hard drive
e system-board shield.
f I/O panel
3 Remove the cable from the routing guide on drive cage [1].
4 Open the securing clips and release the HDD/SSD cables [2].
5 Disconnect the HDD/SSD cable from the system board [3].
6 Disconnect the HDD/SSD data cables from the system board [4].
44
Removing and installing components
7 Remove the four screws (M3X4) that connect the drive cage to the middle frame [1].
8 Lift the hard-drive cage o the middle frame [2].
Removing and installing components
45
9 Remove the four screws (M2X3) that connect the interposer to the hard-drive cage [1].
10 Remove the interposer from the hard-drive cage [2].
46
Removing and installing components
Installing HDD/SSD cage
1 Align the screw holes on the interposer with the screw holes on the drive cage.
2 Replace the four screws (M2X3) that connect the interposer to the drive cage.
3 Align the screw holes on the hard-drive cage to the screw holes on the middle frame.
4 Replace the four screws (M3X4) that secure the drive cage to the middle frame.
5 Connect the HDD/SSD cables and the HDD/SSD power cable to the system board.
NOTE: Connect the blue-colored cable at the top and red-colored cable to the bottom of the drive cage.
6 Route the cables through the guide and close the clip to secure the cables.
7 Install the:
a I/O panel
b system-board shield.
c stand
d hard drive
e back cover
f USB dongle-bay cover
8 Follow the procedure in After working inside your computer
Converter board
Removing converter board
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c stand
d system-board shield
e inner frame
f I/O panel
3 Disconnect the left backlight power cable from the converter board [1].
4 Disconnect the converter-board cable from the converter board [2].
5 Disconnect the right backlight power cable from the converter board [3].
Removing and installing components
47
6 Remove the three screws (M3X4) that secure the converter board to the middle frame [1].
7 Lift the converter board o the middle frame [2].
48
Removing and installing components
Installing converter board
1 Align the screw holes on the converter board with the screw holes on the middle frame.
2 Replace the three screws (M3X4) that secure the converter board to the middle frame.
3 Connect the converter-board cable to the converter board.
4 Connect the backlight power cables to the converter board.
5 Install the:
a I/O panel
b inner frame
c system-board shield.
d stand
e back cover
f USB dongle-bay cover
6 Follow the procedure in After working inside your computer
Removing and installing components
49
Speaker
Removing speakers
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c system-board shield
d stand
e inner frame
3 Disconnect the speaker cable from the system board and release it from the routing guides on middle frame [1] [2].
4 Remove the eight screws (M3x4) that secure the speakers to the middle frame [1].
50
Removing and installing components
5 Lift the speakers along with the cable o the middle frame [2].
Installing speaker
1 Align the screw holes on the speakers with the screw holes on the middle frame.
2 Replace the eight screws (M3x4) that secure the speakers to the middle frame.
3 Route the cable through the routing guides on middle frame and connect the speaker cable to the system board.
4 Install the:
a inner frame
b stand
c system-board shield
d back cover
e USB dongle-bay cover
Removing and installing components
51
Power button board
Removing power-button board
NOTE: Note the routing of the cable as you remove it so that you can reroute it correctly after you replace the power-button
board.
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c stand
d inner frame
3 Remove the power-button cable from the routing guide on the power-button board shield [1].
4 Remove the two screws (M2X3) that secure the power-button board shield to the middle frame [2].
5 Slide and remove the power-button board shield o the middle frame [3].
6 Lift the power-button board o the slot on the middle frame [4].
7 Disconnect the power-button board cable from the power-button board [5].
8 Disconnect the Display Built-in Self Test button cable from the power-button board [6].
52
Removing and installing components
Installing power button board
1 Connect the power-button board cable and Display Built-in Self Test button cable to the power-button board.
2 Align the power-button board to the slot on the middle frame and place the power-button board on the middle frame.
3 Align the screw holes on power-button board shield to the screw holes on middle frame.
4 Replace the two screws (M2X3) that secures the power-button board shield to middle frame.
5 Route the power-button cable through the routing guides on the power-button board shield.
Media card reader
Removing media-card reader
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c stand
d inner frame
e speakers
3 Remove two screws (M2X3) that secure the media-card reader shield to the middle frame [1].
4 Lift the media-card reader shield o the middle frame [2].
5 Slide and lift the media-card o from the slot on the middle frame [3].
6 Disconnect the media-card reader cable from the media-card [4].
7 Disconnect the audio cable from the media-card [5].
Removing and installing components
53
Installing media card reader
1 Connect the audio cable to the media card.
2 Connect the media-card reader cable to the media-card.
3 Align the media-card reader to the slot on the middle frame.
4 Align the screw hole on the media-card reader shield to the screw hole on the middle frame.
5 Replace the two screws (M2X3) that secure the media-card reader shield to the middle frame.
6 Install the:
a speakers.
b inner frame
c stand
d back cover
e USB dongle-bay cover
7 Follow the procedure in After working inside your computer
Camera
Removing camera
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c stand
d inner frame
e speakers
3 Remove the two screws (M2X3) that secure the camera assembly to the middle frame [1].
4 Remove the camera cable from the routing guide on the middle frame [2].
5 Lift the metal foil and turn the camera assembly over [3].
6 Unrote the cable from the clip and disconnect the camera cable from the camera assembly [4]
54
Removing and installing components
Installing camera
1 Connect the camera cable to the camera assembly.
2 Turn the camera assembly and route the camera cable through the routing guide on the middle frame.
3 Align the screw holes on the camera assembly with the screw holes on the middle frame.
4 Replace the two screws (M2X3) that secure camera assembly to the middle frame.
5 Install the:
a speakers.
b inner frame
c stand
d back cover
e USB dongle-bay cover
6 Follow the procedure in After working inside your computer
Removing and installing components
55
System board
Removing system board
NOTE: To avoid any potential damage to the cables, ensure to release them from the routing guides.
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c memory modules
d stand
e system fan
f inner frame
g system-board shield.
h I/O panel
i processor heat-sink
j processor.
k coin-cell battery
l memory fan
m wireless card
n solid-state drive.
3 Using the pull tab, disconnect the display cable from the system board [3].
4 Disconnect the camera cable from the system board [2].
5 Using the pull tab, disconnect the USB-connection cable from the system board [3].
6 Disconnect the hard-drive power cable from the system board. [4]
7 Disconnect the hard-drive data cables from the system board [5].
56
Removing and installing components
8 Disconnect the speaker cable from the system board [1].
9 Disconnect the converter-board cable from the system board [2].
10 Using the pull tab, disconnect the media-card reader cable from the system board [3].
11 Disconnect the audio cable from the system board [4].
12 Remove the screw (M3X4) that secures the media-card reader cable and audio cable to the system board [5]
13 Disconnect the microphone cable from the system board [6]
Removing and installing components
57
14 Remove the 12 screws (M3X4) that secure the system board to the middle frame [1].
15 Lift the system board o the middle frame [2]
58
Removing and installing components
Installing system board
1 Align the screw holes on the system board with the screw holes on the middle frame.
2 Replace the 12 screws (M3X4) that secure the system board to the middle frame.
3 Replace the screw (M3X4) that secures the media card reader and audio cables to the system board.
4 Connect the microphone cable , audio cable, media-card reader cable and converter-board cable to their respective connectors on the
system board.
5 Connect the media-card reader cable, webcam cable and display cable to their respective connectors on the system board.
6 Install the:
a solid-state drive.
b wireless card
c memory fan
d coin-cell battery
e processor.
f processor heat-sink
g I/O panel
h system-board shield.
i inner frame
j system fan
k stand
Removing and installing components
59
l memory modules
m back cover
n USB dongle-bay cover
7 Follow the procedure in After working inside your computer
System board callouts
Figure 1. System board callouts
1
password clear jumper 2 coin-cell battery connector
3 microphone cable connector 4 processor socket
5 memory module slot 6 system fan connector
7 wireless-card slot 8 audio-cable connector
9 media-card connector 10 SSD-card connector (M.2)
11 speaker cable connector 12 converter-board cable connector
13 memory-fan cable connector 14 USB 3.0 ports (4)
15 HDMI port 16 Line-out port
17 displayport 18 network port
19 Thunderbolt 3 (USB Type-C) port
21 power-supply unit cable connector 22 SATA-card slot
60 Removing and installing components
20 Thunderbolt 3 (USB Type-C) port
23 SATA power connector 24 USB connector
25 CMOS clear jumper 26 side USB connector
27 touch cable connector 28 camera connector
29 display connector
Display assembly
Removing display assembly
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c memory modules
d stand
e system fan
f inner frame
g system-board shield
h I/O panel
i processor heat-sink
j processor
k coin-cell battery
l memory fan
m wireless card
n solid-state drive
o system board
3 Press the tabs on the cable to release it from the connector [1].
4 Disconnect the cable from its slot on the middle frame [2]
5 Press the tabs on the backlight cable [3].
6 Disconnect the backlight cable from its slot on the middle frame [4].
7 Open the latch and disconnect the display cable from its slot on the middle frame.
8 Lift the display cable o the middle frame.
Removing and installing components
61
We are left with the display assembly.
Installing display assembly
1 Open the latch and connect the display cable to its slot on the middle frame.
2 Connect the backlight cable to its slot on the middle frame.
3 Connect the converter-board cable to its slot on the middle frame.
4 Install the:
a system board
b solid-state drive.
c wireless card
d memory fan
e coin-cell battery
f processor.
g processor heat-sink
h I/O panel
i system-board shield.
j inner frame
k system fan
l stand
62
Removing and installing components
m memory modules
n back cover
o USB dongle-bay cover
5 Follow the procedure in After working inside your computer
Middle frame
Removing middle frame
NOTE: The following steps are applicable only for non-touch systems.
NOTE: The middle frame can be removed by removing the following components only. In this scenario, the user has to remove 15
screws that secure the middle frame to the display panel and the speaker bezel, including one screw from the media-card reader
and one screw from the power-button board.
1 USB dongle-bay cover
2 back cover
3 system-board shield
4 stand
5 inner frame
6 I/O panel
7 speakers
8 camera.
: The middle frame can also be removed by removing all the components given in the steps below. In this scenario, the user
NOTE
has to remove 13 screws that secure the middle frame to the display panel and speaker bezel
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c memory module
d hard drive
e stand
f system-board shield
g system fan
h wireless card.
i power-supply unit.
j memory fan
k inner frame
l microphones
m I/O panel
n processor heat-sink
o processor
p hard-drive cage.
q coin-cell battery
r solid-state drive
s converter board.
t speakers
u power-button board
Removing and installing components
63
v media-card reader
w camera.
3 Press the tabs on the cable to release it from the connector [1].
4 Disconnect the cable from its slot on the middle frame [2].
5 Open the latch and disconnect the display cable from its slot on the middle frame. [3]
6 Lift the display cable o the middle frame [4].
7 Press the tabs on the backlight cable [5].
8 Disconnect the backlight cable from its slot on the middle frame [6].
9 Remove the seven screws (M3X4) that secure the middle frame to the display panel [1].
10 Remove the six screws (M2X3) that secure the middle frame to the speaker bezel [2].
11 Lift the middle frame o the display [3].
64
Removing and installing components
Installing middle frame
: The following steps are applicable only for non-touch systems. Touch conguration systems must have the whole LCD
NOTE
assembly replaced.
1 Align the screw holes on the middle frame with the screw holes on the display panel.
2 Replace the seven screws (M3X4) that secure the middle frame to the display panel.
3 Align the screw holes on the middle frame with the screw holes on the speaker bezel.
4 Replace the six screws (M2X3) that secure the middle frame to the speaker bezel.
5 Open the latch and connect the display cable to its slot on the middle frame.
6 Connect the backlight cable to its slot on the middle frame.
7 Connect the converter-board cable to its slot on the middle frame.
8 Install the:
a display built-in self test button board.
b system board.
c camera.
d media-card reader.
e power-button board.
f speakers.
g converter board.
h solid-state drive.
i coin-cell battery
j hard-drive cage
Removing and installing components
65
k processor.
l processor heat-sink
m I/O panel
n microphones
o inner frame
p memory fan
q power-supply unit
r wireless card
s system-board shield.
t stand
u hard drive
v memory modules
w back cover
x USB dongle-bay cover
NOTE: The middle frame can be replaced by replacing the following components only. In this scenario, the user has to
replace 13 screws securing the middle frame to the display panel.
a camera.
b speakers.
c I/O panel
d inner frame
e system-board shield.
f stand
g back cover
h USB dongle-bay cover
9 Follow the procedure in After working inside your computer
Speaker bezel
Removing speaker bezel
: The following steps are applicable only for non-touch systems.
NOTE
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
b back cover
c system-board shield
d stand
e inner frame
f I/O panel
g speakers
h camera.
i middle frame
3 Lift the display panel.
4 Pull the speaker bezel away from the display panel.
66
Removing and installing components
Installing speaker bezel
: The following steps are applicable only for non-touch systems.
NOTE
Place the speaker bezel below the display panel.
1 Install the
a middle frame
b camera.
c speakers
d I/O panel
e inner frame
f stand
g system-board shield
h back cover
i USB dongle-bay cover
2 Follow the procedure in After working inside your computer
Display panel
Removing display panel
NOTE
: The following steps are applicable only for non-touch systems.
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a USB dongle-bay cover
Removing and installing components
67
b back cover
c system-board shield
d stand
e inner frame
f I/O panel
g speakers
h camera.
i middle frame
j speaker bezel
We are left with the display panel.
Installing display panel
: The following steps are applicable only for non-touch systems.
NOTE
1 Place the display panel over the speaker bezel.
68
Removing and installing components
2 Place the middle frame on the assembly.
Removing and installing components
69
3 Replace the six screws (M2X3) that secure the middle frame to the speaker bezel [3].
4 Replace the seven screws (M3X4) that secure the middle frame to the display panel [4].
5 Turn the display assembly over [5].
6 Peel o the Mylar from the display panel.
70
Removing and installing components
NOTE: The six Mylars are factory installed with the replacement display panel. Peeling o the Mylar can result in one of
the two following acceptable scenarios:
a A portion of Mylar remains in the middle frame.
b The whole Mylar is peeled o from the display assembly.
7 Install the:
a speaker bezel
b middle frame
Removing and installing components
71
c camera.
d speakers
e I/O panel
f inner frame
g stand
h system-board shield
i back cover
j USB dongle-bay cover
8 Follow the procedure in After working inside your computer
72 Removing and installing components
Technology and components
This chapter details the technology and components available in the system.
Topics:
• Processors
• Chipsets
• Display options
• Storage options
• Hard drive options
• USB features
• HDMI
• Wi-Fi
• Camera
• Memory features
• Media-card reader
• Realtek HD audio drivers
• Operating System
• Service tag location
3
Processors
The Precision 5720 AIO system is shipped with the following processors:
• Intel Xeon E3-1275 v6 Processor (Quad Core HT 3.8Ghz, 4.2GHz Turbo,8MB); supports Windows 10/Linux
• Intel Core i7-7700 (Quad Core 3.60GHz, 4.2Ghz Turbo, 8MB) – 7th generation; supports Windows 10/Linux
• Intel Xeon E3-1245 v6 Processor (Quad Core HT 3.7GHz, 4.1Ghz Turbo, 8MB); supports Windows 10/Linux
• Intel Core i5-7600 (Quad Core 3.5GHz, 4.1Ghz Turbo, 6MB) – 7th generation; supports Windows 10/Linux
• Intel Xeon Processor E3-1225 v6 (Quad Core 3.3GHz, 3.7Ghz Turbo, 8MB); supports Windows 10/Linux
• Intel Core i5-7500 (Quad Core 3.4GHz, 3.8Ghz Turbo, 6MB) – 7th generation; supports Windows 10/Linux
• Intel Xeon Processor E3-1275 v5 (Quad Core HT 3.6Ghz, 4.0GHz Turbo,8MB); supports Windows 7/10
• Intel Core i7-6700 (Quad Core 3.40GHz, 4.0Ghz Turbo, 8MB) – 6th generation; supports Windows 7/10
• Intel Xeon Processor E3-1245 v5 (Quad Core HT 3.5GHz, 3.9Ghz Turbo, 8MB); supports Windows 7/10
• Intel Core i5-6600 (Quad Core 3.3GHz, 3.9Ghz Turbo, 6MB) – 6th generation; supports Windows 7/10
• Intel Xeon Processor E3-1225 v5 (Quad Core 3.3GHz, 3.7Ghz Turbo, 8MB); supports Windows 7/10
• Intel Core i5-6500 (Quad Core 3.2GHz, 3.6Ghz Turbo, 6MB) – 7th generation; supports Windows 7/10
NOTE
: The clock speed and performance varies depending on the workload and other variables. Total cache up to 8 MB cache
depending on processor type.
Skylake processors
Intel Skylake is the successor to the Intel Haswell processor. It is a micro architecture redesign using an existing process technology and it is
branded as Intel 6th Gen Core. Like Haswell, Skylake is available in four variants with suxes SKL-Y, SKL-H, SKL-U, and SKL-S.
Technology and components 73
The Skylake also includes Core i7, i5, i3, Pentium, and the Celeron processors.
Skylake specications
Table 2. Skylake specications
Processor number Clock Speed Cache Power Memory type
Intel Core i7-6700
3.4 GHz 8 MB 65 W DDR4-2133
Intel Core i5-6600
Intel Core i5-6500
Intel Xeon E3-1275 v5 3.6 GHz 8 MB 65 W DDR4-2133
Intel Xeon E3-1245 v5 3.5 GHz 8 MB 65 W DDR4-2133
Intel Xeon E3-1225 v5 3.3 GHz 8 MB 65 W DDR4-2133
3.3 GHz 6 MB 65 W DDR4-2133
3.2 GHz 6 MB 65 W DDR4-2133
Kaby Lake
The 7th Gen Intel Core processor (Kaby Lake) family is the successor of 6th generation processors (Skylake). Its main features include:
• Intel 14 nm Manufacturing Process Technology
• Intel Turbo Boost Technology
• Intel Hyper Threading Technology
• Intel Integrated Graphics
• Intel HD graphics - exceptional videos, editing smallest details in the videos
• Intel Quick Sync Video - excellent video conferencing capability, quick video editing and authoring
• Intel Clear Video HD - visual quality and color delity enhancements for HD playback and immersing web browsing
• Integrated memory controller
• Intel Smart Cache
• Optional Intel vPro technology (on i5/i7) with Active Management Technology 11.6
• Intel Rapid Storage Technology
Kaby Lake specications
Table 3. Kaby Lake
Processor number Clock Speed Cache Power Memory type
Intel Core i7-7700 3.6 GHz 8 MB 65 W DDR4-2133
Intel Core i5-7600 3.5 GHz 6 MB 65 W DDR4-2133
Intel Core i5-7500 3.8 GHz 6 MB 65 W DDR4-2133
Intel Xeon E3-1275 v6 3.8 GHz 8 MB 65 W DDR4-2133
Intel Xeon E3-1245 v6 3.7 GHz 8 MB 65 W DDR4-2133
Intel Xeon E3-1225 v6 3.3 GHz 8 MB 65 W DDR4-2133
74 Technology and components
specications
Identifying processors in Windows 7
1 Click Start > Control Panel > Device Manager.
2 Expand Processors.
Identifying processors in Windows 10
1 Tap Search the Web and Windows.
2 Type Device Manager.
The Device Manager window is displayed.
3 Expand Processors.
Verifying the processor usage in Task Manager (Windows 7 and Windows 10)
1 Right click on the desktop.
2 Select Start Task Manager.
The Windows Task Manager window is displayed.
3 Click the Performance tab in the Windows Task Manager window.
Verifying the processor usage in Resource Monitor (Windows 7 and Windows 10)
1 Right click the desktop.
2 Select Start Task Manager.
The Windows Task Manager window is displayed.
3 Click the Performance tab in the Windows Task Manager window.
The processor performance details are displayed.
4 Click Open Resource Monitor.
Chipsets
All Desktops communicate with the CPU through the chipset. This system is shipped with the Intel C236 series chipset.
Downloading the chipset driver
1 Turn on the computer.
2 Go to Dell.com/support.
3 Click Product Support, enter the Service Tag of your computer, and then click Submit.
: If you do not have the Service Tag, use the autodetect feature or manually browse for your computer model.
NOTE
4 Click Drivers and Downloads.
5 Click Find it myself tab.
6 Select the operating system installed in your computer.
Technology and components
75
7 Scroll down the page, expand Chipset, and select your chipset driver.
8 Click Download File to download the latest version of the chipset driver for your computer.
9 After the download is complete, navigate to the folder where you saved the driver le.
10 Double-click the chipset driver le icon and follow the instructions on the screen.
Identifying chipset in Device Manager on Windows 7
1 Click Start → Control Panel → Device Manager.
2 Expand System Devices and search for the chipset.
Identifying the chipset in Device Manager on Windows 10
1 Click inside the Cortana Search Box and type Control Panel and then click or press Enter on the keyboard, for the appropriate search
result
2 From the Control Panel, select Device Manager.
3 Expand System Devices and search for the chipset.
Display options
Identifying the display adapters in Windows 7
1 Start the Search Charm and select Settings.
2 Type Device Manager in the search box, and tap Device Manager from the left pane.
3 Expand Display adapters.
Identifying the display adapters in Windows 10
1 Click All Settings on the Windows 10 Action bar.
2 Click Control Panel, select Device Manager , and expand Display adapters.
The installed adapters are listed under Display adapters.
Graphics options
Your computer is shipped with one of the following Graphics chipsets depending on the conguration you order.
• Discrete graphics:
• AMD Radeon Pro WX 7100 with 8 GB GDDR5 dedicated memory
• AMD Radeon Pro WX 4150 with 4 GB GDDR5 dedicated memory
• Integrated graphics - Intel HD Graphics 530
Changing the screen resolution (Windows 7 and Windows 10)
1 Right click on the desktop and select Display Settings.
2 Tap or click Advanced display settings.
76
Technology and components
3 Select the required resolution from the drop-down list and tap Apply.
Adjusting brightness in Windows 7
To enable or disable automatic screen brightness adjustment:
1 Click Start → Control Panel → Display.
2 Use the Adjust brightness slider to enable or disable automatic-brightness adjustment.
NOTE: You can also use the Brightness level slider to adjust the brightness manually.
Adjusting brightness in Windows 10
To enable or disable automatic screen brightness adjustment:
1 Click open Settings from Start menu on Windows 10.
2 Click System → Display.
3 Use the Adjust brightness level slider to enable or disable automatic-brightness adjustment.
Storage options
This computer supports up to two SSD/HDD and one M.2 PCIe SSD.
Hard drive options
This computer supports up to two HDD/SSD.
Identifying the hard drive in Windows 7
1 Click Start > Control Panel > Device Manager.
The hard drive is listed under Disk drives.
2 Expand Disk drives.
Identifying the hard drive in Windows 10
1 Click All Settings on the Windows 10 Charms Bar.
2 Click Control Panel, select Device Manager, and expand Disk drives.
The hard drive is listed under Disk drives.
Identifying the hard drive in BIOS setup program
1 Turn on or restart your laptop.
2 When the Dell logo appears, perform one of the following actions to enter the BIOS setup program:
• With keyboard — Tap F2 until the Entering BIOS setup message appears. To enter the Boot selection menu, tap F12.
Hard drive is listed under the System Information under the General group.
Technology and components
77
USB features
The Universal Serial Bus, or well known as USB was introduced to the PC world in 1996 which dramatically simplied the connection
between host computer and peripheral devices such as mice and keyboards, external hard drive or optical devices, Bluetooth and many
more peripheral devices in the market.
Let's take a quick look on the USB evolution referencing to the table below.
Table 4. USB evolution
Type Data Transfer Rate Category Introduction Year
USB 3.0 5 Gbps Super Speed 2010
USB 2.0 480 Mbps High Speed 2000
USB 1.1 12 Mbps Full Speed 1998
USB 1.0 1.5 Mbps Low Speed 1996
USB 3.0 (SuperSpeed USB)
For years, the USB 2.0 has been rmly entrenched as the de facto interface standard in the PC world with about 6 billion devices sold, and
yet the need for more speed grows by ever faster computing hardware and ever greater bandwidth demands. The USB 3.0 nally has the
answer to the consumers' demands with a theoretically 10 times faster than its predecessor. In a nutshell, USB 3.0 features are as follows:
• Higher transfer rates (up to 5 Gbps)
• Increased maximum bus power and increased device current draw to better accommodate power-hungry devices
• New power management features
• Full-duplex data transfers and support for new transfer types
• Backward USB 2.0 compatibility
• New connectors and cable
The topics below cover some of the most commonly asked questions regarding USB 3.0.
Speed
Currently, there are 3 speed modes dened by the latest USB 3.0 specication. They are Super-Speed, Hi-Speed and Full-Speed. The new
SuperSpeed mode has a transfer rate of 4.8Gbps. While the specication retains Hi-Speed, and Full-Speed USB mode, commonly known
as USB 2.0 and 1.1 respectively, the slower modes still operate at 480Mbps and 12Mbps respectively and are kept to maintain backward
compatibility.
USB 3.0 achieves the much higher performance by the technical changes below:
• An additional physical bus that is added in parallel with the existing USB 2.0 bus (refer to the picture below).
• USB 2.0 previously had four wires (power, ground, and a pair for dierential data); USB 3.0 adds four more for two pairs of dierential
signals (receive and transmit) for a combined total of eight connections in the connectors and cabling.
78
Technology and components
• USB 3.0 utilizes the bidirectional data interface, rather than USB 2.0's half-duplex arrangement. This gives a 10-fold increase in
theoretical bandwidth.
With today's ever increasing demands placed on data transfers with high-denition video content, terabyte storage devices, high megapixel
count digital cameras etc., USB 2.0 may not be fast enough. Furthermore, no USB 2.0 connection could ever come close to the 480Mbps
theoretical maximum throughput, making data transfer at around 320Mbps (40MB/s) — the actual real-world maximum. Similarly, USB 3.0
connections will never achieve 4.8Gbps. We will likely see a real-world maximum rate of 400MB/s with overheads. At this speed, USB 3.0 is
a 10x improvement over USB 2.0.
Applications
USB 3.0 opens up the laneways and provides more headroom for devices to deliver a better overall experience. Where USB video was
barely tolerable previously (both from a maximum resolution, latency, and video compression perspective), it's easy to imagine that with
5-10 times the bandwidth available, USB video solutions should work that much better. Single-link DVI requires almost 2Gbps throughput.
Where 480Mbps was limiting, 5Gbps is more than promising. With its promised 4.8Gbps speed, the standard will nd its way into some
products that previously weren't USB territory, like external RAID storage systems.
Listed below are some of the available SuperSpeed USB 3.0 products:
• External Desktop USB 3.0 Hard Drives
• Portable USB 3.0 Hard Drives
• USB 3.0 Drive Docks & Adapters
• USB 3.0 Flash Drives & Readers
• USB 3.0 Solid-state Drives
• USB 3.0 RAIDs
• Optical Media Drives
• Multimedia Devices
• Networking
• USB 3.0 Adapter Cards & Hubs
Compatibility
The good news is that USB 3.0 has been carefully planned from the start to peacefully co-exist with USB 2.0. First of all, while USB 3.0
species new physical connections and thus new cables to take advantage of the higher speed capability of the new protocol, the
connector itself remains the same rectangular shape with the four USB 2.0 contacts in the exact same location as before. Five new
connections to carry receive and transmitted data independently are present on USB 3.0 cables and only come into contact when
connected to a proper SuperSpeed USB connection.
Technology and components
79
Windows 8/10 will be bringing native support for USB 3.0 controllers. This is in contrast to previous versions of Windows, which continue to
require separate drivers for USB 3.0 controllers.
Microsoft announced that Windows 7 would have USB 3.0 support, perhaps not on its immediate release, but in a subsequent Service Pack
or update. It is not out of the question to think that following a successful release of USB 3.0 support in Windows 7, SuperSpeed support
would trickle down to Vista. Microsoft has conrmed this by stating that most of their partners share the opinion that Vista should also
support USB 3.0.
Super-Speed support for Windows XP is unknown at this point. Given that XP is a seven-year-old operating system, the likelihood of this
happening is remote.
Downloading the USB 3.0 driver
1 Turn on your computer.
2 Go to Dell.com/support.
3 Click Product Support, enter the Service Tag of your computer and click Submit.
NOTE: If you do not have the Service Tag, use the auto-detect feature or manually browse for your computer model.
4 Click Drivers & downloads > Find it myself.
5 Scroll down the page and expand Chipset.
6 Click Download to download the USB 3.0 driver.
7 After the download is complete, navigate to the folder where you saved the USB 3.0 driver le.
8 Double-click the USB 3.0 driver le icon and follow the instructions on the screen.
HDMI
This computer supports HDMI to connect a TV or another HDMI-in enabled device. It provides video and audio output. The HDMI port is
located on the back side of your computer.
: Appropriate converters (sold separately) are required to connect standard DVI and display port devices.
NOTE
Connecting to external display devices
1 Connect the HDMI cable to your computer and the external display device.
2 Push the on/o button on the right side of your computer to switch display modes.
Wi-Fi
This computer is shipped with the following:
• Intel Dual Band Wireless-AC 8260 2x2 802.11AC+ Bluetooth 4.2 ready (Windows 10 supports up to 4.1)
• Intel Dual Band Wireless-AC 8260 2x2 802.11AC
• Qualcomm QCA61x4A 2x2 801.11ac + Bluetooth 4.1
Turning Wi-Fi on or o
NOTE
: There is no physical switch to enable or disable Wi-Fi. It has to be done through computer settings.
1 Swipe-in from the right edge of the display, or click the Action Center icon on the taskbar to access the Action Center.
2 Click Wi-Fi to turn Wi-Fi on or o.
80
Technology and components
Conguring Wi-Fi
1 Turn on Wi-Fi. For more information, see the Turning Wi-Fi on or o section.
2 Swipe-in from the right edge of the display or click the Action Center icon on the taskbar to access the Action Center.
3 Click Wi-Fi and then click Go to settings. A list of available networks is displayed.
4 Select your network and click Connect.
NOTE: Type the network security key, if prompted.
Downloading the Wi-Fi driver
1 Turn on your computer.
2 Go to dell.com/support.
3 Click Product Support, enter the Service Tag of your computer and click Submit.
NOTE
: If you do not have the Service Tag, use the auto-detect feature or manually browse for your computer model.
4 Click Drivers & downloads > Find it myself.
5 Scroll down the page and expand Network.
6 Click Download to download the Wi-Fi driver for your computer.
7 After the download is complete, navigate to the folder where you saved the Wi-Fi driver le.
8 Double-click the driver le icon and follow the instructions on the screen.
Camera
Identifying the webcam in device manager
1 On the taskbar, click the search box, and then type Device Manager.
2 Click Device Manager.
The Device Manager window is displayed.
3 Expand Imaging Devices.
Technology and components
81
Starting the camera application
1 On the taskbar, click the search box, and then type Camera.
2 Click Camera.
Memory features
In this computer, the memory (RAM) is a part of the system board. This computer supports 2133 MHz DDR4 for Intel 6th and 7th
generation processors.
Verifying system memory in Windows 10 and Windows 7
Windows 10
1 Click the Windows button and select All Settings > System.
2 Under System, click About.
Windows 7
1 Click Start → Control Panel → System
Verifying system memory in setup
1 Turn on or restart your computer..
2 Perform one of the following actions after the Dell logo is displayed:
• With keyboard — Tap F2 until the Entering BIOS setup message appears.
• Without keyboard — To enter the Boot section menu, tap F12.
3 On the left pane, select Settings > General > System Information,
The memory information is displayed on the right pane.
82
Technology and components
DDR4
DDR4 (double data rate fourth generation) memory is a higher-speed successor to the DDR2 and DDR3 technologies and allows up to 512
GB in capacity, compared to the DDR3's maximum capacity of 128 GB per DIMM. DDR4 synchronous dynamic random-access memory is
keyed dierently from both SDRAM and DDR to prevent the user from installing the wrong type of memory into the system.
DDR4 needs 20 percent less or just 1.2 volts, compared to DDR3 which requires 1.5 volts of electrical power to operate. DDR4 also supports
a new, deep power-down mode that allows the host device to go into standby without needing to refresh its memory. Deep power-down
mode is expected to reduce standby power consumption by 40 to 50 percent.
DDR4 Details
There are subtle dierences between DDR3 and DDR4 memory modules, as listed below.
Key notch dierence
The key notch on a DDR4 module is in a dierent location from the key notch on a DDR3 module. Both notches are on the insertion edge,
but the notch location on the DDR4 is slightly dierent, to prevent the module from being installed into an incompatible board or platform.
Figure 2. Notch dierence
Increased thickness
DDR4 modules are slightly thicker than DDR3, to accommodate more signal layers.
Figure 3. Thickness dierence
Curved edge
DDR4 modules feature a curved edge to help with insertion and alleviate stress on the PCB during memory installation.
Technology and components
83
Figure 4. Curved edge
Testing memory using ePSA
1 Turn on or restart your computer.
2 Perform one of the following actions after the Dell logo is displayed:
• With keyboard — Press F2.
The PreBoot System Assessment (PSA) starts on your computer.
NOTE: If you wait too long and the operating system logo appears, continue to wait until you see the desktop. Turn o
the computer and try again.
Media-card reader
This computer has one SD card slot located on the left side of your computer.
Downloading the media-card reader driver
1 Turn on your computer.
2 Go to Dell.com/support.
3 Click Product Support, enter the Service Tag of your computer and click Submit.
NOTE
: If you do not have the Service Tag, use the auto-detect feature or manually browse for your computer model.
4 Click Drivers & downloads.
5 Click Find it myself.
6 Scroll down the page and expand Chipset.
7 Click Download to download the media-card reader driver for your computer.
8 After the download is complete, navigate to the folder where you saved the media-card reader driver le.
9 Double-click the card-reader driver le icon and follow the instructions on the screen.
Realtek HD audio drivers
Verify if the Realtek audio drivers are already installed in the computer.
84
Technology and components
Table 5. Realtek HD audio drivers
Downloading the audio driver
1 Turn on your computer.
2 Go to dell.com/support.
3 Click Product support, enter the Service Tag of your computer, and then click Submit.
NOTE
: If you do not have the Service Tag, use the auto-detect feature or manually browse for your computer model.
4 Click Drivers & downloads > Find it myself.
5 Scroll down the page and expand Audio.
6 Click Download to download the audio driver.
7 Save the le, and after the download is complete, navigate to the folder where you saved the audio driver le.
8 Double-click the audio driver le icon and follow the instructions on the screen to install the driver.
Operating System
This computer is shipped with the Windows 10 factory installation.
Service tag location
The service tag is a unique alphanumeric identier that allows Dell service technicians to identify the hardware components in your
computer and access warranty information.
Technology and components
85
86 Technology and components
System setup
System Setup enables you to manage your desktop hardware and specify BIOS level options. From the System Setup, you can:
• Change the NVRAM settings after you add or remove hardware
• View the system hardware conguration
• Enable or disable integrated devices
• Set performance and power management thresholds
• Manage your computer security
Topics:
• BIOS Overview
• System setup options
BIOS Overview
4
Boot menu
Press <F12> when the Dell™ logo appears to initiate a one-time boot menu with a list of the valid boot devices for the system. Diagnostics
and BIOS Setup options are also included in this menu. The devices listed on the boot menu depend on the bootable devices in the system.
This menu is useful when you are attempting to boot to a particular device or to bring up the diagnostics for the system. Using the boot
menu does not make any changes to the boot order stored in the BIOS.
The options are:
• Legacy Boot:
• Internal HDD
• Onboard NIC
• UEFI Boot:
• Windows Boot Manager
• Other Options:
• BIOS Setup
• BIOS Flash Update
• Diagnostics
• Change Boot Mode Settings
Navigation Keys
The following table displays the system setup navigation keys.
: For most of the system setup options, changes that you make are recorded but do not take eect until you re-start the
NOTE
system.
System setup 87
Table 6. Navigation Keys
Keys Navigation
Up arrow Moves to the previous eld.
Down arrow Moves to the next eld.
<Enter> Allows you to select a value in the selected eld (if applicable) or follow the link in the eld.
Spacebar Expands or collapses a drop‐down list, if applicable.
<Tab> Moves to the next focus area.
NOTE: For the standard graphics browser only.
<Esc> Moves to the previous page till you view the main screen. Pressing <Esc> in the main screen displays a message
that prompts you to save any unsaved changes and restarts the system.
<F1> Displays the System Setup help le.
Updating the BIOS in Windows
It is recommended to update your BIOS (System Setup), on replacing the system board or if an update is available. For laptops, ensure that
your computer battery is fully charged and connected to a power outlet
: If BitLocker is enabled, it must be suspended prior to updating the system BIOS, and then re-enabled after the BIOS
NOTE
update is completed.
1 Restart the computer.
2 Go to Dell.com/support.
• Enter the Service Tag or Express Service Code and click Submit.
• ClickDetect Product and follow the instructions on screen,
3 If you are unable to detect or nd the Service Tag, click the Choose from all products.
4 Choose the Products category from the list.
NOTE
: Choose the appropriate category to reach the product page
5 Select your computer model and the Product Support page of your computer appears.
6 Click Get drivers and click Drivers and Downloads.
The Drivers and Downloads section opens.
7 Click Find it myself.
8 Click BIOS to view the BIOS versions.
9 Identify the latest BIOS le and click Download.
10 Select your preferred download method in the Please select your download method below window, click Download File.
The File Download window appears.
11 Click Save to save the le on your computer.
12 Click Run to install the updated BIOS settings on your computer.
Follow the instructions on the screen.
NOTE
: It is recommended not to update the BIOS version for more than 3 revisions. For example: If you want to update the BIOS
from 1.0 to 7.0, then install version 4.0 rst and then install version 7.0.
System setup options
NOTE
: Depending on the computer and its installed devices, the items listed in this section may or may not appear.
88 System setup
Table 7. General
Option Description
System Information Displays the following information:
• System Information: Displays BIOS Version, Service Tag, Asset Tag, Ownership Tag, Ownership
Date, Manufacture Date, and the Express Service Code.
• Memory Information: Displays Memory Installed, Memory Available, Memory Speed, Memory
Channel Mode, Memory Technology, DIMM 1 Size, DIMM 2 Size, DIMM 3 Size, and DIMM 4
Size.
• PCI Information: Displays SLOT1 and SLOT2_M.2.
• Processor Information: Displays Processor Type, Core Count, Processor ID, Current Clock
Speed, Minimum Clock Speed, Maximum Clock Speed, Processor L2 Cache, Processor L3
Cache, HT Capable, and 64-Bit Technology.
• Device Information: Displays SATA-0, SATA-1, SATA-4, M.2 PCIe SSD-0, LOM MAC Address,
Video Controller, dGPU video controller, Video BIOS version, Video memory, panel type,
Native resolution, Wi-Fi Device, Bluetooth Device, and Audio Controller. .
Boot Sequence Allows you to specify the order in which the computer attempts to nd an operating system from the
devices specied in this list.
• Legacy
• UEFI (default)
Advanced Boot Options Allows you to select the Enable Legacy Option ROMs option, when in UEFI boot mode.
Allows you to select the Enable Attempt Legacy Boot option.
Date/Time Allows you to set the date and time settings. Changes to the system date and time take eect
immediately.
Table 8. System Conguration
Option Description
Integrated NIC Allows you to control the on-board LAN controller. The option ‘Enable UEFI Network Stack’ is not
selected by default. The options are:
• Disabled
• Enabled
• Enabled w/PXE (default)
NOTE: Depending on the computer and its installed devices, the items listed in this section
may or may not appear.
SATA Operation Allows you to congure the operating mode of the integrated hard drive controller.
• Disabled = The SATA controllers are hidden
• RAID ON = SATA is congured to support RAID mode (selected by default)
• AHCI= SATA is congured for AHCI mode
Drives Allows you to enable or disable the various drives on-board:
• SATA-0
• SATA-1
• SATA-4
• M.2 PCIE SSD-0
Smart Reporting This eld controls whether hard drive errors for integrated drives are reported during system startup.
The Enable Smart Reporting option is disabled by default.
USB Conguration Allows you to enable or disable the integrated USB controller for:
System setup 89
Option Description
• Enable Boot Support
• Enable Side USB Ports
• Enable Rear USB Ports
All the options are selected by default.
Rear USB Conguration Allows you to enable or disable the back USB ports. All the ports are enabled by default.
Side USB Conguration Allows you to enable or disable the side USB ports
USB PowerShare This option allows you to charge the external devices, such as mobile phones, music player. This
option is disabled by default.
Thunderbolt This option is enabled by default. The options that you see are:
• No Security
• User Congurations (default)
• Secure Connect
• Display Port Only
Audio Allows you to enable or disable the integrated audio controller. The option Enable Audio is selected by
default.
• Enable Microphone
• Enable Internal Speaker
Both the options are selected by default.
Touchscreen This eld controls whether the touchscreen is enabled or disabled.
Miscellaneous Allows you to enable or disable the various on-board devices.
• Enable camera (default)
• Secure Digital (SD) Card (default)
• Disable Media Card
Table 9. Video
Option Description
Switchable Graphics This option sets the operating mode of the system's graphics hardware.
• Disabled
• Enabled
Table 10. Security
Option Description
Admin Password Allows you to set, change, and delete the admin password.
System Password Allows you to set, change, and delete the system password.
Internal HDD-0 Password Allows you to set, change, and delete the computer’s internal HDD.
Strong Password This option lets you enable or disable strong passwords for the system. Enable Strong Password
option is not selected by default.
Password Conguration Allows you to control the minimum and maximum number of characters allowed for a administrative
password and the system password. The range of characters is between 4 and 32.
90 System setup
Option Description
Password Bypass This option lets you bypass the System (Boot) Password and the internal HDD password prompts
during a system restart.
• Disabled — Always prompt for the system and internal HDD password when they are set. This
option is selected by default.
• Reboot Bypass — Bypass the password prompts on Restarts (warm boots).
NOTE: The system will always prompt for the system and internal HDD passwords when
powered on from the o state (a cold boot). Also, the system will always prompt for
passwords on any module bay HDDs that may be present.
Password Change This option lets you determine whether changes to the System and Hard Disk passwords are
permitted when an administrator password is set.
Allow Non-Admin Password Changes - This option is enabled by default.
UEFI Capsule Firmware Updates This option controls whether this system allows BIOS updates via UEFI capsule update packages. The
option "Enable UEFI Capsule Firmware Updates" is selected by default. Disabling this option will block
BIOS updates from services such as Microsoft Windows Update and Linux Vendor Firmware Service
(LVFS)
TPM 2.0 Security Allows you to control whether the Trusted Platform Module (TPM) is visible to the operating system.
• TPM On (default)
• Clear (disabled)
• PPI Bypass for Enable Commands
• PPI Bypass for Disable Commands
• Disabled
• Enabled (default)
Computrace This eld lets you Activate or Disable the BIOS module interface of the optional Computrace Service
from Absolute Software. Enables or disables the optional Computrace service designed for asset
management.
• Deactivate - This option is selected by default.
• Disable
• Activate
Chassis Intrusion Allows you to control the chassis intrusion feature. You can set this option to:
• Enabled
• Disabled (default)
• On-Silent
CPU XD Support Allows you to enable or disable the Execute Disable mode of the processor. This option is enabled by
default.
OROM Keyboard Access
Admin Setup Lockout Allows you to enable or disable the option to enter Setup when an Administrative password is set.
This option determines whether users are able to enter Option ROM Conguration screens via
hotkeys during boot. Specically, these settings are capable of preventing access to Intel RAID (CTRL
+I) or Intel Management Engine BIOS Extension (CTRL+P/F12).
• Enable (selected by default)— User may enter OROM conguration screens via the hotkey.
• One-Time Enable — User may enter OROM conguration screens via the hotkeys on next boot
only. After next boot, the setting will revert to disabled.
• Disable — User may not enter OROM conguration screens via the hotkey.
This option is not set by default.
System setup 91
Table 11. Secure Boot
Option Description
Secure Boot Enable Allows you to enable or disable Secure Boot feature
• Disabled
• Enable (default)
Expert key Management Allows you to manipulate the security key databases only if the system is in Custom Mode. The
Enable Custom Mode option is disabled by default. The options are:
• PK (default)
• KEK
• db
• dbx
If you enable the Custom Mode, the relevant options for PK, KEK, db, and dbx appear. The
options are:
• Save to File- Saves the key to a user-selected le
• Replace from File- Replaces the current key with a key from a user-selected le
• Append from File- Adds a key to the current database from a user-selected le
• Delete- Deletes the selected key
• Reset All Keys- Resets to default setting
• Delete All Keys- Deletes all the keys
NOTE: If you disable the Custom Mode, all the changes made will be erased and the
keys will restore to default settings.
Table 12. Intel Software Guard Extensions
Option Description
Intel SGX Enable Allows you to enable or disable the Intel Software Guard Extensions to provide a secured
environment for running code/storing sensitive information in the context of the main operating
system.
• Disabled (default)
• Enabled
Enclave Memory Size Allows you to set the Intel SGX Enclave Reserve Memory Size.
• 32 MB
• 64 MB (Disabled by default)
• 128 MB (Disabled by default)
Table 13. Performance
Option Description
Multi Core Support This eld species whether the process will have one or all cores enabled. This option is enabled by
default.
options:
• All (default)
• 1
• 2
92 System setup
• 3
Intel SpeedStep Allows you to enable or disable the Intel SpeedStep mode of the processor. This option is enabled
by default.
C States Control Allows you to enable or disable additional processor sleep states. This option is enabled by default.
Limited CPUID Value Allows you to limit the maximum value of the processor standard CPUID function. This options is
disable by default.
Intel TurboBoost Allows you to enable or disable the Intel TurboBoost mode of the processor. This option is enabled
by default.
HyperThread control
Table 14. Power Management
Option Description
AC Recovery Determines how the system responds when AC power is re-applied after a power loss. You can set
• Disabled
• Enabled (default)
the AC Recovery to:
• Power O
• Power On
• Last Power State
This option is Power O by default.
Auto On Time Sets time to automatically turn on the computer. Time is kept in standard 12-hour format
(hour:minutes:seconds). Change the startup time by typing the values in the time and AM/PM elds.
NOTE: This feature does not work if you turn o your computer using the switch on a
power strip or surge protector or if Auto Power is set to disabled.
Deep Sleep Control Allows you to dene the controls when Deep Sleep is enabled.
• Disabled
• Enabled in S5 only
• Enabled in S4 and S5
This option is Enabled in S4 and S5 by default.
Fan Control Override Allows you to determine the speed of the system fan. When this option is enabled, the system fan
runs at the maximum speed. This option is disabled by default.
USB Wake Support Allows you to enable the USB devices to wake the computer from standby mode. The option Enable
USB Wake Support is selected by default
Wake on WLAN This option allows the computer to power up from the o state when triggered by a special LAN
signal. This feature only works when the computer is connected to AC power supply.
• Disabled - Does not allows the system to power on by special LAN signals when it receives a
wake-up signal from the LAN or wireless LAN.
• LAN or WLAN - Allows the system to be powered on by special LAN or wireless LAN signals.
• LAN Only - Allows the system to be powered on by special LAN signals.
• LAN with PXE Boot - A wakeup packet sent to the system in either the S4 or S5 state, that will
cause the system to wake-up and immediately boot to PXE.
• WLAN Only - Allows the system to be powered on by special WLAN signals.
This option is Disabled by default.
Block Sleep Allows you to block entering to sleep (S3 state) in OS environment. This option is disabled by default.
System setup 93
Option Description
Intel Ready Mode Allows you to enable the capability of Intel Ready Mode Technology. This option is disabled by default.
Table 15. POST Behavior
Option Description
Numlock LED Allows you to enable or disable the Numlock feature when your computer starts. This option is
enabled by default.
Keyboard Errors Allows you to enable or disable the keyboard error reporting when the computer starts. This option is
selected by default.
Fast Boot This option can speed up the boot process by bypassing some compatibility steps:
• Minimal — The system boots quickly, unless the BIOS has been updated, memory changed, or
the previous POST did not complete.
• Thorough — The system does not skip any steps in the boot process.
• Auto — This allows the operating system to control this setting (this works only when the
operating system supports Simple Boot Flag).
This option is set to Through by default.
MEBx HotKey This option is selected by default
Table 16. Virtualization Support
Option Description
Virtualization This option species whether a Virtual Machine Monitor (VMM) can utilize the additional hardware
capabilities provided by Intel® Virtualization Technology. Enable Intel Virtualization Technology -
This option is selected by default.
VT for Direct I/O
Trusted Execution The option Trusted Execution is not selected by default
Table 17. Wireless
Wireless Device Enable Allows you to enable the following options.
Table 18. Maintenance
Option Description
Service Tag Displays the Service Tag of your computer.
Asset Tag Allows you to create a system asset tag if an asset tag is not already set. This option is set by default.
SERR Messages Controls the SERR message mechanism. This option is set by default. Some graphics cards require
BIOS Downgrade Allows you to control ashing of the system rmware to the previous versions. This option is enabled
Enables or disables the Virtual Machine Monitor (VMM) from utilizing the additional hardware
capabilities provided by Intel® Virtualization technology for direct I/O. Enable VT for Direct I/O -
This option is selected by default.
• WLAN/WGig
• Bluetooth
that the SERR message mechanism be disabled.
by default.
NOTE: If this option is not selected, the ashing of the system rmware to the previous
versions is blocked.
94 System setup
Option Description
Data Wipe Allows you to securely erase the data from all the available internal storages, such as HDD, SSD,
mSATA, and eMMC. The option Wipe on Next Boot is disabled by default.
BIOS recovery Allows you to recover the corrupted BIOS conditions from the recovery les on the primary hard
drive. The option BIOS Recovery from Hard Drive is selected by default
Table 19. System Logs
Option Description
BIOS Events Displays the system event log and allows you to:
• Clear Log
• Mark all Entries
Table 20. SupportAsssist System Resolution
Option Description
Auto OS Recovery Threshold Options:
• o
• 1
• 2 (default)
• 3
System setup 95
Operating system congurations
This topic lists the operating system (OS) supported on Precision 5720 AIO systems.
Table 21. Operating systems
5
Software
Windows 10
Other Ubuntu 16.04, NeoKylin v6.0, Red Hat Enterprise Linux 7.3
• Factory installed Windows 10 Pro – 64 bit
• Windows® 10 Pro (64-bit) with downgrade rights to Windows™
7 Professional (64-bit) – 6th generation processor
• Factory installed Windows 10 Home – 64 bit
Downloading graphic drivers
1 Turn on the computer.
2 Go to Dell.com/support.
3 Click Product Support, enter the Service Tag of your computer, and then click Submit.
NOTE
: If you do not have the Service Tag, use the auto detect feature or manually browse for your computer model.
4 Click Drivers and Downloads.
5 Click Find it myself tab.
6 Select the operating system installed on your computer.
7 Scroll down the page and select the graphic driver to install.
8 Click Download File to download the graphic driver for your computer.
9 After the download is complete, navigate to the folder where you saved the graphic driver le.
10 Double-click the graphic driver le icon and follow the instructions on the screen.
Intel Virtual Button driver
In the Device Manager, check if the Intel Virtual Button driver is installed. Install the driver updates from Dell.com/support.
96 Software
Software 97
Intel Wi-Fi and Bluetooth drivers
In the Device Manager, check if the network card driver is installed. Install the driver updates from dell.com/support.
In the Device Manager, check if the Bluetooth driver is installed. Install the driver updates from
dell.com/support.
Intel Trusted Execution Engine Interface
In the Device Manager, check if the Intel Trusted Execution Engine Interface driver is installed. Install the driver updates from Dell.com/
support.
98
Software
Intel Serial IO Driver
In the Device Manager, check if the Intel Serial IO Driver is installed. Install the driver updates from dell.com/support.
Software
99
100 Software
