Page 1

Dell G7 7700

Service Manual

Regulatory Model: P46E Regulatory Type: P46E001

May 2020 Rev. A00

Page 2

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the

problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

© 2020 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

Page 3

Contents

1 Working inside your computer....................................................................................................... 6

Before working inside your computer................................................................................................................................. 6

Safety instructions.................................................................................................................................................................6

Electrostatic discharge—ESD protection.......................................................................................................................... 7

ESD field service kit ..............................................................................................................................................................7

Transporting sensitive components.................................................................................................................................... 8

After working inside your computer....................................................................................................................................8

2 Removing and installing components............................................................................................. 9

Recommended tools..............................................................................................................................................................9

Screw list................................................................................................................................................................................ 9

Base cover............................................................................................................................................................................. 11

Removing the base cover.............................................................................................................................................. 11

Installing the base cover................................................................................................................................................ 13

Battery...................................................................................................................................................................................15

Lithium-ion battery precautions................................................................................................................................... 15

Removing the 3-cell battery......................................................................................................................................... 15

Installing the 3-cell battery............................................................................................................................................16

Removing the 6-cell battery..........................................................................................................................................17

Installing the battery...................................................................................................................................................... 18

Coin-cell battery...................................................................................................................................................................19

Removing the coin-cell battery.................................................................................................................................... 19

Installing the coin-cell battery...................................................................................................................................... 20

Wireless card.........................................................................................................................................................................21

Removing the wireless card.......................................................................................................................................... 21

Installing the wireless card............................................................................................................................................22

Memory modules................................................................................................................................................................. 24

Removing the memory modules.................................................................................................................................. 24

Installing the memory modules.....................................................................................................................................24

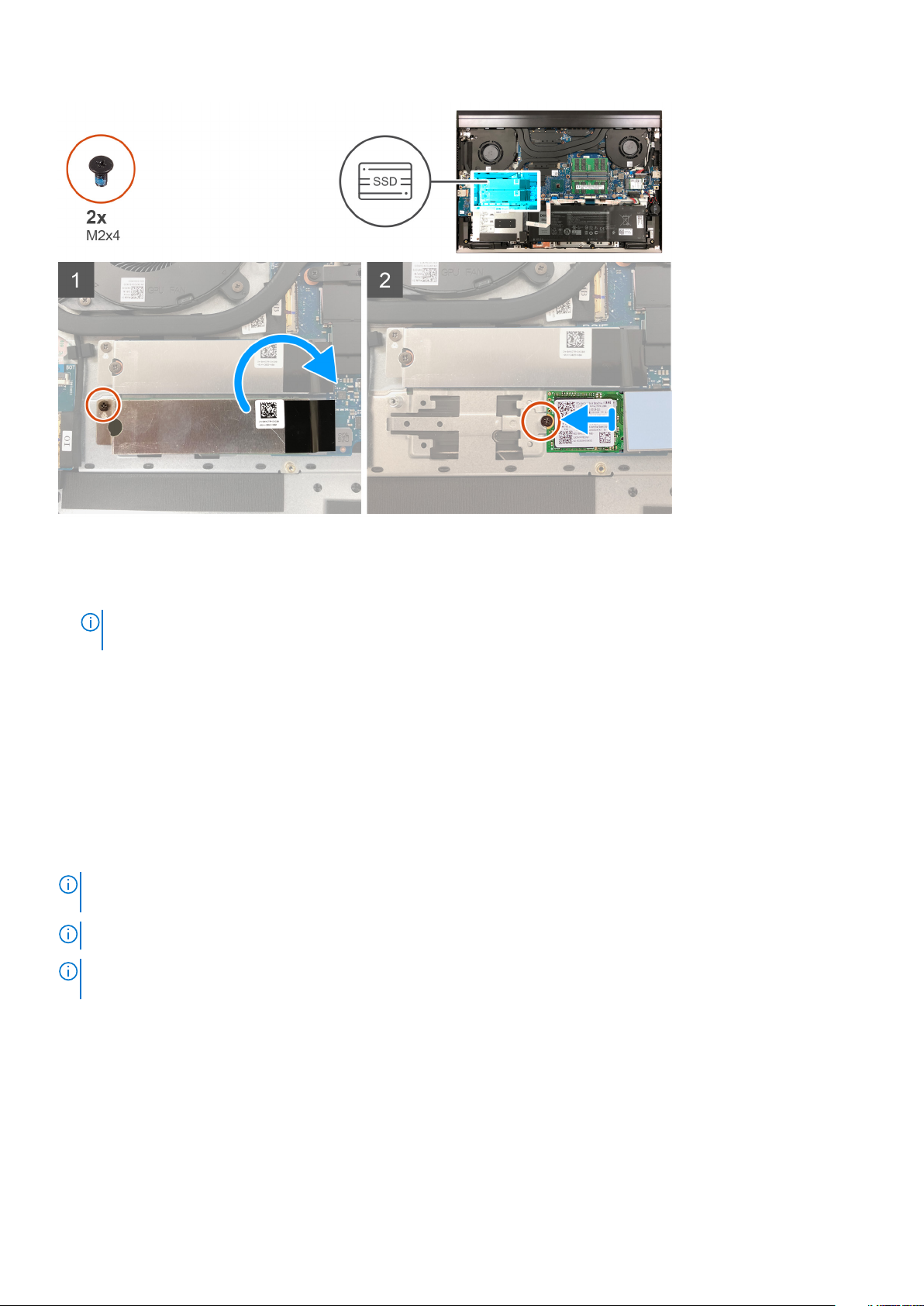

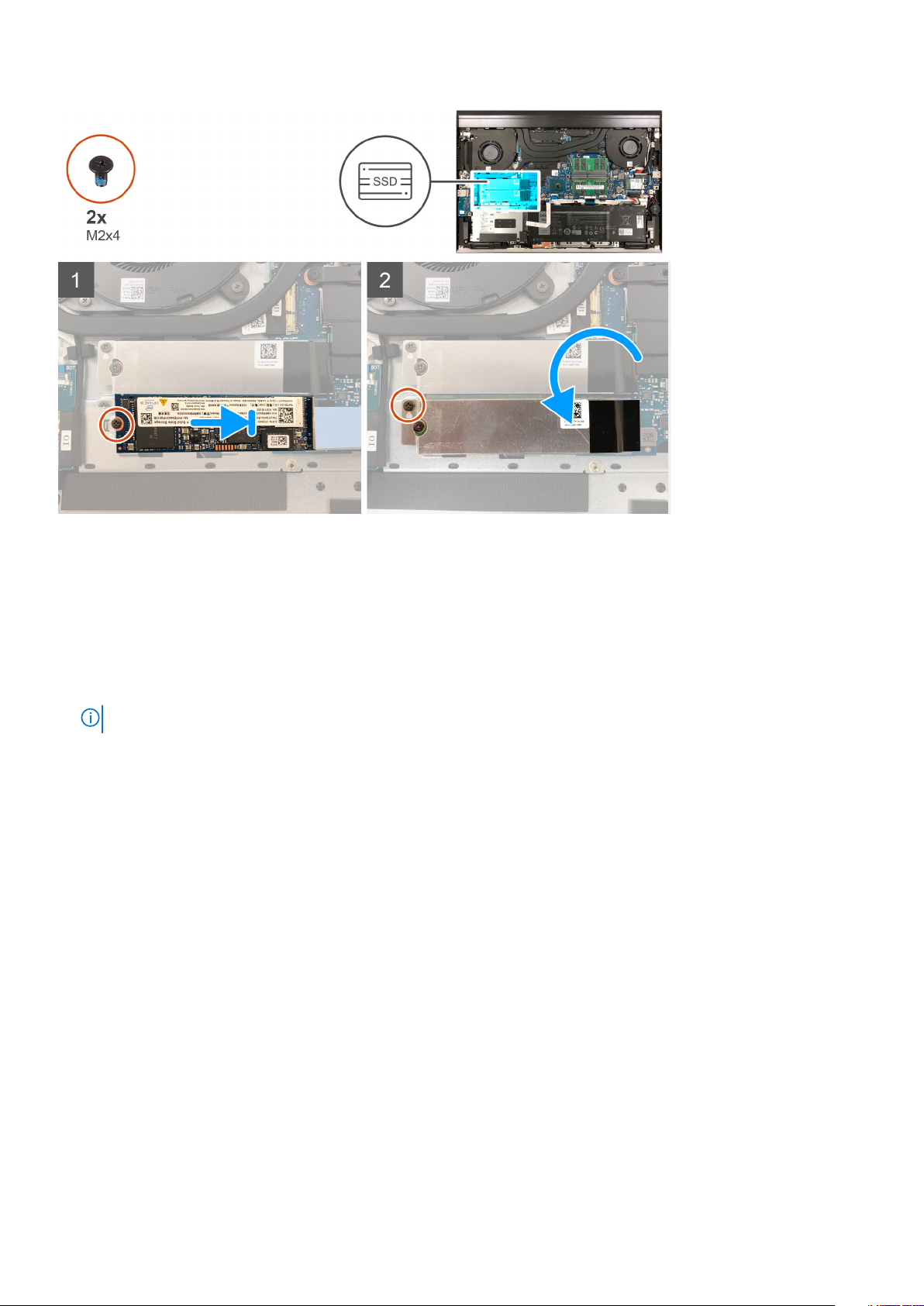

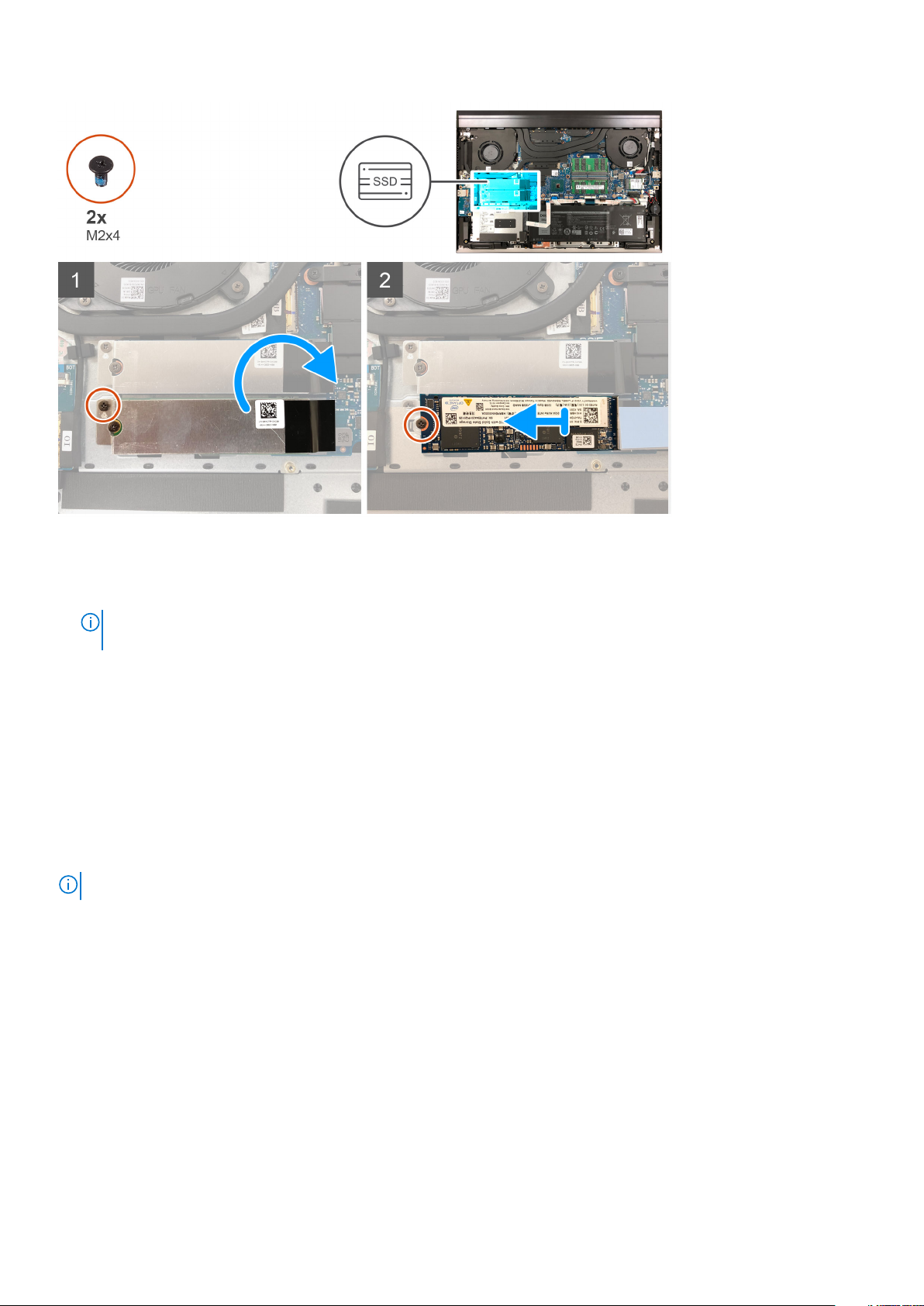

Solid-state drive in SSD1 slot............................................................................................................................................. 25

Removing the M.2 2230 solid-state drive from the SSD1 slot................................................................................ 25

Installing the M.2 2230 solid-state drive in the SSD1 slot........................................................................................ 26

Removing the M.2 2280 solid-state drive from the SSD1 slot................................................................................ 27

Installing the M.2 2280 solid-state drive in the SSD1 slot........................................................................................ 28

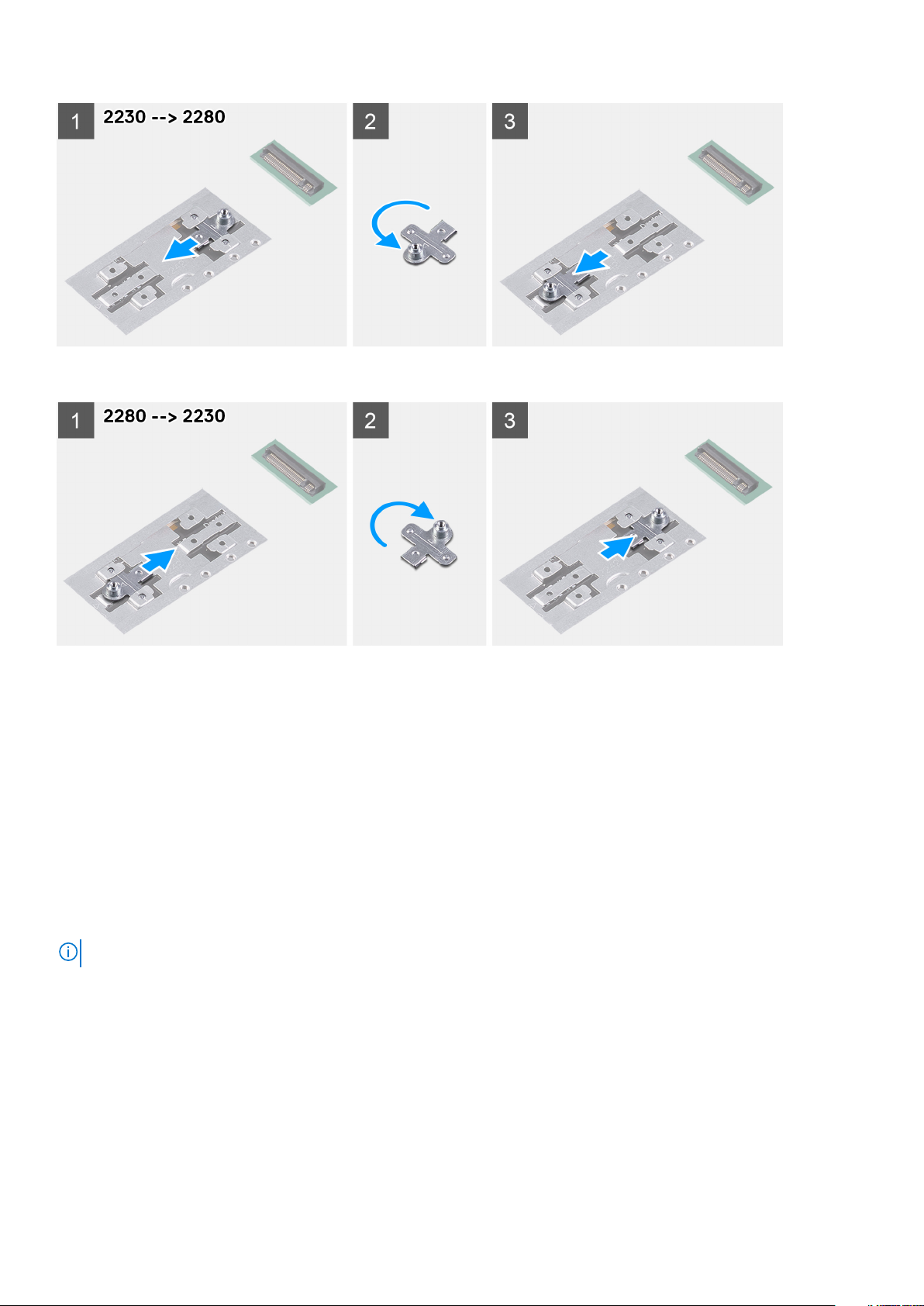

Re-positioning the solid-state drive mounting bracket on SSD1 slot......................................................................29

Solid-state drive in SSD2 slot............................................................................................................................................ 30

Removing the M.2 2230 solid-state drive from the SSD2 slot............................................................................... 30

Installing the M.2 2230 solid-state drive in the SSD2 slot........................................................................................ 31

Removing the M.2 2280 solid-state drive from the SSD2 slot................................................................................32

Installing the M.2 2280 solid-state drive in the SSD2 slot....................................................................................... 33

Re-positioning the solid-state drive mounting bracket on SSD2 slot..................................................................... 34

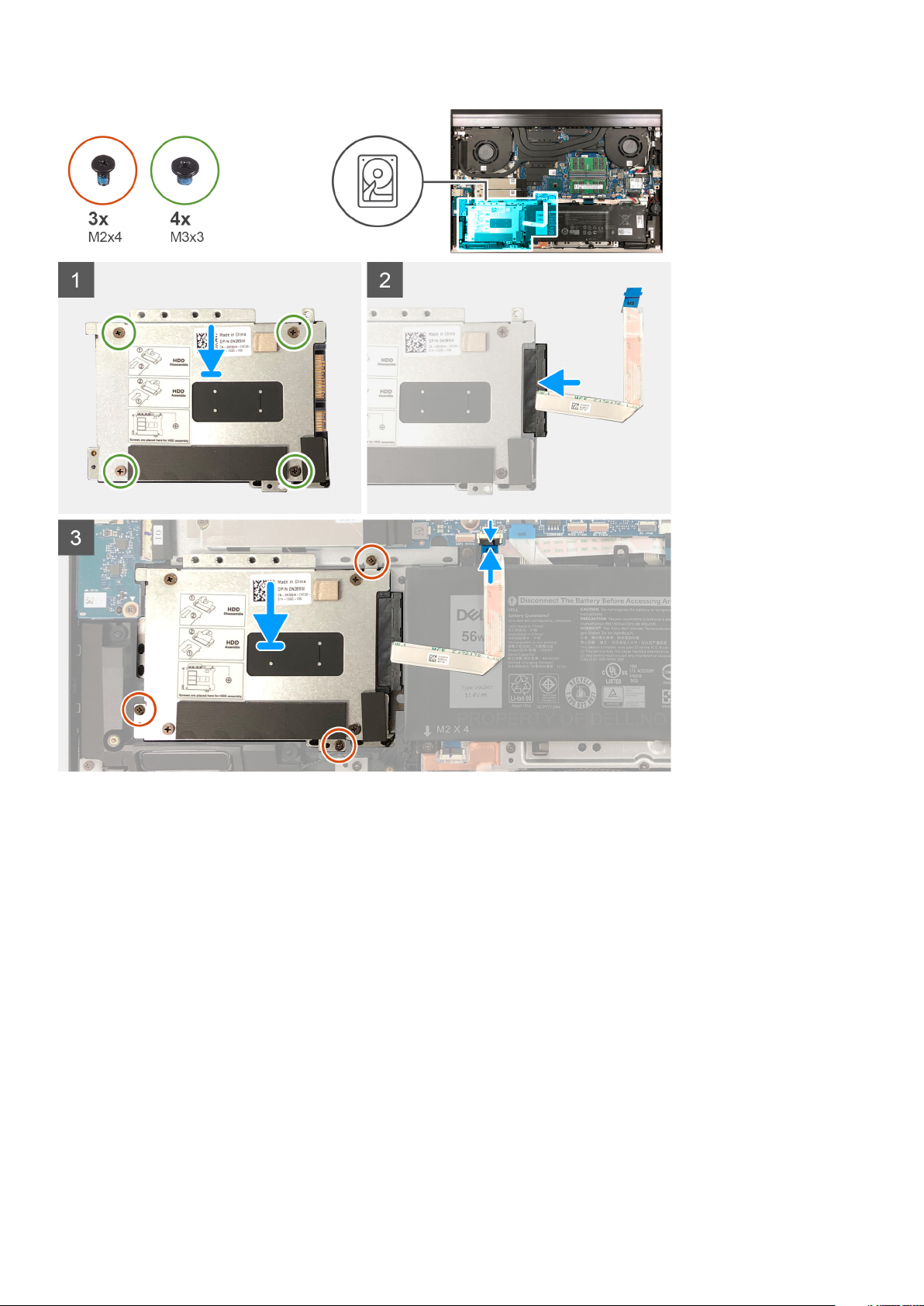

Hard drive.............................................................................................................................................................................35

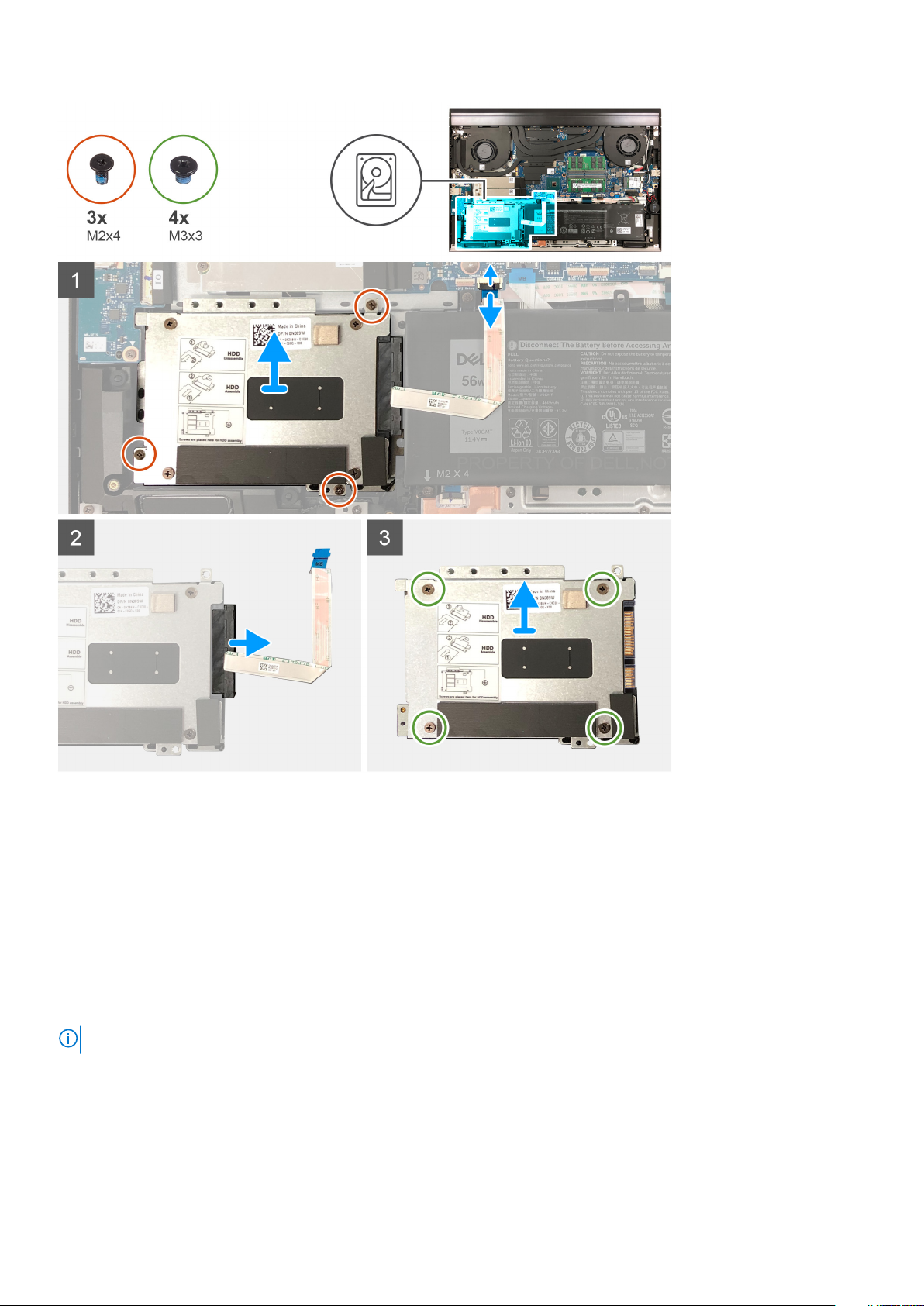

Removing the hard drive.............................................................................................................................................. 35

Installing the hard drive.................................................................................................................................................36

Contents 3

Page 4

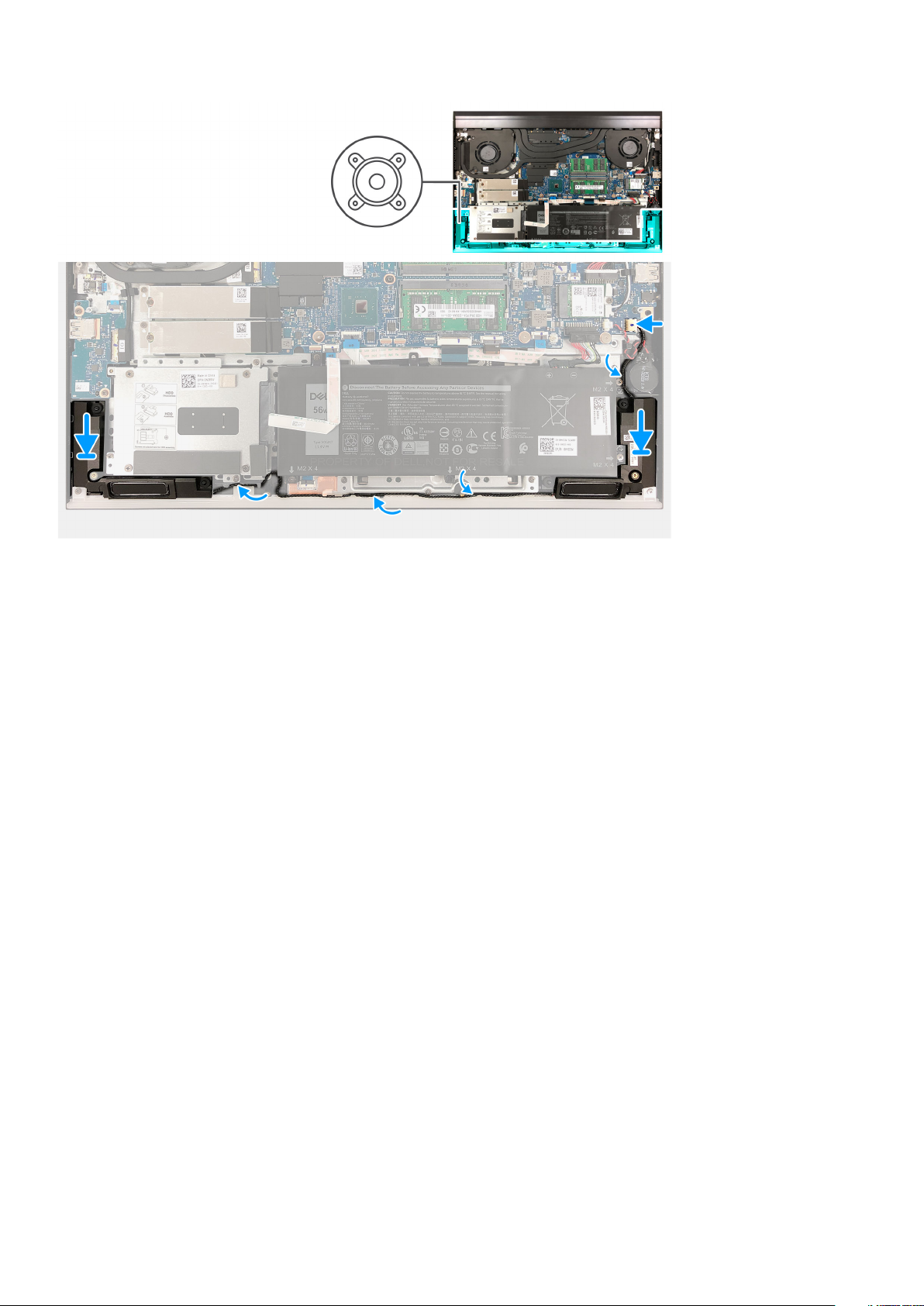

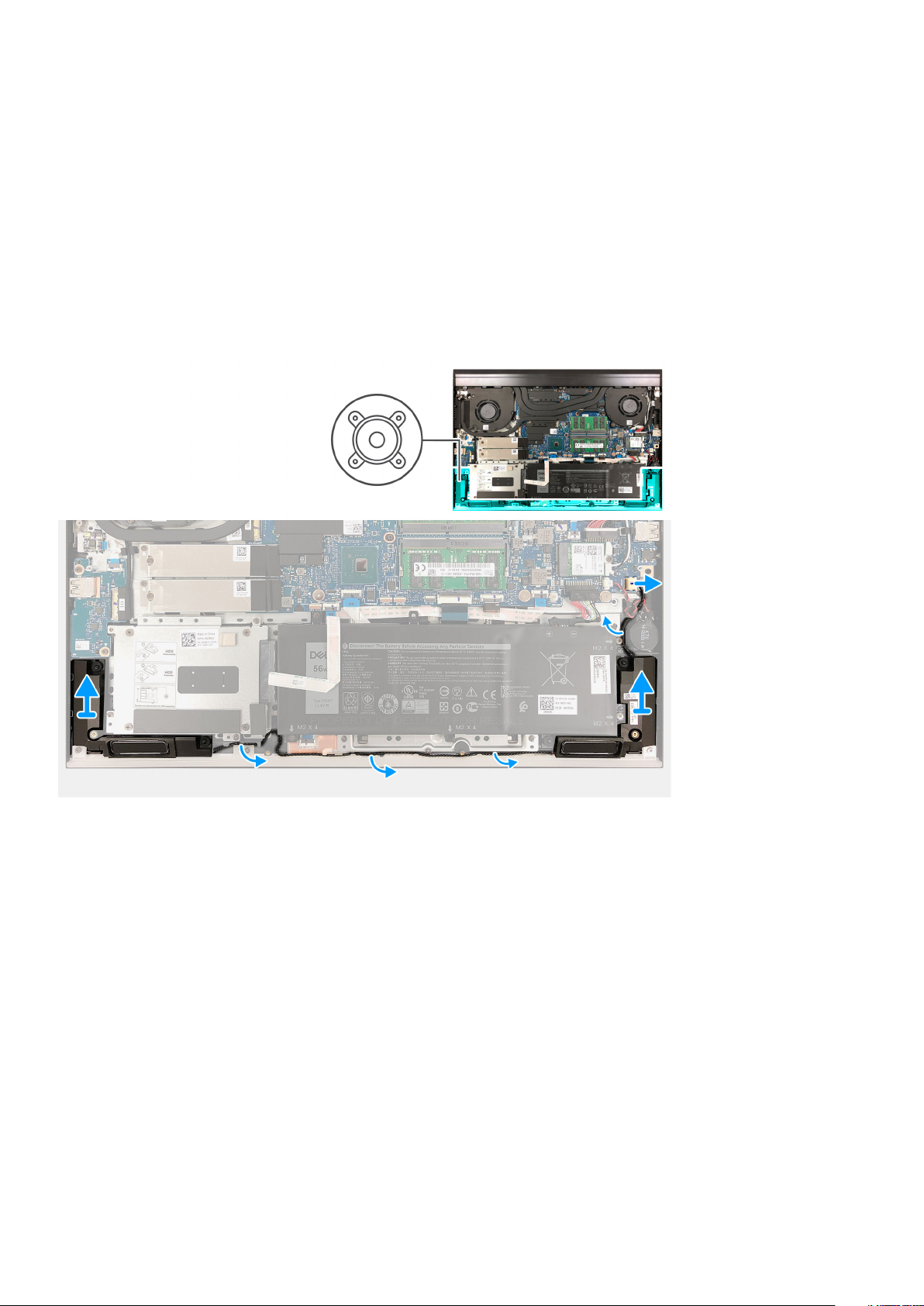

Speakers............................................................................................................................................................................... 38

Removing the speakers.................................................................................................................................................38

Installing the speakers...................................................................................................................................................38

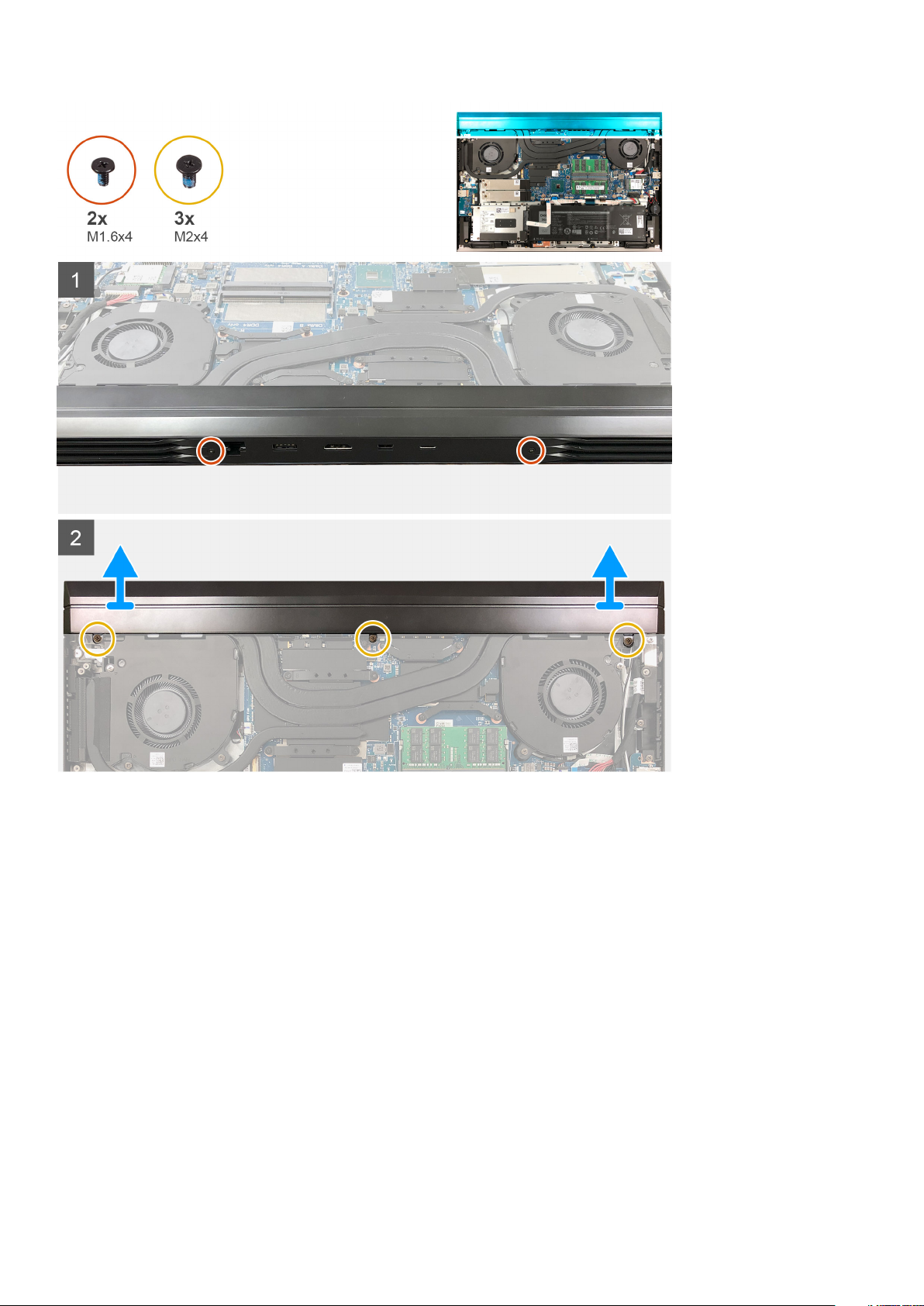

Rear cover............................................................................................................................................................................ 39

Removing the rear cover.............................................................................................................................................. 39

Installing the rear cover................................................................................................................................................ 40

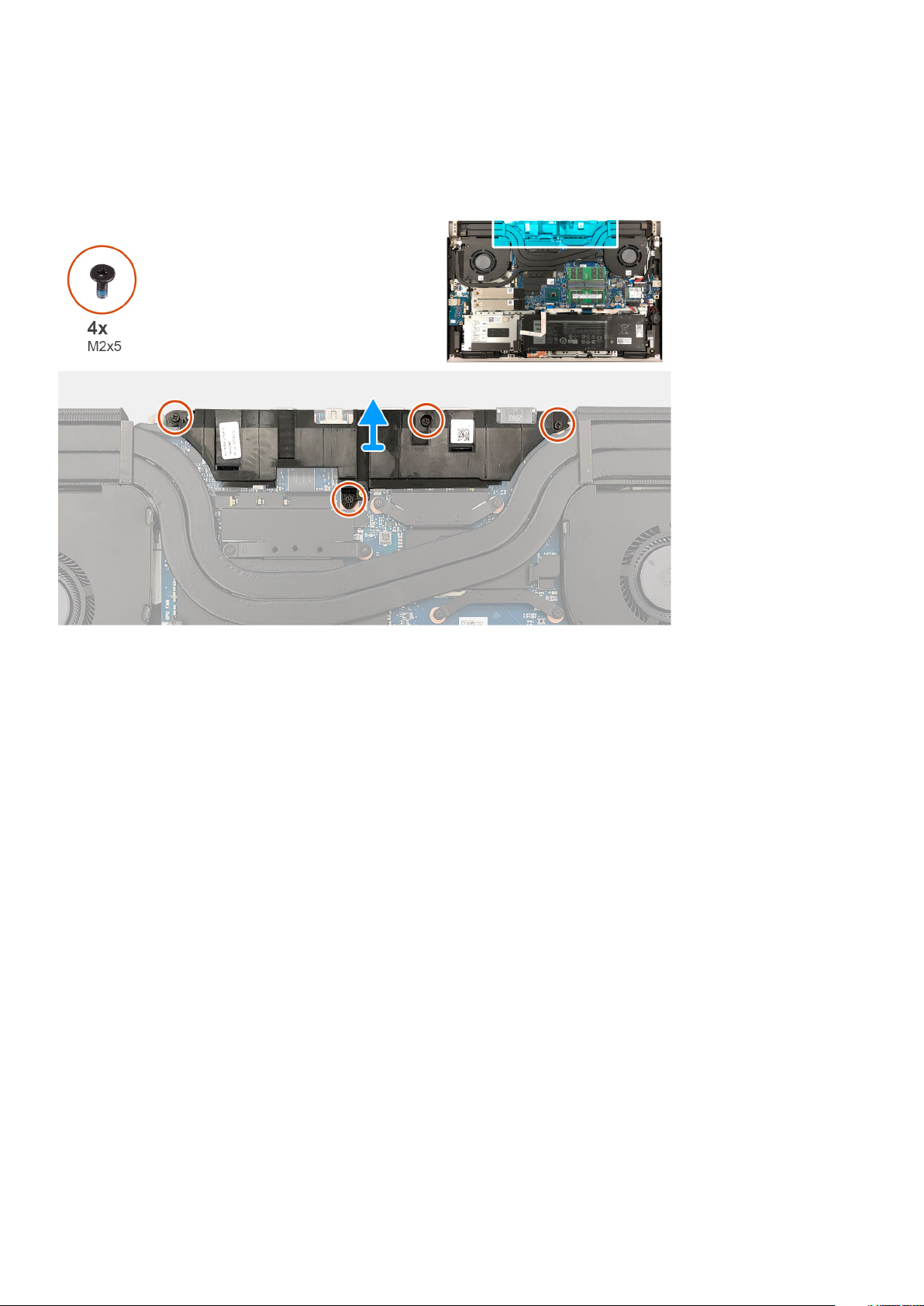

Rear-cover bracket..............................................................................................................................................................41

Removing the rear-cover bracket ...............................................................................................................................41

Installing the rear-cover bracket..................................................................................................................................42

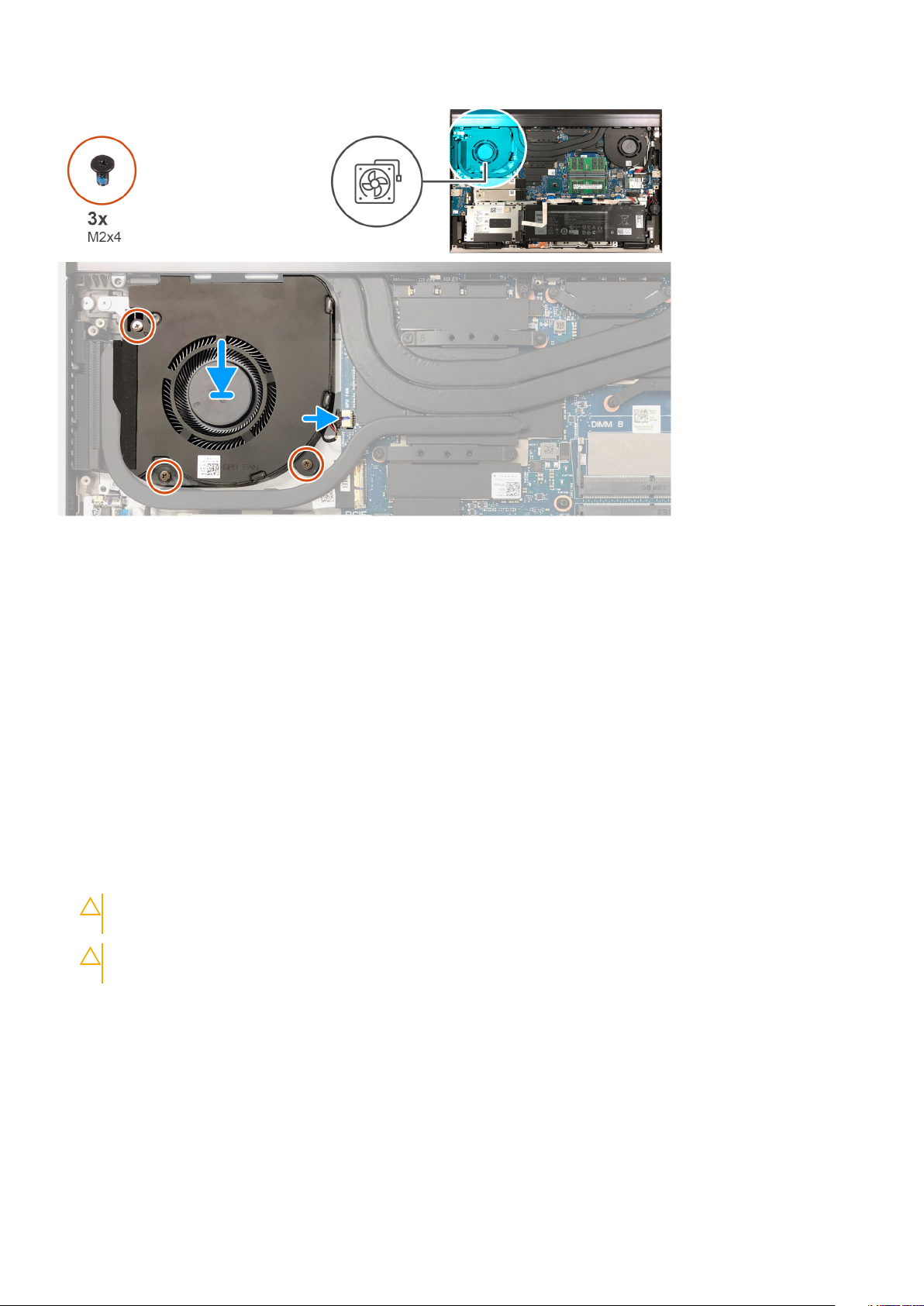

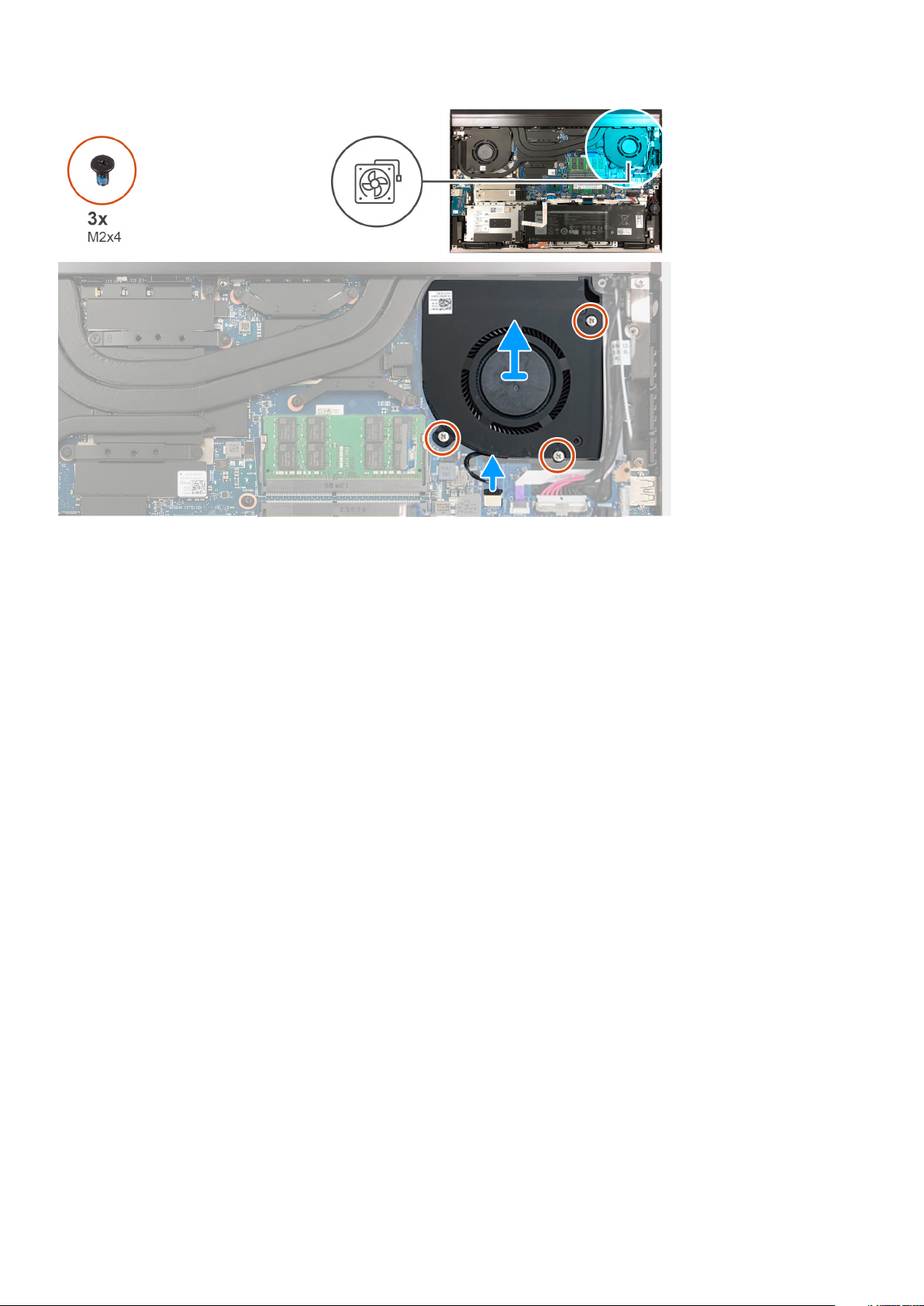

Processor fan.......................................................................................................................................................................43

Removing the processor fan........................................................................................................................................ 43

Installing the processor fan.......................................................................................................................................... 44

Graphics-card fan................................................................................................................................................................45

Removing the graphics-card fan................................................................................................................................. 45

Installing the graphics-card fan....................................................................................................................................46

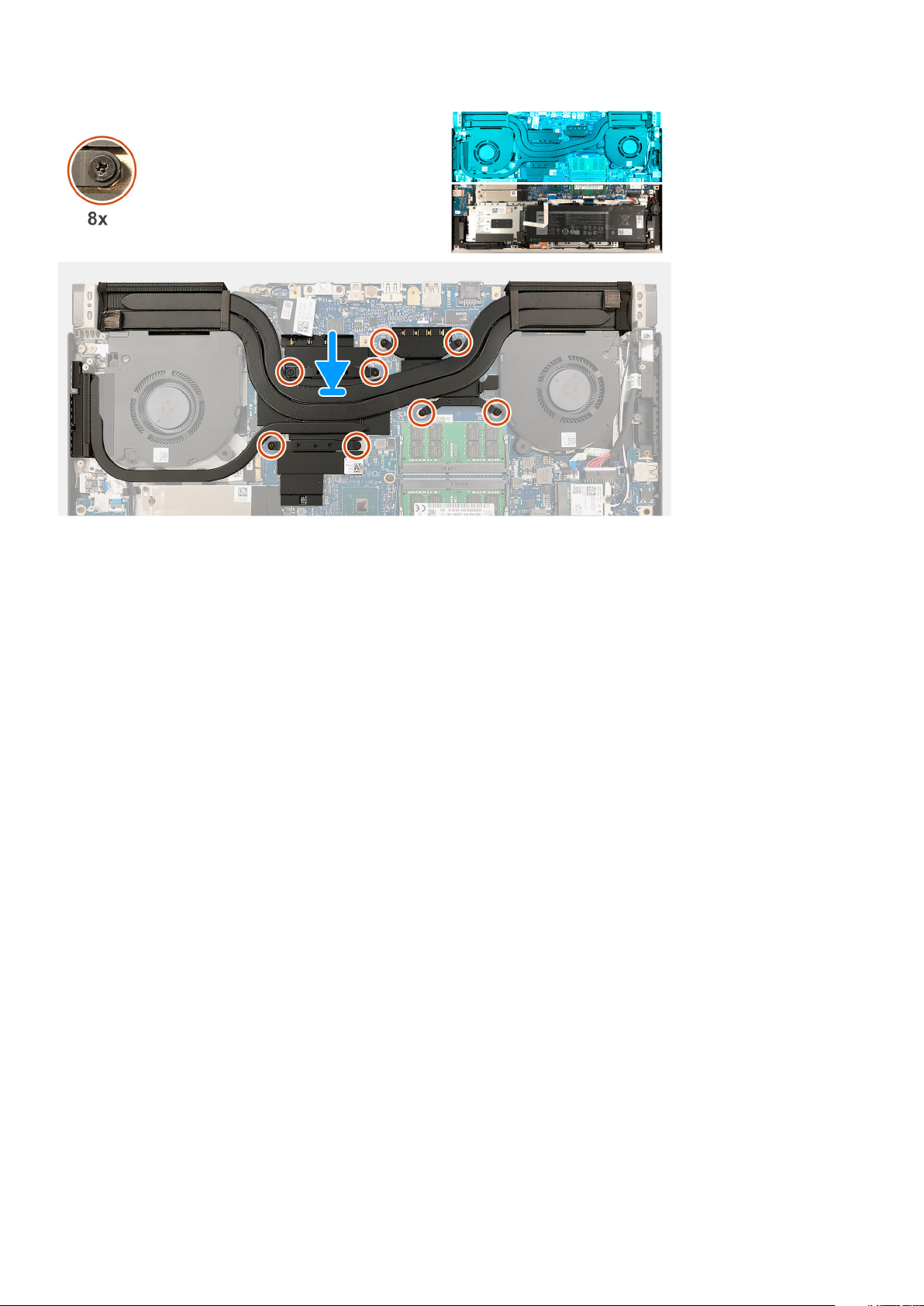

Heat sink............................................................................................................................................................................... 47

Removing the heat sink.................................................................................................................................................47

Installing the heat sink...................................................................................................................................................48

I/O board.............................................................................................................................................................................. 49

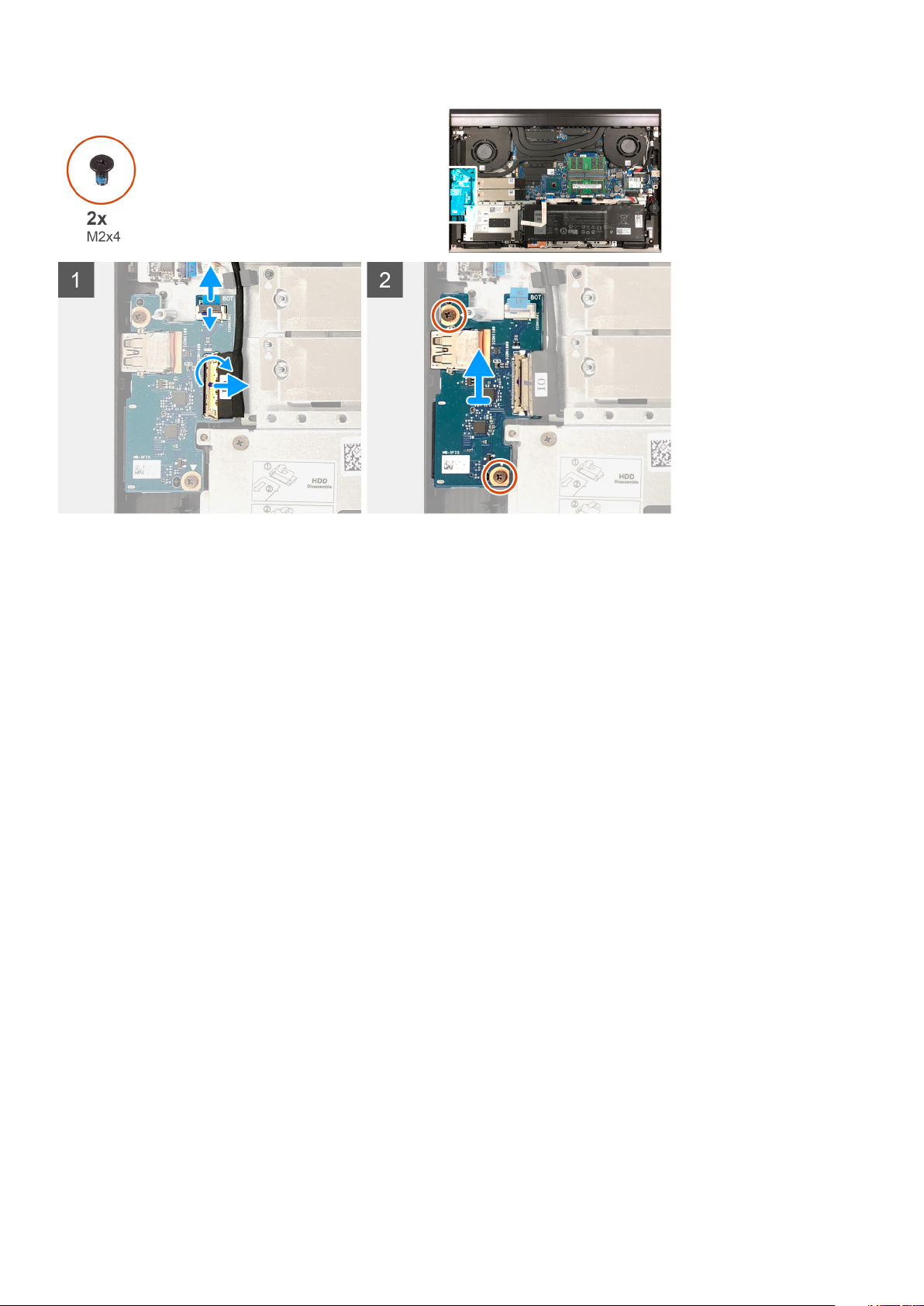

Removing the I/O board...............................................................................................................................................49

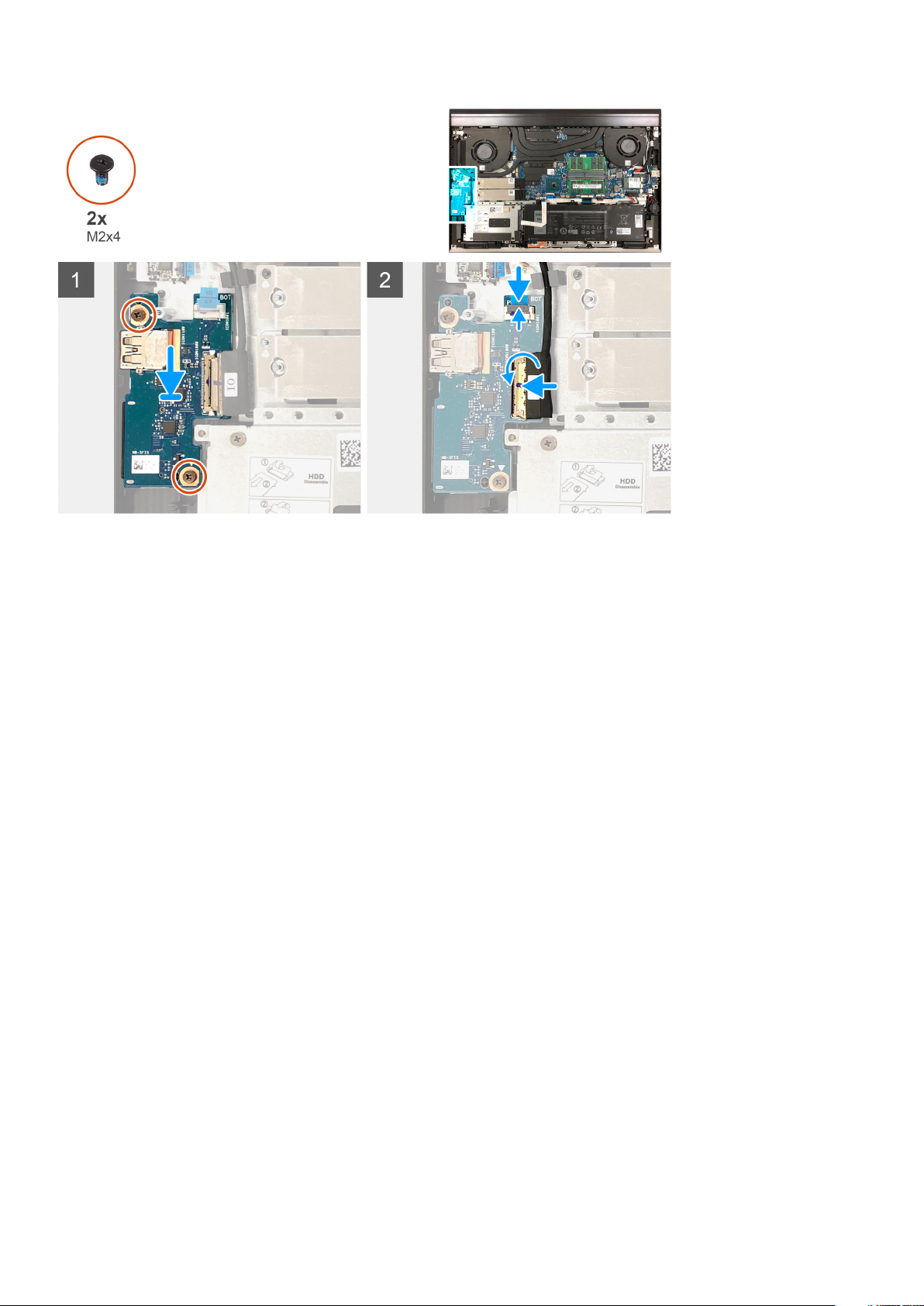

Installing the I/O board................................................................................................................................................. 50

G key......................................................................................................................................................................................51

Removing the G key.......................................................................................................................................................51

Installing the G key........................................................................................................................................................ 52

Display assembly..................................................................................................................................................................54

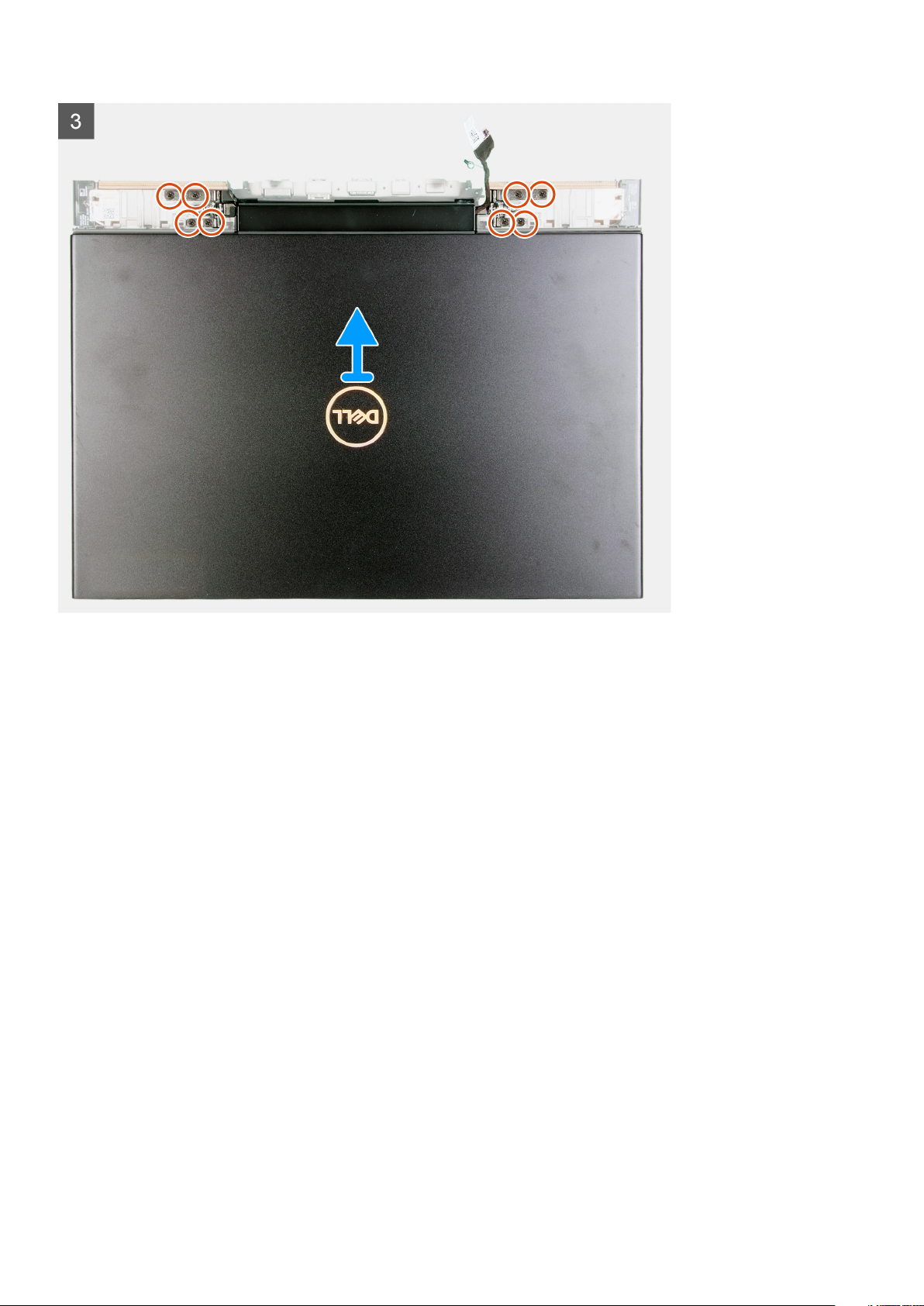

Removing the display assembly................................................................................................................................... 54

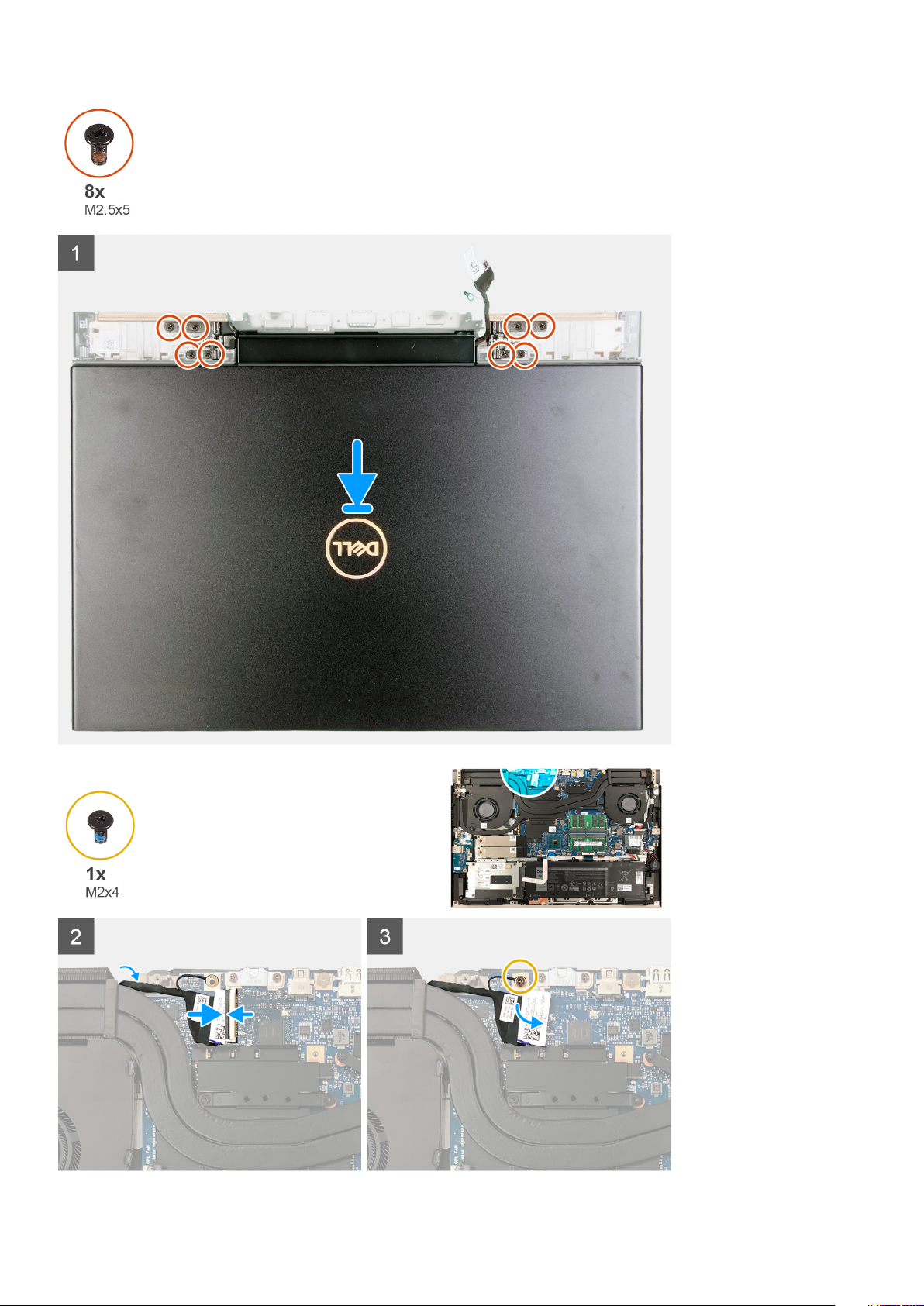

Installing the display assembly..................................................................................................................................... 55

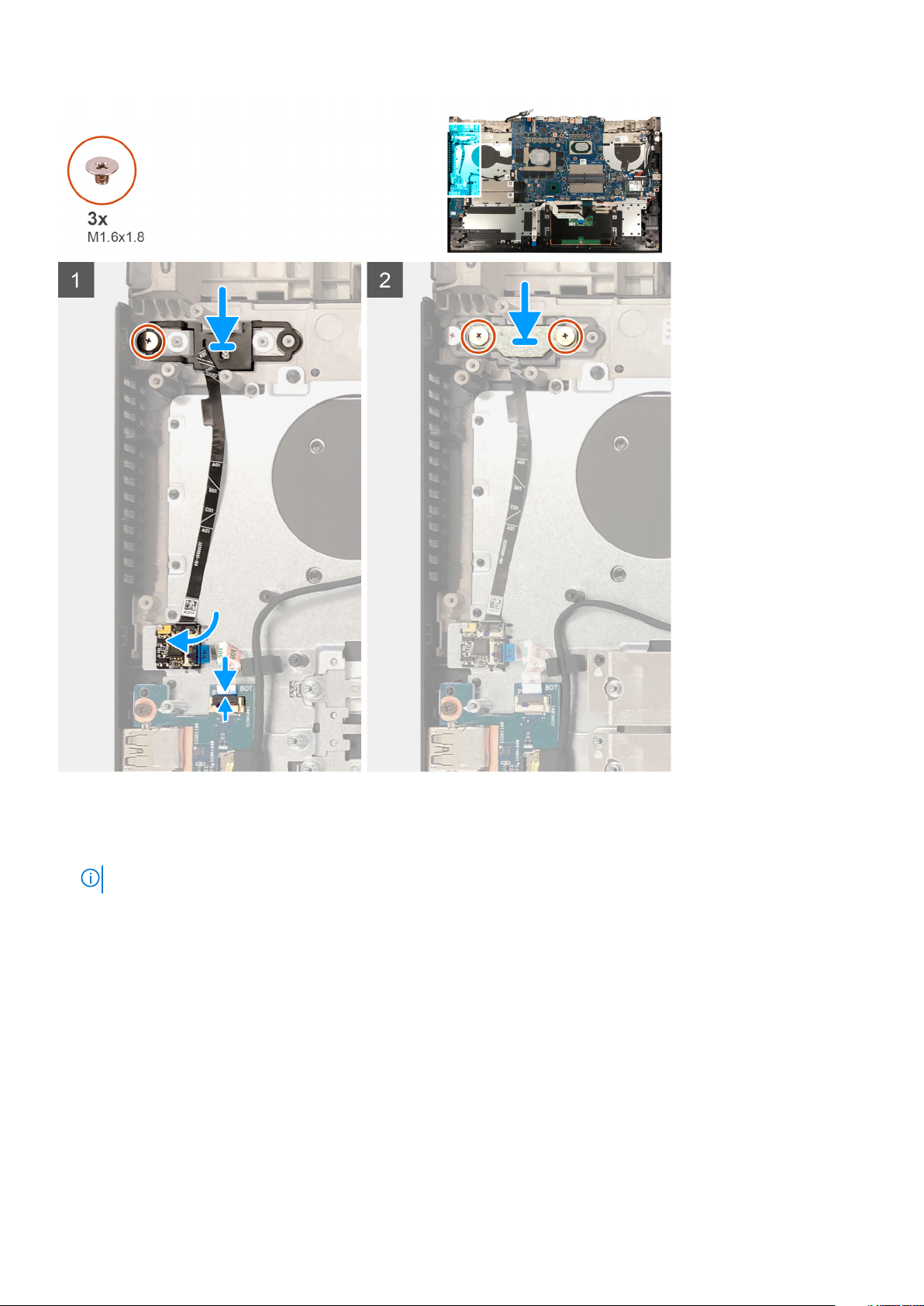

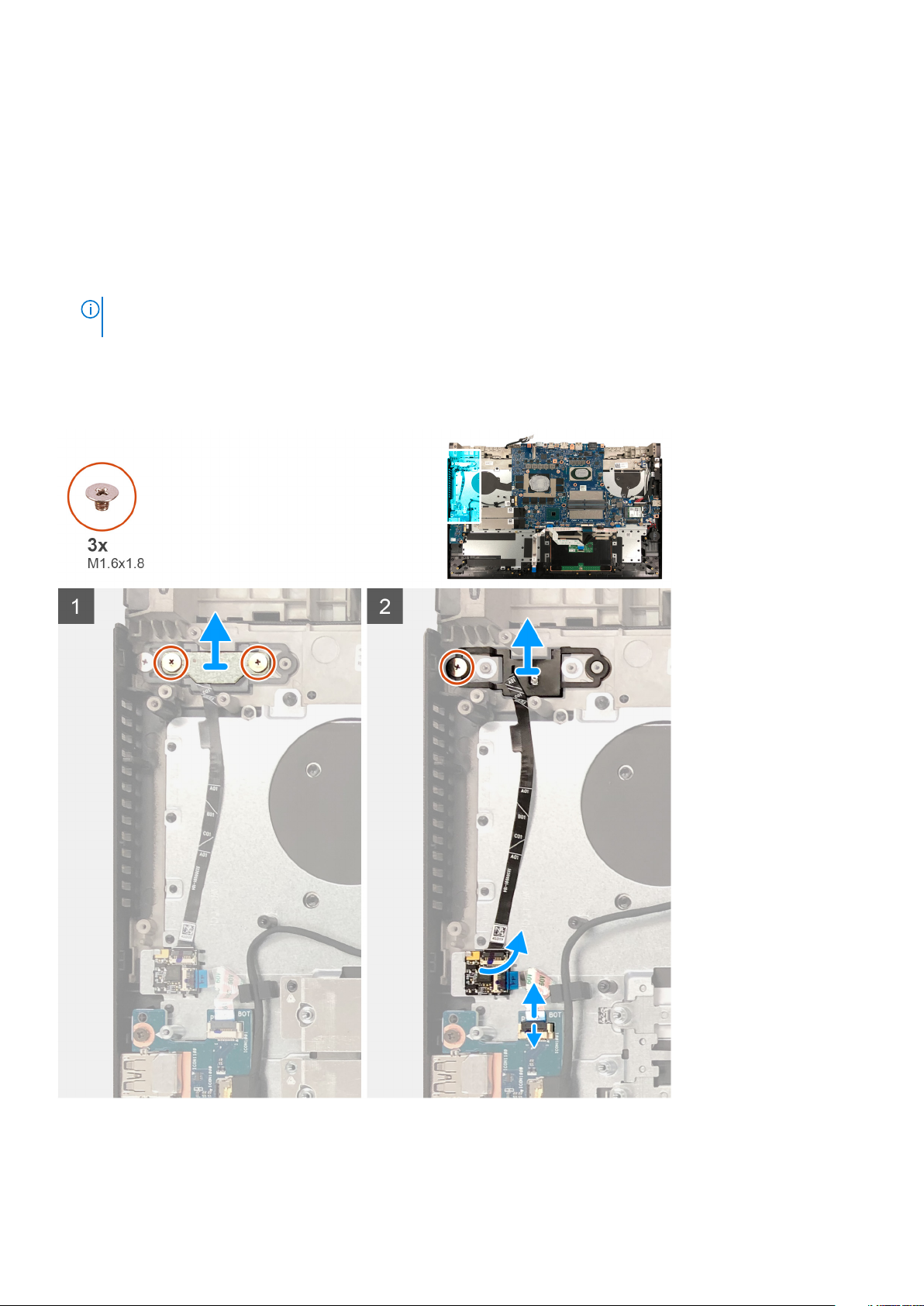

Power button with fingerprint reader...............................................................................................................................57

Installing the power-button board with fingerprint reader.......................................................................................57

Removing the power button with fingerprint reader................................................................................................59

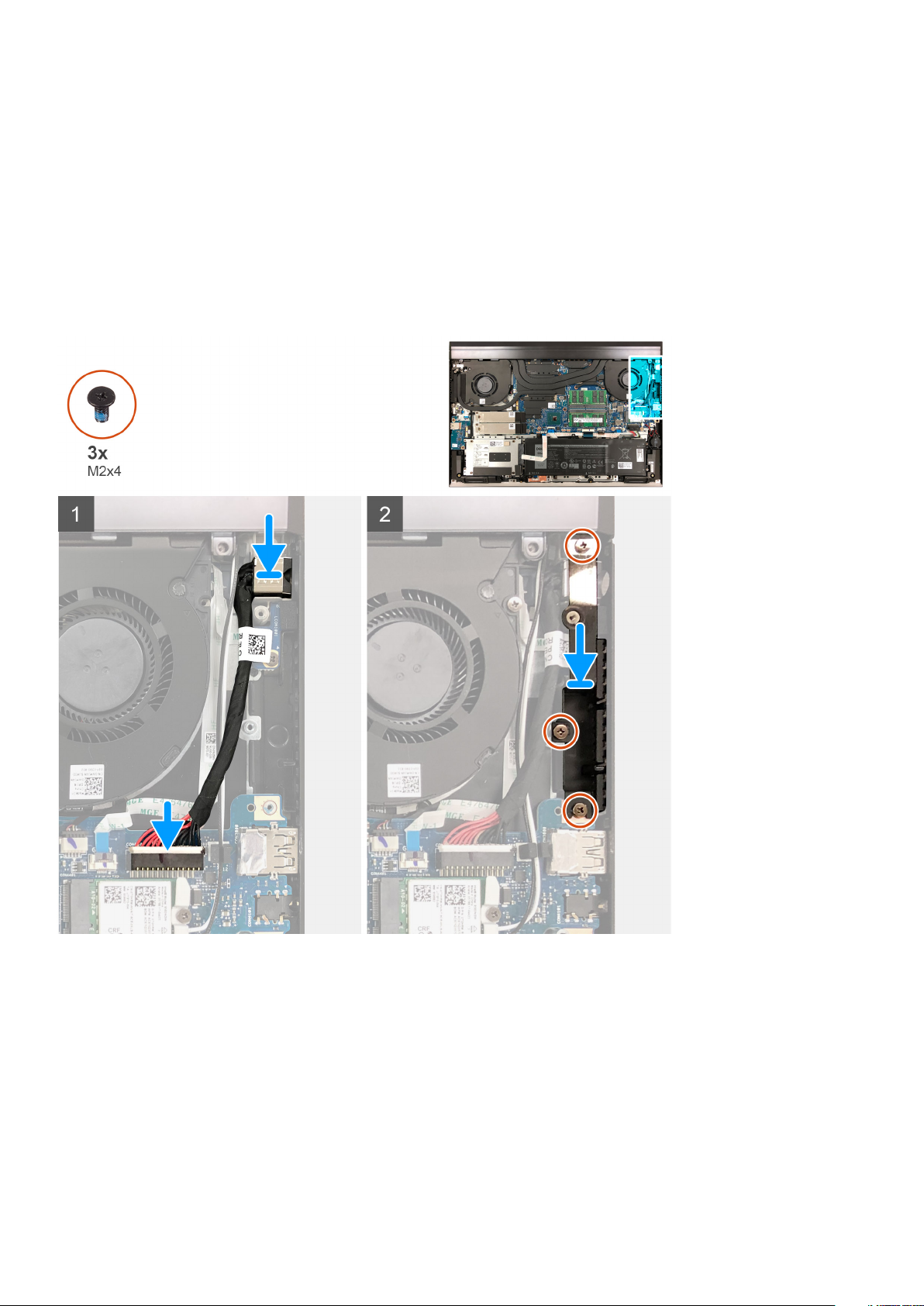

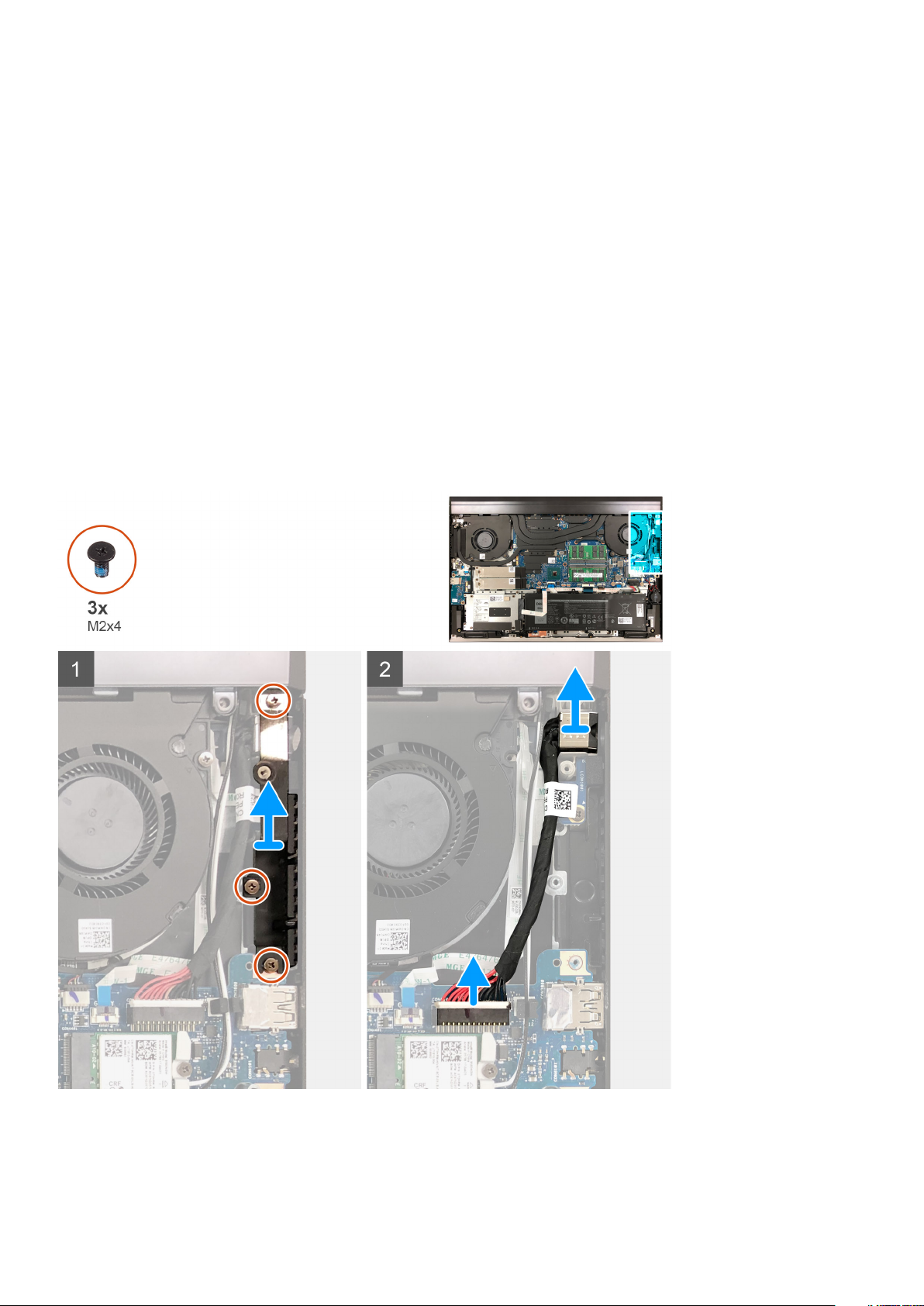

Power-adapter port............................................................................................................................................................ 60

Removing the power-adapter port............................................................................................................................. 60

Installing the power-adapter port.................................................................................................................................61

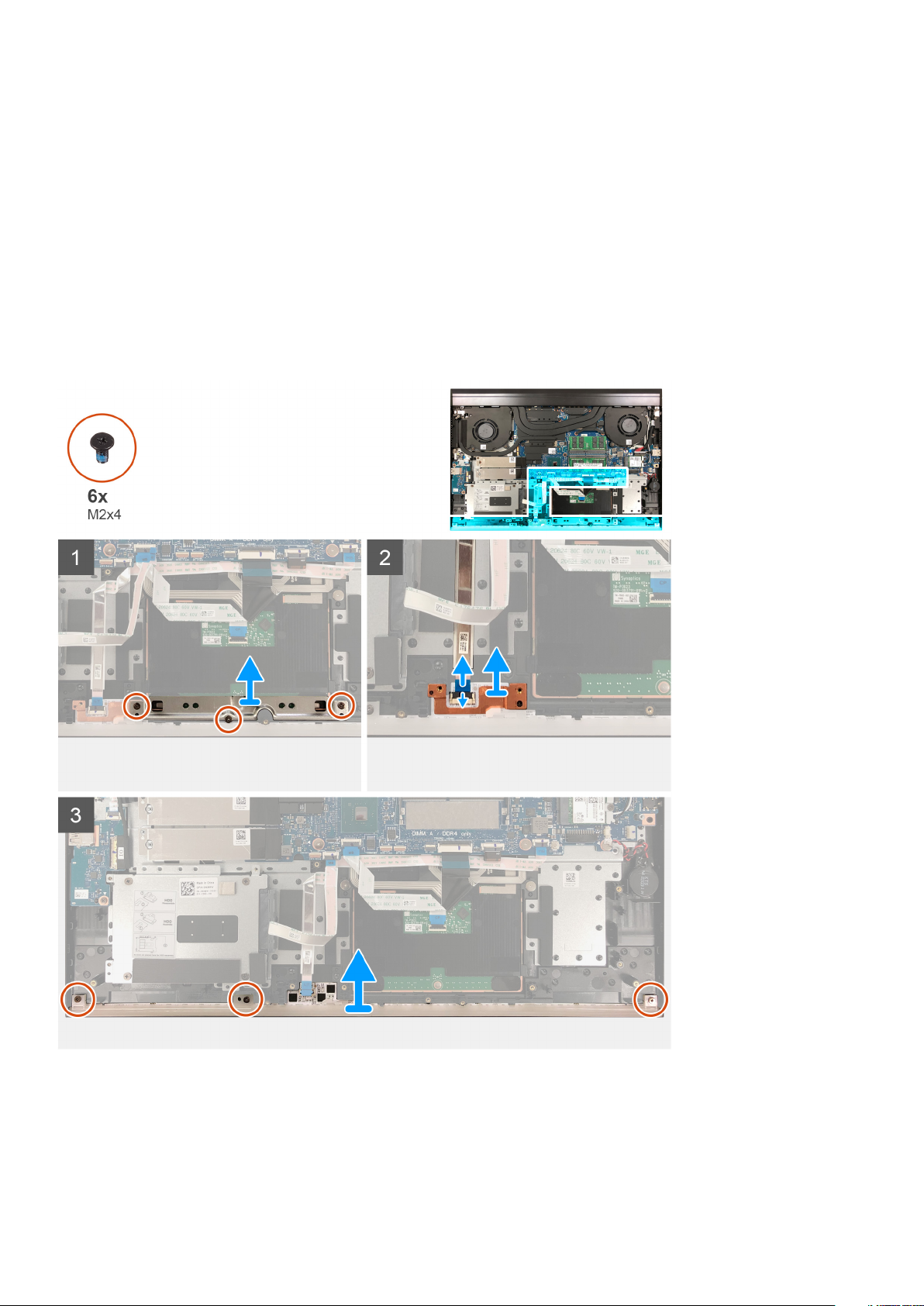

Light bar................................................................................................................................................................................62

Removing the light bar..................................................................................................................................................62

Installing the light bar.................................................................................................................................................... 63

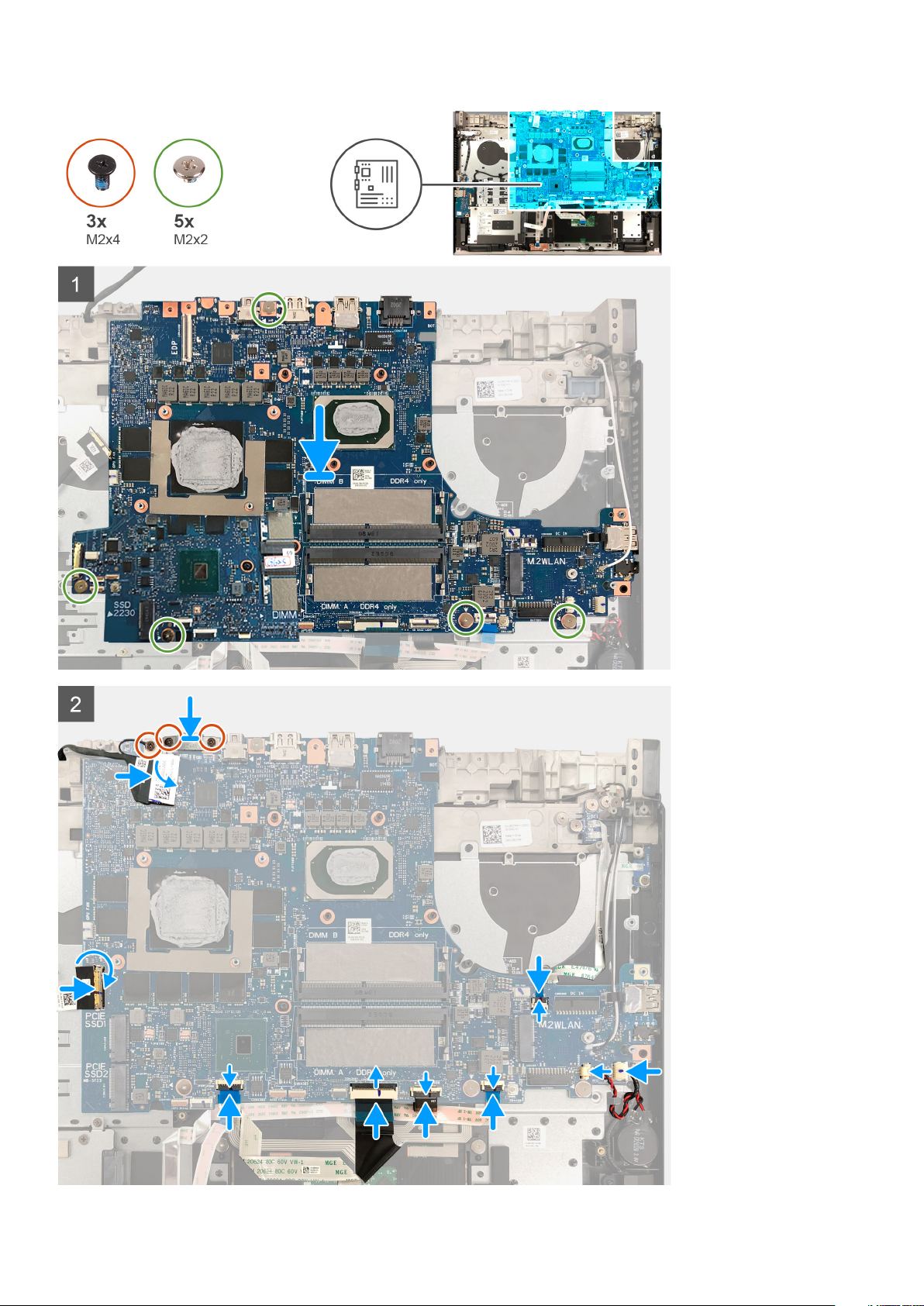

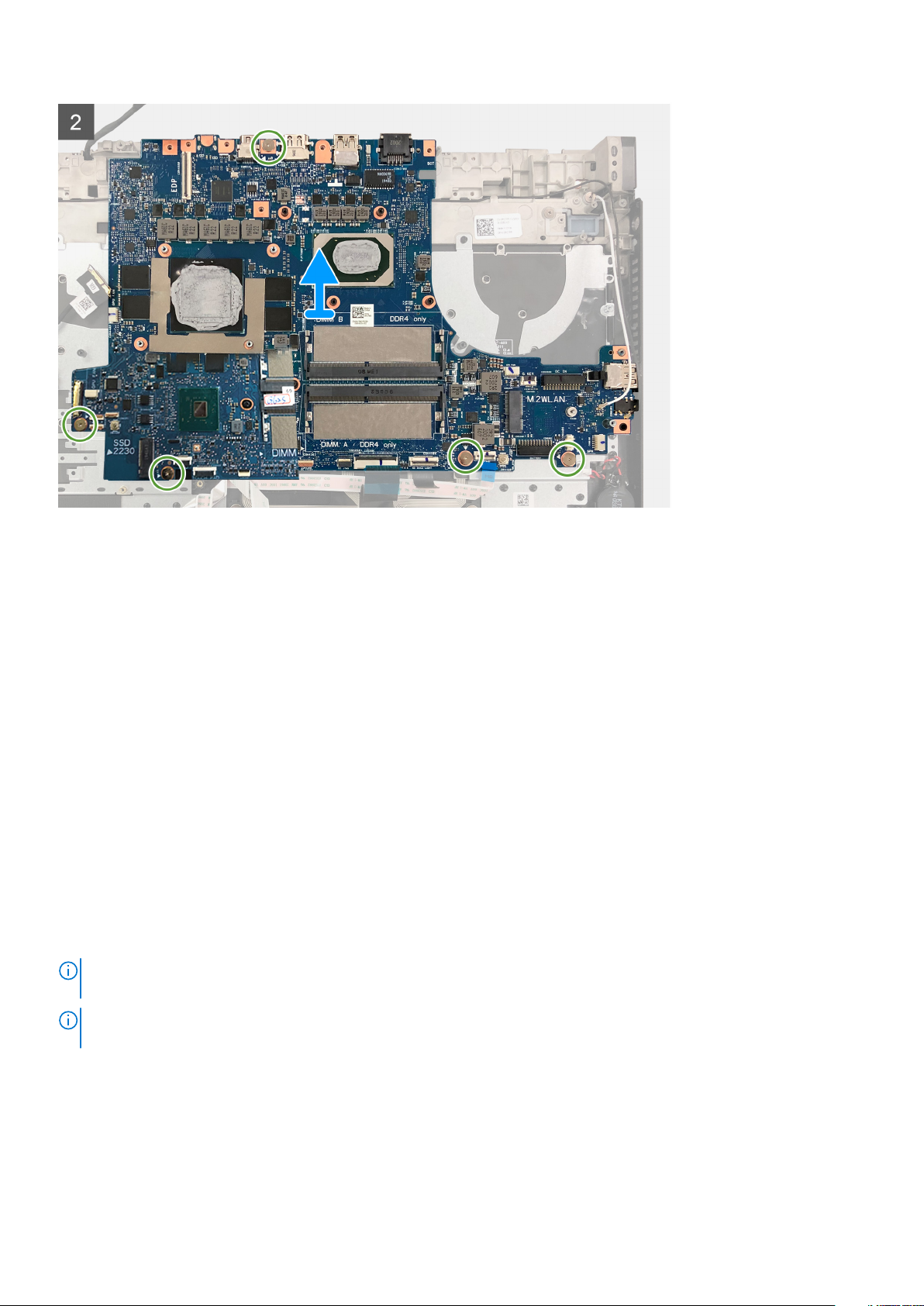

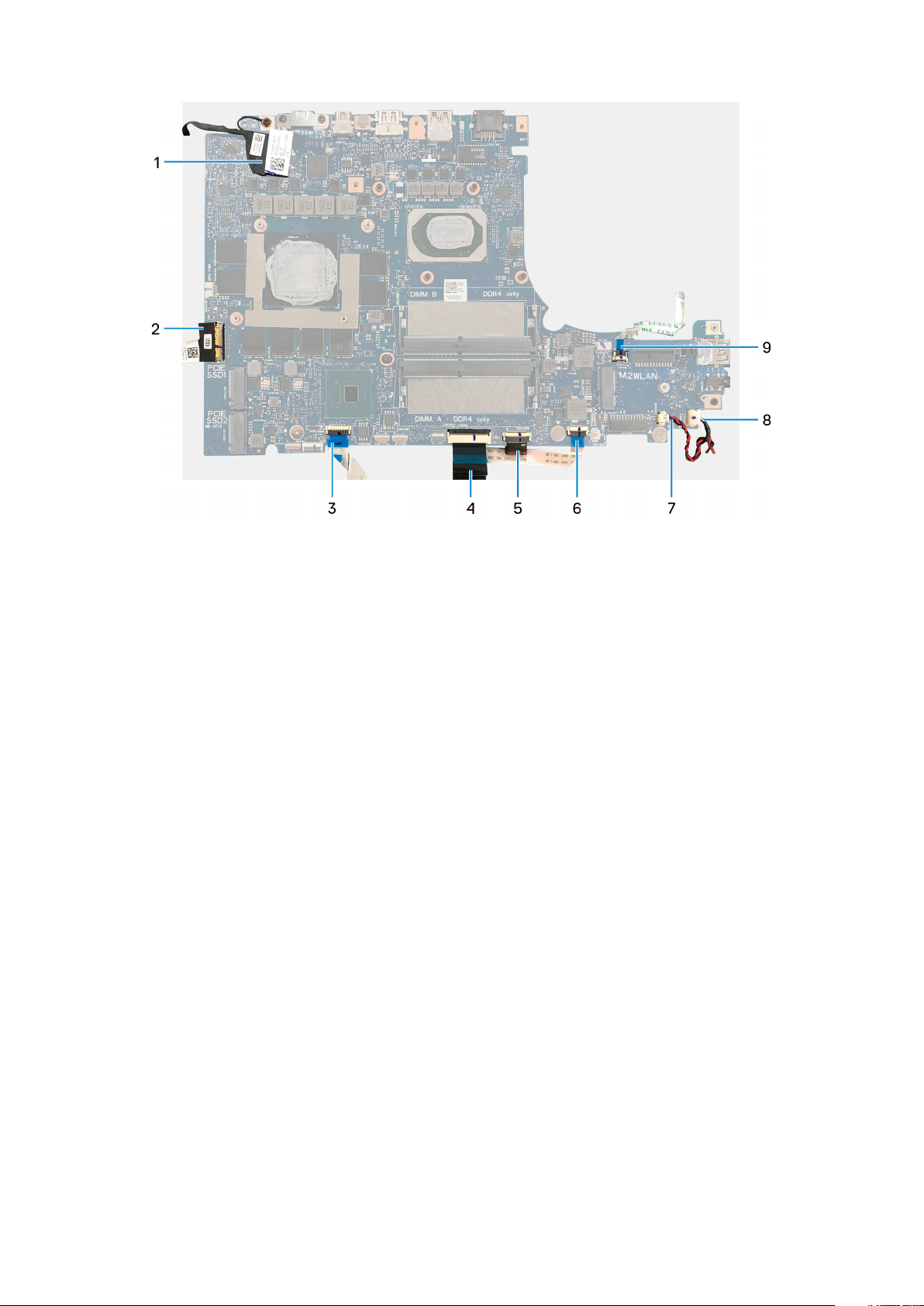

System board.......................................................................................................................................................................64

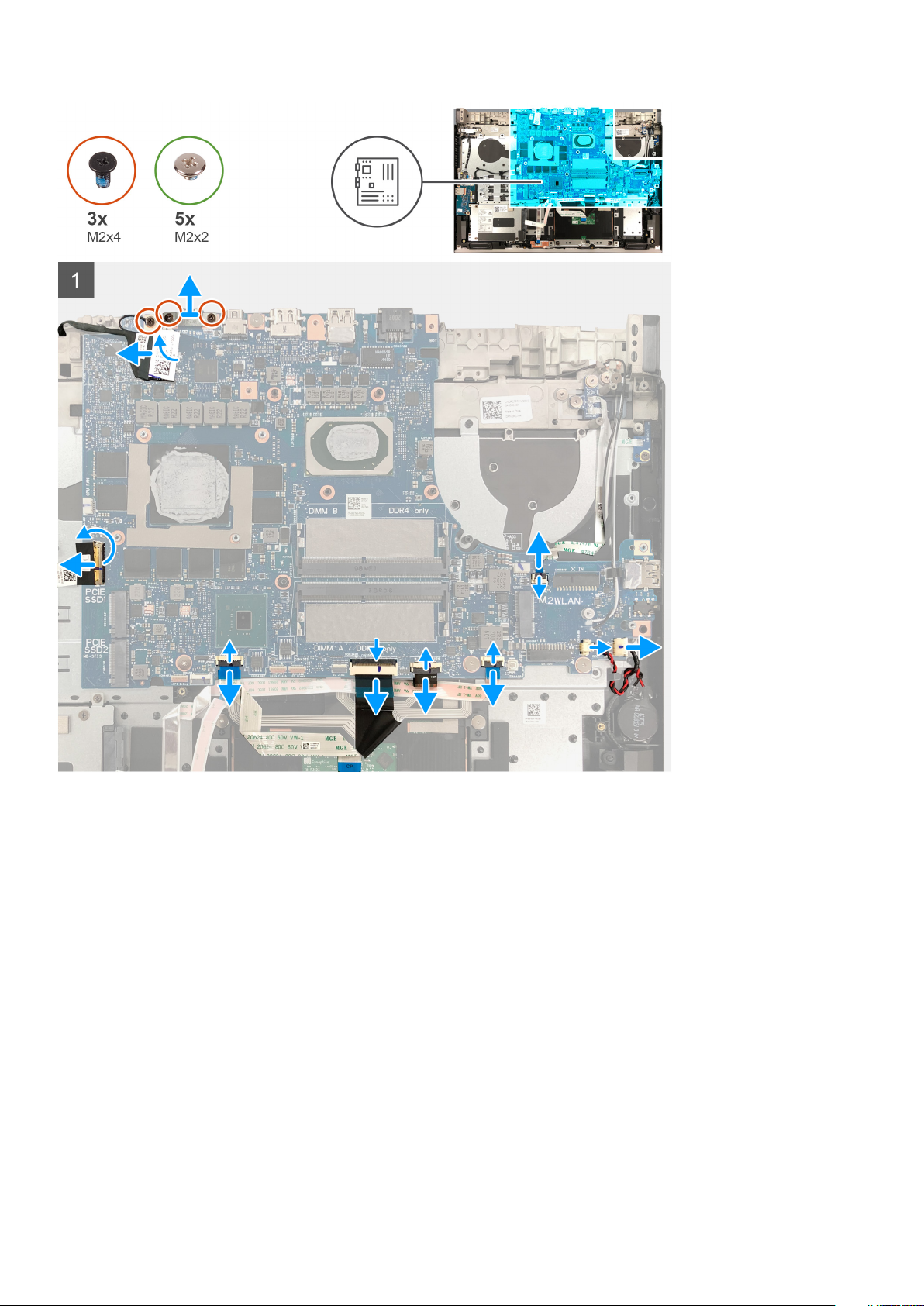

Removing the system board........................................................................................................................................ 64

Installing the system board...........................................................................................................................................67

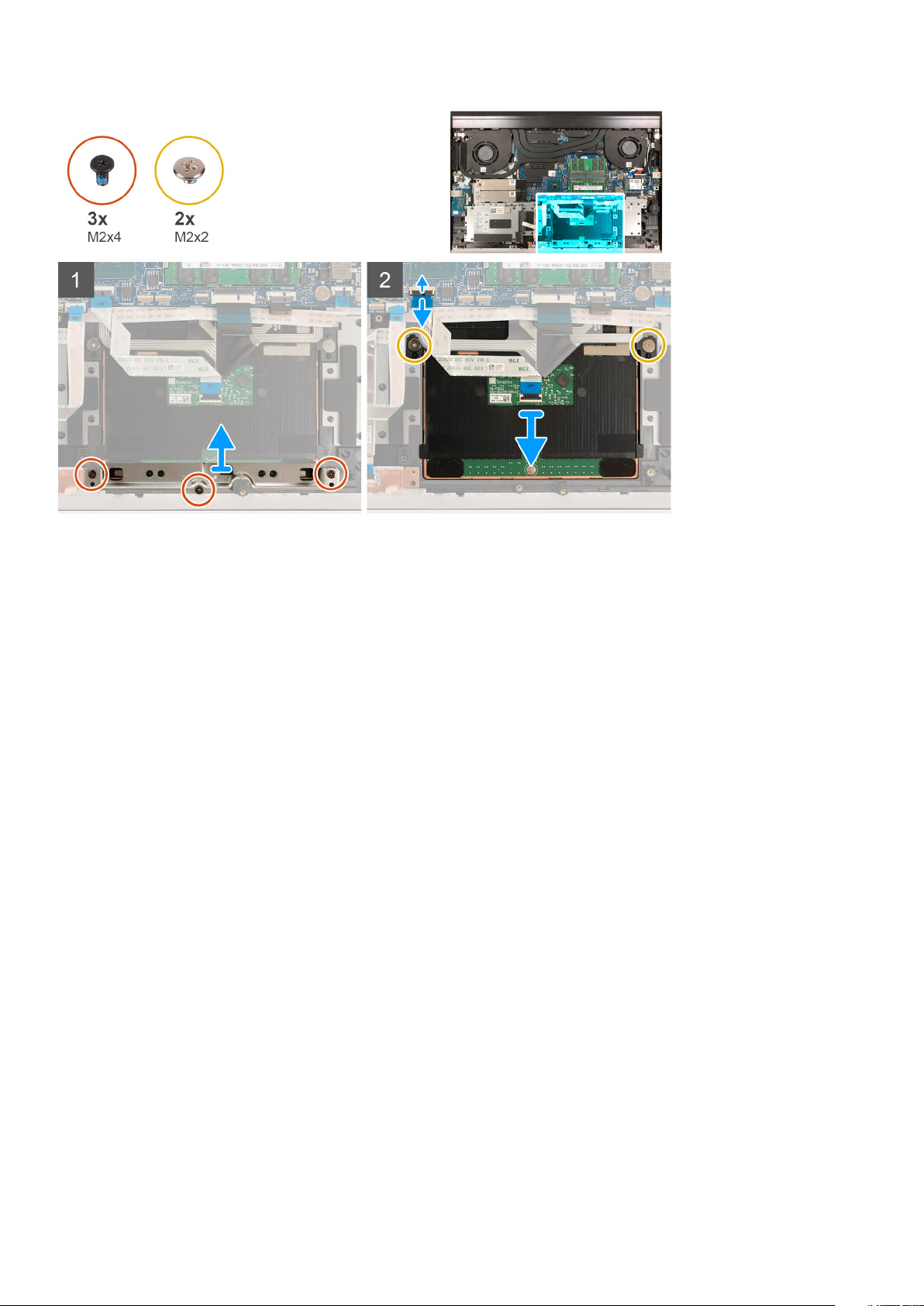

Touchpad..............................................................................................................................................................................70

Removing the touchpad................................................................................................................................................70

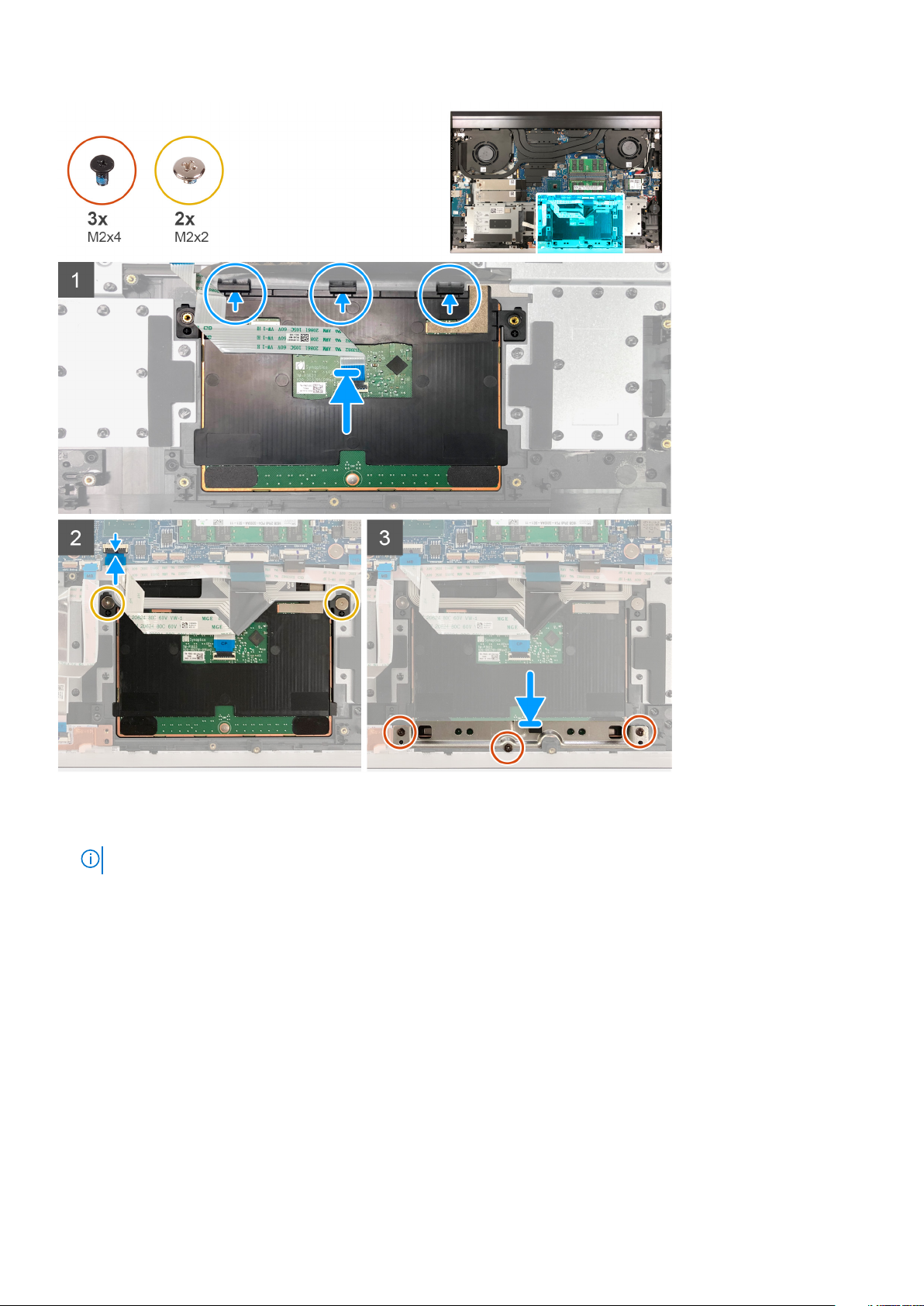

Installing the touchpad...................................................................................................................................................71

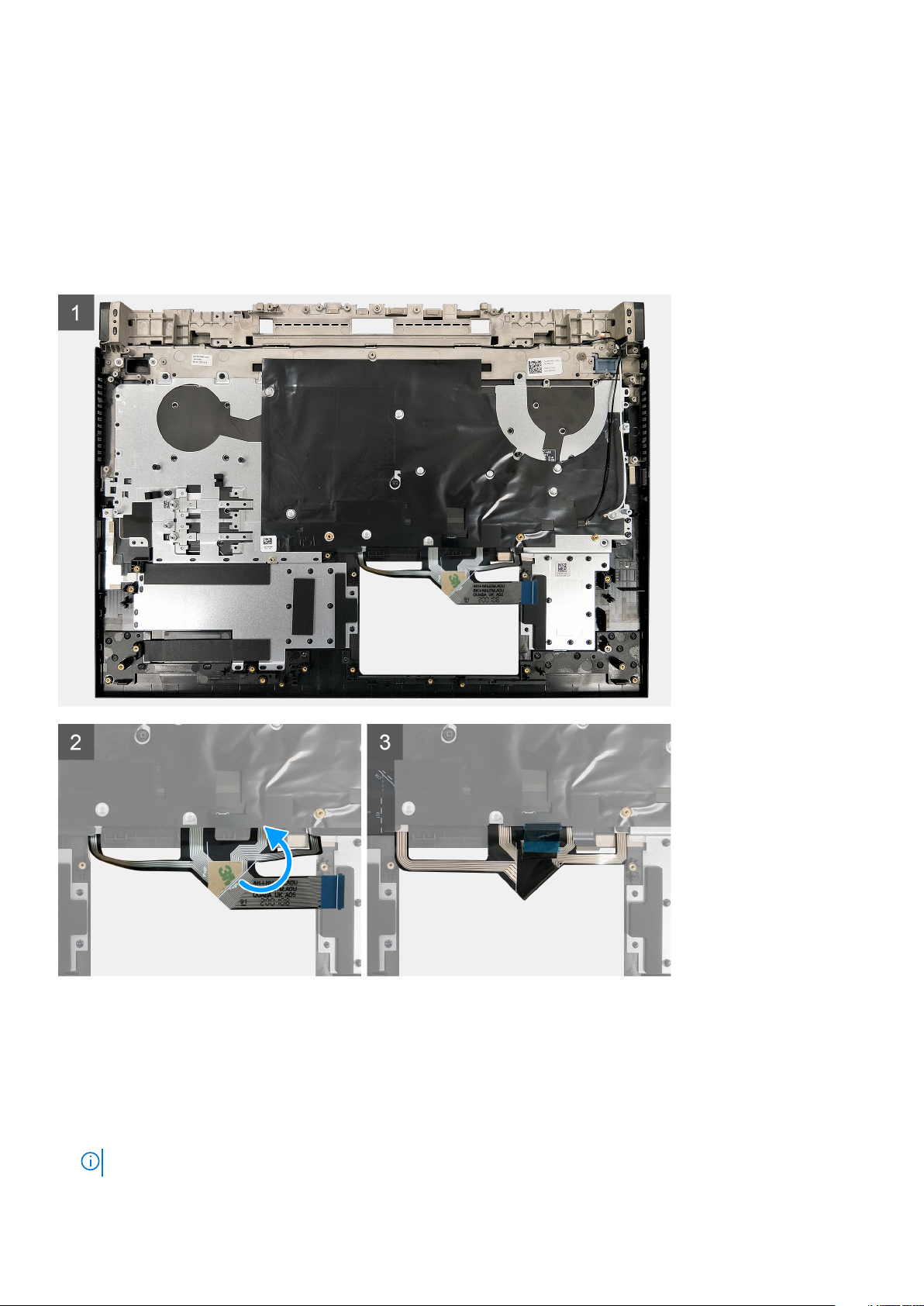

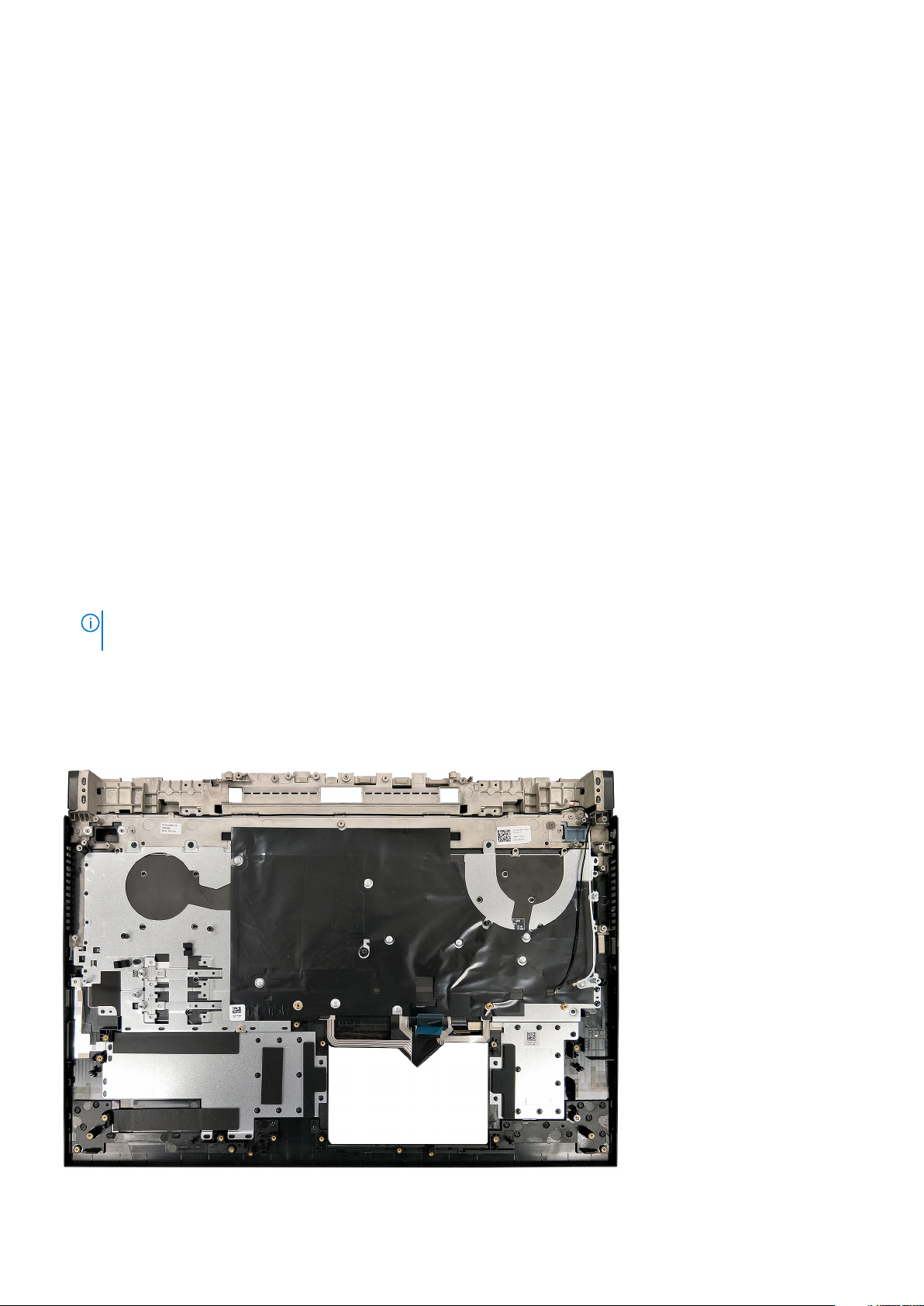

Palm-rest and keyboard assembly.....................................................................................................................................73

Removing the palm-rest and keyboard assembly......................................................................................................73

Installing the palm-rest and keyboard assembly........................................................................................................ 74

3 Drivers and downloads................................................................................................................ 76

4 System setup............................................................................................................................. 77

Contents

Page 5

BIOS overview......................................................................................................................................................................77

Entering BIOS setup program............................................................................................................................................ 77

Navigation keys.................................................................................................................................................................... 77

Boot Sequence.....................................................................................................................................................................77

System setup options..........................................................................................................................................................78

System and setup password..............................................................................................................................................88

Assigning a system setup password........................................................................................................................... 88

Deleting or changing an existing system setup password........................................................................................88

Clearing CMOS settings............................................................................................................................................... 89

Clearing BIOS (System Setup) and System passwords...........................................................................................89

5 Troubleshooting.........................................................................................................................90

SupportAssist diagnostics.................................................................................................................................................. 90

System diagnostic lights.....................................................................................................................................................90

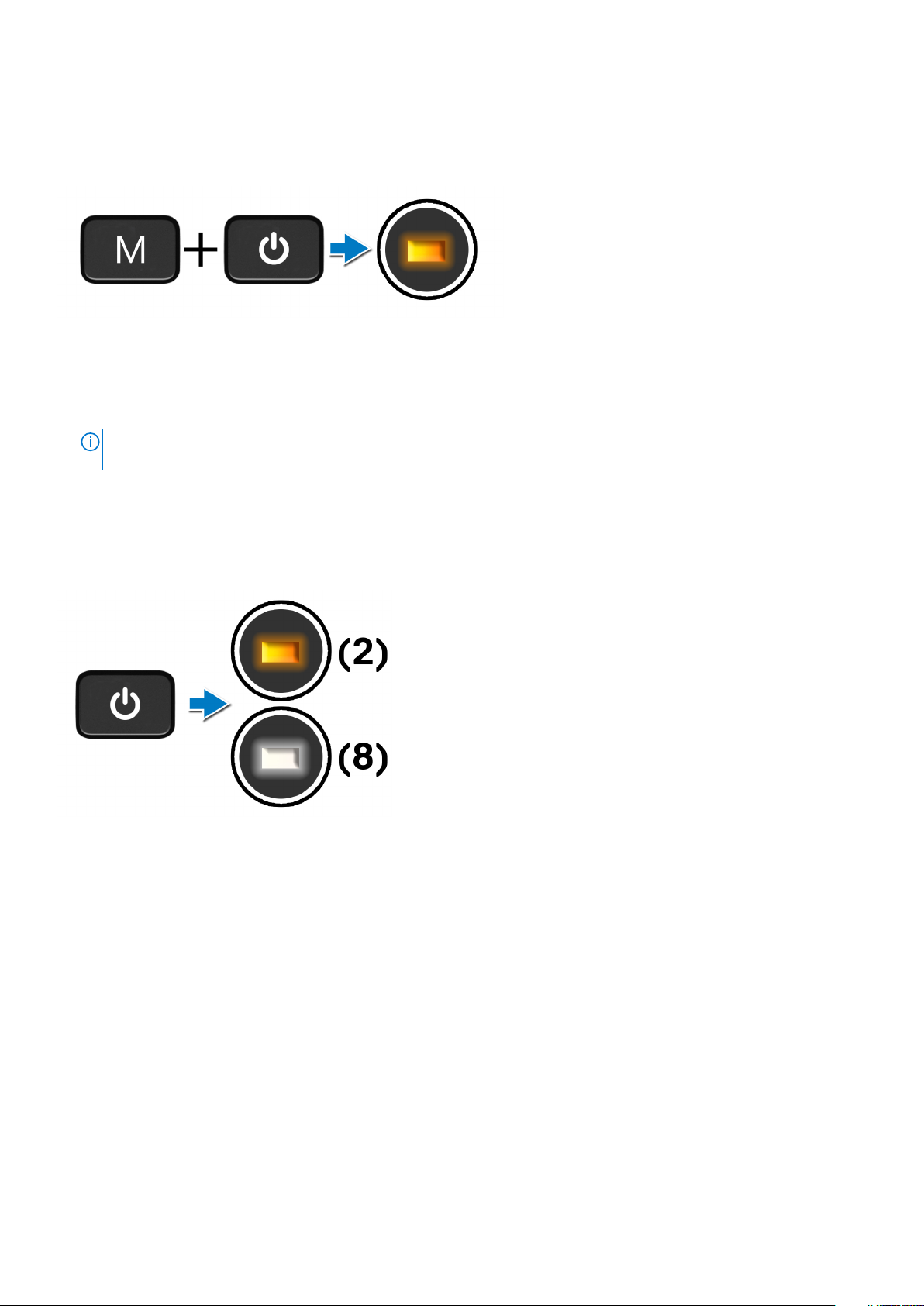

Built-in self-test (BIST)....................................................................................................................................................... 91

System board built-in self-test (M-BIST).................................................................................................................. 92

Display panel power rail built-in self-test (L-BIST)....................................................................................................92

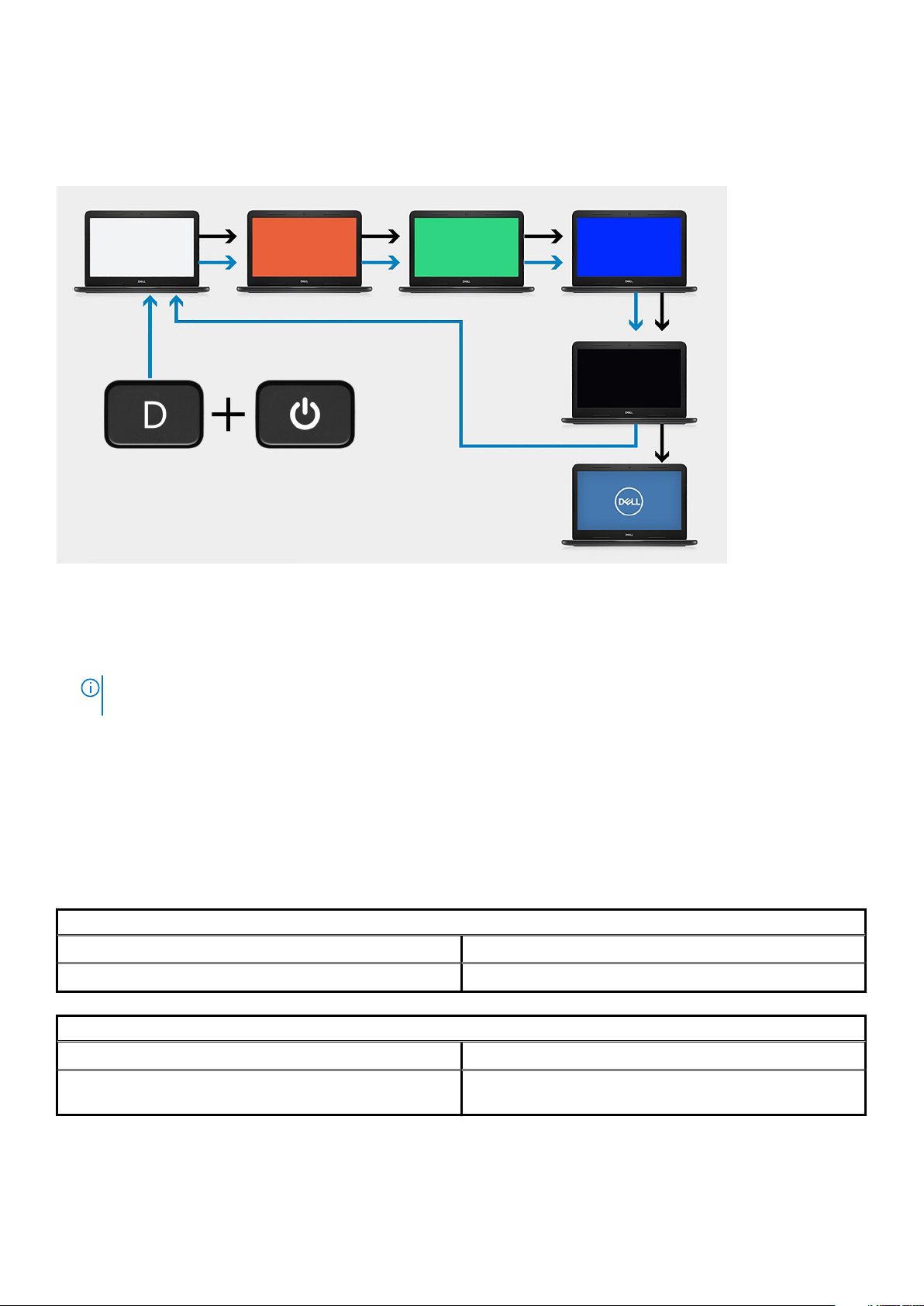

Display panel built-in self-test (LCD-BIST)................................................................................................................ 93

Outcome......................................................................................................................................................................... 93

Flashing BIOS (USB key)....................................................................................................................................................94

Flashing the BIOS................................................................................................................................................................ 94

Backup media and recovery options................................................................................................................................. 94

WiFi power cycle................................................................................................................................................................. 94

Flea power release.............................................................................................................................................................. 95

6 Getting help and contacting Dell..................................................................................................96

Contents

Page 6

Working inside your computer

Before working inside your computer

About this task

NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

Steps

1. Save and close all open files and exit all open applications.

2. Shut down your computer. Click Start >

NOTE: If you are using a different operating system, see the documentation of your operating system for shut-down

instructions.

3. Disconnect your computer and all attached devices from their electrical outlets.

4. Disconnect all attached network devices and peripherals, such as keyboard, mouse, and monitor from your computer.

CAUTION:

the network device.

To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from

Power > Shut down.

5. Remove any media card and optical disc from your computer, if applicable.

Safety instructions

Use the following safety guidelines to protect your computer from potential damage and to ensure your personal safety. Unless otherwise noted, each procedure included in this document assumes that you have read the safety information that shipped with your computer.

NOTE:

Before working inside your computer, read the safety information that is shipped with your computer. For more

safety best practices, see the Regulatory Compliance home page at www.dell.com/regulatory_compliance.

NOTE: Disconnect your computer from all power sources before opening the computer cover or panels. After you finish

working inside the computer, replace all covers, panels, and screws before connecting your computer to an electrical

outlet.

CAUTION: To avoid damaging the computer, ensure that the work surface is flat, dry and clean.

CAUTION: To avoid damaging the components and cards, handle them by their edges, and avoid touching the pins and

the contacts.

CAUTION: You should only perform troubleshooting and repairs as authorized or directed by the Dell technical

assistance team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. See the safety

instructions that is shipped with the product or at www.dell.com/regulatory_compliance.

CAUTION: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface,

such as the metal at the back of the computer. While you work, periodically touch an unpainted metal surface to

dissipate static electricity which could harm internal components.

CAUTION: When you disconnect a cable, pull it by its connector or its pull tab, not the cable itself. Some cables have

connectors with locking tabs or thumb-screws that you must disengage before disconnecting the cable. When

disconnecting cables, keep them evenly-aligned to avoid bending the connector pins. When connecting cables, ensure

that the ports and the connectors are correctly oriented and aligned.

CAUTION: Press and eject any installed card from the media-card reader.

6 Working inside your computer

Page 7

NOTE: The color of your computer and certain components may appear differently than shown in this document.

Electrostatic discharge—ESD protection

ESD is a major concern when you handle electronic components, especially sensitive components such as expansion cards, processors, memory DIMMs, and system boards. Very slight charges can damage circuits in ways that may not be obvious, such as intermittent problems or a shortened product life span. As the industry pushes for lower power requirements and increased density, ESD protection is an increasing concern.

Due to the increased density of semiconductors used in recent Dell products, the sensitivity to static damage is now higher than in previous Dell products. For this reason, some previously approved methods of handling parts are no longer applicable.

Two recognized types of ESD damage are catastrophic and intermittent failures.

• Catastrophic – Catastrophic failures represent approximately 20 percent of ESD-related failures. The damage causes an immediate and complete loss of device functionality. An example of catastrophic failure is a memory DIMM that has received a static shock and immediately generates a "No POST/No Video" symptom with a beep code emitted for missing or nonfunctional memory.

• Intermittent – Intermittent failures represent approximately 80 percent of ESD-related failures. The high rate of intermittent failures means that most of the time when damage occurs, it is not immediately recognizable. The DIMM receives a static shock, but the tracing is merely weakened and does not immediately produce outward symptoms related to the damage. The weakened trace may take weeks or months to melt, and in the meantime may cause degradation of memory integrity, intermittent memory errors, etc.

The more difficult type of damage to recognize and troubleshoot is the intermittent (also called latent or "walking wounded") failure.

Perform the following steps to prevent ESD damage:

• Use a wired ESD wrist strap that is properly grounded. The use of wireless anti-static straps is no longer allowed; they do not provide adequate protection. Touching the chassis before handling parts does not ensure adequate ESD protection on parts with increased sensitivity to ESD damage.

• Handle all static-sensitive components in a static-safe area. If possible, use anti-static floor pads and workbench pads.

• When unpacking a static-sensitive component from its shipping carton, do not remove the component from the anti-static packing material until you are ready to install the component. Before unwrapping the anti-static packaging, ensure that you discharge static electricity from your body.

• Before transporting a static-sensitive component, place it in an anti-static container or packaging.

ESD field service kit

The unmonitored Field Service kit is the most commonly used service kit. Each Field Service kit includes three main components: antistatic mat, wrist strap, and bonding wire.

Components of an ESD field service kit

The components of an ESD field service kit are:

• Anti-Static Mat – The anti-static mat is dissipative and parts can be placed on it during service procedures. When using an antistatic mat, your wrist strap should be snug and the bonding wire should be connected to the mat and to any bare metal on the system being worked on. Once deployed properly, service parts can be removed from the ESD bag and placed directly on the mat. ESDsensitive items are safe in your hand, on the ESD mat, in the system, or inside a bag.

• Wrist Strap and Bonding Wire – The wrist strap and bonding wire can be either directly connected between your wrist and bare metal on the hardware if the ESD mat is not required, or connected to the anti-static mat to protect hardware that is temporarily placed on the mat. The physical connection of the wrist strap and bonding wire between your skin, the ESD mat, and the hardware is known as bonding. Use only Field Service kits with a wrist strap, mat, and bonding wire. Never use wireless wrist straps. Always be aware that the internal wires of a wrist strap are prone to damage from normal wear and tear, and must be checked regularly with a wrist strap tester in order to avoid accidental ESD hardware damage. It is recommended to test the wrist strap and bonding wire at least once per week.

• ESD Wrist Strap Tester – The wires inside of an ESD strap are prone to damage over time. When using an unmonitored kit, it is a best practice to regularly test the strap prior to each service call, and at a minimum, test once per week. A wrist strap tester is the best method for doing this test. If you do not have your own wrist strap tester, check with your regional office to find out if they have one. To perform the test, plug the wrist-strap's bonding-wire into the tester while it is strapped to your wrist and push the button to test. A green LED is lit if the test is successful; a red LED is lit and an alarm sounds if the test fails.

• Insulator Elements – It is critical to keep ESD sensitive devices, such as plastic heat sink casings, away from internal parts that are insulators and often highly charged.

Working inside your computer

Page 8

• Working Environment – Before deploying the ESD Field Service kit, assess the situation at the customer location. For example, deploying the kit for a server environment is different than for a desktop or portable environment. Servers are typically installed in a rack within a data center; desktops or portables are typically placed on office desks or cubicles. Always look for a large open flat work area that is free of clutter and large enough to deploy the ESD kit with additional space to accommodate the type of system that is being repaired. The workspace should also be free of insulators that can cause an ESD event. On the work area, insulators such as Styrofoam and other plastics should always be moved at least 12 inches or 30 centimeters away from sensitive parts before physically handling any hardware components

• ESD Packaging – All ESD-sensitive devices must be shipped and received in static-safe packaging. Metal, static-shielded bags are preferred. However, you should always return the damaged part using the same ESD bag and packaging that the new part arrived in. The ESD bag should be folded over and taped shut and all the same foam packing material should be used in the original box that the new part arrived in. ESD-sensitive devices should be removed from packaging only at an ESD-protected work surface, and parts should never be placed on top of the ESD bag because only the inside of the bag is shielded. Always place parts in your hand, on the ESD mat, in the system, or inside an anti-static bag.

• Transporting Sensitive Components – When transporting ESD sensitive components such as replacement parts or parts to be returned to Dell, it is critical to place these parts in anti-static bags for safe transport.

ESD protection summary

It is recommended that all field service technicians use the traditional wired ESD grounding wrist strap and protective anti-static mat at all times when servicing Dell products. In addition, it is critical that technicians keep sensitive parts separate from all insulator parts while performing service and that they use anti-static bags for transporting sensitive components.

Transporting sensitive components

When transporting ESD sensitive components such as replacement parts or parts to be returned to Dell, it is critical to place these parts in anti-static bags for safe transport.

After working inside your computer

About this task

CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer.

Steps

1. Replace all screws and ensure that no stray screws remain inside your computer.

2. Connect any external devices, peripherals, or cables you removed before working on your computer.

3. Replace any media cards, discs, or any other parts that you removed before working on your computer.

4. Connect your computer and all attached devices to their electrical outlets.

5. Turn on your computer.

Working inside your computer

Page 9

Removing and installing components

Recommended tools

The procedures in this document may require the following tools:

• Phillips screwdriver #0

• Phillips screwdriver #1

• Plastic scribe

Screw list

NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws,

and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type

is restored when the component is replaced.

NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surface when

replacing a component.

NOTE: Screw color may vary with the configuration ordered.

Table 1. Screw list

Component Secured to Screw type Quantity Screw image

Base cover Palm-rest and

keyboard assembly

Battery (3-cell) Palm-rest and

keyboard assembly

Battery (6-cell) Palm-rest and

keyboard assembly

Display cable holder Palm-rest and

keyboard assembly

Display hinges Palm-rest and

keyboard assembly

Graphics-card fan System board and

palm-rest and keyboard assembly

Hard-drive assembly Palm-rest and

keyboard assembly

M2x5 6

M2x4 4

M2x4 7

M2x4 1

M2.5x5 8

M2x4 3

Hard-drive bracket Hard drive M3x3 4

I/O board Palm-rest and

keyboard assembly

M2x4 2

Removing and installing components 9

Page 10

Table 1. Screw list(continued)

Component Secured to Screw type Quantity Screw image

Light bar Palm-rest and

keyboard assembly

Power-adapter port Palm-rest and

keyboard assembly

Power button with fingerprint reader bracket

Processor fan System board and

Rear cover System board M1.6x4 2

Rear cover Palm-rest and

Rear-cover bracket System board M2x5 4

Solid-state drive (slot SSD1) System board M2x4 1

Solid-state drive thermal bracket (slot SSD1)

Palm-rest and keyboard assembly

palm-rest and keyboard assembly

keyboard assembly

System board M2x4 1

M2x4 3

M1.6x1.8 2

M2x4 3

Solid-state drive (slot SSD2) System board M2x4 1

Solid-state drive thermal bracket (slot SSD2)

System board Palm-rest and

Touchpad bracket Palm-rest and

Touchpad Palm-rest and

USB Type-C bracket Palm-rest and

Wireless-card bracket Palm-rest and

System board M2x4 1

M2x2 5

keyboard assembly

M2x4 3

keyboard assembly

M2x2 2

keyboard assembly

M2x4 3

keyboard assembly

M2x4 1

keyboard assembly

10 Removing and installing components

Page 11

Base cover

Removing the base cover

Prerequisites

1. Follow the procedure in Before working inside your computer.

About this task

The following images indicate the location of the base cover and provide a visual representation of the removal procedure.

Removing and installing components 11

Page 12

12 Removing and installing components

Page 13

Steps

1. Remove the six screws (M2x5) that secure the base cover to the palm-rest and keyboard assembly.

2. Loosen the two captive screws that secure the base cover to the palm-rest and keyboard assembly.

CAUTION:

base cover.

NOTE: Loosening the two captive screws on the base cover creates a gap which can be used to pry and lift the base

cover off the palm-rest and keyboard assembly.

3. Starting from the bottom-left corner, use a plastic scribe to pry the base cover and to release the base cover from the tabs. Lift the base cover off the palm-rest and keyboard assembly.

NOTE:

computer.

4. Disconnect the battery cable from the system board.

5. Turn your computer over and press the power button for 15 seconds to drain the flea power.

Do not pull on or pry the base cover at the side where the hinges are located; doing so may damage the

The following steps are applicable only if you want to further remove any other component from your

Installing the base cover

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following images indicate the location of the base cover and provide a visual representation of the installation procedure.

Removing and installing components

Page 14

14 Removing and installing components

Page 15

Steps

1. Connect the battery cable to the system board, if the battery had been previously disconnected.

2. Align the screw holes on the base cover with the screw holes on the palm-rest and keyboard assembly, and then snap the base cover into place.

3. Tighten the two captive screws that secure the base cover to the palm-rest and keyboard assembly.

4. Replace the six screws (M2x5) that secure the base cover to the palm-rest and keyboard assembly.

Next steps

1. Follow the procedure in After working inside your computer.

Battery

Lithium-ion battery precautions

CAUTION:

• Exercise caution when handling Lithium-ion batteries.

• Discharge the battery completely before removing it. Disconnect the AC power adapter from the system and operate

the computer solely on battery power—the battery is fully discharged when the computer no longer turns on when

the power button is pressed.

• Do not crush, drop, mutilate, or penetrate the battery with foreign objects.

• Do not expose the battery to high temperatures, or disassemble battery packs and cells.

• Do not apply pressure to the surface of the battery.

• Do not bend the battery.

• Do not use tools of any kind to pry on or against the battery.

• Ensure any screws during the servicing of this product are not lost or misplaced, to prevent accidental puncture or

damage to the battery and other system components.

• If the battery gets stuck inside your computer as a result of swelling, do not try to release it as puncturing, bending,

or crushing a lithium-ion battery can be dangerous. In such an instance, contact Dell technical support for

assistance. See www.dell.com/contactdell.

• Always purchase genuine batteries from www.dell.com or authorized Dell partners and resellers.

Removing the 3-cell battery

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

About this task

The following image indicates the location of the 3-cell battery and provides a visual representation of the removal procedure.

Removing and installing components

Page 16

Steps

1. Disconnect the battery cable from the system board, if it is not previously disconnected.

2. Open the latch and disconnect the hard-drive cable from the system board.

NOTE: This step applies only to computers shipped with a hard drive.

3. Remove the four screws (M2x4) that secure the battery to the palm-rest and keyboard assembly.

4. Lift the battery off the palm-rest and keyboard assembly.

Installing the 3-cell battery

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following image indicates the location of the 3-cell battery and provides a visual representation of the installation procedure.

Removing and installing components

Page 17

Steps

1. Align the screw holes on the battery with the screw holes on the palm-rest and keyboard assembly.

2. Replace the four screws (M2x4) that secure the battery to the palm-rest and keyboard assembly.

3. Connect the hard-drive cable to the system board and close the latch to secure the connection.

NOTE: This step applies only to computers shipped with a hard drive.

4. Connect the battery cable to the system board.

Next steps

1. Install the base cover.

2. Follow the procedure in After working inside your computer.

Removing the 6-cell battery

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

About this task

The following image indicates the location of the battery and provides a visual representation of the removal procedure.

Removing and installing components

Page 18

Steps

1. Disconnect the battery cable from the system board, if it is not previously disconnected.

2. Remove the seven screws (M2x4) that secure the battery to the palm-rest and keyboard assembly.

3. Lift the battery off the palm-rest and keyboard assembly.

Installing the battery

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following image indicates the location of the battery and provides a visual representation of the installation procedure.

Removing and installing components

Page 19

Steps

1. Align the screw holes on the battery with the screw holes on the palm-rest and keyboard assembly.

2. Replace the seven screws (M2x4) that secure the battery to the palm-rest and keyboard assembly.

3. Connect the battery cable to the system board.

Next steps

1. Install the base cover.

2. Follow the procedure in After working inside your computer.

Coin-cell battery

Removing the coin-cell battery

Prerequisites

CAUTION:

you note the BIOS setup program’s settings before removing the coin-cell battery.

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

About this task

The following image indicates the location of the coin-cell battery and provides a visual representation of the removal procedure.

Removing the coin-cell battery resets the BIOS setup program’s settings to default. It is recommended that

Removing and installing components

Page 20

Steps

1. Disconnect the coin-cell battery cable from the system board.

2. Remove the coin-cell battery cable from the routing guide and under the speaker cable.

3. Using a plastic scribe, peel the coin-cell battery off the palm-rest and keyboard assembly.

Installing the coin-cell battery

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following image indicates the location of the coin-cell battery and provides a visual representation of the installation procedure.

Removing and installing components

Page 21

Steps

1. Adhere the coin-cell battery to the palm-rest and keyboard assembly.

2. Route the coin-cell battery cable under the speaker cable and through the routing guides.

3. Connect the coin-cell battery cable to the system board.

Next steps

1. Install the base cover.

2. Follow the procedure in After working inside your computer.

Wireless card

Removing the wireless card

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

About this task

The following image indicates the location of the wireless card and provides a visual representation of the removal procedure.

Removing and installing components

Page 22

Steps

1. Remove the screw (M2x4) that secures the wireless-card bracket to the system board.

2. Lift the wireless-card bracket off the wireless card.

3. Disconnect the antenna cables from the wireless card.

4. Slide and remove the wireless card from the wireless-card slot.

Installing the wireless card

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following image indicates the location of the wireless card and provides a visual representation of the installation procedure.

Removing and installing components

Page 23

Steps

1. Align the notch on the wireless card with the tab on the wireless-card slot and insert the wireless card at an angle into the wirelesscard slot.

2. Connect the antenna cables to the wireless card.

The following table provides the antenna-cable color scheme for the wireless card supported by your computer.

Table 2. Antenna-cable color scheme

Connectors on the wireless card Antenna-cable color

Main (white triangle) White

Auxiliary (black triangle) Black

3. Align the screw hole of the wireless-card bracket with the screw hole on the system board.

4. Replace the screw (M2x4) that secures the wireless-card bracket to the wireless card and the system board.

Next steps

1. Install the base cover.

2. Follow the procedure in After working inside your computer.

Removing and installing components

Page 24

Memory modules

Removing the memory modules

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

About this task

The following image indicates the location of the memory modules and provides a visual representation of the removal procedure.

Steps

1. Use your fingertips to carefully spread apart the securing-clips on each end of the memory-module slot until the memory module pops up.

2. Slide and remove the memory module from the memory-module slot.

NOTE: Repeat step 1 and step 2 to remove the other memory module, if installed on your computer.

Installing the memory modules

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following image indicates the location of the memory modules and provides a visual representation of the installation procedure.

Removing and installing components

Page 25

Steps

1. Align the notch on the memory module with the tab on the memory-module slot.

2. Slide the memory module firmly at an angle, into the memory-module slot.

3. Press the memory module down until it clicks into place.

NOTE: If you do not hear the click, remove the memory module and reinstall it.

NOTE: Repeat step 1 to step 3 to install the other memory module, if available on your computer.

Next steps

1. Install the base cover.

2. Follow the procedure in After working inside your computer.

Solid-state drive in SSD1 slot

Removing the M.2 2230 solid-state drive from the SSD1 slot

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

About this task

Depending on the configuration ordered, your computer may support an M.2 2230 solid-state drive or an M.2

NOTE:

2280 solid-state drive in the SSD1 slot.

NOTE: This procedure applies only to computers shipped with an M.2 2230 solid-state drive installed in the SSD1 slot.

The following image indicates the location of the M.2 2230 solid-state drive that is installed in the SSD1 slot and provides a visual representation of the removal procedure.

Removing and installing components

Page 26

Steps

1. Remove the screw (M2x4) that secures the solid-state drive thermal bracket to the system board.

2. Lift the solid-state drive thermal bracket off the solid-state drive and let the solid-state drive thermal bracket rest on the system board.

NOTE:

If you are replacing the system board, do not leave the solid-state drive thermal bracket on the system board.

Peel the tape off the system board and lift the solid-state drive thermal bracket.

3. Remove the screw (M2x4) that secures the solid-state drive to the system board.

4. Slide and lift the solid-state drive off the SSD1 slot.

Installing the M.2 2230 solid-state drive in the SSD1 slot

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

NOTE:

Depending on the configuration ordered, your computer may support an M.2 2230 solid-state drive or an M.2

2280 solid-state drive in the SSD1 slot.

NOTE: This procedure applies only to computers shipped with an M.2 2230 solid-state drive installed in the SSD1 slot.

NOTE: To replace an M.2 2230 solid-state drive with an M.2 2280 solid-state drive, you must first re-position the solid-

state mounting bracket (see Re-positioning the solid-state drive mounting bracket on SSD1 slot).

The following image indicates the location of the M.2 2230 solid-state drive that is installed in the SSD1 slot and provides a visual representation of the installation procedure.

Removing and installing components

Page 27

Steps

1. Align the notch on the solid-state drive with the tab on the SSD1 slot.

2. Slide the solid-state drive into the SSD1 slot.

3. Place the solid-state drive thermal bracket over the solid-state drive.

4. Align the screw hole on the solid-state drive with the screw hole on the system board.

5. Replace the screw (M2x4) that secures the solid-state drive and the solid-state drive to the system board.

6. Align the screw hole on the solid-state drive thermal bracket with the screw hole on the system board.

7. Replace the screw (M2x4) that secures the solid-state drive thermal bracket and the solid-state drive to the system board.

NOTE: Adhere the tape to secure the solid-state drive thermal bracket to the system board, if applicable.

Next steps

1. Install the base cover.

2. Follow the procedure in After working inside your computer.

Removing the M.2 2280 solid-state drive from the SSD1 slot

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

About this task

Depending on the configuration ordered, your computer may support an M.2 2230 solid-state drive or an M.2

NOTE:

2280 solid-state drive in the SSD1 slot.

NOTE: This procedure applies only to computers shipped with an M.2 2280 solid-state drive installed in the SSD1 slot.

The following image indicates the location of the M.2 2280 solid-state drive that is installed in the SSD1 slot and provides a visual representation of the removal procedure.

Removing and installing components

Page 28

Steps

1. Remove the screw (M2x4) that secures the solid-state drive thermal bracket to the system board.

2. Lift the solid-state drive thermal bracket off the system board.

NOTE:

If you are replacing the system board, do not leave the solid-state drive thermal bracket on the system board.

Peel the tape off the system board and lift the solid-state drive thermal bracket.

3. Remove the screw (M2x4) that secures the solid-state drive to the system board.

4. Slide and lift the solid-state drive off the SSD1 slot.

Installing the M.2 2280 solid-state drive in the SSD1 slot

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

NOTE:

Depending on the configuration ordered, your computer may support an M.2 2230 solid-state drive or an M.2

2280 solid-state drive in the SSD1 slot.

NOTE: This procedure applies only to computers shipped with an M.2 2280 solid-state drive installed in the SSD1 slot.

NOTE: To replace an M.2 2280 solid-state drive with an M.2 2230 solid-state drive, you must first re-position the solid-

state mounting bracket (see Re-positioning the solid-state drive mounting bracket on SSD1 slot).

The following image indicates the location of the M.2 2280 solid-state drive that is installed in the SSD1 slot and provides a visual representation of the installation procedure.

Removing and installing components

Page 29

Steps

1. Align the notch on the solid-state drive with the tab on the SSD1 slot.

2. Slide the solid-state drive into the SSD1 slot.

3. Place the solid-state drive thermal-bracket over the solid-state drive.

4. Align the screw hole on the solid-state drive with the screw hole on the system board.

5. Replace the screw (M2x4) that secures the solid-state drive and the solid-state drive to the system board.

6. Align the screw hole on the solid-state drive thermal-bracket with the screw hole on the system board.

7. Replace the screw (M2x4) that secures the solid-state drive thermal-bracket and the solid-state drive to the system board.

NOTE: Adhere the tape to secure the solid-state drive thermal bracket to the system board, if applicable.

Next steps

1. Install the base cover.

2. Follow the procedure in After working inside your computer.

Re-positioning the solid-state drive mounting bracket on SSD1 slot

About this task

The following image provides a visual representation of the procedure to install the solid-state drive mounting bracket when replacing an M.2 2230 solid-state drive with an M.2 2280 solid-state drive in SSD1 slot.

Removing and installing components

Page 30

The following image provides a visual representation of the procedure to install the solid-state drive mounting bracket when replacing an M.2 2280 solid-state drive with an M.2 2230 solid-state drive in SSD1 slot.

Steps

1. Slide and remove the solid-state drive mounting bracket from the mounting bracket slot on the palm-rest and keyboard assembly.

2. Rotate the solid-state drive mounting bracket.

3. Slide the solid-state mounting bracket into the mounting slot on the palm-rest and keyboard assembly.

4. Install the M.2 2230 solid-state drive or the M.2 2280 solid-state drive, whichever applicable.

Solid-state drive in SSD2 slot

Removing the M.2 2230 solid-state drive from the SSD2 slot

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

About this task

Depending on the configuration ordered, your computer may support an M.2 2230 solid-state drive or an M.2

NOTE:

2280 solid-state drive in the SSD2 slot.

NOTE: This procedure applies only to computers shipped with an M.2 2230 solid-state drive installed in the SSD2 slot.

The following image indicates the location of the M.2 2230 solid-state drive that is installed in the SSD2 slot and provides a visual representation of the removal procedure.

Removing and installing components

Page 31

Steps

1. Remove the screw (M2x4) that secures the solid-state drive thermal bracket to the system board.

2. Lift the solid-state drive thermal bracket off the system board.

NOTE:

If you are replacing the system board, do not leave the solid-state drive thermal bracket on the system board.

Peel the tape off the system board and lift the solid-state drive thermal bracket.

3. Remove the screw (M2x4) that secures the solid-state drive to the system board.

4. Slide and lift the solid-state drive off the SSD2 slot.

Installing the M.2 2230 solid-state drive in the SSD2 slot

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

NOTE:

Depending on the configuration ordered, your computer may support an M.2 2230 solid-state drive or an M.2

2280 solid-state drive in the SSD2 slot.

NOTE: This procedure applies only to computers shipped with an M.2 2230 solid-state drive installed in the SSD2 slot.

NOTE: To replace an M.2 2230 solid-state drive with an M.2 2280 solid-state drive, you must first re-position the solid-

state mounting bracket (see Re-positioning the solid-state drive mounting bracket on SSD2 slot).

The following image indicates the location of the M.2 2230 solid-state drive that is installed in the SSD2 slot and provides a visual representation of the installation procedure.

Removing and installing components

Page 32

Steps

1. Align the notch on the solid-state drive with the tab on the SSD2 slot.

2. Slide the solid-state drive into the SSD2 slot.

3. Place the solid-state drive thermal-bracket over the solid-state drive.

4. Align the screw hole on the solid-state drive with the screw hole on the system board.

5. Replace the screw (M2x4) that secures the solid-state drive and the solid-state drive to the system board.

6. Align the screw hole on the solid-state drive thermal-bracket with the screw hole on the system board.

7. Replace the screw (M2x4) that secures the solid-state drive thermal-bracket and the solid-state drive to the system board.

NOTE: Adhere the tape to secure the solid-state drive thermal bracket to the system board, if applicable.

Next steps

1. Install the base cover.

2. Follow the procedure in After working inside your computer.

Removing the M.2 2280 solid-state drive from the SSD2 slot

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

About this task

Depending on the configuration ordered, your computer may support an M.2 2230 solid-state drive or an M.2

NOTE:

2280 solid-state drive in the SSD2 slot.

NOTE: This procedure applies only to computers shipped with an M.2 2280 solid-state drive installed in the SSD2 slot.

The following image indicates the location of the M.2 2280 solid-state drive that is installed in the SSD2 slot and provides a visual representation of the removal procedure.

Removing and installing components

Page 33

Steps

1. Remove the screw (M2x4) that secures the solid-state drive thermal bracket to the system board.

2. Lift the solid-state drive thermal bracket off the system board.

NOTE:

If you are replacing the system board, do not leave the solid-state drive thermal bracket on the system board.

Peel the tape off the system board and lift the solid-state drive thermal bracket.

3. Remove the screw (M2x4) that secures the solid-state drive to the system board.

4. Slide and lift the solid-state drive off the SSD2 slot.

Installing the M.2 2280 solid-state drive in the SSD2 slot

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

NOTE: This procedure applies only to computers shipped with an M.2 2280 solid-state drive installed in the SSD2 slot.

The following image indicates the location of the M.2 2280 solid-state drive that is installed in the SSD2 slot and provides a visual representation of the installation procedure.

Removing and installing components

Page 34

Steps

1. Align the notch on the solid-state drive with the tab on the SSD2 slot.

2. Slide the solid-state drive into the SSD2 slot.

3. Place the solid-state drive thermal-bracket over the solid-state drive.

4. Align the screw hole on the solid-state drive with the screw hole on the system board.

5. Replace the screw (M2x4) that secures the solid-state drive and the solid-state drive to the system board.

6. Align the screw hole on the solid-state drive thermal-bracket with the screw hole on the system board.

7. Replace the screw (M2x4) that secures the solid-state drive thermal-bracket and the solid-state drive to the system board.

NOTE: Adhere the tape to secure the solid-state drive thermal bracket to the system board, if applicable.

Next steps

1. Install the base cover.

2. Follow the procedure in After working inside your computer.

Re-positioning the solid-state drive mounting bracket on SSD2 slot

About this task

Removing and installing components

Page 35

Steps

1. Slide and remove the solid-state drive mounting bracket from the mounting bracket slot on the palm-rest and keyboard assembly.

2. Rotate the solid-state drive mounting bracket.

3. Slide the solid-state mounting bracket into the mounting slot on the palm-rest and keyboard assembly.

4. Install the M.2 2230 solid-state drive or the M.2 2280 solid-state drive, whichever applicable.

Hard drive

Removing the hard drive

Prerequisites

NOTE: This procedure applies only to computers shipped with a 3-cell, 56 WHr battery.

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

About this task

The following image indicates the location of the hard drive and provides a visual representation of the removal procedure.

Removing and installing components

Page 36

Steps

1. Disconnect the hard-drive cable from the system board.

2. Remove the three screws (M2x4) that secure the hard-drive assembly to the palm-rest and keyboard assembly.

3. Lift the hard-drive assembly off the palm-rest and keyboard assembly.

4. Disconnect the interposer from the hard-drive assembly.

5. Remove the four screws (M3x3) that secure the hard-drive bracket to the hard drive.

Installing the hard drive

Prerequisites

NOTE: This procedure applies only to computers shipped with a 3-cell, 56 WHr battery.

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following image indicates the location of the hard drive and provides a visual representation of the installation procedure.

Removing and installing components

Page 37

Steps

1. Align the screw holes on the hard-drive bracket with the screw holes on the hard drive.

2. Replace the four screws (M3x3) that secure the hard-drive bracket to the hard drive.

3. Connect the interposer to the hard drive.

4. Align the screw holes on the hard-drive assembly with the screw holes on the palm-rest and keyboard assembly.

5. Replace the three screws (M2x4) that secure the hard-drive assembly to the palm-rest and keyboard assembly.

6. Connect the hard-drive cable to the system board.

Next steps

1. Install the base cover.

2. Follow the procedure in After working inside your computer.

Removing and installing components

Page 38

Speakers

Removing the speakers

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

About this task

The following image indicates the location of the speakers and provides a visual representation of the removal procedure.

Steps

1. Disconnect the speaker cable from the system board.

2. Note the speaker-cable routing, and remove the speaker cable from the routing guides on the palm-rest and keyboard assembly.

3. Lift the speakers, along with the cables, off the palm-rest and keyboard assembly.

Installing the speakers

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following image indicates the location of the speakers and provides a visual representation of the installation procedure.

Removing and installing components

Page 39

Steps

1. Using the alignment posts and rubber grommets, place the speakers on the slots on the palm-rest and keyboard assembly.

2. Route the speaker cable through the routing guides on the palm-rest and keyboard assembly.

3. Connect the speaker cable to the system board.

Next steps

1. Install the base cover.

2. Follow the procedure in After working inside your computer.

Rear cover

Removing the rear cover

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

About this task

The following image indicates the location of the rear cover and provides a visual representation of the removal procedure.

Removing and installing components

Page 40

Steps

1. Remove the two screws (M1.6x4) that secure the rear cover to the palm-rest and keyboard assembly.

2. Remove the three screws (M2x4) that secure the rear cover to the system board.

3. Push the rear cover away from the system board and lift it off the palm-rest and keyboard assembly.

Installing the rear cover

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following image indicates the location of the rear cover and provides a visual representation of the installation procedure.

Removing and installing components

Page 41

Steps

1. Slide the rear cover toward the system board.

2. Align the screw holes on the rear cover with the screw holes on the palm-rest and keyboard assembly.

3. Replace the two screws (M1.6x4) that secure the rear cover to the palm-rest and keyboard assembly.

4. Replace three screws (M2x4) that secure the rear cover to the system board.

Next steps

1. Install the base cover.

2. Follow the procedure in After working inside your computer.

Rear-cover bracket

Removing the rear-cover bracket

Prerequisites

1. Follow the procedure in Before working inside your computer.

Removing and installing components

Page 42

2. Remove the base cover.

3. Remove the rear cover.

About this task

The following image indicates the location of the rear-cover bracket and provides a visual representation of the removal procedure.

Steps

1. Remove the four screws (M2x5) that secure the rear-cover bracket to the system board.

2. Lift the rear-cover bracket off the system board.

Installing the rear-cover bracket

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

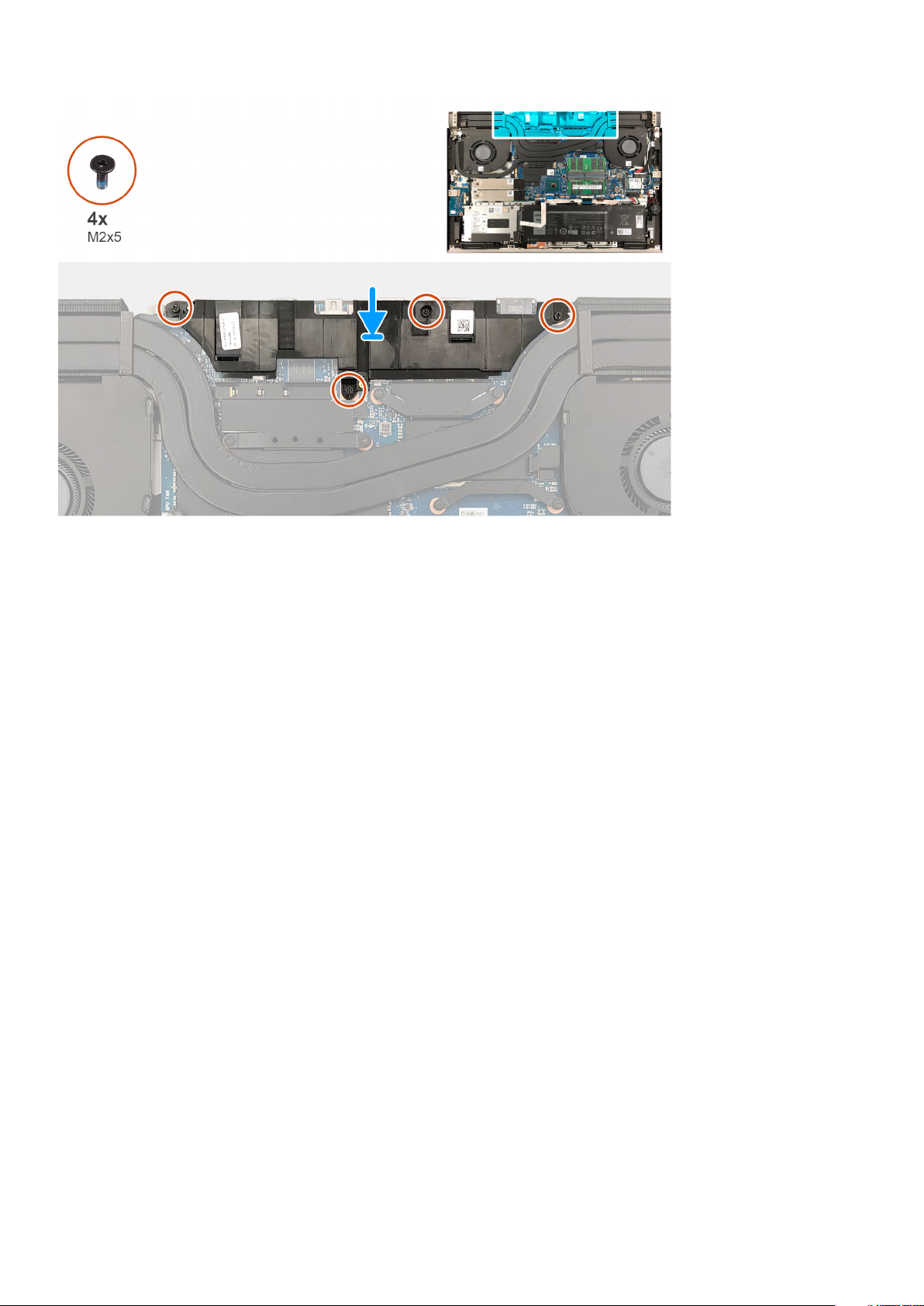

The following image indicates the location of the rear-cover bracket and provides a visual representation of the installation procedure.

Removing and installing components

Page 43

Steps

1. Align the screw holes on the rear-cover bracket with the screw holes on the system board.

2. Replace the four screws (M2x5) that secure the rear-cover bracket to the system board.

Next steps

1. Install the rear cover.

2. Install the base cover.

3. Follow the procedure in After working inside your computer.

Processor fan

Removing the processor fan

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

About this task

The following image indicates the location of the processor fan and provides a visual representation of the removal procedure.

Removing and installing components

Page 44

Steps

1. Remove the three screws (M2x4) that secure the processor fan to the system board and the palm-rest and keyboard assembly.

2. Disconnect the processor-fan cable from the system board.

3. Lift the processor fan off the palm-rest and keyboard assembly.

Installing the processor fan

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following image indicates the location of the processor fan and provides a visual representation of the installation procedure.

Removing and installing components

Page 45

Steps

1. Align the screw holes on the processor fan with the screw holes on the system board and the palm-rest and keyboard assembly.

2. Connect the processor-fan cable to the system board.

3. Replace the three screws (M2x4) that secure the processor fan to the system board and the palm-rest and keyboard assembly.

Next steps

1. Install the base cover.

2. Follow the procedure in After working inside your computer.

Graphics-card fan

Removing the graphics-card fan

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

About this task

The following image indicates the location of the graphics-card fan and provides a visual representation of the removal procedure.

Removing and installing components

Page 46

Steps

1. Remove the three screws (M2x4) that secure the graphics-card fan to the system board and the palm-rest and keyboard assembly.

2. Disconnect the graphics-card fan cable from the system board.

3. Lift the graphics-card fan off the palm-rest and keyboard assembly.

Installing the graphics-card fan

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following image indicates the location of the graphics-card fan and provides a visual representation of the installation procedure.

Removing and installing components

Page 47

Steps

1. Align the screw holes on the graphics-card fan with the screw holes on the system board and the palm-rest and keyboard assembly.

2. Replace the three screws (M2x4) that secure the graphics-card fan to the system board and the palm-rest and keyboard assembly.

3. Connect the graphics-card fan cable to the system board.

Next steps

1. Install the base cover.

2. Follow the procedure in After working inside your computer.

Heat sink

Removing the heat sink

Prerequisites

1. Follow the procedure in Before working inside your computer.

CAUTION:

your skin can reduce the heat transfer capability of the thermal grease.

CAUTION: The heat sink may become hot during normal operation. Allow sufficient time for the heat sink to cool

before you touch it.

2. Remove the base cover.

3. Remove the rear cover.

4. Remove the rear-cover bracket.

For maximum cooling of the processor, do not touch the heat transfer areas on the heat sink. The oils in

About this task

The following image indicates the location of the heat sink and provides a visual representation of the removal procedure.

Removing and installing components

Page 48

Steps

1. In reverse sequential order (as indicated by the numbers on the heat sink), loosen the eight captive screws that secure the heat sink to the system board.

2. Lift the heat sink off the system board.

Installing the heat sink

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

CAUTION: Incorrect alignment of the heat sink will damage the system board and the processor.

NOTE: If either the system board or the heat sink is replaced, use the thermal pad or thermal paste provided in the kit to

ensure that there is thermal conductivity.

About this task

The following image indicates the location of the heat sink and provides a visual representation of the installation procedure.

Removing and installing components

Page 49

Steps

1. Align the screw holes on the heat sink with the screw holes on the system board.

2. In sequential order (as indicated by the numbers on the heat sink), tighten the eight captive screws that secure the heat sink to the system board.

Next steps

1. Install the rear-cover bracket.

2. Install the rear cover.

3. Install the base cover.

4. Follow the procedure in After working inside your computer.

I/O board

Removing the I/O board

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

3. Remove the hard drive.

About this task

The following image indicates the location of the I/O board and provides a visual representation of the removal procedure.

Removing and installing components

Page 50

Steps

1. Open the latch and disconnect the fingerprint-reader cable from the I/O board.

2. Open the latch and disconnect the I/O cable from the I/O board.

3. Remove the two screws (M2x4) that secure the I/O board to the palm-rest and keyboard assembly.

4. Lift the I/O board off the palm-rest and keyboard assembly.

Installing the I/O board

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following image indicates the location of the I/O board and provides a visual representation of the installation procedure.

Removing and installing components

Page 51

Steps

1. Align the screw hole on the I/O board with the screw hole on the palm-rest and keyboard assembly.

2. Replace the two screws (M2x4) that secure the I/O board to the palm-rest and keyboard assembly.

3. Connect the I/O-board cable to the I/O board and close the latch to secure the cable.

4. Connect the fingerprint-reader cable to the I/O-board and close the latch to secure the cable.

Next steps

1. Install the hard drive.

2. Install the base cover.

3. Follow the procedure in After working inside your computer.

G key

Removing the G key

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

3. Remove the rear cover.

4. Remove the rear-cover bracket.

5. Remove the processor fan.

6. Remove the heat sink.

7. Remove the power-adapter port.

About this task

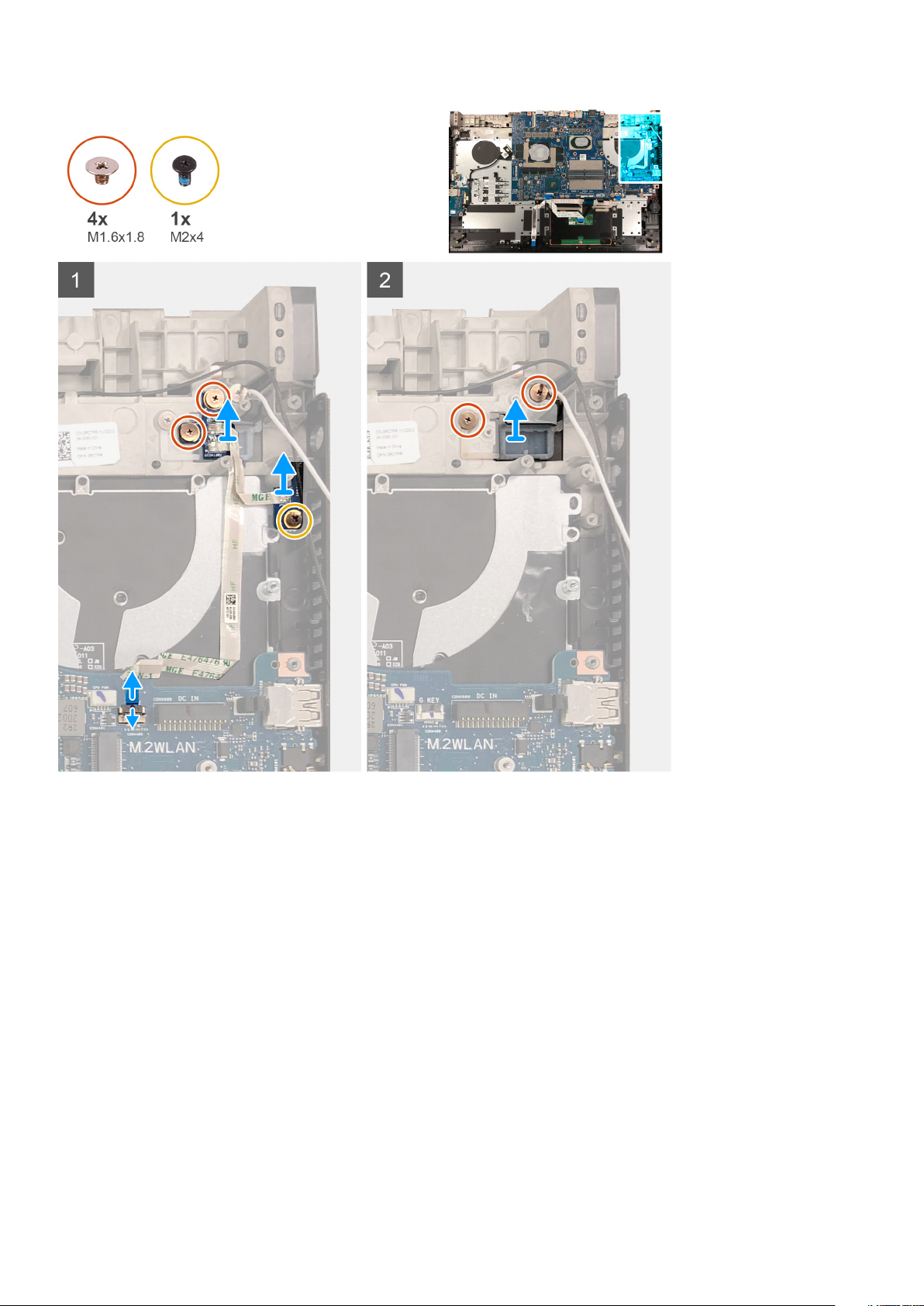

The following image indicates the location of the G key and provides a visual representation of the removal procedure.

Removing and installing components

Page 52

Steps

1. Remove the two screws (M1.6x1.8) that secure the G-key board to the palm-rest and keyboard assembly.

2. Remove the screw (M2x4) that secures the G-key board to the palm-rest and keyboard assembly.

3. Open the latch and disconnect the G-key cable from the system board.

4. Lift the G-key board off the palm-rest and keyboard assembly.

5. Remove the two screws (M1.6x1.8) that secures the G key to the palm-rest and keyboard assembly.

6. Lift the G key off the palm-rest and keyboard assembly.

Installing the G key

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

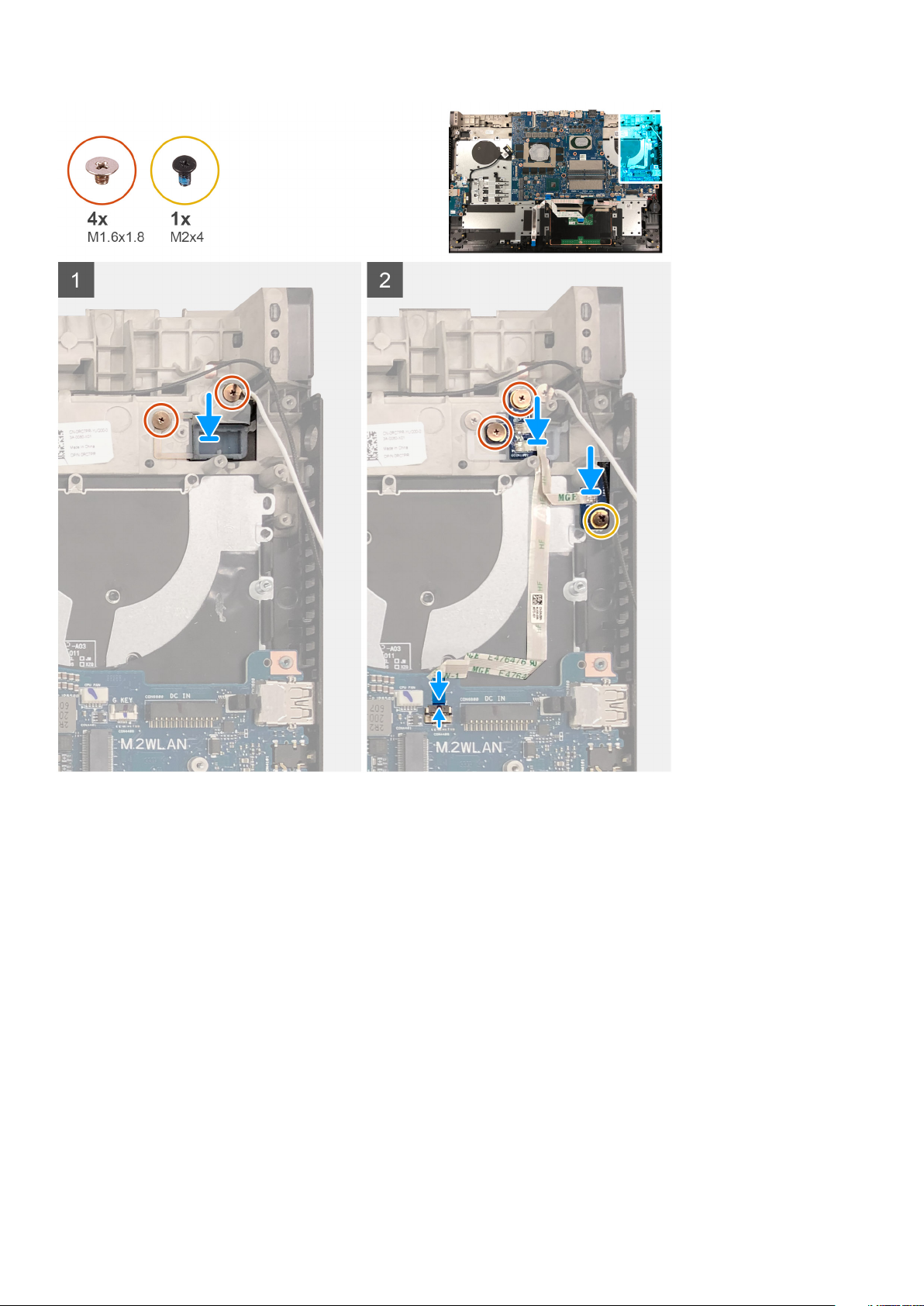

The following image indicates the location of the G key and provides a visual representation of the installation procedure.

Removing and installing components

Page 53

Steps

1. Place the G key into the slot on the palm-rest and keyboard assembly.

2. Align the screw holes on the G key with the screw holes on the palm-rest and keyboard assembly.

3. Replace the two screws (M1.6x1.8) that secures the G key to the palm-rest and keyboard assembly.

4. Align the screw holes on the G-key board with the screw holes on the palm-rest and keyboard assembly.

5. Replace the screw (M2x4) that secures the G-key board to the palm-rest and keyboard assembly.

6. Align the screw hole on the G-key board with the screw hole on the palm-rest and keyboard assembly.

7. Replace the two screws (M1.6x1.8) that secure the G-key board to the palm-rest and keyboard assembly.

8. Connect the G-key board cable to the system board and close the latch to secure the cable.

Next steps

1. Install the power-adapter port.

2. Install the heat sink.

3. Install the processor fan.

4. Install the rear-cover bracket.

5. Install the rear cover.

6. Install the base cover.

7. Follow the procedure in After working inside your computer.

Removing and installing components

Page 54

Display assembly

Removing the display assembly

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

3. Remove the rear cover.

4. Remove the rear-cover bracket.

About this task

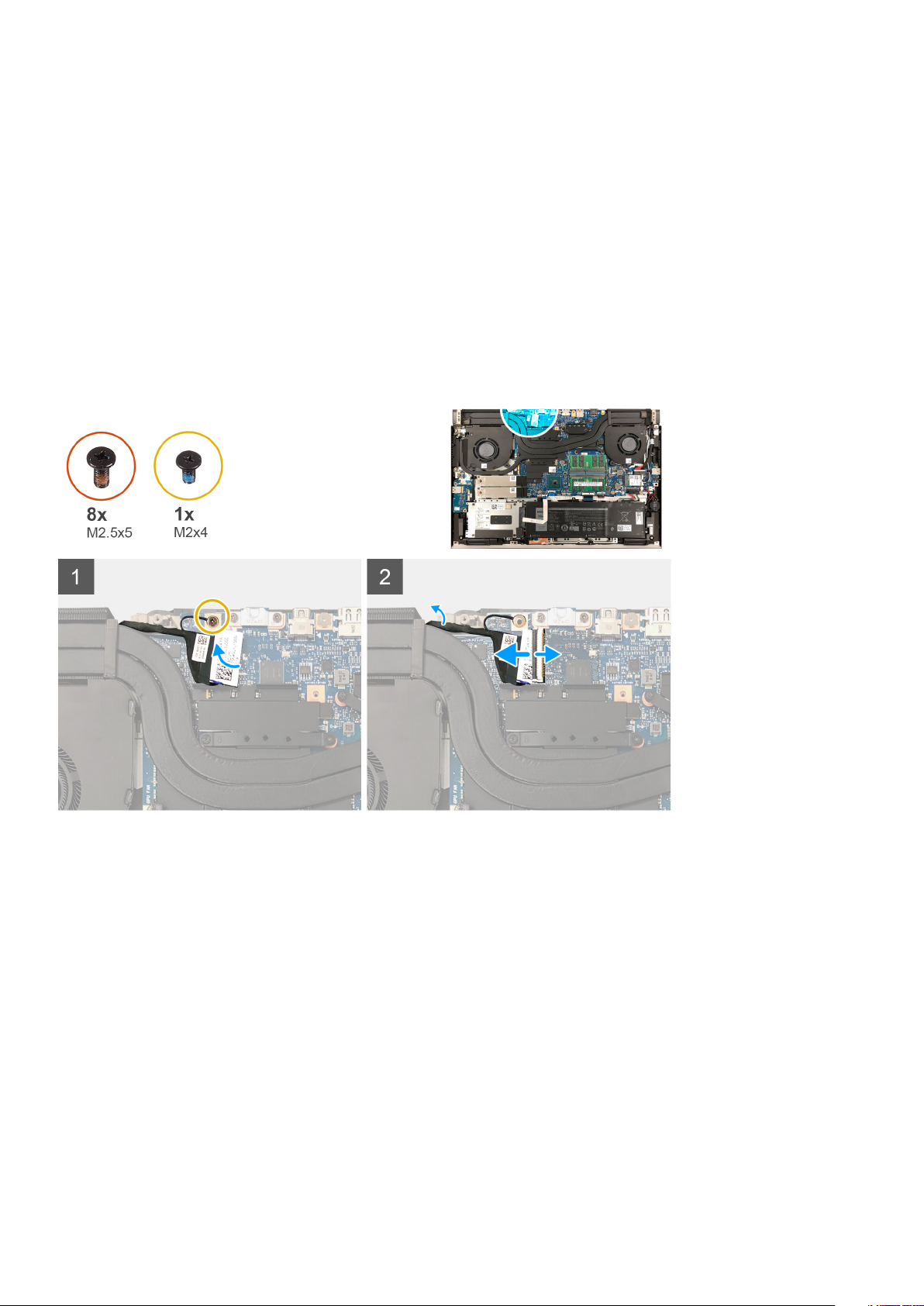

The following images indicate the location of the display assembly and provide a visual representation of the removal procedure.

54 Removing and installing components

Page 55

Steps

1. Peel the adhesive off the display cable.

2. Remove the screw (M2x4) that secures the display cable to the system board.

3. Open the latch and disconnect the display cable from the system board.

4. Flip the computer over.

5. Remove the eight screws (M2.5x5) that secure the display-assembly hinges to the palm-rest and keyboard assembly.

6. Lift the display assembly from the palm-rest and keyboard assembly.

Installing the display assembly

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following images indicate the location of the display assembly and provide a visual representation of the installation procedure.

Removing and installing components

Page 56

56 Removing and installing components

Page 57

Steps

1. Align the tabs on the hinges with the slots on the palm-rest and keyboard assembly and place the display assembly on the palm-rest and keyboard assembly.

2. Align the screw holes on the palm-rest and keyboard assembly with the screw holes on the right and the left display-assembly hinges.

3. Replace eight screws (M2.5x5) that secure the display-assembly hinges to the palm-rest and keyboard assembly.

4. Connect the display cable to the system board and close the latch to secure the connection.

5. Adhere the tape on the display cable to secure the connection.

6. Replace the screw (M2x4) that secures the display cable to the system board.

Next steps

1. Install the rear-cover bracket.

2. Install the rear cover.

3. Install the base cover.

4. Follow the procedure in After working inside your computer.

Power button with fingerprint reader

Installing the power-button board with fingerprint reader

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following image indicates the location of the power button with fingerprint reader and provides a visual representation of the installation procedure.

Removing and installing components

Page 58

Steps

1. Align the screw hole on the power button with fingerprint reader with the screw hole on the palm-rest and keyboard assembly.

2. Replace the screw (M1.6x1.8) that secures the power button with fingerprint reader to the palm-rest and keyboard assembly.

NOTE: Apply sufficient torque when tightening the screw (M2x2.5) to avoid damaging the screw thread.

3. Connect the power button with fingerprint reader cable to the power button with fingerprint reader board and close the latch to secure the cable.

4. Connect the power button with fingerprint reader board cable to the I/O board and close the latch to secure the cable.

5. Replace the two screws (M1.6x1.8) that secure the power button with fingerprint reader bracket to the palm-rest and keyboard assembly.

Next steps

1. Install the system board.

2. Install the graphics-card fan.

3. Install the rear-cover bracket.

4. Install the rear cover.

5. Install the base cover.

6. Follow the procedure in After working inside your computer.

Removing and installing components

Page 59

Removing the power button with fingerprint reader

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

3. Remove the rear cover.

4. Remove the rear-cover bracket.

5. Remove the graphics-card fan.

6. Remove the system board.

NOTE: The system board can be removed and installed along with the heat sink. This simplifies the removal and

installation procedure and prevents damage to the thermal bond between the system board and heat sink.

About this task

The following image indicates the location of the power button with fingerprint reader and provides a visual representation of the removal procedure.

Steps

1. Lift the power button with fingerprint reader off the palm-rest and keyboard assembly.

2. Remove the two screws (M1.6x1.8) that secure the power-button bracket to the palm-rest and keyboard assembly.

Removing and installing components

Page 60

3. Lift the power-button bracket off the palm-rest and keyboard assembly.

4. Remove the screw (M1.6x1.8) that secures the power button with fingerprint reader to the palm-rest and keyboard assembly.

5. Lift the power button with fingerprint reader off the palm-rest and keyboard assembly.

6. Open the latch and disconnect the power button with fingerprint reader board from the power button with fingerprint reader board.

7. Open the latch and disconnect the power button with fingerprint reader board cable from the I/O board.

8. Lift the power button with fingerprint reader off the palm-rest and keyboard assembly.

Power-adapter port

Removing the power-adapter port

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

About this task

The following image indicates the location of the power-adapter port and provides a visual representation of the removal procedure.

Steps

1. Remove the three screws (M2X4) that secure the power-adapter port bracket to the palm-rest and keyboard assembly.

2. Lift the power-adapter port bracket off the palm-rest and keyboard assembly.

Removing and installing components

Page 61

3. Disconnect the power-adapter port cable from the system board.

4. Lift the power-adapter port, along with its cable, off the palm-rest and keyboard assembly.

Installing the power-adapter port

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following image indicates the location of the power-adapter port and provides a visual representation of the installation procedure.

Steps

1. Place the power-adapter port into the slot on the palm-rest and keyboard assembly.

2. Connect the power-adapter port cable to the system board.

3. Align the screw holes on the power-adapter bracket with the screw holes on the palm-rest and keyboard assembly.

4. Replace the three screws (M2x4) that secure the power-adapter port bracket to the palm-rest and keyboard assembly.

Next steps

1. Install the base cover.

2. Follow the procedure in After working inside your computer.

Removing and installing components

Page 62

Light bar

Removing the light bar

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

3. Remove the 3-cell battery or the 6-cell battery.

About this task

The following image indicates the location of the light bar and provides a visual representation of the removal procedure.

Steps

1. Remove the three screws (M2x4) that secure the touchpad bracket to the palm-rest and keyboard assembly.

2. Lift the touchpad bracket off the palm-rest and keyboard assembly.

3. Lift the light-bar cable-bracket off the system board.

4. Open the latch and disconnect the light-bar cable from the system board.

Removing and installing components

Page 63

5. Remove the three screws (M2x4) that secure the light bar to the palm-rest and keyboard assembly.

6. Lift the light bar, along with its cable, off the palm-rest and keyboard assembly.

Installing the light bar

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

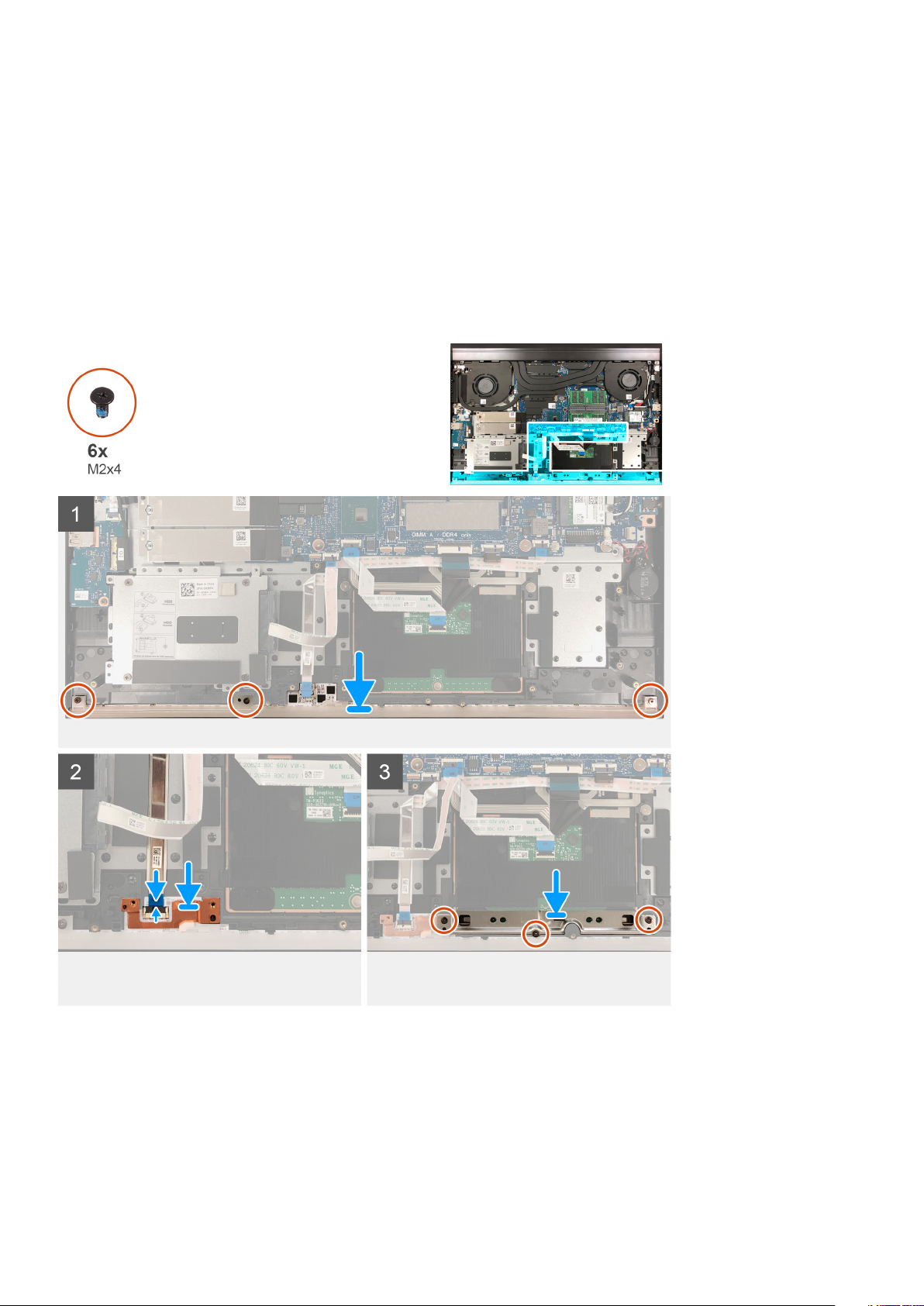

The following image indicates the location of the light bar and provides a visual representation of the installation procedure.

Steps

1. Align the light bar with the slots on the palm-rest and keyboard assembly.

2. Connect the light-bar cable to the system board and close the latch to secure the cable.

3. Using the alignment posts, install the light-bar cable-bracket to the system board.

4. Align the screw holes on the light bar with the screw holes on the palm-rest and keyboard assembly.

5. Replace the three screws (M2x4) that secure the light bar to the palm-rest and keyboard assembly.

6. Align the screw holes on the touchpad bracket with the screw holes on the palm-rest and keyboard assembly.

7. Replace the three screws (M2x4) that secure the touchpad bracket to the palm-rest and keyboard assembly.

Removing and installing components

Page 64

Next steps

1. Install the 3-cell battery or the 6-cell battery.

2. Install the base cover.

3. Follow the procedure in After working inside your computer.

System board

Removing the system board

Prerequisites

1. Follow the procedure in Before working inside your computer.

CAUTION: Disconnecting the coin-cell battery resets the BIOS setup program’s settings to default. It is

recommended that you note the BIOS setup program’s settings before removing the coin-cell battery.

NOTE: The Service Tag of your computer is stored in the system board. Enter the Service Tag in the BIOS setup

program after you replace the system board.

NOTE: Replacing the system board removes any changes that you have made to the BIOS using the BIOS setup

program. Make the appropriate changes again after you replace the system board.

NOTE: Before disconnecting the cables from the system board, note the location of the connectors so that you can

reconnect the cables correctly after you replace the system board.

2. Remove the base cover.

3. Remove the 3-cell battery or the 6-cell battery.

4. Remove the M.2 2230 solid-state drive or the M.2 2280 solid-state drive from the SSD1 slot.

5. Remove the M.2 2230 solid-state drive or the M.2 2280 solid-state drive from the SSD2 slot, if installed.

6. Remove the memory modules.

7. Remove the hard drive.

8. Remove the wireless card.

9. Remove the rear cover.

10. Remove the rear-cover bracket.

11. Remove the processor fan.

12. Remove the graphics-card fan.

13. Remove the heat sink.

14. Remove the power-adapter port.

About this task

The following image indicates the cables on your system board.

Removing and installing components

Page 65

Figure 1. System-board cables

Display cable 2. I/O-board cable

3. Touchpad cable 4. Keyboard cable

5. Keyboard-backlight cable 6. Light-bar cable

7. Speaker cable 8. Coin-cell battery cable

9. G-key cable

The following images indicate the location of the system board and provide a visual representation of the removal procedure.

Removing and installing components

Page 66

66 Removing and installing components

Page 67

Steps

1. Remove the two screws (M2x4) that secure the USB Type-C bracket to the system board.

2. Lift the USB Type-C bracket off the system board.

3. Remove the screw (M2x4) that secure the display cable to the system board.

4. Open the latch and disconnect the display cable from the system board.

5. Open the latch and disconnect the I/O-board cable from the system board.

6. Open the latch and disconnect the touchpad cable from the system board.

7. Open the latch and disconnect the keyboard cable from the system board.

8. Open the latch and disconnect the keyboard-backlight cable from the system board.

9. Open the latch and disconnect the light-bar cable from the system board.

10. Disconnect the speaker cable from the system board.

11. Disconnect the coin-cell battery cable from the system board.

12. Open the latch and disconnect the G-key cable from the system board.

13. Remove the five screws (M2x2) that secure the system board to the palm-rest and keyboard assembly.

14. Lift the system board off the palm-rest and keyboard assembly.

Installing the system board

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

The Service Tag of your computer is stored in the system board. Enter the Service Tag in the BIOS setup

NOTE:

program after you replace the system board.

NOTE: Replacing the system board removes any changes that you have made to the BIOS using the BIOS setup

program. Make the appropriate changes again after you replace the system board.

About this task

The following image indicates the cables on your system board.

Removing and installing components

Page 68

Figure 2. System-board cables

Display cable 2. I/O-board cable

3. Touchpad cable 4. Keyboard cable

5. Keyboard-backlight cable 6. Light-bar cable

7. Speaker cable 8. Coin-cell battery cable

9. G-key cable

The following images indicate the location of the system board and provide a visual representation of the installation procedure.

Removing and installing components

Page 69

Removing and installing components 69

Page 70

Steps

1. Align the screw holes on the system board with the screw holes on the palm-rest and keyboard assembly.

2. Replace the five screws (M2x2) that secure the system board to the palm-rest and keyboard assembly.

3. Connect the G-key cable to the system board and close the latch.

4. Connect the coin-cell battery cable to the system board.

5. Connect the speaker cable to the system board.

6. Connect the light-bar cable to the system board and close the latch.

7. Connect the keyboard-back light cable to the system board and close the latch.

8. Connect the keyboard cable to the system board and close the latch.

9. Connect the touchpad cable to the system board and close the latch.

10. Connect the I/O-board cable to the system board and close the latch.

11. Align the screw hole on the display-cable with the screw hole on the system board.

12. Replace the screw (M2.5x5) that secures the display-cable to the system board.

13. Connect the display cable to the system board and close the latch.

14. Align the screw holes on the USB Type-C bracket with the screw holes on the system board.

15. Replace the two screws (M2x4) that secure the USB Type-C bracket to the system board.

Next steps

1. Install the power-adapter port.

2. Install the heat sink.

3. Install the graphics-card fan.

4. Install the processor fan.

5. Install the rear-cover bracket.

6. Install the rear cover.

7. Install the wireless card.

8. Install the hard drive.

9. Install the memory modules.

10. Install the M.2 2230 solid-state drive or the M.2 2280 solid-state drive in the SSD1 slot.

11. Install the M.2 2230 solid-state drive or the M.2 2280 solid-state drive in the SSD2 slot.

12. Install the 3-cell battery or the 6-cell battery.

13. Install the base cover.

14. Follow the procedure in After working inside your computer.

Touchpad

Removing the touchpad

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

3. Remove the 3-cell battery or the 6-cell battery.

About this task

The following image indicates the location of the touchpad and provides a visual representation of the removal procedure.

Removing and installing components

Page 71

Steps

1. Remove the three screws (M2x4) that secure the touchpad bracket to the palm-rest and keyboard assembly.

2. Lift the touchpad bracket off the palm-rest and keyboard assembly.

3. Open the latch and disconnect the touchpad cable from the system board.

4. Remove the two screws (M2x2) that secure the touchpad to the palm-rest and keyboard assembly.

5. Slide and lift the touchpad at an angle, off the palm-rest and keyboard assembly.

Installing the touchpad

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following image indicates the location of the touchpad and provides a visual representation of the installation procedure.

Removing and installing components

Page 72

Steps

1. Slide and insert the touchpad into the slot on the palm-rest and keyboard assembly.

NOTE: Slide the touchpad under the clips so that it is seated firmly in place.

2. Align the screw holes on the touchpad with the screw holes on the palm-rest and keyboard assembly.

3. Replace the two screws (M2x2) that secure the touchpad to the palm-rest and keyboard assembly.

4. Connect the touchpad cable to the system board and close the latch to secure the touchpad cable.

5. Connect the touchpad cable to the touchpad board and close the latch to secure the cable.

6. Align the screw holes on the touchpad bracket with the screw holes on the palm-rest and keyboard assembly.

7. Replace the three screws (M2x4) that secure the touchpad and the touchpad bracket to the palm-rest and keyboard assembly.

Next steps

1. Install the 3-cell battery or the 6-cell battery.

2. Install the base cover.

3. Follow the procedure in After working inside your computer.

Removing and installing components

Page 73

Palm-rest and keyboard assembly

Removing the palm-rest and keyboard assembly

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

3. Remove the 3-cell battery or the 6-cell battery.

4. Remove the coin-cell battery.

5. Remove the rear cover.

6. Remove the rear-cover bracket.

7. Remove the display assembly.

8. Remove the wireless card.

9. Remove the M.2 2230 solid-state drive or the M.2 2280 solid-state drive from the SSD1 slot.

10. Remove the M.2 2230 solid-state drive or the M.2 2280 solid-state drive from the SSD2 slot, if installed.

11. Remove the hard drive.

12. Remove the processor fan.

13. Remove the graphics-card fan.

14. Remove the power-adapter port.

15. Remove the power button with fingerprint reader.

16. Remove the light bar.

17. Remove the I/O board.

18. Remove the G key.

19. Remove the system board.

NOTE:

The system board can be removed and installed along with the heat sink. This simplifies the removal and

installation procedure and prevents damage to the thermal bond between the system board and heat sink.

20. Remove the speakers.

21. Remove the touchpad.

About this task

After performing the steps in the pre-requisites, you are left with the palm-rest and keyboard assembly.

Removing and installing components

Page 74

Installing the palm-rest and keyboard assembly

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following images indicate the palm-rest and keyboard assembly and provides a visual representation of the installation of the keyboard cable.

Steps

1. Place the palm-rest and keyboard assembly on a clean and flat surface.

2. Fold the keyboard-back light cable along the fold line.

3. Install the touchpad.

4. Install the G key.

5. Install the speakers.

6. Install the system board.

NOTE: The system board can be removed or installed together with the heat sink attached.

74 Removing and installing components

Page 75

Next steps

1. Install the touchpad.

2. Install the G key.

3. Install the speakers.

4. Install the system board.

NOTE: The system board can be removed or installed together with the heat sink attached.

5. Install the I/O board.

6. Install the light bar.

7. Install the power button with fingerprint reader.

8. Install the power-adapter port.

9. Install the graphics-card fan.

10. Install the processor fan.

11. Install the hard drive.

12. Install the M.2 2230 solid-state drive or the M.2 2280 solid-state drive in the SSD1 slot.

13. Install the M.2 2230 solid-state drive or the M.2 2280 solid-state drive in the SSD2 slot.

14. Install the wireless card.

15. Install the display assembly.

16. Install the rear-cover bracket.

17. Install the rear cover.

18. Install the coin-cell battery.

19. Install the 3-cell battery or the 6-cell battery.

20. Install the base cover.

21. Follow the procedure in After working inside your computer.

Removing and installing components

Page 76

Drivers and downloads

When troubleshooting, downloading or installing drivers it is recommended that you read the Dell Knowledge Based article, Drivers and Downloads FAQ SLN128938.

76 Drivers and downloads

Page 77

System setup

CAUTION: Unless you are an expert computer user, do not change the settings in the BIOS Setup program. Certain

changes can make your computer work incorrectly.

NOTE: Before you change BIOS Setup program, it is recommended that you write down the BIOS Setup program screen

information for future reference.

Use the BIOS Setup program for the following purposes:

• Get information about the hardware installed in your computer, such as the amount of RAM and the size of the hard drive.

• Change the system configuration information.

• Set or change a user-selectable option, such as the user password, type of hard drive installed, and enabling or disabling base devices.

BIOS overview

The BIOS manages data flow between the computer's operating system and attached devices such as hard disk, video adapter, keyboard, mouse, and printer.

Entering BIOS setup program

Steps

1. Turn on (or restart) your computer.

2. During POST, when the DELL logo is displayed, watch for the F2 prompt to appear, and then press F2 immediately.

NOTE:

The F2 prompt indicates that the keyboard is initialized. This prompt can appear very quickly, so you must

watch for it, and then press F2. If you press F2 before the F2 prompt, this keystroke is lost. If you wait too long and

the operating system logo appears, continue to wait until you see the desktop. Then, turn off your computer and try

again.

Navigation keys

NOTE:

For most of the System Setup options, changes that you make are recorded but do not take effect until you

restart the system.

Keys Navigation

Up arrow Moves to the previous field.

Down arrow Moves to the next field.

Enter Selects a value in the selected field (if applicable) or follow the link in the field.

Spacebar Expands or collapses a drop-down list, if applicable.

Tab Moves to the next focus area.

Esc Moves to the previous page until you view the main screen. Pressing Esc in the main screen displays a message

that prompts you to save any unsaved changes and restarts the system.

Boot Sequence

Boot Sequence allows you to bypass the System Setup–defined boot device order and boot directly to a specific device (for example: optical drive or hard drive). During the Power-on Self Test (POST), when the Dell logo appears, you can:

System setup 77

Page 78

• Access System Setup by pressing F2 key

• Bring up the one-time boot menu by pressing F12 key

The one-time boot menu displays the devices that you can boot from including the diagnostic option. The boot menu options are:

• Removable Drive (if available)

• STXXXX Drive (if available)

NOTE: XXX denotes the SATA drive number.

• Optical Drive (if available)

• SATA Hard Drive (if available)

• Diagnostics

The boot sequence screen also displays the option to access the System Setup screen.

System setup options

NOTE: Depending on this computer and its installed devices, the items that are listed in this section may or may not be

displayed.

Table 3. System setup options

Overview

Dell G7 7700

BIOS Version Displays the BIOS version number.

Service Tag Displays the Service Tag of the computer.

Asset Tag Displays the Asset Tag of the computer.

Manufacture Date Displays the manufacture date of the computer.

Ownership Date Displays the ownership date of the computer.

Express Service Code Displays the express service code of the computer.

Ownership Tag Displays the ownership tag of the computer.

Signed Firmware Update Displays whether the signed firmware update is enabled.

Default: Enabled

BATTERY

Battery Type Displays the battery type.

Battery Level Displays the battery level.

Battery State Displays the battery state.

Health Displays the battery health.

AC Adapter Displays whether an AC adapter is connected. If connected, the AC adapter type.

PROCESSOR

Processor Type Displays the processor type.

Maximum Clock Speed Displays the maximum processor clock speed.

Minimum Clock Speed Displays the minimum processor clock speed.

Current Clock Speed Displays the current processor clock speed.

Core Count Displays the number of cores on the processor.

Processor ID Displays the processor identification code.

Processor L2 Cache Displays the processor L2 Cache size.

Processor L3 Cache Displays the processor L3 Cache size.

Microcode Version Displays the microcode version.

78 System setup

Page 79

Table 3. System setup options(continued)

Overview

Intel Hyper-Threading Capable Displays whether the processor is Hyper-Threading (HT) capable.

64-Bit Technology Displays whether 64-bit technology is used.

MEMORY

Memory Installed Displays the total computer memory installed.

Memory Available Displays the total computer memory available.

Memory Speed Displays the memory speed.

Memory Channel Mode Displays single or dual channel mode.

Memory Technology Displays the technology that is used for the memory.

DIMM A Size Displays the memory size in DIMM Slot A.

DIMM B Size Displays the memory size in DIMM Slot B.

DEVICES

Panel Type Displays the panel type of the computer.

Video Controller Displays the integrate graphics information of the computer.

Video Memory Displays the video memory information of the computer.

Wi-Fi Device Displays the Wi-Fi device installed in the computer.

Native Resolution Displays the native resolution of the computer.

Video BIOS Version Displays the video BIOS version of the computer.

Audio Controller Displays the audio controller information of the computer.

Bluetooth Device Displays whether a Bluetooth device is installed in the computer.

Primary Hard Drive Displays the primary hard drive in the computer.

LOM MAC Address Displays the MAC address.

Pass Through MAC Address Displays the MAC address of the video pass-through.

Cellular Device Displays the cellular device information.

Slot Displays the information of the device installed.

Table 4. System setup options—Boot Configuration menu

Boot Configuration

Boot Mode

Boot Mode: UEFI only Displays the boot mode of this computer.

Boot Sequence Displays the boot sequence.

Advanced Boot Options

Enable UEFI Network Stack Enables or disables UEFI Network Stack.

Default: ON

UEFI Boot Path Security Enables or disables the system to prompt the user to enter the Admin password

when booting a UEFI boot path from the F12 boot menu.

Default: Always Except Internal HDD

Expert Key Management

Enable Custom Mode Enables or disables the PK, KEK, db, and dbx security key databases to be

manipulated.

Default: OFF

System setup 79

Page 80

Table 4. System setup options—Boot Configuration menu(continued)

Boot Configuration

Custom Mode Key Management Selects the security key database.

By default, PK is selected.

Table 5. System setup options—Integrated Devices menu

Integrated Devices

Date/Time

Date Sets the computer date in MM/DD/YYYY format. Changes to the date take effect

immediately.

Time Sets the computer time in HH/MM/SS 24-hour format. You can switch between 12-

hour and 24-hour clock. Changes to the time take effect immediately.

Thunderbolt Adapter Configuration

Enable Thunderbolt Technology Support Enables or disables Thunderbolt Technology Support.

Default: ON

Enable Thunderbolt Boot Support Enables or disables Thunderbolt Boot Support.

Default: OFF

EnableThunderbolt (and PCIe behind TBT) pre-boot modules

Camera Enables or disables the camera.

Audio Enables or disables all integrated audio controller.

Enables or disables to allow or disallow PCIe devices to be connected through a Thunderbolt adapter during pre-boot.

Default: OFF

By default, Enable Camera is selected.

Default: ON

Table 6. System setup options—Storage menu

Storage

SATA Operation Configures operating mode of the integrated SATA hard drive controller.

Default: RAID On. SATA is configured to support RAID (Intel Rapid Restore Technology).

Enable SMART Reporting Enables or disables Self-Monitoring, Analysis, and Reporting Technology (SMART).

Default: OFF

Drive Information Displays the information of various onboard drives.

Enable MediaCard Enables to switch all media cards On/Off or set the media card to read-only state.

By default, Enable Secure Digital (SD) Card is selected.

Table 7. System setup options—Display menu

Display

Display Brightness

Brightness on battery power Sets the screen brightness when the computer is running on battery power.

Default: 50

Brightness on AC power Sets the screen brightness when the computer is running on AC power.

Default: 0

80 System setup

Page 81

Table 7. System setup options—Display menu(continued)

Display

Touch Screen Enables or disables the touch screen for the OS.

NOTE: The touch screen will always work in the BIOS setup irrespective

of this setting.

Full Screen Logo Enabled or disabled the computer to display full screen logo if the image match

screen resolution.

Default: OFF

Table 8. System setup options—Connection menu

Connection

Network Controller Configuration Enables or disables the network controller.

By default, Integrated NIC is selected.

Wireless Device Enable Enable or disable internal WLAN/Bluetooth devices.

By default, WLAN is selected.

By default, Bluetooth is selected.

Enable UEFI Network Stack

Enable UEFI Network Stack When enabled, UEFI networking protocols are installed and available, allowing pre-OS

and early OS networking features to use any enabled NICs. This may be used without PXE turned on.

Default: ON

Wireless Radio Control

Control WLAN radio Enables to sense the connection of the computer to a wired network and

subsequently disable the selected wireless radios (WLAN and/or WWAN). Upon disconnection from the wired network, the selected wireless radios are re-enabled.

Default: OFF

Table 9. System setup options—Power menu

Power

Battery Configuration Enables the computer to run on battery during power usage hours. Use the below

options to prevent AC power usage between certain times of each day.

By default Adaptive is selected.

Advanced Configuration

Enable Advanced Battery Charge Configuration

Peak Shift Enables the computer to run on battery during peak power usage hours.

Thermal Management Sets cooling fan and processor heat management to adjust system performance,

Enables Advanced Battery Charge Configuration from the beginning of the day to a specified work period. Advanced Battery Charged maximizes battery health while still supporting heavy use during the work day.

Default: OFF

noise, and temperature.

By default, Optimized is selected.

USB Wake Support

Wake on Dell USB-C Dock Enables connecting a Dell USB-C Dock to wake the computer from Standby.

Default: ON

System setup 81

Page 82

Table 9. System setup options—Power menu(continued)

Power

Block Sleep Blocks the computer from entering Sleep (S3) mode in the operating system.

Default: OFF

NOTE: If enabled, the computer will not go to sleep, Intel Rapid Start will

be disabled automatically, and the operating system power option will be blank if it was set to Sleep.

Lid Switch

Enable Lid Switch Enables or disables the lid switch.

Default: ON

Power On Lid Open Enables the computer to power up from the off state whenever the lid is opened.

Default: ON

Intel Speed Shift Technology Enables or disables the Intel Speed Shift Technology support. Setting this option to

enable allows the operating system to select the appropriate processor performance automatically.

Default: ON

Table 10. System setup options—Security menu

Security

TPM 2.0 Security On Select whether or not the Trusted Platform Model (TPM) is visible to the OS.

Default: ON

PPI Bypass for Enable Commands Enables or disables the OS to skip BIOS Physical Presence Interface (PPI) user

prompts when issuing TPM PPI enabled and activate commands.

Default: OFF

PPI Bypass for Disable Commands Enables or disables The OS to skip BIOS PPI user prompts when issuing TPM PPI

Disable and Deactivate commands.

Default: OFF

PPI Bypass for Clear Commands Enables or disables the operating system to skip BIOS Physical Presence Interface

(PPI) user prompts when issuing the Clear command.

Default: OFF

Attestation Enable Enables to control whether the TPM Endorsement Hierarchy is available to the OS.

Disabling this setting restricts the ability to use the TPM for signature operations.

Default: ON

Key Storage Enable Enables to control whether the TPM Endorsement Hierarchy is available to the OS.

Disabling this setting restricts the ability to use the TPM for storing owner data.

Default: ON

SHA-256 Enables or disables the BIOS and the TPM to use the SHA-256 hash algorithm to

extend measurements into the TPM PCRs during BIOS boot.

Default: ON

Clear Enables or disables the computer to clear the PTT owner information, and returns

the PTT to the default state.

Default: OFF

TPM State Enables or disables the TPM. This is the normal operating state for the TPM when

you want to use its complete array of capabilities.

Default: Enabled

82 System setup

Page 83

Table 10. System setup options—Security menu(continued)

Security

Intel Software Guard Extensions

Intel SGX Enables or disables the Intel Software Guard Extensions (SGX) to provide a secured

environment for running code/storing sensitive information.

By default, Software Control is selected.

SMM Security Mitigation

SMM Security Mitigation Enables or disables additional UEFI SMM Security Mitigation protections.

Default: OFF

NOTE: This feature may cause compatibility issues or loss of

functionality with some legacy tools and applications.

Data Wipe on Next Boot

Start Data Wipe When enabled, the BIOS will queue up a data wipe cycle for storage device(s)

connected to the motherboard on the next reboot.

Default: OFF

Absolute

Absolute Enables, disables or permanently disable the BIOS module interface of the optional

Absolute Persistence Module service from Absolute Software.

By default, Enable Absolute is selected.

UEFI Boot Path Security

UEFI Boot Path Security Controls whether the system will prompt the user to enter the admin password (if

set) when booting to a UEFI boot path device from the F12 boot menu.

By default, Always Except Internal HDD is selected.

Table 11. System setup options—Passwords menu

Passwords

Admin Password Sets, changes, or deletes the administrator password (sometimes called the "setup

password"). The administrator password enables several security features.

Password Configuration

Upper Case Letter When enabled, password must contain at least one upper case letter.

Default: OFF

Upper Case Letter When enabled, password must contain at least one lower case letter.

Default: OFF

Digit When enabled, password must contain at least one digit number.

Default: OFF

Special Character When enabled, password must contain at least one special character.

Default: OFF

Minimum Characters Sets the minimum number of characters allowed for passwords.

Default: 04

Password Bypass

Password Bypass When enabled, the system and the hard drive passwords are prompted when the

computer is powered on from the Off state.

By default, Disabled is selected.

System setup 83

Page 84

Table 11. System setup options—Passwords menu(continued)

Passwords

Password Changes

Enable Non-Admin Password Changes When On, users can change the system and the hard drive password without the

need for administrator password.

Default: ON

Admin Setup Lockout

Enable Admin Setup Lockout Enables or disables the user from entering BIOS Setup when an administrator

password is set.

Default: OFF

Master Password Lockout

Enable Master Password Lockout Enables or disables the master password support.

Default: OFF

Table 12. System setup options—Update Recovery menu

Update Recovery

UEFI Capsule Firmware Updates

Enable UEFI Capsule Firmware Updates Controls whether this computer allows BIOS updates via EUFI capsule update

packages.

Default: ON

BIOS Recovery from Hard Drive

BIOS Recovery from Hard Drive Enables the computer to recover from a bad BIOS image, as long as the Boot Block

portion is intact and functioning.

Default: ON

NOTE: BIOS recovery is designed to fix the main BIOS block and cannot

work if the Boot Block is damaged. In addition, this feature cannot work in the event of EC corruption, ME corruption, or a hardware issue. The recovery image must exist on an unencrypted partition on the drive.

BIOS Downgrade

Allow BIOS Downgrade Controls flashing of the system firmware to previous revisions.

Default: ON

SupportAssist OS Recovery

SupportAssist OS Recovery Enables or disables the boot flow for SupportAssist OS Recovery tool in the event of

certain system errors.

Default: ON

BIOSConnect

BIOSConnect Enables or disables cloud Service OS recover if the main operating system fails to

boot with the number of failures equal to or greater than the value specified by the Auto OS Recovery Threshold setup option.

Default: ON

Dell Auto OS Recovery Threshold Controls the automatic boot flow for SupportAssist System Resolution Console and

for Dell operating system Recovery tool.

By default, 2 is selected.

84 System setup

Page 85

Table 13. System setup options—System Management menu

System Management

Service Tag Displays the Service Tag of the computer.

Asset Tag Creates a system Asset Tag that can be used by an IT administrator to uniquely

identify a particular system. Once set in BIOS, the Asset Tag cannot be changed.

AC Behavior

Wake on AC Enables the computer to turn on and go to boot when AC power is supplied to the

computer.

Default: OFF

Wake on LAN/WLAN

Wake on LAN/WLAN Enables or disables the computer to turn on by a special LAN/WLAN signal.

By default, Disabled is selected.

Table 14. System setup options—Keyboard menu

Keyboard

Numlock Enable

Enable Numlock Enables or disables Numlock when the computer boots.

Default: ON

Fn Lock Options

Fn Lock Options Enables or disables the Fn lock option.

Default: ON

Lock Mode

Keyboard Illumination

Keyboard Illumination Configures the operating mode of the keyboard illumination feature.

Keyboard Backlight Timeout on AC

Keyboard Backlight Timeout on AC Configures the timeout value for the keyboard when an AC adapter is connected to

Keyboard Backlight Timeout on Battery

Keyboard Backlight Timeout on Battery Configures the timeout value for the keyboard when the computer is running on

OROM Keyboard Access Enables or disables the option to enter Option ROM configuration screens via

OROM Keyboard Access

Default: Lock Mode Secondary. Lock Mode Secondary = If this option is selected, the F1-F12 keys scan the code for their secondary functions.

By default, Bright is selected.

the computer. The keyboard backlight timeout value is only effect when the backlight is enabled.

By default, 1 minute is selected.

battery. The keyboard backlight timeout value is only effect when the backlight is enabled.

By default, 1 minute is selected.

hotkeys during boot.

By default, Enabled is selected.

Table 15. System setup options—Pre-Boot Behavior menu

Pre-Boot Behavior

Adapter Warnings

System setup 85

Page 86

Table 15. System setup options—Pre-Boot Behavior menu(continued)

Pre-Boot Behavior

Enable Adapter Warnings Enables or disables the computer to display adapter warning messages when

adapters with too little power capacity are detected.

Default: ON

Warnings and Errors

Warnings and Errors Selects an action on encountering a warning or error during boot.

By default, Prompt on Warnings and Errors is selected.

NOTE: Errors deemed critical to the operation of the computer hardware

will always halt the computer.

USB-C Warnings

Enable Dock Warning Messages Enables or disables dock warning messages.

Default: ON

Fastboot

Fastboot Configures the speed of the UEFI boot process.

By default, Thorough is selected.

Extend BIOS POST Time

Extend BIOS POST Time Configures the BIOS POST (Power-On Self-Test) load time.

By default, 0 seconds is selected.

MAC Address Pass-Through

MAC Address Pass-Through Replaces the external NIC MAC address (in a supported dock or dongle) with the

selected MAC address from the computer.

By default, System Unique MAC Address is selected.

Sign of Life

Early Logo Display Displays Logo Sign of Life.

Default: ON

Table 16. System setup options—Virtualization menu

Virtualization

Intel Virtualization Technology

Intel Virtualization Technology Enables or disables the computer to run a virtual machine monitor (VMM).

Default: ON

VT for Direct I/O

Enable Intel VT for Direct I/O Enables or disables the computer to perform Virtualization Technology for Direct I/O

(VT-d). VT-d is an Intel method that provides virtualization for memory map I/O.

Default: ON

Table 17. System setup options—Performance menu

Performance

Multi-Core Support

Active Cores Changes the number of CPU cores available to the operating system. The default

value is set to the maximum number of cores.

By default, All Cores is selected.

86 System setup

Page 87

Table 17. System setup options—Performance menu(continued)

Performance

Intel SpeedStep

Enable Intel SpeedStep Technology Enables or disables the Intel SpeedStep Technology to dynamically adjust processor

voltage and core frequency, decreasing average power consumption and heat production.

Default: ON

C-States Control

Enable C-State Control Enables or disables the CPU's ability to enter and exit low-power states.

Default: ON

Enable Adaptive C-States for Discrete Graphics

Intel Turbo Boost Technology

Enable Intel Turbo Boost Technology Enabled or disabled the Intel TurboBoost mode of the processor. If enabled, the Intel

Intel Hyper-Threading Technology

Enable Intel Hyper-Threading Technology Enabled or disabled the Intel Hyper-Threading mode of the processor. If enabled, the

Dynamic Tuning:Machine Learning

Enable Dynamic Tuning:Machine Learning Enables or disables OS capability to enhance dynamic power tuning capabilities based

Allows the computer to dynamically detect high usage of a discrete graphics and adjust the computer parameters for higher performance during that time period.

Default: ON

TurboBoost driver increases the performance of the CPU or graphics processor.

Default: ON

Intel Hyper-Threading increases the efficiency of the processor resources when multiple threads run on each core.

Default: ON

on detected workloads.

Default: OFF

Table 18. System setup options—System Logs menu

System Logs

BIOS Event Log

Clear Bios Event Log Select keep or clear BIOS events.

By default, Keep is selected.

Thermal Event Log

Clear Thermal Event Log Select keep or clear Thermal events.

By default, Keep is selected.

Power Event Log

Clear POWER Event Log Select keep or clear Power events.

By default, Keep is selected.

System setup 87

Page 88

System and setup password

Table 19. System and setup password

Password type Description

System password Password that you must enter to log on to your system.

Setup password Password that you must enter to access and make changes to the

BIOS settings of your computer.

You can create a system password and a setup password to secure your computer.

CAUTION: The password features provide a basic level of security for the data on your computer.

CAUTION: Anyone can access the data stored on your computer if it is not locked and left unattended.

NOTE: System and setup password feature is disabled.

Assigning a system setup password

Prerequisites

You can assign a new System or Admin Password only when the status is in Not Set.

About this task

To enter the system setup, press F2 immediately after a power-on or reboot.

Steps

1. In the System BIOS or System Setup screen, select Security and press Enter. The Security screen is displayed.

2. Select System/Admin Password and create a password in the Enter the new password field.

Use the following guidelines to assign the system password:

• A password can have up to 32 characters.

• The password can contain the numbers 0 through 9.

• Only lower case letters are valid, upper case letters are not allowed.

• Only the following special characters are allowed: space, (”), (+), (,), (-), (.), (/), (;), ([), (\), (]), (`).

3. Type the system password that you entered earlier in the Confirm new password field and click OK.

4. Press Esc and a message prompts you to save the changes.

5. Press Y to save the changes. The computer reboots.

Deleting or changing an existing system setup password

Prerequisites

Ensure that the Password Status is Unlocked (in the System Setup) before attempting to delete or change the existing System and Setup password. You cannot delete or change an existing System or Setup password, if the Password Status is Locked.

About this task

To enter the System Setup, press F2 immediately after a power-on or reboot.

Steps

1. In the System BIOS or System Setup screen, select System Security and press Enter.

System setup

Page 89

The System Security screen is displayed.

2. In the System Security screen, verify that Password Status is Unlocked.

3. Select System Password, alter or delete the existing system password and press Enter or Tab.

4. Select Setup Password, alter or delete the existing setup password and press Enter or Tab.

NOTE: If you change the System and/or Setup password, re enter the new password when prompted. If you delete

the System and Setup password, confirm the deletion when prompted.

5. Press Esc and a message prompts you to save the changes.

6. Press Y to save the changes and exit from System Setup. The computer restarts.

Clearing CMOS settings

About this task

CAUTION: Clearing CMOS settings will reset the BIOS settings on your computer.

Steps

1. Turn off your computer.

2. Remove the base cover.

NOTE: The battery must be disconnected from the system board (see Step 4 in Removing the base cover).

3. Press and hold the power button for 15 seconds to drain the flea power.

4. Before you turn on your computer, follow the steps in Installing the base cover.

5. Turn on your computer.

Clearing BIOS (System Setup) and System passwords

About this task

To clear the system or BIOS passwords, contact Dell technical support as described at www.dell.com/contactdell.

NOTE:

For information on how to reset Windows or application passwords, refer to the documentation accompanying

Windows or your application.

System setup 89

Page 90

Troubleshooting

SupportAssist diagnostics

About this task

The SupportAssist diagnostics (previously known as ePSA diagnostics) performs a complete check of your hardware. The SupportAssist diagnostics is embedded in the BIOS and is launched by it internally. The SupportAssist diagnostics provides a set of options for particular devices or device groups. It allows you to:

• Run tests automatically or in an interactive mode.

• Repeat tests

• Display or save test results

• Run thorough tests to introduce additional test options and provide extra information about the failed device(s)

• View status messages that indicate if the tests are completed successfully

• View error messages that indicate if problems were encountered during the test

NOTE: Some tests are meant for specific devices and require user interaction. Ensure that you are present in front of

the computer when the diagnostic tests are performed.

System diagnostic lights

Battery-status light

Indicates the power and battery-charge status.

Solid white — Power adapter is connected and the battery has more than 5 percent charge.

Amber — Computer is running on battery and the battery has less than 5 percent charge.

Off

• Power adapter is connected and the battery is fully charged.

• Computer is running on battery and the battery has more than 5 percent charge.

• Computer is in sleep state, hibernation, or turned off.

The power and battery-status light blinks amber along with beep codes indicating failures.

For example, the power and battery-status light blinks amber two times followed by a pause, and then blinks white three times followed by a pause. This 2,3 pattern continues until the computer is turned off indicating no memory or RAM is detected.

The following table shows different power and battery-status light patterns and associated problems.

Table 20. LED codes

Diagnostic light codes Problem description

1,1 TPM detection failure

1,2 Unrecoverable SPI flash failure

1,5 i-Fuse failure

1,6 EC internal failure

2,1 Processor failure

2,2 System board: BIOS or ROM (Read-Only Memory)

failure

2,3 No memory or RAM (Random-Access Memory)

detected

90 Troubleshooting

Page 91

Table 20. LED codes(continued)

Diagnostic light codes Problem description

2,4 Memory or RAM (Random-Access Memory) failure

2,5 Invalid memory installed

2,6 System-board or chipset error

2,7 Display failure

2,8 LCD power rail failure.

3,1 Coin-cell battery failure

3,2 PCI, video card/chip failure

3,3 Recovery image not found

3,4 Recovery image found but invalid

3,5 Power-rail failure

3,6 System BIOS Flash incomplete

3,7 Management Engine (ME) error

Camera status light: Indicates whether the camera is in use.

• Solid white — Camera is in use.

• Off — Camera is not in use.

Caps Lock status light: Indicates whether Caps Lock is enabled or disabled.

• Solid white — Caps Lock enabled.

• Off — Caps Lock disabled.

Built-in self-test (BIST)

About this task

There are three different types of BIST to check the performance of display, power rail, and system board. These tests are important to evaluate if an LCD or system board needs a replacement.

1. M-BIST: M-BIST is the system board built-in self-test diagnostics tool that improves the diagnostics accuracy of system board embedded controller (EC) failures. M-BIST must be manually initiated before POST and can also run on a dead system .

2. L-BIST: L-BIST is an enhancement to the single LED error code diagnostics and is automatically initiated during POST.

3. LCD-BIST: LCD BIST is an enhanced diagnostic test that is introduced through Preboot System Assessment (PSA) on legacy systems.

Table 21. Functions

M-BIST L-BIST

Purpose Evaluates the health condition of the

system board.

Trigger Press the <M> key and the power button. Integrated into the single LED error code

Indicator of fault Battery LED light with Solid Amber Battery LED error code of [2,8] blinks

Repair instruction Indicates a problem with the system board. Indicates a problem with the system board.

Checks if the system board is supplying power to the LCD by performing an LCD Power Rail test.

diagnostics. Automatically initiated during POST.

Amber x2, then pause, then blinks White x8.

Troubleshooting 91

Page 92

System board built-in self-test (M-BIST)

About this task

Steps

1. Press and hold both the M key and the power button to initiate M-BIST.

2. The battery-status light illuminates in amber when there is a failure with the system board.

3. Replace the system board to fix the issue.

NOTE: The battery status LED will not illuminate if there is no failure present with the system board. If further

troubleshooting is required, proceed with the applicable Guided Resolution for No Power/No POST, etc.

Display panel power rail built-in self-test (L-BIST)

About this task

Next steps

L-BIST (LCD Power Rail Test) is an enhancement to the single LED error code diagnostics and is automatically initiated during POST.

L-BIST isolates if the LCD is receiving power from the system board. L-BIST checks if the system board is supplying power to the LCD by performing an LCD Power Rail test. If there is no power going to the LCD, the battery status LED flashes a [2,8] LED error code.

Troubleshooting

Page 93

Display panel built-in self-test (LCD-BIST)

About this task

Steps

1. Press and hold the D key and then press the power button.

2. Release both the D key and the power button when the computer begins POST.

3. The display panel begins to display a solid color, or cycling through different colors.

NOTE:

The sequence of colors may very due to different display panel vendor. The user only needs to ensure that the

colors are being displayed correctly without distortion or graphical anomalies.

4. The computer reboots at the end of the last solid color.

Outcome

About this task

The following table shows the outcome of running different types of BIST.

Table 22. BIST outcome

M-BIST

Off No fault detected with system board.

Solid amber Indicates a problem with the system board.

Table 22. BIST outcome

L-BIST

Off No fault detected with system board.

LED error code of [2,8] blinks Amber x2, then pause, then blinks White x8

Indicates a problem with the system board.

Troubleshooting 93

Page 94

Table 22. BIST outcome

LCD-BIST

The LCD that flashes White, Red, Green, and Blue shows that the display is working fine and there is no fault with the LCD panel.

Flashing BIOS (USB key)

Steps

1. Follow the procedure from step 1 to step 7 in "Flashing the BIOS" to download the latest BIOS setup program file.

2. Create a bootable USB drive. For more information see the knowledge base article SLN143196 at www.dell.com/support.

3. Copy the BIOS setup program file to the bootable USB drive.

4. Connect the bootable USB drive to the computer that needs the BIOS update.

5. Restart the computer and press F12 when the Dell logo is displayed on the screen.

6. Boot to the USB drive from the One Time Boot Menu.

7. Type the BIOS setup program filename and press Enter.

8. The BIOS Update Utility appears. Follow the instructions on the screen to complete the BIOS update.

Flashing the BIOS

About this task

You may need to flash (update) the BIOS when an update is available or when you replace the system board.

Follow these steps to flash the BIOS:

Steps

1. Turn on your computer.

2. Go to www.dell.com/support.

3. Click Product support, enter the Service Tag of your computer, and then click Submit.

NOTE: If you do not have the Service Tag, use the auto-detect feature or manually browse for your computer model.

4. Click Drivers & downloads > Find it myself.

5. Select the operating system installed on your computer.

6. Scroll down the page and expand BIOS.

7. Click Download to download the latest version of the BIOS for your computer.

8. After the download is complete, navigate to the folder where you saved the BIOS update file.

9. Double-click the BIOS update file icon and follow the instructions on the screen.

Backup media and recovery options

It is recommended to create a recovery drive to troubleshoot and fix problems that may occur with Windows. Dell proposes multiple options for recovering Windows operating system on your Dell PC. For more information. see Dell Windows Backup Media and Recovery

Options.

WiFi power cycle

About this task

If your computer is unable to access the internet due to WiFi connectivity issues a WiFi power cycle procedure may be performed. The following procedure provides the instructions on how to conduct a WiFi power cycle:

NOTE: Some ISPs (Internet Service Providers) provide a modem/router combo device.

94 Troubleshooting

Page 95

Steps

1. Turn off your computer.

2. Turn off the modem.

3. Turn off the wireless router.

4. Wait for 30 seconds.

5. Turn on the wireless router.

6. Turn on the modem.

7. Turn on your computer.

Flea power release

About this task

Flea power is the residual static electricity that remains on the computer even after it has been powered off and the battery has been disconnected from the system board. The following procedure provides the instructions on how to release the flea power:

Steps

1. Turn off your computer.

2. Remove the base cover.

NOTE: The battery must be disconnected from the system board. See Step 4 in Removing the base cover.

3. Press and hold the power button for 15 seconds to drain the flea power.

4. Install the base cover.

5. Turn on your computer.

Troubleshooting

Page 96

Getting help and contacting Dell

Self-help resources

You can get information and help on Dell products and services using these self-help resources:

Table 23. Self-help resources

Self-help resources Resource location

Information about Dell products and services www.dell.com

My Dell

Tips

Contact Support In Windows search, type Contact Support, and press Enter.

Online help for operating system www.dell.com/support/windows

www.dell.com/support/linux

Troubleshooting information, user manuals, set up instructions, product specifications, technical help blogs, drivers, software updates, and so on.

Dell knowledge base articles for a variety of computer concerns

Learn and know the following information about your product:

• Product specifications

• Operating system

• Setting up and using your product

• Data backup

• Troubleshooting and diagnostics

• Factory and system restore

• BIOS information

www.dell.com/support

1. Go to www.dell.com/support.

2. On the menu bar at the top of the Support page, select Support > Knowledge Base.

3. In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles.

See Me and My Dell at www.dell.com/support/manuals.

To locate the Me and My Dell relevant to your product, identify your product through one of the following:

• Select Detect Product.

• Locate your product through the drop-down menu under View Products.

• Enter the Service Tag number or Product ID in the search bar.

Contacting Dell

To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.

NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.

NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice,

packing slip, bill, or Dell product catalog.

96 Getting help and contacting Dell
