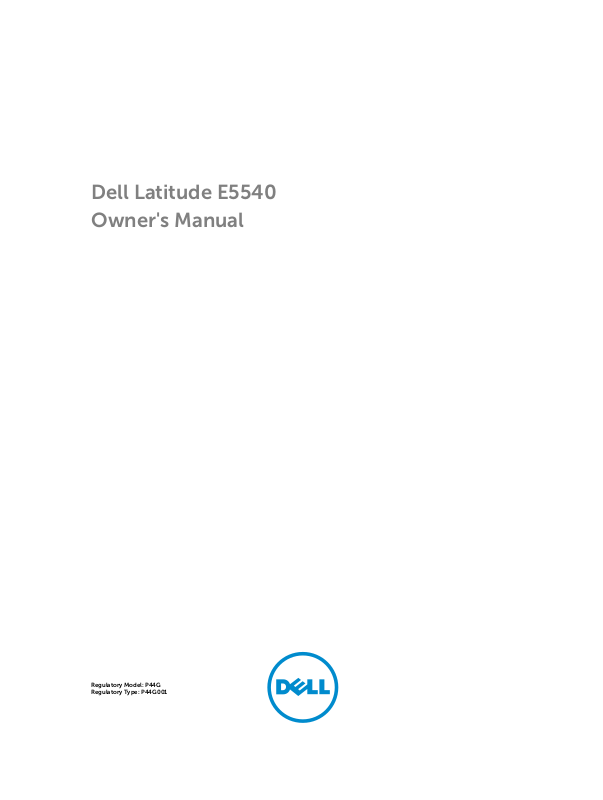

Dell Latitude E5540 Owner's Manual

Regulatory Model: P44G Regulatory Type: P44G001

Page 2

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Trademarks used in this text: Dell™, the Dell logo, Dell Boomi™, Dell Precision™ , OptiPlex™, Latitude™, PowerEdge™, PowerVault™, PowerConnect™, OpenManage™, EqualLogic™, Compellent™, KACE™, FlexAddress™, Force10™, Venue™ and Vostro™ are trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core® and Celeron® are registered trademarks of Intel Corporation in the U.S. and other countries. AMD® is a registered trademark and AMD Opteron™, AMD Phenom™ and AMD Sempron™ are trademarks of Advanced Micro Devices, Inc. Microsoft®, Windows®, Windows Server®, Internet Explorer®, MS-DOS®, Windows Vista® and Active Directory® are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Red Hat® and Red Hat Enterprise Linux® are registered trademarks of Red Hat, Inc. in the United States and/or other countries. Novell® and SUSE® are registered trademarks of Novell Inc. in the United States and other countries. Oracle® is a registered trademark of Oracle Corporation and/or its affiliates. Citrix®, Xen®, XenServer® and XenMotion® are either registered trademarks or trademarks of Citrix Systems, Inc. in the United States and/or other countries. VMware®, vMotion®, vCenter®, vCenter SRM™ and vSphere® are registered trademarks or trademarks of VMware, Inc. in the United States or other countries. IBM® is a registered trademark of International Business Machines Corporation.

2013 -10

Rev. A00

Page 3

Contents

1 Working on Your Computer.................................................................................5

Before Working Inside Your Computer.............................................................................................5

Turning Off Your Computer..............................................................................................................6

After Working Inside Your Computer................................................................................................7

2 Removing and Installing Components..............................................................9

Recommended Tools........................................................................................................................9

System Overview...............................................................................................................................9

Removing the Battery......................................................................................................................10

Installing the Battery........................................................................................................................11

Removing the SD Card.................................................................................................................... 11

Installing the SD Card...................................................................................................................... 11

Removing the ExpressCard..............................................................................................................11

Installing the ExpressCard...............................................................................................................12

Removing the SIM Card...................................................................................................................12

Installing the SIM Card.................................................................................................................... 12

Removing the Display Bezel............................................................................................................12

Installing the Display Bezel..............................................................................................................13

Removing the Display Panel............................................................................................................13

Installing the Display Panel............................................................................................................. 14

Removing the Camera.....................................................................................................................14

Installing the Camera...................................................................................................................... 15

Removing the Keyboard Trim......................................................................................................... 15

Installing the Keyboard Trim........................................................................................................... 15

Removing the Keyboard..................................................................................................................15

Installing the Keyboard................................................................................................................... 16

Removing the Base Cover............................................................................................................... 17

Installing the Base Cover.................................................................................................................17

Removing the Memory Module.......................................................................................................17

Installing the Memory Module........................................................................................................ 18

Removing the Hard Drive................................................................................................................18

Installing the Hard Drive..................................................................................................................19

Removing the Hard-Drive Cage......................................................................................................19

Installing the Hard-Drive Cage.......................................................................................................20

Removing the Optical Drive............................................................................................................20

Installing the Optical Drive..............................................................................................................21

Removing the WLAN Card...............................................................................................................21

Installing the WLAN Card................................................................................................................ 21

Page 4

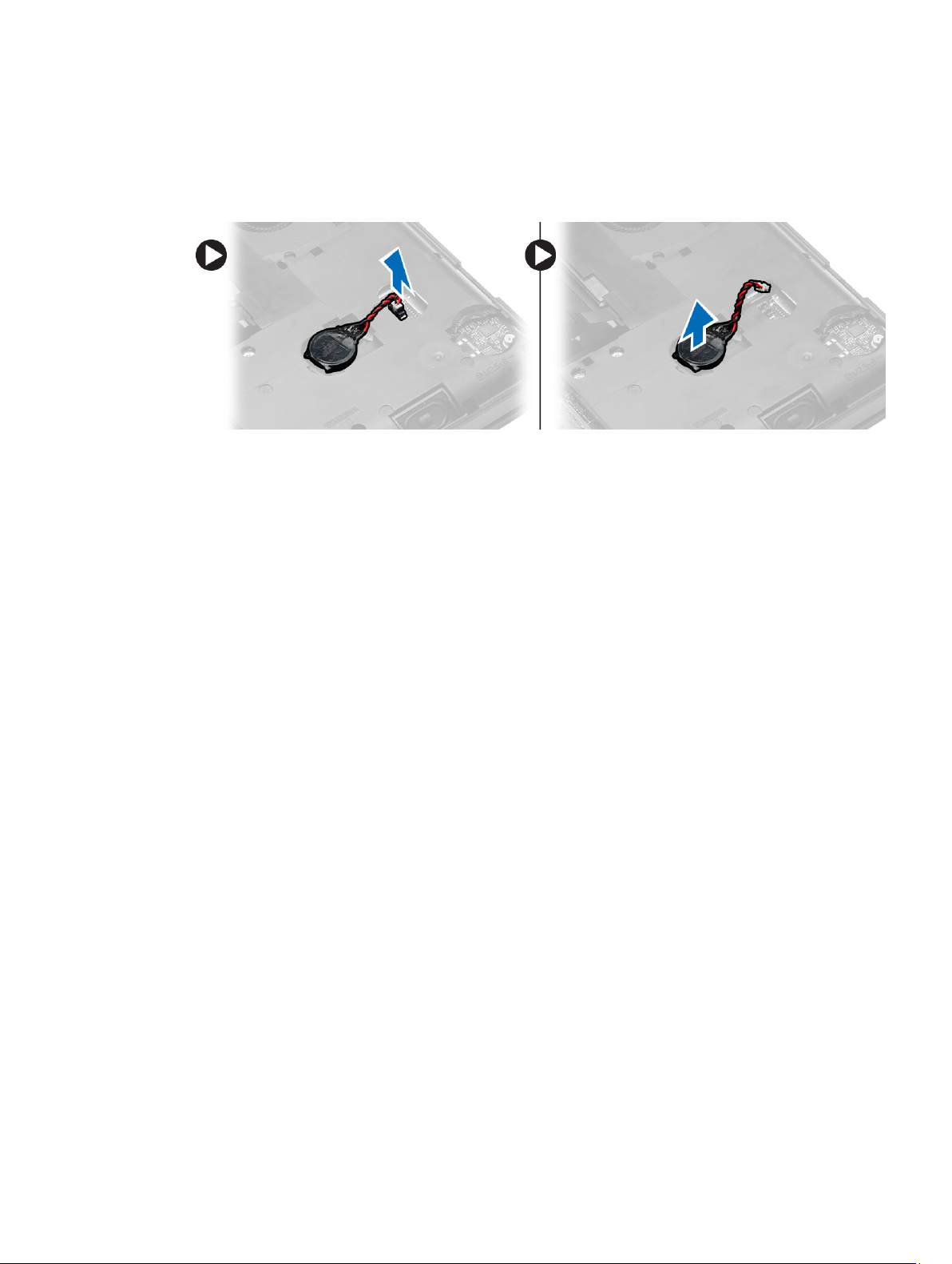

Removing the Coin-Cell Battery.....................................................................................................21

Installing the Coin-Cell Battery...................................................................................................... 22

Removing the Display Hinge...........................................................................................................22

Installing the Display Hinge............................................................................................................ 23

Removing the Palmrest...................................................................................................................23

Installing the Palmrest.................................................................................................................... 24

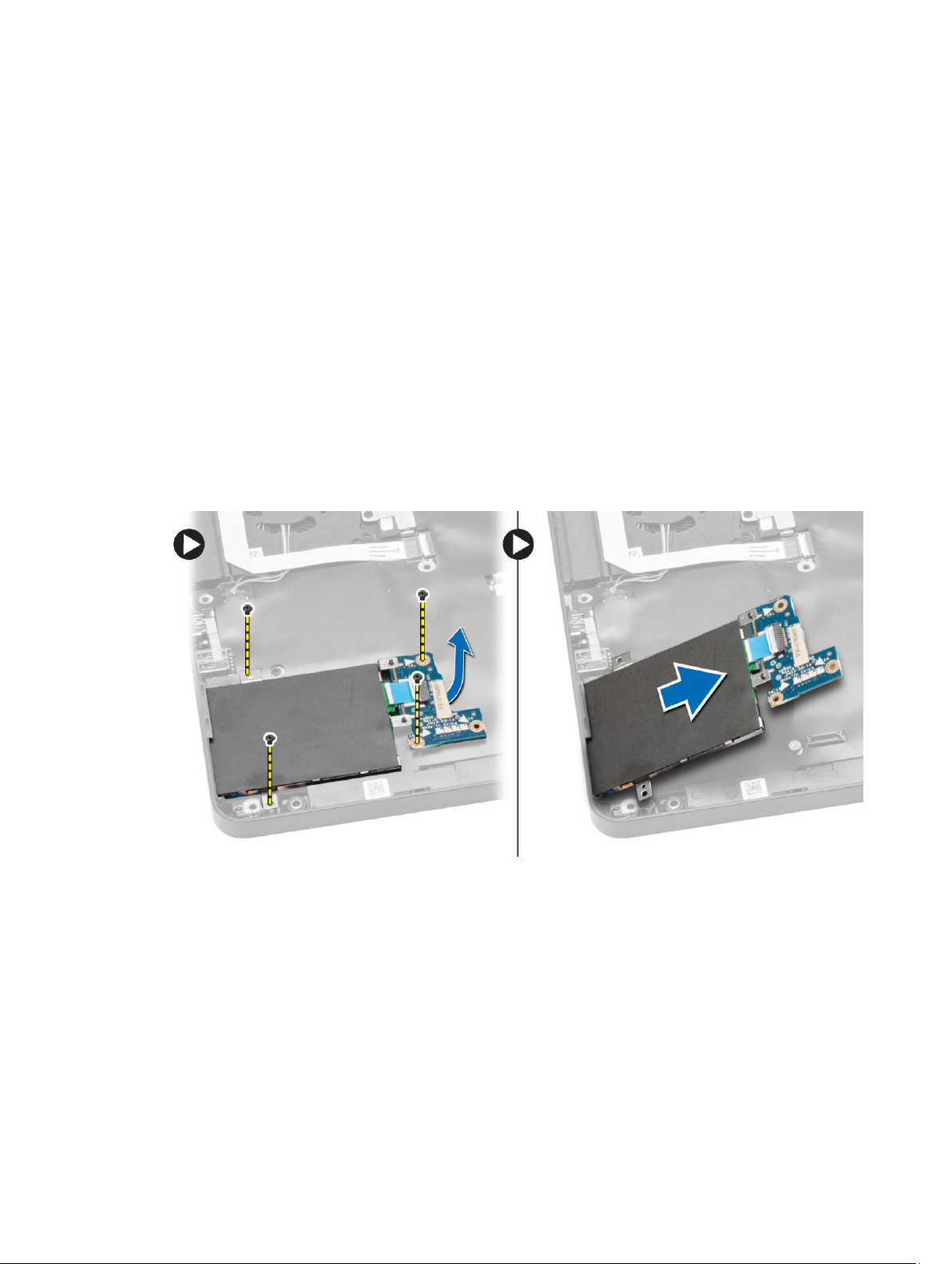

Removing the ExpressCard Cage....................................................................................................25

Installing the ExpressCard Cage..................................................................................................... 25

Removing the System Fan...............................................................................................................26

Installing the System Fan................................................................................................................ 26

Removing the System Board...........................................................................................................27

Installing the System Board............................................................................................................ 28

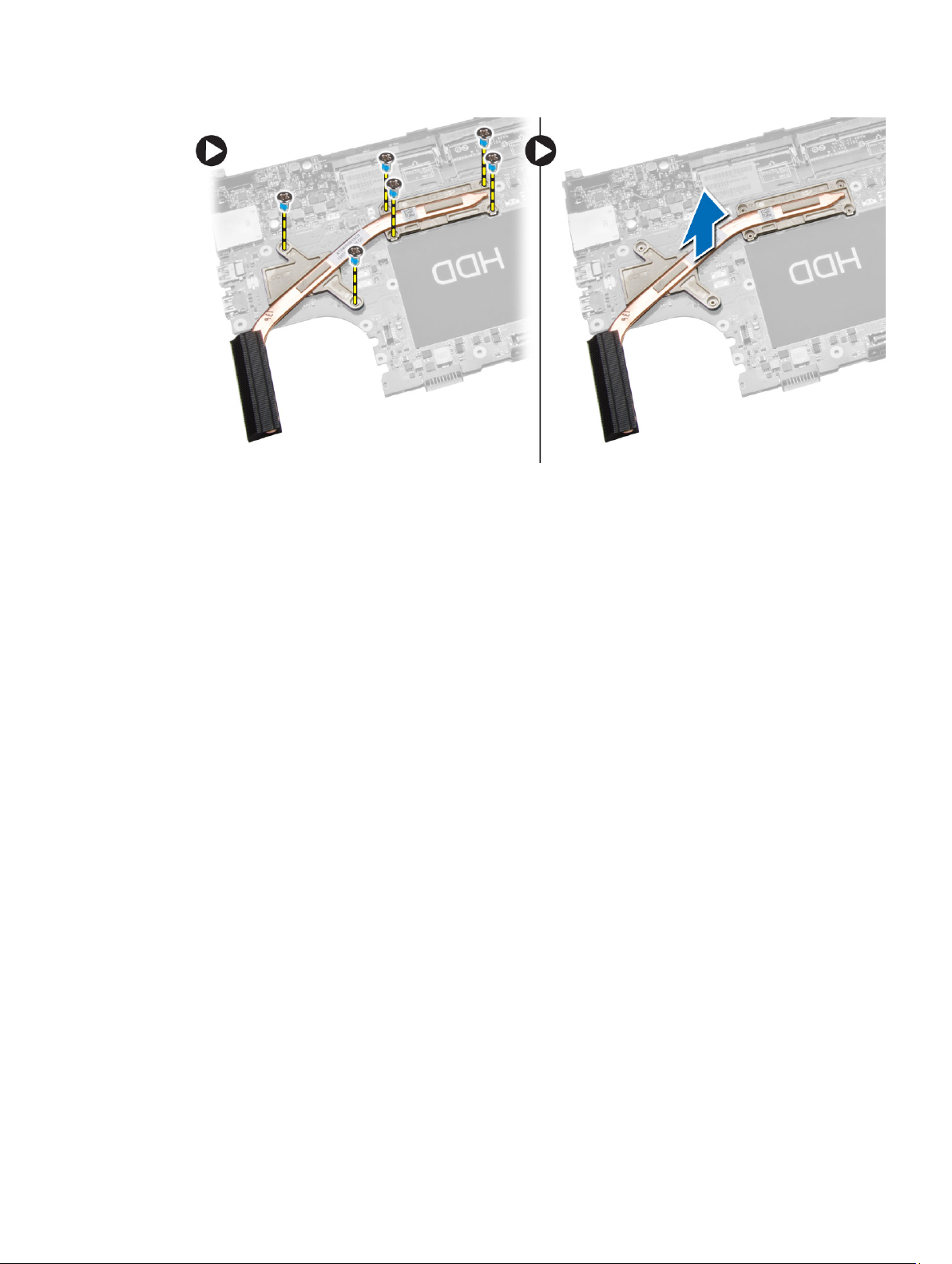

Removing the Heatsink...................................................................................................................29

Installing the Heatsink.................................................................................................................... 30

Removing the I/O Board (Left)........................................................................................................30

Installing the I/O Board (Left)..........................................................................................................31

Removing the I/O Board (Right)..................................................................................................... 32

Installing the I/O Board (Right)....................................................................................................... 32

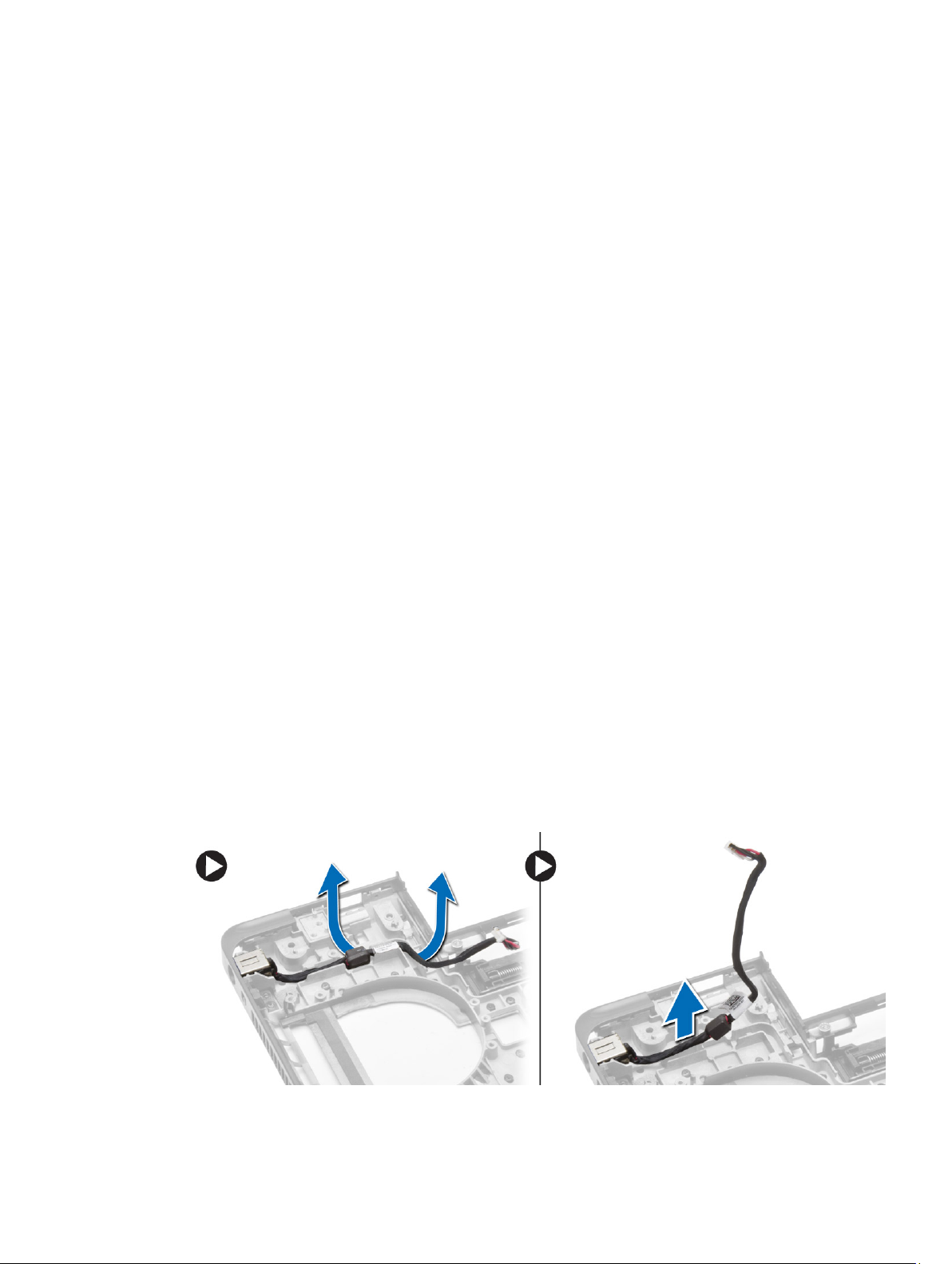

Removing the Power Connector....................................................................................................33

Installing the Power Connector......................................................................................................34

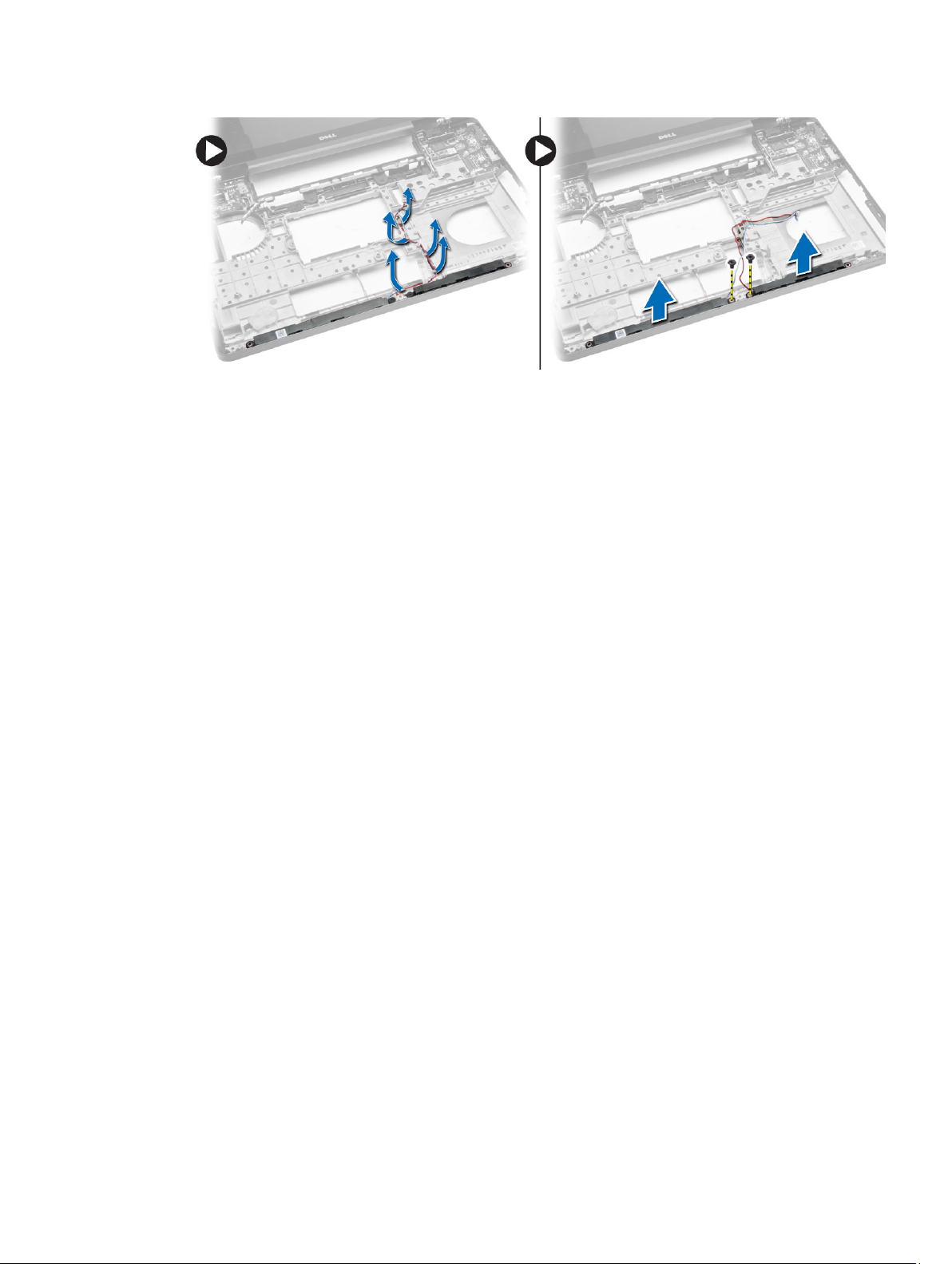

Removing the Speakers.................................................................................................................. 34

Installing the Speakers.................................................................................................................... 35

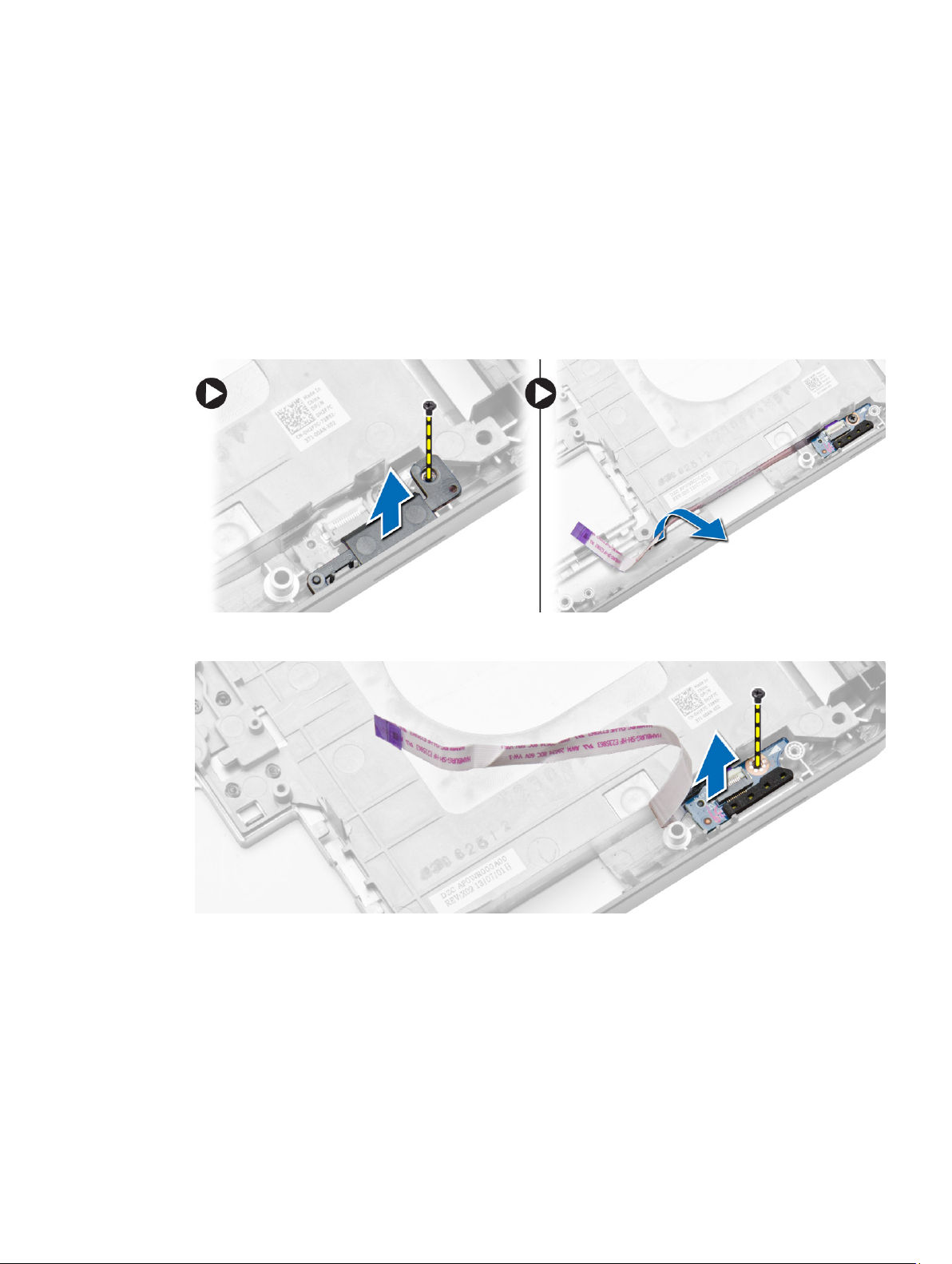

Removing the Status-Light Board...................................................................................................35

Installing the Status-Light Board.................................................................................................... 36

3 System Setup........................................................................................................ 39

Boot Sequence................................................................................................................................39

Navigation Keys...............................................................................................................................39

System Setup Options.................................................................................................................... 40

Updating the BIOS ......................................................................................................................... 50

System and Setup Password...........................................................................................................50

Assigning a System Password and Setup Password..................................................................51

Deleting or Changing an Existing System and/or Setup Password.......................................... 51

4 Diagnostics............................................................................................................53

Enhanced Pre-Boot System Assessment (ePSA) Diagnostics.........................................................53

Device Status Lights........................................................................................................................54

Battery Status Lights....................................................................................................................... 54

5 Specifications........................................................................................................55

6 Contacting Dell.................................................................................................... 61

Page 5

Working on Your Computer

Before Working Inside Your Computer

Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your personal safety. Unless otherwise noted, each procedure included in this document assumes that the following conditions exist:

• You have performed the steps in Working on Your Computer.

• You have read the safety information that shipped with your computer.

• A component can be replaced or--if purchased separately--installed by performing the removal procedure in reverse order.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance

CAUTION: Many repairs may only be done by a certified service technician. You should only perform troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface, such as a connector on the back of the computer.

CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal mounting bracket. Hold a component such as a processor by its edges, not by its pins.

CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables have connectors with locking tabs; if you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep them evenly aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented and aligned.

NOTE: The color of your computer and certain components may appear differently than shown in this document.

To avoid damaging your computer, perform the following steps before you begin working inside the computer.

1. Ensure that your work surface is flat and clean to prevent the computer cover from being

scratched.

2. Turn off your computer (see Turning Off Your Computer).

3. If the computer is connected to a docking device (docked) such as the optional Media Base or

Battery Slice, undock it.

Page 6

CAUTION: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device.

4. Disconnect all network cables from the computer.

5. Disconnect your computer and all attached devices from their electrical outlets.

6. Close the display and turn the computer upside-down on a flat work surface.

NOTE: To avoid damaging the system board, you must remove the main battery before you service the computer.

7. Remove the main battery.

8. Turn the computer top-side up.

9. Open the display.

10. Press the power button to ground the system board.

CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before opening the display.

CAUTION: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the metal at the back of the computer. While you work, periodically touch an unpainted metal surface to dissipate static electricity, which could harm internal components.

11. Remove any installed ExpressCards or Smart Cards from the appropriate slots.

Turning Off Your Computer

CAUTION: To avoid losing data, save and close all open files and exit all open programs before you turn off your computer.

1. Shut down the operating system:

– In Windows 8:

* Using a touch-enabled device:

a. Swipe in from the right edge of the screen, opening the Charms menu and select

Settings.

b. Select the and then select Shut down

* Using a mouse:

a. Point to upper-right corner of the screen and click Settings.

b. Click the and select Shut down.

– In Windows 7:

1. Click Start .

2. Click Shut Down.

1. Click Start .

Page 7

2. Click the arrow in the lower-right corner of the Start menu as shown below, and then

click Shut Down..

2. Ensure that the computer and all attached devices are turned off. If your computer and attached

devices did not automatically turn off when you shut down your operating system, press and hold the power button for about 4 seconds to turn them off.

After Working Inside Your Computer

After you complete any replacement procedure, ensure you connect any external devices, cards, and cables before turning on your computer.

CAUTION: To avoid damage to the computer, use only the battery designed for this particular Dell computer. Do not use batteries designed for other Dell computers.

1. Connect any external devices, such as a port replicator, battery slice, or media base, and replace

any cards, such as an ExpressCard.

2. Connect any telephone or network cables to your computer.

CAUTION: To connect a network cable, first plug the cable into the network device and then plug it into the computer.

3. Replace the battery.

4. Connect your computer and all attached devices to their electrical outlets.

5. Turn on your computer.

Page 8

Page 9

Removing and Installing Components

This section provides detailed information on how to remove or install the components from your computer.

Recommended Tools

The procedures in this document may require the following tools:

• Small flat-blade screwdriver

• #0 Phillips screwdriver

• #1 Phillips screwdriver

• Small plastic scribe

• Flash BIOS update program CD

System Overview

Figure 1. Inside View — Back

1. coin-cell battery

2. memory modules

3. optical drive

4. WLAN card

5. hard drive

Page 10

Figure 2. Inside view — Front

1. I/O board (right)

2. system board

3. status-light board

4. speakers

5. ExpressCard cage

Removing the Battery

1. Follow the procedures in

2. Perform the following steps:

a) Slide the battery release latches into the unlock position. b) Push and remove the battery from the computer.

Before Working Inside Your Computer

6. system fan

7. I/O board (left)

8. display assembly

Page 11

Installing the Battery

1. Slide the battery into its slot until it clicks into place.

2. Follow the procedures in

After Working Inside Your Computer

Removing the SD Card

1. Follow the procedures in

2. Press in on the SD card to release it from the computer.

3. Slide the SD card out of the computer.

Before Working Inside Your Computer

Installing the SD Card

1. Push the SD card into the compartment until it clicks into place.

2. Follow the procedures in

After Working Inside Your Computer

Removing the ExpressCard

1. Follow the procedures in

2. Perform the following steps:

a) Push in on the ExpressCard to release from the computer [1]. b) Slide the ExpressCard out of the computer [2].

Before Working On Your Computer

Page 12

Installing the ExpressCard

1. Slide the ExpressCard in its slot until it clicks in place.

2. Follow the procedures in

After Working Inside Your Computer

Removing the SIM Card

1. Follow the procedures in

2. Remove the battery.

3. Press and release the SIM card located on the battery wall.

4. Slide the SIM card from the computer.

NOTE: The SIM slot in the computer supports only micro SIM.

Before Working On Your Computer

Installing the SIM Card

1. Insert the SIM card into the slot.

2. Install the battery.

3. Follow the procedures in

After Working Inside Your Computer

Removing the Display Bezel

1. Follow the procedures in

2. Remove the battery.

3. Perform the following steps:

a) Pry up the bottom edge of the display bezel. b) Work your way around the sides and top edge of the display bezel.

Before Working Inside Your Computer

Page 13

4. Remove the display bezel from the computer.

Installing the Display Bezel

1. Place the display bezel onto the display assembly.

2. Starting from the top corner, press on the display bezel and work around the entire bezel until it

snaps onto the display assembly.

3. Install the battery.

4. Follow the procedures in

After Working Inside Your Computer

Removing the Display Panel

1. Follow the procedures in

2. Remove:

a) battery b) display bezel

3. Remove the screws that secure the display panel and flip the panel over.

4. Perform the following steps:

Before Working Inside Your Computer

Page 14

a) Lift the mylar tape and disconnect the low-voltage differential signaling (LVDS) cable from the

back of the display panel.

b) Remove the display panel from the display assembly.

Installing the Display Panel

1. Place the display panel to the display assembly.

2. Align the display panel in its original position.

3. Connect the low-voltage differential signaling (LVDS) cable to the display panel and attach the tape.

4. Flip the display panel over and tighten the screws to secure the display panel.

5. Install:

a) display bezel b) battery

6. Follow the procedures in

After Working Inside Your Computer

Removing the Camera

1. Follow the procedures in

2. Remove:

a) battery b) display bezel

3. Perform the following steps:

a) Remove the screw that secures the camera and microphone module. b) Disconnect the camera cable. c) Lift and remove the camera and microphone module.

Before Working Inside Your Computer

Page 15

Installing the Camera

1. Place the camera and microphone module on its place.

2. Connect the camera cable.

3. Tighten the screw to secure the camera and microphone module.

4. Install:

a) display bezel b) battery

5. Follow the procedures in

After Working Inside Your Computer

Removing the Keyboard Trim

1. Follow the procedures in

2. Remove the battery.

3. Perform the following steps:

a) Remove the screw that secures the keyboard trim at the back of the computer. b) Pry up the keyboard trim on its sides and the top edge. c) Lift upwards and remove the keyboard trim from the computer.

Before Working Inside Your Computer

Installing the Keyboard Trim

1. Align the keyboard trim to its place.

2. Press along the sides of the keyboard trim until it snaps in place.

3. Tighten the screw at the back of the computer to secure the keyboard trim.

4. Install the battery.

5. Follow the procedures in

After Working Inside Your Computer

Removing the Keyboard

1. Follow the procedures in

2. Remove:

a) battery

Before Working Inside Your Computer

Page 16

b) keyboard trim

3. Perform the following steps:

a) Remove the screws at the back of the computer and flip the computer over. b) Remove the screws that secure the keyboard to the computer.

4. Disconnect the keyboard cable and lift the keyboard to remove from the computer.

Installing the Keyboard

1. Connect the keyboard cable to the keyboard.

2. Place the keyboard into its place until all the metal tabs fit into their positions.

3. Press down on the keyboard to the left and right side ensuring that all the snaps are fully engaged

with the computer.

4. Install the screws to secure the keyboard to the palmrest.

5. Install the screws at the back of the computer.

6. Install:

a) keyboard trim b) battery

7. Follow the procedures in

After Working Inside Your Computer

Page 17

Removing the Base Cover

1. Follow the procedures in

2. Remove the battery.

3. Perform the following steps:

a) Remove the screws that secure the base cover. b) Slide the base cover towards the front of the system and remove it from the computer.

Before Working Inside Your Computer

Installing the Base Cover

1. Slide the base cover into its slot until it clicks into place.

2. Install the screws that secure the base cover to the computer.

3. Install the battery.

4. Follow the procedures in

After Working Inside Your Computer

Removing the Memory Module

1. Follow the procedures in

2. Remove:

a) battery b) base cover

3. Pry the retention clips away from the memory module until it pops up.

4. Lift up the memory module and remove it from the computer.

Before Working Inside Your Computer

Page 18

Installing the Memory Module

1. Insert the memory into the memory socket.

2. Press the clips to secure the memory module to the system board.

3. Install:

a) base cover b) battery

4. Follow the procedures in

After Working Inside Your Computer

Removing the Hard Drive

1. Follow the procedures in

2. Remove:

a) battery b) base cover

3. Perform the following steps:

a) Remove the screws that secure the hard drive in place. b) Pull the hard drive to remove from its connectors.

Before Working Inside Your Computer

4. After removing the hard drive, perform the following steps:

a) Remove the screws that secure the hard-drive bracket. b) Remove the hard-drive bracket from the hard drive.

Page 19

Installing the Hard Drive

1. Place the hard-drive bracket on the hard drive and tighten the screws to secure the hard-drive

bracket to the hard drive.

2. Place the hard drive on its connector.

3. Install:

a) base cover b) battery

4. Follow the procedures in

After Working Inside Your Computer

Removing the Hard-Drive Cage

1. Follow the procedures in

2. Remove:

a) battery b) base cover c) hard drive

3. Perform the following steps:

a) Remove the screws that secure the hard-drive cage in place. b) Pull the hard-drive cage to remove from the computer.

Before Working Inside Your Computer

Page 20

Installing the Hard-Drive Cage

1. Place the hard-drive cage on its place.

2. Tighten the screws to secure the hard-drive cage.

3. Install:

a) hard drive b) base cover c) battery

4. Follow the procedures in

After Working Inside Your Computer

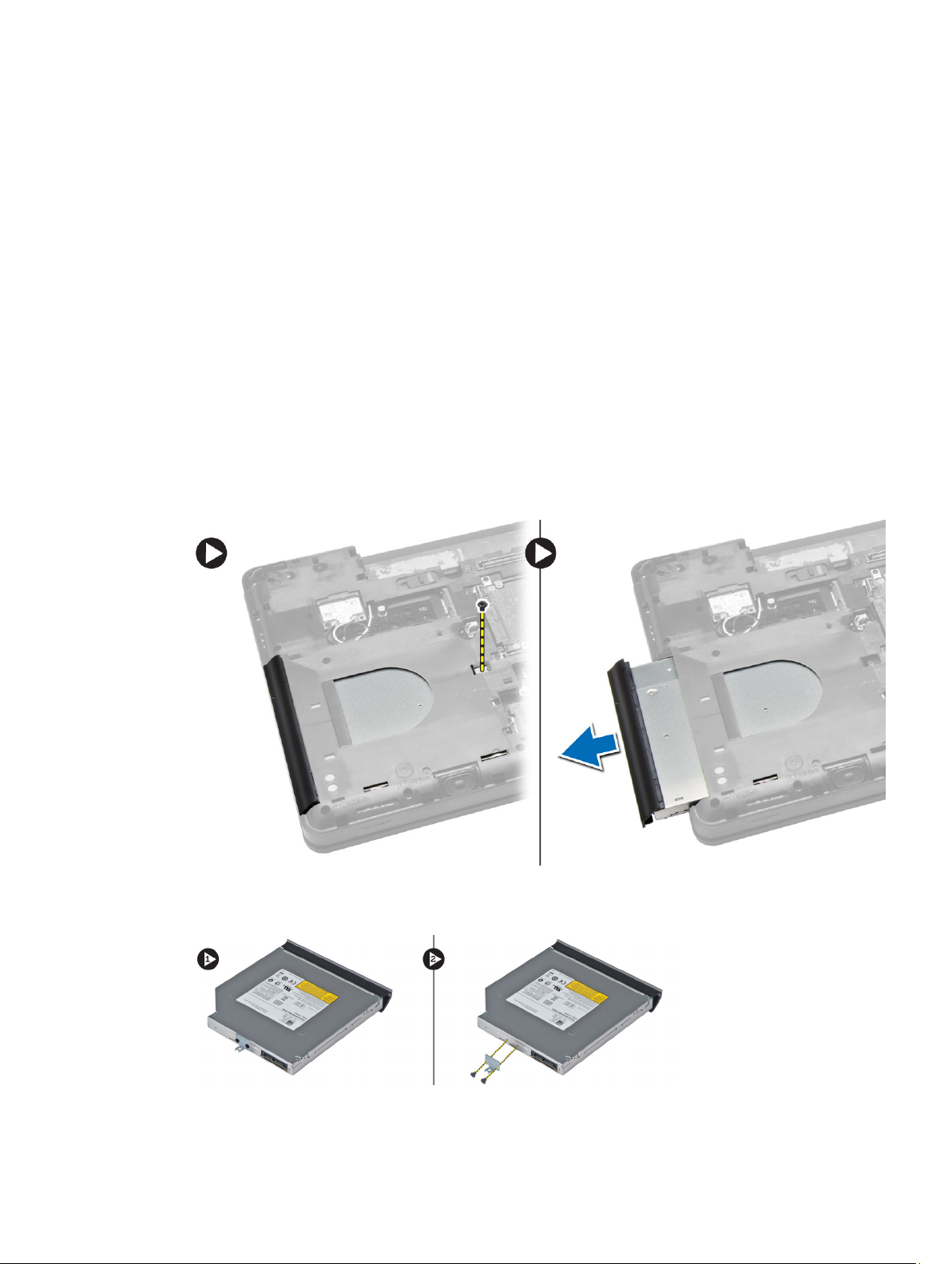

Removing the Optical Drive

1. Follow the procedures in

2. Remove:

a) battery b) base cover

3. Perform the following steps:

a) Remove the screw that secures the optical drive to the computer. b) Push the optical drive away to remove it from the computer.

Before Working Inside Your Computer

4. After removing the optical-drive bracket, perform the following steps:

a) Remove the screws that secure the optical-drive bracket [1]. b) Remove the optical-drive bracket from the optical drive [2].

Page 21

5. Disengage the optical drive bezel tabs to separate the optical drive bezel from the optical drive.

6. Remove the optical-drive bezel.

Installing the Optical Drive

1. Engage the optical-drive bezel tabs to attach the optical-drive bezel to the optical drive.

2. Install the optical-drive bracket.

3. Tighten the screws to secure the optical-drive bracket.

4. Insert the optical drive into the computer.

5. Tighten the screw to secure the optical drive in its place.

6. Install:

a) base cover b) battery

7. Follow the procedures in

After Working Inside Your Computer

Removing the WLAN Card

1. Follow the procedures in

2. Remove:

a) battery b) base cover

3. Perform the following steps:

a) Disconnect the antennae cables from the WLAN card. b) Remove the screw that secures the WLAN card to the computer. c) Remove the WLAN card from its slot on the system board.

Before Working Inside Your Computer

Installing the WLAN Card

1. Insert the WLAN card into its connector on the system board.

2. Connect the antenna cables to the respective connectors marked on the WLAN card.

3. Tighten the screw to secure the WLAN card to the computer.

4. Install:

a) base cover b) battery

5. Follow the procedures in

After Working Inside Your Computer

Removing the Coin-Cell Battery

1. Follow the procedures in

2. Remove:

Before Working Inside Your Computer

Page 22

a) battery b) base cover

3. Perform the following steps:

a) Disconnect the coin-cell battery cable from the system board. b) Pry and remove the coin-cell battery from the adhesive.

Installing the Coin-Cell Battery

1. Place the coin-cell battery on the system board with adhesive side downwards.

2. Connect the coin-cell battery cable to the system board.

3. Install:

a) base cover b) battery

4. Follow the procedures in

After Working Inside Your Computer

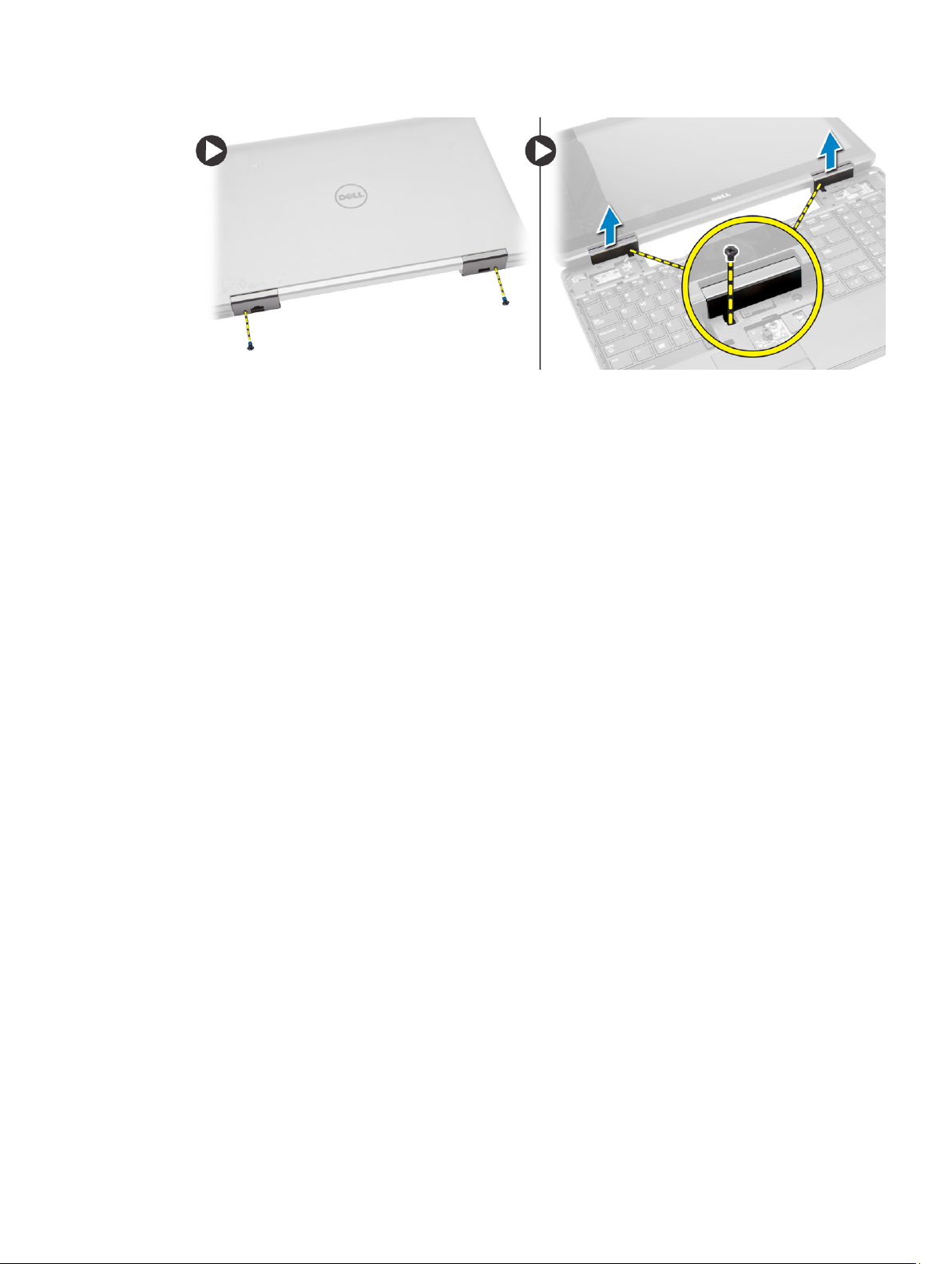

Removing the Display Hinge

1. Follow the procedures in

2. Remove:

a) battery b) base cover c) keyboard trim d) keyboard

3. Perform the following steps:

a) Remove the screws that secure the display hinge at the front and back of the computer. b) Lift and remove the display hinge from the computer.

Before Working Inside Your Computer

Page 23

Installing the Display Hinge

1. Place the display hinge on the computer.

2. Tighten the screws to secure the display hinge at the front and back of the computer.

3. Install:

a) keyboard b) keyboard trim c) base cover d) battery

4. Follow the procedures in

After Working Inside Your Computer

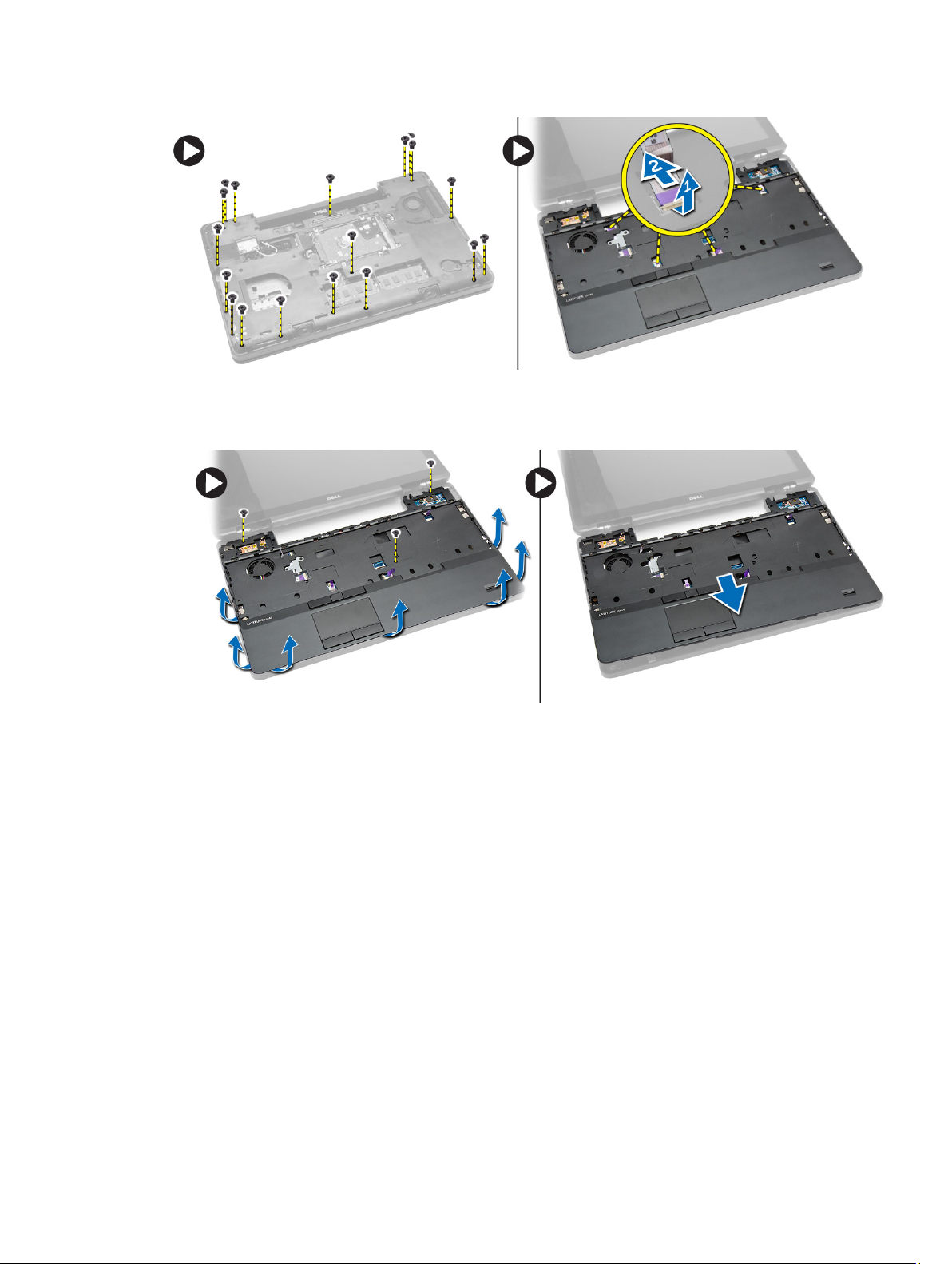

Removing the Palmrest

1. Follow the procedures in

2. Remove:

a) SD card b) battery c) base cover d) keyboard trim e) keyboard f) memory g) optical drive h) hard drive i) hard-drive cage j) display hinge

3. Remove the screws at the back of the computer and disconnect:

a) power-connector cable b) media-buttons cable c) touch-pad cable d) fingerprint-scanner cable

Before Working Inside Your Computer

Page 24

4. Perform the following steps:

a) Remove the screws that secure the palmrest of the computer. b) Lift and remove the palmrest from the computer.

Installing the Palmrest

1. Align the palmrest assembly to its original position in the computer and snap it into place.

2. Connect the following cables to the system board:

a) power-button cable b) fingerprint-scanner cable c) touch-pad cable d) media button cable

3. Tighten the screws to secure the palmrest at the front and back of the computer.

4. Install:

a) display hinge b) hard-drive cage c) hard drive d) optical drive e) memory f) keyboard g) keyboard trim

Page 25

h) base cover i) battery j) SD card

5. Follow the procedures in

After Working Inside Your Computer

Removing the ExpressCard Cage

1. Follow the procedures in

2. Remove:

a) SD card b) battery c) base cover d) keyboard trim e) keyboard f) display hinge g) palmrest

3. Perform the following steps:

a) Remove the screws that secure the ExpressCard cage. b) Lift and remove the ExpressCard cage from the computer.

Before Working Inside Your Computer

Installing the ExpressCard Cage

1. Align the ExpressCard cage to its original position on the computer and snap it into place.

2. Install the screws that secure the ExpressCard cage.

3. Install:

a) palmrest b) display hinge c) keyboard d) keyboard trim e) base cover

Page 26

f) battery g) SD card

4. Follow the procedures in

After Working Inside Your Computer

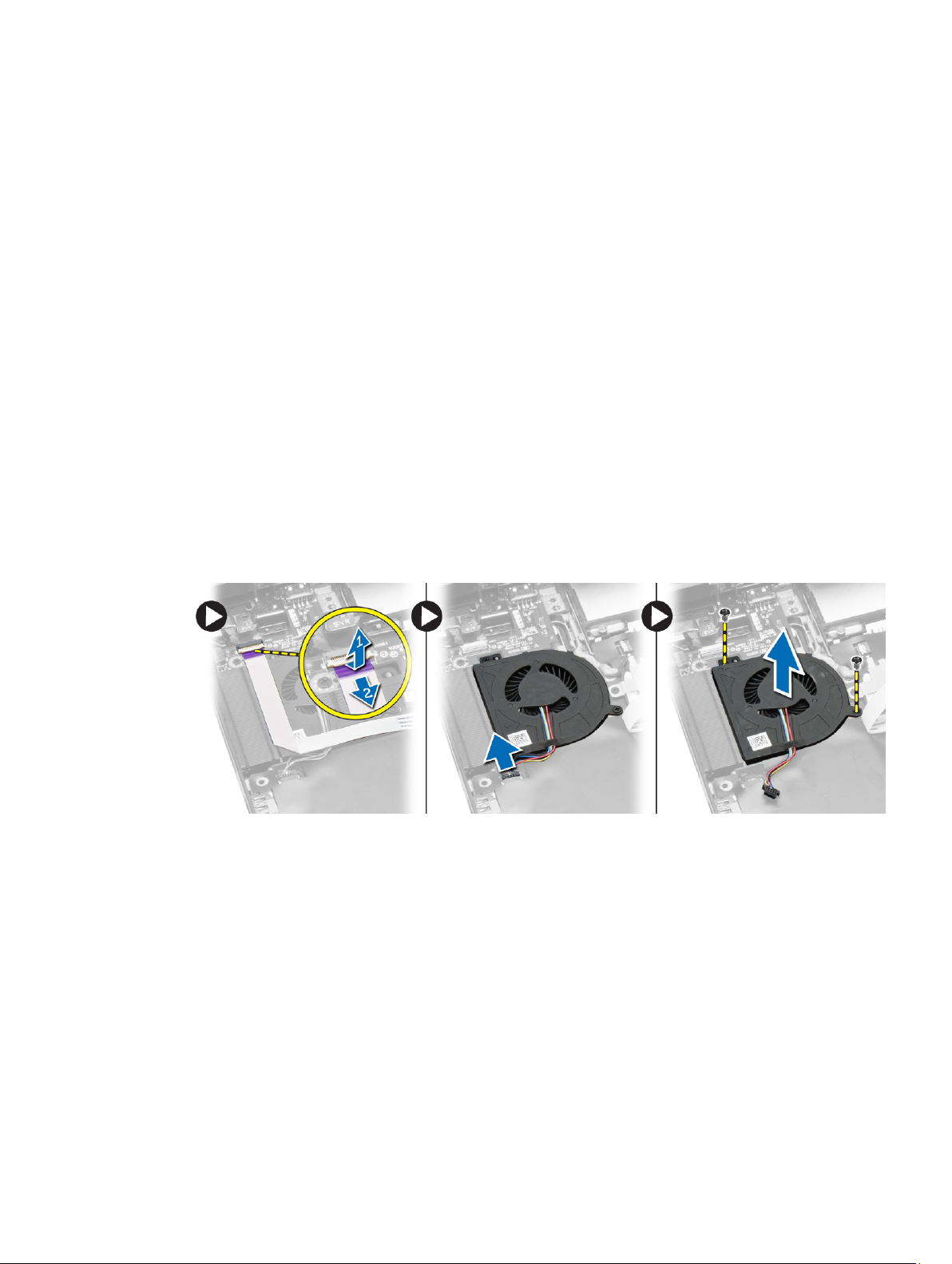

Removing the System Fan

1. Follow the procedures in

2. Remove:

a) SD card b) battery c) base cover d) keyboard trim e) keyboard f) memory g) optical drive h) hard drive i) hard-drive cage j) display hinge k) palmrest

3. Perform the following steps:

a) Disconnect the I/O board cable and system-fan cable. b) Remove the screws that secure the system fan and lift to remove the system fan from the

computer.

Before Working Inside Your Computer

Installing the System Fan

1. Place the system fan on the computer.

2. Connect the system-fan cable to the system board.

3. Connect the I/O board cable to its connector.

4. Tighten the screws to secure the system fan on the computer.

5. Install:

a) palmrest b) display hinge c) memory d) hard-drive cage e) hard drive

Page 27

f) optical drive g) keyboard h) keyboard trim i) base cover j) battery k) SD card

6. Follow the procedures in

After Working Inside Your Computer

Removing the System Board

1. Follow the procedures in

2. Remove:

a) SD card b) battery c) base cover d) keyboard trim e) keyboard f) memory g) optical drive h) hard drive i) hard-drive cage j) WLAN card k) display hinge l) palmrest m) system fan n) ExpressCard cage

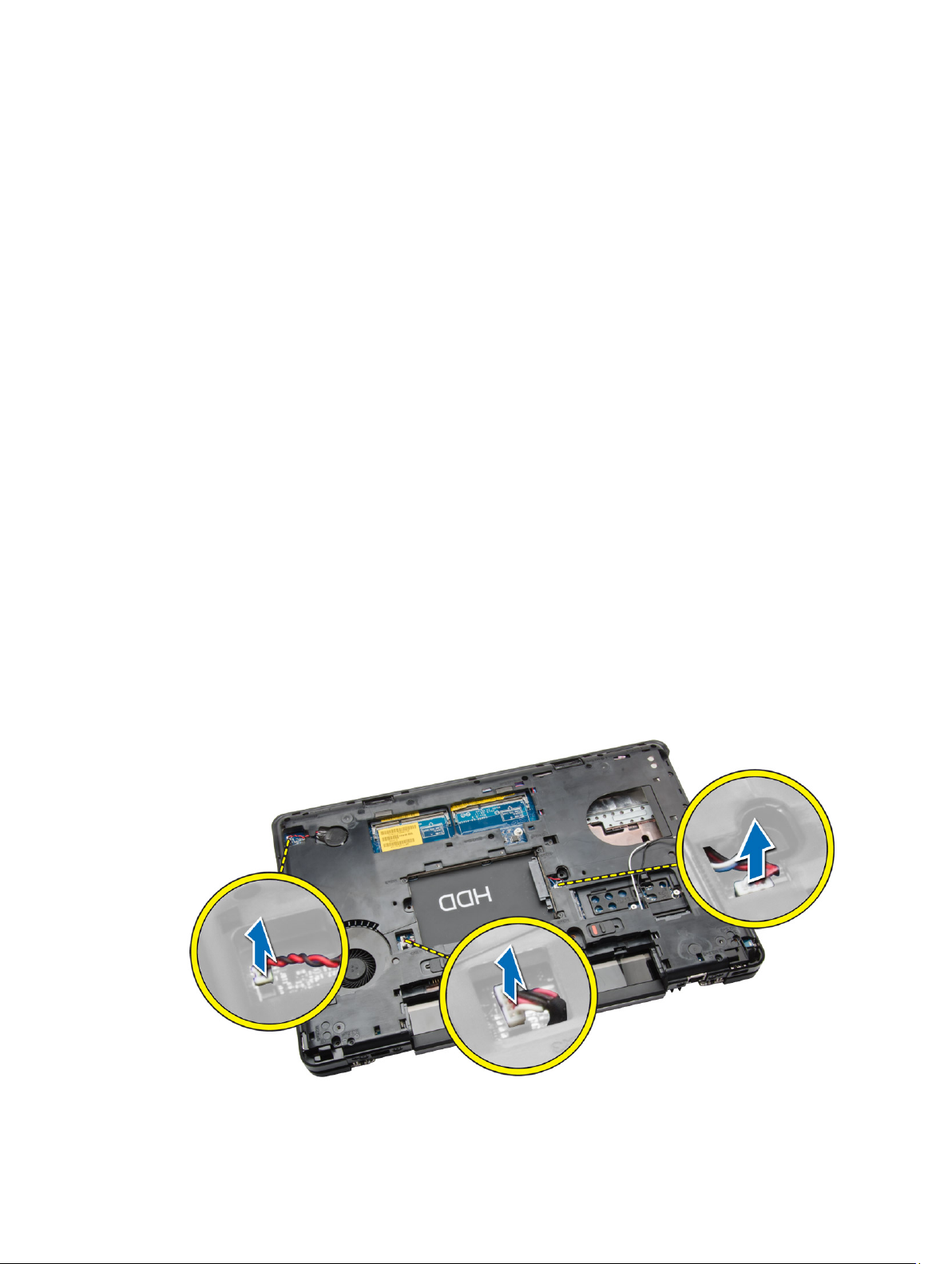

3. Disconnect:

a) coin-cell battery cable b) power-connector cable c) speaker cable

Before Working Inside Your Computer

Page 28

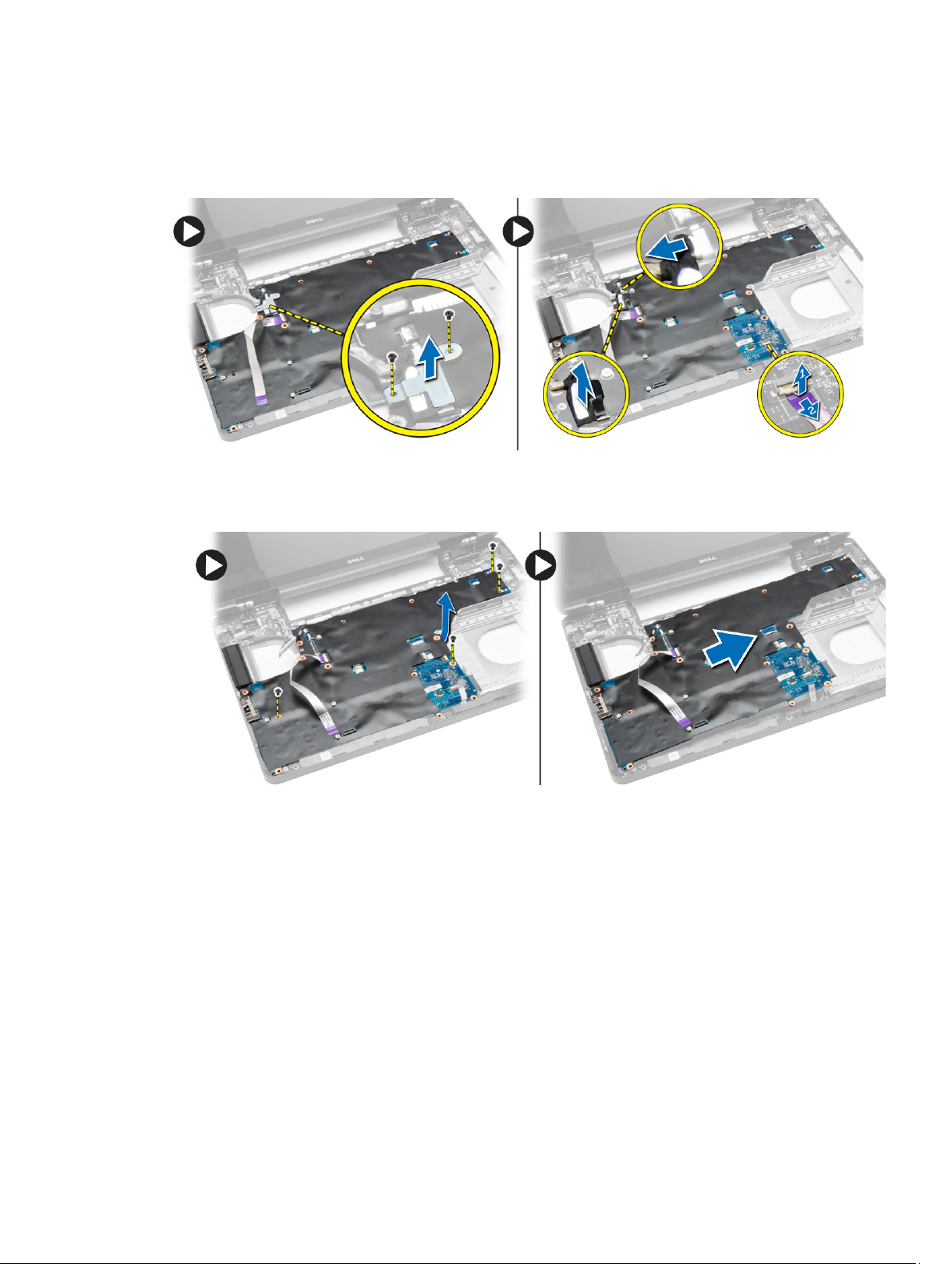

4. Flip the computer and perform the following steps:

a) Remove the screws that secure the display-cable connector and remove it from the system

board.

b) Disconnect the display cable and status-light board cable from the system board.

5. Perform the following steps:

a) Remove the screws that secure the system board on the computer. b) Lift and remove the system board from the computer.

Installing the System Board

1. Align the system board into its original position on the computer.

2. Replace and tighten the screws to secure the system board to the computer.

3. Connect the following cables:

a) I/O board cable b) status-light board cable

4. Turn over the computer and connect:

a) coin-cell battery cable b) power-connector cable c) speaker cable

5. Install:

a) ExpressCard cage

Page 29

b) system fan c) palmrest d) display hinge e) WLAN card f) hard-drive cage g) hard drive h) optical drive i) memory j) keyboard k) keyboard trim l) base cover m) battery n) SD card

6. Follow the procedures in

After Working Inside Your Computer

Removing the Heatsink

1. Follow the procedures in

2. Remove:

3. Perform the following steps:

a) Remove the screws that secure the heatsink in place. b) Lift to remove the heatsink from the computer.

Before Working Inside Your Computer

Page 30

Installing the Heatsink

1. Place the heatsink on the system board.

2. Tighten the screws to secure the heatsink to the computer.

3. Install:

a) system board b) ExpressCard cage c) system fan d) palmrest e) display hinge f) WLAN card g) hard-drive cage h) hard drive i) optical drive j) memory k) keyboard l) keyboard trim m) base cover n) battery o) SD card

4. Follow the procedures in

After Working Inside Your Computer

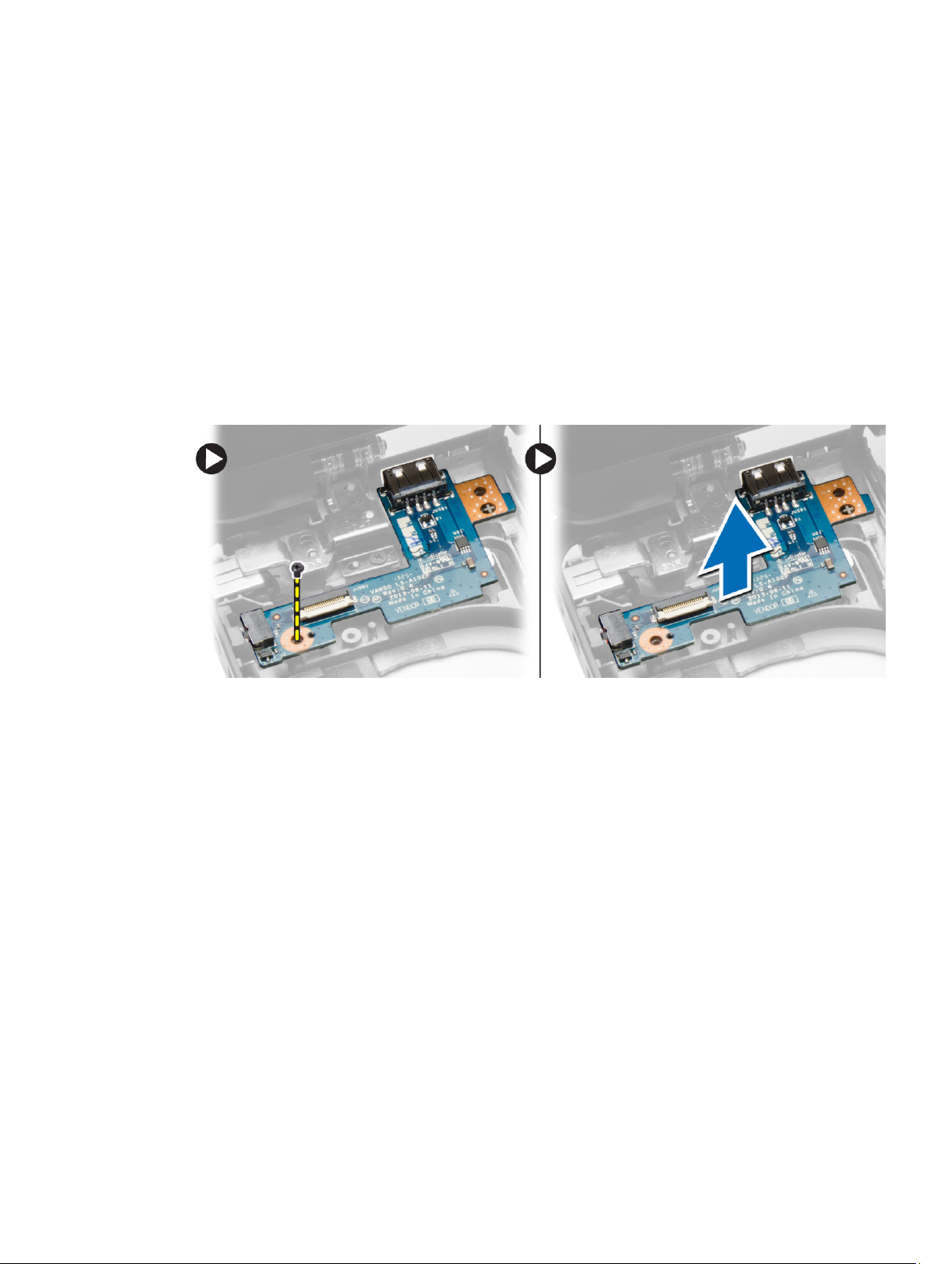

Removing the I/O Board (Left)

1. Follow the procedures in

2. Remove:

a) SD card b) battery c) base cover

Before Working Inside Your Computer

Page 31

d) keyboard trim e) keyboard f) memory g) optical drive h) hard drive i) hard-drive cage j) WLAN card k) display hinge l) palmrest m) system fan n) ExpressCard cage o) system board

3. Perform the following steps:

a) Remove the screw that secures the left I/O board on the computer. b) Lift the I/O board and remove from the computer.

Installing the I/O Board (Left)

1. Place the I/O board on the computer.

2. Tighten the screw to secure the I/O board to the computer.

3. Install:

Page 32

o) SD card

4. Follow the procedures in

After Working Inside Your Computer

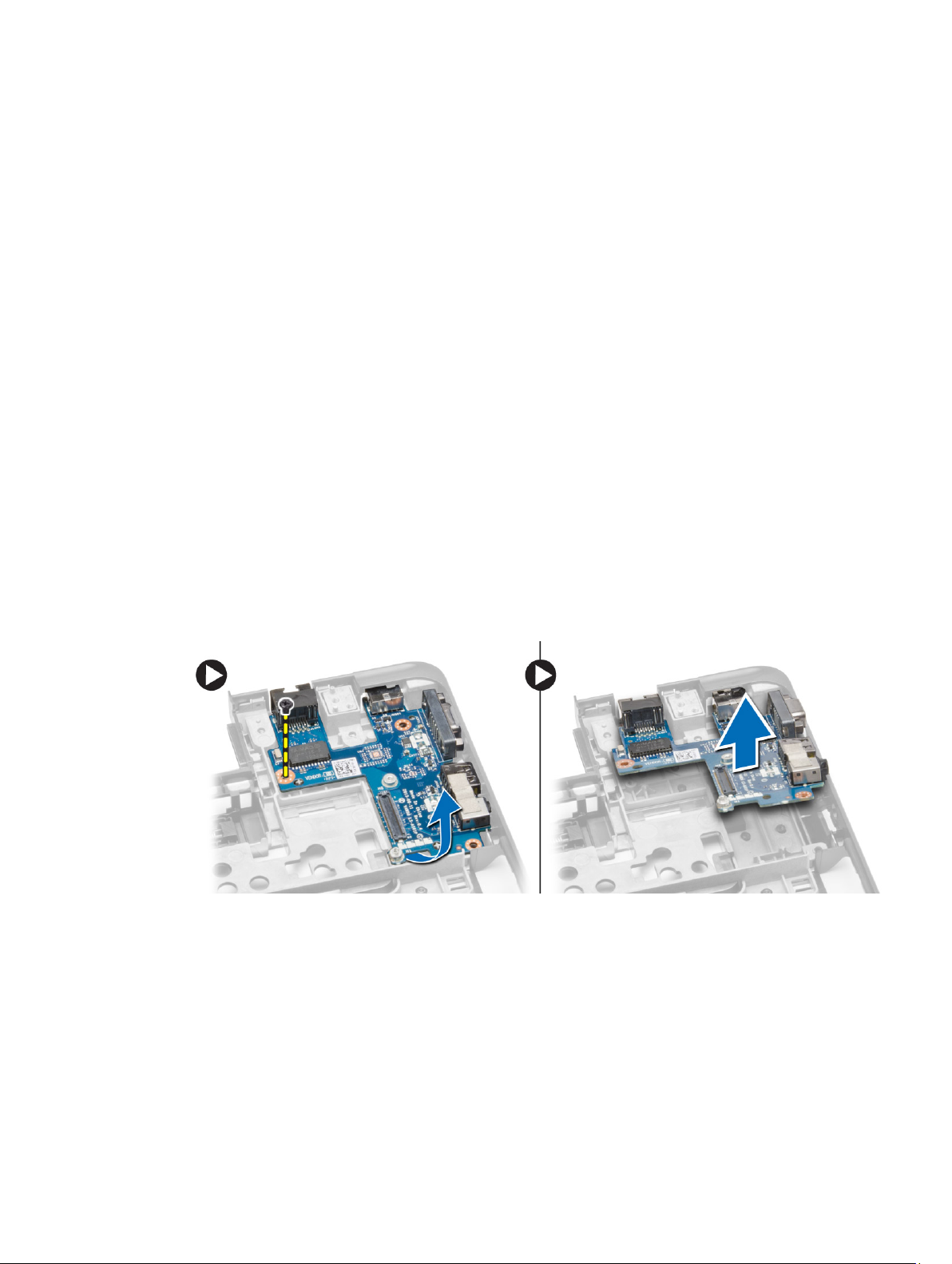

Removing the I/O Board (Right)

1. Follow the procedures in

2. Remove:

3. Perform the following steps:

a) Remove the screws that secure the I/O board on the computer. b) Lift the I/O board and remove from the computer.

Before Working Inside Your Computer

Installing the I/O Board (Right)

1. Place the I/O board on the computer.

2. Tighten the screws to secure the I/O board to the computer.

3. Install:

a) system board b) ExpressCard cage c) system fan

Page 33

d) palmrest e) display hinge f) WLAN card g) hard drive h) hard-drive cage i) optical drive j) memory k) keyboard l) keyboard trim m) base cover n) battery o) SD card

4. Follow the procedures in

After Working Inside Your Computer

Removing the Power Connector

1. Follow the procedures in

2. Remove:

a) SD card b) battery c) base cover d) keyboard trim e) keyboard f) memory g) hard drive h) hard-drive cage i) optical drive j) WLAN card k) display hinge l) palmrest m) ExpressCard cage n) system fan o) system board

3. Perform the following steps:

a) Remove the power-connector cable from the routing channels. b) Lift and remove the power connector from the computer.

Before Working Inside Your Computer

Page 34

Installing the Power Connector

1. Place the power connector on its place in the computer.

2. Route the power-connector cable on its routing channels.

3. Install:

a) system board b) system fan c) ExpressCard cage d) palmrest e) display hinge f) WLAN card g) hard-drive cage h) hard drive i) optical drive j) memory k) keyboard l) keyboard trim m) base cover n) battery o) SD card

4. Follow the procedures in

After Working Inside Your Computer

Removing the Speakers

1. Follow the procedures in

2. Remove:

a) SD memory card b) battery c) base cover d) keyboard trim e) keyboard f) memory g) optical drive h) hard drive i) hard-drive cage j) WLAN card k) display hinge l) palmrest m) system fan n) ExpressCard cage o) system board

3. Perform the following steps:

a) Remove the speaker cable from the routing channels. b) Remove the screws that secure the speakers from the computer. c) Lift and remove the speakers from the computer.

Before Working Inside Your Computer

Page 35

Installing the Speakers

1. Place the speakers on the computer.

2. Secure the speaker cable to the routing channels.

3. Tighten the screws to secure the speakers to the computer.

4. Install:

5. Follow the procedures in

After Working Inside Your Computer

Removing the Status-Light Board

1. Follow the procedures in

2. Remove:

a) SD card b) battery c) base cover d) keyboard trim e) keyboard f) memory g) optical drive

Before Working Inside Your Computer

Page 36

h) hard drive i) hard-drive cage j) WLAN card k) display hinge l) palmrest m) system fan n) ExpressCard cage o) system board p) speakers

3. Perform the following steps:

a) Remove the screw that secures the LED cover. b) Un-route the status-light board cable from its channels.

c) Remove the screw that secures the status-light board and lift to remove the status-light board

from the computer.

Installing the Status-Light Board

1. Place the status-light board on its place on the computer.

2. Connect the status-light board cable to its connector.

3. Tighten the screw to secure the status-light board on the computer.

4. Place the LED cover on the status-light board.

5. Install:

Page 37

a) speakers b) system board c) system fan d) ExpressCard cage e) palmrest f) display hinge g) WLAN card h) hard-drive cage i) hard drive j) optical drive k) memory l) keyboard m) keyboard trim n) base cover o) battery p) SD card

6. Follow the procedures in

After Working Inside Your Computer

Page 38

Page 39

System Setup

System Setup enables you to manage your computer hardware and specify BIOS‐level options. From the System Setup, you can:

• Change the NVRAM settings after you add or remove hardware

• View the system hardware configuration

• Enable or disable integrated devices

• Set performance and power management thresholds

• Manage your computer security

Boot Sequence

Boot Sequence allows you to bypass the System Setup‐defined boot device order and boot directly to a specific device (for example: optical drive or hard drive). During the Power-on Self Test (POST), when the Dell logo appears, you can:

• Access System Setup by pressing <F2> key

• Bring up the one-time boot menu by pressing <F12> key

The one-time boot menu displays the devices that you can boot from including the diagnostic option. The boot-menu options are:

• Removable Drive (if available)

• STXXXX Drive

NOTE: XXX denotes the SATA drive number.

• Optical Drive

• Diagnostics

NOTE: Choosing Diagnostics, will display the ePSA diagnostics screen.

The boot sequence screen also displays the option to access the System Setup screen.

Navigation Keys

The following table displays the system setup navigation keys.

NOTE: For most of the system setup options, changes that you make are recorded but do not take effect until you restart the system.

Page 40

Table 1. Navigation Keys

Keys Navigation

Up arrow Moves to the previous field.

Down arrow Moves to the next field.

<Enter> Allows you to select a value in the selected field (if applicable) or follow the link in

the field.

Spacebar Expands or collapses a drop‐down list, if applicable.

<Tab> Moves to the next focus area.

NOTE: For the standard graphics browser only.

<Esc> Moves to the previous page till you view the main screen. Pressing <Esc> in the

main screen displays a message that prompts you to save any unsaved changes and restarts the system.

<F1> Displays the System Setup help file.

System Setup Options

NOTE: Depending on the computer and its installed devices, the items listed in this section may or may not appear.

Table 2. General

Option Description

System Information

Battery Information

Boot Sequence Boot Sequence Allows you to change the order in which

This section lists the primary hardware features of your computer.

• System Information: Displays BIOS Version, Service Tag, Asset Tag, Ownership Tag, Ownership Date, Manufacture Date, and the Express Service Code.

• Memory Information: Displays Memory Installed, Memory Available, Memory Speed, Memory Channels Mode, Memory Technology, DIMM ASize, DIMM B Size,

• Processor Information: Displays Processor Type, Core Count, Processor ID, Current Clock Speed, Minimum Clock Speed, Maximum Clock Speed, Processor L2 Cache, Processor L3 Cache, HT Capable, and 64-Bit Technology.

• Device Information: Displays Primary Hard Drive, MiniCard Device, ODD Device, Dock eSATA Device, LOM MAC Address, Video Controller, Video BIOS Version, Video Memory, Panel Type, Native Resolution, Audio Controller, WiFi Device, WiGig Device, Cellular Device, Bluetooth Device.

Displays the battery status and the type of AC adapter connected to the computer

the computer attempts to find an operating system. The options are:

• Diskette Drive

• Internal HDD

• USB Storage Device

• CD/DVD/CD-RW Drive

Page 41

Option Description

Boot List Option Allows you to change the boot list

• Onboard NIC

By default, all the options are checked. You can also deselect any option or change the boot order.

option.

• Legacy

• UEFI

Advanced Boot Options

This option allows you the legacy option ROMs to load. By default, the Enable Legacy Option ROMs is unchecked.

Date/Time Allows you to change the date and time.

Table 3. System Configuration

Option Description

Integrated NIC Allows you to configure the integrated network controller. The options

are:

• Disabled

• Enabled

• Enabled w/PXE: This option is enabled by default.

Parallel Port Allows you to configure the parallel port on the docking station. The

options are:

• Disabled

• AT: This option is enabled by default.

• PS2

• ECP

Serial Port Allows you to configure the integrated serial port. The options are:

• Disabled

• COM1: This option is enabled by default.

• COM2

• COM3

• COM4

SATA Operation Allows you to configure the internal SATA hard-drive controller. The

options are:

• Disabled

• AHCI

• RAID On: This option is enabled by default.

Page 42

Option Description

Drives Allows you to configure the SATA drives on board. All drives are enabled

by default. The options are:

• SATA-0

• SATA-1

• SATA-2

• SATA-3

SMART Reporting This field controls whether hard drive errors for integrated drives are

reported during system startup. This technology is part of the SMART (Self Monitoring Analysis and Reporting Technology) specification. This option is disabled by default.

• Enable SMART Reporting

USB Configuration This field configures the integrated USB controller. If Boot Support is

enabled, the system is allowed to boot any type of USB Mass Storage Devices (HDD, memory key, floppy).

If USB port is enabled, device attached to this port is enabled and available for OS.

If USB port is disabled, the OS cannot see any device attached to this port.

• Enable Boot Support

• Enable External USB Port

• Enable USB3.0 Controller

NOTE: USB keyboard and mouse always work in the BIOS setup irrespective of these settings.

Audio This field enables or disables the integrated audio controller. By default,

the Enable Audio option is selected.

Keyboard Illumination This field lets you choose the operating mode of the keyboard

illumination feature. The keyboard brightness level can be set from 25% to 100%

• Disabled.

• Level is 25%

• Level is 50%

• Level is 75%

• Level is 100%: This option is enabled by default

Unobtrusive Mode This option, when enabled, pressing Fn+B turns of all light and sound

emissions in the system. To resume normal operation, press Fn+B again. This option is Disabled by default.

Miscellaneous Devices Allows you to enable or disable the following devices:

• Enable Microphone

• Enable Camera

• Enable Express card

Page 43

Option Description

• Enable Hard Drive Free Fall Protection

• Enable Media Card

• Disable Media Card

NOTE: All devices are enabled by default.

You can also enable or disable Media Card.

Table 4. Video

Option Description

LCD Brightness Allows you to set the display brightness depending up on the power

source (On Battery and On AC).

NOTE: The Video setting will only be visible when a video card is installed into the system.

Table 5. Security

Option Description

Admin Password Allows you to set, change, or delete the administrator (admin)

password.

NOTE: You must set the admin password before you set the system or hard drive password. Deleting the admin password automatically deletes the system password and the hard drive password.

NOTE: Successful password changes take effect immediately.

Default Setting: Not set

System Password Allows you to set, change or delete the system password.

NOTE: Successful password changes take effect immediately.

Default Setting: Not set

Internal HDD-1 Password Allows you to set or change the system's internal hard-disk drive.

NOTE: Successful password changes take effect immediately.

Default Setting: Not set

Strong Password Allows you to enforce the option to always set strong passwords.

Default Setting: Enable Strong Password is not selected.

NOTE: If Strong Password is enabled, Admin and System passwords must contain at least one uppercase character, one lowercase character and be at least 8 characters long.

Password Configuration Allows you to determine the minimum and maximum length of

Administrator and System passwords.

Password Bypass Allows you to enable or disable the permission to bypass the System

and the Internal HDD password, when they are set. The options are:

Page 44

Option Description

• Disabled

• Reboot bypass

Default Setting: Disabled

Password Change Allows you to enable the disable permission to the System and Hard

Drive passwords when the admin password is set. Default Setting: Allow Non-Admin Password Changes is selected

Non-Admin Setup Changes Allows you to determine whether changes to the setup options are

allowed when an Administrator Password is set. If disabled the setup options are locked by the admin password.

TPM Security Allows you to enable the Trusted Platform Module (TPM) during POST.

Default Setting: The option is disabled.

Computrace Allows you to activate or disable the optional Computrace software The

options are:

• Deactivate

• Disable

• Activate

NOTE: The Activate and Disable options will permanently activate or disable the feature and no further changes will be allowed

Deactivate (default)

CPU XD Support Allows you to enable the Execute Disable mode of the processor.

Enable CPU XD Support (default)

OROM Keyboard Access Allows you to set an option to enter the Option ROM Configuration

screens using hotkeys during boot. The options are:

• Enable

• One Time Enable

• Disable

Default Setting: Enable

Admin Setup Lockout Allows you to prevent users from entering Setup when an Administrator

password is set. Default Setting: Enable Admin Setup Lockout is not selected.

Table 6. Secure Boot

Option Description

Secure Boot Enable This option enables or disables the Secure Boot Feature.

• Disable (default)

Page 45

Option Description

• Enable

Expert Key Management Allows you to manipulate the security key databases only if the system

is in Custom Mode. The Enable Custom Mode option is disabled by default. The options are:

• PK

• KEK

• db

• dbx

If you enable the Custom Mode, the relevant options for PK, KEK, db, and dbx appear. The options are:

• Save to File- Saves the key to a user-selected file

• Replace from File- Replaces the current key with a key from a

user-selected file

• Append from File- Adds a key to the current database from a

user-selected file

• Delete- Deletes the selected key

• Reset All Keys- Resets to default setting

• Delete All Keys- Deletes all the keys

NOTE: If you disable the Custom Mode, all the changes made will be erased and the keys will restore to default settings.

Table 7. Performance

Option Description

Multi Core Support This field specifies whether the process will have one or all cores

enabled. The performance of some applications will improve with the additional cores. This option is enabled by default.Allows you to enable or disable multi-core support for the processor. The options are:

• All

• 1

• 2

Default Setting: All

Intel SpeedStep Allows you to enable or disable the Intel SpeedStep feature.

Default Setting: Enable Intel SpeedStep

C States Control Allows you to enable or disable the additional processor sleep states.

Default Setting: The option C states is enabled.

Intel TurboBoost Allows you to enable or disable the Intel TurboBoost mode of the

processor. Default Setting: Enable Intel TurboBoost

Hyper-Thread Control Allows you to enable or disable the HyperThreading in the processor.

Default Setting: Enabled

Page 46

Option Description

Rapid Start Technology This option might improve the battery life by automatically putting the

computer in to a low power state during Sleep, after a user-specified amount of time.

Default Setting: Disabled

Table 8. Power Management

Option Description

AC Behavior Allows you to enable or disable the computer from turning on

automatically when an AC adapter is connected. Default Setting: Wake on AC is not selected.

Auto On Time Allows you to set the time at which the computer must turn on

automatically. The options are:

• Disabled (default)

• Every Day

• Weekdays

• Select Days

USB Wake Support Allows you to enable USB devices to wake the system from Standby.

NOTE: This feature is only functional when the AC power adapter is connected. If the AC power adapter is removed during Standby, the system setup will remove power from all of the USB ports to conserve battery power.

• Enable USB Wake Support

• DEnable USB Wake Support is not selected

Wireless Radio Control Allows you to enable or disable the feature that automatically switches

from wired or wireless networks without depending on the physical connection.

• Control WLAN Radio

• Control WWAN Radio

• Control WLAN radio or Control WWAN radio is not selected (default)

Wake on LAN/WLAN Allows you to enable or disable the feature that powers on the

computer from the Off state when triggered by a LAN signal.

• Disabled: This option is enabled by default

• LAN Only

• WLAN Only

• LAN or WLAN

• LAN with PXE Boot

Block Sleep This option lets you block entering to sleep (S3 state) in Operating

System environment. Block Sleep (S3 state) - This option is disabled by default.

Page 47

Option Description

Peak Shift This option enables you to minimize the AC power consumption during

the peak power times of day. After you enable this option, your system runs only in battery even if the AC is attached.

Advanced Battery Charge Configuration

Primary Battery Charge Configuration

Battery Slice Charge Configuration

This option enables you to maximize the battery health. By enabling this option, your system uses the standard charging algorithm and other techniques, during the non-work hours to improve the battery health.

Disabled (default)

Allows you to select the charging mode for the battery. The options are:

• Adaptive

• Standard

• ExpressCharge: This option is enabled by default.

• Primarily AC use

• Custom

If Custom Charge is selected, you can also configure Custom Charge Start and Custom Charge Stop.

NOTE: All charging mode may not be available for all the batteries. To enable this option, disable the Advanced Battery Charge Configuration option.

Allows you to select the type of charge for the battery. The options are:

• Standard Charge

• Express Charge : This option is enabled by default.

NOTE: Express charge may not be available for all the batteries. To enable this option, disable the Advanced Battery Charge Configuration option.

Intel Smart Connect Technology

This option, if enabled, periodically senses the nearby wireless connections, while the system is in sleep state. You can use this option to synchronize the email or other social media application that are open, when the system enters the sleep state.

Table 9. POST Behavior

Option Description

Adapter Warnings Allows you to enable or disable the system setup (BIOS) warning

messages when you use certain power adapters. Default Setting: Enable Adapter Warnings

Keypad (Embedded) Allows you to choose one of two methods to enable the keypad that is

embedded in the internal keyboard.

• Fn Key Only: This option is enabled by default.

• By Numlock

Page 48

Option Description

NOTE: The Keyboard (Embedded) option is not supported in Latitude E5540

Mouse/Touchpad Allows you to define how the system handles mouse and touch pad

input. The options are:

• Serial Mouse

• PS2 Mouse

• Toushpad/PS-2 Mouse: This option is enabled by default.

Numlock Enable Allows you to enable the Numlock option when the computer boots.

Enable Network (default)

Fn Key Emulation Allows you to set the option where the <Scroll Lock> key is used to

simulate the <Fn> key feature. Enable Fn Key Emulation (default)

Mebx Hotkey Allows you to specify whether the MEBx Hotkey function should be

enabled when the system boots Enable MEBx Hotkey (default)

Fastboot Allows you to speed up the boot process by bypassing some of the

compatibility steps. The options are:

• Minimal

• Thorough (default)

• Auto

Extended BIOS POST Time Allows you to create an additional pre-boot delay. The options are:

• 0 seconds

• 5 seconds (default)

• 10 seconds

Table 10. Virtualization Support

Option Description

Virtualization Allows you to enable or disable the Intel Virtualization Technology.

Enable Intel Virtualization Technology (default)

VT for Direct I/O Enables or disables the Virtual Machine Monitor (VMM) from utilizing

the additional hardware capabilities provided by Intel® Virtualization technology for direct I/O.

Enable VT for Direct I/O — enabled by default.

Trusted Execution This option specifies whether a Measured Virtual Machine Monitor

(MVMM) can utilize the additional hardware capabilities provided by Intel Trusted Execution Technology. The TPM virtualization Technology, and Virtualization technology for direct I/O must be enabled to use this feature.

Page 49

Option Description

Trusted Execution — disabled by default.

Table 11. Wireless

Option Description

Wireless Switch Allows to set the wireless devices that can be controlled by the wireless

switch. The options are:

Latitude E5440

• WWAN

• WLAN

• WiGig

• Bluetooth

All the options are enabled by default.

Latitude E5540

• WLAN

• WiGig

• Bluetooth

All the options are enabled by default.

Wireless Device Enable Allows you to enable or disable the internal wireless devices.

Latitude E5440

• WWAN

• WLAN / WiGig

• Bluetooth

All the options are enabled by default.

Latitude E5540

• WLAN / WiGig

• Bluetooth

All the options are enabled by default.

Table 12. Maintenance

Option Description

Service Tag Displays the Service Tag of your computer.

Asset Tag Allows you to create a system asset tag if an asset tag is not already set.

This option is not set by default.

Table 13. System Logs

Option Description

BIOS Events Allows you to view and clear the System Setup (BIOS) POST events.

Thermal Events Allows you to view and clear the System Setup (Thermal) events.

Power Events Allows you to view and clear the System Setup (Power) events.

Page 50

Updating the BIOS

It is recommended to update your BIOS (system setup), on replacing the system board or if an update is available. For laptops, ensure that your computer battery is fully charged and connected to a power outlet

1. Restart the computer.

2. Go to dell.com/support.

3. If you have your computer's Service Tag or Express Service Code:

NOTE: To locate the Service Tag, click Where is my Service Tag?

NOTE: If you cannot find your Service Tag, click Detect Service Tag. Proceed with the instructions on screen.

4. Enter the Service Tag or Express Service Code and click Submit.

5. If you are unable to locate or find the Service Tag, click the Product Category of your computer.

6. Choose the Product Type from the list.

7. Select your computer model and the Product Support page of your computer appears.

8. Click Drivers & Downloads.

9. On the Drivers and Downloads screen, under the Operating System drop-down list, select BIOS.

10. Identify the latest BIOS file and click Download File.

11. Select your preferred download method in the Please select your download method below window; click Download File.

The File Download window appears.

12. Click Save to save the file on your computer.

13. Click Run to install the updated BIOS settings on your computer.

Follow the instructions on the screen.

System and Setup Password

You can create a system password and a setup password to secure your computer.

Password Type Description

System password Password that you must enter to log on to your system.

Setup password Password that you must enter to access and make changes to the BIOS settings of

your computer.

CAUTION: The password features provide a basic level of security for the data on your computer.

CAUTION: Anyone can access the data stored on your computer if is not locked and left unattended.

NOTE: Your computer is shipped with the system and setup password feature disabled.

Page 51

Assigning a System Password and Setup Password

You can assign a new System Password and/or Setup Password or change an existing System Password and/or Setup Password only when Password Status is Unlocked. If the Password Status is Locked, you cannot change the System Password.

NOTE: If the password jumper is disabled, the existing System Password and Setup Password is deleted and you need not provide the system password to log on to the computer.

To enter a system setup, press <F2> immediately after a power-on or reboot.

1. In the System BIOS or System Setup screen, select System Security and press <Enter>. The System Security screen appears.

2. In the System Security screen, verify that Password Status is Unlocked.

3. Select System Password , enter your system password, and press <Enter> or <Tab>.

Use the following guidelines to assign the system password:

– A password can have up to 32 characters. – The password can contain the numbers 0 through 9. – Only lower case letters are valid, upper case letters are not allowed. – Only the following special characters are allowed: space, (”), (+), (,), (-), (.), (/), (;), ([), (\), (]), (`).

Re-enter the system password when prompted.

4. Type the system password that you entered earlier and click OK.

5. Select Setup Password, type your system password and press <Enter> or <Tab>.

A message prompts you to re-type the setup password.

6. Type the setup password that you entered earlier and click OK.

7. Press <Esc> and a message prompts you to save the changes.

8. Press <Y> to save the changes.

The computer reboots.

Deleting or Changing an Existing System and/or Setup Password

Ensure that the Password Status is Unlocked (in the System Setup) before attempting to delete or change the existing System and/or Setup password. You cannot delete or change an existing System or Setup password, if the Password Status is Locked.

To enter the System Setup, press <F2> immediately after a power-on or reboot.

1. In the System BIOS or System Setup screen, select System Security and press <Enter>. The System Security screen is displayed.

2. In the System Security screen, verify that Password Status is Unlocked.

3. Select System Password, alter or delete the existing system password and press <Enter> or <Tab>.

4. Select Setup Password, alter or delete the existing setup password and press <Enter> or <Tab>.

NOTE: If you change the System and/or Setup password, re-enter the new password when promoted. If you delete the System and/or Setup password, confirm the deletion when promoted.

5. Press <Esc> and a message prompts you to save the changes.

Page 52

6. Press <Y> to save the changes and exit from the System Setup. The computer reboots.

Page 53

Diagnostics

If you experience a problem with your computer, run the ePSA diagnostics before contacting Dell for technical assistance. The purpose of running diagnostics is to test your computer's hardware without requiring additional equipment or risking data loss. If you are unable to fix the problem yourself, service and support personnel can use the diagnostics results to help you solve the problem.

Enhanced Pre-Boot System Assessment (ePSA) Diagnostics

The ePSA diagnostics (also known as system diagnostics) performs a complete check of your hardware. The ePSA is embedded with the BIOS and is launched by the BIOS internally. The embedded system diagnostics provides a set of options for particular devices or device groups allowing you to:

• Run tests automatically or in an interactive mode

• Repeat tests

• Display or save test results

• Run thorough tests to introduce additional test options to provide extra information about the failed device(s)

• View status messages that inform you if tests are completed successfully

• View error messages that inform you of problems encountered during testing

CAUTION: Use the system diagnostics to test only your computer. Using this program with other computers may cause invalid results or error messages.

NOTE: Some tests for specific devices require user interaction. Always ensure that you are present at the computer terminal when the diagnostic tests are performed.

1. Power-on the computer.

2. As the computer boots, press the <F12> key as the Dell logo appears.

3. On the boot menu screen, select the Diagnostics option.

The Enhanced Pre-boot System Assessment window is displayed, listing all devices detected in the computer. The diagnostics starts running the tests on all the detected devices.

4. If you wish to run a diagnostic test on a specific device, press <Esc> and click Yes to stop the

diagnostic test.

5. Select the device from the left pane and click Run Tests.

6. If there are any issues, error codes are displayed.

Note the error code and contact Dell.

Page 54

Device Status Lights

Icon Description

Turns on when you turn on the computer and blinks when the computer is in a power management mode.

Turns on when the computer reads or writes data.

Turns on steadily or blinks to indicate battery charge status.

Turns on when wireless networking is enabled.

Battery Status Lights

If the computer is connected to an electrical outlet, the battery light operates as follows:

Alternately blinking amber light and white light

Alternately blinking amber light with steady white light

Constantly blinking amber light

Light off Battery in full charge mode with AC adapter present.

White light on Battery in charge mode with AC adapter present.

An unauthenticated or unsupported non-Dell AC adapter is attached to your laptop.

Temporary battery failure with AC adapter present.

Fatal battery failure with AC adapter present.

Page 55

Specifications

NOTE: Offerings may vary by region. For more information regarding the configuration of your

computer, click Start (Start icon) → Help and Support, and then select the option to view information about your computer.

Table 14. System Information

Feature Specification

DRAM bus width 64-bit

Flash EPROM SPI 32Mbits + 64Mbits

PCIe Gen1 bus 100 MHz

External Bus Frequency DMI (5GT/s)

Table 15. Processor

Feature Specification

Types

L3 cache up to 8 MB

Table 16. Memory

Feature Specification

Memory connector two SoDIMM slots

Memory capacity 2 GB, 4 GB, or 8 GB

Memory type DDR3L SDRAM 1600

Minimum memory 2 GB

Maximum memory 8 GB

Table 17. mSATA Support

Feature Specification

with Express Card I/O and Discrete Graphic Configuration

for other configurations mSATA is supported on both Latitude E5440 and Latitude

• Intel Core i3 series

• Intel Core i5 series

• Intel Core i7 series

No mSATA support on both Latitude E5440 and Latitude E5540.

E5540.

Page 56

Feature Specification

without Express Card I/O on Discrete Graphic and all UMA Graphic Configurations

Table 18. Audio

• Supports mSATA and WWAN on Latitude E5440

• Supports mSATA on Latitude E5540.

Feature Specification

Type four-channel high definition audio

Controller ALC3226

Stereo conversion 24-bit (analog-to-digital and digital-to-analog)

Interface:

Internal high definition audio

External microphone-in/stereo headphones/external speakers

connector

Speakers two

Internal speaker amplifier 1W (RMS) per channel

Volume controls keyboard function keys, program menus

Table 19. Video

Feature Specification

Type integrated on system board

Controller

UMA Intel HD Graphics 4400

Discrete nVidia GeForce GT 720M 2GB Graphics

Table 20. Communications

Feature Specification

Network adapter 10/100/1000 Mb/s Ethernet (RJ-45)

Wireless

• Internal wireless local area network (WLAN)

• Wireless wide area network (WWAN) (E5440 only)

Table 21. Ports and Connectors

Feature Specification

Audio (optional) one microphone/stereo headphone/speakers connector

Video

• one 15-pin VGA connector

• 19-pin HDMI connector

Page 57

Feature Specification

Network adapter one RJ-45 connector

USB 2.0

• one 4–pin USB 2.0–compliant connector (E5440)

• two 4-pin USB 2.0-compliant connectors (E5540)

NOTE: The USB 2.0 connector at the back of the Latitude E5540 computer, gets deactivated, when the Latitude E5540 computer is connected to the docking station.

USB 3.0 two USB 3.0–compliant connectors

Memory card reader one 8-in-1 memory card reader

Docking port one

Subscriber Identity Module (SIM) port one (E5440 only)

Table 22. Display

Feature Specification

Type

Latitude E5440

• HD(1366x768), WLED

• HD+(1600 x 900)

Latitude E5540

• HD(1366x768), WLED

• FHD (1920 x 1080)

Size

Latitude E5440 14.0"

Latitude E5540 15.6"

Dimensions:

Latitude E5440:

Height 192.5 mm (7.57 inches)

Width 324 mm (12.75 inches)

Diagonal 355.60 mm (14.00 inches)

Active ares (X/Y) 309.40 mm x 173.95 mm

Maximum resolution

• 1366 x 768 pixels

• 1600 x 900 pixels

Maximum Brightness 200 nits

Latitude E5540:

Height 210 mm (8.26 inches)

Page 58

Feature Specification

Width 360 mm (14.17 inches)

Diagonal 394.24 mm (15.60 inches)

Active area (X/Y) 344.23 mm x 193.54 mm

Maximum resolution

• 1366 x 768 pixels

• 1920 x 1080 pixels

Maximum Brightness 220 nits for HD, 300 nits for FHD

Operating angle 0° (closed) to 135°

Refresh rate 60 Hz

Minimum Viewing angles:

Horizontal

• +/- 40° for HD

• +/- 60° for FHD

Vertical

• +10°/-30° for HD

• +/-50° for FHD

Pixel pitch:

Latitude E5440 0.2265 mm x 0.2265 mm

Latitude E5540

• 0.2520 mm x 0.2520 mm for HD

• 0.1790 x 0.1790 for FHD

Table 23. Keyboard

Feature Specifcation

Number of keys United States: 86 keys, United Kingdom: 87 keys, Brazil:

87 keys, and Japan: 90 keys

Layout QWERTY/AZERTY/Kanji

Table 24. Touchpad

Feature Specification

Active Area:

X-axis 80.00 mm (3.15 inches)

Y-axis 45.00 mm (1.77 inches)

Table 25. Battery

Feature Specification

Type 4, 6 or 9-cell "smart" lithium ion

Dimensions:

Page 59

Feature Specification

Height

4-, 6-, and 9-cell 20.00 mm (0.79 inch)

Width

4- and 6-cell 208.00 mm (8.18 inches)

9-cell 214.00 mm (8.43 inches)

Depth

4- and 6-cell 48.08 mm (1.89 inches)

9-cell 71.79 mm (2.83 inches)

Weight

4-cell 240.00 g (0.53 lb)

6-cell 344.73 g (0.76 lb)

9-cell 508.20 g (1.12 lb)

Voltage

4-cell 14.8 VDC

6- and 9-cell 11.1 VDC

Temperature range:

Operating 0 °C to 50 °C (32 °F to 122 °F)

Non-Operating –40 °C to 85 °C (–40 °F to 185 °F)

NOTE: The battery pack is capable of safely withstanding the above storage temperatures with 100% charge.

NOTE: The battery pack is also capable of withstanding storage temperatures from –20 °C to +60 °C with no degradation in its performance.

Coin-cell battery 3 V CR2032 lithium coin cell

Table 26. AC Adapter

Feature Latitude E5440 Latitude E5540

Type 65 W 90 W adapter

Input voltage 100 VAC to 240 VAC 100 VAC to 240 VAC

Input current (maximum) 1.7 A 1.5 A

Input frequency 50 Hz to 60 Hz 50 Hz to 60 Hz

Output power 65 W 90 W

Output current 3.34 A (continuous) 4.62 A (continuous)

Page 60

Feature Latitude E5440 Latitude E5540

Rated output voltage 19.5 +/– 1.0 VDC 19.5 +/– 1.0 VDC

Temperature range:

Operating 0 °C to 40 °C (32 °F to 104 °F) 0 °C to 40 °C (32 °F to 104 °F)

Non-Operating –40 °C to 70 °C (–40 °F to 158 °F) –40 °C to 70 °C (–40 °F to 158 °F)

Table 27. Physical

Physical Latitude E5440 Latitude E5540

Touch Non-touch Touch Non-touch

Height

Front - 27.70 mm (1.09 inches)

Back - 32.20 mm (1.27 inches)

Front - 25.20 mm (0.99 inch)

Back - 28.65 mm (1.13 inches)

Front - 28.25 mm (1.11 inches)

Back - 33.60 mm (1.32 inches)

Front - 26.00 mm (1.02 inches)

Back - 29.70 mm (1.17 inches)

Width 338.00 mm (13.31 inches) 379.00 mm (14.92 inches)

Depth 235.00 mm (9.25 inches) 250.50 mm (9.86 inches)

Weight

1.99 kg (4.40 lb) 2.42 kg (5.35 lb) (minimu m)

Table 28. Environmental

Feature Specification

Temperature:

Operating 0 °C to 35 °C (32 °F to 95 °F)

Storage –40 °C to 65 °C (–40 °F to 149 °F)

Relative humidity (maximum):

Operating 10 % to 90 % (non condensing)

Storage 5 % to 95 % (non condensing)

Altitude (maximum):

Operating –15.24 m to 3048 (–50 ft to 10,000 ft ft)

Non-Operating –15.24 m to 10,668 m (–50 ft to 35,000 ft)

Airborne contaminant level G1 as defined by ISA-71.04–1985

Page 61

Contacting Dell

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues:

1. Visit dell.com/support

2. Select your support category.

3. Verify your country or region in the Choose a Country/Region drop-down menu at the top of page.

4. Select the appropriate service or support link based on your need.
