Dell E1916H, E1916He, E2016H, E2216H, E2316Hr User Manual

...

User‘s Guide

Dell E1916H Dell E1916He Dell E2016H Dell E2216H Dell E2316H Dell E2316Hr Dell E2416H Dell E2416HM

Regulatory model: E1916Hf / E1916Hef / E2016Hb / E2216Hf / E2316Hf / E2416Hb

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Information in this document is subject to change without notice. Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™ and the DELL logo are trademarks of Dell Inc.; Microsoft®, Windows®, and the Windows start button logo are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Other trademarks and tra

claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

2019 – 9

Rev. A08

de names may be used in this document to refer to either the entities

Contents

About Your Monitor ..................................... 5

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Identifying Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . 7

Monitor Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Plug and Play Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

LCD Monitor Quality & Pixel Policy . . . . . . . . . . . . . . . . . . . . . 21

Maintenance Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Setting Up the Monitor.................................. 22

Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

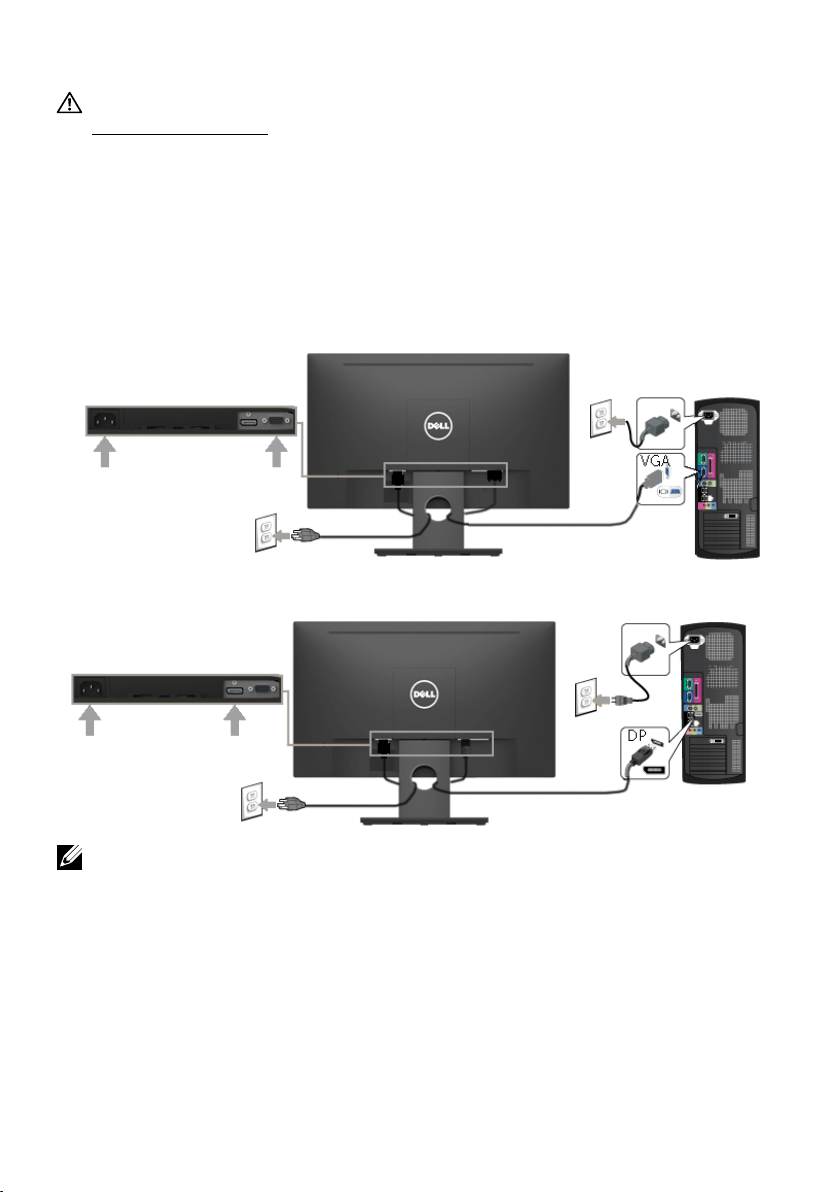

Connecting Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Organizing Your Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Removing the Monitor Stand . . . . . . . . . . . . . . . . . . . . . . . . 24

Wall Mounting (Optional). . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Operating the Monitor .................................. 26

Power On the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Using the Front-Panel Controls . . . . . . . . . . . . . . . . . . . . . . . 26

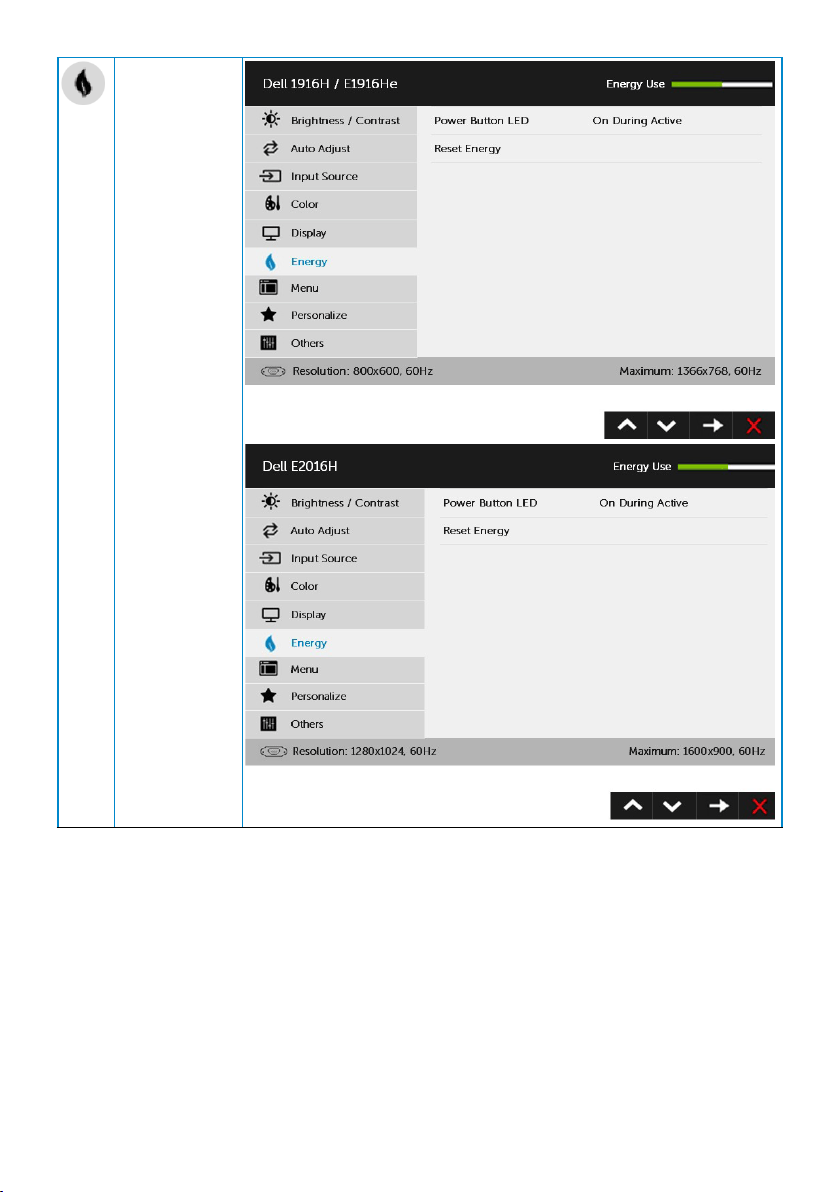

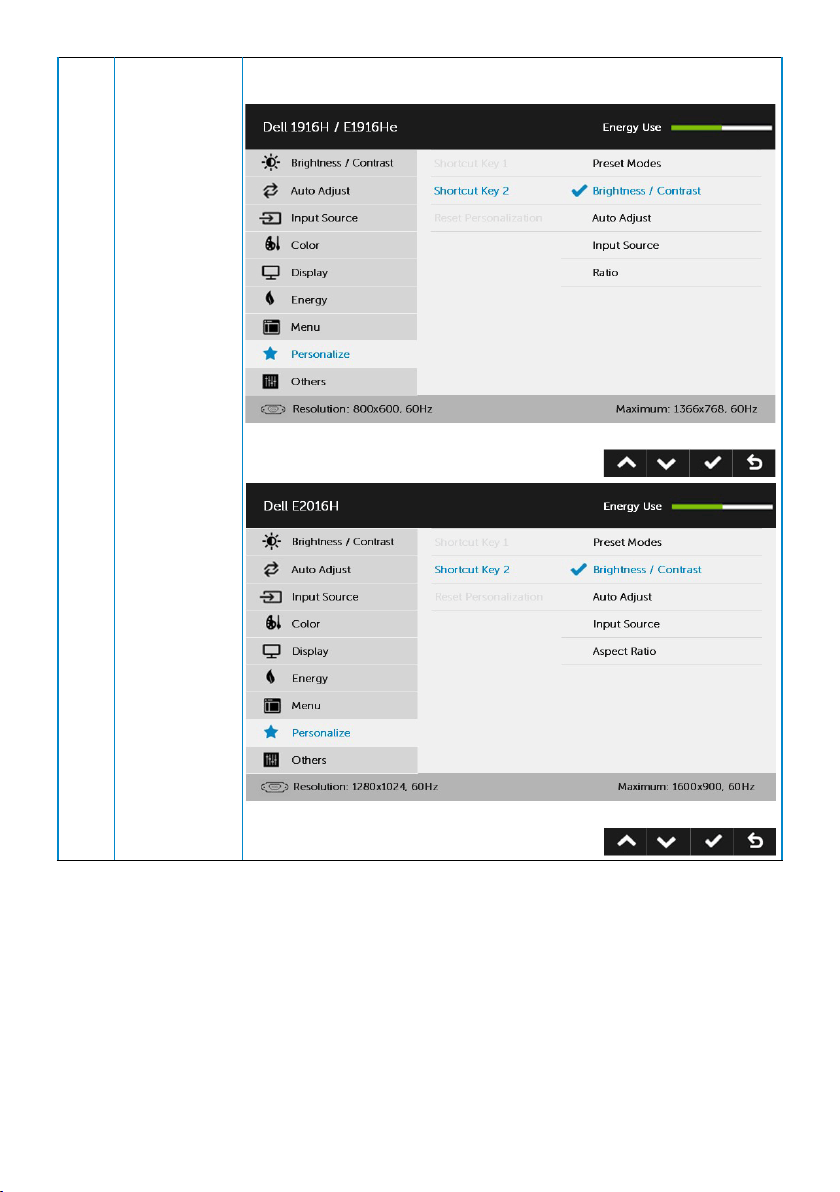

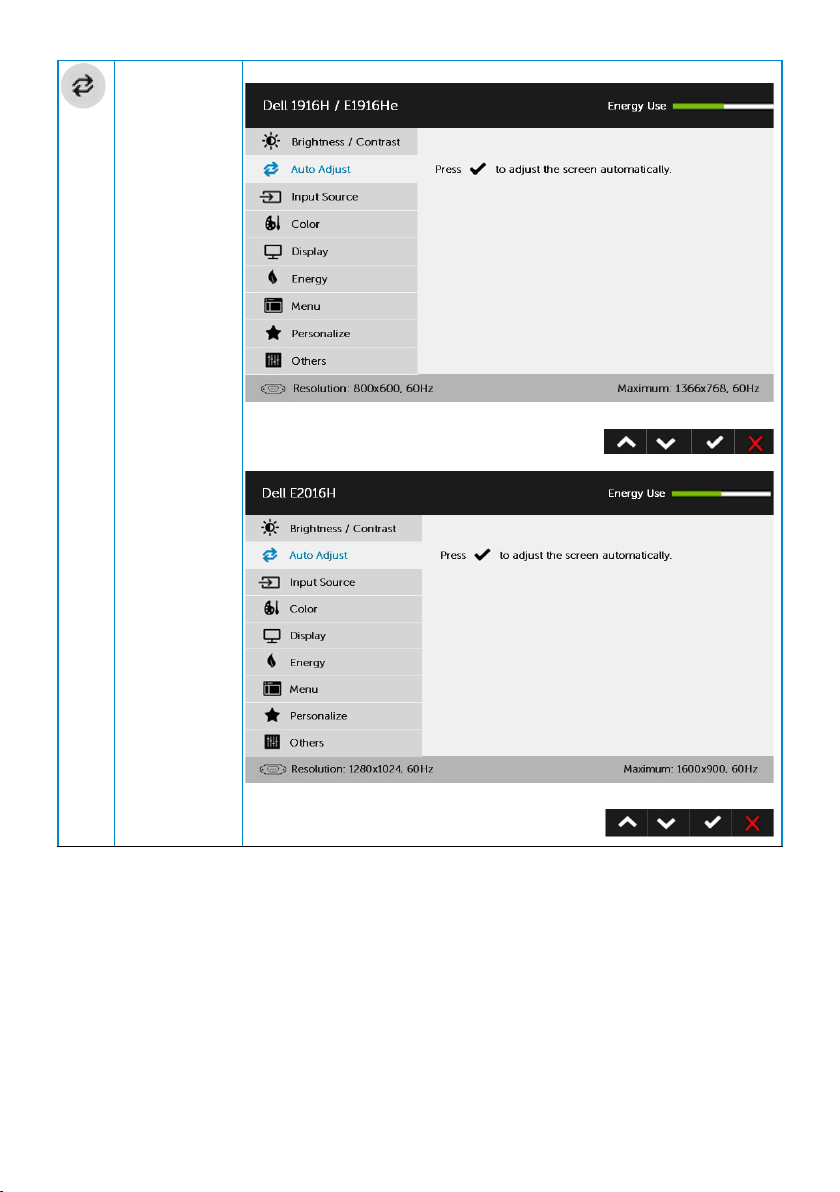

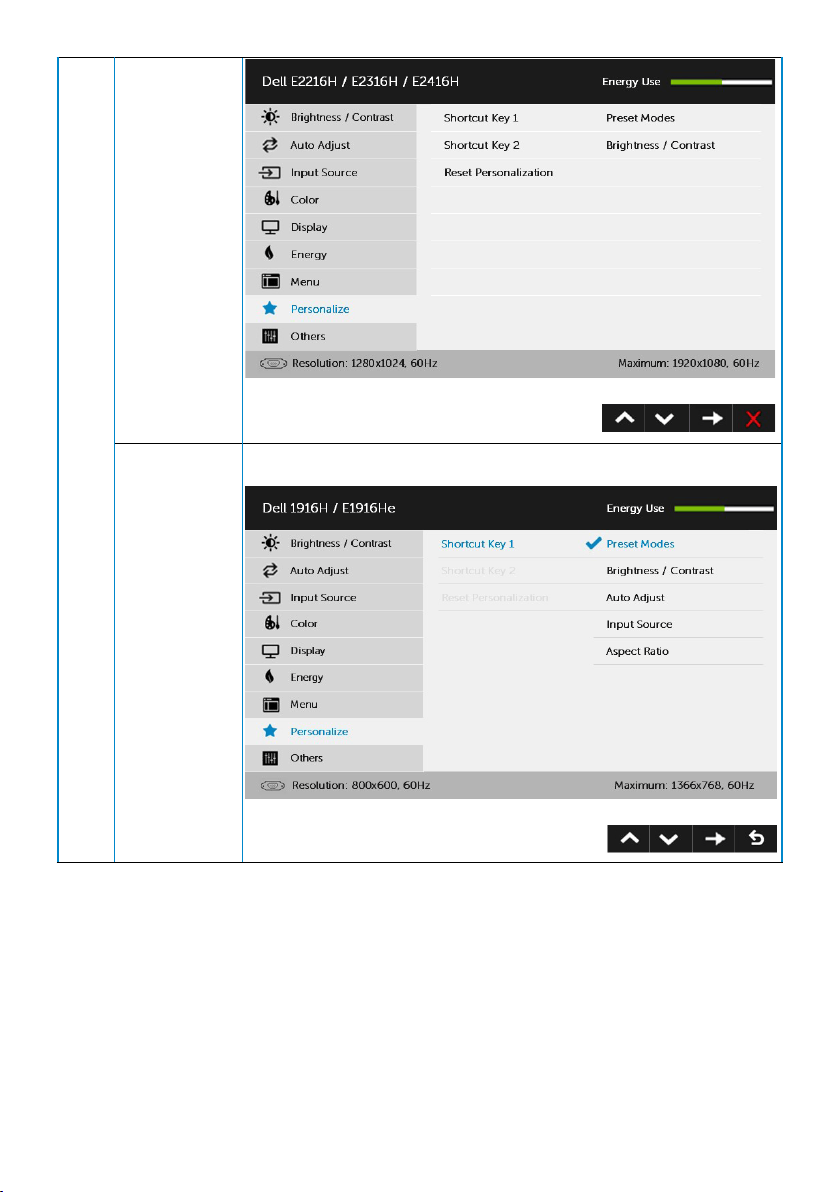

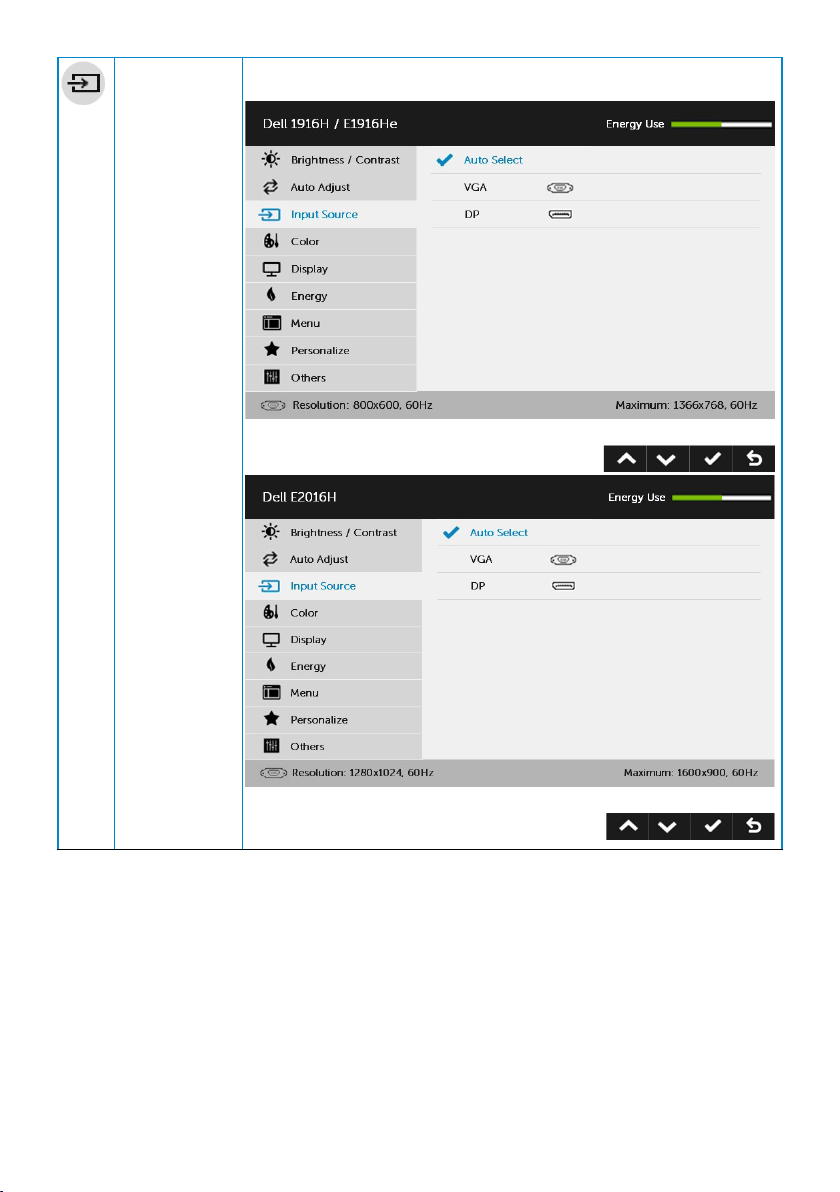

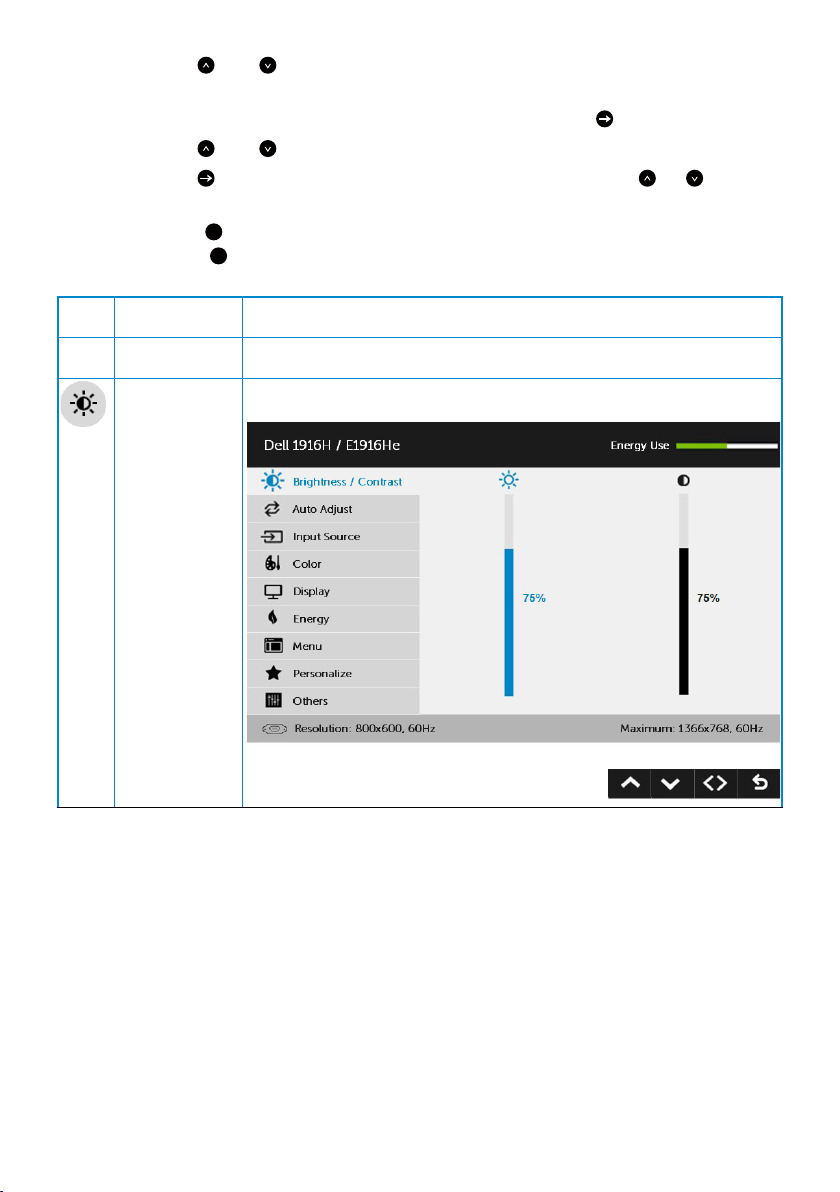

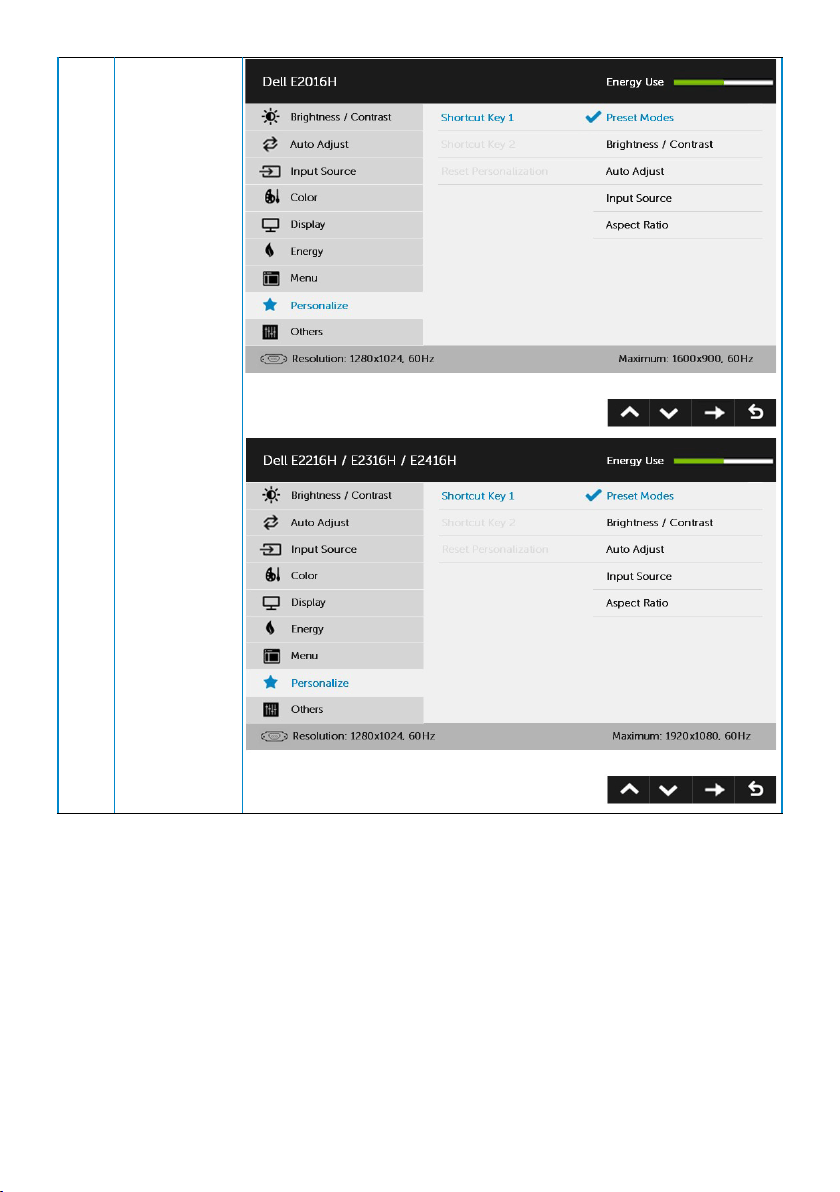

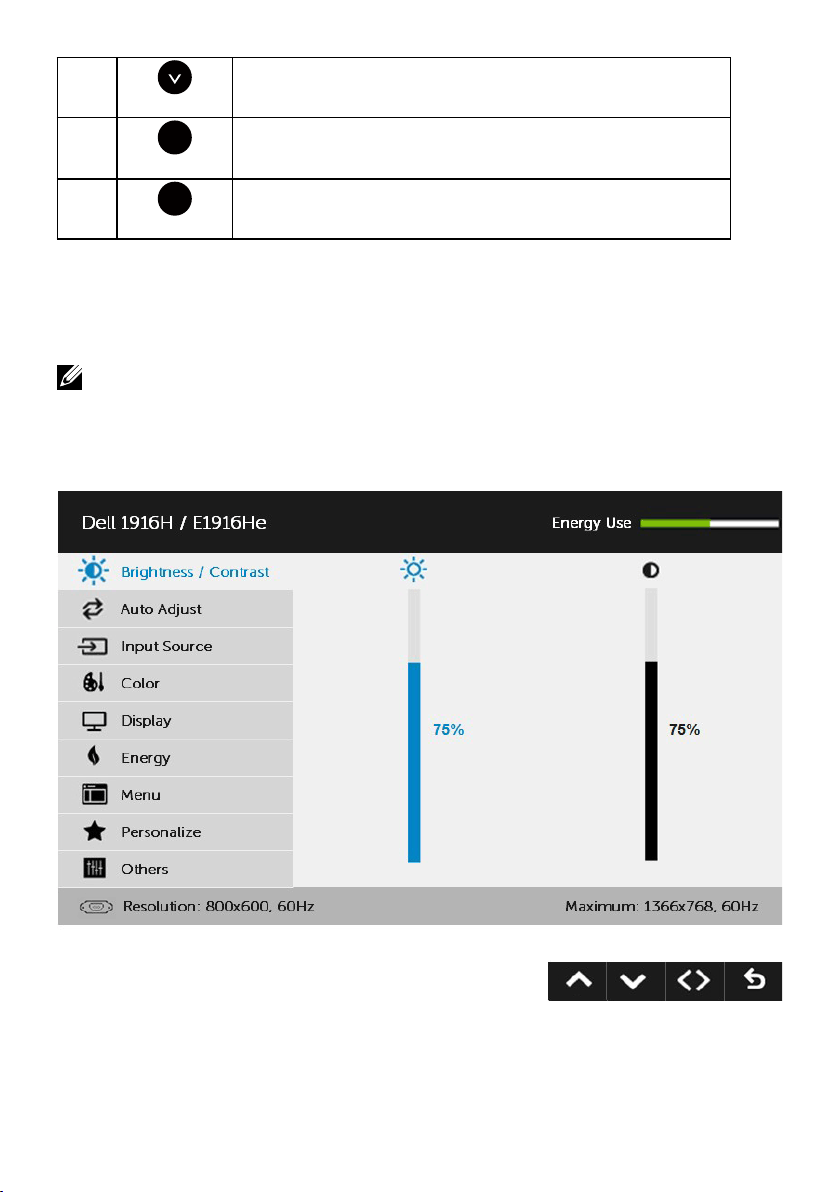

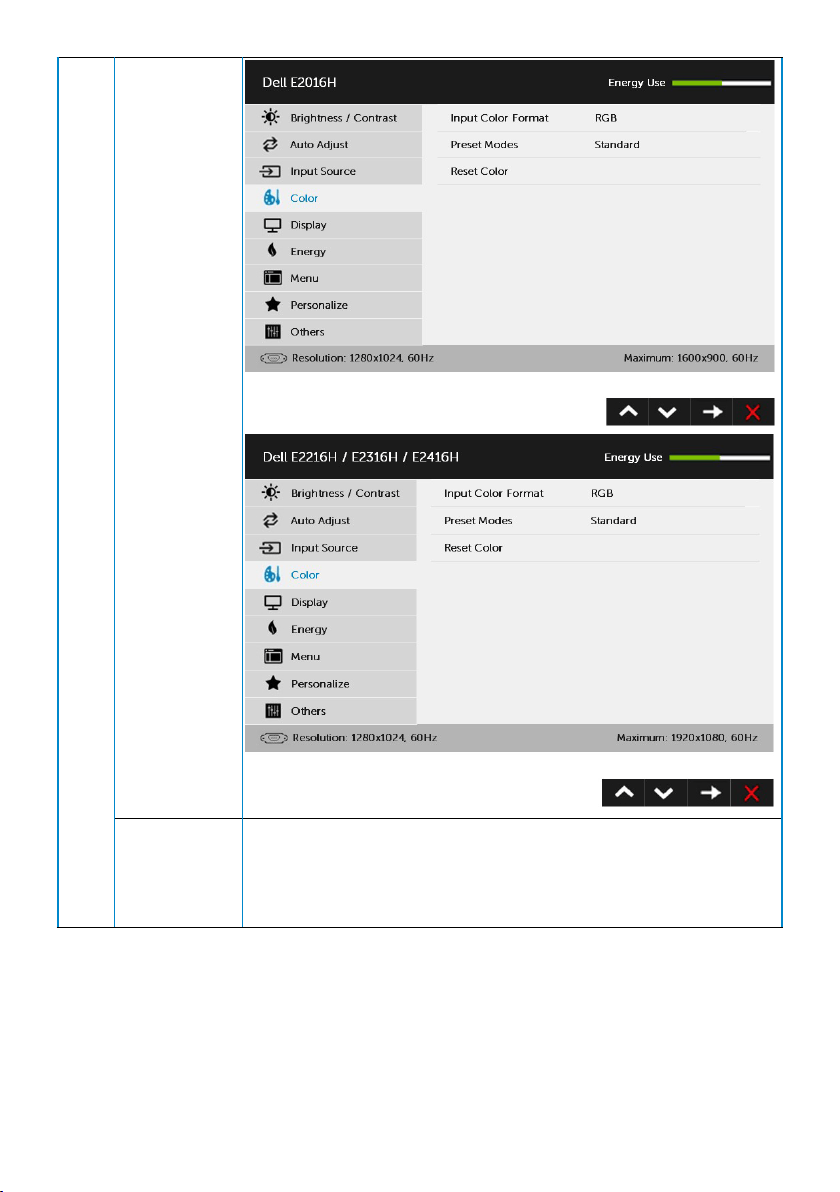

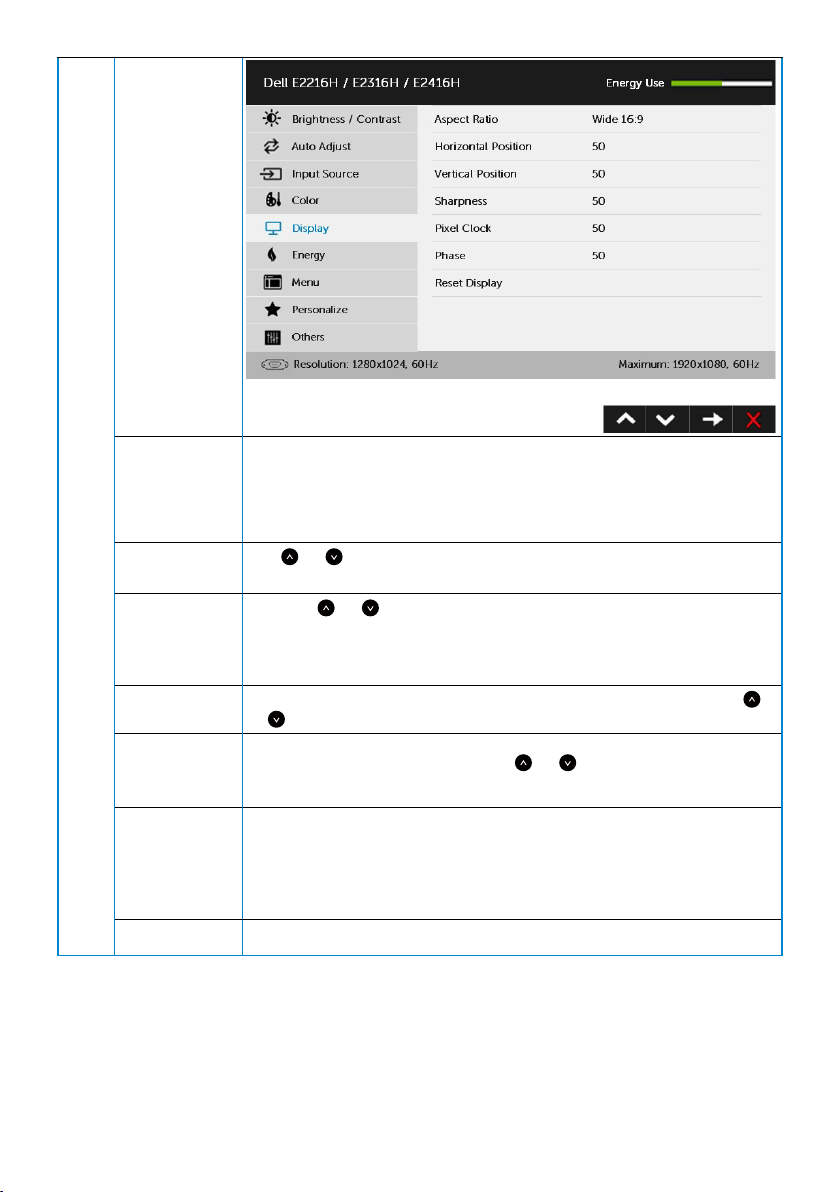

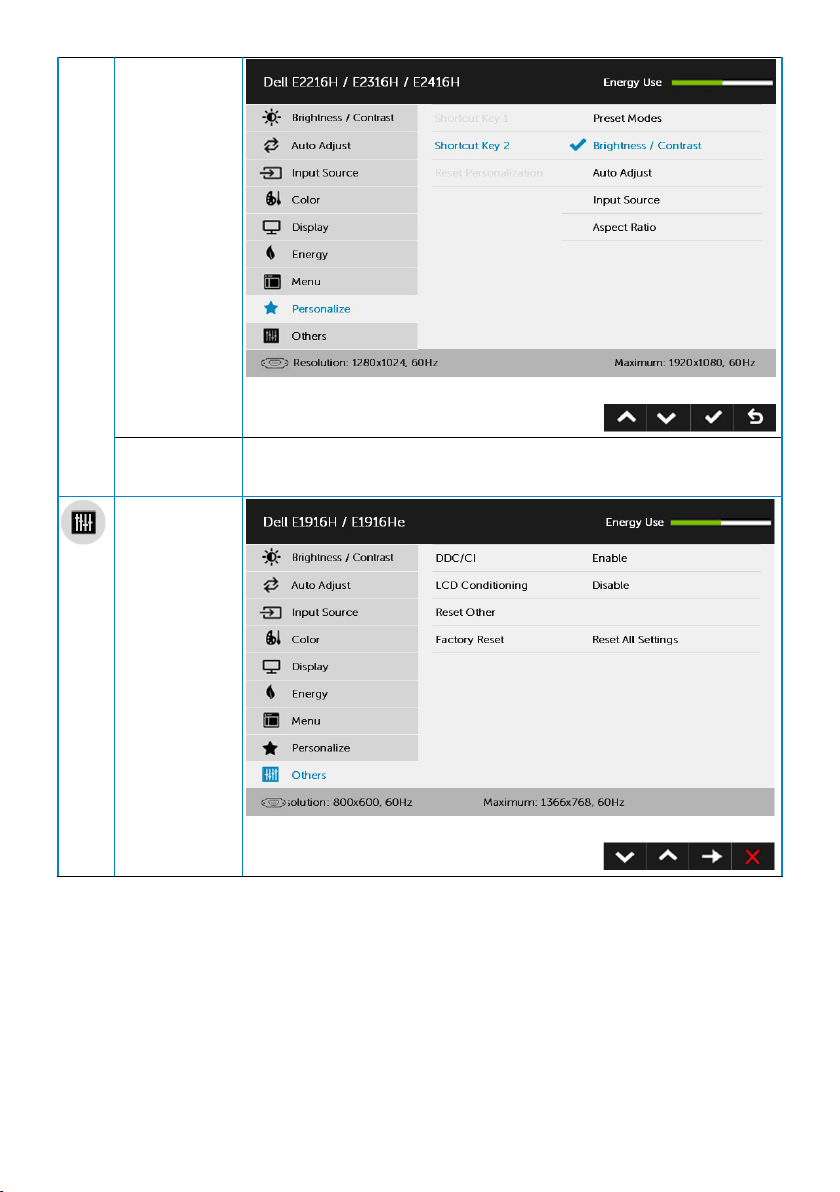

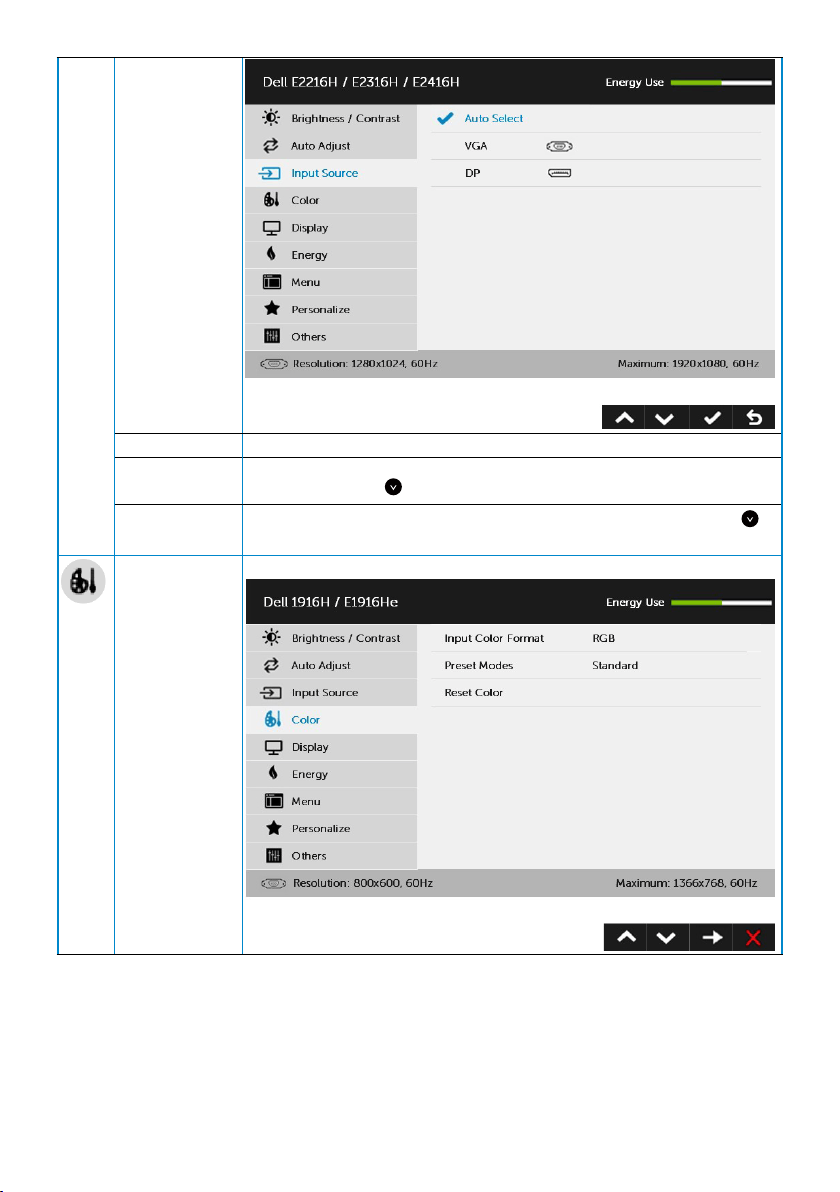

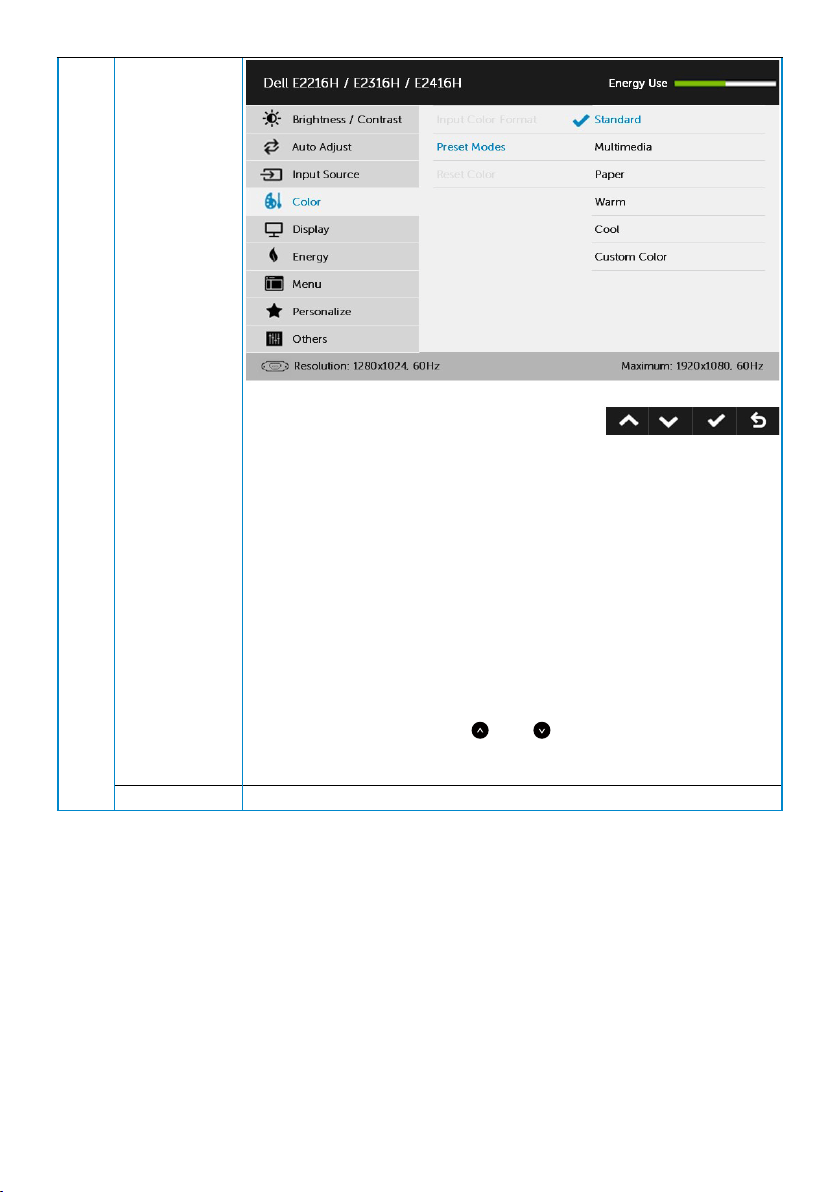

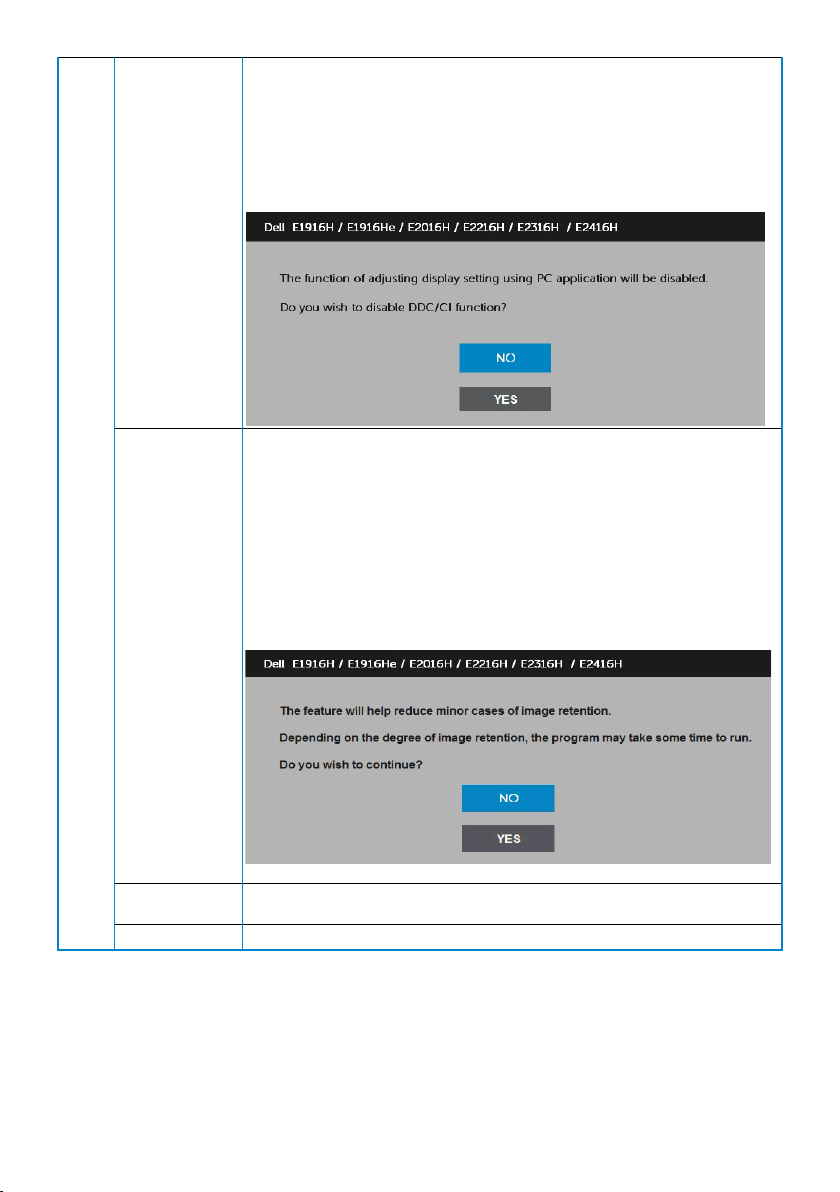

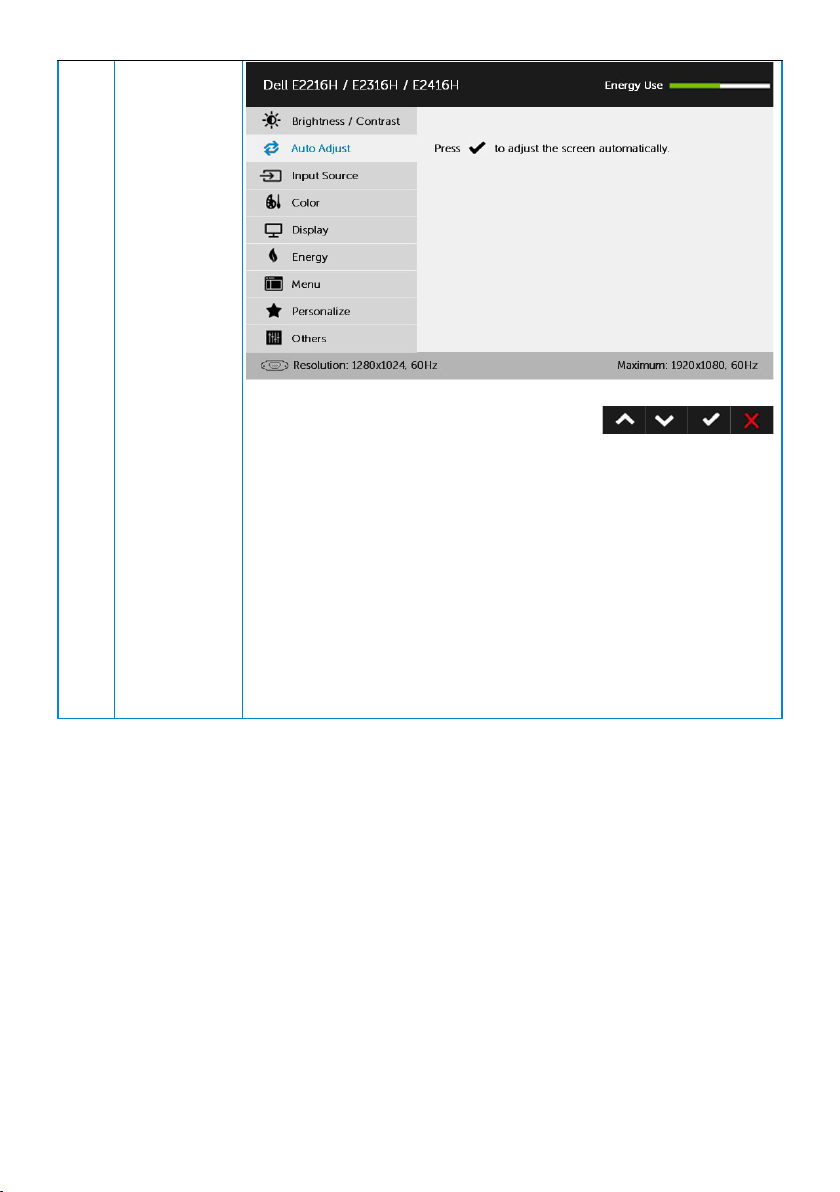

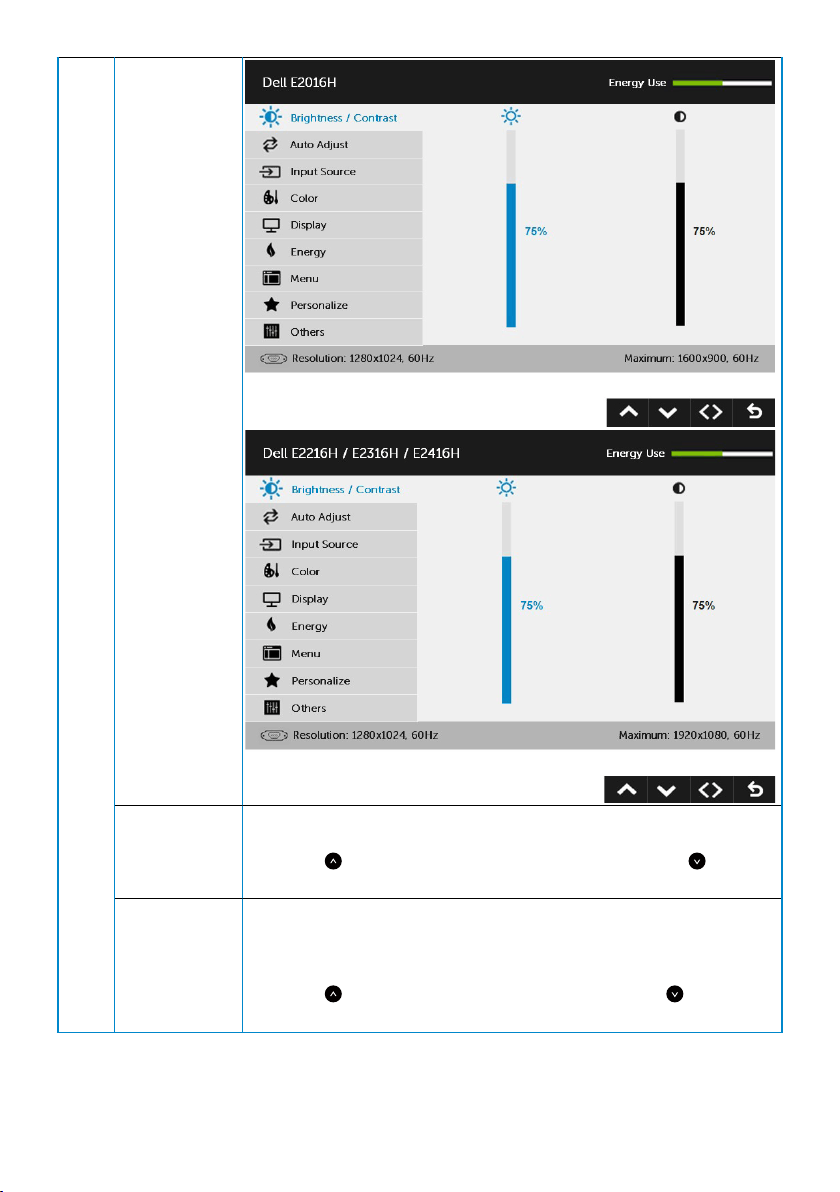

Using the On-Screen Display (OSD) Menu. . . . . . . . . . . . . . . . . 27

Setting the Maximum Resolution . . . . . . . . . . . . . . . . . . . . . . 54

Using the Tilt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Troubleshooting ....................................... 57

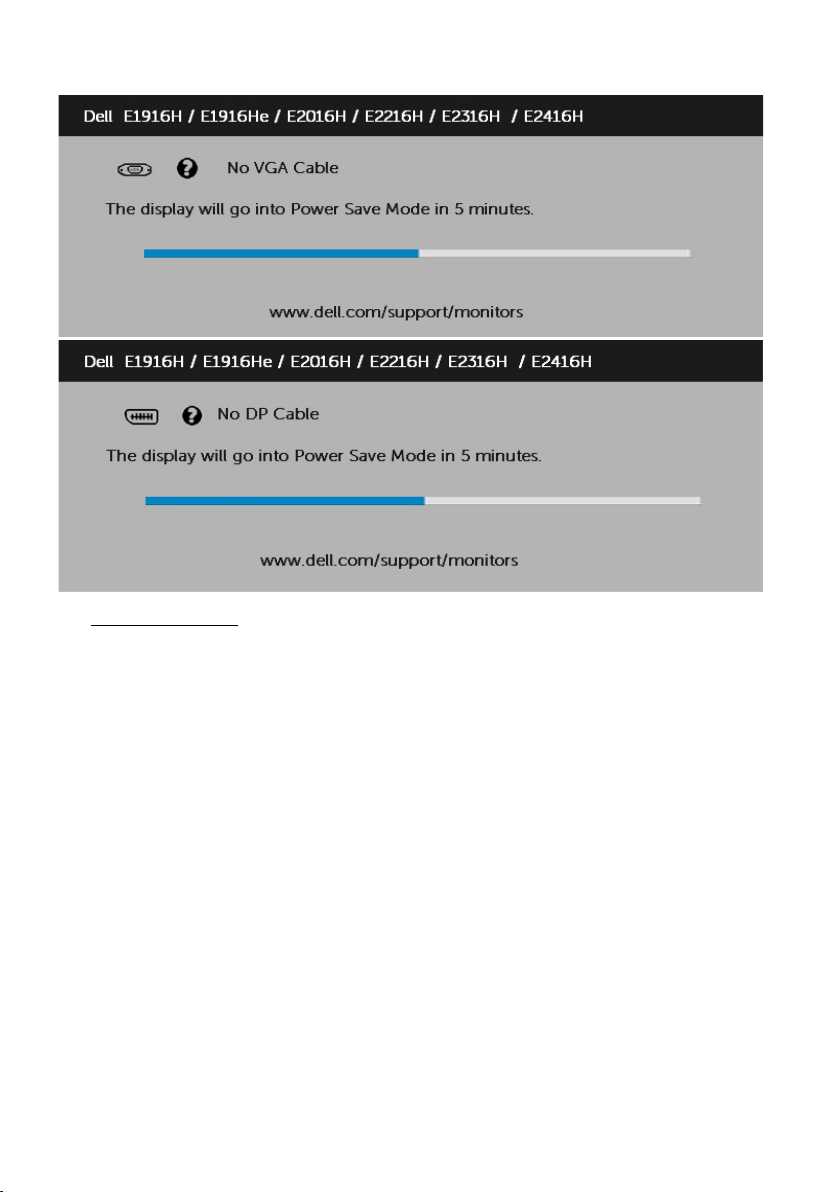

Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Built-in Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Product-Specific Problems. . . . . . . . . . . . . . . . . . . . . . . . . . 62

Dell Soundbar Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Appendix .............................................. 65

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

FCC Notices (U.S. Only) and Other Regulatory Information. . . . . . 65

Contact Dell. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

About Your Monitor

Package Contents

Your monitor ships with all the components shown below. Ensure that you have received all the components and Contact Dell if anything is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some

features or media may not be available in certain countries.

• Monitor

• Stand Riser

• Stand Base

• VESA™ Screw Cover

• Power Cable (varies with countries)

• DisplayPort Cable (for E1916H / E1916He / E2016H / E2216H / E2316H / E2416H)

• VGA Cable (for E2316Hr / E2416HM)

About Your Monitor 5

• Quick Setup Guide

• Safety and Regulatory Information

Product Features

The Dell E1916H / E1916He / E2016H / E2216H / E2316H / E2316Hr / E2416H / E2416HM flat-panel display has an active matrix, Thin-Film transistor, Liquid Ceystal Display an LED backlight. The monitor’s festures include:

E1916H / E1916He / E1916HX: 47.01

•

size, 1366 x 768 resolution, plus full-screen support for lower resolutions.

E2016H

•

1600 x 900 resolution, plus full-screen support for lower resolutions.

E2216H: 54.61

•

1920 x 1080 resolution, plus full-screen support for lower resolutions.

E2316H E 2316Hr: 58.42

•

1920 x 1080 resolution, plus full-screen support for lower resolutions.

E2416H / E2416HM: 60.97 cm (24.0 in.) diagonal viewable image size,

•

1920 x 1080 resolution, plus full-screen support for lower resolutions.

• Tilt adustment capability. Removable pedestal and Video Elect ronics Standards Association (VESA) 100 mm

•

• mounting holes for flesible mounting solugions

• Plug and play capability if supported by your system.

• On-Screen Display (OSD) adjustments for ease of set-up and screen optimination.

• Security lock slot.

• Asset Management Capaility.

•

CEC (for China).

• RoHS compliant.

• E1916He / E2016H / E2216H / E2316H / E2316Hr / E2416H / E2416HM: TCO

Certified Displays

• Energy Gauge show the energy level being consumed by the monitor in real time. Analog backlight dimming control for flicker free display.

•

: 49.41 cm (19.5 in.) diagonal viewable image size,

cm (21.5 in.) diagonal viewable image size,

cm (23.0 in.) diagonal viewable image size,

cm (18.51 in.) diagonal viewable image

6 About Your Monitor

Identifying Parts and Controls

Front View

1. Function buttons (For more information, see Operating the Monitor) 2 Power On/Off button (with LED indicator)

Back View

E1916H / E1916He / E2016H:

Back View with Monitor Stand

About Your Monitor 7

E2216H / E2316H / E2316Hr / E2416H / E2416HM:

Label Description Use

1 VESA mounting holes (100

mm)

2 Regulatory rating label Lists the regulatory approvals. 3 Security lock slot Secures monitor with security lock

4 Barcode serial number label Refer to this label if you need to contact

5 Cable management slot Use to organize cables by placing them

To mount the monitor.

(security lock not included).

Dell for technical support.

through the slot.

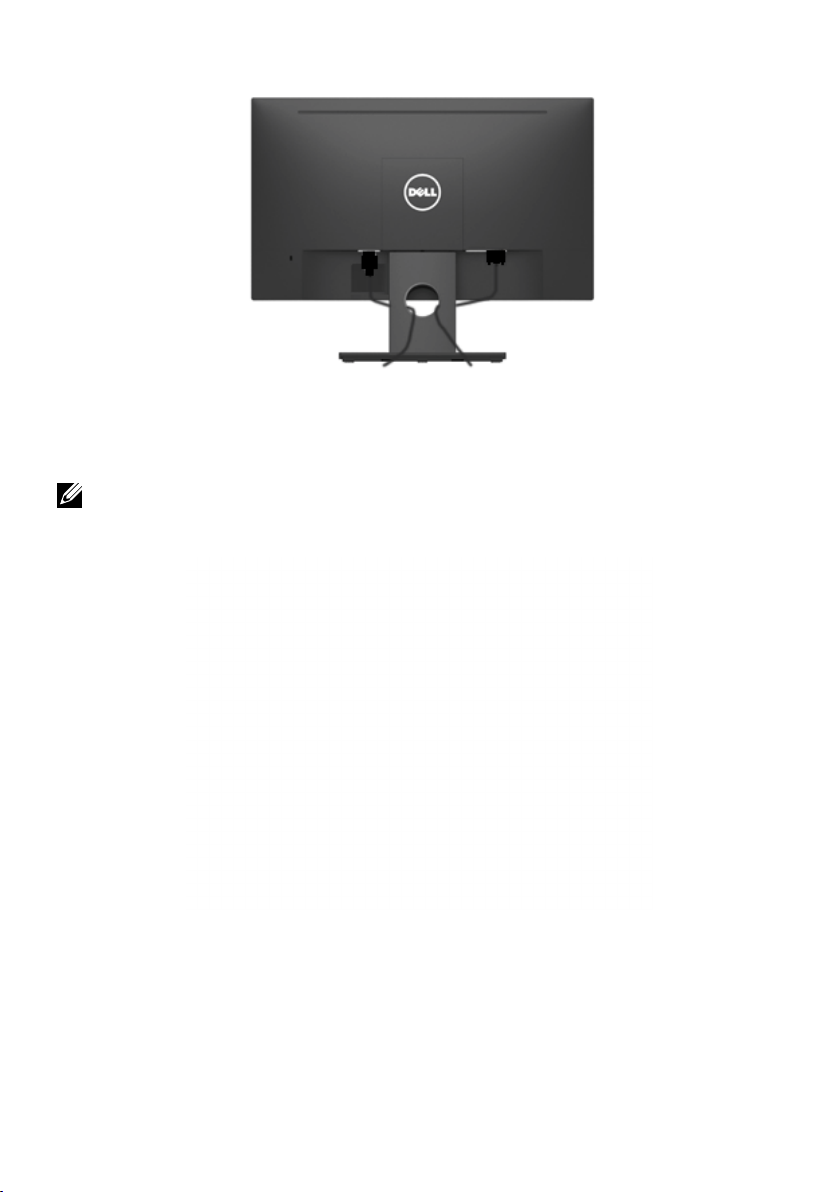

Back View with Monitor Stand

Side View

Right Side

8 About Your Monitor

Bottom View

Label Description Use

1 AC power connector To connect the monitor power cable. 2 Displayport connector To connect your computer to the monitor using

3 VGA connector To connect your computer to the monitor using

4 Dell soundbar

mounting slots

a DP cable.

a VGA cable. To attach the optional Dell Soundbar.

Monitor Specifications

The following sections give you information about the various power management modes and pin assignments for the various connectors of your monitor.

Power Management Modes

If you have VESA’s DPM the monitor can automatically reduce its power consumption when not in use. This is referred to as Power Save Mode*. If the computer detects input from the keyboard, mouse, or other input devices, the monitor automatically resumes functioning. The following table shows the power consumption and signaling of this automatic power saving feature.

E1916H / E1916He:

VESA Modes

Normal operation Active Active Active White 17 W (Maximum)**

Active-off mode Inactive Inactive

Switch off - - Off

compliance display card or software installed in your PC,

Horizontal Sync

Vertical Sync

Video

Blanked

Power Indicator

Glowing white

Power Consumption

14 W (Typical) Less than 0.3 W

Less than 0.3 W

Power Consumption

Total Energy Consumption(TEC)

10.4W

34.3 kWh

About Your Monitor 9

E2016H:

VESA Modes

Normal operation Active Active Active White 19 W (Maximum)**

Active-off mode Inactive Inactive

Switch off - - Off

Horizontal Sync

Vertical Sync

Video

Blanked

Power Indicator

Glowing white

Power Consumption

15 W (Typical) Less than 0.3 W

Less than 0.3 W

Power Consumption

Total Energy Consumption(TEC)

E2216H:

VESA Modes

Normal operation Active Active Active White 24 W (Maximum)**

Active-off mode Inactive Inactive Blanked Glowing

Switch off - - Off Less than 0.3 W

Power Consumption

Horizontal Sync

Total Energy Consumption(TEC)

E2316H / E2316Hr:

VESA Modes

Normal operation Active Active Active White 25 W (Maximum)**

Active-off mode Inactive Inactive

Switch off - - Off

Power Consumption

Horizontal

Sync

Total Energy Consumption(TEC)

11.2 W 35 kWh

Vertical Sync

15.4 W

49.6 kWh

Vertical

Sync

15.8 W

50.1 kWh

Video

Blanked

Power Indicator

white

Power

Indicator

Glowing white

Power Consumption

18 W (Typical) Less than 0.3 W

Power Consumption

20 W (Typical) Less than 0.3 W

Less than 0.3 W

E2416H / E2416HM:

VESA Modes

Normal operation Active Active Active White 27 W (Maximum)**

Active-off mode Inactive Inactive

Switch off - - Off

Horizontal

Sync

Vertical

Sync

Video

Blank

Power

Indicator

Glowing white

Power Consumption

22 W (Typical) Less than 0.3 W

Less than 0.3 W

10 About Your Monitor

Power Consumption

Total Energy Consumption(TEC)

16.7 W

51.9 kWh

* Zero-power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.

** Maximum power consumption with max luminance and contrast.

This document is informational only and reflects laboratory performance. Your product may perform differently, depending on the software, components and peripherals you ordered and shall have no obligation to update such information. Accordingly, the customer should not rely upon this information in making decisions about electrical tolerances or otherwise. No warranty as to accuracy or completeness is expressed or implied.

NOTE: P

Power consumption of on Mode as measured with reference to Energy Star test

on :

method. TEC : Total energy consumption in kWh measured with reference to Energy Star test method.

The OSD will only function in the normal operation mode. When any button except power button is pressed in Active-off mode, the following messages will be displayed:

Activate the computer and monitor to gain access to the OSD.

About Your Monitor 11

Pin Assignments

15-pin D-Sub connector

Pin Number Monitor Side of the 15-pin Side Signal Cable

1 Video-Red 2 Video-Green 3 Video-Blue 4 GND 5 Self-test 6 GND-R 7 GND-G 8 GND-B 9 DDC +5 V

10 GND-sync

11 GND 12 DDC data 13 H-sync 14 V-sync 15 DDC clock

12 About Your Monitor

DisplayPort Connector

Pin Number 20-pin Side of the Connected Signal Cable

1 ML0(p) 2 GND 3 ML0(n) 4 ML1(p) 5 GND

6 ML1(n) 7 ML2(p) 8 GND 9 ML2(n)

10 ML3(p)

11 GND 12 ML3(n) 13 GND 14 GND 15 AUX(p) 16 GND 17 AUX(n) 18 HPD 19 DP_PWR_Return 20 +3.3 V DP_PWR

About Your Monitor 13

Plug and Play Capability

You can install the monitor in any Plug and Play compatible system. The monitor automatically provides the computer with its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols so that the system can configure itself and optimize the monitor settings. Most monitor installations are automatic. You can select different settings if required.

Flat-Panel Specifications

Model number E1916H / E1916He E2016H E2216H

Screen type

Panel Type TN TN TN

Viewable image

Diagonal

Horizontal Active Area

Vertical Active Area

Active matrix - TFT LCD

470.1 mm (18.51 in.)

409.8 mm (16.13 in.)

230.4 mm (9.07 in.)

Active matrix - TFT LCD

494.1 ± 0.02 mm (19.5 ± 0.05 in.)

432.0 ± 1.92 mm (17.0 ± 0.08 in.

239.76 ± 3.42 mm (9.44 ± 0.13 in.)

)

Active matrix - TFT LCD

546.1 mm (21.5 in.

476.06 mm (18.74 in.)

267.79 mm (10.54 in.)

)

Area

Pixel pitch 0.30 x 0.30 mm

Viewing angle:

Horizontal 90° typical 170° typical 170° typical

Vertical 65° typical 160° typical 160° typical Luminance

output Contrast ratio 600 to 1 (typical) 1000 to 1 (typical) 1000 to 1 (typical)

Faceplate coating

Backlight LED edgelight system LED edgelight system LED light bar system

Response Time

Color Depth 16.7 mil colors 16.7 mil colors 16.7 mil colors

Color Gamut 82 % (typical) * 86 % (typical) * 84 % (typical) *

94417.92 mm2 (146.35 in.2)

200 cd/m² (typical) 250 cd/m² (typical) 250 cd/m² (typical)

Antiglare with hardcoating 3H

5 ms typical (white to black, black to white)

102552.65 ± 1050 mm2 (158.84± 1.56 in.2)

0.248 ± 0.022 x 0.248 ± 0.022 mm

Antiglare with hardcoating 3H

5 ms typical (white to black, black to white)

127484.10 mm2 (197.52 in.2)

0.248 x 0.248 mm

Antiglare with hardcoating 3H

5 ms typical (white to black, black to white)

14 About Your Monitor

Model number E2316H / E2316Hr E2416H / E2416HM

Screen type

Panel Type TN TN

Viewable image

Diagonal

Horizontal Active Area

Vertical Active Area

Area

Pixel pitch 0.265 x 0.265 mm 0.27675 x 0.27675 mm Viewing angle: Horizontal 170° typical 170° typical Vertical 160° typical 160° typical

Luminance output

Contrast ratio 1000 to 1 (typical) 1000 to 1 (typical)

Faceplate coating

Backlight LED light bar system LED edgelight system

Response Time

Color Depth 16.7 mil colors 16.7 mil colors

Color Gamut 83 % (typical) * 86 % (typical) *

Active matrix - TFT LCD

584.2 mm (23.0 in.)

509.18 mm (20.05 in.)

286.42 mm (11.28 in.)

145839.34 mm2 (226.16 in.2)

250 cd/m² (typical) 250 cd/m² (typical)

Antiglare with hardcoating 3H

5 ms typical (white to black, black to white)

Active matrix - TFT LCD

609.7 mm (24.0 in.)

531.36 mm (20.91 in.)

298.89 mm (11.77 in.)

158818.19 mm2 (246.11 in.2)

Antiglare with hardcoating 3H

5 ms typical (white to black, black to white)

* E1916H / E1916He color gamut (typical) is based on CIE1976 (82 %) and CIE1931 (72 %)

test standards. E2016H / E2416H / E2416HM color gamut (typical) is based on CIE1976 (86 %) and CIE1931 (72 %) test standards. E2216H color gamut (typical) is based on CIE1976 (84 %) and CIE1931 (72 %) test standards. E2316H / E2316Hr color gamut

(typical) is based on CIE1976 (83 %) and CIE1931 (72 %) test standards.

About Your Monitor 15

Resolution Specifications

Model number E1916H / E1916He E2016H

Scan range

• Horizontal 30 kHz to 83 kHz (automatic)

• Vertical 56 Hz to 76 Hz (automatic)

E2216H / E2316H / E2316Hr / E2416H / E2416HM

Maximum preset resolution

1366 x 768 at 60 Hz 1600 x 900 at 60 Hz 1920 x 1080 at 60 Hz

Electrical Specifications

Model number E1916H / E1916He /

E2216H / E2316H / E2316Hr

Video input signals • Analog RGB: 0.7 Volts ± 5 %, 75 ohm input impedance

• DisplayPort, 600 mV for each differential line, 100 ohm

input impedance per differential pair

Synchronization input signals

AC input voltage / frequency / current

Inrush current 120 V: 30 A (Max.)

Separate horizontal and vertical synchronizations, polarity-free TTL level, SOG (Composite SYNC on green)

100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 1.0 A (typical)

240 V: 60 A (Max.)

E2016H / E2416H / E2416HM

100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 0.8 A (typical)

Preset Display Modes

The following table lists the preset modes for which Dell guarantees image size and centering:

E1916H / E1916He：

Horizontal

Display Mode

Frequency

(kHz)

VESA, 720 x 400 31.5 70.1 28.3 -/+ VESA, 640 x 480 31.5 59.9 25.2 -/VESA, 640 x 480 37.5 75.0 31.5 -/VESA, 800 x 600 37.9 60.3 40.0 +/+ VESA, 800 x 600 46.9 75.0 49.5 +/+ VESA, 1024 x 768 48.4 60.0 65.0 -/VESA, 1024 x 768 60.0 75.0 78.8 +/+ VESA, 1280 x 1024 80.0 75.0 135.0 +/+

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

(Horizontal/

Vertical)

16 About Your Monitor

VESA, 1366 x 768 47.7 59.8 85.5 +/+

E2016H：

Horizontal

Display Mode

Frequency

(kHz)

VESA, 1280 x 1024 80.0 75.0 135.0 +/+ VESA, 1600 x 900 60.0 60.0 108.0 +/+

E2216H / E2316H / E2316Hr / E2416H / E2416HM：

Horizontal

Display Mode

Frequency

(kHz)

VESA, 1280 x 1024 80.0 75.0 135.0 +/+ VESA, 1600 x 900 60.0 60.0 108.0 +/+ VESA, 1920 x 1080 67.5 60.0 148.5 +/+

Vertical

Frequency

(Hz)

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Pixel Clock

(MHz)

Sync Polarity

(Horizontal/

Vertical)

Sync Polarity

(Horizontal/

Vertical)

About Your Monitor 17

Physical Characteristics

The following table lists the monitor's physical characteristics:

Model Number E1916H/E1916He E2016H E2216H

Connector type 15-pin D-subminiature (Black connector)

DP, Black connector

Signal cable type Analog: D-Sub, 15 pins (cable not included)

Digital: DisplayPort, 20 pins

Dimensions: (with stand)

Height

Width

Depth

Dimensions: (without stand)

Height

Width

Depth

Stand dimensions:

Height

Width

Depth

Weight:

Weight with packaging 3.60 kg (7.94 lb) 4.11 kg (9.06 lb) 4.85 kg (10.69 lb)

359.0 mm (14.13 in.)

445.4 mm (17.54 in.)

167.0 mm (6.57 in.)

266.0 mm (10.47 in.)

445.4 mm (17.54 in.)

51.5 mm (2.03 in.)

156.0 mm (6.14 in.)

220.0 mm (8.66 in.)

167.0 mm (6.57 in.)

368.9 mm (14.52 in.)

471.5 mm (18.56 in.)

167.0 mm (6.57 in.)

275.4 mm (10.84 in.)

471.5 mm (18.56 in.)

51.5 mm (2.03 in.)

156.0 mm (6.14 in.)

220.0 mm (8.66 in.)

167.0 mm (6.57 in.)

396.7 mm (15.62 in.)

512.2 mm (20.17 in.)

180.0 mm (7.09 in.)

303.7 mm (11.96 in.)

512.2 mm (20.17 in.)

50.5 mm (1.99 in.)

177.0 mm (6.97 in.)

250.0 mm (9.84 in.)

180.0 mm (7.09 in.)

Weight with stand assembly and cables

Weight without stand assembly (For wall mount or VESA mount considerations - no cables) Weight of stand assembly

3.00 kg (6.61 lb) 2.92 kg (6.44 lb) 3.63 kg (8.0 lb)

2.26 kg (4.98 lb) 2.22 kg (4.89 lb) 2.84 kg (6.26 lb)

0.46 kg (1.01 lb) 0.46 kg (1.01 lb) 0.52 kg (1.15 lb)

18 About Your Monitor

Model Number E2316H /

E2316Hr

Connector type 15-pin D-subminiature (Back connector)

DP, Back connector

Signal cable type Analog: D-Sub, 15 pins (cable included

for E2316Hr only) Digital: DisplayPort, 20 pins (cable not

included for E2316Hr)

Dimensions: (with stand)

E2416H / E2416HM

Height

Width 544.8 mm

Depth

Dimensions: (without stand)

Height

Width

Depth

Stand dimensions:

Height

Width

Depth

Weight: Weight with packaging 5.09 kg (11.22 lb) 5.23 kg (11.53 lb)

Weight with stand assembly and cables

Weight without stand assembly (For wall mount or VESA mount considerations - no cables) Weight of stand assembly

415.0 mm (16.34 in.

(21.45 in.

180.0 mm (7.09 in

322.0 mm (12.68 in.

544.8 mm (21.45 in.

50.5 mm (1.99 in.

177.0 mm (6.97 in.

250.0 mm (9.84 in.

180.0 mm (7.09 in

3.77 kg (8.31 lb) 3.84 kg (8.47 lb)

2.98 kg (6.57 lb) 2.91 kg (6.42 lb)

0.52 kg (1.15 lb) 0.69 kg (1.52 lb)

)

427.58 mm (16.83 in.)

566.96 mm (22.32 in.

180.0 mm (7.09 in

334.58 mm (13.17 in.)

566.96 mm (22.32 in.

50.5 mm (1.99 in.

177.0 mm (6.97 in.

250.0 mm (9.84 in.)

180.0 mm (7.09 in

)

About Your Monitor 19

Environmental Characteristics

The following table lists the environmental conditions for your monitor:

Model Number E1916H / E1916He E2016H

Temperature

• Operating

• Non-operating

Humidity

• Operating

• Non-operating

Altitude

• Operating

• Non-operating

Thermal dissipation 58.0 BTU/hour (maximum)

0 °C to 40 °C (32 °F to 104 °F)

Storage: -20 °C to 60 °C (-4 °F to 140 °F) Shipping: -20 °C to 60 °C (-4 °F to 140 °F)

10 % to 80 % (non-condensing)

Storage: 5 % to 90 % (non-condensing) Shipping: 5 % to 90 % (non-condensing)

5,000 m (16,404 ft) max 12,191 m (40,000 ft) max

47.8 BTU/hour (typical)

Model Number E2216H E2316H /

E2316Hr

Temperature

• Operating

• Non-operating

Humidity

• Operating

• Non-operating

Altitude

• Operating

• Non-operating

Thermal dissipation 81.9 BTU/hour

0 °C to 40 °C (32 °F to 104 °F)

Storage: -20 °C to 60 °C (-4 °F to 140 °F) Shipping: -20 °C to 60 °C (-4 °F to 140 °F)

10 % to 80 % (non-condensing)

Storage: 5 % to 90 % (non-condensing) Shipping: 5 % to 90 % (non-condensing)

5,000 m (16,404 ft) max 12,191 m (40,000 ft) max

(maximum)

61.4 BTU/hour (typical)

85.3 BTU/hour (maximum)

68.3 BTU/hour (typical)

64.83 BTU/hour (maximum)

51.18 BTU/hour (typical)

E2416H / E2416HM

92.1 BTU/hour (maximum)

75.1 BTU/hour (typical)

20 About Your Monitor

+ 45 hidden pages
