Page 1

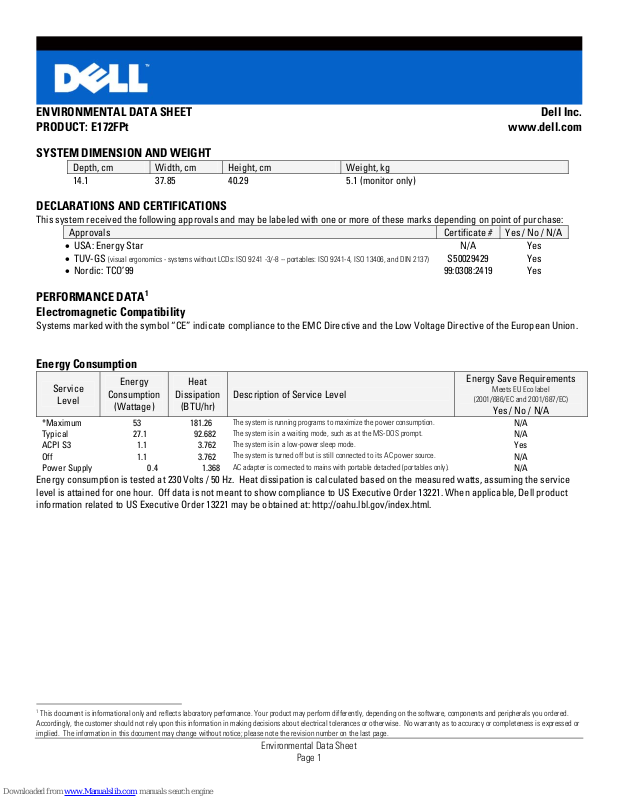

ENVIRONMENTAL DATA SHEET Dell Inc.
PRODUCT: E172FPt www.dell.com
SYSTEM DIMENSION AND WEIGHT
Depth, cm Width, cm Height, cm Weight, kg
14.1 37.85 40.29 5.1 (monitor only)
DECLARATIONS AND CERTIFICATIONS
This system received the following approvals and may be labeled with one or more of these marks depending on point of purchase:
Approvals Certificate # Yes / No / N/A
• USA: Energy Star
• TUV-GS (visual ergonomics - systems without LCDs: ISO 9241 -3/-8 -- portables: ISO 9241-4, ISO 13406, and DIN 2137)
• Nordic: TCO’99
N/A Yes
S50029429 Yes
99:0308:2419 Yes
PERFORMANCE DATA1
Electromagnetic Compatibility
Systems marked with the symbol “CE” indicate compliance to the EMC Directive and the Low Voltage Directive of the European Union.
Energy Consumption
Service
Level
*Maximum 53 181.26
Typical 27.1 92.682
ACPI S3 1.1 3.762
Off 1.1 3.762
Power Supply 0.4 1.368
Energy
Consumption
(Wattage)
Heat
Dissipation
(BTU/hr)
Description of Service Level
The system is running programs to maximize the power consumption.
The system is in a waiting mode, such as at the MS-DOS prompt.
The system is in a low-power sleep mode.
The system is turned off but is still connected to its AC power source.
AC adapter is connected to mains with portable detached (portables only).
Energy consumption is tested at 230 Volts / 50 Hz. Heat dissipation is calculated based on the measured watts, assuming the service
level is attained for one hour. Off data is not meant to show compliance to US Executive Order 13221. When applicable, Dell product
information related to US Executive Order 13221 may be obtained at: http://oahu.lbl.gov/index.html.
Energy Save Requirements
Meets EU Eco label
(2001/686/EC and 2001/687/EC)
Yes / No / N/A
N/A
N/A
Yes
N/A
N/A
1
This document is informational only and reflects laboratory performance. Your product may perform differently, depending on the software, components and peripherals you ordered.
Accordingly, the customer should not rely upon this information in making decisions about electrical tolerances or otherwise. No warranty as to accuracy or completeness is expressed or
implied. The information in this document may change without notice; please note the revision number on the last page.
Environmental Data Sheet
Page 1
Page 2
PRODUCT MATERIALS INFORMATION2
Restricted Substances
This Dell product (plastic case parts, printed wiring boards, power supplies, and microprocessors) does NOT contain any of the
following substances (in concentrations exceeding natural background levels)
• Asbestos
• Cadmium and its compounds above 100 parts per million (ppm)
• Halogenated dioxins or furans (i.e. polychlorinated dibenzodioxines, polychlorinated dibenzofurans)
• Halogenated flame retardants (chlorinated, brominated) in plastic parts over 25g
• Mercury (except for fluorescent bulbs used in display units)
• PCBs (polychlorobiphenyls) or PCTs (polychloroterphenyls)
• PBBs (polybromobiphenyls) or PBDEs (polybrominated diphenylethers)
• PVC (polyvinyl chloride) other than in cables and interconnect parts
• CFCs (chlorofluorocarbons), HCFCs (hydrofluorocarbons) and other ozone depleting substances
• Lead is not used in paints
None of the substances included in the Montreal Protocol annex A, B, or C is used in Dell’s manufacturing plants.
Additional Materials Information
• The cables may use PVC as an insulating material to ensure product safety
• The case material is PC+ABS
• This product does contain one or more mercury bulbs
Flame Retardants Used in Mechanical Plastic Parts > 25 grams, Keycaps, and Motherboards
Part Flame Retardant ISO 1043-4 ISO 11469
Motherboard TBBPA FR(16) N/A
Mechanical Plastic Parts > 25 grams PC+ABS Triaryl Phosphate FR (40) ISO 11469
Packaging
No CFCs (chlorofluorocarbons), HCFCs (hydrofluorocarbons) or other ozone depleting substances are used in packaging material.
Chromium, lead, mercury, or cadmium are not intentionally added to packaging materials and are not present in a cumulative
concentration greater than 100 ppm as incidental impurities.
Carton 0.81
EPS 0.22
PE-bag 0.03
Printed user documentation is bleached in a chlorine-free process. (Europe Only)
Criteria Yes / No
• No halogenated plastics or polymers are used for packaging material
• Dell complies with the EU Directive 94/ 62/ EEC
• Depending on your point of purchase, packaging materials are labeled in accordance with DIN
6120 – “Marking of packing materials and packages for their recycling”
Packaging Materials Weight, kg
Yes
Yes
Yes
2
Waste Handling. Local regulations should be observed when disposing of this product due to the presence of the materials and substances as listed above.
Environmental Data Sheet
Page 2
Page 3
DESIGN FOR ENVIRONMENT
Visit www.dell.com/environment for more information.
Longevity and Upgrading
Dell systems are, when applicable, designed for easy assembly, disassembly, and servicing. To extend the life of your system, you can
install or upgrade certain system components (e.g., microprocessor, memory, expansion cards, and storage devices). Spare parts are
available after the end of production for up to five years, or otherwise through the warranty period.
Recyclability
For recyclability, this system incorporates the following design guidelines:
• Minimal use of non-separable connections, such as gluing and welding between different materials.
• Minimal use of composite structure materials.
• Painting/varnishing plastic material has been avoided.
• Mechanical plastic parts greater than 100 grams consist of one material or of easily separable materials.
Yes
Yes
Yes
Yes
RECYCLING/ END-OF-LIFE SERVICE INFORMATION
Take back and recycling services are offered for this product in certain countries. If you want to dispose of system components,
contact Dell for instructions.
DELL CORPORATE ENVIRONMENTAL INFORMATION
The following information is available at www.dell.com/environment:
• Corporate Environmental Policy
• Environmental Reports
• ISO 14001 certified environmental management systems
Document Version 1.1 posted 8/24/04 4.2 (5/22/2003)
Environmental Data Sheet
Page 3
