Dell DCSEA User Manual

SETUP GUIDE

Your Studio Hybrid was designed with
the environment in mind.

Learn more at www.dell.com/hybrid.

Model DCSEA

Studio Hybrid

SETUP GUIDE

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your

computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you
how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

If you purchased a Dell™ n Series computer, any references in this document to Microsoft® Windows® operating systems
are not applicable.

__________________

Information in this document is subject to change without notice.

© 2008 Dell Inc. All rights reserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Dell

, the

DELL

logo,

Trademarks used in this text:

Pentium

, and

Celeron

Microsoft, Windows, Windows Vista

of Microsoft Corporation in the United States and/or other countries.;
Association;

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and
names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

are registered trademarks and

Bluetooth

is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license.

and

Inspiron, Dimension

Core

Windows Vista start button logo

is a trademark of Intel Corporation in the U.S. and other countries;

October 2008 P/N G360C Rev. A01

, and

DellConnect

are either trademarks or registered trademarks

Blu-ray Disc

are trademarks of Dell Inc.;

is a trademark of the Blu‑ray Disc

Intel

,

Contents

Setting Up Your Studio Hybrid . . . . . . . . . . .5

Before Setting Up Your Computer . . . . . . . . . 5

Install the Stand . . . . . . . . . . . . . . . . . . . . . . . 5

Connect the Display . . . . . . . . . . . . . . . . . . . . 8

Set Up the Keyboard and Mouse . . . . . . . . . 10

Connect the Network Cable (Optional) . . . . 11

Connect the Power Cables for Your

Display and Computer . . . . . . . . . . . . . . . . . .12

Attach the Cable Clip (Optional). . . . . . . . . . 12

®

Windows Vista

Connect to the Internet (Optional) . . . . . . . . 13

Setup . . . . . . . . . . . . . . . . . 13

Using Your Studio Hybrid . . . . . . . . . . . . . .16

Front View Features. . . . . . . . . . . . . . . . . . . . 16

Back View Features. . . . . . . . . . . . . . . . . . . . 18

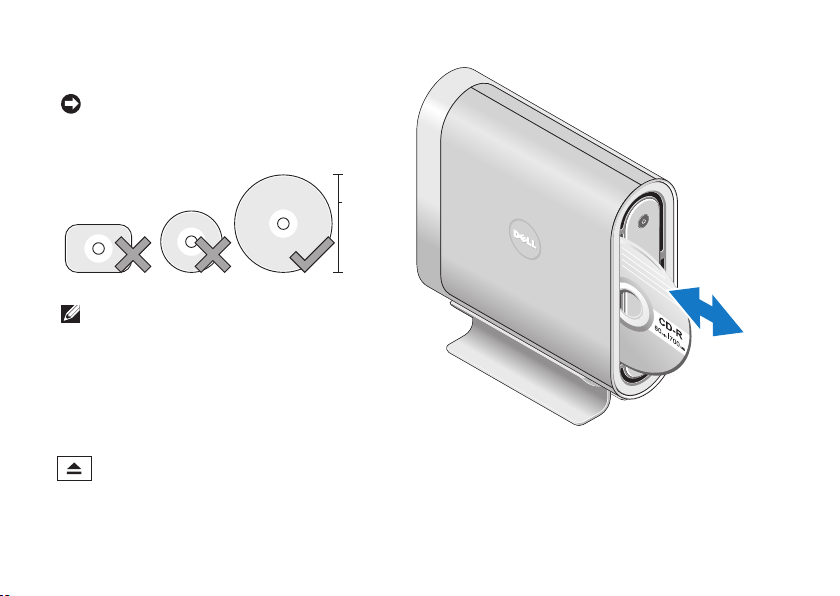

Using the Optical Disc Drive. . . . . . . . . . . . . 20

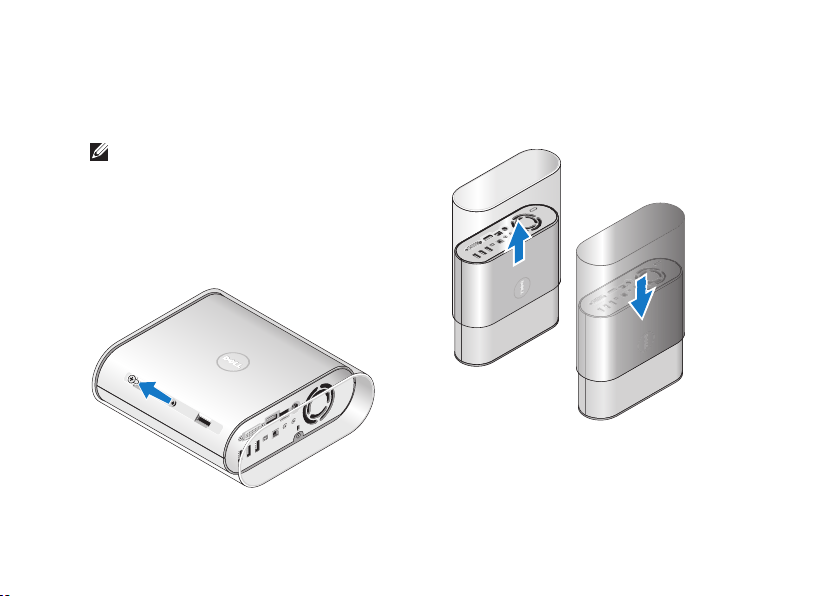

Changing the Sleeve . . . . . . . . . . . . . . . . . . . 21

Software Features . . . . . . . . . . . . . . . . . . . . . 22

Solving Problems . . . . . . . . . . . . . . . . . . . . .24

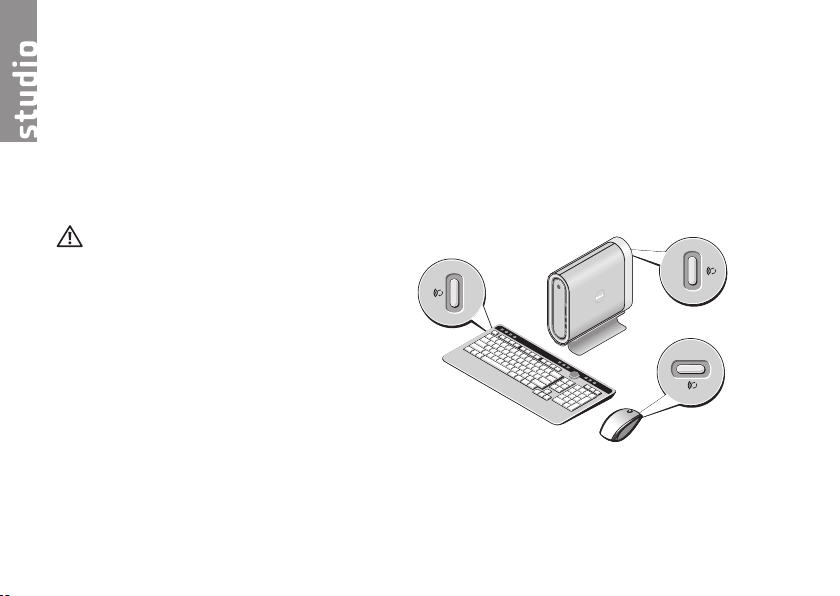

Wireless Mouse or Keyboard

Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Network Problems . . . . . . . . . . . . . . . . . . . . . 25

Power Problems. . . . . . . . . . . . . . . . . . . . . . . 26

Memory Problems . . . . . . . . . . . . . . . . . . . . . 27

Lockups and Software Problems . . . . . . . . . 28

Using Support Tools. . . . . . . . . . . . . . . . . . .30

Dell Support Center . . . . . . . . . . . . . . . . . . . . 30

System Messages . . . . . . . . . . . . . . . . . . . . . 30

Hardware Troubleshooter . . . . . . . . . . . . . . . 32

Dell Diagnostics . . . . . . . . . . . . . . . . . . . . . . 33

3

System Recovery Options . . . . . . . . . . . . . .35

System Restore . . . . . . . . . . . . . . . . . . . . . . . 35

Dell Factory Image Restore . . . . . . . . . . . . .36

Operating System Reinstallation . . . . . . . . . 38

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . .40

Technical Support and Customer

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

DellConnect

™

. . . . . . . . . . . . . . . . . . . . . . . . . 41

Online Services . . . . . . . . . . . . . . . . . . . . . . . 41

AutoTech Service. . . . . . . . . . . . . . . . . . . . . . 42

Product Information. . . . . . . . . . . . . . . . . . . . 43

Returning Items for Repair Under

Warranty or for Credit . . . . . . . . . . . . . . . . . . 43

Before You Call. . . . . . . . . . . . . . . . . . . . . . . .44

Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . . 45

Finding More Information and

Resources . . . . . . . . . . . . . . . . . . . . . . . . . . .46

4

Basic Specifications . . . . . . . . . . . . . . . . . .48

Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Macrovision Product Notice. . . . . . . . . . . . . 53

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Setting Up Your Studio Hybrid

This section provides information about setting
up your Studio Hybrid 140g and connecting
peripherals.

Before Setting Up Your Computer

When positioning your computer, ensure that
you allow easy access to a power source,
adequate ventilation, and a level surface to
place your computer.

Restricting airflow around your Studio
Hybrid may cause it to overheat. To prevent
overheating ensure that you leave at least

10.2 cm (4 in) at the back of the computer and a
minimum of 5.1 cm (2 in) on all other sides. You
should never put your computer in an enclosed
space, such as a cabinet or drawer when it is
powered on.

NOTICE: Placing or stacking heavy or sharp
objects on the computer may result in
permanent damage to the computer.

Install the Stand

You have the option of setting up your computer
either in a vertical or horizontal position.

Your computer automatically rotates the
illuminated name and symbols to display
correctly in either orientation. While powered
on, the Dell
computer illuminate when the computer is
vertical, and only on the top surface when it is
horizontal.

™

logos on either side of the

5

Setting Up Your Studio Hybrid

Vertical Position

To set up your computer in a vertical position,
align the securing tabs on the stand with the
slots on the computer. Lower the computer onto
the stand until the tabs have fully inserted into
the slots.

6

Horizontal Position

To set up your computer in a horizontal position:

If the stand has been installed in the vertical 1.
position, gently lift the computer away from
the stand while holding the stand down on a
level surface.

Turn the stand over and push the stabilizer 2.
bar away from the stand.

Setting Up Your Studio Hybrid

Separate the two ends of the stand.3.

Turn the stand over and align the stabilizer 4.
bar with the securing slots on the stand.

Align the securing tabs on the stand with 5.
the slots on the computer and lower the
computer onto the stand until the securing
tabs are inserted into the slots.

7

Setting Up Your Studio Hybrid

DVI

Connect the Display

Your computer uses one of two different
connectors for the display. The HDMI connector
is a high performance digital connector that
carries both video and audio signals for displays
such as TVs and monitors with integrated
speakers. The DVI connector is also a high
performance digital connector, but it does
not carry an audio signal. This connector can
be used for displays such as monitors and
projectors that do not have speakers.

Check your TV or monitor to see which type of
connectors are available. Refer to the following
table when identifying the connectors on your
display to select the connection type you
will use.

DVI

HDMI

VGA

8

Connect the display using ONLY ONE of the
following connectors: the white DVI connector
or the HDMI connector.

NOTE: The HDMI will not have a display
signal if both a DVI and an HDMI cables are
connected because the DVI connector has
priority over the HDMI connector.

Connect Using the DVI Connector

Connect the display using a DVI cable (which
usually has white connectors at both ends).

If your display already has a VGA cable (with
blue connectors at both ends) connected to
your display, disconnect the VGA cable and
use a DVI cable.

If your display only has a VGA connector, use
a VGA cable with the VGA‑to‑DVI adapter
(not included with your computer).

Setting Up Your Studio Hybrid

Connect Using an HDMI Connector

Connect the display using an HDMI cable.

NOTE: You can purchase additional VGA‑
to‑DVI adapters, as well as DVI and HDMI
cables from the Dell website at dell.com.

9

Setting Up Your Studio Hybrid

Set Up the Keyboard and Mouse

Wireless Keyboard and Mouse

If your computer was purchased with a wireless
keyboard and mouse:

Insert the batteries in the wireless keyboard 1.
and mouse.

NOTE: The keyboard and mouse turn
on automatically after the batteries are
inserted.

10

Press any key on the keyboard and click the 2.
mouse after your computer starts up.

USB Keyboard and Mouse

If your computer was not purchased with a
wireless keyboard and mouse, use the USB
connections on the back panel of the computer.

Setting Up Your Studio Hybrid

Connect the Network Cable (Optional)

A network connection is not required to
complete this computer setup, but if you have
an existing network or Internet connection that
uses a cable connection (such as a home cable
modem, or Ethernet jack), you can connect
it now.

Use only an Ethernet cable (RJ ‑ 45 connector).
Do not plug a telephone cable (RJ‑11 connector)
into the network connector.

To attach your computer to a network or
broadband device, connect one end of a
network cable to either a network port or a
broadband device. Connect the other end of
the network cable to the network adapter
connector on the back panel of your computer.
A click indicates that the network cable has
been securely attached.

11

Setting Up Your Studio Hybrid

Connect the Power Cables for Your Display and Computer

12

Attach the Cable Clip (Optional)

Organize your computer cables by fixing the clip
over the cables.

Setting Up Your Studio Hybrid

Press the Power Buttons on Your
Computer and Display

Windows Vista® Setup

Your Dell computer is preconfigured with
Windows Vista. To set up Windows Vista for
the first time, follow the instructions on the
screen. These steps are mandatory and may
take up to 15 minutes to complete. The screens
will take you through several procedures
including accepting license agreements,
setting preferences and setting up an Internet
connection.

NOTICE: Do not interrupt the operating
system’s setup process. Doing so may
render your computer unusable.

Connect to the Internet (Optional)

NOTE: ISPs and ISP offerings vary by

country.

To connect to the Internet, you need an external
modem or network connection and an Internet
service provider (ISP). Your ISP will offer one
or more of the following Internet connection
options:

DSL connections that provide high‑speed •
Internet access through your existing
telephone line or cellular telephone service.
With a DSL connection, you can access the
Internet and use your telephone on the same
line simultaneously.

Cable modem connections that provide •
high‑speed Internet access through your
local cable TV line.

13

14

Setting Up Your Studio Hybrid

Satellite modem connections that provide •
high‑speed Internet access through a
satellite television system.

Dial‑• up connections that provide Internet
access through a telephone line. Dial‑up
connections are considerably slower
than DSL and cable (or satellite) modem
connections. Your computer does not have
an integrated modem. An optional USB
modem must be used for dialup service with
this computer.

Wireless LAN • connections that provide
Internet access using WiFi 802.11
technology. Wireless LAN support requires
optional internal components that may or
may not be installed in your computer based
on decisions made at the time of purchase.

NOTE: If an external USB modem or
WLAN adapter is not part of your original
order you can purchase one from the Dell
website at dell.com.

Setting Up a Wired Internet Connection

If you are using a dial‑up connection, connect
the telephone line to the external USB modem
(optional) and to the telephone wall jack before
you set up your Internet connection. If you
are using a DSL or cable/satellite modem
connection, contact your ISP or cellular
telephone service for setup instructions.

Setting Up a Wireless Connection

Before you can use your wireless Internet
connection, you need to connect to your
wireless router. To set up your connection to a
wireless router:

Save and close any open files, and exit any 1.
open programs.

Click 2. Start

→ Connect To.

Follow the instructions on the screen to 3.
complete the setup.

15

Setting Up Your Studio Hybrid

Setting Up Your Internet Connection

To set up an Internet connection with a provided
ISP desktop shortcut:

Save and close any open files, and exit any 1.
open programs.

Double‑click the ISP icon on the Microsoft2.

®

Windows

®

desktop.

Follow the instructions on the screen to 3.
complete the setup.

If you do not have an ISP icon on your desktop
or if you want to set up an Internet connection
with a different ISP, perform the steps in the
following section.

NOTE: If you cannot connect to the Internet
but have successfully connected in the
past, the ISP might have a service outage.
Contact your ISP to check the service
status, or try connecting again later.

NOTE: Have your ISP information ready. If
you do not have an ISP, the Connect to the
Internet wizard can help you get one.

Save and close any open files, and exit any 1.
open programs.

Click 2. Start

→ Control Panel.

Under 3. Network and Internet, click Connect

to the Internet.

The Connect to the Internet window appears.

Click either 4. Broadband (PPPoE) or Dial-up,
depending on how you want to connect:

Choose a. Broadband if you will use a
DSL, satellite modem, cable TV modem,
or Bluetooth

®

wireless technology

connection.

Chose b. Dial-up if you will use an optional
USB dial‑up modem or ISDN.

NOTE: If you do not know which type of
connection to select, click Help me choose
or contact your ISP.

Follow the instructions on the screen and 5.
use the setup information provided by your
ISP to complete the setup.

Using Your Studio Hybrid

1

2
3

4

5

6

7

8

Your Studio Hybrid 140g has indicators, buttons,
and features that provide information at‑a‑glance
and time‑saving shortcuts for common tasks.

Front View Features

1

16

Power button and light — Turns the
power on or off when pressed. The light
in the center of this button indicates the
power state:

Blinking white — the computer is in •
sleep state.

Solid white — the computer is in •
power‑on state.

Blinking amber — there may be a •
problem with the system board.

Solid amber — the system board •
cannot start initialization. There may be
an issue with either the system board
or power supply.

2

Hard drive activity light — Turns on

when the computer reads or writes data. A
flashing light indicates hard drive activity.

NOTICE: To avoid loss of data, never
turn off the computer while the hard
drive activity light is flashing.

3

Disc drive eject control — Lights up

when the computer starts up and when a
disc is in the drive. To eject a disc gently
touch the button.

4

Optical drive — Plays or records only

standard‑size (12 cm) CDs, and DVDs. See

“Using the Optical Disc Drive” on page 20.

5

Computer stand — Provides stability for

the computer and can be reconfigured
to hold the computer in a vertical or
a horizontal orientation. For more
information see “Install the Stand” on
page 5.

Using Your Studio Hybrid

6

Headphone connector — Connects

to headphones. For audio to a powered
speaker or sound system, use the audio

out or S/PDIF connector on the back.

7

USB 2.0 connectors (2) — Connects

USB devices that are connected
occasionally, such as memory keys, digital
cameras, and MP3 players.

8

Media card reader — Provides a

fast and convenient way to view and
share digital photos, music, videos, and
documents stored on the following digital
memory cards:

Secure digital (• SD) memory card

•SDHC (Secure Digital High Capacity)
card

Multi • Media Card (MMC)
Memory • Stick
Memory Stick PRO•
xD‑• Picture Card (type ‑ M and type ‑ H)

17

Using Your Studio Hybrid

1

2
3

4

5

6

7

8

9

10

11

12

Back View Features

1

Wireless sync button — A wireless

connection can be established between
your keyboard and mouse and your
computer. Press the sync button on the
back of your computer, then press the sync
button on the device that you wish to use.

2

3

Power connector — Connects

your computer to the AC adapter.

Network connector and light —

Connects your computer to a network
or broadband device. The network
activity light flashes when the computer
is transmitting or receiving data. A high
volume of network traffic may make this
light appear to be in a steady “on” state.

18

Using Your Studio Hybrid

4

HDMI 1.2 connector — Connects to a

TV for both audio and video signals.

NOTE: For a monitor without built‑in
speakers, only the video signal will
be read.

5

DVI-I connector — Connects to a

monitor or projector using a DVI‑D cable.

6

USB 2.0 connectors (3) — Connects

USB devices, such as a mouse, keyboard,
printer, external drive, or MP3 player.

7

IEEE 1394 connector — Connects

to high‑speed serial multimedia devices,
such as digital video cameras.

8

S/PDIF connector — Connects to

amplifiers and TVs for digital audio through
optical digital cables. This format carries
an audio signal without going through an
analog audio conversion process.

9 Computer name and Express Service

Code— Used to identify your computer

for use on support.dell.com or when
contacting technical support.

10

11

12

Line-out or headphone connector —

Connects to headphones or sends audio to
a powered speaker or sound system.

Line-in or microphone connector —

Connects to a microphone for voice or to
an audio cable for musical input.

Security cable slot — Connects to a lock
for a security cable used as an anti‑theft
device.

NOTE: Before you buy a lock, ensure
that it works with the security cable
slot on your computer.

19

Using Your Studio Hybrid

12 cm

Using the Optical Disc Drive

NOTICE: Do not use non‑standard‑size or

shape discs (including mini‑CDs and mini‑
DVDs) or you will damage the drive.

NOTE: Do not move the computer while
playing or recording CDs and DVDs.

Place the disc in the center of the disc slot, with
the label facing outwards and gently push the
disc into the slot. The drive will automatically
pull the disc in and begin reading its content.

To eject a disc from the drive, gently
touch the eject control. The control will flash to
confirm a few seconds before ejecting the disc.

20

Using Your Studio Hybrid

Changing the Sleeve

You can use different sleeves to personalize
your computer’s appearance.

NOTE: You can purchase additional sleeves
from the Dell website at dell.com.

To change your computer’s sleeve:

Place the computer horizontally on a clean 1.
flat surface such as a mat to avoid scratches
and remove the screw.

Place the computer vertically and pull the 2.
sleeve gently towards the back of your
computer, then gently slide the new sleeve
onto the computer.

Place the computer horizontally again and 3.
replace the screw by inserting it at an
approximately 45‑degree angle and gently
turning the screw.

21

Using Your Studio Hybrid

Software Features

NOTE: For more information about the

features described in this section, see
the Dell Technology Guide on your hard
drive or on the Dell Support website at

support.dell.com.

Productivity and Communication

You can use your computer to create
presentations, brochures, greeting cards, fliers,
and spreadsheets. You can also edit and view
digital photographs and images. Check your
purchase order for software installed on your
computer.

After connecting to the Internet, you can access
websites, setup an e‑mail account, upload and
download files, and so on.

Entertainment and Multimedia

You can use your computer to watch videos,
play games, create your own CDs, listen to
music and radio stations. Your optical disc
drive may supports multiple disc media formats

22

including CDs, Blu‑ray discs (if the option is
selected at the time of purchase), and DVDs.

You can download or copy pictures and video
files from portable devices, such as digital
cameras and cell phones. Optional software
applications enable you to organize and create
music and video files that can be recorded to
disc, saved on portable products such as MP3
players and handheld entertainment devices, or
played and viewed directly on connected TVs,
projectors, and home theater equipment.

Customizing the Desktop

You can customize your desktop to change the
appearance, resolution, wallpaper, screensaver,
and so on by accessing the Personalize
appearance and sounds window.

To access the display properties window:

Right‑click an open area of the desktop.1.

Click 2. Personalize, to open the Personalize
appearance and sounds window and learn
more about your customization options.

23

Using Your Studio Hybrid

Customizing Your Energy Settings

You can use the power options in your operating
system to configure the power settings on your
computer. Microsoft

®

Windows Vista® provides

three default options:

Balanced• — This power option offers full
performance when you need it and saves
power during periods of inactivity.

Power saver• — This power option saves
power on your computer by reducing system
performance to maximize the life of the
computer and by reducing the amount of
energy consumed by your computer over its
lifetime.

High performance• — This power option
provides the highest level of system
performance on your computer by adapting
processor speed to your activity and by
maximizing system performance.

Backing Up Your Data

It is recommended that you periodically back
up files and folders on your computer. To back
up files:

Click 1. Start

→ Control Panel→ System

and Maintenance→ Welcome Center→
Transfer files and settings.

Click 2. Back up files or Back up computer.

Click 3. Continue on Your User Account Control
dialog box and follow the instructions in the
Back up Files wizard.

Solving Problems

This section provides troubleshooting
information for your computer. If you can
not solve your problem using the following
guidelines, see “Using Support Tools” on
page 30 or “Contacting Dell” on page 45.

CAUTION: Only trained service personnel
should remove the computer cover. See
the

Service Manual

website at support.dell.com for advanced
service and troubleshooting instructions.

on the Dell Support

Wireless Mouse or Keyboard Problems

If the mouse and keyboard stop communicating
with the computer — The batteries may not be

working or the keyboard and mouse have lost
their connection with the computer.

24

Check the batteries in the keyboard and •
mouse to ensure that they have enough
power and are installed correctly.

Reestablish a connection with the computer:•

Turn on the computer.a.

Press the wireless sync button at the back b.
of your computer and then the wireless
sync button on your keyboard.

25

Solving Problems

Press the wireless sync button on the c.
computer again, and then the wireless
sync button on your mouse. The mouse
and keyboard should now be paired.

Network Problems

Wireless Connections

If the network connection is lost — The

wireless router is offline or wireless has been
disabled on the computer.

Check your wireless router to ensure it is •
powered on and connected to your data
source (cable modem or network hub).

Re‑establish your connection to the wireless •
router:

Save and close any open files, and exit a.
any open programs.

Click b. Start

→ Connect To.

Follow the instructions on the screen to c.
complete the setup.

Wired Connections

If the network connection is lost — The cable

is loose or damaged.

Check the cable to ensure it is plugged in •
and not damaged.

The link integrity light on the integrated network
connector lets you verify that your connection is
working and provides information on the status:

Green — A good connection exists between •
a 10‑Mbps network and the computer.

Orange — A good connection exists between •
a 100‑Mbps network and the computer.

Yellow — A good connection exists between •
a 1000‑Mbps network and the computer.

Off — The computer is not detecting a •
physical connection to the network.

NOTE: The link integrity light on the network
connector is only for the wired cable
connection. The link integrity light does not
provide status for wireless connections.

Solving Problems

Power Problems

If the power light is off — The computer is

either turned off or is not receiving power.

Reseat the power cable into both the •
power connector on the computer and the
electrical outlet.

If the computer is plugged into a power strip, •
ensure that the power strip is plugged into
an electrical outlet and that the power strip
is turned on. Also bypass power protection
devices, power strips, and power extension
cables to verify that the computer turns on
properly.

Ensure that the electrical outlet is working •
by testing it with another device, such as a
lamp.

Check the AC adapter cable connections. •
If the AC adapter has a light, ensure that the
light on the AC adapter is on.

26

If the power light is solid white and the
computer is not responding — The display may

not be connected or powered on. Ensure that
the display is properly connected and then turn
it off then back on.

If the power light is blinking white — The
computer is in standby mode. Press a key on the
keyboard, move the pointer on the trackpad or a
connected mouse, or press the power button to
resume normal operation.

If the power light is solid amber — The
computer has a power problem or an internal
device malfunction. For assistance contact Dell,
see “Contacting Dell” on page 45.

If the power light is blinking amber — The
computer is receiving electrical power, but a
device might be malfunctioning or incorrectly
installed. You may have to remove and then
reinstall the memory modules (for information on
removing and replacing memory modules, see
the Service Manual on the Dell Support website
at support.dell.com).

Solving Problems

If you encounter interference that hinders
reception on your computer — An unwanted

signal is creating interference by interrupting or
blocking other signals. Some possible causes of
interference are:

Power, keyboard, and mouse extension cables.•

Too many devices connected to a power strip.•

Multiple power strips connected to the same •
electrical outlet.

Memory Problems

If you receive an insufficient memory
message—

Save and close any open files and exit any •
open programs you are not using to see if
that resolves the problem.

See the software documentation for •
minimum memory requirements. If
necessary, install additional memory
(See the Service Manual on the Dell Support
website at support.dell.com).

Reseat the memory modules (See the •
Service Manual on the Dell Support website
at support.dell.com) to ensure that your
computer is successfully communicating
with the memory.

If you experience other memory problems —

Ensure that you are following the memory •
installation guidelines (see the Service
Manual on the Dell Support website at
support.dell.com).

Check if the memory module is compatible •
with your computer. Your computer supports
DDR2 memory. For more information about the
type of memory supported by your computer,
see “Basic Specifications” on page 48.

Run the Dell Diagnostics (see “Dell •
Diagnostics” on page 32).

Reseat the memory modules (see the • Service

Manual on the Dell Support website at support.
dell.com) to ensure that your computer is

successfully communicating with the memory.

27

28

Solving Problems

Lockups and Software Problems

If the computer does not start up — Ensure

that the power cable is firmly connected to the
computer and to the electrical outlet.

If a program stops responding — End the
program:

Press <Ctrl><Shift><Esc> simultaneously.1.

Click 2. Applications.

Click the program that is no longer 3.
responding

Click 4. End Task.

If a program crashes repeatedly — Check the
software documentation. If necessary, uninstall
and then reinstall the program.

NOTE: Software usually includes
installation instructions in its
documentation or on CD.

If the computer stops responding —

NOTICE: You might lose data if you are

unable to perform an operating system
shutdown.

Turn the computer off. If you are unable to get a
response by pressing a key on your keyboard or
moving your mouse, press and hold the power
button for at least 8 to 10 seconds until the
computer turns off. Then restart your computer.

If a program is designed for an earlier
Microsoft

®

Windows® operating system —

Run the Program Compatibility Wizard. The
Program Compatibility Wizard configures a
program so that it runs in an environment
similar to non‑Windows Vista operating system
environments.

Click 1. Start

→ Control Panel→

Programs→ Use an older program with this
version of Windows.

In the welcome screen, click 2. Next.

Follow the instructions on the screen.3.

29

Solving Problems

If a solid blue screen appears — Turn the
computer off. If you are unable to get a
response by pressing a key on your keyboard or
moving your pointer or mouse, press and hold
the power button for at least 8 to 10 seconds
until the computer turns off. Then restart your
computer.

If you have other software problems —

Back up your files immediately.•

Use a virus‑scanning program to check the •
hard drive or CDs.

Save and close any open files or programs •
and shut down your computer through the
Start

menu.

Check the software documentation or •
contact the software manufacturer for
troubleshooting information:

Ensure that the program is compatible –
with the operating system installed on
your computer.

Ensure that your computer meets the –
minimum hardware requirements needed
to run the software. See the software
documentation for information.

Ensure that the program is installed and –
configured properly.

Verify that the device drivers do not –
conflict with the program.

If necessary, uninstall and then reinstall –
the program.

Using Support Tools

Dell Support Center

The Dell Support Center helps you find
the service, support, and system‑specific
information you need. For more information
about Dell Support Center and available support
tools, click the Services tab at support.dell.com.

Click the
application. The home page provides links to
access:

Self Help (Troubleshooting, Security, System •
Performance, Network/Internet, Backup/
Recovery, and Windows Vista)

Alerts (technical support alerts relevant to •
your computer)

Assistance from Dell (Technical Support with •
DellConnect

30

icon in the taskbar to run the

™

, Customer Service, Training

and Tutorials, How‑To Help with Dell on Call,
and Online Scan with PCCheckUp)

About Your System (System Documentation, •
Warranty Information, System Information,
Upgrades & Accessories)

The top of the Dell Support Center home page
displays your system’s model number along with
its service tag and express service code.

For more information about the Dell Support
Center, see the
hard drive or on the Dell Support website at
support.dell.com.

Dell Technology Guide

on your

System Messages

If your computer has an issue or error, it may
display a System Message that will help you
identify the cause and action needed to resolve
the issue.

Using Support Tools

NOTE: If the message you received is not
listed in the following examples, see the
documentation for either the operating
system or the program that was running
when the message appeared. Alternatively
you could see the Service Manual on the
Dell Support website at support.dell.com
or see “Contacting Dell” on page 45 for
assistance.

Alert! Previous attempts at booting this system
have failed at checkpoint [nnnn]. For help
in resolving this problem, please note this
checkpoint and contact Dell Technical
Support — The computer failed to complete

the boot routine three consecutive times for the
same error see “Contacting Dell” on page 45 for
assistance.

CMOS checksum error — Possible motherboard
failure or RTC battery low. Replace the battery.
See the Service Manual on the Dell Support
website at support.dell.com or see “Contacting
Dell” on page 45 for assistance.

CPU fan failure — CPU fan has failed. Replace
the CPU fan. See the Service Manual on the Dell
Support website at support.dell.com.

Hard-disk drive failure — Possible hard disk
drive failure during HDD POST see “Contacting
Dell” on page 45 for assistance.

Hard-disk drive read failure — Possible hard
disk drive failure during HDD boot test see
“Contacting Dell” on page 45 for assistance.

Keyboard failure — Keyboard failure, loose
cable, or lost wireless connection. For wireless
keyboard connections, see “Wireless Mouse or
Keyboard Problems” on page 24.

No boot device available — No bootable
partition on hard disk drive, the hard disk drive
cable is loose, or no bootable device exists.

If the hard drive is your boot device, ensure •
that the cables are connected and that the
drive is installed properly and partitioned as
a boot device.

31

32

Using Support Tools

Enter system setup and ensure that the boot •
sequence information is correct (see the
Service Manual on the Dell Support website
at support.dell.com).

No timer tick interrupt — A chip on the system
board might be malfunctioning or motherboard
failure (see the Service Manual on the Dell
Support website at support.dell.com).

USB over current error — Disconnect the USB
device. Your USB device needs more power for
it to function properly. Use an external power
source to connect the USB device, or if your
device has two USB cables, connect both
of them.

NOTICE - Hard Drive SELF MONITORING
SYSTEM has reported that a parameter has
exceeded its normal operating range. Dell
recommends that you back up your data
regularly. A parameter out of range may or may
not indicate a potential hard drive problem —

S.M.A.R.T error, possible hard disk drive failure.
This feature can be enabled or disabled in the

BIOS setup (see “Contacting Dell” on page 45
for assistance).

Hardware Troubleshooter

If a device is either not detected during
the operating system setup or is detected
but incorrectly configured, you can use the
Hardware Troubleshooter to resolve the
incompatibility.

To start the Hardware Troubleshooter:

Click 1. Start

→ Help and Support.

Type 2. hardware troubleshooter in
the search field and press <Enter> to start
the search.

In the search results, select the option that 3.
best describes the problem and follow the
remaining troubleshooting steps.

Using Support Tools

Dell Diagnostics

If you experience a problem with your
computer, perform the checks in “Lockups and
Software Problems” on page 48 and run the
Dell Diagnostics before you contact Dell for
technical assistance.

It is recommended that you print these
procedures before you begin.

NOTICE: Dell Diagnostics works only on
Dell computers.

NOTE: The
is optional and may not ship with your
computer.

See the System Setup section in the Service
Manual to review your computer’s configuration
information, and ensure that the device that
you want to test displays in the system setup
program and is active.

Start the Dell Diagnostics from your hard drive
or from the

Drivers and Utilities

Drivers and Utilities

media

media.

Starting Dell Diagnostics From Your Hard Drive

The Dell Diagnostics is located on a hidden
diagnostic utility partition on your hard drive.

NOTE: If your computer cannot display a
screen image, see “Contacting Dell” on
page 45.

Ensure that the computer is connected to an 1.
electrical outlet that is known to be working
properly.

Turn on (or restart) your computer.2.

When the DELL3.

™

logo appears, press <F12>
immediately. Select Diagnostics from the
boot menu and press <Enter>.

NOTE: If you wait too long and the operating
system logo appears, continue to wait until
you see the Microsoft

®

Windows® desktop;

then, shut down your computer and try again.

NOTE: If you see a message stating that no
diagnostics utility partition has been found,
run the Dell Diagnostics from the

and Utilities

media.

Drivers

33

Using Support Tools

Press any key to start the Dell Diagnostics 4.
from the diagnostics utility partition on your
hard drive.

Starting Dell Diagnostics From the Drivers and
Utilities Media

Insert the1.

Drivers and Utilities

media.

Shut down and restart the computer. 2.
When the DELL logo appears, press <F12>
immediately.

NOTE: If you wait too long and the
operating system logo appears, continue to
wait until you see the Microsoft

®

Windows®
desktop; then, shut down your computer
and try again.

NOTE: The next steps change the boot
sequence for one time only. On the next
start‑up, the computer boots according to
the devices specified in the system setup
program.

When the boot device list appears, highlight 3.
CD/DVD/CD-RW and press <Enter>.

34

Select the 4. Boot from CD-ROM option from
the menu that appears and press <Enter>.

Type 1 to start the CD menu and press 5.
<Enter> to proceed.

Select 6. Run the 32 Bit Dell Diagnostics from
the numbered list. If multiple versions are
listed, select the version appropriate for your
computer.

When the Dell Diagnostics 7. Main Menu
appears, select the test you want to run.

System Recovery Options

You can restore your operating system in the
following ways:

System • Restore returns your computer to an
earlier operating state without affecting data
files. Use System Restore as the first solution
for restoring your operating system and
preserving data files.

Dell • Factory Image Restore returns your
hard drive to the operating state it was
in when you purchased the computer.
Both procedures permanently delete all
data on the hard drive and remove any
programs installed after you received the
computer. Use Dell Factory Image Restore
only if System Restore did not resolve your
operating system problem.

If you received an Operating System disc •
with your computer, you can use it to restore
your operating system. However, using the

Operating System disc also deletes all data
on the hard drive. Use the disc only if System
Restore did not resolve your operating
system problem.

System Restore

The Windows operating systems provide
a System Restore option which allows
you to return your computer to an earlier
operating state (without affecting data files) if
changes to the hardware, software, or other
system settings have left the computer in an
undesirable operating state. Any changes that
System Restore makes to your computer are
completely reversible.

NOTICE: Make regular backups of your
data files. System Restore does not monitor
your data files or recover them.

35

36

System Recovery Options

NOTE: The procedures in this document
were written for the Windows default view,
so they may not apply if you set your Dell

™

computer to the Windows Classic view.

Starting System Restore

Click 1. Start

.

In the 2. Start Search box, type System
Restore and press <Enter>.

NOTE: The User Account Control window
may appear. If you are an administrator on
the computer, click Continue; otherwise,
contact your administrator to continue the
desired action.

Click 3. Next and follow the remaining prompts
on the screen.

In the event that System Restore did not resolve
the issue, you may undo the last system restore.

Undoing the Last System Restore

NOTE: Before you undo the last system

restore, save and close all open files and
exit any open programs. Do not alter, open,

or delete any files or programs until the
system restoration is complete.

Click 1. Start

.

In the 2. Start Search box, type System
Restore and press <Enter>.

Click 3. Undo my last restoration and click

Next.

Dell Factory Image Restore

NOTICE: Using Dell Factory Image Restore

permanently deletes all data on the hard
drive and removes any programs or drivers
installed after you received your computer.
If possible, back up the data before using
these options. Use Dell Factory Image
Restore only if System Restore did not
resolve your operating system problem.

NOTE: Dell Factory Image Restore may
not be available in certain countries or on
certain computers.

Use Dell Factory Image Restore only as the
last method to restore your operating system.

System Recovery Options

These options restore your hard drive to the
operating state it was in when you purchased
the computer. Any programs or files added
since you received your computer—including
data files—are permanently deleted from
the hard drive. Data files include documents,
spreadsheets, e‑mail messages, digital photos,
music files, and so on. If possible, back up all
data before using Factory Image Restore.

Dell Factory Image Restore

Turn on the computer. When the Dell logo 1.
appears, press <F8> several times to access
the Vista Advanced Boot Options Window.

Select 2. Repair Your Computer.

The 3. System Recovery Options window
appears.

Select a keyboard layout and click 4. Next.

To access the recovery options, log on as a 5.
local user. To access the command prompt,
type administrator in the User name
field, then click OK.

Click 6. Dell Factory Image Restore. The Dell
Factory Image Restore welcome screen
appears.

NOTE: Depending upon your configuration,
you may need to select Dell Factory Tools,
then Dell Factory Image Restore.

Click 7. Next. The Confirm Data Deletion
screen appears.

NOTICE: If you do not want to proceed with
Factory Image Restore, click Cancel.

Click the checkbox to confirm that you want 8.
to continue reformatting the hard drive and
restoring the system software to the factory
condition, then click Next.

The restore process begins and may take
five or more minutes to complete. A message
appears when the operating system and
factory‑installed applications have been
restored to factory condition.

Click 9. Finish to reboot the system.

37

System Recovery Options

Operating System Reinstallation

Before you Begin

If you are considering reinstalling the Windows
operating system to correct a problem with a
newly installed driver, first try using Windows
Device Driver Rollback. If Device Driver
Rollback does not resolve the problem, then
use System Restore to return your operating
system to the operating state it was in before
you installed the new device driver. See “Using
Microsoft Windows System Restore” on
page 35.

NOTICE: Before performing the installation,
back up all data files on your primary
hard drive. For conventional hard drive
configurations, the primary hard drive is the
first drive detected by the computer.

To reinstall Windows, you need the following
items:

Dell Operating System

• media

Dell Drivers and Utilities

• media

38

NOTE: The
contains drivers that were installed during
the assembly of the computer. Use the
Dell Drivers and Utilities media to load any
required drivers. Depending on the region
from which you ordered your computer, or
whether you requested the media, the

Drivers and Utilities
System

computer.

Reinstalling Windows Vista

The reinstallation process can take 1 to 2 hours
to complete. After you reinstall the operating
system, you must also reinstall the device
drivers, virus protection program, and other
software.

Save and close any open files and exit any 1.
open programs.

Insert the 2.

Click 3. Exit if the Install Windows message
appears.

Dell Drivers and Utilities

media and

media may not ship with your

Operating System

disc.

media

Operating

Dell

Restart the computer.4.

When the DELL logo appears, press <F12> 5.
immediately.

NOTE: If you wait too long and the
operating system logo appears, continue to
wait until you see the Microsoft

®

Windows®
desktop; then, shut down your computer
and try again.

NOTE: The next steps change the boot
sequence for one time only. On the next
start‑up, the computer boots according to
the devices specified in the system setup
program.

When the boot device list appears, highlight 6.
CD/DVD/CD-RW Drive and press <Enter>.

Press any key to 7. Boot from CD-ROM.
Follow the instructions on the screen to
complete the installation.

System Recovery Options

39

Getting Help

If you experience a problem with your computer,
you can complete the following steps to
diagnose and troubleshoot the problem:

See “Solving Problems” on page 1. 24 for
information and procedures that pertain to
the problem your computer is experiencing.

See “Dell Diagnostics” on page 2. 32 for
procedures on how to run Dell Diagnostics.

Fill out the “Diagnostic Checklist” on 3.
page 44.

Use Dell’s extensive suite of online services 4.
available at Dell Support (support.dell.com)
for help with installation and troubleshooting
procedures. See “Online Services” on
page 41 for a more extensive list of Dell
Support online.

If the preceding steps have not resolved the 5.
problem, see “Contacting Dell” on page 45.

40

NOTE: Call Dell Support from a telephone
near or at the computer so that the support
staff can assist you with any necessary
procedures.

NOTE: Dell’s Express Service Code system
may not be available in all countries.

When prompted by Dell’s automated telephone
system, enter your Express Service Code to
route the call directly to the proper support
personnel. If you do not have an Express
Service Code, open the Dell Accessories folder,
double‑click the Express Service Code icon, and
follow the directions.

NOTE: Some of the following services
are not always available in all locations
outside the continental U.S. Call your local
Dell representative for information on
availability.

Getting Help

Technical Support and Customer Service

Dell’s support service is available to answer
your questions about Dell hardware. Our
support staff uses computer‑based diagnostics
to provide fast, accurate answers.

To contact Dell’s support service, see
“Before You Call” on page 44 and then see
the contact information for your region or go
to support.dell.com.

DellConnect™

DellConnect is a simple online access tool that
allows a Dell service and support associate to
access your computer through a broadband
connection, diagnose your problem and repair it
all under your supervision. For more information,
go to support.dell.com and click DellConnect.

Online Services

You can learn about Dell products and services
on the following websites:

www.dell.com•

www.dell.com/ap• (Asian/Pacific countries

only)

www.dell.com/jp• (Japan only)

www.euro.dell.com• (Europe only)

www.dell.com/la• (Latin American and

Caribbean countries)

www.dell.ca• (Canada only)

You can access Dell Support through the
following websites and e‑mail addresses:

Dell Support websites

support.dell.com•

support.jp.dell.com• (Japan only)

support.euro.dell.com• (Europe only)

41

Getting Help

Dell Support e‑mail addresses

[email protected]•

[email protected]•

[email protected]• (Latin America and

Caribbean countries only)

[email protected]• (Asian/Pacific
countries only)

Dell Marketing and Sales e‑mail addresses

[email protected]• (Asian/Pacific
countries only)

[email protected]• (Canada only)

Anonymous file transfer protocol (FTP)

ftp.dell.com•

Log in as user: anonymous, and use your
e‑mail address as your password.

AutoTech Service

Dell’s automated support service–AutoTech–
provides recorded answers to the questions

42

most frequently asked by Dell customers about
their portable and desktop computers.

When you call AutoTech, use your touch‑tone
telephone to select the subjects that correspond
to your questions. For instructions on accessing
the telephone number to call your region, see
“Contacting Dell” on page 45.

Automated Order-Status Service

To check on the status of any Dell products that
you have ordered, you can go to support.dell.
com, or you can call the automated order‑
status service. A recording prompts you for the
information needed to locate and report on your
order. For the telephone number to call your
region, see “Contacting Dell” on page 45 for
problems with your order.

If you have a problem with your order, such as
missing parts, wrong parts, or incorrect billing,
contact Dell for customer assistance. Have your
invoice or packing slip handy when you call. For
the telephone number to call for your region,
see “Contacting Dell” on page 45.

Getting Help

Product Information

If you need information about additional
products available from Dell, or if you would like
to place an order, visit the Dell website at
www.dell.com. For the telephone number to call
for your region or to speak to a sales specialist,
see “Contacting Dell” on page 45.

Returning Items for Repair Under Warranty or for Credit

Prepare all items being returned, whether for
repair or credit, as follows:

Call Dell to obtain a Return Material 1.
Authorization Number, and write it clearly
and prominently on the outside of the box.

For the telephone number to call for your 2.
region, see “Contacting Dell” on page 45.

Include a copy of the invoice and a letter 3.
describing the reason for the return.

Include a copy of the Diagnostics Checklist 4.
(see “Diagnostic Checklist” on page 44),
indicating the tests that you have run and
any error messages reported by the Dell
Diagnostics (see “Dell Diagnostics” on
page 32).

Include any accessories that belong with 5.
the item(s) being returned (power cables,
software, guides, and so on) if the return is
for credit.

Pack the equipment to be returned in the 6.
original (or equivalent) packing materials.

You are responsible for paying shipping 7.
expenses. You are also responsible for
insuring any product returned, and you
assume the risk of loss during shipment to
Dell. Collect On Delivery (C.O.D.) packages
are not accepted.

Returns that are missing any of the 8.
preceding requirements will be refused at
Dell’s receiving dock and returned to you.

43

Getting Help

Before You Call

NOTE: Have your Express Service Code

ready when you call. The code helps Dell’s
automated‑support telephone system direct
your call more efficiently. You may also be
asked for your Service Tag (located on the
back or bottom of your computer).

Remember to fill out the following Diagnostics
Checklist. If possible, turn on your computer
before you call Dell for assistance and call from
a telephone at or near the computer. You may be
asked to type some commands at the keyboard,
relay detailed information during operations, or
try other troubleshooting steps possible only at
the computer itself. Ensure that the computer
documentation is available.

44

Diagnostic Checklist

Name:•

Date:•

Address:•

Phone number:•

Service Tag (bar code on the back or bottom •
of the computer):

Express Service Code:•

Return Material Authorization Number •
(if provided by Dell support technician):

Operating system and version:•

Devices:•

Expansion cards:•

Are you connected to a network? Yes /No•

Network, version, and network adapter:•

Programs and versions:•

Getting Help

See your operating system documentation
to determine the contents of the computer’s
start‑up files. If the computer is connected to
a printer, print each file. Otherwise, record the
contents of each file before calling Dell.

Error message, beep code, or diagnostic •
code:

Description of problem and troubleshooting •
procedures you performed:

Contacting Dell

For customers in the United States, call
800‑WWW‑DELL (800‑999‑3355).

NOTE: If you do not have an active
Internet connection, you can find contact
information on your purchase invoice,
packing slip, bill, or Dell product catalog.

Dell provides several online and telephone‑
based support and service options. Availability
varies by country and product, and some
services may not be available in your area.

To contact Dell for sales, technical support, or
customer service issues:

Visit 1. support.dell.com.

Verify your country or region in the 2. Choose
A Country/Region drop‑down menu at the
bottom of the page.

Click 3. Contact Us on the left side of the page.

Select the appropriate service or support link 4.
based on your need.

Choose the method of contacting Dell that is 5.
convenient for you.

45

Finding More Information and Resources

If you need to: See:

reinstall your operating system. your Operating System disc.

run a diagnostic program for your computer,
reinstall desktop system software, or update
drivers for your computer, and readme files.

learn more about your operating system,
maintaining peripherals, RAID, Internet,
Bluetooth

®

, networking, and e‑mail.

the

Drivers and Utilities

NOTE: Drivers and documentation updates
can be found on the Dell
at support.dell.com.

the Dell Technology Guide installed on your
hard drive.

disc.

™

Support website

upgrade your computer with new or additional
memory, or a new hard drive.

reinstall or replace a worn or defective part.

46

the Service Manual on the Dell Support website
at support.dell.com

NOTE: In some countries, opening and
replacing parts of your computer may void
your warranty. Check your warranty and
return policies before working inside your
computer.

If you need to: See:

find safety best practices information for your
computer

review Warranty information, Terms and
Conditions (U.S. only), Safety instructions,
Regulatory information, Ergonomics

the safety and regulatory documents that
shipped with your computer and also see the
Regulatory Compliance Homepage on
www.dell.com at the following location:
www.dell/regulatory_compliance

information, and End User License Agreement.

find your Service tag/Express Service Code—

the back or bottom of your computer.
You must use the service tag to identify your
computer on support.dell.com or to contact
technical support.

find drivers and downloads.

access technical support and product help.

the Dell

support.dell.com.

check on your order status for new purchases.

find solutions and answers to common
questions.

locate information for last‑minute updates
about technical changes to your computer or
advanced technical‑reference material for
technicians or experienced users.

Finding More Information and Resources

™

Support website at

47

48

Basic Specifications

System Model

Studio Hybrid 140g

This section provides basic information that you
may need when setting up, updating drivers for,
and upgrading your computer. For more detailed
specifications, see the Service Manual on the
Dell Support website at support.dell.com.

NOTE: Offerings may vary by region.
For more information regarding the
configuration of your computer, click
Start

→ Help and Support and select
the option to view information about your
computer.

Processor

Type L2 cache

Intel

®

Celeron

®

1 MB

Intel Celeron Dual‑Core 512 KB

Intel Pentium

®

Dual‑Core 1 MB

Intel Core

™

2 Duo 2 MB/3 MB/6 MB

Drives

Externally accessible One 5.25‑inch drive

bay SATA DVD‑ROM
or DVD+/‑RW/Blu‑ray
Disc

™

optical drive

Internally accessible One 2.5‑inch drive bay

SATA hard drive

Basic Specications

Memory

Connectors two internally‑

accessible SO‑DIMM
sockets

Capacities 512 MB, 1 GB, and

2 GB

Memory type 533 MHz, 667 MHz

DDR2 SO‑DIMM

Minimum 1 GB

Maximum 4 GB

NOTE: For instructions on upgrading your
memory, see the Service Manual on the
Dell Support website at support.dell.com.

Computer Information

System Chipset Intel GM965 + ICH8M

Data bus width 64 bits

DRAM bus width dual channel (2)

64‑bit buses

Processor address
bus width

Flash EPROM 8 MB

Expansion Bus

Bus types SATA 1.0, 2.0, and

Bus speeds SATA: 1.5 Gbps and

32 bits

USB 2.0

3.0 Gbps

USB: 480 Mbps high
speed, 12 Mbps full
speed, and 1.2 Mbps
low speed

49

Basic Specications

Physical (Without Stand in Vertical
Orientation)

Height (with sleeve) 211.5 mm (8.33 in)

Width (with sleeve) 71.5 mm (2.81 in)

Depth (with sleeve) 196.5 mm (7.74 in)

Weight (without

1.8 kg (3.97 lb.)

sleeve)

System Board Connectors

Processor

one 478‑pin connector

Memory two 200‑pin SO‑

DIMM slots

Mini‑Card two 52‑pin

connectors

50

Power

Maximum heat

221.789 BTU/hr

dissipation

Voltage 19.5 Vdc and 3.34 A

NOTE: Check the frequency and voltage
rating for the AC adapter to ensure that it
matches the available power source.

AC Adapter

Types 3 Pin and 2 Pin

Input voltage 100–240 VAC

Input current

1.5A

(maximum)

Input frequency 50–60 Hz

Output current 3.34A

Output power 65 W

Basic Specications

AC Adapter

Rated output voltage 19.5 VDC

Dimensions:

Height 16 mm (0.6 in)

Width 66 mm (2.6 in)

Length 127 mm (5.0 in)

Weight (without

0.25 kg (0.55 lb)

cables)

Temperature ranges:

Operating 0° to 40°C

Storage

–

40° to 70°C

Computer Environment

Temperature ranges:

Operating 10° to 35°C

Storage

Relative humidity
(maximum):

–

40° to 70° C

20% to 80%
(noncondensing)

51

Basic Specications

Computer Environment

Maximum vibration (using a random‑vibration
spectrum that simulates user environment):

Operating 5 to 350 Hz at 0.0002

G2/Hz

Storage 5 to 500 Hz at 0.001 to

0.01 G2/Hz

Maximum shock (measured with hard drive
in head‑parked position and a 2‑ms half‑sine
pulse):

Operating 40 G +/‑ 5% with

pulse duration of
2 msec +/‑ 10%
(equivalent to 20 in/
sec [51 cm/sec])

52

Computer Environment

Storage 105 G +/‑ 5% with

pulse duration of
2 msec +/‑ 10%
(equivalent to 50 in/
sec [127 cm/sec])

Altitude (maximum):

Operating

Storage

Airborne contaminant
level

–

15.2 to 3048 m

–

(

50 to 10,000 ft)

–

15.2 to 10,668 m

–

(

50 to 35,000 ft)

G2 or lower
as defined by
ISA‑S71.04‑1985

Appendix

The information in this document also applies to
the products listed below:

Dell Studio•

Dell Studio Hybrid•

Dell Hybrid•

Dell Studio 140g•

Dell Studio 140gn•

Dell Studio 140•

Dell Studio 140n•

Dell Studio Hybrid •
140g

Dell Studio Hybrid •
140gn

Dell Studio Hybrid •
140

Dell Hybrid 140g•

Dell Studio Hybrid •
140n

Dell Hybrid 140gn•

Dell Hybrid 140•

Dell Hybrid 140n•

Dell Inspiron™ •
140g)

Dell Inspiron •
140gn

Dell Inspiron 140•

Dell Inspiron 140n•

Dell Dimension™ •
140g

Dell Dimension •
140gn

Dell Dimension •
140

Dell Dimension •
140n

Dell Inspiron•

Dell Dimension•

Macrovision Product Notice

This product incorporates copyright protection
technology that is protected by method claims
of certain U.S. patents and other intellectual
property rights owned by Macrovision
Corporation and other rights owners. Use of
this copyright protection technology must be
authorized by Macrovision Corporation, and is
intended for home and other limited viewing
uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering
or disassembly is prohibited.

53

Index

A

AC adapter

size and weight 51

specifications 50

airflow, allowing 5

AutoTech 42

B

backups

creating 23

C

cable clip 12

cables, organizing 12

calling Dell 44

card reader 17

CDs, playing and creating 22

54

chipset 49

computer

weights and dimensions 50

computer capabilities 22

computer, setting up 5

computer stand 5

vertical and horizonal options 6

connect(ing)

cable clip 12

computer stand 6

displays 8

optional network cable 11

power cable 12

to the Internet 13

USB keyboard 10

USB mouse 10

Index

using dial‑up 14

via DSL 14

via WLAN 14

wireless keyboard 10

wireless mouse 10

connectors

back view 18

conserving energy 23

Contacting Dell online 45

customer service 41

customizing

computer sleeve design 21

your desktop 22

your energy settings 23

D

damage, avoiding 5

data, backing up 23

DellConnect 41

Dell Diagnostics 33

Dell Factory Image Restore 35

Dell Support Center 30

Dell support website 47

Dell Technology Guide

for futher information 46

Diagnostic Checklist 44

disc drive

supported disc sizes 20

discs

ejecting 20

using 20

display, connecting 8

drivers and downloads 47

DVDs, playing and creating 22

DVI connector 19

55

Index

E

eject button 17

email addresses

for technical support 42

energy

conserving 23

expansion bus 49

Express Service Code 19

F

finding more information 46

front‑side connectors 16

FTP login, anonymous 42

H

hard drive

type 48

hard drive activity light 17

56

hardware problems

diagnosing 32

Hardware Troubleshooter 32

HDMI

connector location 19

display 8

headphone

back connector 19

front connector 17

help

getting assistance and support 40

horizontal and vertical stand options 5

horizontal stand

using or changing 6

I

IEEE 1394 connector 19

installing the stand 5

Index

Internet connection 13

ISP

Internet Service Provider 13

L

line‑in connector 19

line‑out connector 19

M

media card reader 17

memory

minimum and maximum 49

memory problems

solving 27

Memory Stick reader 17

memory support 49

microphone connector 19

MMC 17

Multi Media Card reader 17

N

network connection

fixing 25

network connector

location 18

network speed

testing 25

O

optical audio connector

S/PDIF connection 19

order status 42

P

power button and light 16

power connector 18

power problems, solving 26

power specifications 50

problems, solving 24

57

Index

processor 48

products

information and purchasing 43

R

reinstalling Windows 35

resources, finding more 46

restoring factory image 36

rotating icons 5

S

SD card reader 17

SDHC card reader 17

security cable slot 19

setup, before you begin 5

shipping products

for return or repair 43

sleeve, changing 21

58

software features 22

software problems 28

solving problems 24

S/PDIF connector 19

specifications 48

support email addresses 42

support sites

worldwide 41

system board connectors 50

System Messages 30

system reinstall options 35

System Restore 35

T

technical support 41

temperature

operating and storage ranges 51

Index

U

USB 2.0

back connectors 19

front connectors 17

V

ventilation, ensuring 5

vertical stand

using or changing 6

W

warranty returns 43

Windows, reinstalling 35

®

Windows Vista

Program Compatibility Wizard 28

reinstalling 38

setup 13

wireless network connection 25

wireless sync button 18

13

wirless mouse and keyboard

reconnecting 24

X

xD‑Picture Card reader 17

59

Your Studio Hybrid was designed with
the environment in mind.

Learn more at www.dell.com/hybrid.

Printed in the U.S.A.

www.dell.com | support.dell.com
