Dell B5460dn Laser Printer

User's Guide

1

February 2014 www.dell.com | dell.com/support/printers

Reproduction of this material in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden. Trademarks used in this text: Dell, the DELL logo, Inspiron, Dell Precision, Dimension, OptiPlex, Latitude, PowerEdge, PowerVault, PowerApp, and Dell OpenManage are tradema rks

of Dell Inc.; Intel, Pentium, and Celeron are registered trademarks of Intel Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation; AirPrint and the AirPrint logo are trademarks of Apple, Inc.

Other trademarks and trade names may be used in this document to refer to the entities claiming the marks and names of their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

Contents 2

Safety information

Connect the power cord to a properly grounded electrical outlet that is near the product and easily accessible.

Do not place or use this product near water or wet locations.

CAUTION—POTENTIAL INJURY: This product uses a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This product uses a printing process that heats the print media, and the heat may cause the media to release emissions. You must understand the section in your operating instructions that discusses the guidelines for selecting print media to avoid the possibility of harmful emissions.

CAUTION—POTENTIAL INJURY: The lithium battery in this product is not intended to be replaced. There is a danger of explosion if a lithium battery is incorrectly replaced. Do not recharge, disassemble, or incinerate a lithium battery. Discard used lithium batteries according to the manufacturer's instructions and local regulations.

CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching.

CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all other trays closed until needed.

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained personnel to lift it safely.

CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal injury or printer damage:

• Turn off the printer, and then unplug the power cord from the electrical outlet.

• Disconnect all cords and cables from the printer.

• If two or more optional finishers are installed, then remove the finishers individually from the printer.

Notes:

– Make sure to remove the topmost finisher first.

– To remove the finisher, hold the finisher on both sides, and then lift the latches to unlock the finisher.

• If the printer does not have a caster base but is configured with optional trays, then remove the trays.

Note: Slide the latch on the right side of the optional tray toward the front of the tray until it clicks into place.

• Use the handholds located on both sides of the printer to lift it.

• Make sure your fingers are not under the printer when you set it down.

• Make sure there is adequate clearance around the printer.

• Use only the power cord provided with this product or the manufacturer's authorized replacement.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock when cleaning the exterior of the printer, unplug the power cord from the electrical outlet and disconnect all cables from the printer before proceeding.

Use only the power cord provided with this product or the manufacturer's authorized replacement.

Safety information 6

CAUTION—SHOCK HAZARD: Make sure that all external connections (such as Ethernet and telephone system connections) are properly installed in their marked plug-in ports.

This product is designed, tested, and approved to meet strict global safety standards with the use of specific manufacturer's components. The safety features of some parts may not always be obvious. The manufacturer is not responsible for the use of other replacement parts.

CAUTION—POTENTIAL INJURY: Do not cut, twist, bind, crush, or place heavy objects on the power cord. Do not subject the power cord to abrasion or stress. Do not pinch the power cord between objects such as furniture and walls. If any of these things happen, a risk of fire or electrical shock results. Inspect the power cord regularly for signs of such problems. Remove the power cord from the electrical outlet before inspecting it.

Refer service or repairs, other than those described in the user documentation, to a service representative.

CAUTION—SHOCK HAZARD: Do not set up this product or make any electrical or cabling connections, such as a power cord, a fax feature or USB cable, during a lightning storm.

CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must use either a printer stand or printer base if you are using a high-capacity tray or more than one option. If you purchased a printer with a similar configuration, you may need additional furniture. For more information, contact the place where you purchased the printer.

SAVE THESE INSTRUCTIONS.

Learning about the printer 7

Learning about the printer

Finding information about the printer

What are you looking for? Find it here

Initial setup instructions:

• Connecting the printer

Setup documentation—The setup documentation came with the printer.

• Installing the printer software

Additional setup and instructions for using the printer:

• Selecting and storing paper and specialty media

• Loading paper

• Configuring printer settings

User's Guide and Quick Reference Gu ide—The guides may be available on the Software and Documentation CD.

For more information, visit our Web site at

www.dell.com/support/manuals.

• Viewing and printing documents and photos

• Setting up and using the printer software

• Configuring the printer on a network

• Caring for and maintaining the printer

• Troubleshooting and solving problems

Instructions for:

• Connecting the printer to an Ethernet network

• Troubleshooting printer connection problems

Help using the prin ter software Windows or Mac Help—Open a printer software program

Networking Guide—Open the Software and Documentation CD, and then navigate to:

Documentation > User’s Guide and other publications > Networking Guide

or application, and then click Help.

?

Click

to view context‑sensitive information.

The latest supplemental information, updates, and technical support:

• Documentation

• Driver downloads

• Product upgrades

• Service call and repair information

• Order status

• Live chat support

• E‑mail support

• Voice support

Notes:

• Help is automatically installed with the printer

software.

• The printer software is located in the printer

program folder or on the desktop, depending on your operating system.

Dell support Web site—

www.dell.com/support/printers

Support telephone numbers and hours of operation for your country or region can be found on the support Web site.

Have the following information ready when you contact support so that they may serve you faster:

• Service tag

• Express service Code

Note: The service tag and express service code appear on labels located on your printer.

Learning about the printer 8

What are you looking for? Find it here

• Software and Drivers—Certified drivers for your printer and

installers for Dell printer software

• Readme files—Last‑minute technical changes, or advanced

technical reference materials for experienced users or technicians

• Supplies and accessories for your printer

• Replacement cartridges

• Safety information for preparing to operate your printer

• Regulatory information

• Warranty information

Software and Documentation CD

Dell printer supplies Web site–

You can purchase printer supplies online, by telephone, or in select retail stores.

Product Information Guide

Note: The Product Information Guide may not be available in your country or region.

www.dell.com/printers

Selecting a location for the printer

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more

trained personnel to lift it safely.

When selecting a location for the printer, leave enough room to open trays, covers, and doors. If you plan to install any options, then leave enough room for them also. It is important to:

• Set up the printer near a properly grounded and easily accessible electrical outlet.

• Make sure airflow in the room meets the latest revision of the ASHRAE 62 standard or the CEN Technical Committee

156 standard.

• Provide a flat, sturdy, and stable surface.

• Keep the printer: – Clean, dry, and free of dust. – Away from stray staples and paper clips. – Away from the direct airflow of air conditioners, heaters, or ventilators. – Free from direct sunlight and humidity extremes.

• Observe the recommended temperatures and avoid fluctuations:

Ambient temperature 15.6 to 32.2°C (60 to 90°F)

Storage temperature -40 to 43.3°C (-40 to 110°F)

• Allow the following recommended amount of space around the printer for proper ventilation:

Learning about the printer 9

5

4

1

3

2

1 Right side 152 mm (6 in.)

2 Front 508 mm (20 in.)

3 Left side 152 mm (6 in.)

4 Rear 152 mm (6 in.)

5 Top 115 mm (4.5 in.)

Printer configurations

Basic model

1

2

1

4

3

1 Standard bin

2 Printer control panel

3 Multipurpose feeder

4 Standard 550‑sheet tray (Tray 1)

Learning about the printer 10

Fully configured model

CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must

use either a printer stand or printer base if you are using a high-capacity tray or more than one option. If you purchased a printer with a similar configuration, you may need additional furniture. For more information, contact the place where you purchased the printer.

The following illustration shows the maximum number of optional finishers and trays that are supported by the printer. For more information on other configurations, visit our Web site.

6

5

4

3

2

1 High‑capacity output expander

2 Caster base

3 2100‑sheet tray

4 550‑sheet tray

Note: A lockable 550‑sheet tray is also available. For more information, contact the place where you purchased

the printer.

1

5 4‑bin mailbox

6 Stapler finisher

Notes:

• When using a staple finisher and 4‑bin mailbox, the staple finisher must always be on top.

• Do not install any finisher on top of the high‑capacity output expander.

• Always use a caster base when the printer is configured with a 2100‑sheet tray.

• The 2100‑sheet tray must always be at the bottom of a configuration.

• A maximum of four optional trays may be configured with the printer.

Learning about the printer 11

Using the printer control panel

3

4

7

5

6

Use the To

1 Display

10

1

9

2

8

• View the printer status.

• Set up and operate the printer.

2 Select button Submit changes made in the printer settings.

3 Arrow buttons Scroll up and down or left and right.

4 Keypad Enter numbers, letters, or symbols.

5 Sleep button Enable Sleep mode or Hibernate mode.

Do the following to wake the printer from Sleep mode:

• Press any hard button.

• Pull out Tray 1 or load paper in the multipurpose feeder.

• Open a door or cover.

• Send a print job from the computer.

• Perform a power‑on reset with the main power switch.

• Attach a device to the USB port on the printer.

6 Stop or Cancel button Stop all printer activity.

7 Back button Return to the previous screen.

8 Home button Go to the home screen.

9 Indicator light Check the status of the printer.

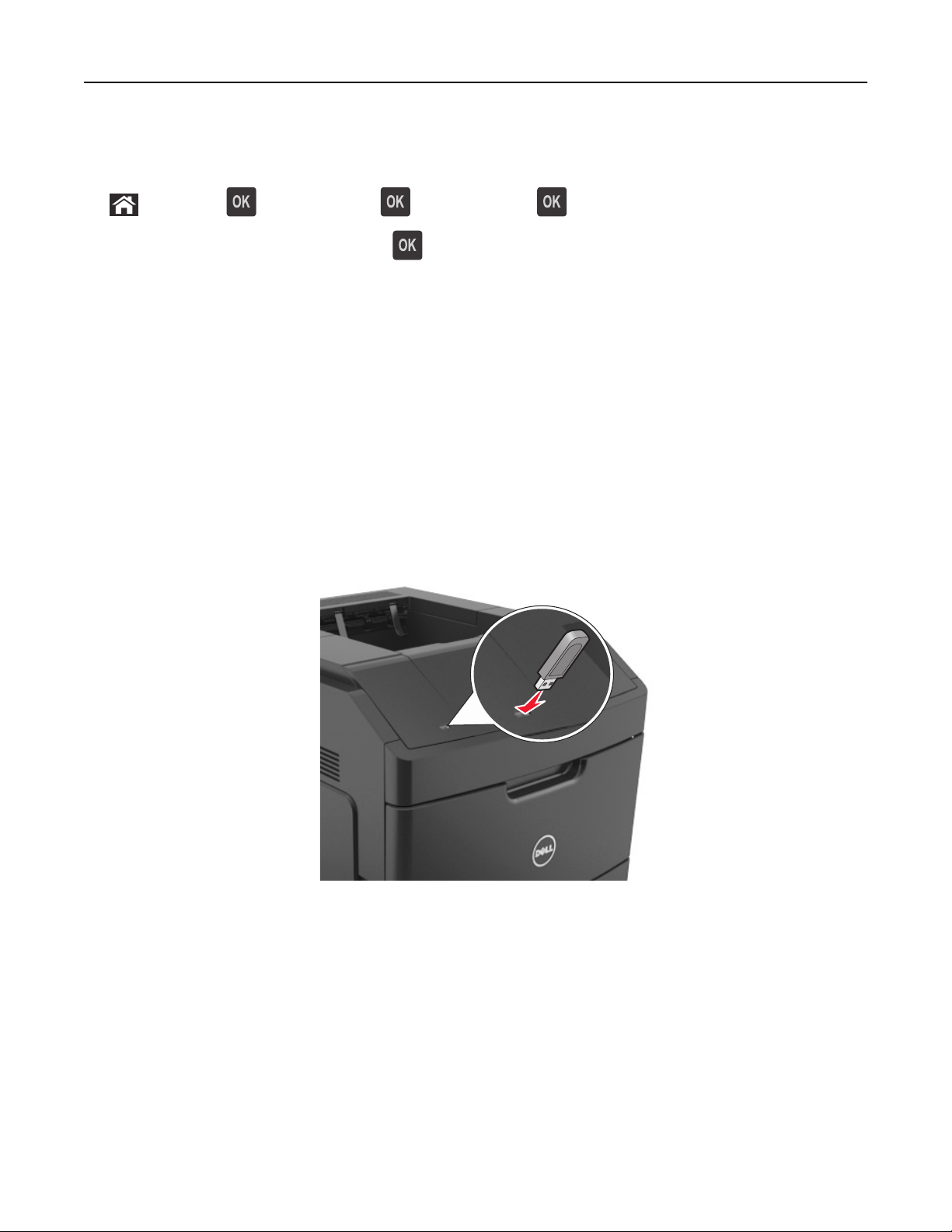

10 USB port Connect a flash drive to the printer.

Note: Only the front USB port supports flash drives.

Understanding the colors of the Sleep button and indicator lights

The colors of the Sleep button and indicator l ights on the printer control panel signify a certain printer s tatus or condition.

Learning about the printer 12

Indicator light Printer status

Off The printer is off or in Hibernate mode.

Blinking green The printer is warming up, processing data, or printing.

Solid green The printer is on, but idle.

Blinking red The printer requires user intervention.

Sleep button light Printer status

Off The printer is off, idle or in Ready state.

Solid amber The printer is in Sleep mode.

Blinking amber The printer is entering or waking from Hibernate mode.

Blinking amber for 0.1 second, then goes completely off for 1.9 seconds in a slow, pulsing pattern

The printer is in Hibernate mode.

Additional printer setup 13

Additional printer setup

Installing internal options

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

memory devices sometime after setting up the printer, then turn the printer off, and then unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

Available internal options

Note: Some options are available only in select printer models. For more information, contact the place where you

purchased your printer.

• Memory card – DDR3 DIMM – Flash memory

• Fonts

• Firmware cards – Forms and Bar Code – PRESCRIBE – IPDS

• Printer hard disk

• Internal Solutions Ports (ISP)

Accessing the controller board

Note: This task requires a flat‑head screwdriver.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

1 Remove the controller board access cover.

1

2

Additional printer setup 14

2 Using a screwdriver, loosen the screws on the controller board shield.

3 Remove the shield.

1

2

4 Use the following illustration to locate the appropriate connector:

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.

Touch a metal surface on the printer first before touching any controller board electronic component or connector.

Additional printer setup 15

1

2

3

1 Internal Solutions Port or printer hard disk connector

2 Option card connector

3 Memory card connector

5 Align the screws with the holes on the shield, and then reattach the shield.

2

1

Additional printer setup 16

6 Tighten the screws on the shield.

7 Reattach the access cover.

1

2

Installing a memory card

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity. Touch something metal on the printer first before touching any controller board electronic components or connectors.

Additional printer setup 17

An optional memory card can be purchased separately and attached to the controller board.

1 Access the controller board.

For more information, see

“Accessing the controller board” on page 13.

2 Unpack the memory card.

Warning—Potential Damage: Do not touch the connection points along the edge of the card. Doing so may

cause damage.

3 Align the notch (1) on the memory card with the ridge (2) on the connector.

1

2

4 Push the memory card straight into the connector, and then push the card toward the controller board wall until

it clicks into place.

5 Reattach the controller board shield, and then the controller board access cover.

Additional printer setup 18

Installing an Internal Solutions Port

The controller board supports one optional Internal Solutions Port (ISP).

Note: This task requires a flat‑head screwdriver.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity. Touch something metal on the printer first before touching any controller board electronic components or connectors.

1 Access the controller board.

For more information, see

2 If an optional printer hard disk is installed, then remove the printer hard disk first.

For more information, see

3 Unpack the ISP kit.

“Accessing the controller board” on page 13.

“Removing a printer hard disk” on page 27.

1 ISP solution

1

2

4

3

2 Screw for attaching the plastic bracket to the ISP

3 Screws for attaching the ISP mounting bracket to the controller board shield

4 Plastic bracket

Additional printer setup 19

4 Remove the metal cover from the ISP opening.

a Loosen the screw.

b Lift the metal cover, and then pull it out completely.

1 2 3

5 Align the posts of the plastic bracket with the holes on the controller board cage, and then press the plastic bracket

on the controller board cage until it clicks into place. Make sure the cables are neatly tucked under the plastic bracket.

Additional printer setup 20

6 Install the ISP on the plastic bracket.

Note: Hold the ISP at an angle over the plastic bracket so that any overhanging connectors will pass through the

ISP opening in the controller board cage.

7 Lower the ISP toward the plastic bracket until the ISP is seated between the guides of the plastic bracket.

Additional printer setup 21

8 Use the provided thumbscrew for the ISP to attach the plastic bracket to the ISP.

Note: Turn the screw clockwise, enough to hold the ISP in place, but do not tighten it yet.

9 Attach the two provided screws to secure the ISP mounting bracket to the controller board shield.

10 Tighten the thumbscrew that is attached to the ISP.

Warning—Potential Damage: Do not screw it on too tightly.

11 Connect the ISP solution interface cable into the receptacle of the controller board.

Note: The plugs and receptacles are color-coded.

Additional printer setup 22

Installing an optional card

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity. Touch a metal surface on the printer before touching any controller board electronic components or connectors.

1 Access the controller board.

For more information, see

2 Unpack the optional card.

Warning—Potential Damage: Avoid touching the connection points along the edge of the card.

“Accessing the controller board” on page 13.

Additional printer setup 23

3 Holding the card by its sides, align the plastic pins (1) on the card with the holes (2) on the controller board.

1

2

4 Push the card firmly into place as shown in the illustration.

Warning—Potential Damage: Improper installation of the card may cause damage to the card and the

controller board.

Note: The entire length of the connector on the card must touch and be flushed against the controller board.

5 Close the controller board access door.

Note: When the printer software and any hardware options are installed, it may be necessary to manually add

the options in the printer driver to make them available for print jobs. For more information, see

available options in the print driver” on page 33.

“Adding

Installing a printer hard disk

Note: This task requires a flat‑head screwdriver.

Additional printer setup 24

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity. Touch something metal on the printer first before touching any controller board electronic components or connectors.

1 Access the controller board.

For more information, see

“Accessing the controller board” on page 13.

2 Unpack the printer hard disk.

3 Locate the appropriate connector on the controller board cage.

Note: If an optional ISP is currently installed, then the printer hard disk must be installed onto the ISP.

Additional printer setup 25

To install a printer hard disk onto the ISP:

a Remove the screws attached to the printer hard disk mounting bracket, and then remove the bracket.

b Align the standoffs of the printer hard disk to the holes in the ISP, and then press the printer hard disk down

until the standoffs are in place.

Installation warning: Hold only the edges of the printed circuit board assembly. Do not touch or press on the center of the printer hard disk. Doing so may cause damage.

c Insert the plug of the printer hard disk interface cable into the receptacle of the ISP.

Note: The plugs and receptacles are color‑coded.

Additional printer setup 26

4 Align the standoffs of the printer hard disk to the holes in the controller board cage, and then press the printer hard

disk down until the standoffs are in place.

Installation warning: Hold only the edges of the printed circuit board assembly. Do not touch or press on the center of the printer hard disk. Doing so may cause damage.

Note: Make sure the cables are neatly tucked under the printer hard disk.

5 Insert the plug of the printer hard disk interface cable into the receptacle of the controller board.

Note: The plugs and receptacles are color‑coded.

Additional printer setup 27

Removing a printer hard disk

Note: This task requires a flat‑head screwdriver.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or

memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

Additional printer setup 28

Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity. Touch a metal surface on the printer before touching any controller board electronic components or connectors.

1 Access the controller board.

For more information, see

“Accessing the controller board” on page 13.

2 Unplug the printer hard disk interface cable from the controller board, leaving the cable attached to the printer

hard disk. To unplug the cable, squeeze the paddle at the plug of the interface cable to disengage the latch before pulling out the cable.

Additional printer setup 29

3 Remove the screws holding the printer hard disk in place.

4 Remove the printer hard disk.

5 Set aside the printer hard disk.

Installing hardware options

Order of installation

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more

trained personnel to lift it safely.

Additional printer setup 30

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must use either a printer stand or printer base if you are using multiple input options. If you purchased a printer with a similar configuration, then you may need additional furniture. For more information, contact the place where you purchased the printer.

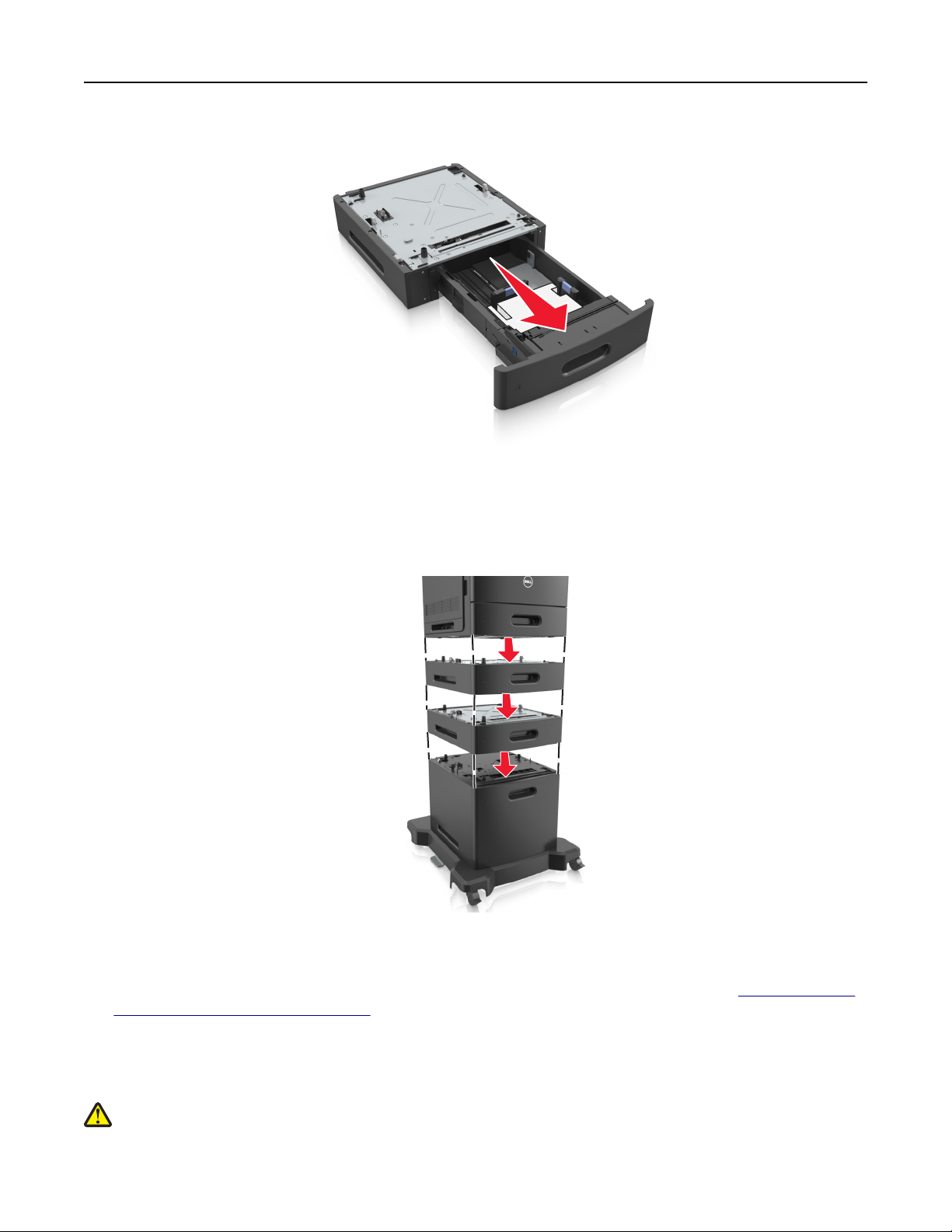

Install the printer and any hardware options you have purchased in the following order:

• Caster base

• 2100‑sheet tray or spacer

• Optional 550‑sheet tray

• Printer

For more information on installing a caster base, optional 550‑sheet tray, spacer, or 2100‑sheet tray, see the setup sheet that came with the option.

Installing optional trays

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more

trained personnel to lift it safely.

CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.

CAUTION—TIPPING HAZARD: Floor-mounted configurations require additional furniture for stability. You must use either a printer stand or printer base if you are using a high-capacity tray or more than one option. If you purchased a printer with a similar configuration, you may need additional furniture. For more information, contact the place where you purchased the printer.

1 Turn off the printer.

2 Unpack the optional tray, and then remove all packing material.
