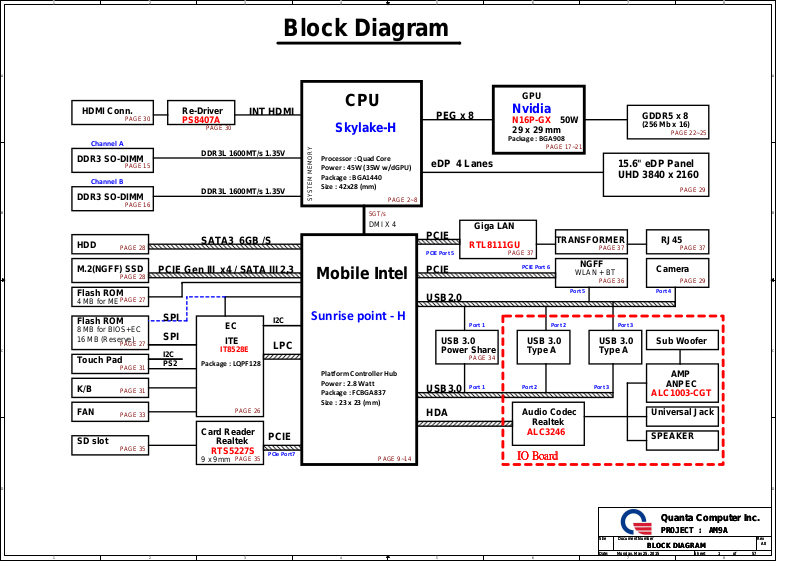

Block Diagram
A A
HDMI Conn.
PAGE 30
Re-Driver
PS8407A
PAGE 30
INT HDMI
CPU
PEG x 8
Skylake-H
Channel A
DDR3 SO-DIMM
PAGE 15
DDR3L 1600MT/s 1.35V
Channel B
DDR3 SO-DIMM
B B
M.2(NGFF) SSD
Flash ROM
4 MB for ME
Flash ROM
8 MB for BIOS+EC
16 MB (Reserve)
C C
Touch Pad
K/B
PAGE 16
PAGE 28
PAGE 28
PAGE 27
PAGE 27
PAGE 31
PAGE 31
PCIE Gen III x4 / SATA III 2,3
SPI
SPI
I2C
PS2
DDR3L 1600MT/s 1.35V
SATA3 6GB /S
EC
ITE
IT8528E
Package : LQPF128
I2C
LPC
Processor : Quad Core
Power : 45W (35W w/dGPU)
Package : BGA1440
Size : 42x28 (mm)
SYSTEM MEMORY
PAGE 2~8
5GT/s
DMI X 4
Mobile Intel
Sunrise point - H
Platform Controller Hub
Power : 2.8 Watt
Package : FCBGA837
eDP 4 Lanes
Giga LAN
PCIE
PCIE Port 5
RTL8111GUHDD
PCIE
USB2.0
Port 1
USB 3.0
Power Share
USB3.0
PAGE 34
Port 1
GPU
Nvidia
N16P-GX
29 x 29 mm
Package : BGA908
PAGE 37
PCIE Port 6
Port 2 Port 3
50W
PAGE 17~21
TRANSFORMER RJ45
Port 5
Port 2 Port 3
GDDR5 x 8
(256 Mb x 16)
15.6" eDP Panel
UHD 3840 x 2160
PAGE 37 PAGE 37
NGFF
WLAN + BT
USB 3.0USB 3.0
Type AType A
PAGE 22~25
PAGE 29
Camera
PAGE 29PAGE 36
Port 4
Sub Woofer
AMP
ANPEC
ALC1003-CGT
Size : 23 x 23 (mm)
FAN
PAGE 33
PAGE 26
HDA
Audio Codec
Universal Jack
Realtek
Card Reader
SD slot Realtek
PAGE 35
RTS5227S
9 x 9mm
PAGE 35
PCIE
PCIe Port7
PAGE 9~14
ALC3246
IO Board
IO Board
IO BoardIO Board
SPEAKER
D D
Quanta Computer Inc.
Quanta Computer Inc.
Quanta Computer Inc.
PROJECT :
PROJECT :
Size Document Number Rev
Size Document Number Rev
Size Document Number Rev
Date: Sheet of
Monday, May 25, 2015
Date: Sheet of
Monday, May 25, 2015
Date: Sheet of
1
2
3
4
5
6
Monday, May 25, 2015
7
PROJECT :
BLOCK DIAGRAM
BLOCK DIAGRAM
BLOCK DIAGRAM
AM9A
AM9A
AM9A
1 57
1 57
1 57
8
A0
A0
A0
5
4
3
2
1
Skylake Processor (DDR3-CH-A)
