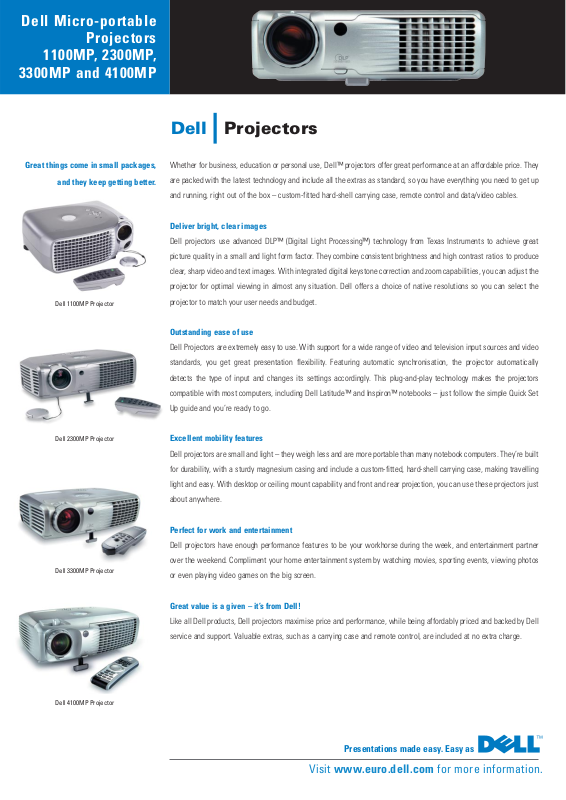

Dell 4100MP Product Sheet
Dell Micro-portable
Projectors
1100MP, 2300MP,
3300MP and 4100MP
Great things come in small packages,
and they keep getting better.
Whether for business, education or personal use, Dell™ projectors offer great performance at an affordable price. They
are packed with the latest technology and include all the extras as standard, so you have everything you need to get up
and running, right out of the box – custom-fitted hard-shell carrying case, remote control and data/video cables.
Deliver bright, clear images
Dell projectors use advanced DLP™ (Digital Light Processing™) technology from Texas Instruments to achieve great
picture quality in a small and light form factor. They combine consistent brightness and high contrast ratios to produce
clear, sharp video and text images. With integrated digital keystone correction and zoom capabilities, you can adjust the
projector for optimal viewing in almost any situation. Dell offers a choice of native resolutions so you can select the
projector to match your user needs and budget.
Outstanding ease of use
Dell Projectors are extremely easy to use. With support for a wide range of video and television input sources and video
standards, you get great presentation flexibility. Featuring automatic synchronisation, the projector automatically
detects the type of input and changes its settings accordingly. This plug-and-play technology makes the projectors
compatible with most computers, including Dell Latitude™ and Inspiron™ notebooks – just follow the simple Quick Set
Up guide and you’re ready to go.
Excellent mobility features
Dell projectors are small and light – they weigh less and are more portable than many notebook computers. They’re built
for durability, with a sturdy magnesium casing and include a custom-fitted, hard-shell carrying case, making travelling
light and easy. With desktop or ceiling mount capability and front and rear projection, you can use these projectors just
about anywhere.
Perfect for work and entertainment
Dell projectors have enough performance features to be your workhorse during the week, and entertainment partner
over the weekend. Compliment your home entertainment system by watching movies, sporting events, viewing photos
or even playing video games on the big screen.
Great value is a given – it’s from Dell!
Like all Dell products, Dell projectors maximise price and performance, while being affordably priced and backed by Dell
service and support. Valuable extras, such as a carrying case and remote control, are included at no extra charge.
Dell 4100MP Projector
Dell 3300MP Projector
Dell 2300MP Projector
Dell 1100MP Projector
Visit www.euro.dell.com for more information.
Dell Projectors
Presentations made easy. Easy as
Dell Micro-portable Projectors 1100MP, 2300MP, 3300MP and 4100MP
Pricing, specifications, availability and terms may change without notice. Dell’s Terms and Conditions of Sales and Service apply and are available on request and at www.euro.dell.com. DLP and Digital Light Processing are trademarks of Texas
Instruments, Incorporated. Dell, the Dell logo, Latitude and Inspiron are trademarks of Dell Computer Corporation. 1. Based on ANSI/NAPM IT7 .228-1997 tests of 73 units, September 2003, with average ANSI Lumens 1406. Bult brightness degrades
with usage. Dell recommends replacing your bulb after 2000 hours of usage. 2. Based on ANSI/NAPM IT7 .228-1997 tests of 15 units, January 2004, with average ANSI Lumens 1635. Bulb brightness degrades with usage. Dell recommends replacing
your bulb after 3000 hours of usage (up to 5000 hours in Eco-mode). 3. Based on ANSI/NAPM IT7 .228-1997 tests of 35 units, November 2003, with average ANSI Lumens 2131. Bulb brightness degrades with usage. Dell recommends replacing
your bulb after 1500 hours of usage. 4. Based on ANSI/NAPM IT7.228-1997 tests of 58 units, June 2004, with average ANSI Lumens 2113. Bulb brightness degrades with usage. Dell recommends replacing your bulb after 2000 hours of usage.
© 2004 Dell Computer Corporation. All rights reserved. Reproduction in any manner whatsoever without the express written permission of Dell Computer Corporation is strictly forbidden.
EU865/29April2005
Visit www.euro.dell.com for more information.
Presentations made easy. Easy as
Model Name
User Benefits
Projection Technology
Brightness
Native Resolution
Max. Sync Resolution
Contrast Ratio
Displayable Colours
Image Adjustment
Projection Lens
Zoom
Memory Card Reader
Keystone Correction
Projection Screen Size
Projection Distance
Video Compatibility
Horizontal Frequency
Vertical Frequency
Noise Output
Internal Loudspeaker
Bulb Type
Bulb Lifetime
Power Supply
Power Consumption
Power Saver Shutdown
I/O Connectors
Power
Computer Input
Monitor Loop-through
Video Input
Audio Input
Control Input/Output
Environmental
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Flexible orientation
Included Accessories
Optional Accessories
Weight
Dimensions (w x h x d)
Warranty
2300MP
Outstanding value and performance
Single chip DLP DDR technology
2300 ANSI Lumens (max)
4
XGA (1024 X 768)
UXGA (1600 x 1200)
2100:1 (Full On/Full Off)
16.7 million
Zoom, focus and vertical
keystone controls
F/2.4~2.7, f=28.0mm~33.6mm
1.2x manual zoom
None
Manual Vertical
0.6m-7.4m (diagonal)
1.2m – 12m
NTSC, NTSC 4.43, PAL, SECAM
(B/D/G/K/K1/L) and HDTV (480i/P, 576i/P,
720P, 1080i) Composite Video and
S-Video compatible
15kHz-70kHz
56Hz-85Hz
38 dBA (normal operation)
34 dBA (eco-mode)
One 2-watt speaker
200-watt, user-replaceable P-VIP lamp
2000 hours (up to 2500 hours in
Eco-mode)
Universal 100-240V AC, 50-60Hz
250W at normal operation
Yes
AC power input socket
15-pin D-sub for analogue
RGB/component, HDTV
One 15-pin D-sub
One composite video RCA, one
RGB/component and one S-Video
One 3.5mm phone jack for line
audio input
One mini-DIN RS-232 input
5°C to 35°C
80% maximum
-20°C to 60°C
80% maximum
Desktop or ceiling mountable and rear
or front projection
Carrying bag, remote control, power
cord, VGA cable (D-sub to D-sub),
S-video cable, USB cable, Composite
Video cable, D-sub to YPbPr cable, RCA
to Audio cable, mini pin to mini pin cable
Ceiling mount kit, replacement bulb kit,
Cable kit
2.13kg
277mm x 93mm x 206mm
One year (90 days on bulb)
3300MP
Small, light and bright
Single chip DLP DDR technology
1700 ANSI Lumens (max)
2
XGA (1024 x 768)
SXGA+ (1400 x 1050)
1700:1 (Full On/Full Off)
16.7 million
Zoom, focus and auto vertical
keystone controls
F/2.43~2.65, f=28.04mm~33.59mm
1.2x manual zoom
Optional 6-in-1 reader
Auto Vertical
0.6m-7.4m (diagonal)
1.2m – 12m
NTSC, NTSC 4.43, PAL, SECAM, HDTV
(480i/P, 576i/P, 720P and 1080i) Composite
Video and S-Video compatible
15kHz-80kHz
50Hz-85Hz
38 dBA (normal operation)
36 dBA (eco-mode)
One 2-watt speaker
180-watt, user-replaceable P-VIP lamp
3000 hours (up to 5000 hours in
Eco-Mode)
Universal 100-240V AC, 50-60 Hz
224W at normal operation
Yes
AC power input socket
One M1-DA for digital/component,
HDTV input
One 15-pin D-sub
One composite video (RCA); one S-Video
and one M1-DA for component HDTV
One 3.5mm phone jack for line
audio input
One mini-DIN RS-232 input
5˚C to 35˚C
80% maximum
-20˚C to 60˚C
80% maximum
Desktop or ceiling mountable and rear
or front projection
Carrying bag, remote control, power
cord, M1-A to D-sub/USB cable, S-video
cable, M1-A to HDTV cable, Composite
Video cable, RCA to Audio cable,
1/8" Mini Phone Jack cable
Ceiling mount kit, replacement bulb kit,
Cable kit
1.81kg
245mm x 84mm x 211mm
Two years (90 days on bulb)
4100MP
Super-bright and feature-rich
Single chip DLP™ DDR technology
2200 ANSI Lumens (max)
3
XGA (1024 X 768)
UXGA (1600 x 1200)
2000:1 (Full On/Full Off)
16.7 million
Zoom, focus, manual horizontal and
auto vertical keystone controls
F/2.43~2.66, f=28.0mm~33.6mm
1.2x digital and manual zoom
Optional 6-in-1 reader
Manual Horizontal & Auto Vertical
0.6m-7.4m (diagonal)
1.2m – 12m
NTSC, NTSC 4.43, PAL, SECAM and HDTV
(480i/P, 576i/P, 720P and 1080i) Composite
Video and S-Video compatible
15kHz-100kHz
43Hz-120Hz
36 dBA (normal operation)
33 dBA (eco-mode)
Two 2-watt speakers
250-watt, user-replaceable UHP lamp
1500 hours (up to 3000 hours in
Eco-mode)
Universal 90-240V AC, 50-60 Hz
310W at full power
Yes
AC power input socket
One M1-DA for analogue/digital/
component, HDTV input signals; one
D-sub 15-pin for analogue
input/component HDTV input
One 15-pin D-sub
One composite video (RCA); one S-Video
and one 3-pin component for HDTV
One 3.5mm phone jack for line
audio input
One mini-DIN RS-232 input
5˚C to 35˚C
80% maximum
-20˚C to 60˚C
80% maximum
Desktop or ceiling mountable and rear
or front projection
Carrying bag, remote control, power
cord, M1-A to D-sub/USB cable, S-video
cable, M1-A to HDTV cable, Composite
Video cable, RCA to Audio cable,
1/8" Mini Phone Jack cable
Ceiling mount kit, replacement bulb kit,
Cable kit
2.95kg
302mm x 251mm x 114.5mm
Two years (90 days on bulb)
1100MP
Great features, incredible value
Single chip DLP DDR technology
1400 ANSI Lumens (max)
1
SVGA (800 x 600)
SXGA+ (1400 x 1050)
2100:1 (Full On/Full Off)
16.7 million
Zoom, focus and auto vertical
keystone controls
F/2.5, f=28.8mm~34.5mm
1.2x manual zoom
None
Auto Vertical
0.7m - 7m (diagonal)
1.2m - 10m
NTSC, NTSC 4.43, PAL (B/D/G/H/I/M/N),
SECAM (B/D/G/K/K1/L) and HDTV (480i/P,
576i/P, 720P and 1080i) compatible
15kHz-70kHz
43Hz-85Hz
33.8 dBA (normal operation)
31.9 dBA (eco-mode)
One 2-watt speaker
200-watt, user-replaceable P-VIP lamp
2000 hours (up to 2500 hours in
Eco-Mode)
Universal 100-240V AC, 50-60Hz
250W at normal operation
Yes
AC power input socket
15-pin D-sub for analogue
RGB/component, HDTV
One 15-pin D-sub
One composite video RCA one RGB/
component (via DB 15) and one S-Video
One 3.5mm phone jack for line
audio input
None
5°C to 35°C
80% maximum
-20°C to 60°C
80% maximum
Desktop or ceiling mountable and rear
or front projection
Carrying bag, Remote Control, Power
cord, VGA cable (D-sub to D-sub),
S-video cable, USB cable, Composite
Video cable, D-sub to YPbPr cable, RCA
to Audio cable, mini pin to mini pin cable
Ceiling mount kit, replacement bulb kit,
Cable kit
2.2kg
251mm x 213mm x 101mm
One year (90 days on bulb)
DLP™technology
by Texas Instruments
offers crystal-clear
images with
superior quality.
