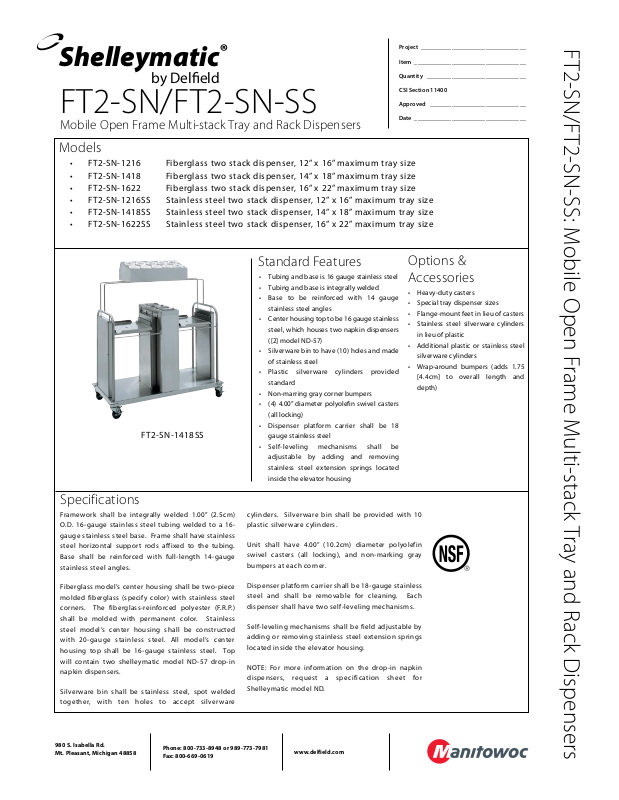

Delfield FT2-SN-1216 User Manual
Shelleymatic
®
by Deleld
FT2-SN/FT2-SN-SS
Mobile Open Frame Multi-stack Tray and Rack Dispensers
Models
FT2-SN- 121 6 Fib erglass two stack di spe nse r, 12” x 16” maximum tray size
•
FT2-SN- 141 8 Fib erglass two stack di spe nse r, 14” x 18” maximum tray size
•
FT2-SN- 162 2 Fib erglass two stack di spe nse r, 16” x 22” maximum tray size
•
FT2-SN- 121 6SS Stai nle ss stee l two stack dispenser, 12 ” x 16” maximum tray size
•
FT2-SN- 141 8SS Stai nle ss stee l two stack dispenser, 14 ” x 18” maximum tray size
•
FT2-SN- 162 2SS Stai nle ss stee l two stack dispenser, 16 ” x 22” maximum tray size
•
Project ___ ____________________ ___________
Item _________________ ___________________
Quantity _________________ _______________
CSI Sec tion 11400
Approved ____________ ___________________
Date ____ _____________________ ___________
FT2-SN/FT2-SN-SS: Mobile Open Frame Multi-stack Tray and Rack Dispensers
FT2-SN- 141 8SS
Specifications
Fra mework shall be integrally we lded 1.00” ( 2.5c m)
O.D. 16- gauge sta inle ss stee l tubing weld ed to a 16-
gauge stainles s steel base. Fr ame shall have stainless
ste el horizontal s uppo rt ro ds affixe d to th e tub ing.
Base sh all b e r einfo rced wi th fu ll-l engt h 14- gaug e
stainless steel angl es.
Standard Features
Tubing and base is 16 gauge stainless steel
•
Tubing and base is integrally welded
•
Base to be reinforced with 14 gauge
•
stainless steel angles
Center housing top to be 16 gauge stainless
•
steel, which houses two napkin dispensers
([2] model ND-57)
Silverware bin to have (10) holes and made
•
of stainless steel
Plas tic silverw are cyli nders provided
•
standard
Non-marring gray corner bumpers
•
(4) 4.00” diameter polyolefin swivel casters
•
(all locking)
Dispenser platform carr ier shall be 18
•
gauge stainless steel
Sel f-leveli ng mec hanisms sha ll be
•
adjustable by ad ding and removi ng
stainless steel extension springs located
inside the elevator housing
cy linders. Sil verw are bin shall be pr ovided with 10
plastic silver ware c ylin ders .
Unit shall ha ve 4.00” (10 .2cm) dia meter pol yolefin
swive l ca ster s (a ll l ocki ng), a nd n on-marki ng g ray
bumpers at e ach corn er.
Options &
Accessories
•
•
•
•
•
•
Heavy-duty casters
Special tray dispenser sizes
Flange-mount feet in lieu of casters
Stainless steel silver ware cylinders
in lieu of plastic
Additional plastic or stainless steel
silverware cylinders
Wrap-around bumpers (adds 1.75
[4.4cm] to over all length and
depth)
Fib erglass model’s center housing shall be two- piece
molded fiberglass (specify color) with stainless steel
cor ners . The f iberglass-reinfor ced p olyeste r ( F.R .P.)
shall be m olded with p erma nent c olor. Stainless
ste el m odel ’s center hou sing shall b e construc ted
wi th 20 -gaug e s tainl ess s teel . A ll mo del ’s cent er
housing t op shall be 16-ga uge s tain less st eel. Top
will co ntain two s hell eymati c mod el ND- 57 dr op-i n
napk in d ispe nsers.
Silve rware bi n sh all be stainless steel, spo t wel ded
to gethe r, wi th ten holes to ac cep t silv erw are
980 S. I sabella Rd.
Mt. Pleasa nt, Michigan 4885 8
Phone: 800 -733-8948 or 989 -773-7981
Fax: 800-669-0 619
Dispenser p latfor m car rier shall be 1 8-ga uge stainless
stee l an d sha ll b e removab le f or cle anin g. Each
dispenser shal l ha ve t wo s elf- level ing mech anis ms.
Self-leveling mechanisms shall be field adjustable by
adding or removing stai nless ste el exte nsion spr ings
located inside t he e leva tor housin g.
NOT E: Fo r more in form ation on the drop -in na pkin
di spe nse rs, req ues t a s pec ifi cat ion she et f or
Shelleymatic m odel ND.
www.delfield.co m
Shelleymatic
®
by Deleld
FT2-SN-1216, FT2-SN-1216-SS
45.50”
115.6cm
43.75”
111.1cm
22.12”
26.2cm
23.88”
60.7cm
56.37”
143.2cm
37.75”
95.9cm
5.00”
12.7cm
45.50”
115.6cm
43.75”
111.1cm
22.12”
26.2cm
23.88”
60.7cm
49.50”
125.7cm
47.75”
121.3cm
22.12”
26.2cm
23.88”
60.7cm
53.50”
135.9cm
51.75”
131.4cm
22.12”
26.2cm
23.88”
60.7cm
Plan View
FT2-SN-1418, FT2-SN-1418-SS
Plan View
FT2-SN-1622, FT2-SN-1622-SS
Plan View
Mobile Open Frame Multi-stack Tray and Rack Dispensers
Elevation View
FT2-SN/FT2-SN-SS
Deleld reserves the right to make changes to the design or specications without prior notice.
980 S. I sabella Rd.
Mt. Pleasa nt, Michigan 4885 8
All Models
Phone: 800 -733-8948 or 989 -773-7981
Fax: 800-669-0 619
www.delfield.co m
Right End View
All Models
Specifi cat ion s
Model Maximum Tray Size Ship Weight
FT2-SN- 121 6,
FT2-SN- 121 6SS
FT2-SN- 141 8,
FT2-SN- 141 8SS
FT2-SN- 162 2,
FT2-SN- 162 2SS
(30.5cm x 40. 6cm )
(35.6cm x 45. 7cm )
(40.6cm x 55. 9cm )
Printed in the U.S.A.
DSFT2-SN
01/09
12" x 1 6"
14" x 1 8"
16" x 2 2"
284lbs/ 129 kg
298lbs/ 135 kg
306lbs/ 139 kg
