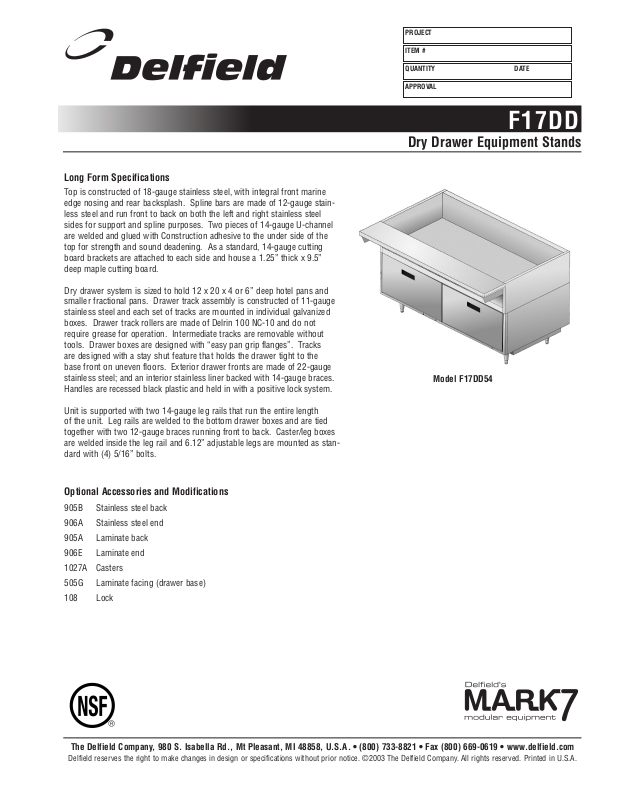

Long Form Specifications

Top is constructed of 18-gauge stainless steel, with integral front marine edge nosing and rear backsplash. Spline bars are made of 12-gauge stainless steel and run front to back on both the left and right stainless steel sides for support and spline purposes. Two pieces of 14-gauge U-channel are welded and glued with Construction adhesive to the under side of the top for strength and sound deadening. As a standard, 14-gauge cutting board brackets are attached to each side and house a 1.25” thick x 9.5” deep maple cutting board.

Dry drawer system is sized to hold 12 x 20 x 4 or 6” deep hotel pans and smaller fractional pans. Drawer track assembly is constructed of 11-gauge stainless steel and each set of tracks are mounted in individual galvanized boxes. Drawer track rollers are made of Delrin 100 NC-10 and do not require grease for operation. Intermediate tracks are removable without tools. Drawer boxes are designed with “easy pan grip flanges”. Tracks are designed with a stay shut feature that holds the drawer tight to the base front on uneven floors. Exterior drawer fronts are made of 22-gauge stainless steel; and an interior stainless liner backed with 14-gauge braces. Handles are recessed black plastic and held in with a positive lock system.

PROJECT

ITEM #

QUANTITY DATE

APPROVAL

F17DD

Dry Drawer Equipment Stands

Model F17DD54

Unit is supported with two 14-gauge leg rails that run the entire length of the unit. Leg rails are welded to the bottom drawer boxes and are tied together with two 12-gauge braces running front to back. Caster/leg boxes are welded inside the leg rail and 6.12” adjustable legs are mounted as standard with (4) 5/16” bolts.

Optional Accessories and Modifications

905B Stainless steel back

906A Stainless steel end

905A Laminate back

906E Laminate end

1027A Casters

505G Laminate facing (drawer base)

108 Lock

The Delfield Company, 980 S. Isabella Rd., Mt Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com

32" [81.3cm]

37.25"

[94.6cm]

37.25"

[94.6cm]

46" [116.8cm]

54" [137.2cm]

73" [185.4cm]

81" [205.7cm]

19" (48.3cm)

DRY DRAWE

32" (81.3cm

)

DRY DRAWE

64" [162.6cm]

37.25"

[94.6cm]

37.25"

[94.6cm]

37.25"

[94.6cm]

37.25"

[94.6cm]

27" (68.6cm)

Y DRAWER

27" (68.6cm)

DRY DRAWE

32" (81.3cm)

DRY DRAWE

32" (81.3cm

)

DRY DRAWE

27" (68.6cm)

DRY DRAWER

27" (68.6cm)

DRY DRAWE

27" (68.6cm

)

DRY DRAWER

27" (68.6cm)

DRY DRAWER

27" (68.6cm)

DRY DRAWE

27" (68.6cm

)

DRY DRAWE

19" (48.3cm)

DRY DRAWE

ELEVATION VIEW

F17DD32

ELEVATION VIEW

F17DD54

ELEVATION VIEW

F17DD73

ELEVATION VIEW

F17DD81

96" [243.8cm]

37.25"

[94.6cm]

32" (81.3cm)

DRY DRAWER

32" (81.3cm)

DRY DRAWER

32" (81.3cm)

DRY DRAWER

ELEVATION VIEW

F17DD96

ELEVATION VIEW

F17DD64

ELEVATION VIEW

F17DD46

30.74"

[78.1cm]

9.5"

[24cm]

PLAN VIEW

ALL MODELS

F17DD

Dry Drawer Equipment Stands

Mechanical Data–Standard Unit

MODEL NUMBER 12X20X6 PAN MODEL SHIP

NUMBER OF DRAWERS CAPACITY LENGTH WEIGHT

F17DD32 F17DD46

F17DD54

F17DD64

F17DD73

F17DD81

F17DD96

NOTE: 12” x 20” x 6” deep pans are not included.

The Delfield Company, 980 S. Isabella Rd., Mt Pleasant, MI 48858, U.S.A. • (800) 733-8821 • Fax (800) 669-0619 • www.delfield.com

(1) 32” 2 32” (81.3cm) 290 lbs/ 131 kg

(1) 19” (1) 27” 3 46” (116.8cm) 350 lbs/ 159 kg

(2) 27” 4 54” (137.2cm) 390 lbs/ 177 kg

(2) 32” 4 64” (162.6cm) 430 lbs/ 195 kg

(1) 19 (2) 27” 5 73” (185.4cm) 475 lbs/ 215 kg

(3) 27” 6 81” (205.7cm) 520 lbs/ 236 kg

(3) 32” 6 96” (243.8cm) 600 lbs/ 272 kg

DS17DD 04/03

(19", 24", 32" drawers)

26.08" (66.24cm)

28.18 (71.57cm) (27" drawers)

91.44cm

19.38cm

36"

7.63"

22.41"

56.92cm

6.13"

15.57cm

6.13"

15.57cm

7.63"

19.38cm

30.74"

78.08cm

30.74"

78.08cm

36"

91.44cm

22.41"

56.92cm

END

VIEW

ALL

MODELS
