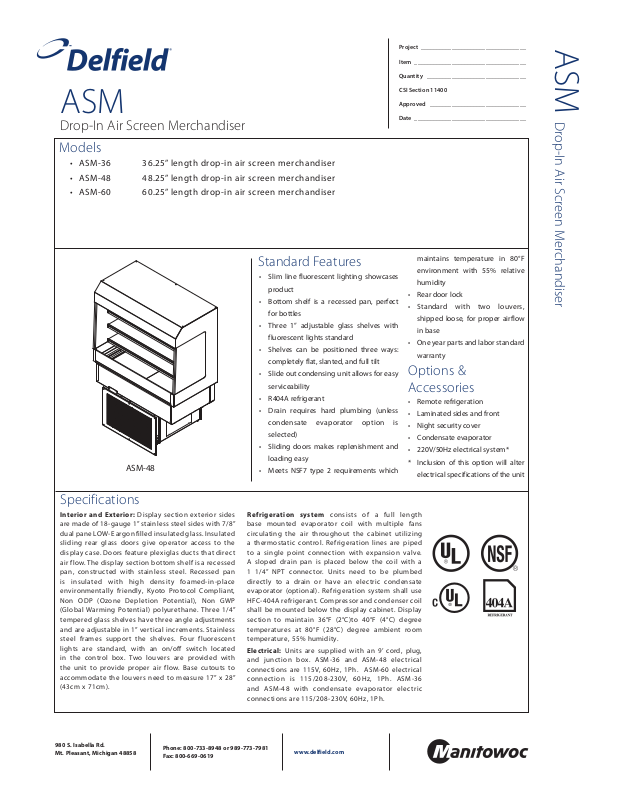

Delfield ASM-48 User Manual
ASM
Drop-In Air Screen Merchandiser
Models
• ASM-36 36.25” length drop-in air screen merchandiser
• ASM-48 48.25” length drop-in air screen merchandiser
• ASM-60 60.25” length drop-in air screen merchandiser
Project __________________________________
Item ____________________________________
Quantity ________________________________
CSI Section 11400
Approved _______________________________
Date ____________________________________
ASM Drop-In Air Screen Merchandiser
ASM-48
Specifications
Interior and Exterior: Display section exterior sides
are made of 18-gauge 1” stainless steel sides with 7/8”
dual pane LOW-E argon filled insulated glass. Insulated
sliding rear glass doors give operator access to the
display case. Doors feature plexiglas ducts that direct
air flow. The display section bottom shelf is a recessed
pan, constructed with stainless steel. Recessed pan
is insulated with high density foamed-in-place
environmentally friendly, Kyoto Protocol Compliant,
Non ODP (Ozone Depletion Potential), Non GWP
(Global Warming Potential) polyurethane. Three 1/4”
tempered glass shelves have three angle adjustments
and are adjustable in 1” vertical increments. Stainless
steel frames support the shelves. Four fluorescent
lights are standard, with an on/off switch located
in the control box. Two louvers are provided with
the unit to provide proper air flow. Base cutouts to
accommodate the louvers need to measure 17” x 28”
(43cm x 71cm).
Standard Features
• Slim line fluorescent lighting showcases
product
• Bottom shelf is a recessed pan, perfect
for bottles
• Three 1” adjustable glass shelves with
fluorescent lights standard
• Shelves can be positioned three ways:
completely flat, slanted, and full tilt
• Slide out condensing unit allows for easy
serviceability
• R404A refrigerant
• Drain requires hard plumbing (unless
condensate evaporator option is
selected)
• Sliding doors makes replenishment and
loading easy
• Meets NSF7 type 2 requirements which
Refrigeration system consists of a full length
base mounted evaporator coil with multiple fans
circulating the air throughout the cabinet utilizing
a thermostatic control. Refrigeration lines are piped
to a single point connection with expansion valve.
A sloped drain pan is placed below the coil with a
1 1/4” NPT connector. Units need to be plumbed
directly to a drain or have an electric condensate
evaporator (optional). Refrigeration system shall use
HFC-404A refrigerant. Compressor and condenser coil
shall be mounted below the display cabinet. Display
section to maintain 36°F (2°C)to 40°F (4°C) degree
temperatures at 80°F (28°C) degree ambient room
temperature, 55% humidity.
Electrical: Units are supplied with an 9’ cord, plug,
and junction box. ASM-36 and ASM-48 electrical
connections are 115V, 60Hz, 1Ph. ASM-60 electrical
connection is 115/208-230V, 60Hz, 1Ph. ASM-36
and ASM-48 with condensate evaporator electric
connections are 115/208-230V, 60Hz, 1Ph.
maintains temperature in 80°F
environment with 55% relative
humidity
• Rear door lock
• Standard with two louvers,
shipped loose, for proper airflow
in base
• One year parts and labor standard
warranty
Options &
Accessories
• Remote refrigeration
• Laminated sides and front
• Night security cover
• Condensate evaporator
• 220V/50Hz electrical system*
* Inclusion of this option will alter
electrical specifications of the unit
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
www.delfield.com
36.25”
92cm
48.25”
123cm
60.25”
153cm
25.93”
66cm
63.48”
161cm
38.65”
98cm
25.93”
66cm
25.93”
66cm
Plan View, ASM-36 Plan View, ASM-48 Plan View, ASM-60
66.48”
169cm
58.50”
149cm
34.50”
88cm
63.48”
161cm
46.50”
118cm
Elevation View, ASM-36 Elevation View, ASM-48 Elevation View, ASM-60
12.50”
32cm
12.50”
32cm
12.50”
32cm
38.65”
98cm
12.50”
32cm
12.50”
32cm
12.50”
32cm
24.83”
63cm
24.87”
63cm
Drop-In Air Screen Merchandiser
Left Section View,
ASM-36, ASM-48
Right Side View,
ASM-36, ASM-48
Specifications
Model W D H Cutout Dimensions Display
ASM-36
ASM-48
ASM-60
ASM
Deleld reserves the right to make changes to the design or specications without prior notice.
980 S. Isabella Rd.
Mt. Pleasant, Michigan 48858
36.25”
92 cm
48.25”
123 cm
60.25”
153 cm
26.00”
66 cm
26.00”
66 cm
26.00”
66 cm
63.48”
161 cm
63.48”
161 cm
66.48”
169 cm
Phone: 800-733-8948 or 989-773-7981
Fax: 800-669-0619
www.delfield.com
35.13” x 25.50”
47.13” x 25.50”
120cm x 65cm
59.13” x 25.50”
150cm x 65cm
89cm x 65cm
Printed in the U.S.A.
DSASM
07/11
27.83”
71cm
Storage
3
8.2ft
11.3ft
14.4ft
24.87”
63cm
Left Section View,
ASM-60
Right Side View,
ASM-60
Electrical H.P. Amps NEMA
115V-60Hz-1Ph 1/2 10.8 5-15P
3
115V-60Hz-1Ph 3/4 12.8 5-20P
115/208-230V-
3
60Hz-1Ph
1 12.8 14-20P
Plug
