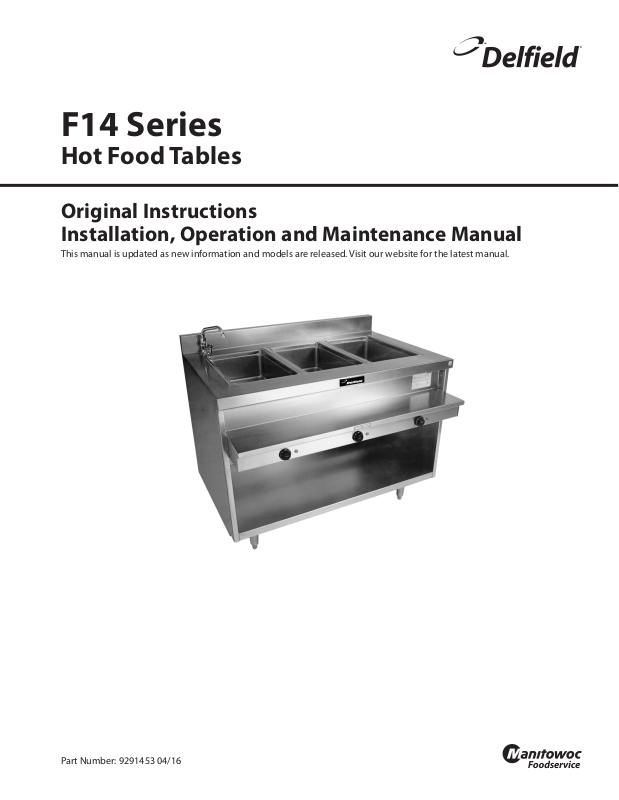

Delfield 48376 Operators Manual
F14 Series
Hot Food Tables
Original Instructions
Installation, Operation and Maintenance Manual
This manual is updated as new information and models are released. Visit our website for the latest manual.
Part Number: 9291453 04/16
Safety Notices
Warning
n
Read this manual thoroughly before operating, installing
or performing maintenance on the equipment. Failure
to follow instructions in this manual can cause property
damage, injury or death.
DANGER
Do not install or operate equipment that has been
misused, abused, neglected, damaged, or altered/
modified from that of original manufactured
specifications.
Warning
n
Authorized Service Representatives are obligated to
follow industry standard safety procedures, including,
but not limited to, local/national regulations for
disconnection / lock out / tag out procedures for all
utilities including electric, gas, water and steam.
Warning
n
Do not store or use gasoline or other flammable vapors
or liquids in the vicinity of this or any other appliance.
Never use flammable oil soaked cloths or combustible
cleaning solutions, for cleaning.
Warning
n
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
concerning use of the appliance by a person responsible
for their safety. Do not allow children to play with this
appliance.
Notice
Proper installation, care and maintenance are
essential for maximum performance and trouble-free
operation of your equipment. Visit our website www.
mtwkitchencare.com for manual updates, translations,
or contact information for service agents in your area.
Warning
n
This product contains chemicals known to the State
of California to cause cancer and/or birth defects or
other reproductive harm. Operation, installation, and
servicing of this product could expose you to airborne
particles of glasswool or ceramic fibers, crystalline
silica, and/or carbon monoxide. Inhalation of airborne
particles of glasswool or ceramic fibers is known to the
State of California to cause cancer. Inhalation of carbon
monoxide is known to the State of California to cause
birth defects or other reproductive harm.
Section 1
General Information
Section 2
Installation
Section 3
Operation
Table of Contents
Model Numbers .................................................................................................................. 5
Serial Number Location ..................................................................................................... 5
Warranty Information ........................................................................................................ 5
Regulatory Certifications ..................................................................................................5
Location ..............................................................................................................................6
Weight of Equipment .........................................................................................................7
Clearance Requirements ....................................................................................................7
Dimensions ......................................................................................................................... 7
Electrical Service ................................................................................................................ 8
Leg Leveling ........................................................................................................................9
Plumbing.............................................................................................................................9
Section 4
Maintenance
F14EI Series (Individual Wells) ........................................................................................10
Wet operation ....................................................................................................................................... 10
Dry operation ........................................................................................................................................ 10
Temperature ..........................................................................................................................................10
F14EW Series (Single Tank) ..............................................................................................11
Wet operation ....................................................................................................................................... 11
Temperature ..........................................................................................................................................11
F14EI-ESP Series (Energy Saving Power) ........................................................................11
Wet Operation ...................................................................................................................................... 11
Dry Operation ....................................................................................................................................... 11
F14EI-ESP Series Temperature Control Operation .........................................................12
General ..............................................................................................................................14
Stainless Steel Cleaning ...................................................................................................14
Food Wells .........................................................................................................................14
Drain ..................................................................................................................................14
Part Number: 9291453 04/16 3
Table of Contents (continued)
THIS PAGE INTENTIONALLY LEFT BLANK
4 Part Number: 9291453 04/16
Section 1
General Information
Model Numbers
This manual covers standard units only.
NOTE: For custom units, consult Manitowoc KitchenCare at
1-844-724-CARE.
Domestic Electric With Individual Wells
F14EI232
F14EI348
F14EI460
F14EI572
F14EI688
Domestic Electric With Single Tank
F14EW232
F14EW348
F14EW460
F14EW572
F14EW688
Export Electric With Individual Wells
F14EI232-E F14EI232-ESP-E
F14EI348-E F14EI348-ESP-E
F14EI460-E F14EI460-ESP-E
F14EI572-E F14EI572-ESP-E
F14EI688-E F14EI688-ESP-E
Serial Number Location
The serial number on all F14 Series hot food tables is
printed on the tag located on the plate shelf.
Always have the serial number of your unit available when
calling for parts or service.
Warranty Information
• Register your product for warranty.
• Verify warranty information.
• View and download a copy of your warranty.
@ www.delfield.com/minisite/service/warranty_info
Regulatory Certifications
Domestic Models are certified by:
•
•
•
Export Models are certified by:
•
• European Conformity
• Technical Inspection Association
National Sanitation Foundation (NSF)
Underwriters Laboratories (UL)
Underwriters Laboratories of Canada (CUL)
National Sanitation Foundation (NSF)
Export Electric With Single Tank
F14EW232-E
F14EW348-E
F14EW460-E
Part Number: 9291453 04/16 5
